Temperature gauges

RAF temperature gauges are generic instruments, the aircraft shown in our adds did use the temp gauges shown but they may of coarse been used in a different type of aircraft. Voltage is some indicator of use, Fighters usually used a 12 Volt gauge where as Twin Engine or bigger Bomber aircraft generally used 24 volt. If you are not sure what Temp gauge you require then please contact us and I will do my best to advise you on the most suitable purchase.

Use the links under to navigate the instrument pages

Page 1 Instruments Home       Page 2 Airspeed Indicators       Page 3 Altimeters       Page 4 Boost Gauges       Page 5 Clocks & Compasses

Page 6 Climb & Descend      Page 7 Directional Indicators & Artificial Horizon       Page 8 Fuel Gauges       Page 9 Flap Indicators

 Page 10 Brake Gauges      Page 11 Oxygen Gauges      Page 12 Pressure Gauges      Page13 Revolution Counters      Page 14 Temperature Gauges

  Page 15 Turn & Slip       Page 16 Undercarriage Indicators      Page 17 Trim Gauges      Page 18 Volt & Ammeter

Click on the pictures to enlarge

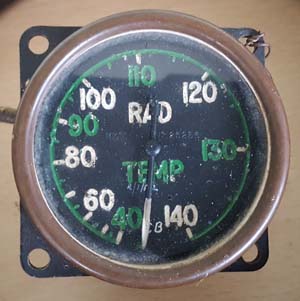

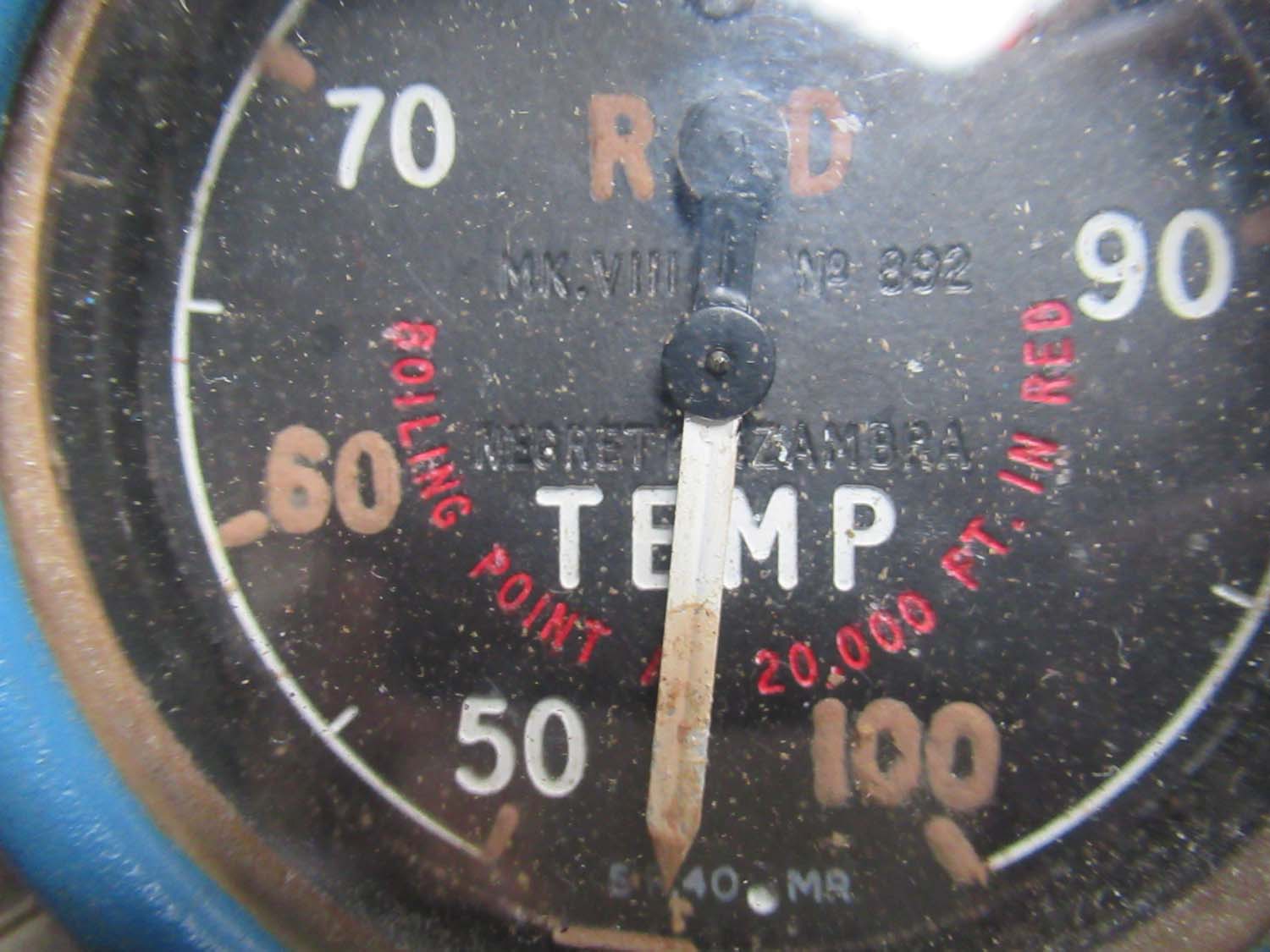

MK VIII 1940 dated Rad Temp Gauge (Page 14 temp gauges 30)

This is stunning early Radiator temperature gauge by Negretta and Zambra.

This gauge was used in pre war and early wartime aircraft including the MK I and II Spitfire.

It is 100% complete with an intact capillary.

 I have tested it and it responds to an increase in temperate the capillary being intact.

These early blue round rad temp gauges are very hard to find in any condition let alone intact and working.

This has the added attraction of having a Battle of Britain 1940 date.

Click on the pictures to enlarge

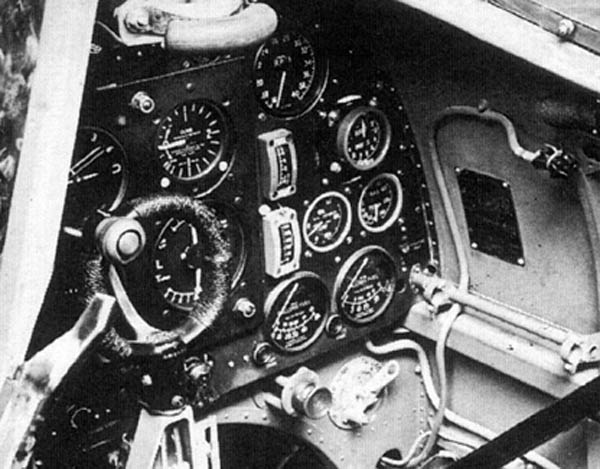

Seen in situ above right in a MK I Spitfire the rad and oil temp gauges fitted just above the RHS fuel gauge



£595

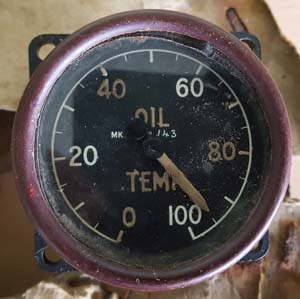

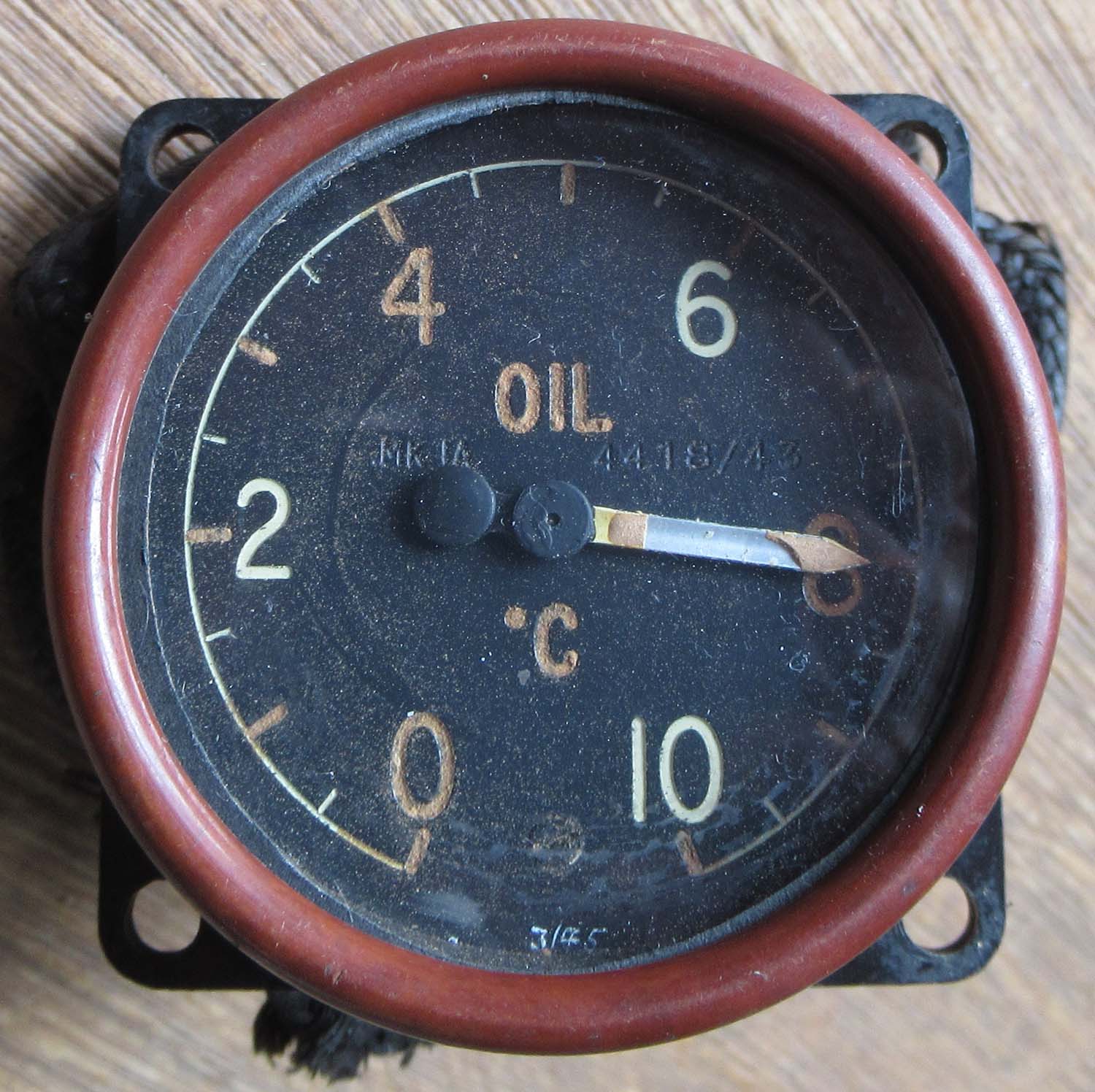

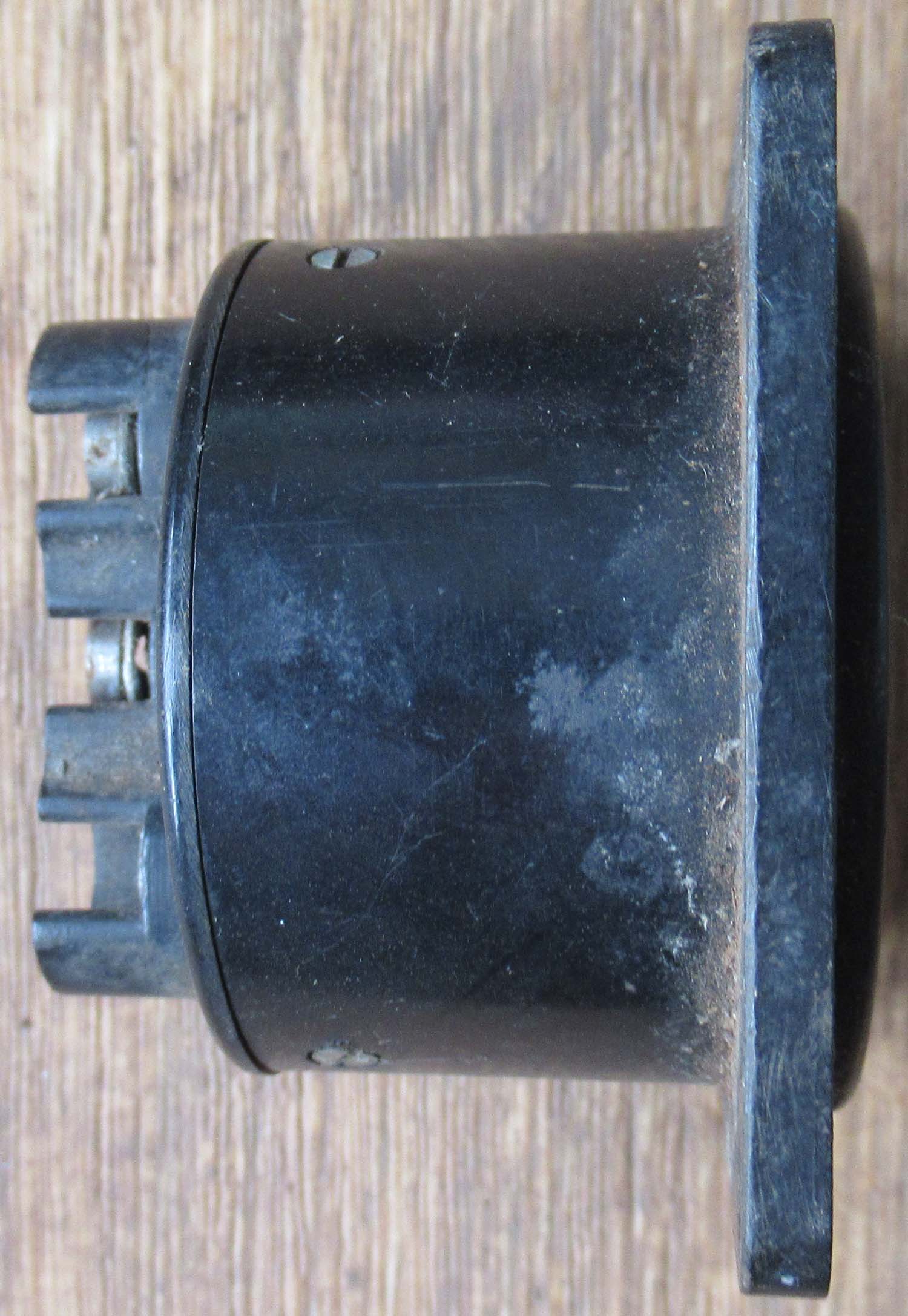

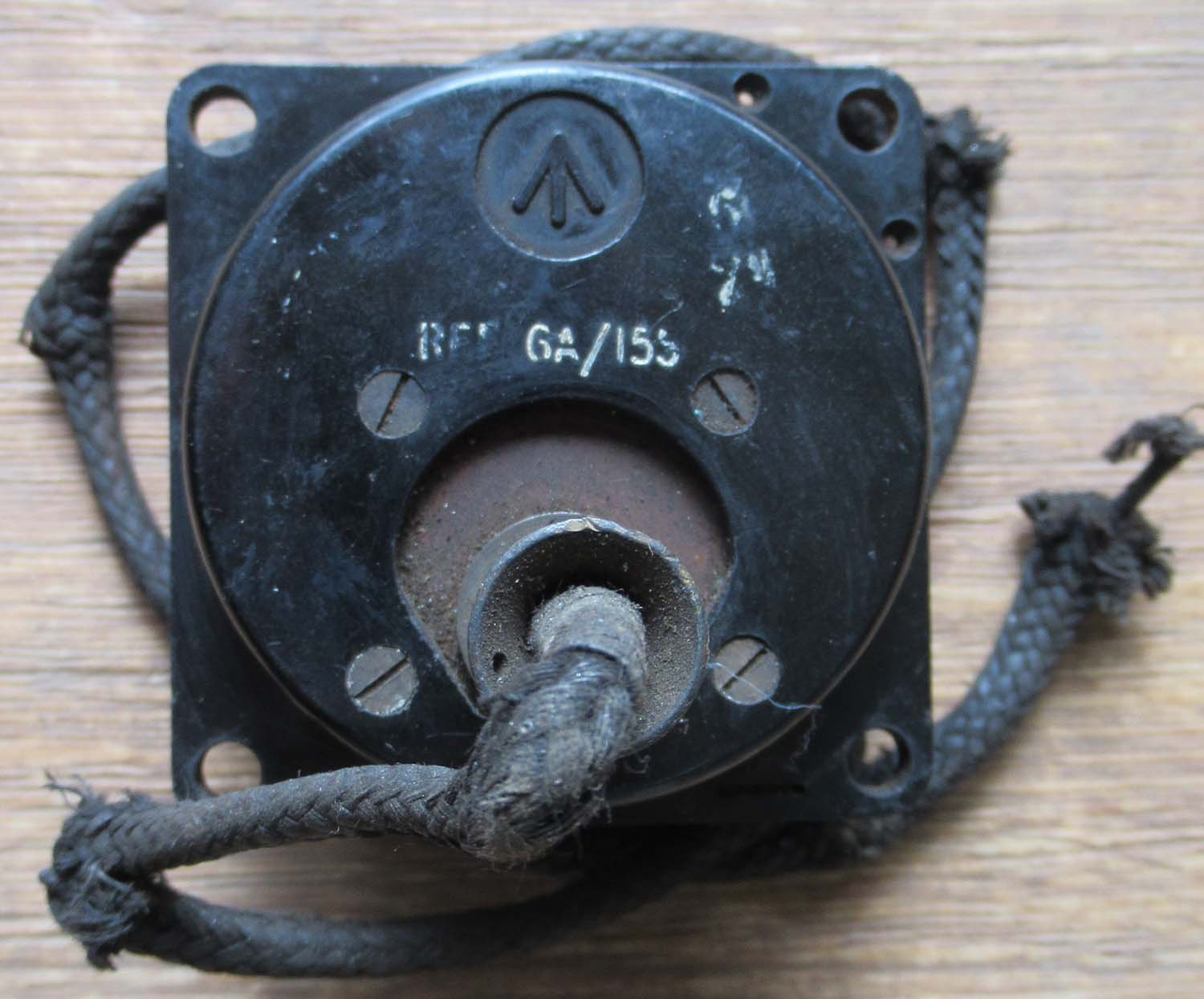

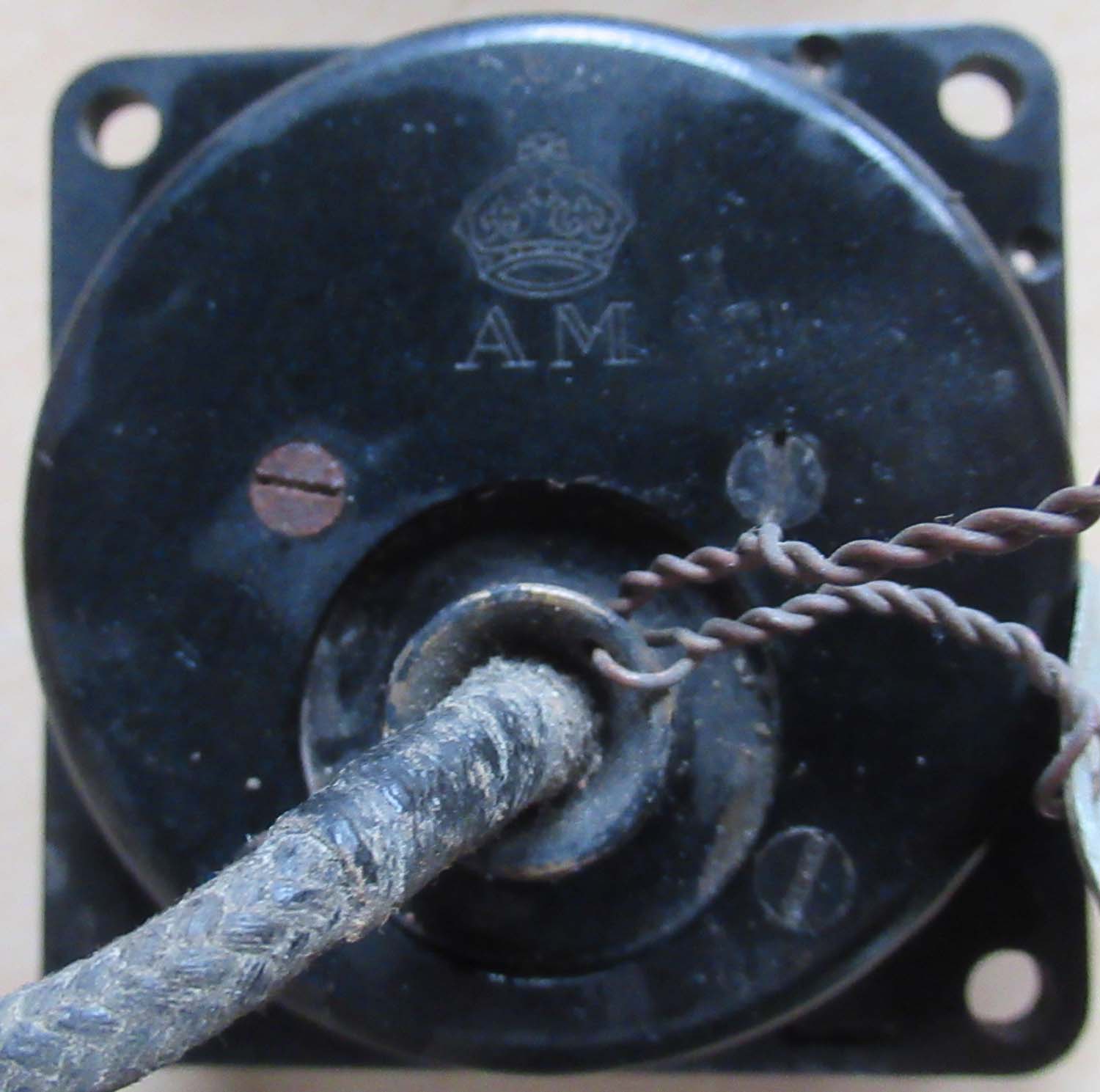

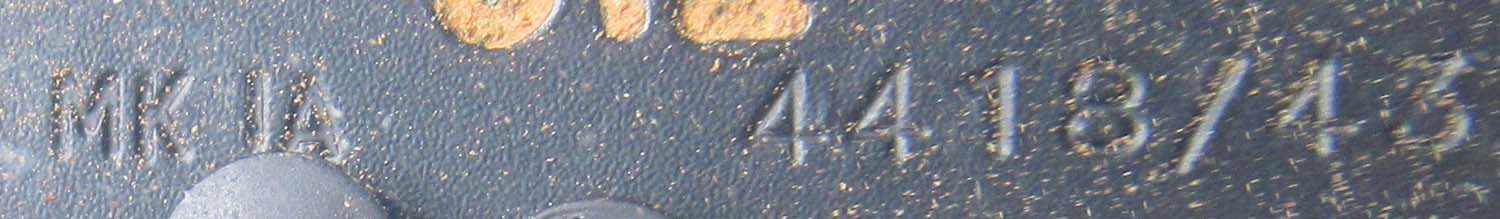

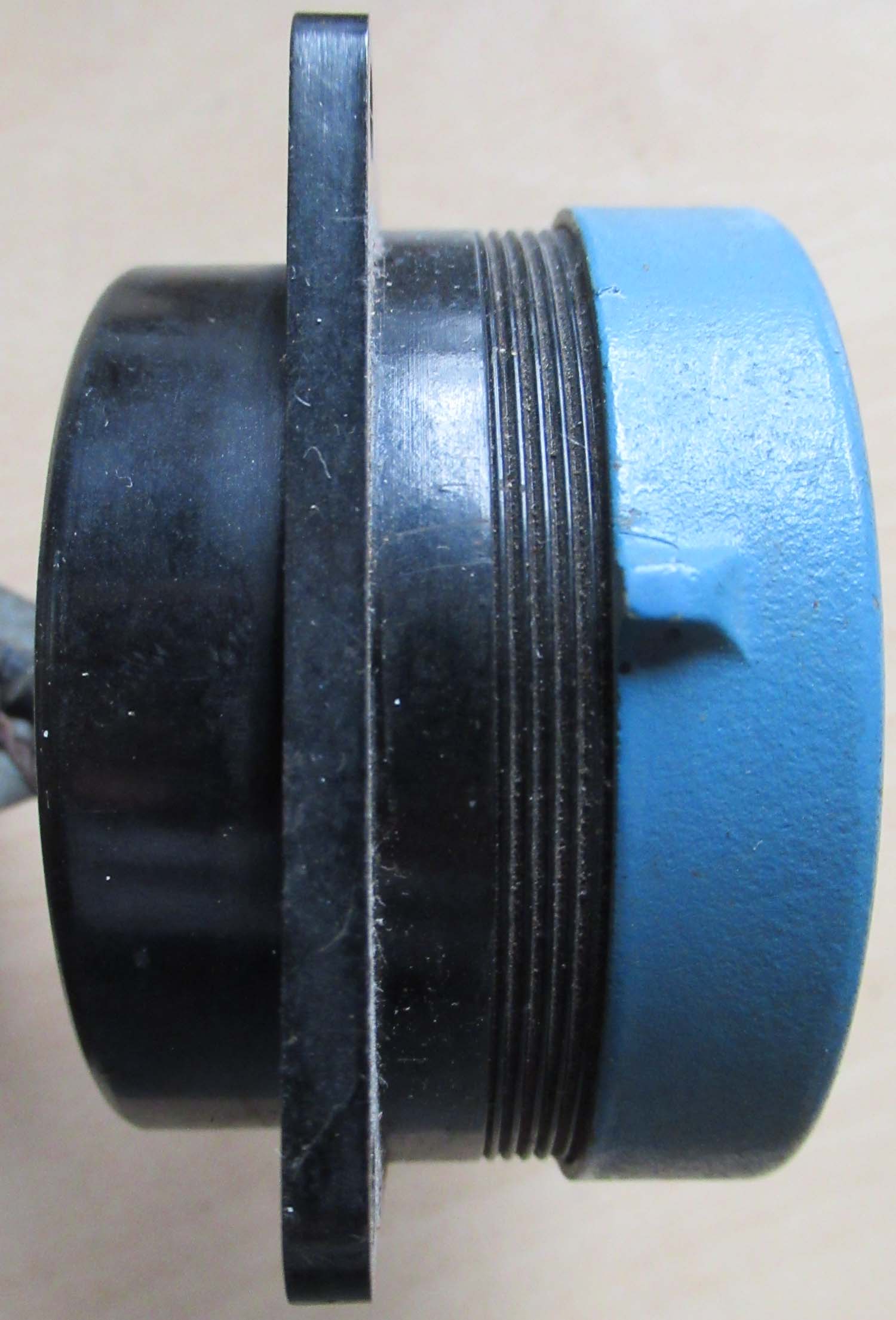

MK I A Oil Temp Gauge (Page 14 temp gauges 28)

This is an early round face Oil Temp gauge most notably used in the MK I/II Spitfire and early Hurricane unfortunately the capillary is broken but a perfect display peace for an early panel. This one is dated 1943 so clearly these were used well into the war.

MK I A

6A/155

Click on the pictures to enlarge



Out of stock more wanted please contact me

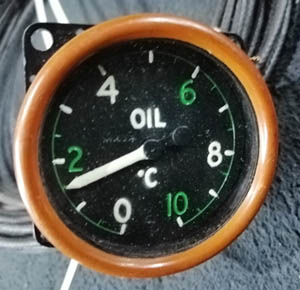

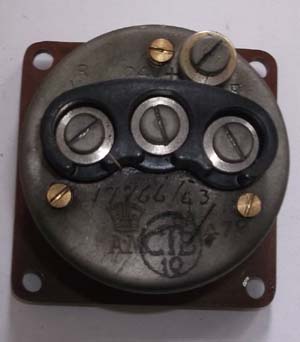

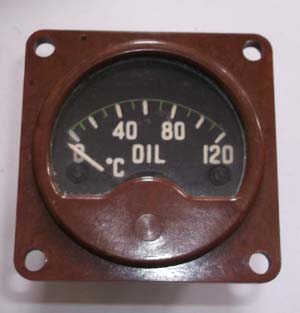

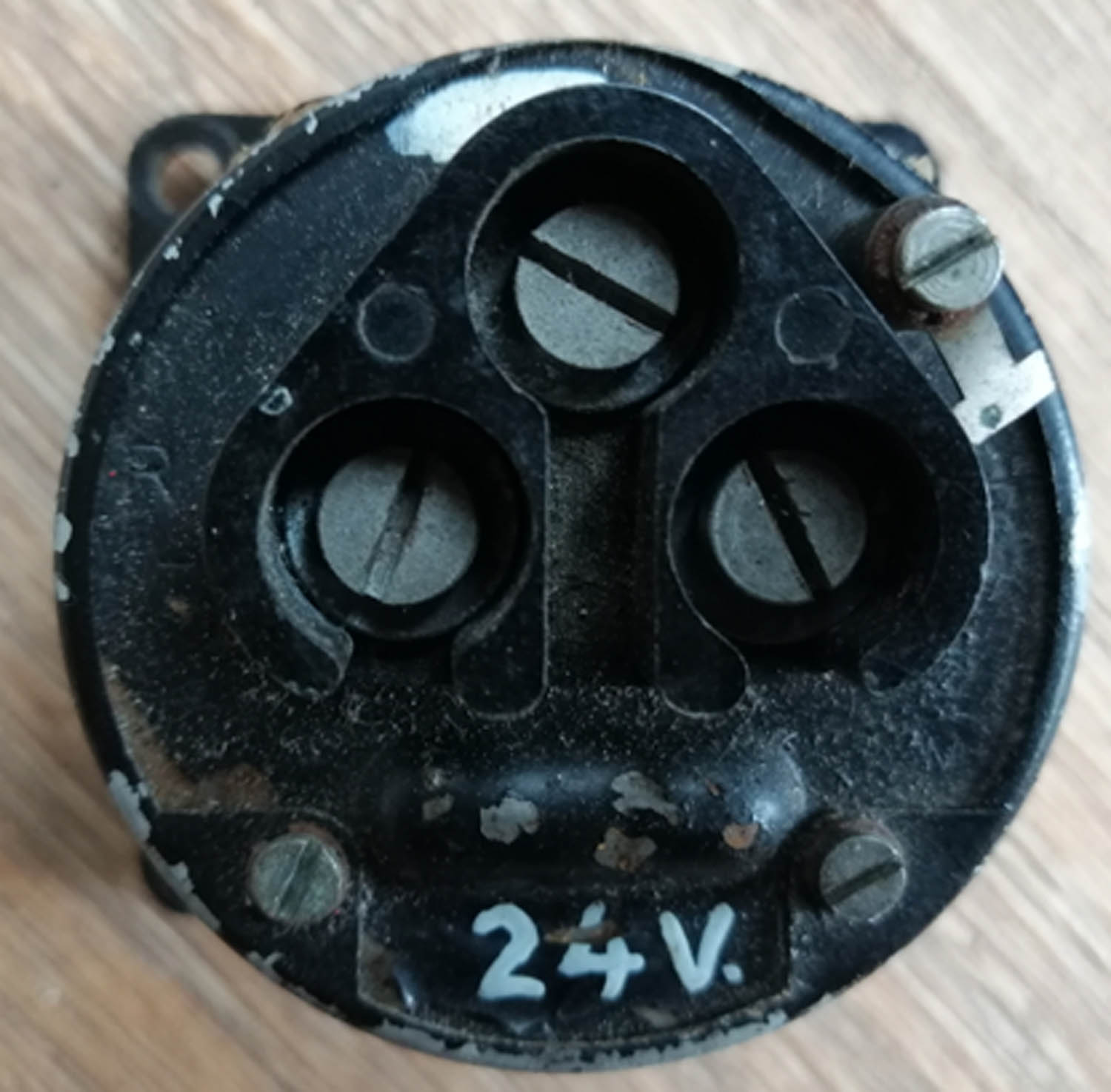

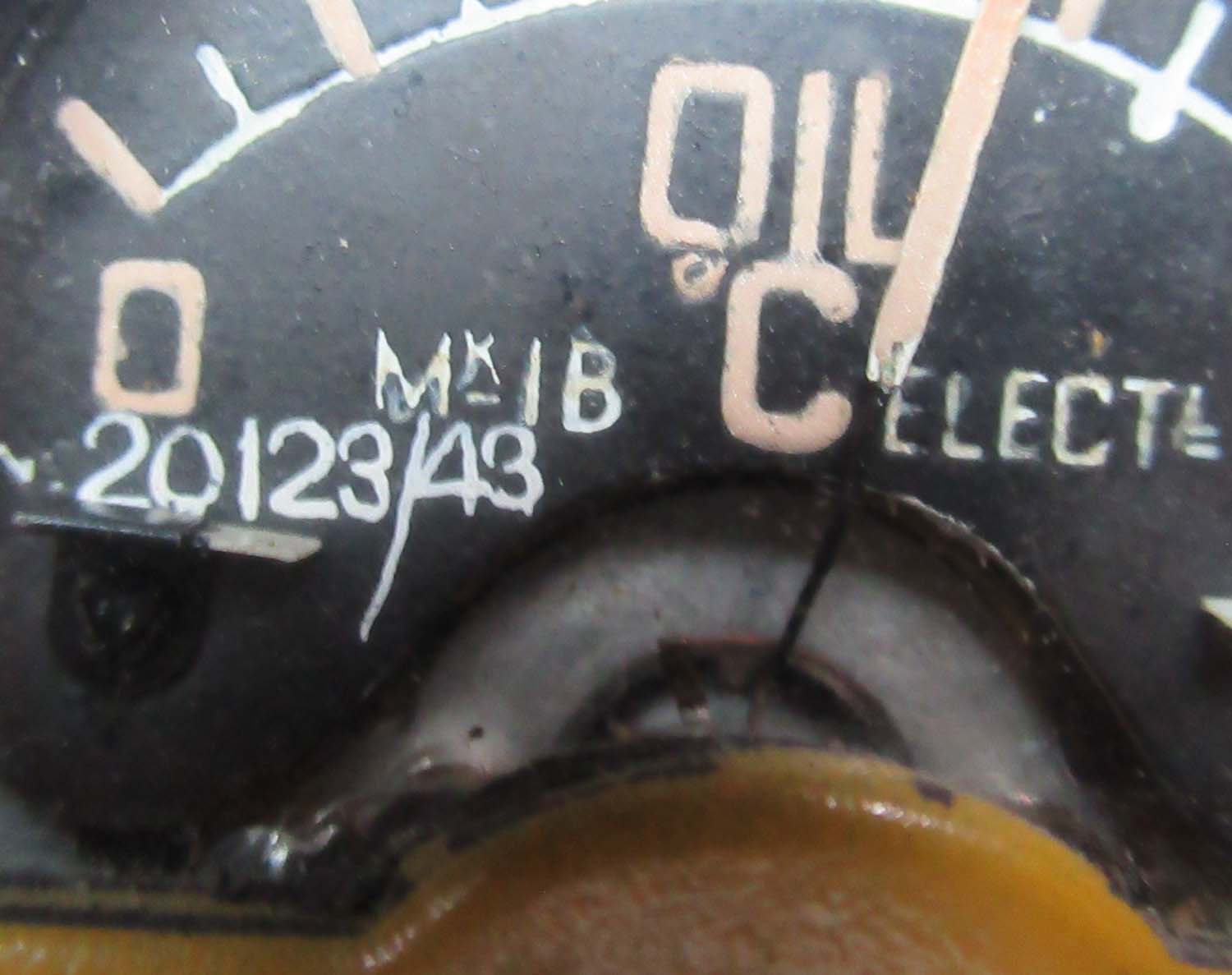

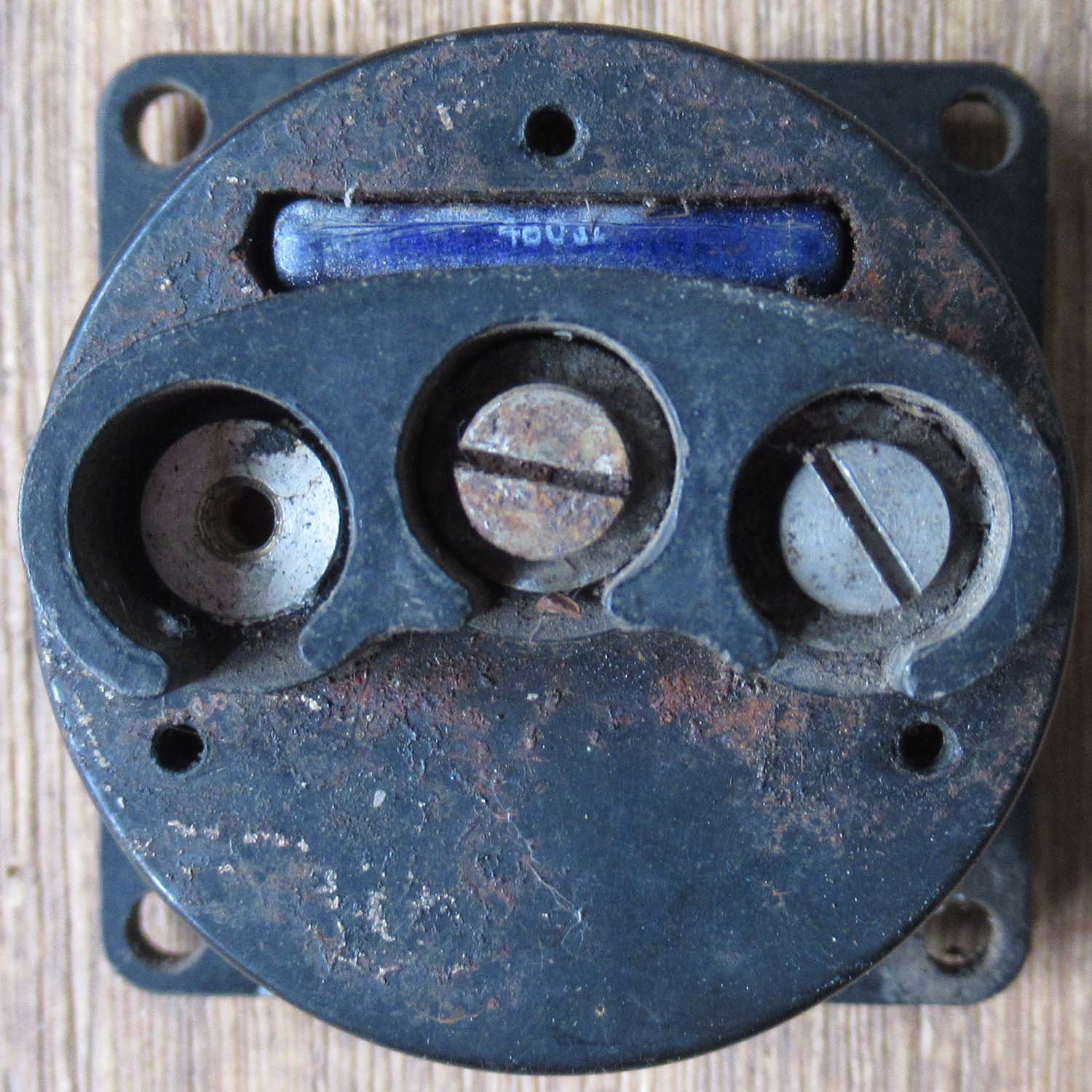

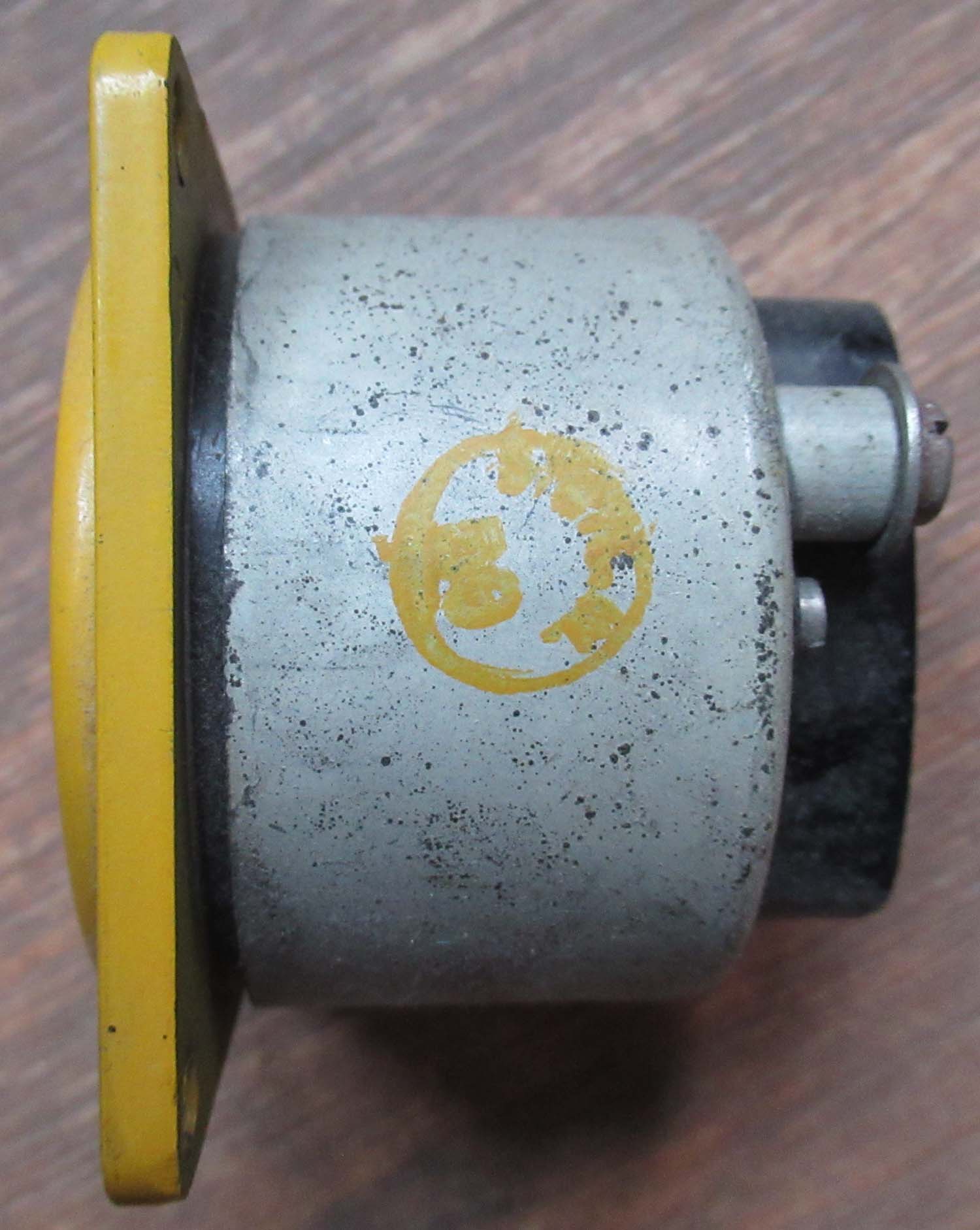

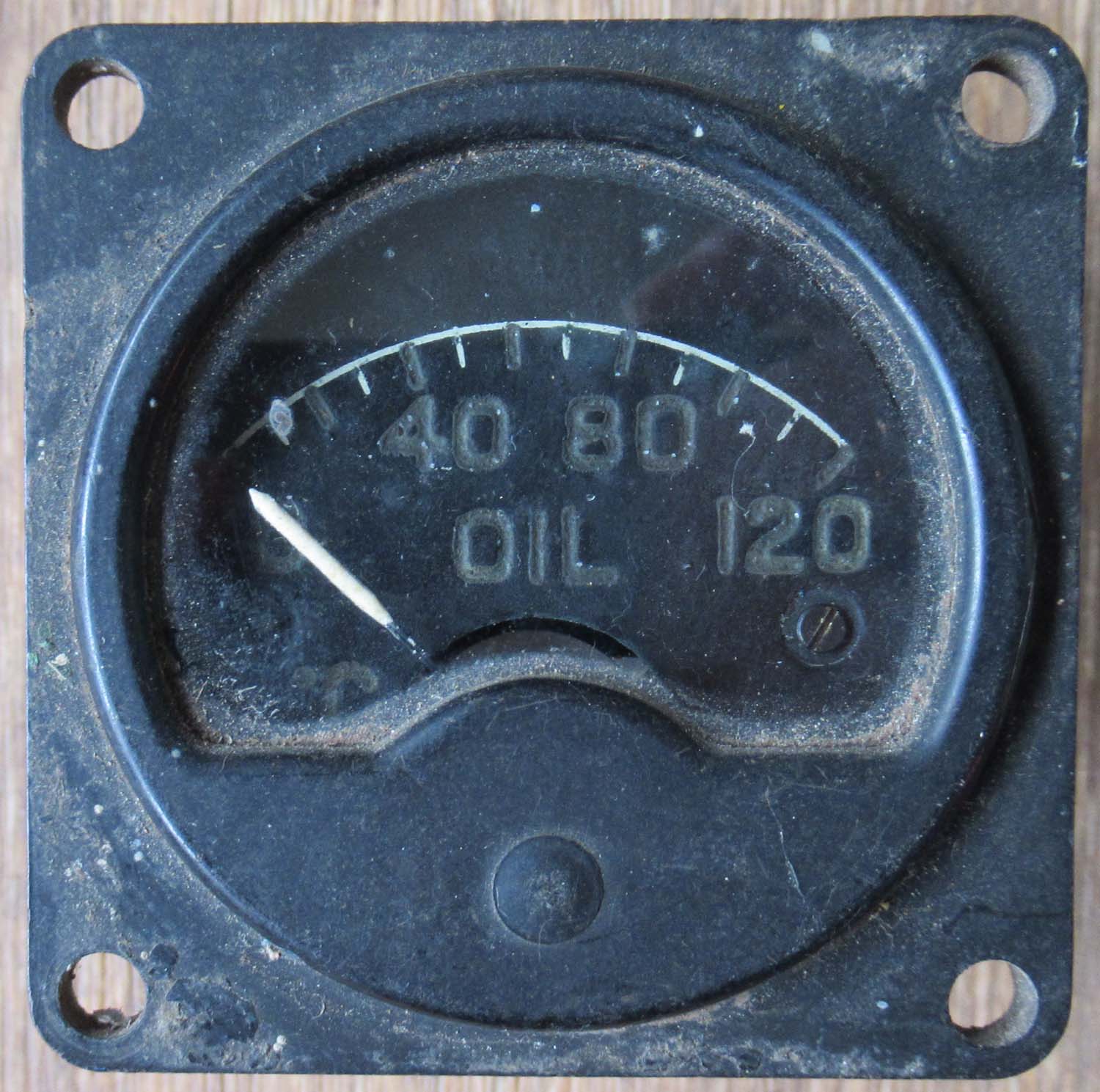

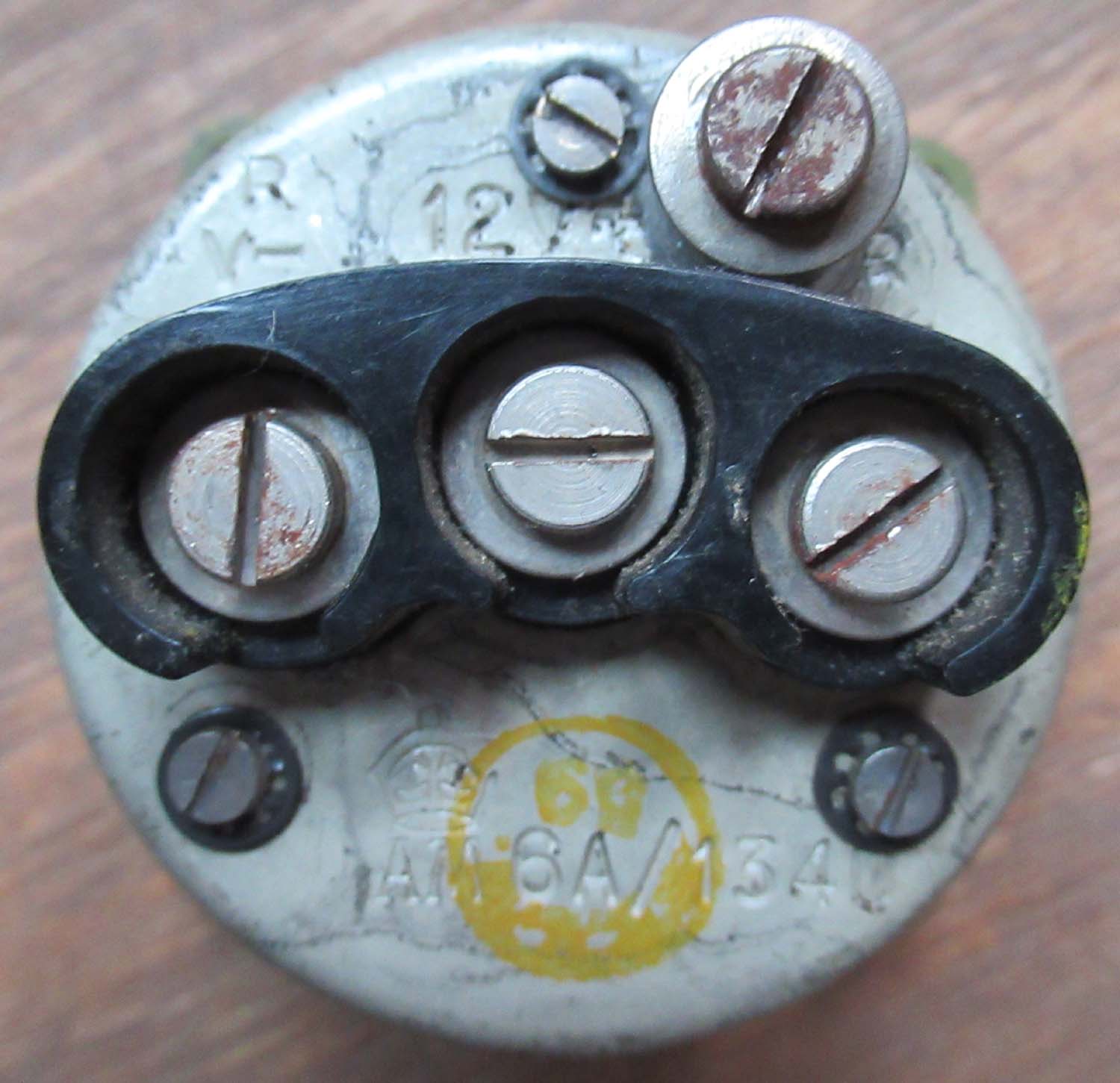

Oil Temp gauge 24v (Page 14 temp gauges 27)

This is an Oil Temperature gauge.

Please note this has a faded screen, hence the lower price.

24 Volt

Click on the pictures to enlarge

£30

Senders for these available in electrical section link here

Click on the picture to enlarge.

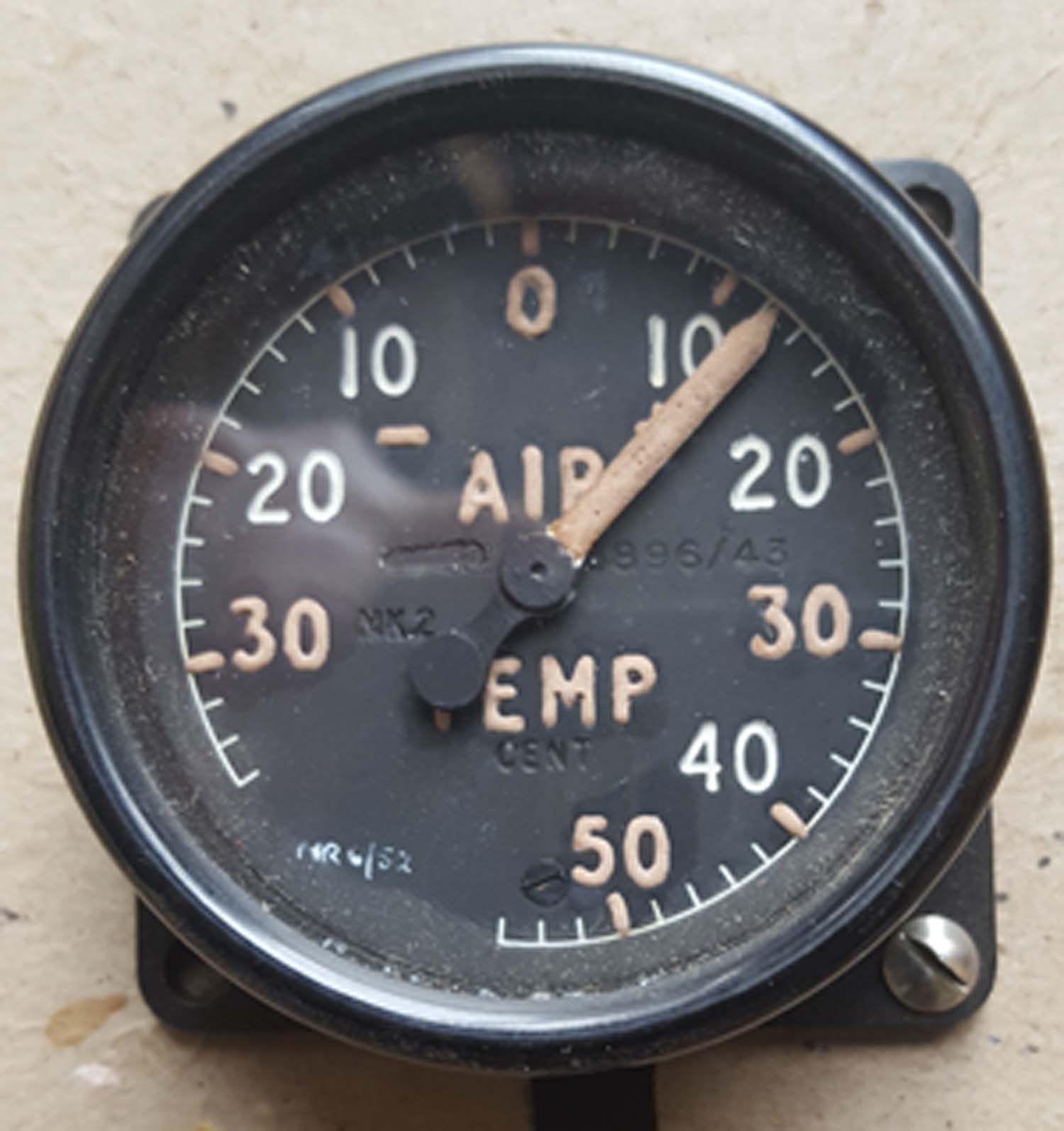

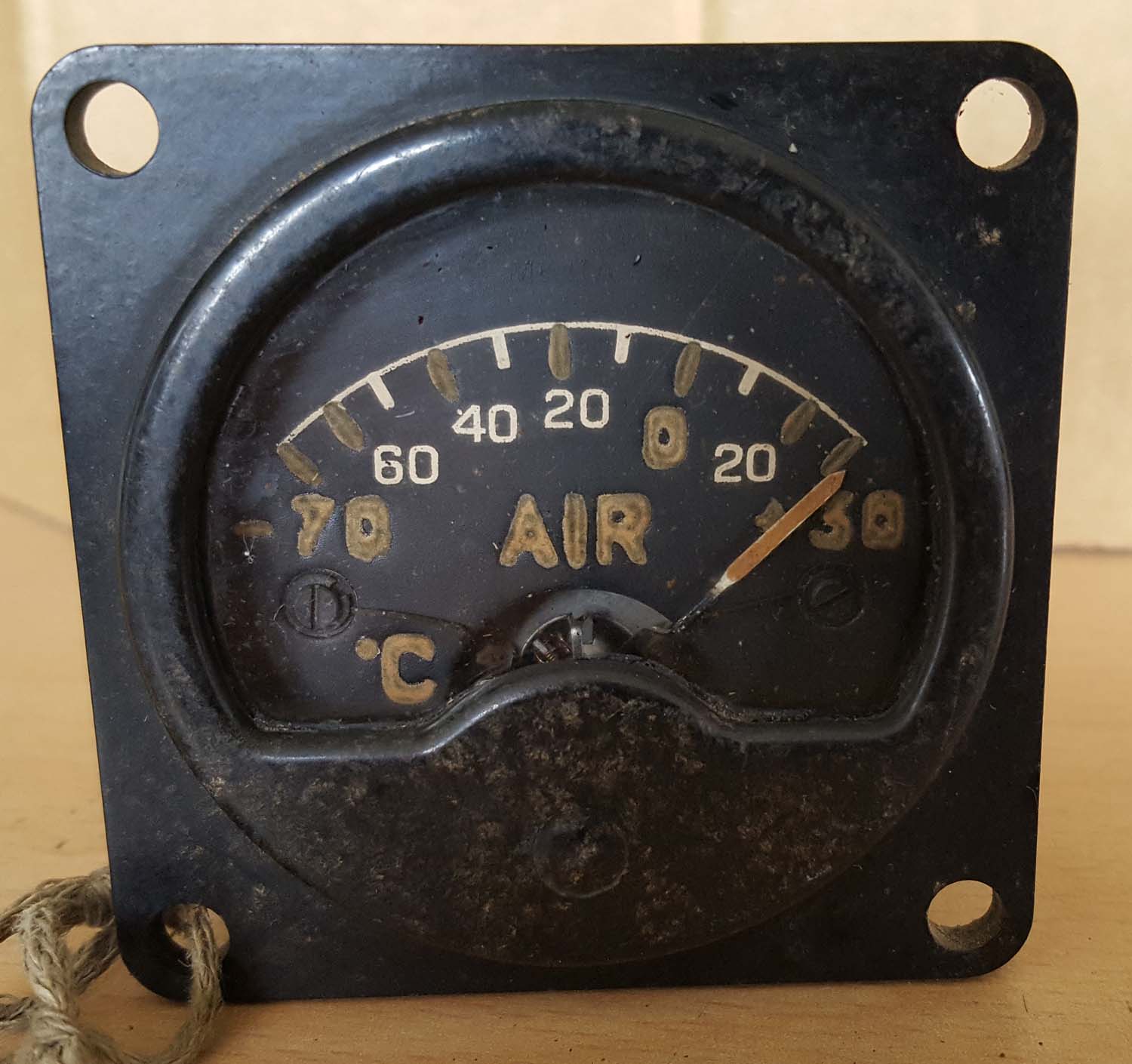

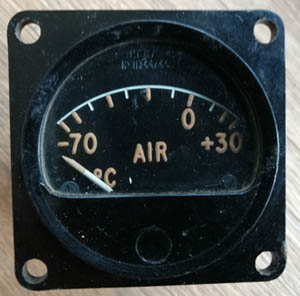

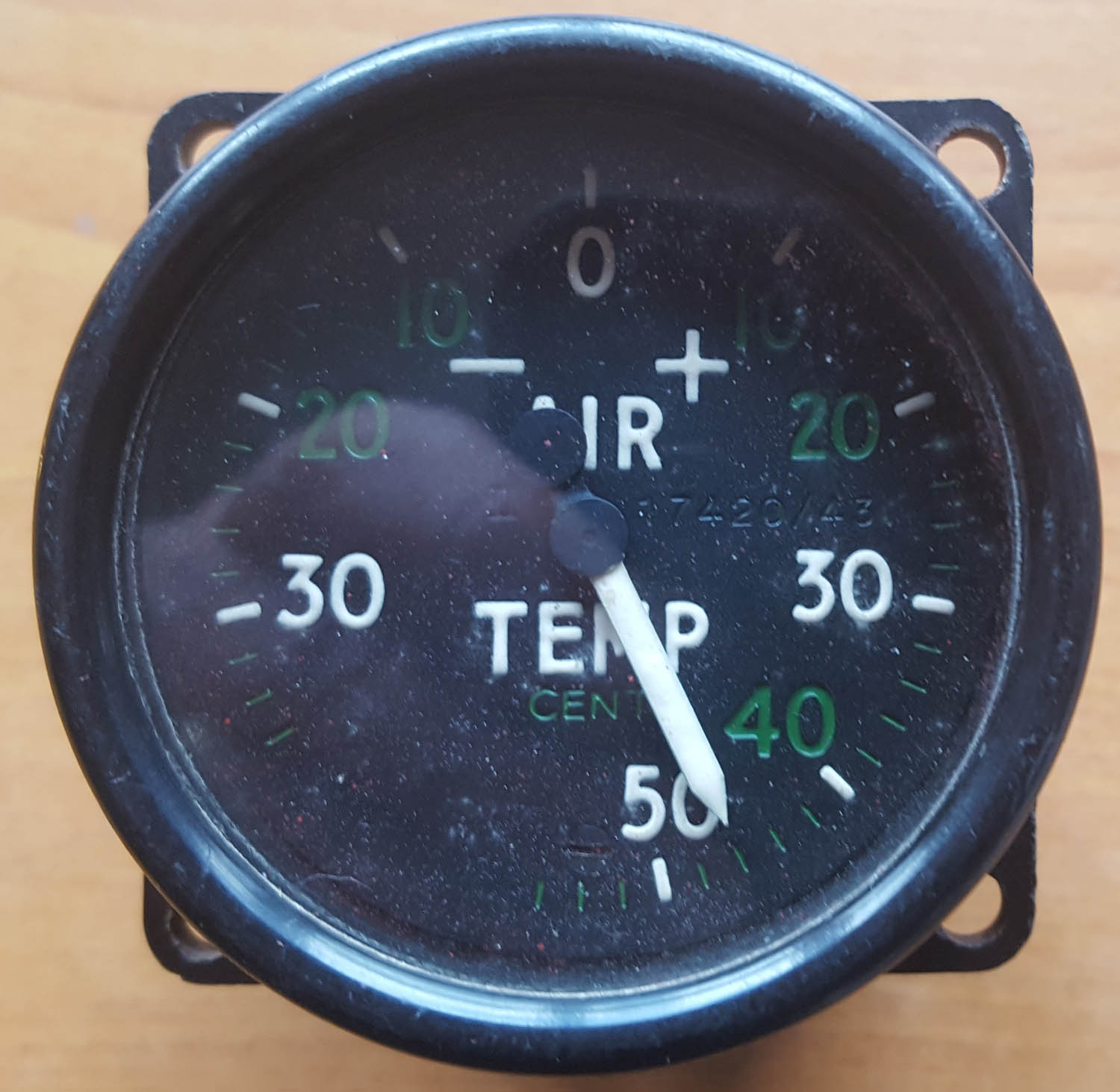

Air Temp Gauge (Page 14 temp gauges 26)

Classic Air Ministry air temp gauge

MK VIII   8839      Dated 1944

Click on the picture to enlarge.

£55



Click on the picture to enlarge.

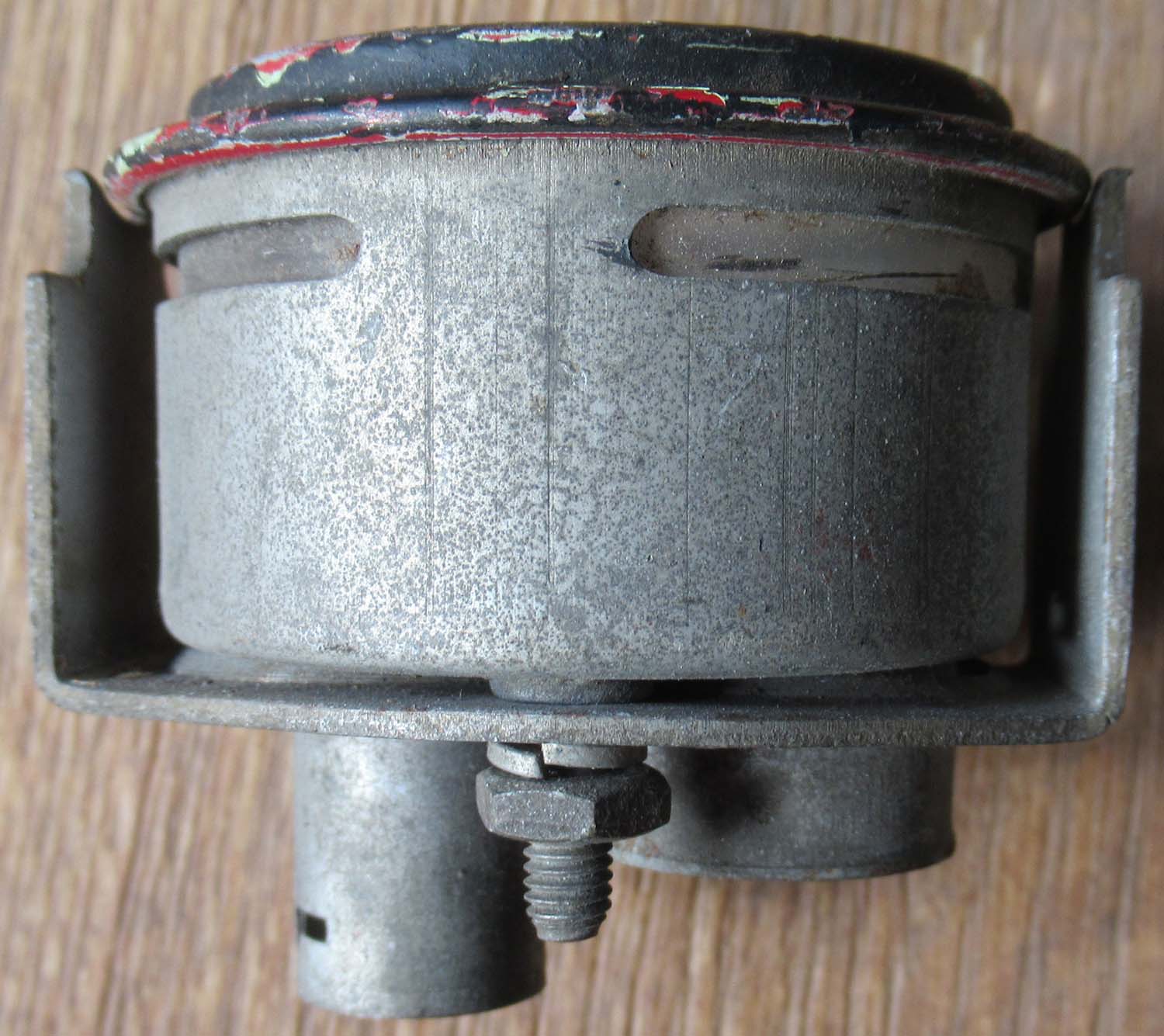

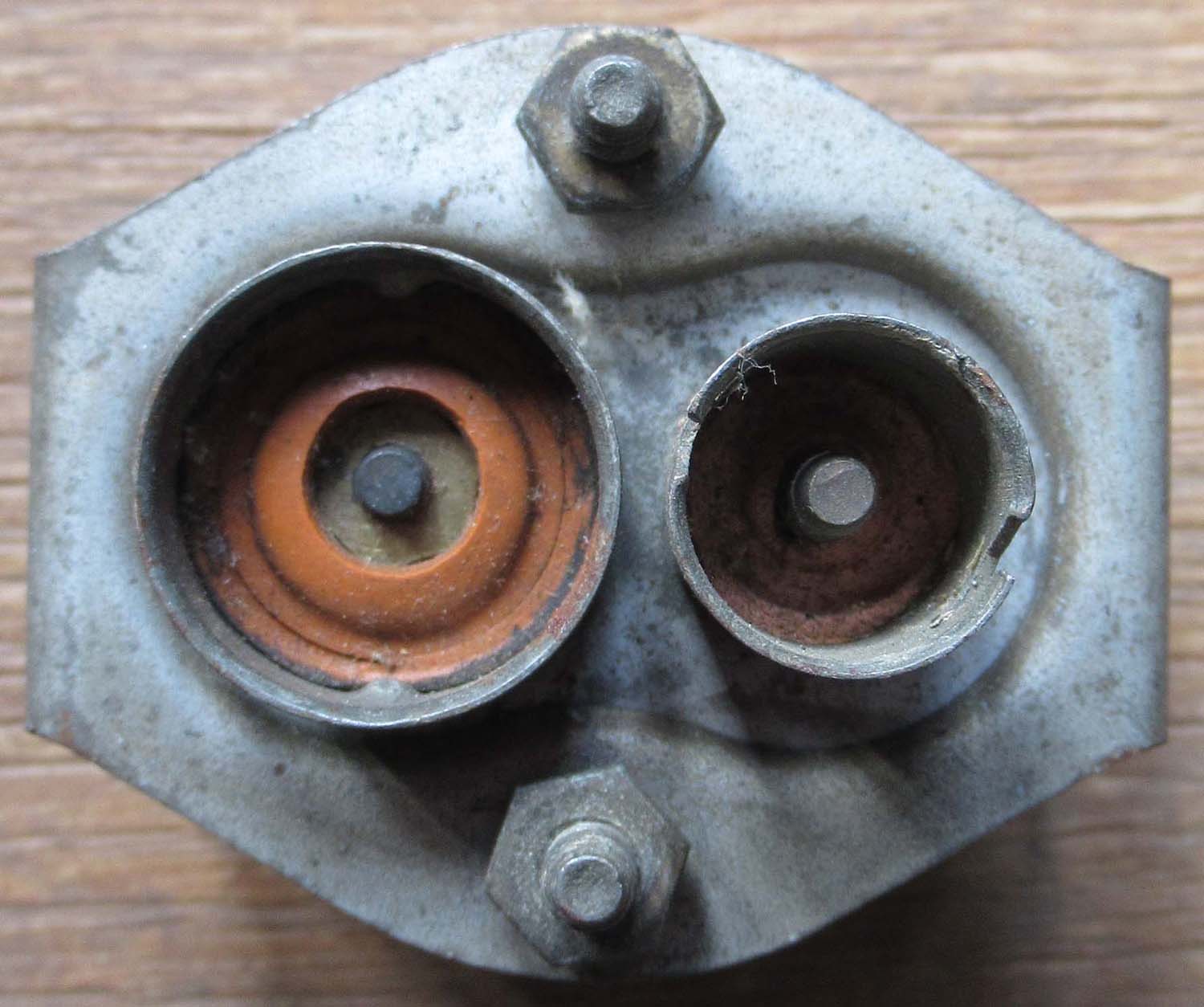

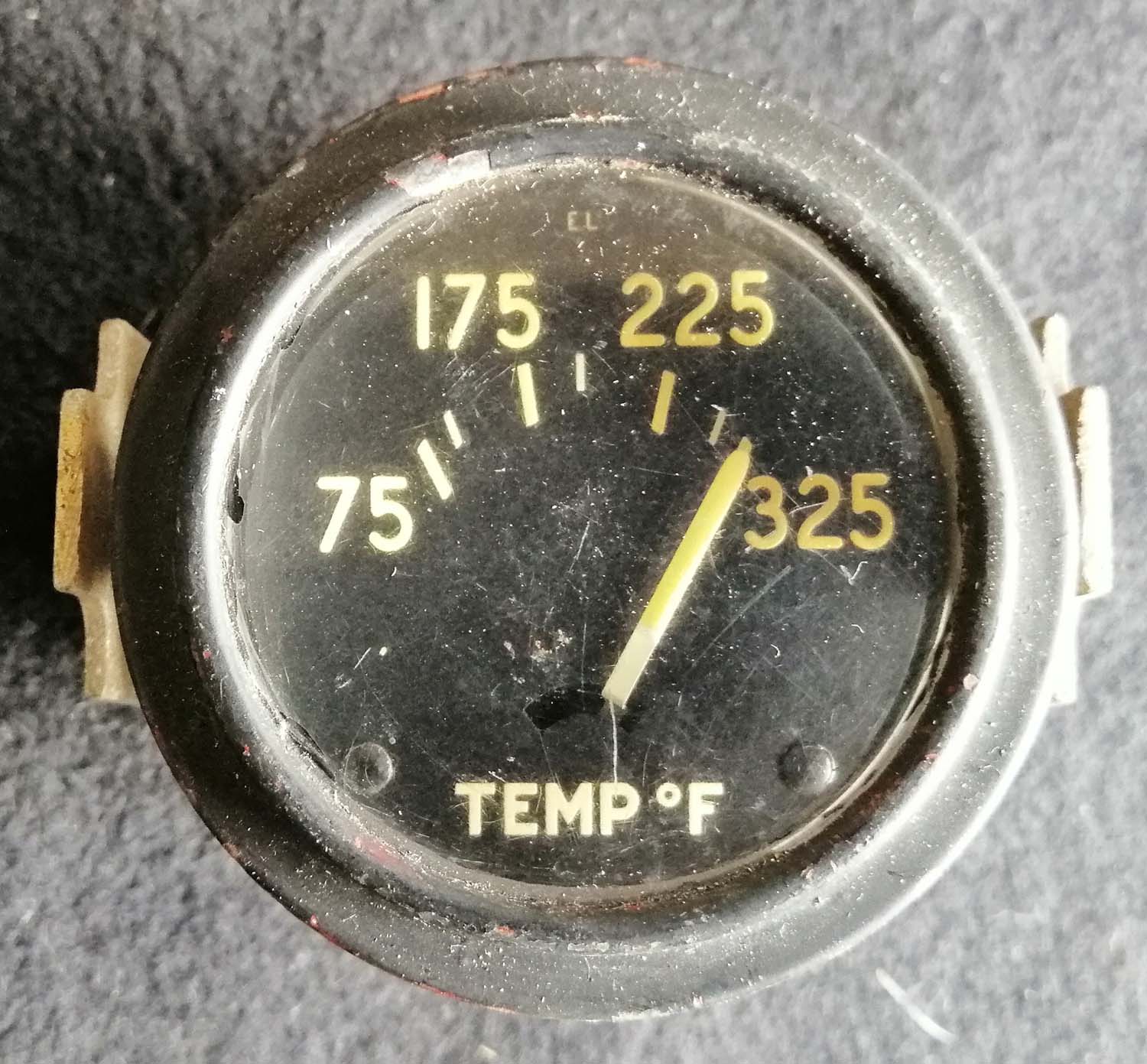

US Military truck rad temp gauge 2 (Page 14 temp gauges 25)

Click on the picture to enlarge.

£35



Click on the pictures to enlarge them.

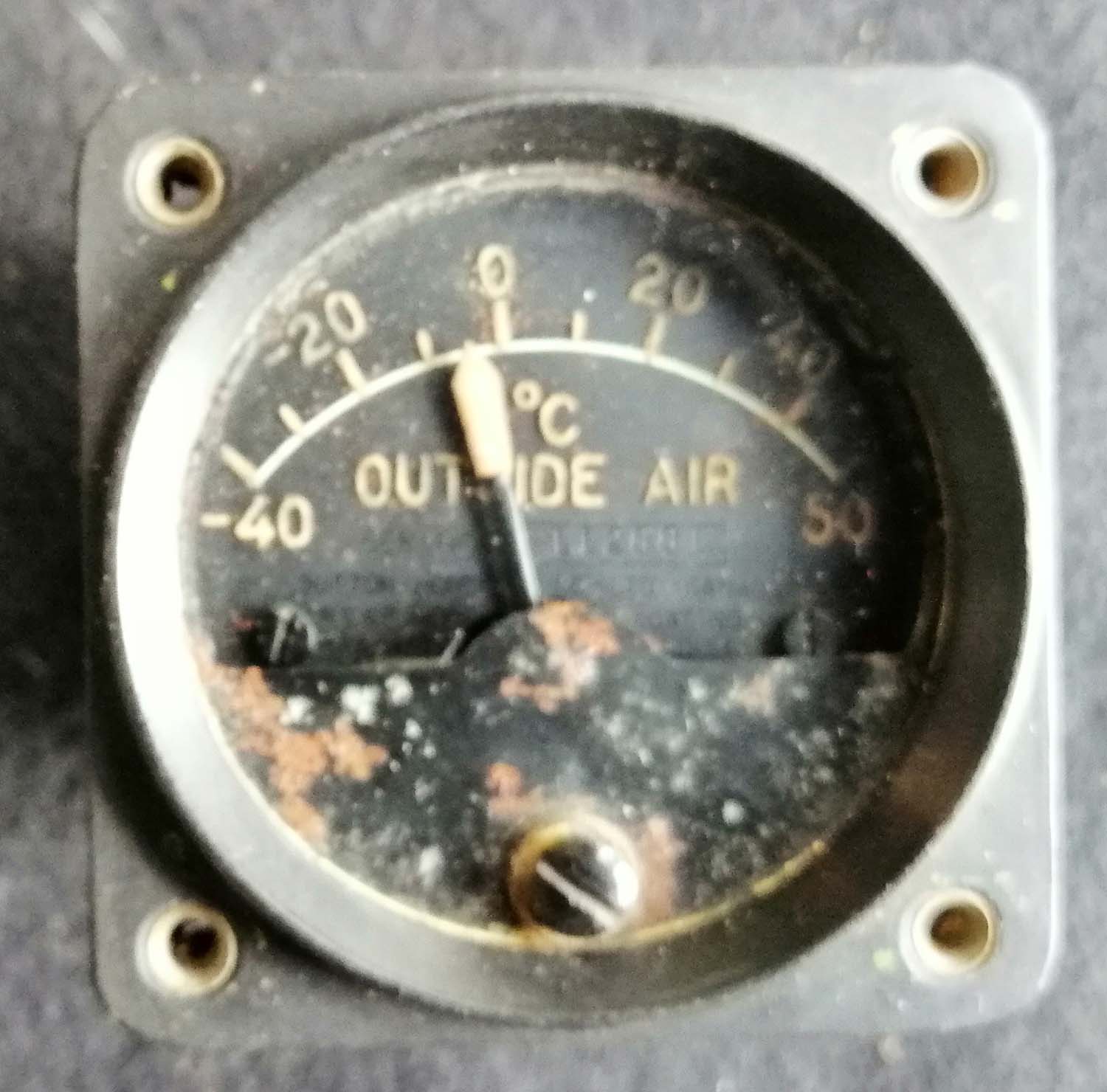

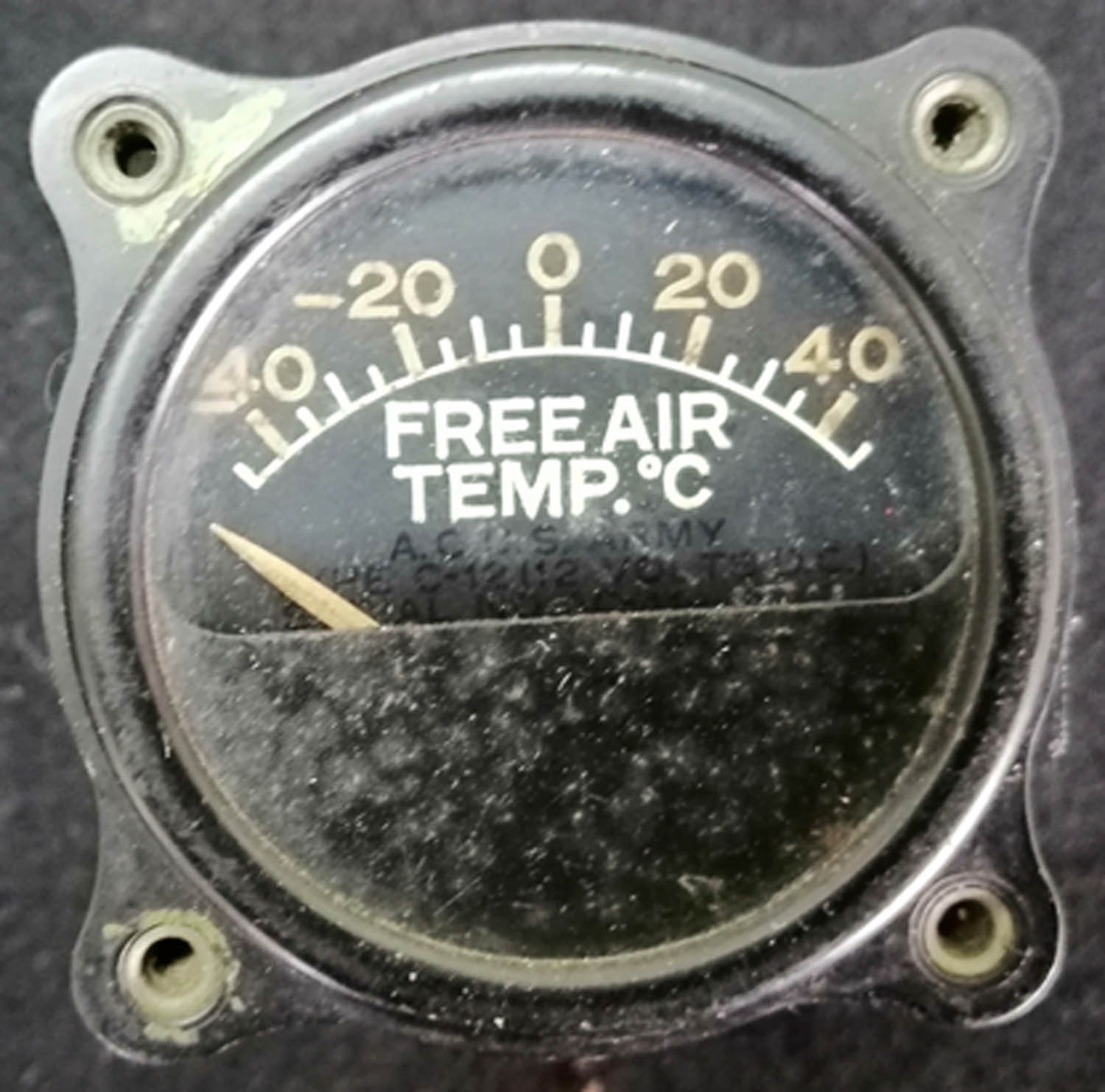

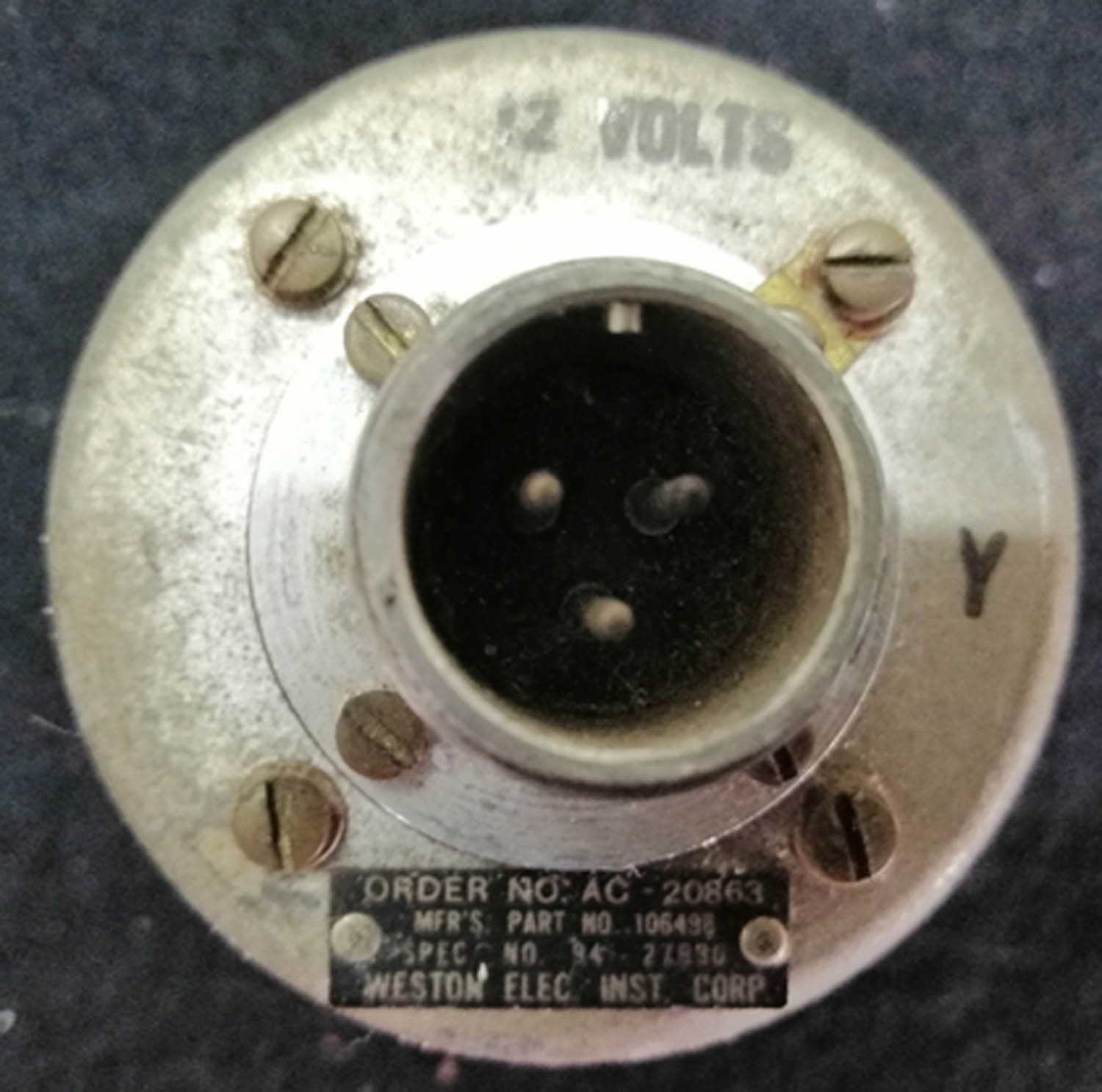

 USAF Air Temp Gauge Weston Ele Inst corp (Page 14 temp gauges 24)

Made by The Weston Electric corporation Used by a variety of WWII US aircraft.

AN A94 12 volt

£55 each two available



Click on the pictures to enlarge them.

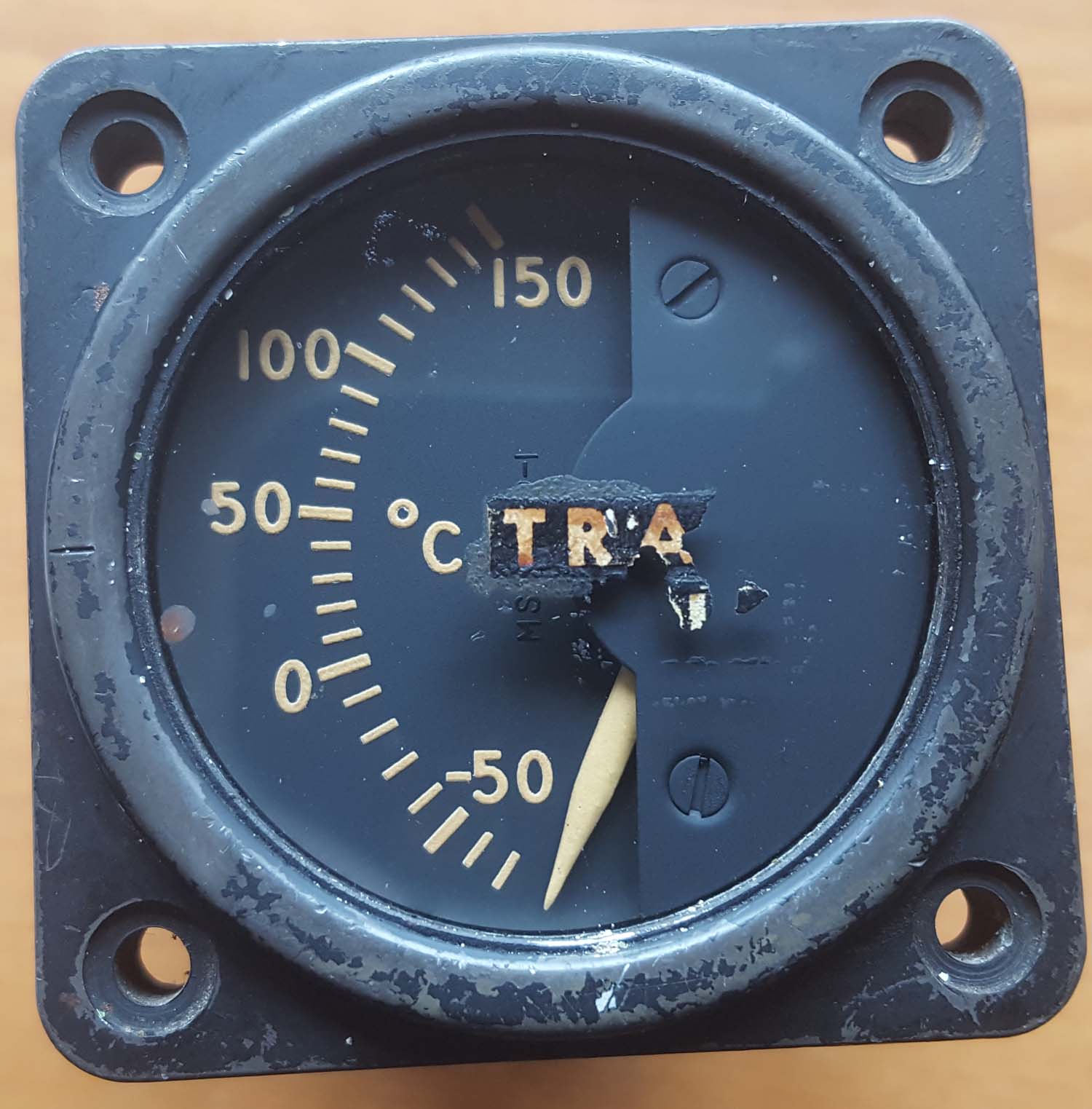

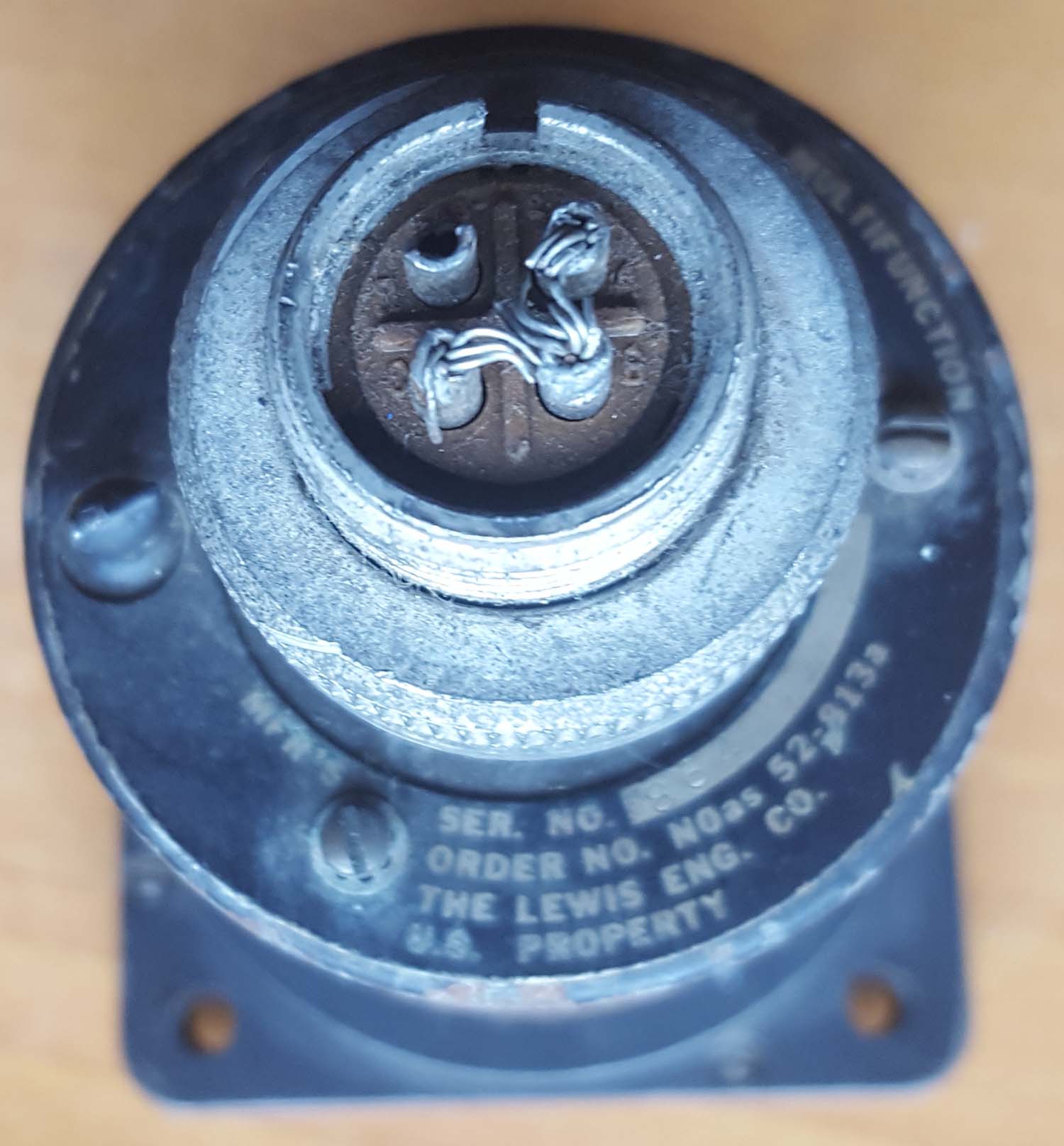

 USAF Air Temp Gauge Lewis engine company (Page 14 temp gauges 23)

Made by The Lewis Engine company

MS 28009/1

Manufacture part nos 147831

Order nos 52-813A

£55



Click on the pictures to enlarge them.

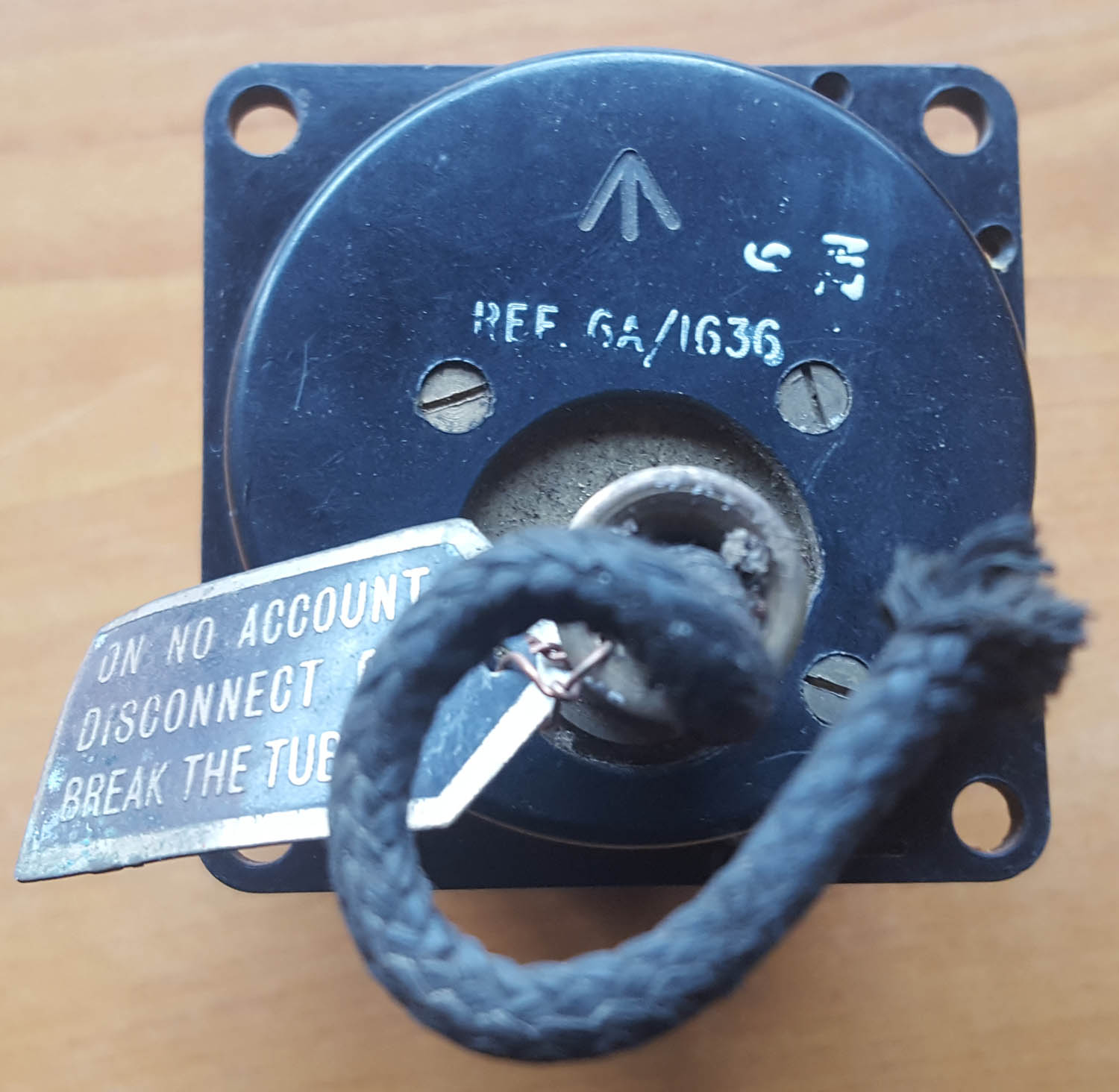

Air Temp Gauge 6A/1636  (Page 14 temp gauges 22)

This instrument is for display only the capillary was broken and has been removed. Nice condition for a panel or display.

Dated 1943

Out of stock more wanted contact us



Click on the pictures to enlarge them





£325

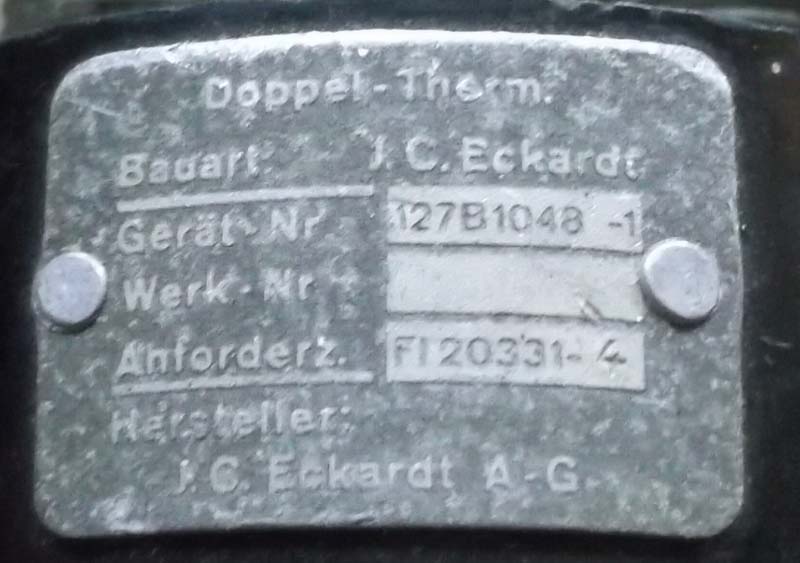

Luftwaffe FW 200 Dual engine and exhaust temp gauge (Page 14 temp gauges 21)

This is in superb condition and was fitted to the FW 200 Condor, He 177, HE 274, he 277 JU 390, JU 488 and DO 26

FW 200 Condor

After the fall of France in 1940, Germany attempted to strangle Britain into submission by attacking the Atlantic Convoys, which brought much need supplies and war materiel from the USA and Canada. While the U-boats attacked from beneath the seas, the Germans modified a civilian airliner to create the Fw-200 Condor to attack from the skies. By the summer of 1941, the Condor attacks had succeeded to the extent that Winston Churchill called them ‘the scourge of the Atlantic’.

HE 177

The He177 only made it to production through dogged courage and perseverance, and those two factors were the only thing that allowed it to reach large production numbers. In defense of the aircraft however, it could be said that all its troubles originated from a (absolutely asinine) 1938 requirement for a proposed heavy bomber/anti-shipping aircraft, that should also be capable of dive-bombing! So, the main problem of the He-177 was created: In an effort to reduce drag, the engineers decided that they would use coupled engines. (basically four engines, stuck together into two nacelles) These coupled engines would enter record books as being the most fire-prone engines in normal cruising flight. Out of the eight prototypes, six crashed. And of the 35 pre-production A-0s, (built for the most part by Arado Handelsgesellschaft, Warnemunde) a large number had to be written off due to take-off swings or in-flight fires.

Dornier 26

The Dornier Do 26 was constructed for Lufthansa to meet the requirement of a trans-Atlantic mail and passenger carrier. Upon the outbreak of war, the Luftwaffe took charge of all six Do 26s and utilized them for operations in the fiords of Norway, as well as general patrol and staff transport duties. In service, it was armed with a 20mm MG151 in the nose turret and MG15s in the beam hatch positions and mid-fuselage blisters. No bombs or depth charges were carried. The boats were quite weakly armed and slow, so they were quickly relegated to behind-the-lines duties, where general attrition and lack of spares caused them to fade from service.

Click on the pictures to enlarge them

Out of stock more wanted contact me.

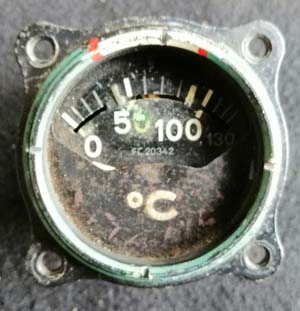

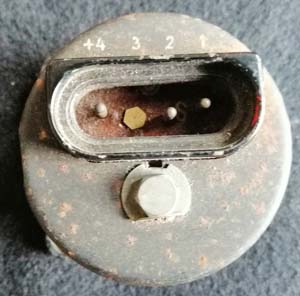

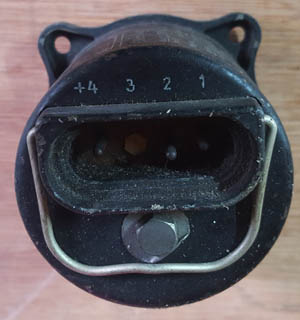

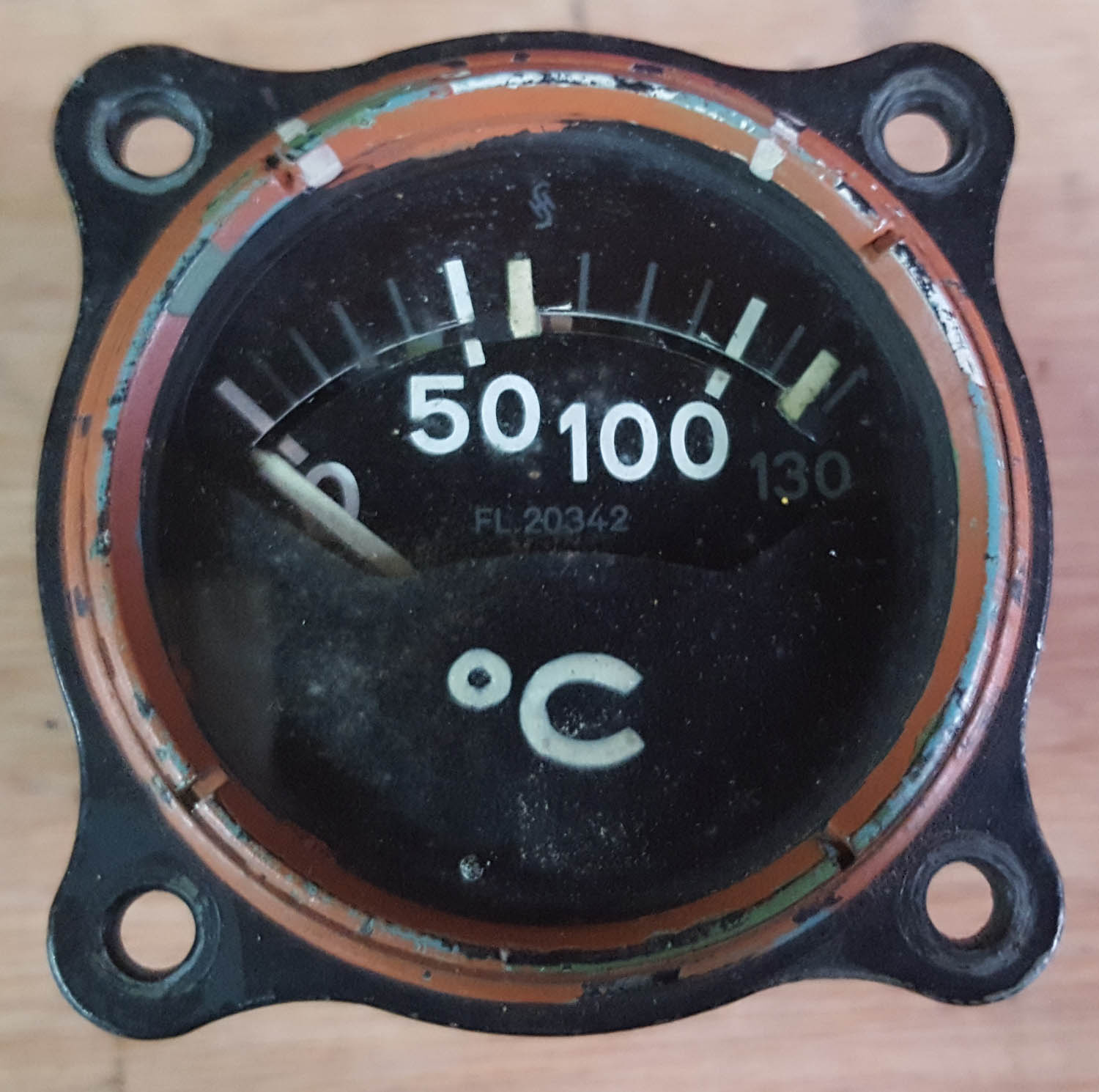

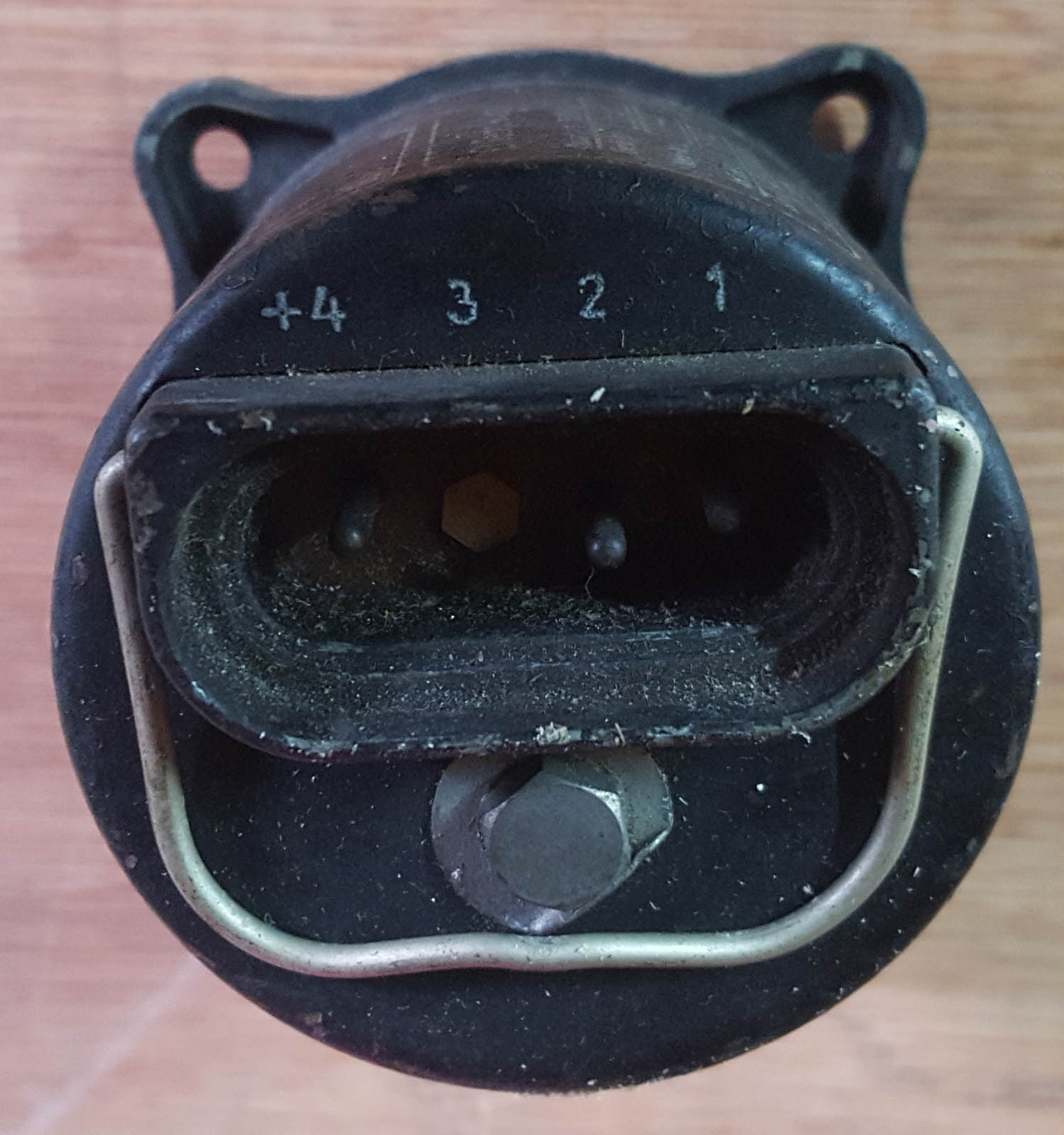

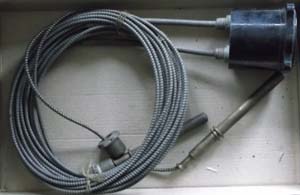

FL 20342 Luftwaffe BF 109 Temp gauge (Page 14 temp gauges 20A)

This is engine temp gauge FL 20342 used in the BF 109, FW 190 ME 110 JU 88 and probably other wartime German aircraft.

The Fw 190 did not actually enter service until late 1941. It proved to be an outstanding fighter in its own right. Displaying excellent manoeuvrability and typically carrying a heavy armament of two 7.9-mm (0.3-inch) machine guns in the engine cowling, two 20-mm (0.8-inch) cannons on the wing roots, and two 20-mm cannons at mid-wing, the Fw 190 became the outstanding air-to-air fighter of the mid-war period. It established a clear ascendancy over opposing Allied fighters that lasted until the Spitfire MK IX  appeared in July 1942, and it more than held its own for another year.

The Junkers Ju 88 was one of the most versatile and effective combat aircraft of World War II. Its closest counterparts on the Allied side were the  Mosquito and Beaufighter. The German aircraft was larger and slower, but nevertheless very effective. 14,676 were built, including a staggering 104 prototypes for its 60 different versions.

Click on the pictures to enlarge them

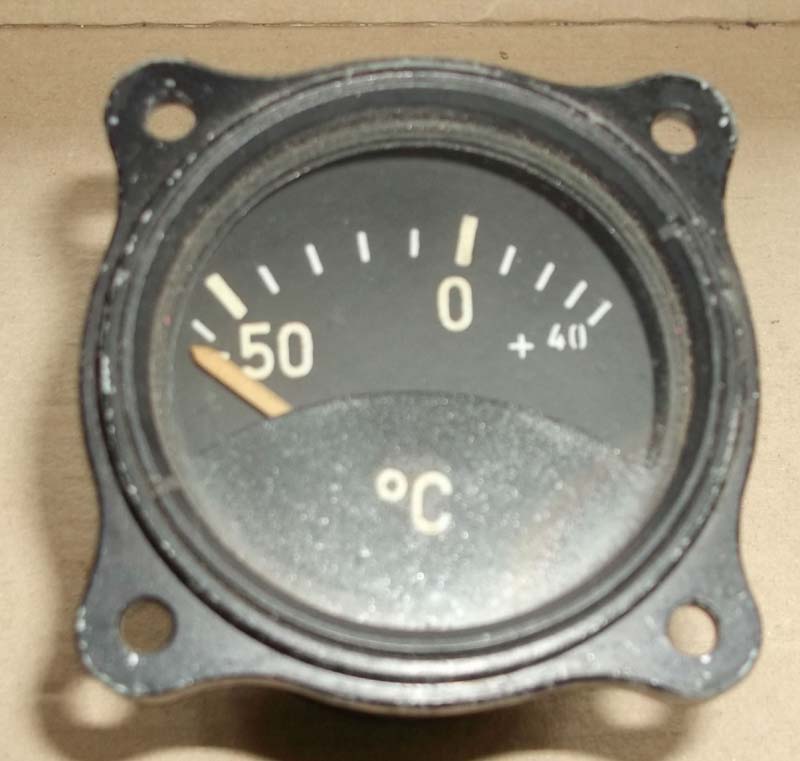

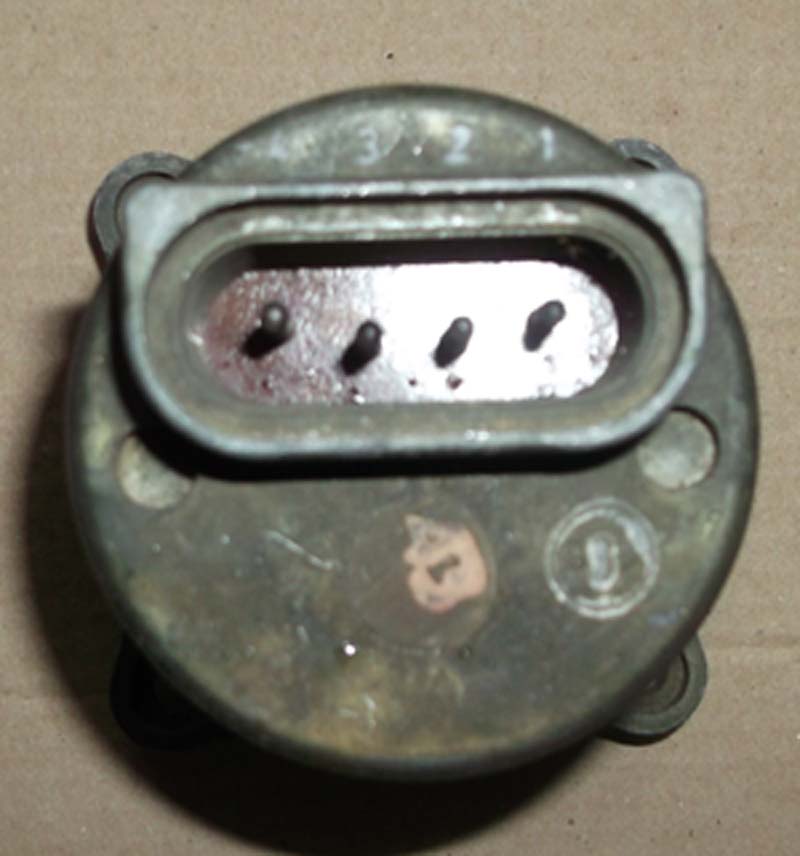

Luftwaffe He 219 A JU 88 air temp gauge (Page 14 temp gauges 20)

This is outside air temperature gauges used on the HE 219 A and the JU 88 and probably other wartime German aircraft.

The Heinkel He 219 was an excellent German night-fighter for her time, limited in part by her inherent complexity as well as internal dissention within the German authoritative ranks.

The Junkers Ju 88 was one of the most versatile and effective combat aircraft of World War II. Its closest counterparts on the Allied side were the  Mosquito and Beaufighter. The German aircraft was larger and slower, but nevertheless very effective. 14,676 were built, including a staggering 104 prototypes for its 60 different versions.

£125

Click on the picture to enlarge.

US Military truck rad temp gauge 2 (Page 14 temp gauges 19A)

Click on the picture to enlarge.

£35





Click on the picture to enlarge.

£35

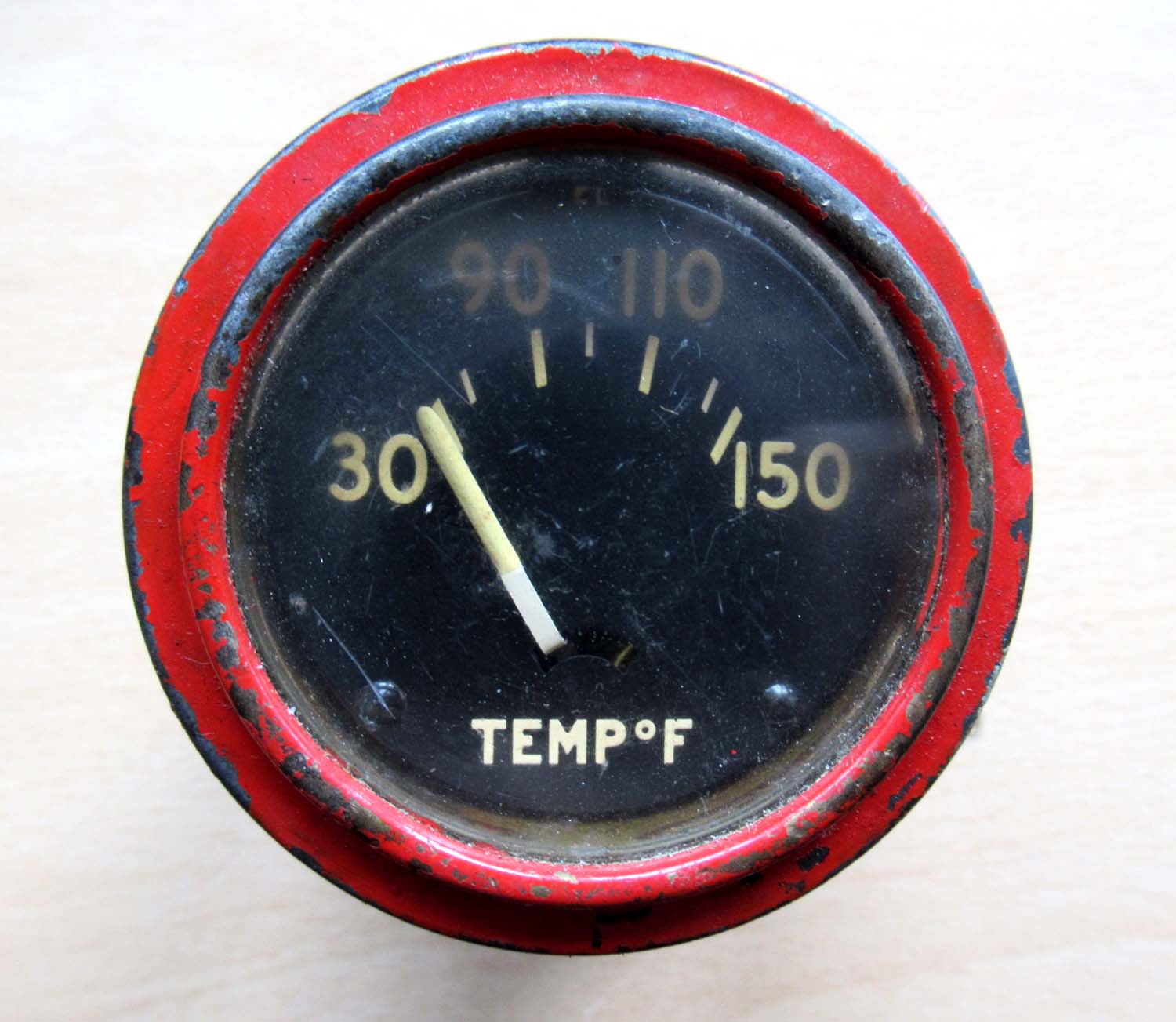

US Military truck rad temp gauge (Page 14 temp gauges 19)



Click on the picture to enlarge.





Click on the picture to enlarge.

£45

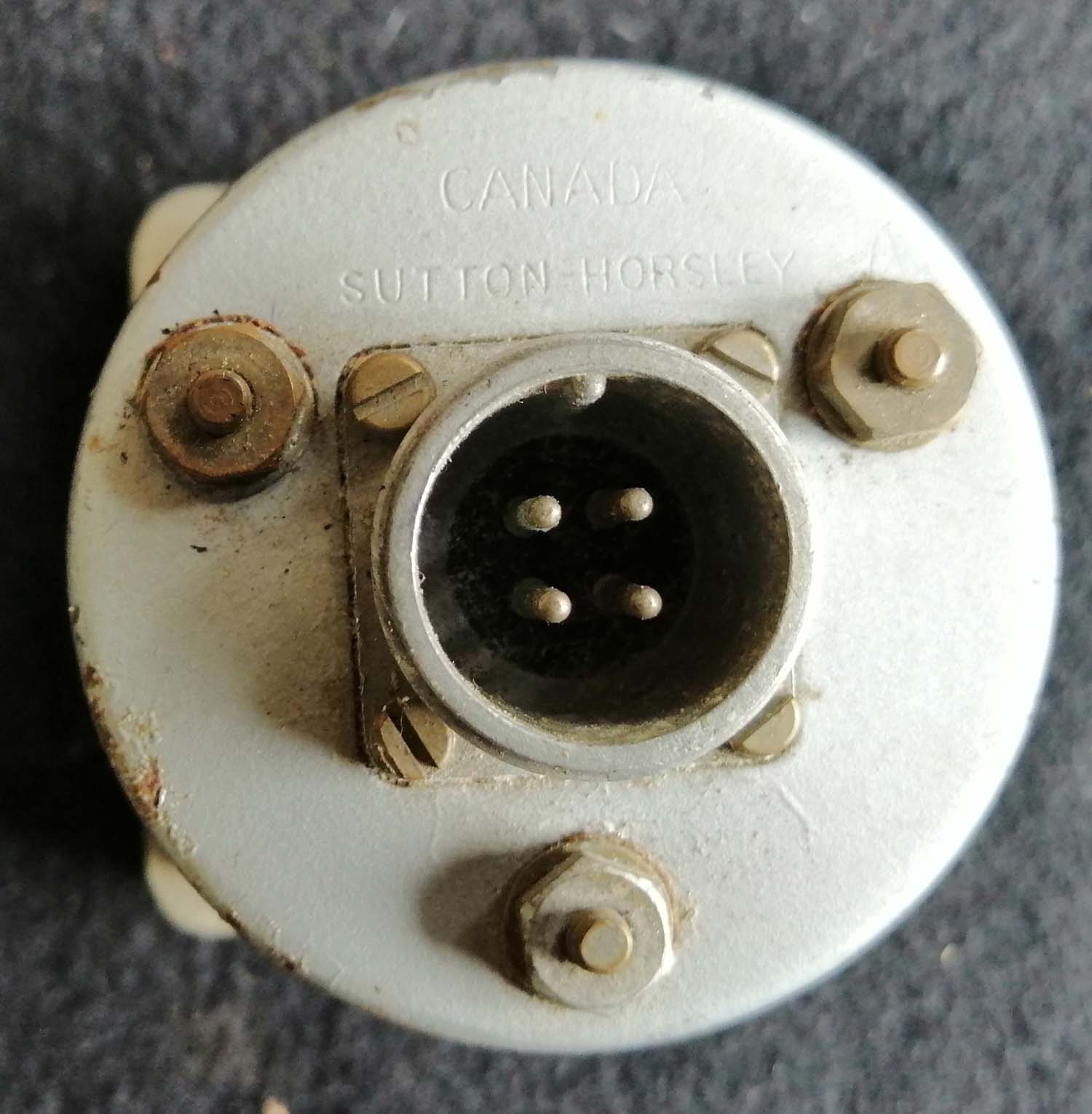

Canadian air Temp gauge  (Page 14 temp gauges 18)

6AA/453  Sutton Horsley Canada serial nos 112881

Click on the picture to enlarge.



Click on the picture to enlarge.

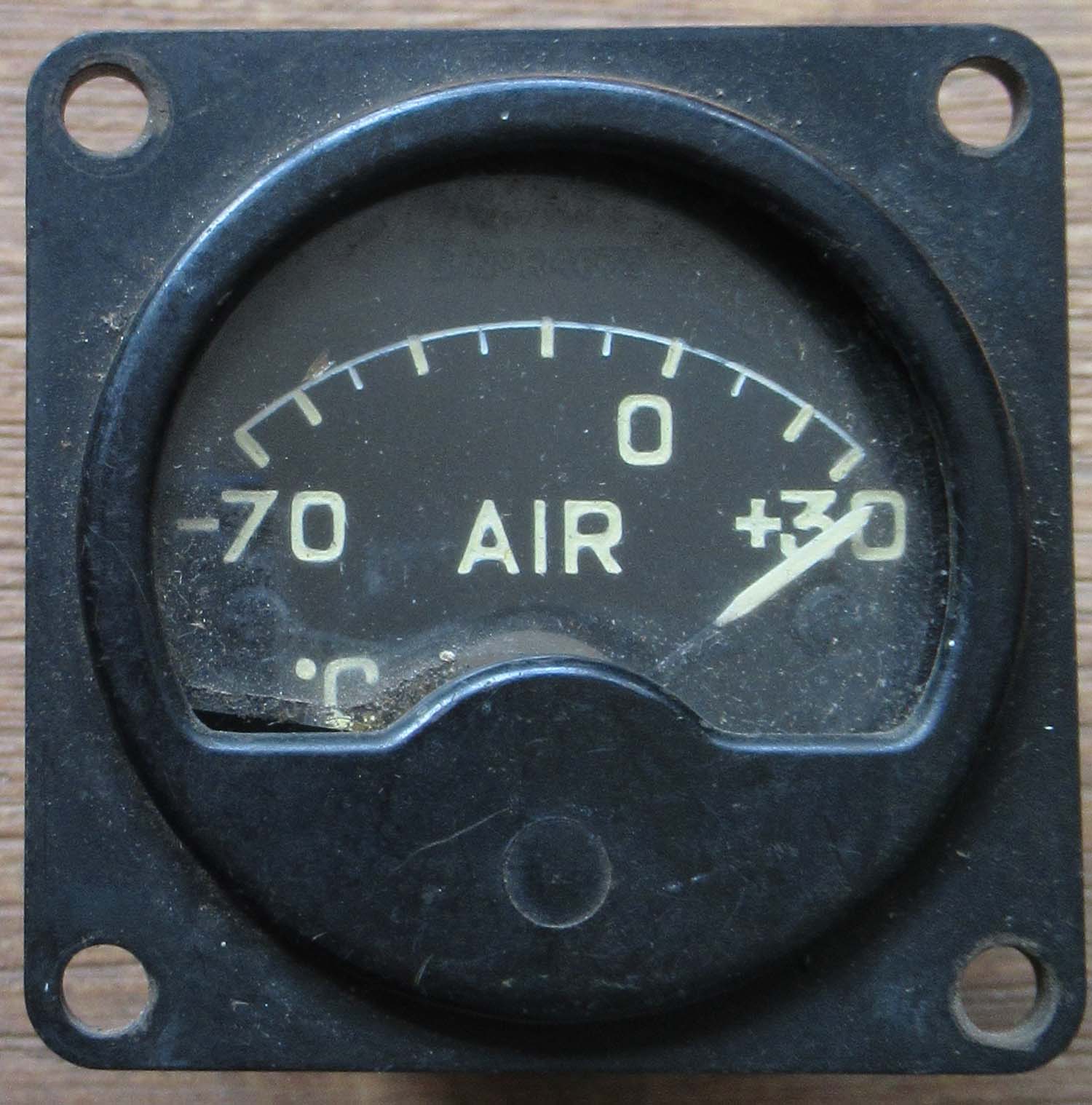

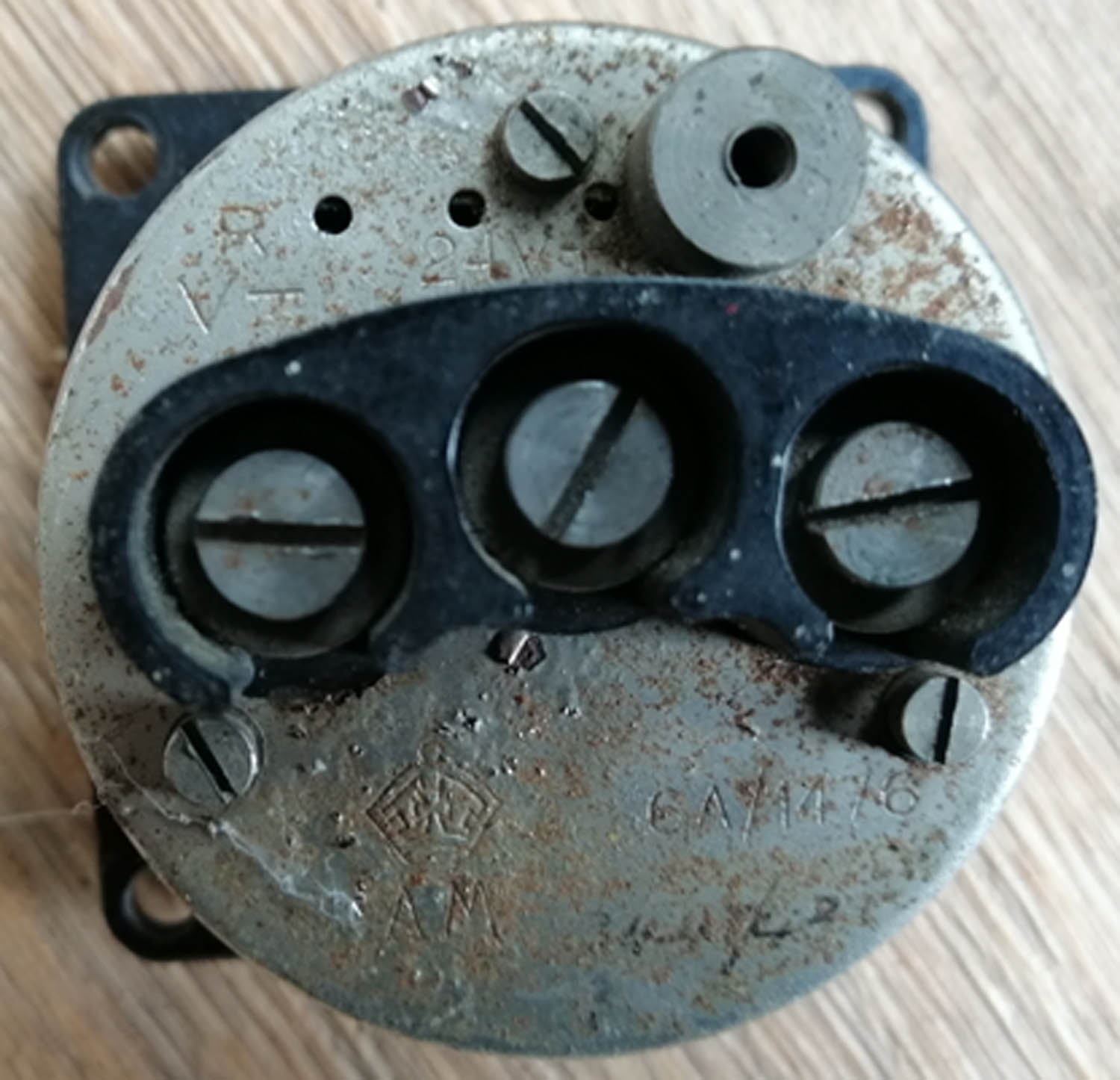

Air Temp gauge 6A/1476 (Page 14 temp gauges 17D)

Classic Air Ministry air temp gauge

Serial number: R4675        24  Volt

Click on the picture to enlarge.

£55



Click on the picture to enlarge.

Air Temp gauge 6A/1476 (Page 14 temp gauges 17C)

Classic Air ministry air temp gauge dated 1942. This one has a broken lug.

24  Volt

Click on the picture to enlarge.

£35





Click on the picture to enlarge.

Air Temp gauge 6A/1475 (Page 14 temp gauges 17B)

Classic Air ministry air temp gauge dated 1944

24  Volt

Click on the picture to enlarge.

£55





Click on the picture to enlarge.

Air Temp gauge 6A 1486 (Page 14 temp gauges 17A)

Classic Air ministry air temp gauge dated 1943

24  Volt

Click on the picture to enlarge.

£55



Click on the picture to enlarge.

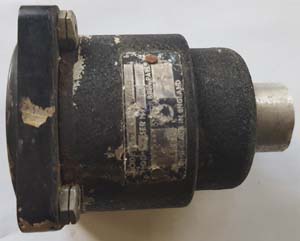

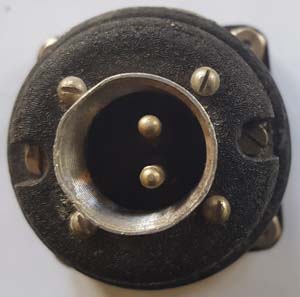

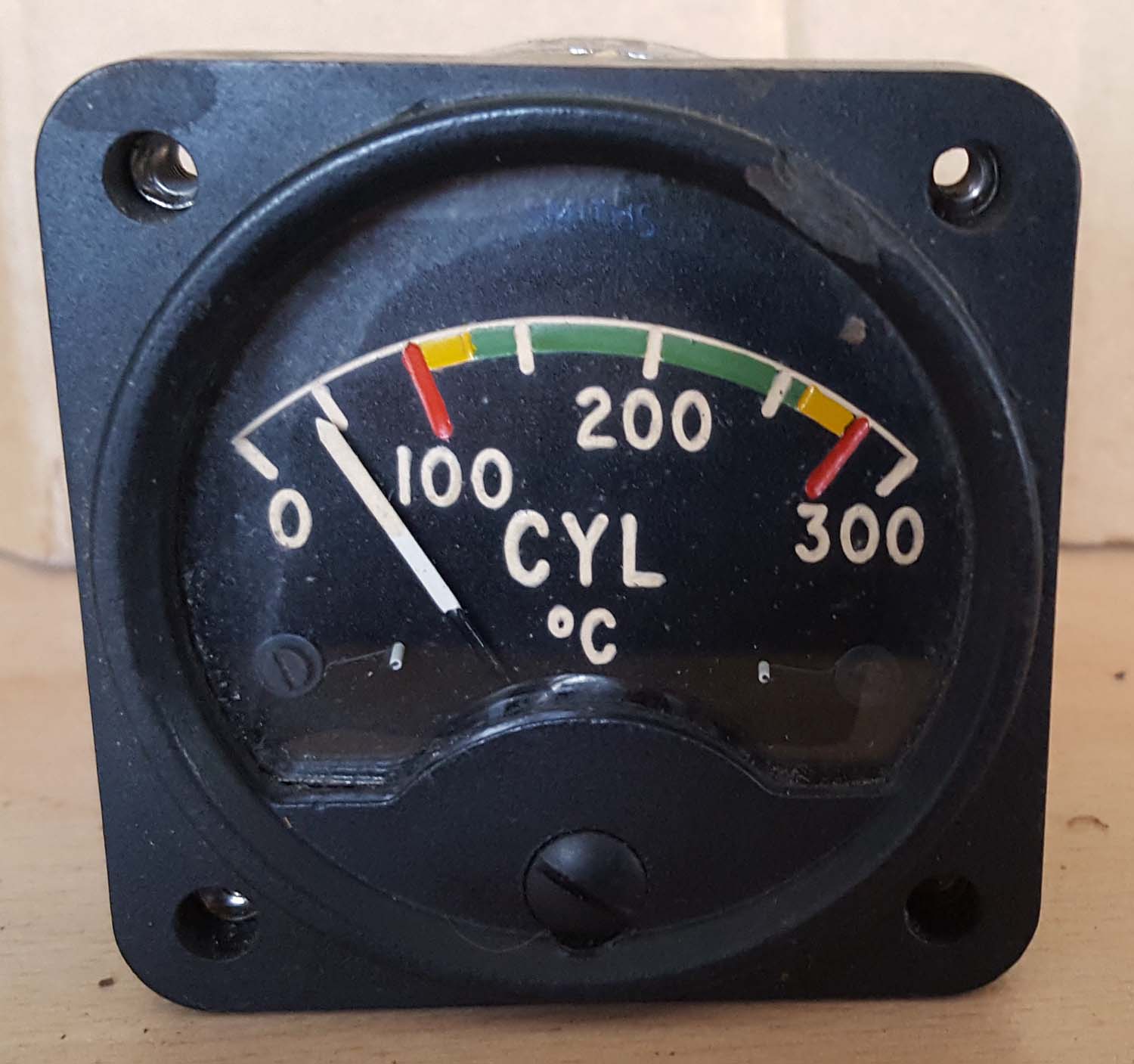

Cylinder head temp gauge (Page 14 temp gauges 16)

Used with air cooled radial engines.

3 available.

£45

Click on the picture to enlarge.

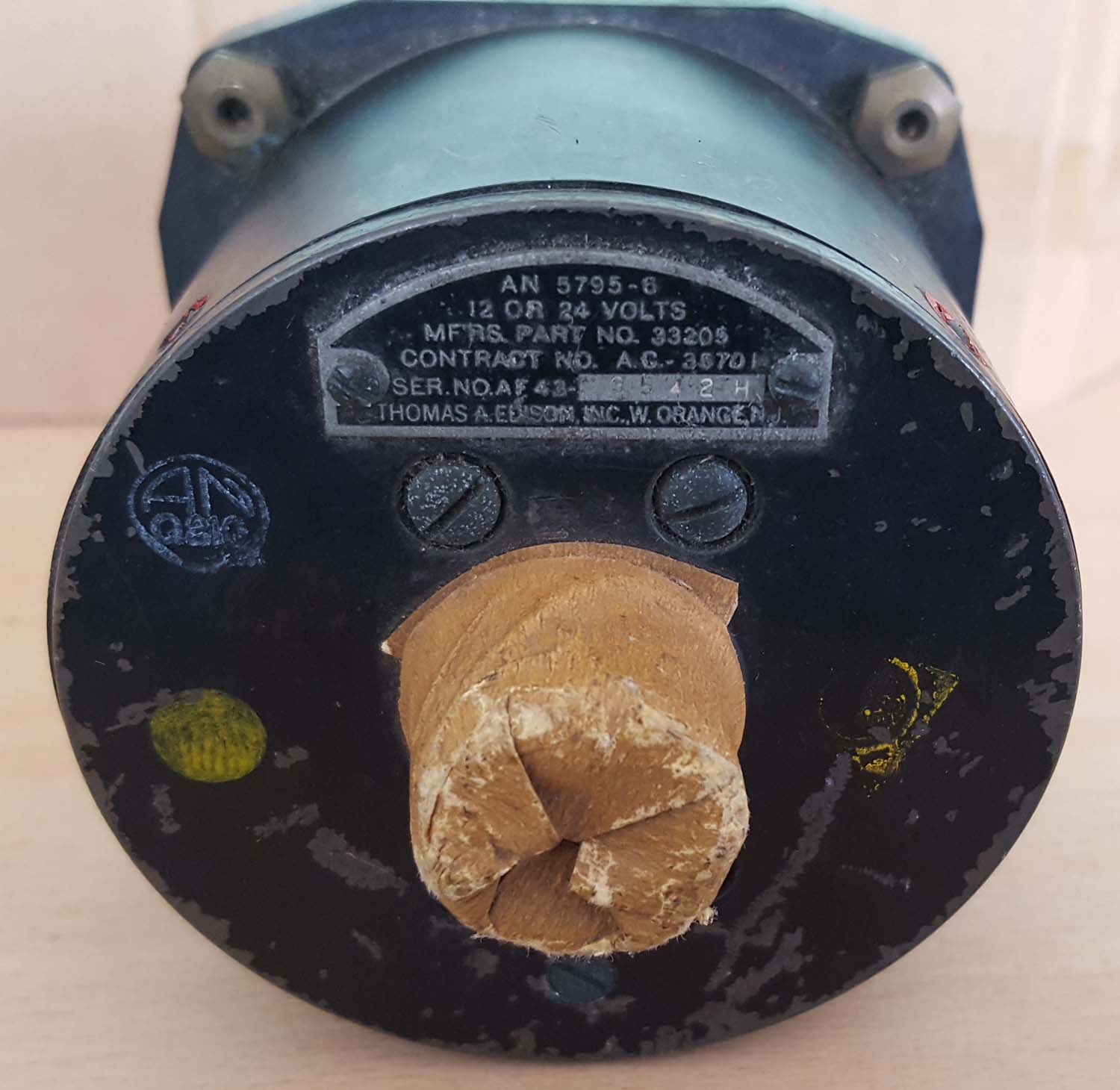

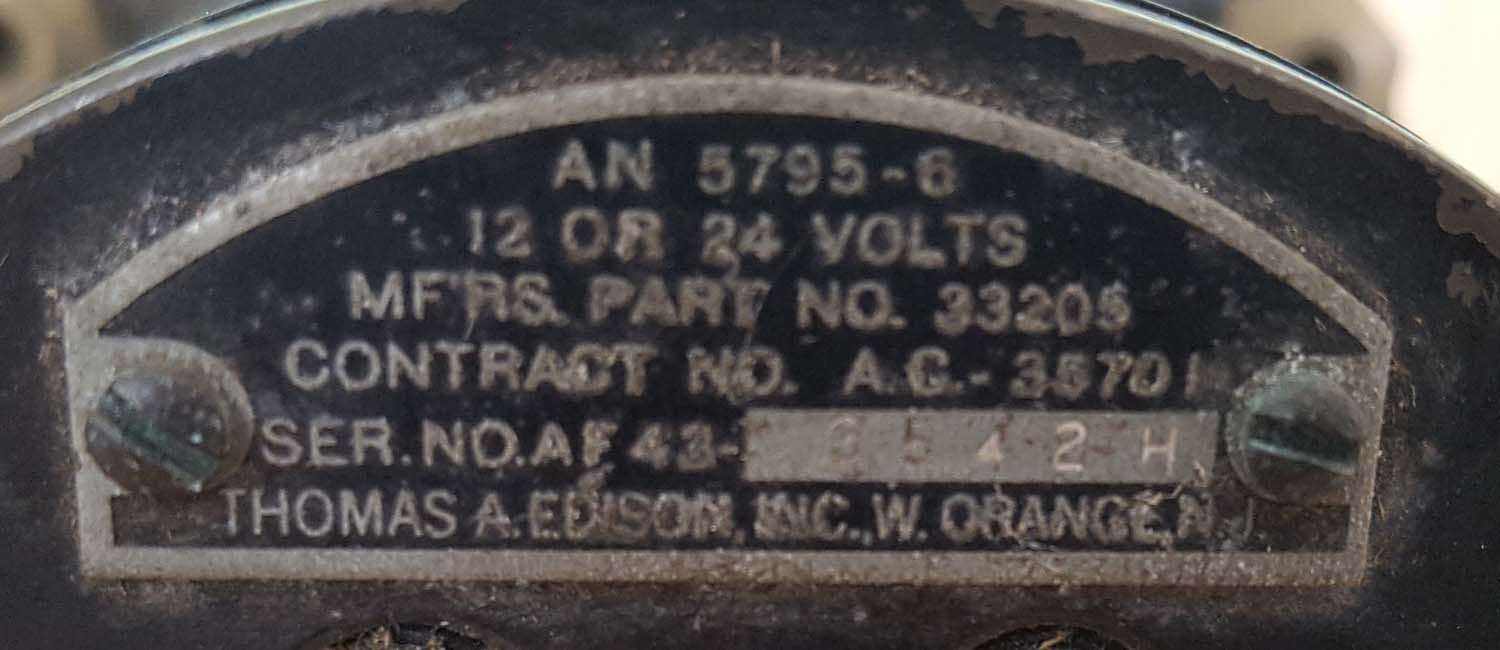

B17 Flying Fortress USAF Cylinder head temp gauge AN 5795-6 (Page 14 temp gauges 15)

Used with air cooled radial engines. These are superbly made instruments of the highest quality the slight discolouring on the right face is actually the brass showing through the paint.

The one shown was made by Thomas Edison INC. Used in the B17 and probably other US aircraft.



£85

Click on the picture to enlarge.

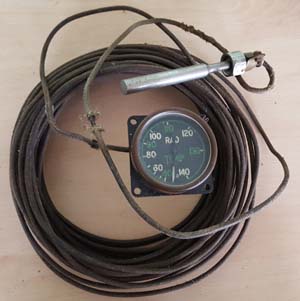

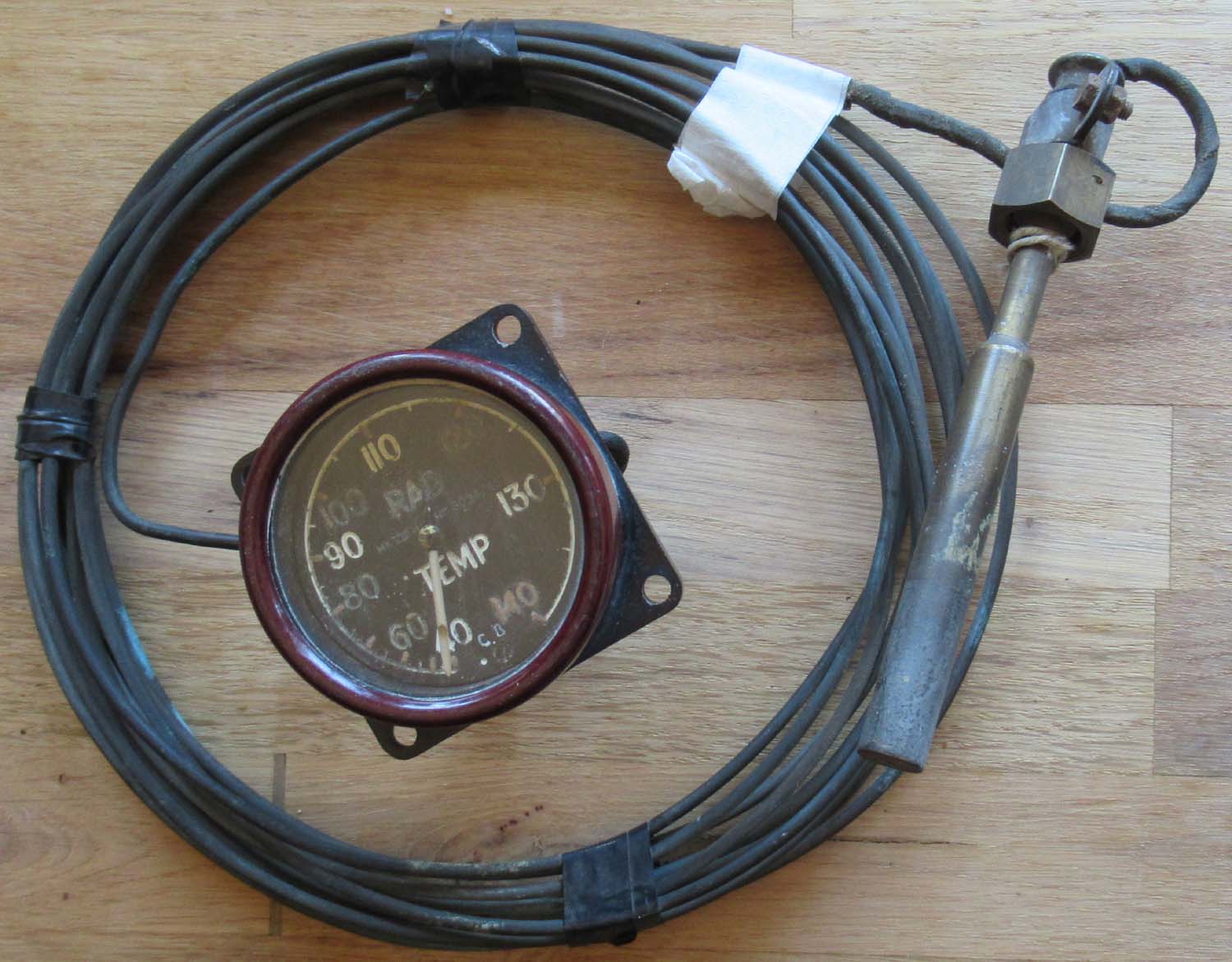

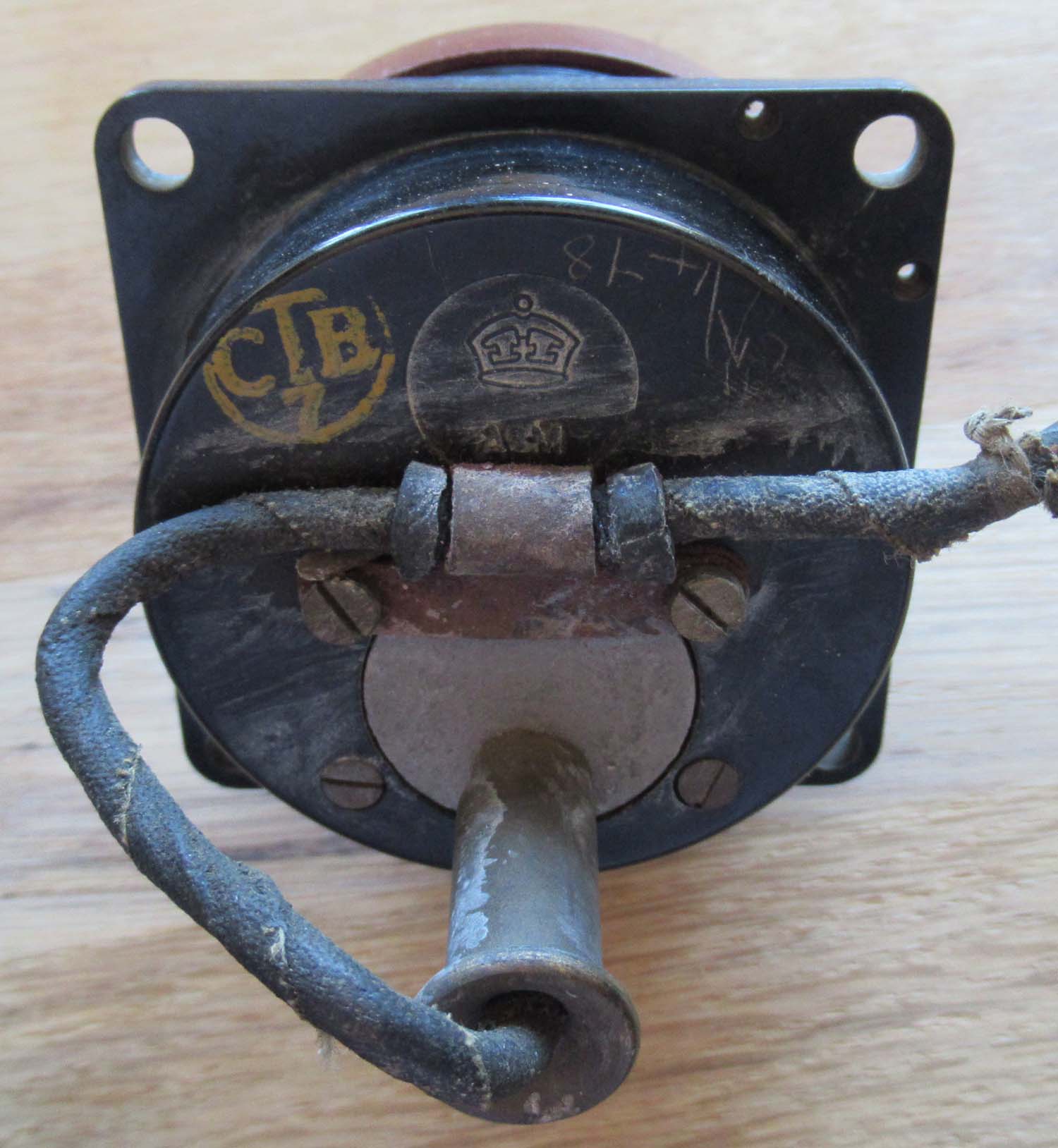

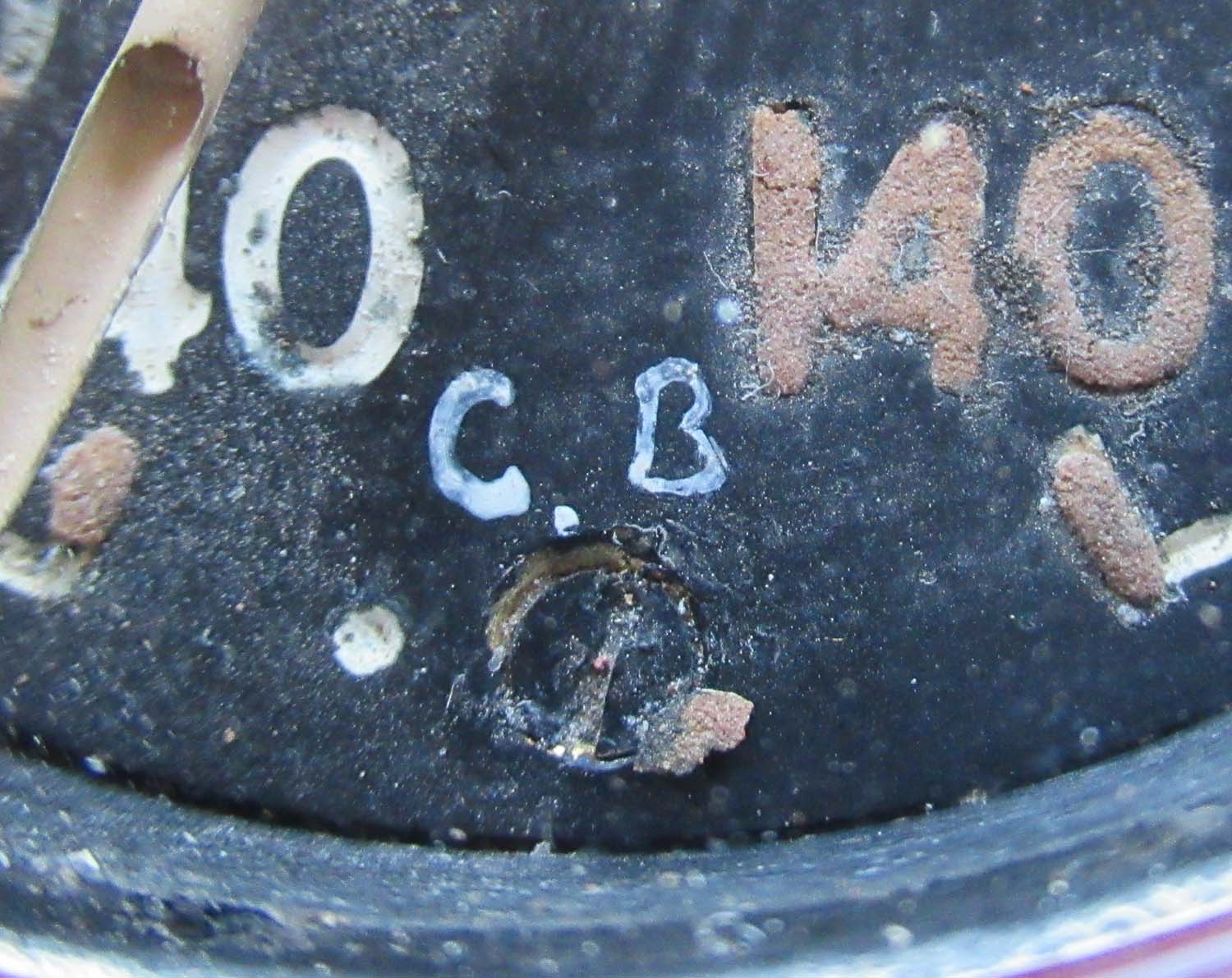

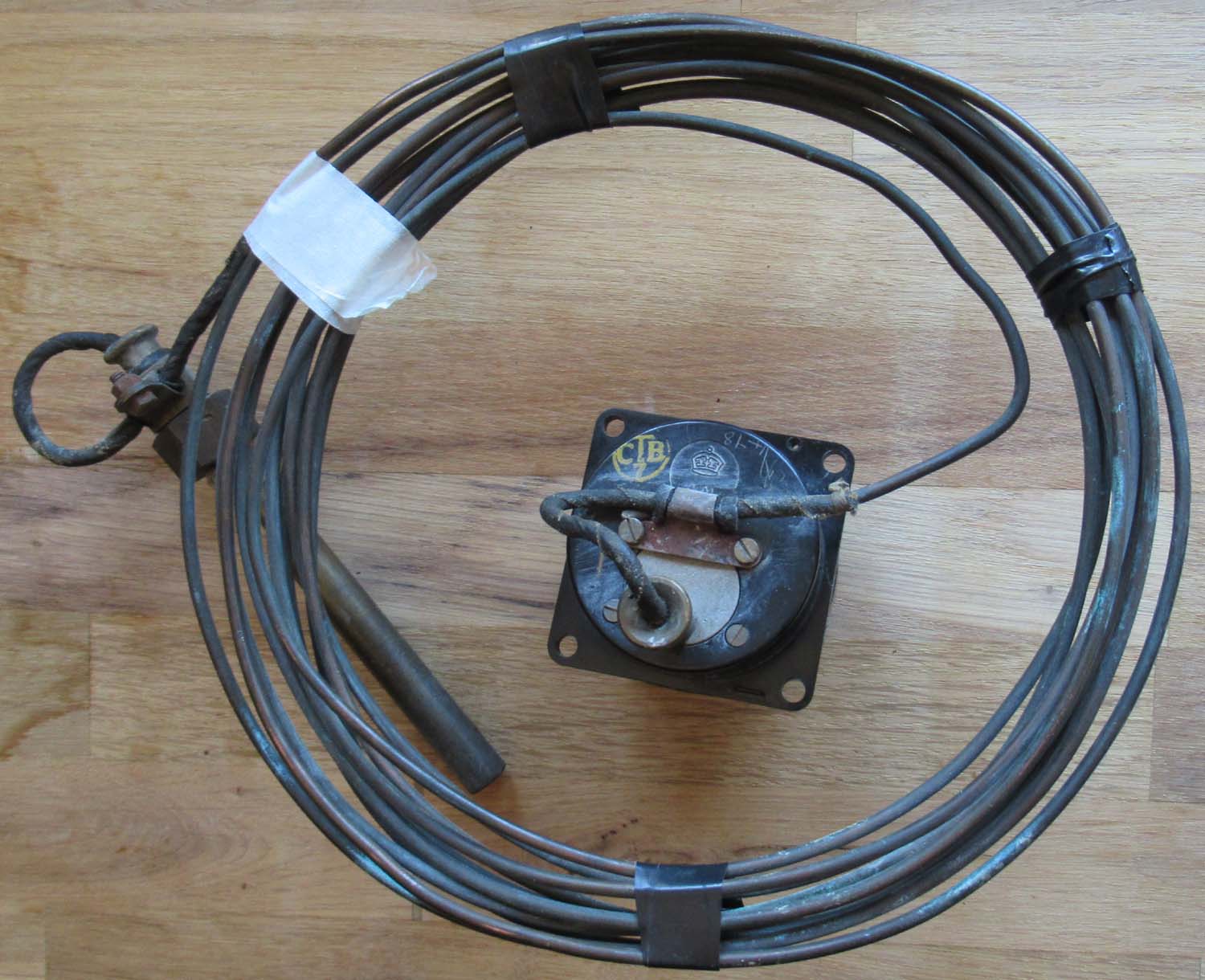

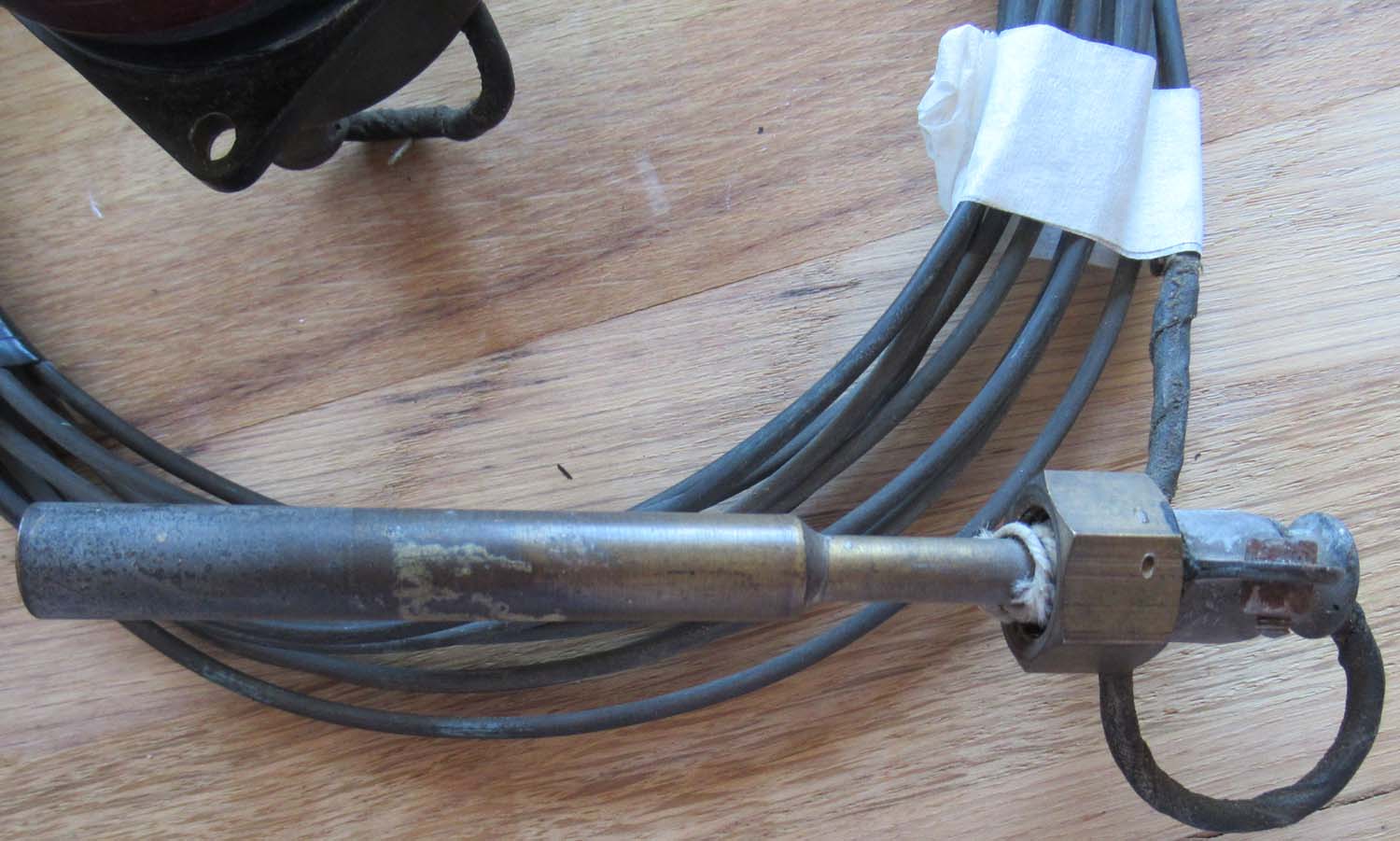

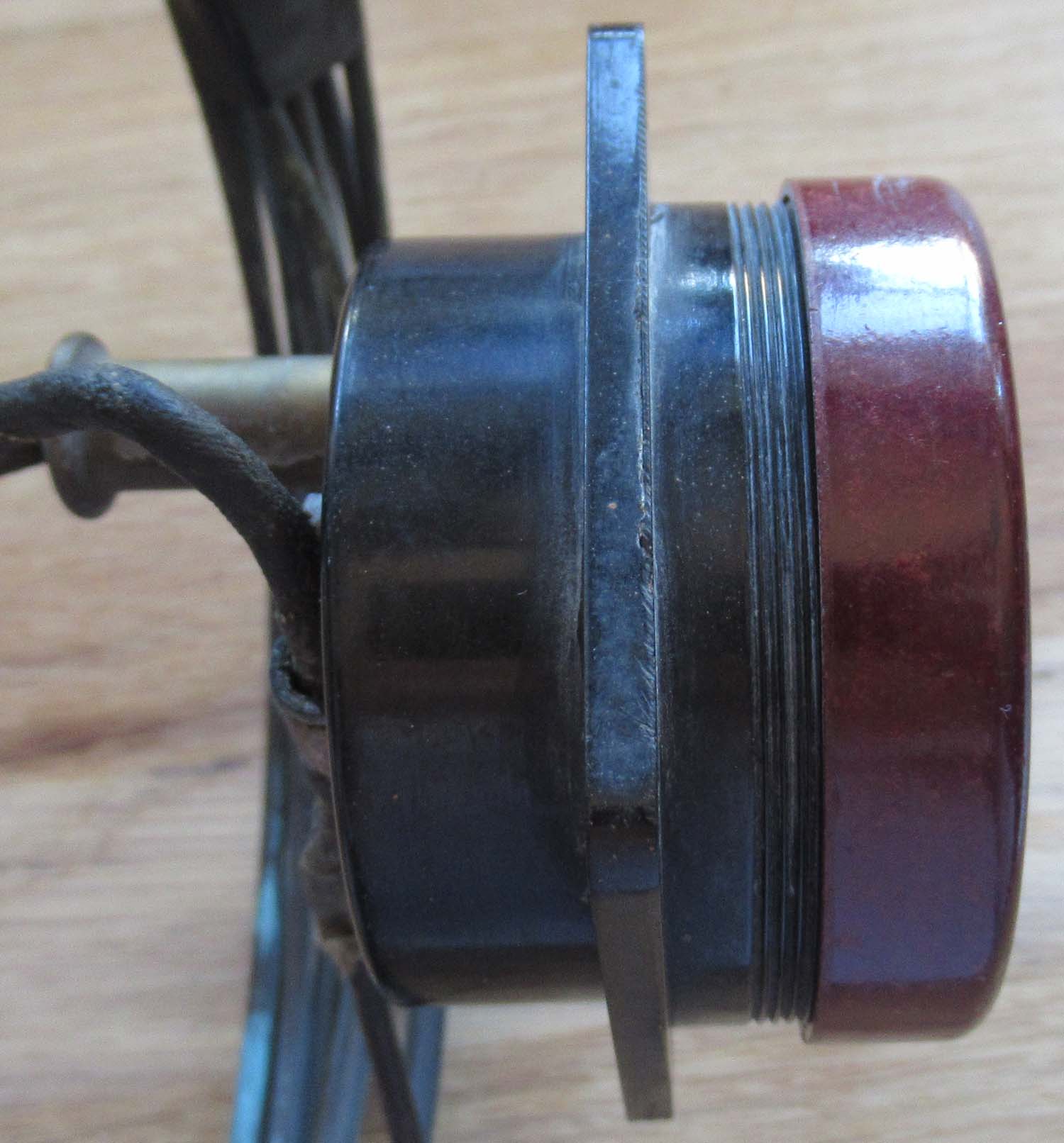

MK VIII Rad temp gauge (Page 14 temp gauges 14)



A very early Classic early Radiator Temperature gauge with complete capillary, It has its capillary attached and responds to heat .  This is the long capillary version so for use in multiple engine or Bomber aircraft.

Dated 1939



Out of stock more wanted contact me

Click on pictures to enlarge

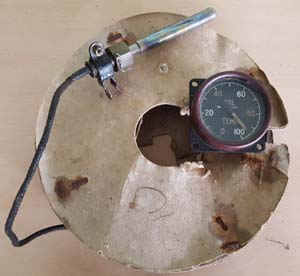

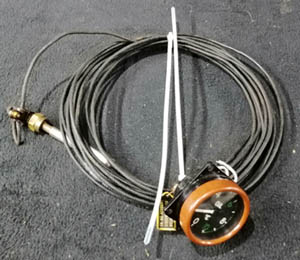

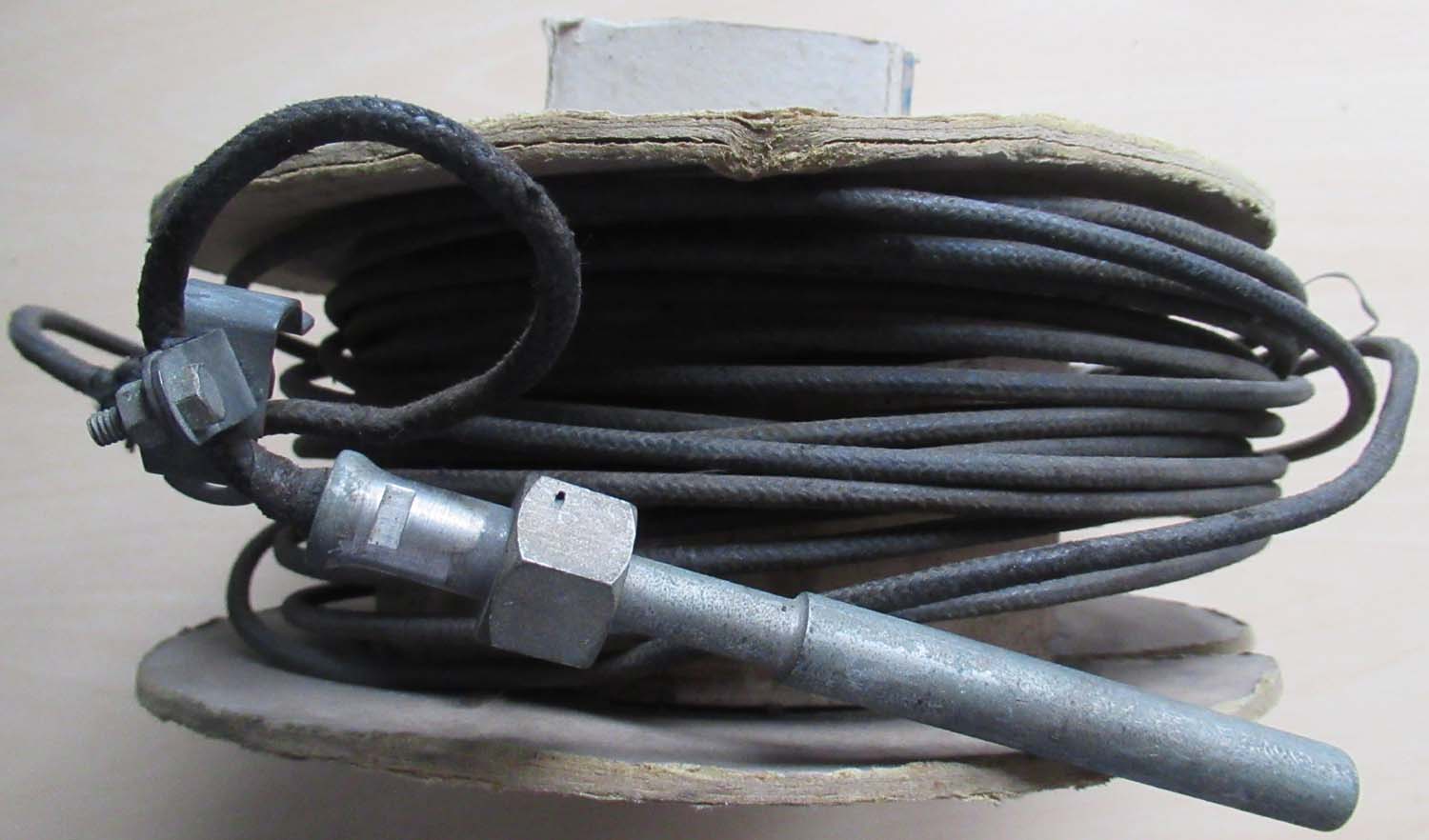

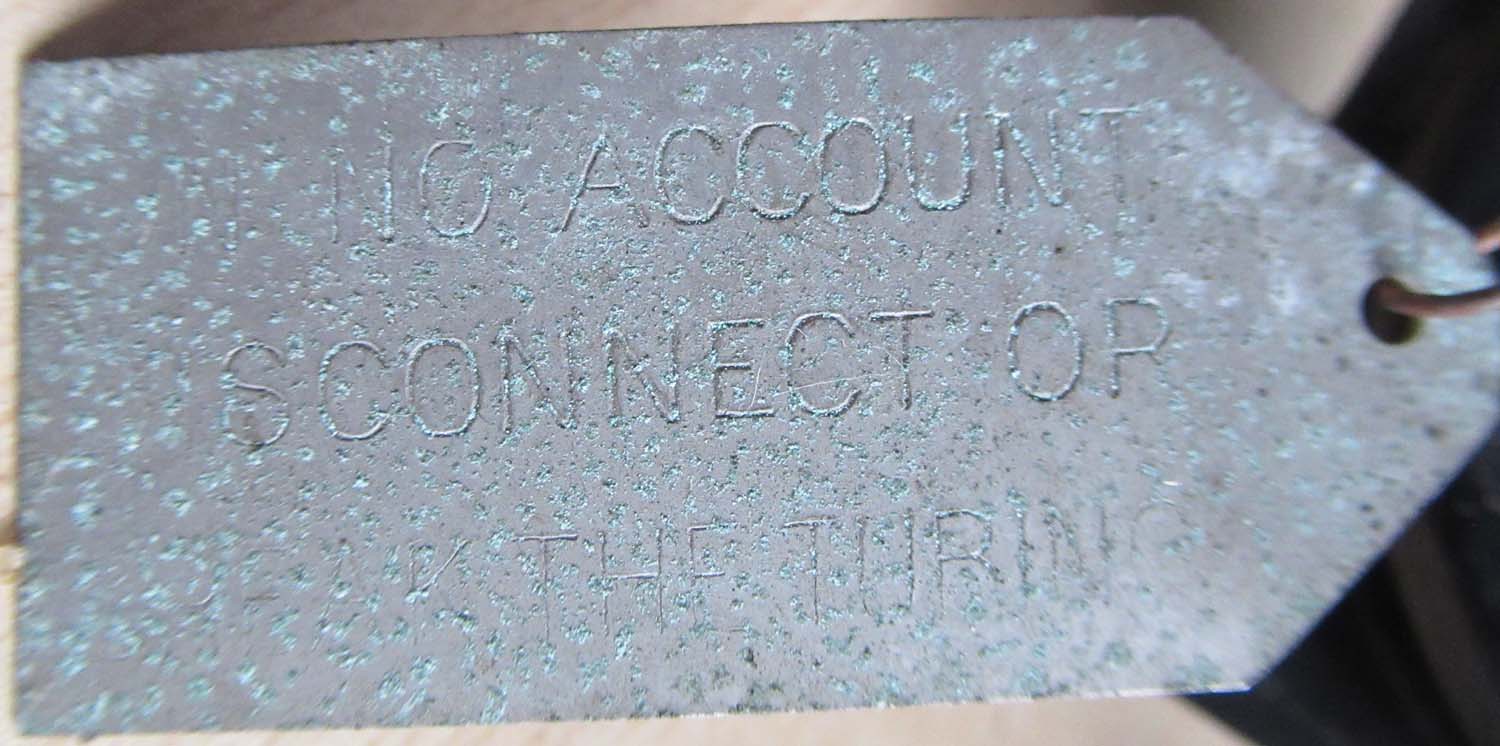

Negretti and Zambra Oil Temp Gauge (Page 14 temp gauges 13)

A Classic early round Oil Temperature gauge with complete capillary. This does not appear to be Military issue but its certainly period to the 1940s. The gauge responds to an increase in temperature and is working although it may need to be calibrated.

No T /106718

The length of the capillary is just over 30Ft.

Out of Stock More Wanted Contact us

Click on pictures to enlarge

MK VIII rad temp gauge (Page 14 temp gauges 12)

A very early Classic early Radiator Temperature gauge with complete capillary, It has its capillary attached and responds to heat .

Made by Negreta Zambra

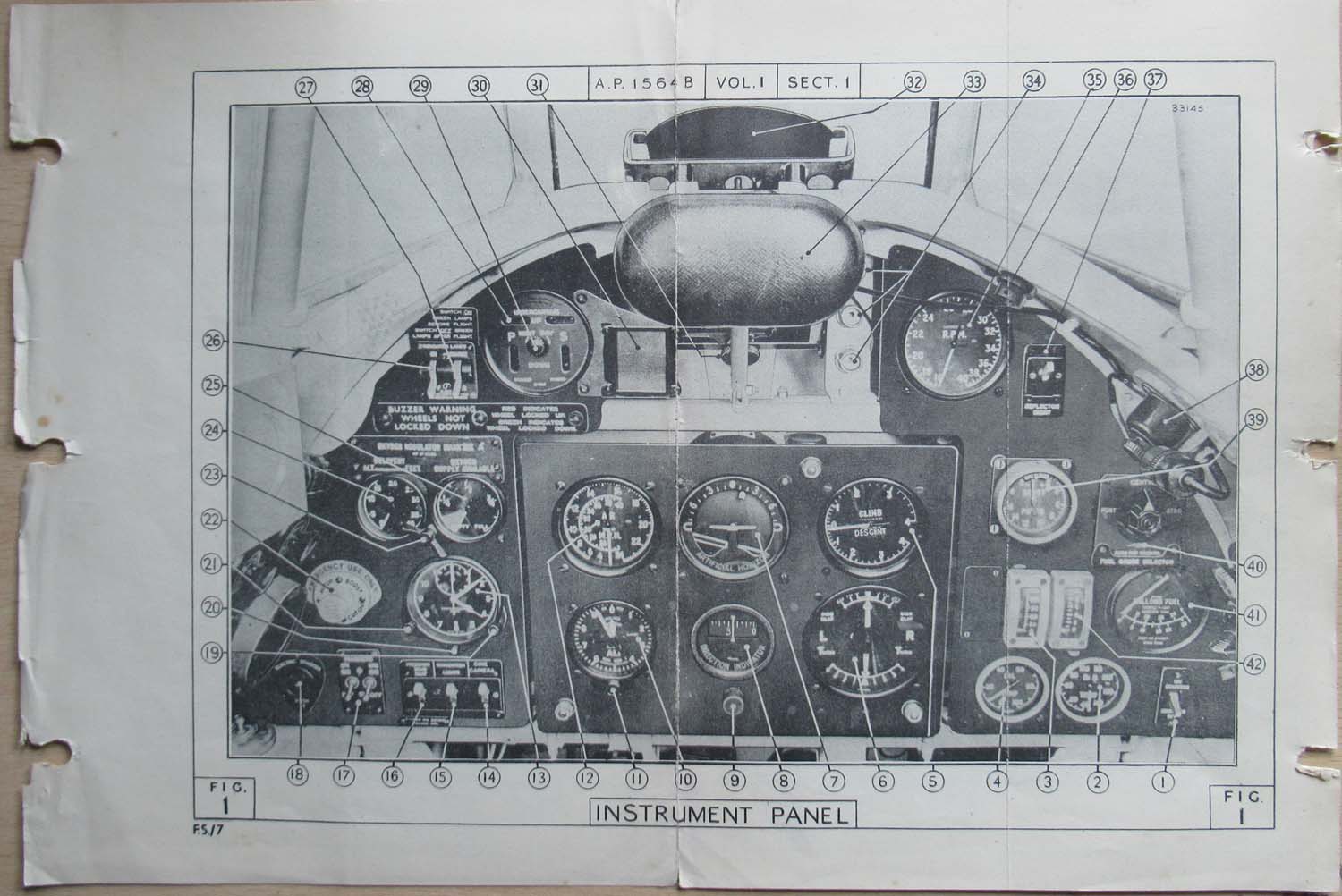

Mk I Hurricane

Out of stock more wanted contact me.



Click on the pictures to enlarge.

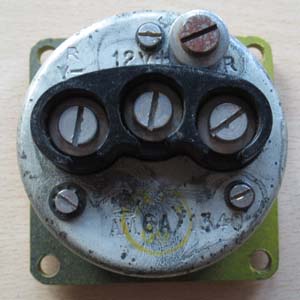

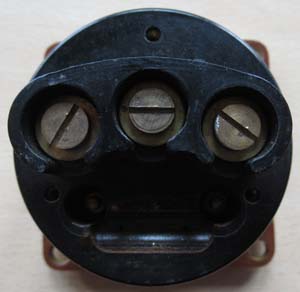

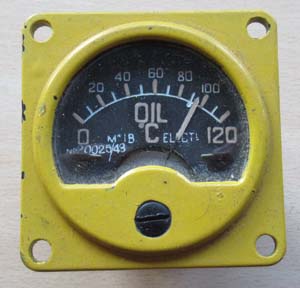

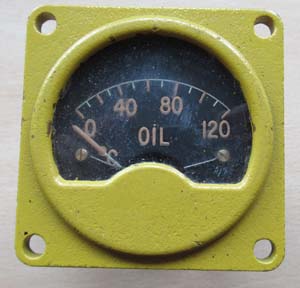

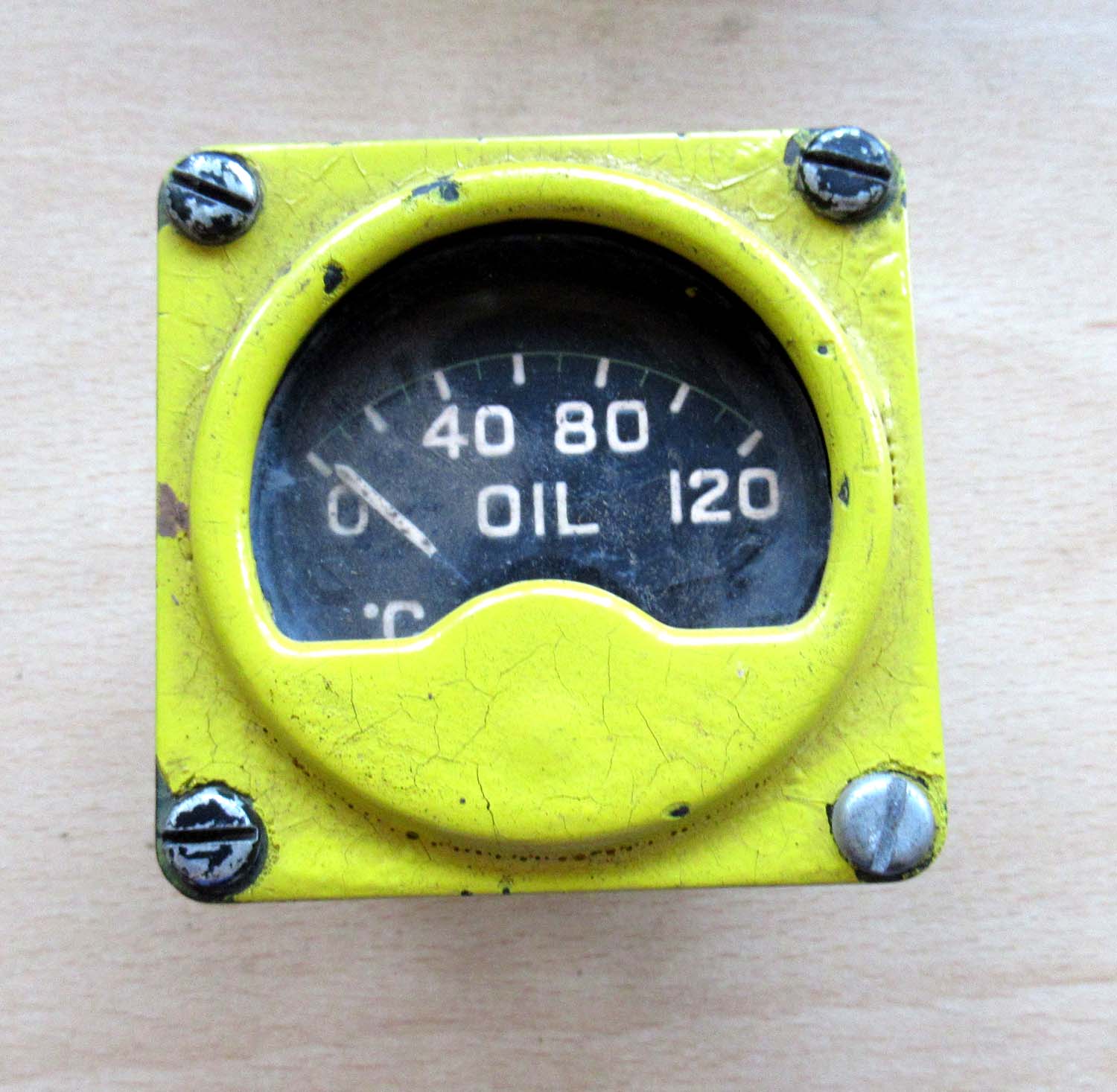

Yellow oil Temp Gauge (Page 14 temp gauges10)

Standard Yellow oil temp gauge fitted to practically all Wartime RAF aircraft. This one is missing its steel case and has a loose glass but good for display.

£35

Click on the picture to enlarge.

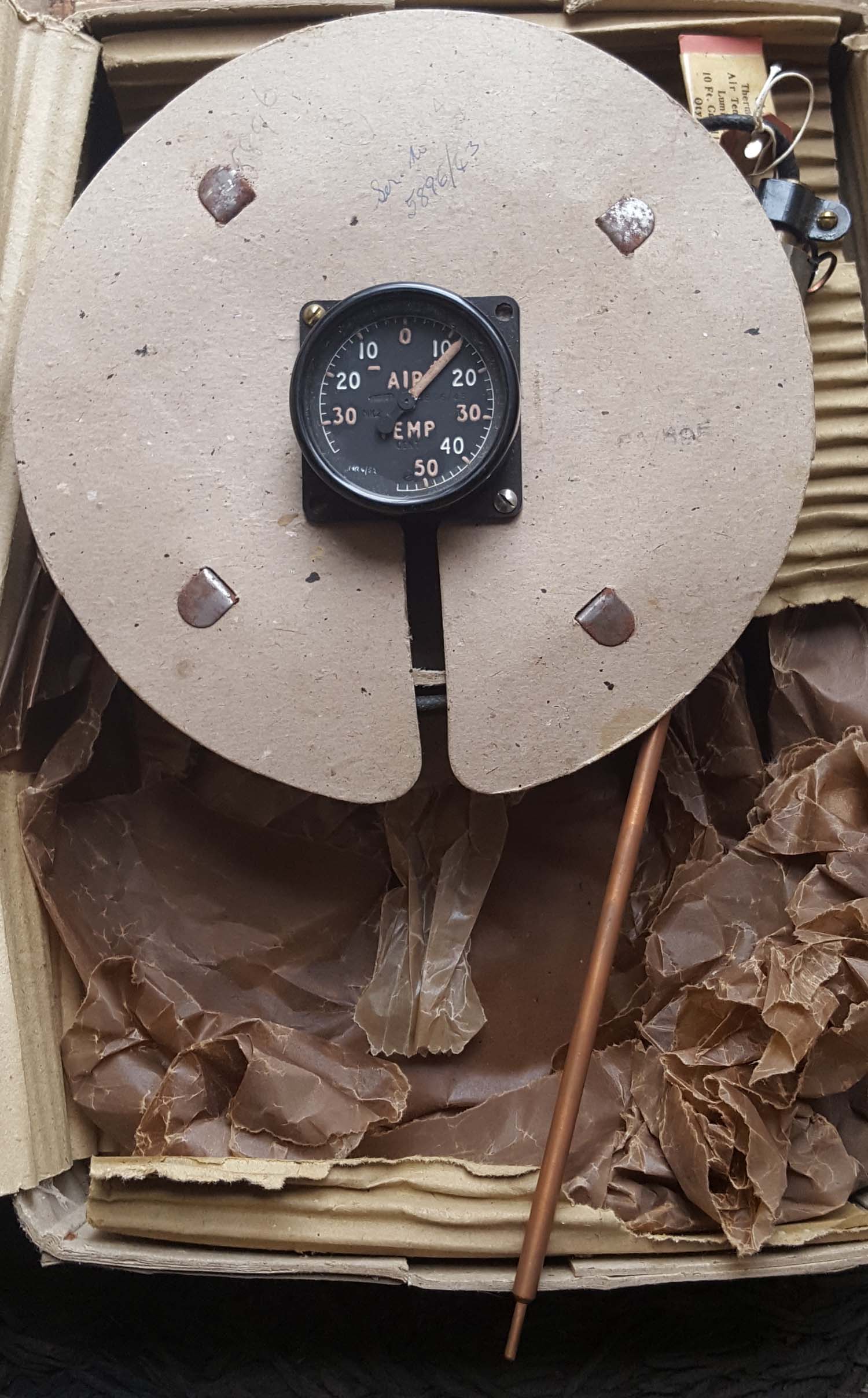

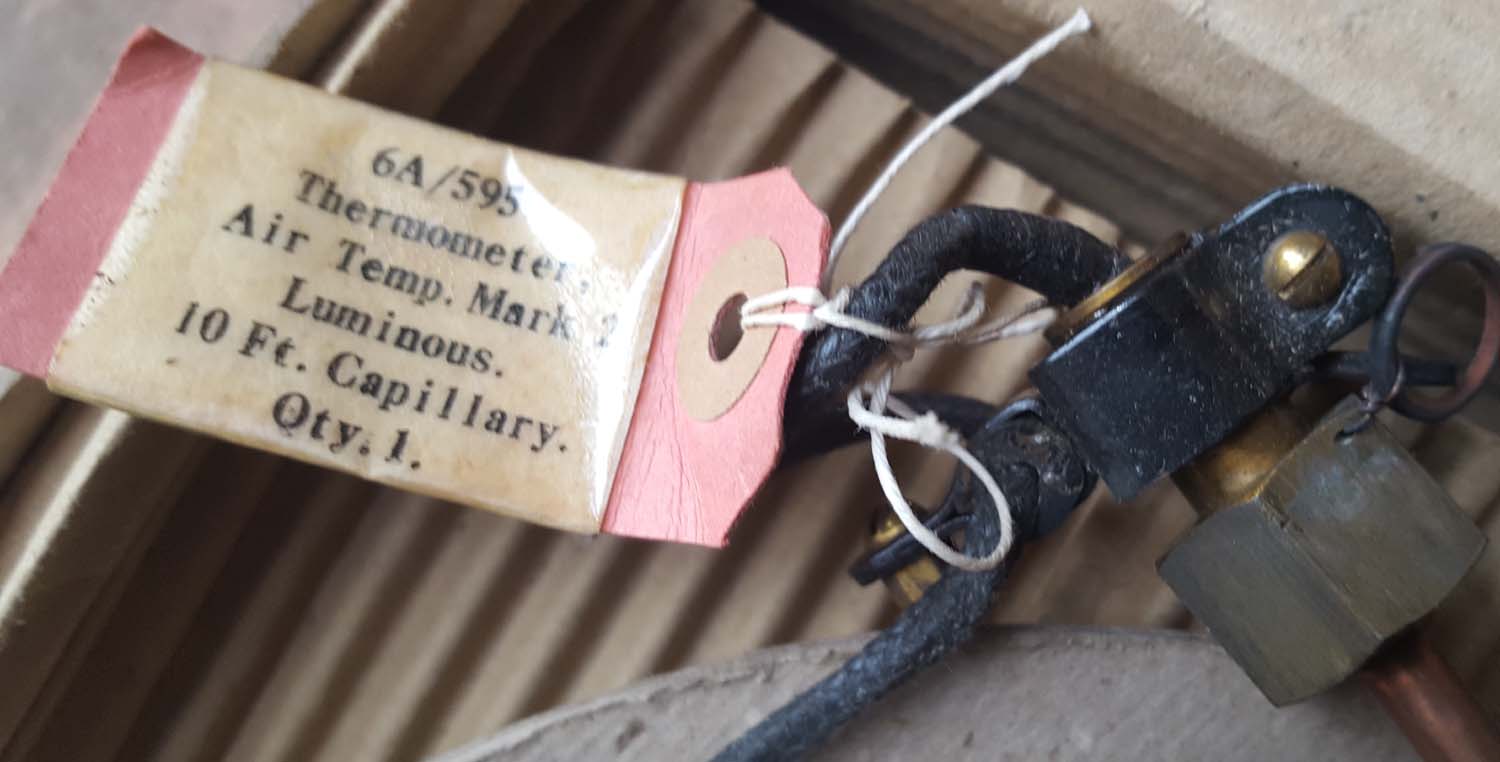

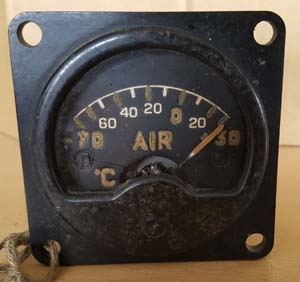

Air Temp gauge (Page 14 temp gauges 8)

Click on the picture to enlarge.

This gauge is in excellent condition in the remains of its original box dated 1943. It works as it should and has a 10Ft capillary

Dated 1943

Out of Stock More Wanted Contact us

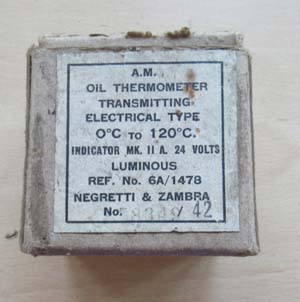

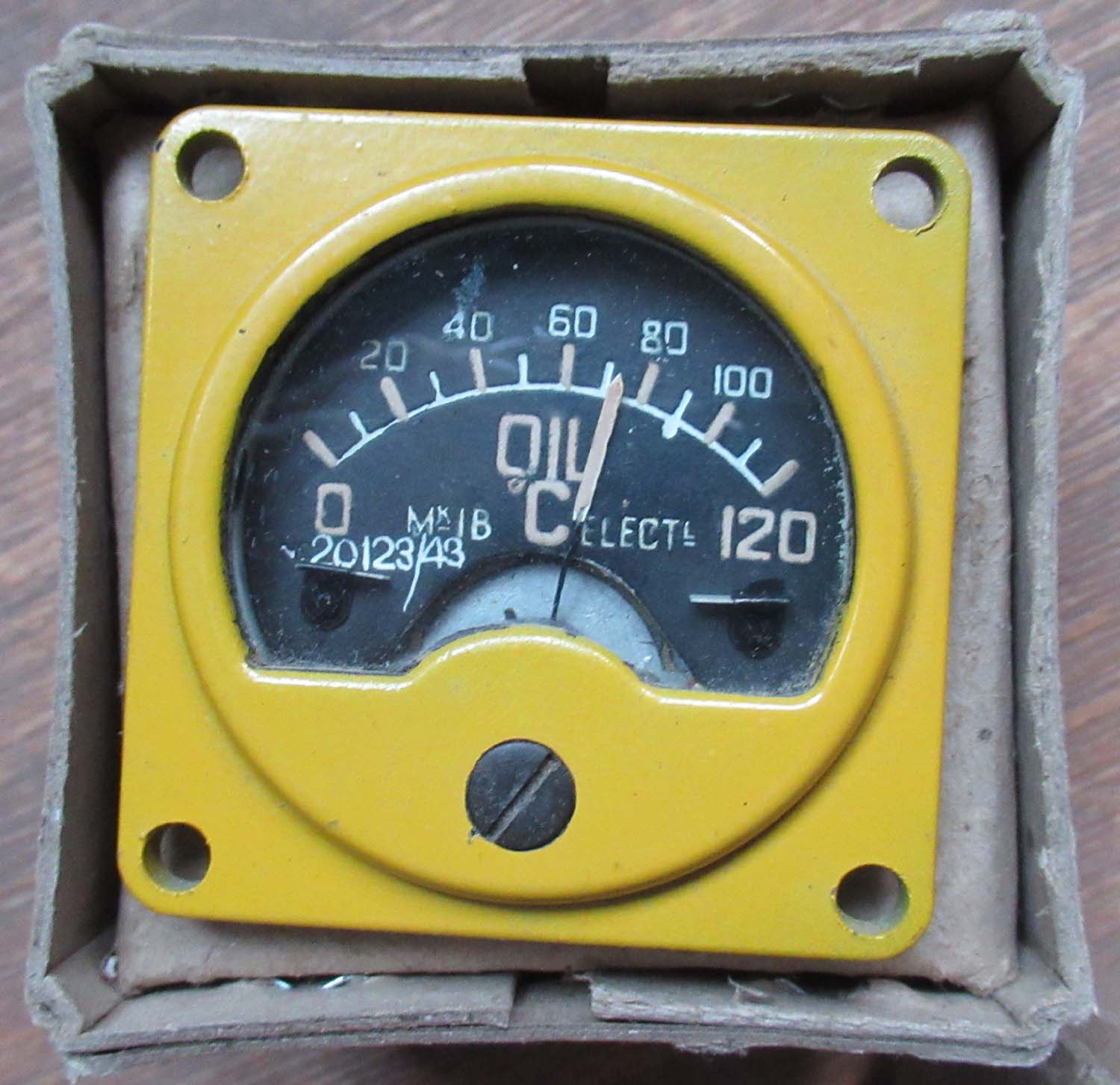

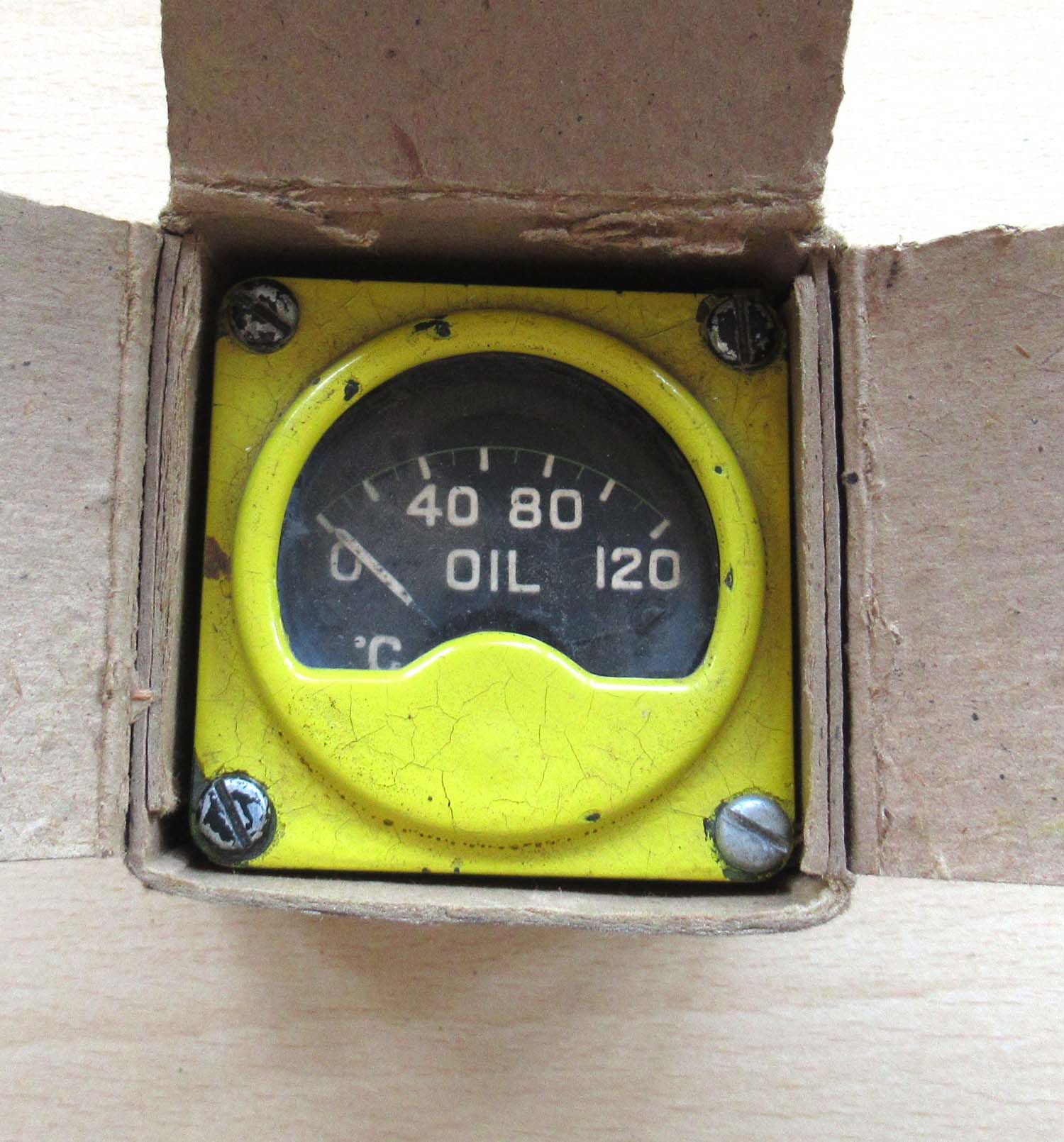

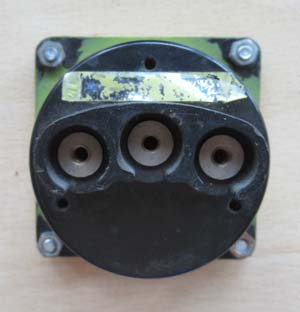

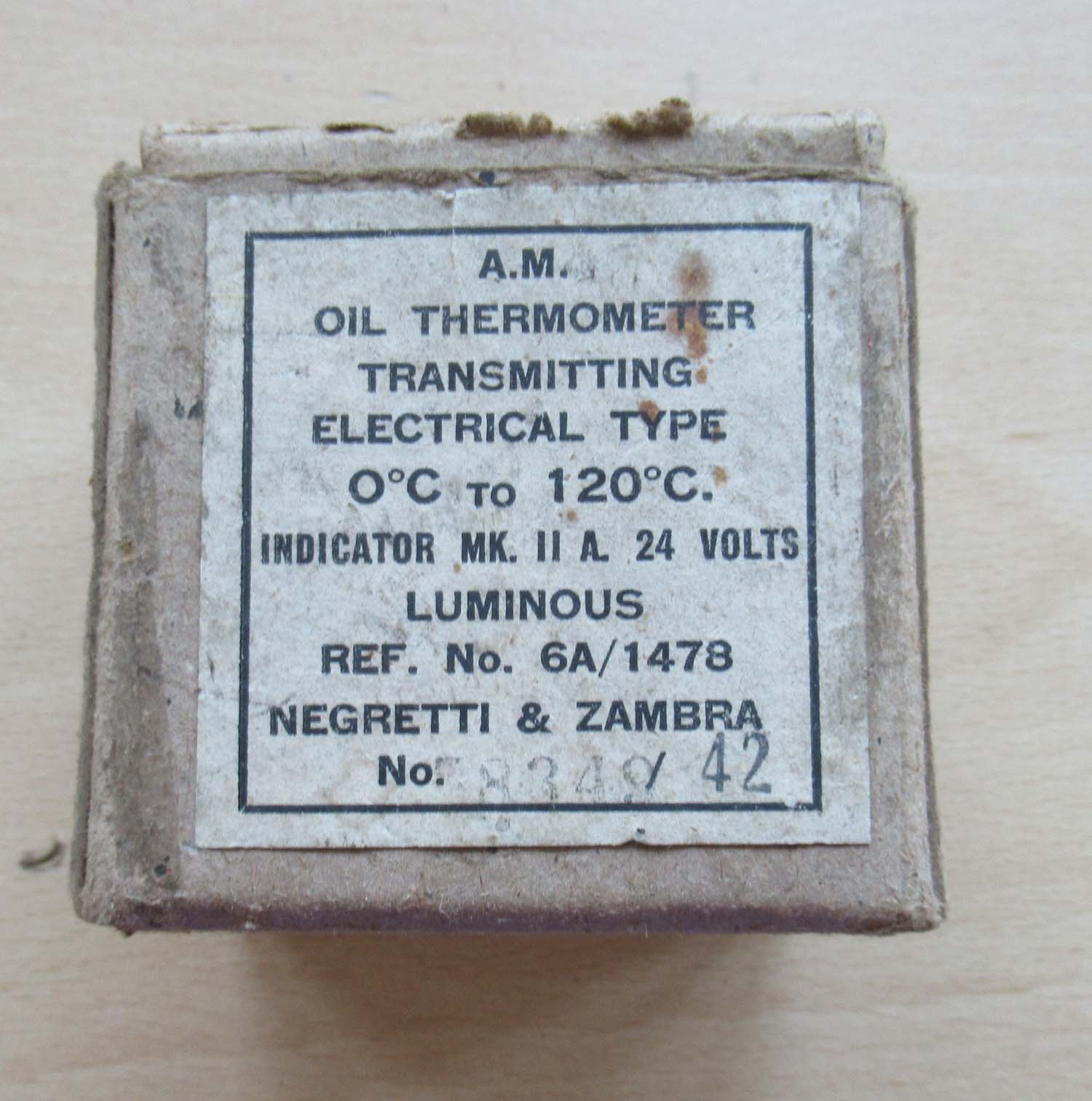

New Oil Temp gauge 24v (Page 14 temp gauges 7)

This is an old new stock Oil Temperature gauge in excellent unused boxed condition. Most Flying Spitfires today have converted to 24Volt so this gauge would suit an operational aircraft. Also suitable for Wartime late Mk Spitfire panels or of coarse bombers which generally used 24Volts. If you just want it for display and prefer black gauges it will sit alongside our black radiator temp gauge shown above. Its slightly different with green marked scale. Marked with Air ministry Crown.

A/M 6A/1479  last check 1953

24 Volt

Out of stock

Senders for these available in electrical section link here

Click on pictures to enlarge

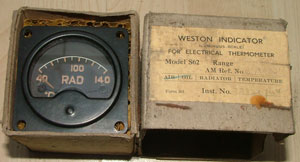

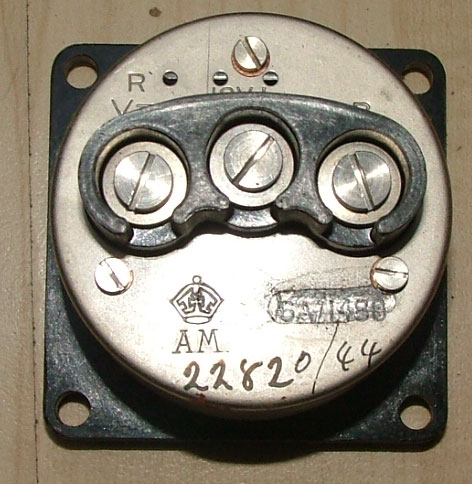

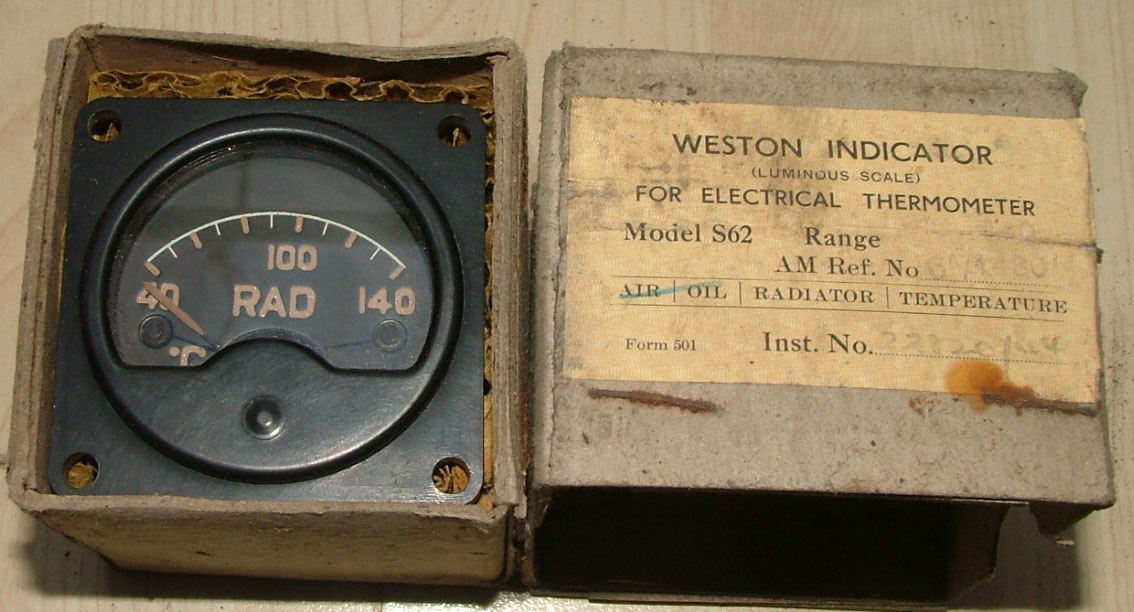

New Black Radiator Temp gauge (Page 14 temp gauges 5)

A very exiting find. Discovered during demolition work in an old underground store. As new wartime Radiator temperature Gauge complete in its original box having never left the factory. Superb and untouched for sixty years this gauge is a 12volt FIGHTER version and was discovered only 20 miles from Castle Bromwich England's main Spitfire factory. With these two facts in mind its almost certain these were destined for Castle Bromwich and a Spitfire. Perhaps sealed by bomb damage. I see no reason that these should not be serviceable subject to the normal checks.

A/M 6A/1480 dated 1944

Out of stock

Click on pictures to enlarge



These should  be serviceable subject to the normal checks.

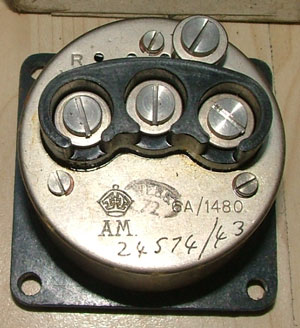

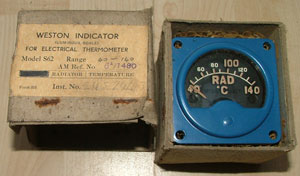

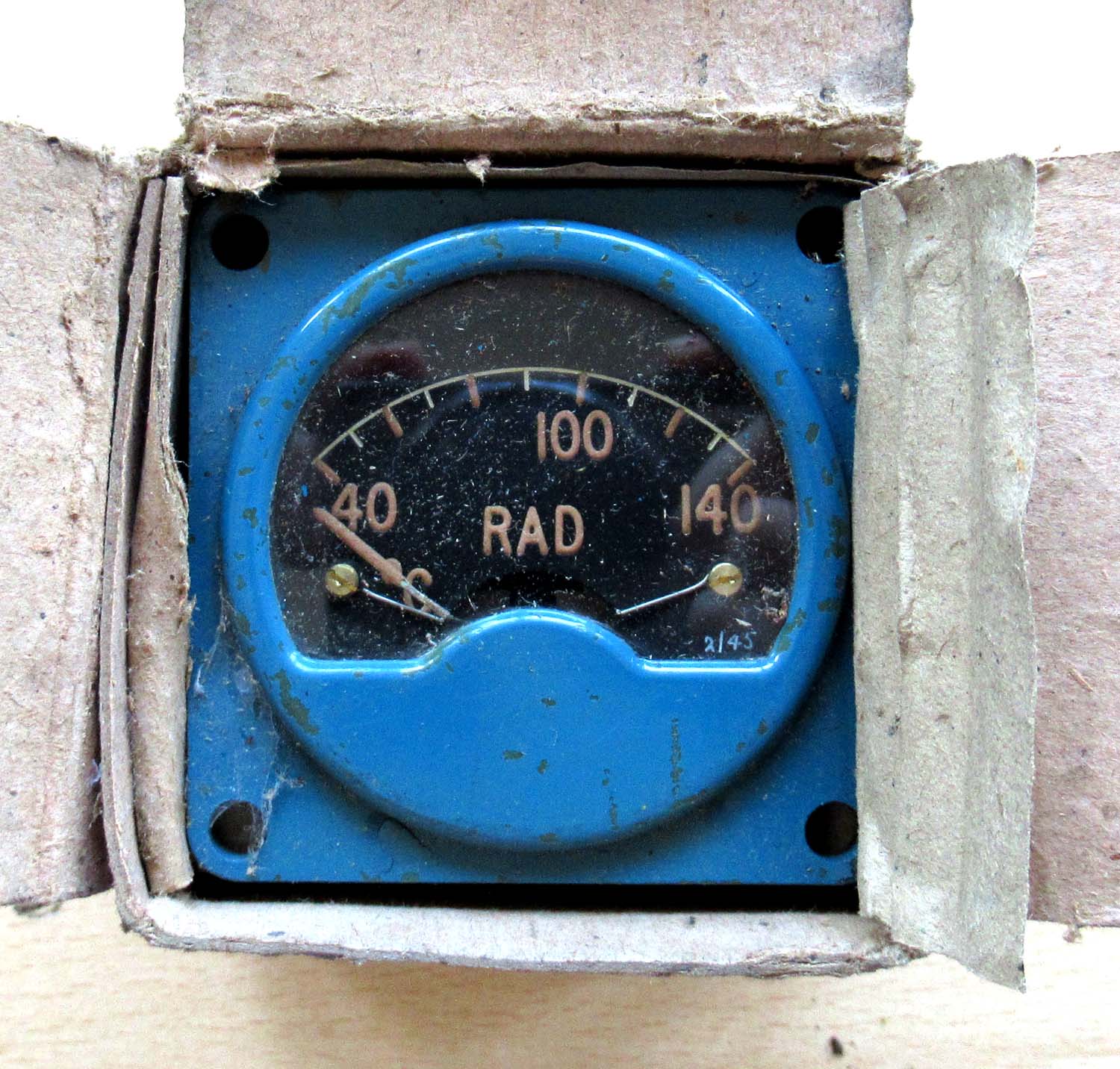

New Radiator Temp gauge (Page 14 temp gauges 4)

A very exiting find. Discovered during demolition work in an old underground store. As new wartime Radiator temperature Gauge complete in its original box having never left the factory. Superb and untouched for sixty years this gauge is a 12volt FIGHTER version and was discovered only 20 miles from Castle Bromwich England's main Spitfire factory.   With these two facts in mind its almost certain these were destined for Castle Bromwich and a Spitfire. Perhaps sealed by bomb damage.  he Castle Bromwich Aerodrome Factory, built in 1940, is now occupied by the Jaguar car plant.  The Factory closed in December 1945.   It had built 15634 Spitfires including Seafire production, and a 305 contribution to Lancaster production. The first of which was completed in late 1943. I have a small quantity available.

A/M 6A/1480 dated 1943

Four available

£65 each



Click on pictures to enlarge

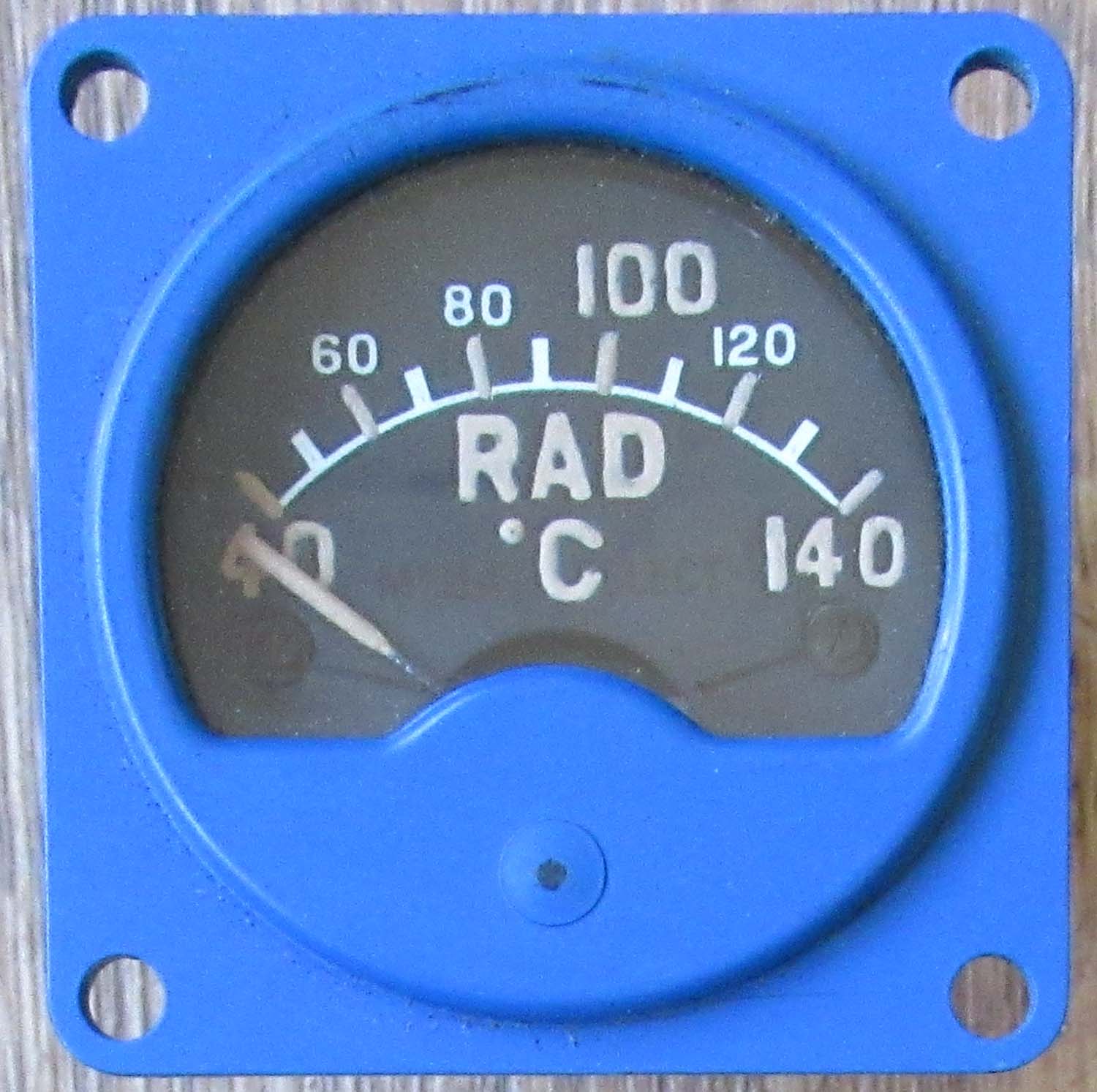

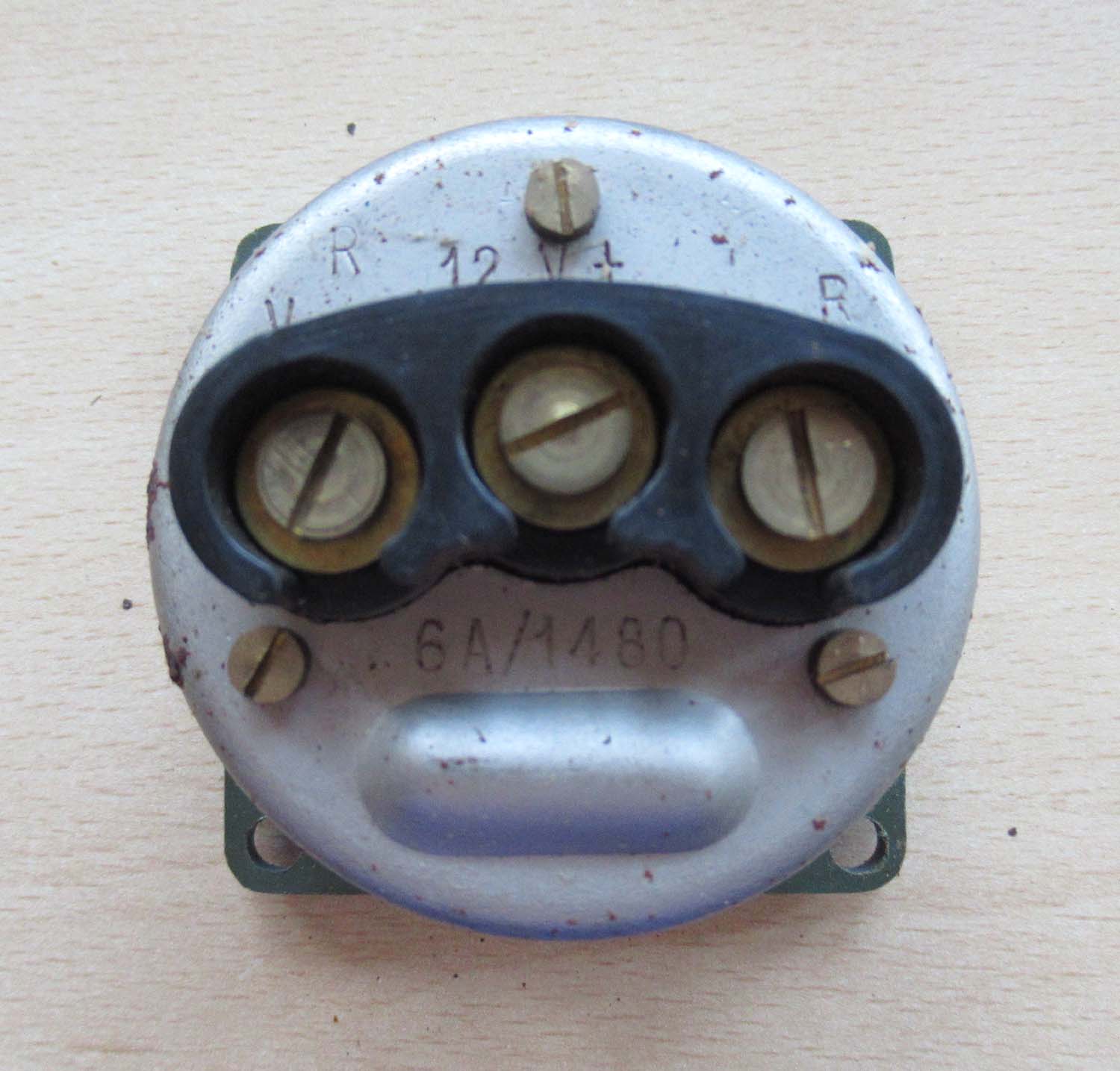

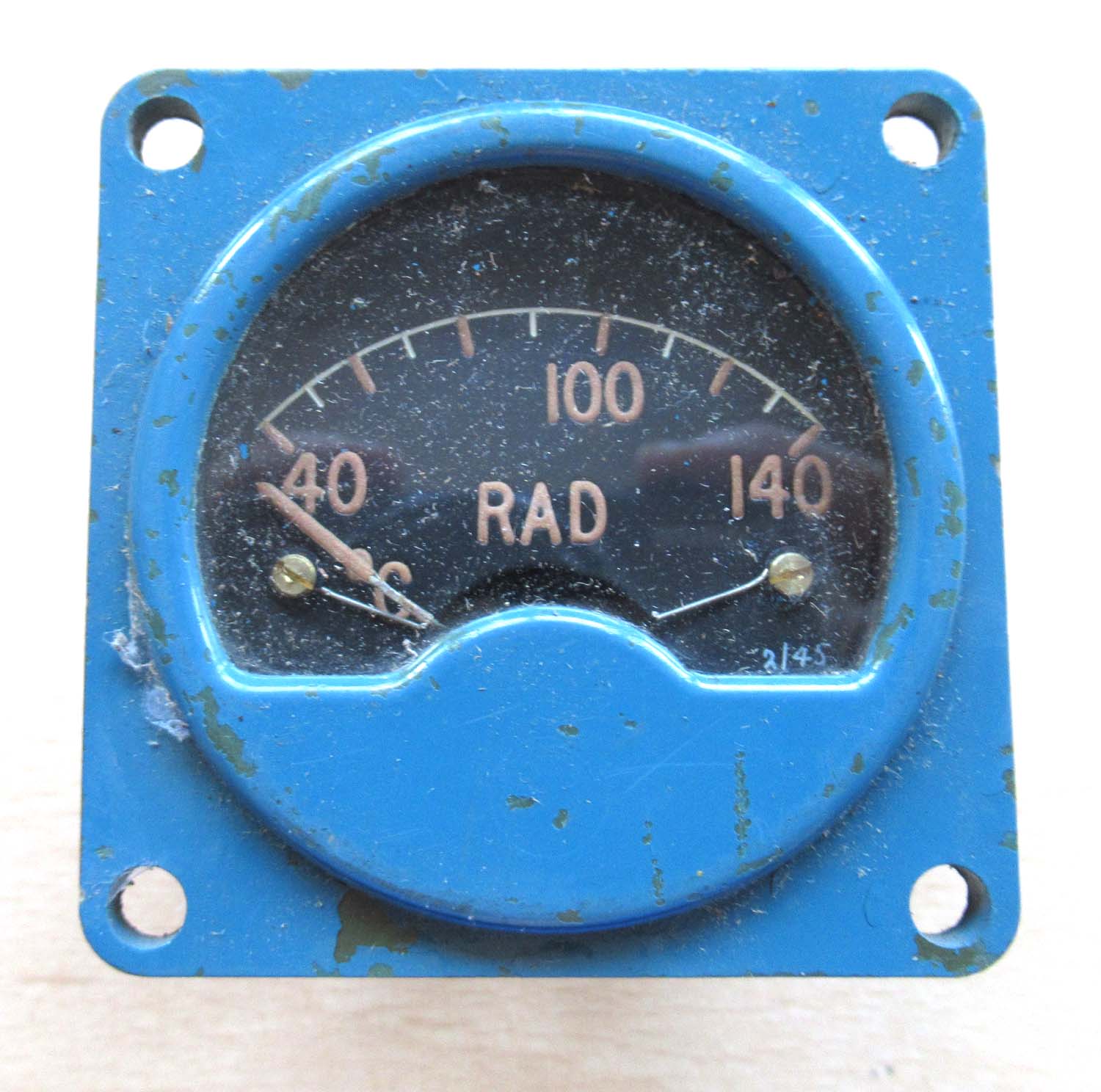

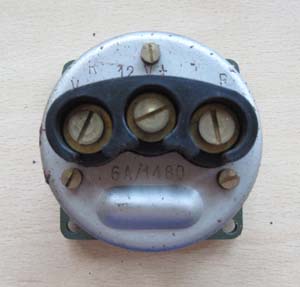

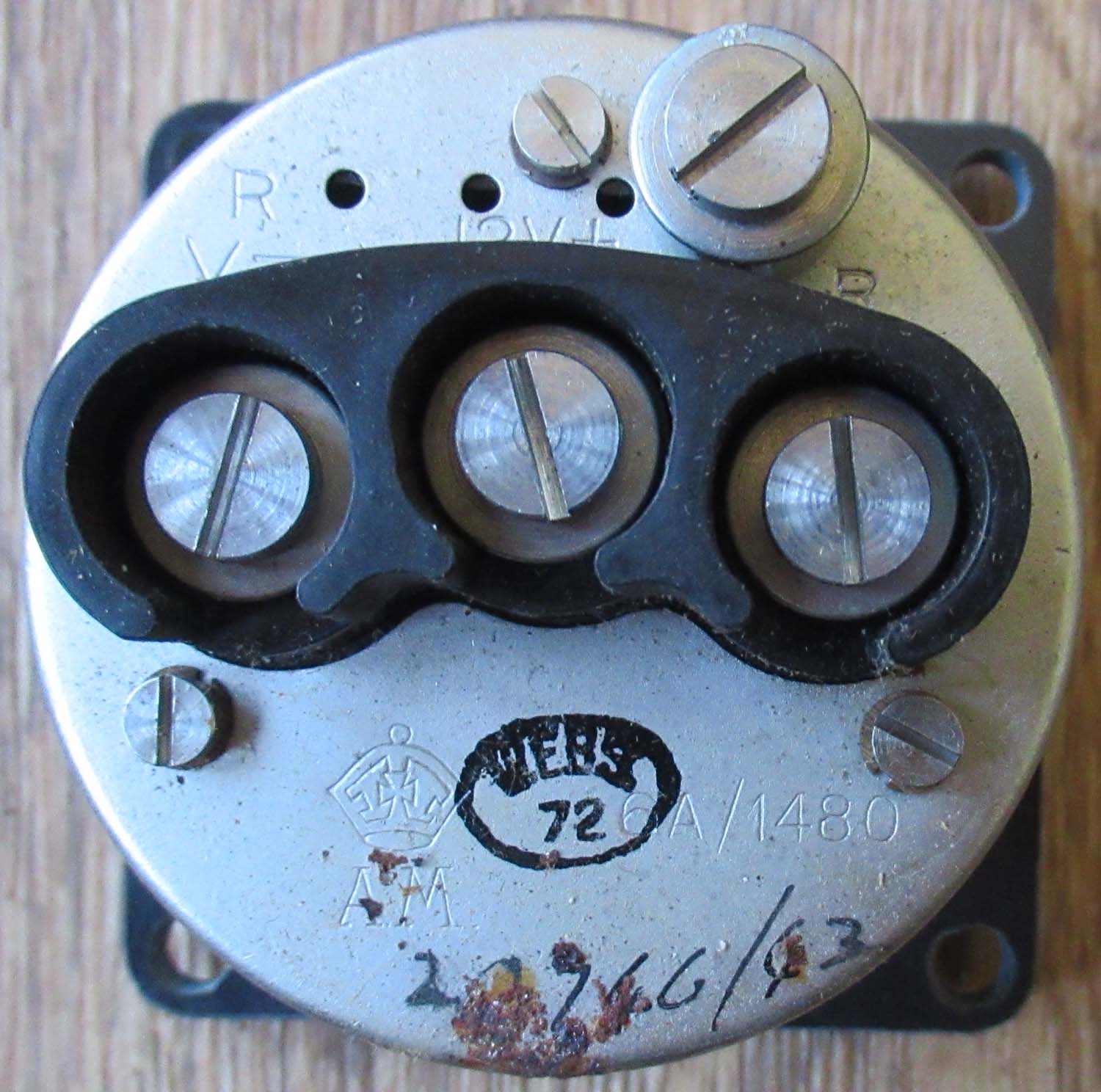

 Radiator Temp gauge 6A/1480 (Page 14 temp gauges 2)

These Rad Temp gauges came from the same source as above. They have light blue coloured faces different text style and a slightly different case.

They are 12 volt so for fighter use and are all boxed.

These ones are made by NegettI & AZambra

A/M 6A/1480 dated 1942



Multiples available

£45 each

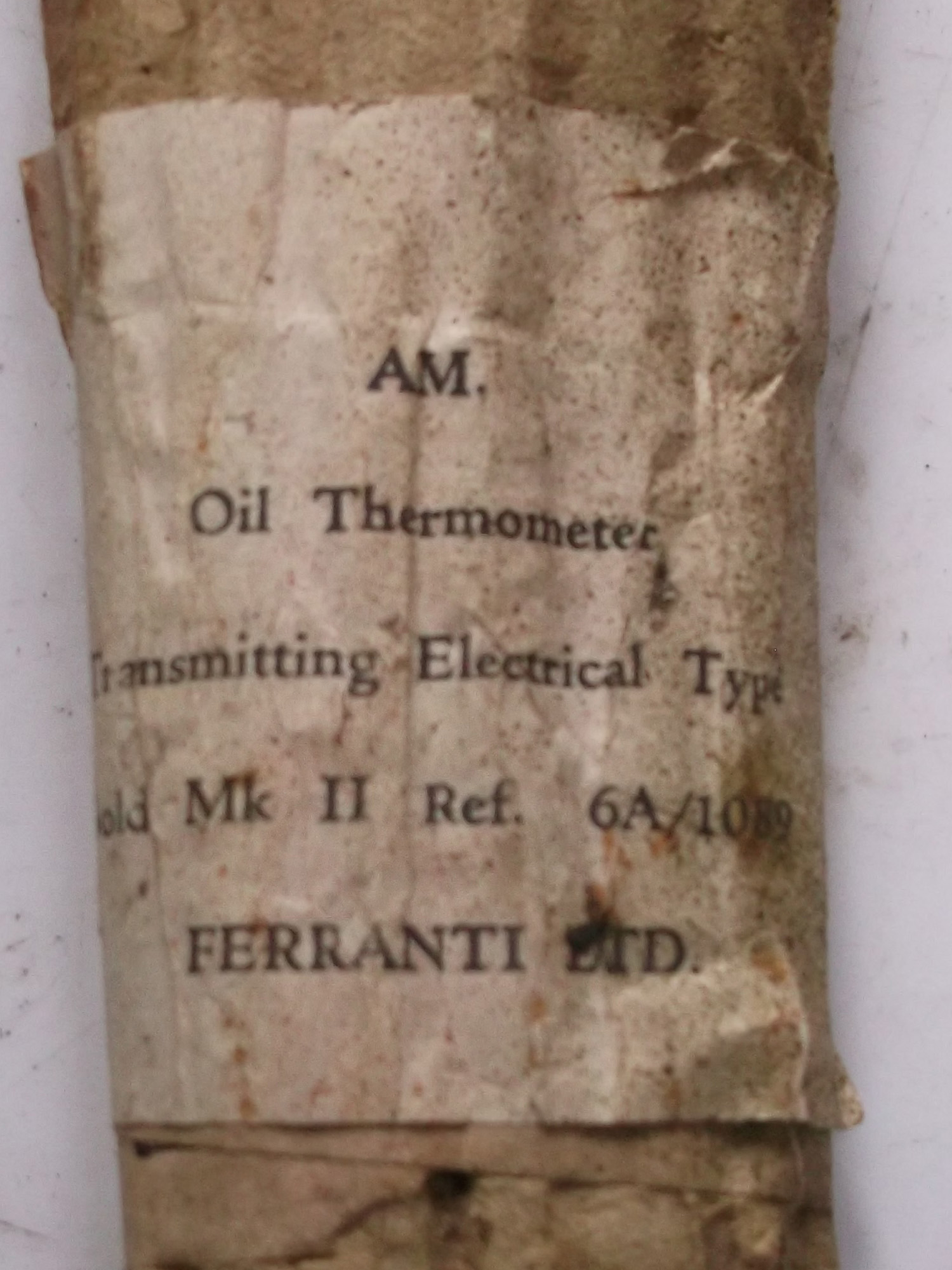

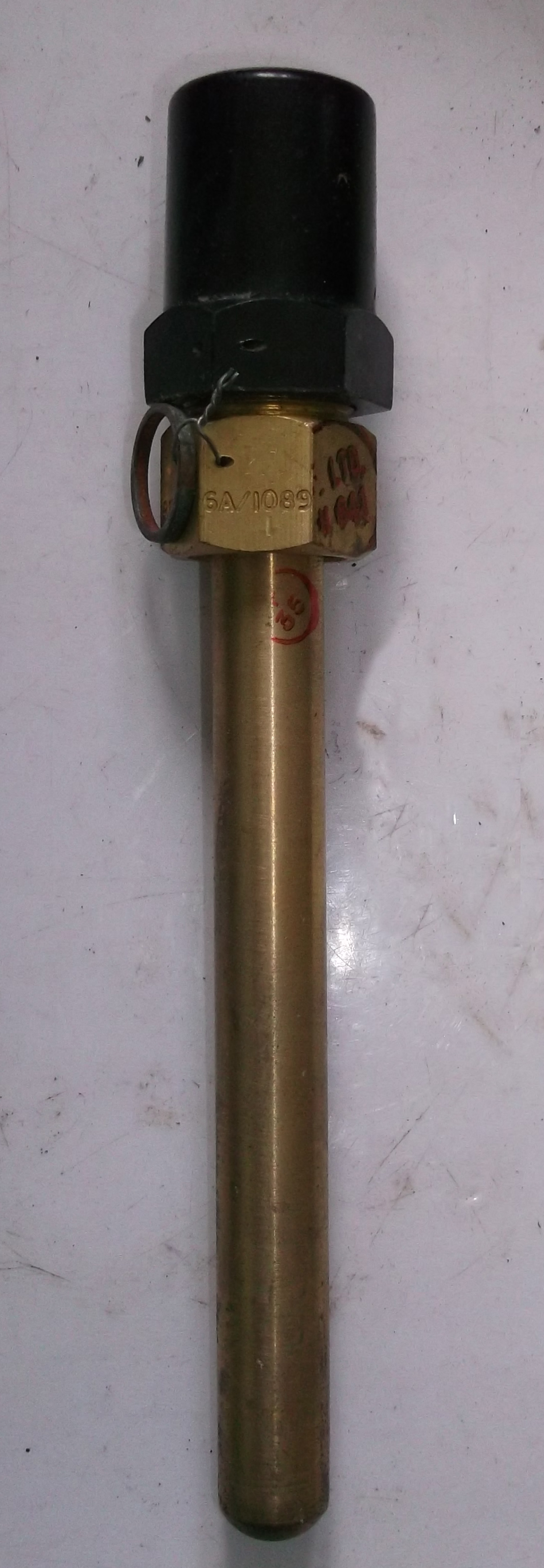

Oil Thermometer transmitter 6A1089 ( Nos 27 Electrical Misc pg 1)

New old stock very hard to find oil temp senders for the standard square electrical oil temp gauges
