 Trim Gauges

Page 17 Instruments

Use the links under to navigate the instrument pages

Page 1 Instruments home.  Page 2 Airspeed indicators.    Page 3 Altimeters.    Page four Boost gauges.    Page five Clocks and compasses. Page Six Climb and descend.          Page 7 Directional indicators

   Page 8 Fuel gauges    Page 9 Flap Indicators Page 10 Brake Gauges  Page 11 Oxygen gauges  Page 12 Pressure gauges   Page13 Revolution Counters   Page 14 temperature gauges

  Page 15 Turn and slip and artificial Horizon    Page 15 Turn and slip and artificial Horizon  Page 16 Undercarriage indicators  Page 17 Trim gauges

Trim gauges are used to show the Pilot  the position of various controls such as flaps. gills, rudder and elevator. trimming tabs.





Reproduction Spitfire trim gauge (Instruments 17 Trim gauge 1A)

A top quality REPRODUCTION Spitfire trim gauge.

For display only not functional and contains no mecanism.

 Only made for Spitfires this part carried the Supermarrine 300 code number.

This really is a superb gauge in a period case. This instrument was made by one of our suppliers in New Zealand. The donor gauges were sent out to NZ completed and sent back so have already travelled about 24,000 miles by air!.

 You can undo the bezel and point the needle any where you want if required.

95

Click on the pictures to enlarge.

FW 190 Fl.22855 Stellungsanzeiger trim indicator  (Instruments 17 Trim gauge 1B)

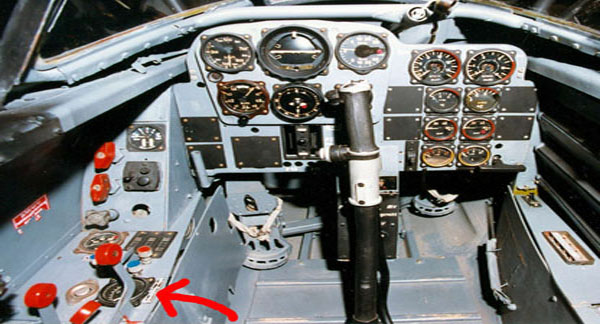

Here is a trim indicator as used in the late FW 190 and ME 262 comes in its original box.  This was the last version of this gauge produced in 1944 it was fitted to both aircraft on the side consul.

195

Click on the pictures to enlarge.

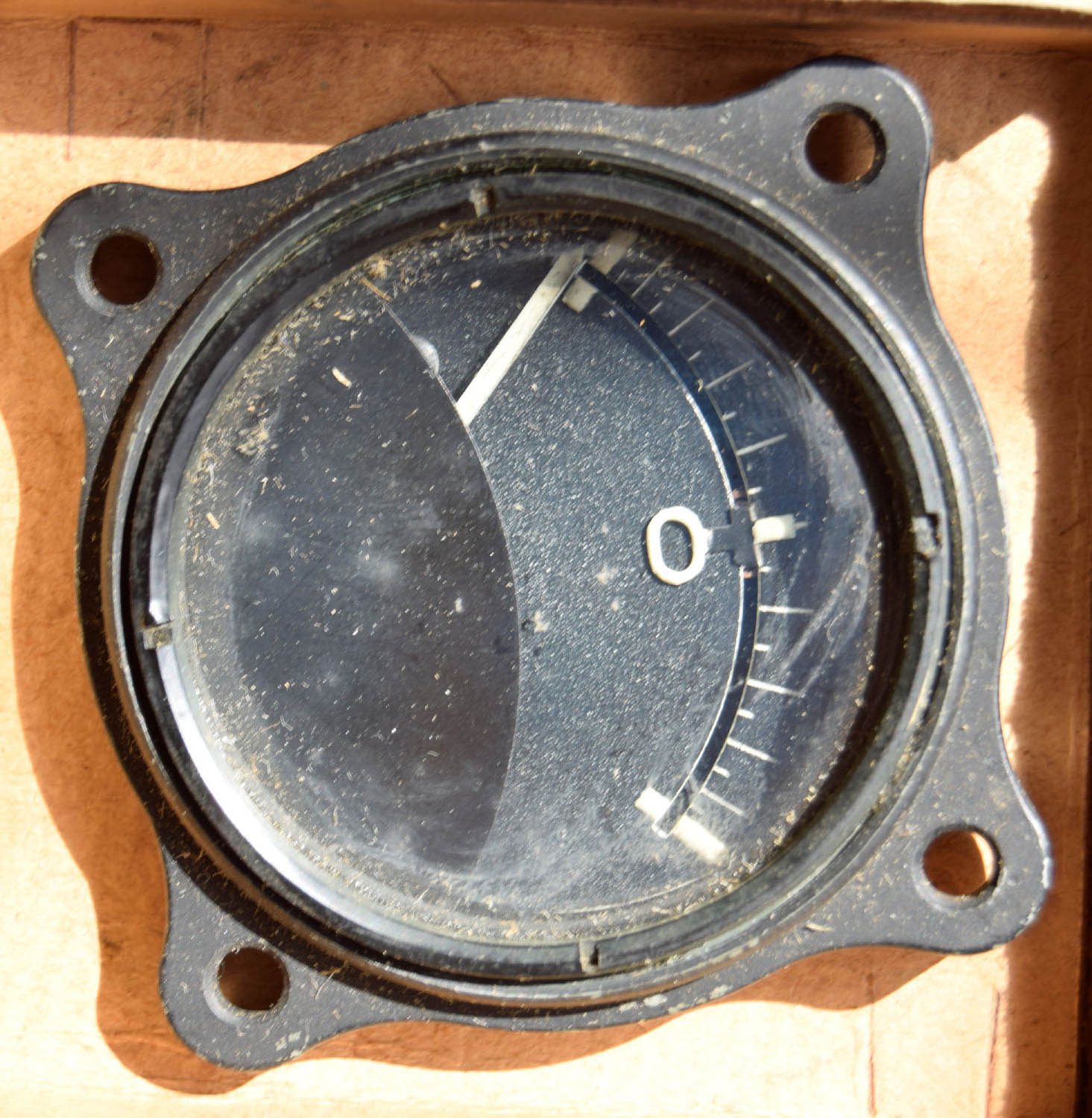

 Original Spitfire trim gauge (Instruments 17 Trim gauge )

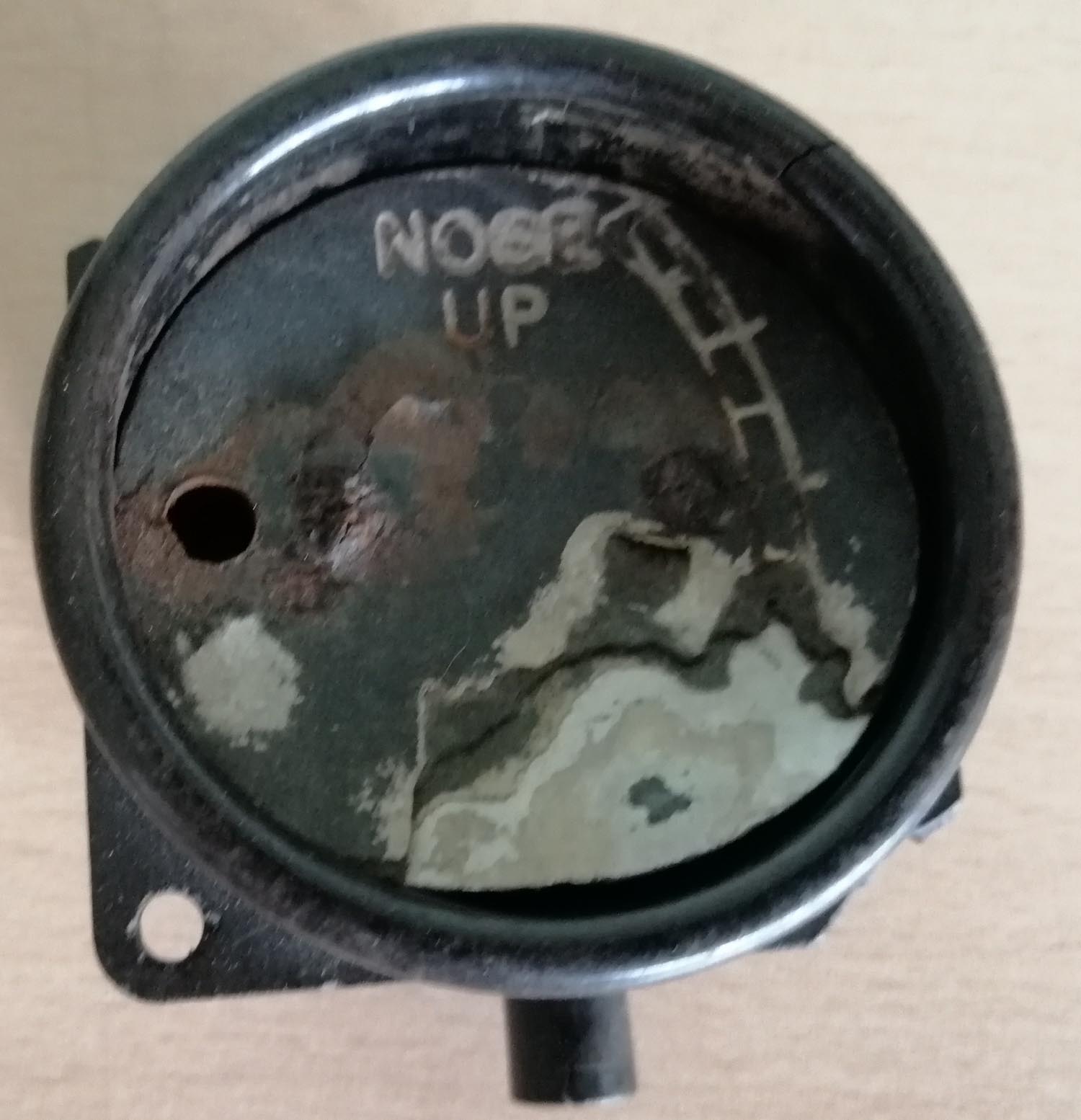

Here is an original Spitfire trim gauge, its in very poor condition as it was removed from a crashed aircraft by a young collector during the War. I am afraid the history of the aircraft is unknown. The case is relatively intact with three of the lugs broken off, the piece the cable attaches to has a tiny hairline crack. it does have the internal mechanism which is quite simple but this is seized.

The bezel has a small crack  but is useable and will do up.

The face is missing about 20% of its original paint but I think it might be restorable by someone who knows what they are doing. Please enlarge the pictures to assess its condition for yourself.

The part number is faint on the back of the case but is visible  300/34 Sheet 9

Out of stock more wanted please contact me



 (Instruments 17 Trim gauge 1)

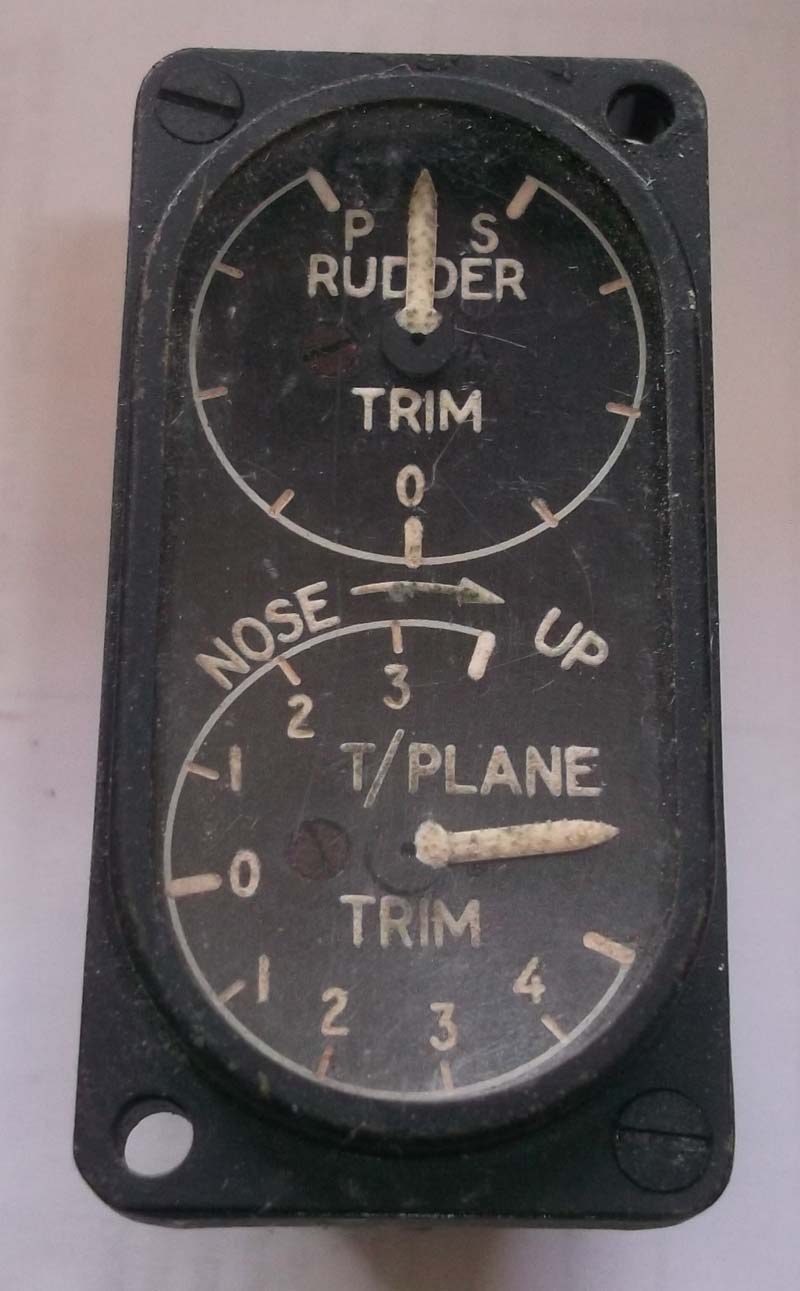

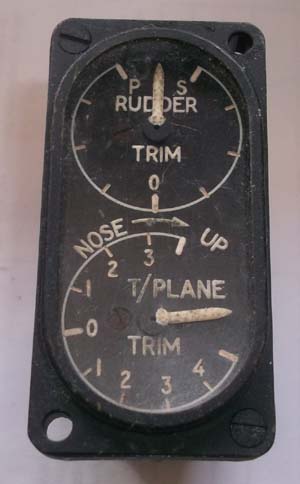

Desyann Rudder  and elevator trim gauge.

Click on the picture left to enlarge.

35





Click on the picture to enlarge.

 (Instruments 17 Trim gauge 2)

Desyann elevator trim gauge.

35



Click on the picture to enlarge.

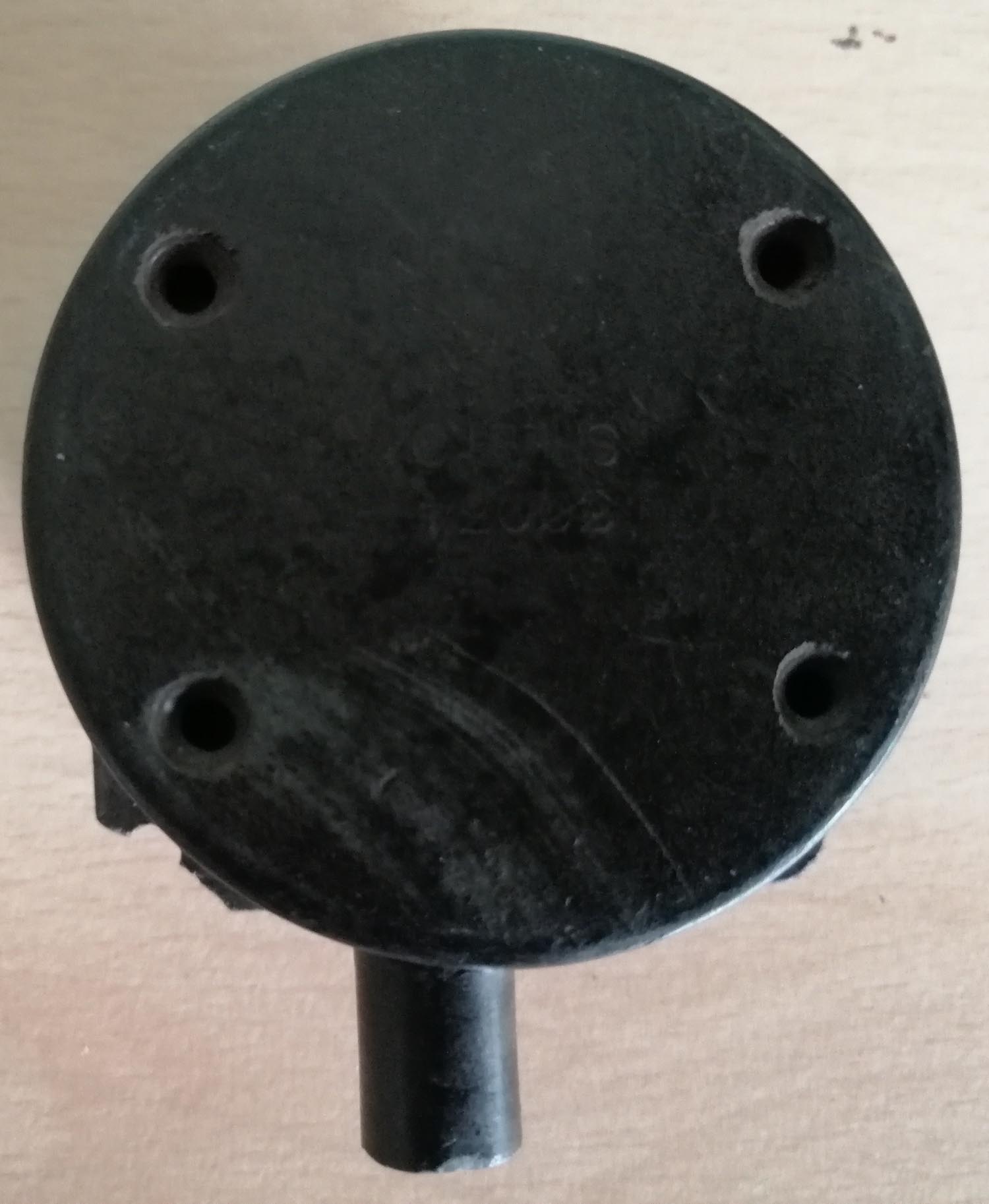

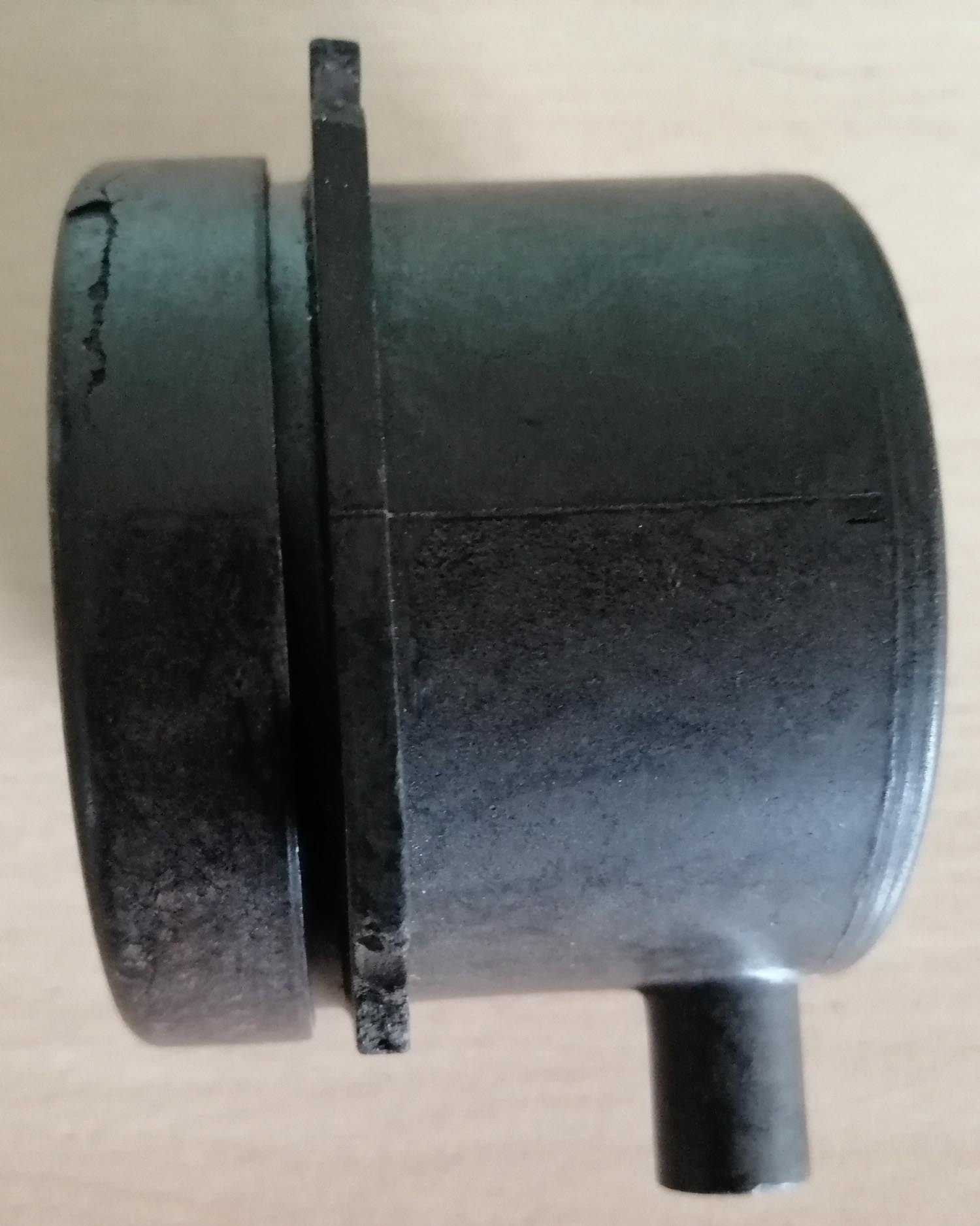

 (Instruments 17 Trim gauge 3)

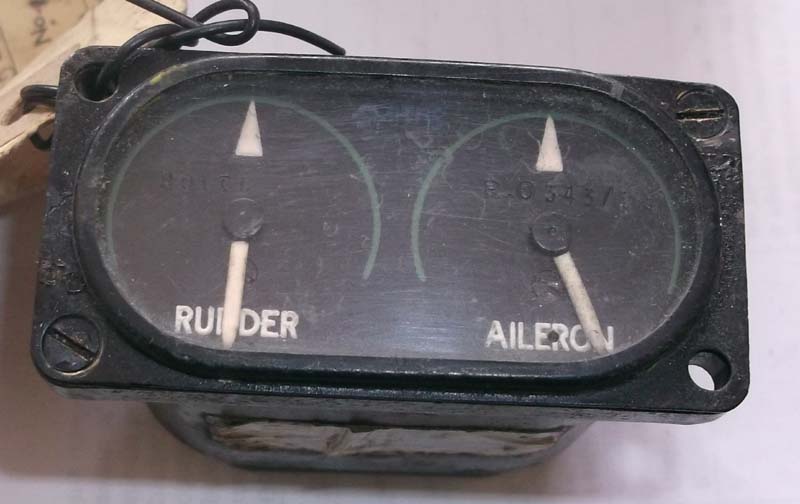

Desyann rudder and aileron trim gauge.

35



Click on the pictures to enlarge.

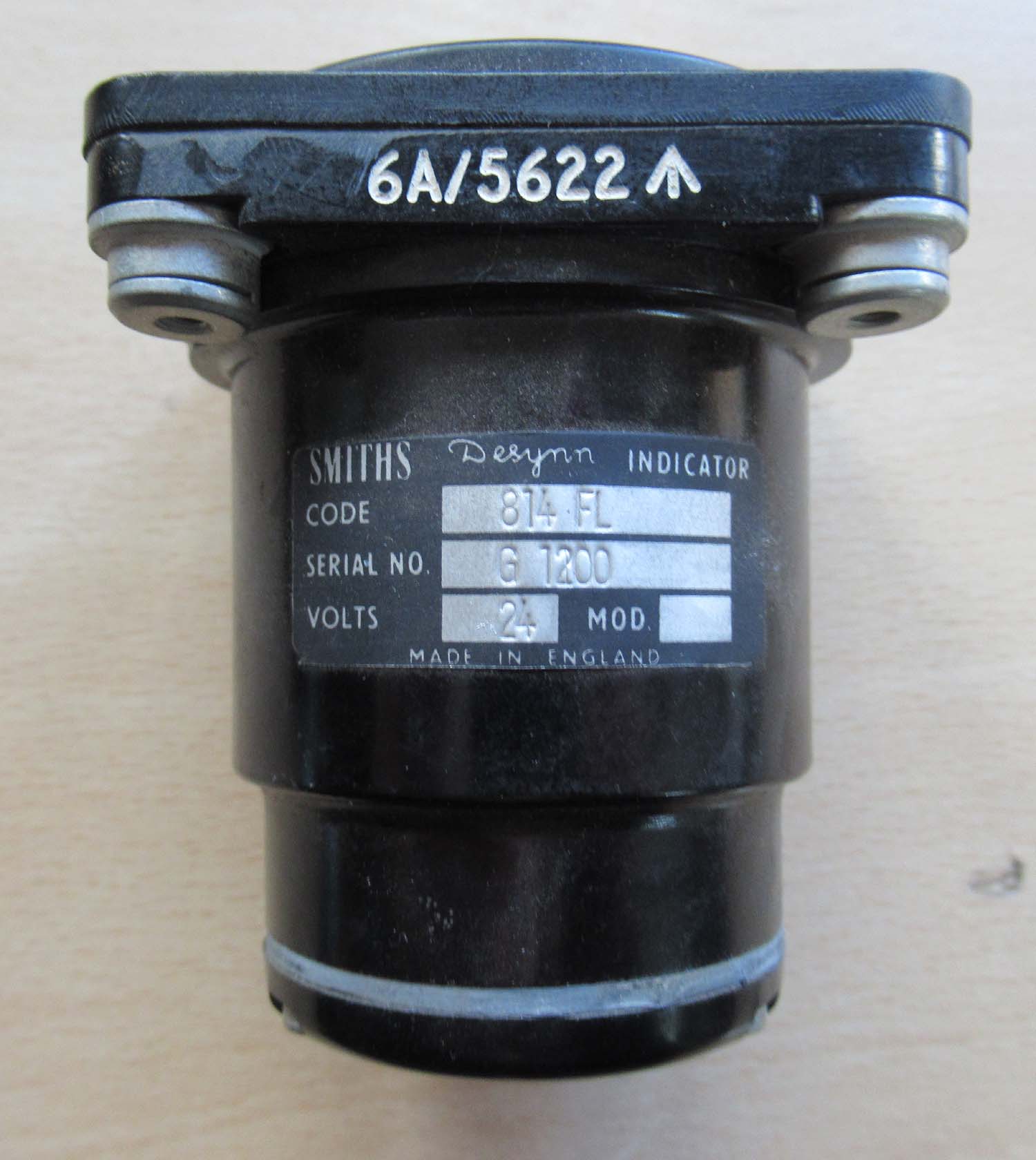

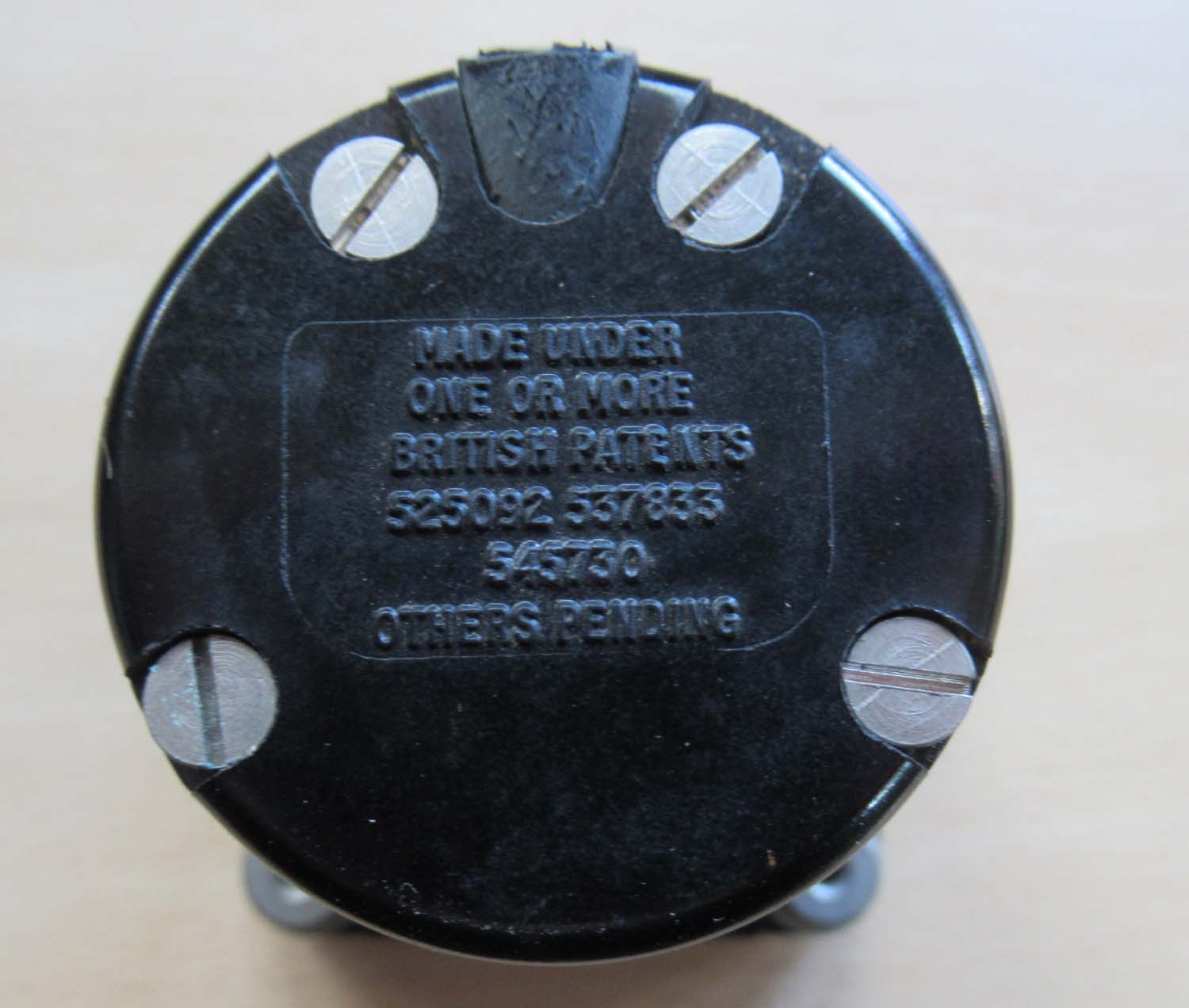

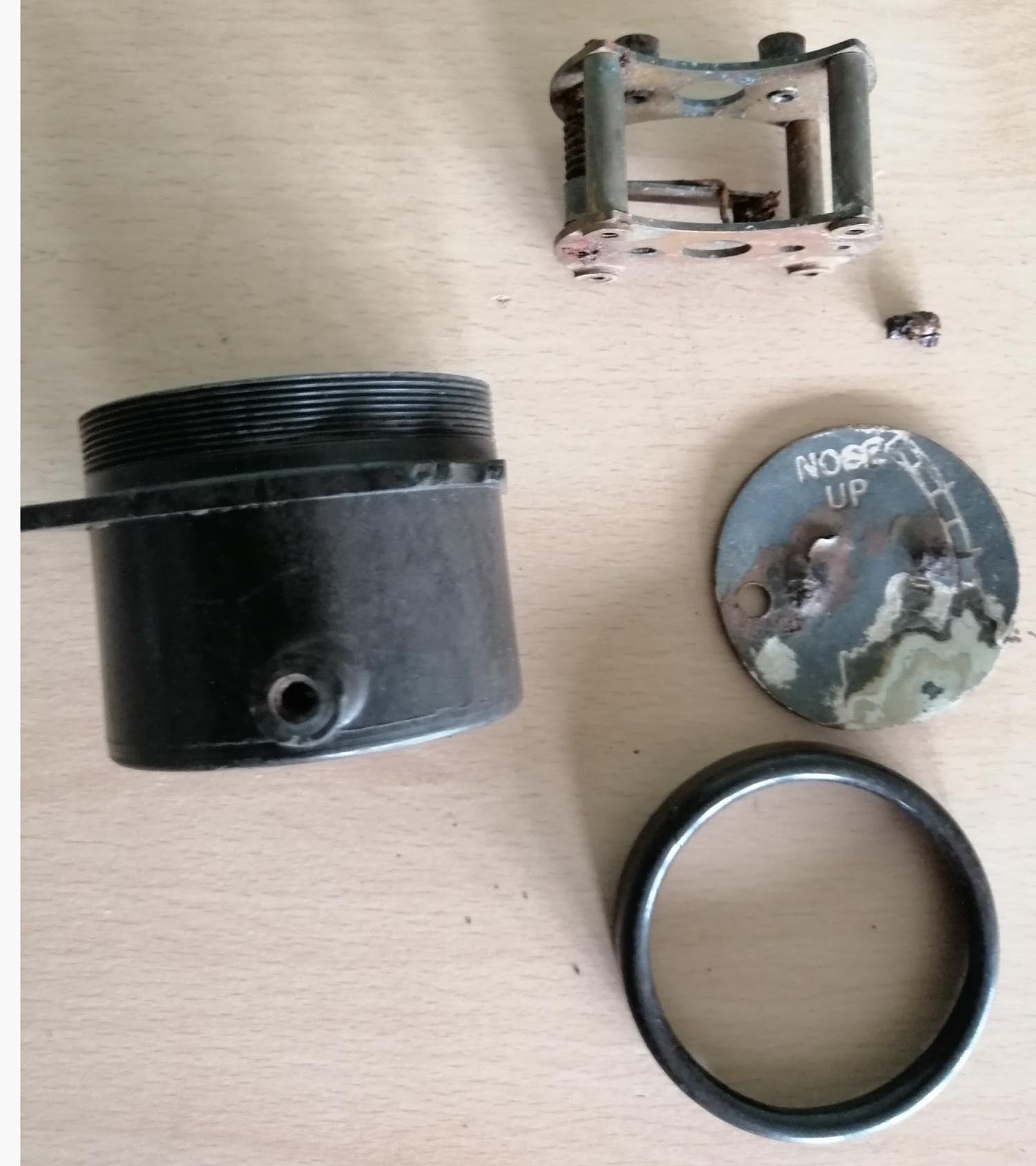

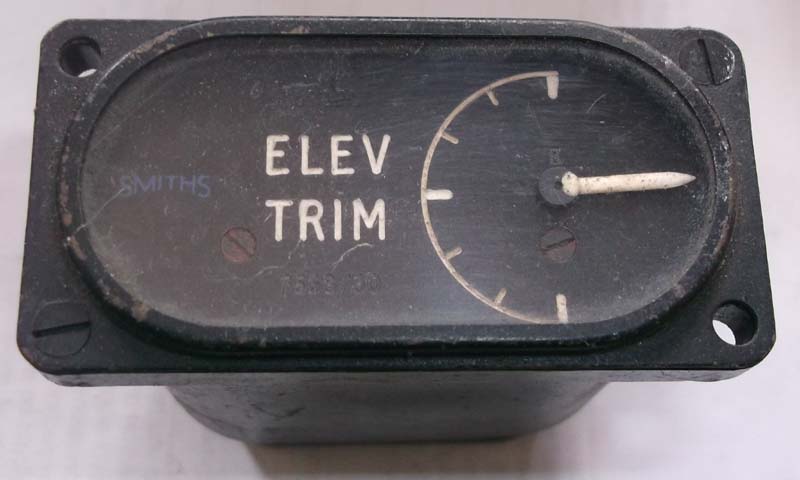

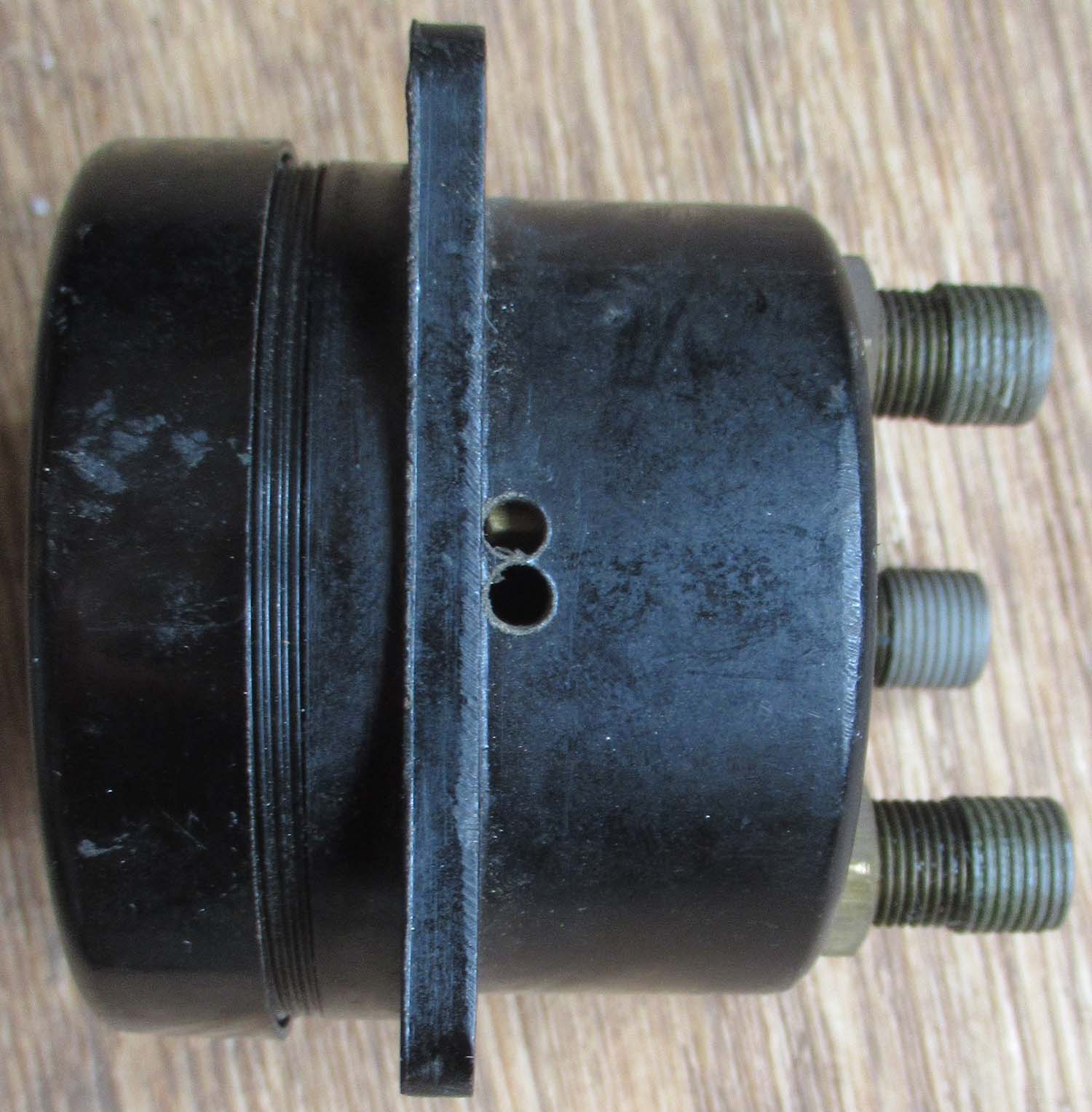

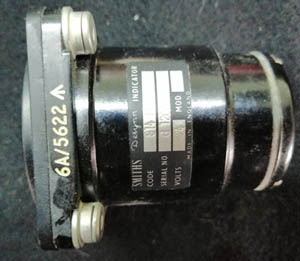

 Smiths 6A/5622 Elevator trim gauge (Instruments 17 Trim gauge 4)

Elevator trim gauge.



55





Click on the picture to enlarge.

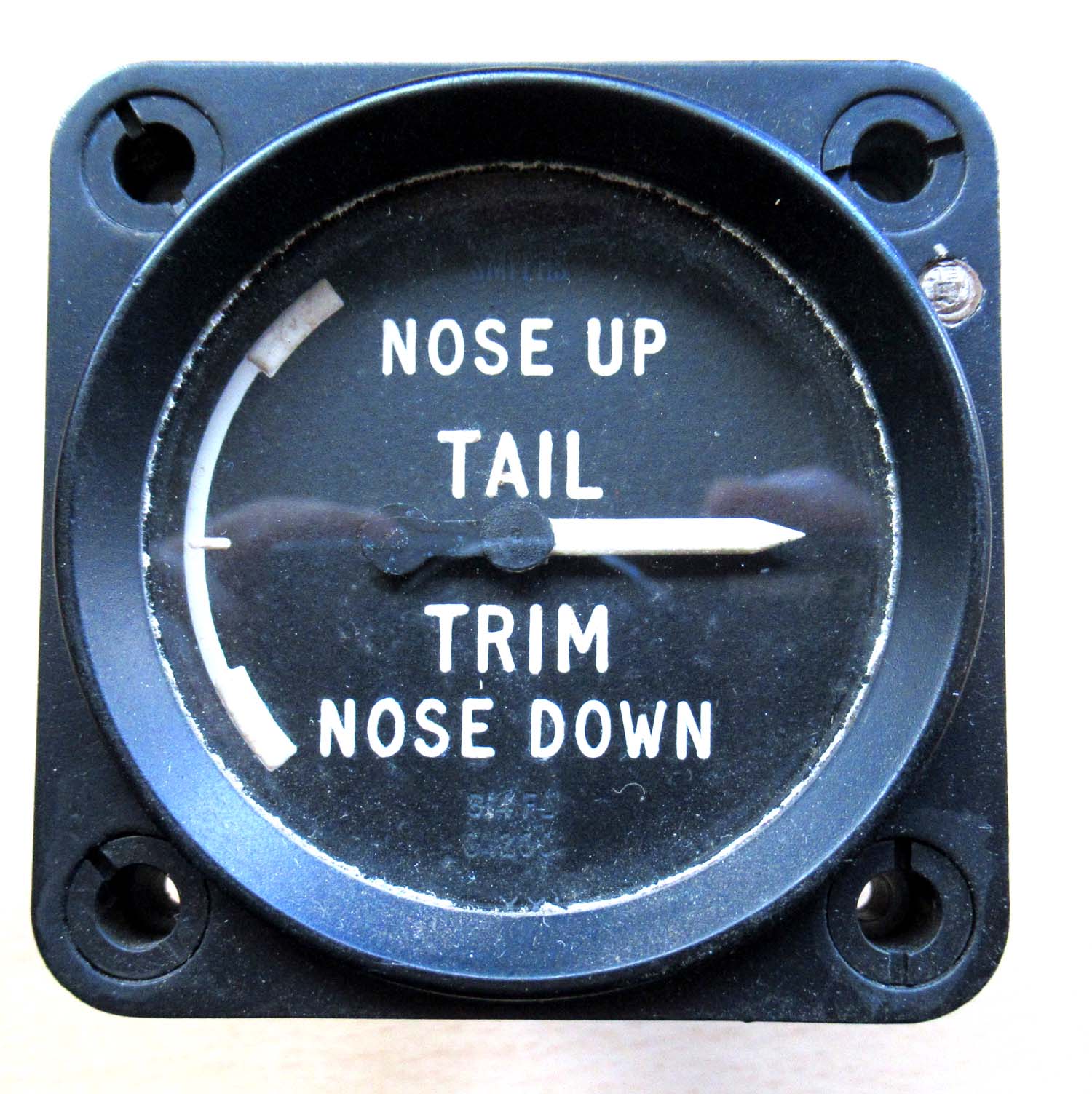

 (Instruments 17 Trim gauge 5)

Desyann trim gauge.

35



Click on the picture to enlarge.

 (Instruments 17 Trim gauge 6)

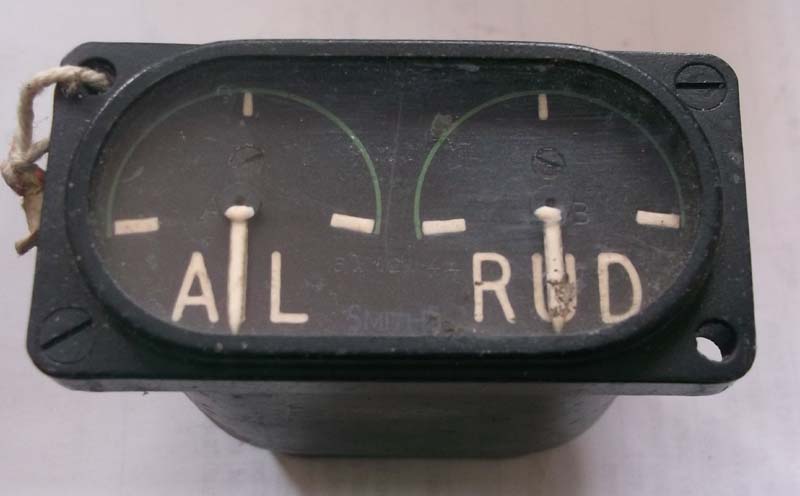

Desyann Aileron and rudder trim gauge.

35



Click on the picture's to enlarge.

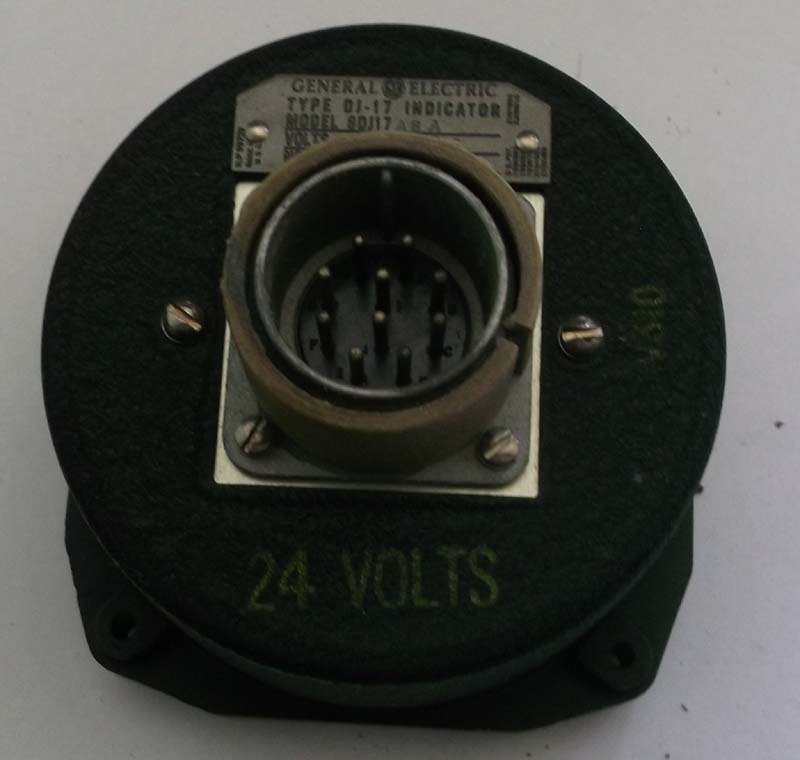

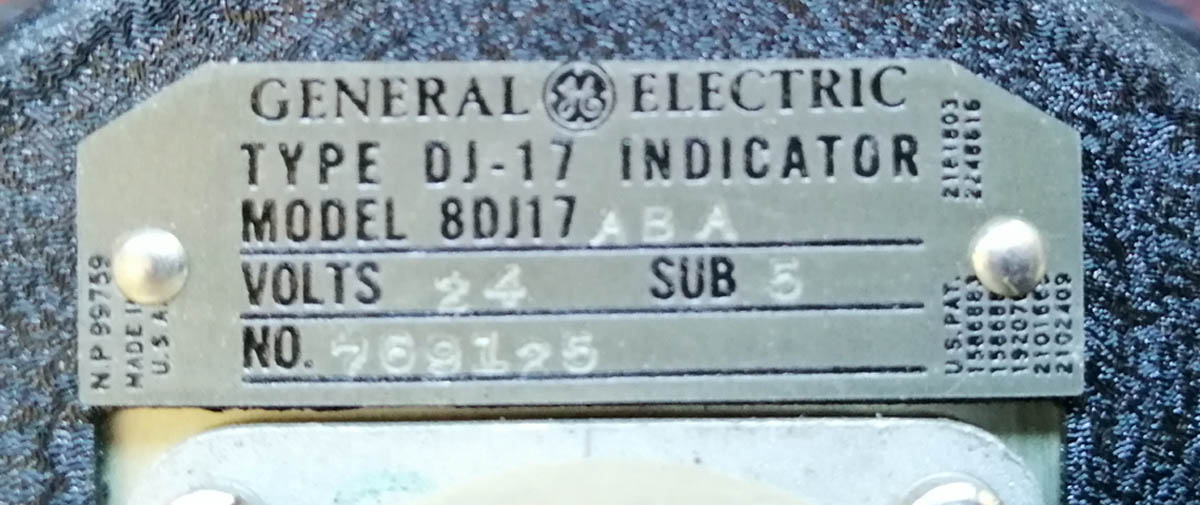

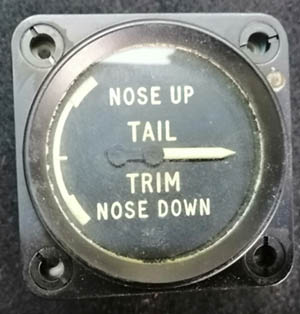

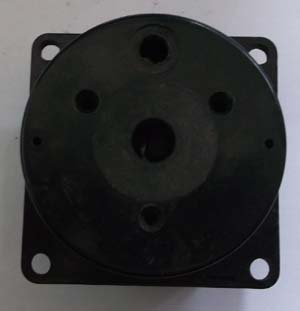

 P38 Lightening flap trim (Instruments 17 Trim gauge 8)

A mint condition boxed flap trim gauge used in the P38 and probably other wartime USAF aircraft.

75



Click on the picture's to enlarge.

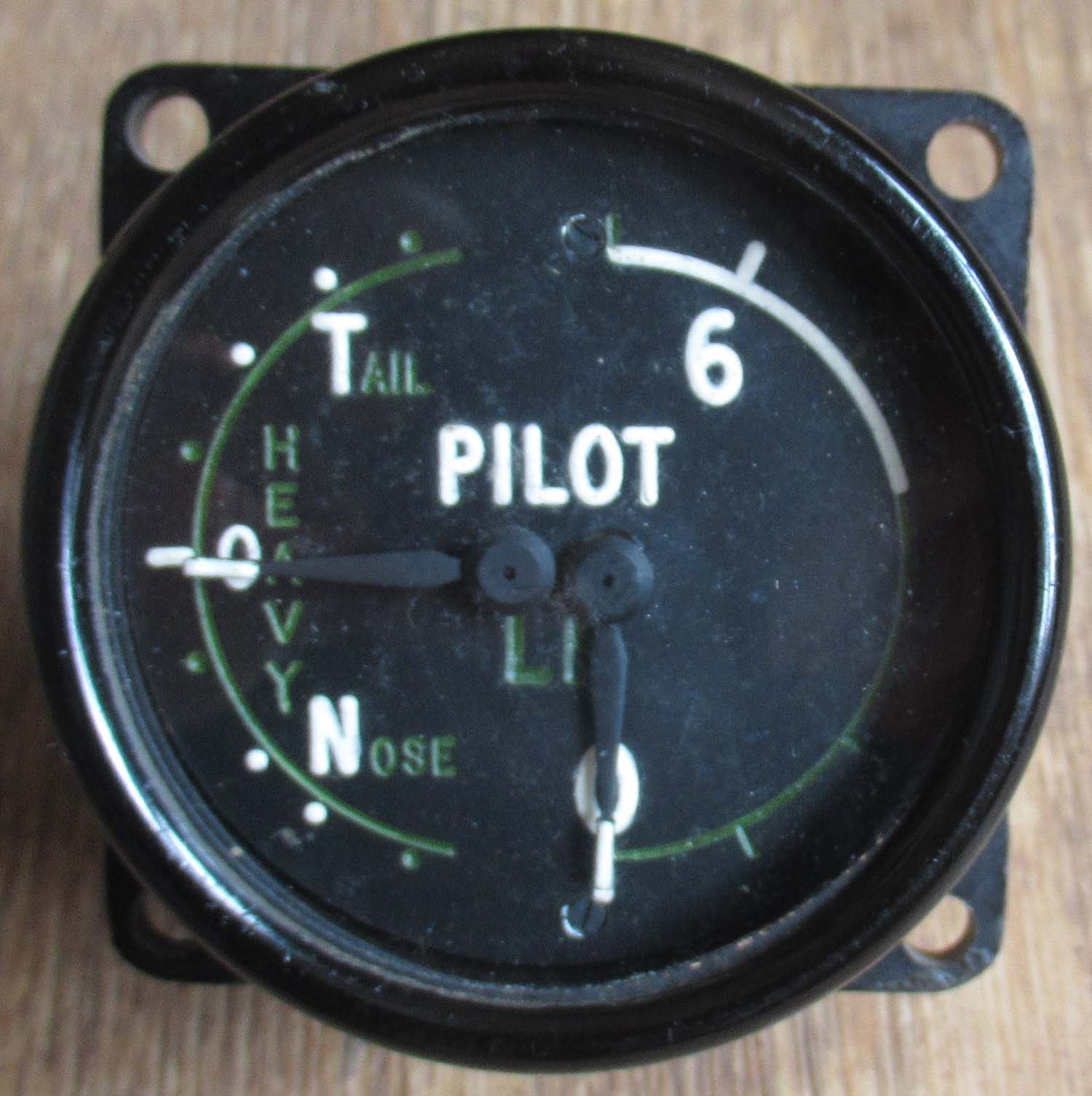

(Instruments 17 Trim gauge 9)

Nice trim gauge similar to the Spitfire type. I do not think the case is original to the instrument.

55
