Climb and descend

Page 6 instruments

RAF Wartime climb and descend indicators are generic instruments, the aircraft shown in our adds did use the parts shown but they may of coarse been used in a different type of aircraft . If you are not sure what part you require then please contact us and I will do my best to advise you on the most suitable purchase. The climb and descend was produced in various different designs and were used in the Blind flying panel. The BFP contains instruments which show the flying characteristics, speed and orientation of the aircraft to the Pilot and allow as its name suggests the aircraft to fly blind using the instruments only. These instruments were used in practically every wartime RAF aircraft Bombers and fighters and the basic design remained the same regardless of the aircrafts role or performance.

Use the links under to navigate the instrument pages

Page 1 Instruments home.  Page 2 Airspeed indicators.    Page 3 Altimeters.    Page four Boost gauges.    Page five Clocks and compasses. Page Six Climb and descend.          Page 7 Directional indicators     Page 8 Fuel gauges     Page 9 Flap Indicators  Page 10 Brake Gauges   Page 11 Oxygen gauges  Page 12 Pressure gauges   Page13 Revolution Counters   Page 14 temperature gauges

  Page 15 Turn and slip and artificial Horizon  Page 16 Undercarriage indicators  Page 17 Trim gauges  Page 18 Volt and Ammeter



Click on the pictures to enlarge them

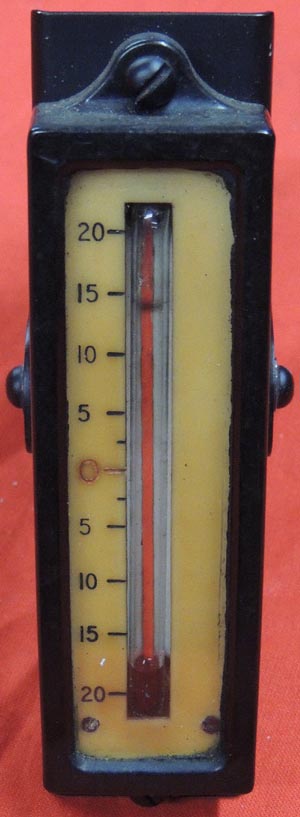

 Climb and descend/clinometer from 1930s Hawker aircraft (Instruments pg 5 Climb and descend 1)

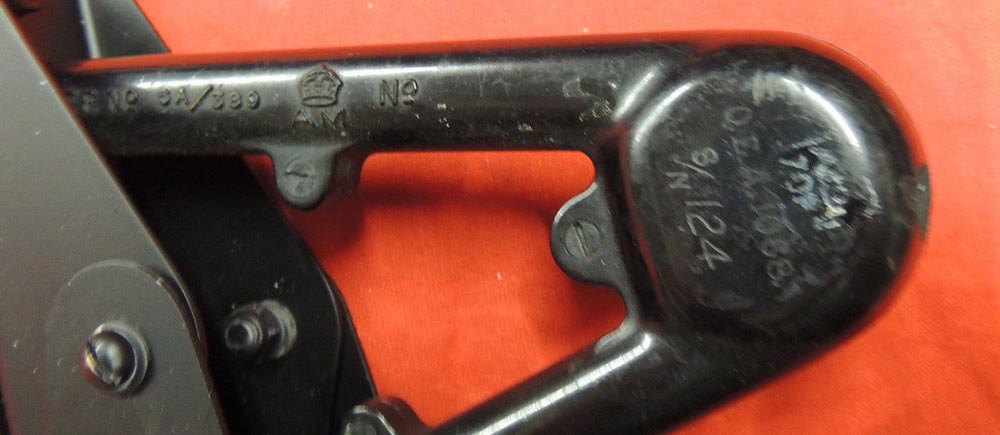

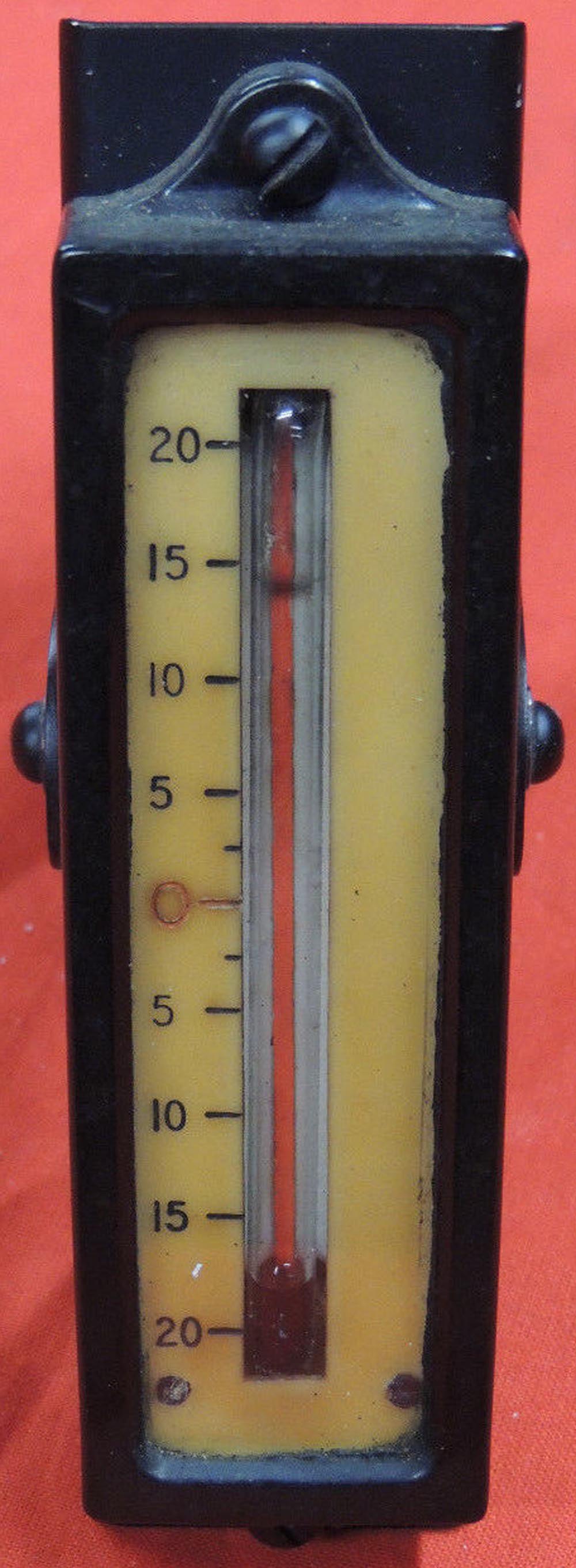

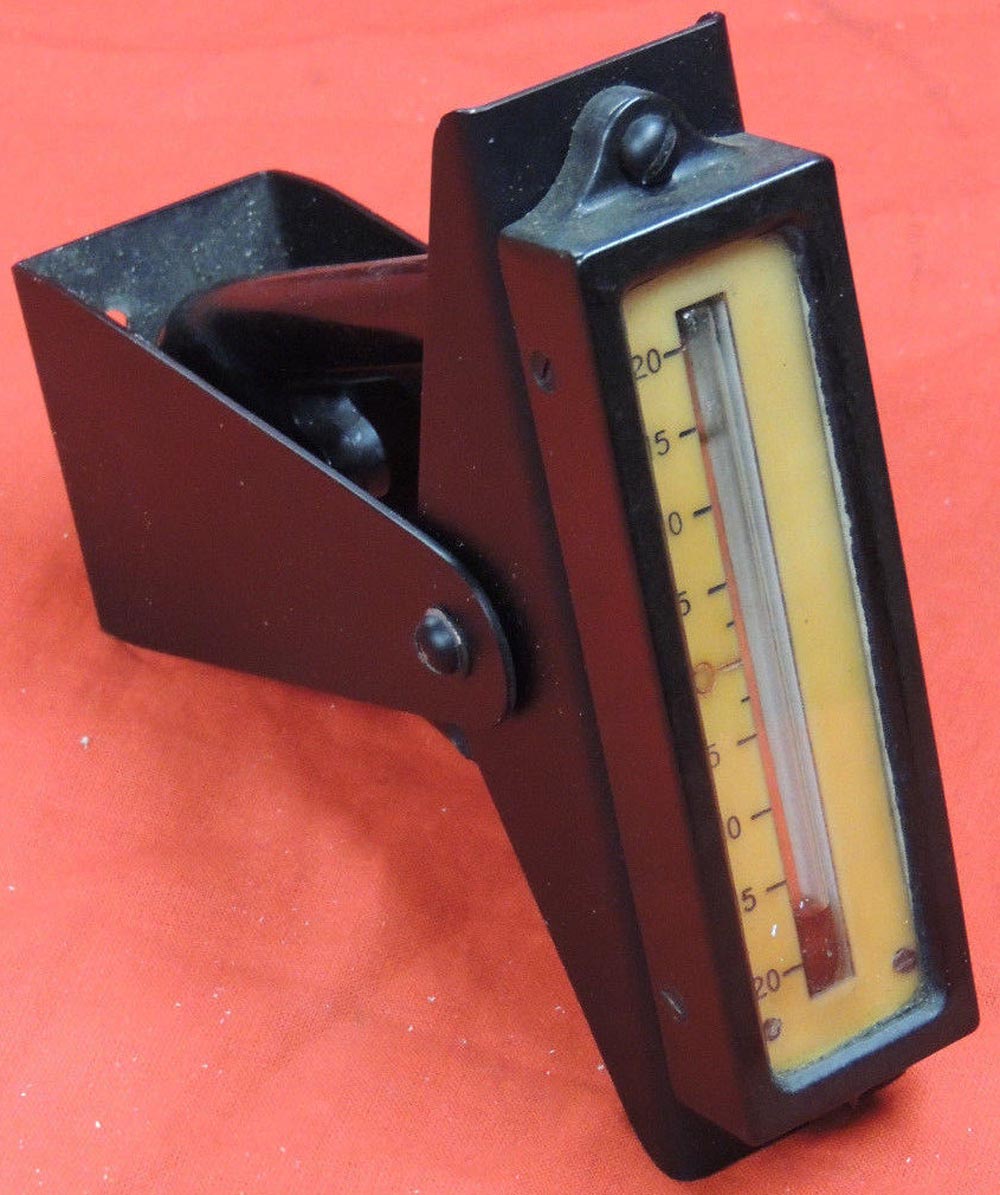

Here is an extremely rare Clinometer used to measure the climb and descent of early Bi plane Hawker aircraft. It is in excellent condition still contains fluid and works . It is mounted in a  bracket allowing it to be displayed and tilted to demonstrate its function, this may have been used as a training piece hence the fact it survived. Its the only example I have ever seen.

Click on the pictures to enlarge them

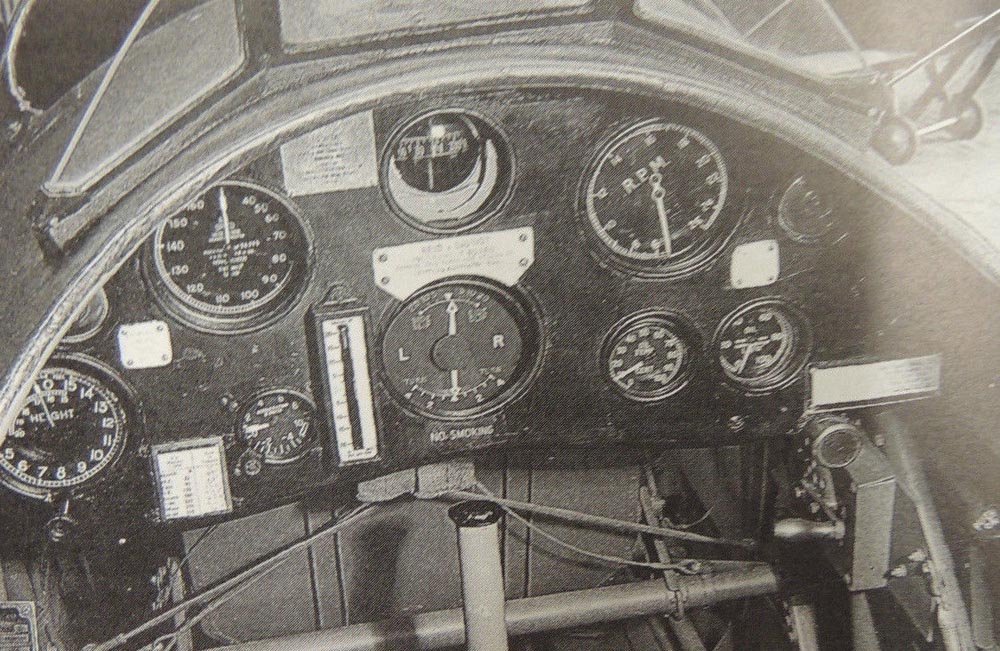

Seen above in situ in the cockpit of the 1930 Hawker Tomtit military trainer

Shown above the Hawker Tomtit military trainer

A/M 6A/399 No 9 QEA 1068S/N124

599

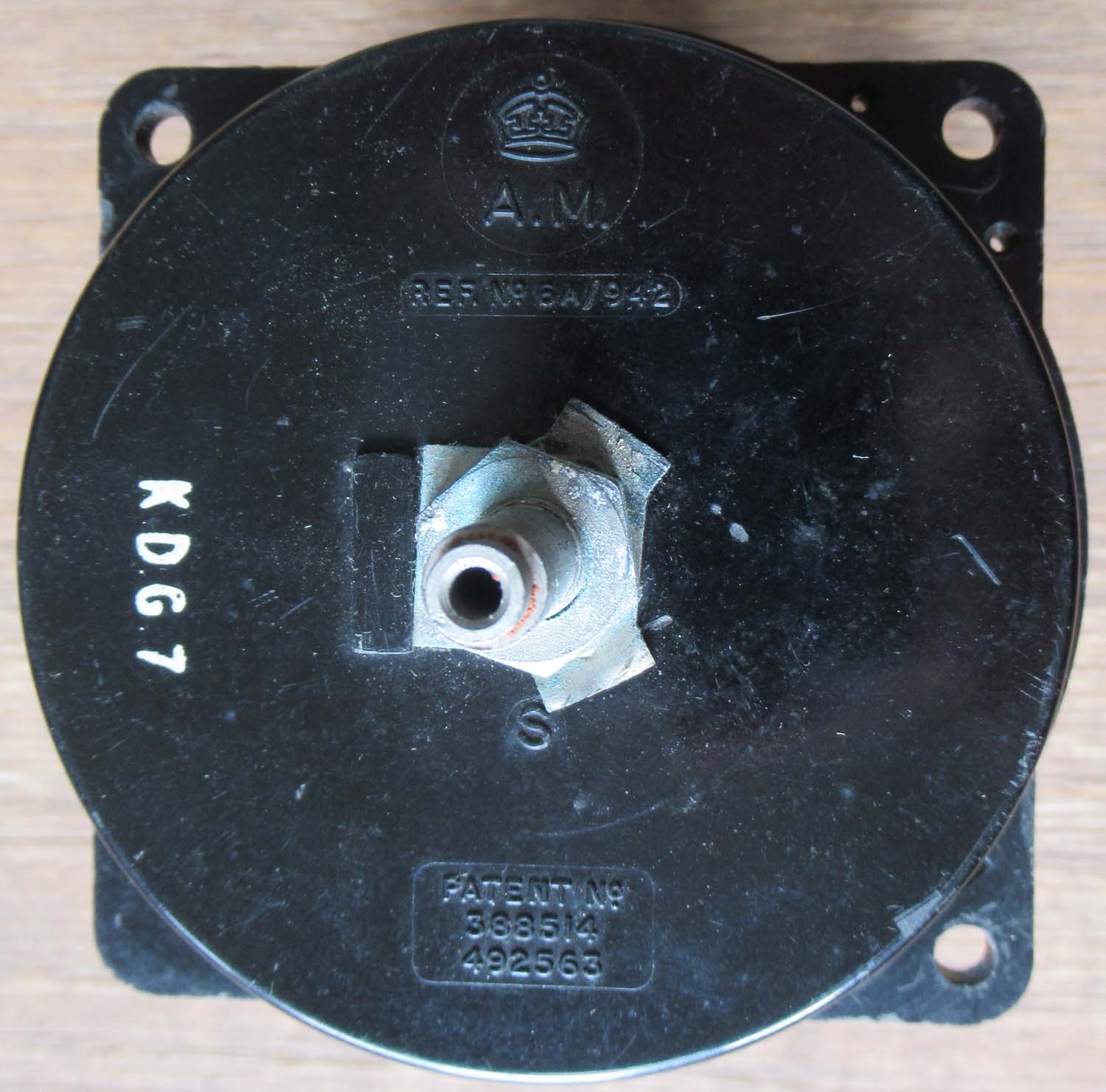

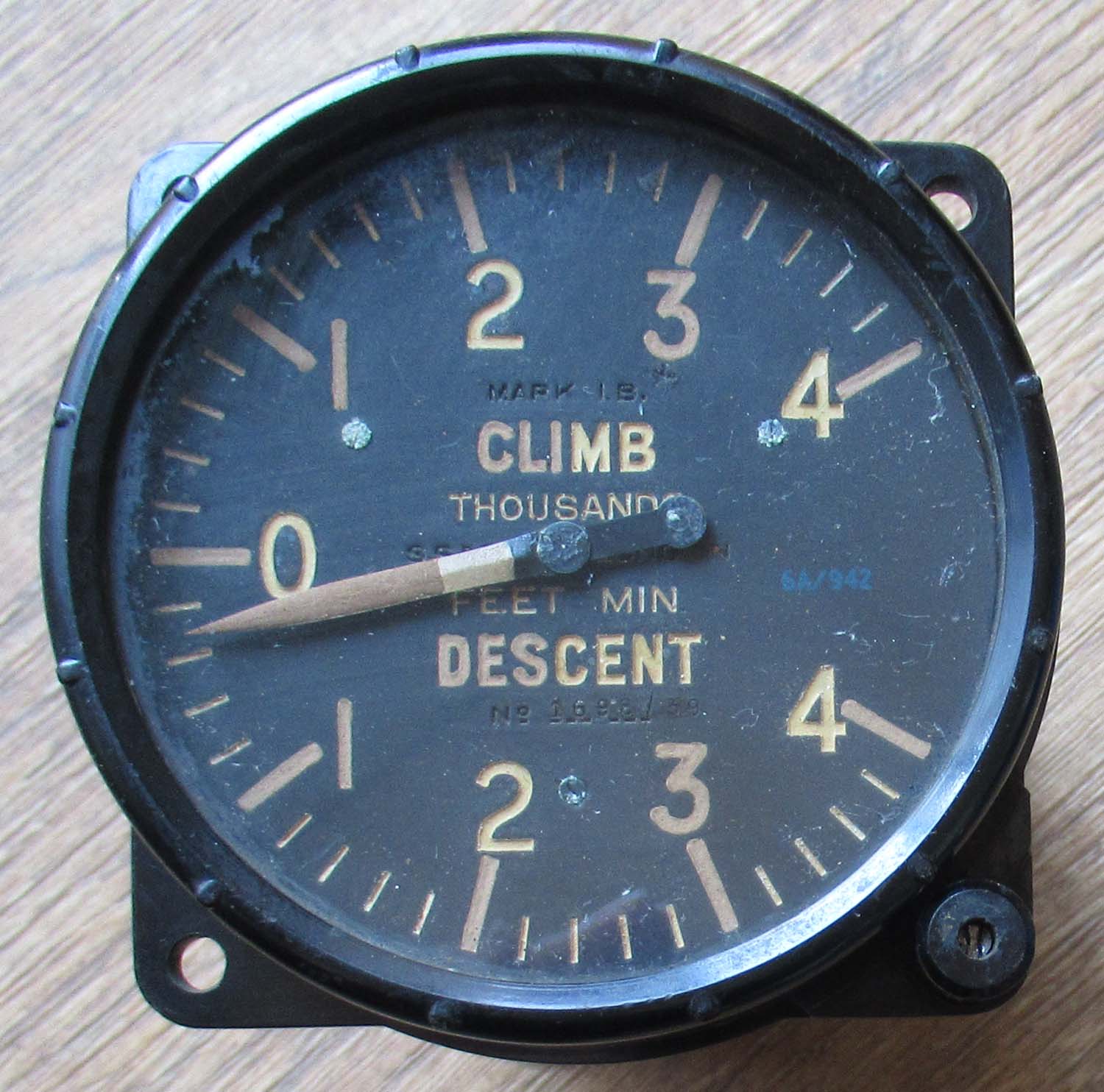

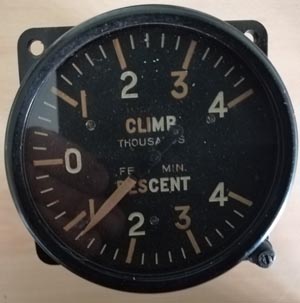

 Climb and descend indicator  (Instruments pg 5 Climb and descend 2)

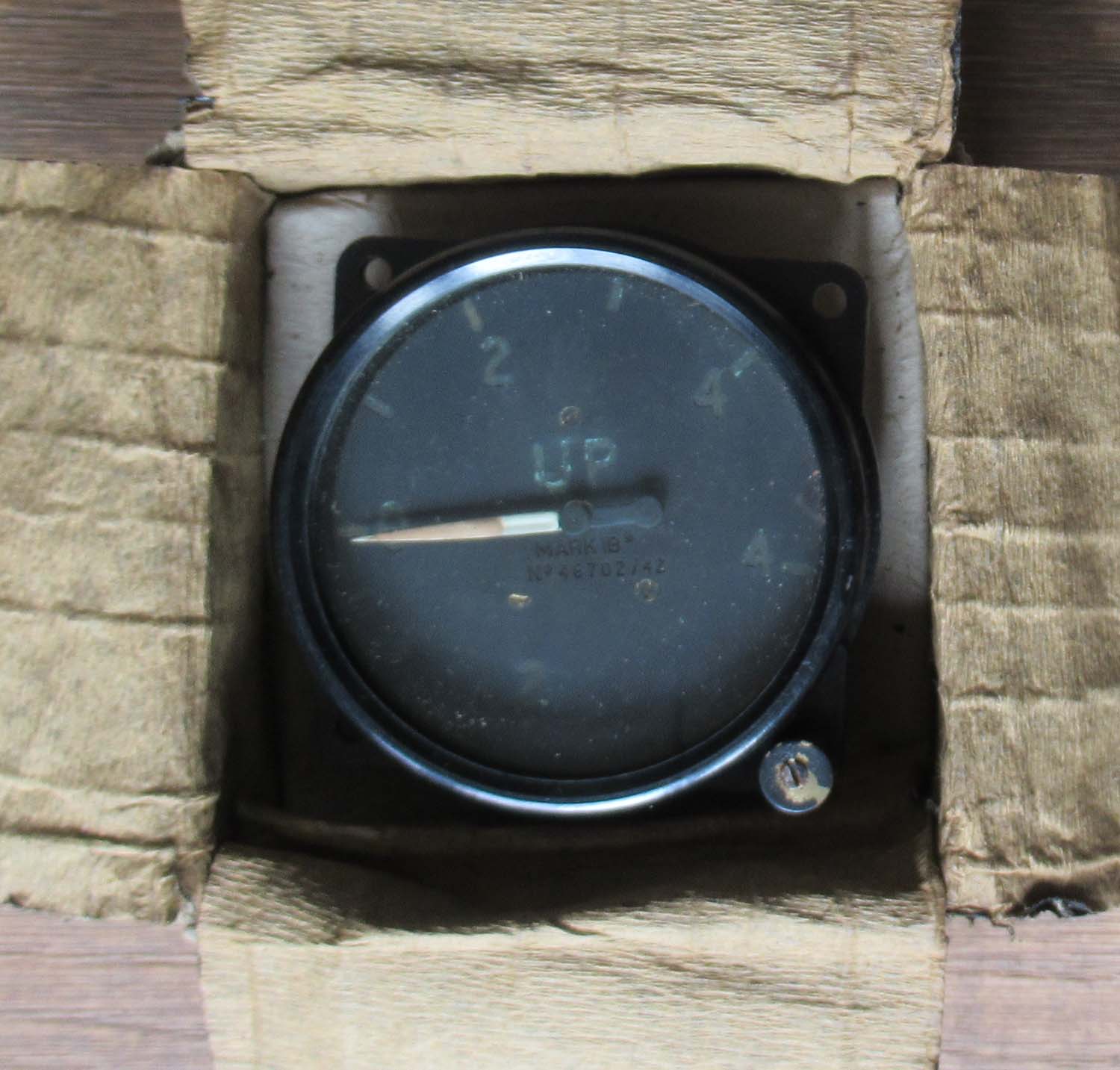

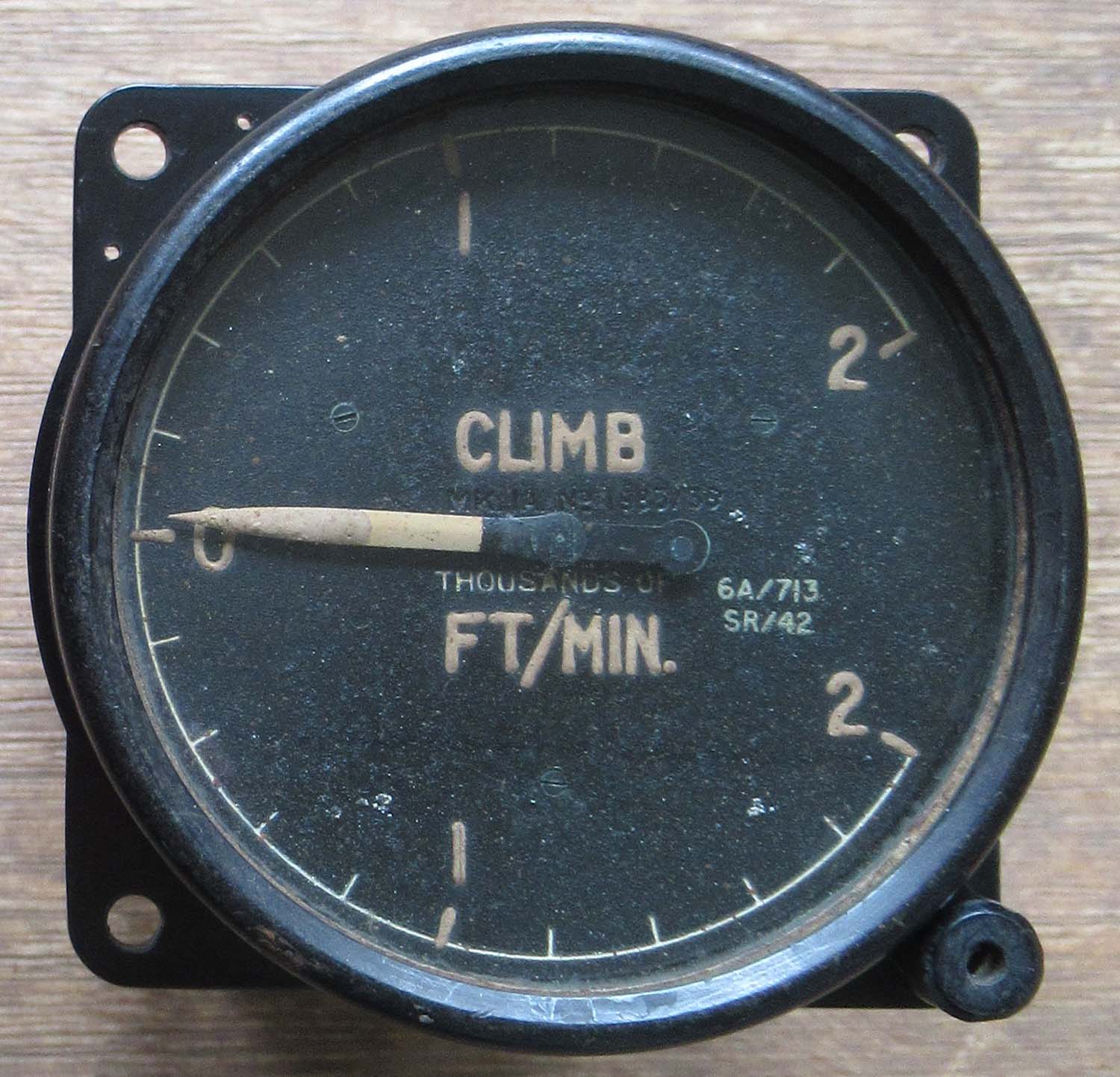

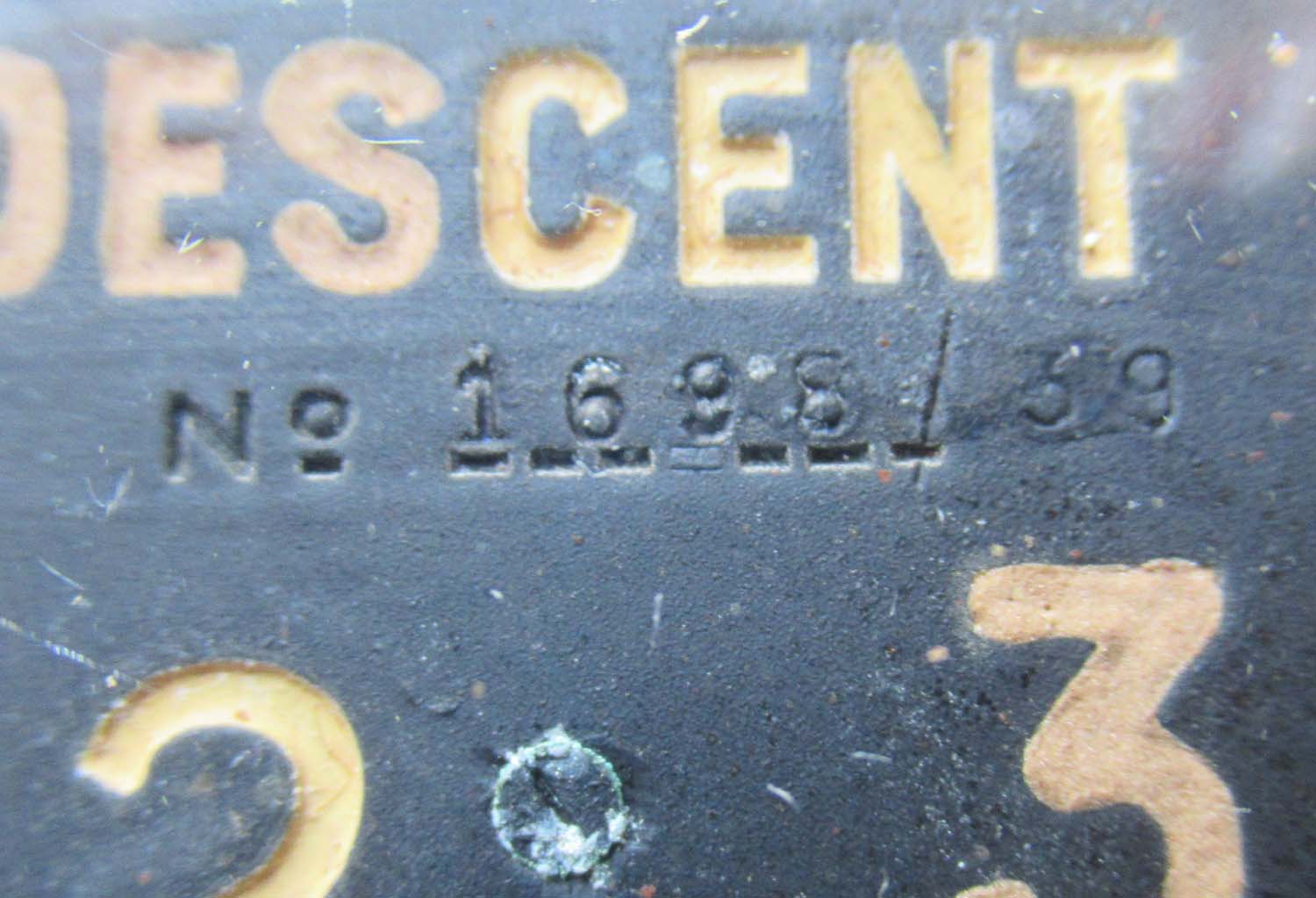

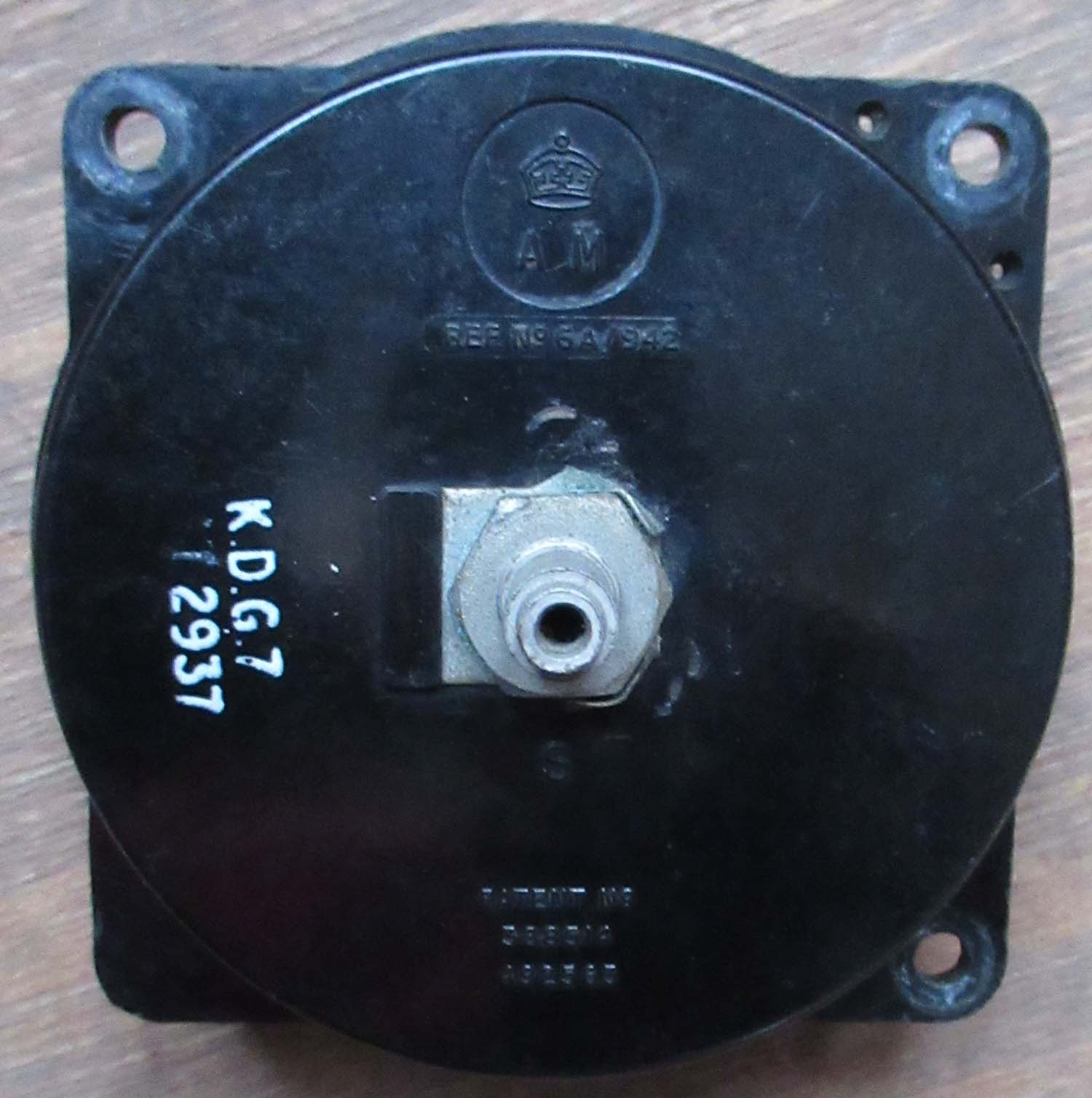

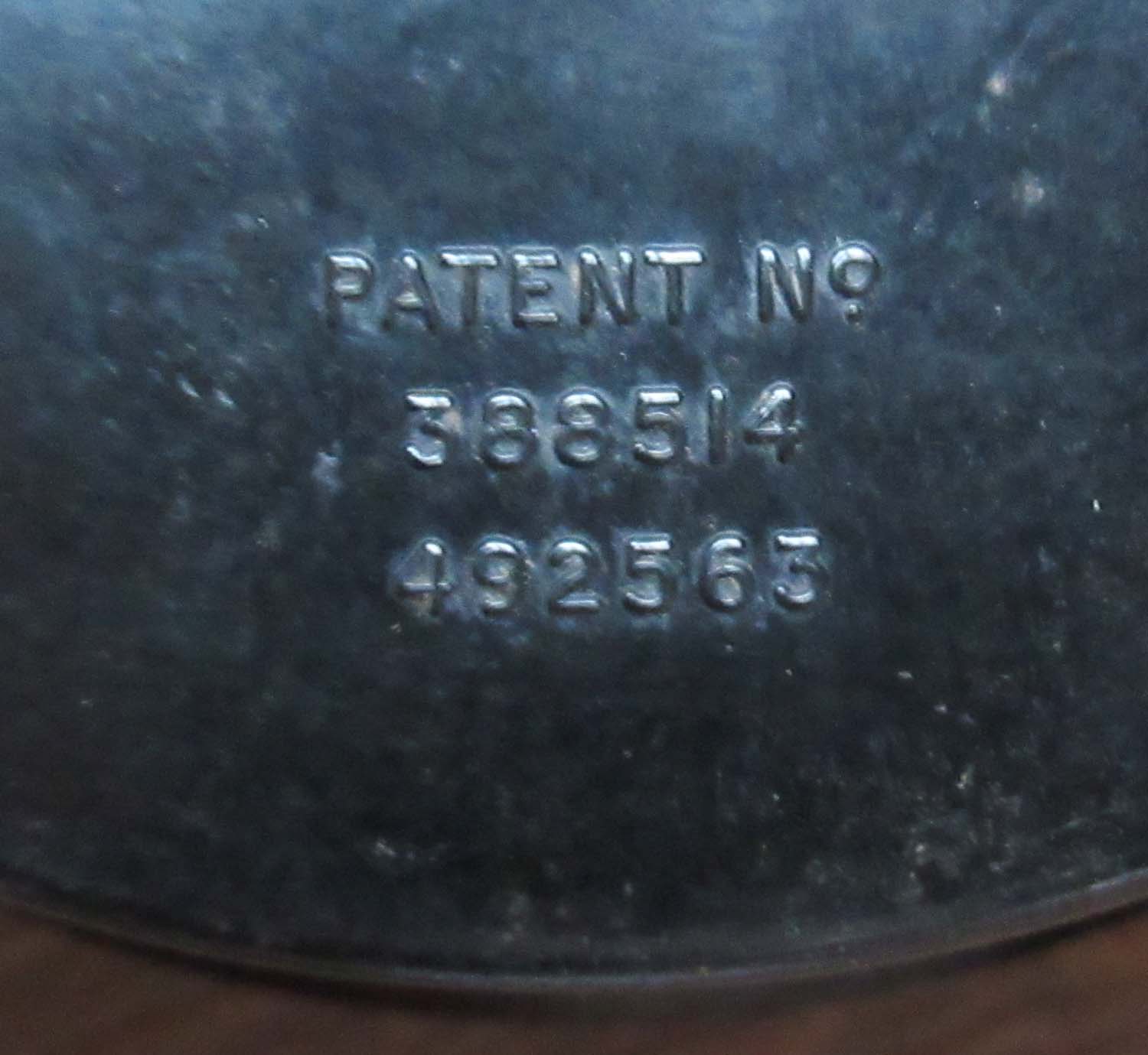

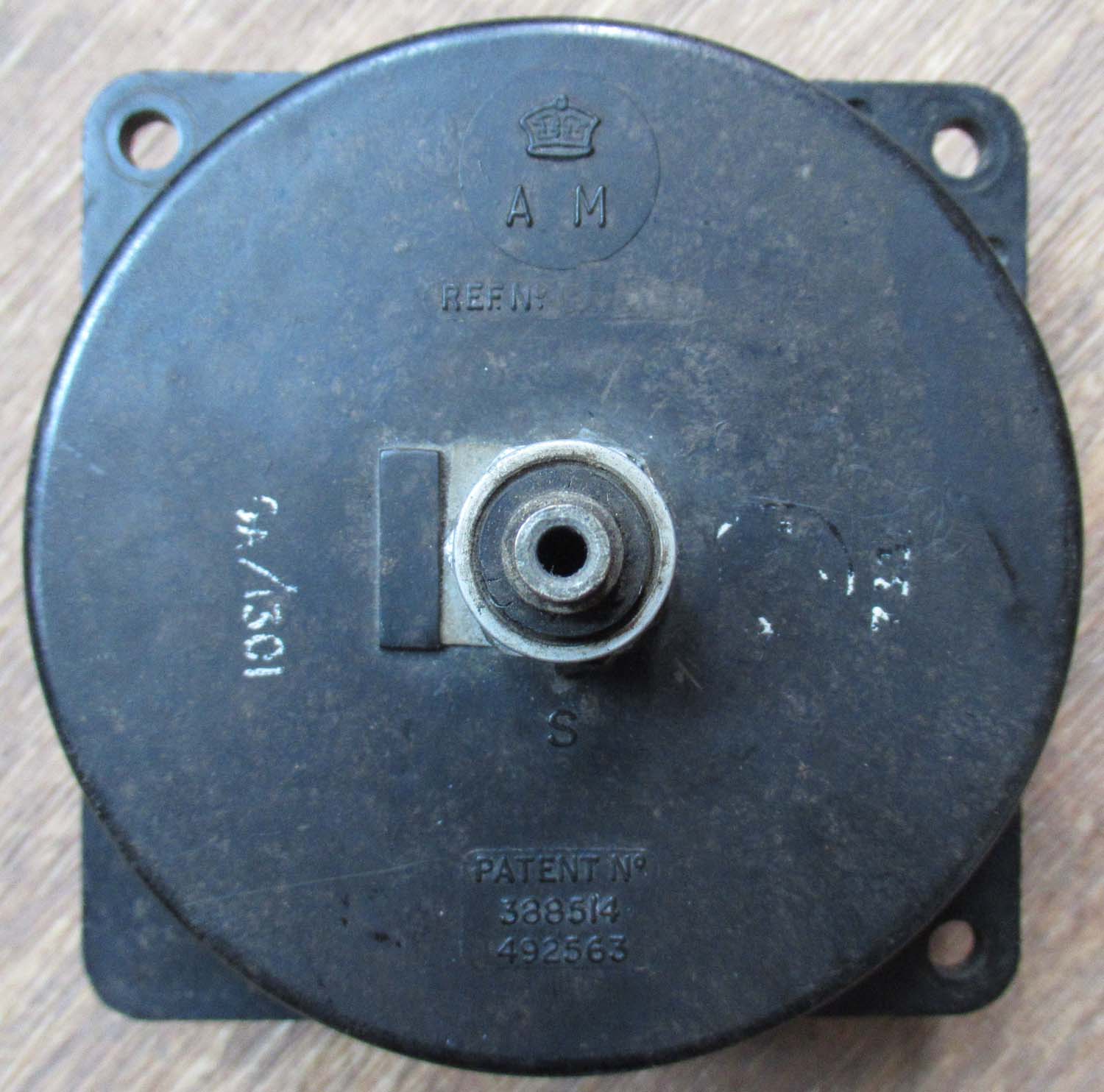

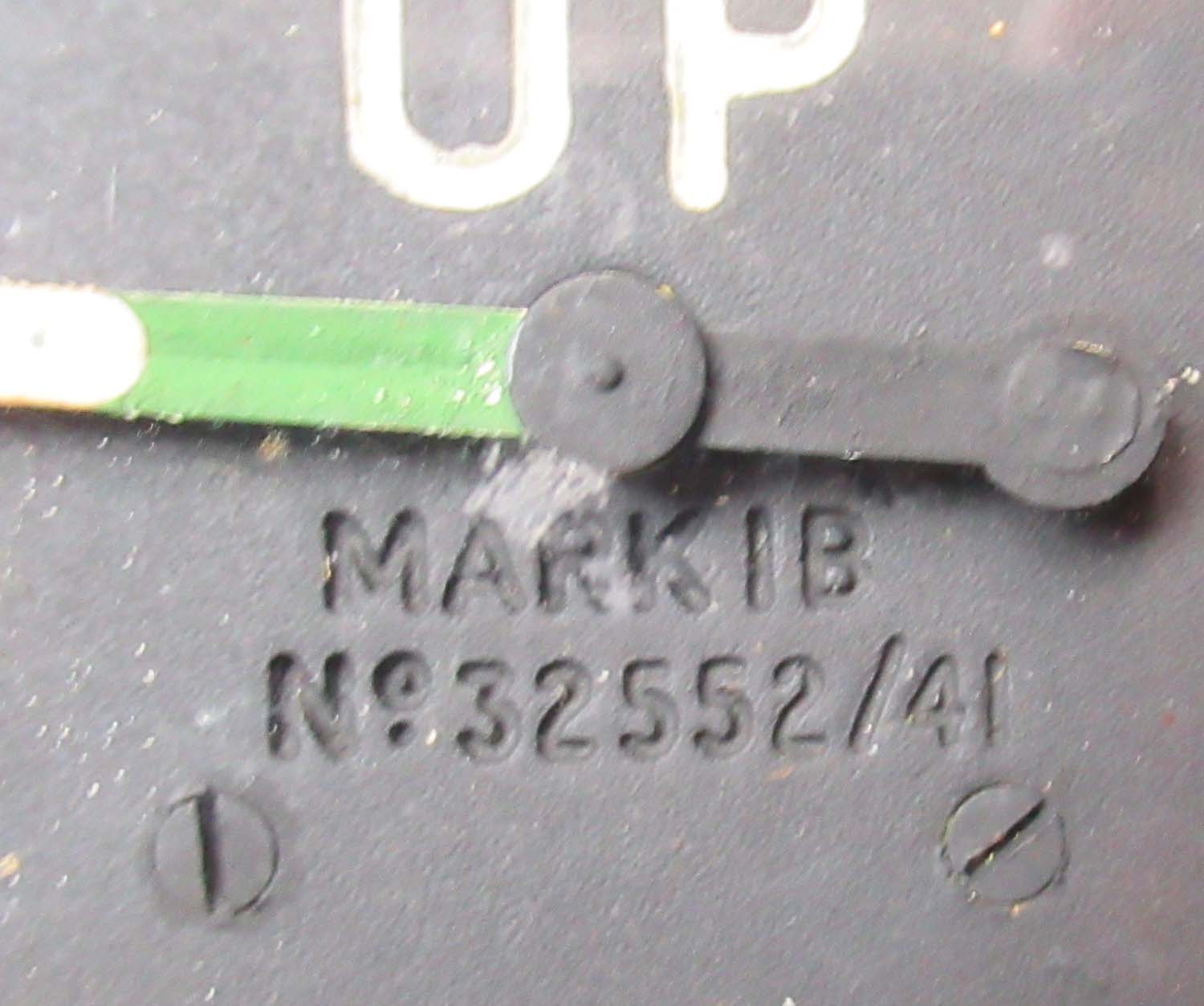

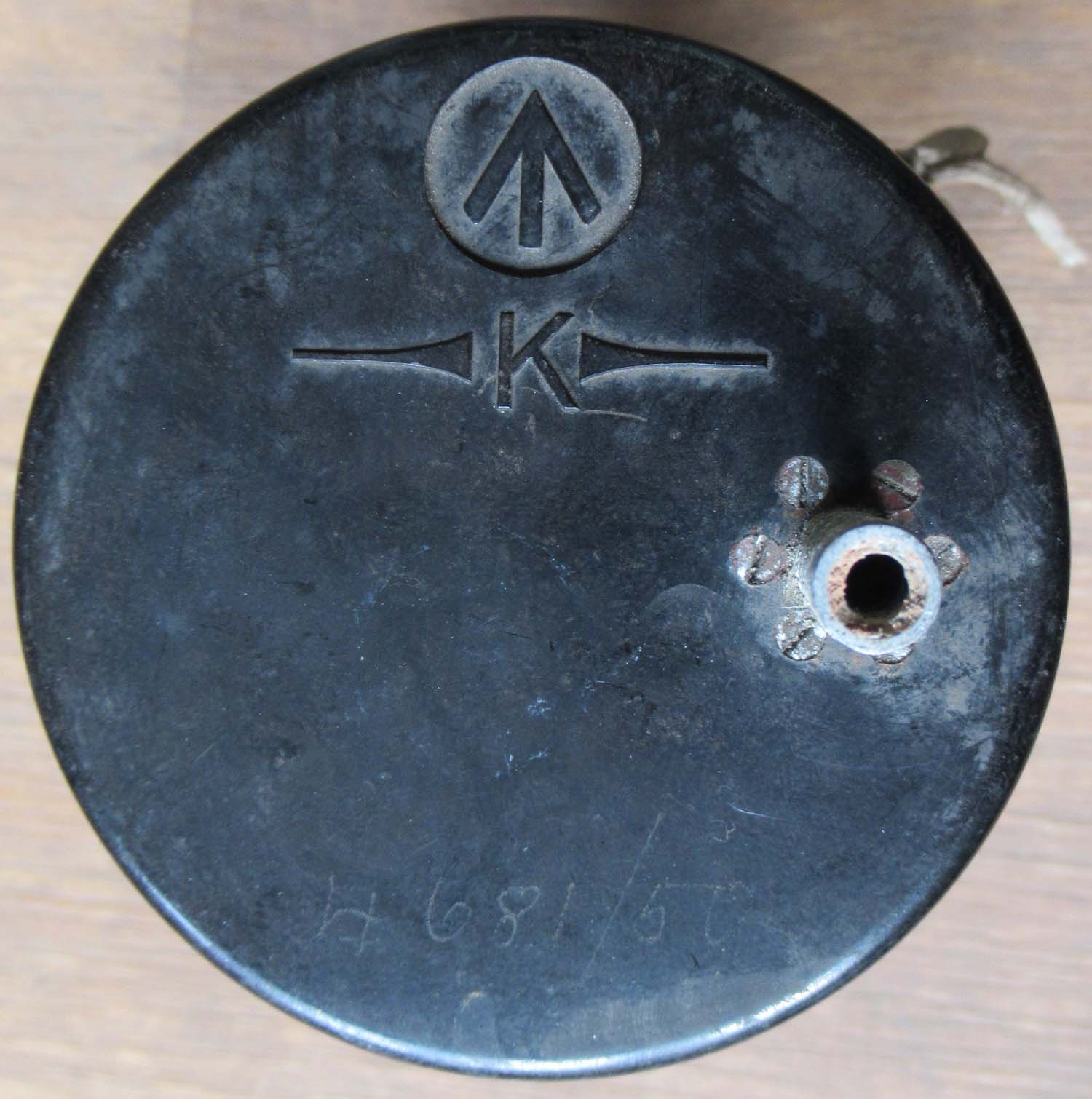

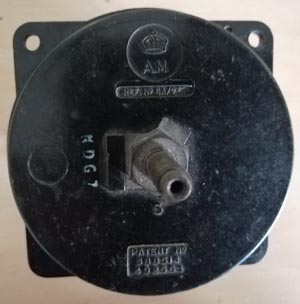

This is a climb and descend indicator  the instrument is dated 1941 and is a MK1B.

This instrument was used in the Blind flying panels of practically every type or WWII RAF aircraft including the Spitfire.

Seen under Mk V Spitfire

Out of stock





Click on the pictures to enlarge them

Click on the pictures to enlarge them

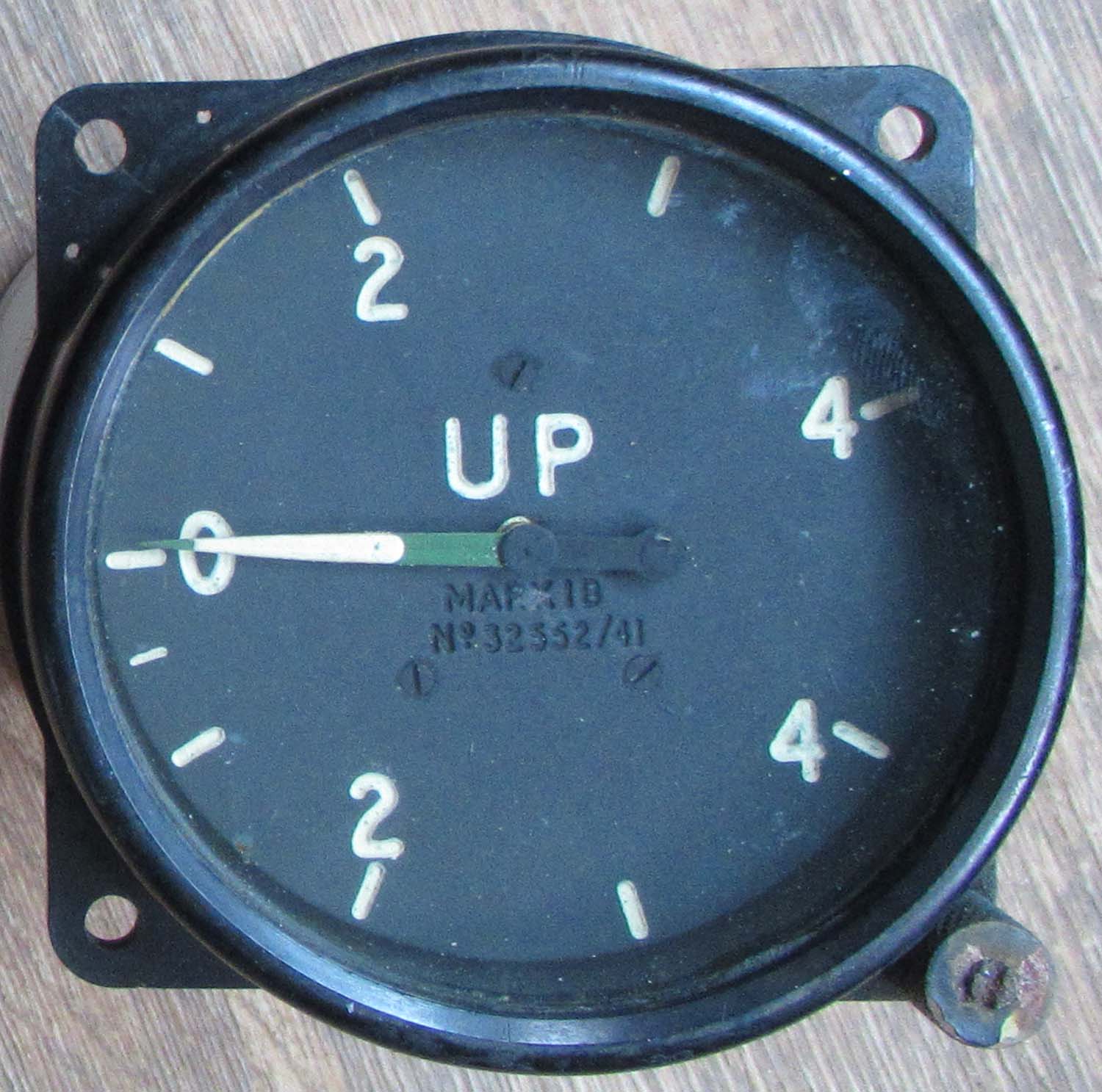

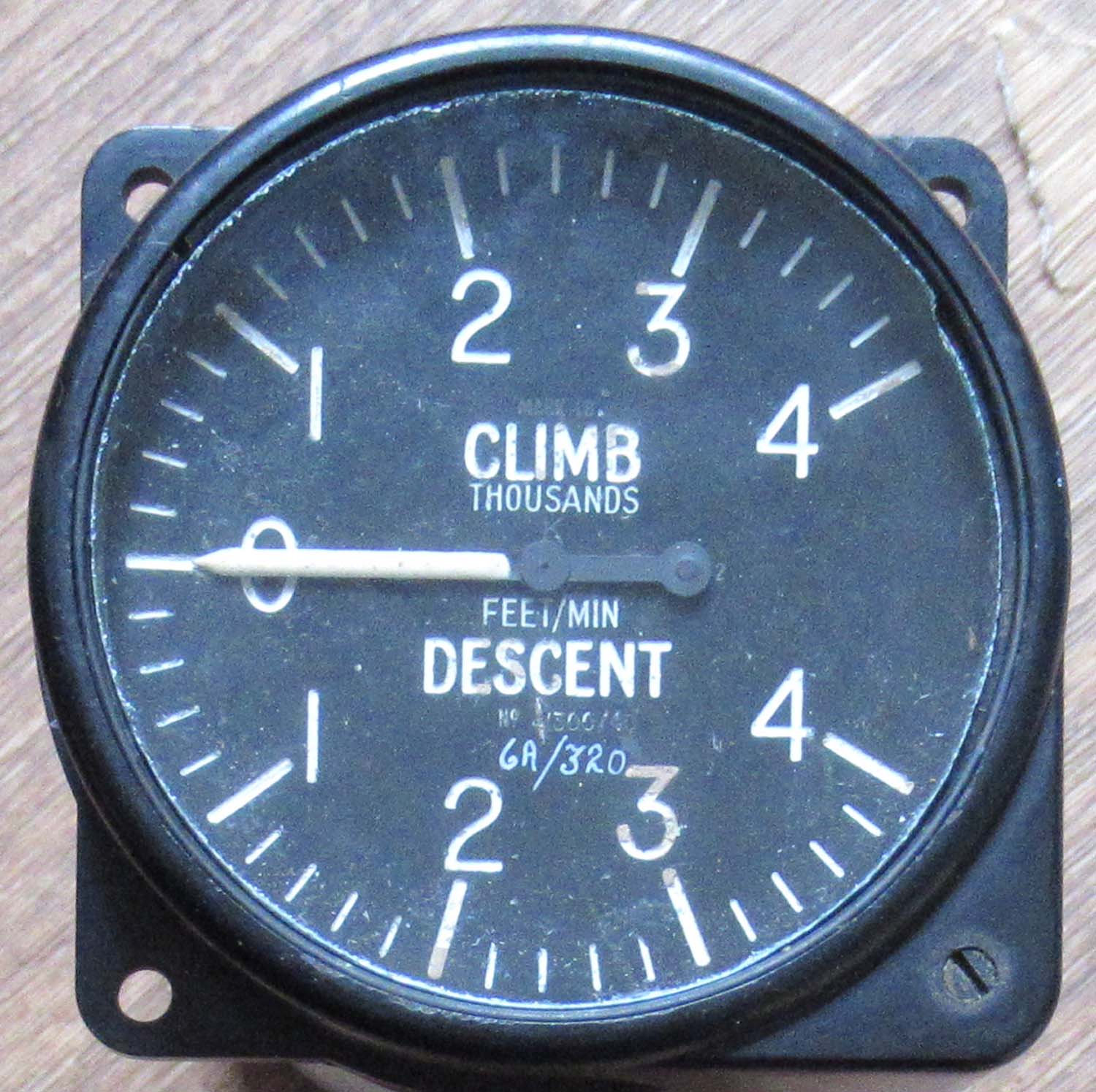

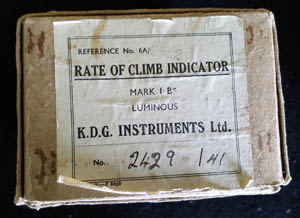

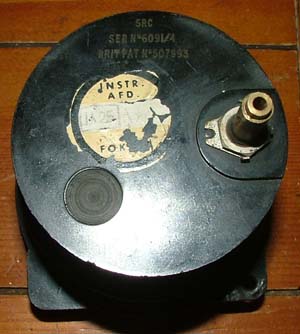

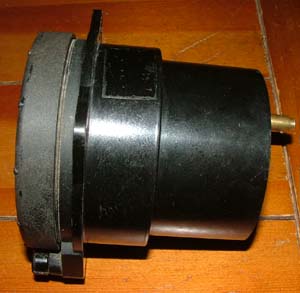

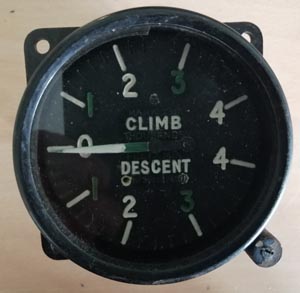

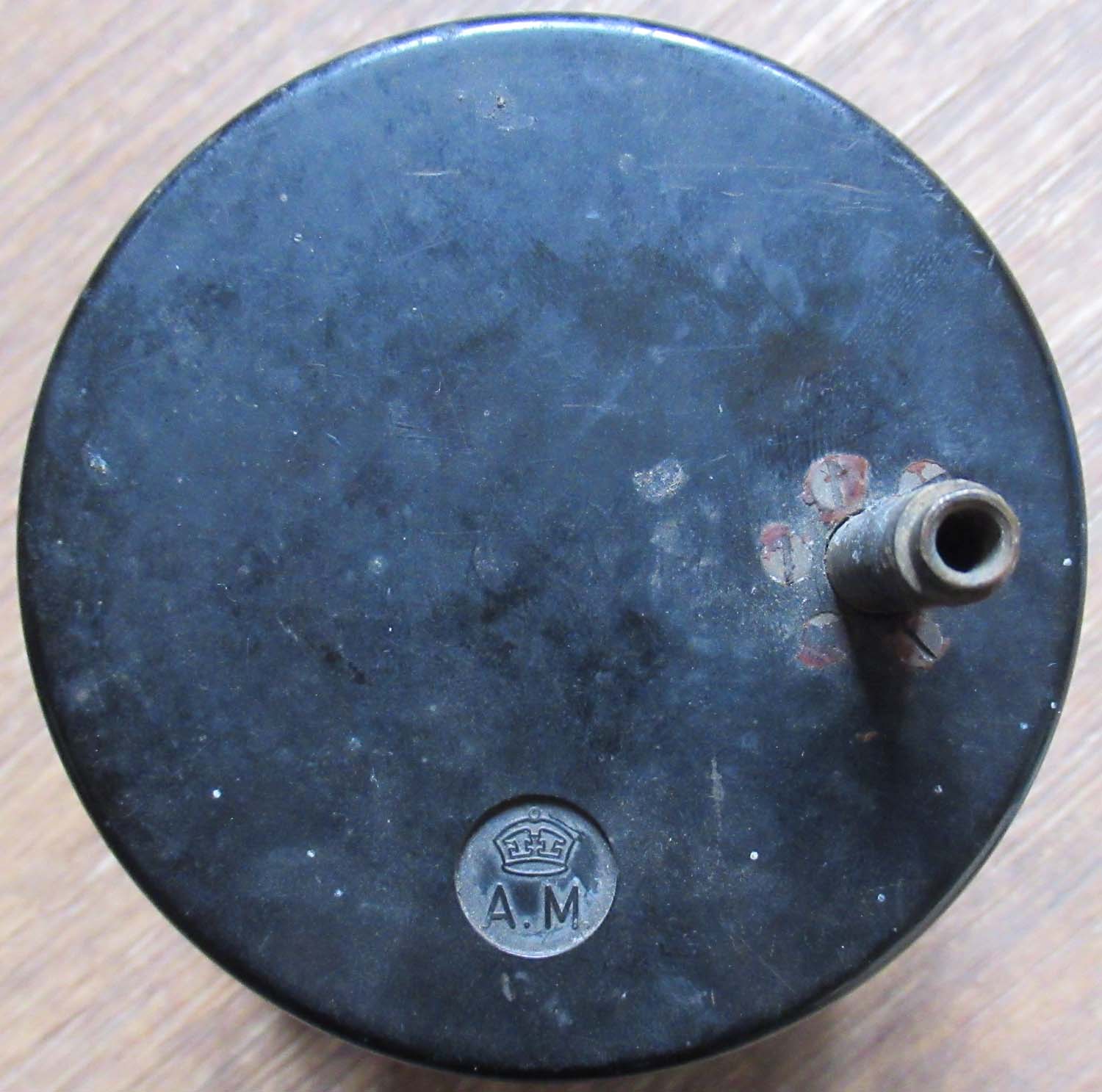

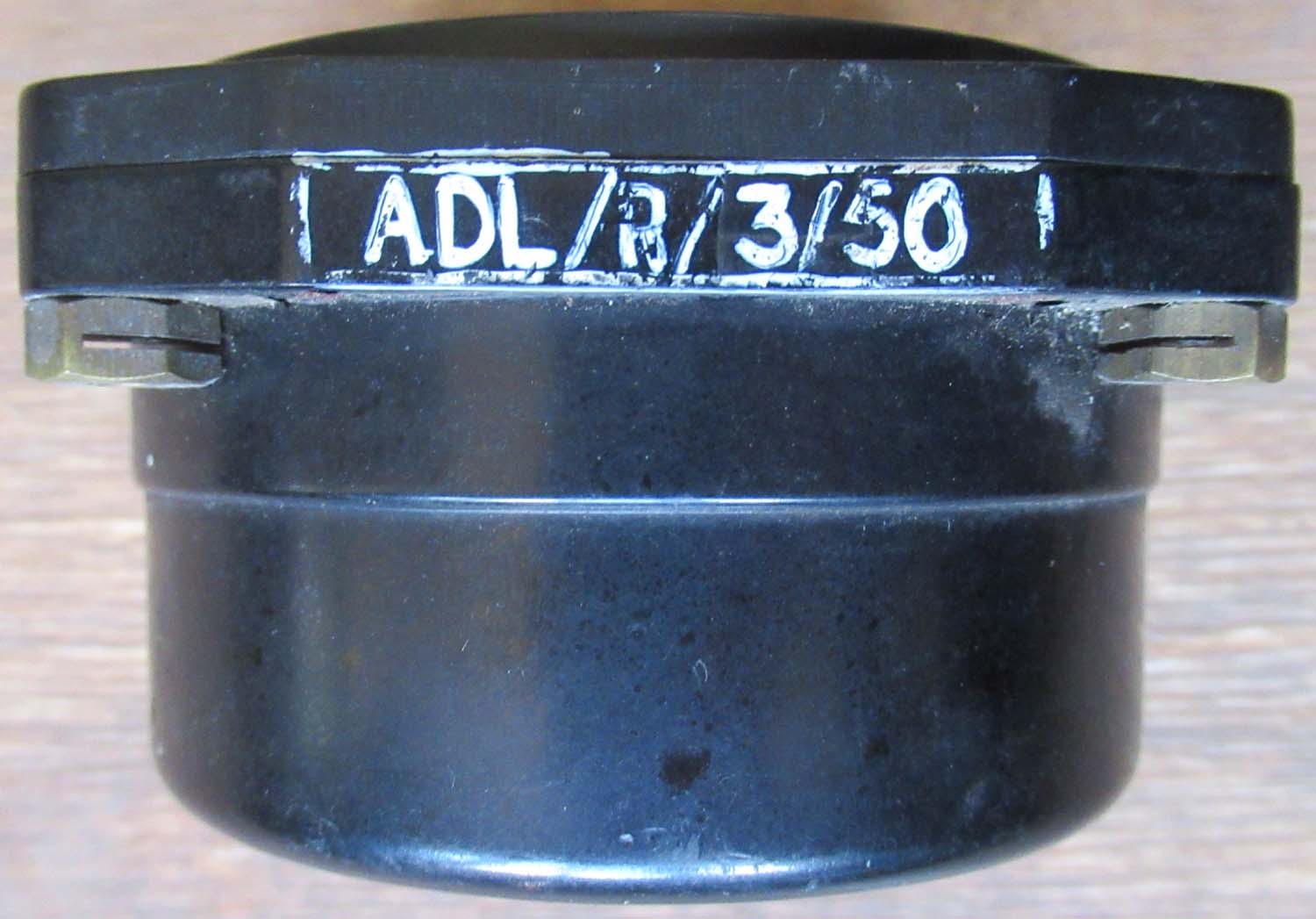

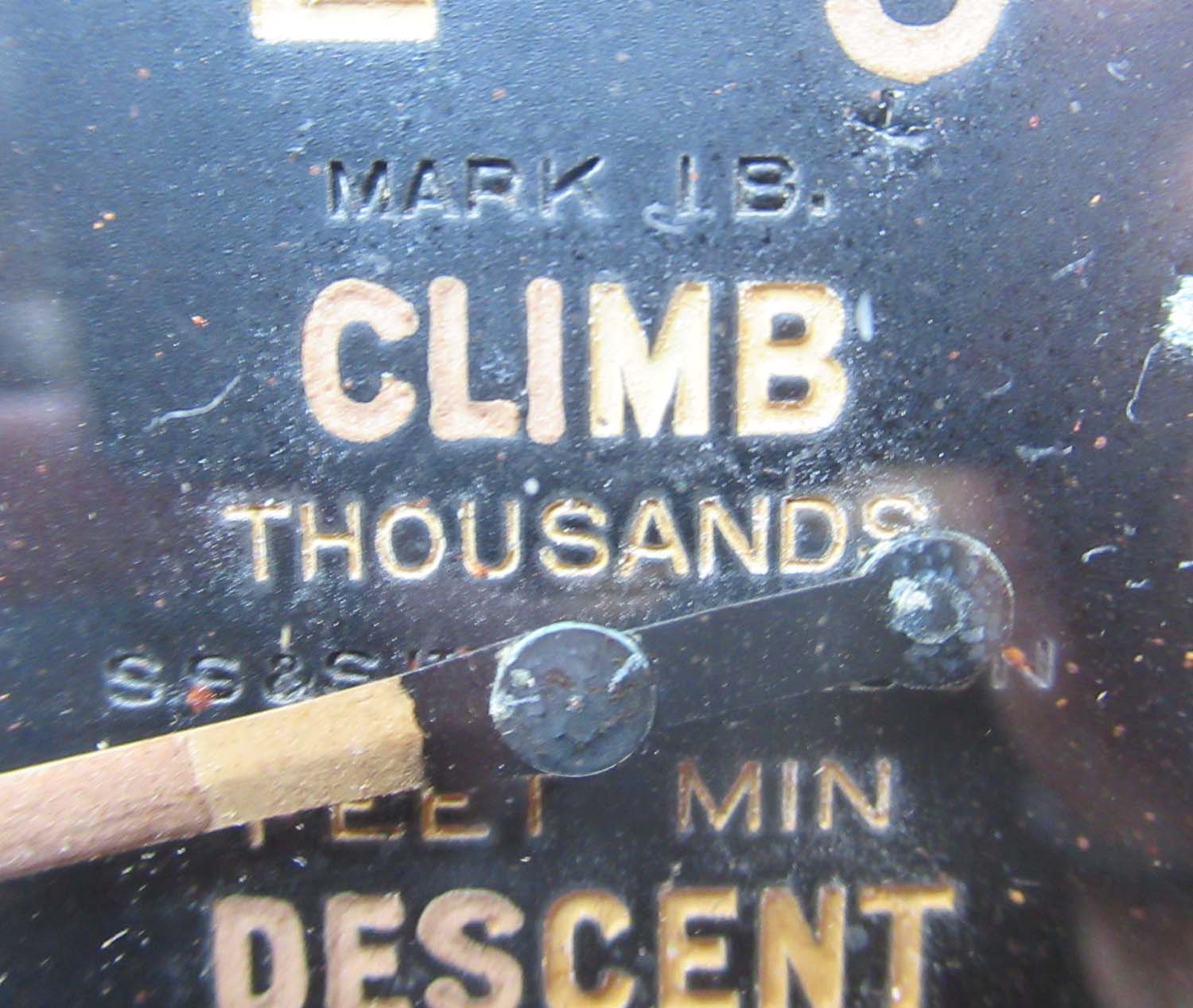

 Climb and descend indicator  (Instruments pg 5 Climb and descend 3)

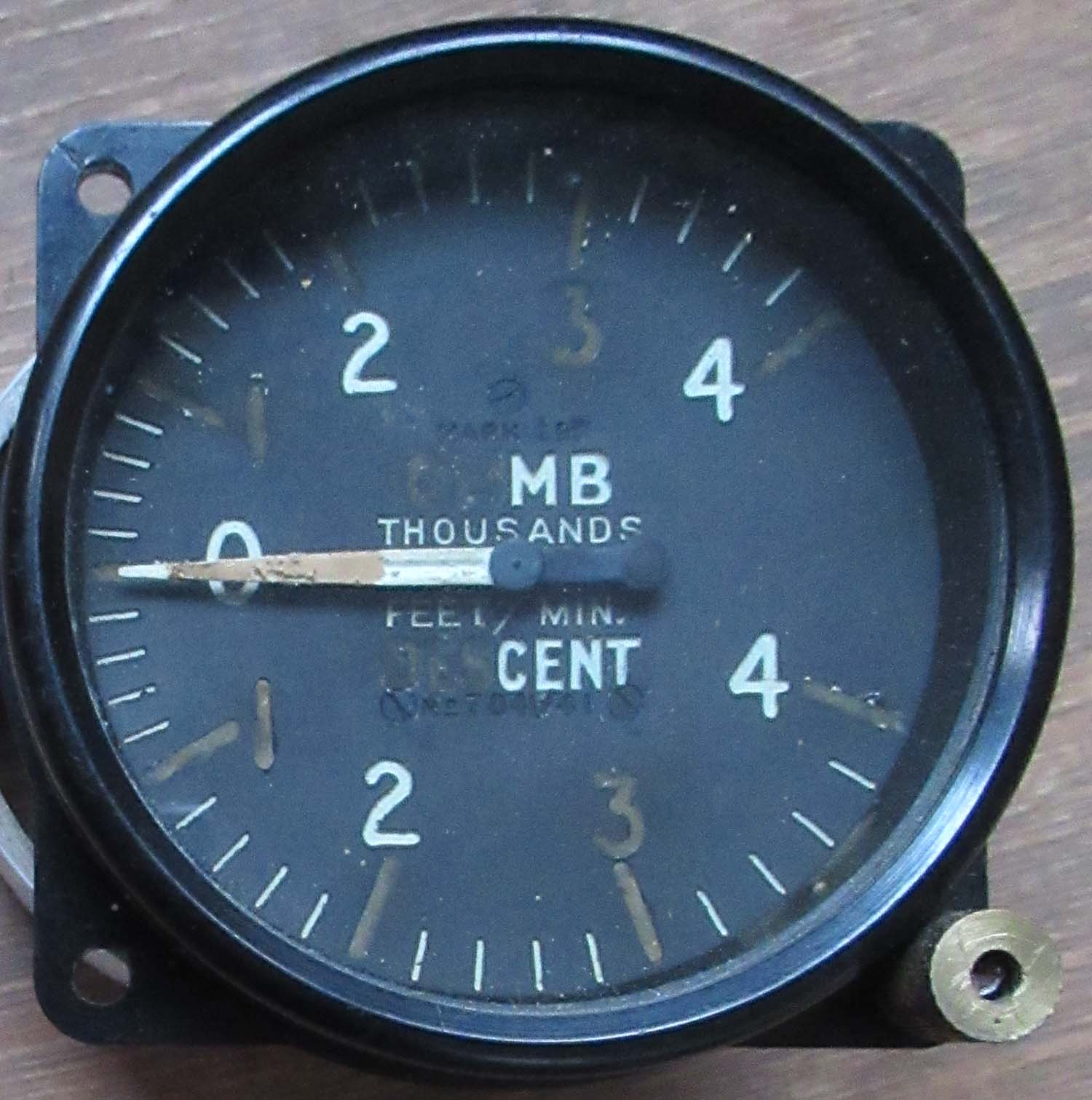

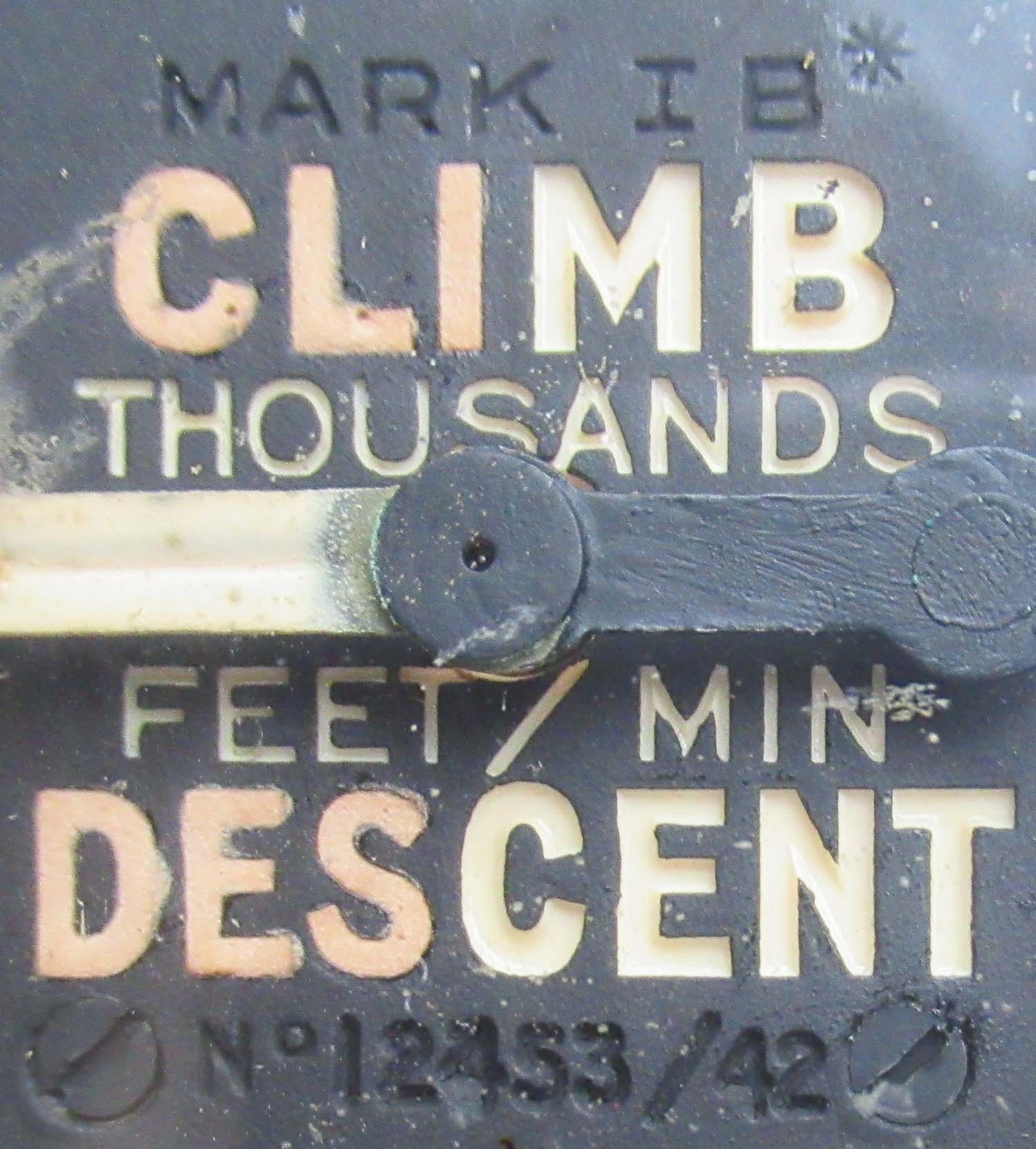

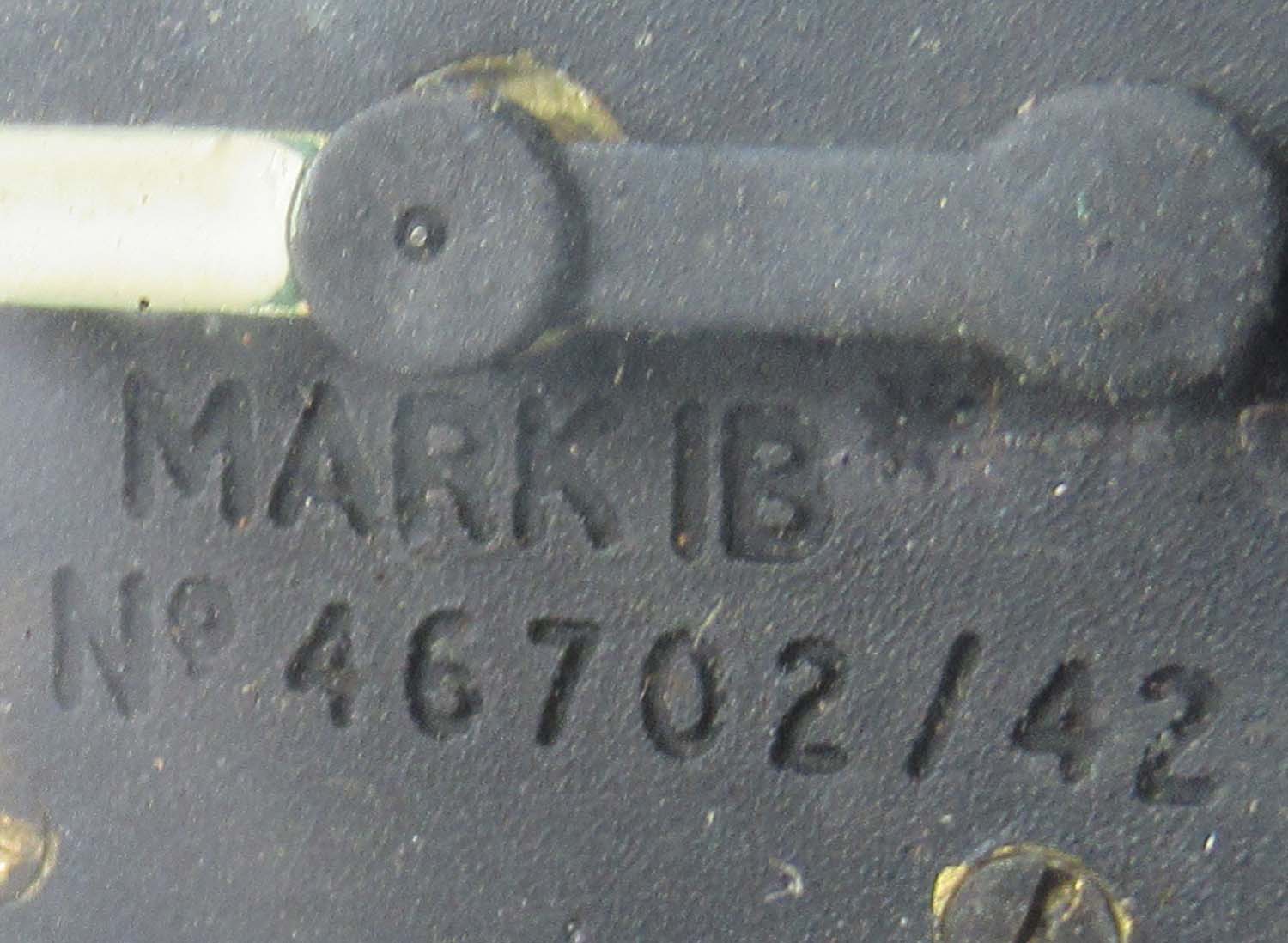

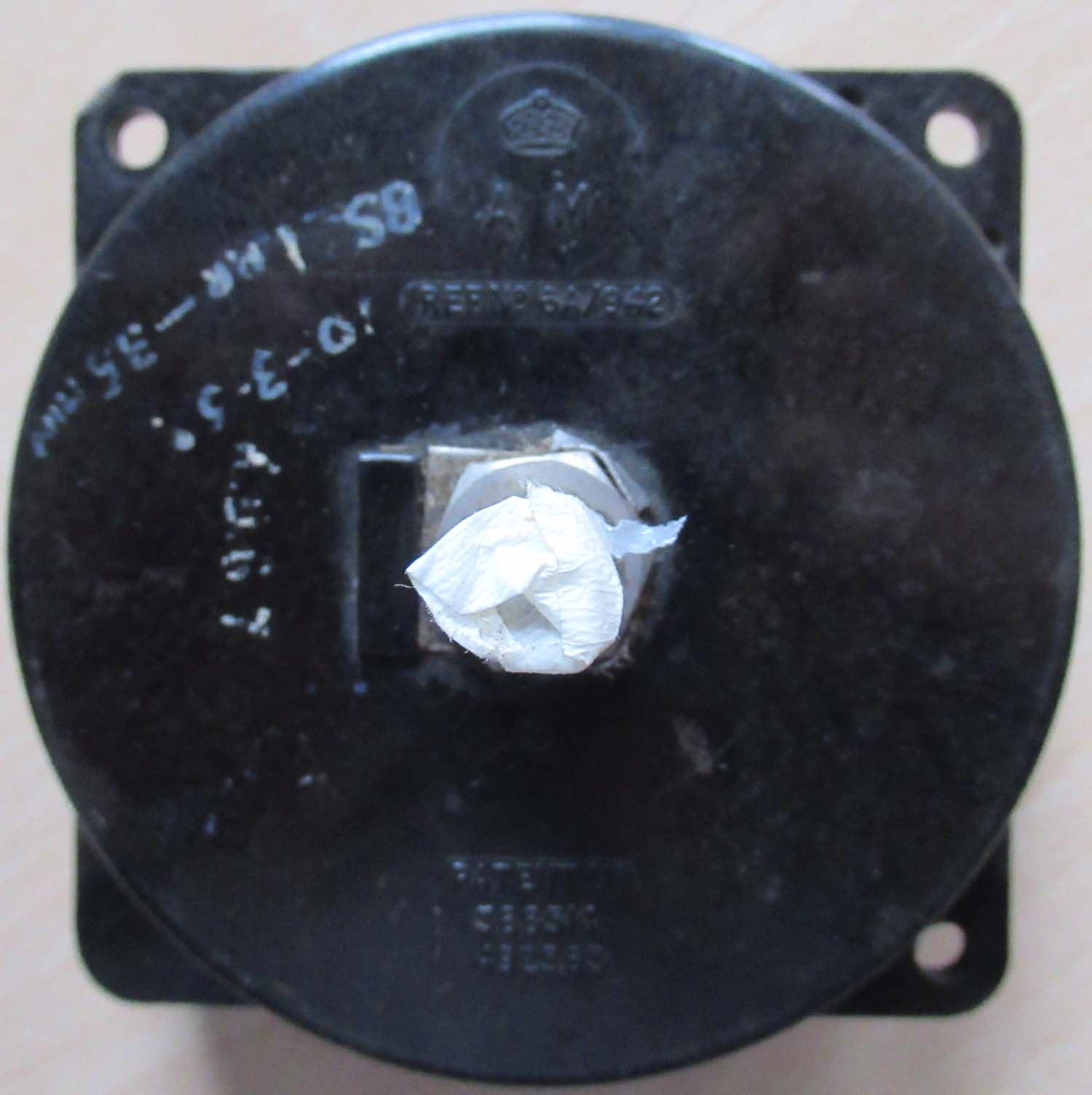

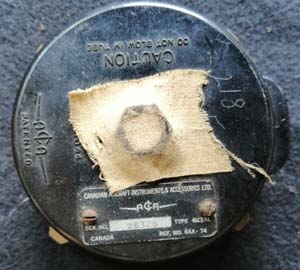

This is a climb and descend indicator  the instrument is dated 1942 and is a MK1B.

This instrument was used in the Blind flying panels of practically every type or WWII RAF aircraft including the Spitfire.

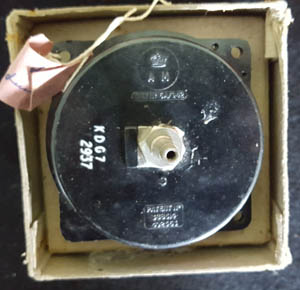

The tag lists it as having low luminosity the face is slightly fated but otherwise appears in good condition with its original box.

Seen under Mk V Spitfire RAF Fighter commands First line  fighter in 1942

95

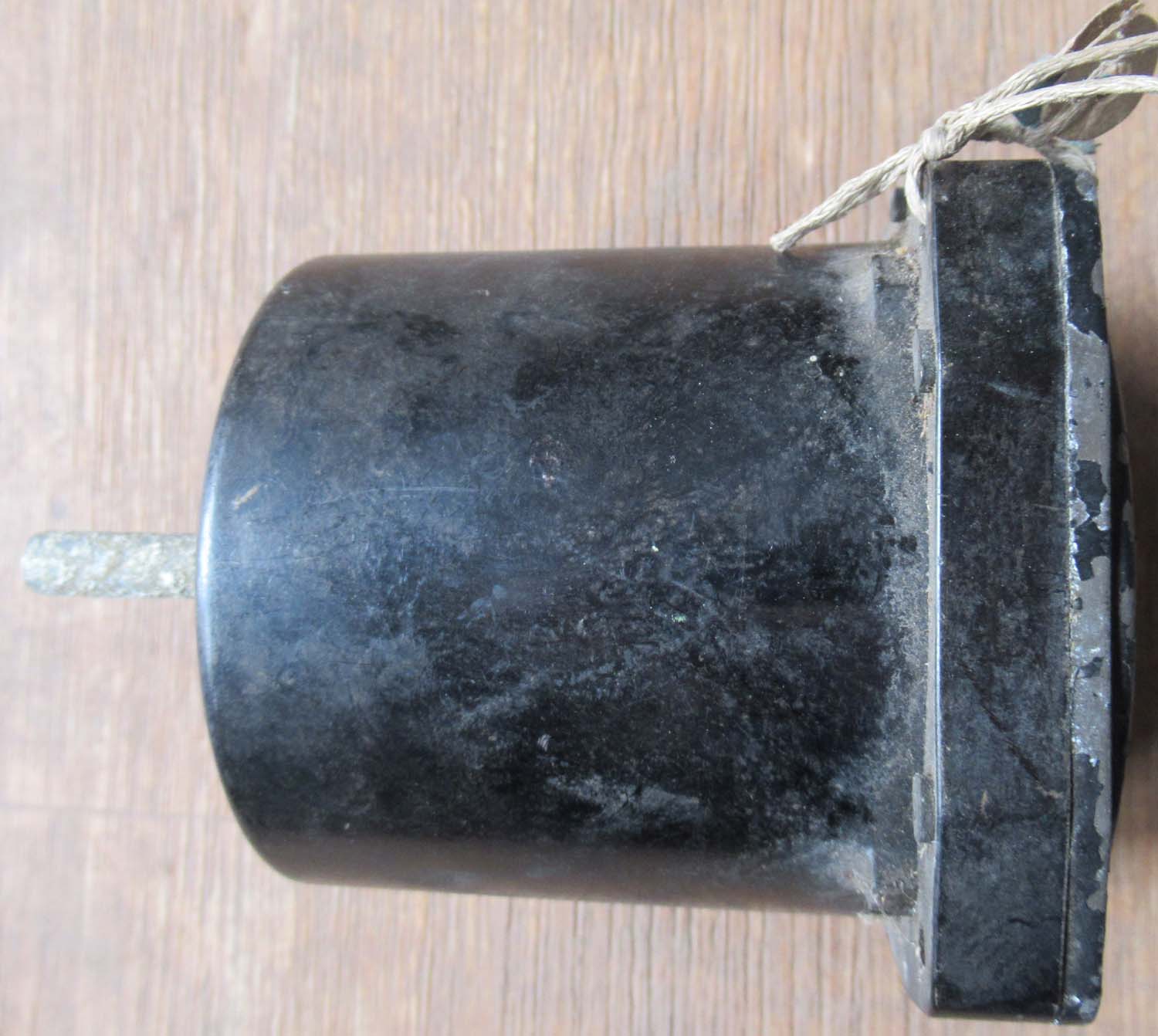

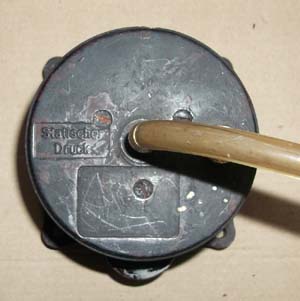

WWII Luftwaffe Climb and descend (Instruments pg 5 Climb and descend 4)

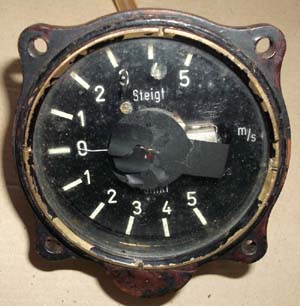

Here we have a Luftwaffe Climb and Descend

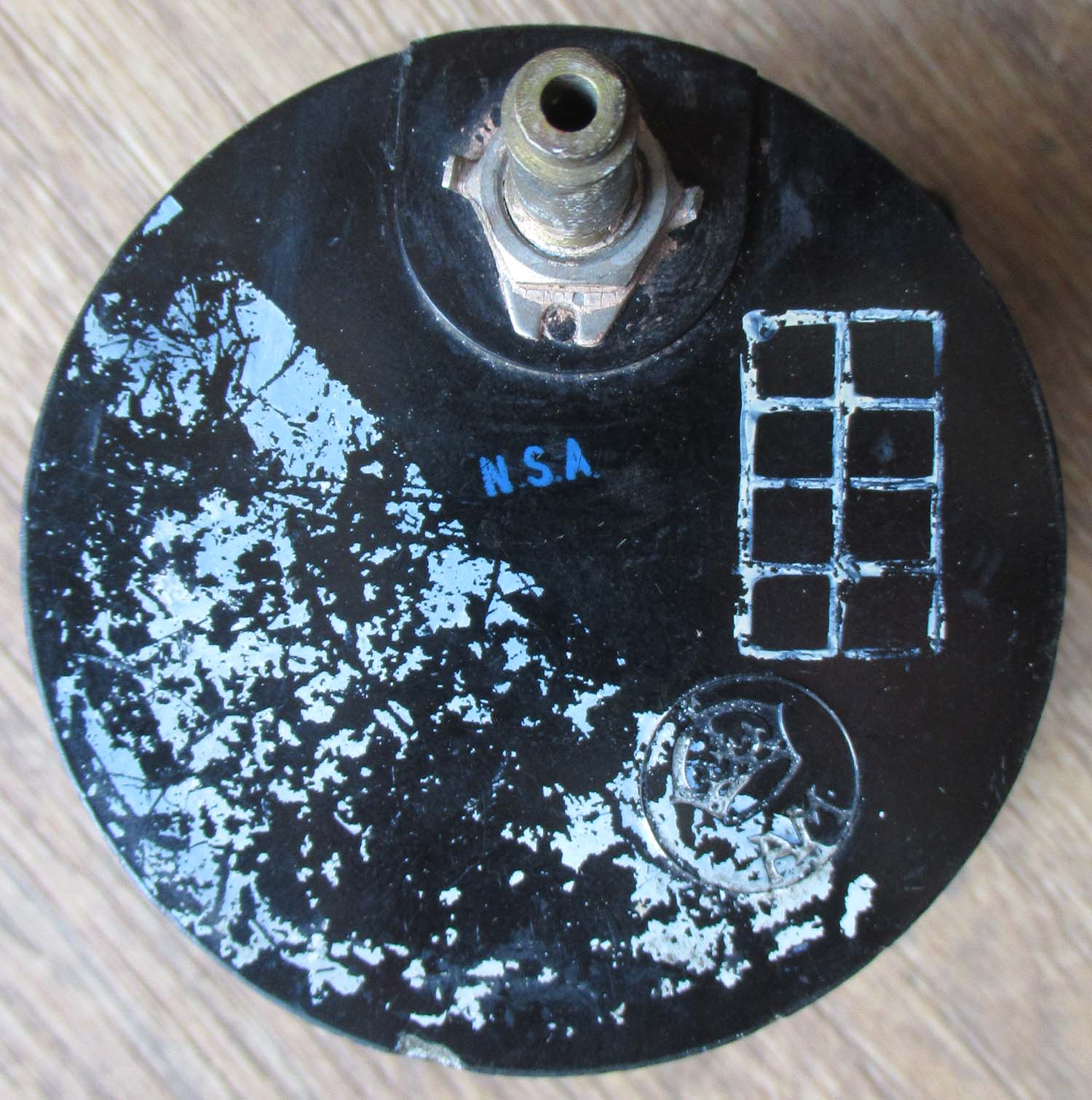

Nice original condition there is some damage to the needle.

This Carries the Part Number FL.22379

This was used in German Gliders such as the Grunau Baby, DFS Meise and the Horton H.IV

95



Repro Blind Flying to main panel brackets

See the panel page

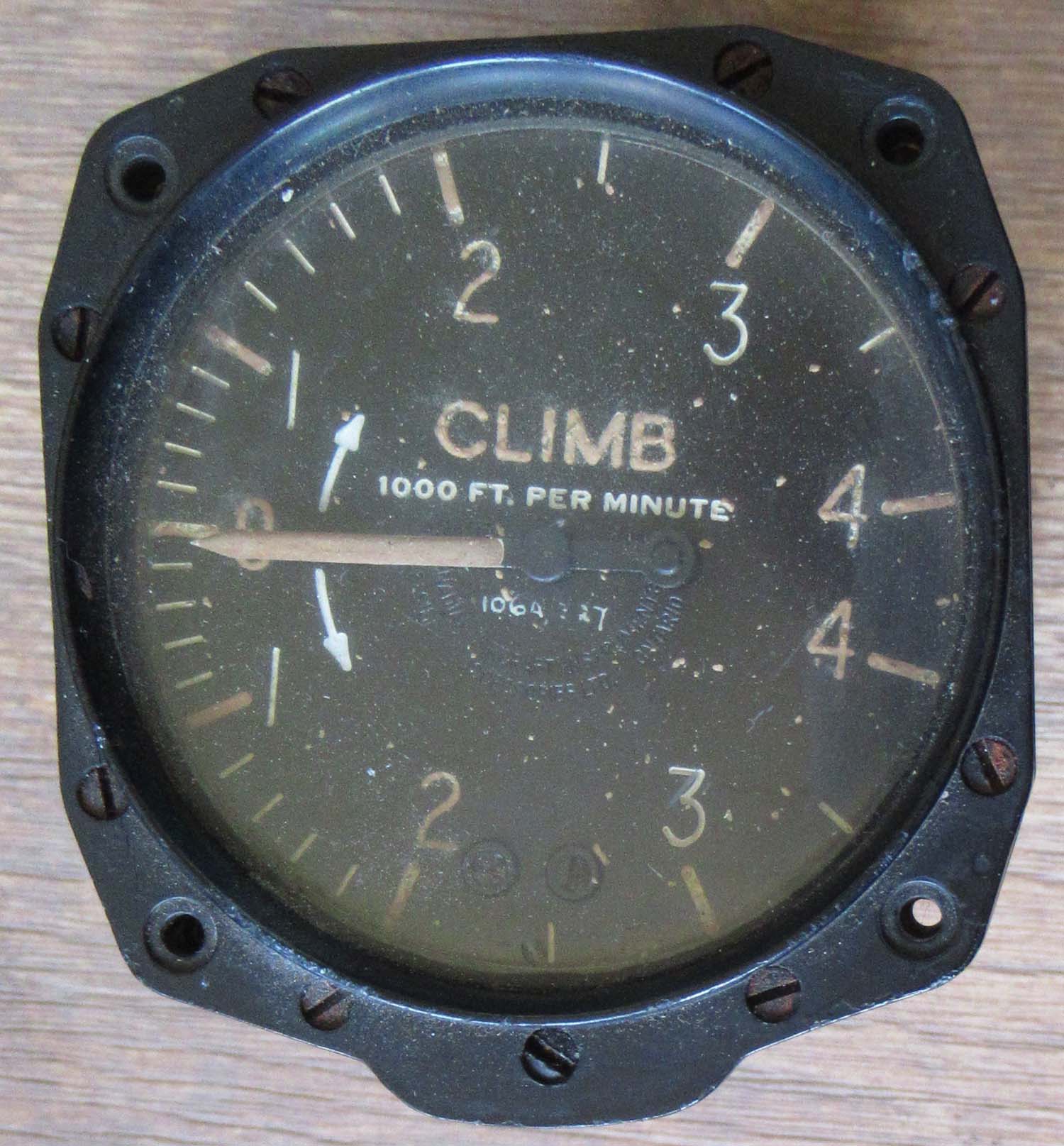

Climb Rate indicator (Instruments pg 5 Climb and descend 6)

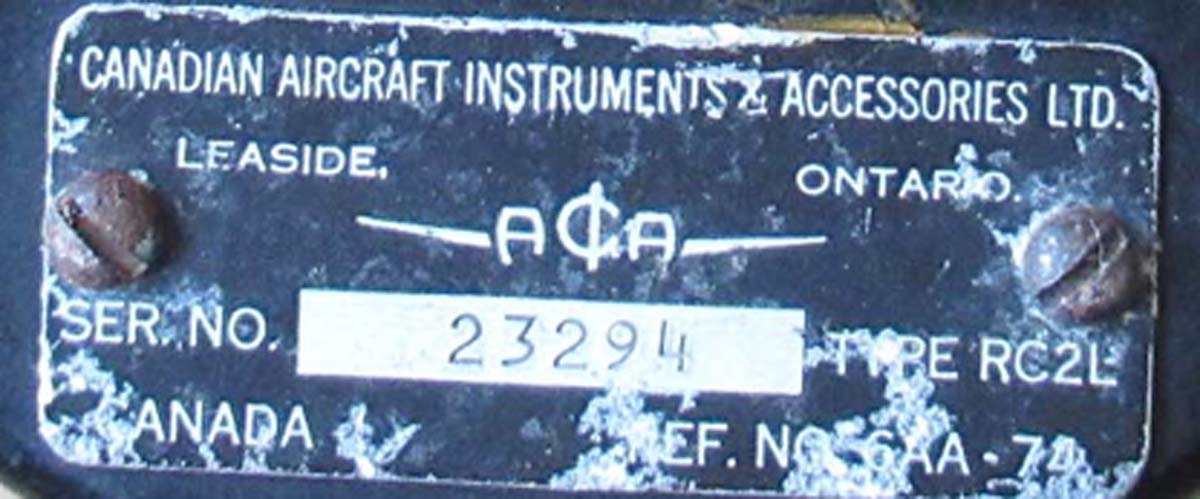

US/Canadian version of the climb and descend indicator, as with the British version this is a generic instrument and used in a variety of USAF aircraft including the Mustang and Harvard as well as Canadian built aircraft.



65

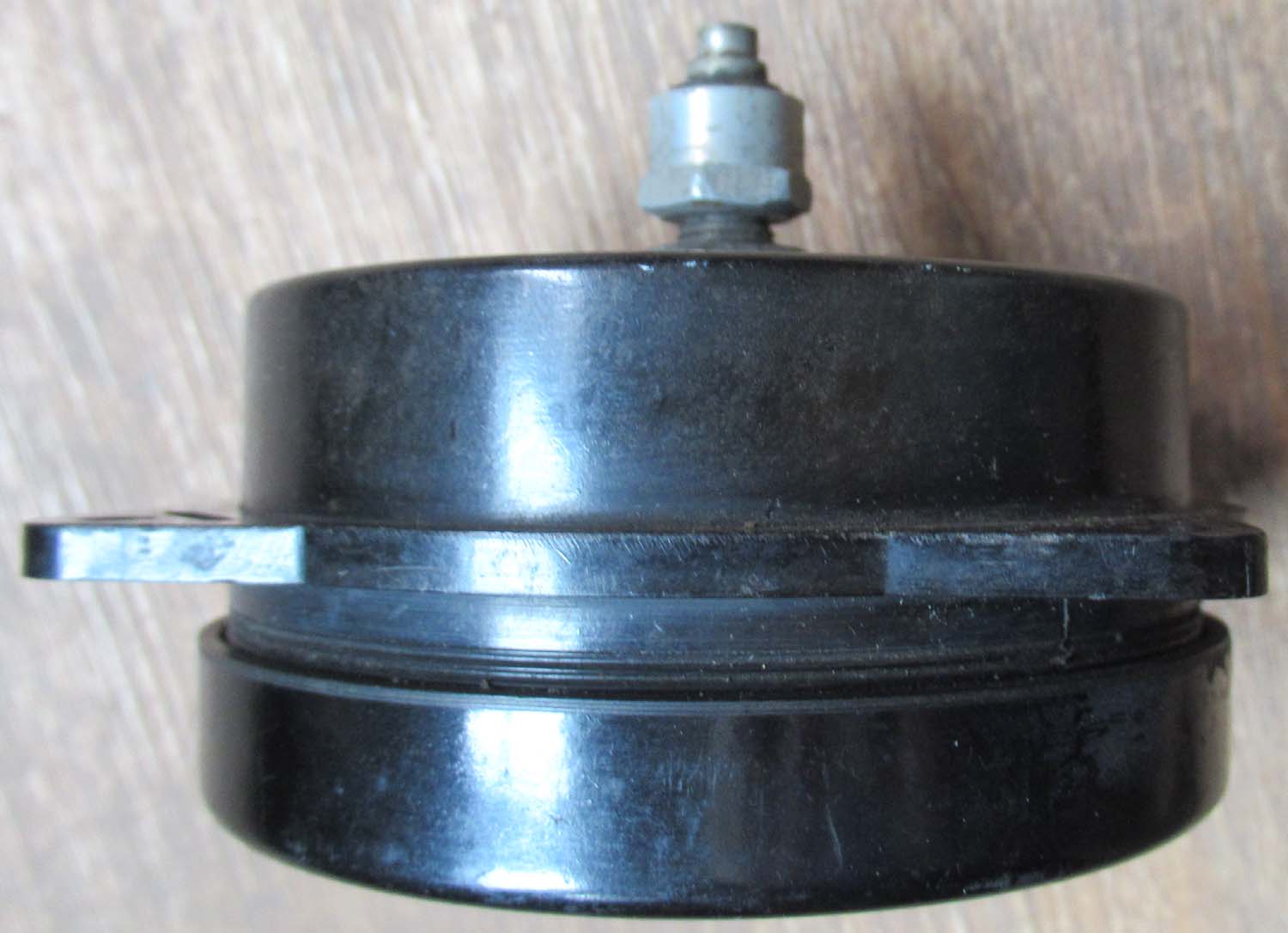

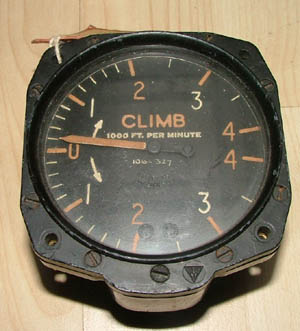

Climb and Descend indicator (Instruments pg 5 Climb and descend 7)

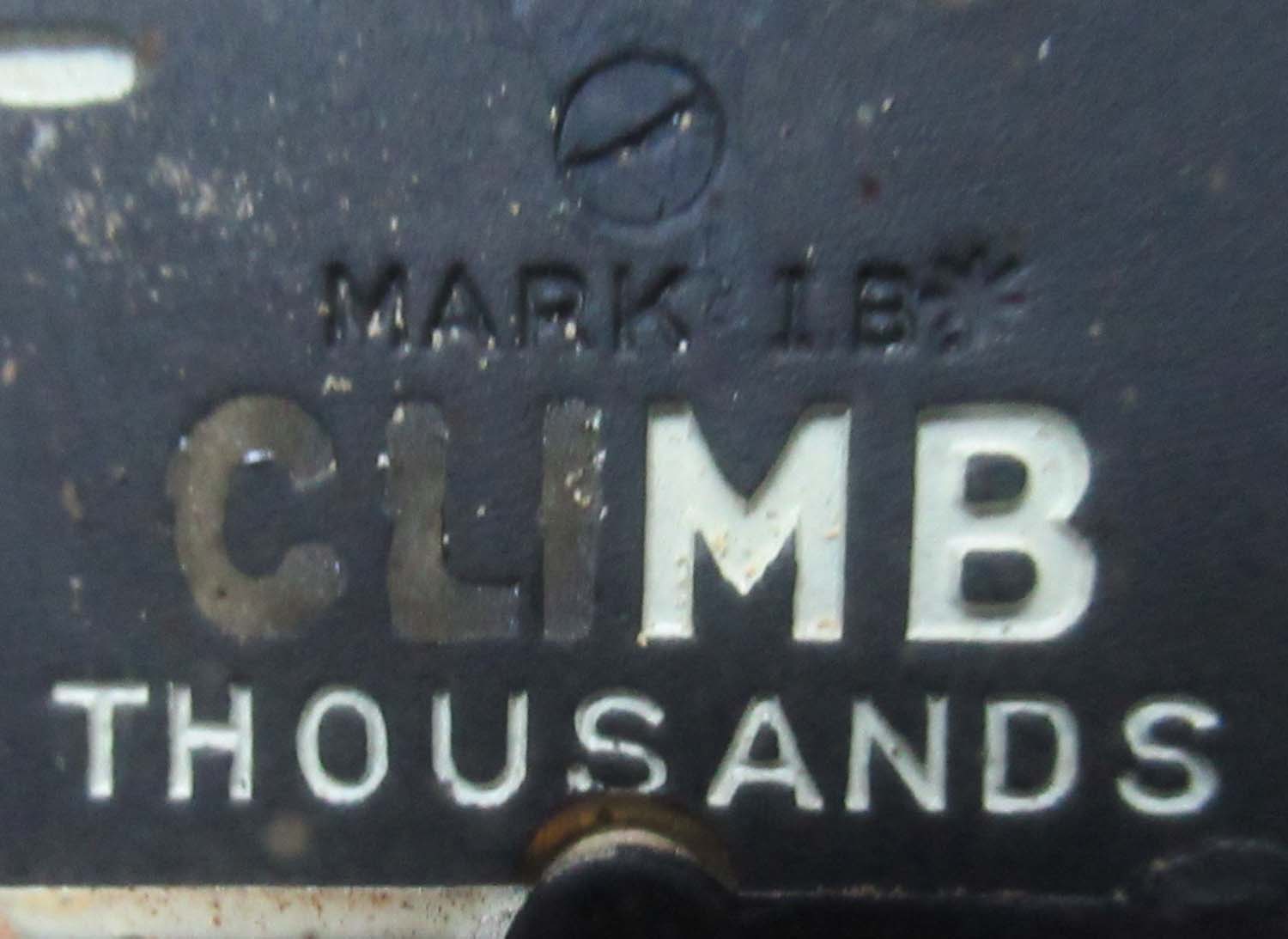

This is an early version of the classic climb and descend indicator with a 1940 date. This instrument can be identified by its deep body. In nice original condition. Not to be confused with the similar post war version.

Dated 1940

125

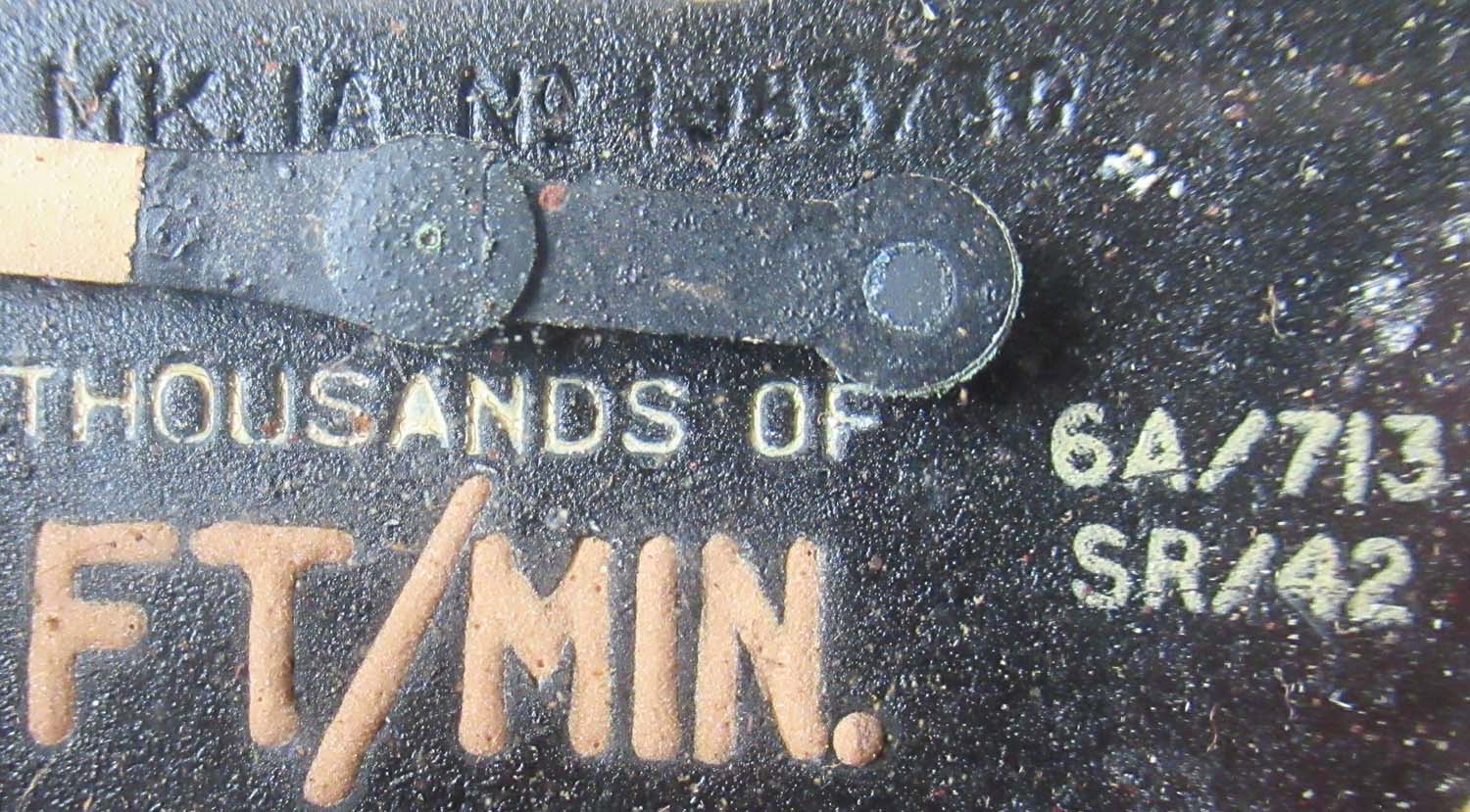

Climb & Descend indicator (Instruments pg 5 Climb and descend 8)

Dated 1941

Fitted in Spitfires, Hurricanes and practically every other type of RAF aircraft of the era.

125

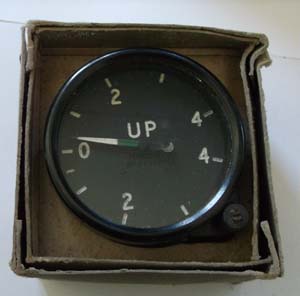

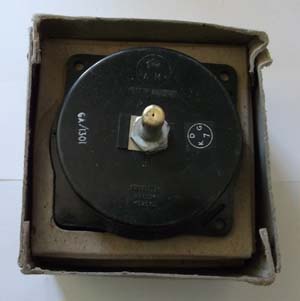

 Climb and descend indicator (Instruments pg 5 Climb and descend 11)

Mk IB



Dated 1942

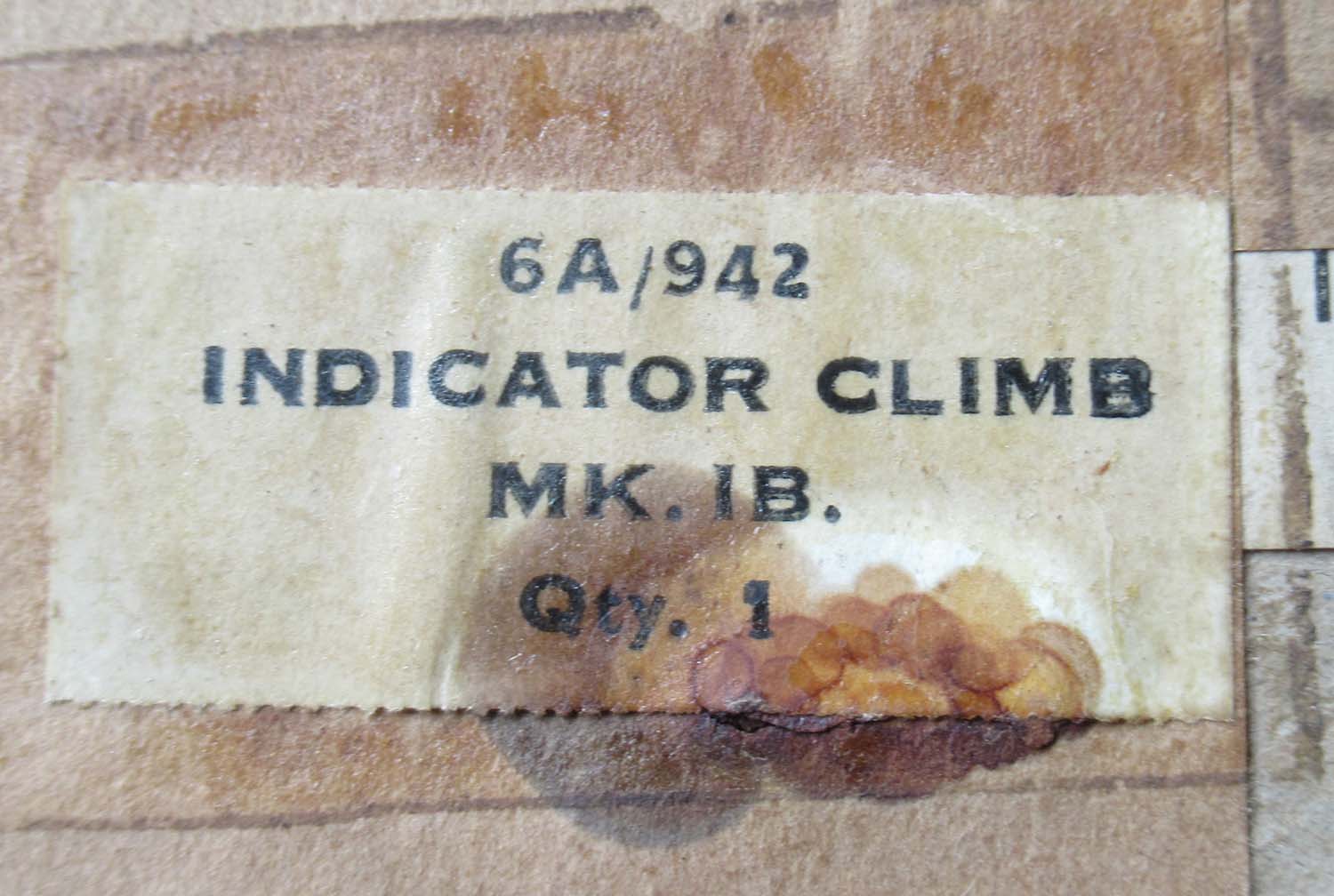

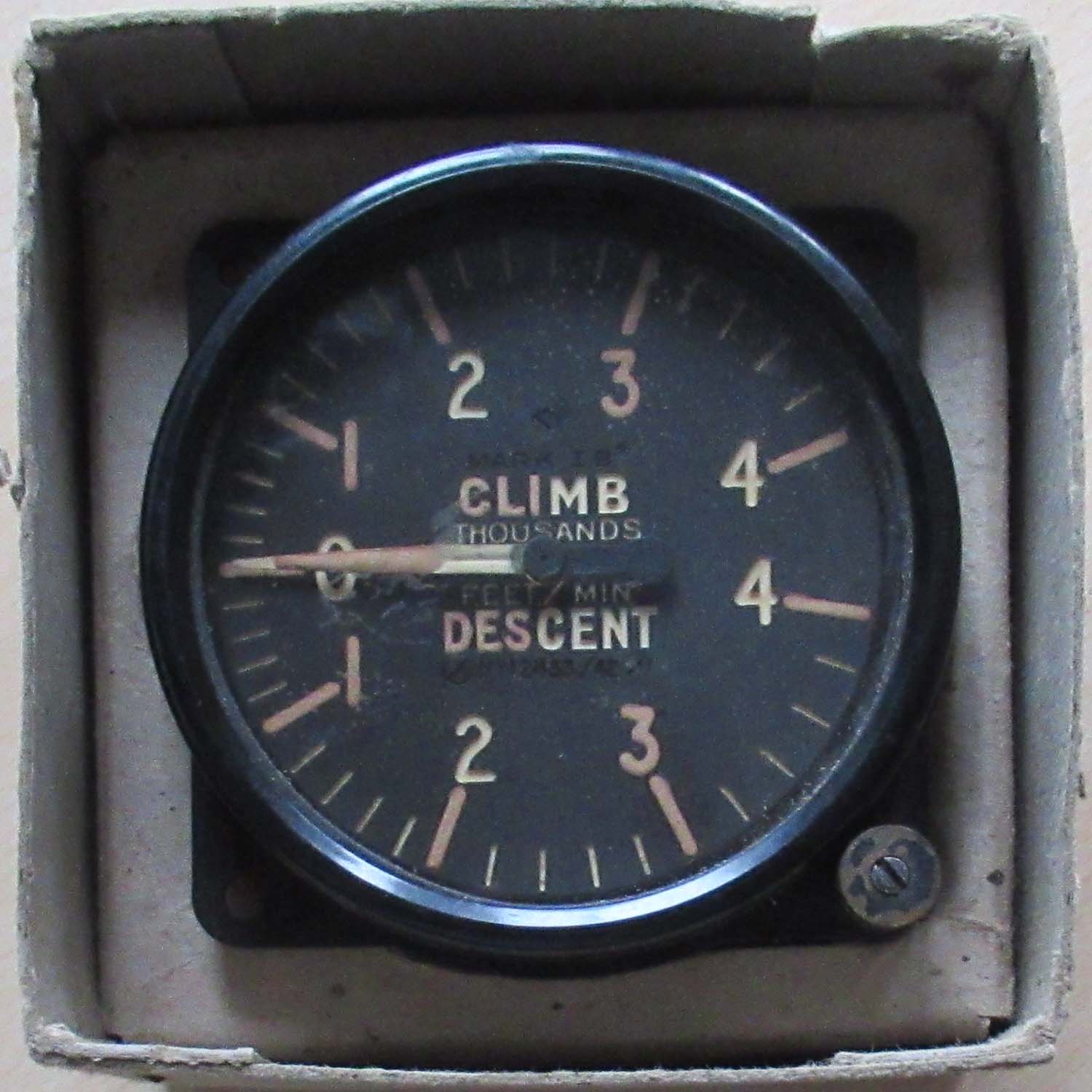

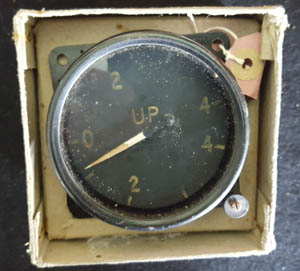

Boxed climb and descend in excellent condition in its original box.



Click on the pictures to enlarge them

125



 Bendix Climb and descend indicator (Instruments pg 5 Climb and descend 13)

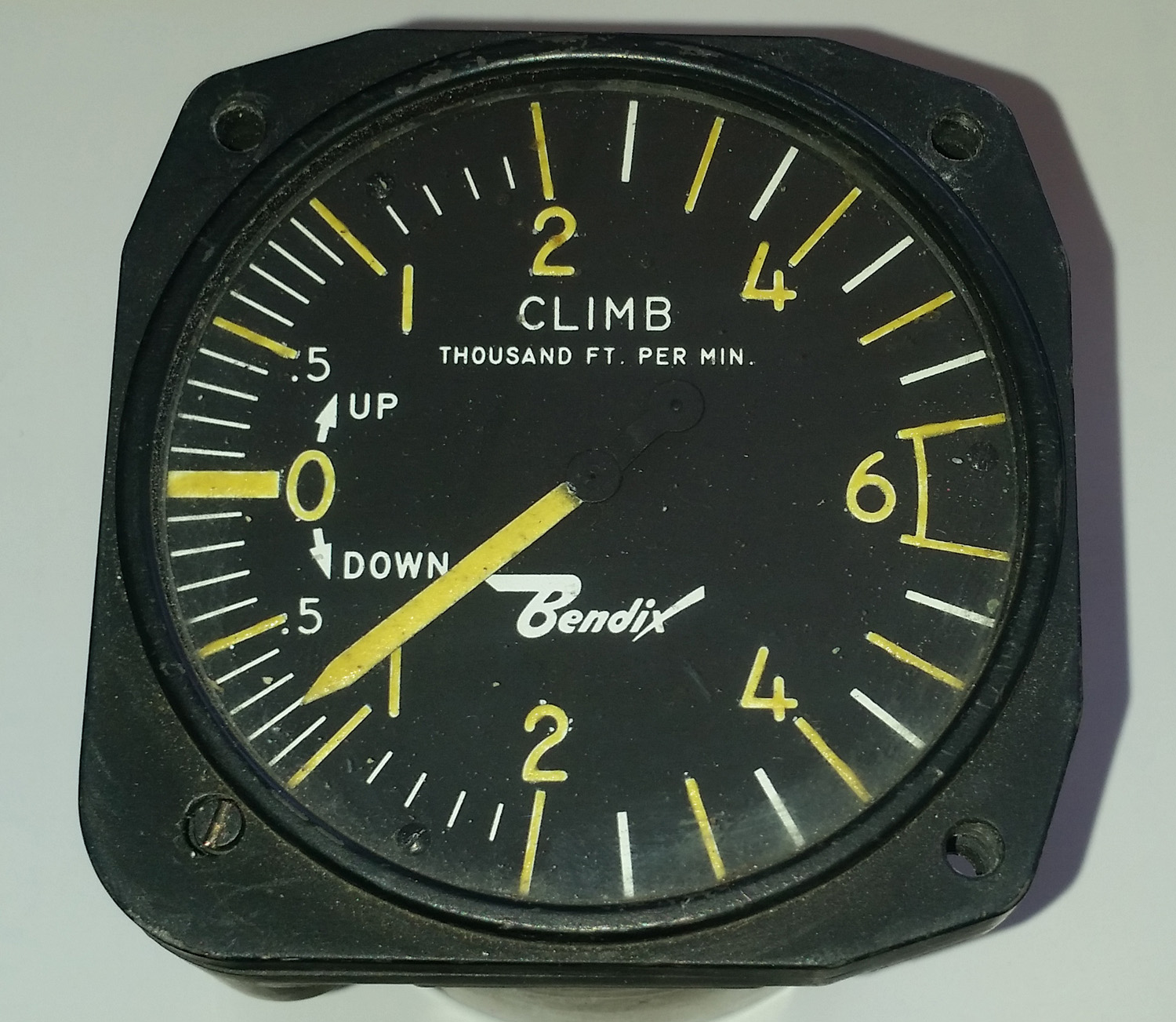

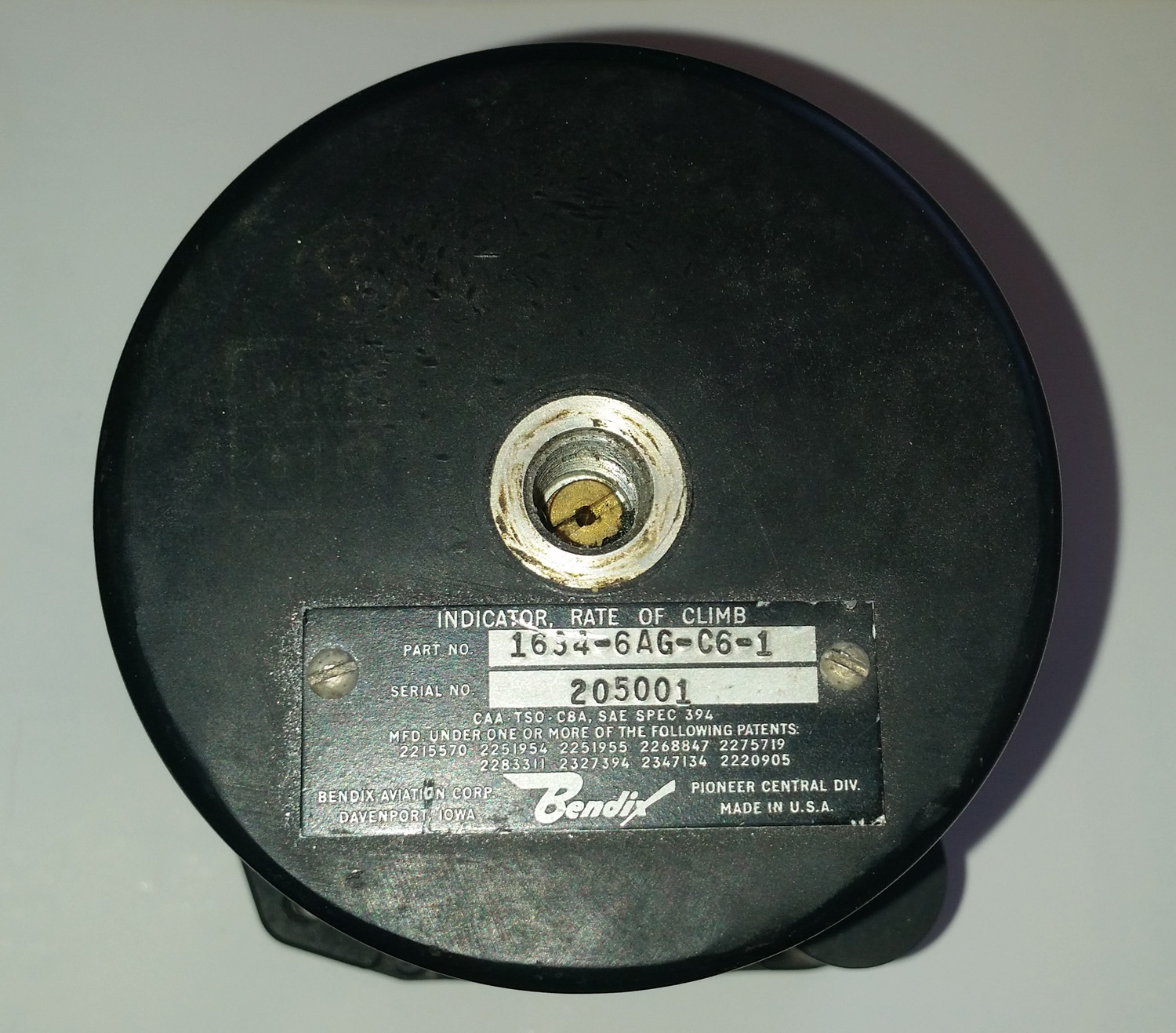

Here is a Climb and Descend Indicator made by Bendix

This has the Part Number 1634-6AG-C6-1

This is the Type that is used in the Mitchell B-25 and the Vultee Vengeance as well as other USAAF Aircraft

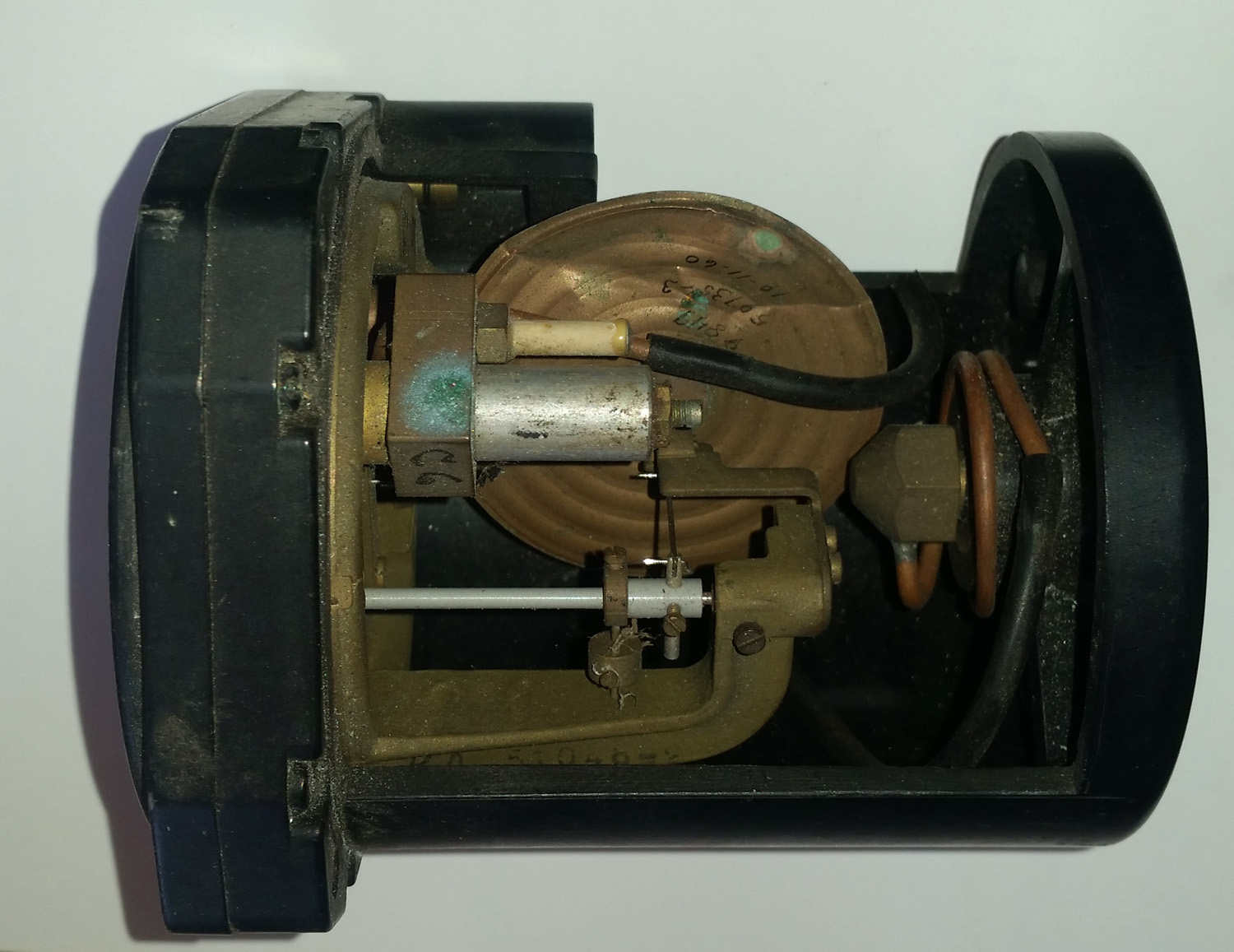

The Side Panel is missing and it shows the Internals of the Instrument

Vultee Vengeance

75
