Pressure gauges

Page 12 Instruments

RAF Pressure gauges are generic instruments, the aircraft shown in our adds did use the parts shown but they may of coarse been used in a different type of aircraft . If you are not sure what part you require then please contact us and I will do my best to advise you on the most suitable purchase.

Page 1 Instruments Home       Page 2 Airspeed Indicators       Page 3 Altimeters       Page 4 Boost Gauges       Page 5 Clocks & Compasses

Page 6 Climb & Descend      Page 7 Directional Indicators & Artificial Horizon       Page 8 Fuel Gauges       Page 9 Flap Indicators

 Page 10 Brake Gauges      Page 11 Oxygen Gauges      Page 12 Pressure Gauges      Page13 Revolution Counters      Page 14 Temperature Gauges

  Page 15 Turn & Slip       Page 16 Undercarriage Indicators      Page 17 Trim Gauges      Page 18 Volt & Ammeter

Click on pictures to enlarge

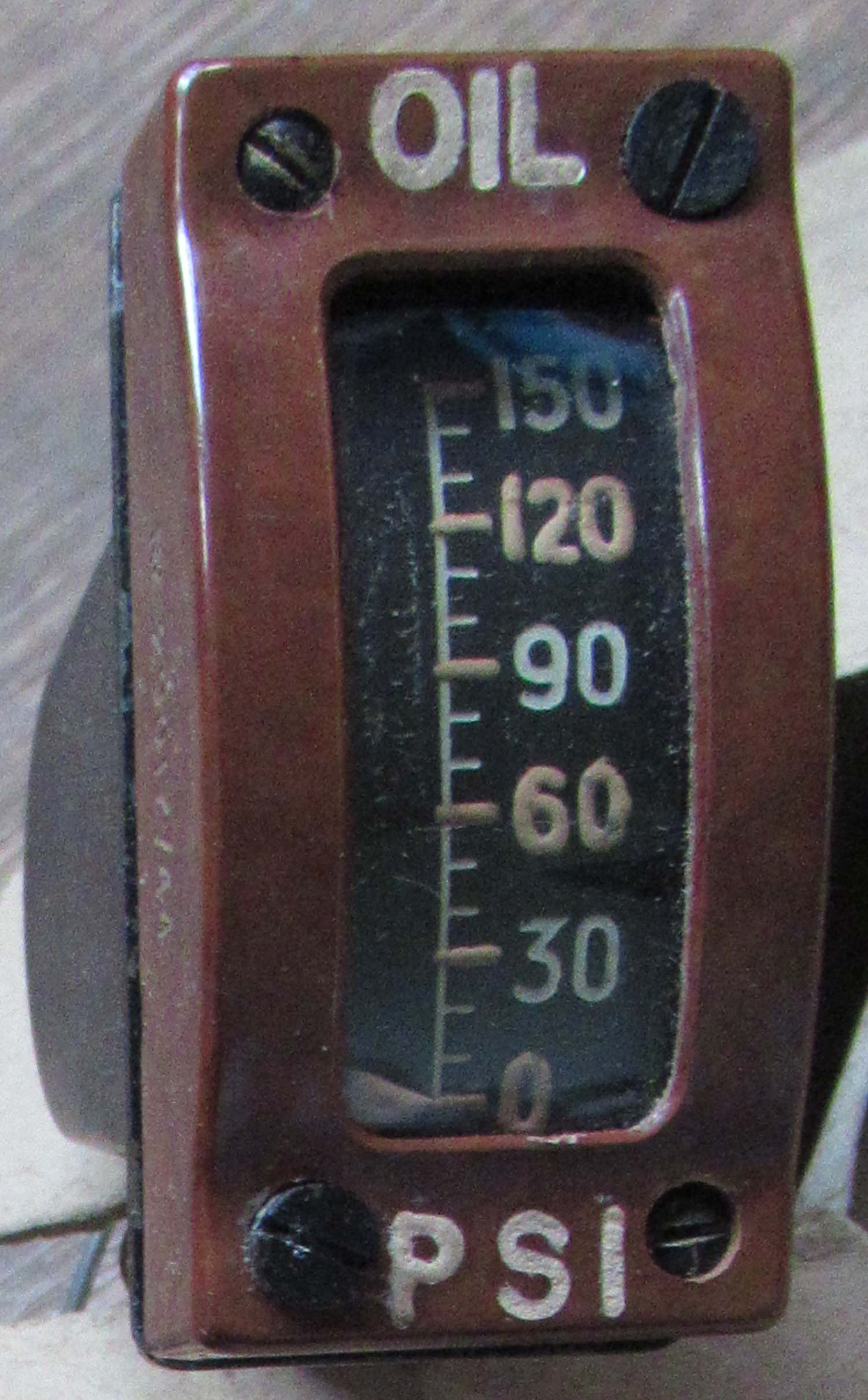

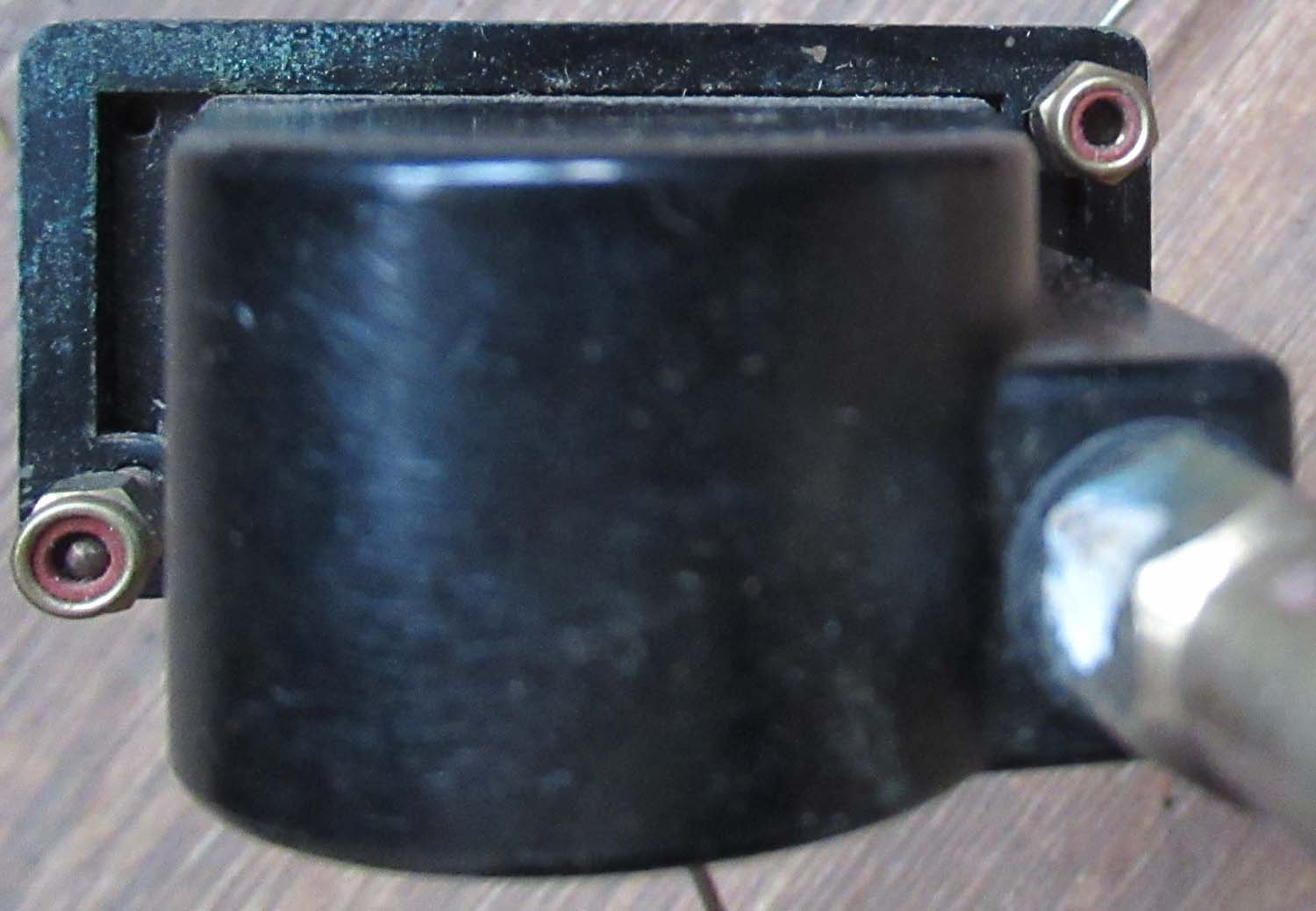

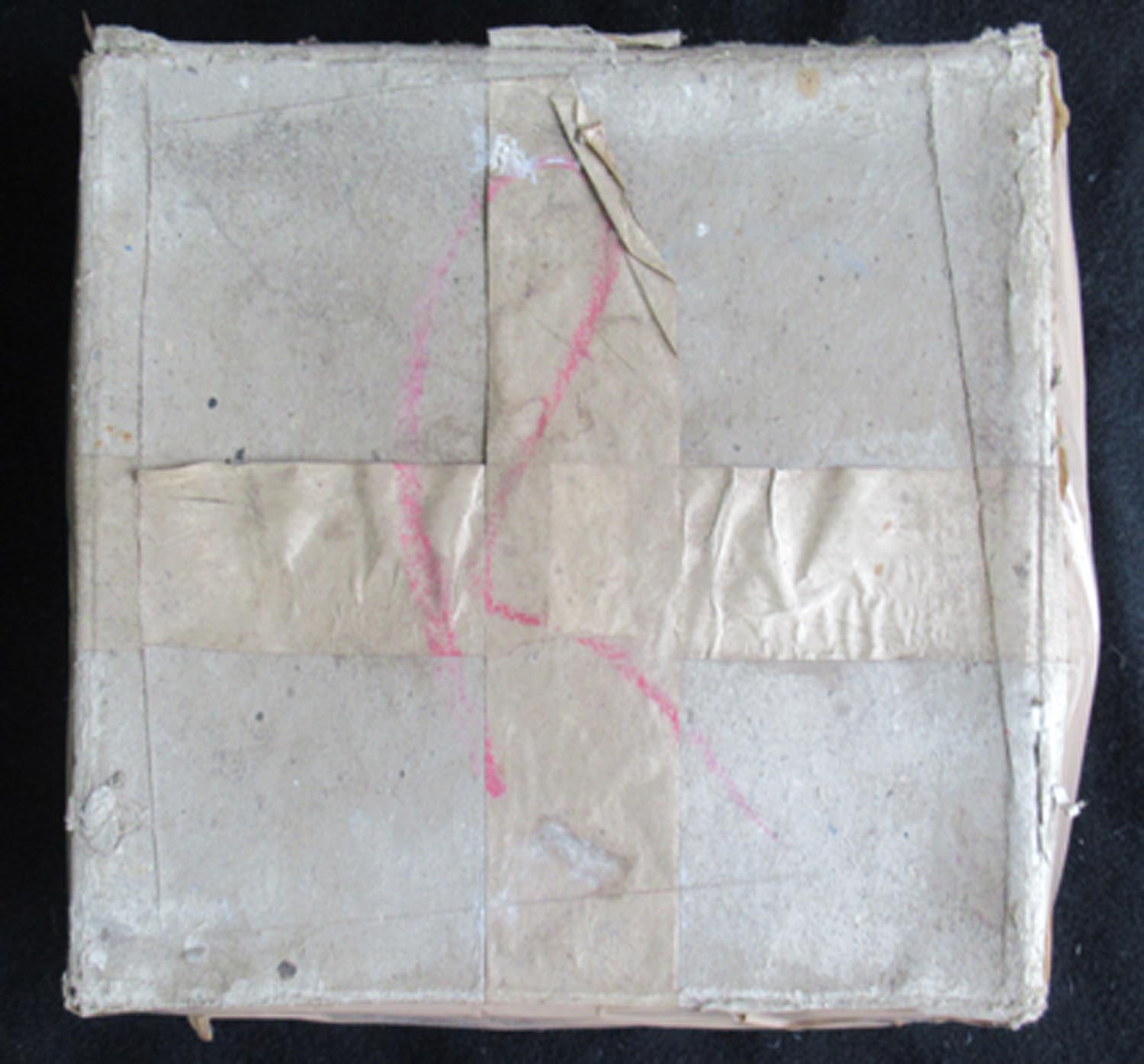

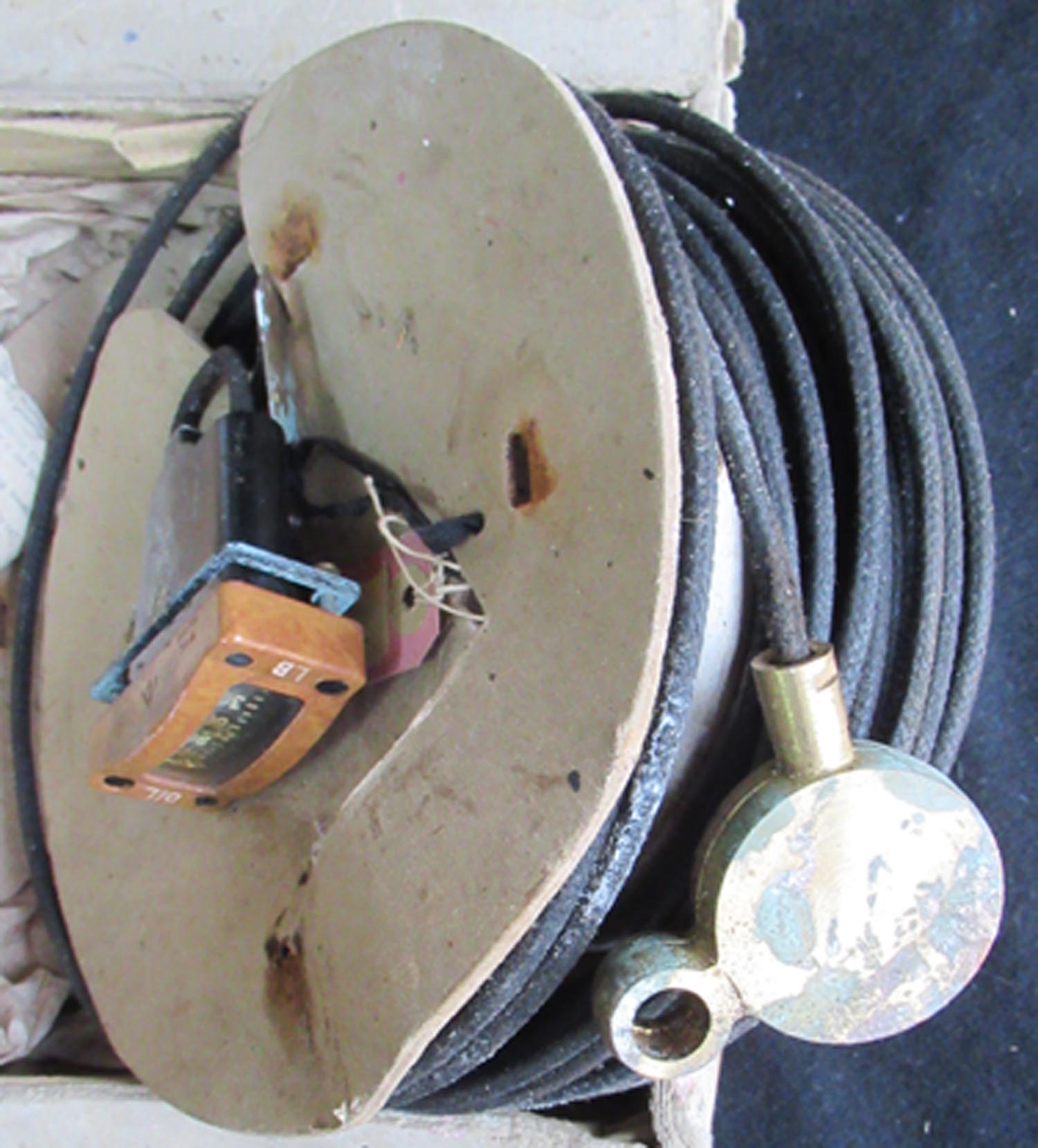

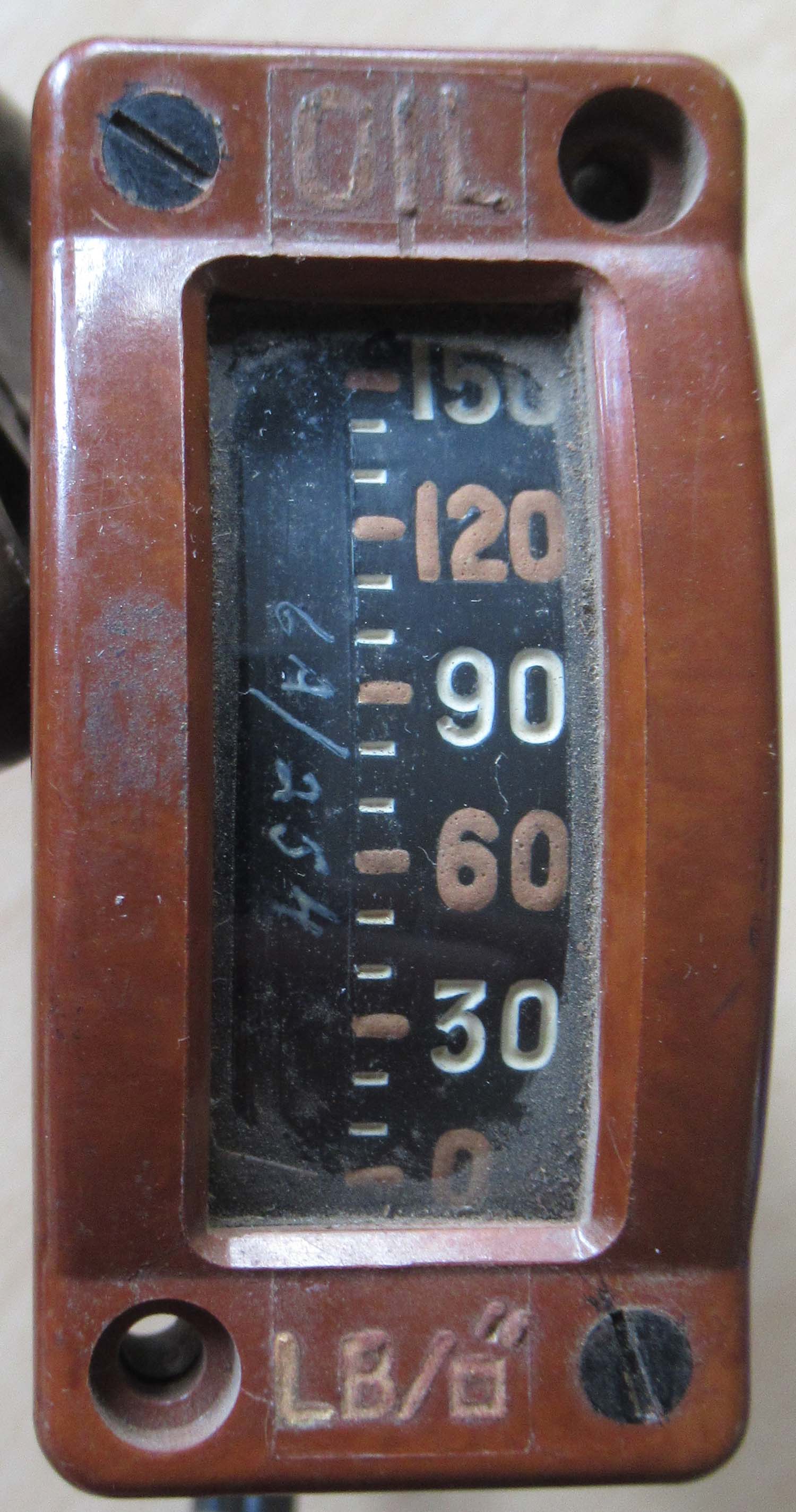

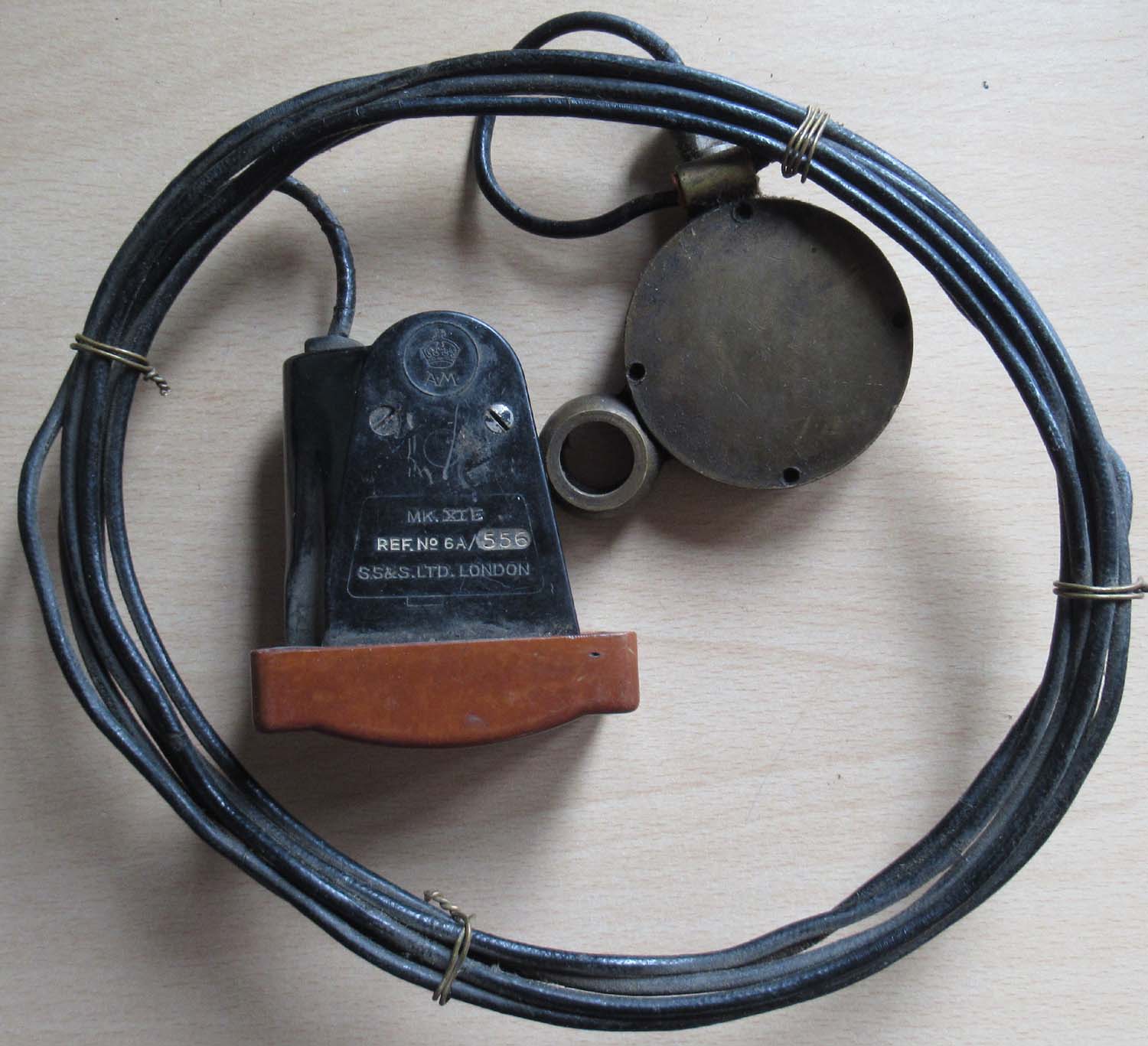

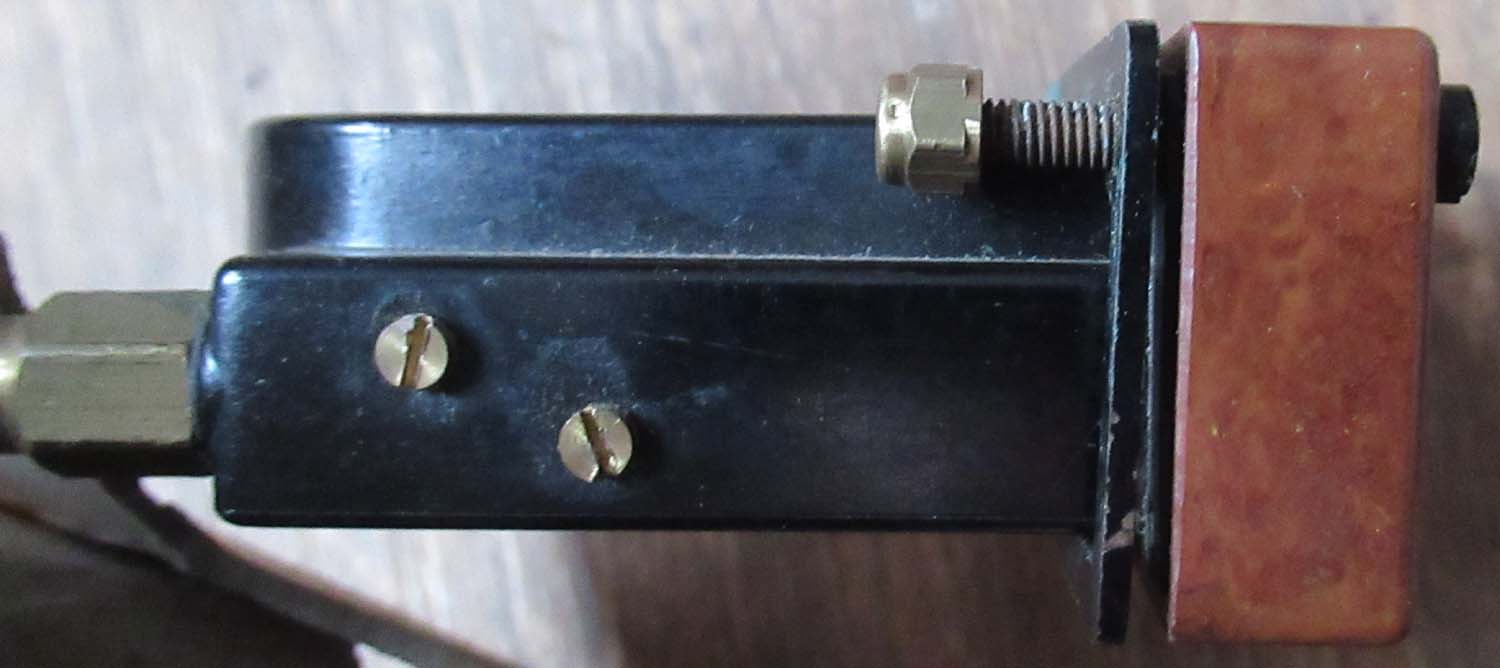

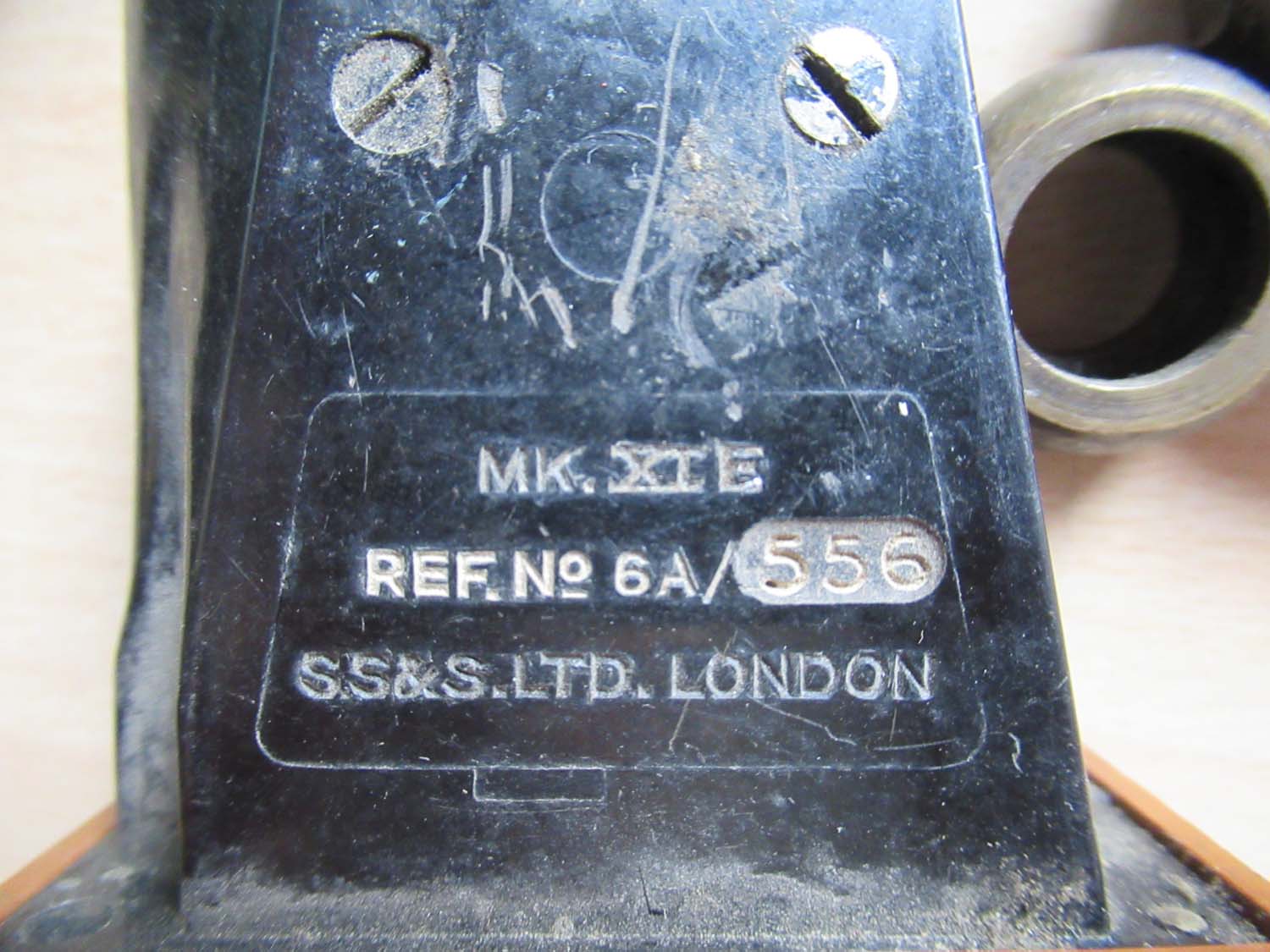

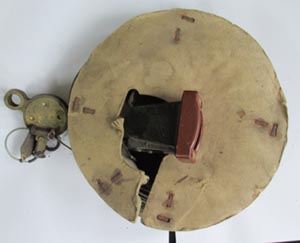

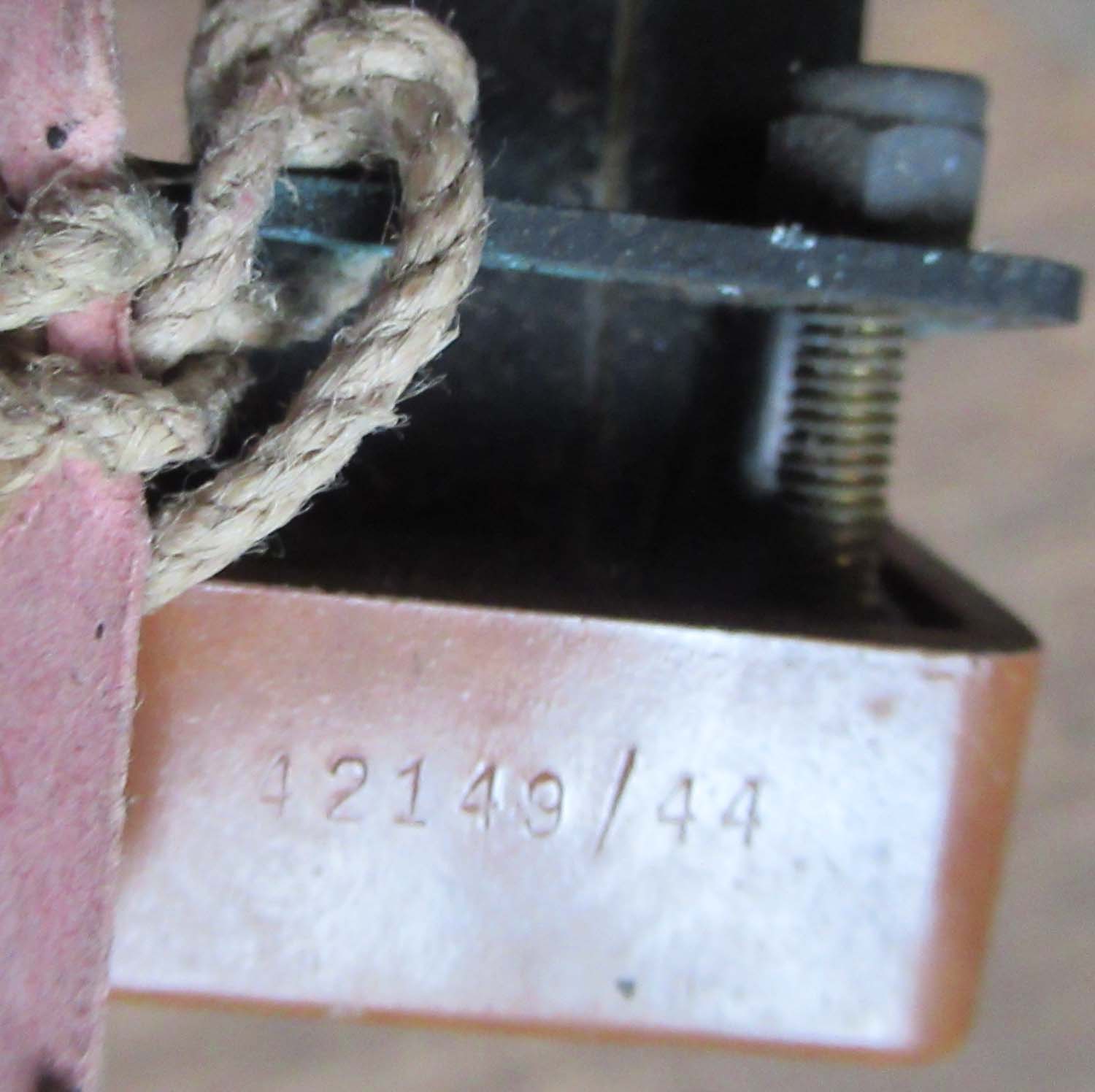

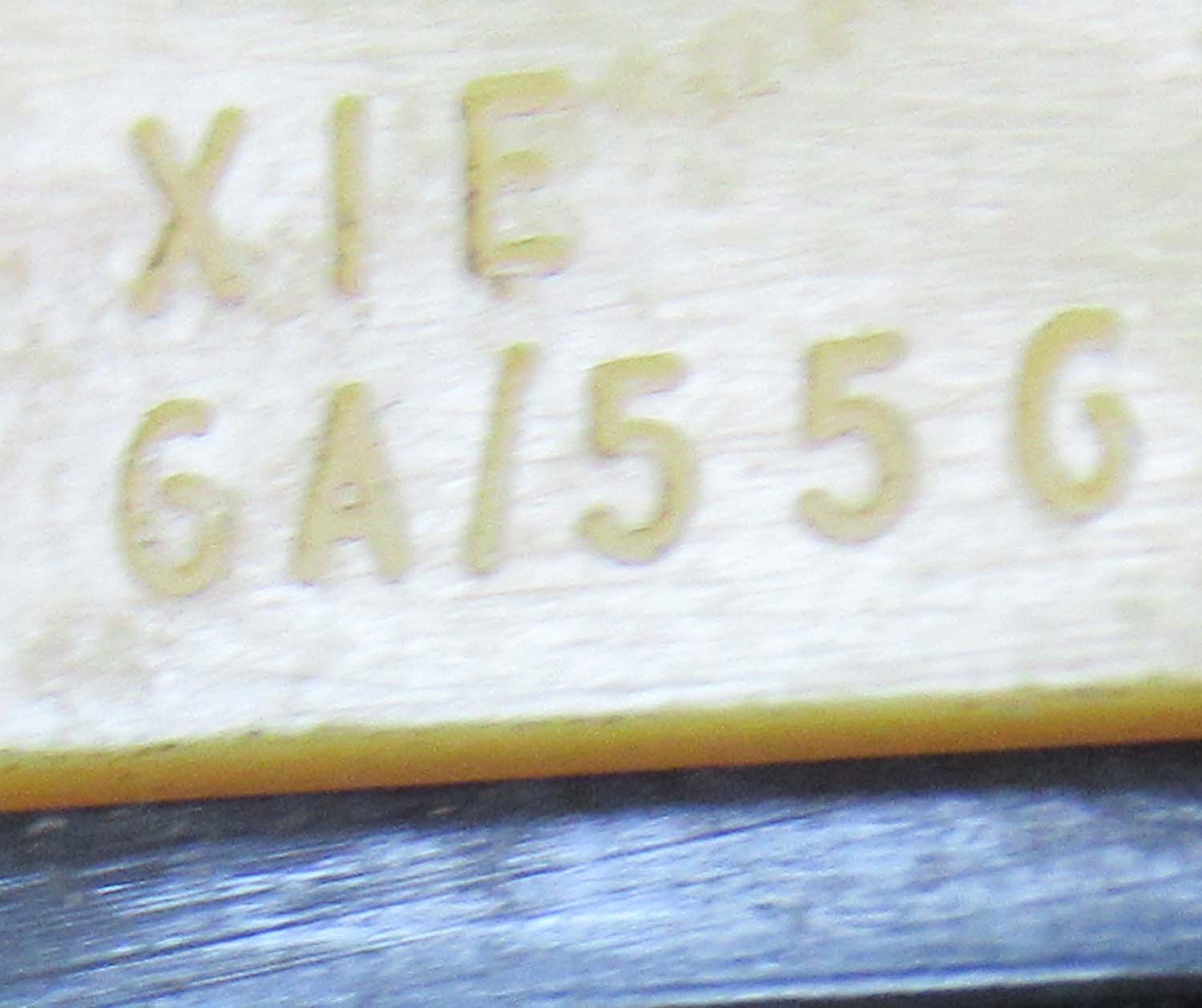

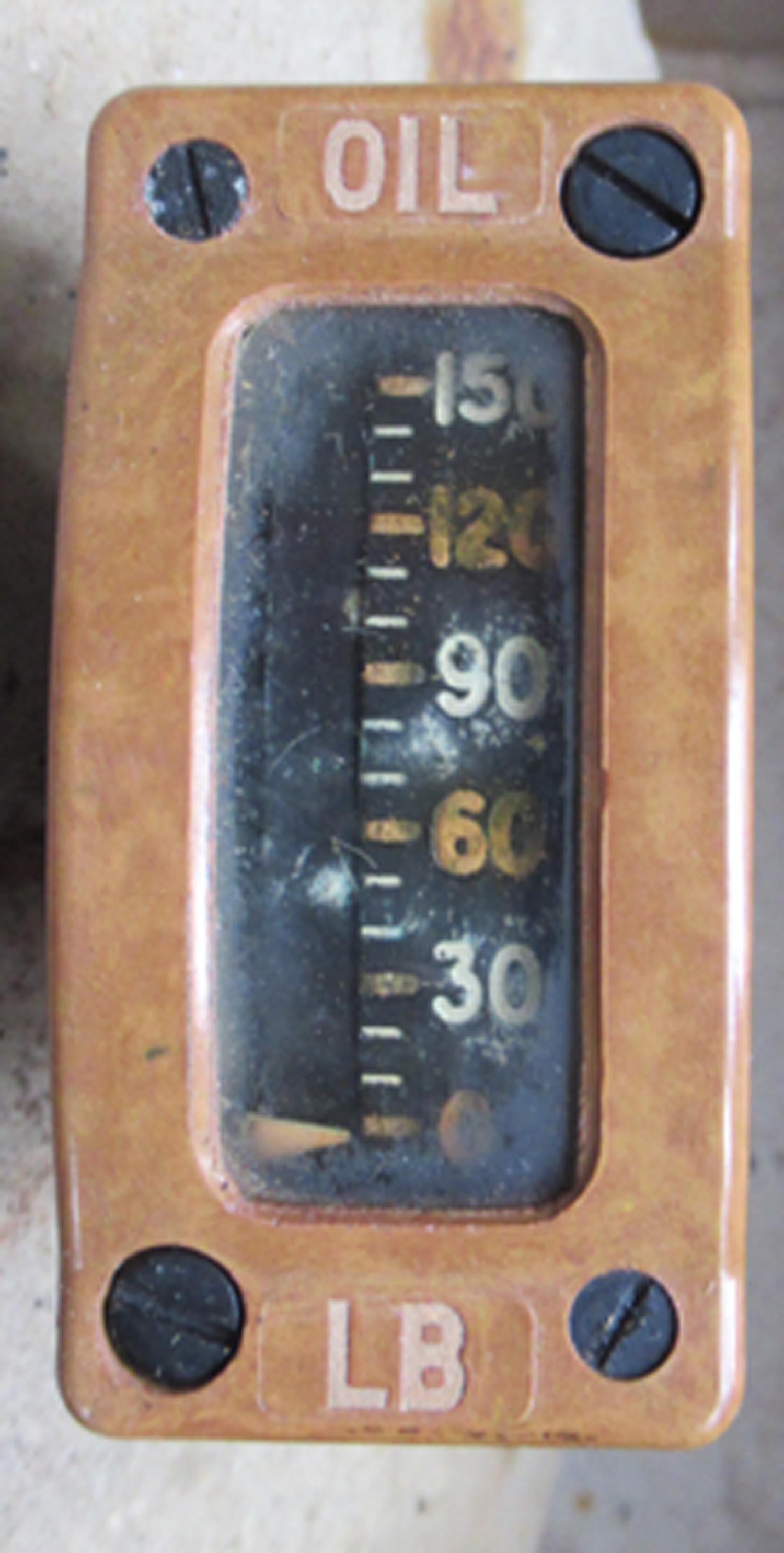

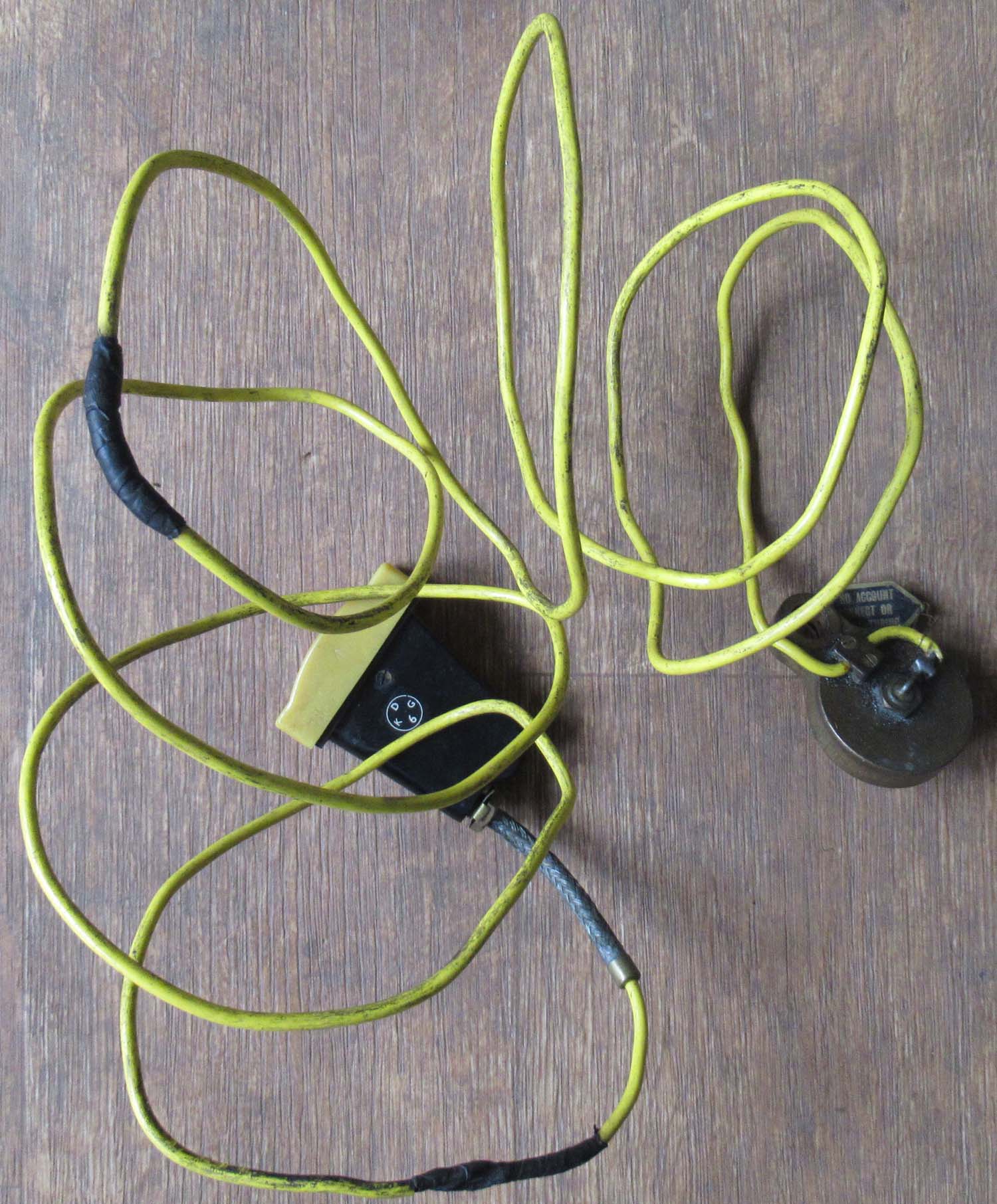

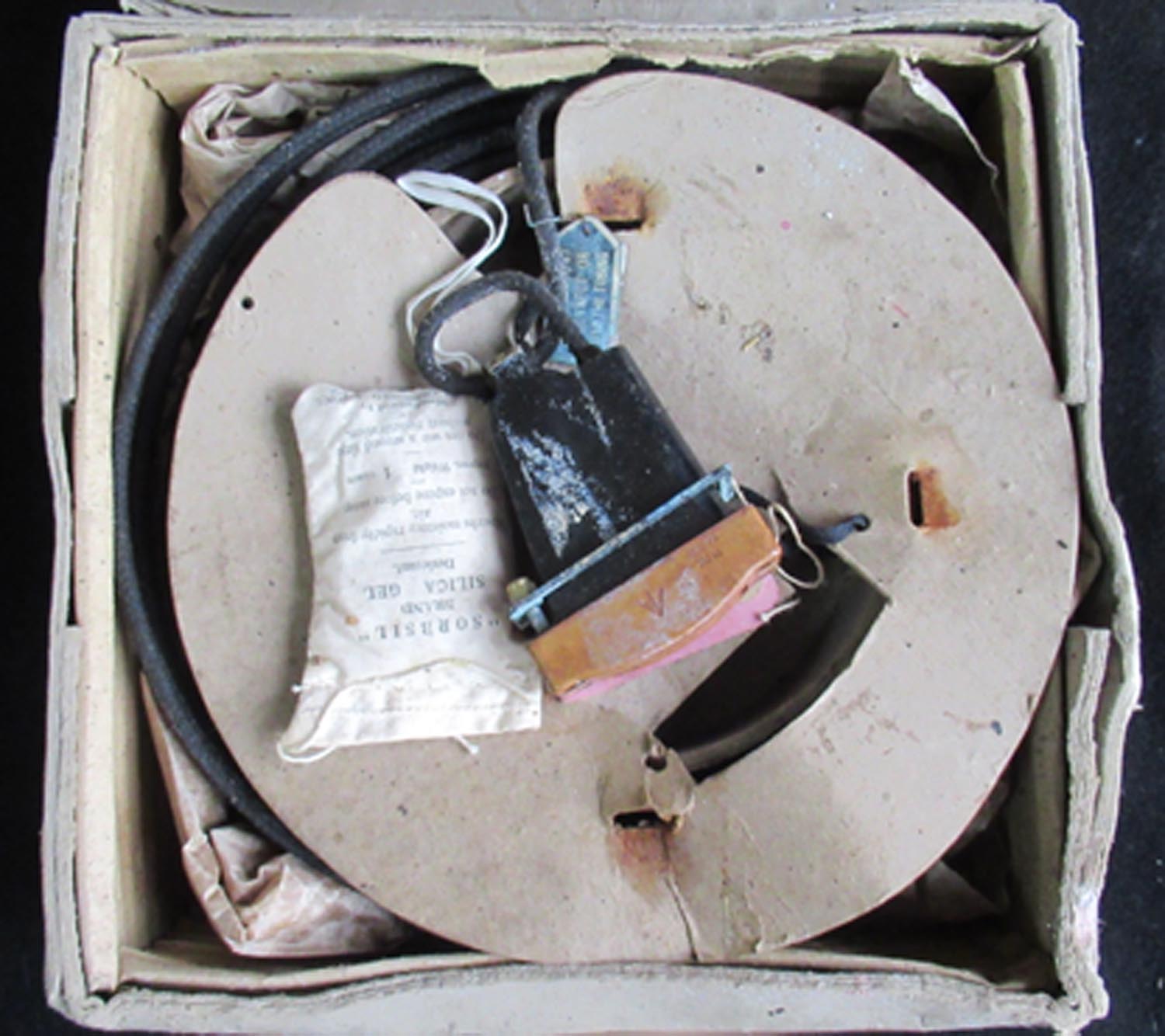

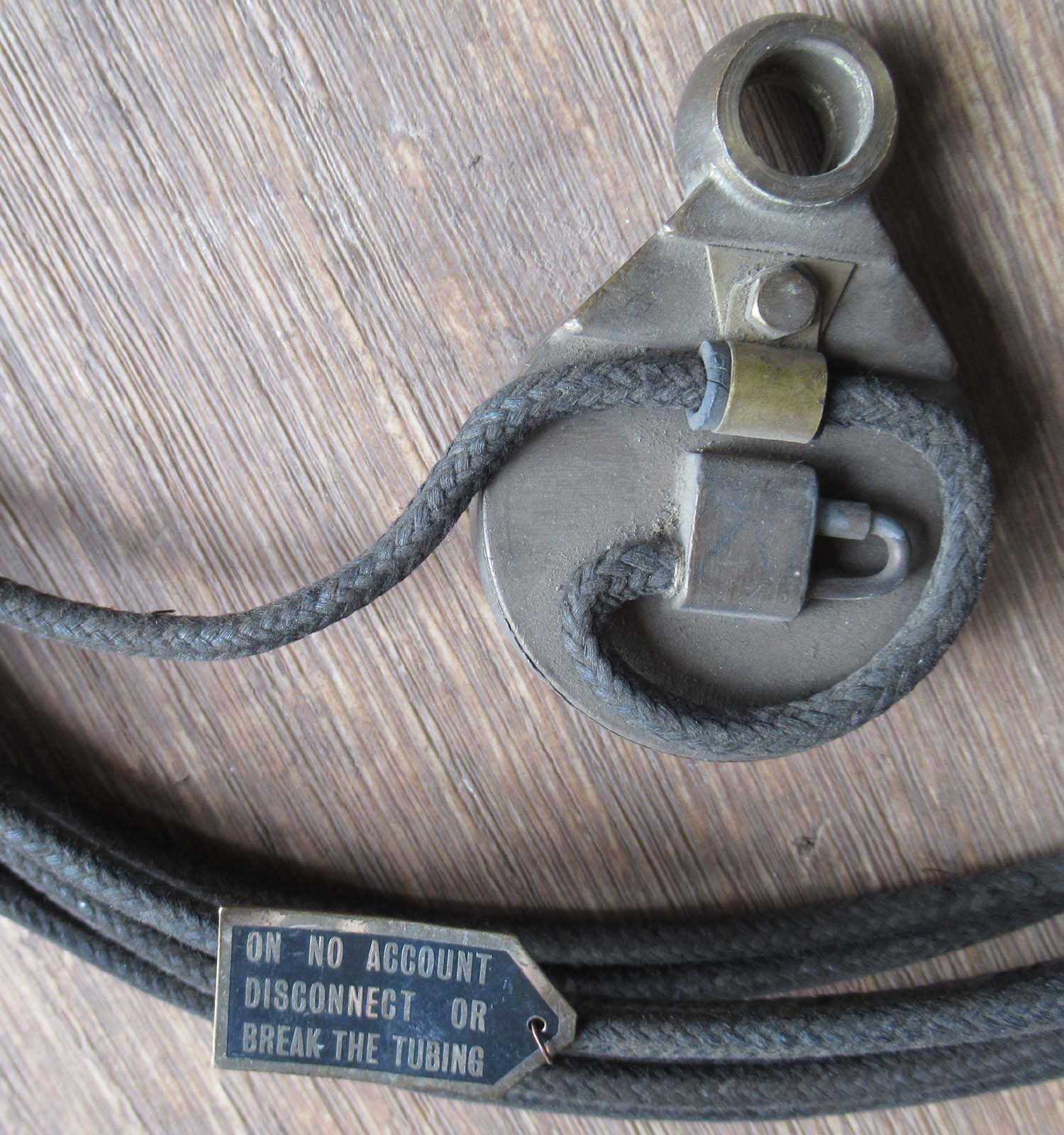

Oil Pressure Gauge MK  XIE Short Cap (instruments page12 Pressure gauges 48)

Classic oil pressure gauge. Intact short 10Ft Capillary fighter type. S.S&S Ltd London. Air Ministry marked.

MK XIE

6A/556

Click on pictures to enlarge



£325





Click on pictures to enlarge

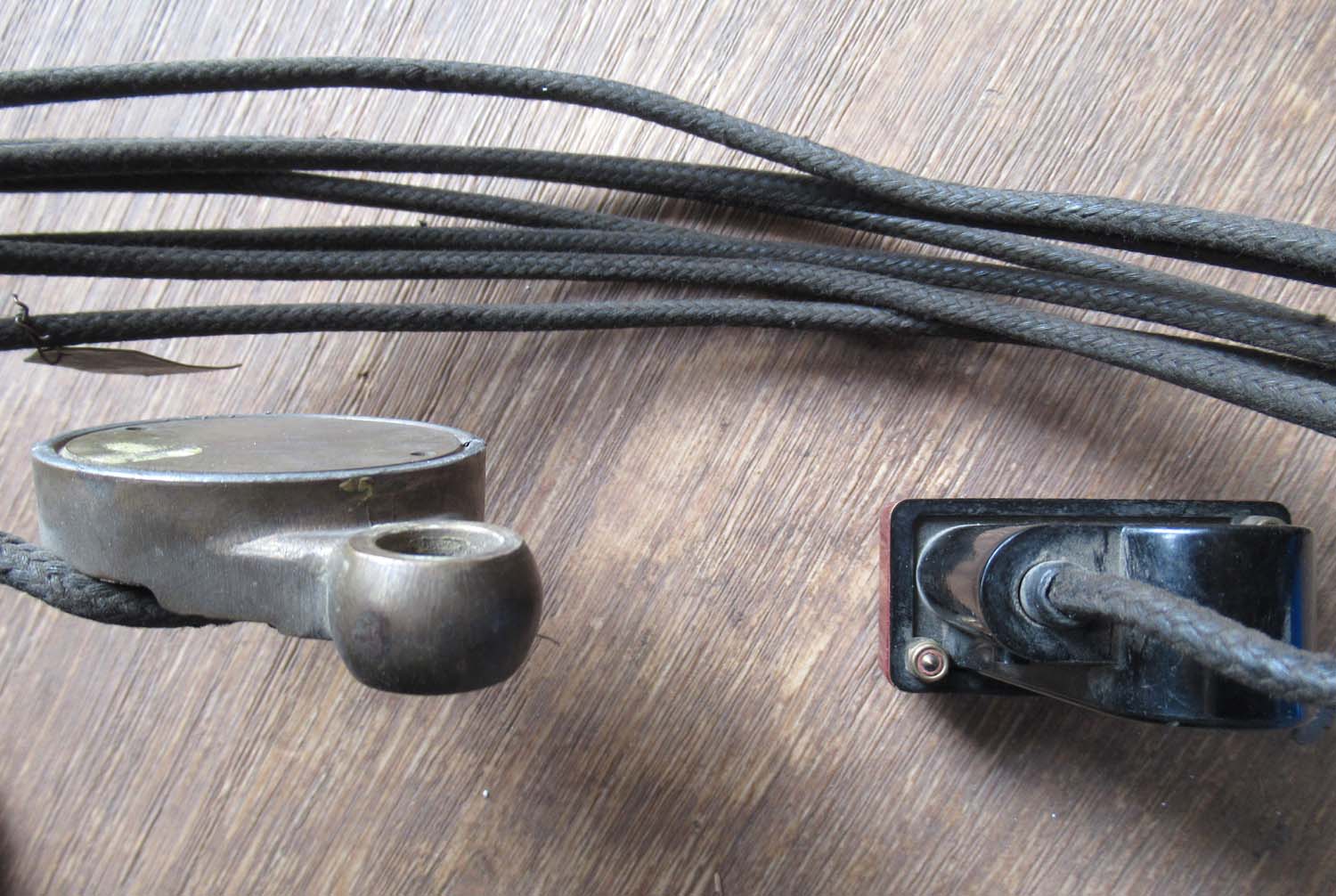

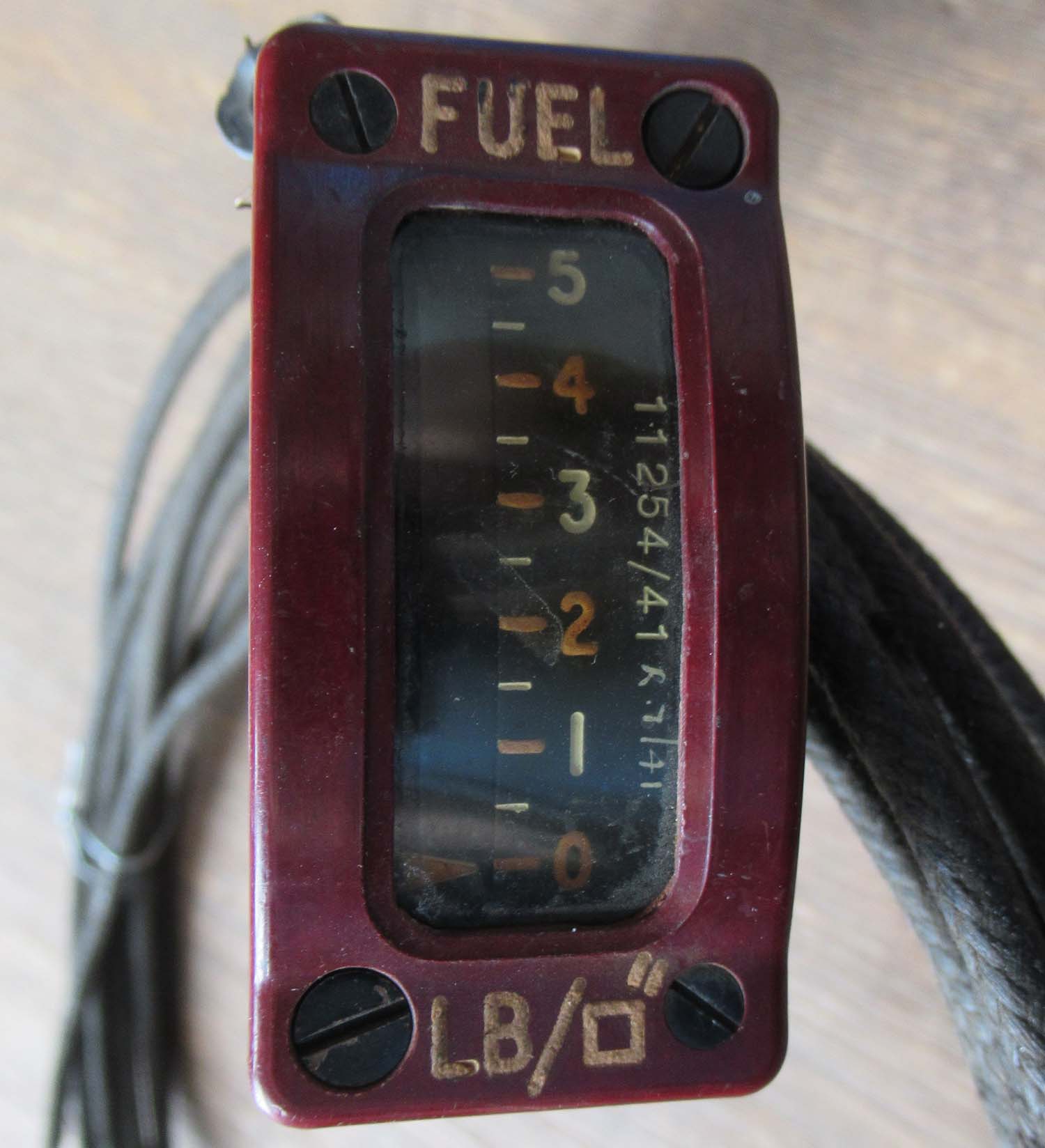

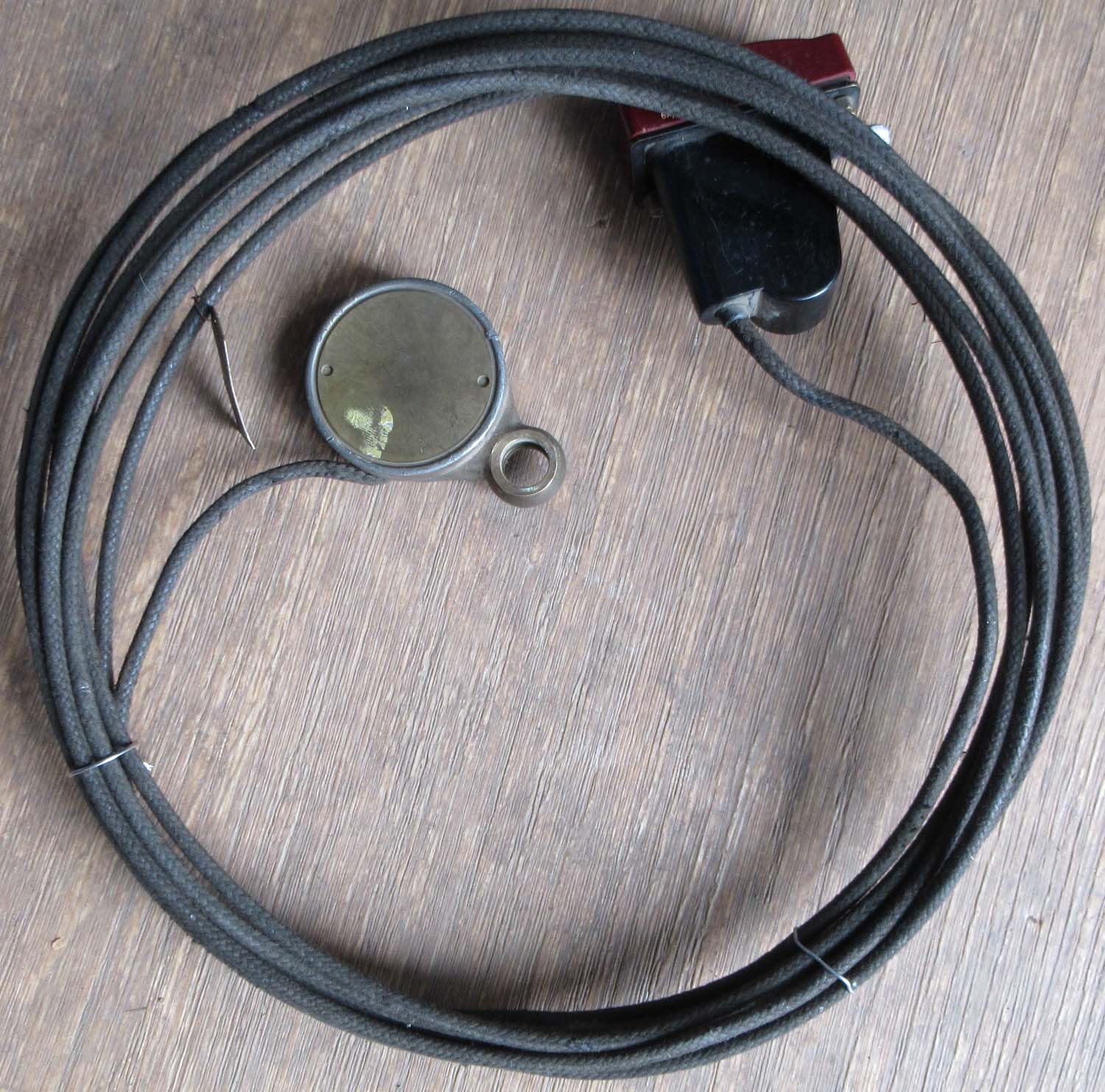

1941 Fuel Pressure Gauge (Instruments pg 8 Fuel gauges 84)

This is a super rare fuel pressure gauge as used in the early MK I/II Spitfires, this one has an intact short capillary so for fighter use.

Dated  1941

11254/41

Click on pictures to enlarge



You can find this piece in fuel gauge click on this link

Click on the pictures to enlarge them

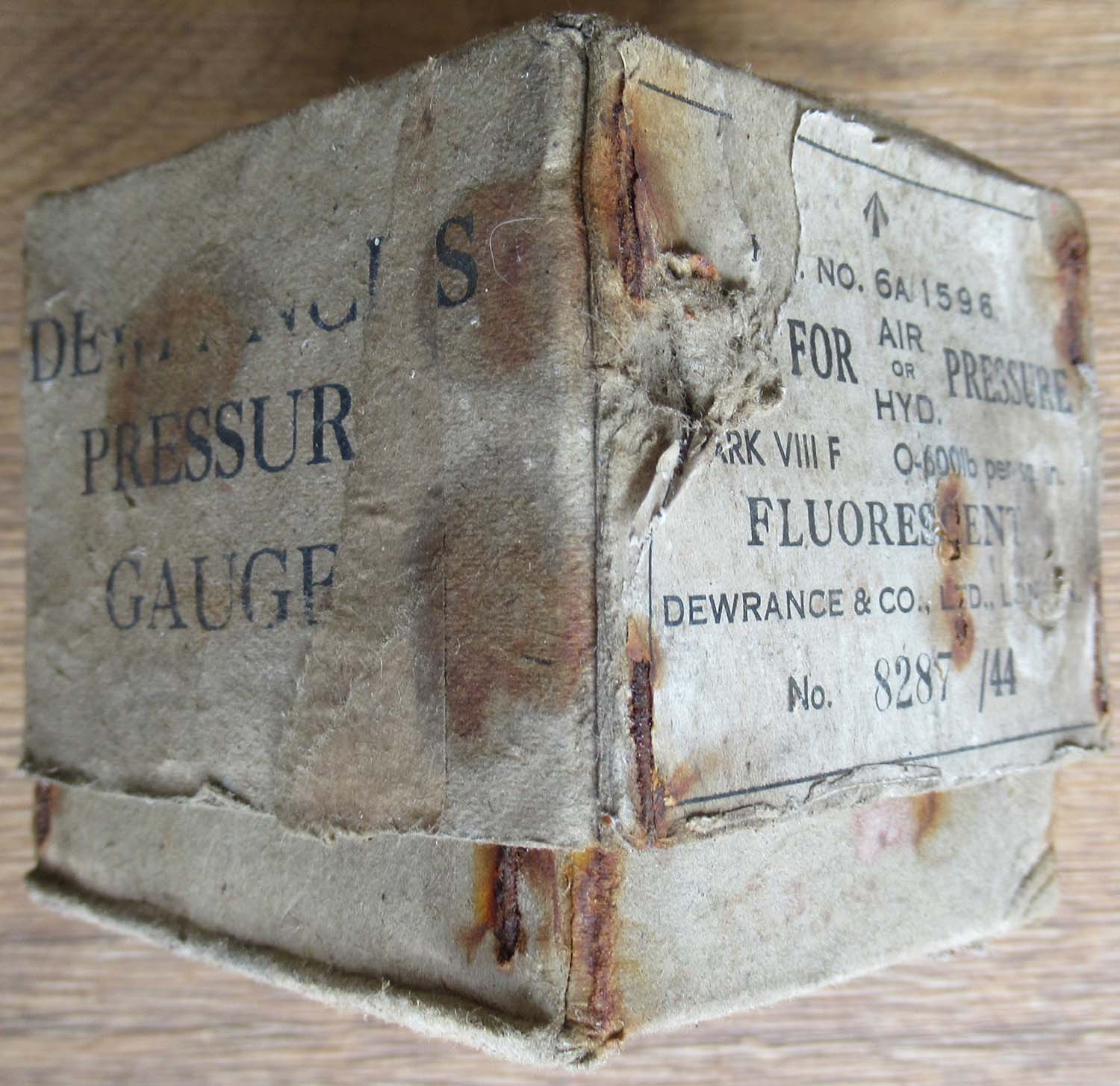

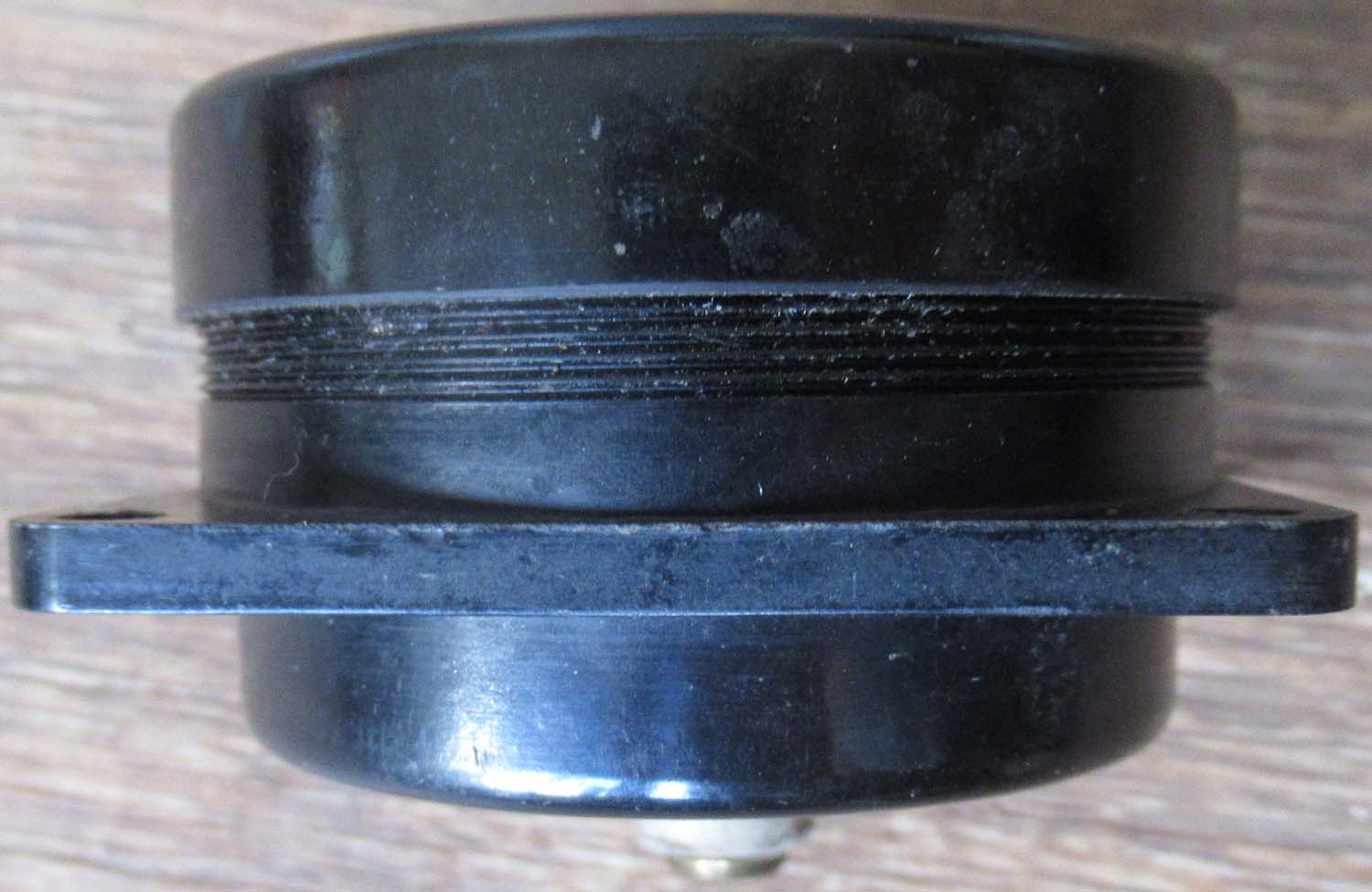

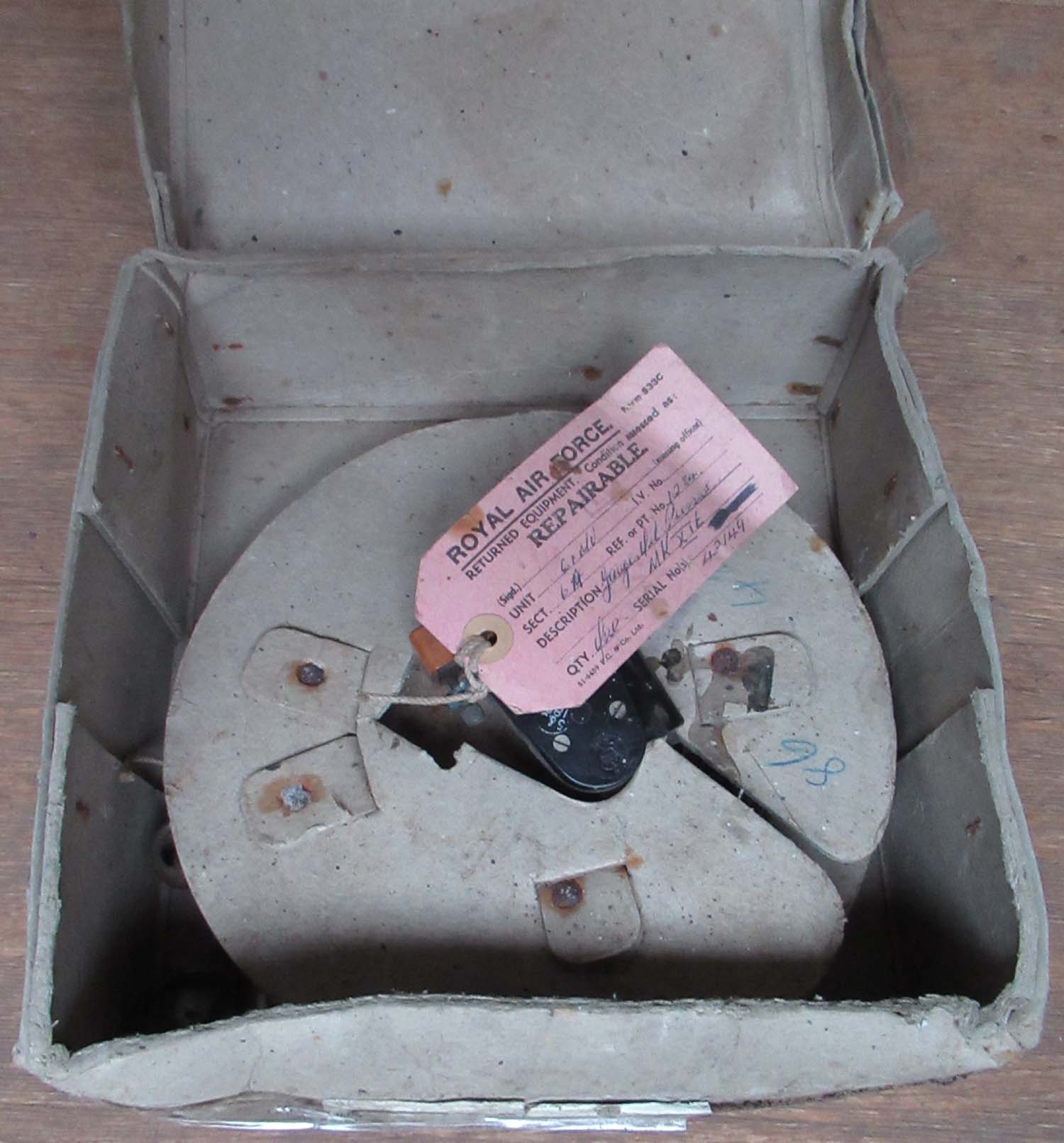

MK VIII F Pressure gauge (instruments page12 Pressure gauges 47)

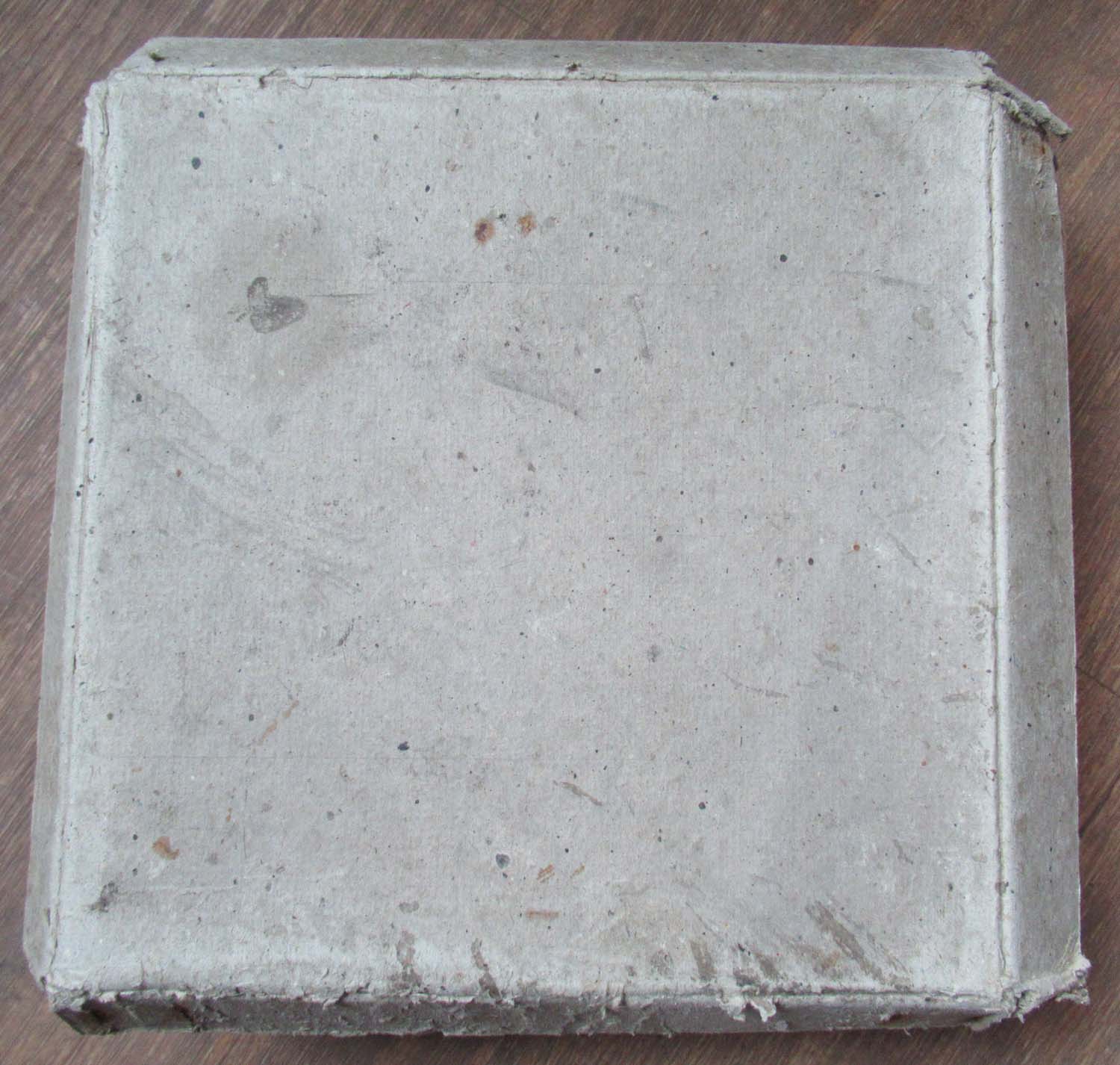

Supplied in original box.

6A/1596



£65



Click on the pictures to enlarge

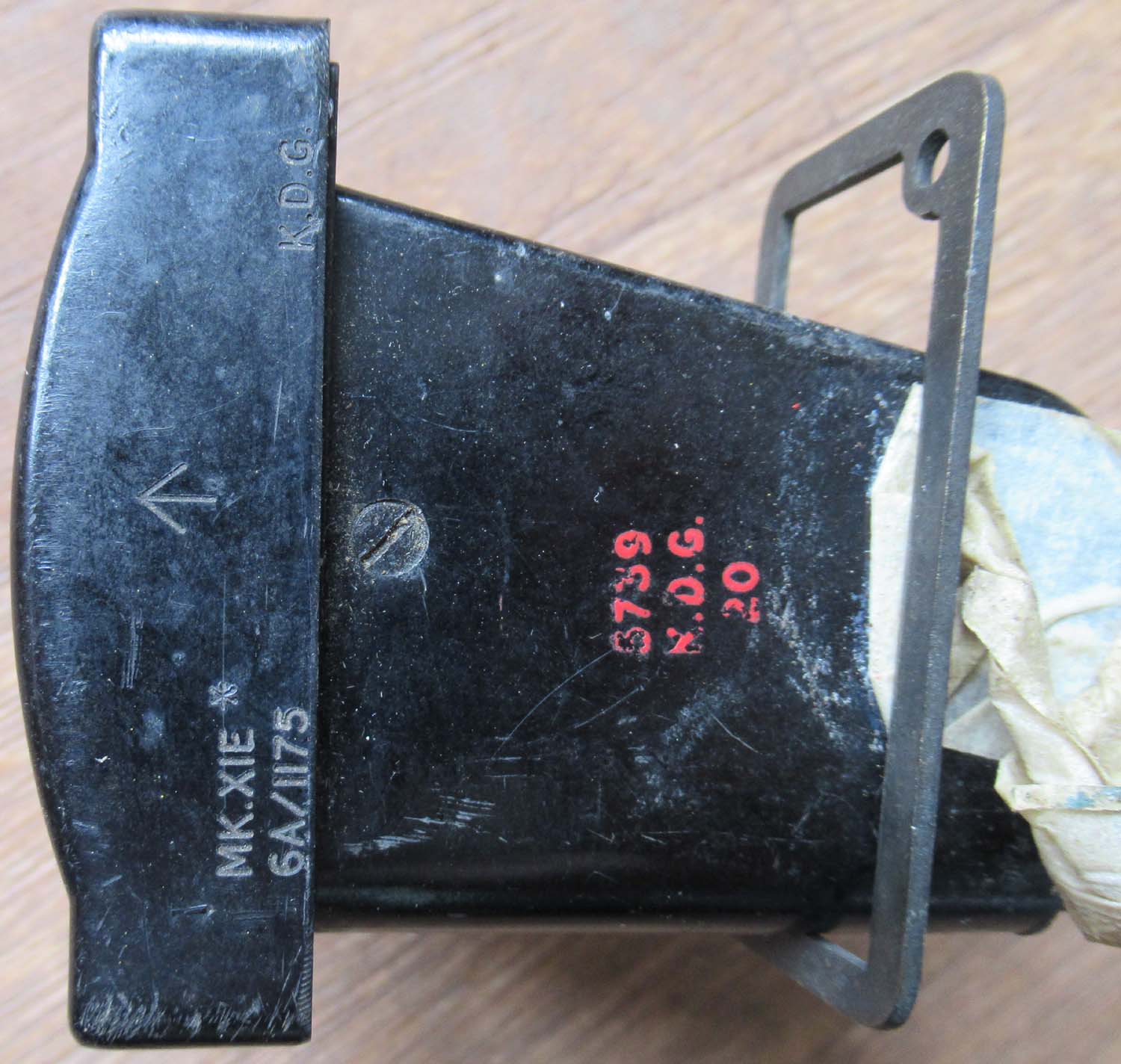

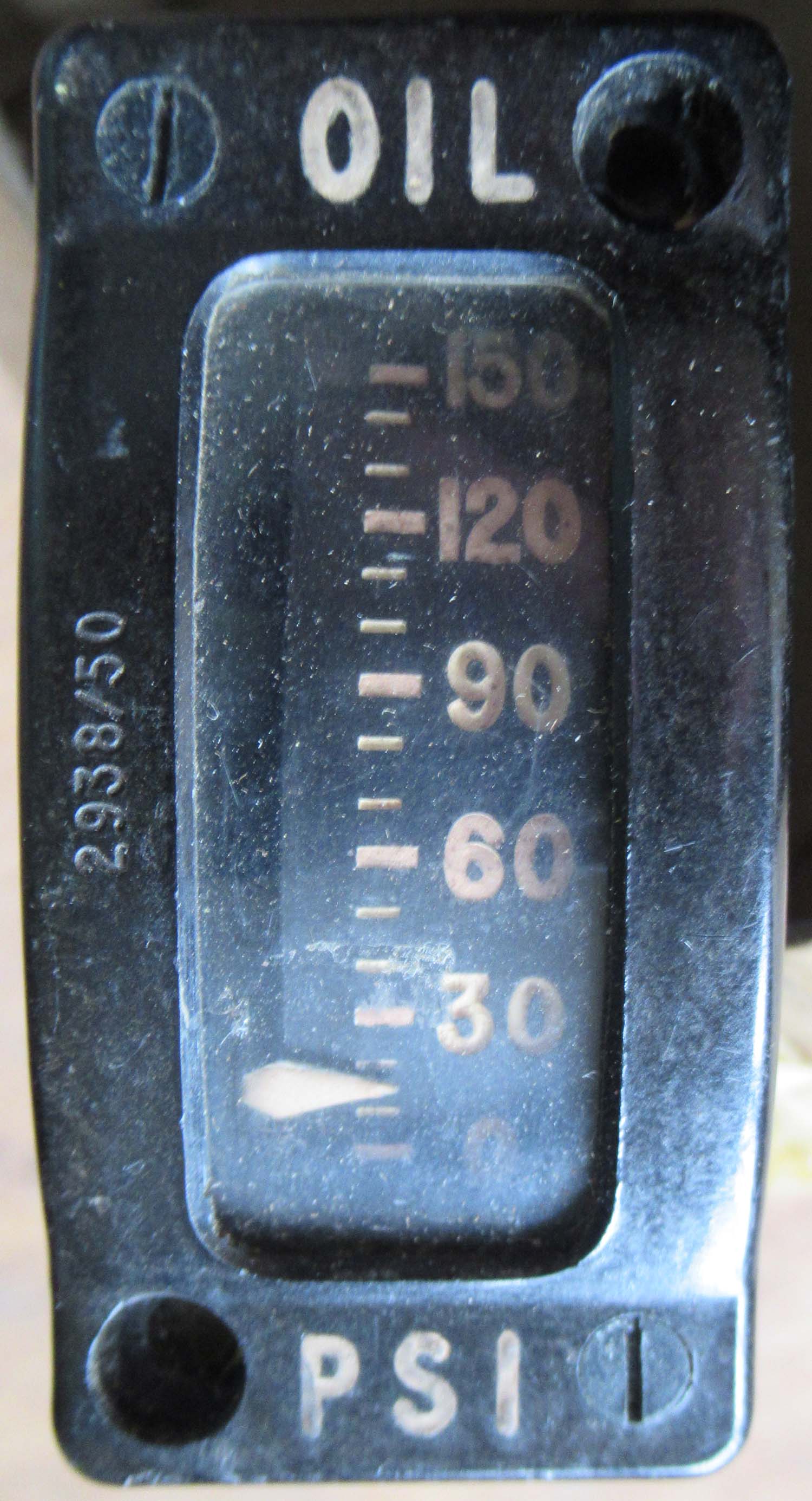

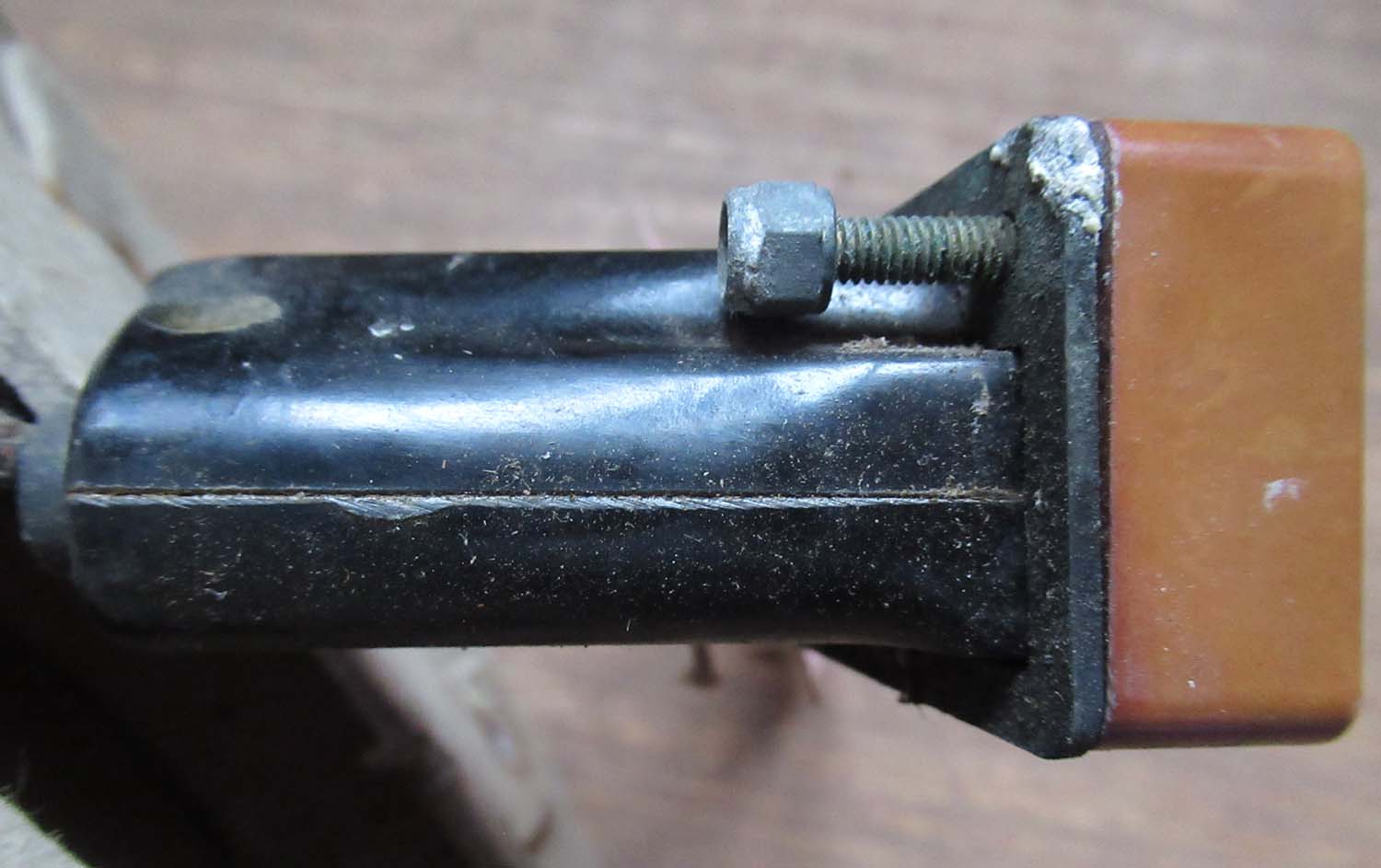

Oil pressure gauge MK  XIE short cap  (instruments page12 Pressure gauges 45)

Classic oil pressure gauge. Intact short 10Ft Capillary fighter type

MK XIE

6A/1175

2938/50

Click on the pictures to enlarge



£295



Click on the pictures to enlarge them

6A/1596 MK VIII F Pressure gauge (instruments page12 Pressure gauges 44)

Supplied in original box.



£65



Click on the pictures to enlarge

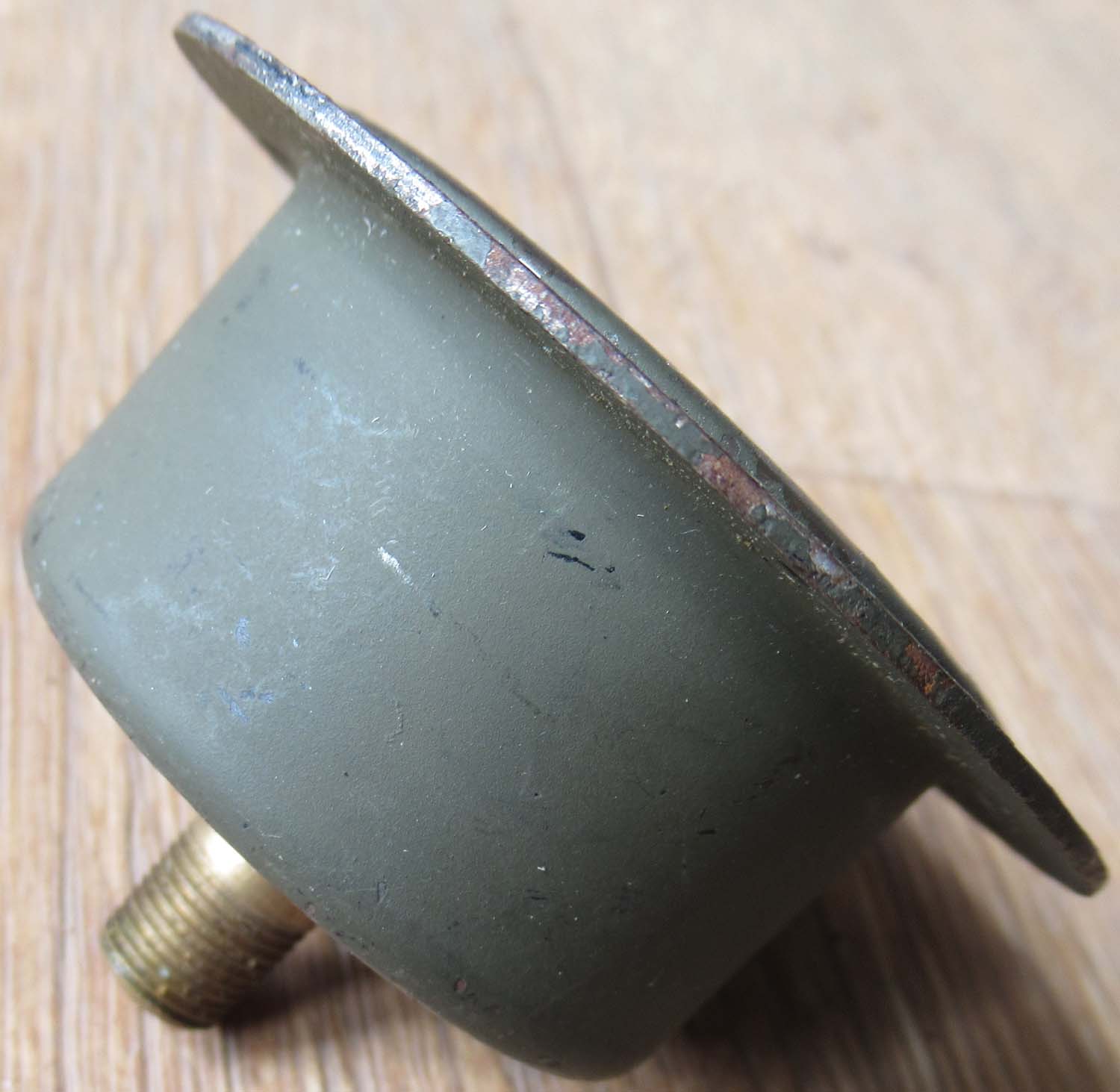

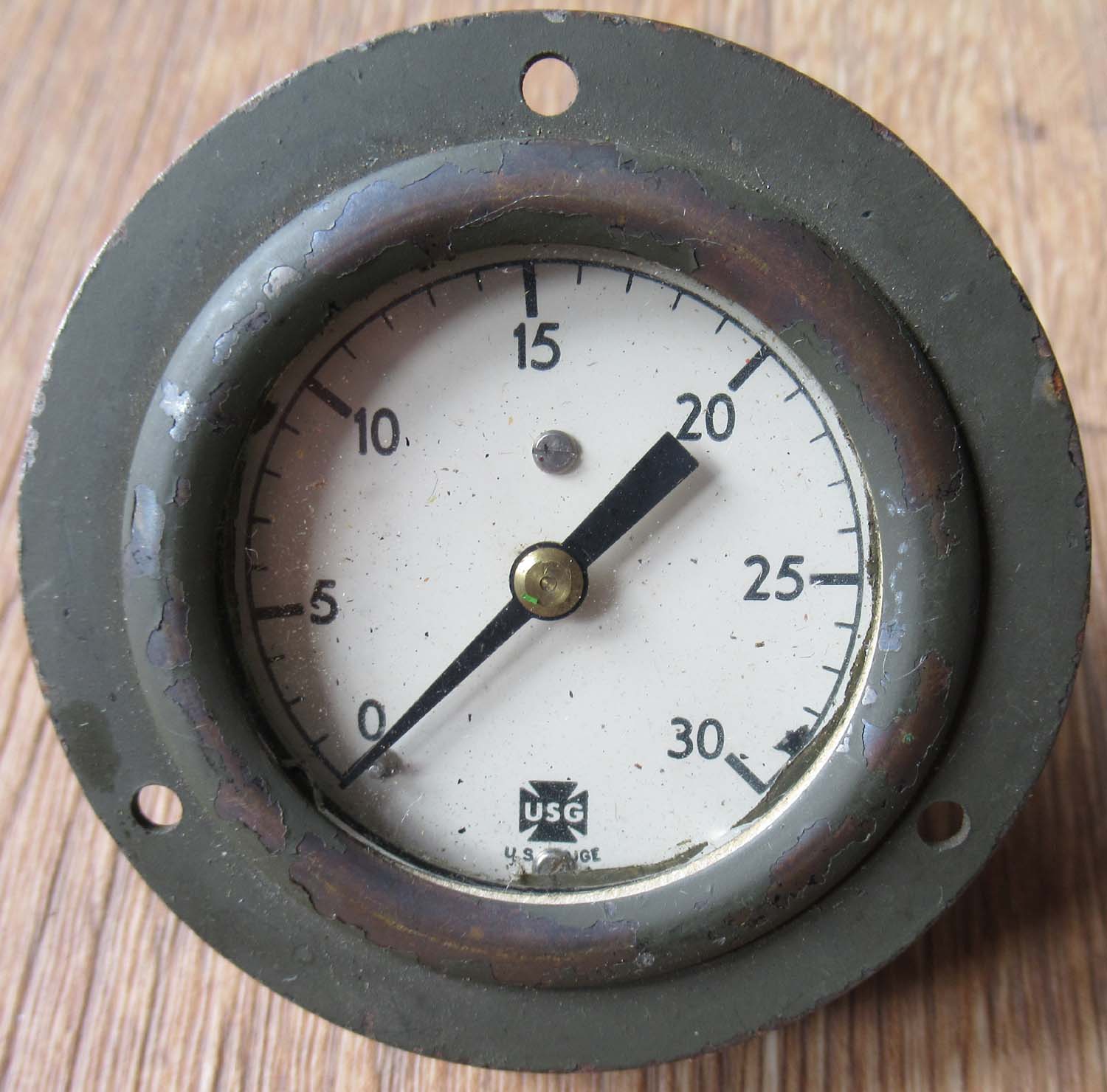

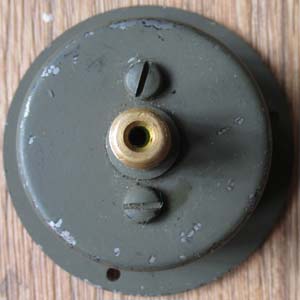

USG 0 to 30 Pressure gauge (instruments page12 Pressure gauges 43)

I bought this with some other instruments and have no idea what its for despite some research. It appears to be in the style of a US Military vehicle gauge but that is just an educated guess.

If anyone knows what it is please email on this link.

£35

Click on the picture to enlarge

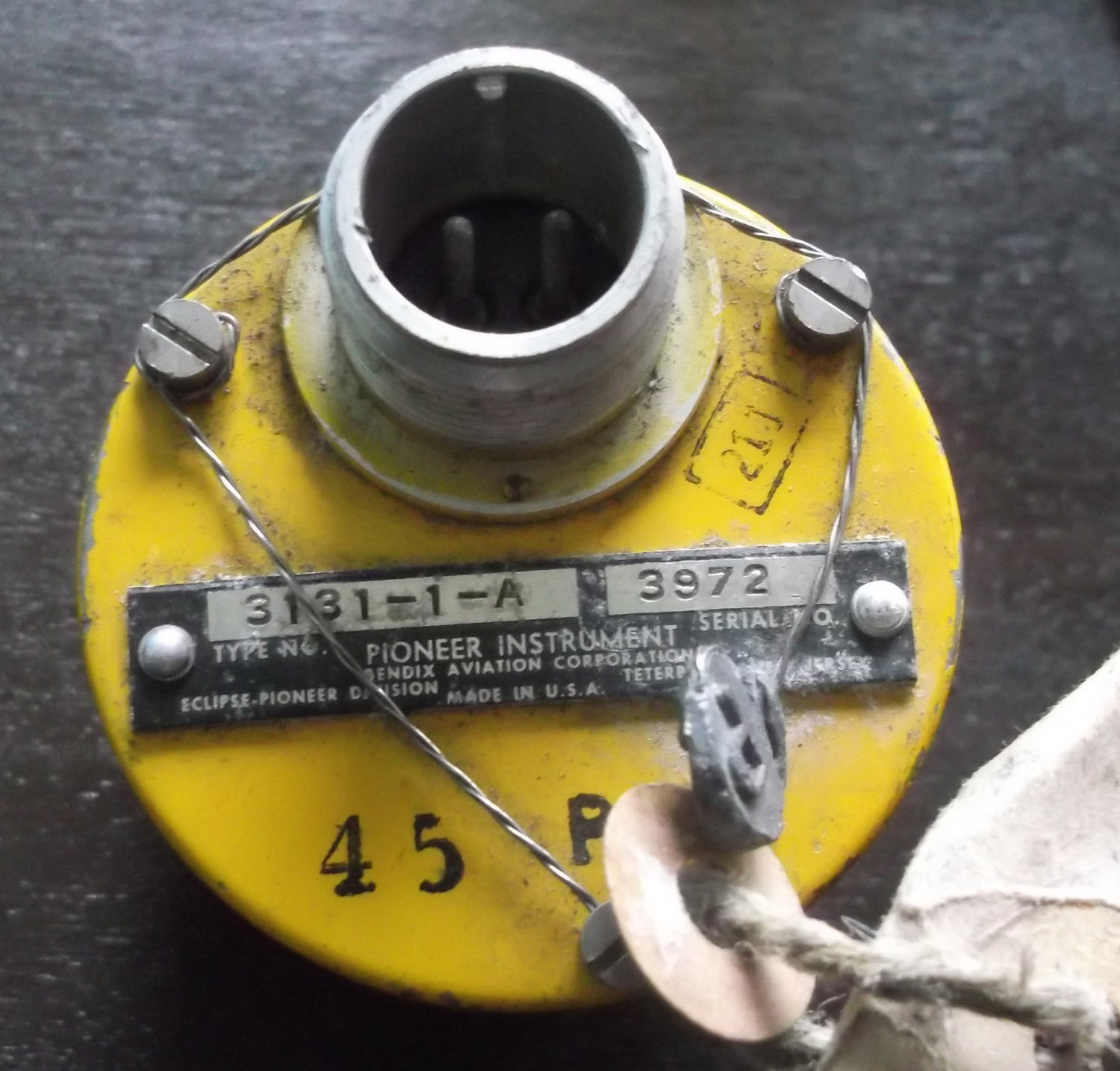

 USAAF Oil Pressure Warning Unit (instruments page12 Pressure gauges 36)

Here we have a Oil Pressure Warning unit as used by the USAAF

Type 3131-1-A

106A/1486

£65

Click on the pictures to enlarge

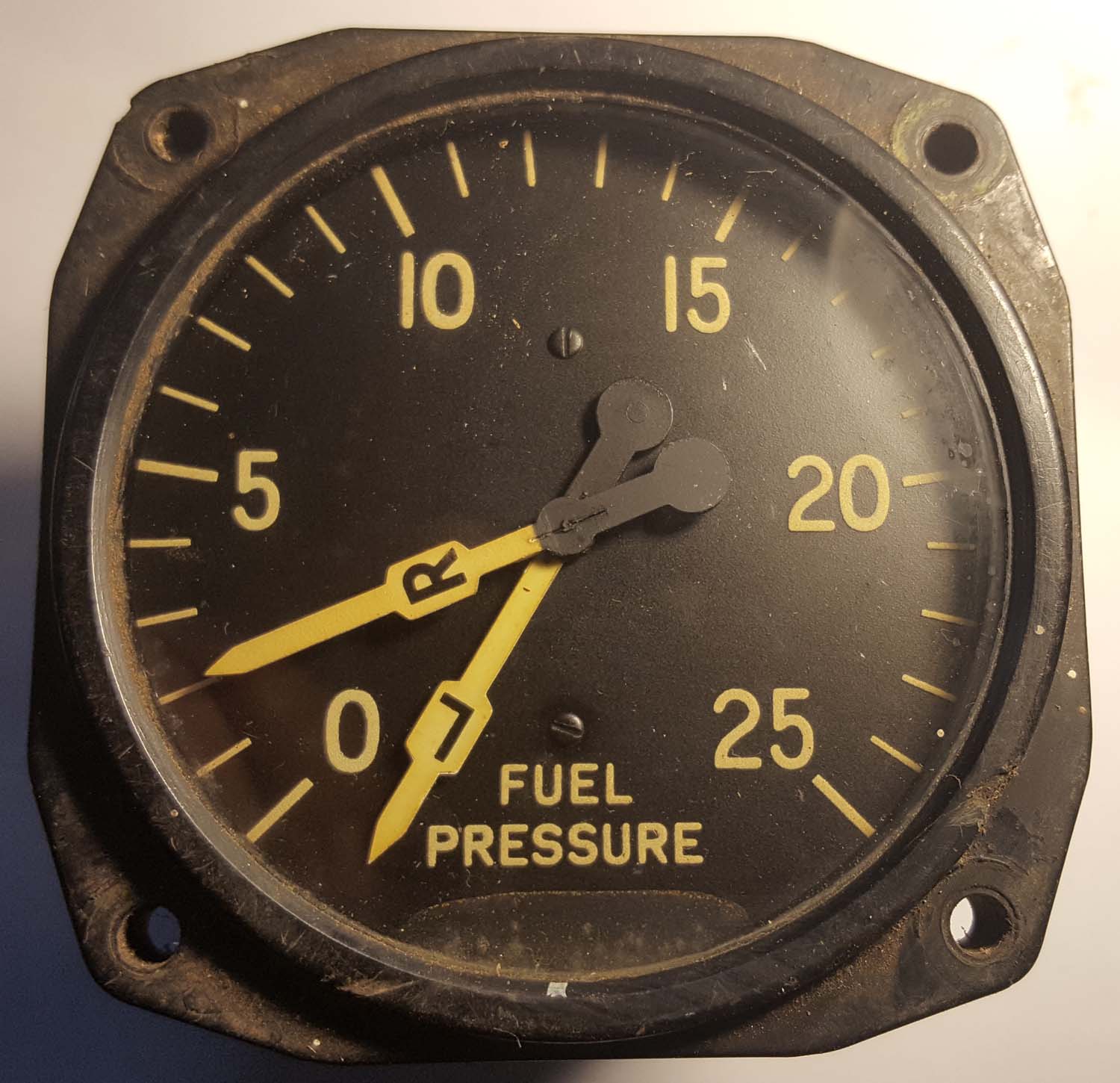

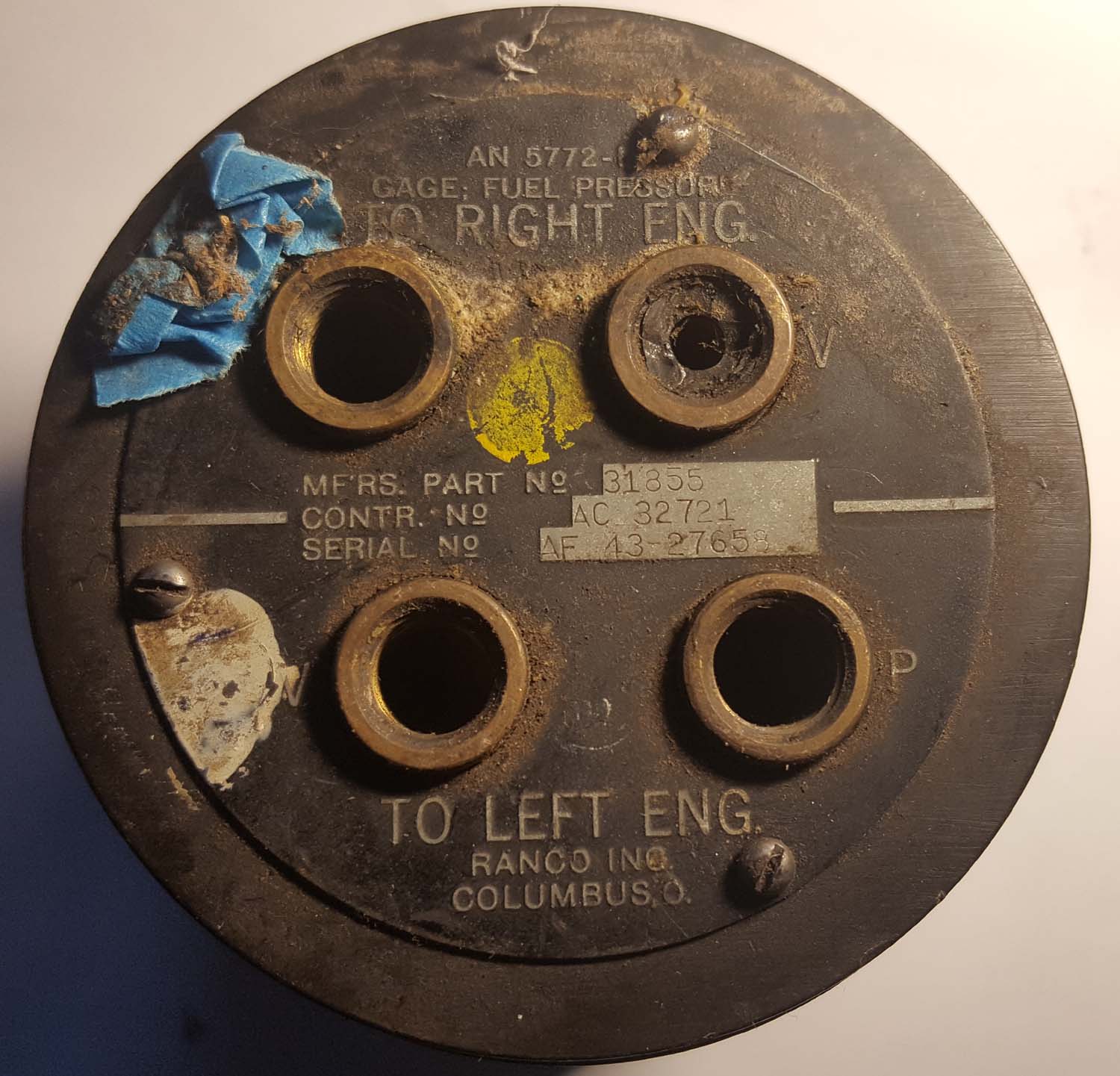

B25 DC3 and C 47 Fuel pressure gauge. AN 5772-1 (instruments page12 Pressure gauges 35A)

Here is a fuel pressure gauge used in the B25 Bomber , DC 3 and C 47 transport aircraft.

Made by Ranco inc AN  5772-1 Dated 1943

Shown above the B25 in the colors of the famous Doolittle aircraft which flew on a one way mission from and aircraft carrier to bomb Japan soon after Pearl Harbor.

£75



Fl 20516-2

Click on the pictures to enlarge them

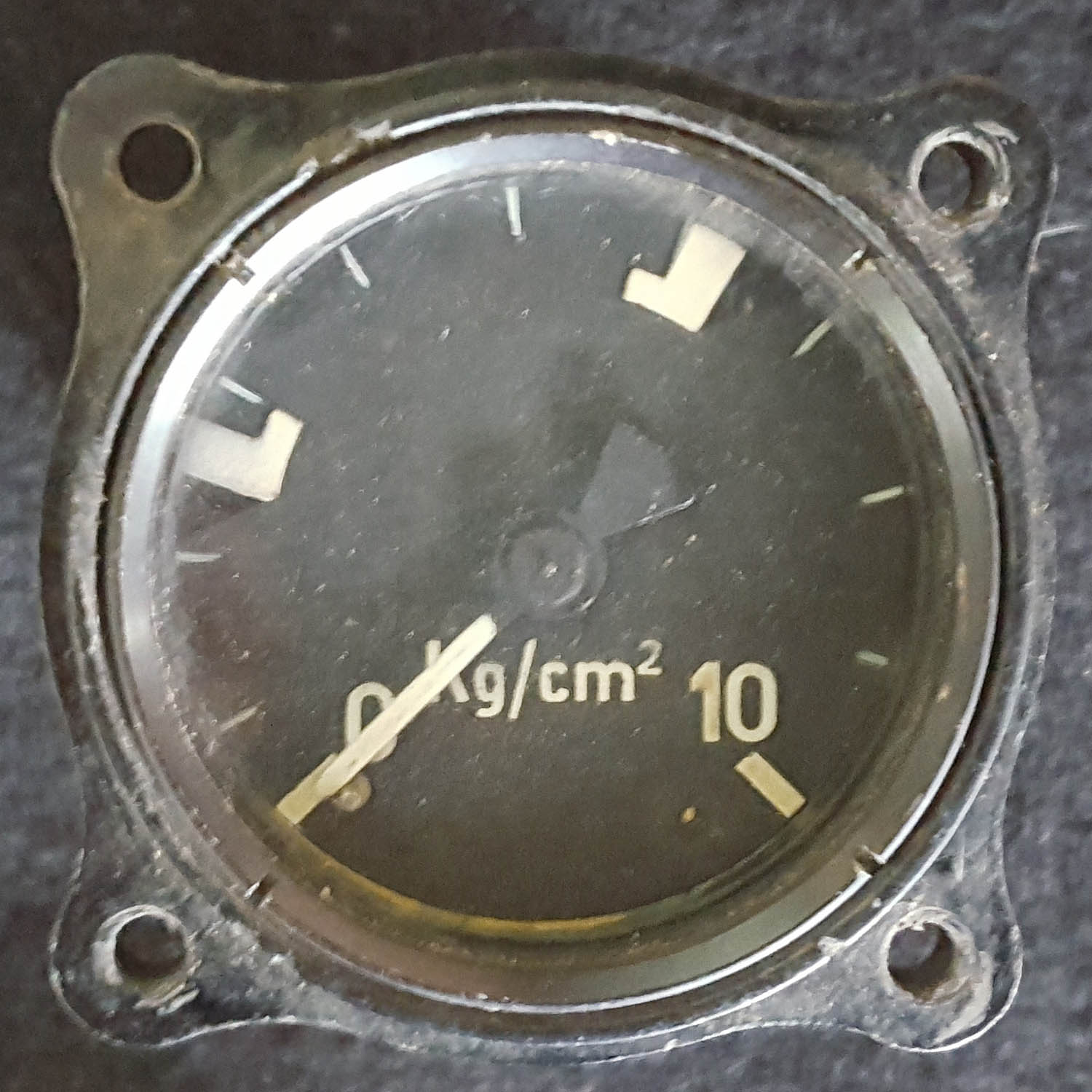

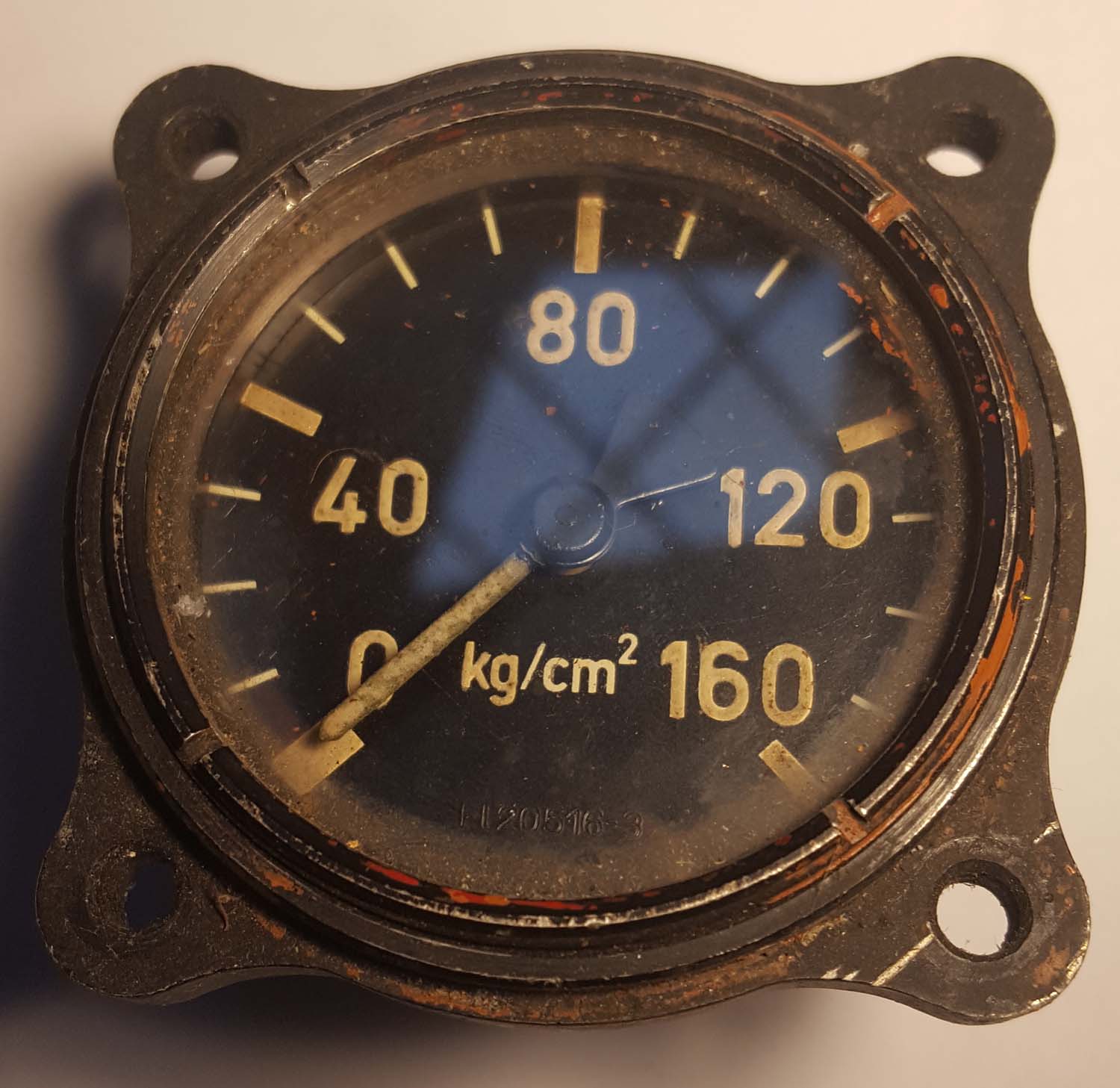

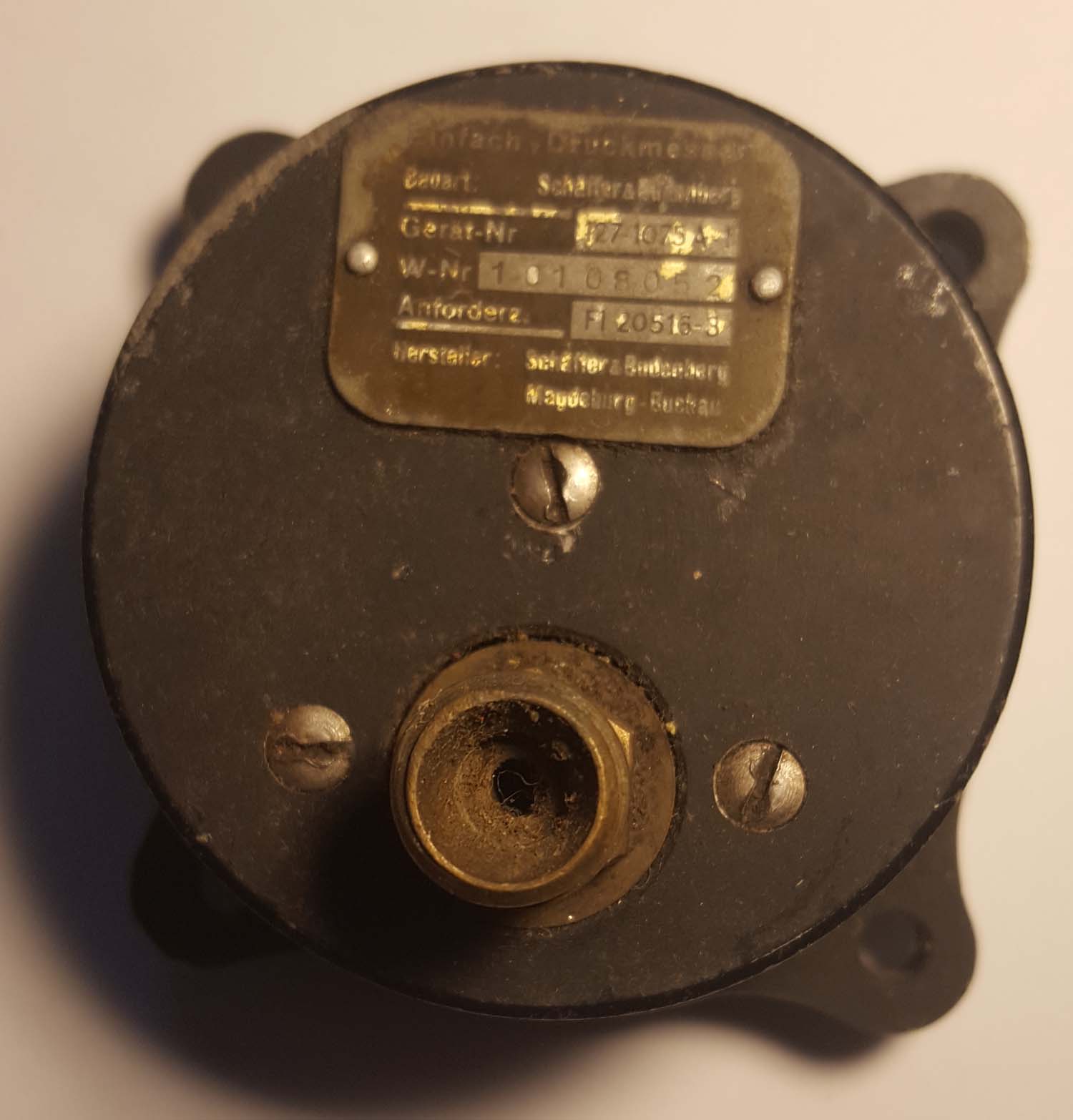

Me 262 He 162 Fuel pressure gauge (instruments page12 Pressure gauges 34)

Here is a original pressure gauge used in the ME 262 and He 162 the worlds first jet fighters

Fl 20516-3

Me 262

He 163

£295



Click on the picture's to enlarge them.

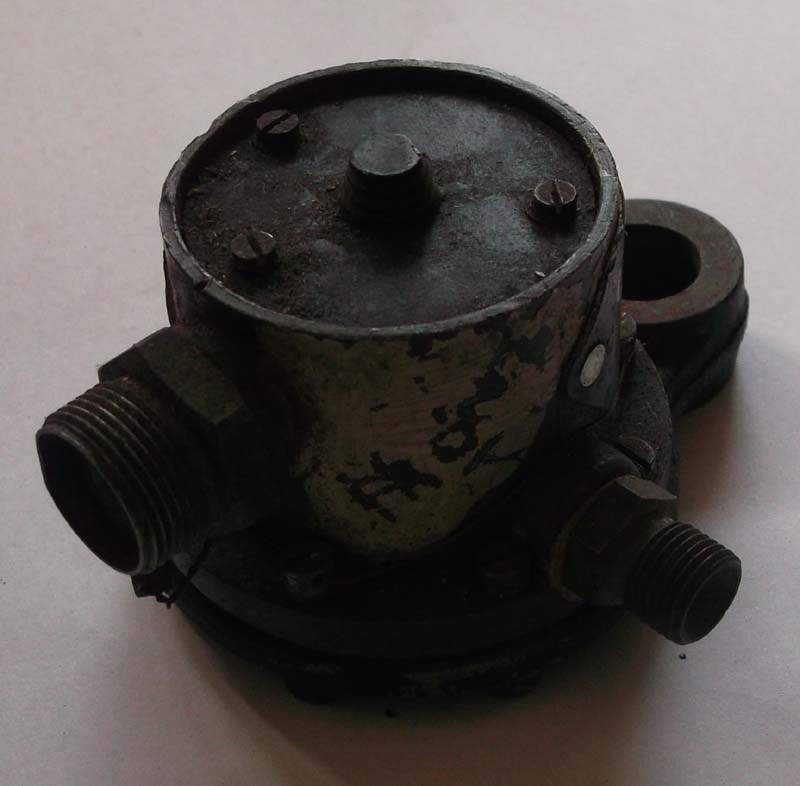

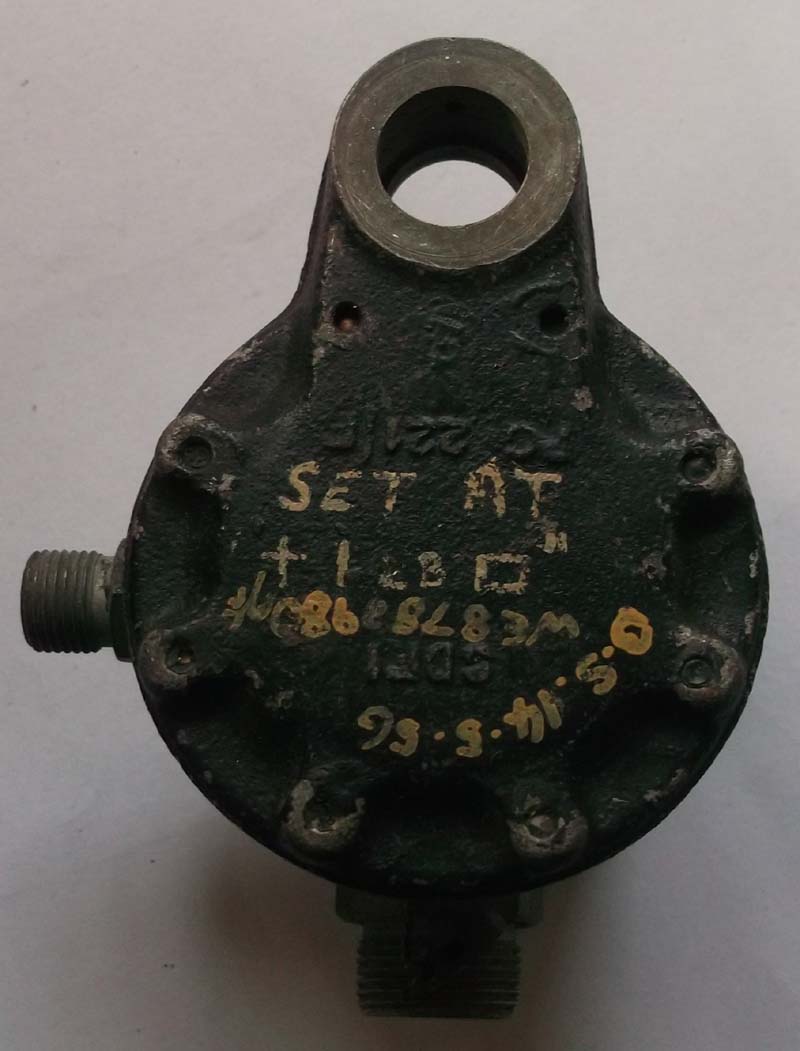

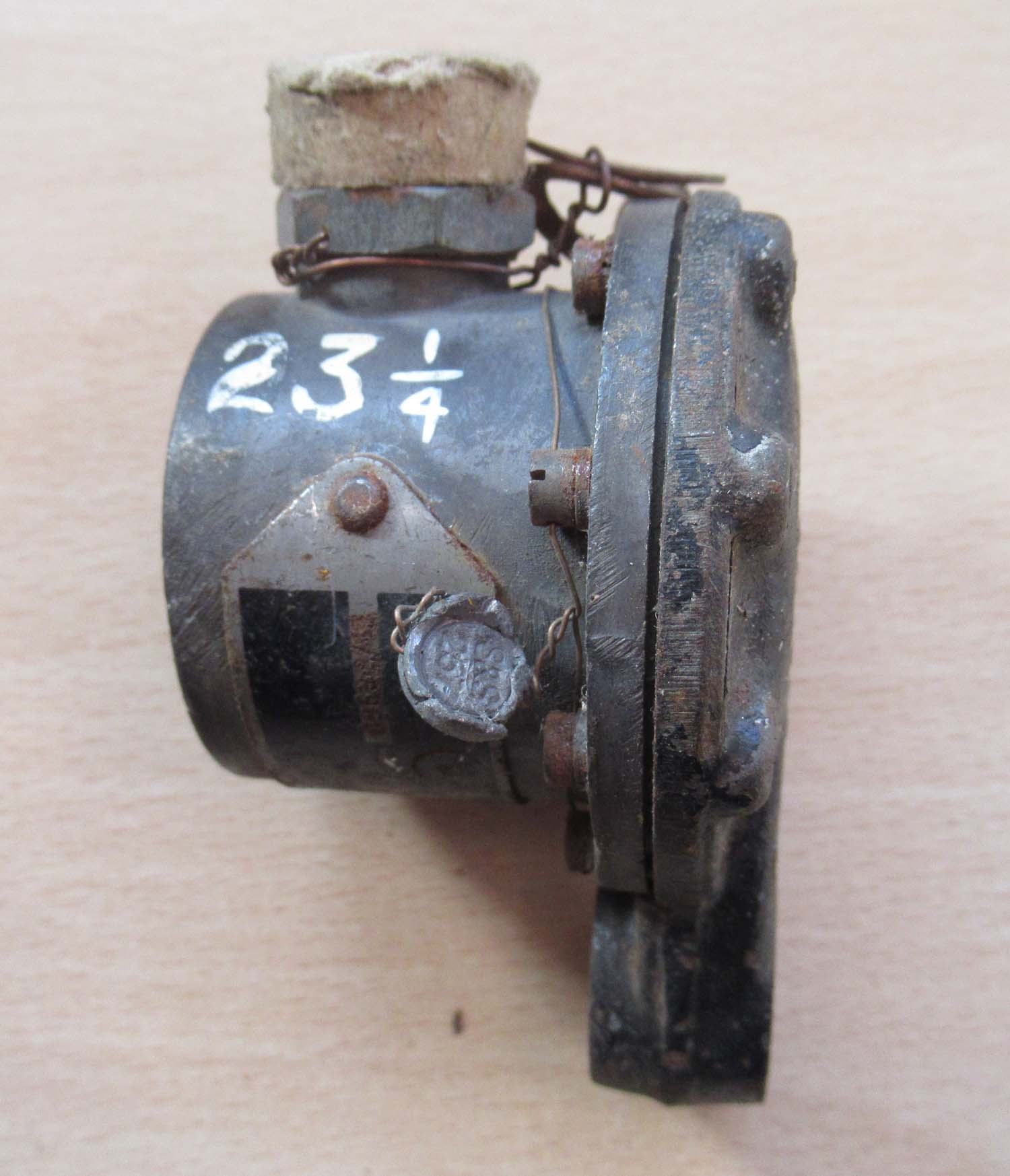

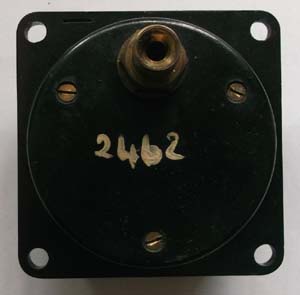

Pressure sender unit  (instruments page12 Pressure gauges 30)

This is a fuel pressure sender unit fitted to various aircraft types I have seen these fitted to Spitfires and even the Swordfish.

£75

Click on the picture's to enlarge them.

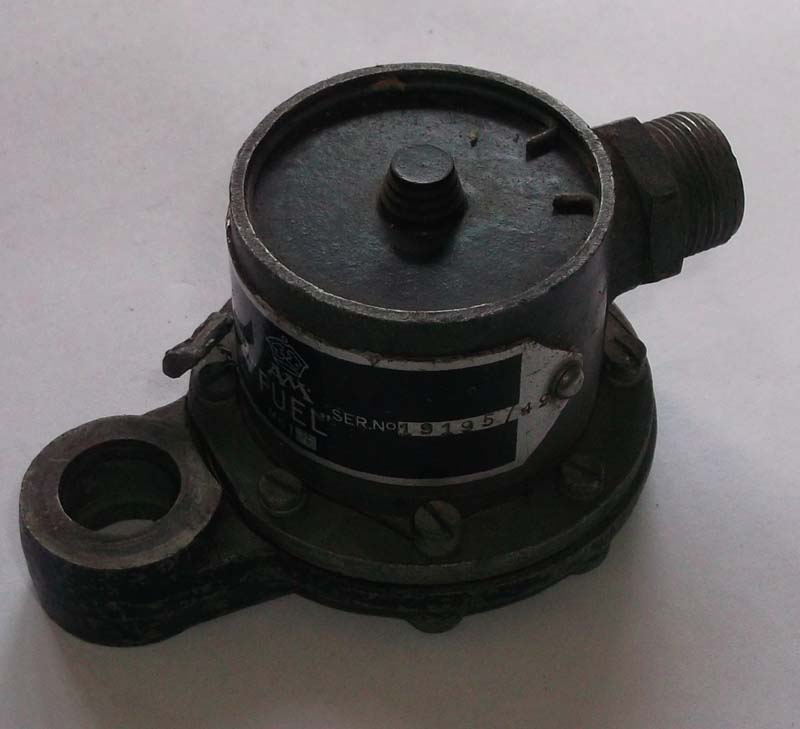

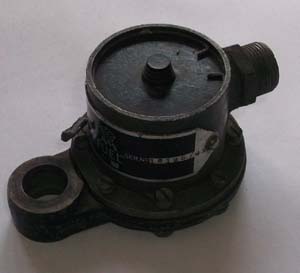

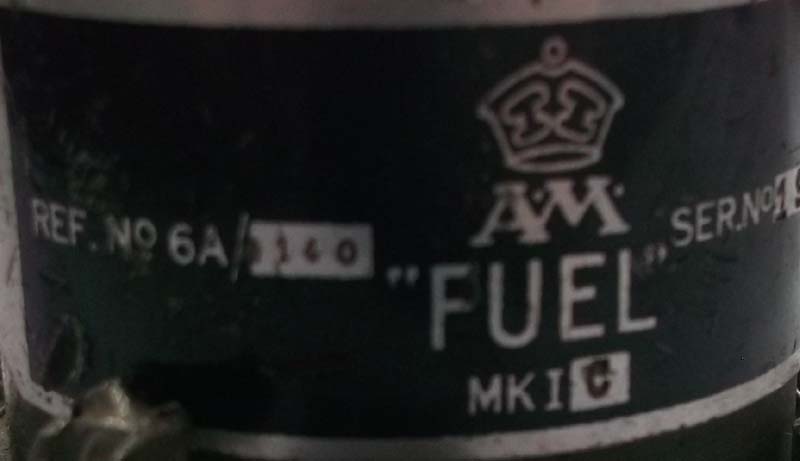

Pressure sender unit  (instruments page12 Pressure gauges 29)

This is a fuel pressure sender unit fitted to various aircraft types I have seen these fitted to early Spitfires and even the Swordfish.

£55

Click on the picture to enlarge it.

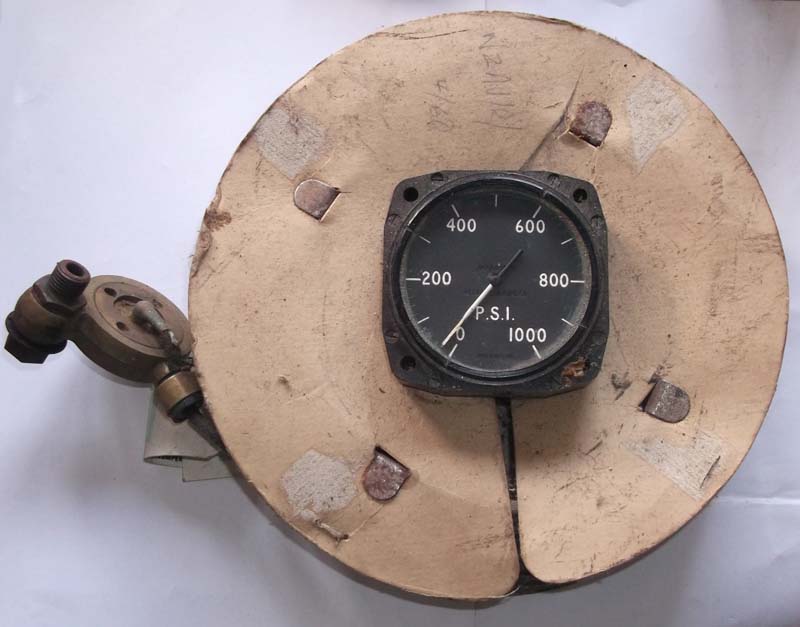

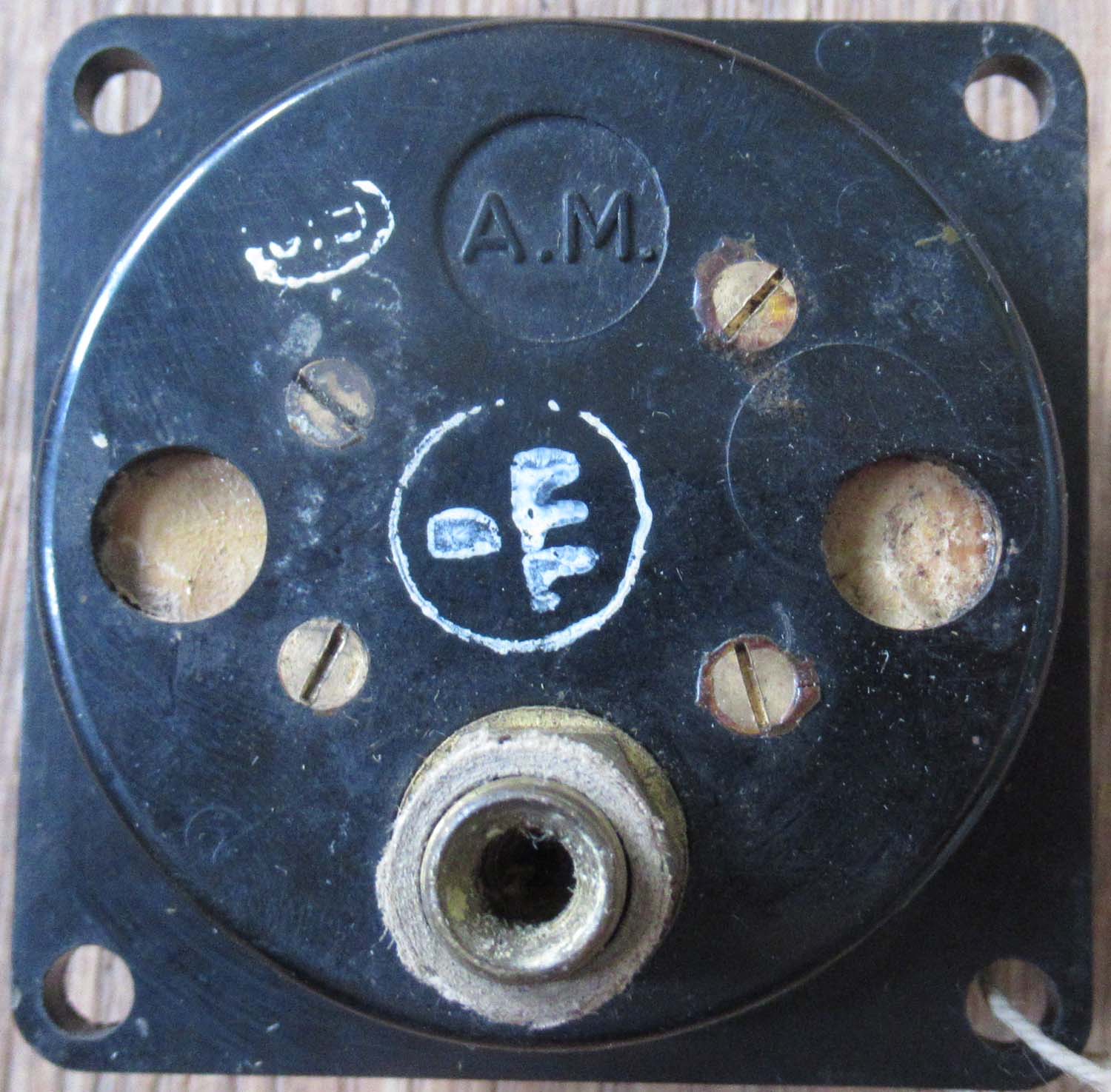

Capillary type pressure gauge  (instruments page12 Pressure gauges 28)

Post war pressure gauge.

£55

Click on the picture to enlarge it.

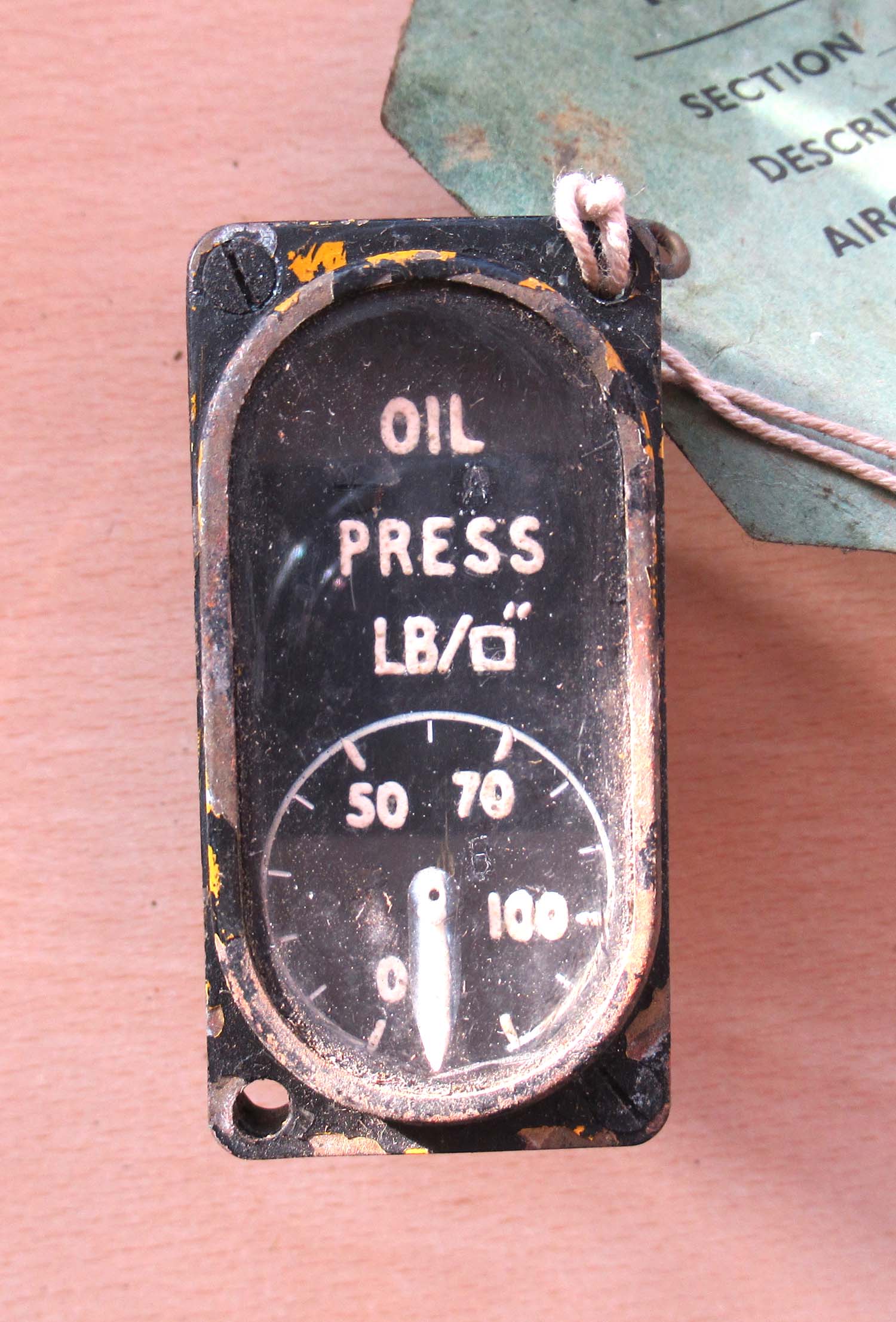

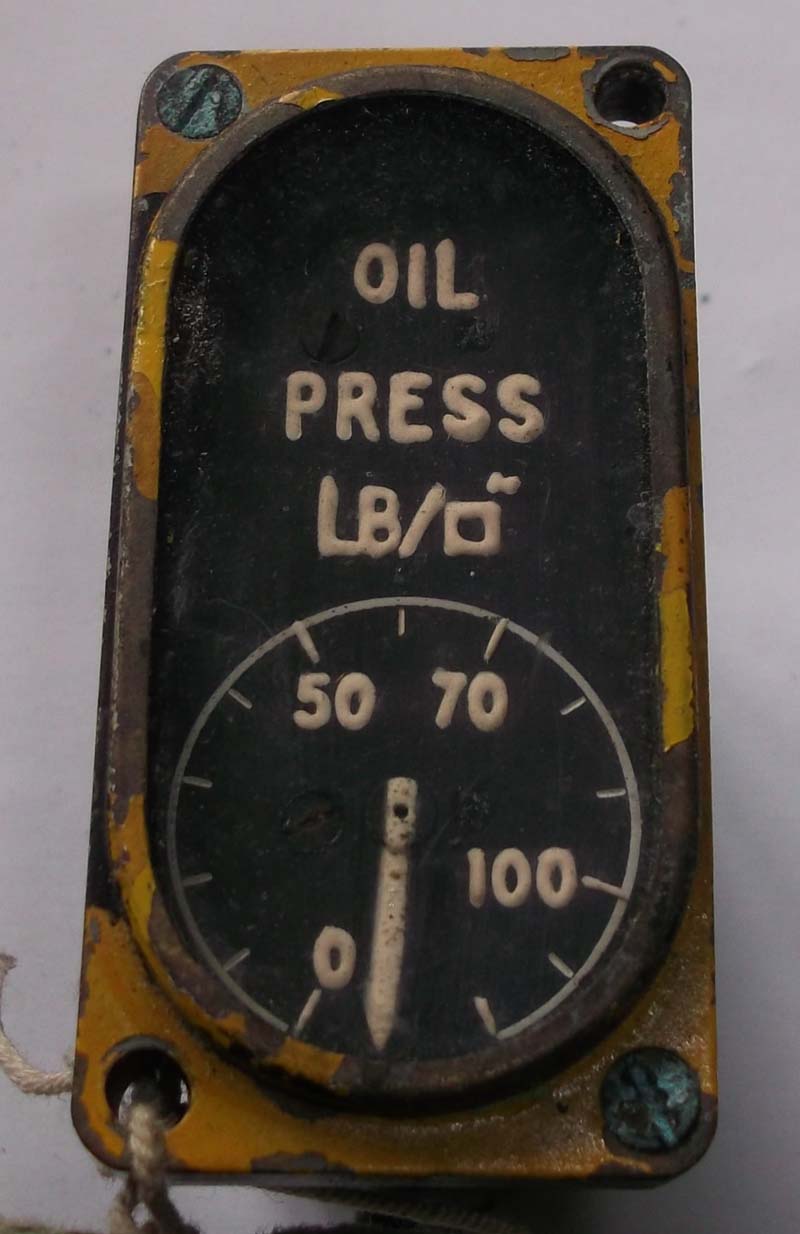

Desynn type oil pressure gauge (instruments page12 Pressure gauges 26)

Used in late wartime and early post war aircraft. I have seen these fitted to the Avro Lincoln, as with most gauges probably fitted to several types of aircraft.

The Avro Lincoln.

£55

Click on the picture to enlarge it.

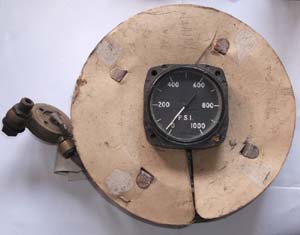

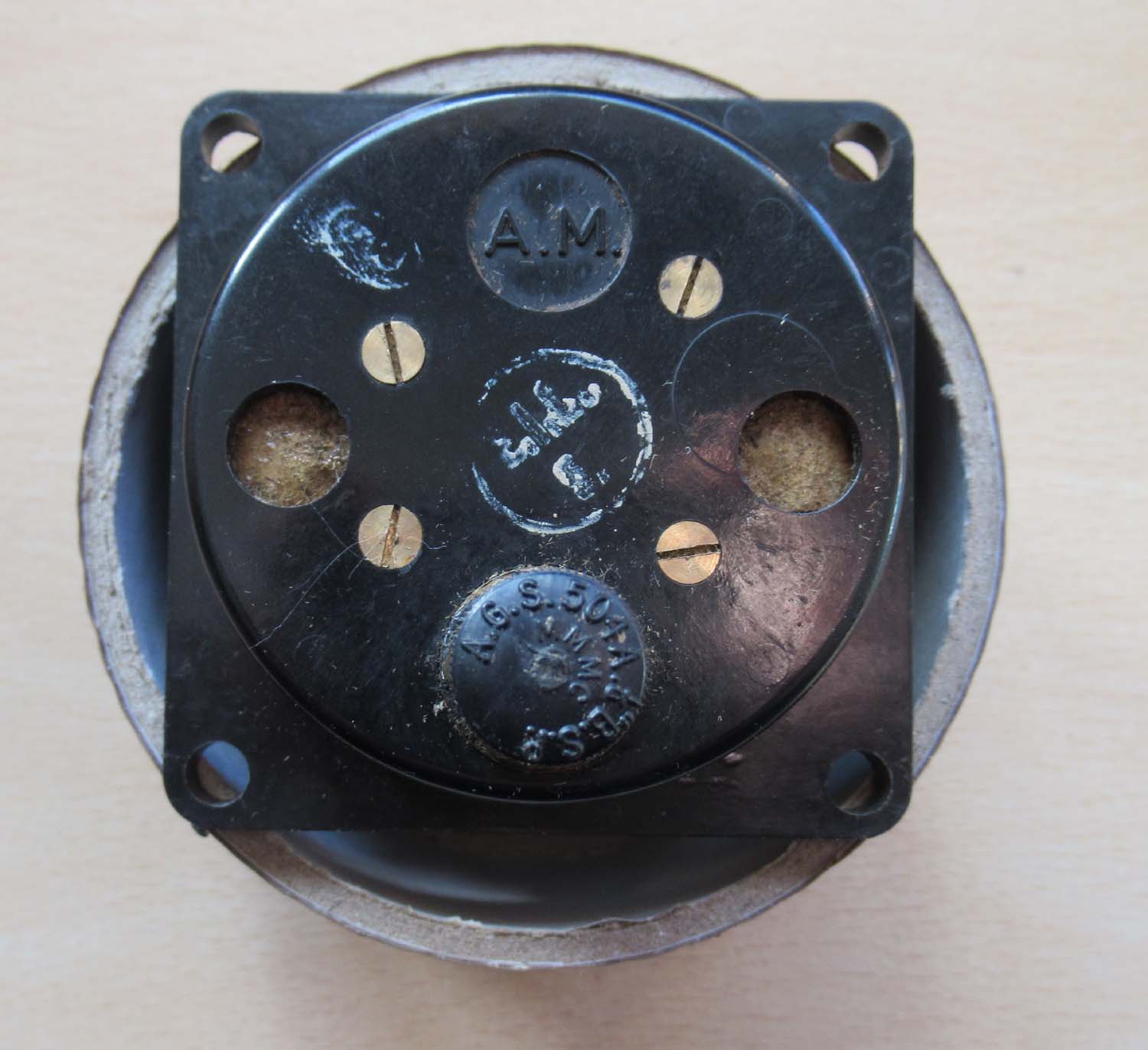

Beaufighter pressure gauge (instruments page12 Pressure gauges 22)

Hydraulic Pressure gauge off a Beaufighter 0-2000Ib.

Supplied in original box. Fitted to Beaufighters, Hurricanes and probably other wartime RAF aircraft.

Mk VIII

£65



Click on the picture to enlarge

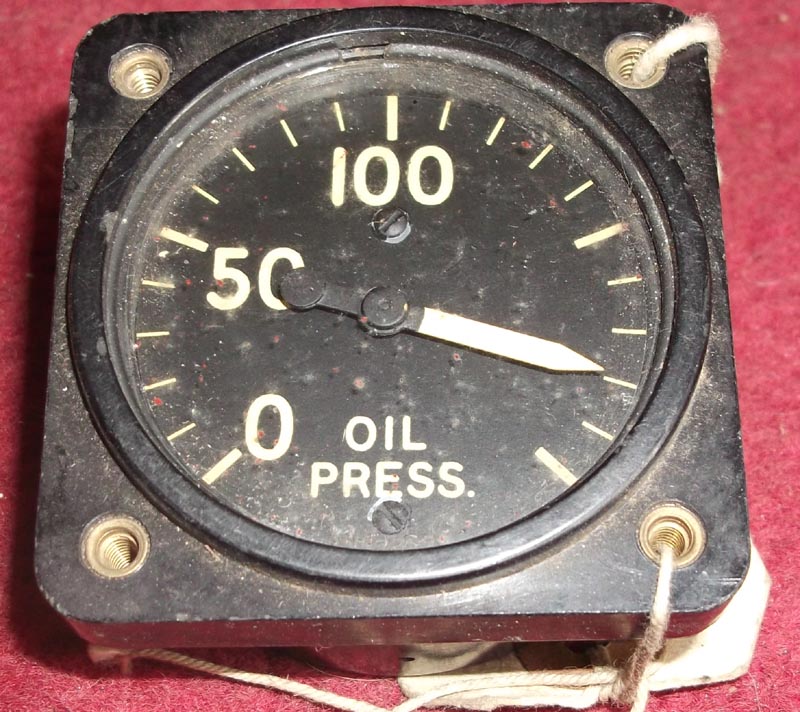

Oil Pressure gauge USAF (instruments page12 Pressure gauges 19)

A USAF pressure gauge

AN5771-2   D-103

Northern Engineering and MFG Co

 £55



Click on the pictures to enlarge

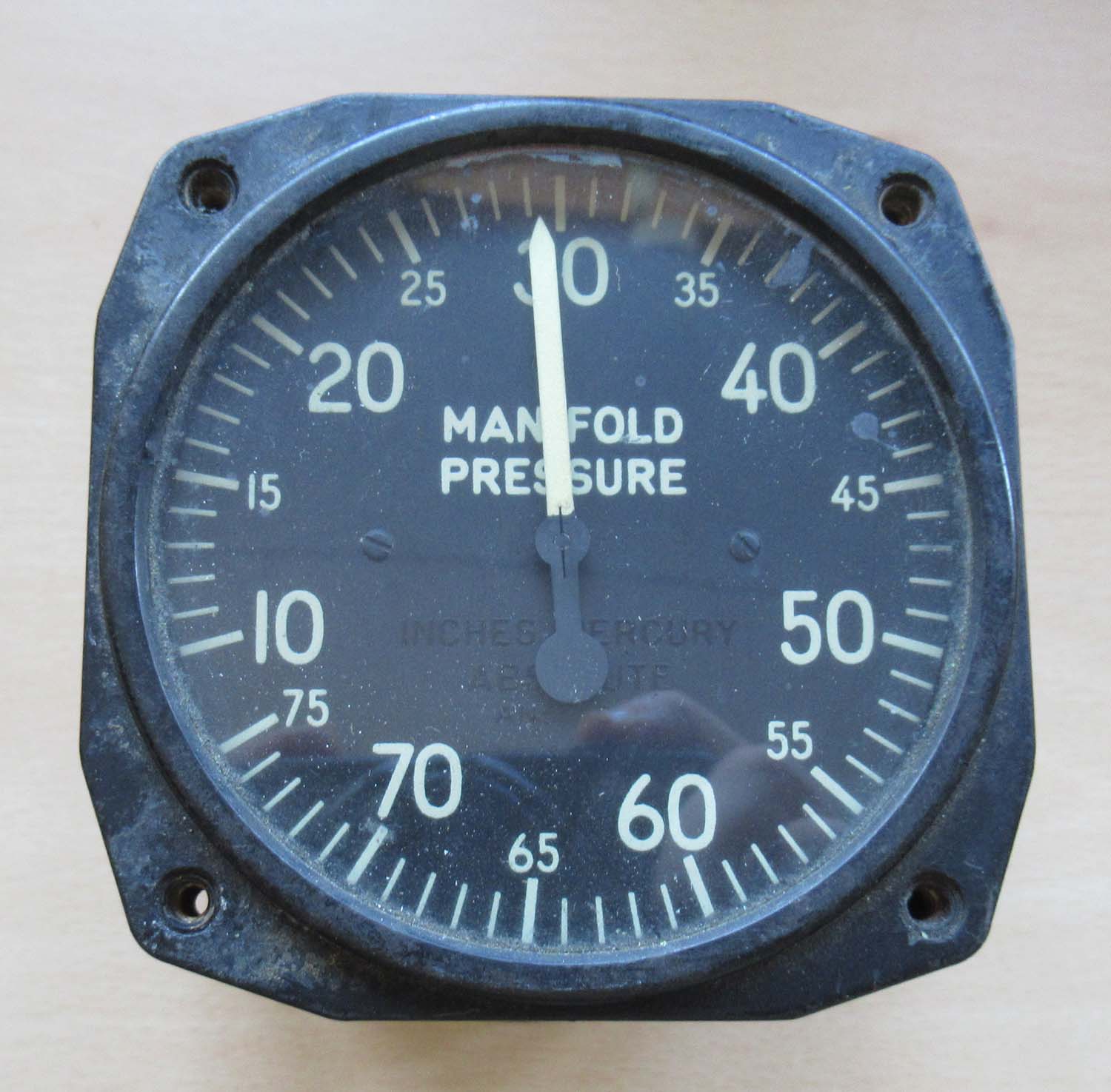

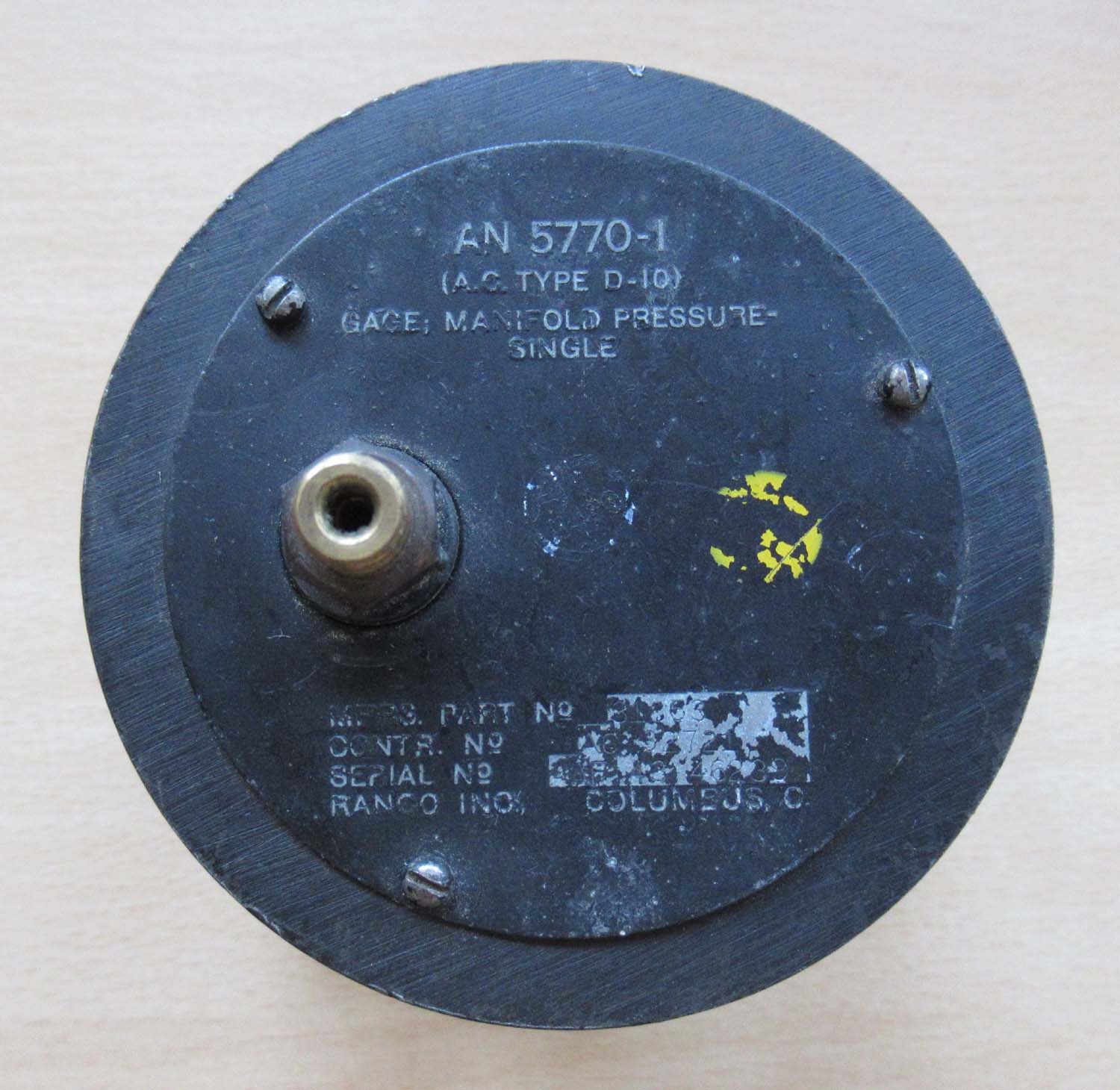

USAF Manifold AN5770-1 Pressure gauge (instruments page 12 Pressure gauges 13)

AN 5770 Manifold pressure gauge in good used condition.

Aircraft Type D 10

£85



Click on the pictures to enlarge

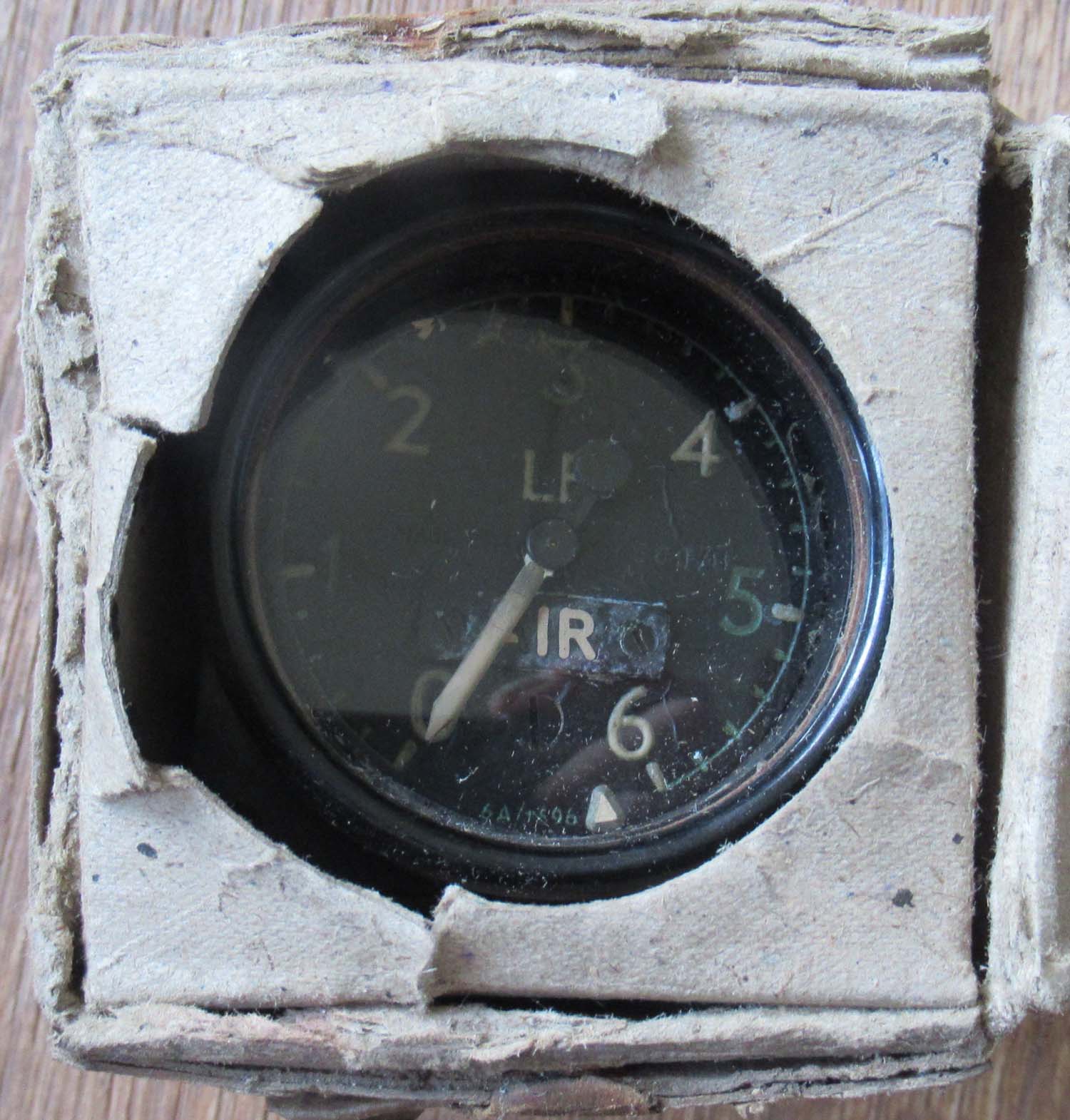

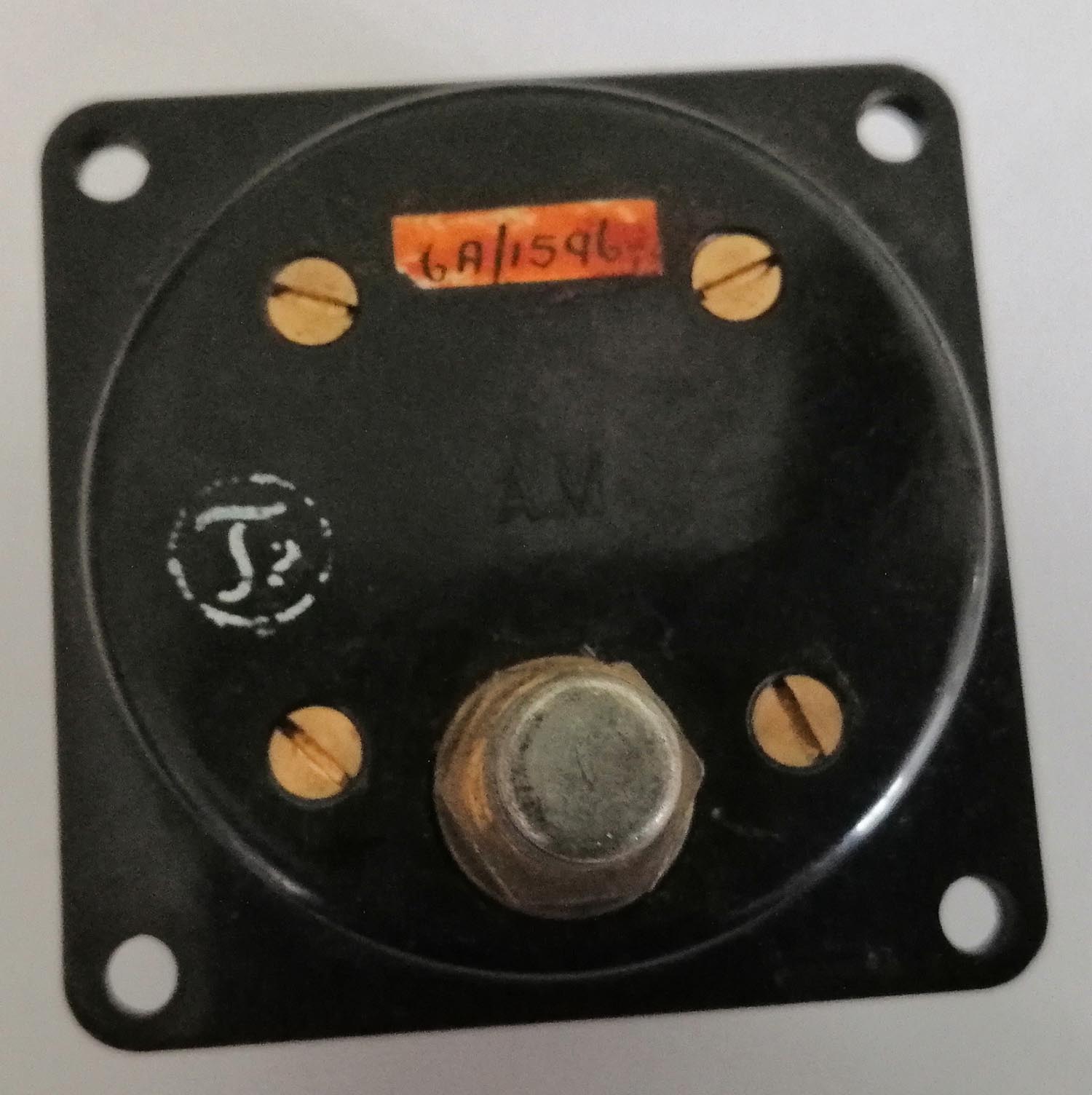

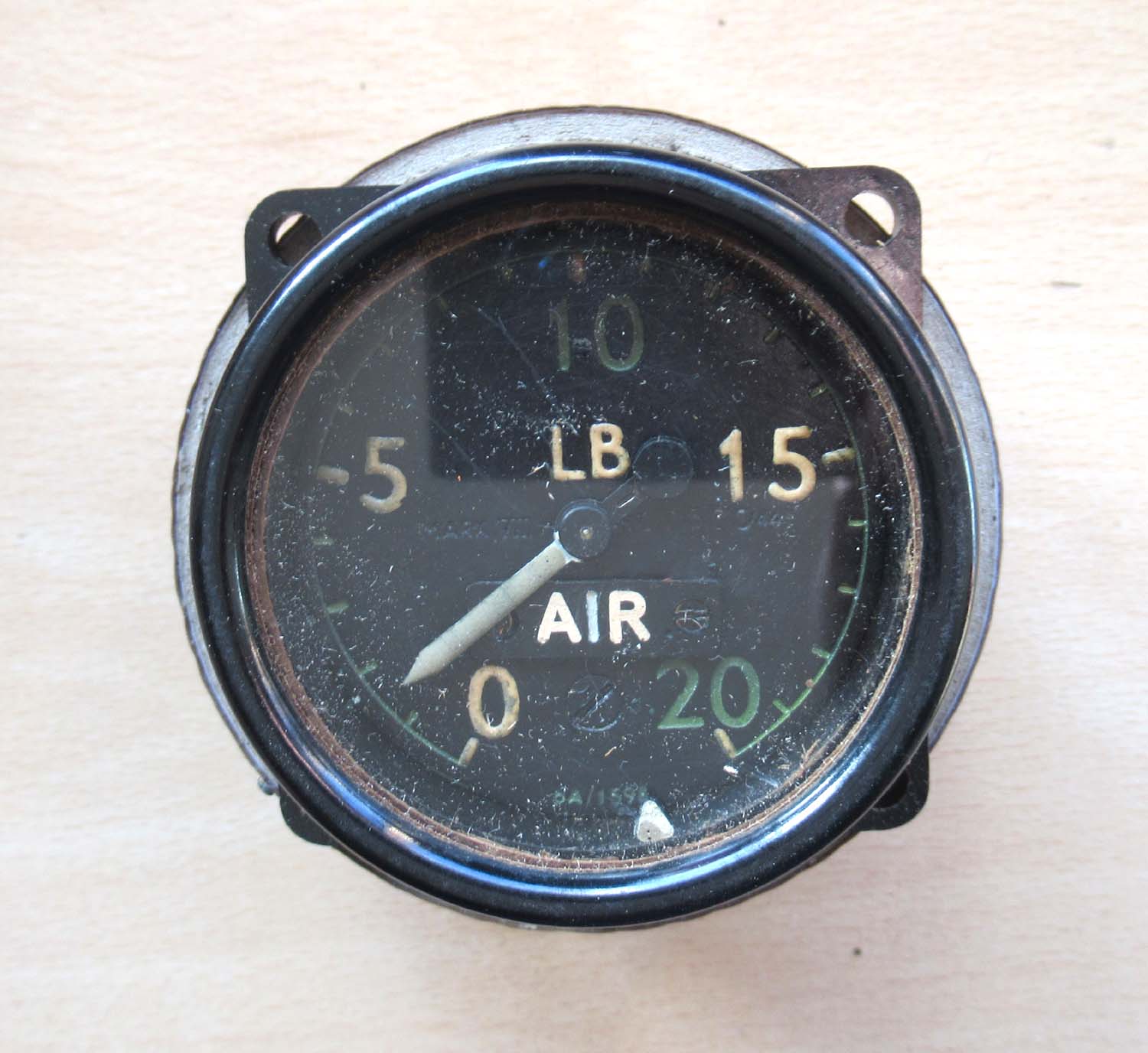

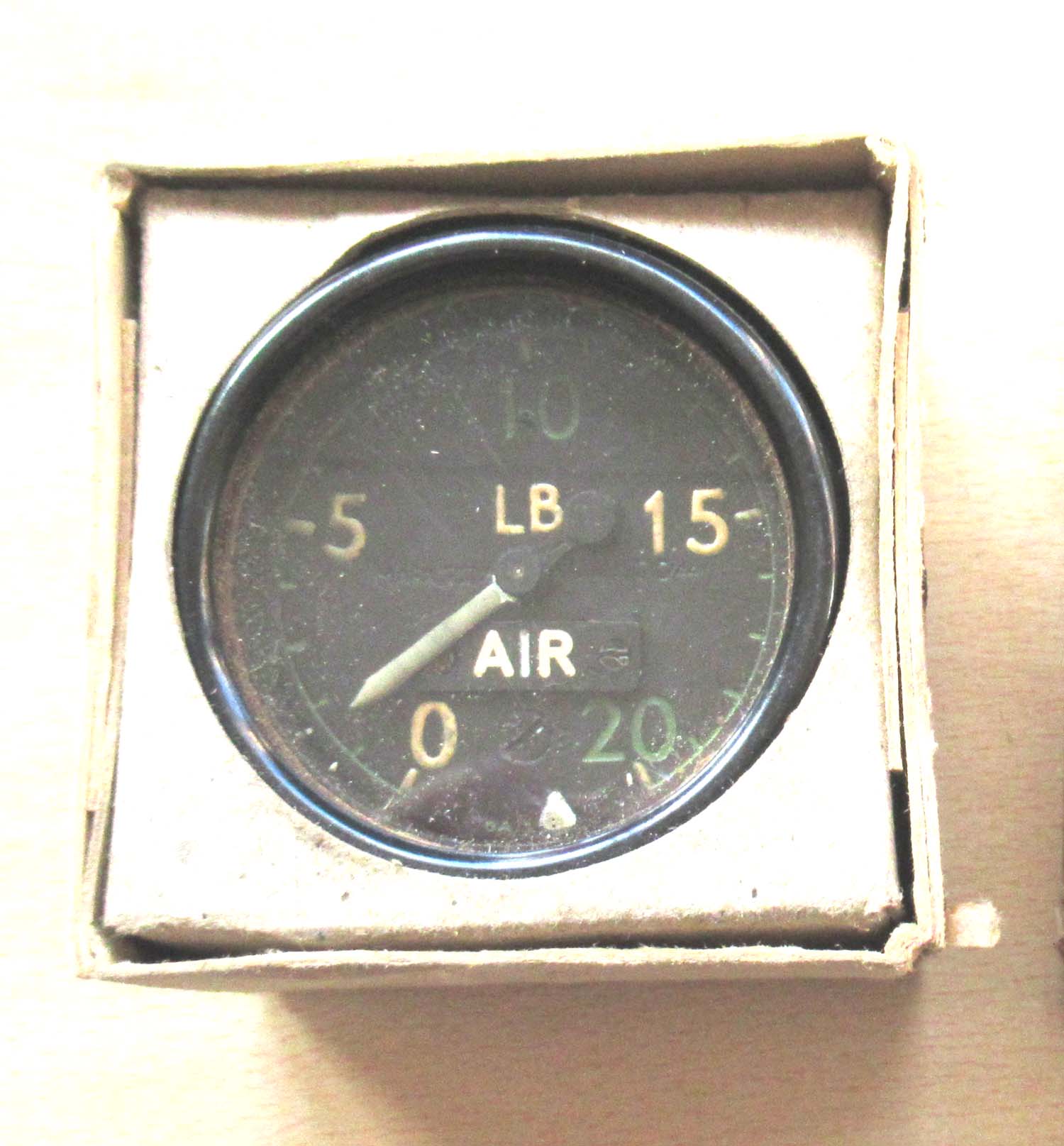

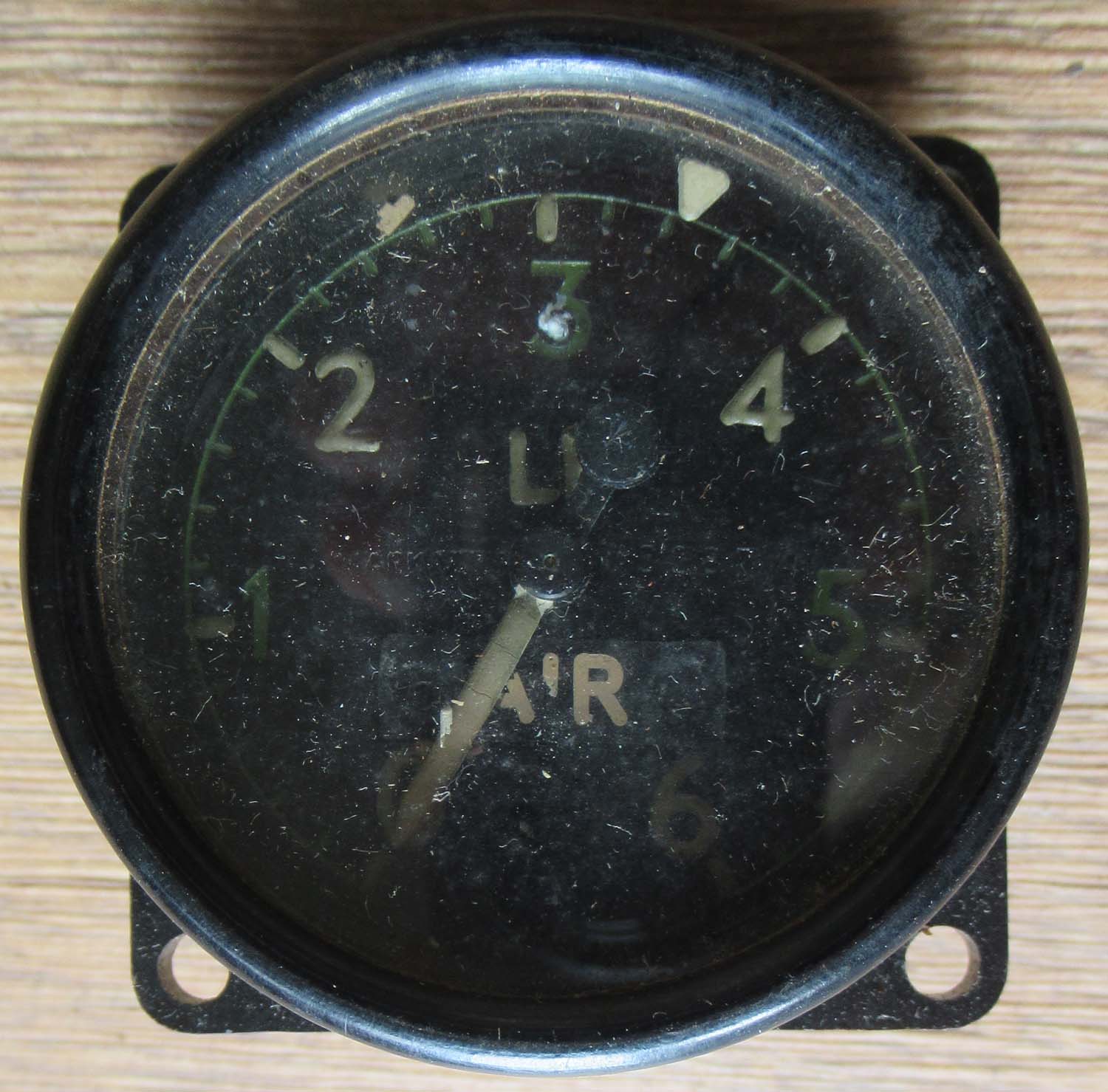

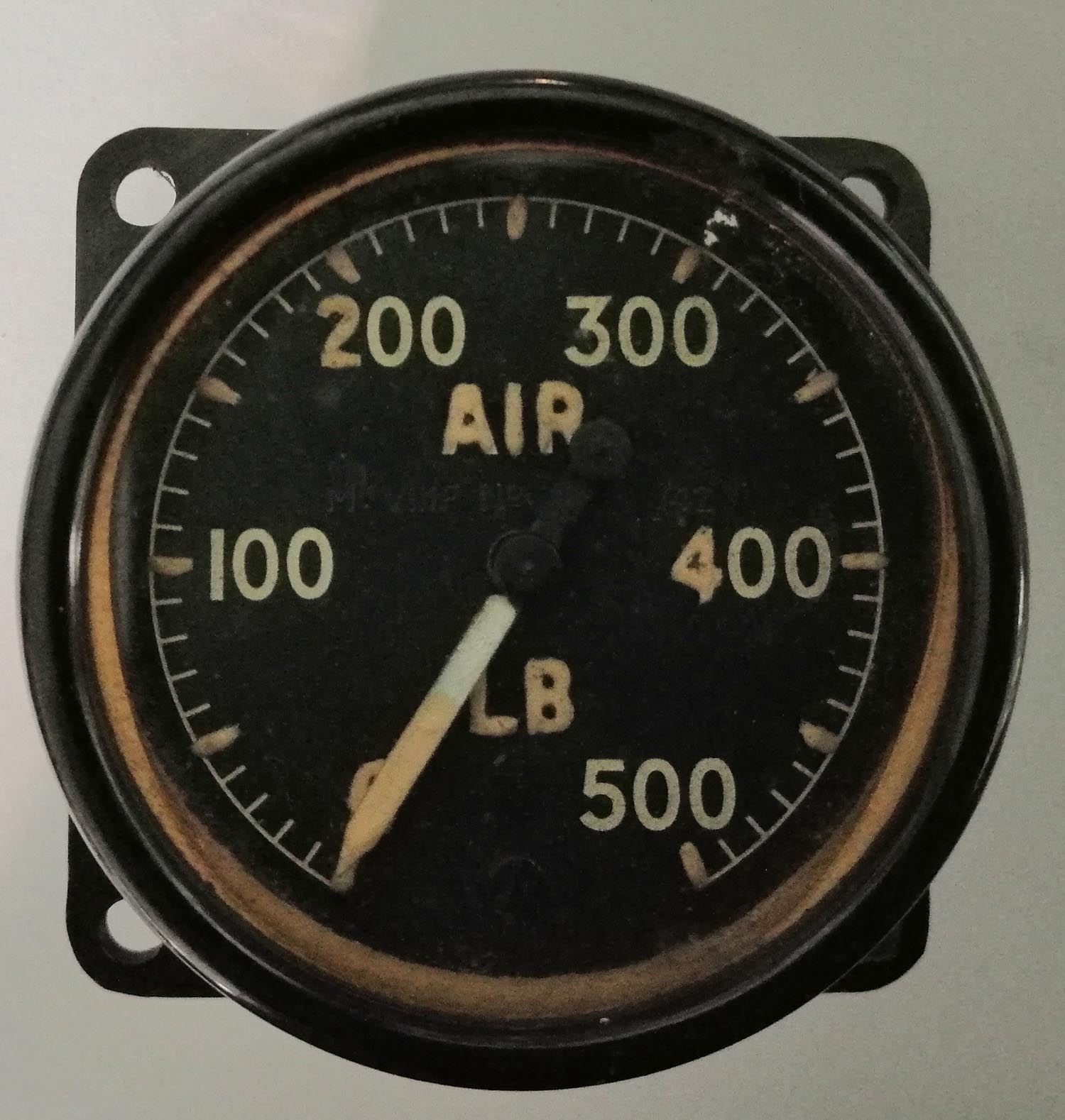

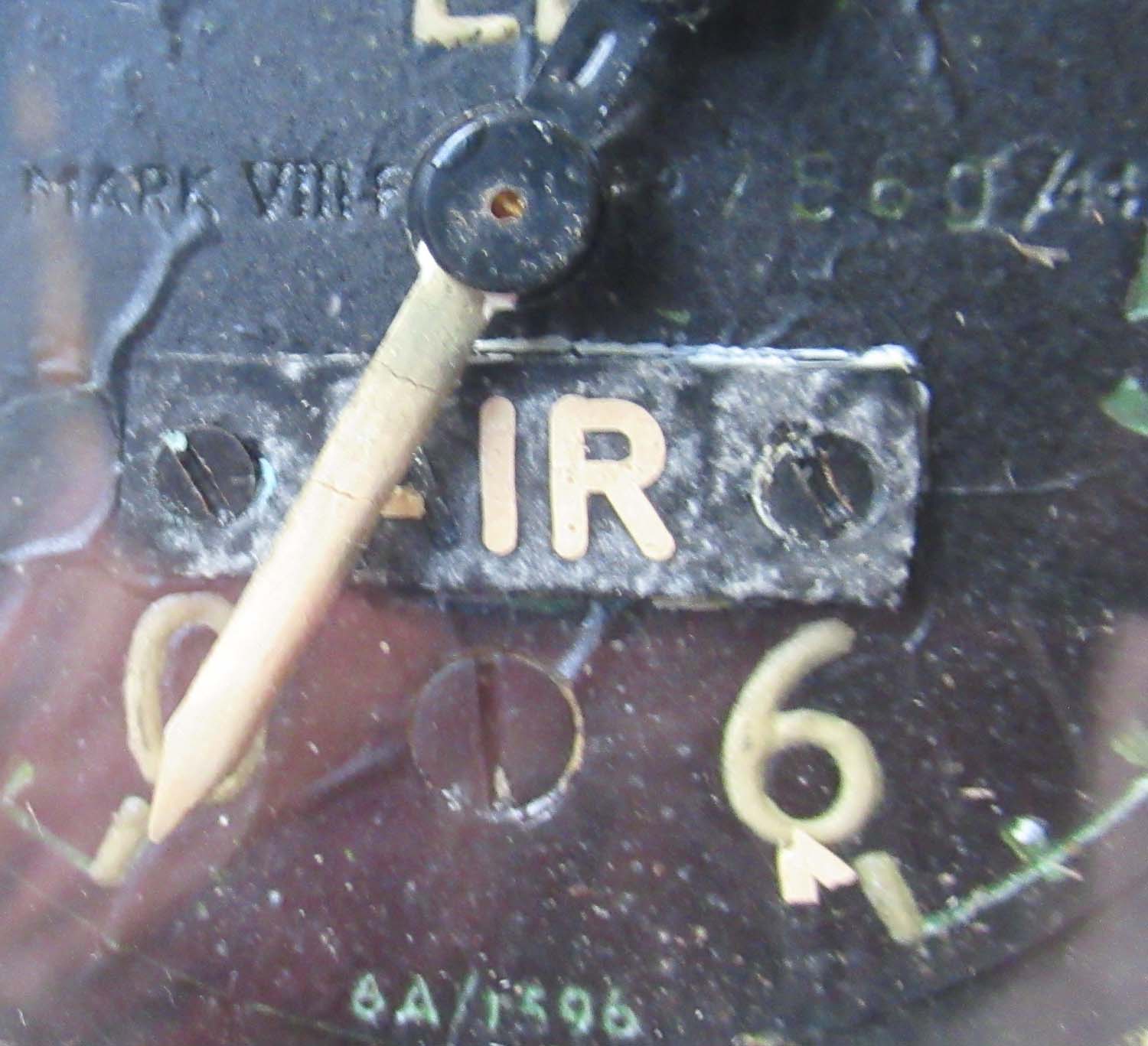

MK VIII air Pressure gauge (instruments page12 Pressure gauges 11)

Dated 1942 0-500 Llbs

A/M 6A/1596

£55

Click on the pictures to enlarge

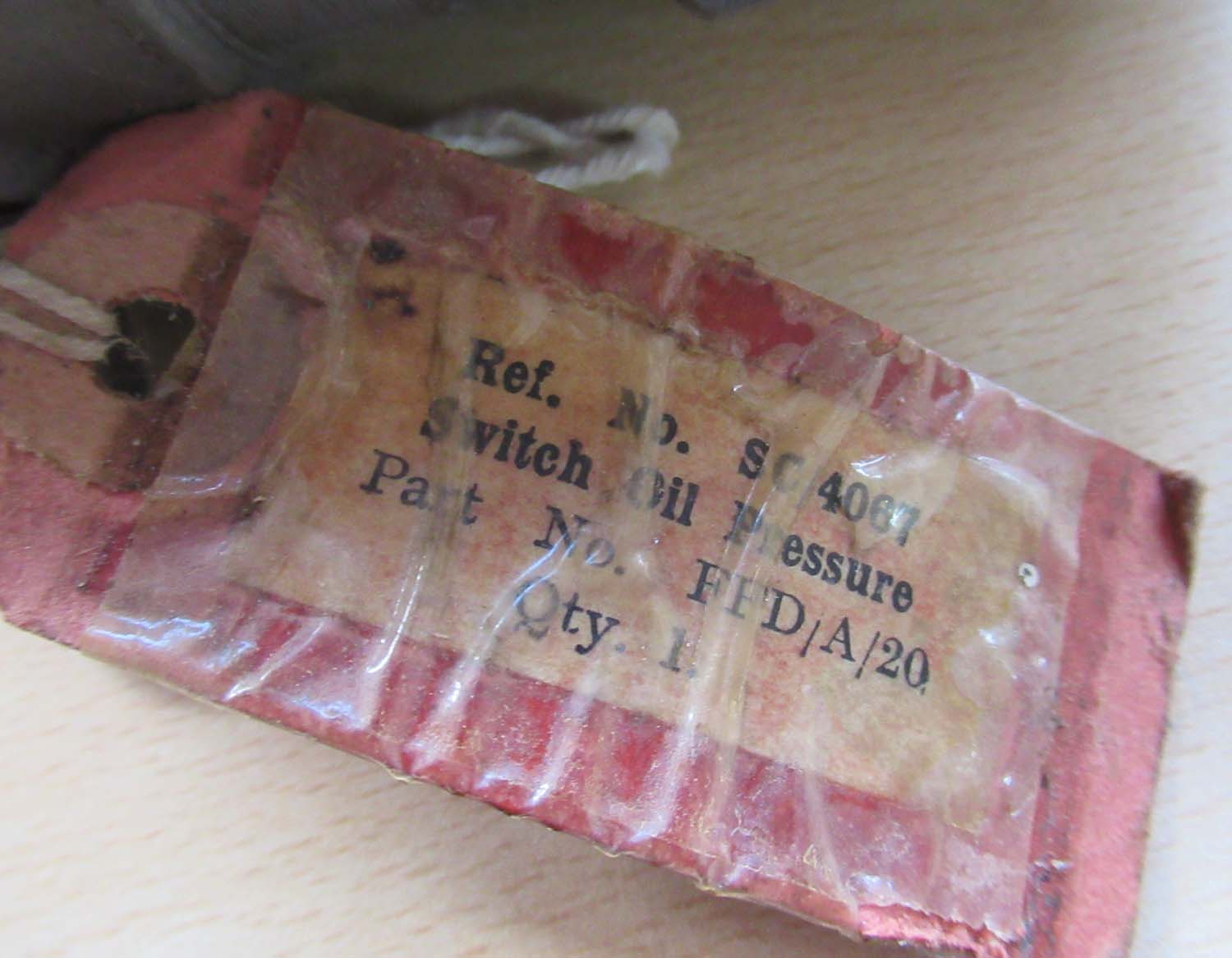

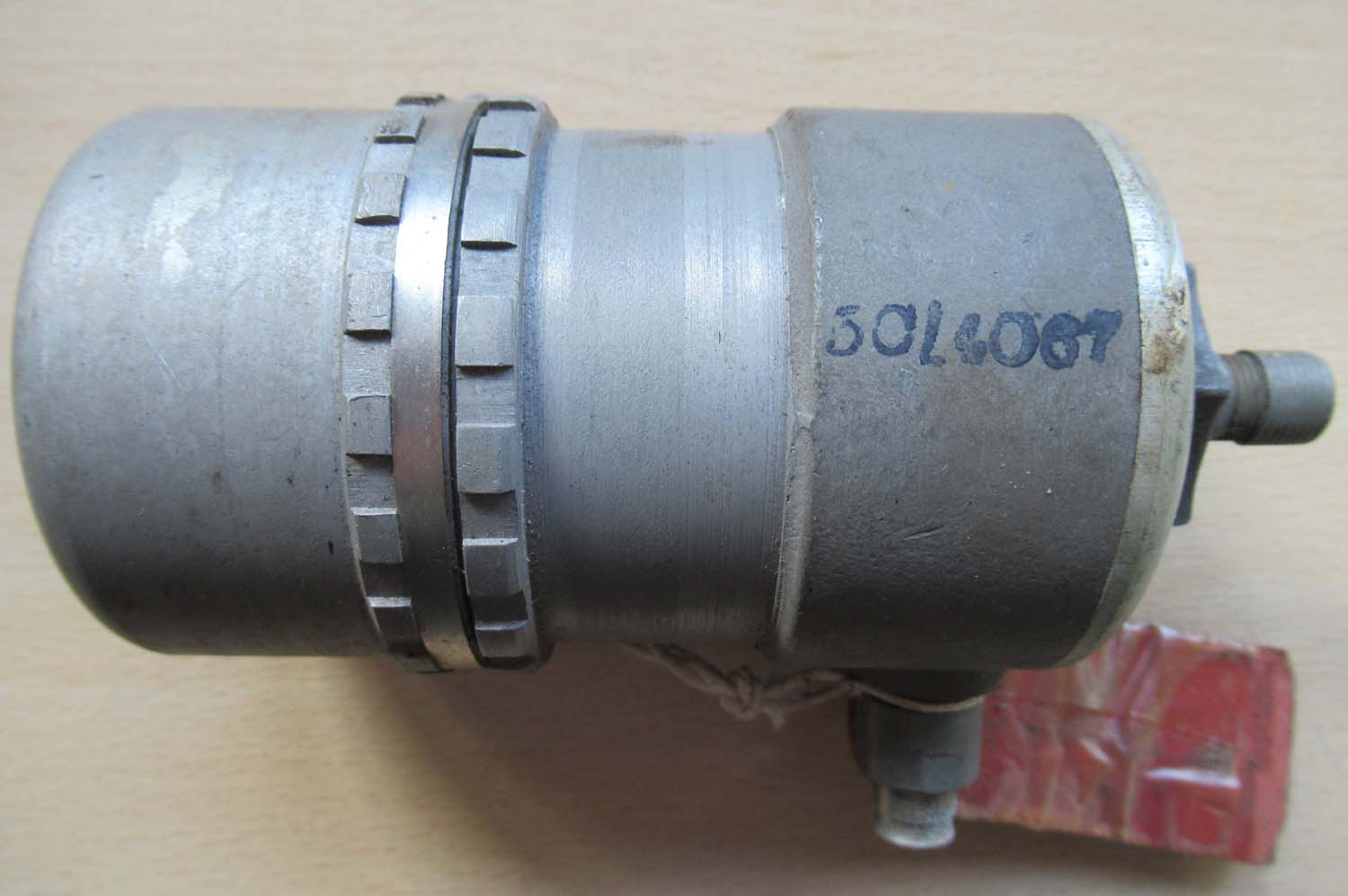

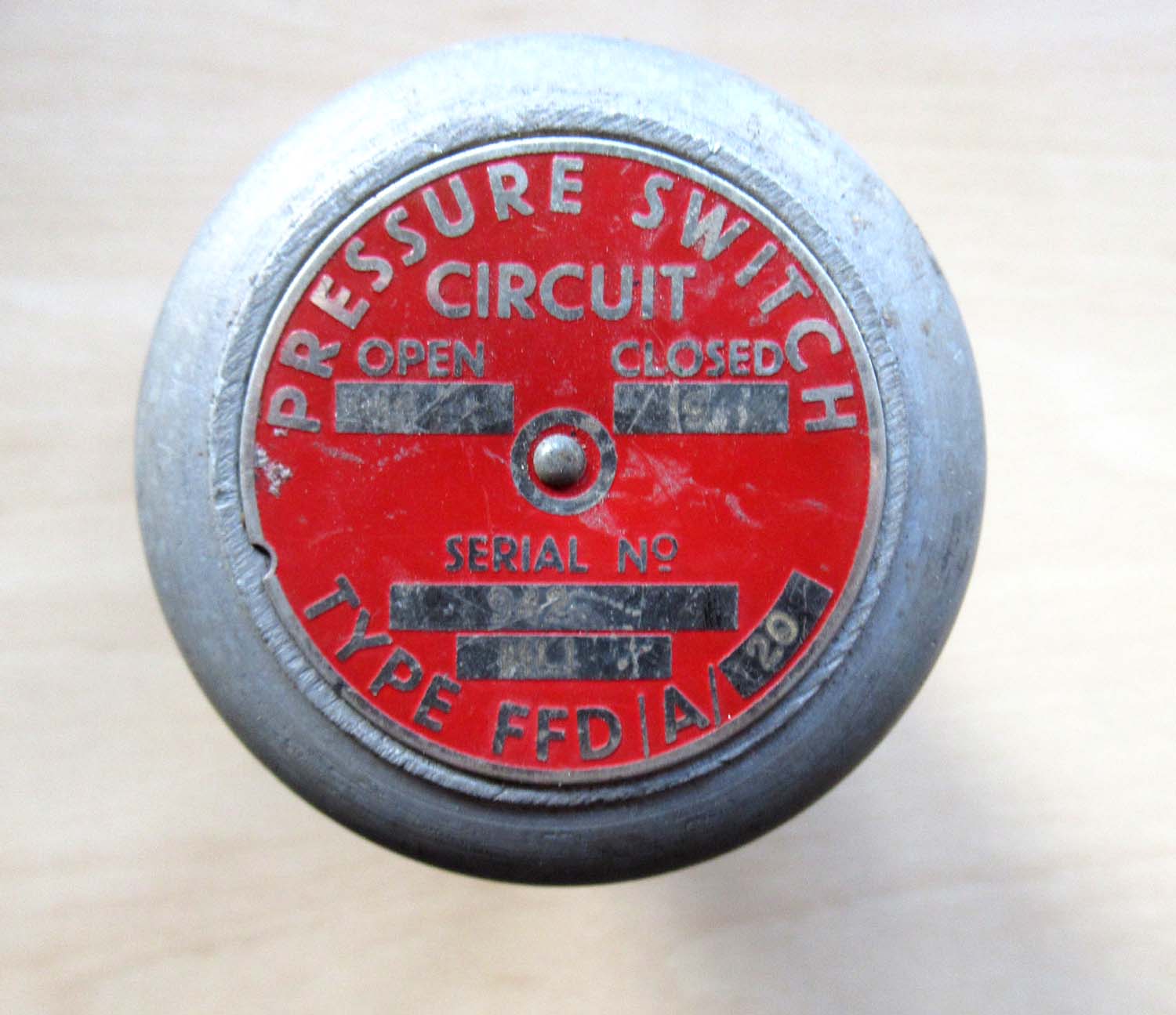

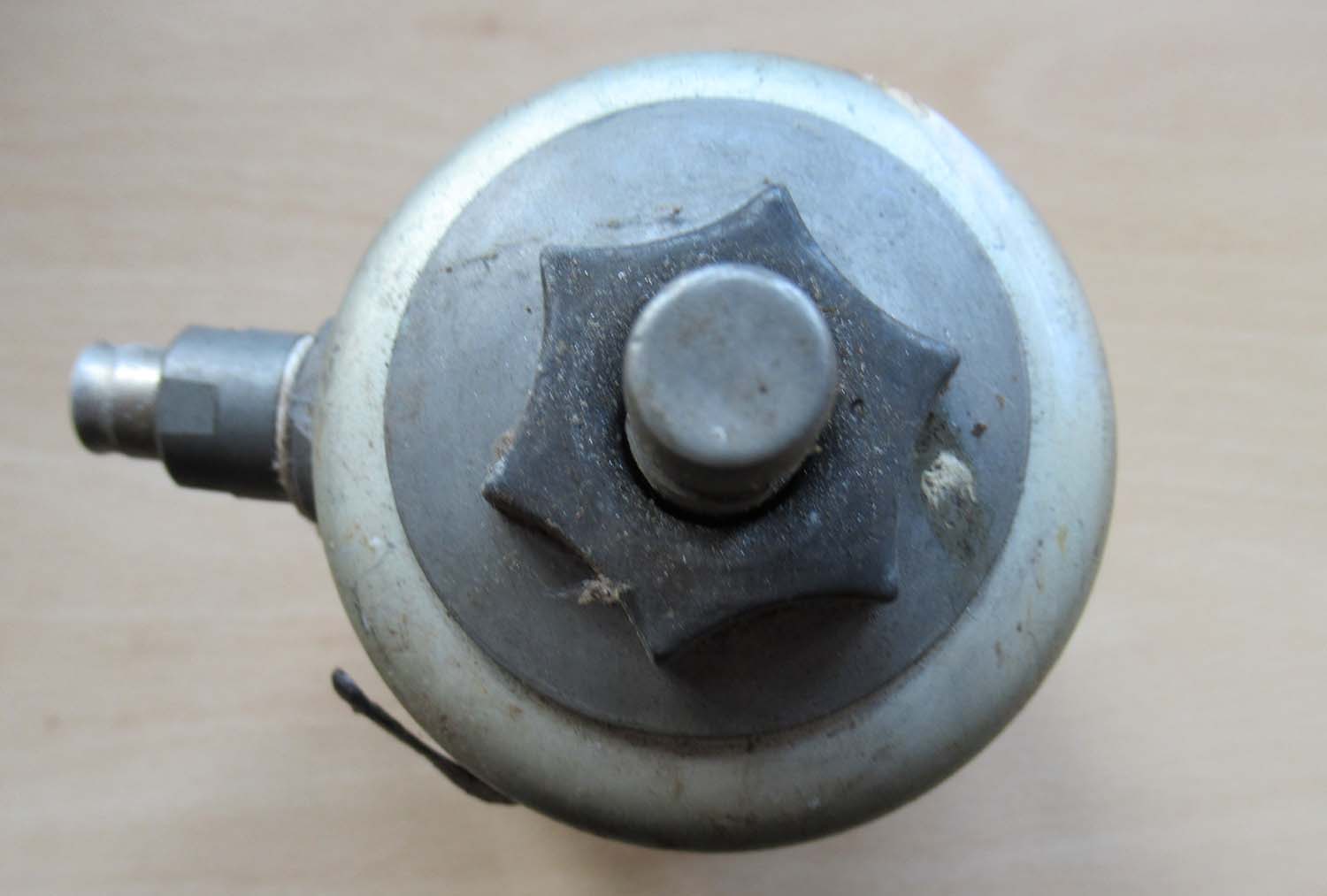

Oil Pressure switch Type FFD/A/20 (instruments page12 Pressure gauges 11A)

Oil pressure switch appears to be in serviceable condition.

I think this gives a low oil pressure warning.

Click on the pictures to enlarge

£75

Click on the pictures to enlarge

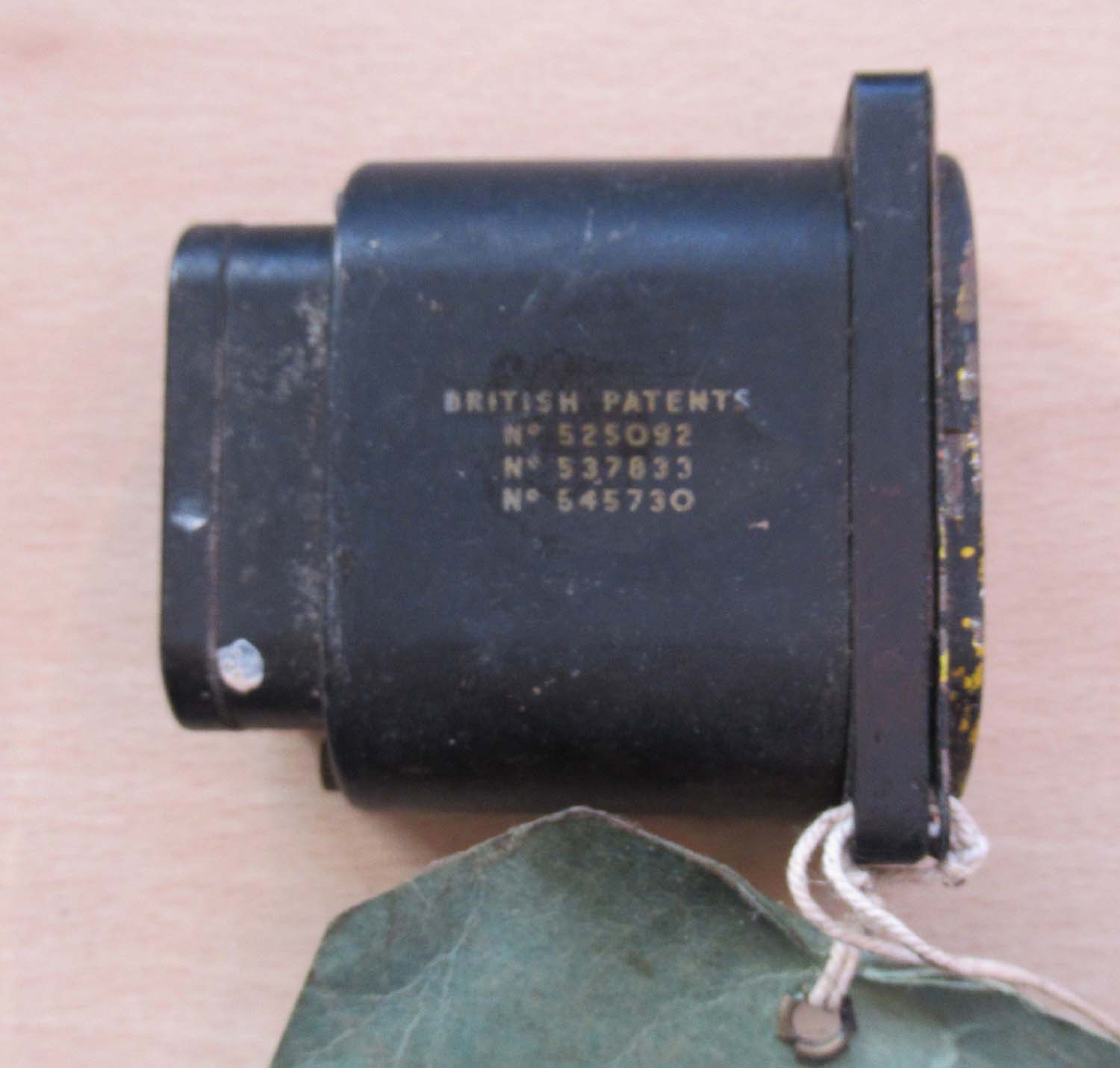

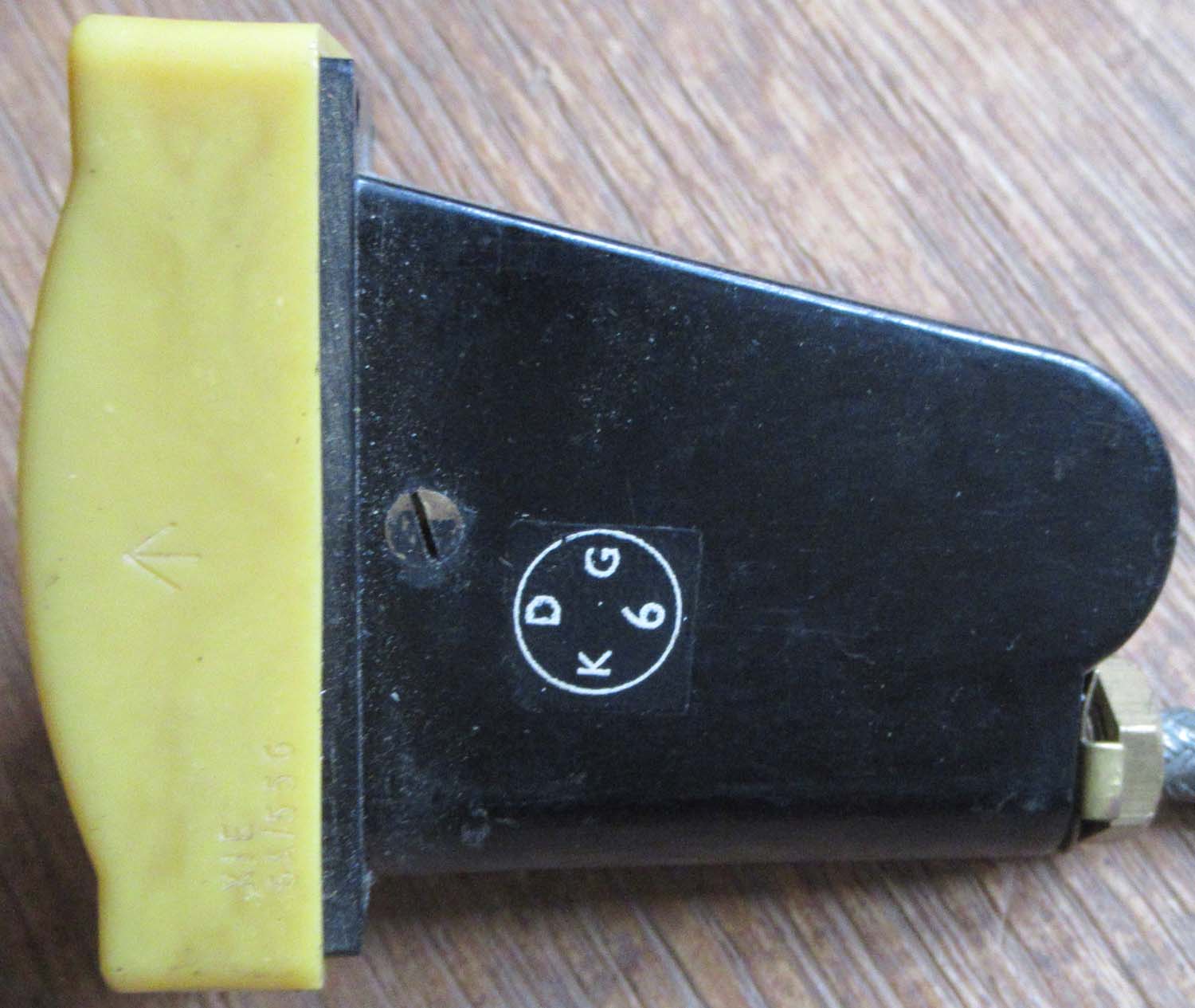

Desynn Oil Pressure gauge From RAF Hucknall (instruments page12 Pressure gauges 9A)

6A/1696

Here is a the later type of pressure gauge, generally found in late wartime or early post war aircraft it has a Rolls Royce  stores ticket from RAF Hucknall Aerodrome.

£75



Click on the pictures to enlarge

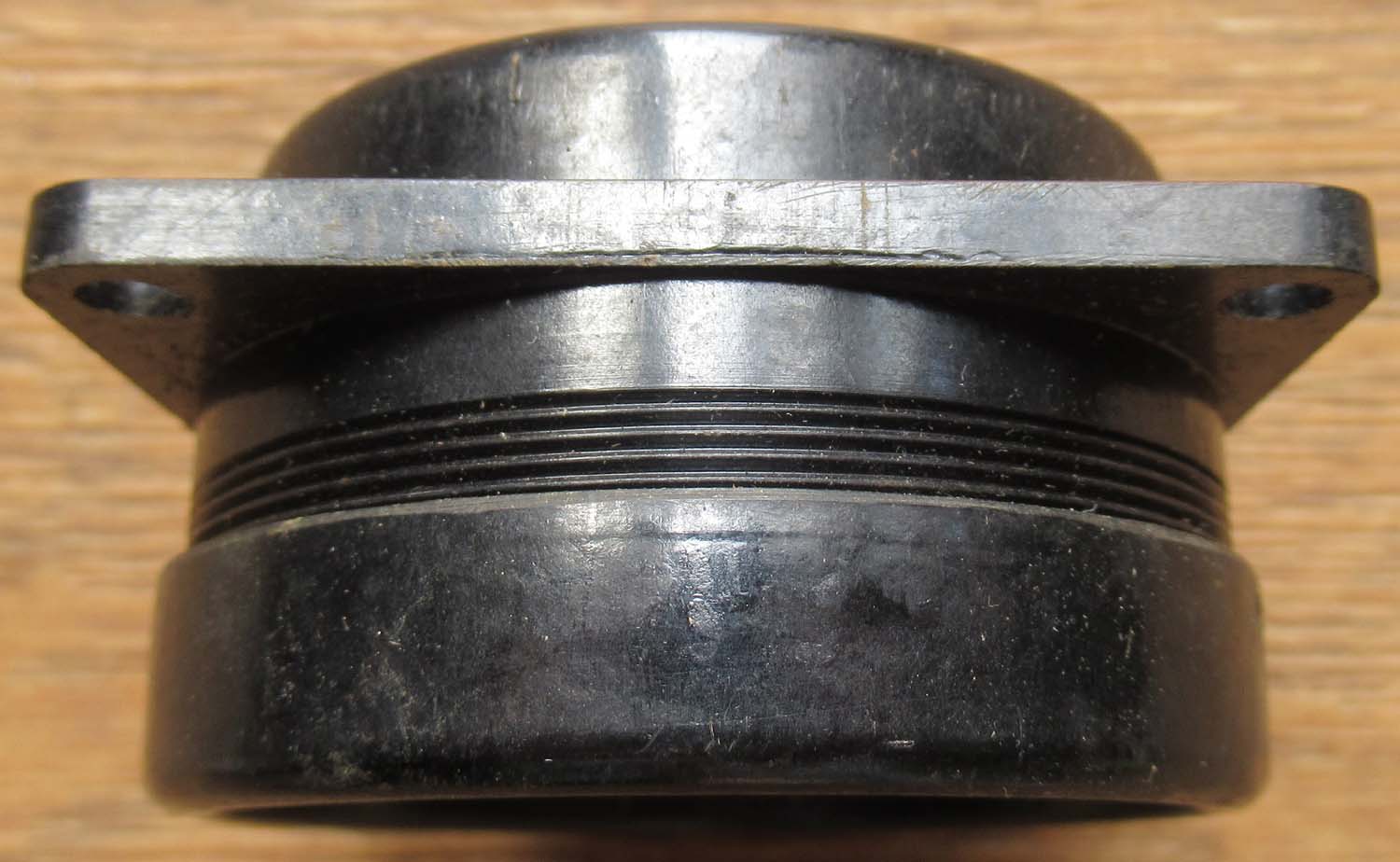

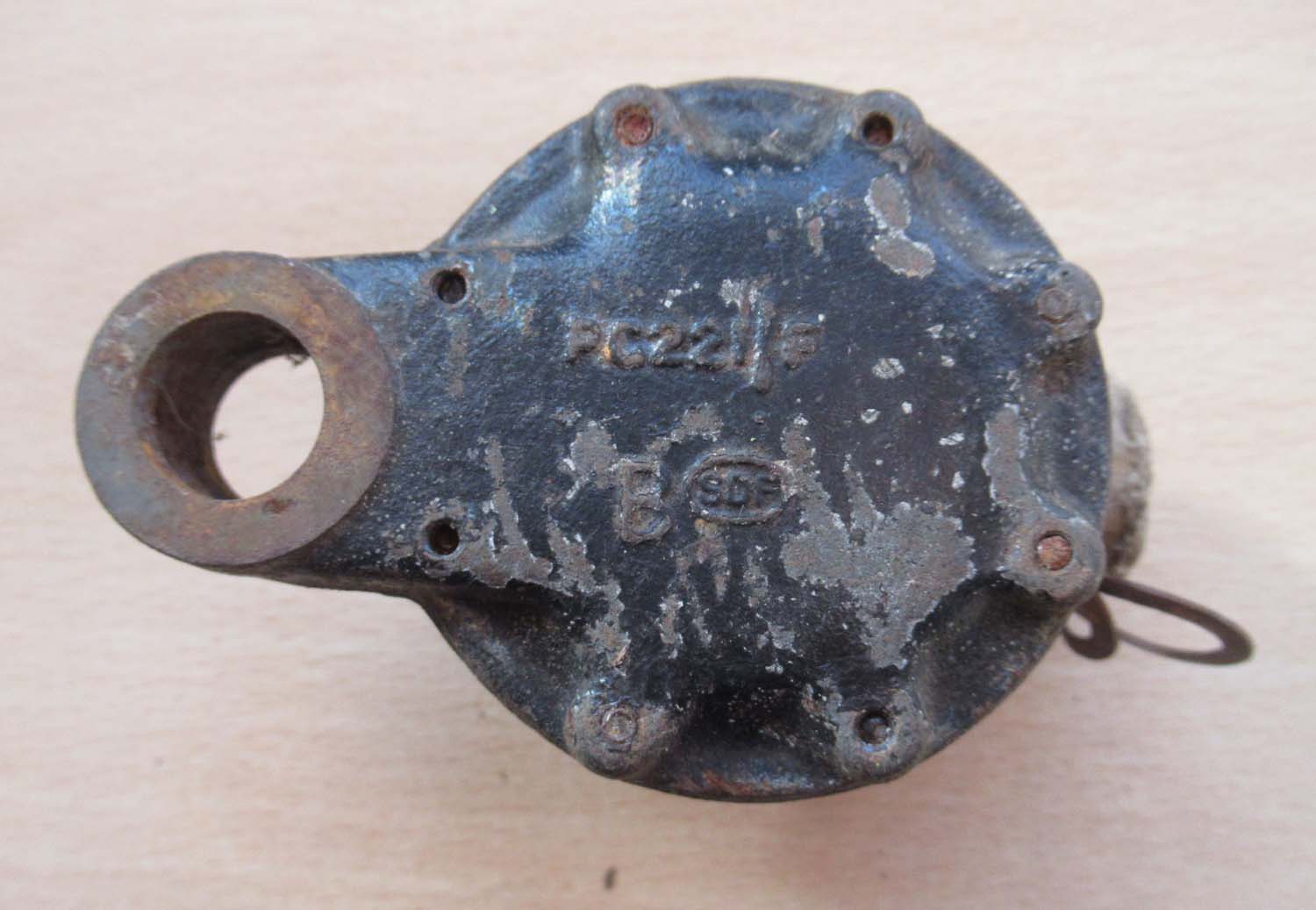

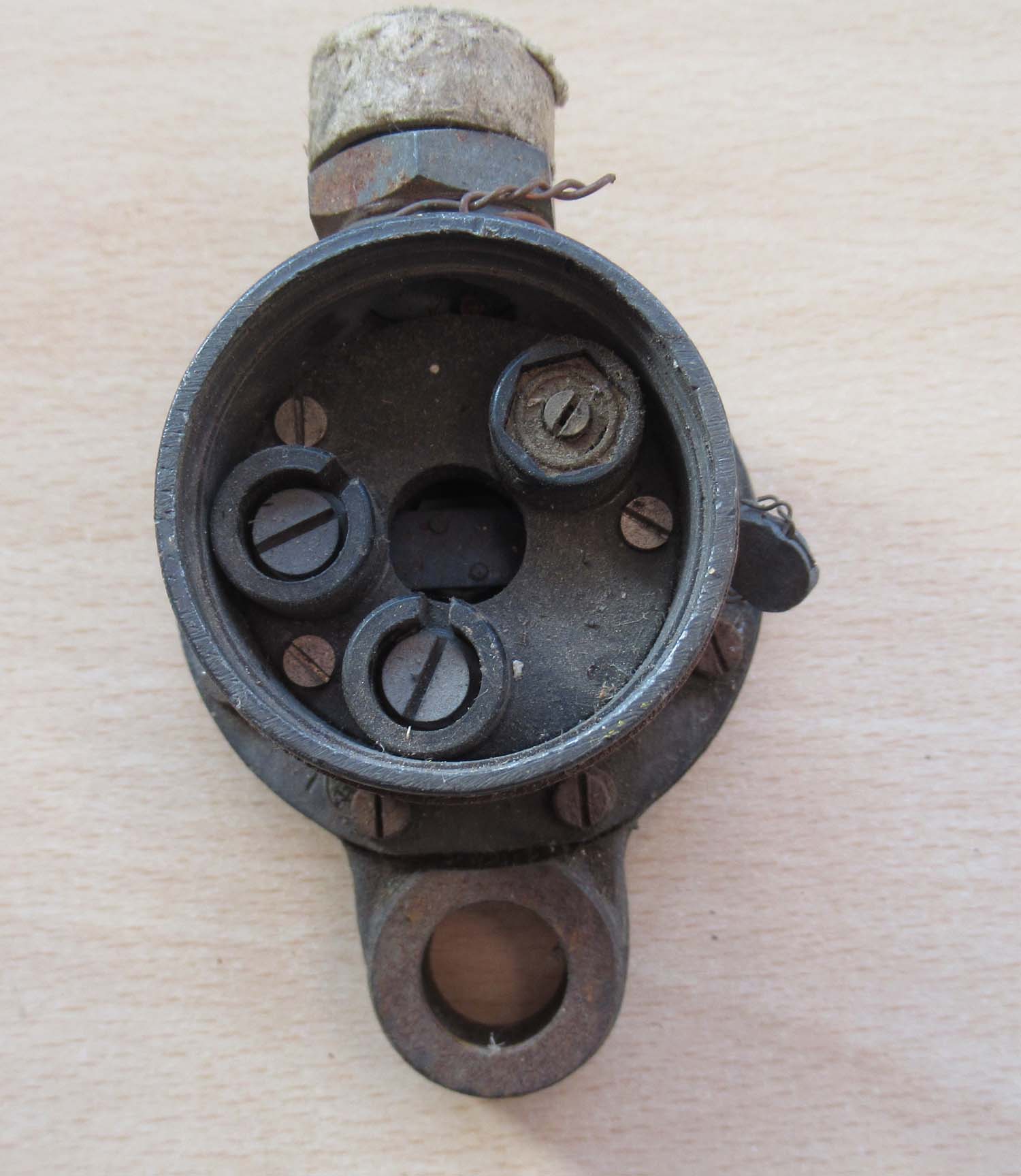

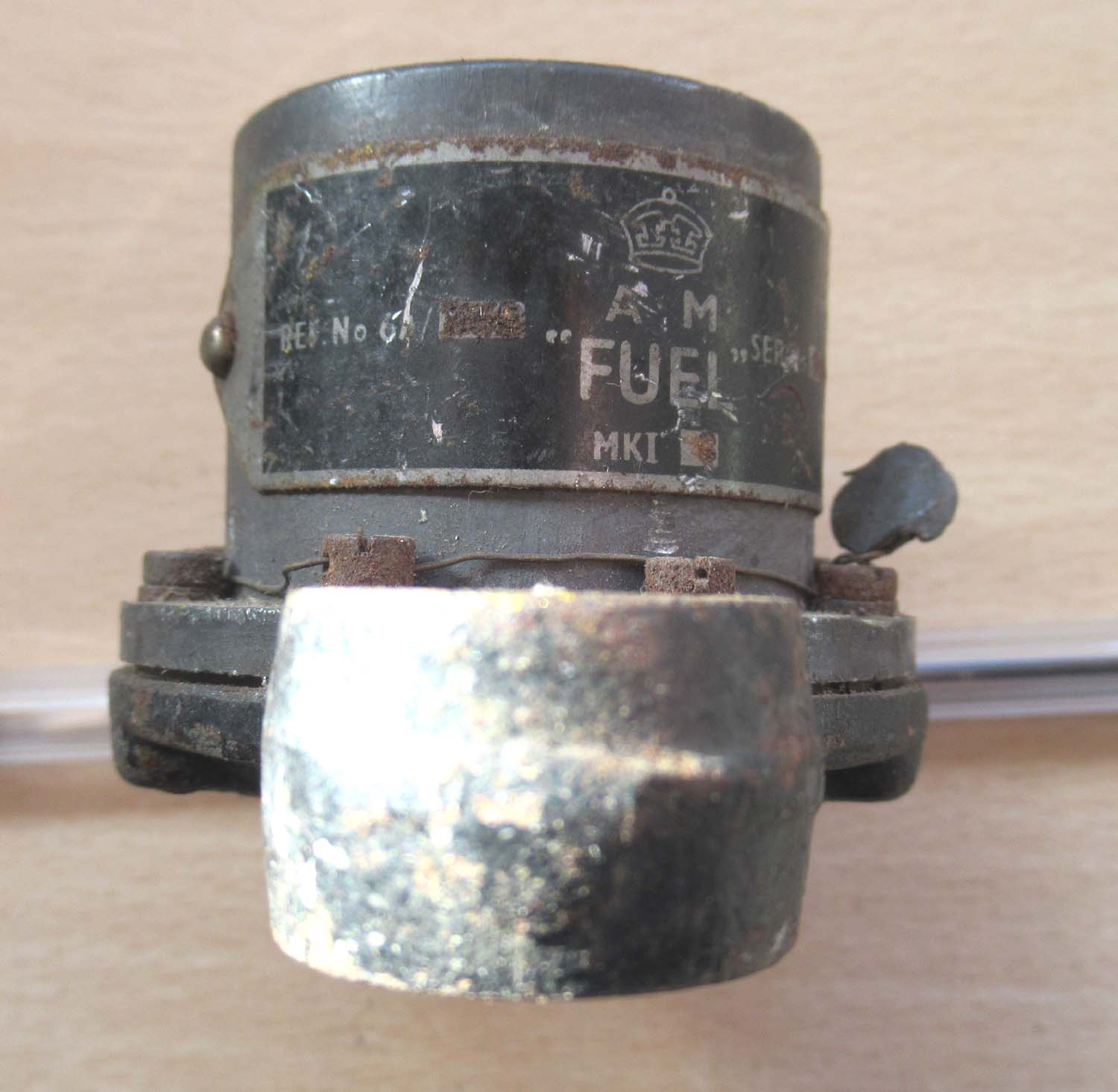

Fuel pressure sender unit (instruments page12 Pressure gauges 8)



This is a bolt on fuel pressure sender unit its missing the cover which goes over the electrical connectors . Otherwise its appears complete and has wire seals on the bolts and copper washers for fitting. This unit gives a warning usually illuminating a red lamp when fuel pressure drops below a safe lever. Used in a large number of RAF wartime aircraft including the Spitfire.

Click on the pictures to enlarge

6A/1358



£75

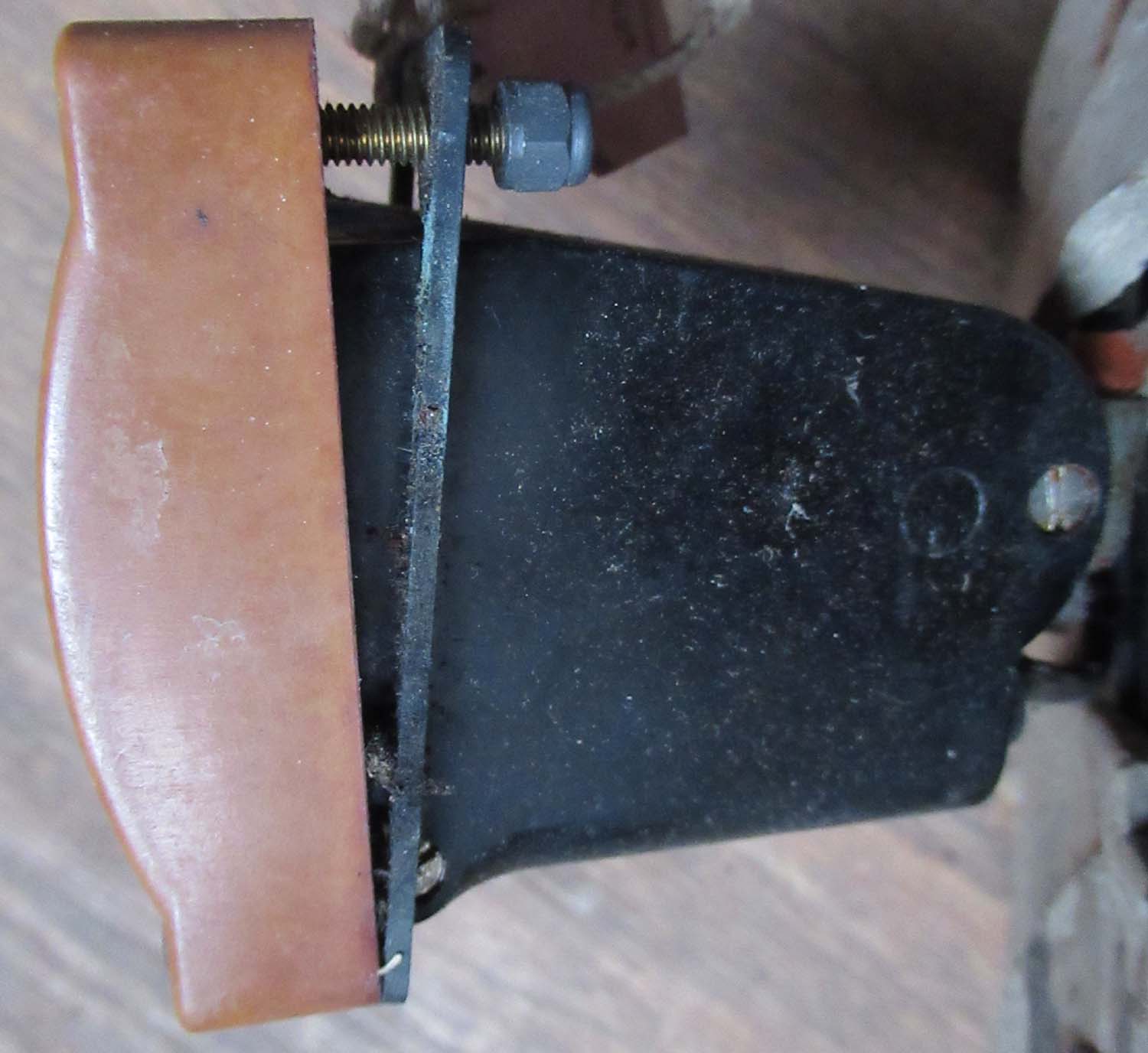

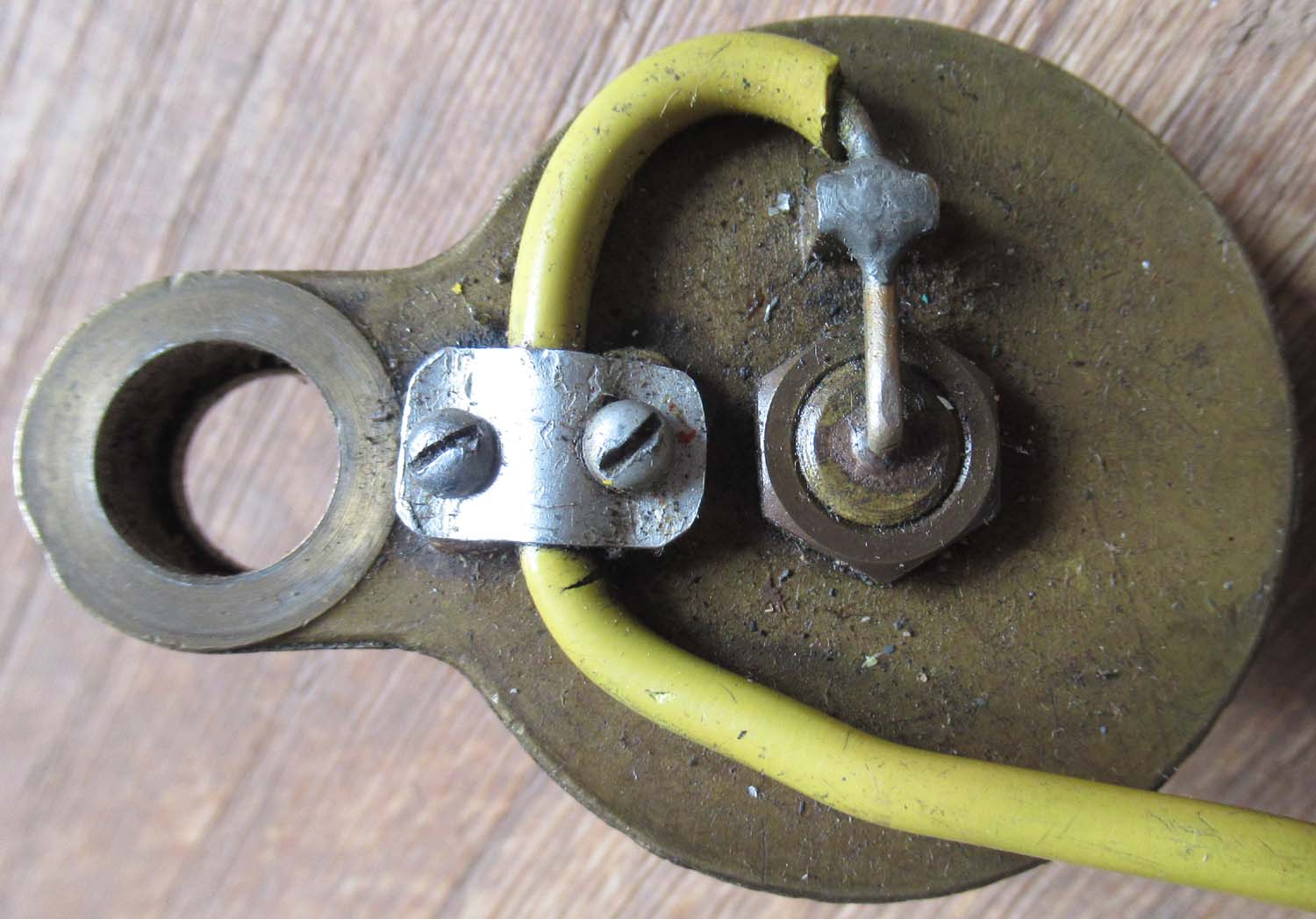

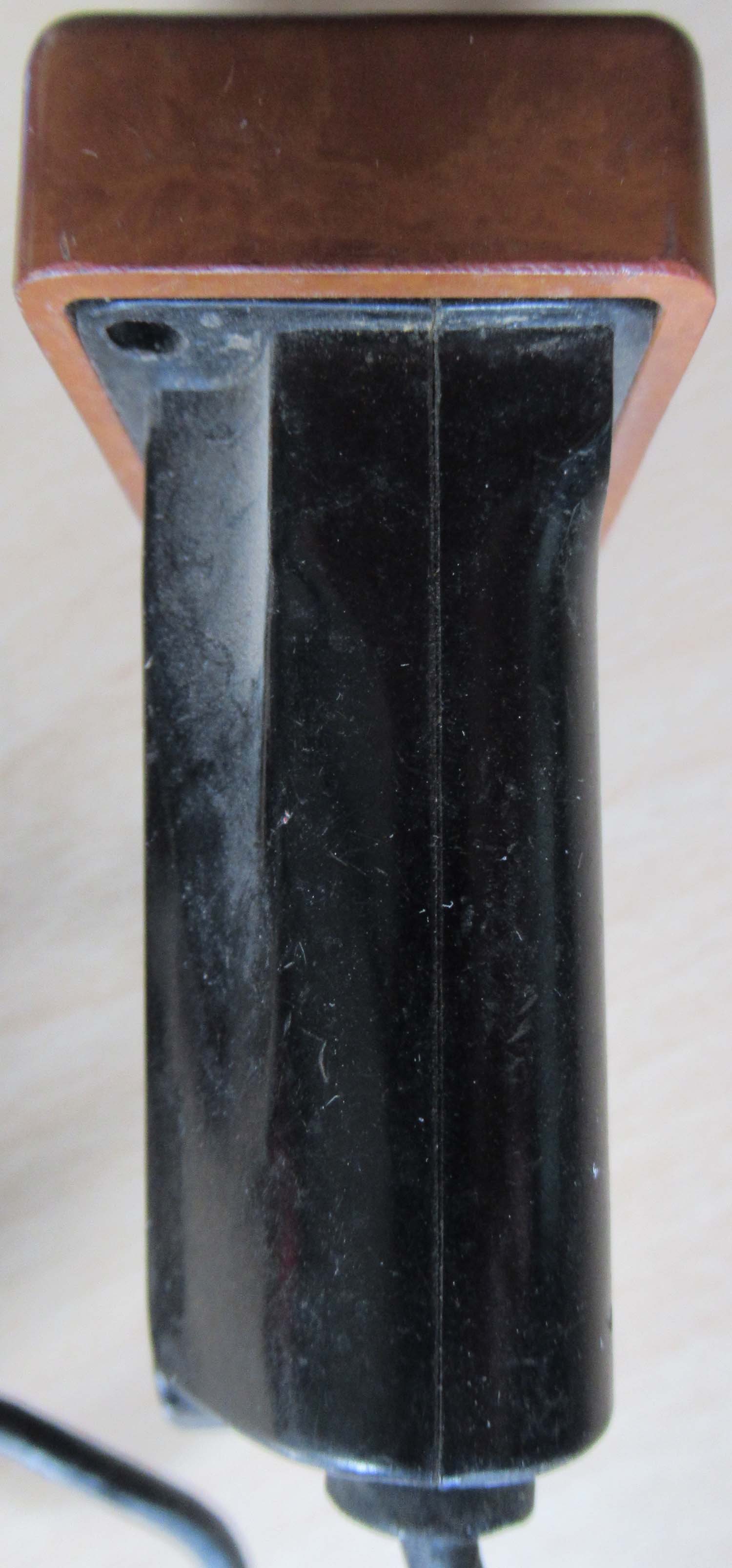

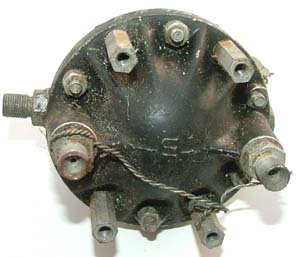

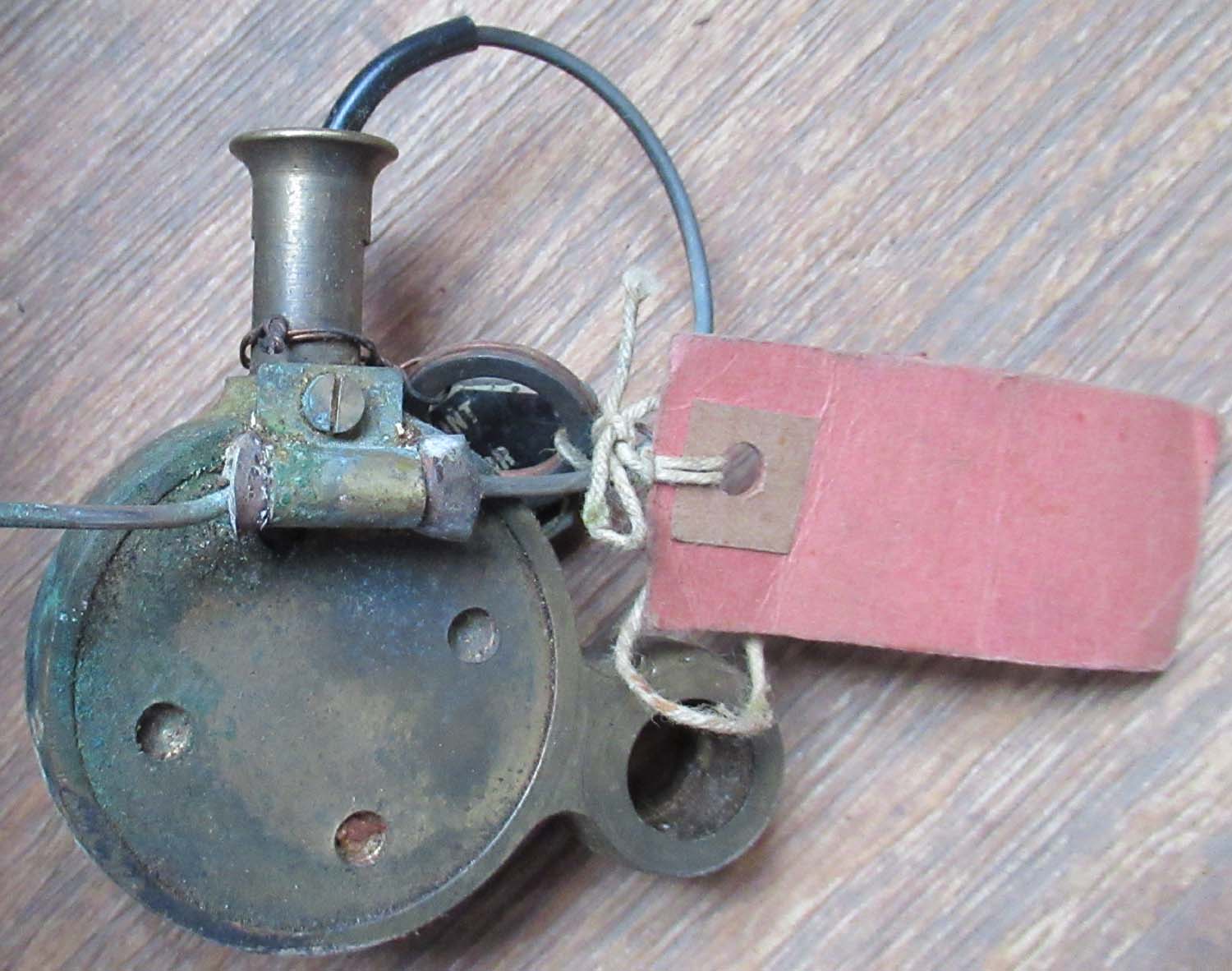

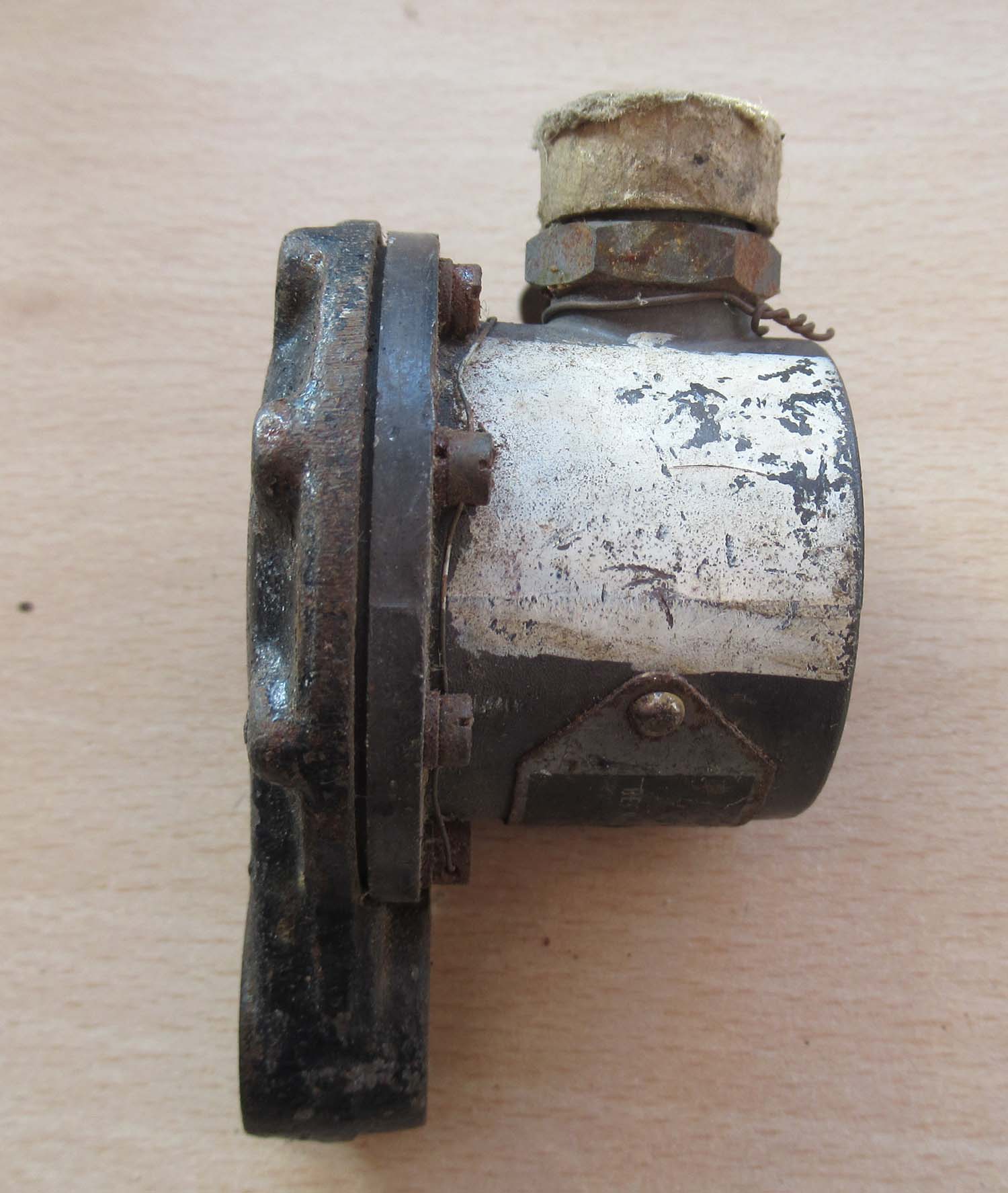

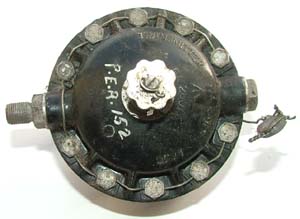

Oil Pressure gauge sender unit (instruments page12 Pressure gauges 7)

Click on the drawing under to enlarge

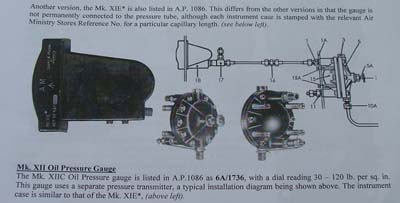

This extract was taken from a book produced by Alan Hume. I will be uploading a complete set of Alan's books on a variety of subjects and essential reading for the serious collector and restoration expert alike.

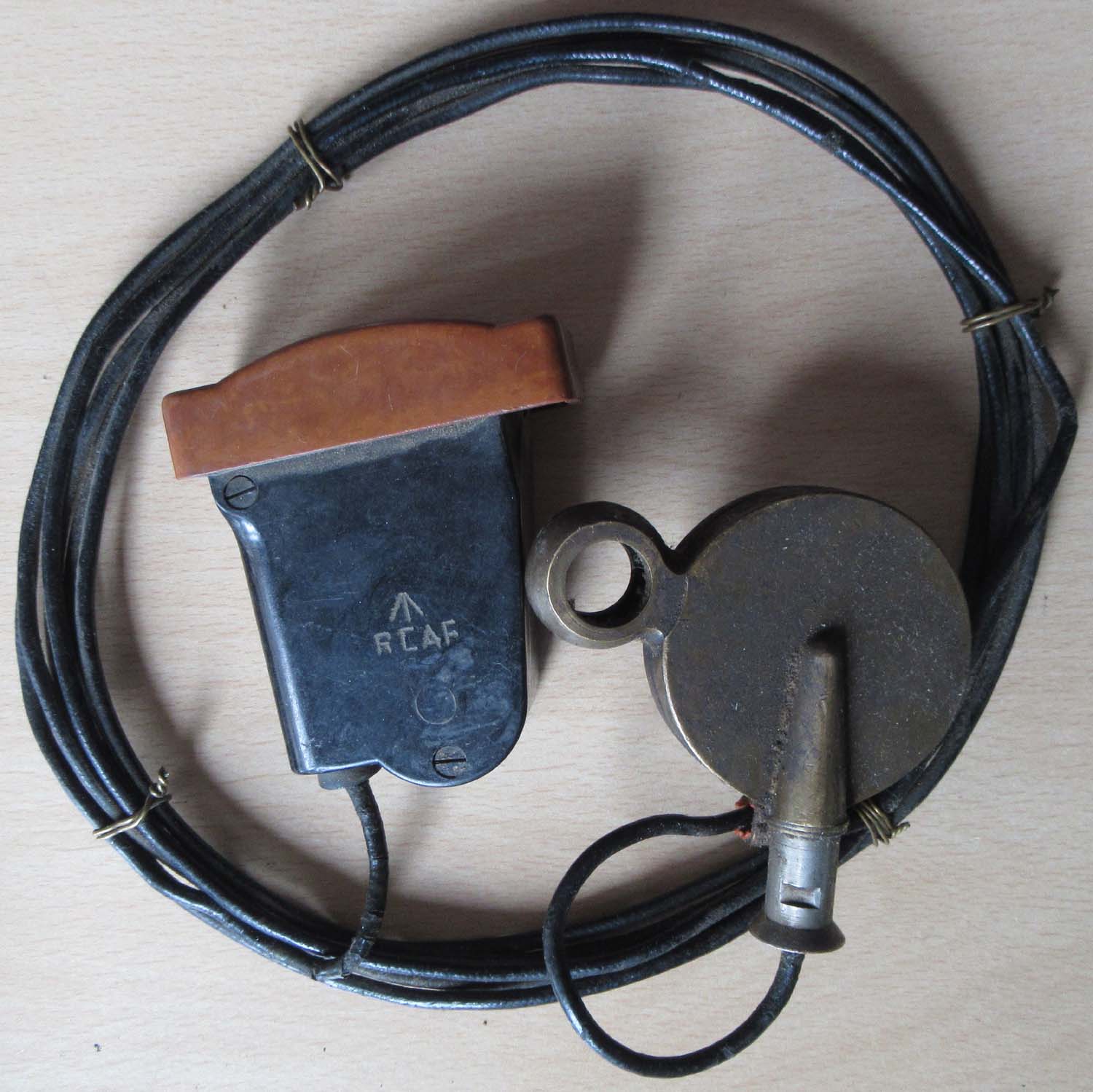

There were two types of oil pressure gauge used by the RAF in WWII. The early type which used a capillary and the MK XIIC which has a threaded tube at the back of the instrument as seen above.

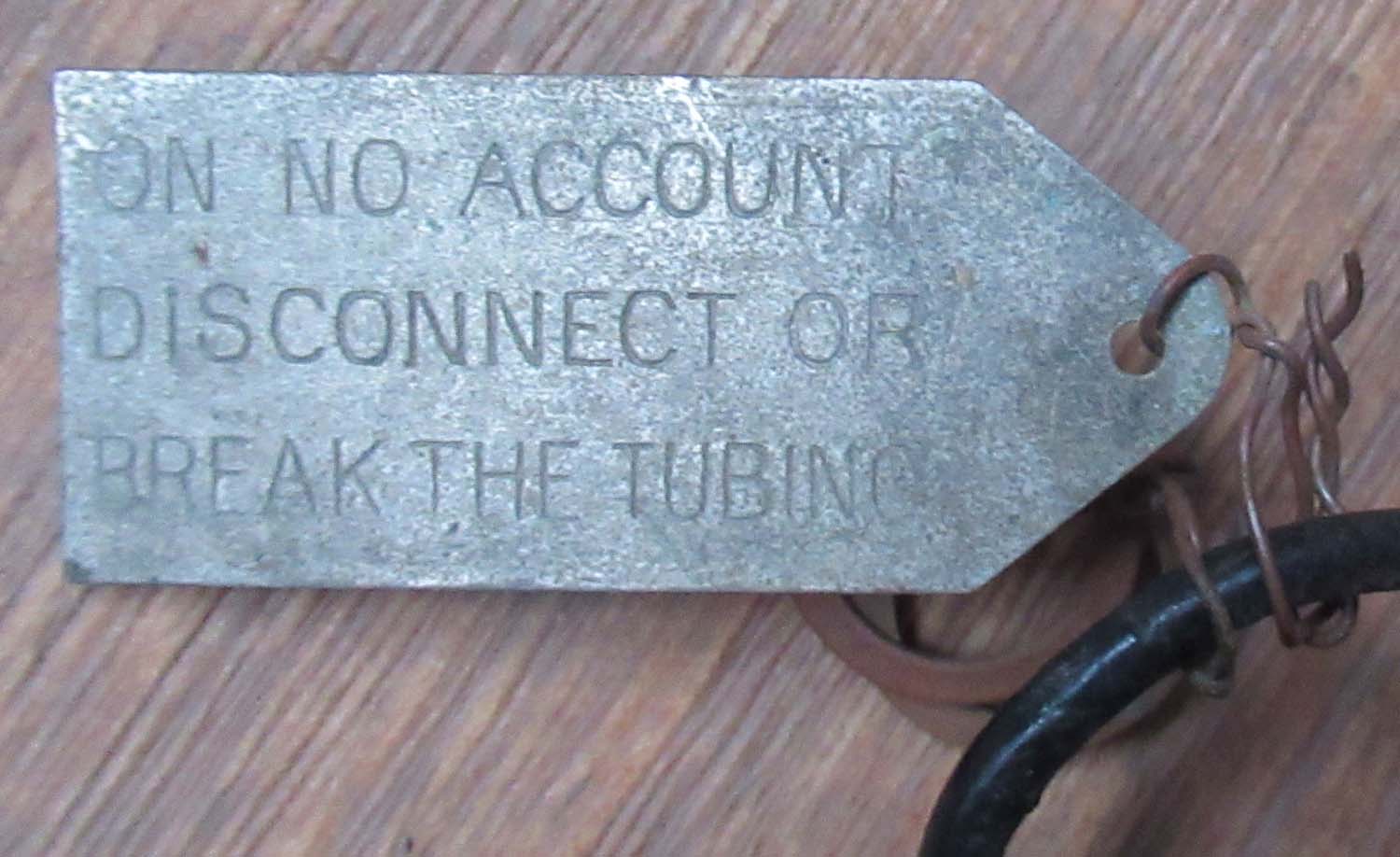

The capillaries are notoriously fragile and a break in the pipe would involve the complete replacement of both gauge and sender as they cannot be repaired once broken, using this type of sender would avoid complete replacement if a fault developed.

This is the sender unit for this type of gauge. It appears in excellent order with its wire seals intact .



£85



Click on the pictures to enlarge

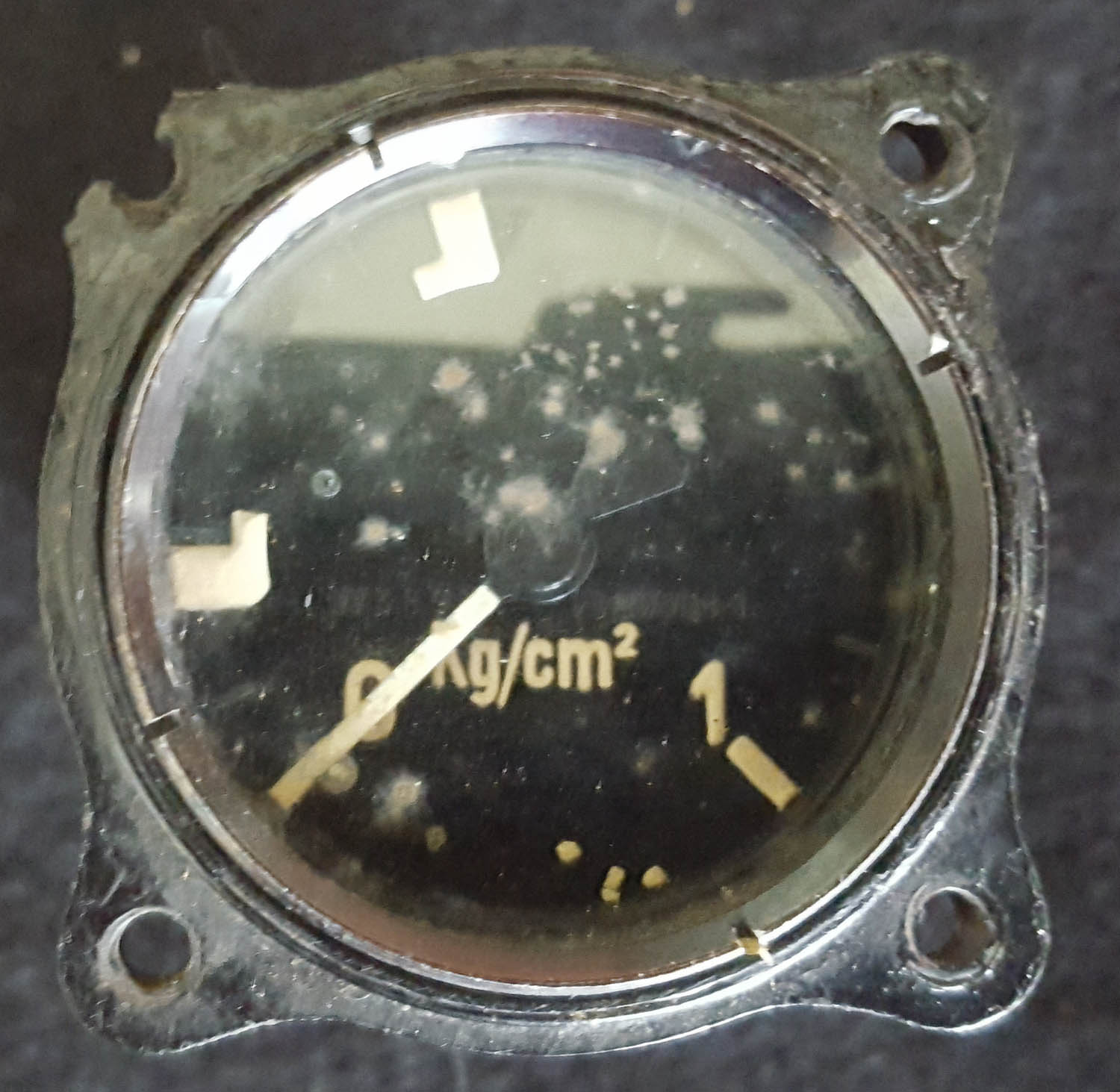

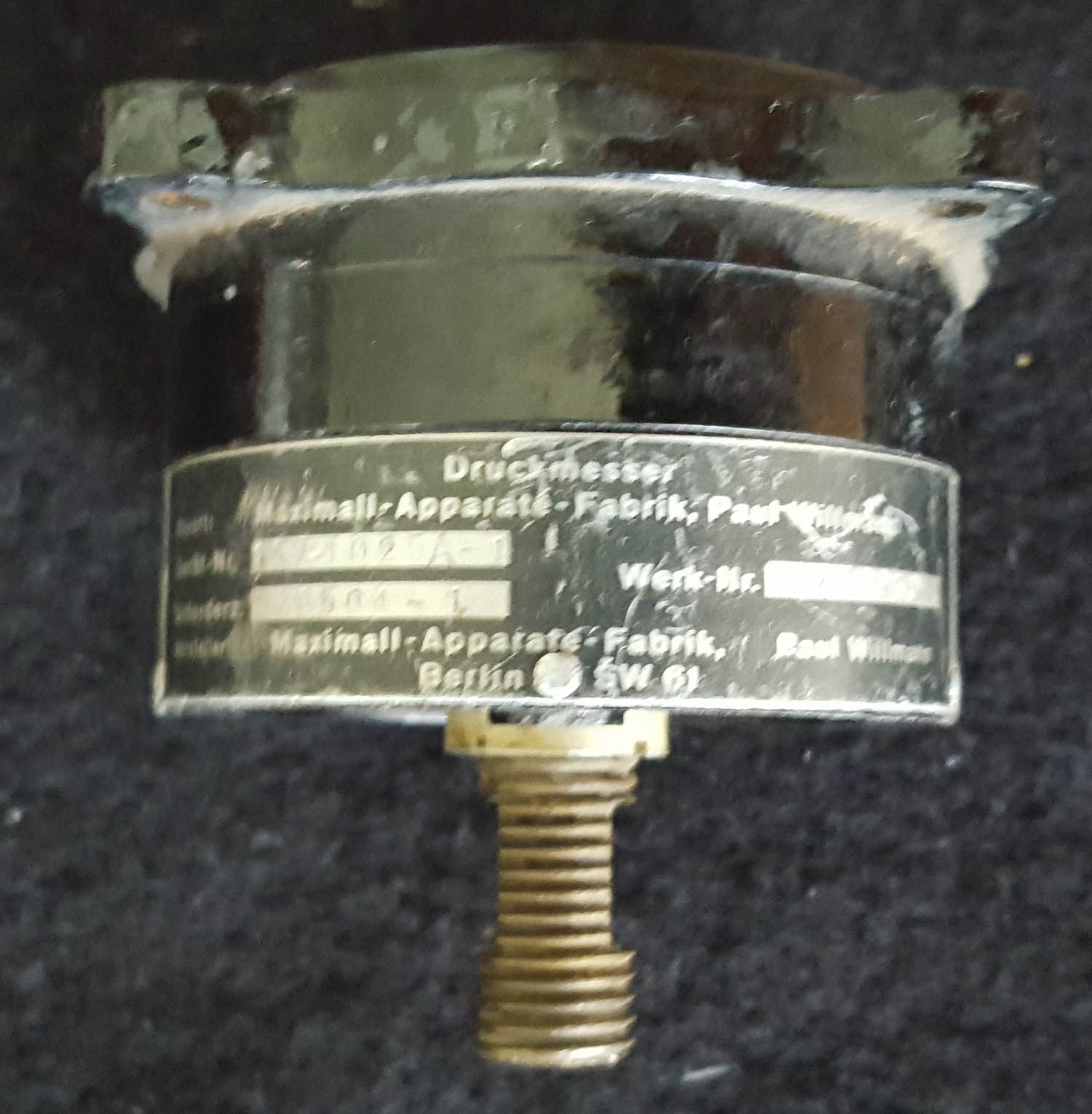

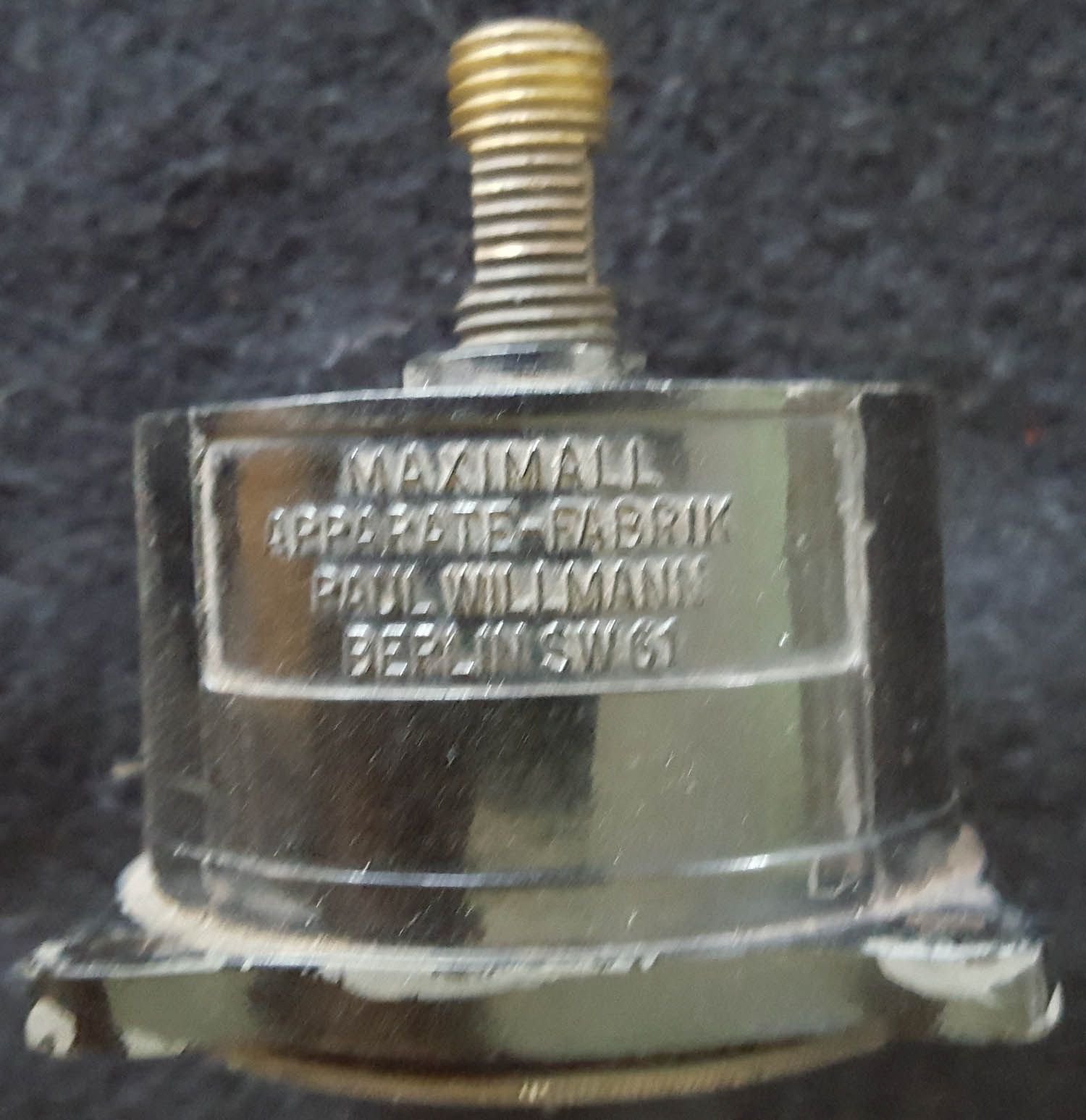

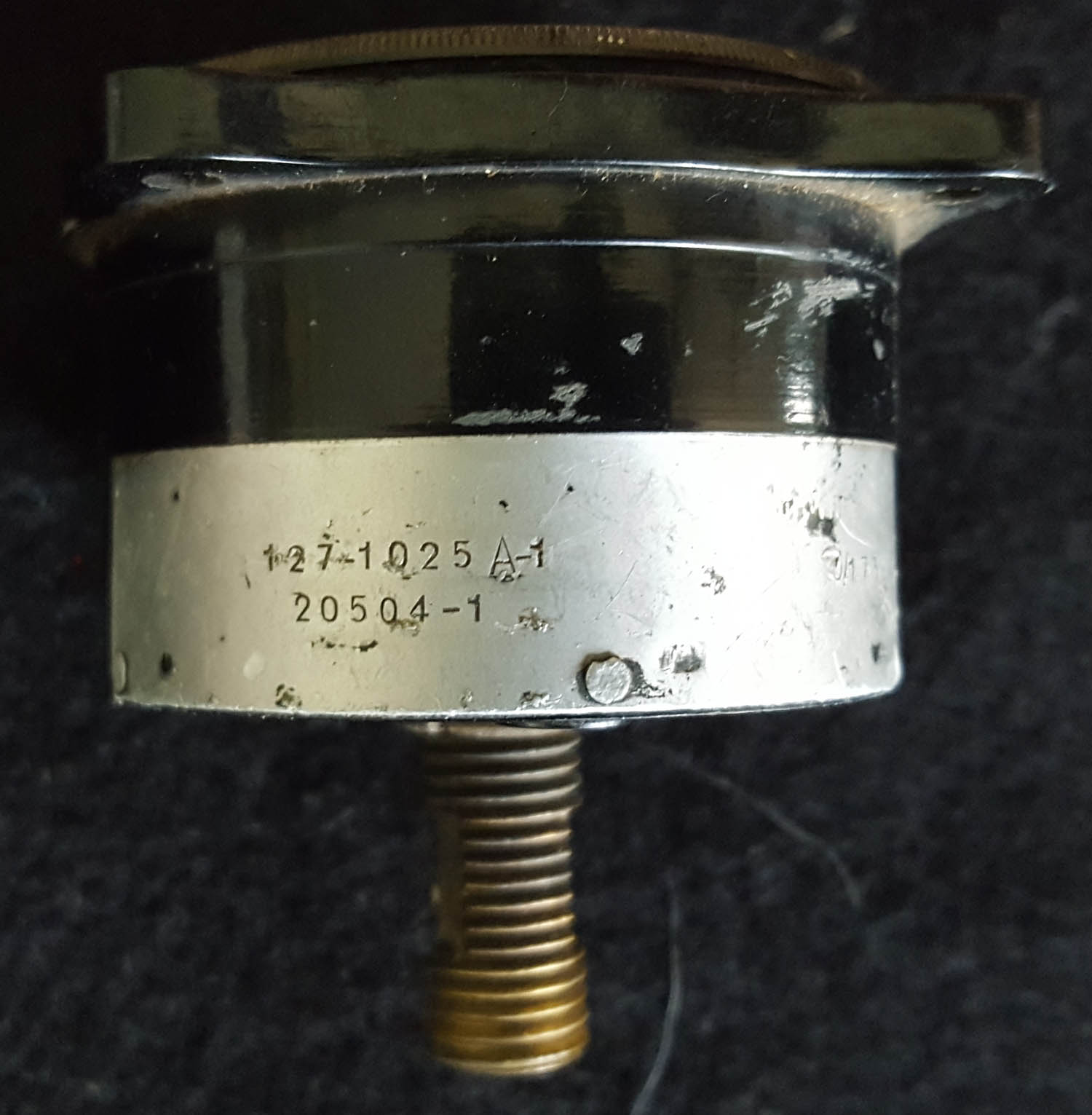

Luftwaffe fuel pressure gauge FL 20504-1 (instruments page12 Pressure gauges 4)

Here we have a  German fuel pressure gauge used in the Ar79, Bu131, Bu153, He46, He72, Ju234, Klem L35 all these aircraft are generally late 1930s small German aircraft used for training.



The glass needs a good clean and one lug is broken.

FL 20504-1



£65





Click on the pictures to enlarge

Click on the pictures to enlarge

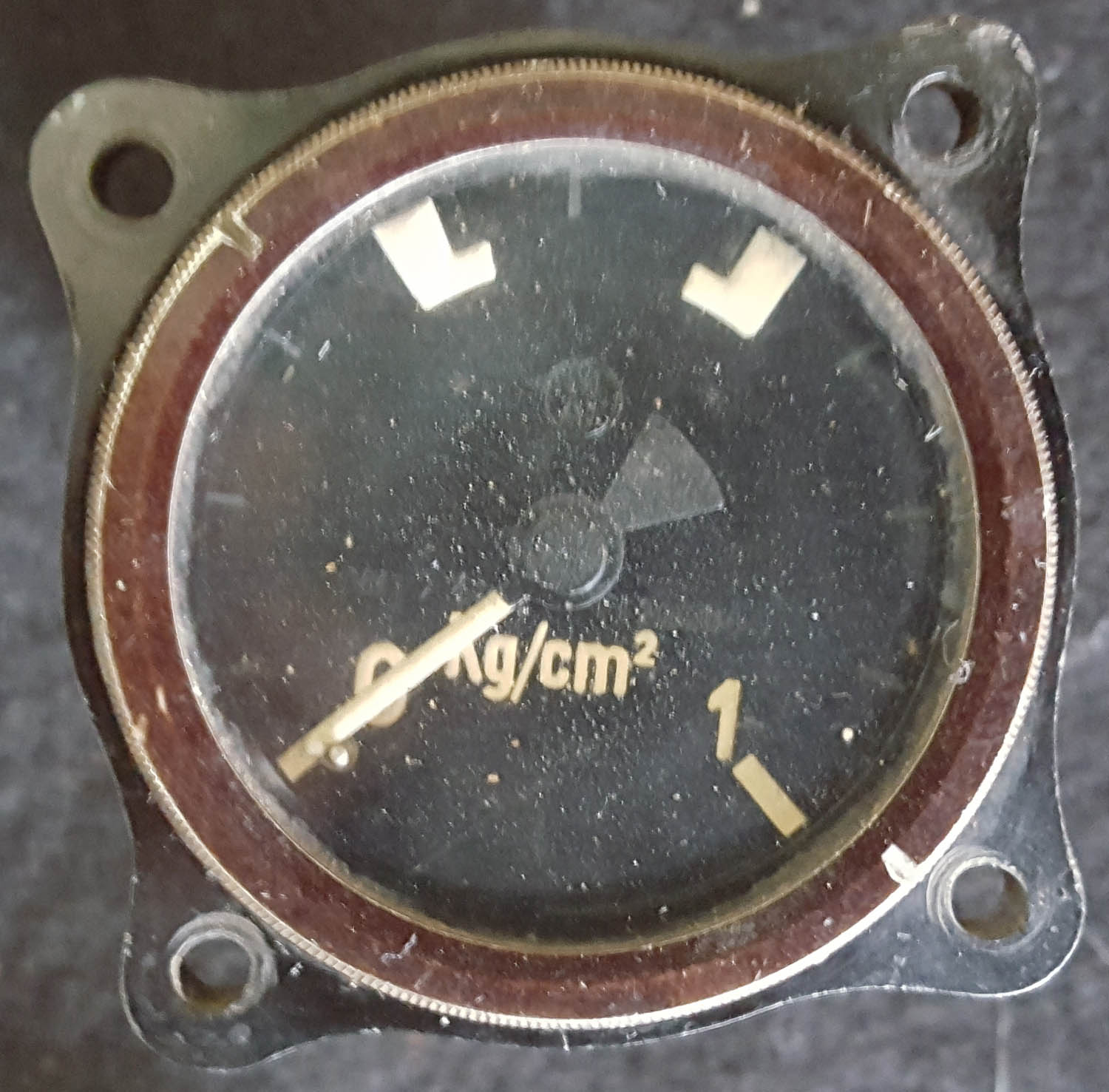

Luftwaffe fuel pressure gauge FL 20504-1 (instruments page12 Pressure gauges 3)

Here we have a  German fuel pressure gauge used in the Ar79, Bu131, Bu153, He46, He72, Ju234, Klem L35 all these aircraft are generally late 1930s small German aircraft used for training.

FL 20504-1

Above the Klem L35

Above the Klem 79



£85



Click on the pictures to enlarge

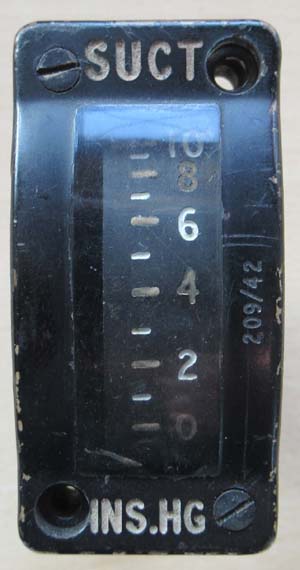

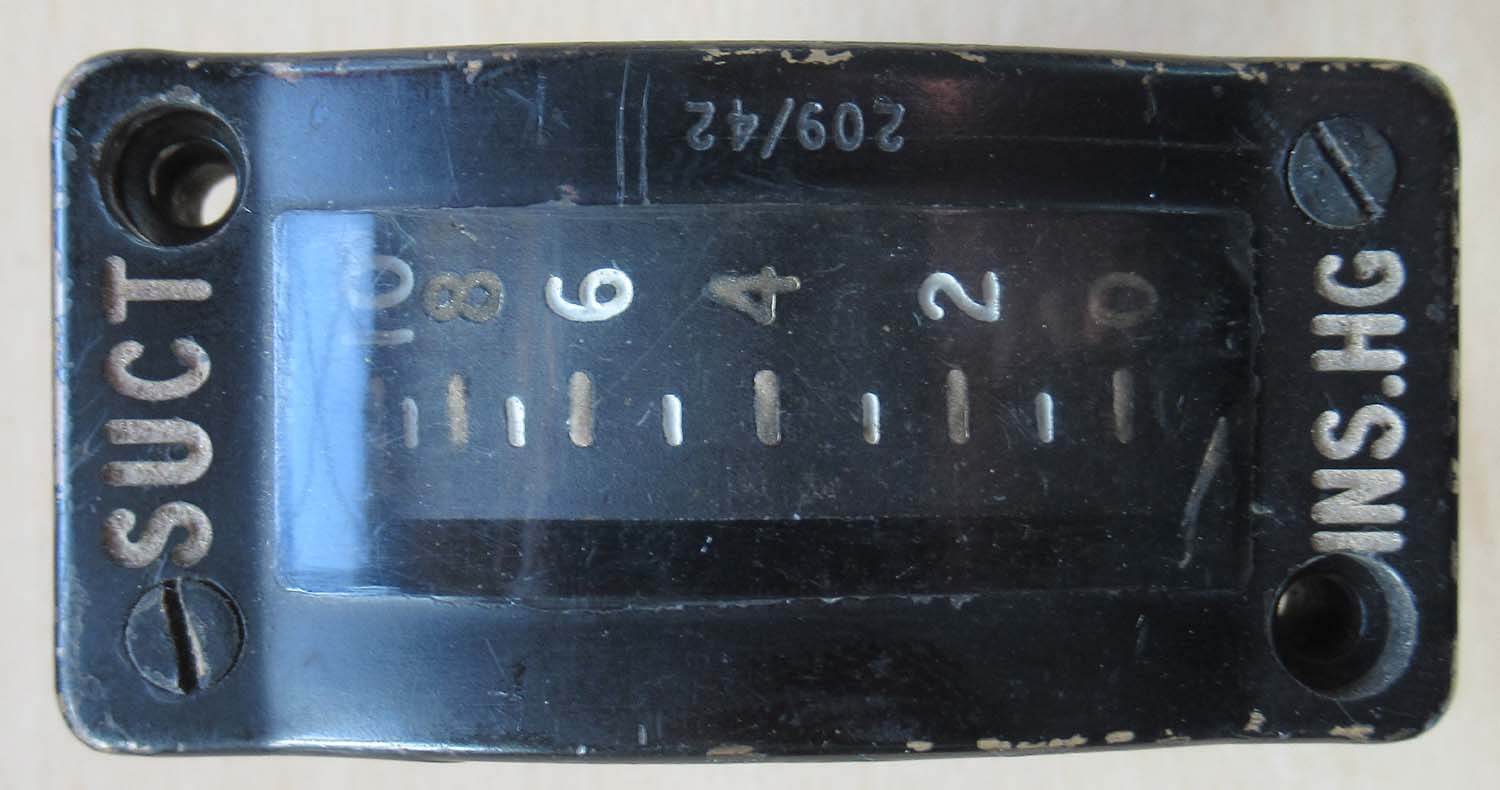

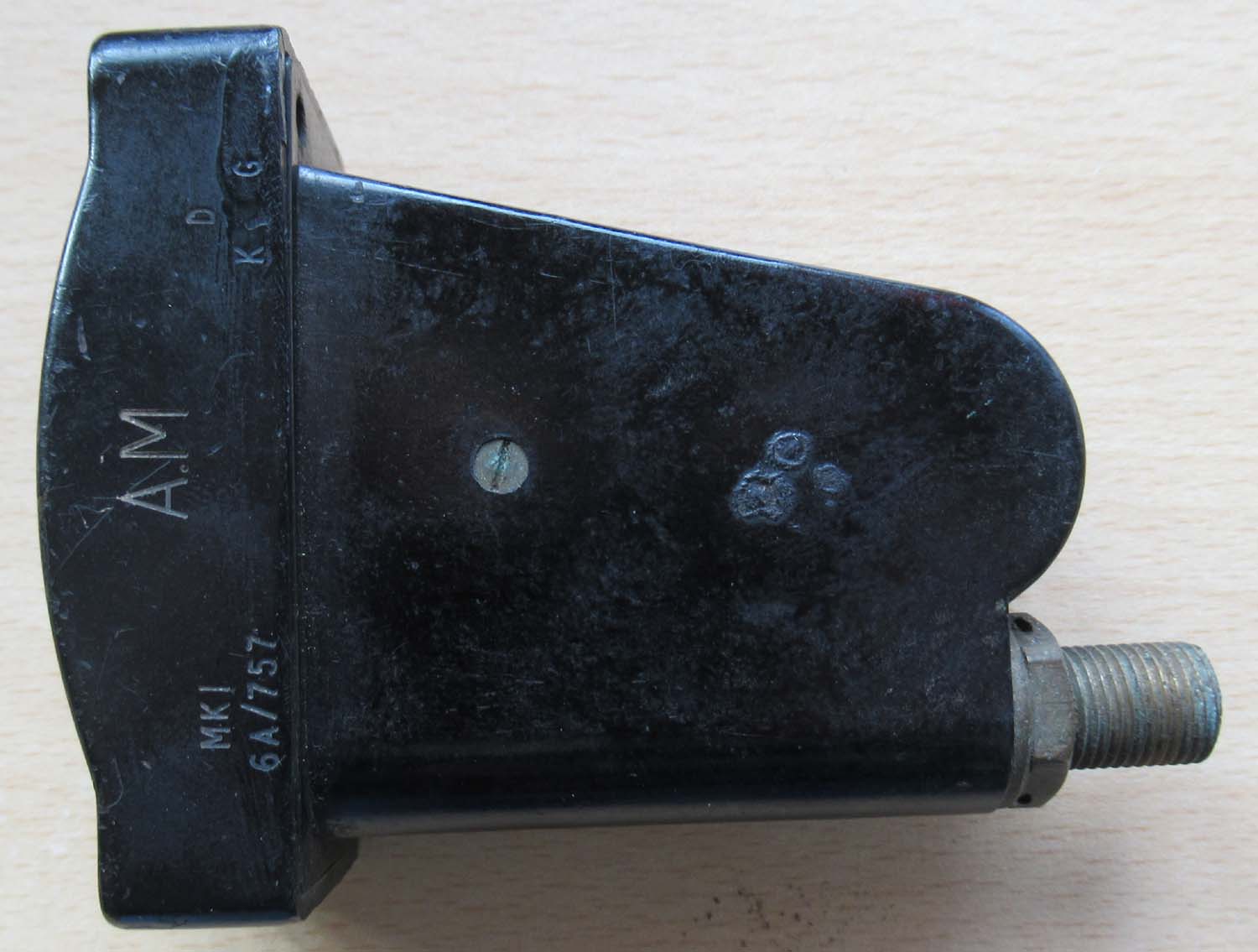

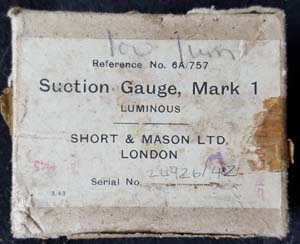

Lancaster Suction gauge (instruments page12 Pressure gauges 14)

Suction gauge used on the Lancaster main panel. Also used in a variety of other RAF WWII aircraft This is an excellent example in its original box complete with fixing bracket.

Dated 1942  A/M 6A/757

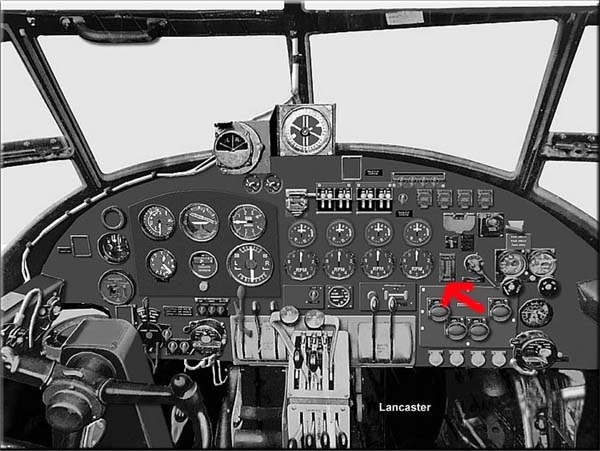

Above seen in situ in a Lancaster



Click on the pictures to enlarge

Out of stock more wanted contact me

Click on the pictures to enlarge

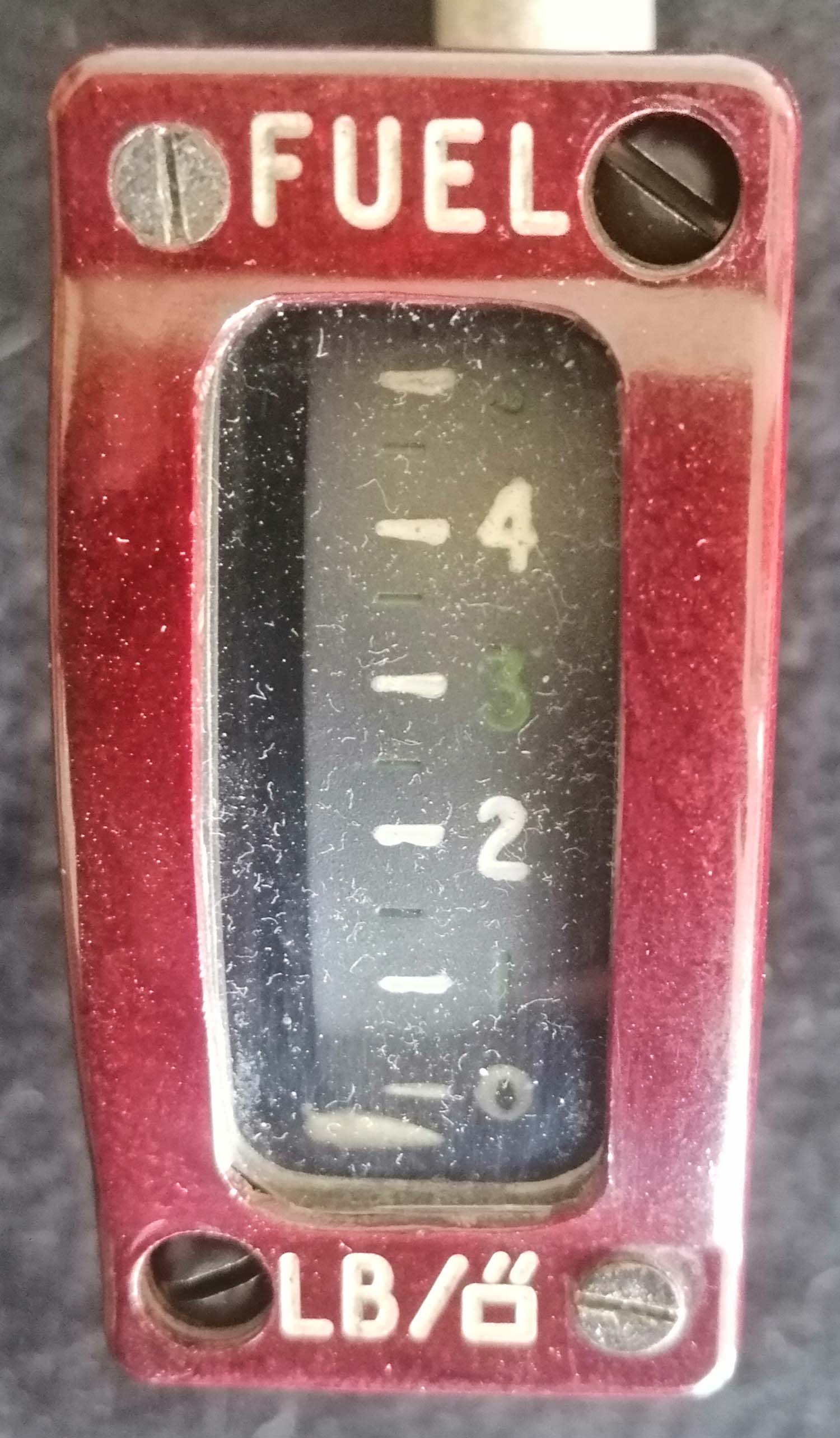

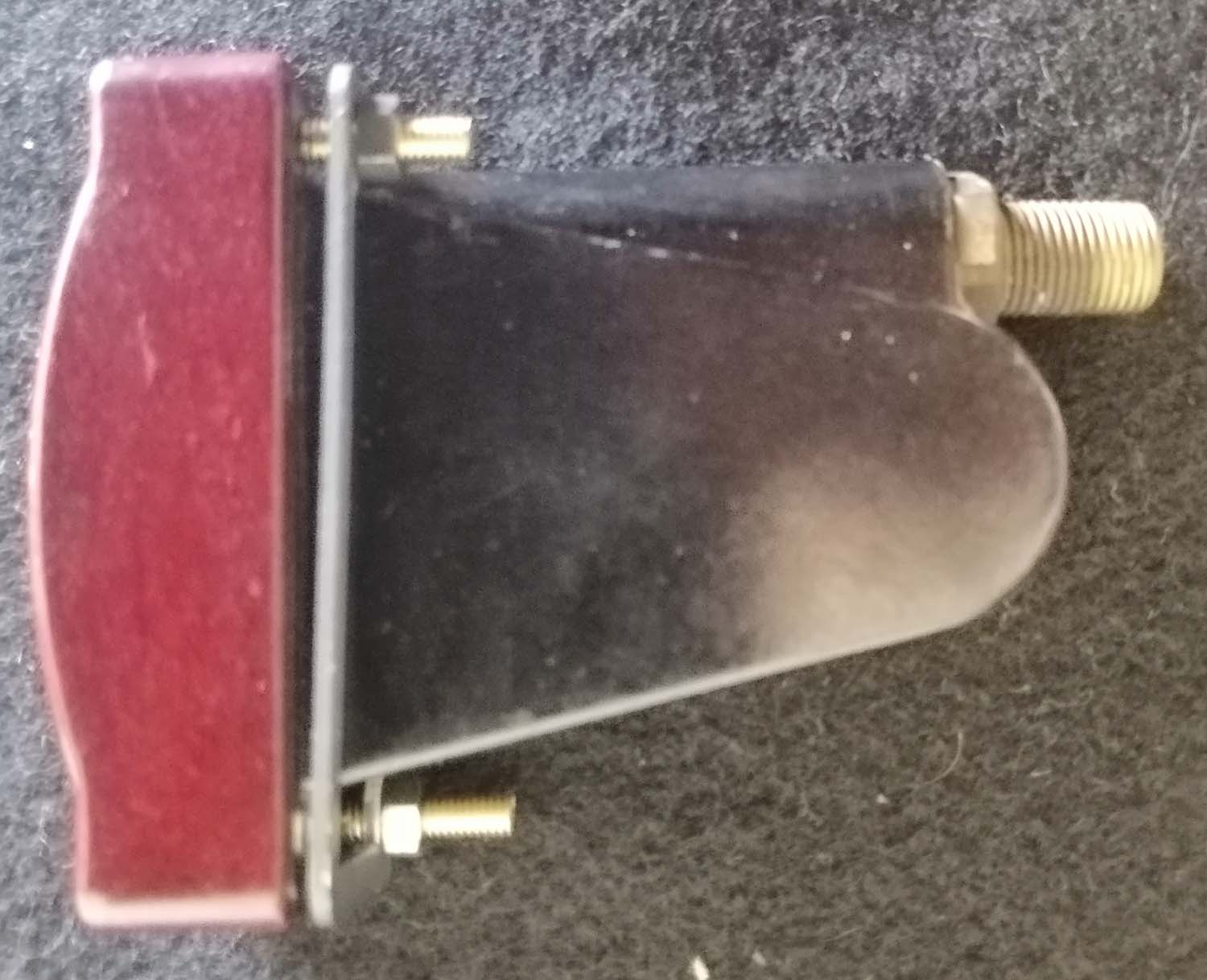

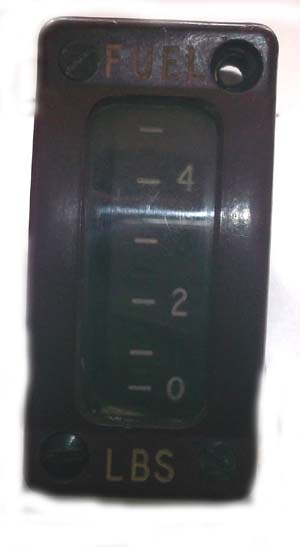

Fuel Pressure gauge  4Lb (instruments page12 Pressure gauges 16)

This is a fuel pressure gauge used in the early Spitfire and other RAF aircraft complete with its mounting bracket this model does not use the capillary but is designed to take a detectable tube. Very nice clean condition and very hard to find.



Out of Stock more always wanted please contact me



Click on the picture's to enlarge them.

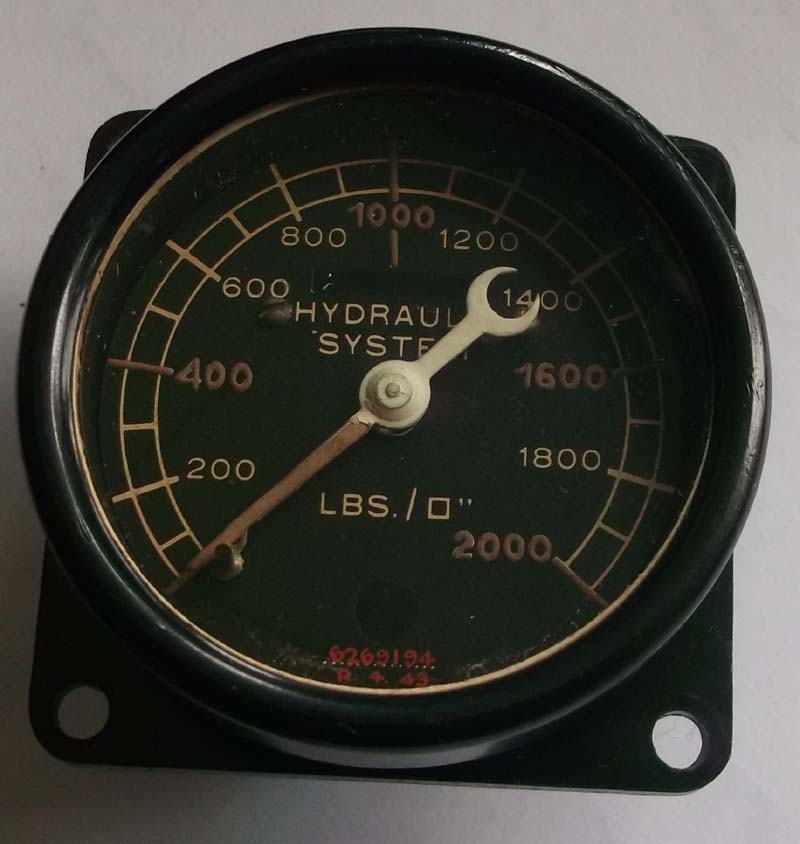

Hydraulic pressure gauge (instruments page12 Pressure gauges 31)

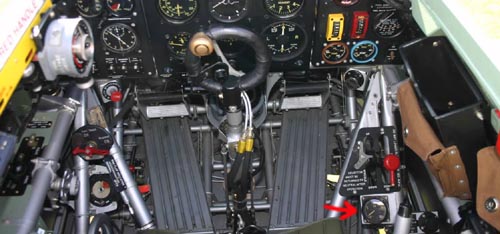

Fitted to Hurricanes and almost certainly other wartime aircraft.

Out of stock more wanted please contact me



Click on the pictures to enlarge

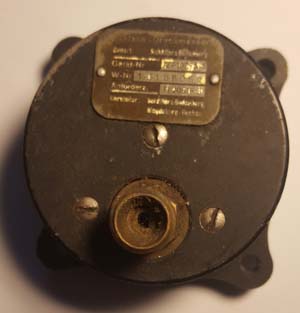

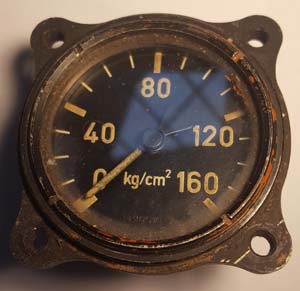

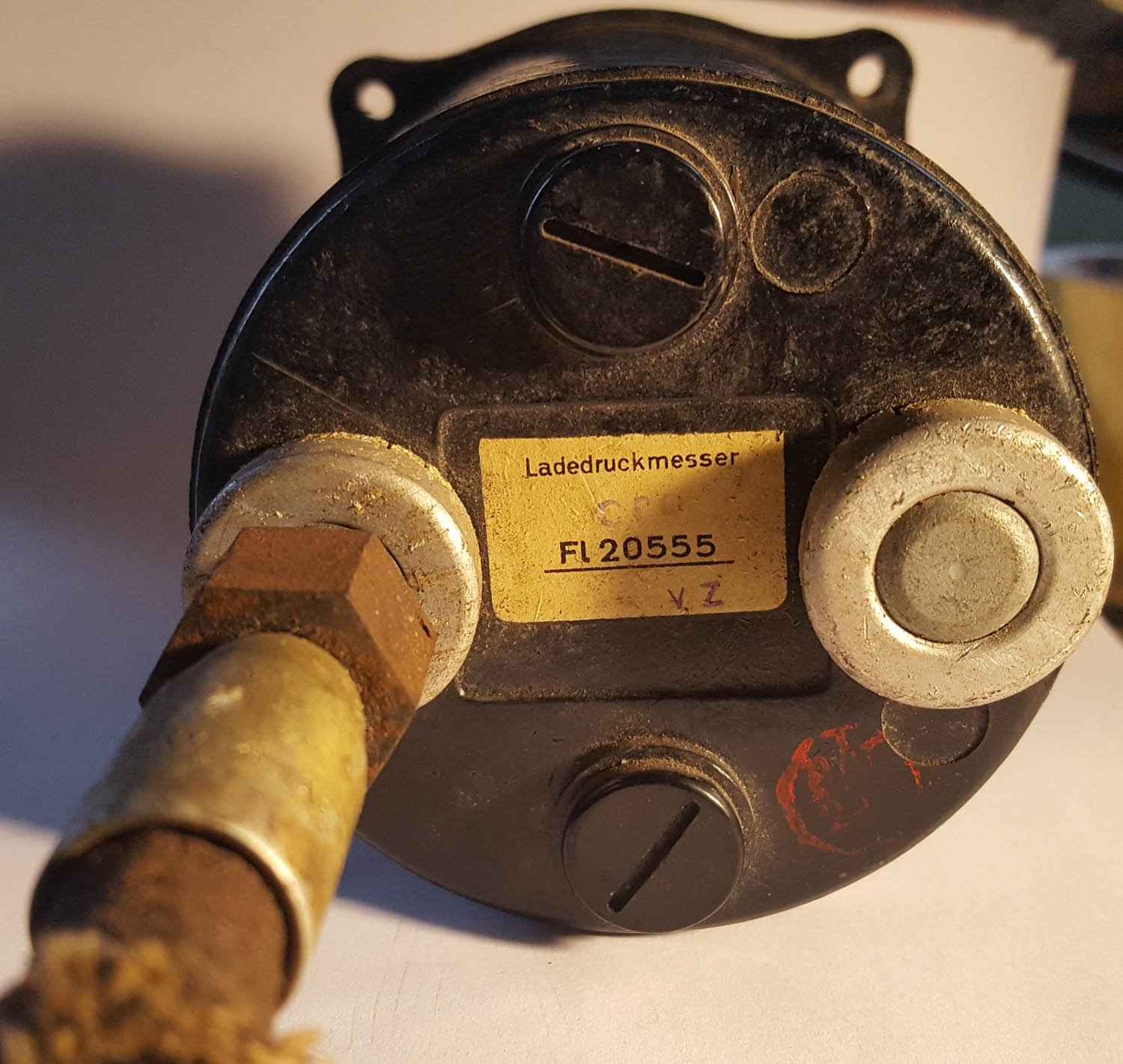

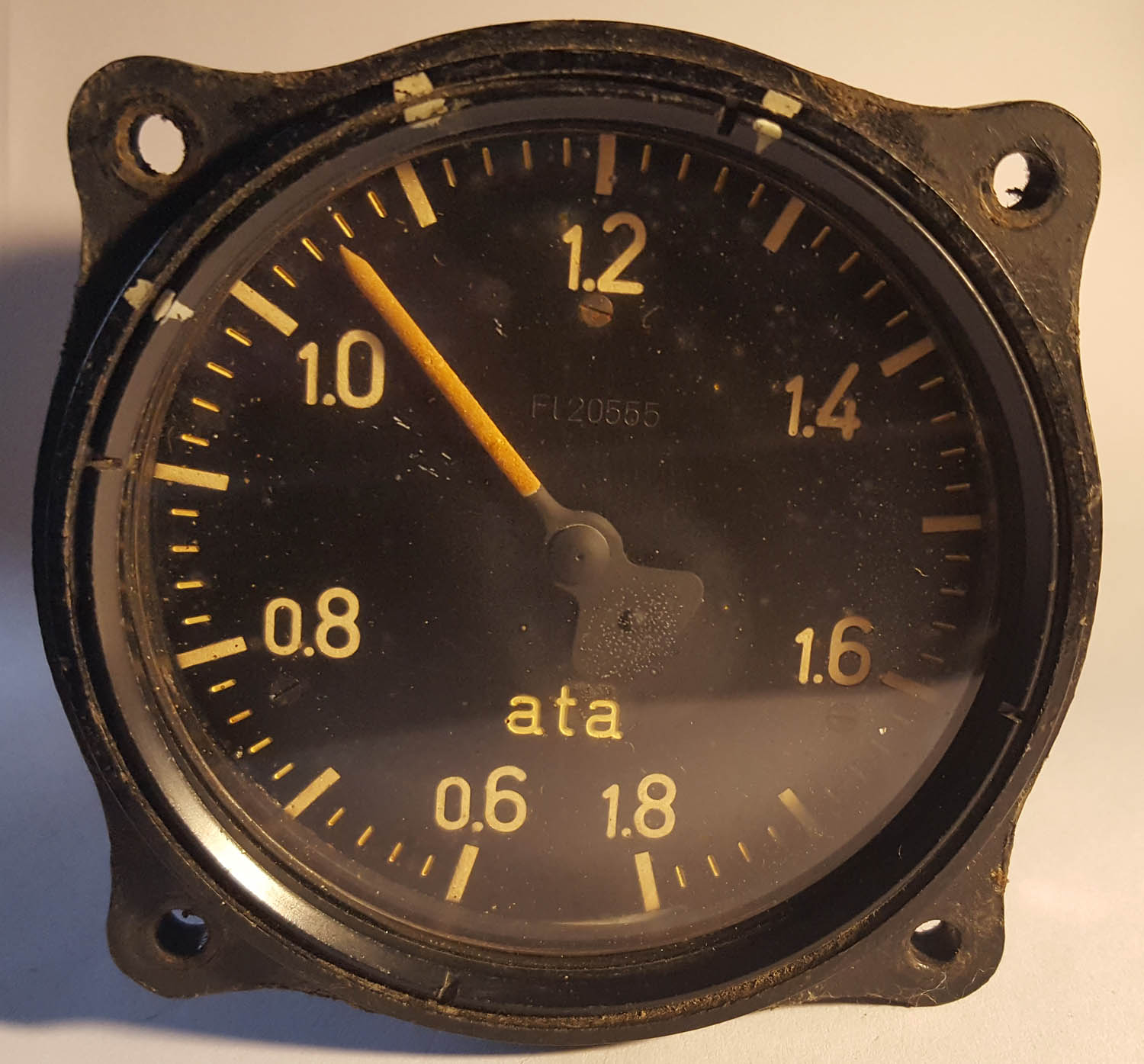

FW 190 FL 20555 Manifold pressure gauge (instruments page12 Pressure gauges 34A)

Here is a manifold pressure gauge fitted to the FW 190 BF109, Fw190, Ju87, Ju88, and Me110





Out of stock more wanted contact me



Click on the picture to enlarge

The Grumman Hellcat was also used by the Royal navy during WWII seen under in FAA markings.

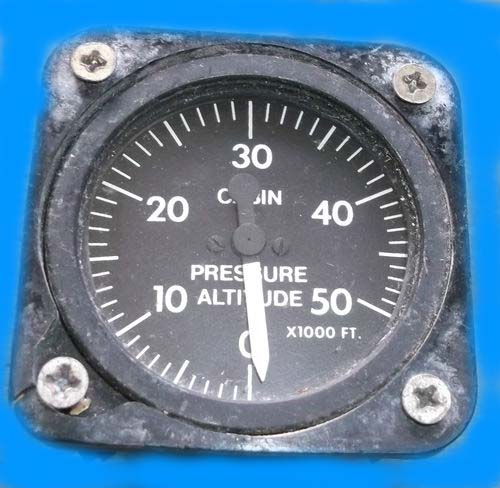

 Grumman Hellcat Pressure gauge (instruments page12 Pressure gauges 35)

Cabin pressure gauge as used in the Grumman Hellcat. The Grumman F6F Hellcat was the principal carrier-based fighter America had in the Pacific War.

Seen under the Grumman Hellcat.

Out of Stock

Click on the pictures to enlarge

Out of Stock More Waned Contact Us

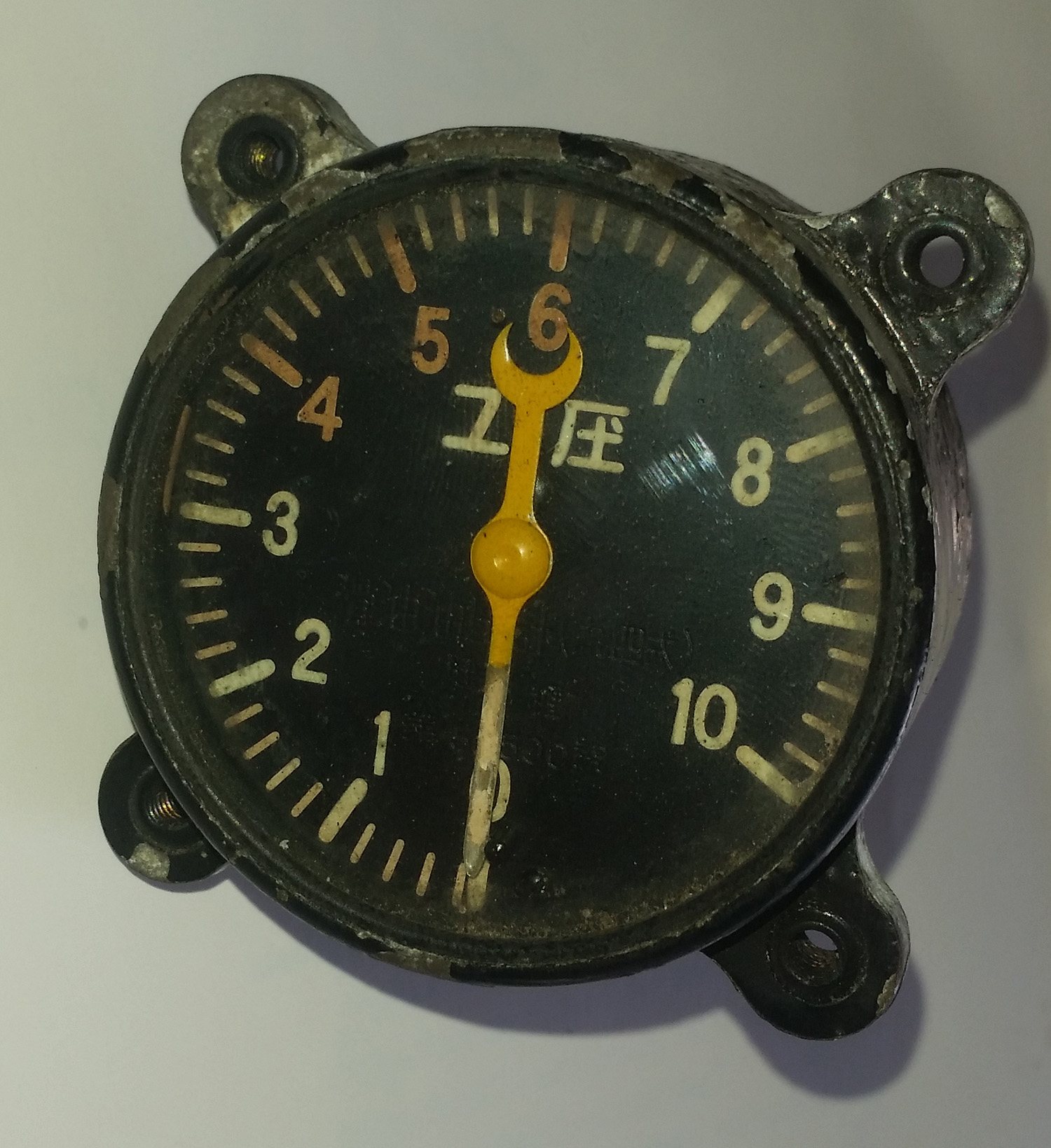

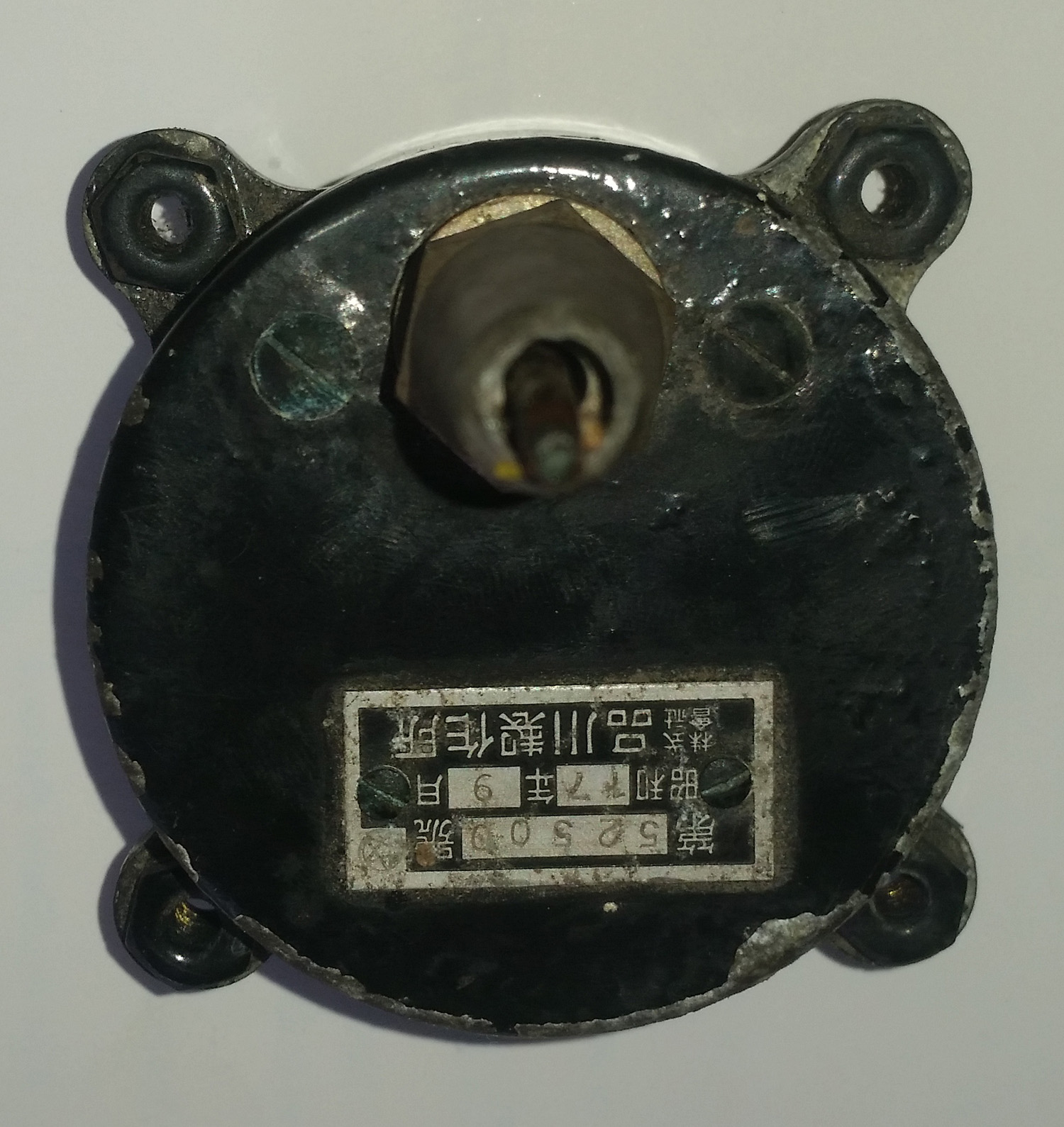

Imperial Japanese Army Air Service Oil Pressure Gauge  (instruments page12 Pressure gauges 38)

Here we have a Oil Pressure Gauge as Used in the Nakajima Ki-43

 This was a generic Instrument so would have been used in other Imperial Japanese Army Air Service Fighters

The Nakajima Ki-43 Hayabusa ("Peregrine Falcon") was a single-engine land-based tactical fighter used by the Imperial Japanese Army Air Force in World War II. The Army designation was "Army Type 1 Fighter" the Allied reporting name was "Oscar", but it was often called the "Army Zero" by American pilots for its side-view resemblance to the Mitsubishi A6M Zero that was flown by the Japanese Navy.

The aircraft fought in China, Burma, the Malay Peninsula, New Guinea, the Philippines, South Pacific islands and the Japanese home islands

Nakajima Ki-43

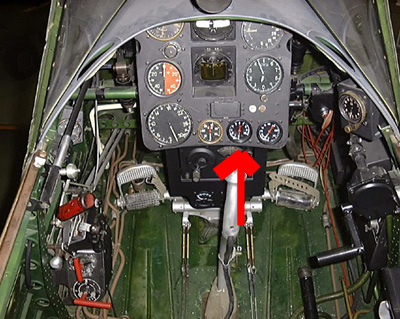

Seen in Situ Below in the Ki-43

Click on the pictures to enlarge

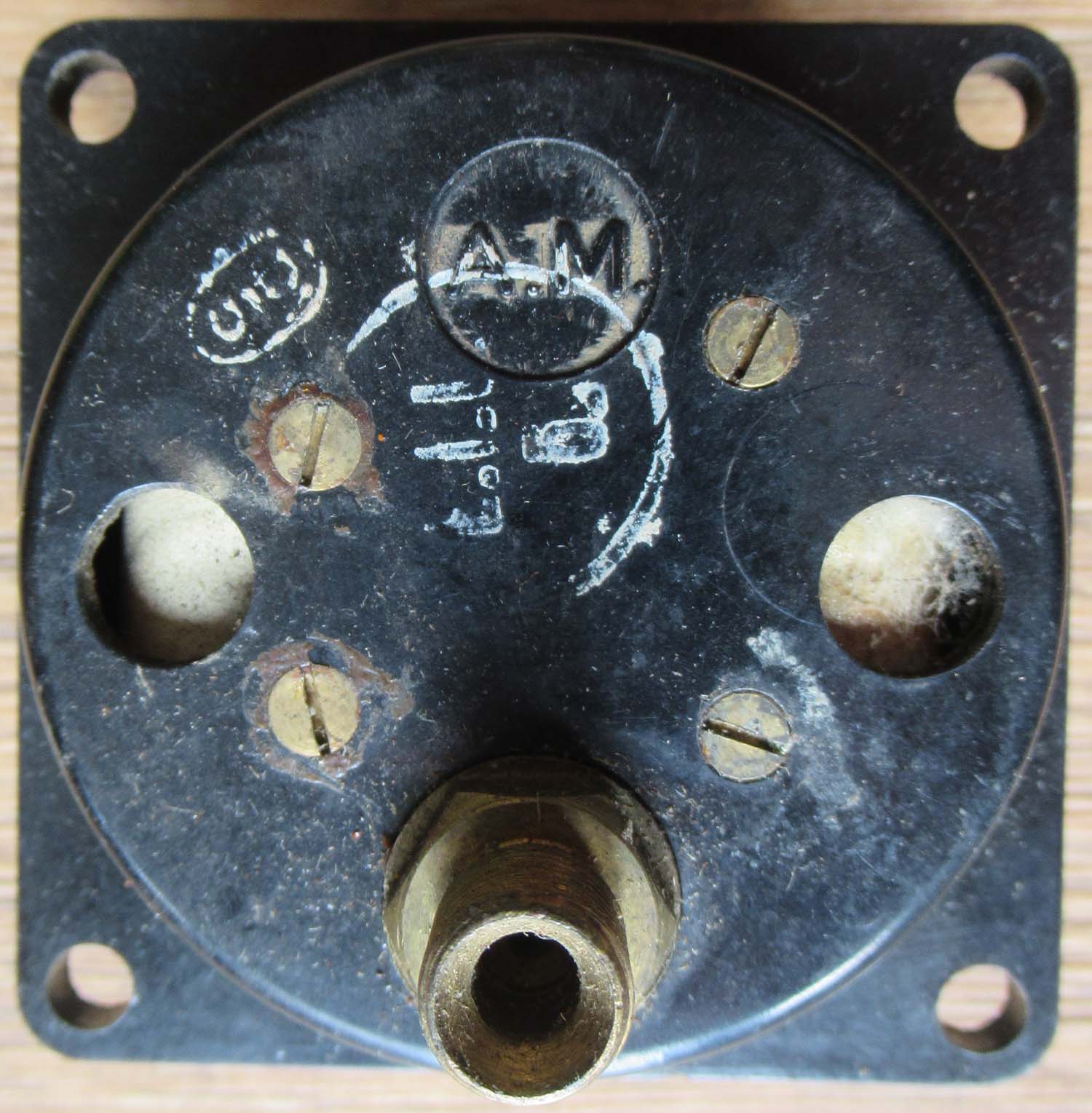

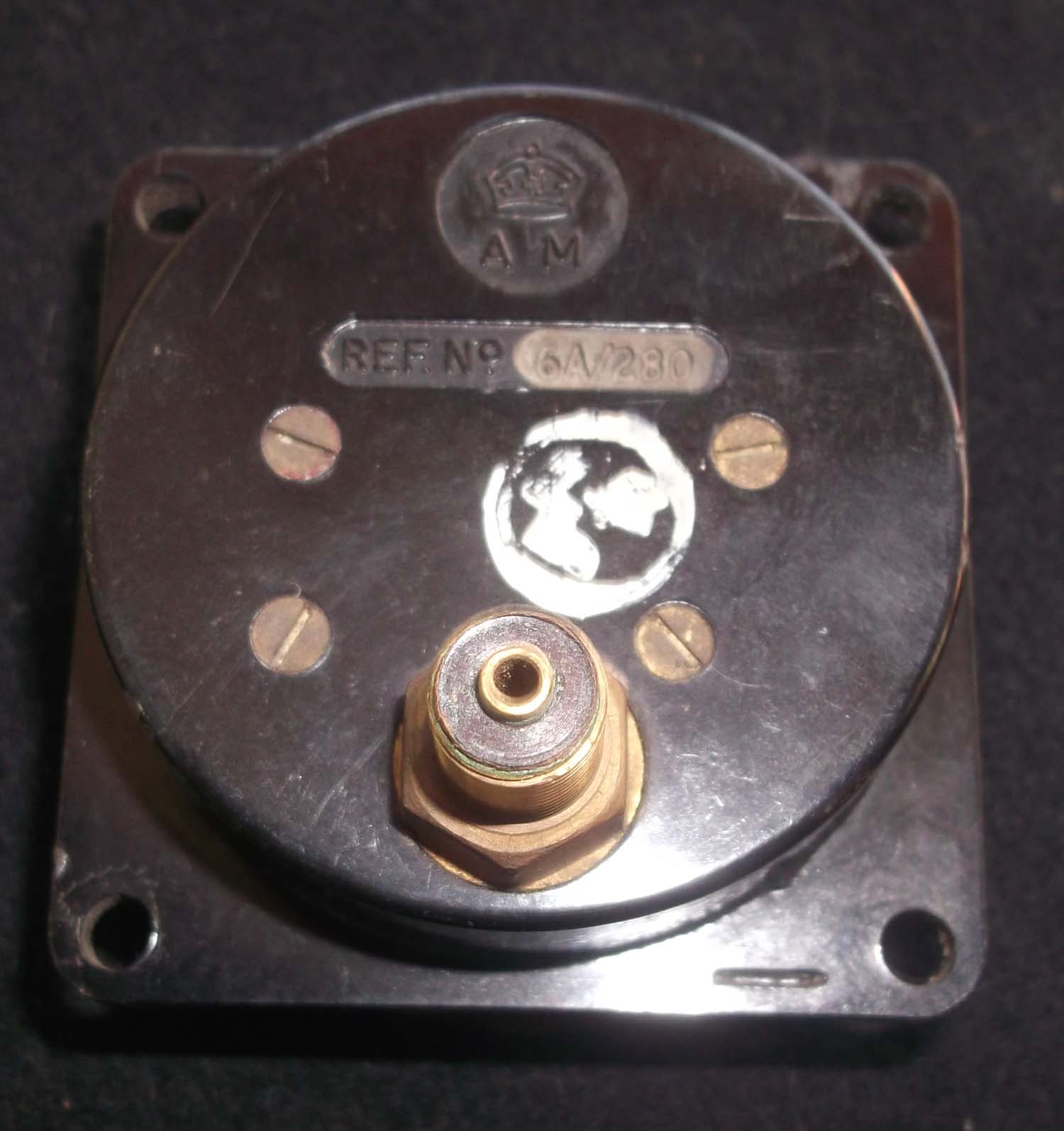

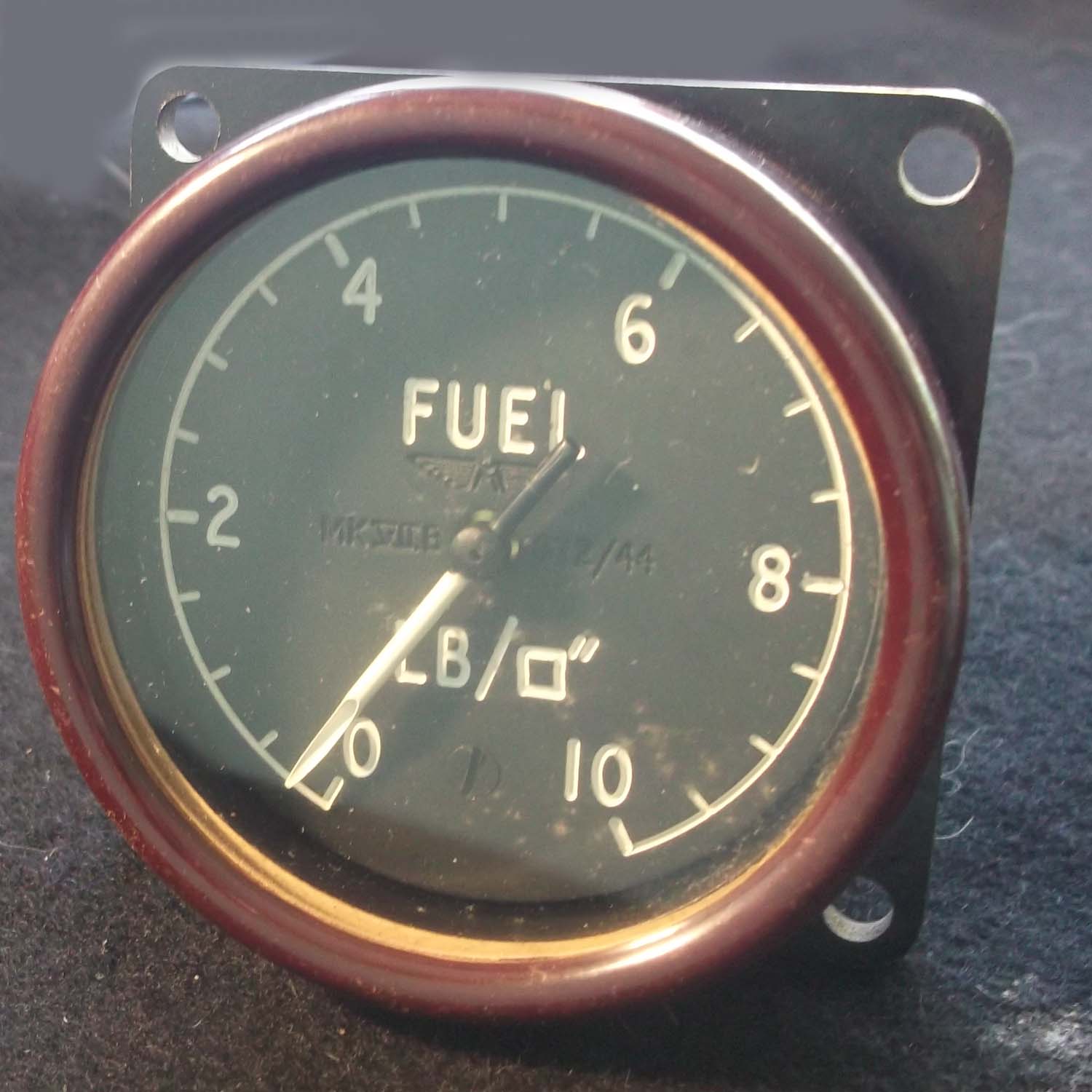

Fuel Pressure gauge  (instruments page12 Pressure gauges 40)



Round Fuel Pressure Gauge

Air Ministry Marked

6A/230

Dated 1944

Out of stock more wanted contact me



Click on the pictures to enlarge

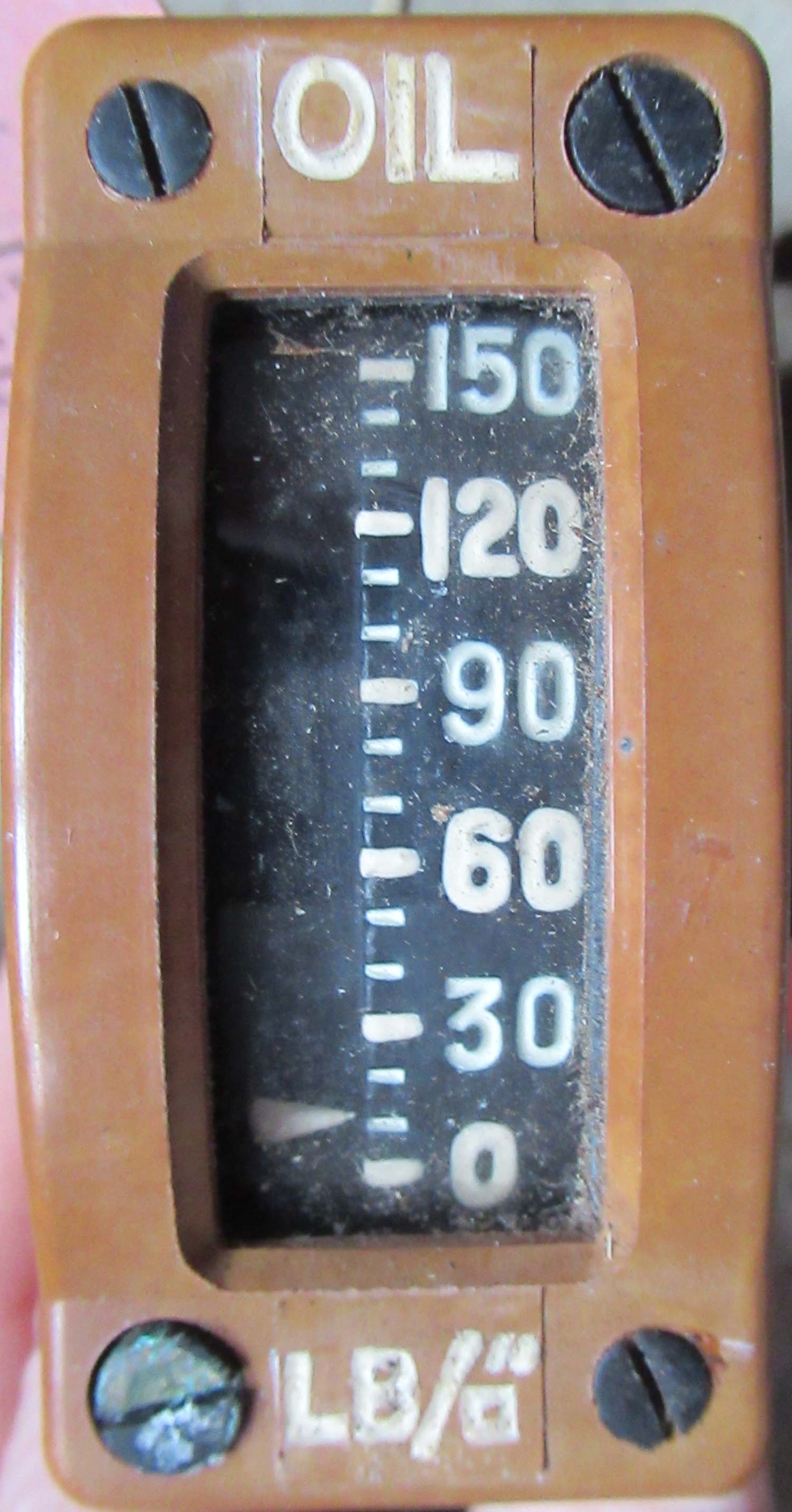

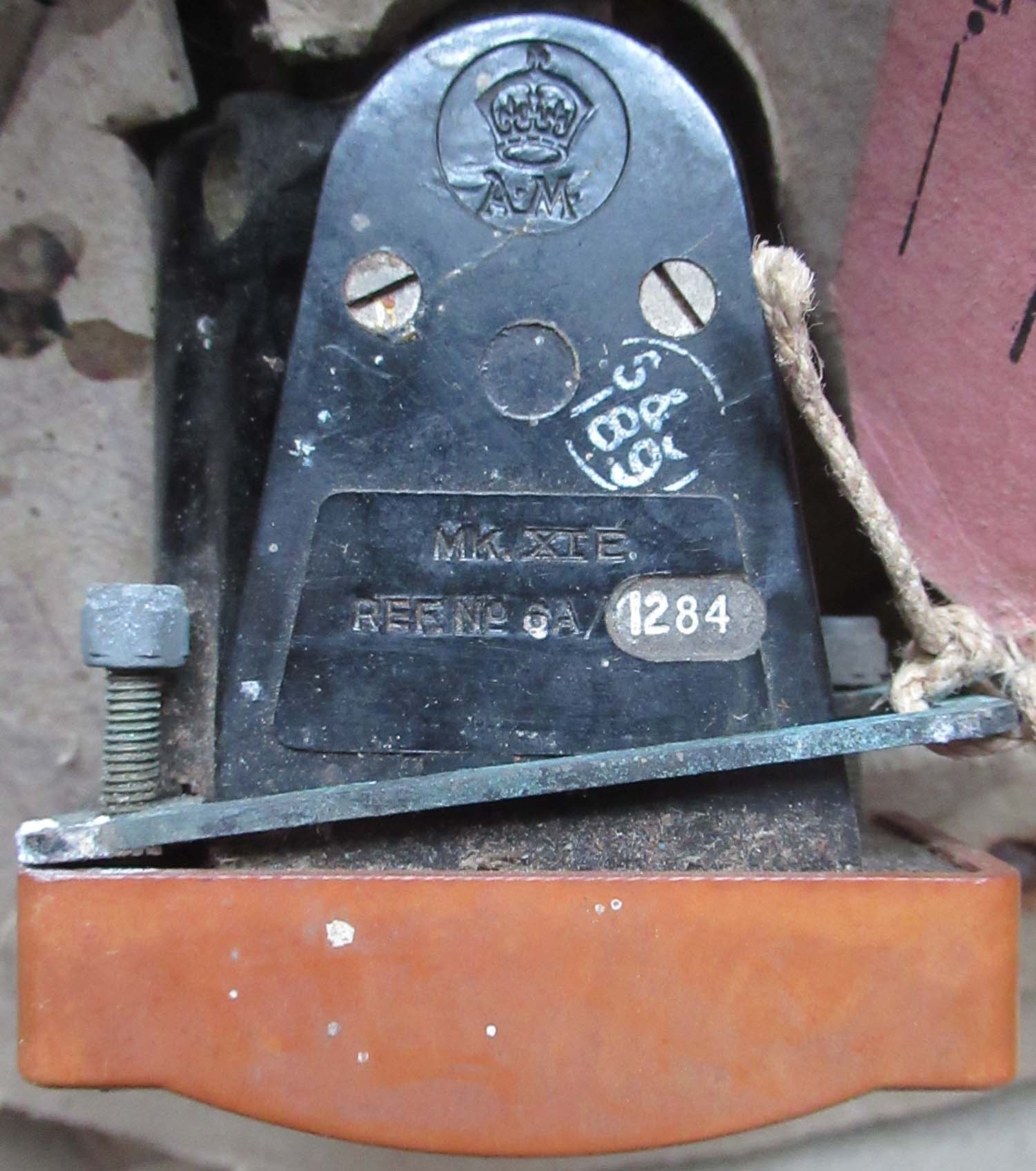

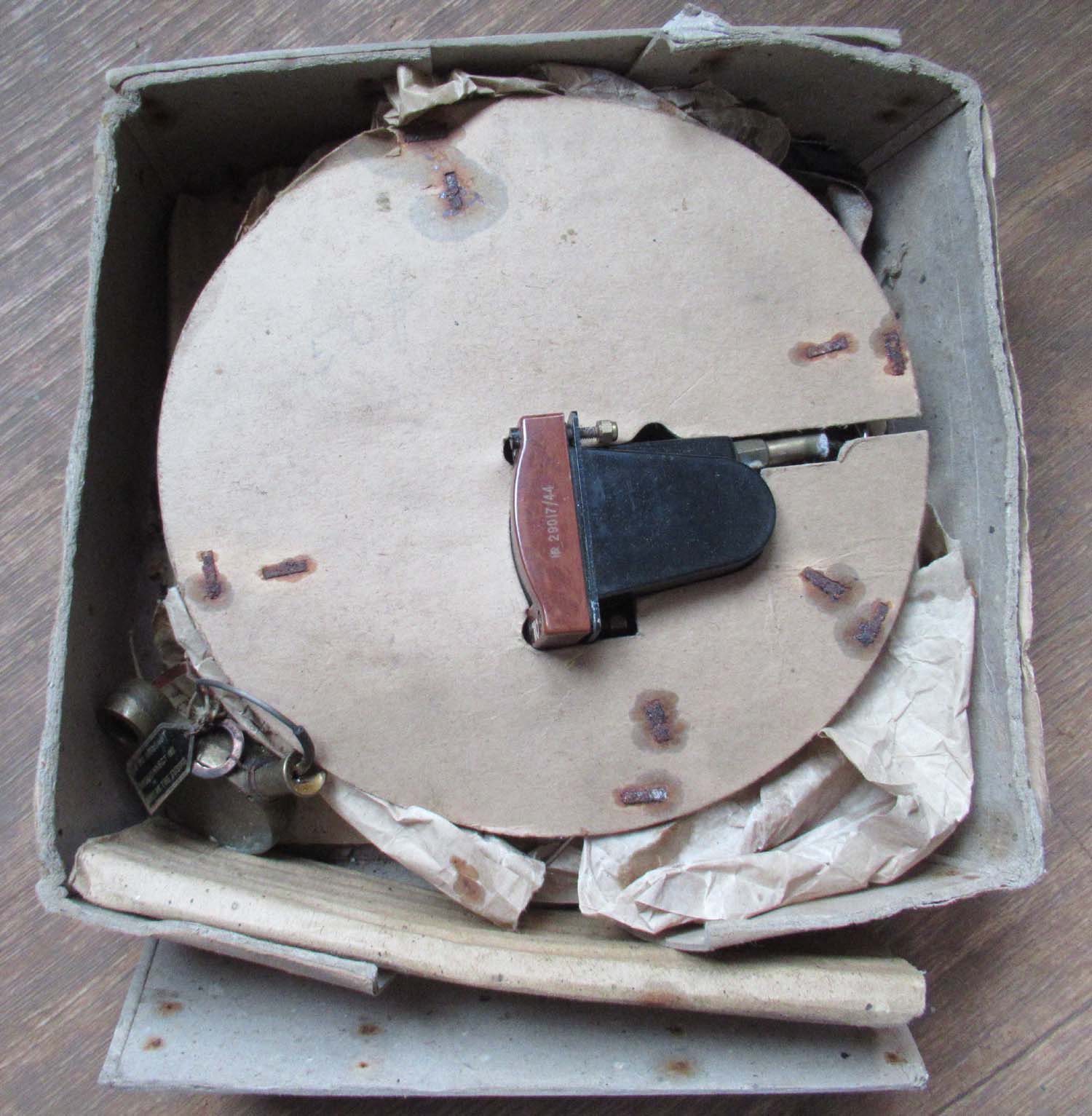

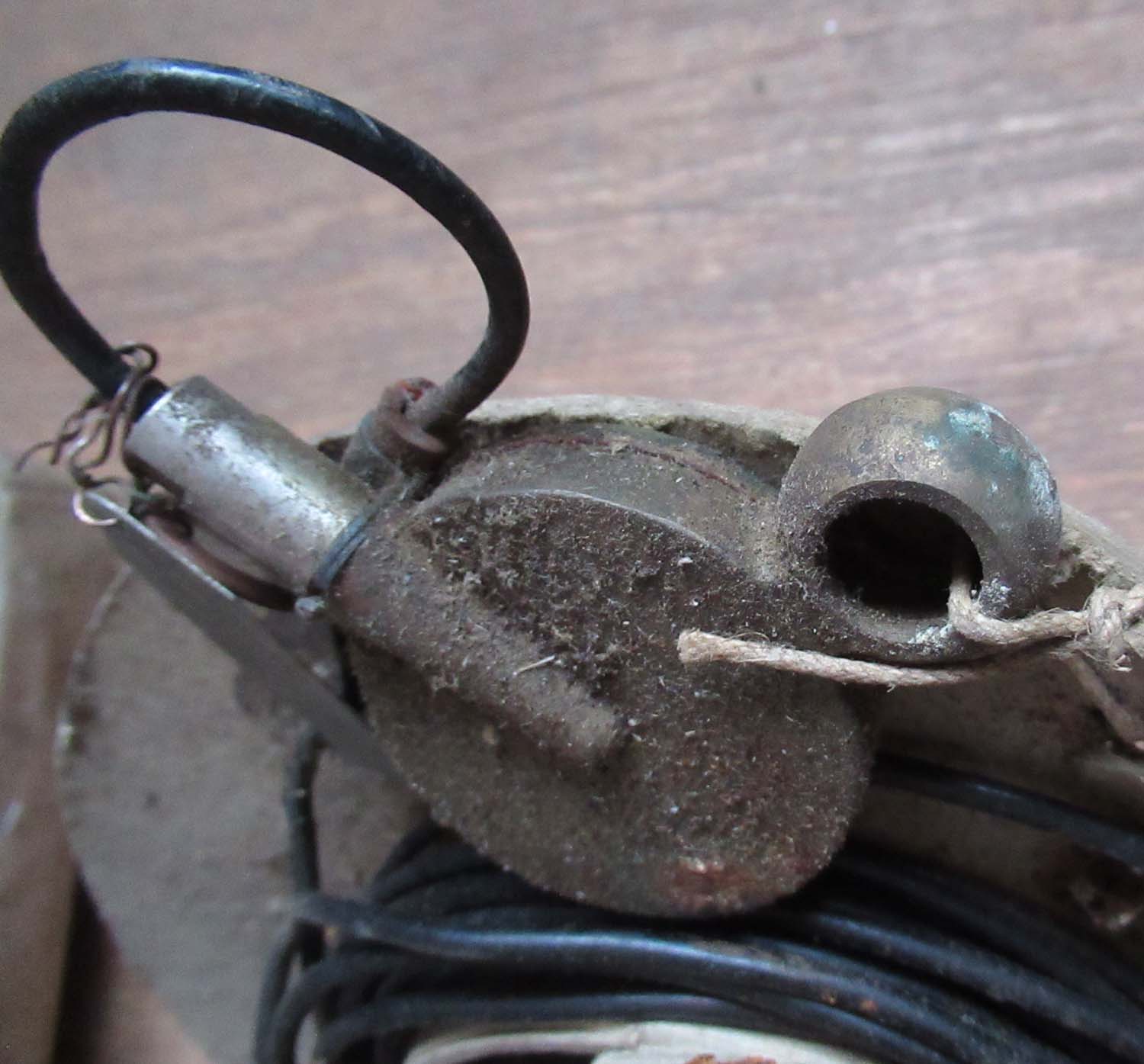

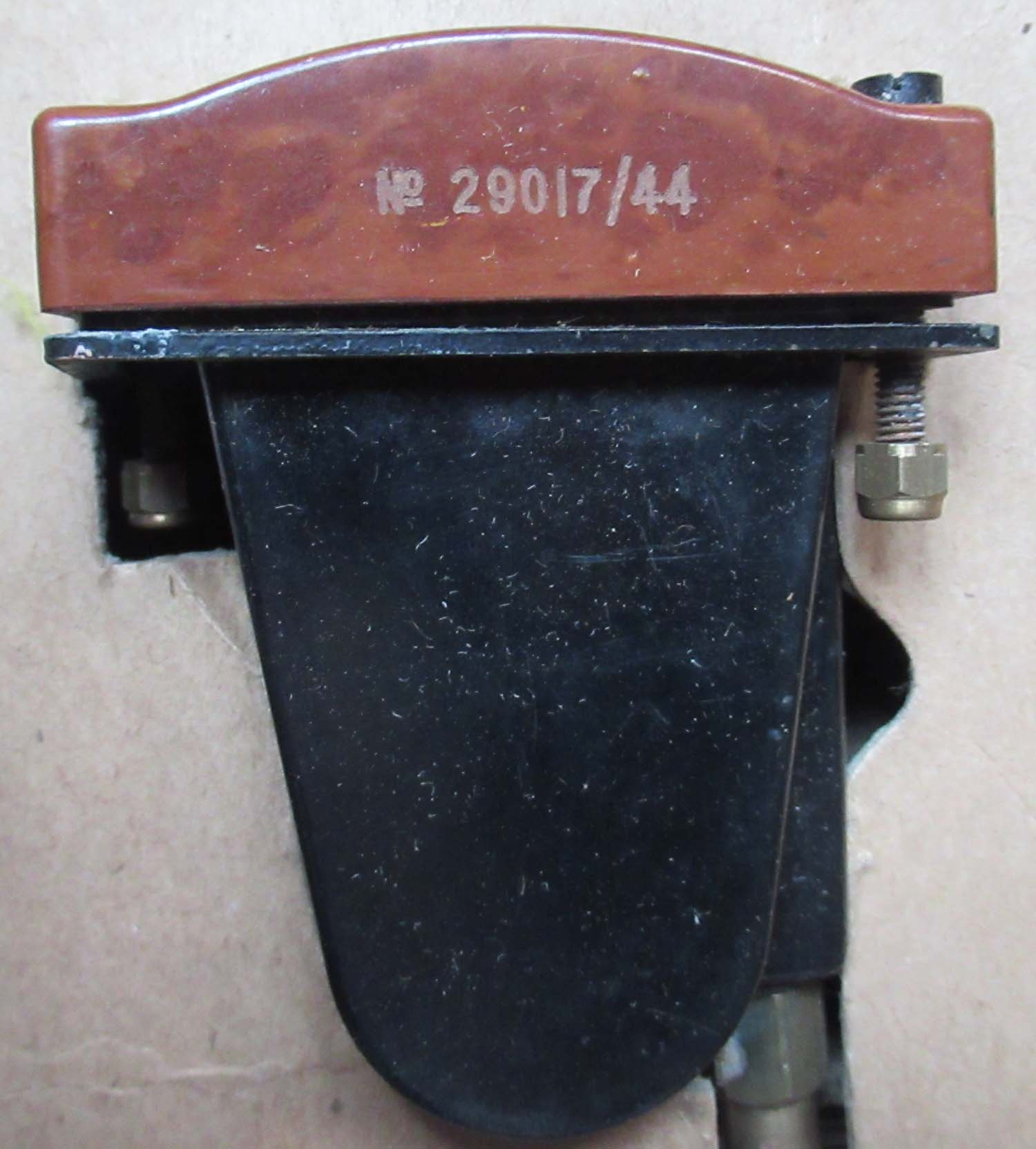

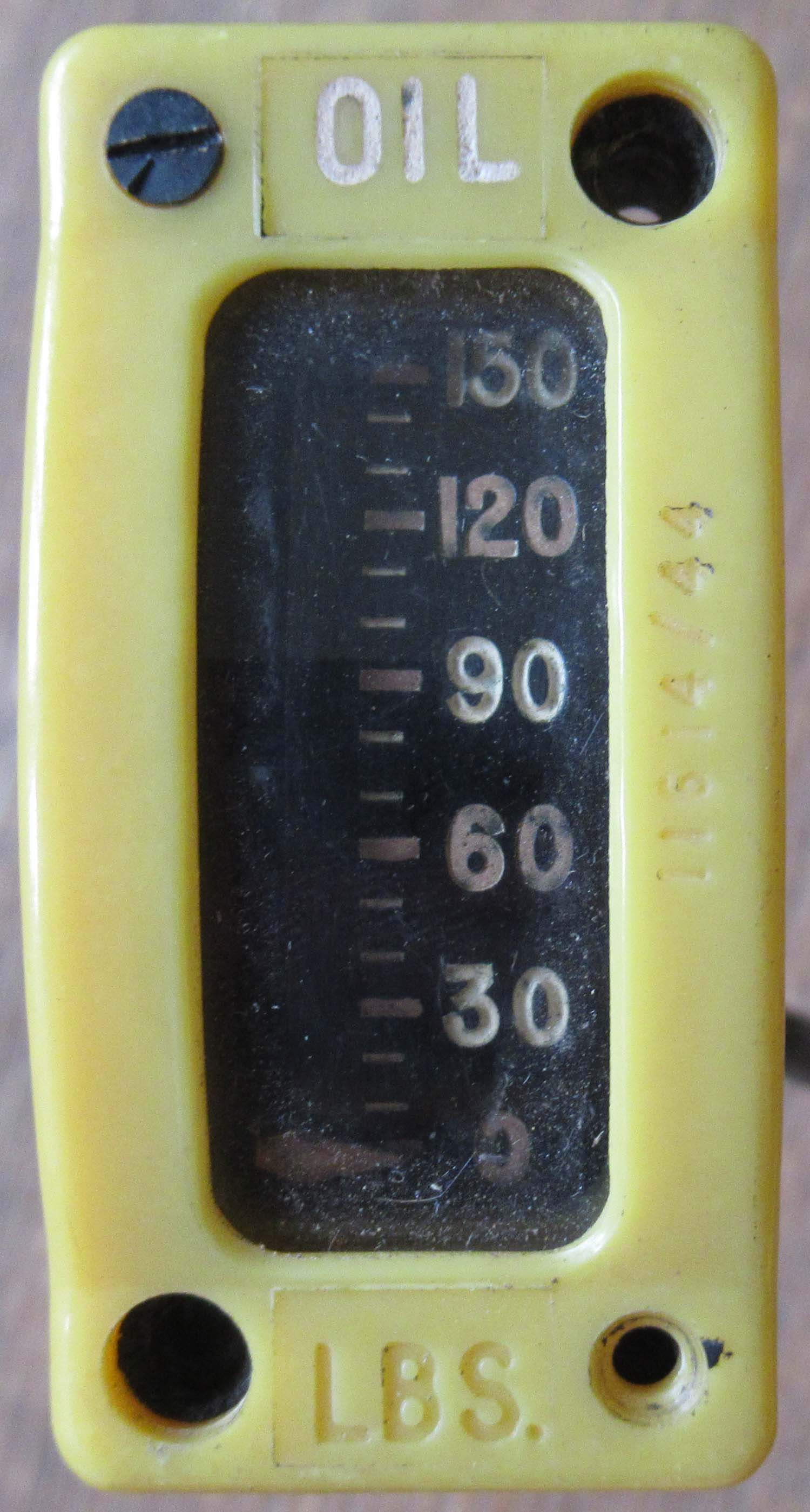

Oil pressure gauge MK  XIE short cap 1944  (instruments page12 Pressure gauges 46)

Classic oil pressure gauge. Intact short 10Ft Capillary fighter type.

Click on the pictures to enlarge

MK XIE

6A/556

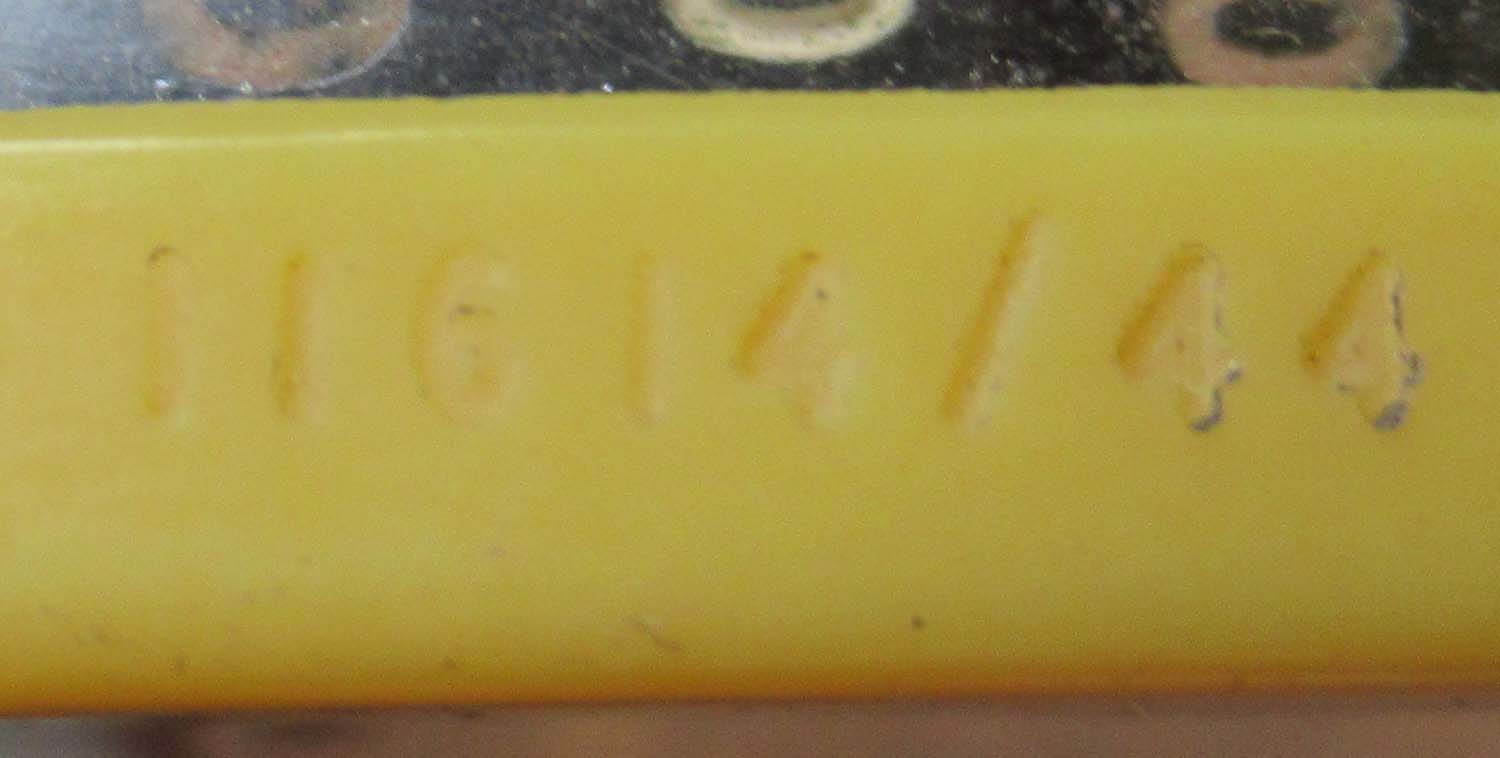

11614/44

Dated 1944

Click on the pictures to enlarge

Out of stock

Click on the pictures to enlarge

Click on the pictures to enlarge

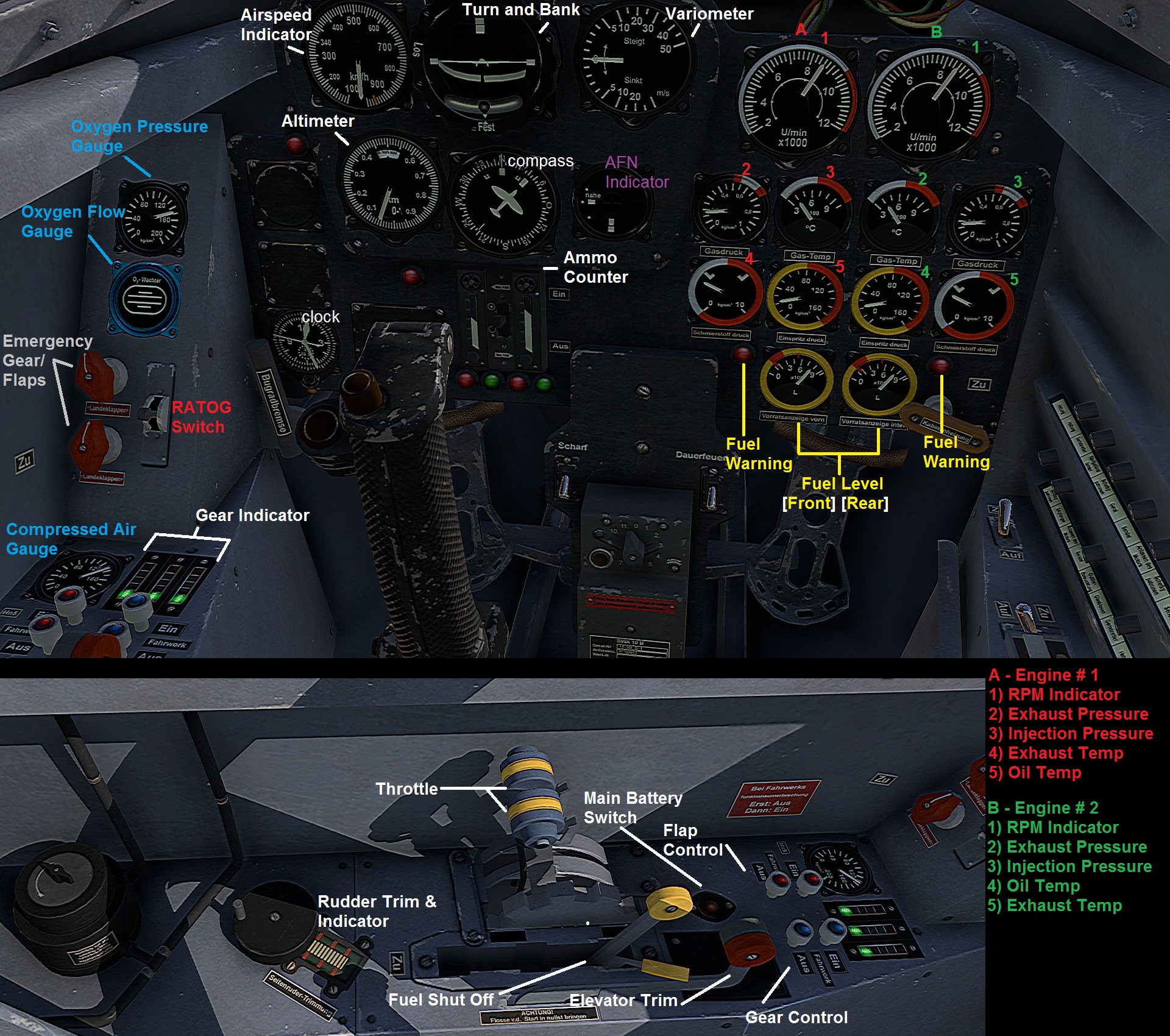

Click on the pictures to enlarge You can see the gauge in situ in the ME 262 cockpit above.

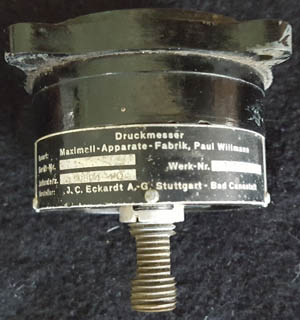

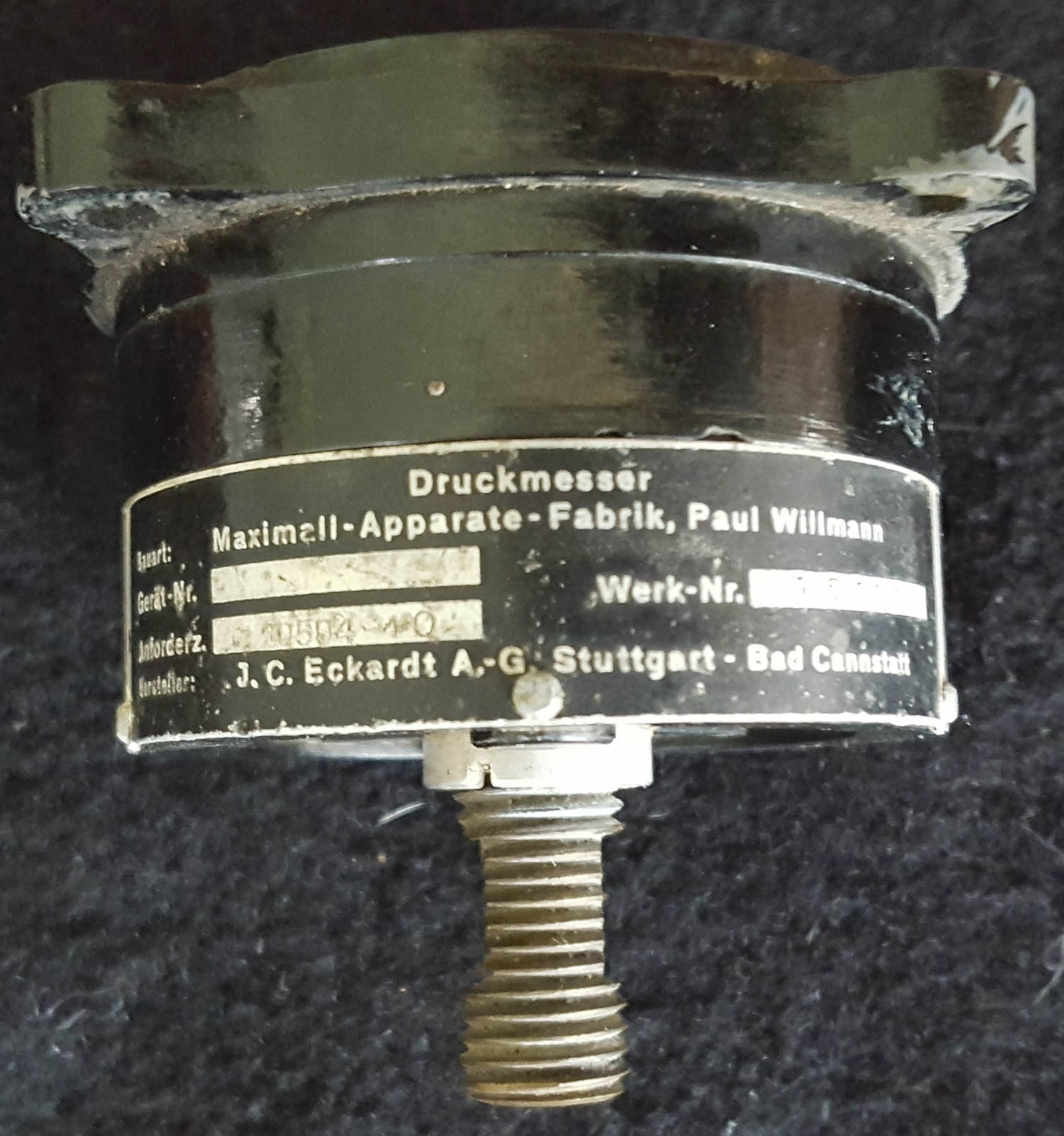

ME 262 and HE 162 fuel pressure gauge (instruments page12 Pressure gauges )

Here is a  fuel pressure gauge only used in the ME 262 and the HE 162 German Jets.

Werk nos 353479   FL 20504-10

Above the ME 262

Above the HE 162

Out of stock more wanted contact me

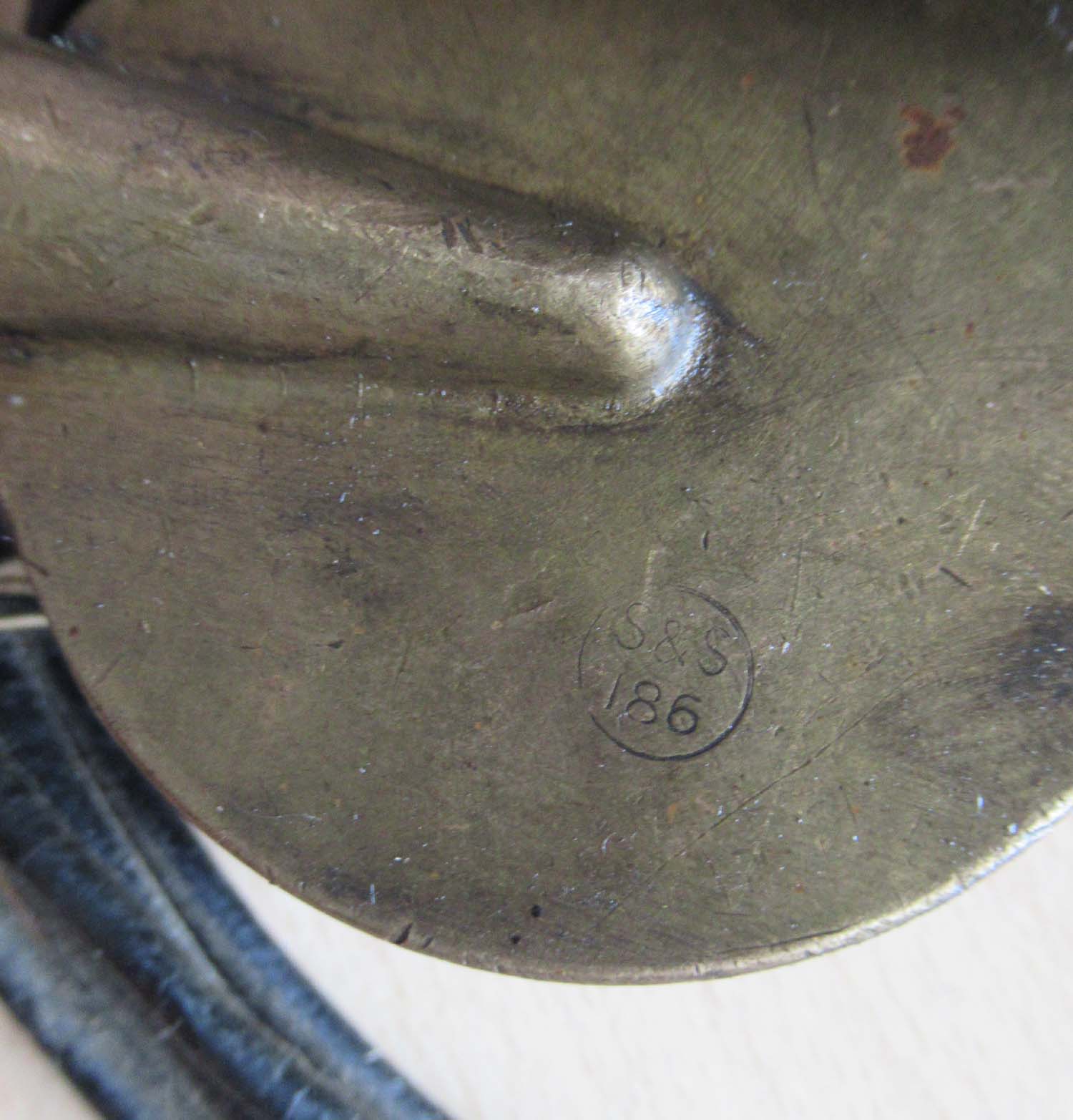

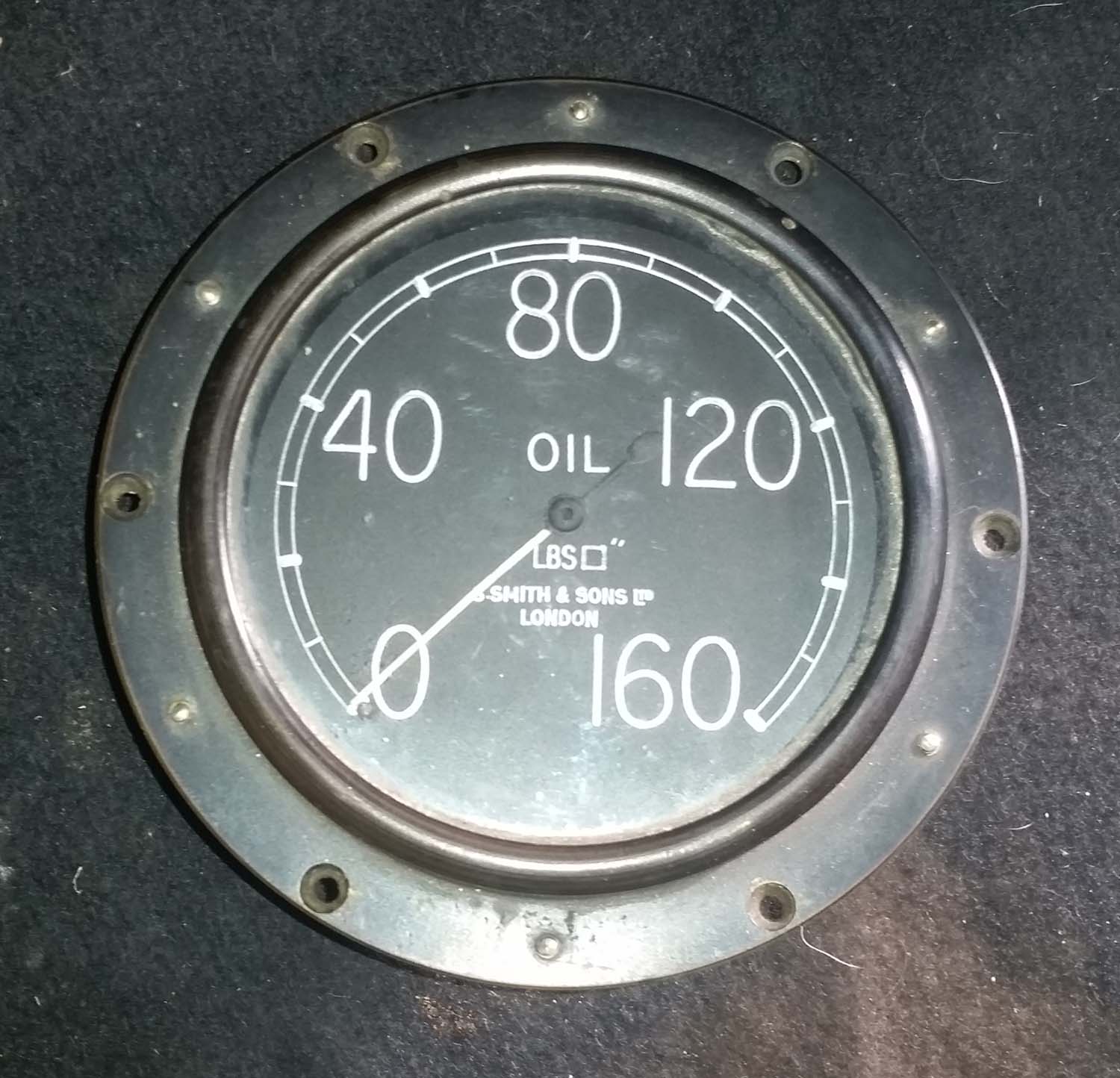

WW1 Oil Pressure Gauge (instruments page12 Pressure gauges 5)

Here we have a  WW1 Oil pressure gauge

This is manufactured by S.Smith & Sons

Gauge Reads 0 -160 psi

This Could have been used in a variety of aircraft such as the Royal Aircraft Factory SE5

Out of stock more wanted contact me

Click on the pictures to enlarge

Out of stock more required please contact me

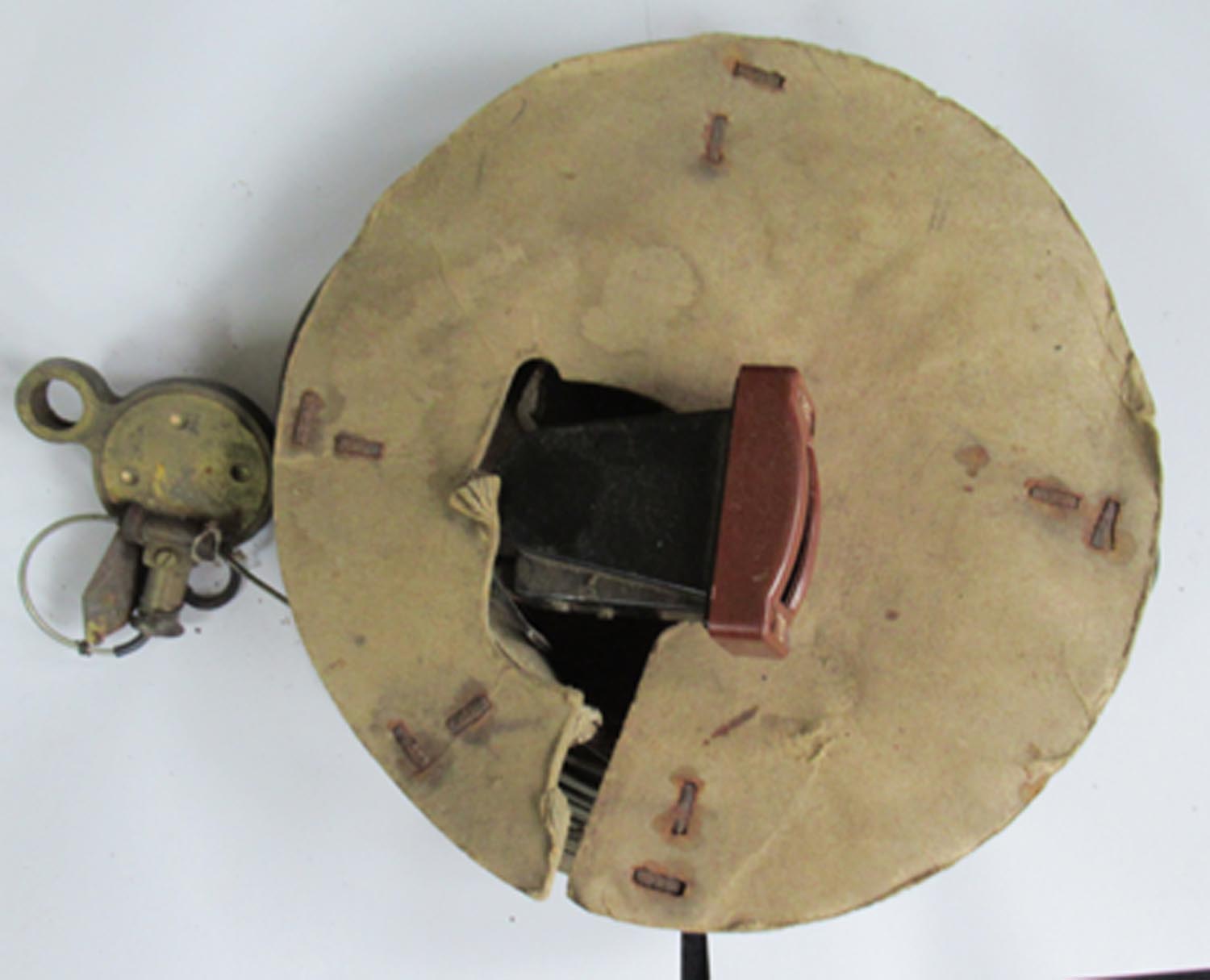

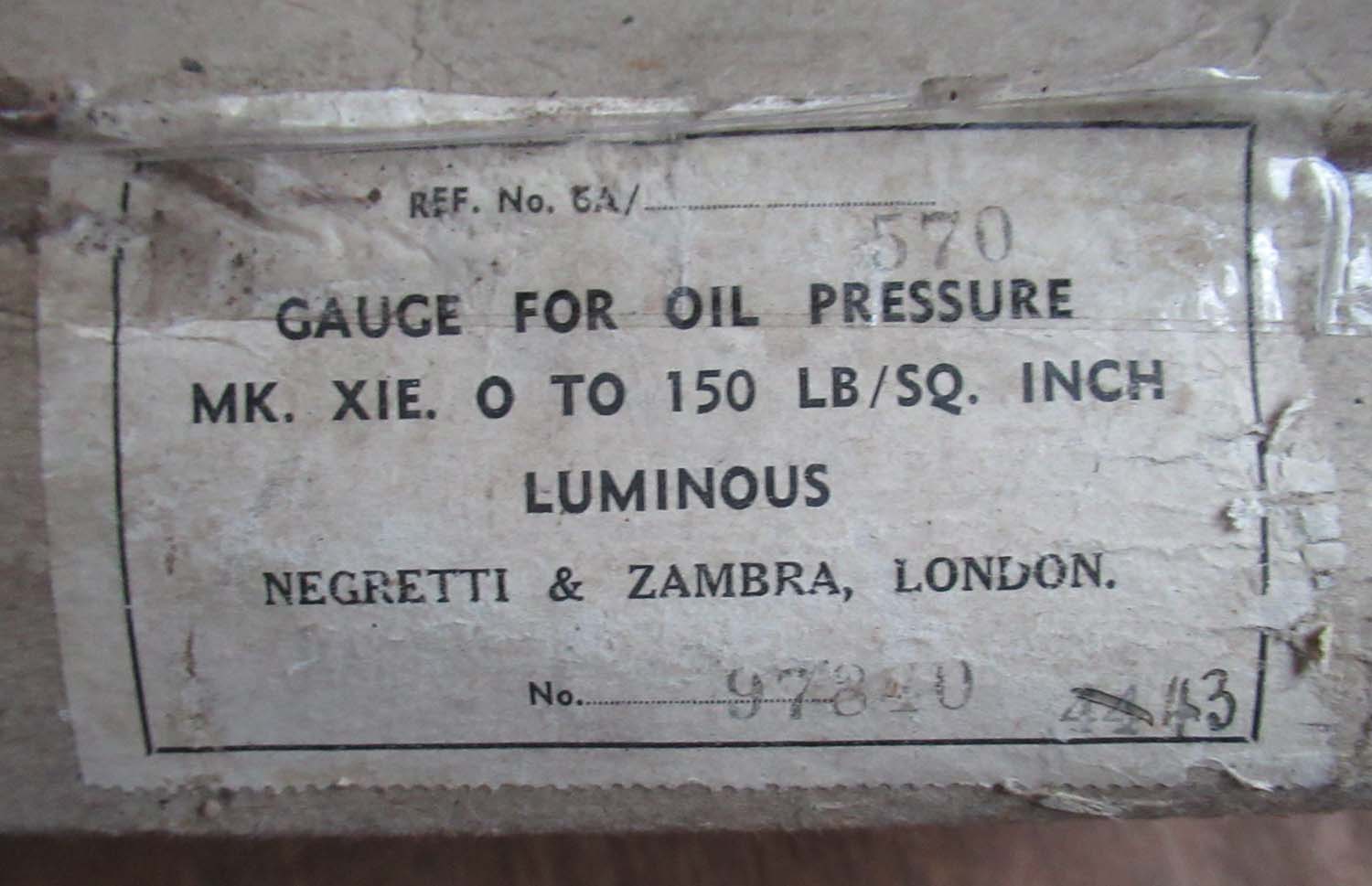

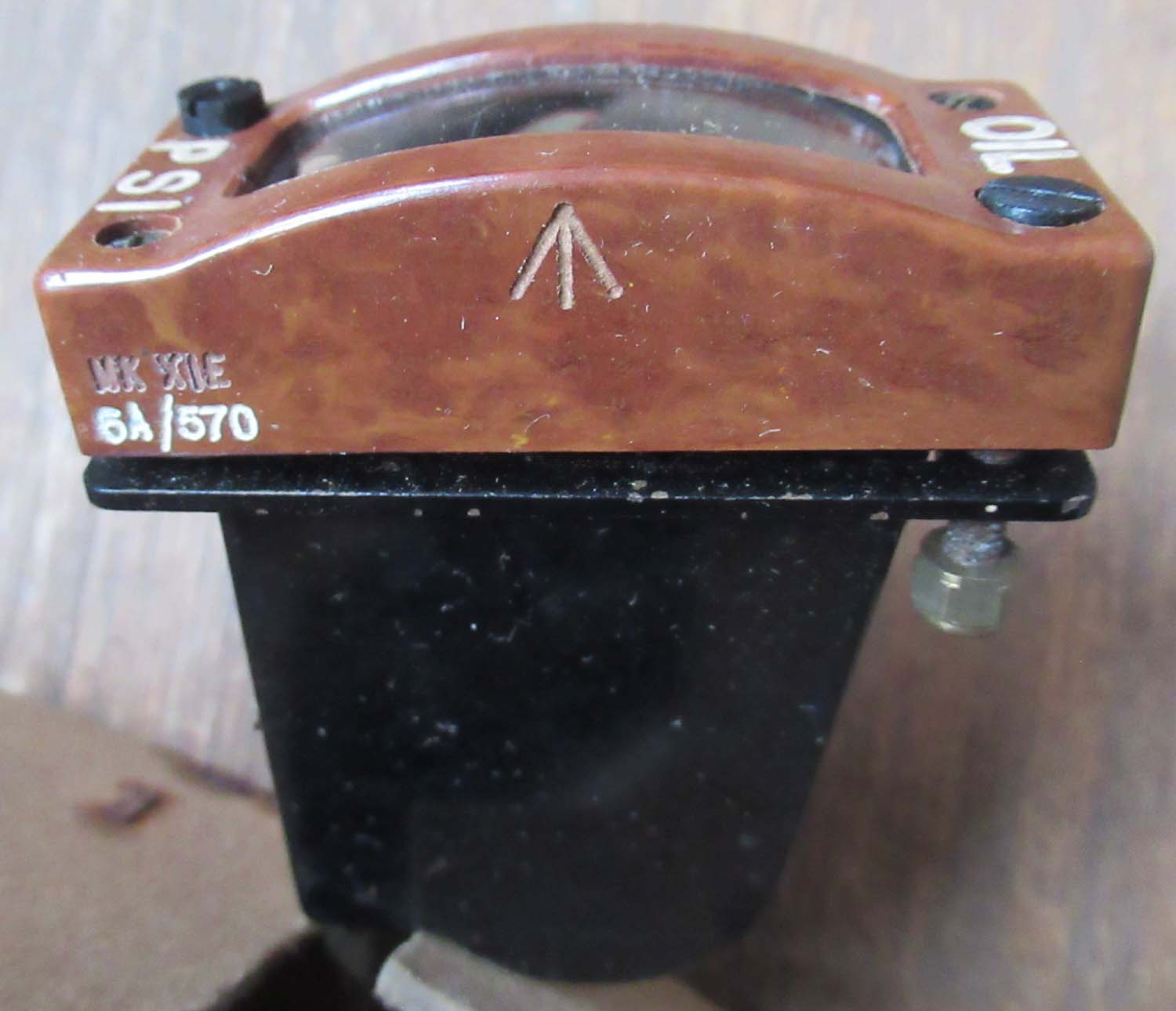

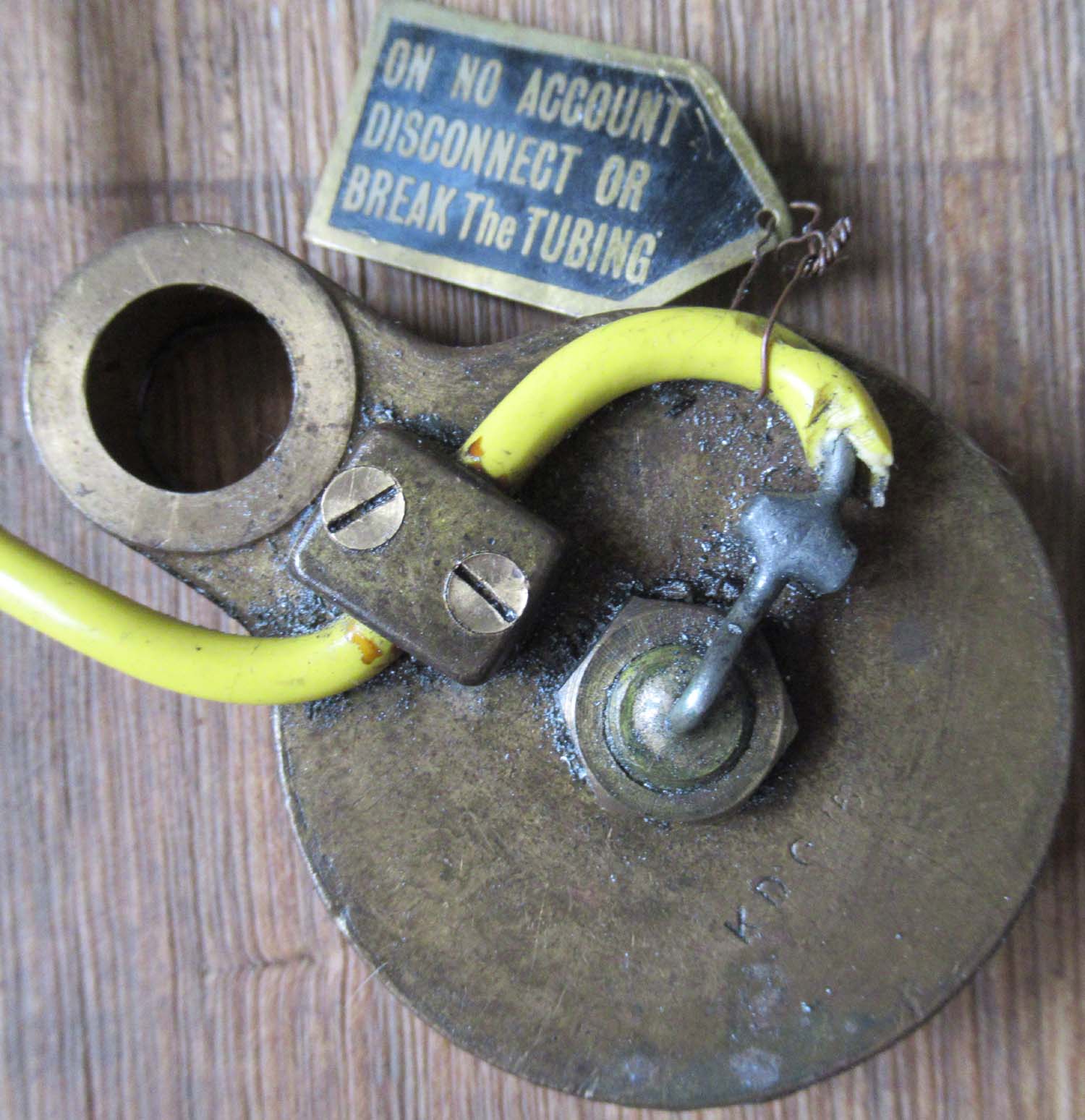

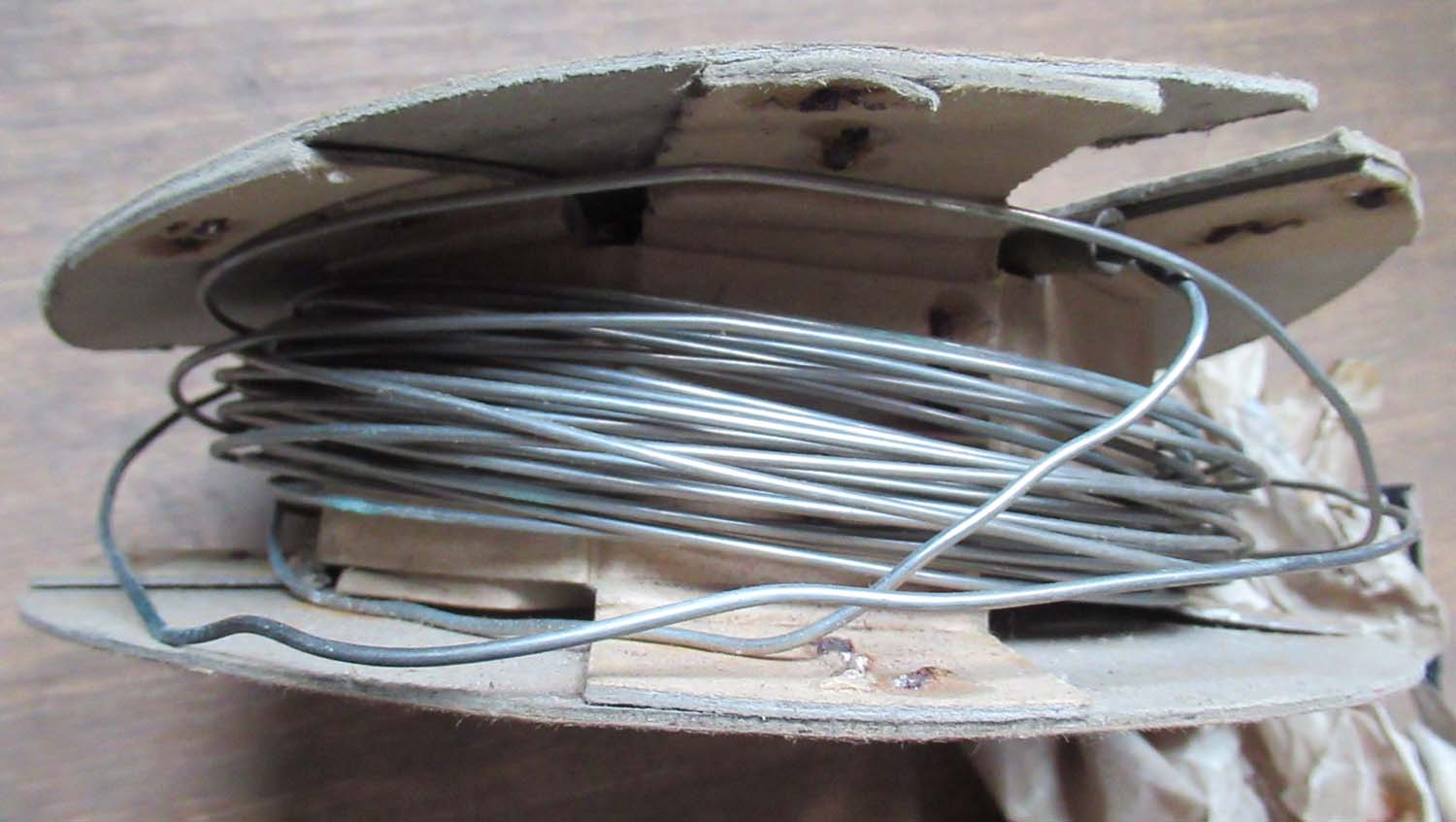

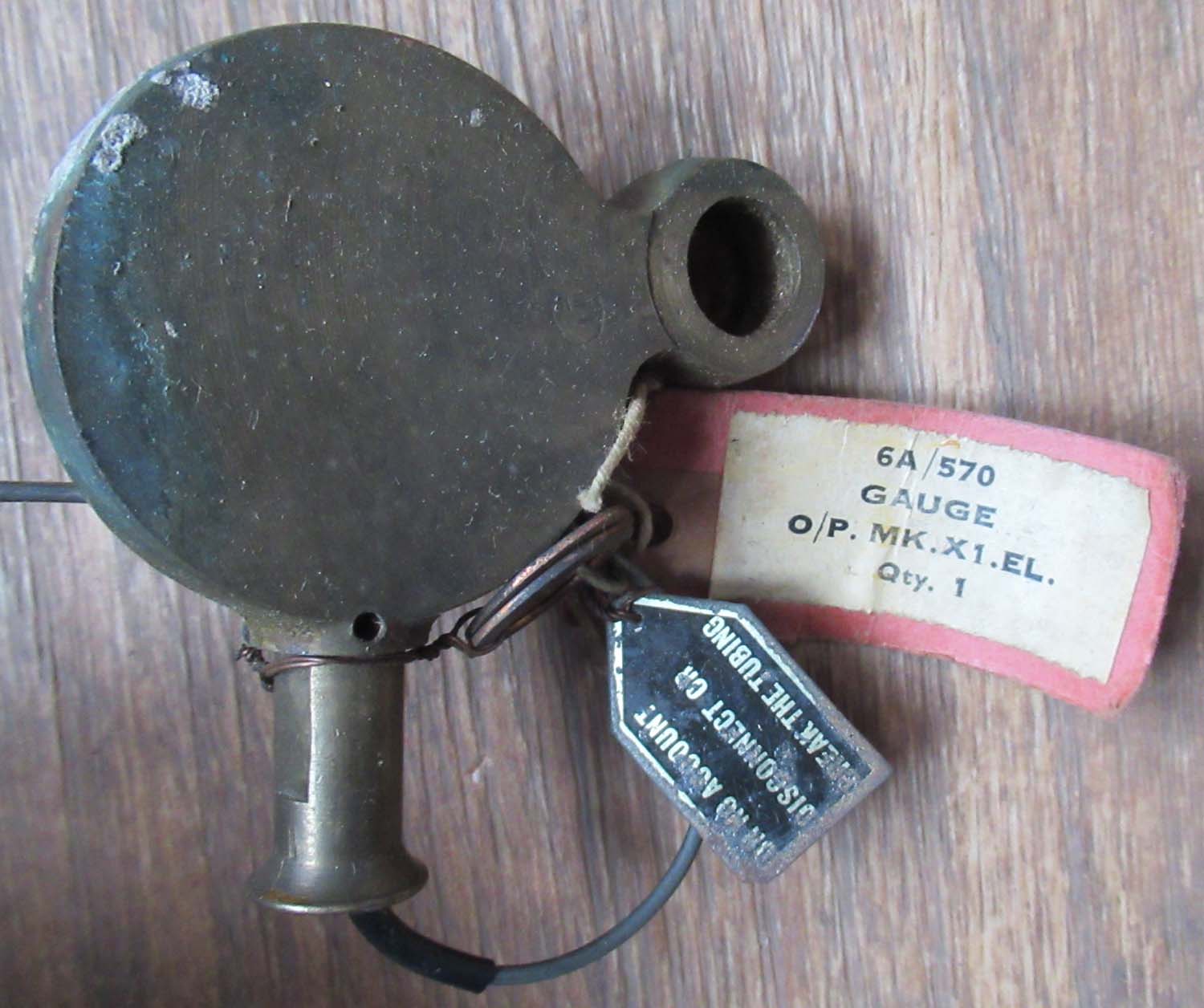

Oil pressure gauge MK  XIE long cap (instruments page12 Pressure gauges 10B)



Click on the pictures to enlarge

MK XIE 6A/570 Dated 1943 this has the long capillary which is intact

Click on the pictures to enlarge

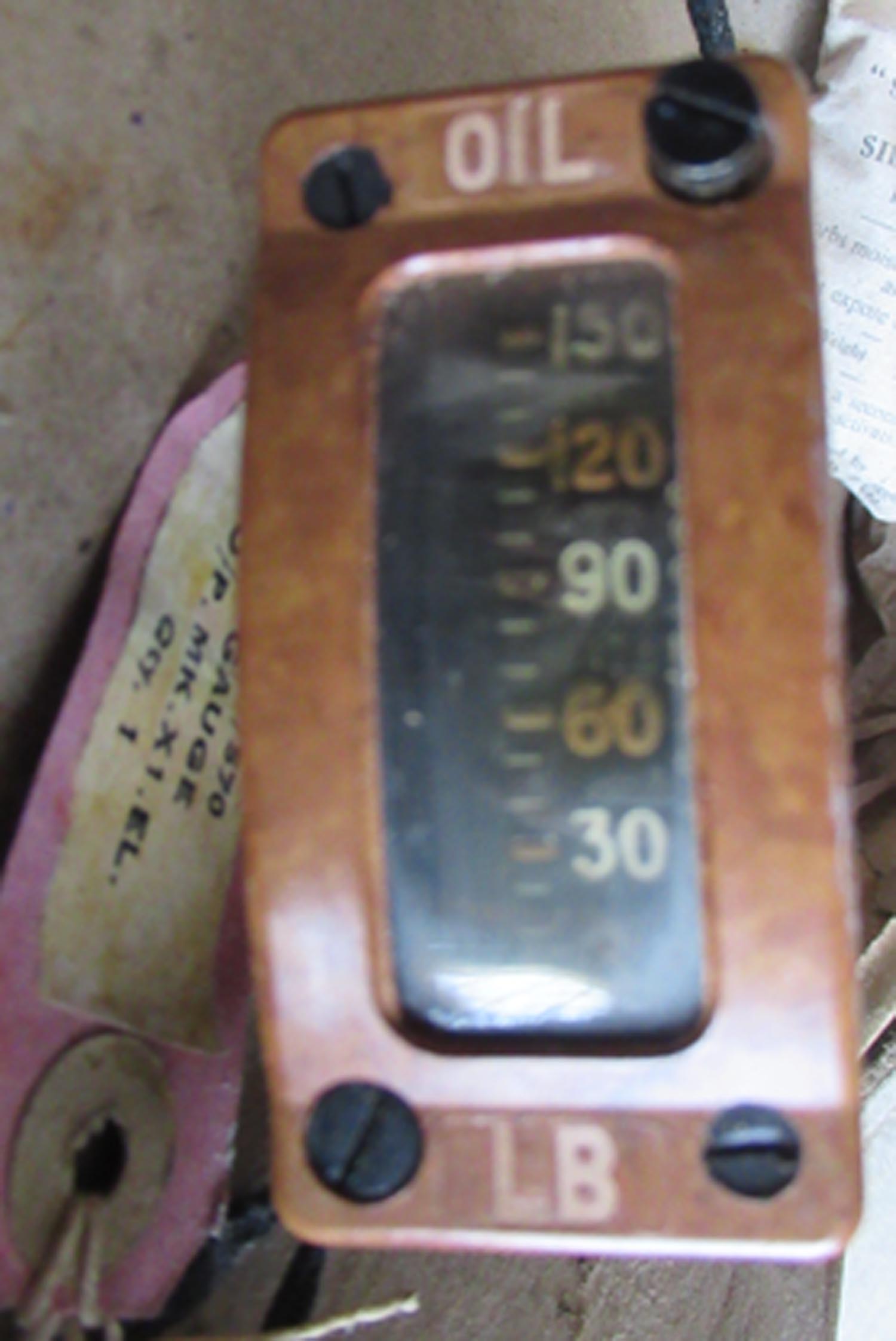

Oil pressure gauge MK  XIE long cap  (instruments page12 Pressure gauges 9)

Classic Brown oil pressure gauge.

 The capillary is intact . Glass is missing but bracket for attaching it is included.

Dated 1941  MK XIE  6A/570

Out of stock more required please contact me

Click on the pictures to enlarge

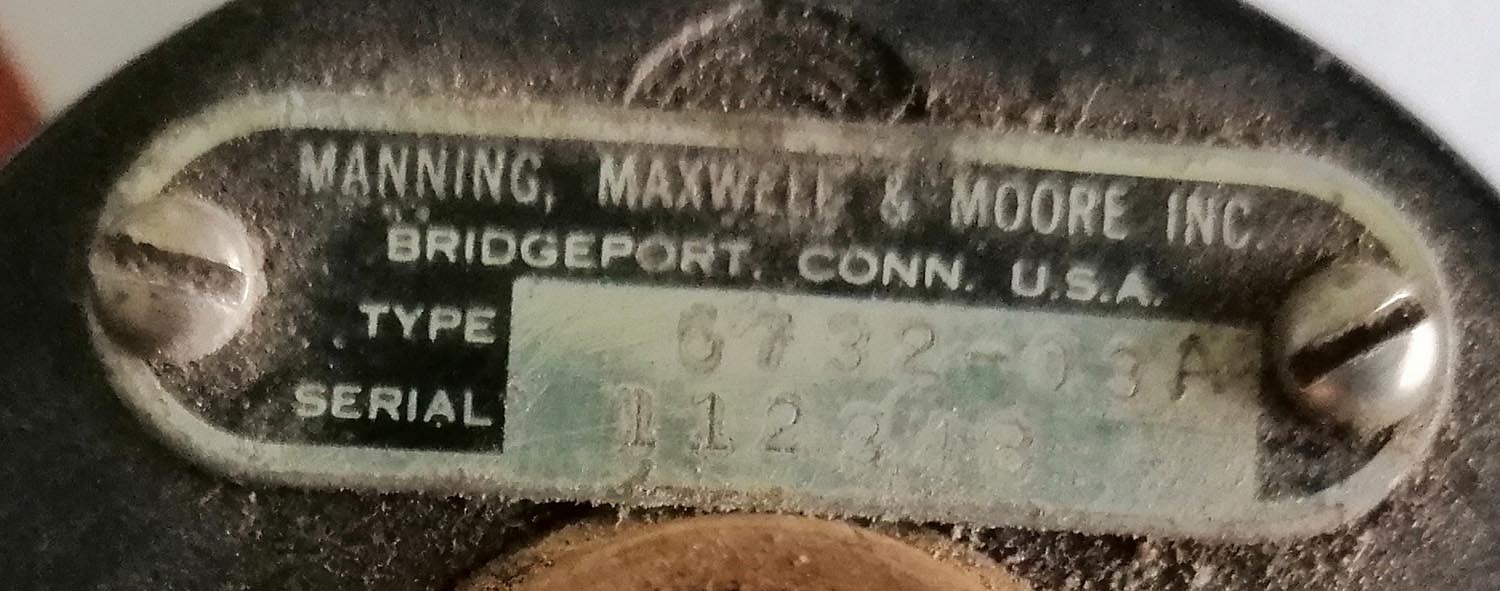

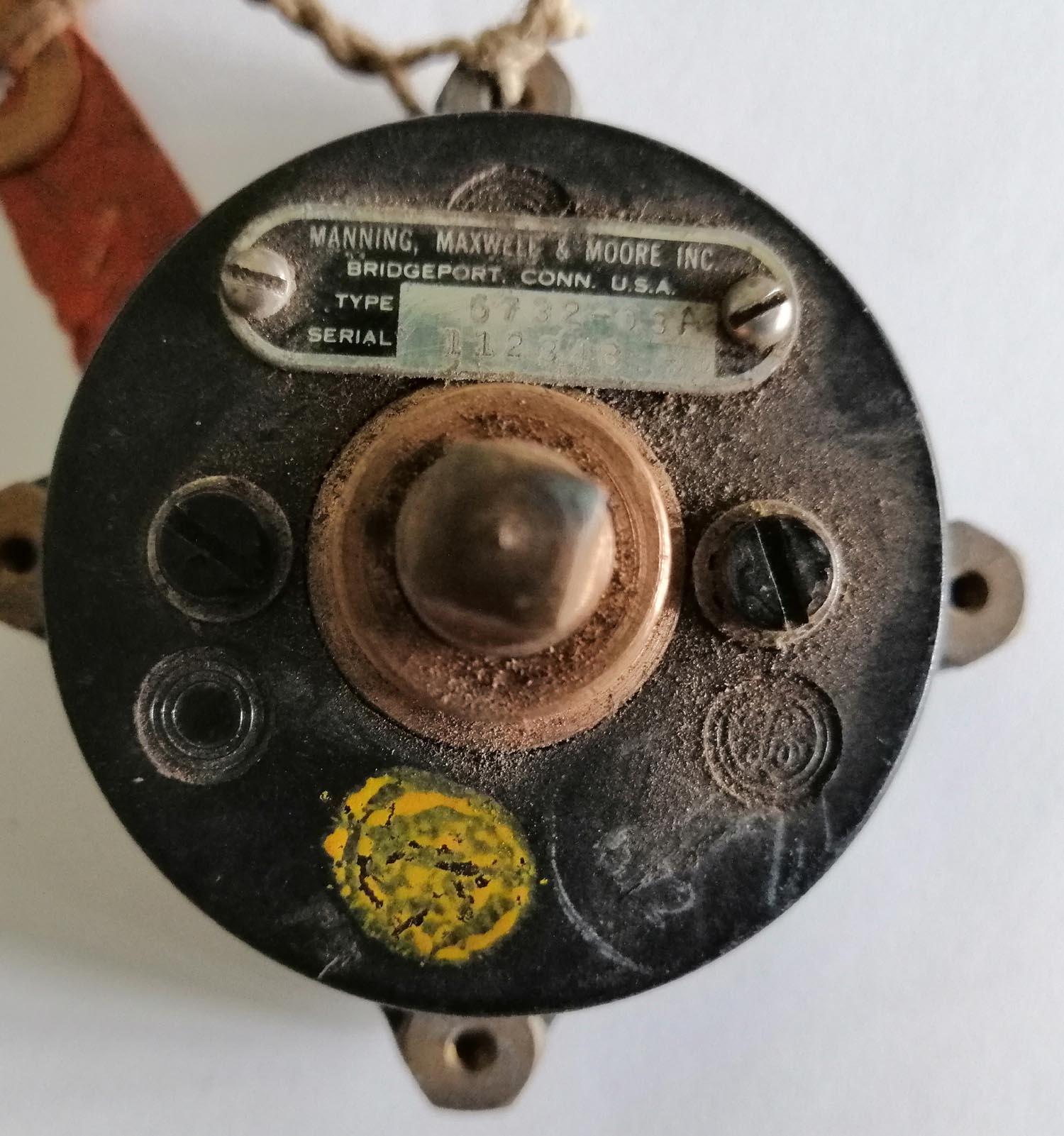

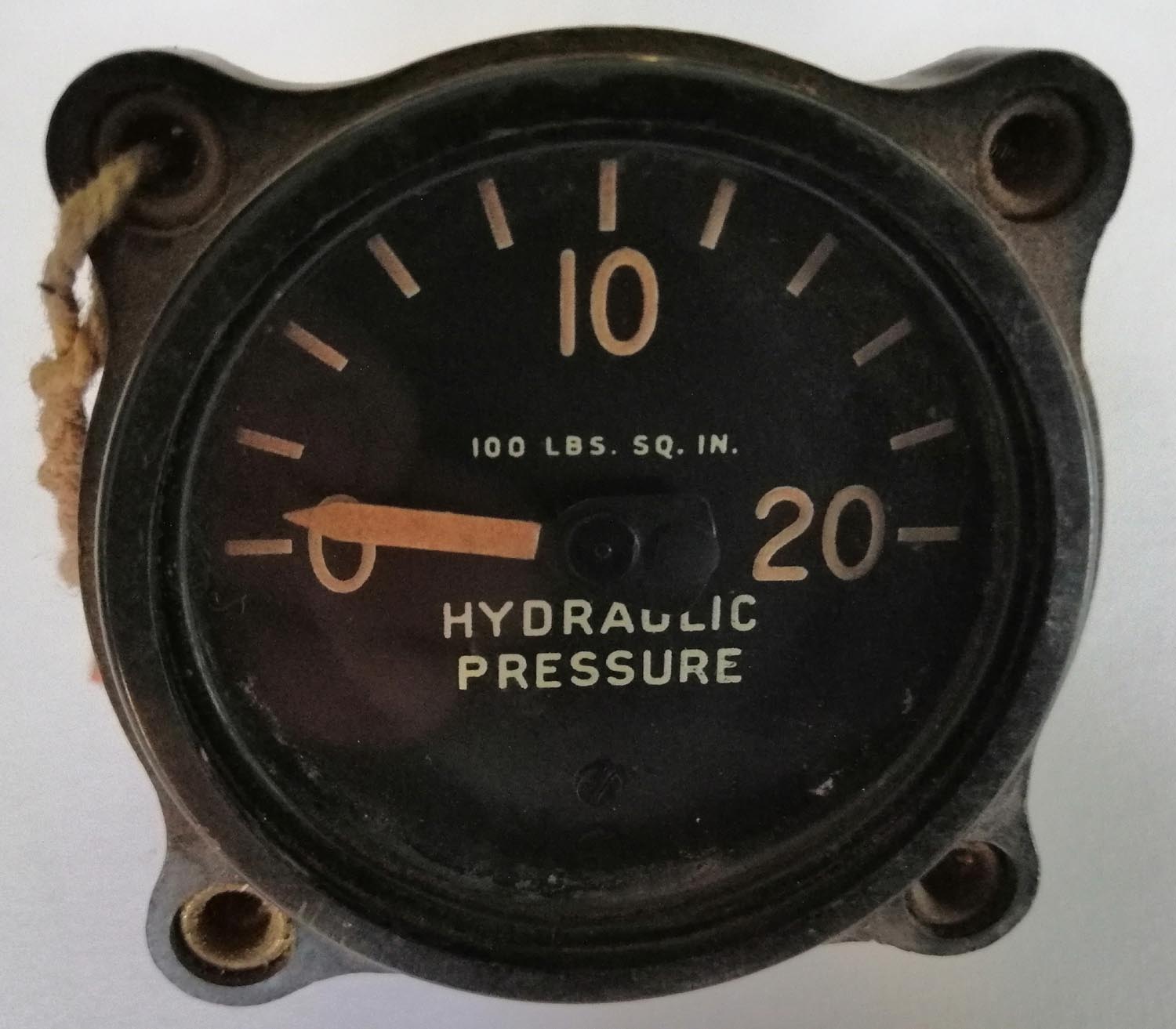

USAF 2000 Lb Hydraulic Pressure gauge (instruments page12 Pressure gauges 12)

Type 6732-03A



Out of stock more wanted please contact me



Click on the pictures to enlarge

Oil pressure gauge MK  XIE long cap  (instruments page12 Pressure gauges 10A)



Click on the pictures to enlarge

MK XIE 6A/570 Dated 1945 this has the long capillary which is intact

Out of stock more required please contact me

Click on the pictures to enlarge

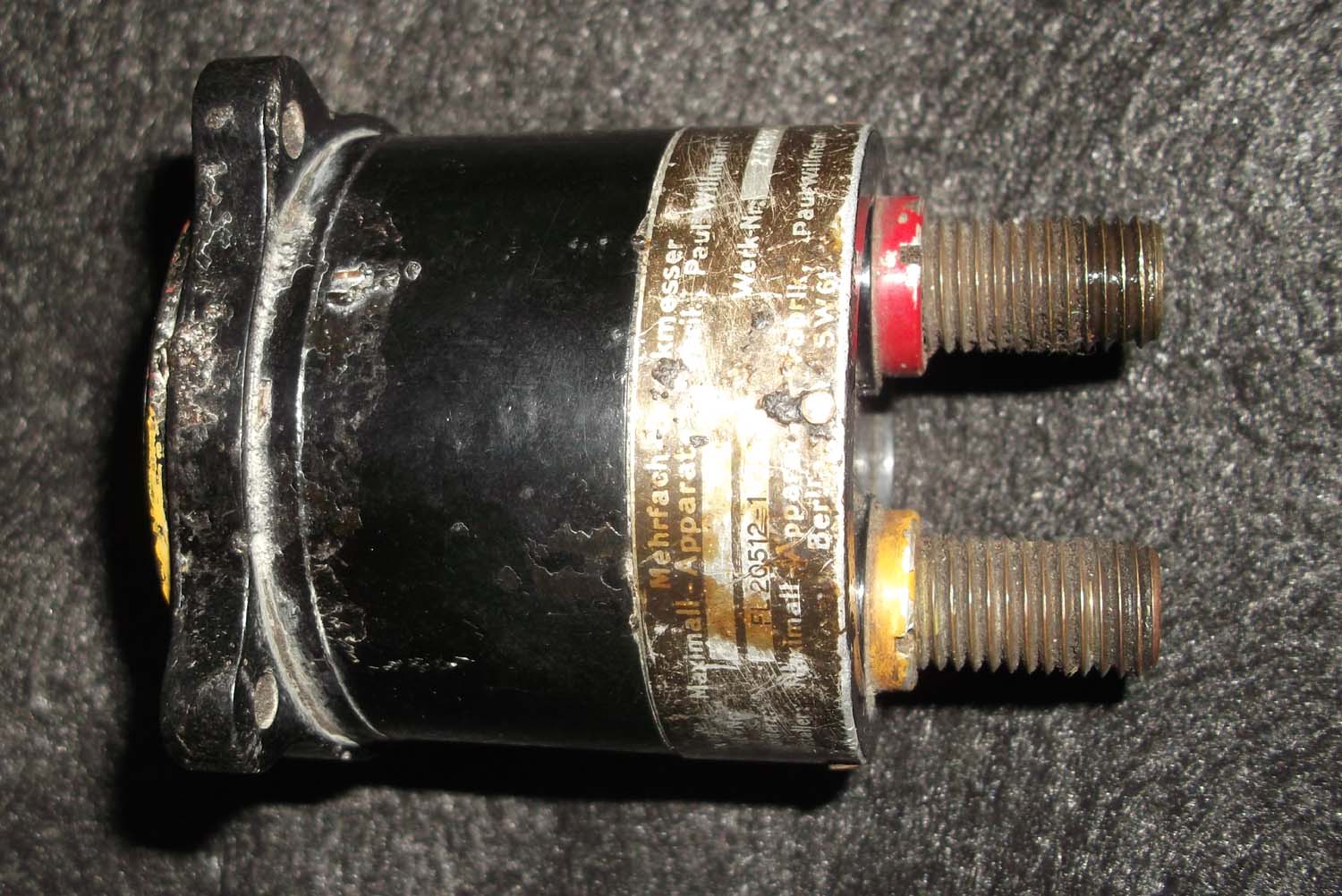

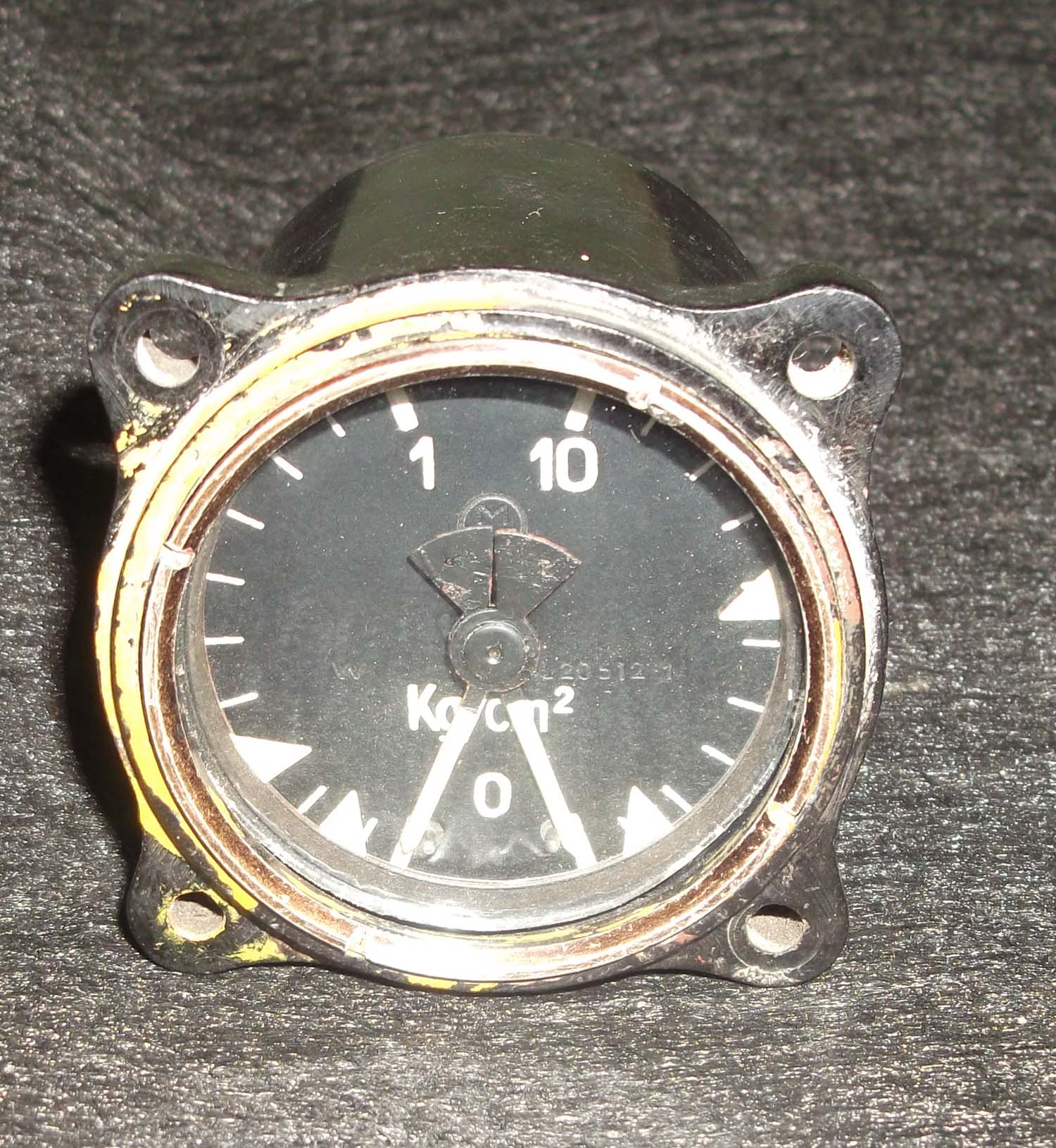

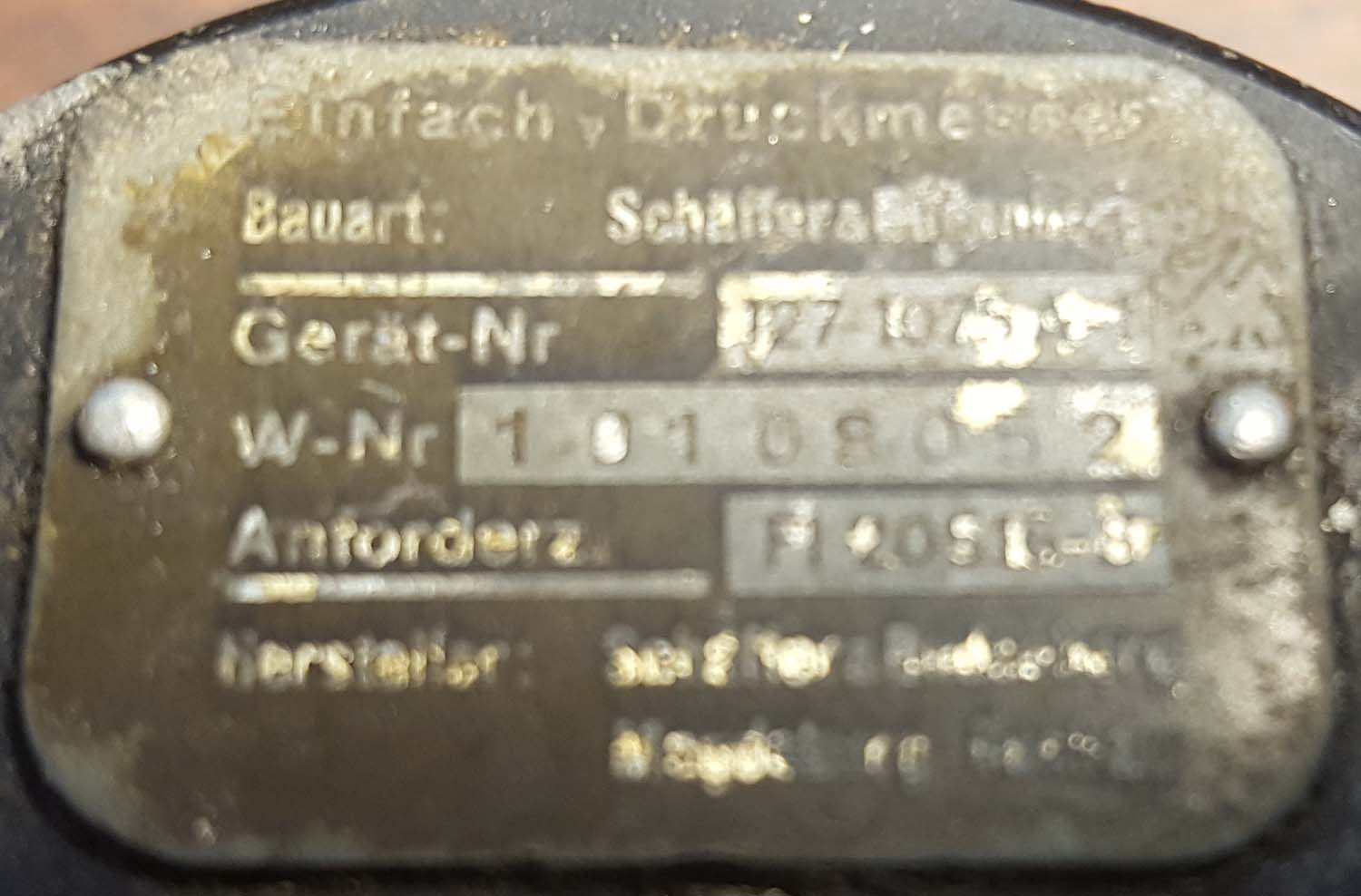

Luftwaffe Dual Fuel and Oil Pressure Gauge  (instruments page12 Pressure gauges 42)

Here we have a Dual Pressure Gauge Used by the Luftwaffe

It Carries the Part Number FL 20512-1

0-1 Kg/Cm2

0-10Kg/Cm2

Used in a Variety of Luftwaffe Aircraft

Out of stock more wanted contact me
