Welcome to the lighting section, If you are purchasing three or more items please contact us for discounted delivery charges.  Please be sure to check this section on a regular basis as new products are added weekly.

1  2



Click on the picture under to enlarge.

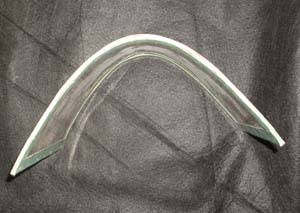

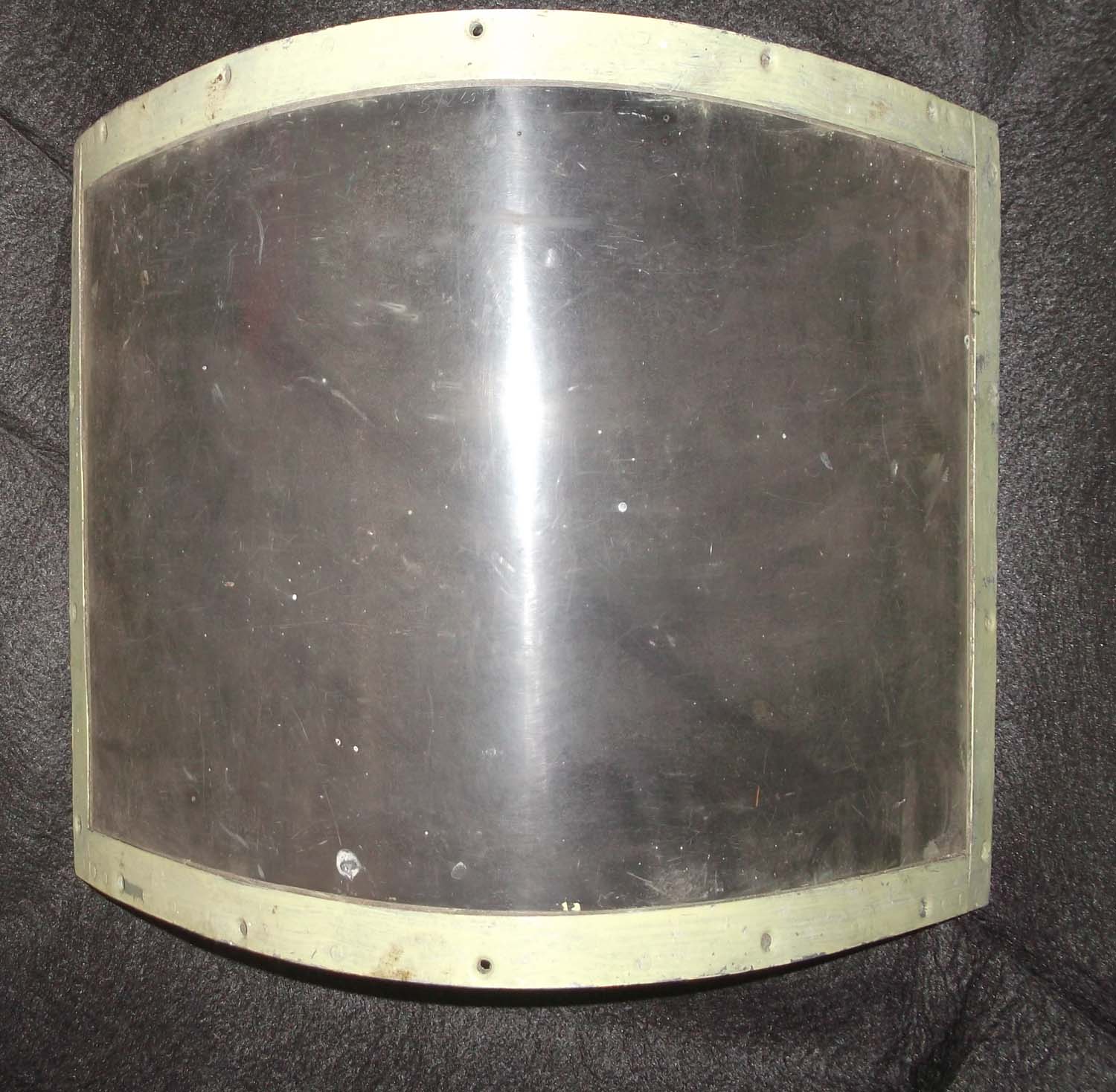

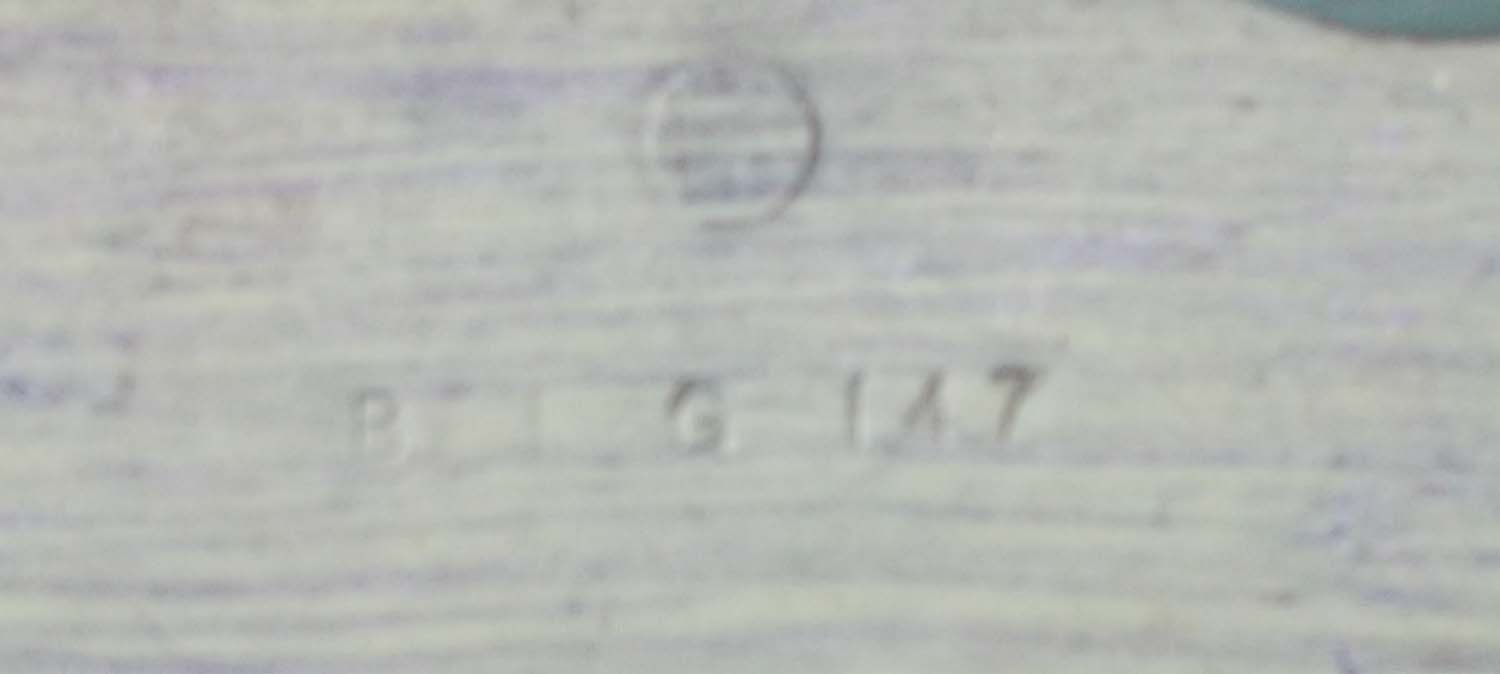

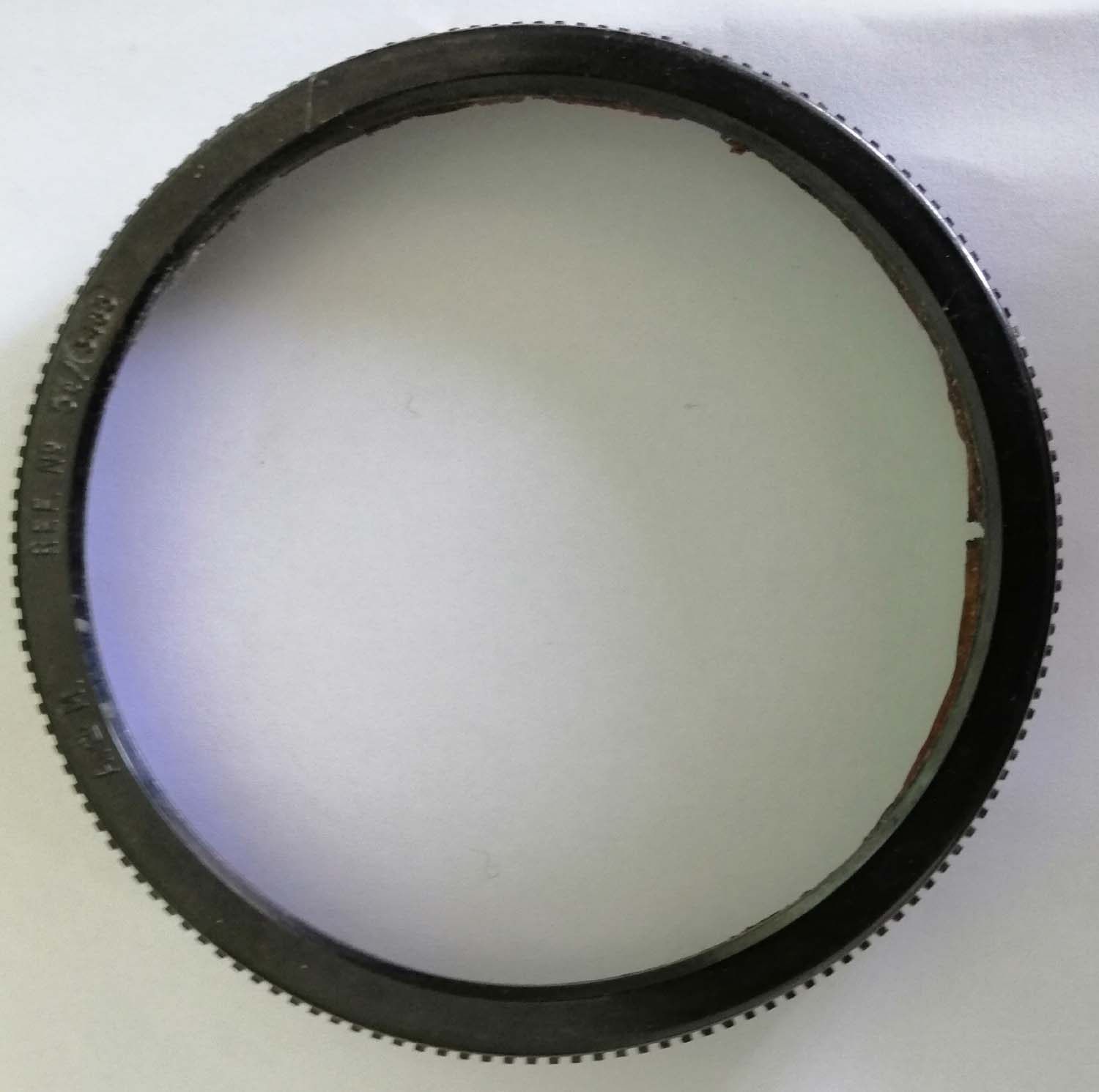

Hurricane landing light lens and frame (pg1 light)

This superb piece is an original corrosion free landing light frame and lens. Fitted on the leading edge  it protected the Hurricanes landing light.

A stunning original piece of Hurricane.

 399

Click on the pictures to enlarge.

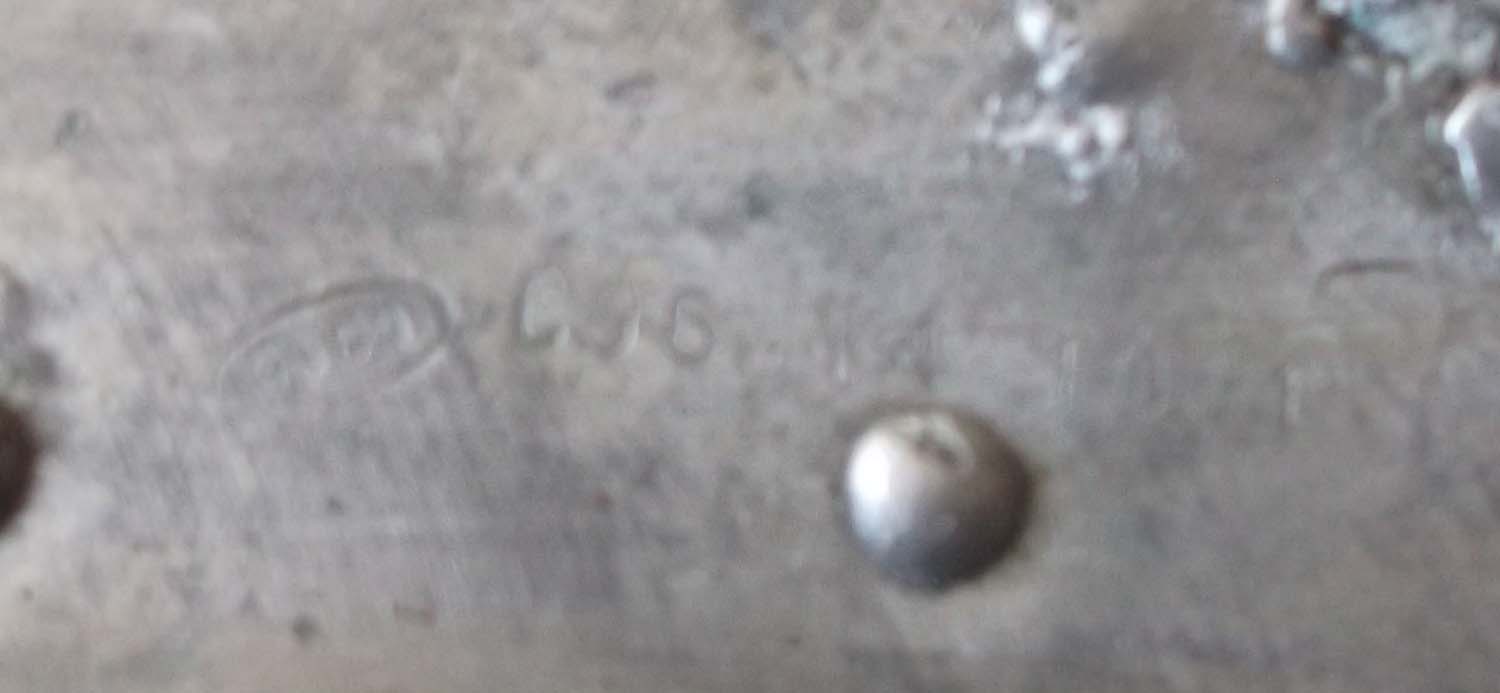

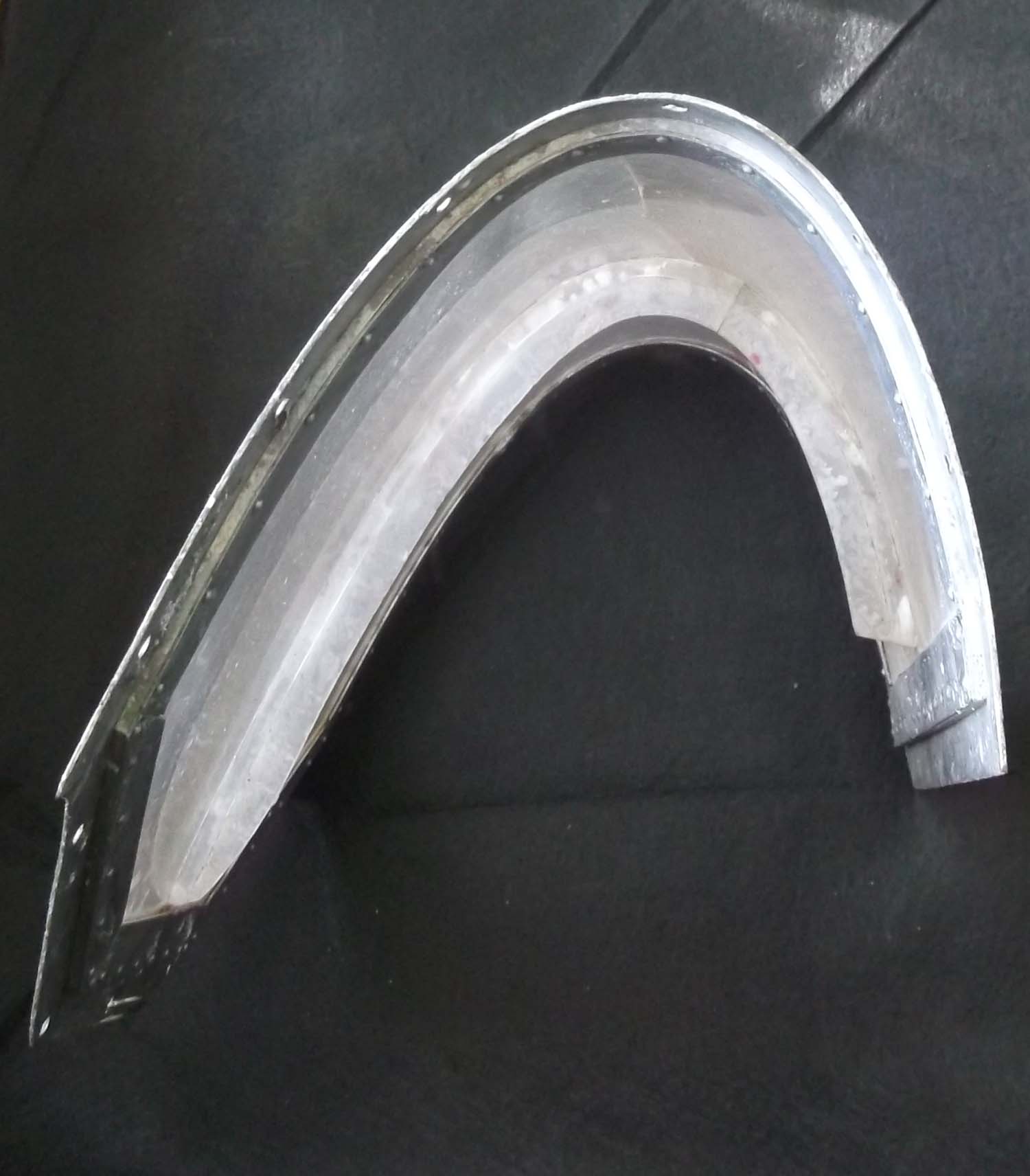

Hawker Typhoon leading edge light cover 2 (pg1 light)

This is an original Hawker Typhoon leading edge light cover. This piece fits where the over landing lights . These are 100% original with complete perspex and original paint. These were purchased  on our trip to Arnhem and almost certainly saw action in a ground attack role. They were excavated from an airfield dump in Holland.

You can see the position they fit to the right of the RHS cannon.   An alloy panel is also available in the airframe section link.

349

Click on the pictures to enlarge.

An alloy panel is also available in the airframe section link.

Hawker Typhoon leading edge light cover 3 (pg1 light)

This is an original Hawker Typhoon leading edge light cover. This piece fits where the over landing lights . These are 100% original with complete perspex  These were purchased  on our trip to Arnhem and almost certainly saw action in a ground attack role. They were excavated from an airfield dump in Holland. This one has some corrosion and a crack in the perspex.

You can see the position they fit to the right of the RHS cannon.

249

Click on the picture to enlarge

Green Navigation Lights (pg 1 Light)

Wartime navigation lights in  good usable condition.  I believe these were used in Spitfire wing and tail.

 Probably used in other RAF Aircraft.

Air Ministry Ref: 5C/492

Click on the picture under to enlarge

 Currently out of Stock

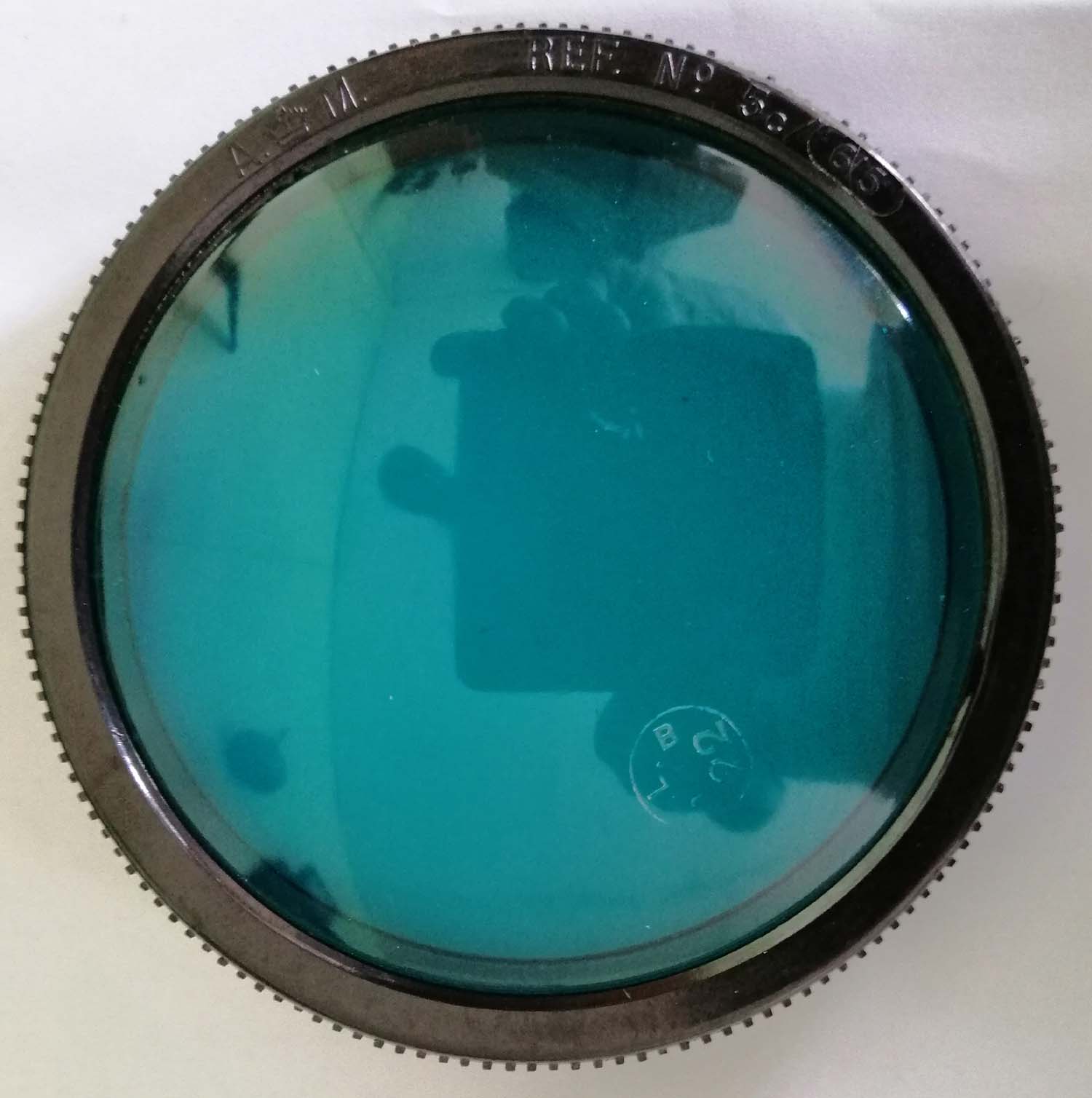

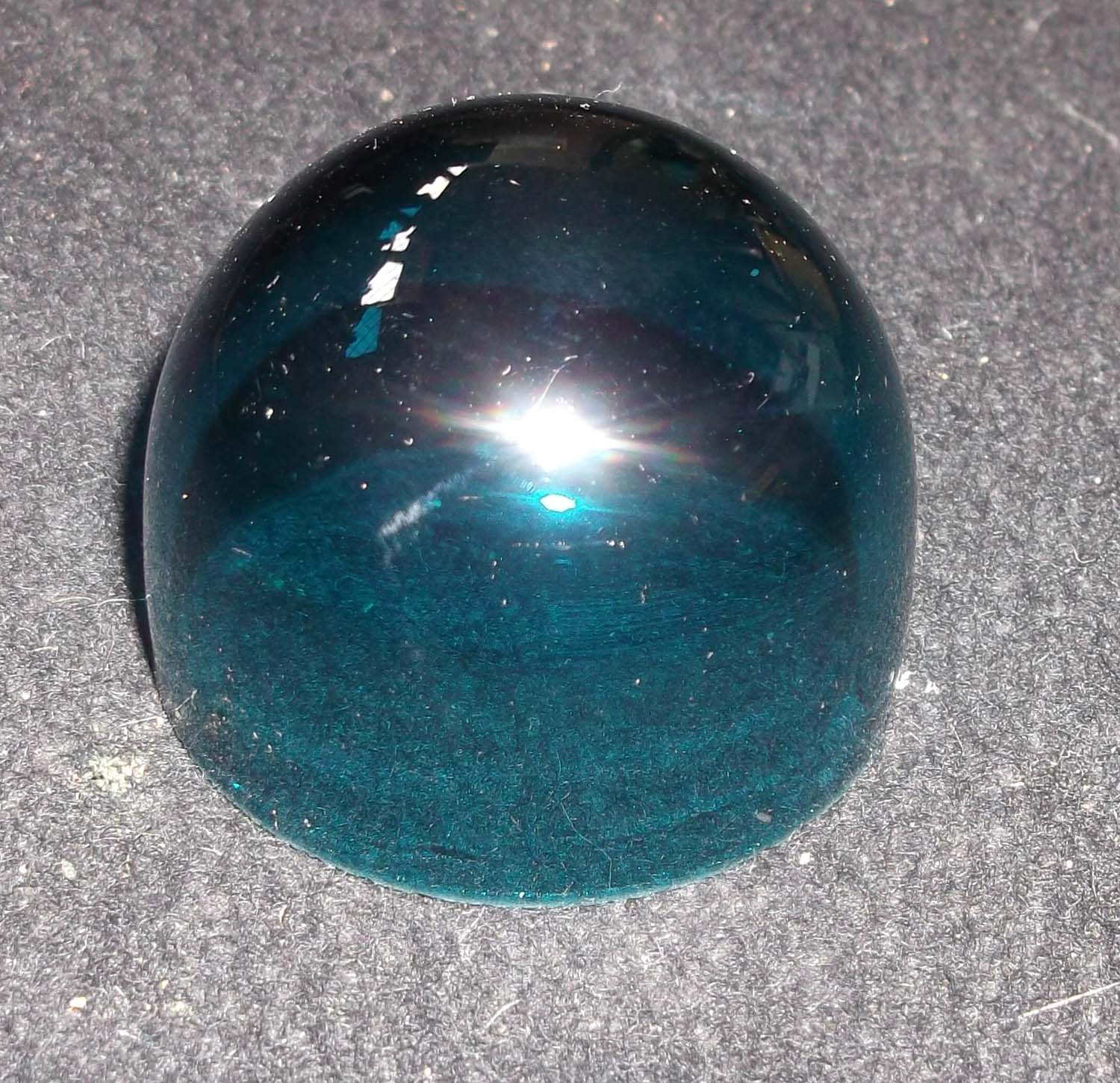

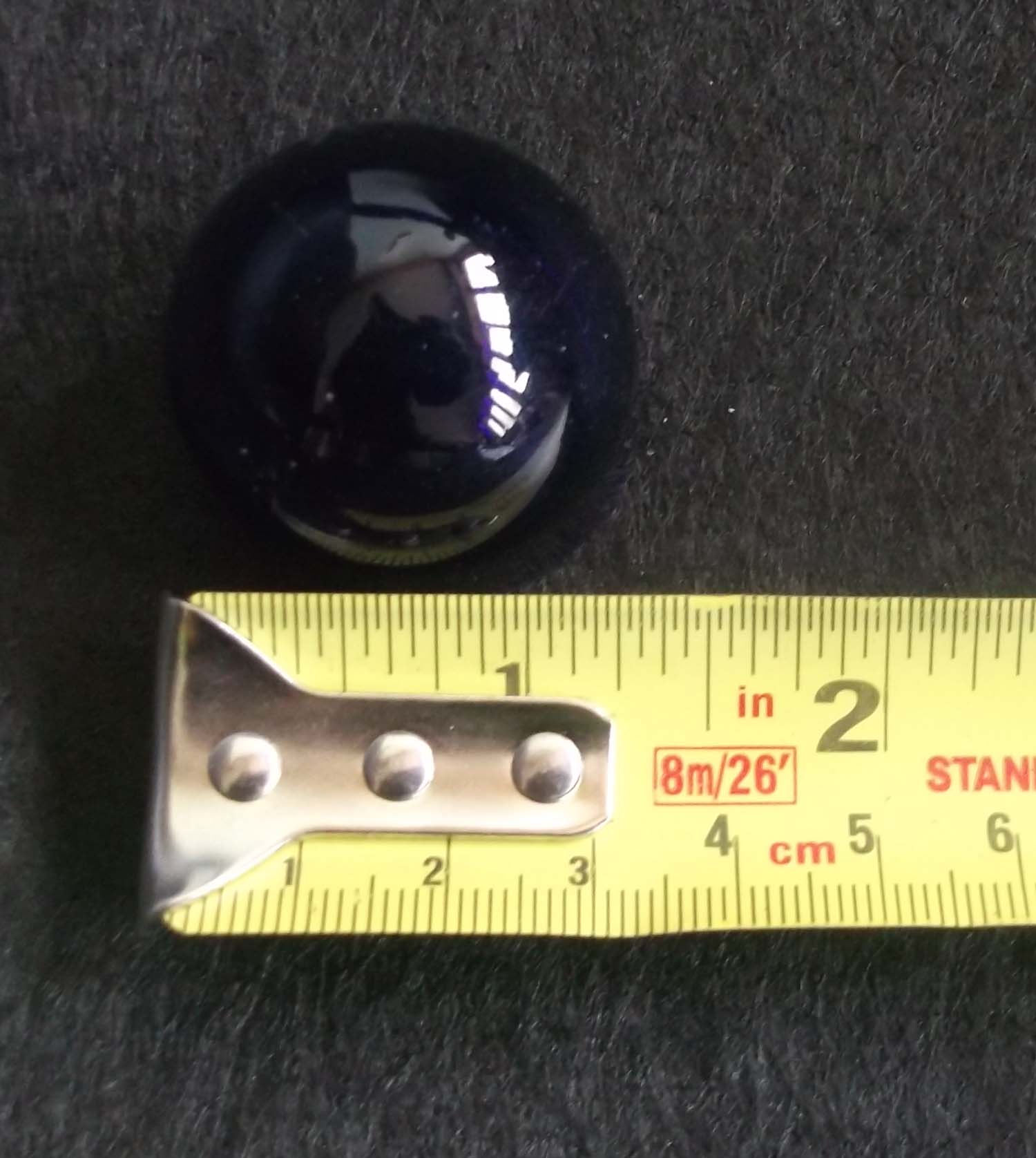

Navigation light spare lenses Green (pg1 light)

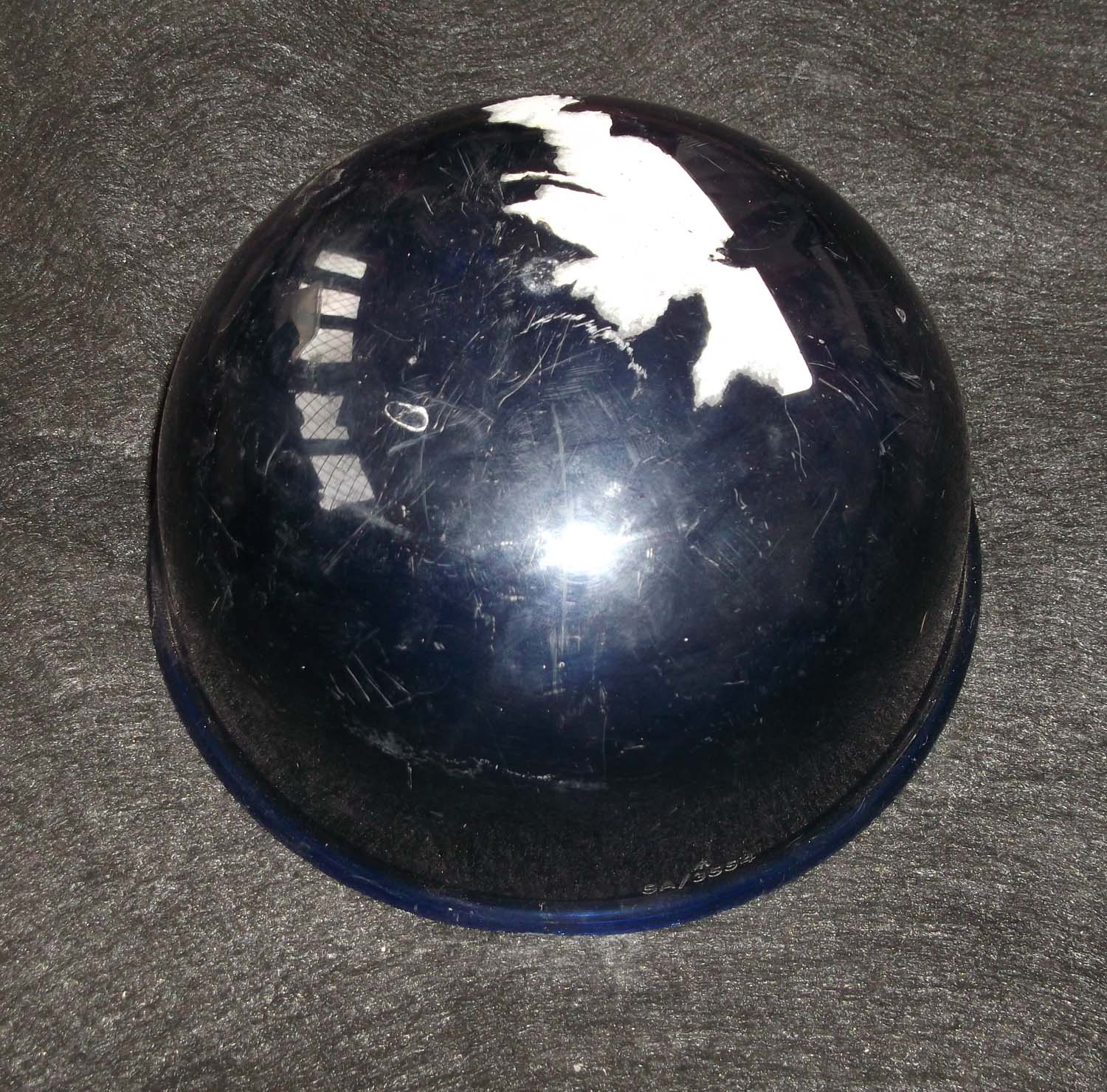

Here we Havee Green/Blue Spare navigation light lenses for the unit advertised above and below.

Green/Blue 15 each

Navigation light spare lenses Red (pg1 light)

Spare navigation light lenses for the unit advertised above and below.

Red 15 each



 45

Red Navigation Lights (pg 1 Light)

Wartime navigation lights in  good usable condition. I believe these were used in Spitfire wing and tail. Probably used in other RAF Aircraft.

This Carries the Air Ministry Part Number  5C/492



Click on the picture under to enlarge


Seen fitted to the 3 Hurricane under and right

Hurricane/Spitfire tail light (pg1 light)

Here is a tail light as fitted to Spitfires , Hurricane and probably other RAF Wartime aircraft .

This is the correct clear lens type. These are mint boxed examples

A/M 5C/495

Picture of Hurricane supplied by Peter Vacher.

 45 each

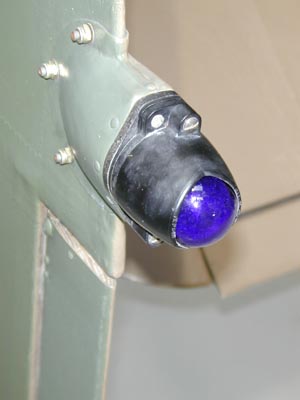

Seen fitted to the Hurricane under and right

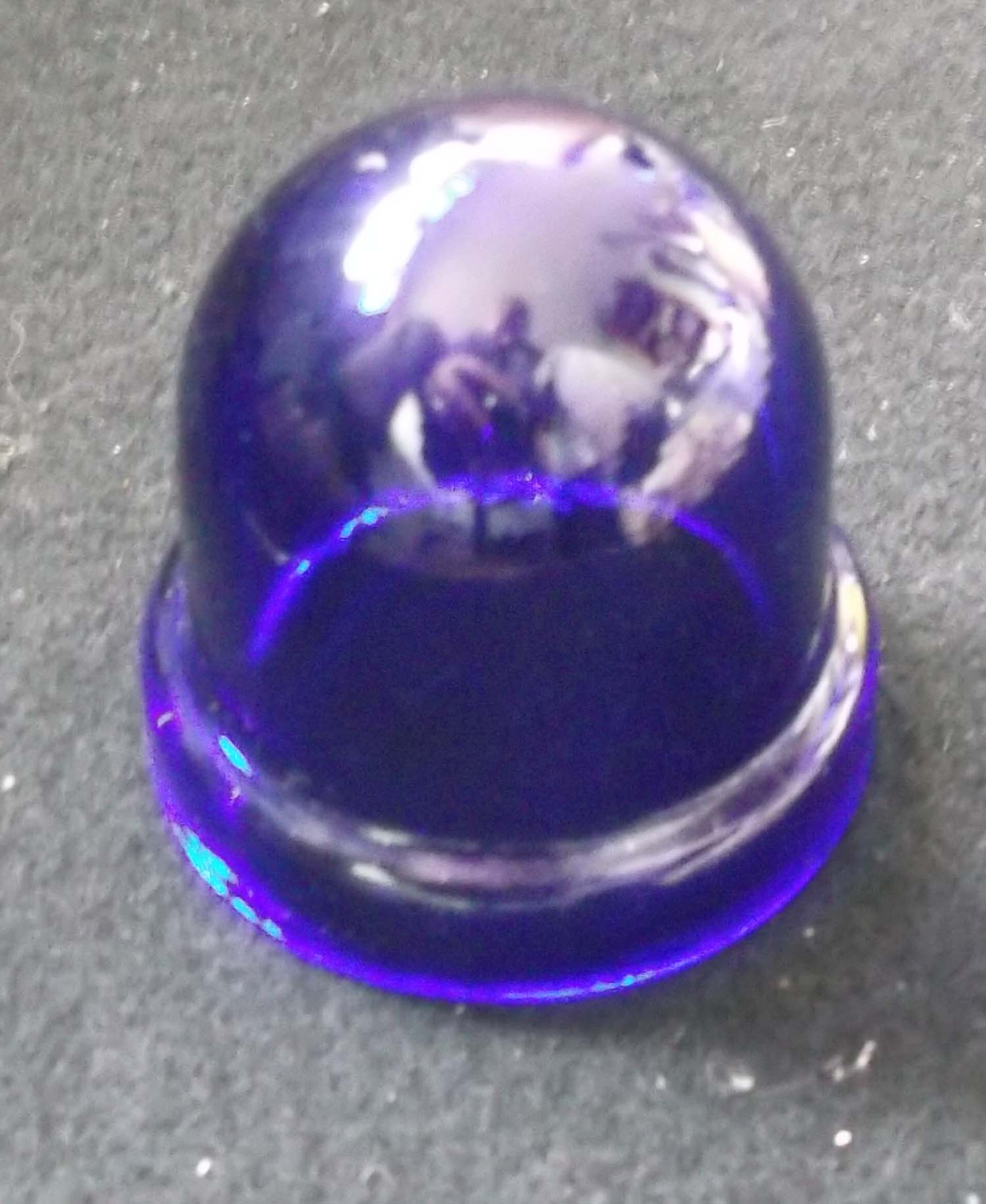

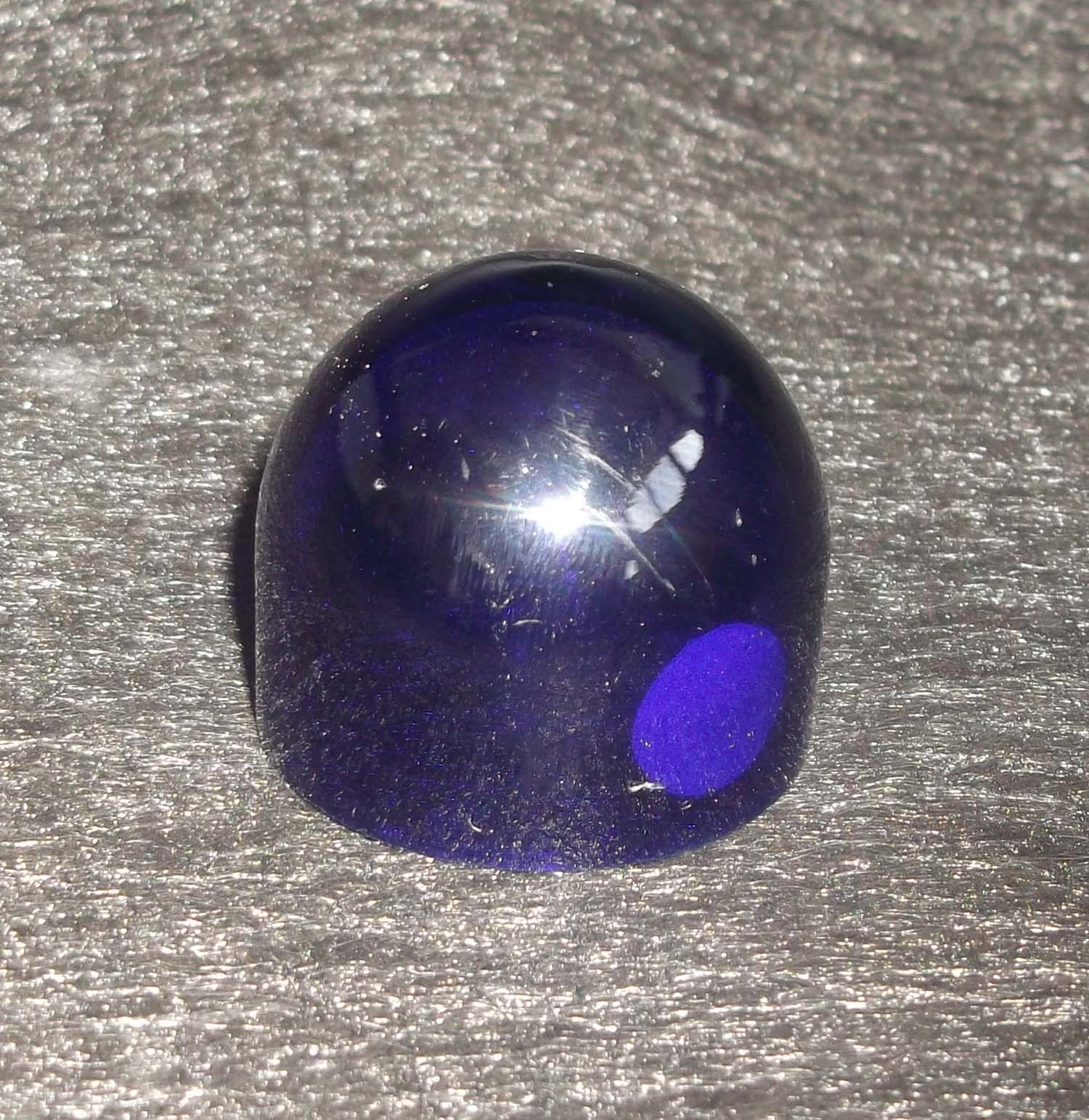

Hurricane/Spitfire tail light lense (pg1 light)

Here is a tail light lense as fitted to Spitfires , Hurricane and probably other RAF Wartime aircraft measures 45mm across the base.

Recently supplied and fitted to Peter Vacher's superb MK I Battle of Britain Hurricane.

Blue 25 each

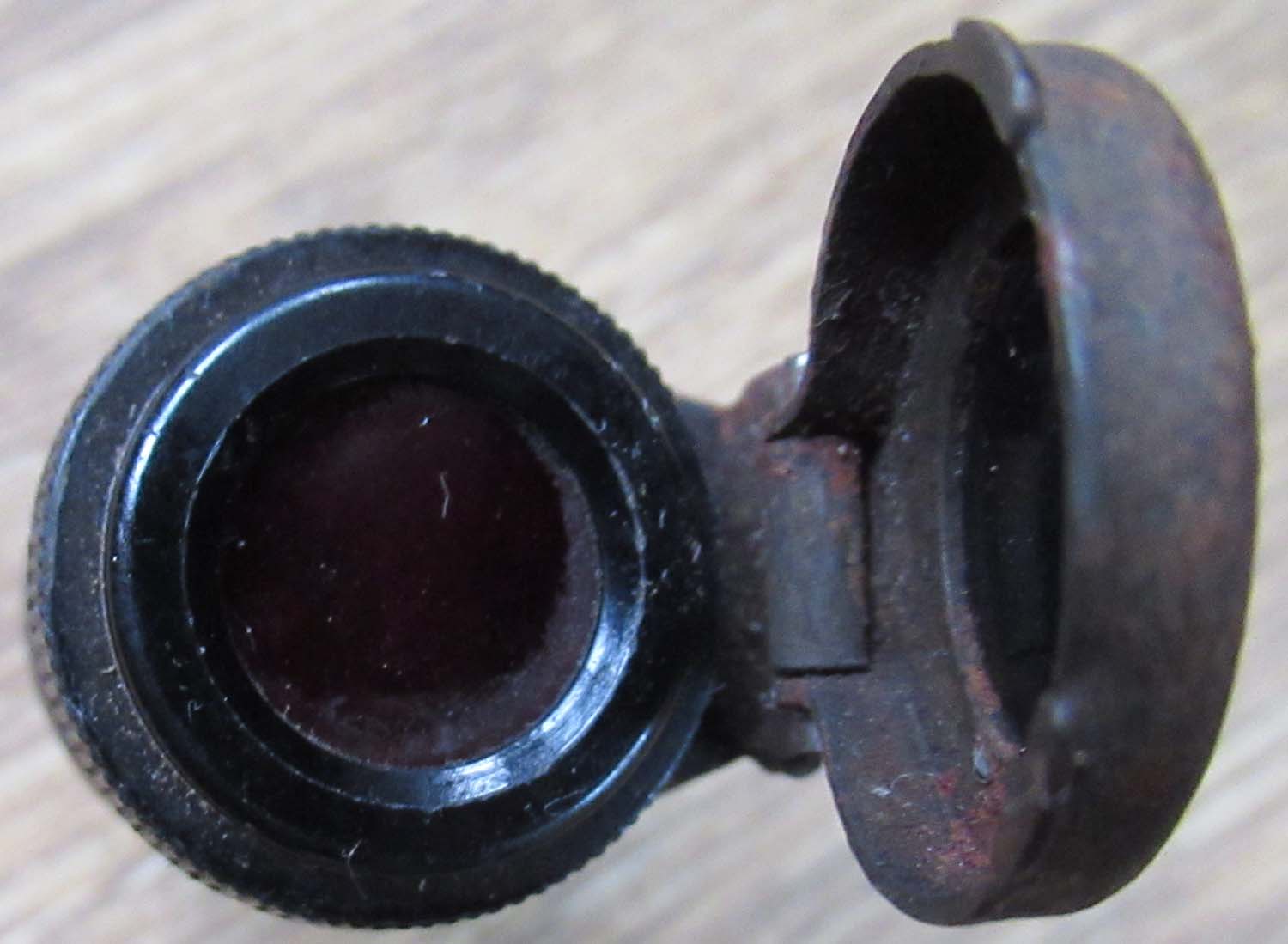

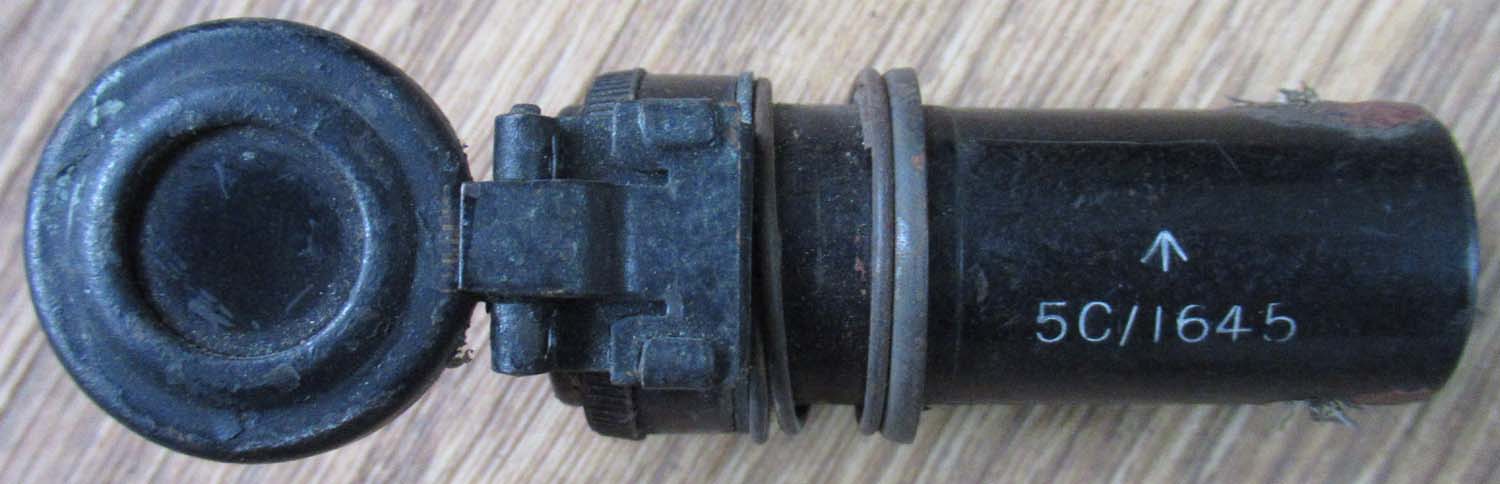

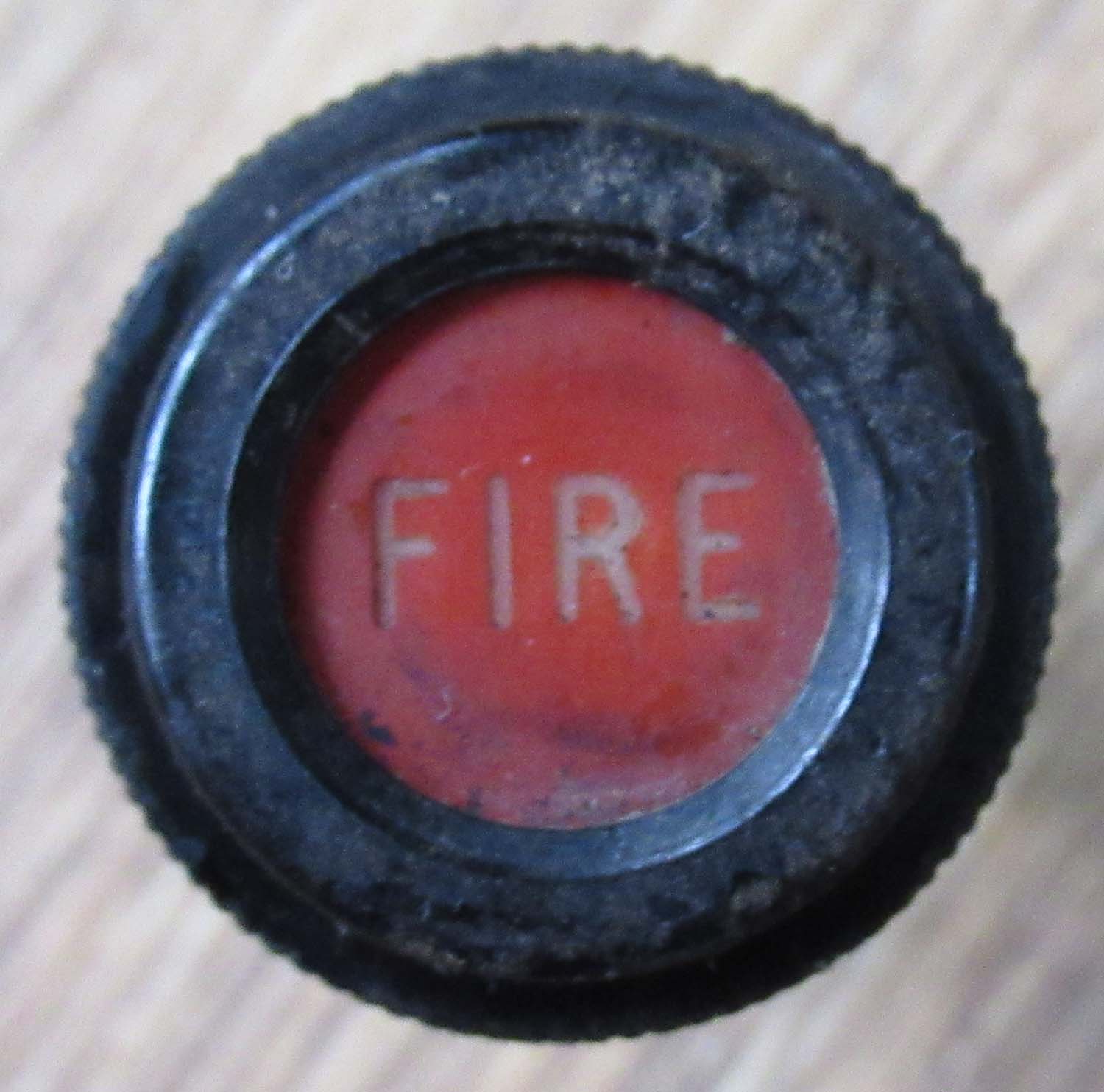

Red Warning light Spitfire(pg1 light)

This is a red warning light  used in the main panel of Spitfires for fuel pressure, supercharger boost warning.

 These lights were used extensively throughout RAF wartime aircraft in including Heavy bombers including the Lancaster.

Reference No: 5CX/1645

20 each


20 each

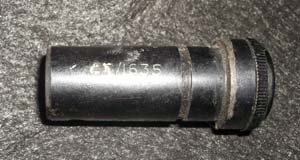

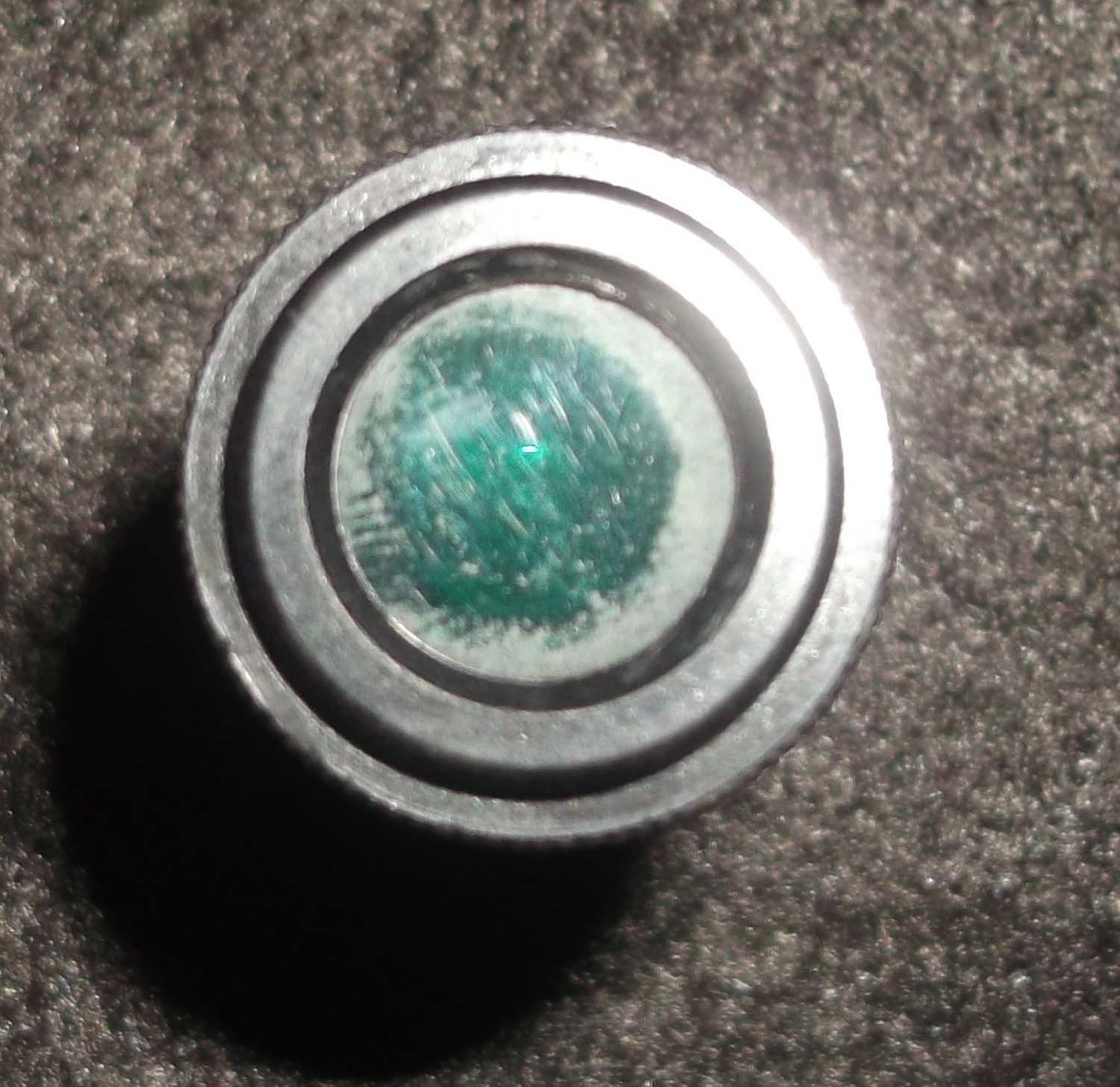

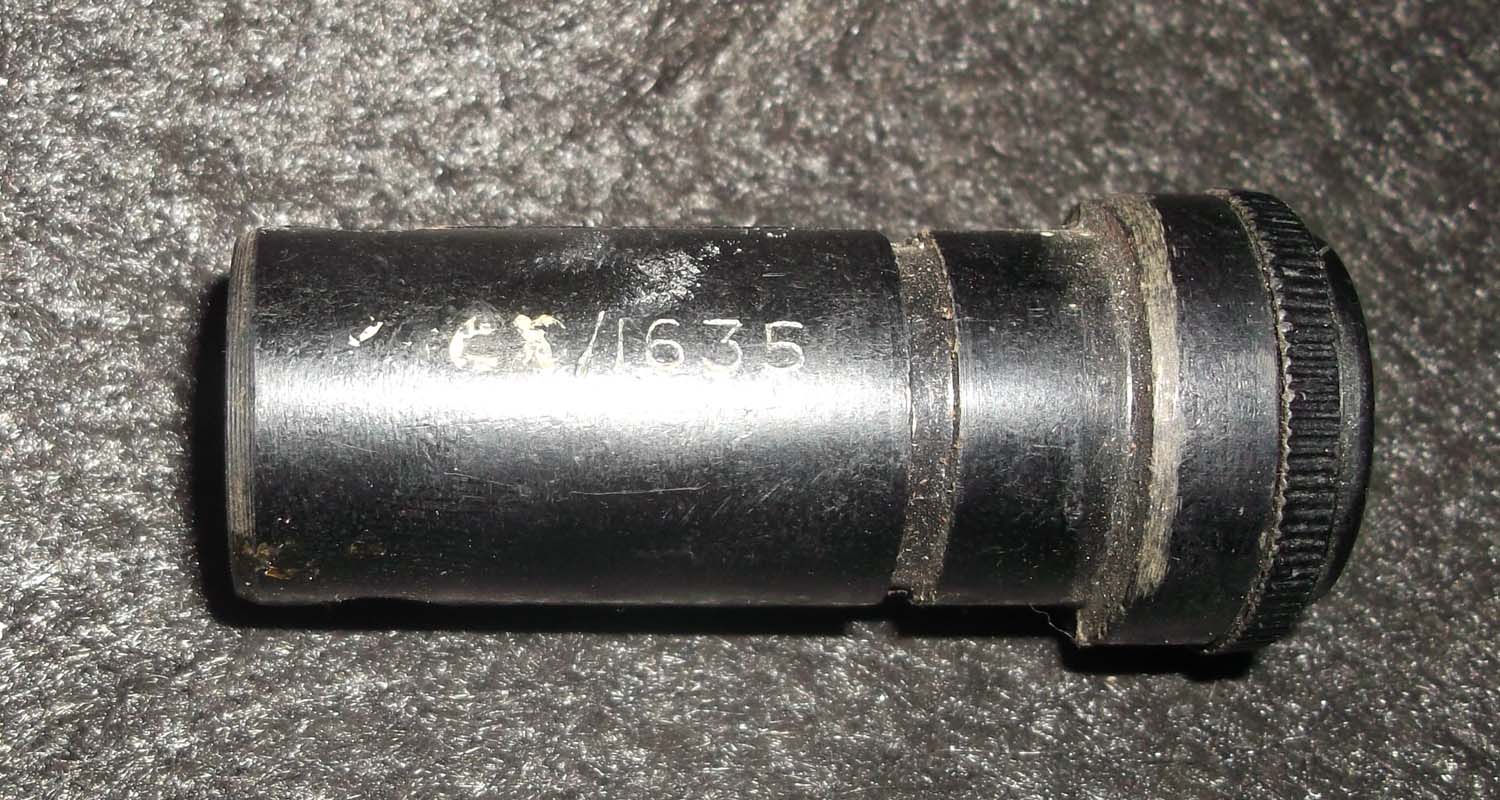

Green Warning light (pg1 light)

Here we have a RAF Warning Light,  Similar to the ones listed above however these have a Green Lens,

 These lights were used extensively throughout RAF wartime aircraft in including Heavy bombers including the Lancaster.

Reference No: 5CX/1635

Click on the picture under to enlarge

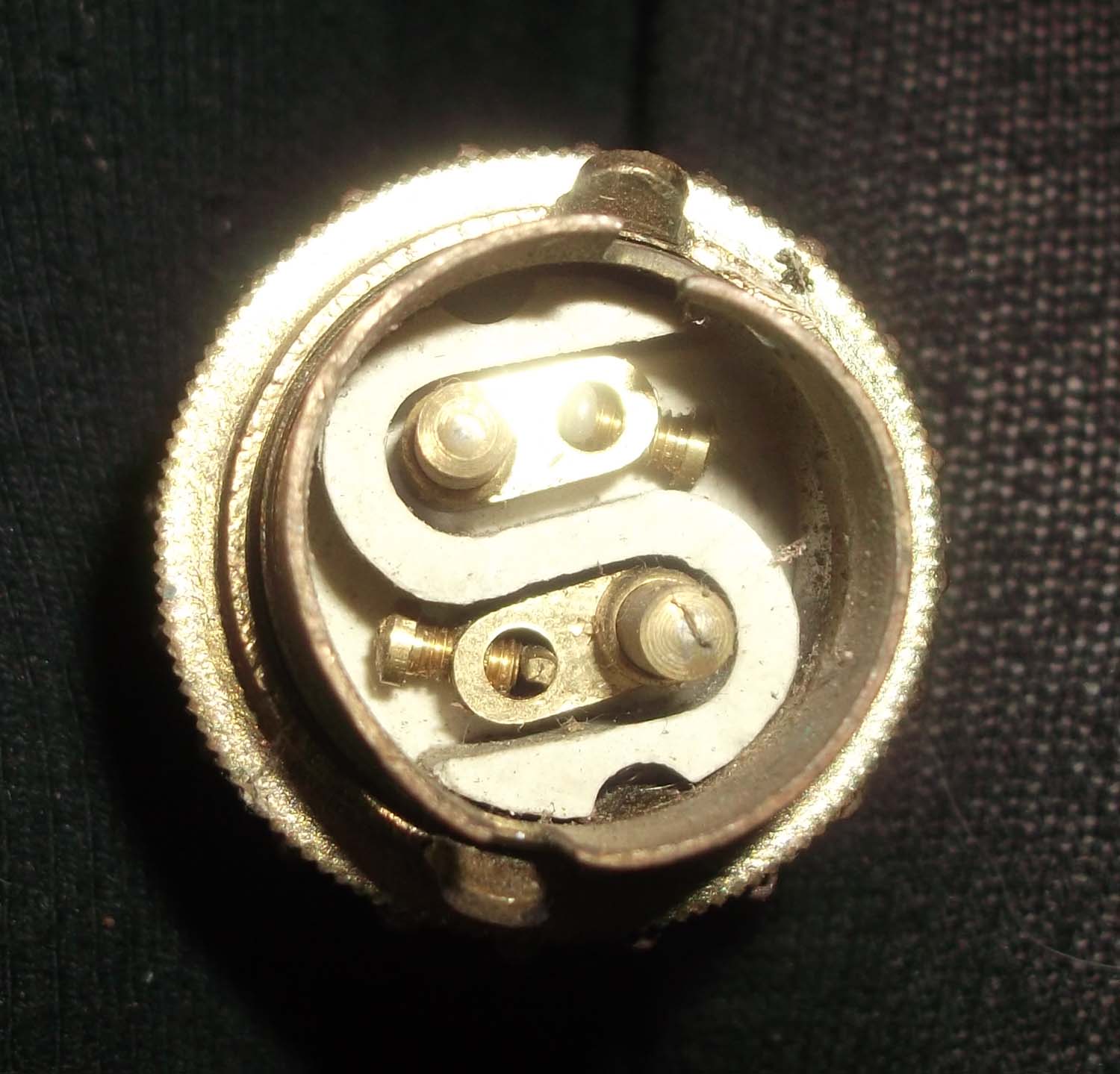

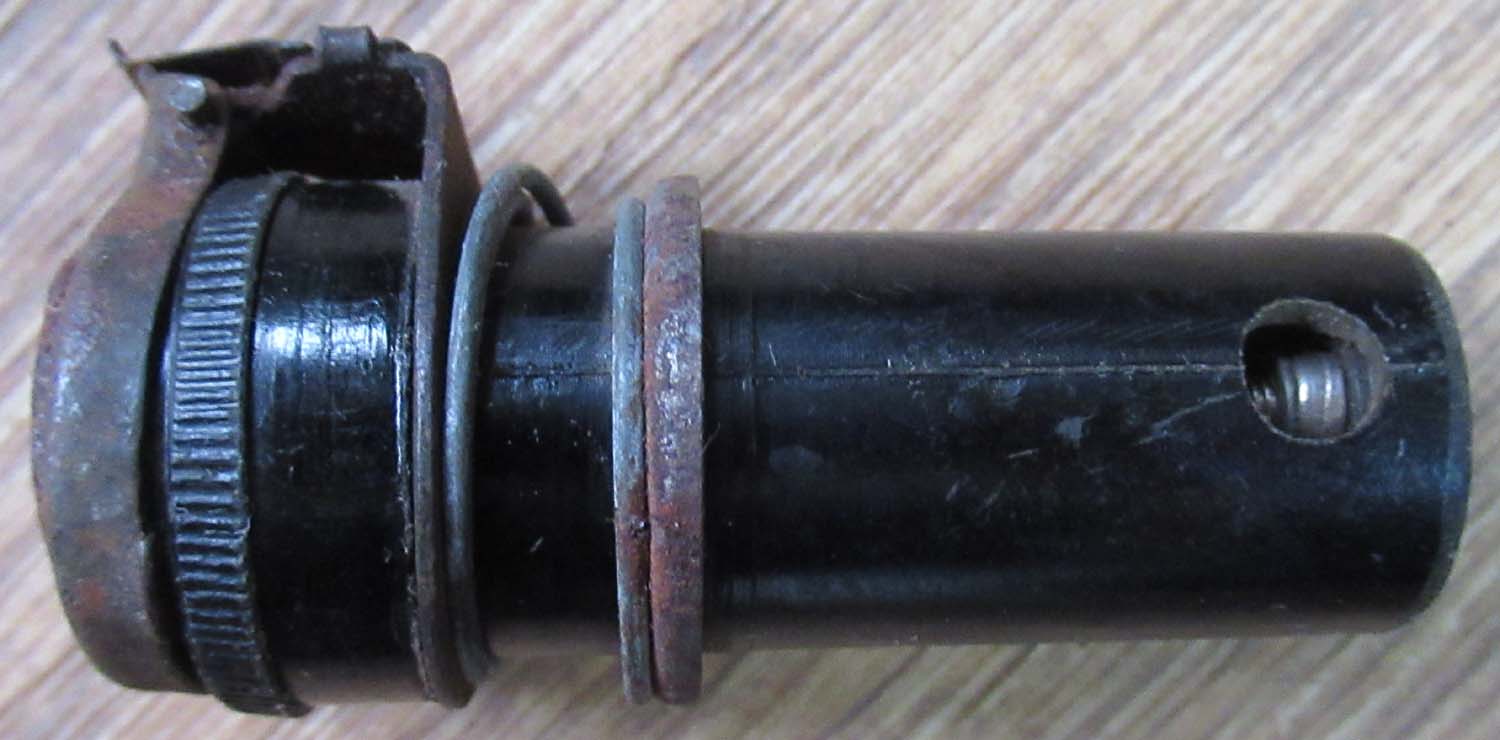

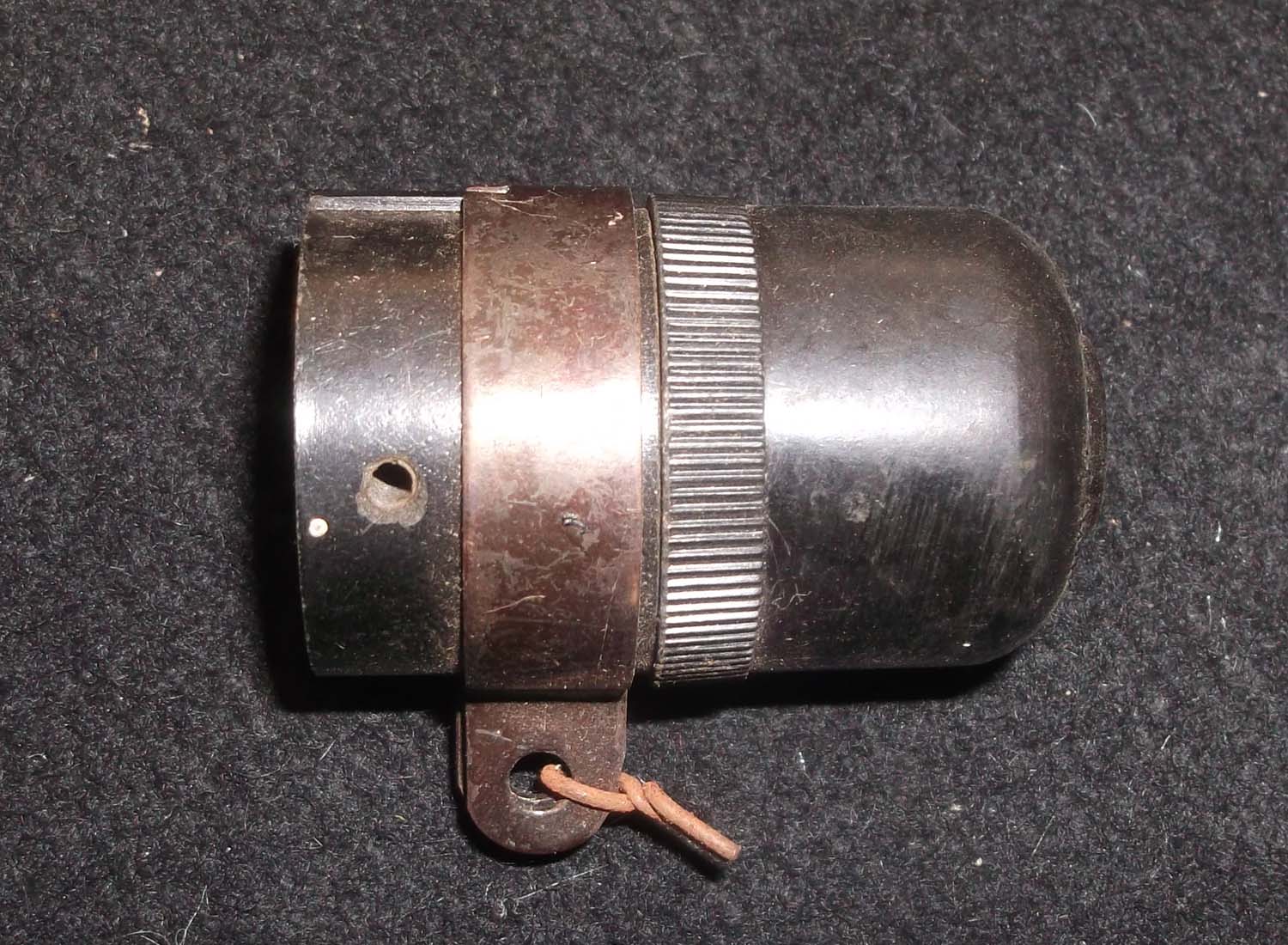

Cockpit bulb holder 5C 793(pg1 light)

Here we have a Standard Cockpit Bulb Holder

Used in Spitfires as Cockpit lights and most other types of RAF wartime aircraft.

Air Ministry Ref: 5C/793

25 each


Cockpit dimmer switch (Nos 7 Electrical switches page 2 ele)

AM Ref: 5C/1181

Used on Lancaster Bomb aimers panels and other applications such as navigators lamps ect mainly in Heavy bombers. Some are  solid brass and can be polished.

Click Here to See this on Our Electrical Page

Click on the pictures to enlarge.

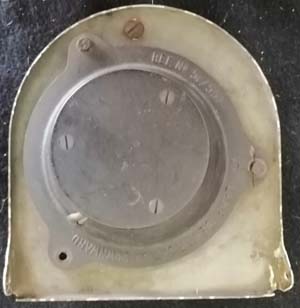

Downward ID Lamp Red (pg1 light)

Here we have a Red Downward Identification Lamp

 This was used in Spitfire's, Mosquitoes (which had three) and many other RAF Wartime aircraft, in good original condition.

The Lens Carries the Part Number 5C/3467 and The Base has the Part Number 5C/557

45 each



Click on the pictures to enlarge.

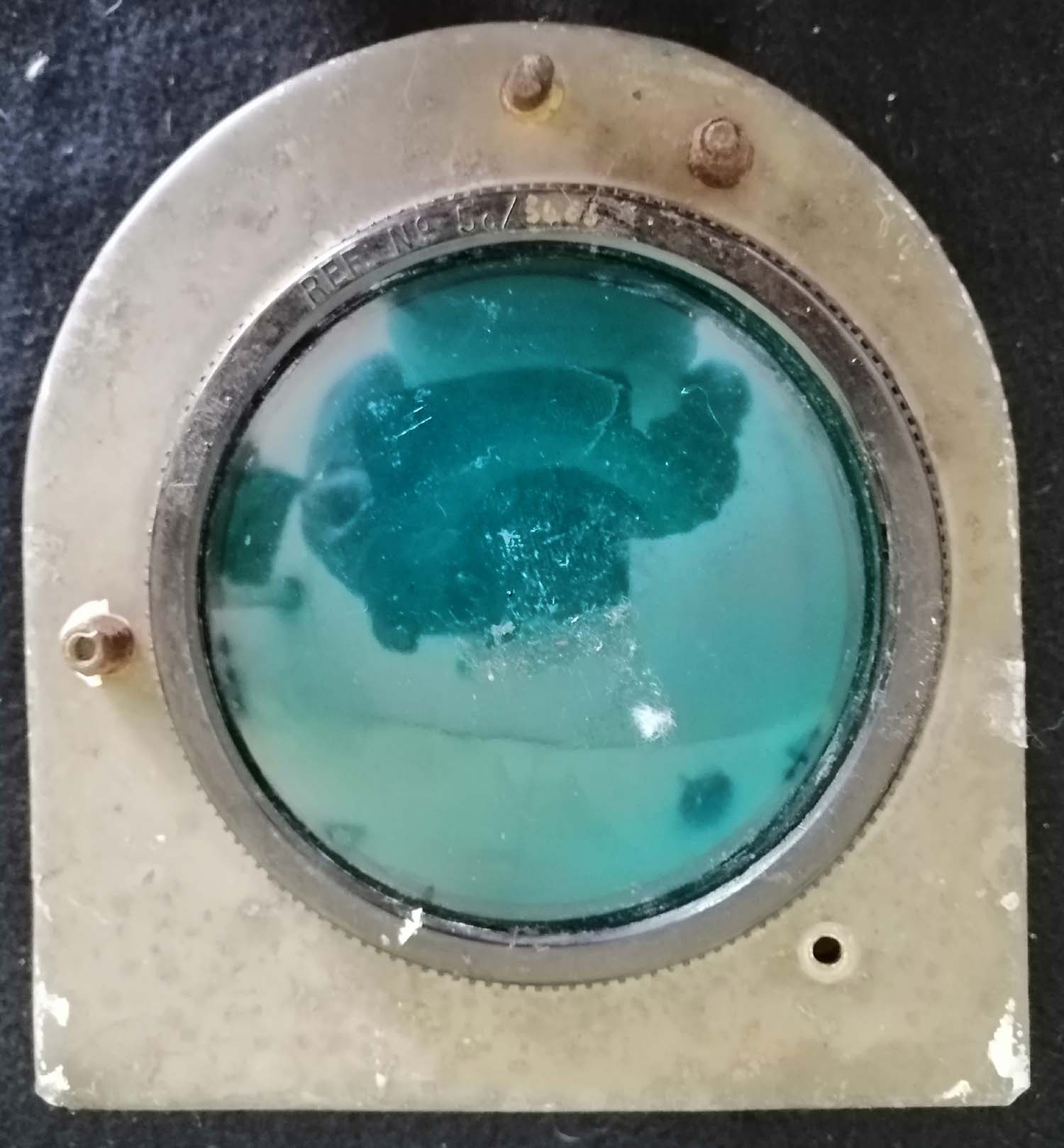

Downward ID Lamp Green (pg1 light)

Here we have a Green Downward Identification Lamp

 This was used in Spitfire's, Mosquitoes (which had three) and many other RAF Wartime aircraft, in good original condition.

The Lens Carries the Part Number 5C/3466 and The Base has the Part Number 5C/557

45 each



Click on the pictures to enlarge.

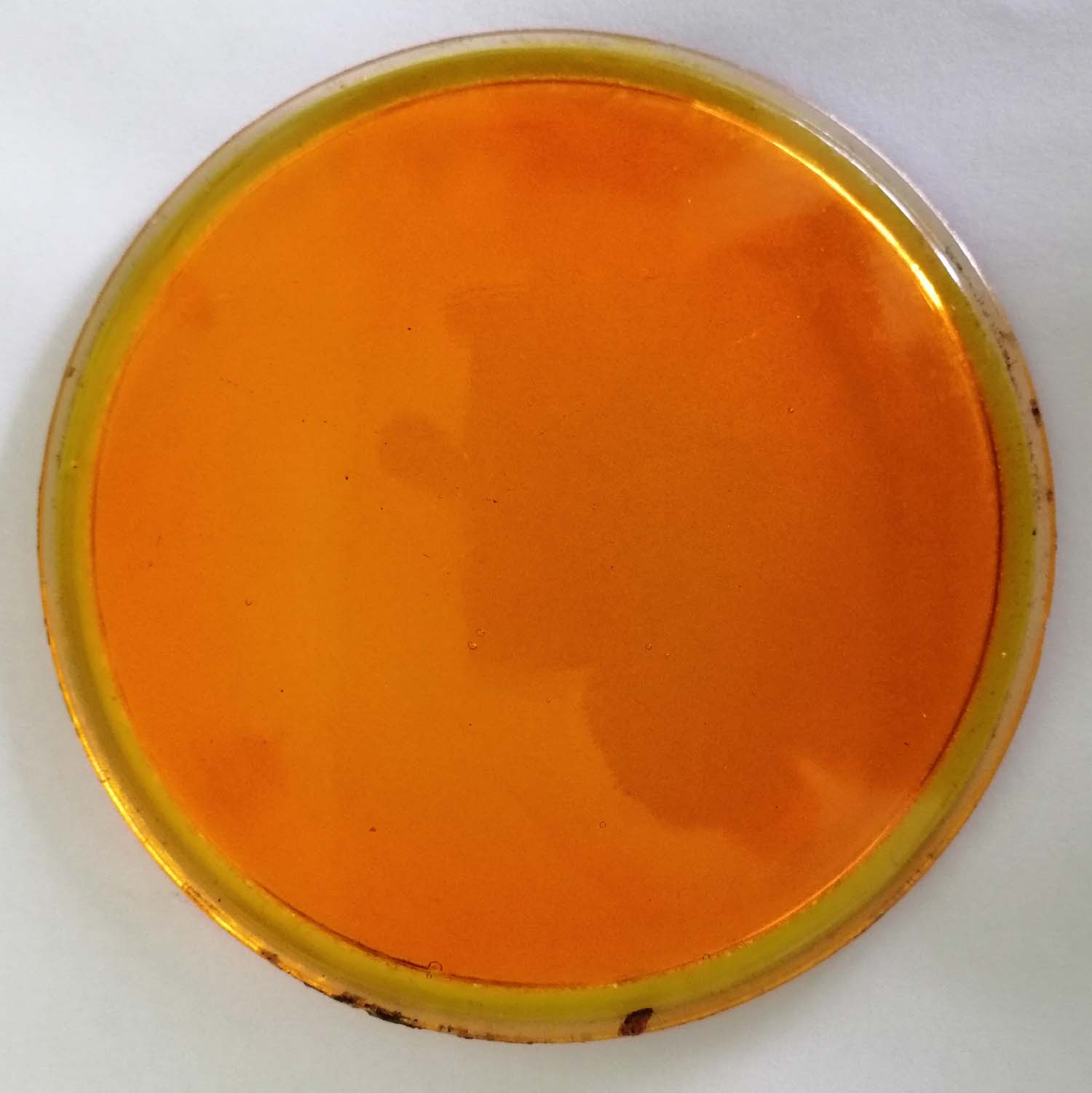

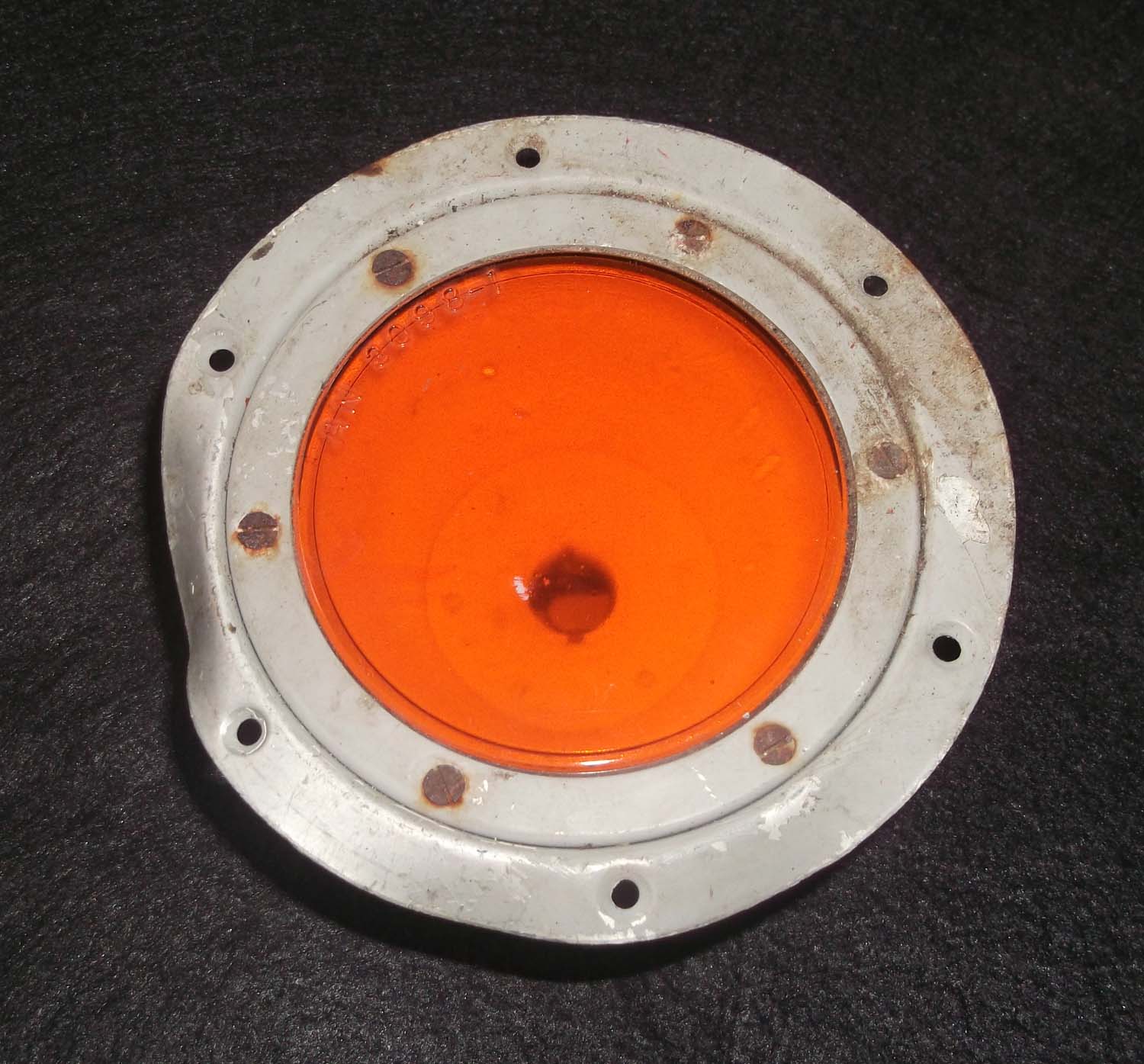

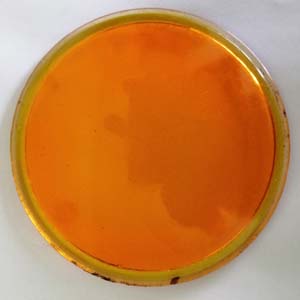

Downward ID Lamp Orange (pg1 light)

Here we have a Orange Downward Identification Lamp

 This was used in Spitfire's, Mosquitoes (which had three) and many other RAF Wartime aircraft, in good original condition.

The Lens Carries the Part Number 5C/1907 and The Base has the Part Number 5C/557

This Differs by having a Flat Lens instead of a Curved one

45 each

Click on the pictures to enlarge.

125



B17 Flying fortress recognition light control (pg1 light)

This stunning looking switch is in mint condition and was used in B17 to control recognition lights used to signal airbases as the aircraft came into land in the dark.

Manufacturers ref:SA-2130-C

15 (each)

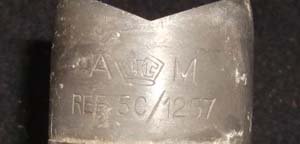

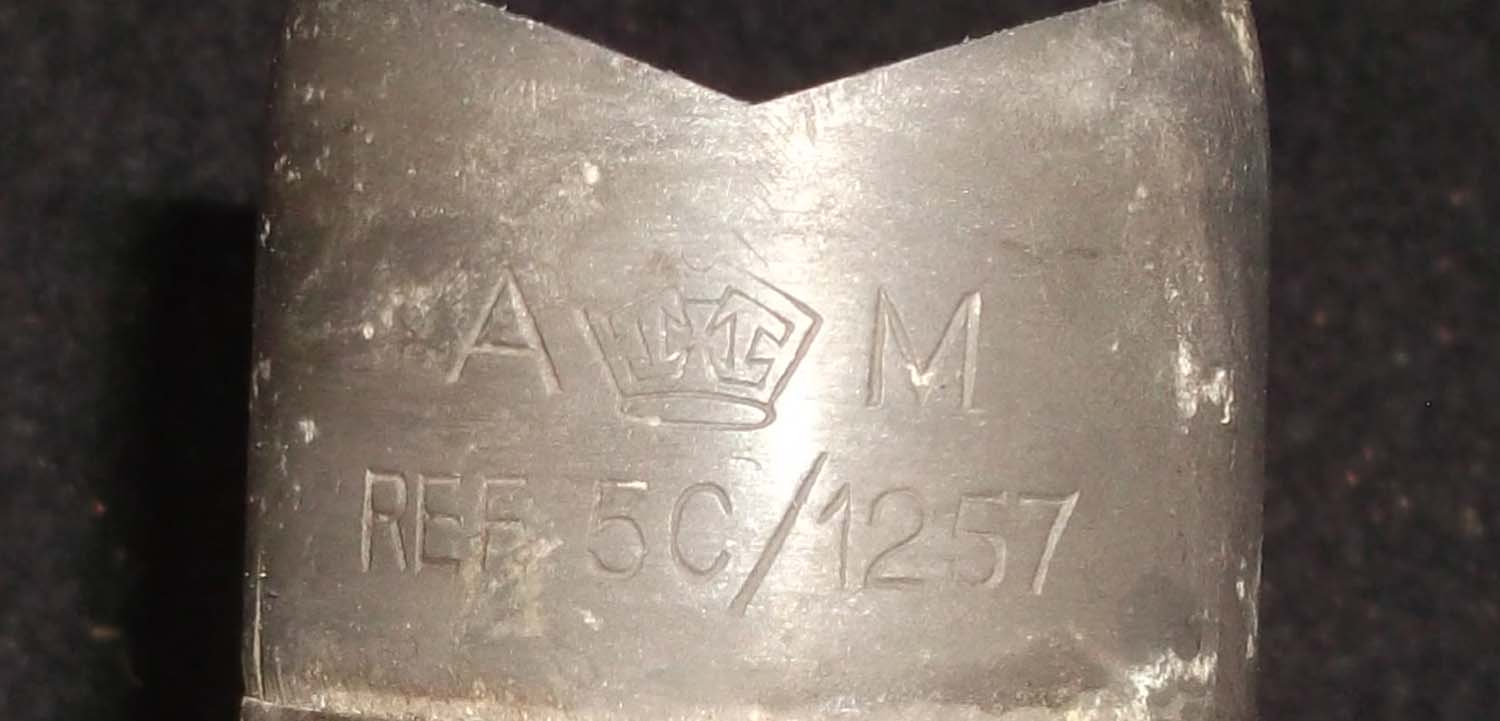

Type C Tail light(pg1 light)

Here we have a Type C Tail Light

This Carries the Air Ministry ref: 5C/1257

15

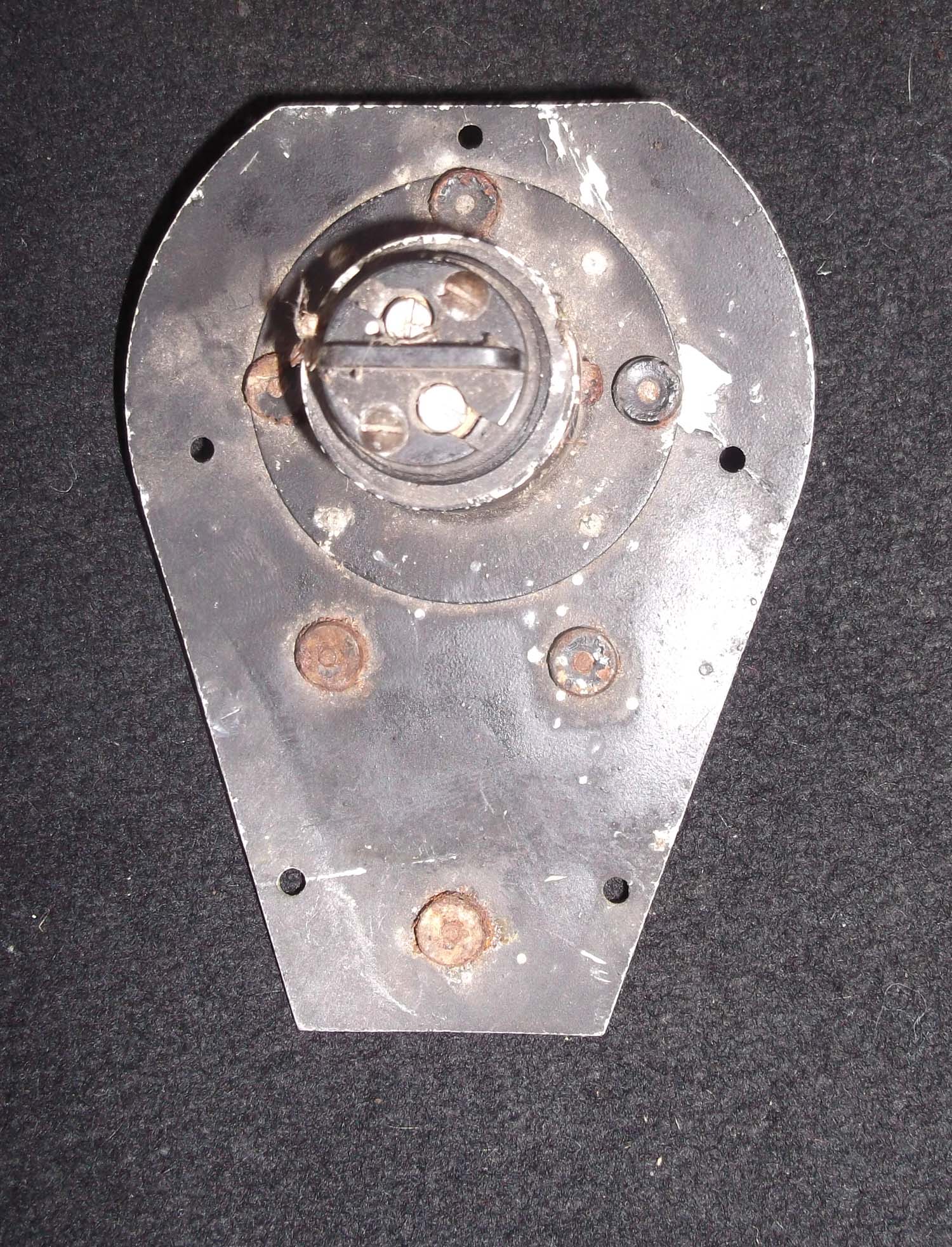

Fuselage Floodlight(pg1 light)

Here is a Nice wartime fuselage light with protective cover

It is Air Ministry Marked

Air Ministry Ref: 5C/966




Tail Light (pg1 light)

Tail light used in a variety of wartime RAF aircraft


25

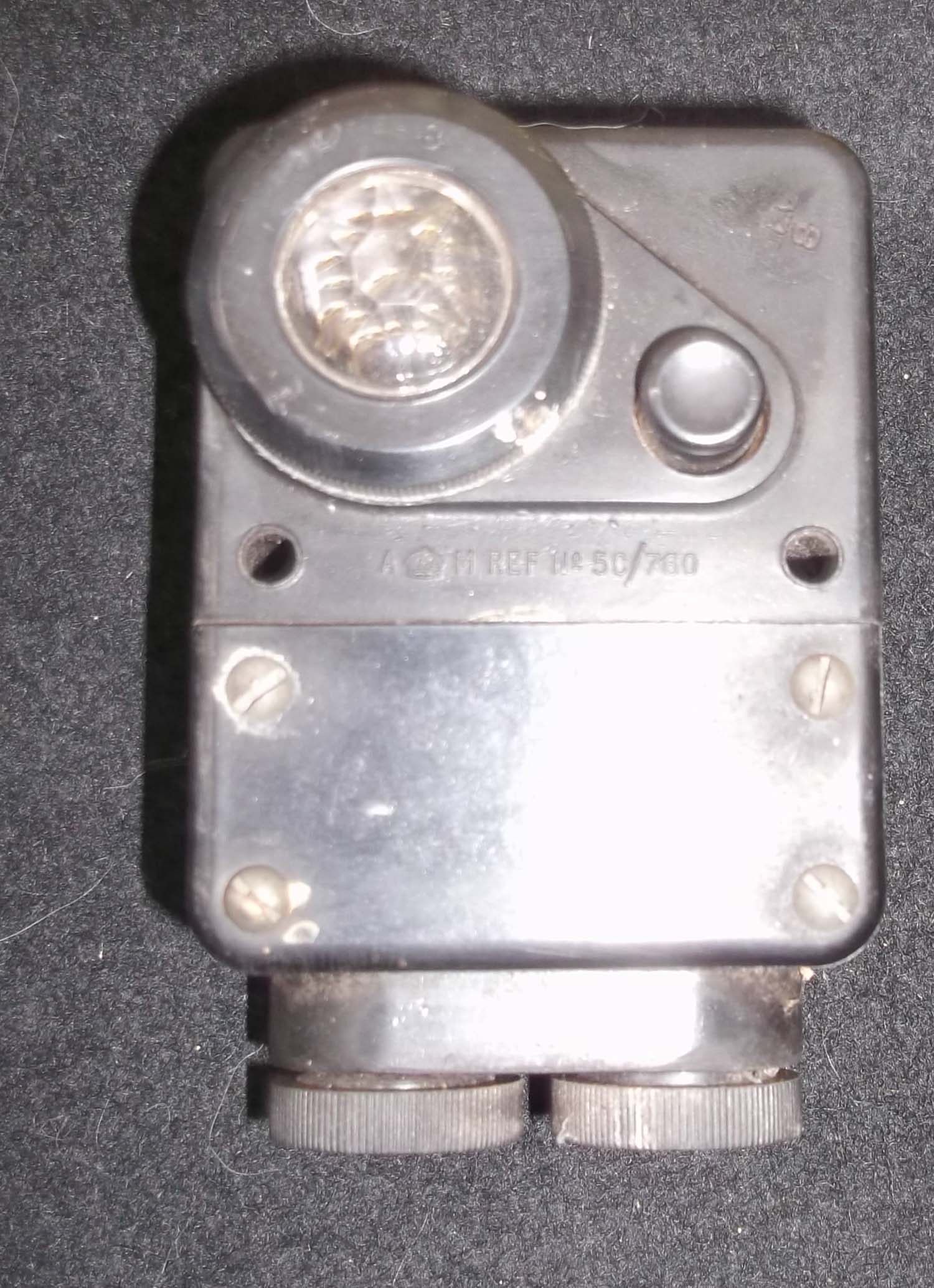

Lancaster Call button light (pg1 light)

Used by crew of Lancaster to communicate if intercom failed.

Ref: 5C/780

25



Click on the picture to enlarge

50

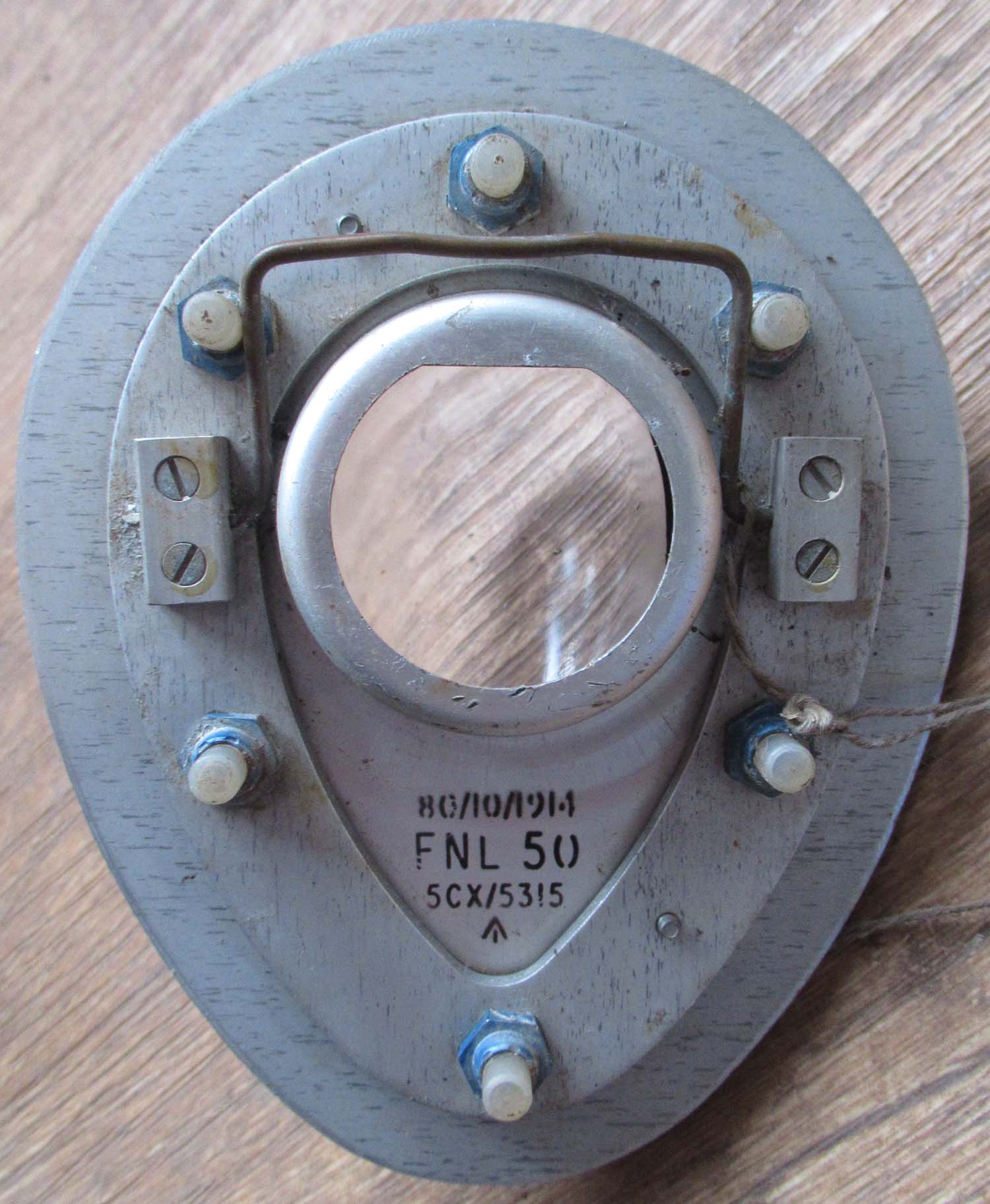

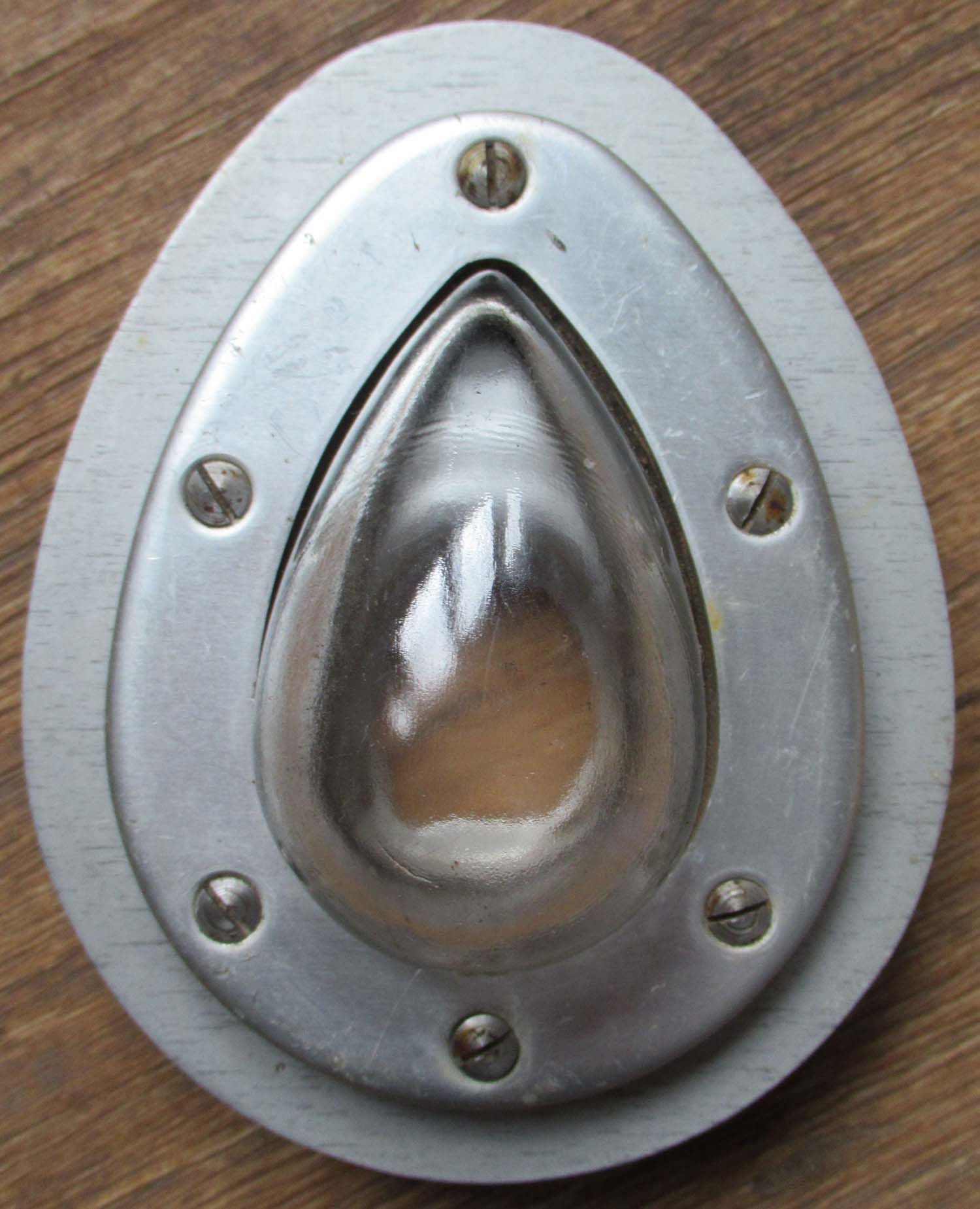

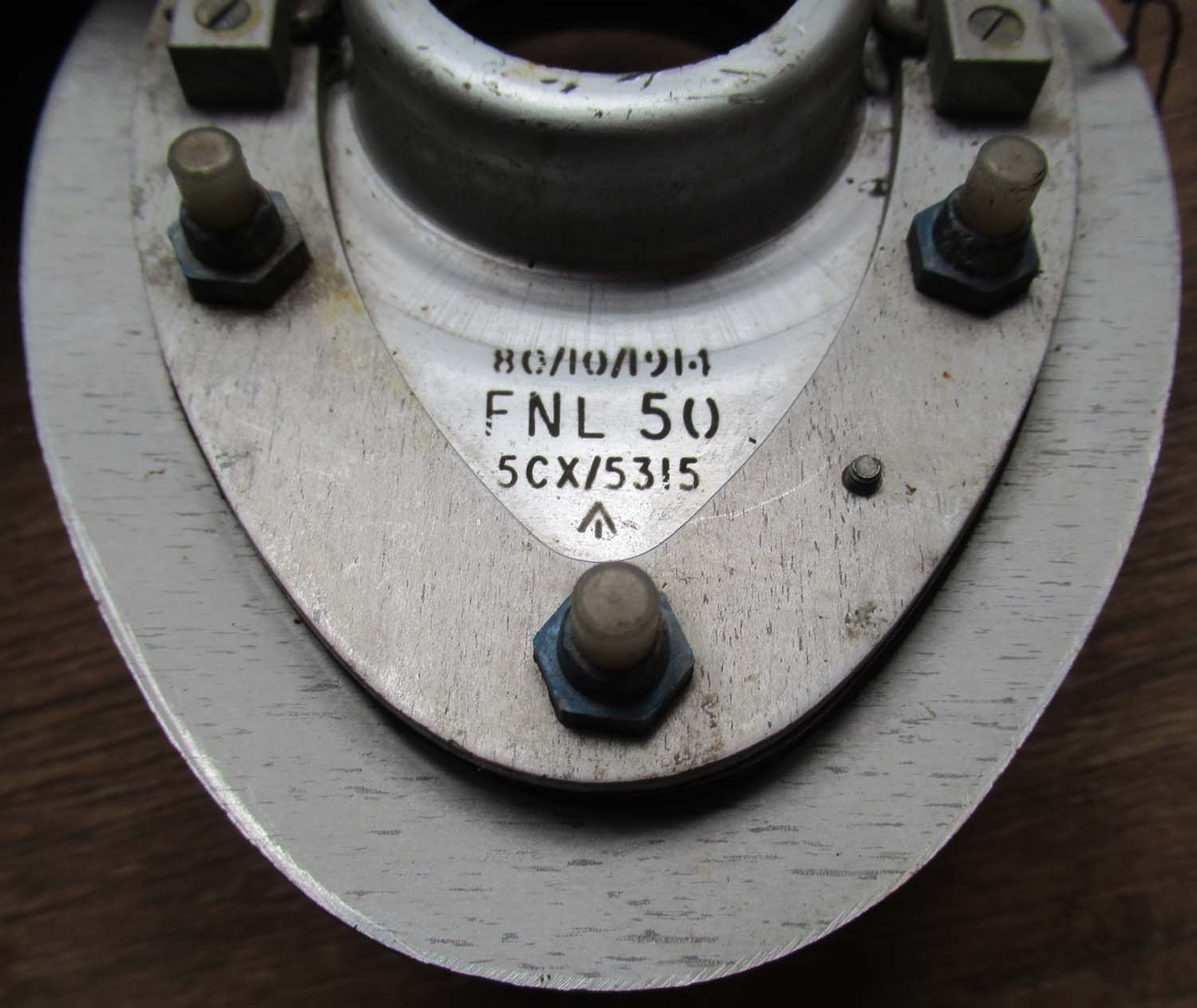

Hawker Hunter Navigation Light (pg1 light)

Here we have a Navigation Light as Used on the Hawker Hunter

It Carries the Reference Number 5CX/5315

Click on the picture under to enlarge

Click on the pictures to enlarge.

Click on the pictures to enlarge.

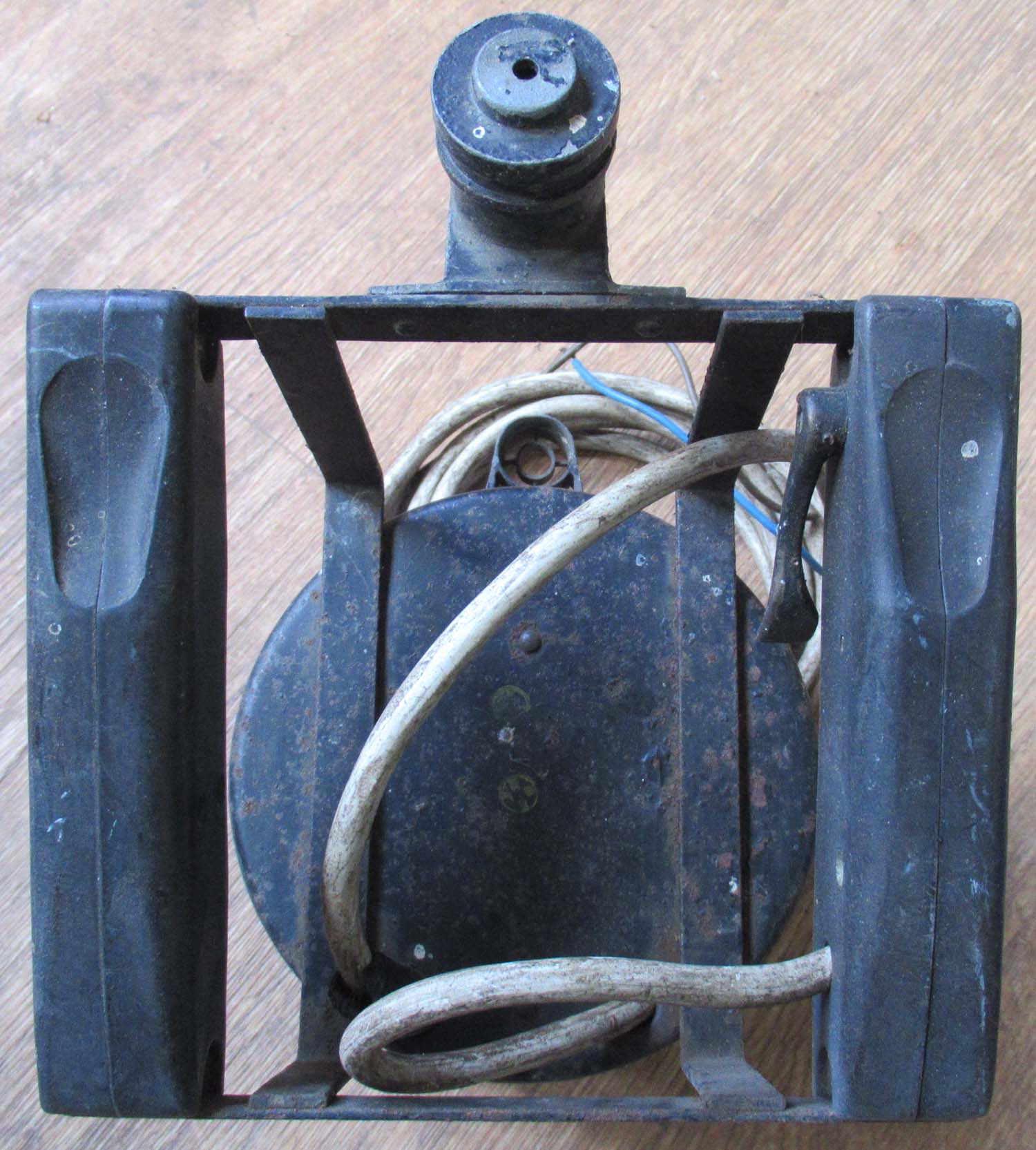

Boxed RAF signal light (pg1 light)

Here we have a Nice Original Condition RAF Signal Light.

 Manufactured before the end of 1943.

Complete with its cable and plug and even more unusual it has its original box. Used in bombers to signal each other and maintain radio silence.

Click on the pictures to enlarge.

125

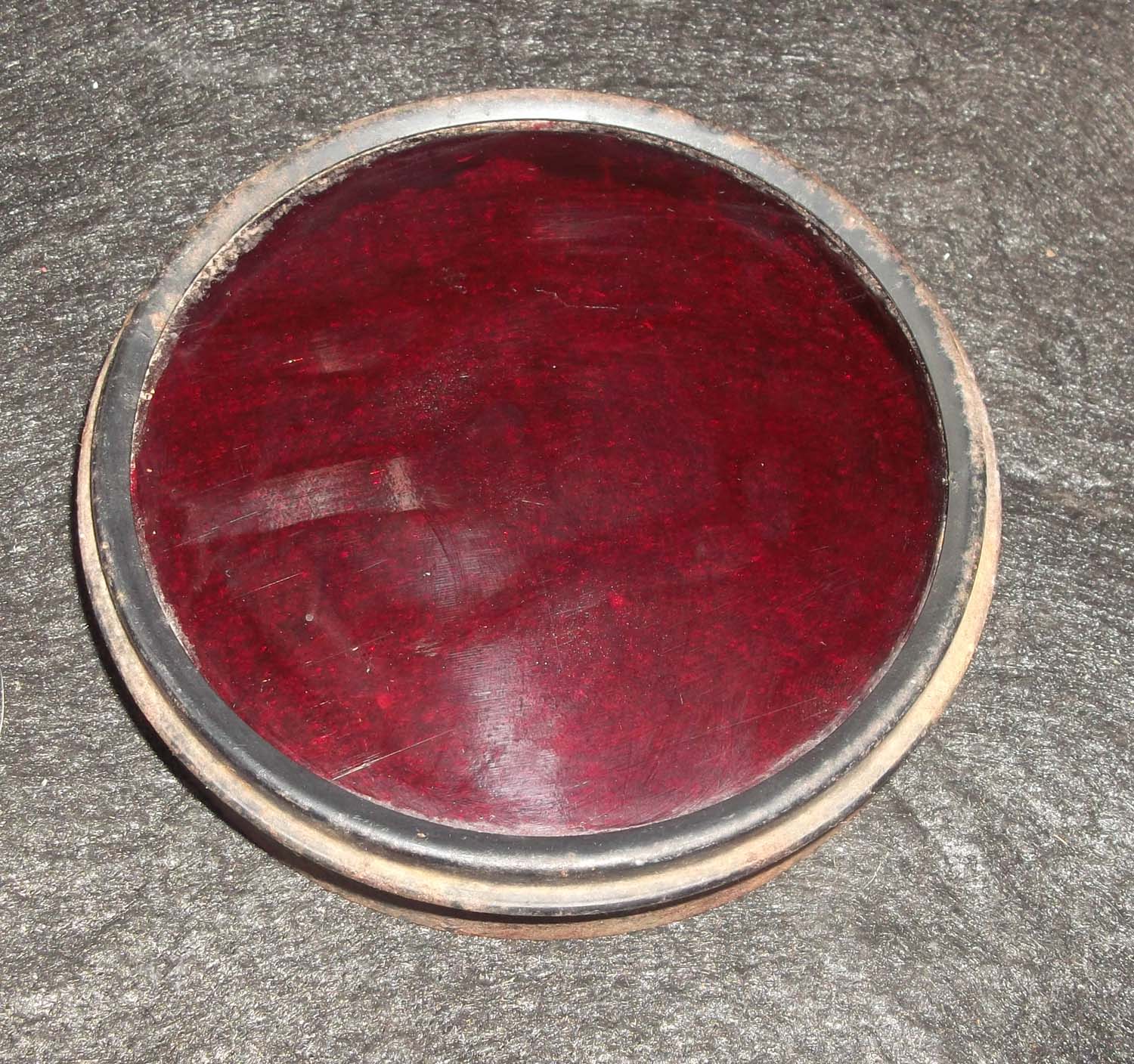

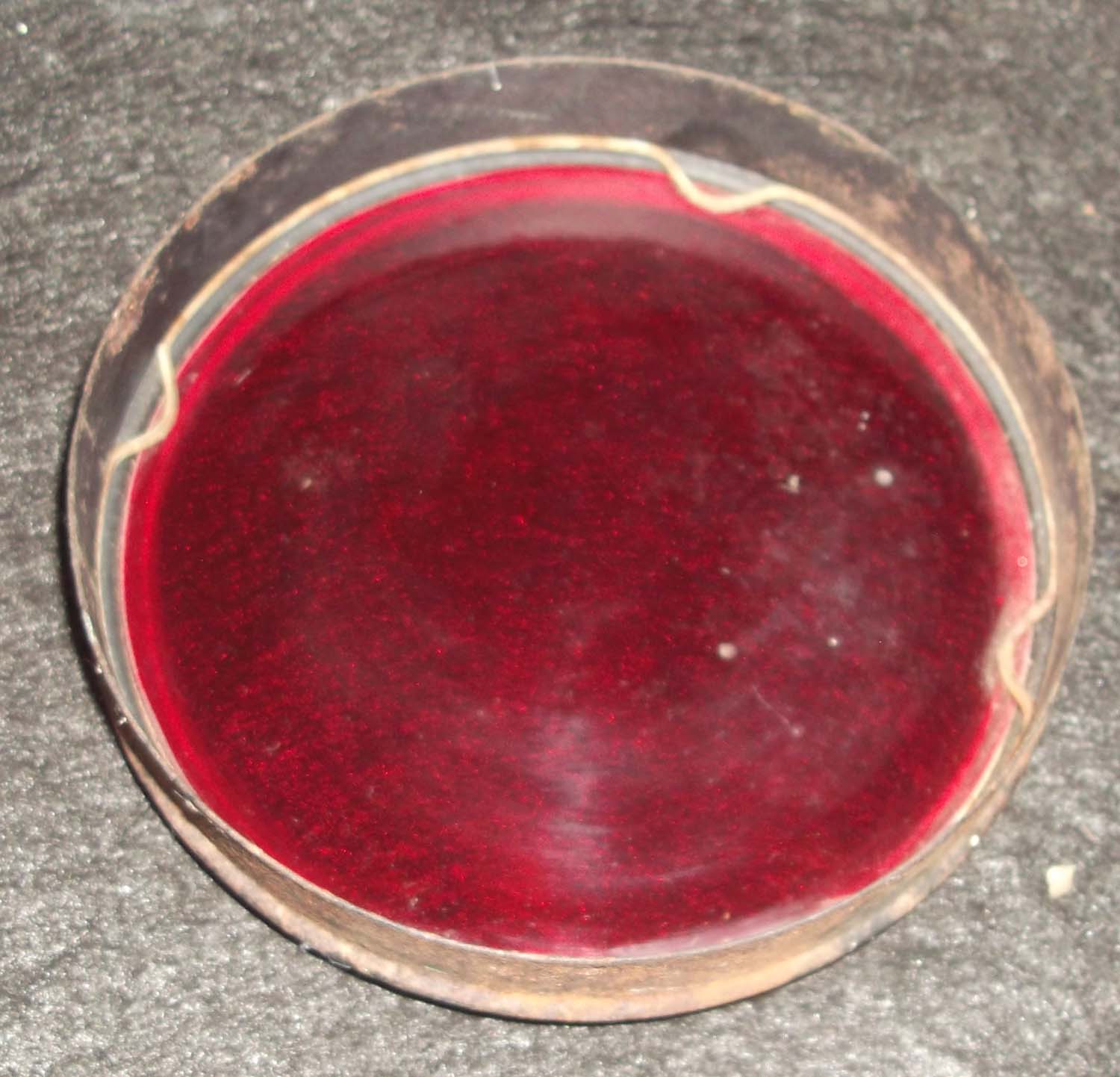

Mint in their original box two light lenses for the unit shown above.

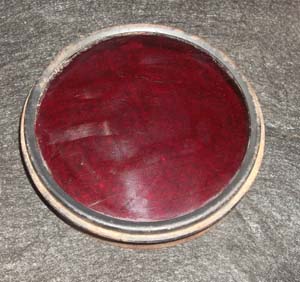

Signal light lenses (pg 1 light)


65

Click on the pictures to enlarge.

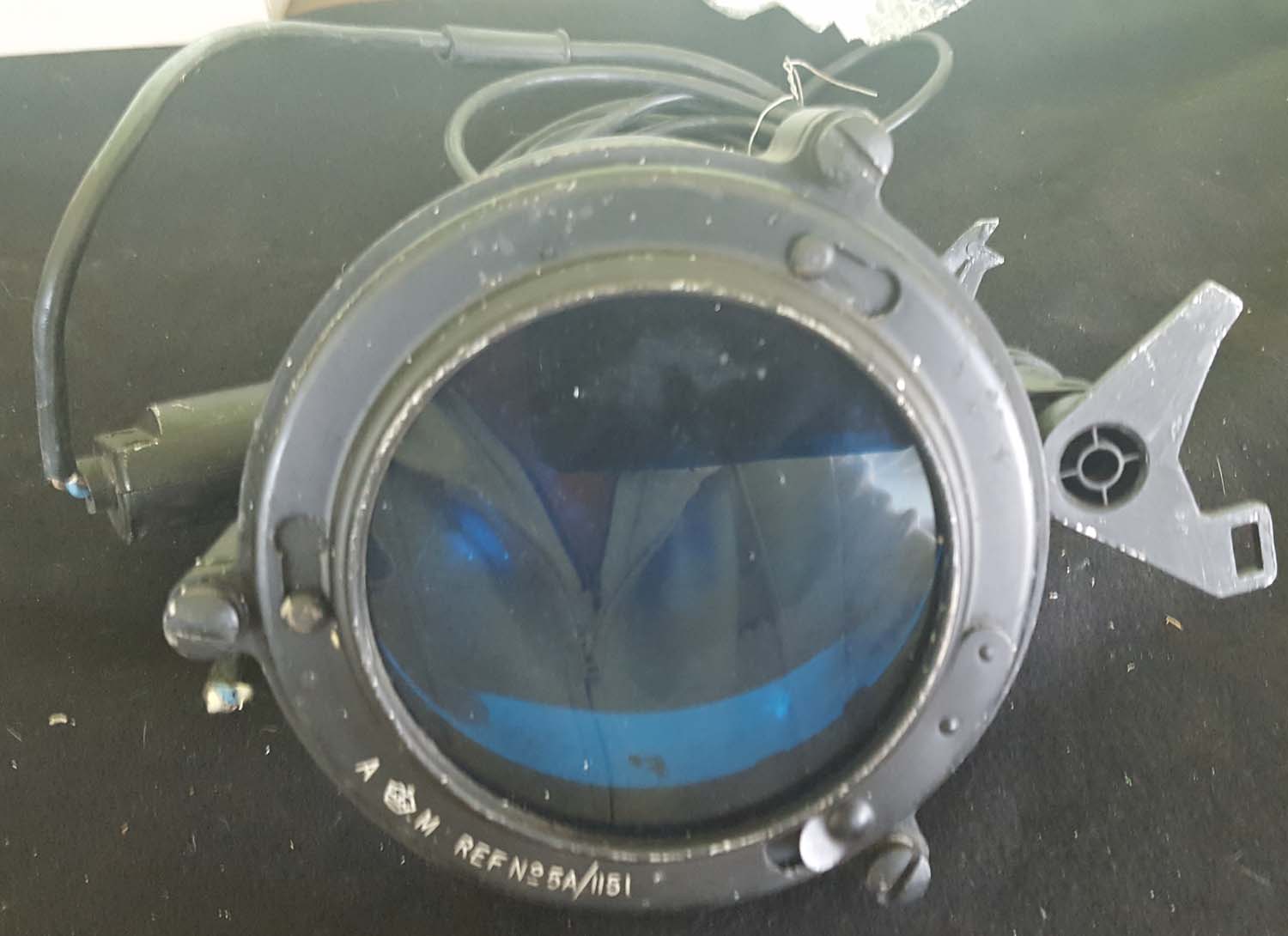

RAF signal light 2 (pg1 light)

Here is an RAF signal lamp in excellent complete condition.



225

Click on the pictures to enlarge.

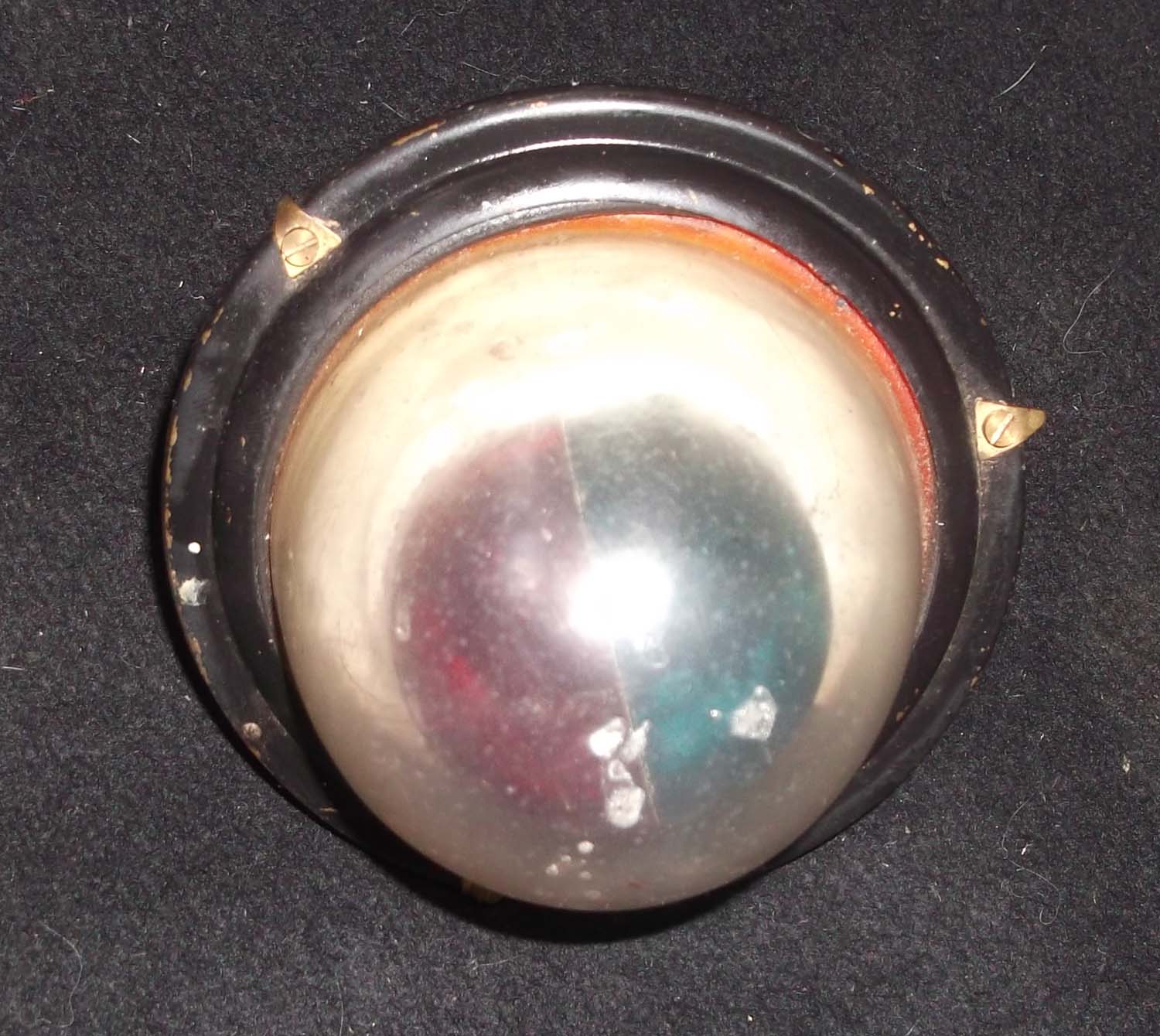

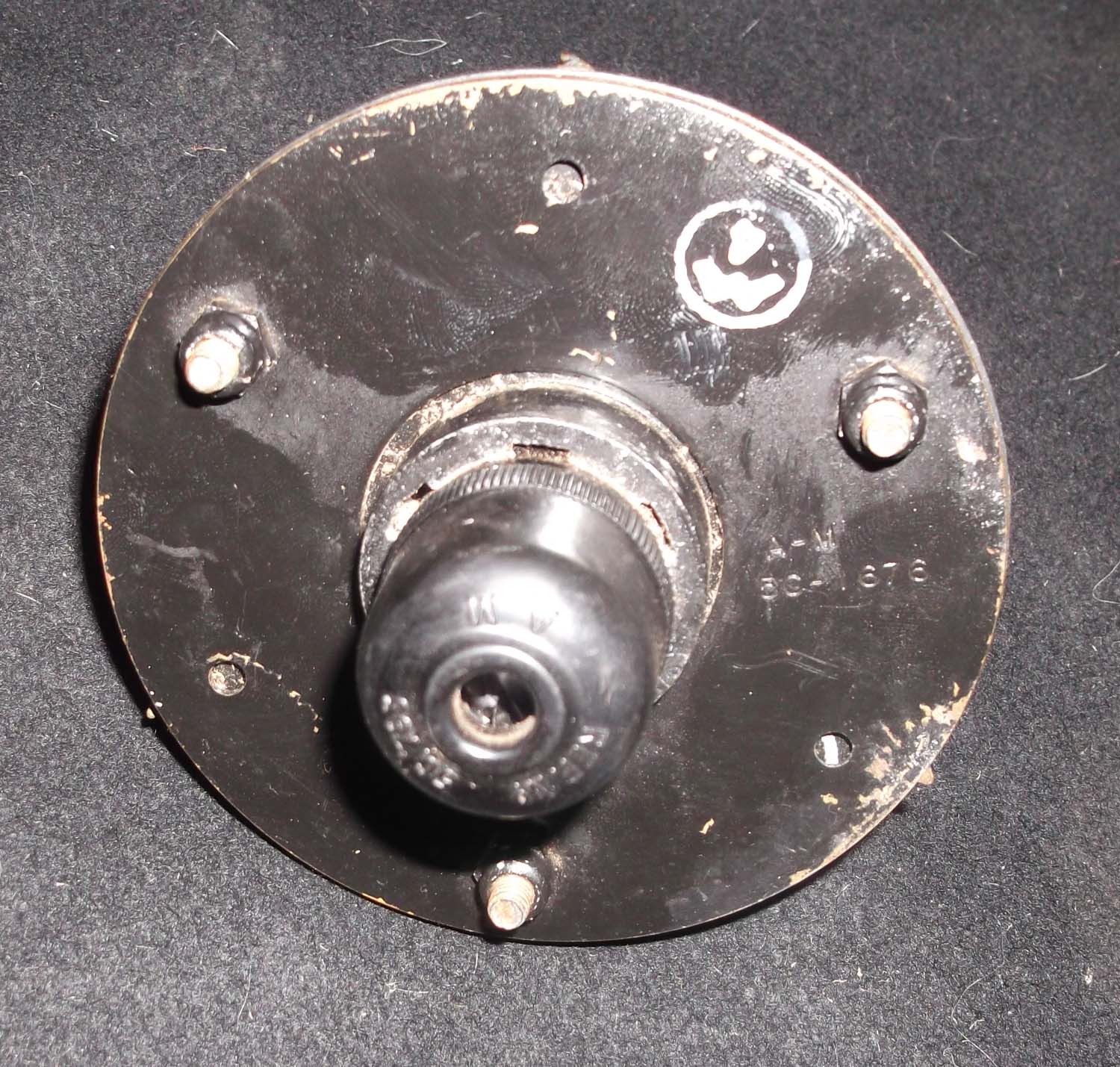

Hotspur Navigation lights

Here we Have Navigation Lights for a Hotspur Glider

Uses a standard wartime bulb holder attached.

Air Ministry Ref: 5C/1676

40 each

Click on the pictures to enlarge.

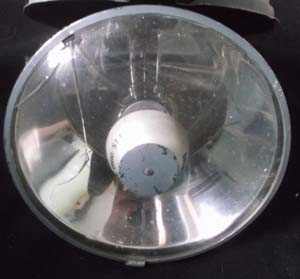

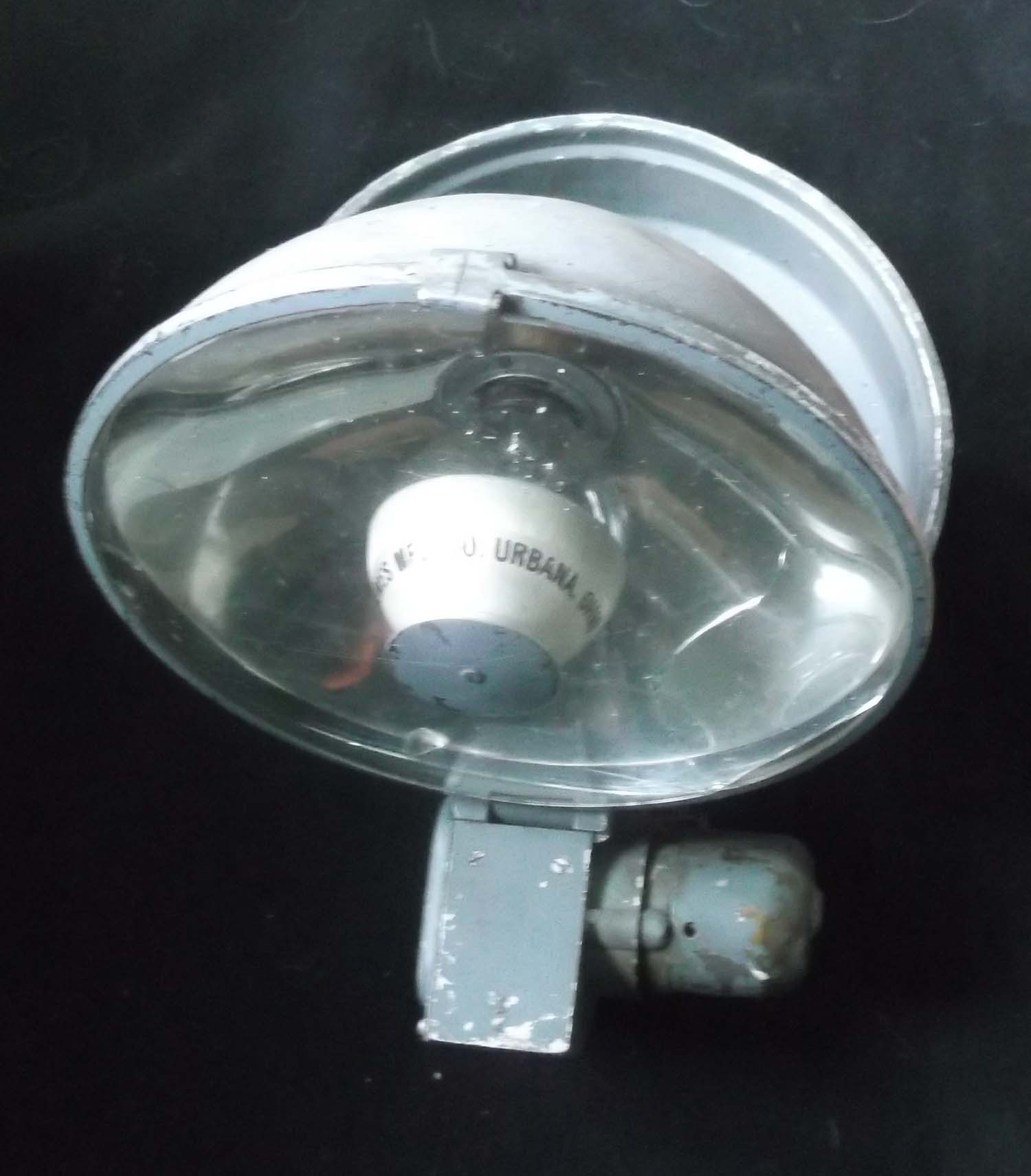

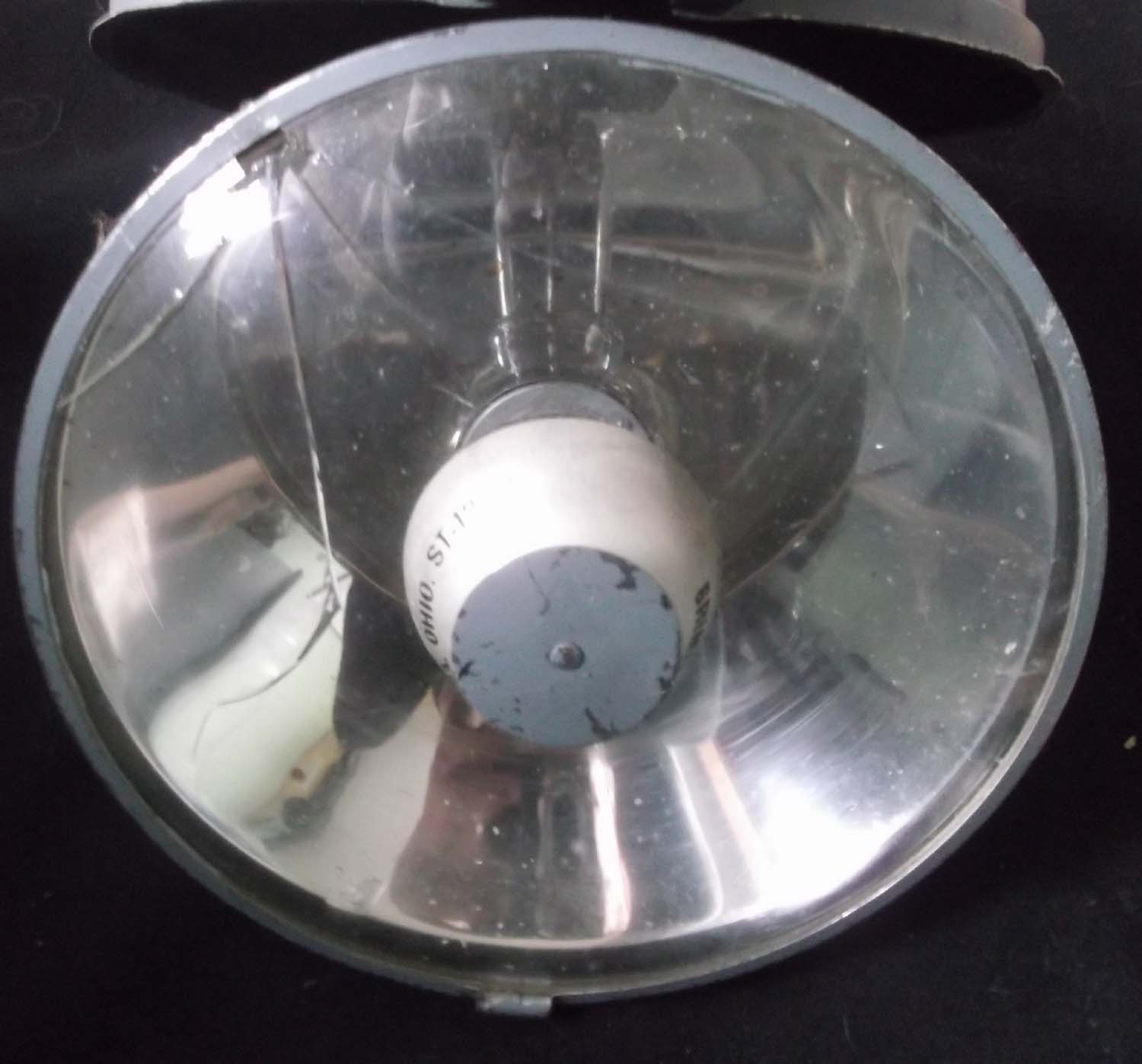

 Landing Light 2 (pg1 light)

This landing Light  is large and may be a bomber or larger aircraft version appears in great condition apart from a crack in the glass see the picture.

These open and close powered by the motor shown below

195

Click on the pictures to enlarge.

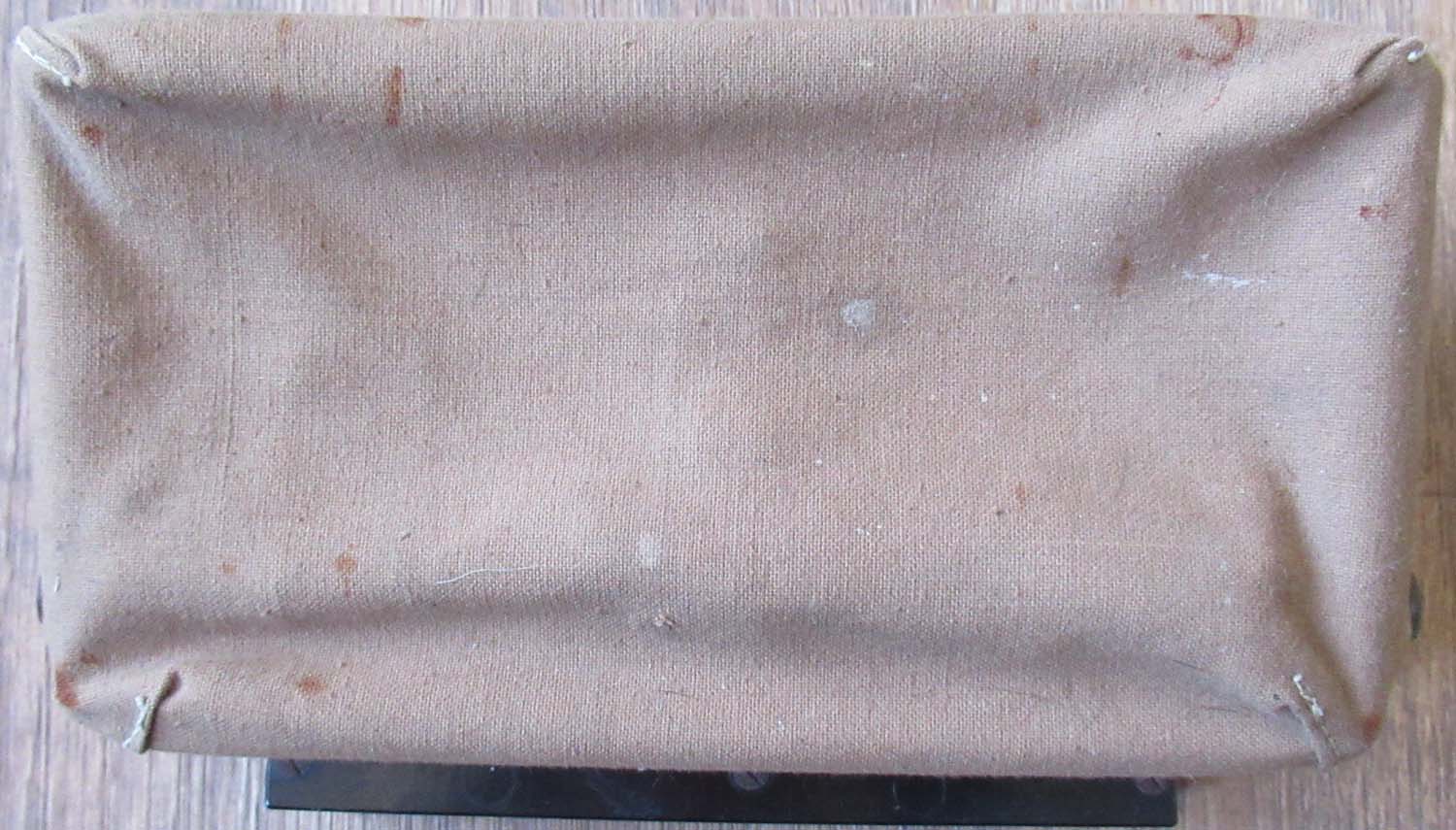

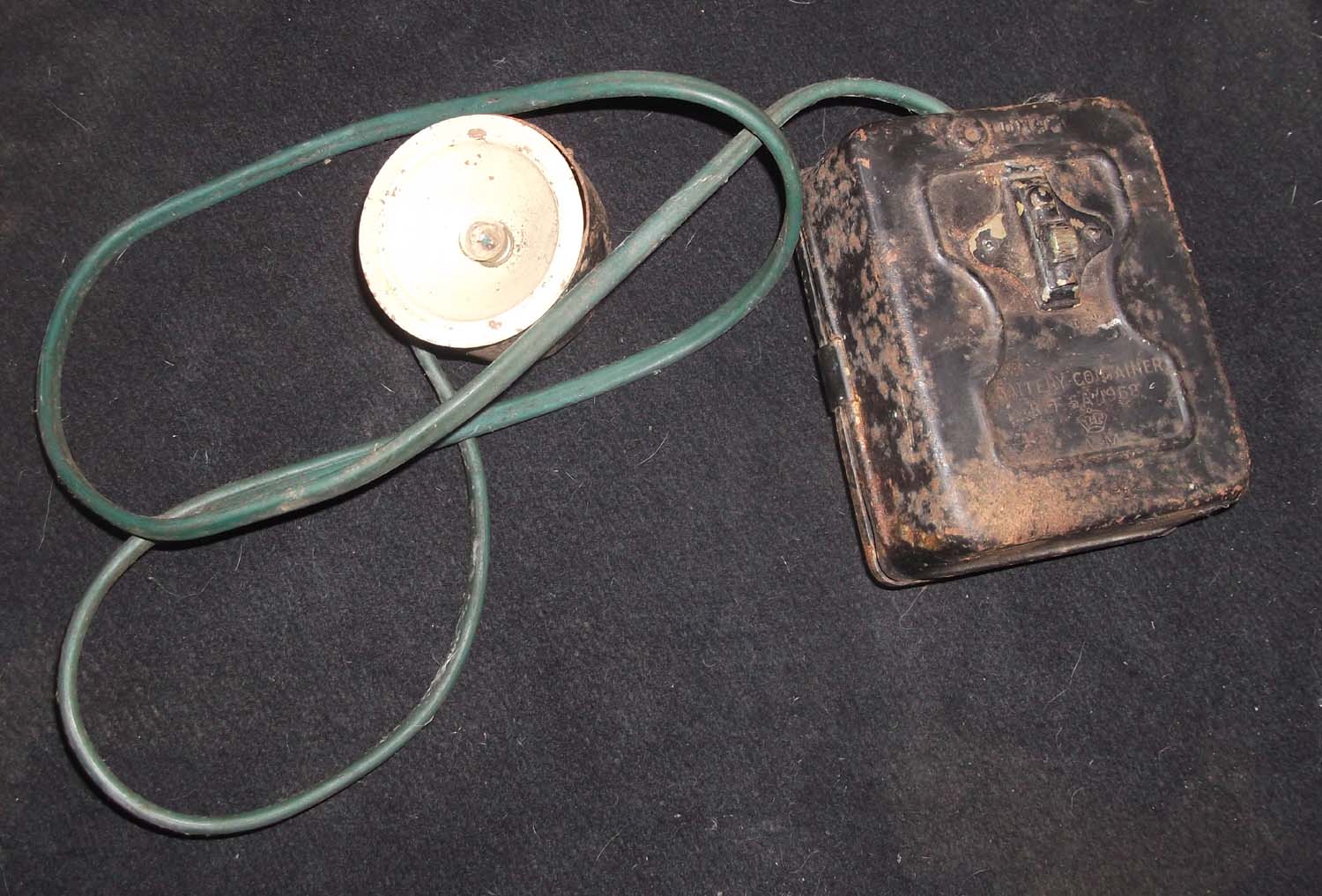

Battery Box and lamp (pg1 light)

Rare and unusual A/M crown marked battery box and light.

The  Lens is missing from the Lamp

Air Ministry Ref:  5A/1968

40



Click on the pictures to enlarge.



Hotspur glider Lights

1940 totally original Navigation Lights from the famous Hotspur glider.

Stunning. Uses a standard wartime bulb holder attached

Mk. XA

Reference Number 5C/1151

75

75

Cockpit light Mk.II (pg1 Light)

Here we have a Mk.II Cockpit Light

Used in a variety of Multi-Engined RAF aircraft

This is in a Good Condition in its Original Box

Click on the pictures to enlarge

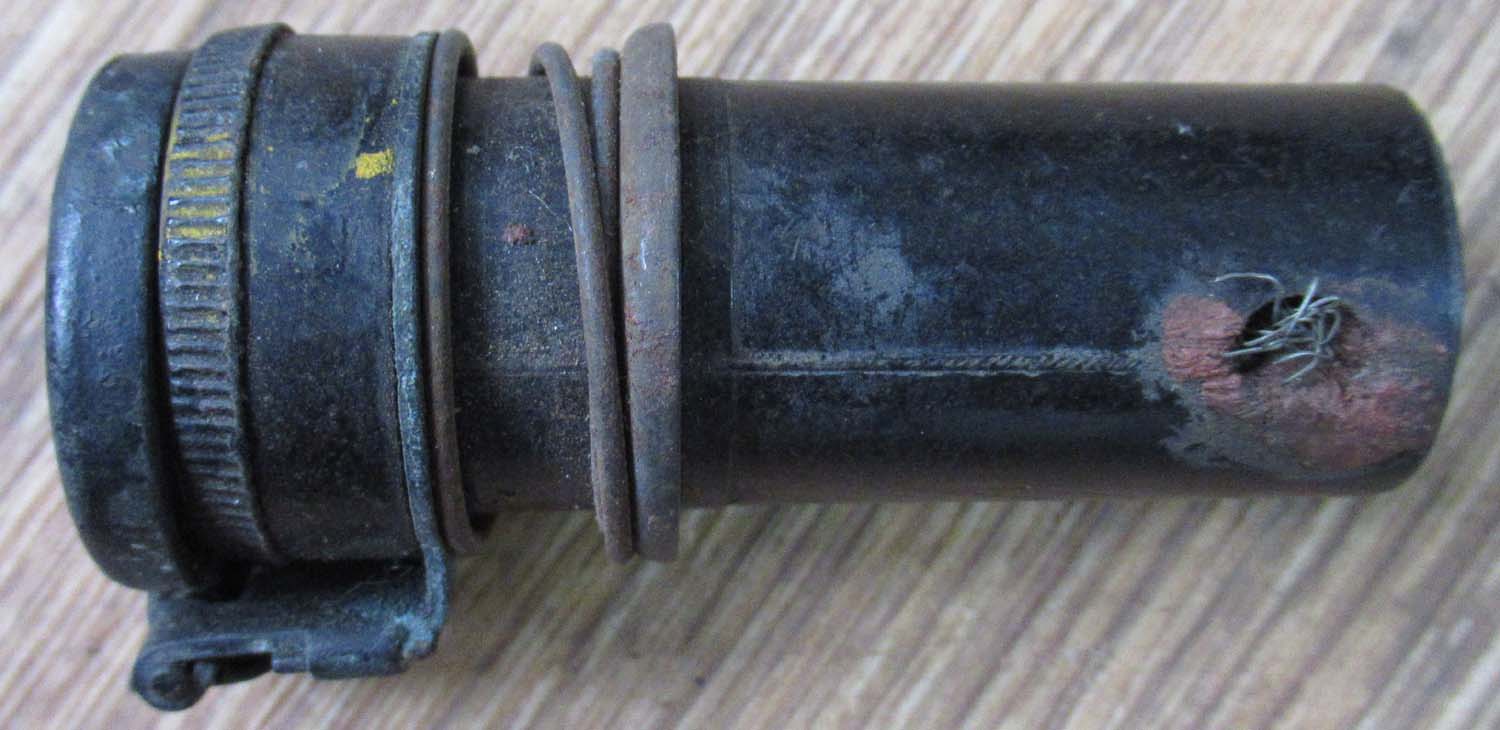

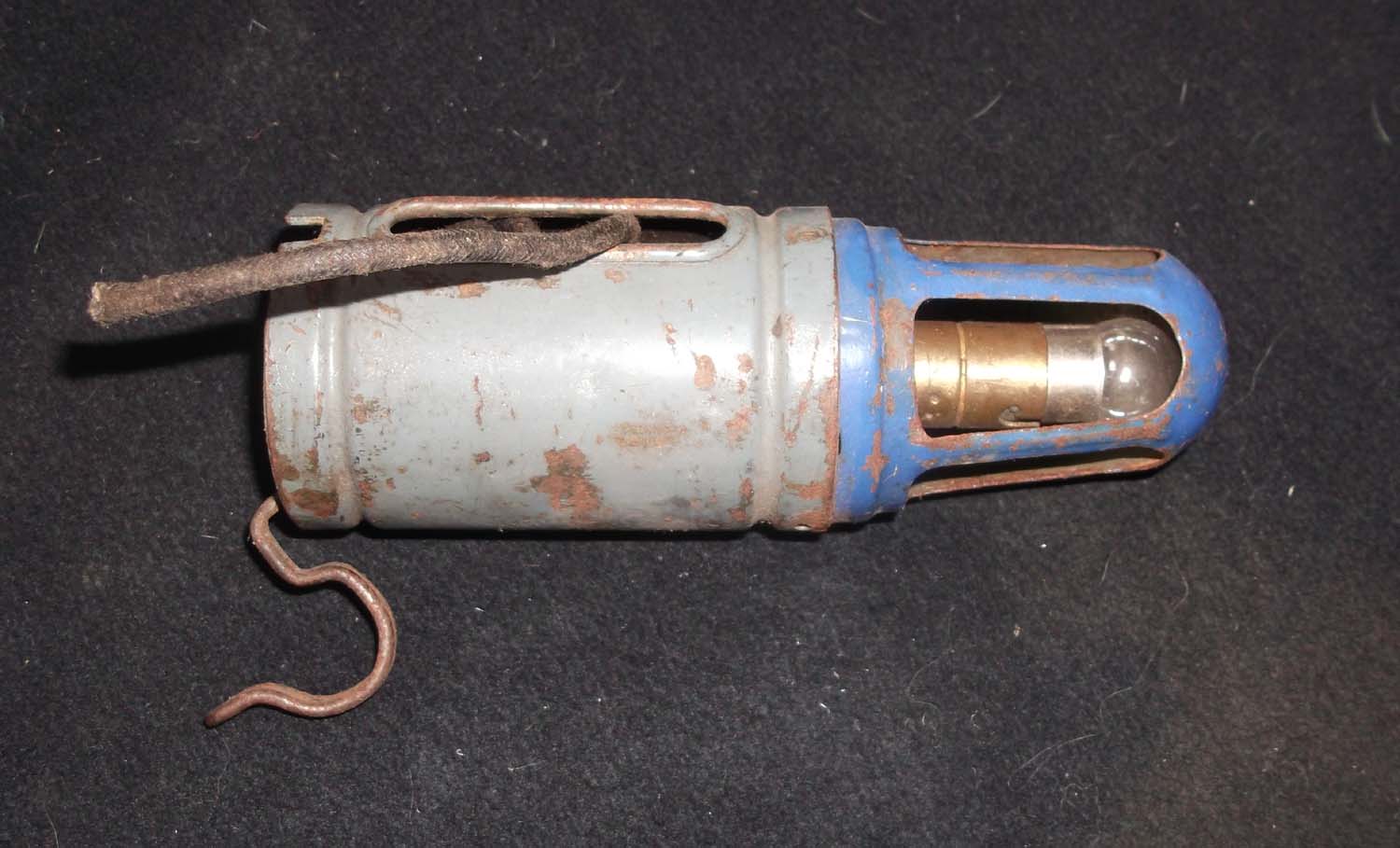

Inspection light(pg1 light)

A nice small RAF Wartime inspection light.

It has original retractable cable however the plug is missing

35

Click on the pictures to enlarge

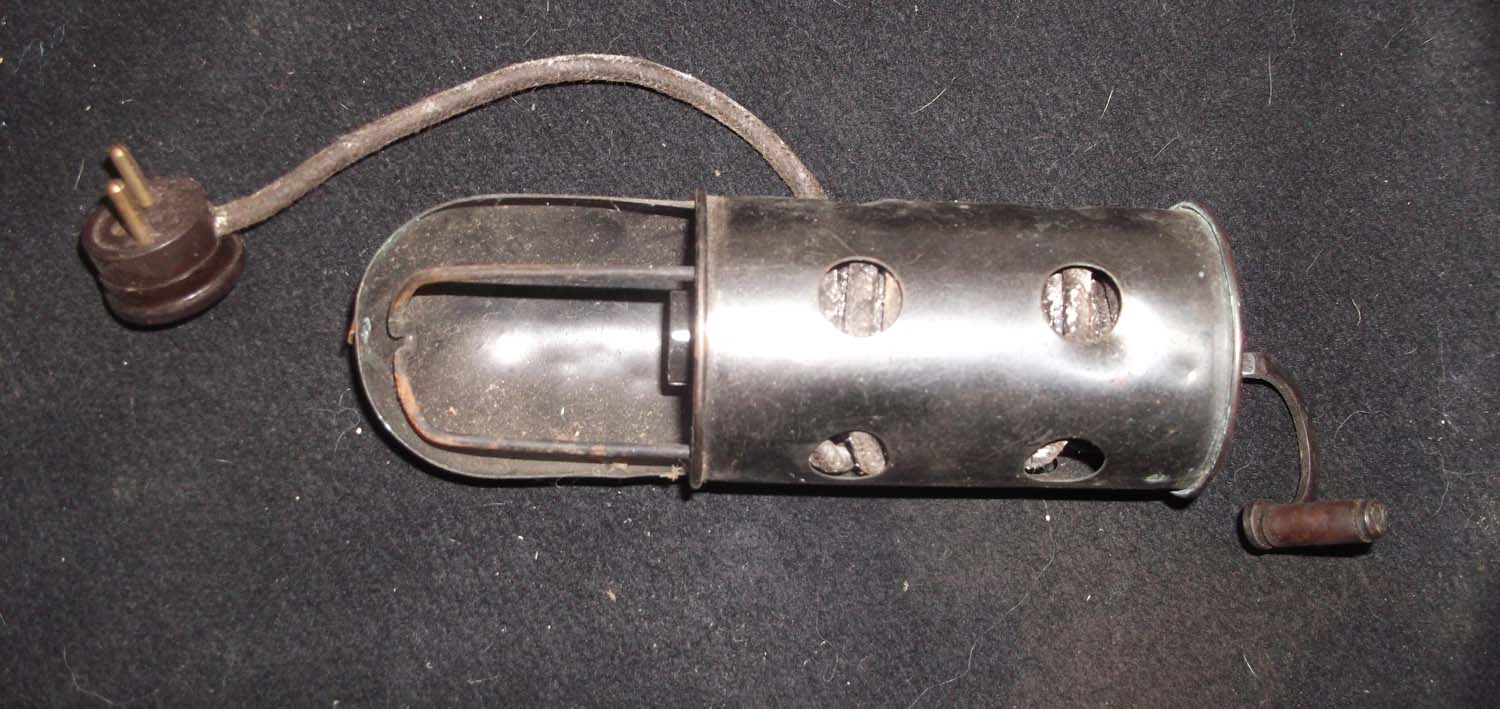

Inspection light 2 (pg1 light)

Here is another variation of the inspection light. Nicely marked with Air ministry crown.

We have two of these i available

The attached plugs are the standard type designed to plug into the aircrafts 12 or 24 volt electrical system.

Air Ministry Ref: 5C/369

35

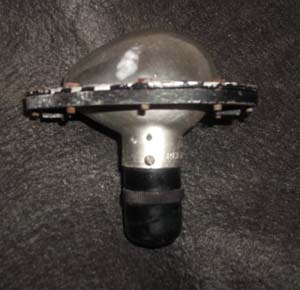

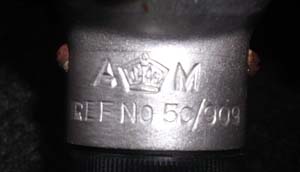

Wartime Morse Light(pg1 light)

This was fitted behind the cockpit on the top fuselage of the Spitfire, probably lots of other applications. Nice air ministry crown denotes that this part was manufactured before the end of 1943. These were used to flash Morse to other Fighters in the squadron operating from the Morsekey in the cockpit thus allowing communication whilst retaining radio silence.

A/M 5C/909

55

Click on the pictures to enlarge

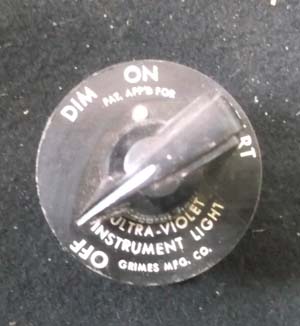

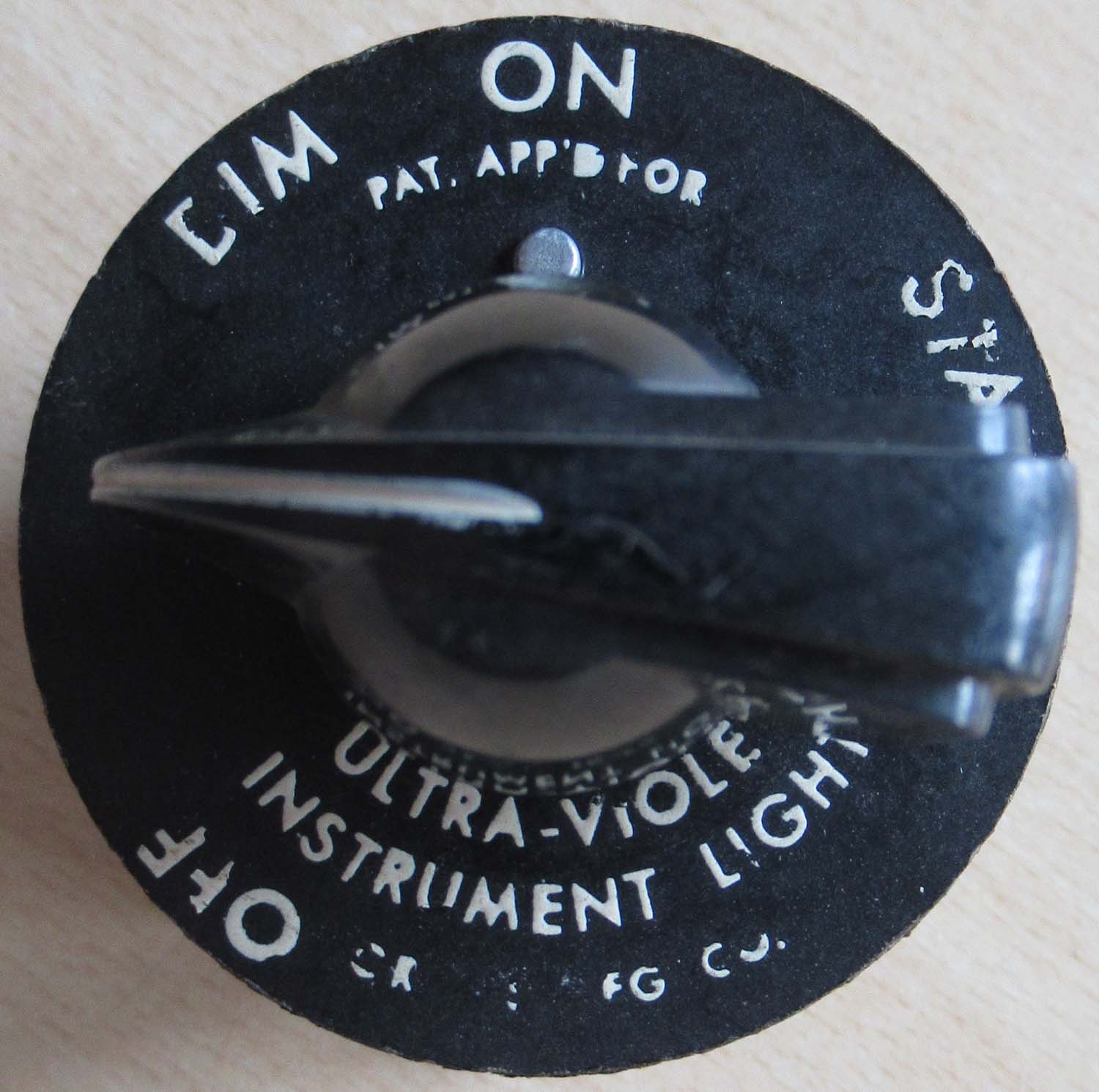

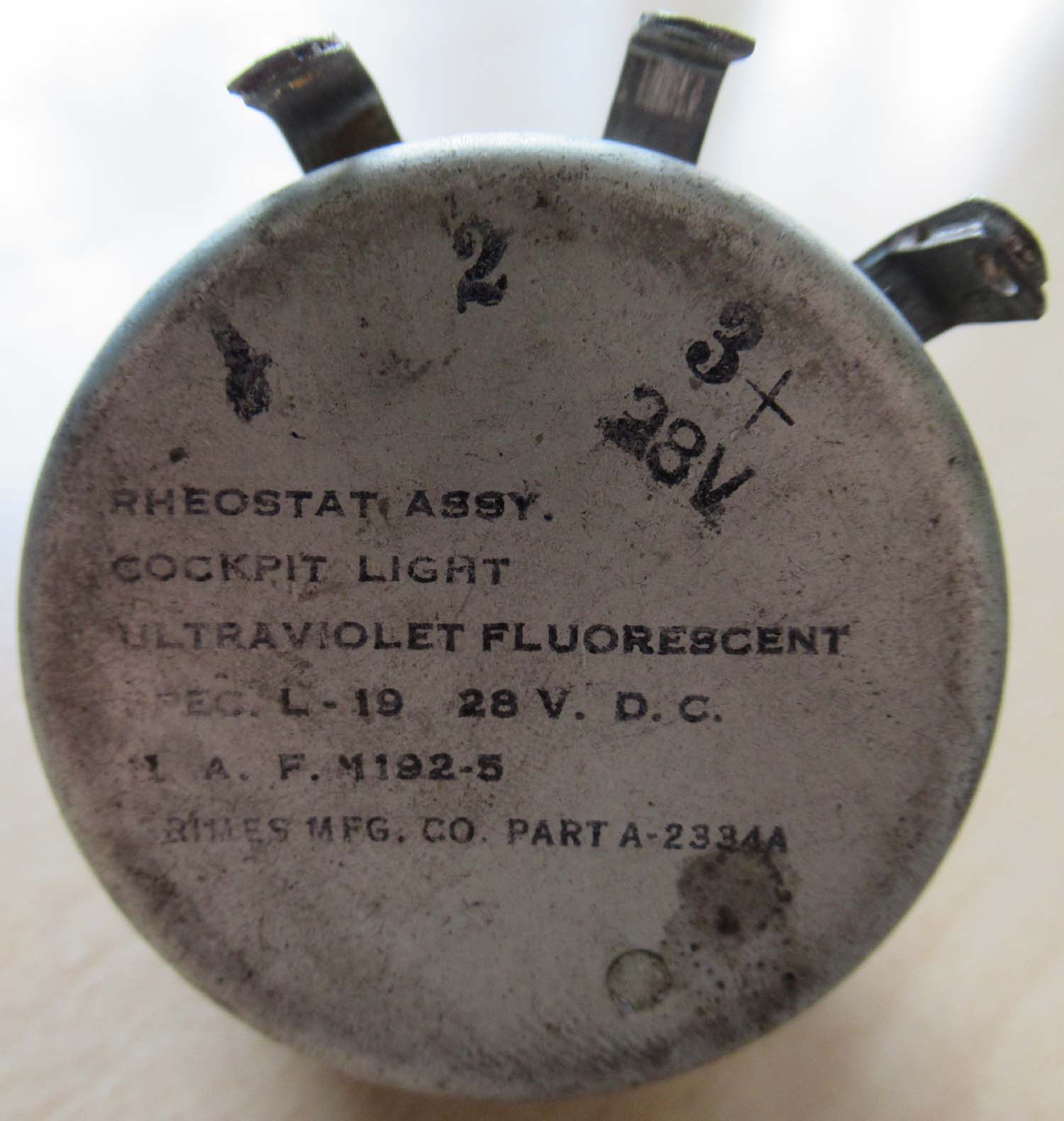

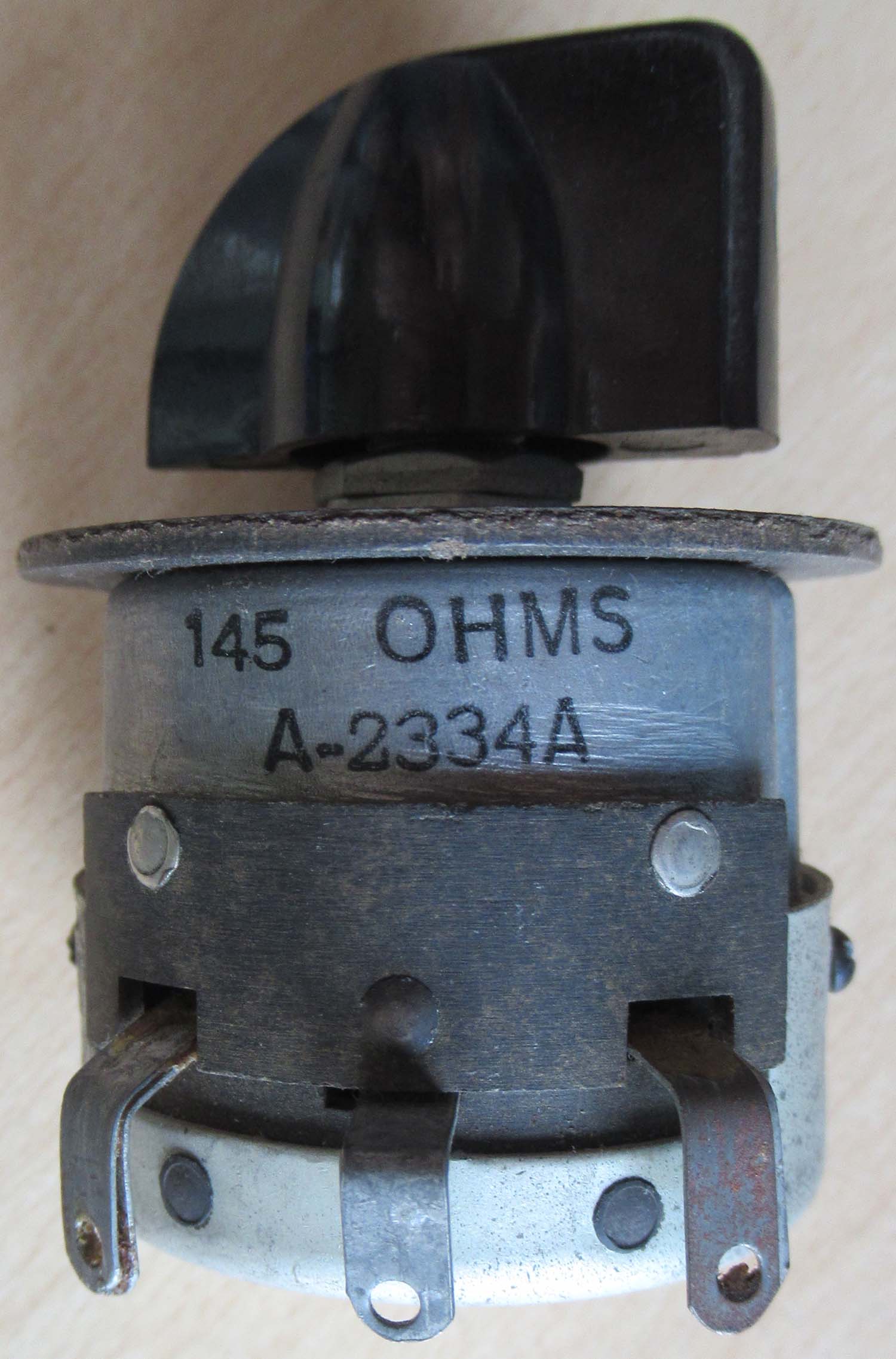

Ultra violet cockpit light dimmer switch (pg1 light)

Grimes MFG Co ultra violet light dimmer switch. used to control cockpit lights in aircraft fitted with UV gauges. appears to be serviceable.

A-2334A

55

Click on the pictures to enlarge

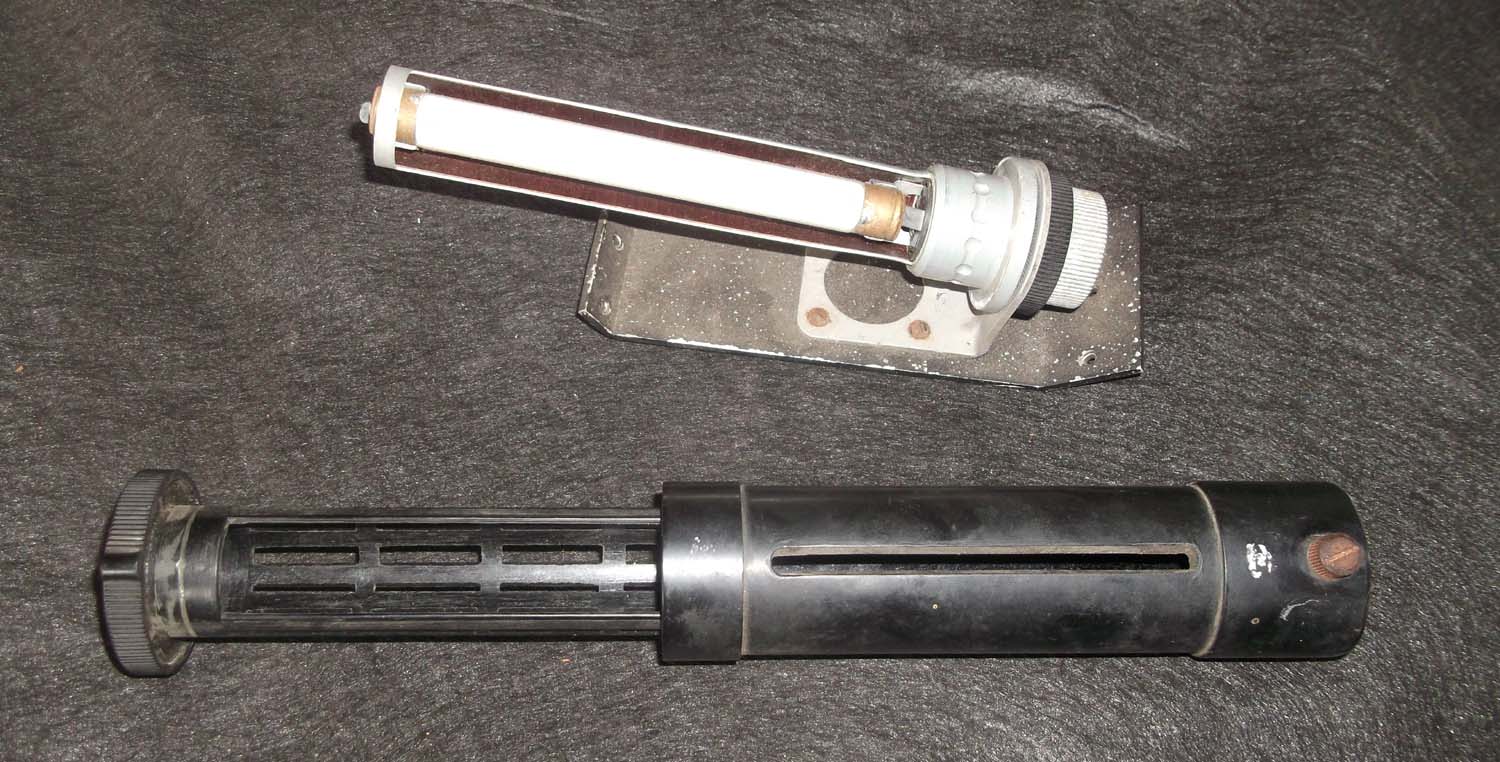

Ultra violet cockpit light(pg1 light)

Ultra violet lighting was intended to overcome the disadvantages associated with luminous cockpit dials i.e. blurring, no dimming potential and reflection onto the cockpit windscreen.

Fitted to late Lancaster's and many other RAF wartime aircraft

Ref No: 5C/1878

75

Click on the picture under to enlarge

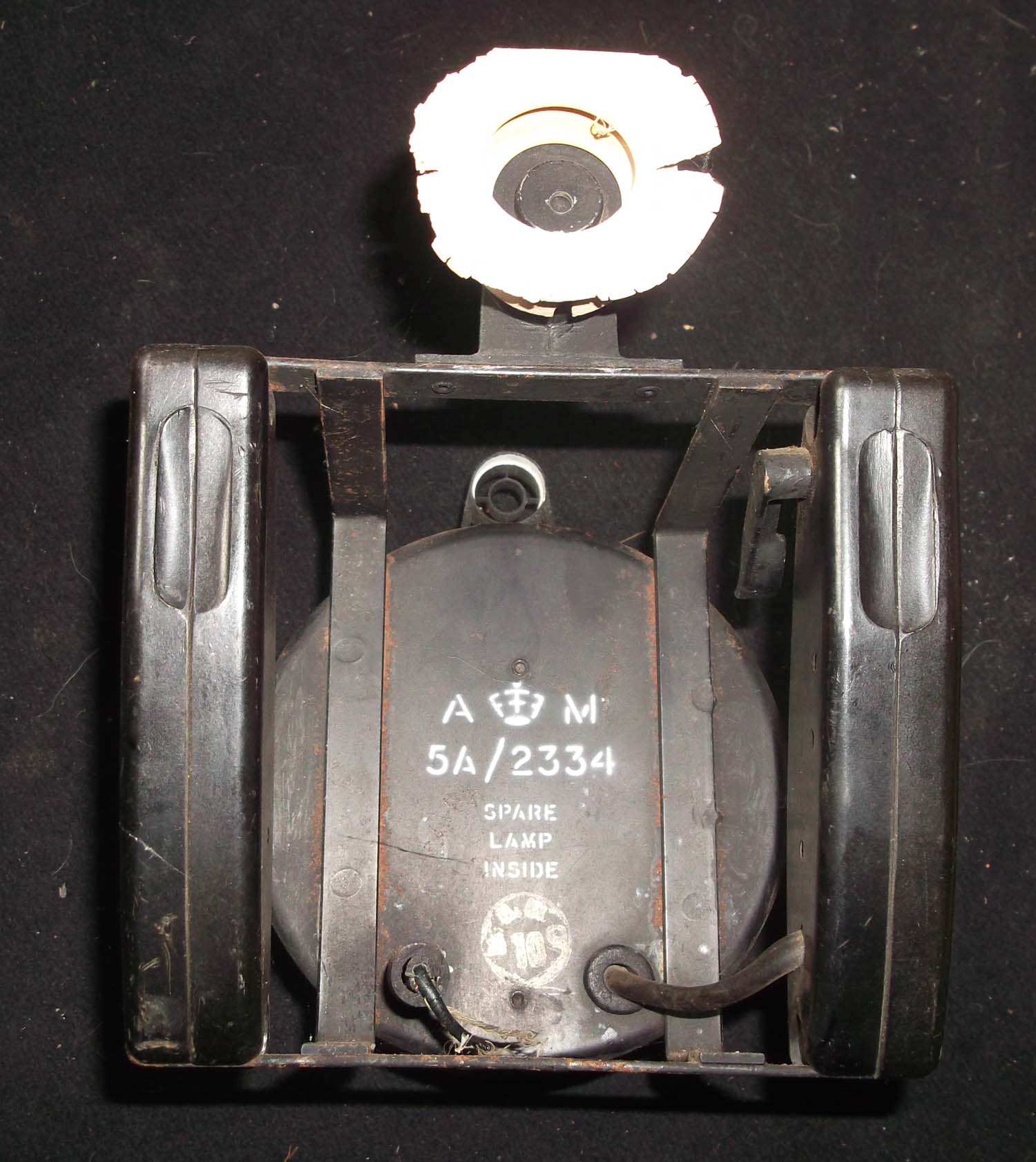

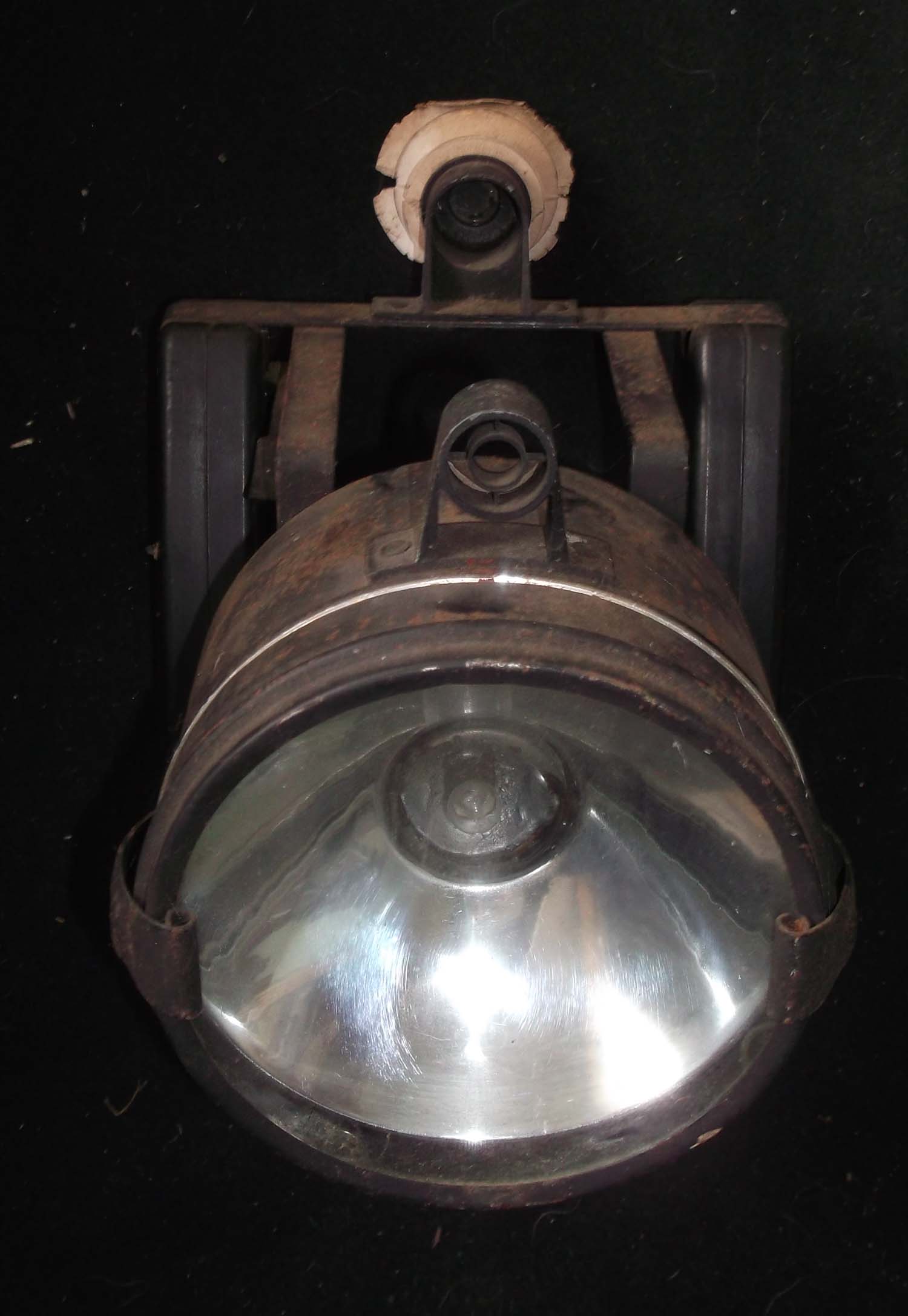

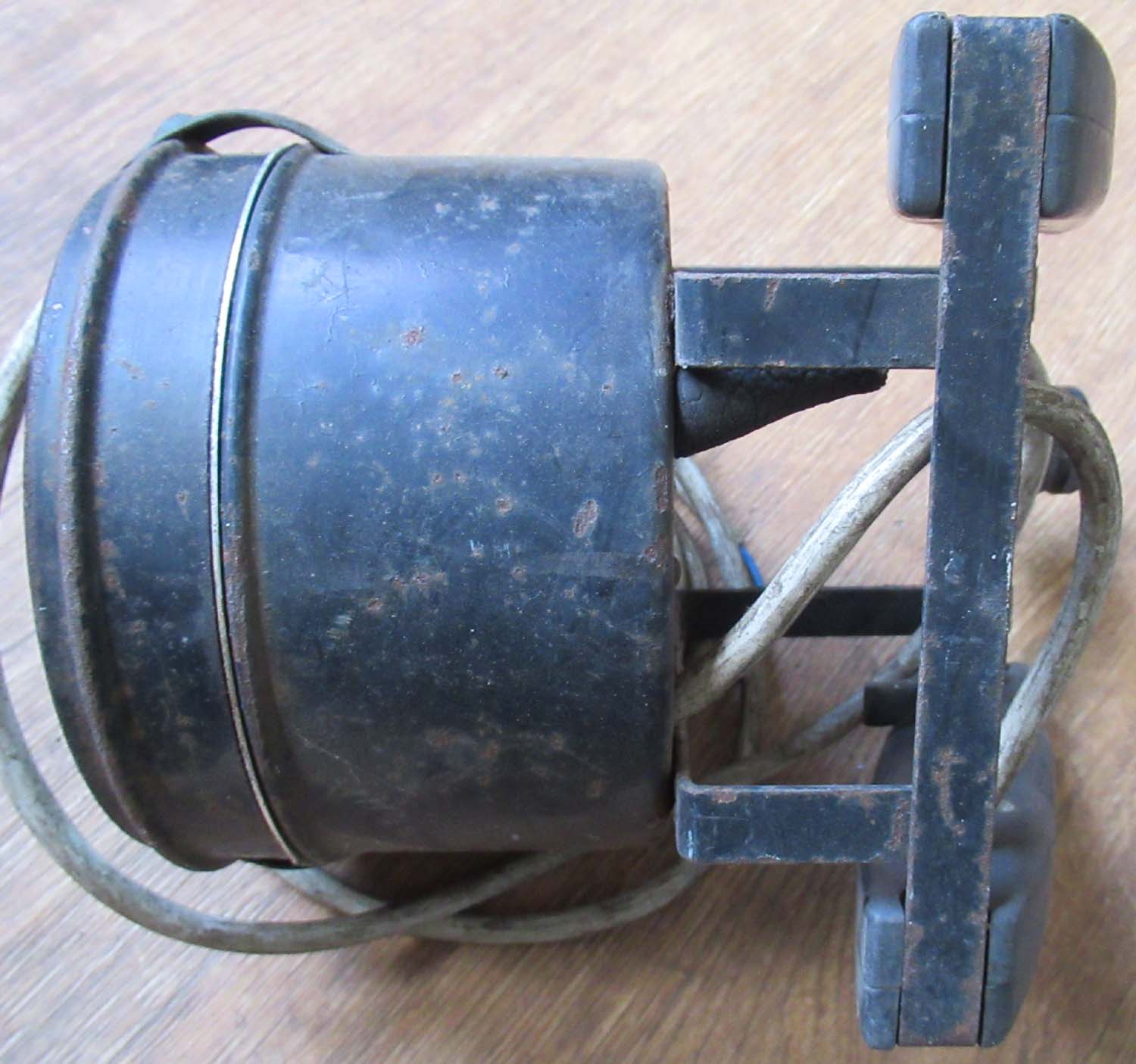

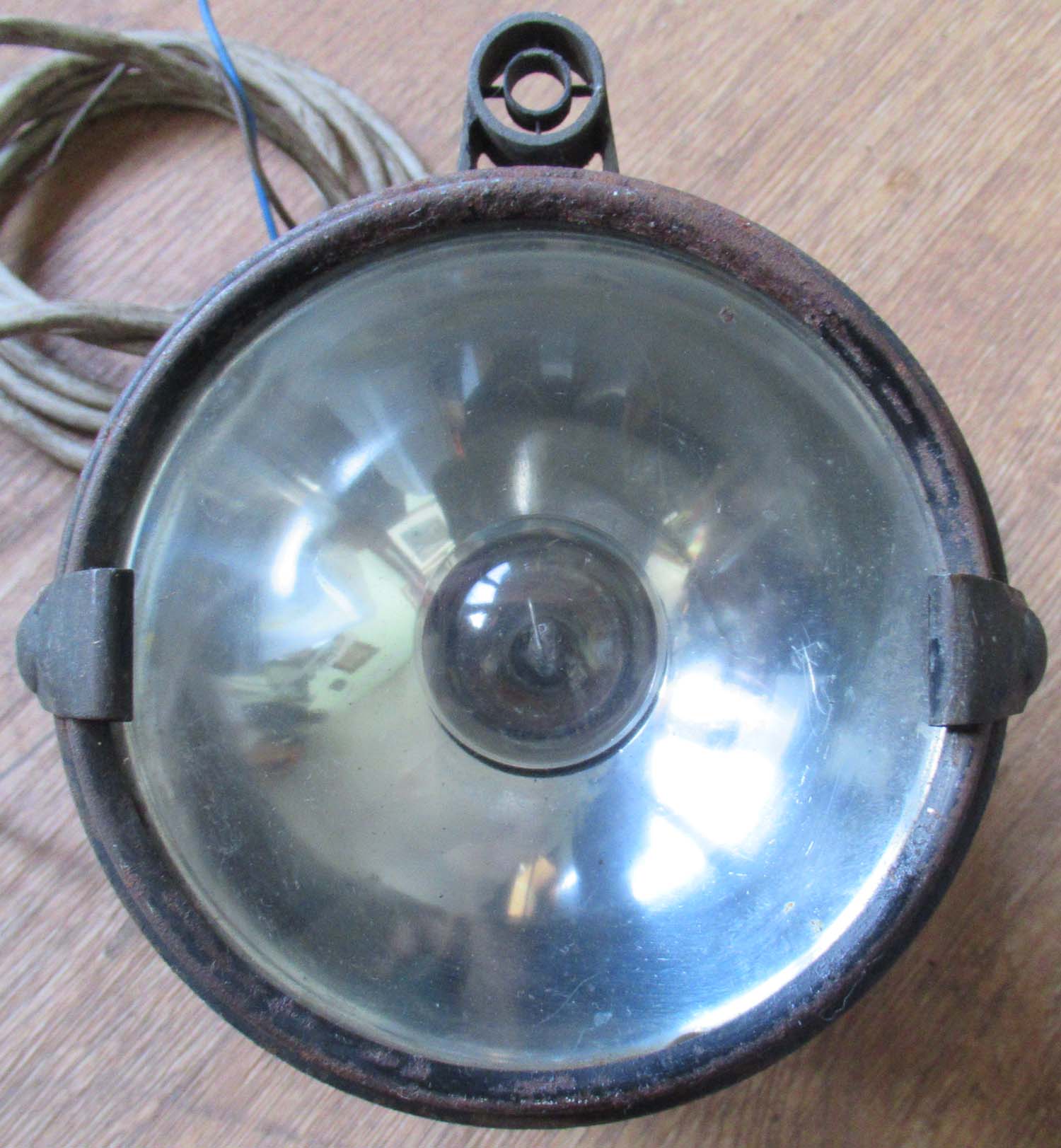

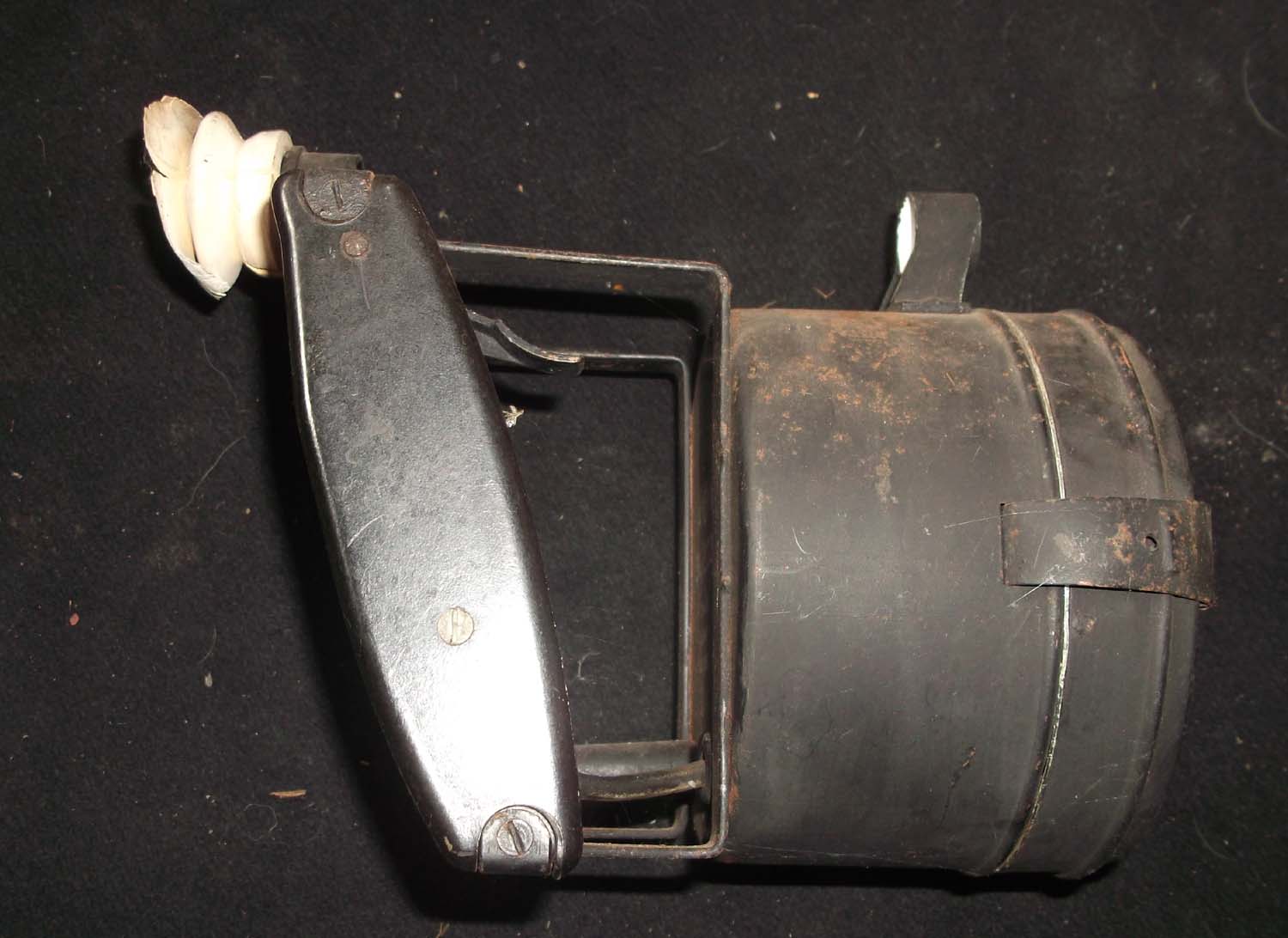

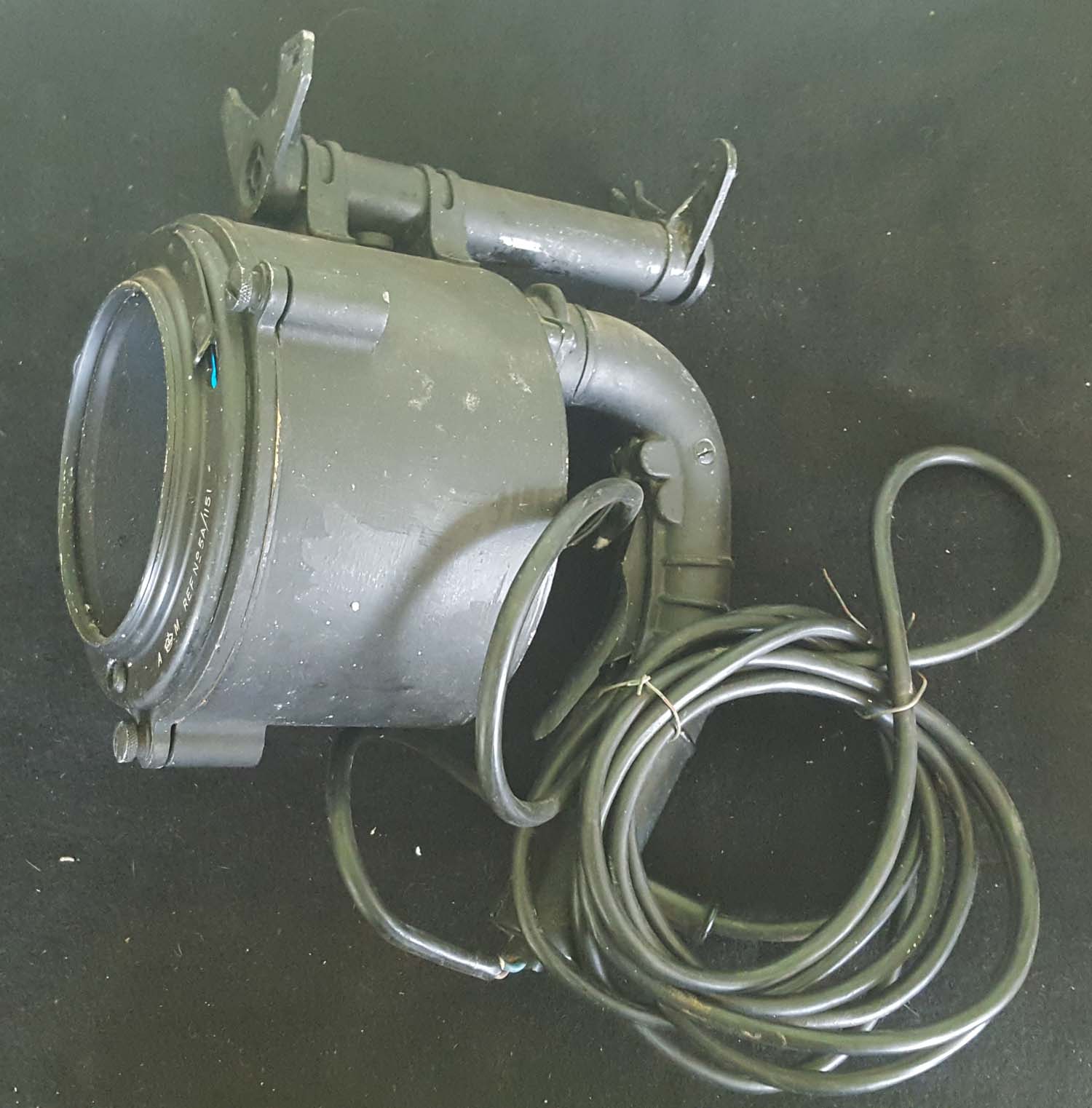

Signal Light (pg1 light)

Here we have a Signal Lamp

Used in bombers to signal each other and maintain radio silence.

Air Ministry Ref: 5A/2334

95



Click on the picture to enlarge

Seen under Peter's superb Battle of Britain MK I Hurricane R4118 which He rescued from India and restored to its present superb flying condition.

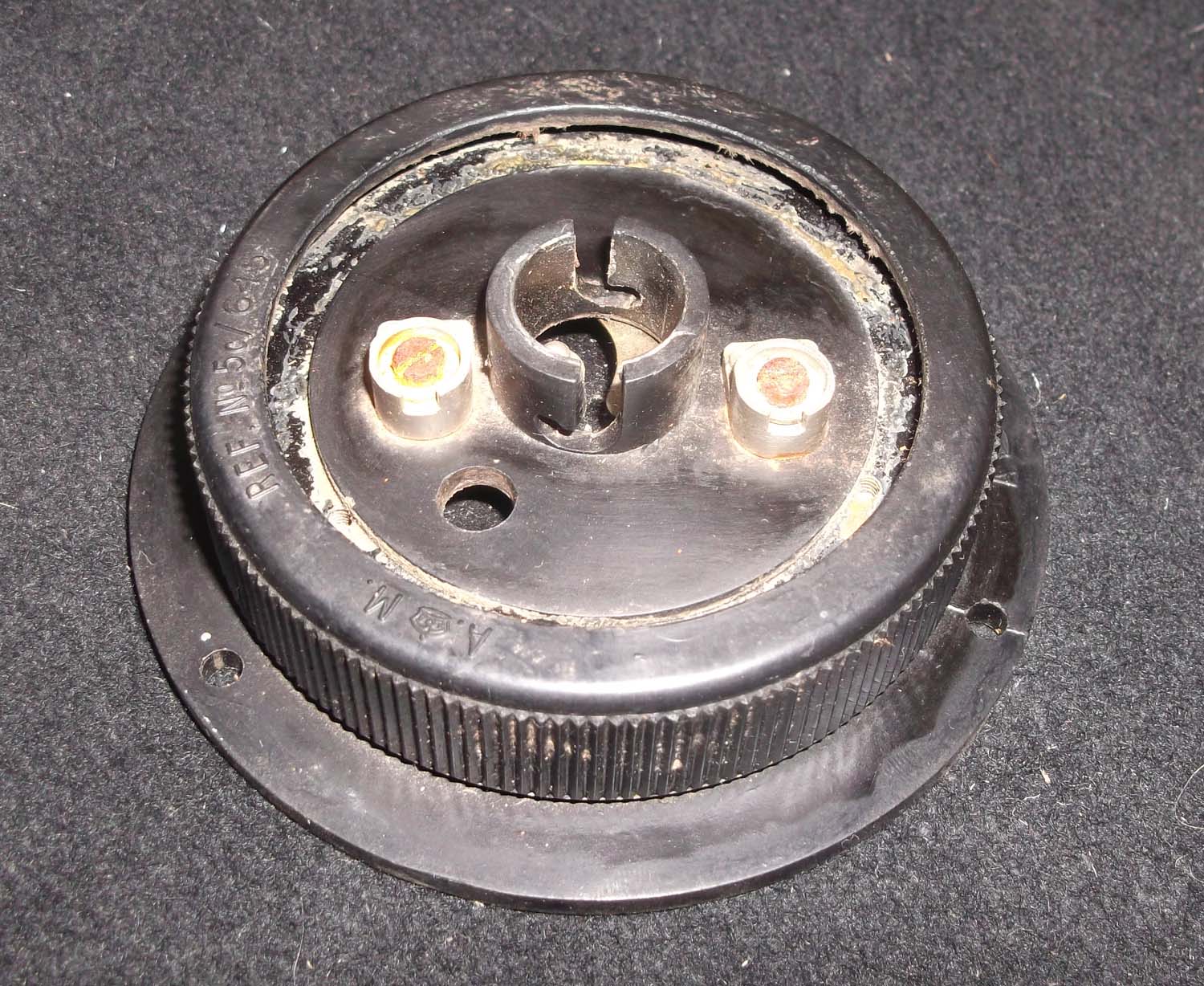

Upward ID lamp base (pg1 light)

This is an upward ID Lamp base, fitted to the Hurricane and Spitfire and probably many other RAF wartime aircraft.

One of these was  supplied for Peter Vacher's MK 1 Hurricane so they are in good serviceable condition.

We desperately need lenses for these so contact us if you have any available.

Air Ministry Ref: 5C/559

Type C

25 each

Click on the picture to enlarge

Seen under Peter's superb Battle of Britain MK I Hurricane R4118 which He rescued from India and restored to its present superb flying condition.

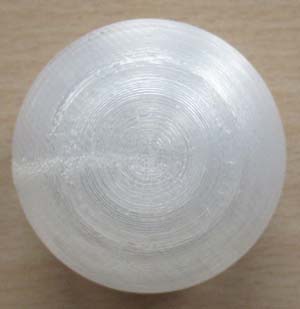

Upward ID lamp Lens (pg1 light)

This is an upward ID Lamp base, fitted to the Hurricane and Spitfire and probably many other RAF wartime aircraft.

One of these was  supplied for Peter Vacher's MK 1 Hurricane so they are in good serviceable condition.

Fits the Upward ID Lamp Base Above

Currently out of Stock More Wanted Contact Us



Click on the picture to enlarge

Click on the picture to enlarge

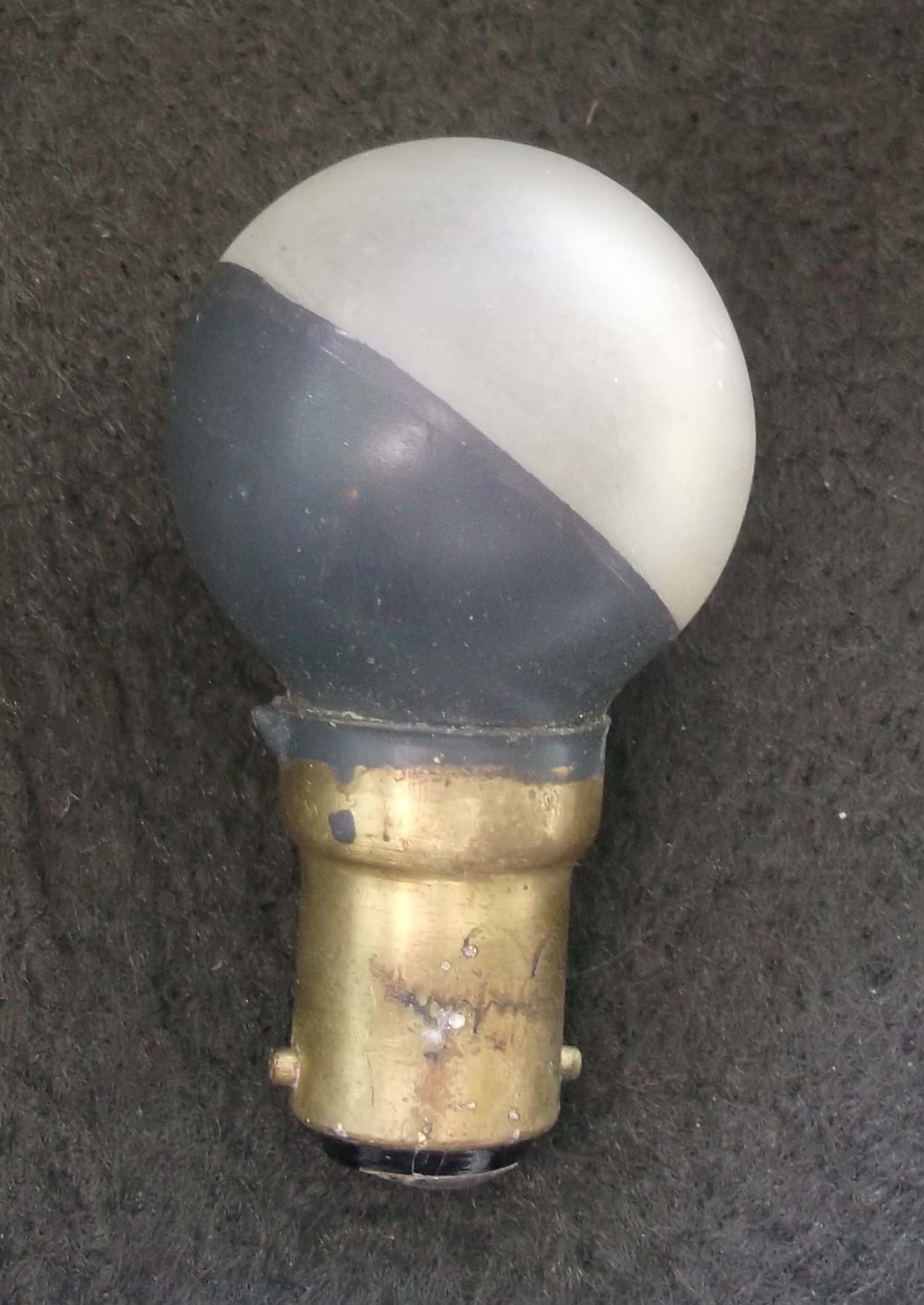

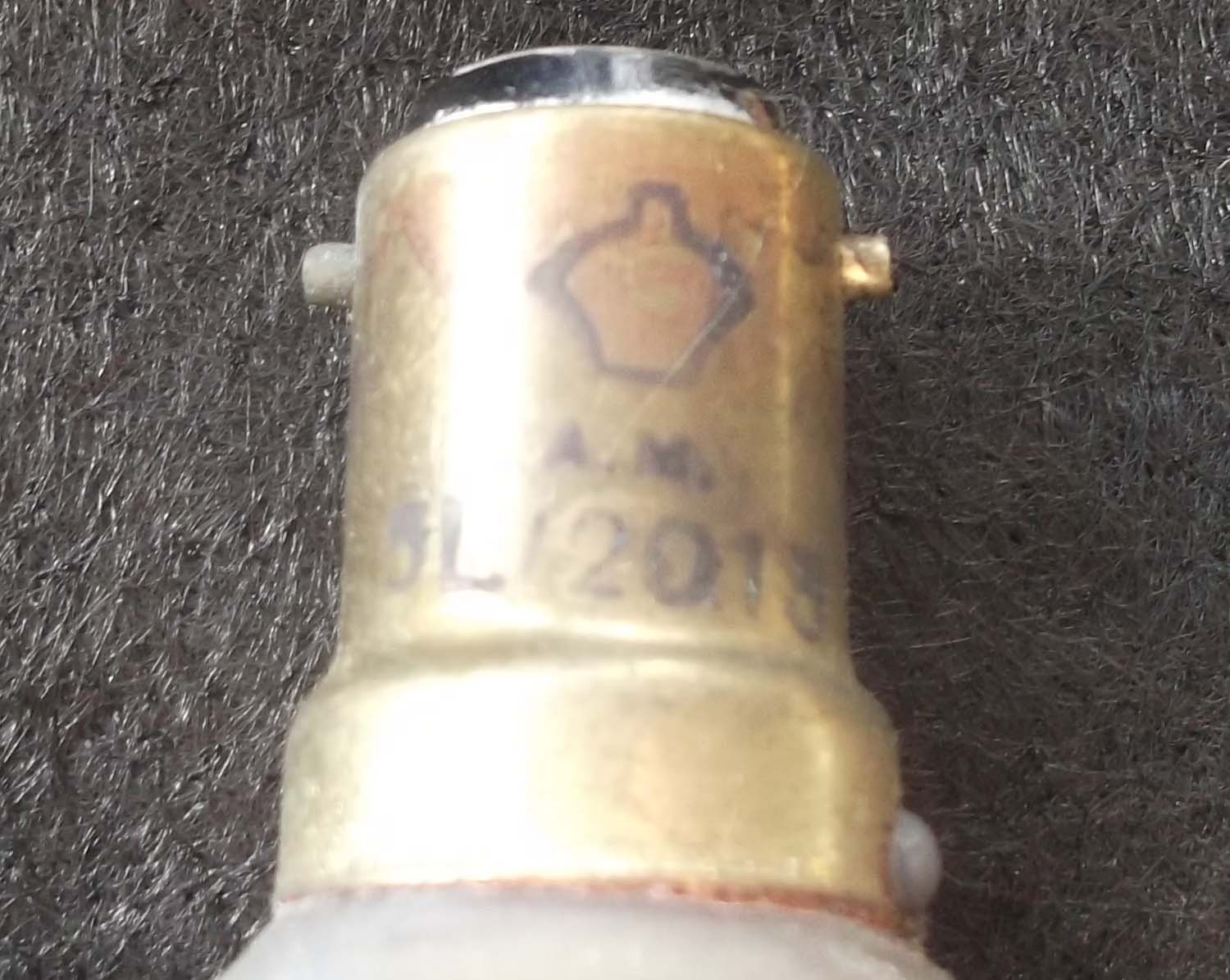

Hawker Hurricane Gunsight bulb holder (pg1 light)

This is a Original bracket with  and is Supplied with Three Original Gunsight bulbs.

This Carries Several Part Numbers and a Hawker Inspection Stamp

Part Numbers Range from A99818 to A99820

275

Click on picture to enlarge

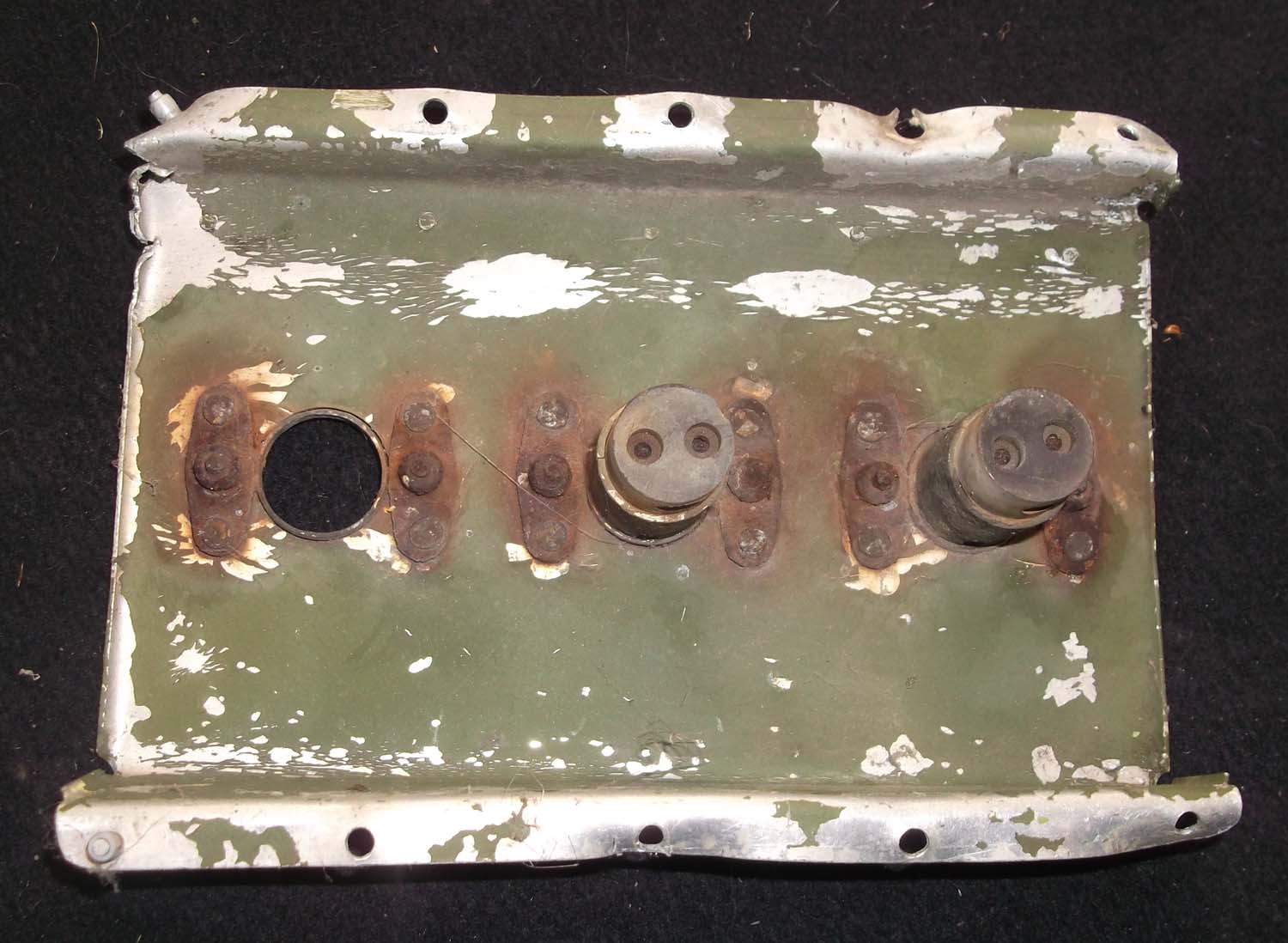

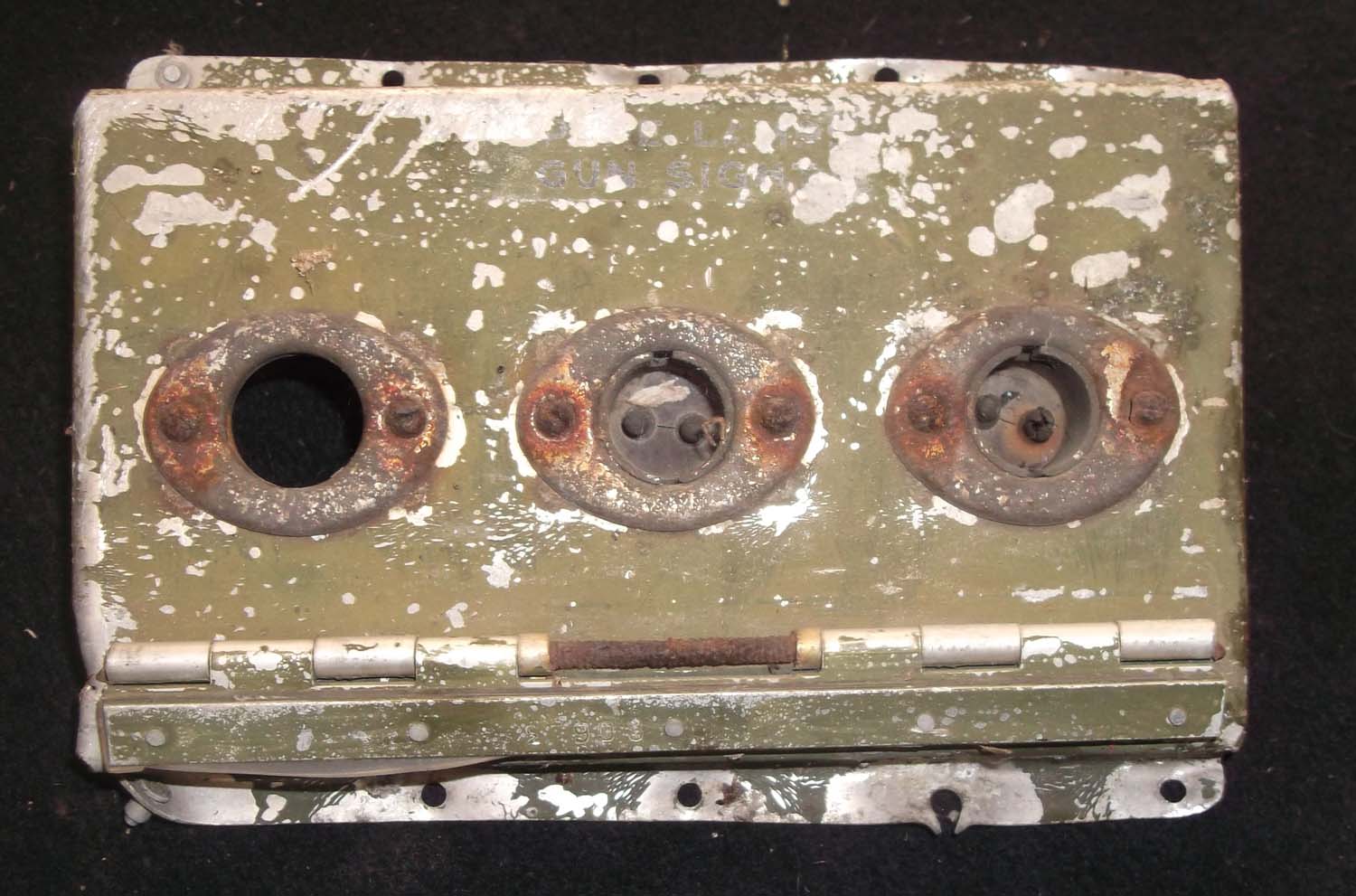

Bristol Blenheim Gunsight bulb holder (pg1 light)

Here is the spare bulb holder for the Bristol Blenheim.  You can still make out the words on the item "spare lamps gun sight".

55

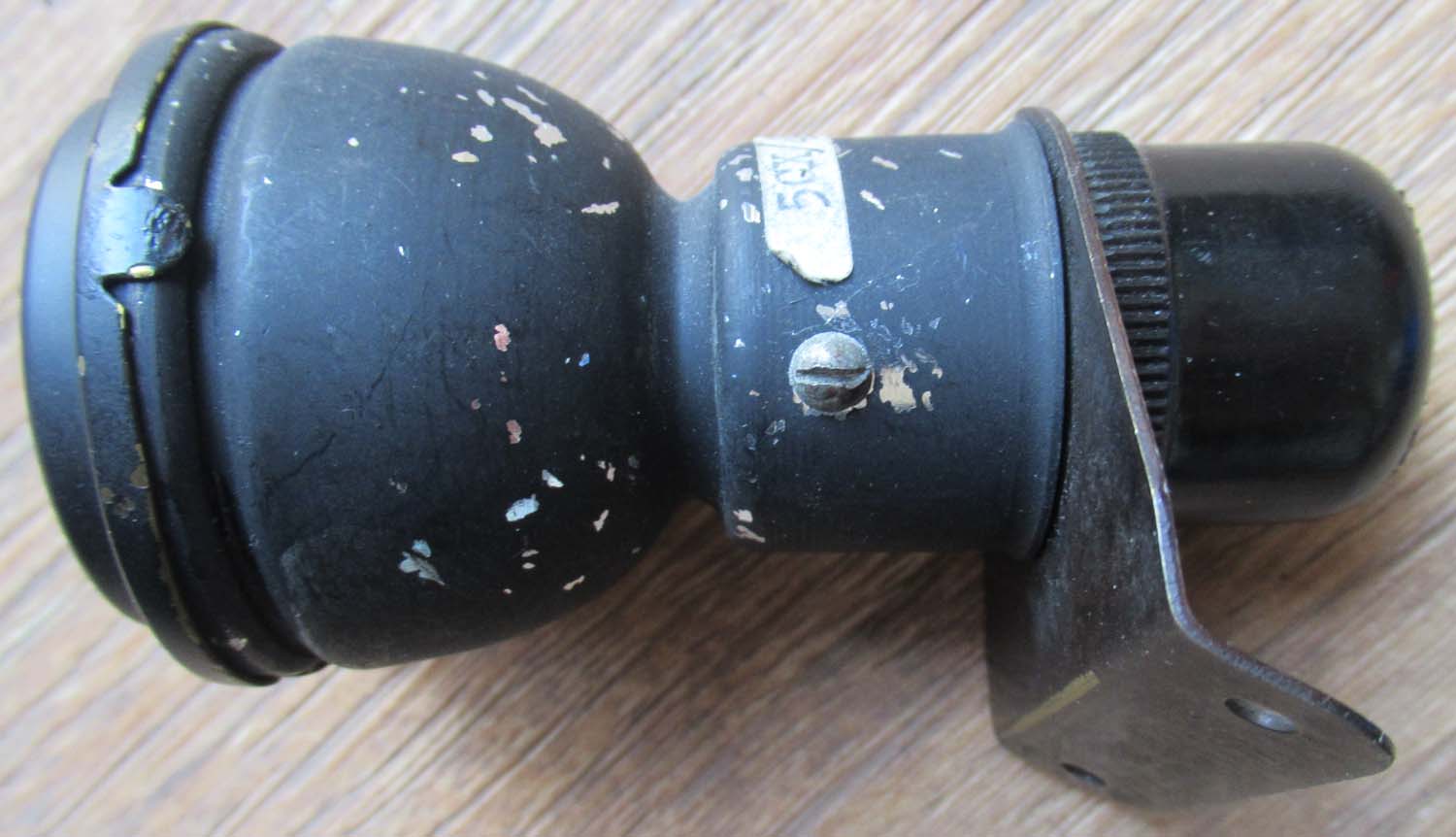

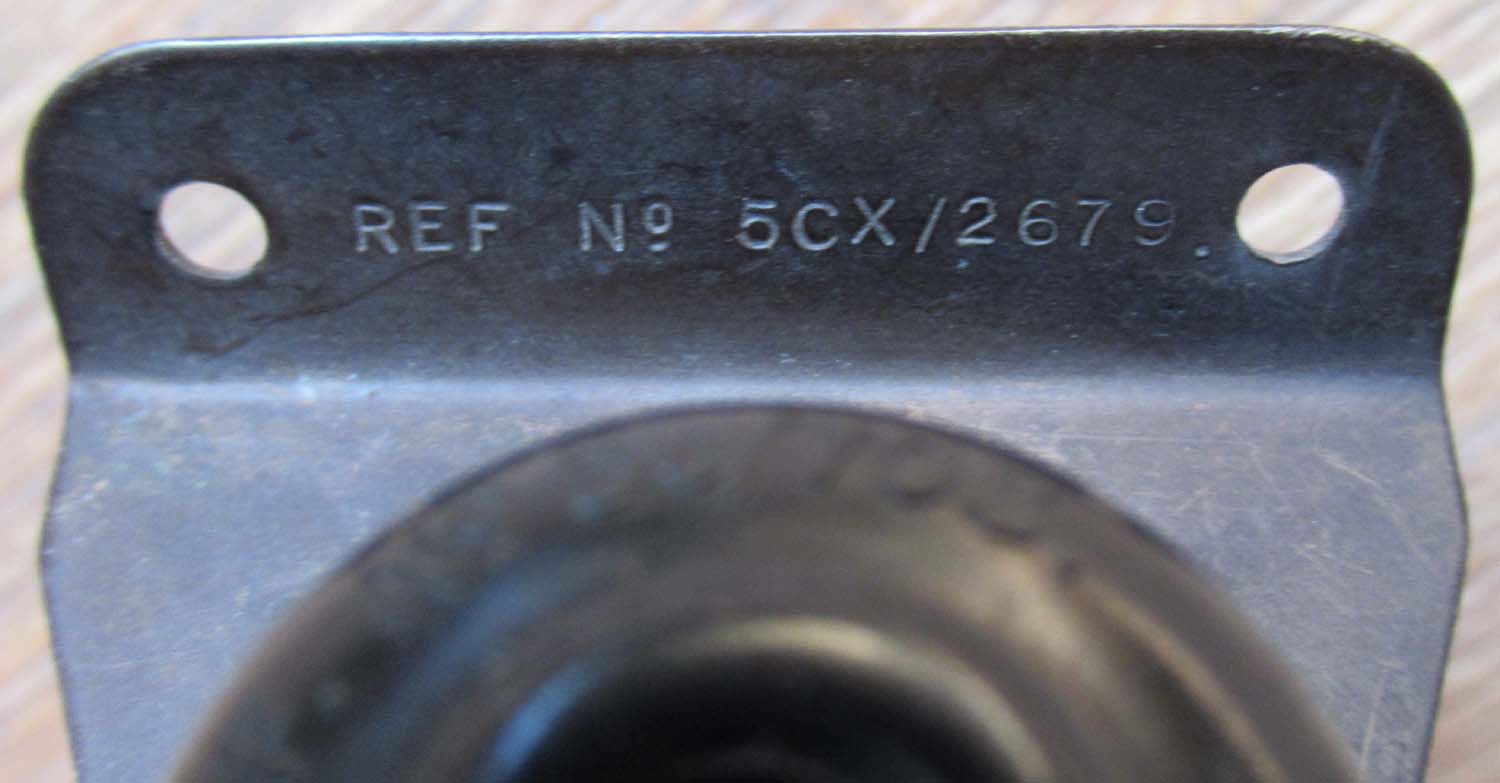

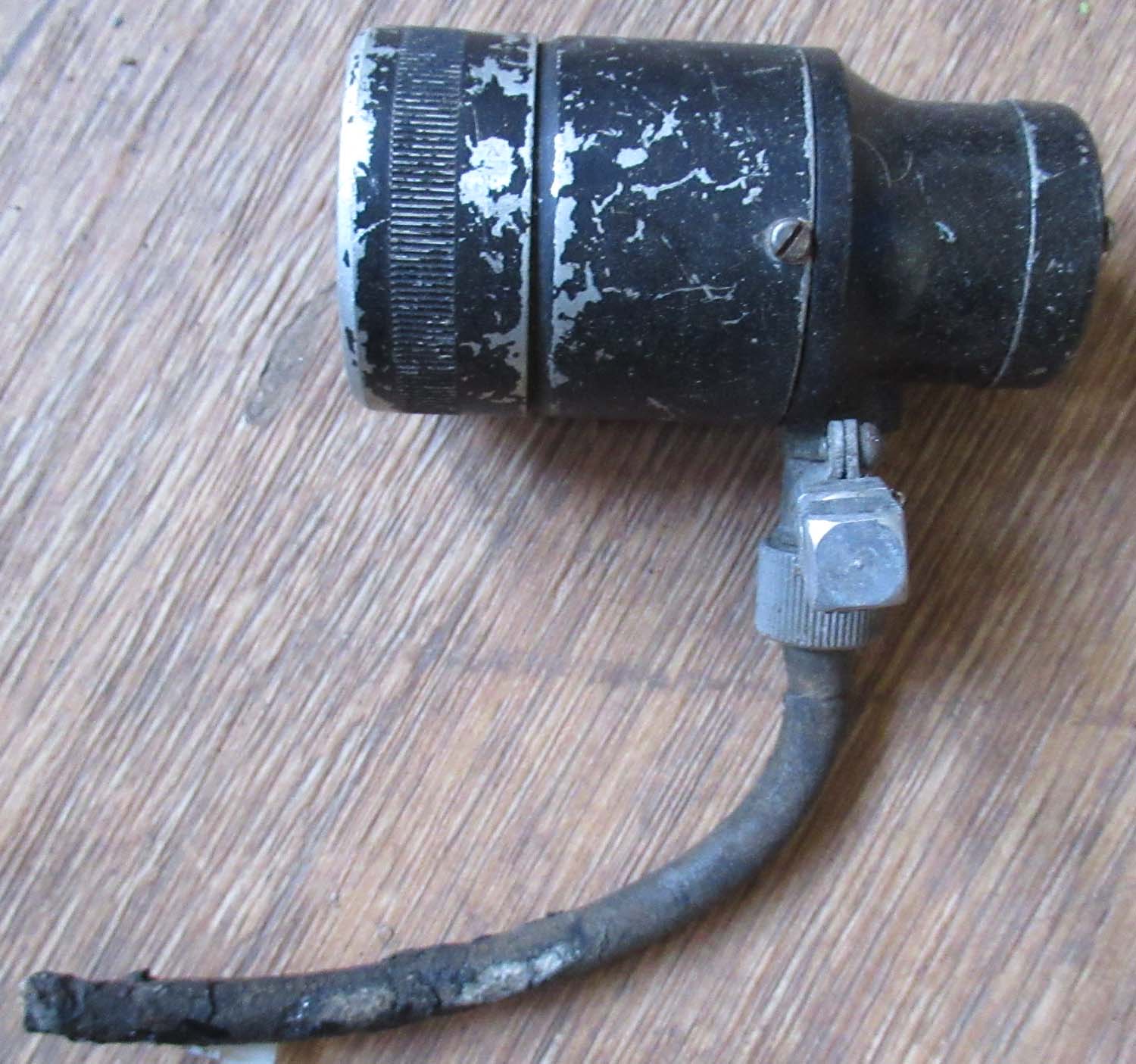

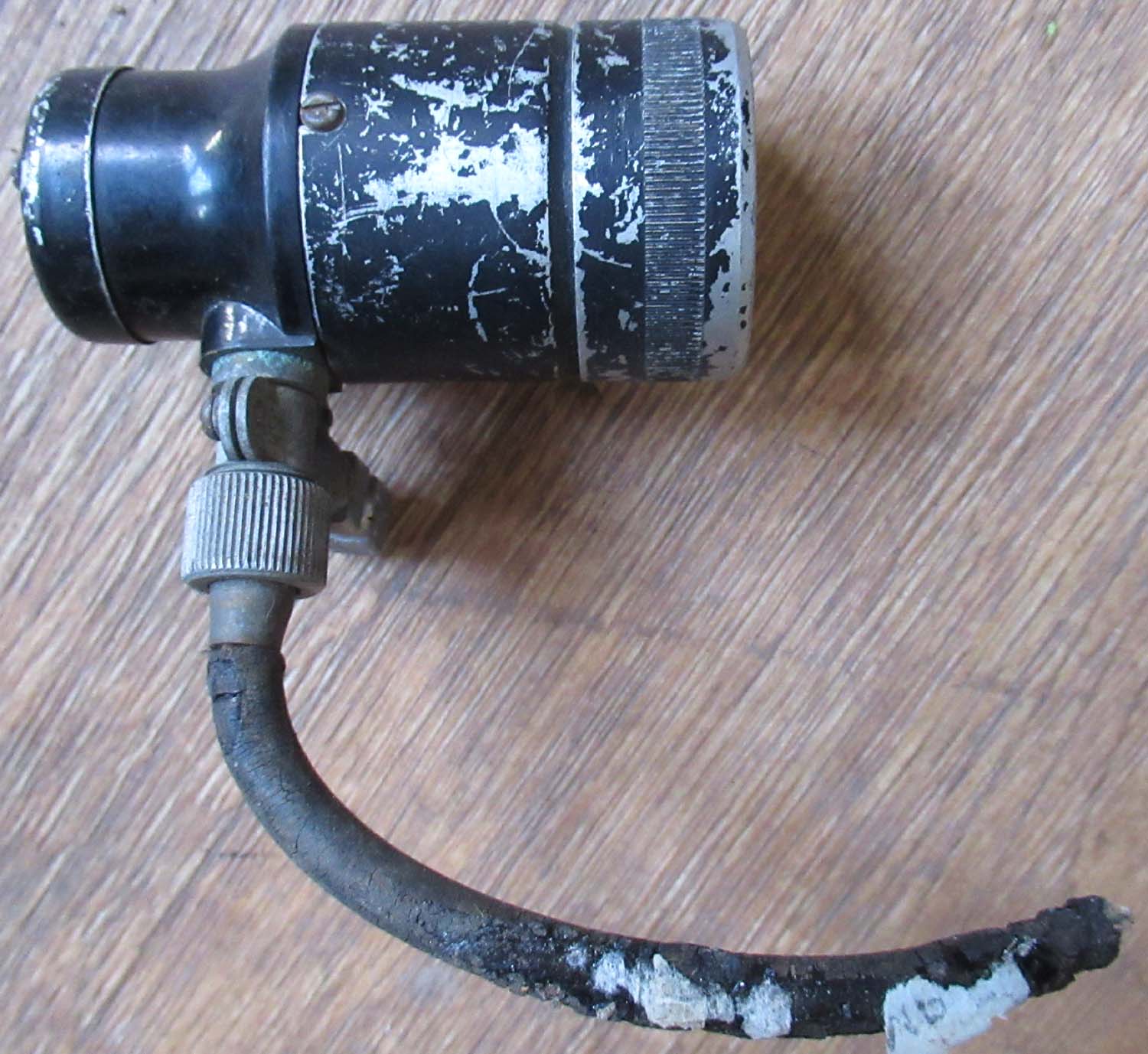

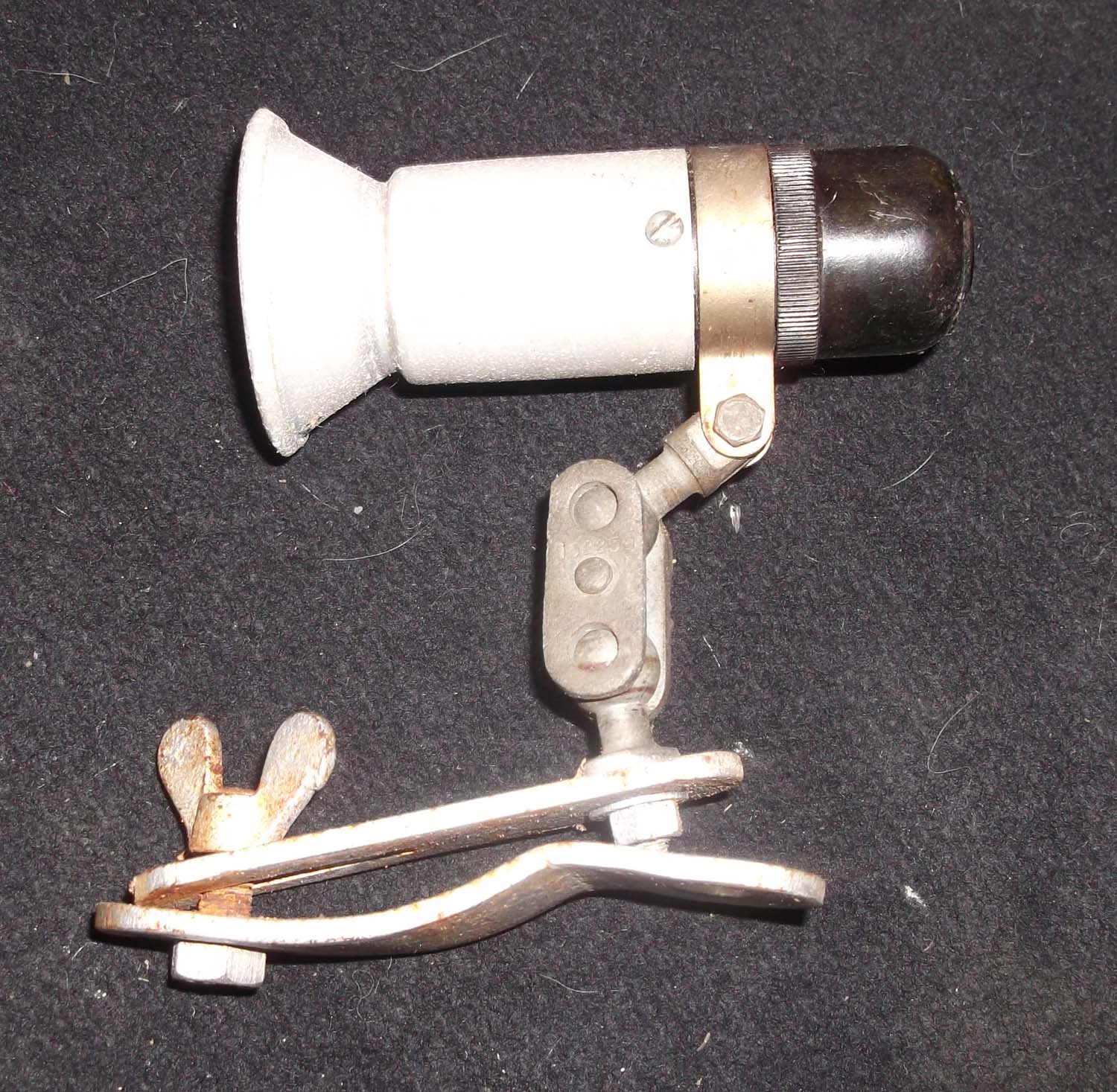

Cockpit Light 1(pg 1 lighting)

This is a cockpit light  used in various wartime aircraft complete with bracket

125



Click on the pictures to enlarge

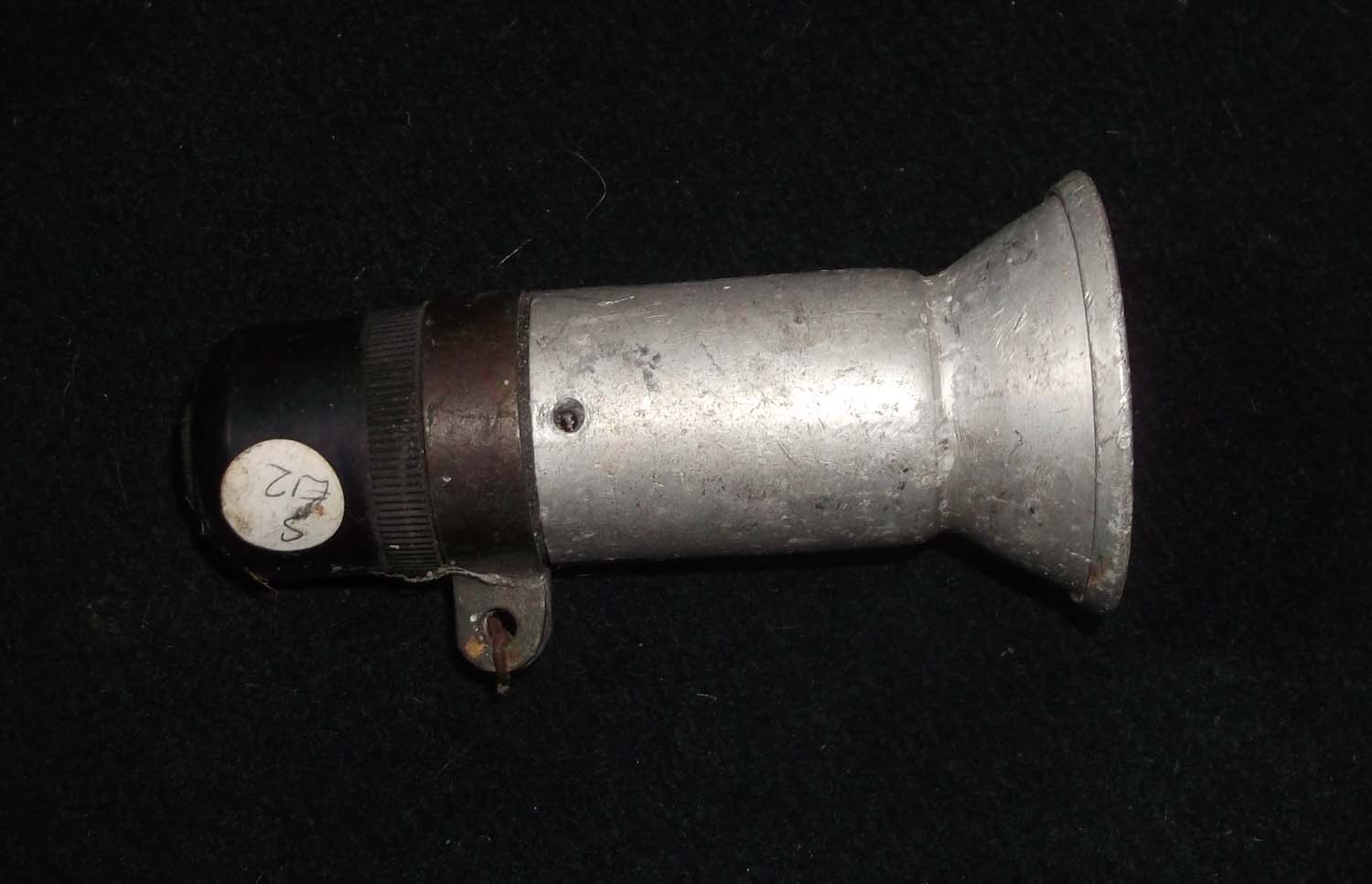

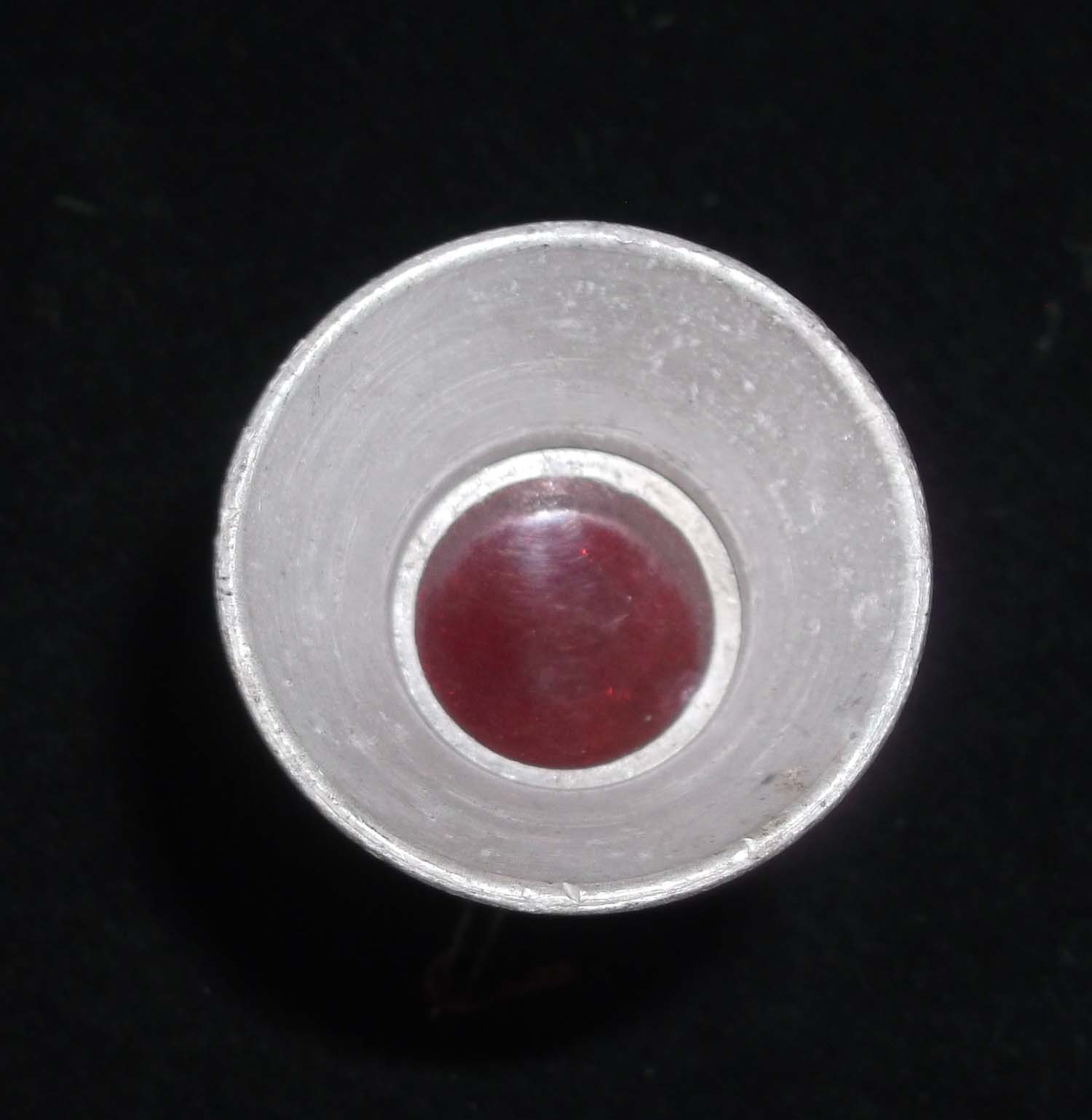

Cockpit Light 2 (pg 1 lighting)

This is a cockpit light  used in various wartime aircraft



95



Click on the pictures to enlarge

95

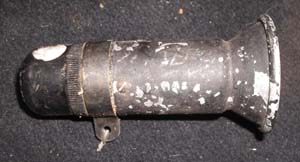

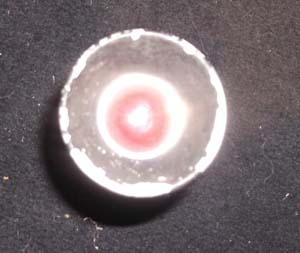

Cockpit Light 3 (pg 1 lighting)

This is a cockpit light  used in various wartime aircraft



Click on the pictures to enlarge

95

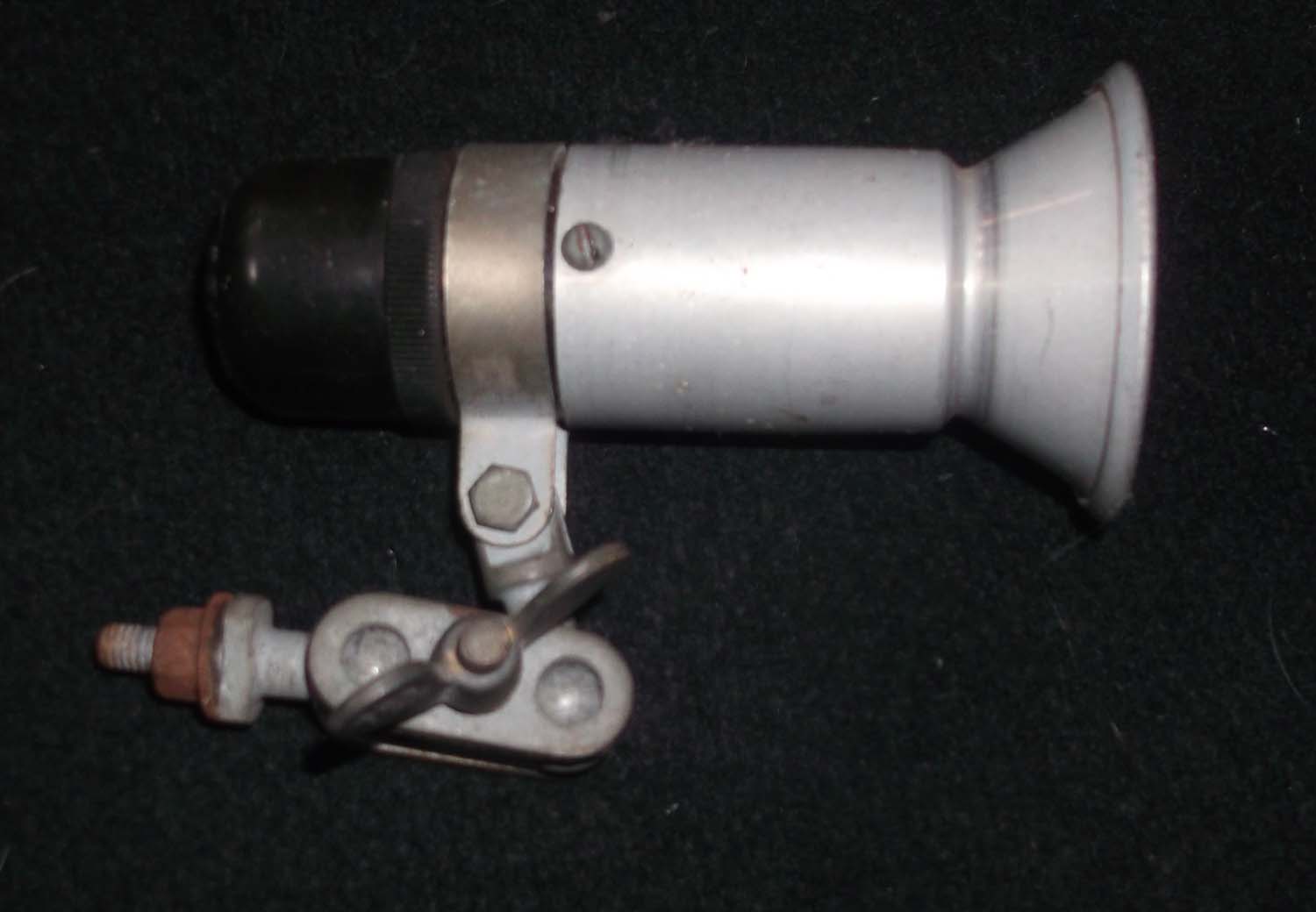

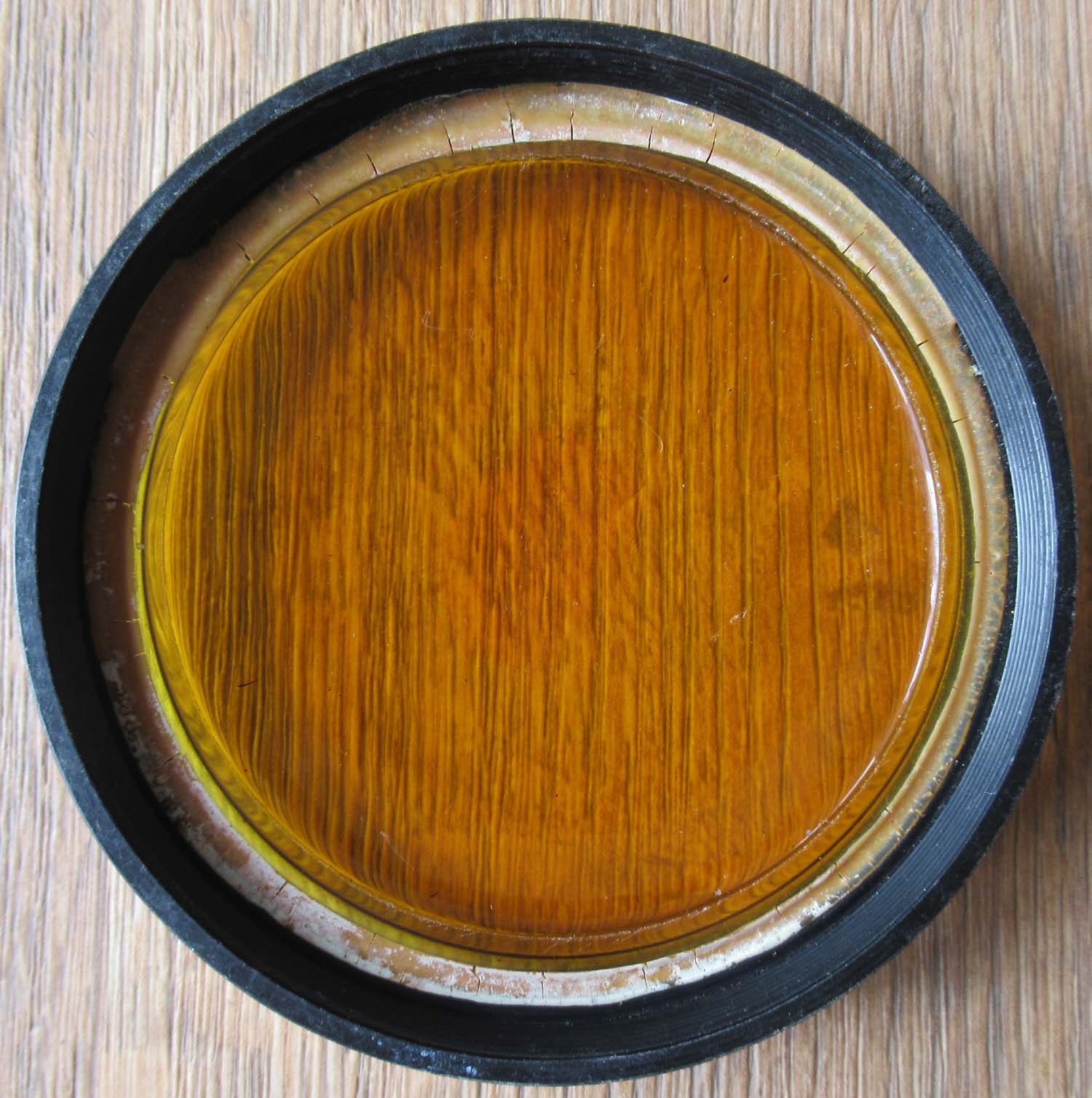

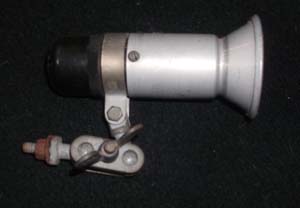

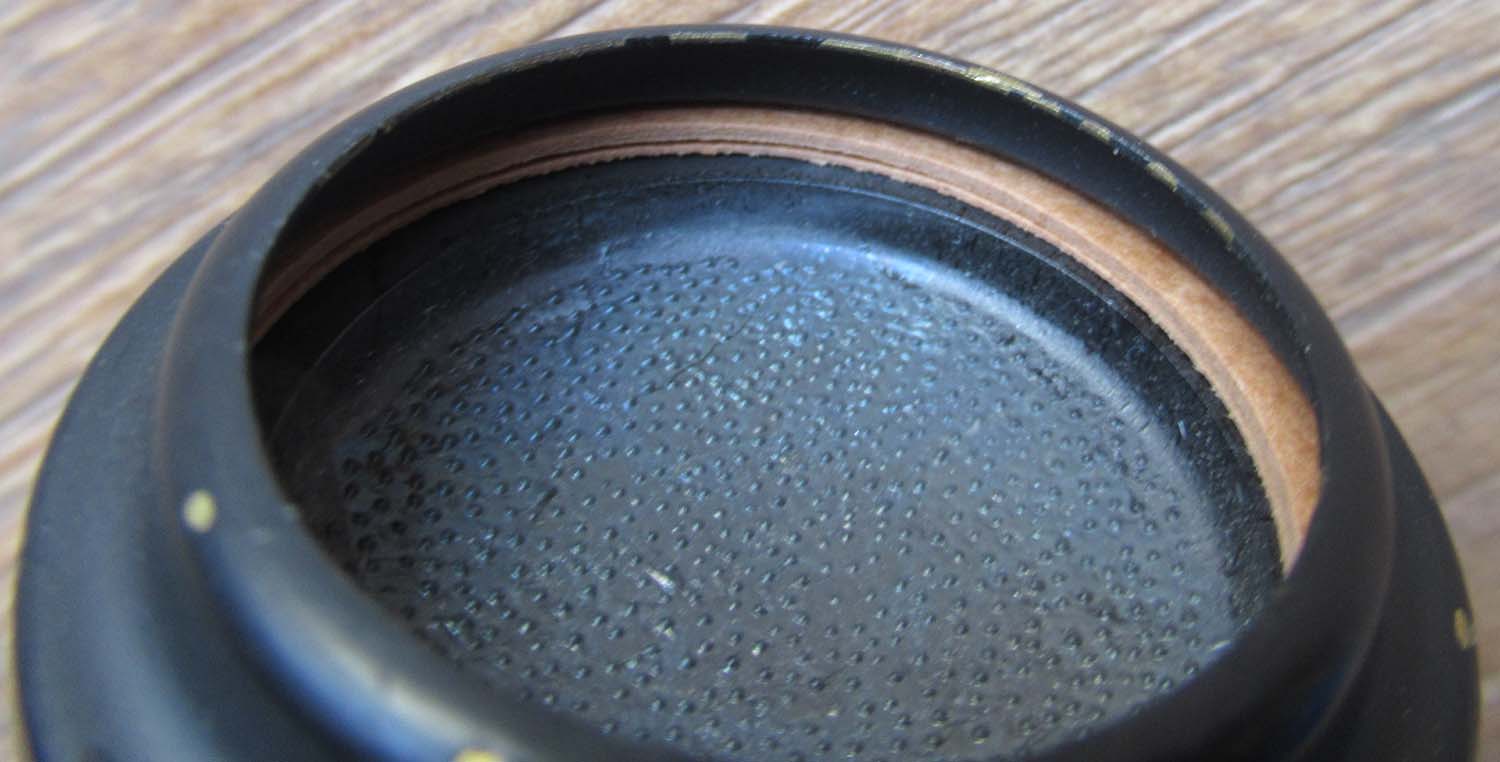

Cockpit Light 5 (pg 1 lighting)

This is a cockpit light  used in various wartime aircraft complete with bracket

This one Differs from the ones above as this has an amber Lens

Click on the pictures to enlarge

45

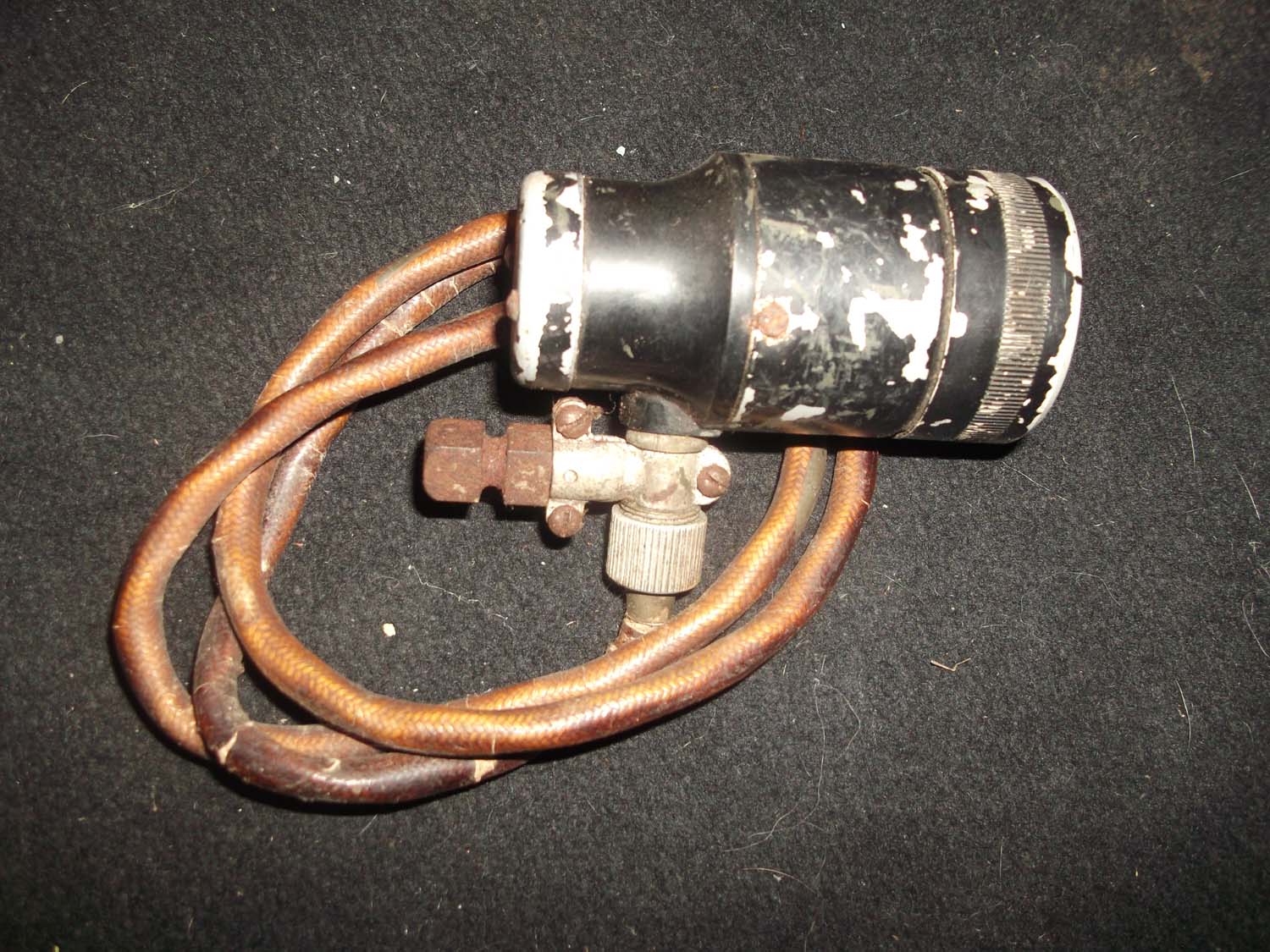

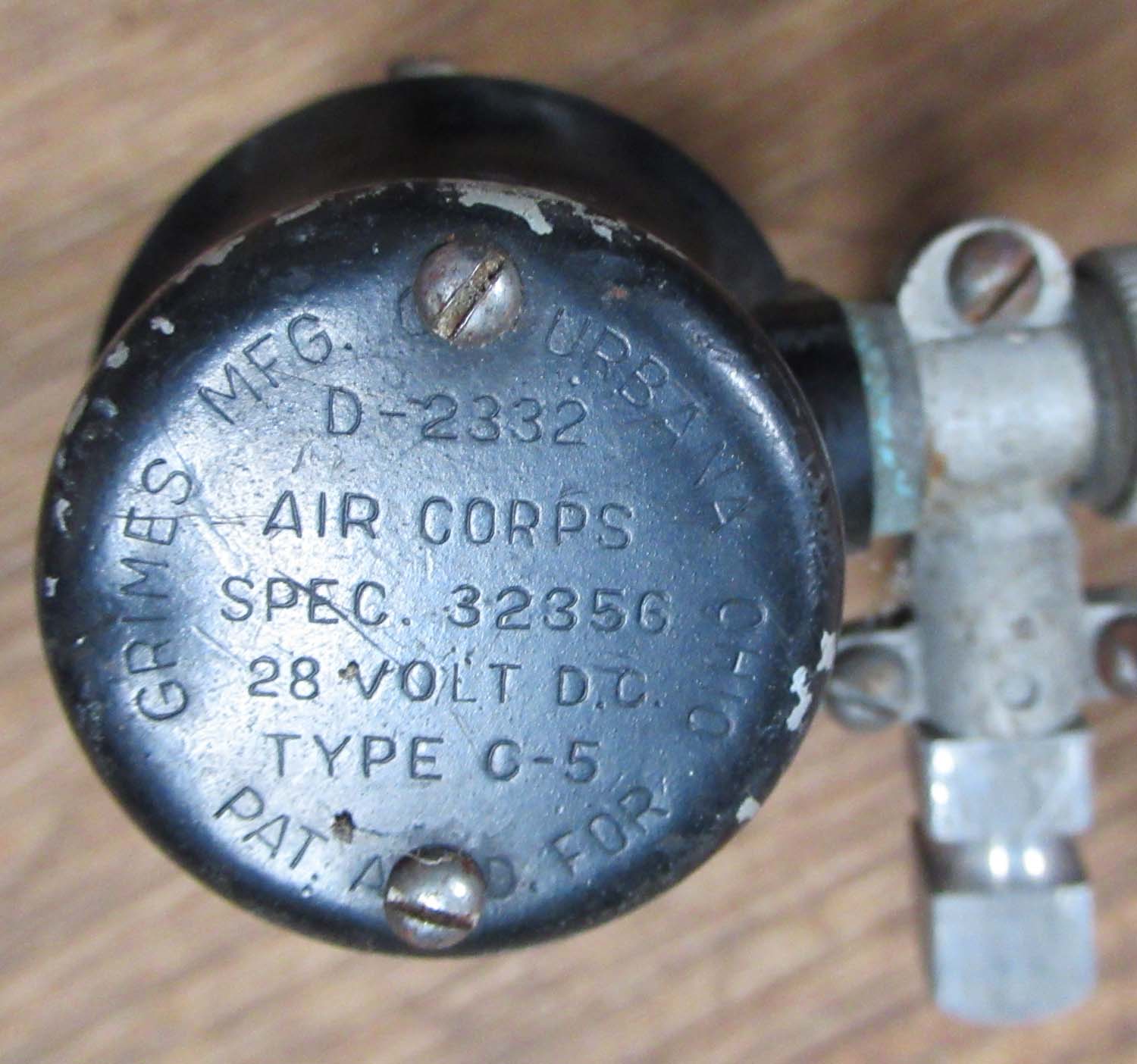

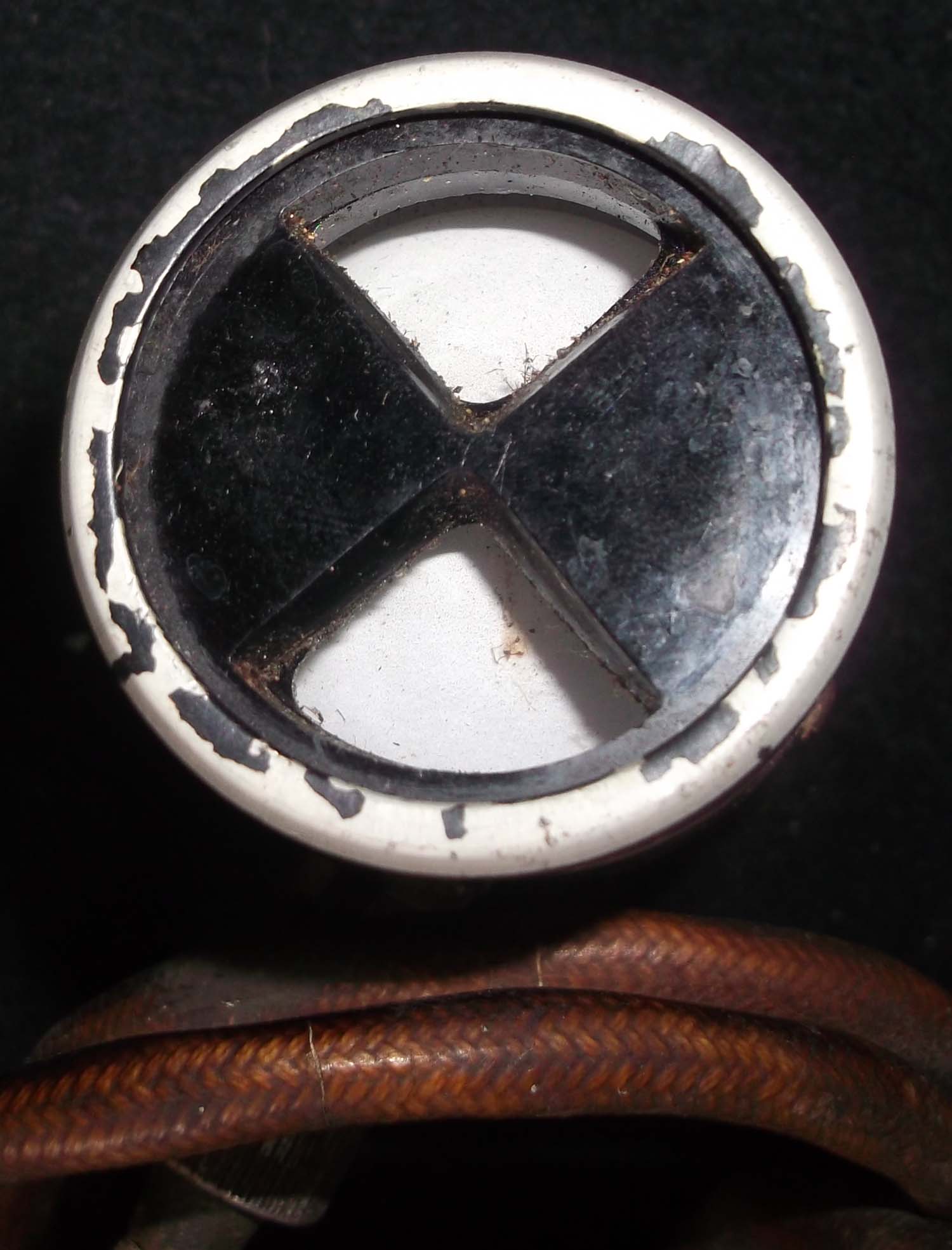

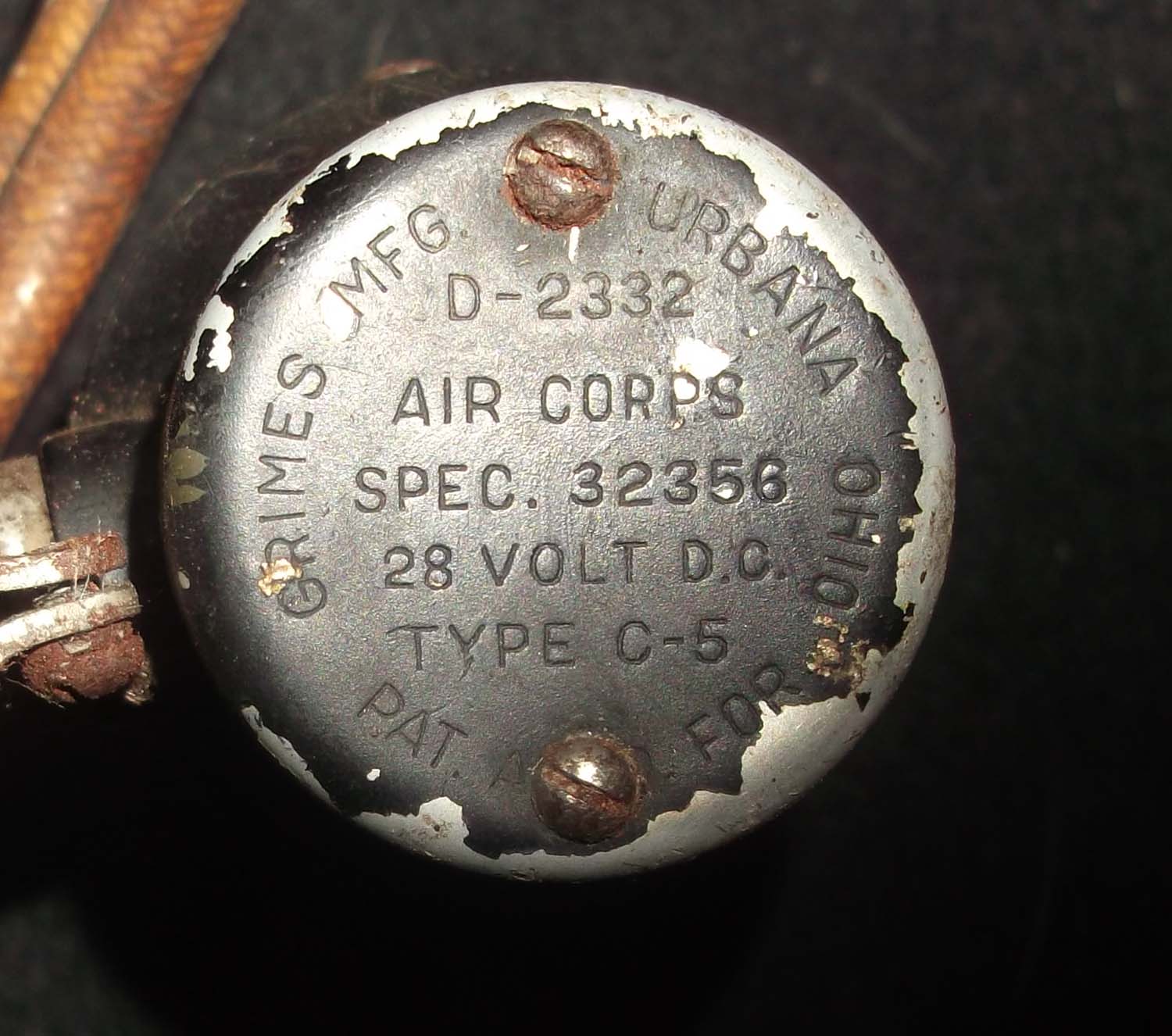

Cockpit Light 6 (pg 1 lighting)

Here we have a US Air Corp Cockpit Light

Manufactured by Grimes MFG Company

Type C-5

D-2332

28v

Click on the pictures to enlarge

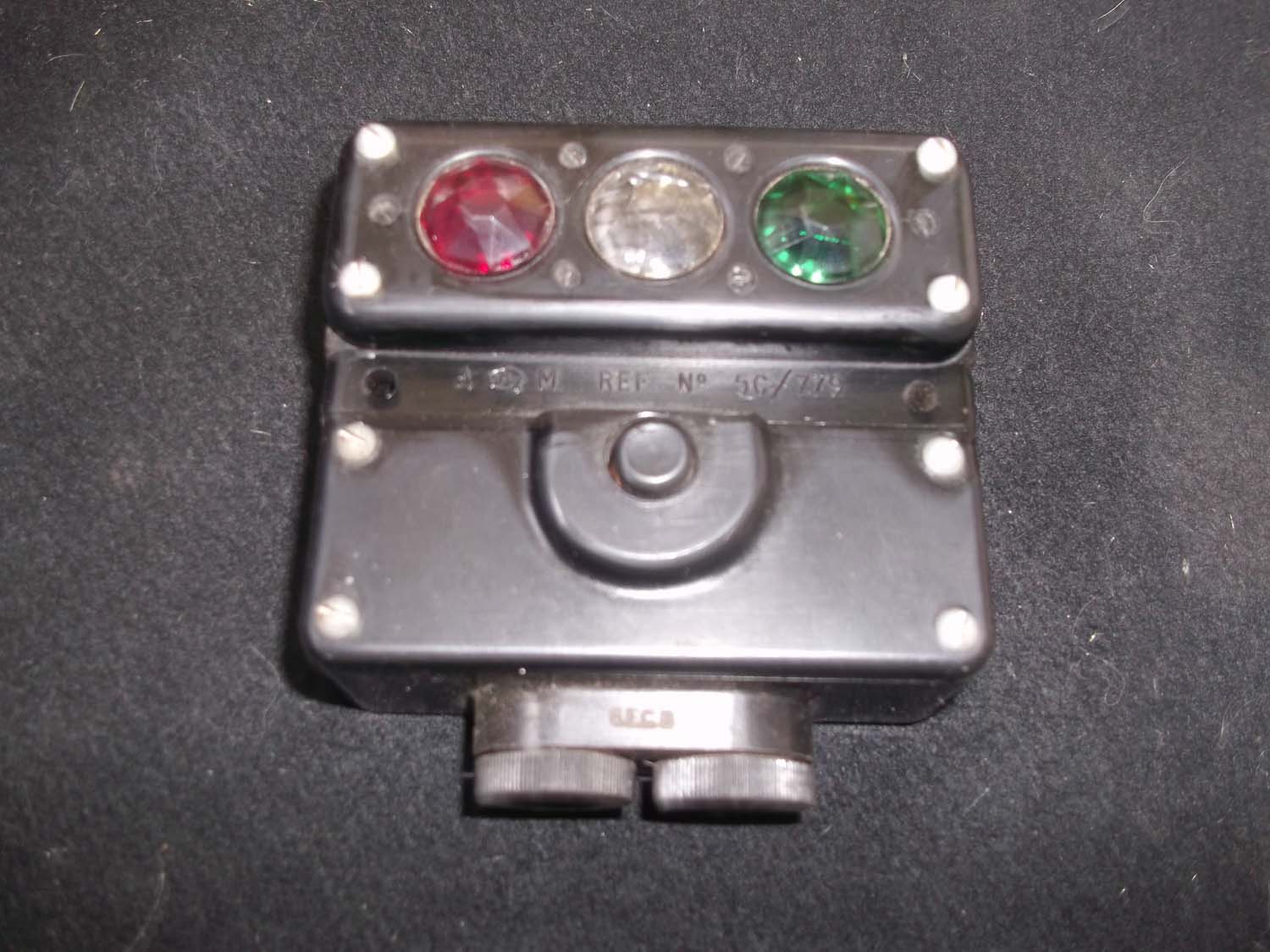

Drone station receiver box (pg1 Lighting)

Here we have a Drone Station Reciever Box

As fitted to Sunderland's

Air Ministry Ref: 5C/779

65





Click on the pictures to enlarge

Lancaster Bomb Jettison Lamp unit (pg1 lighting)

This unit was fitted to the main instrument panel of the Lancaster and other heavy bombers.

 When the cover is lifted pressing the illumined light bulb causes the jettison of the bomb load.

This is in a Very Good Condition

Ref:5D/604

85

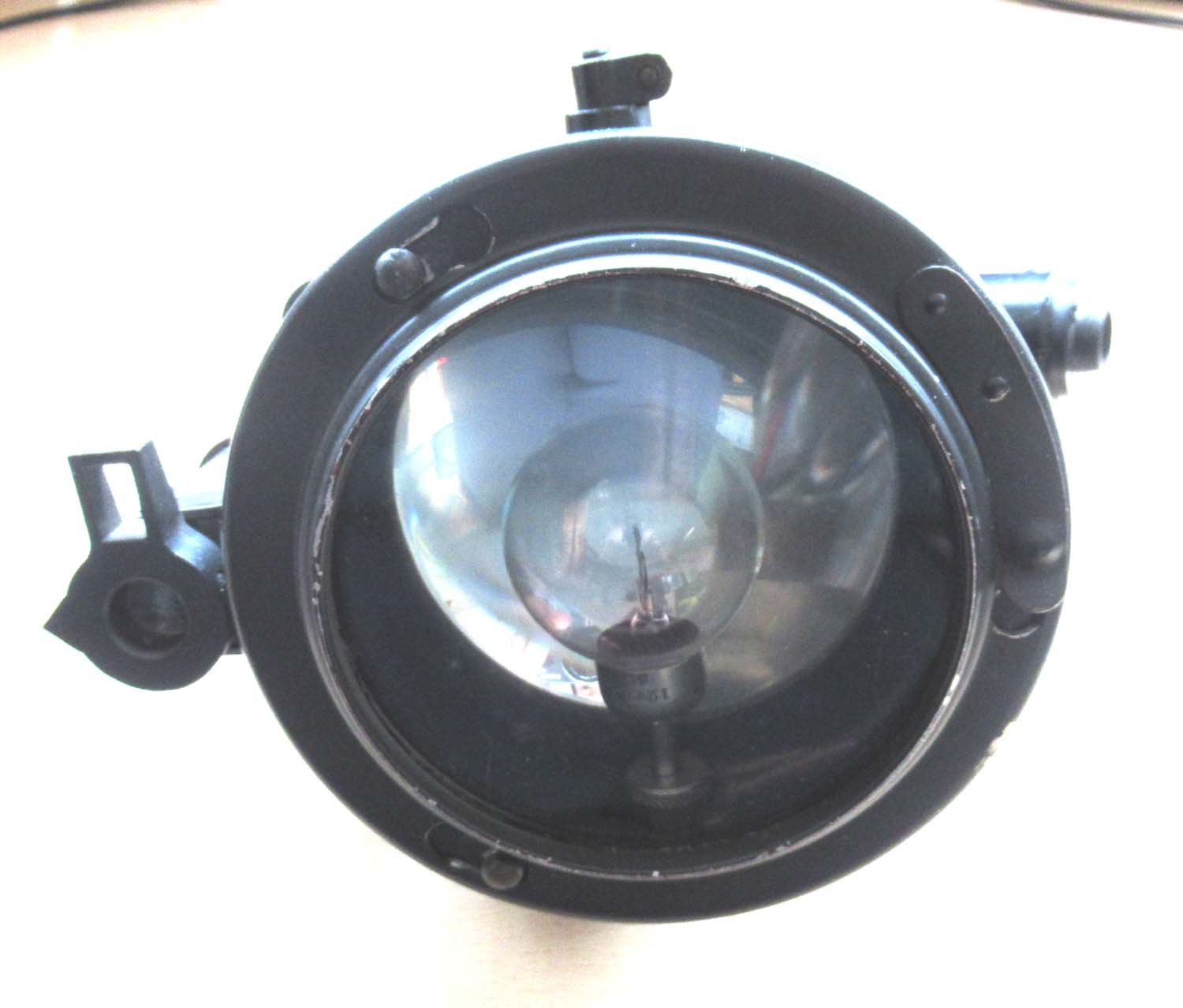

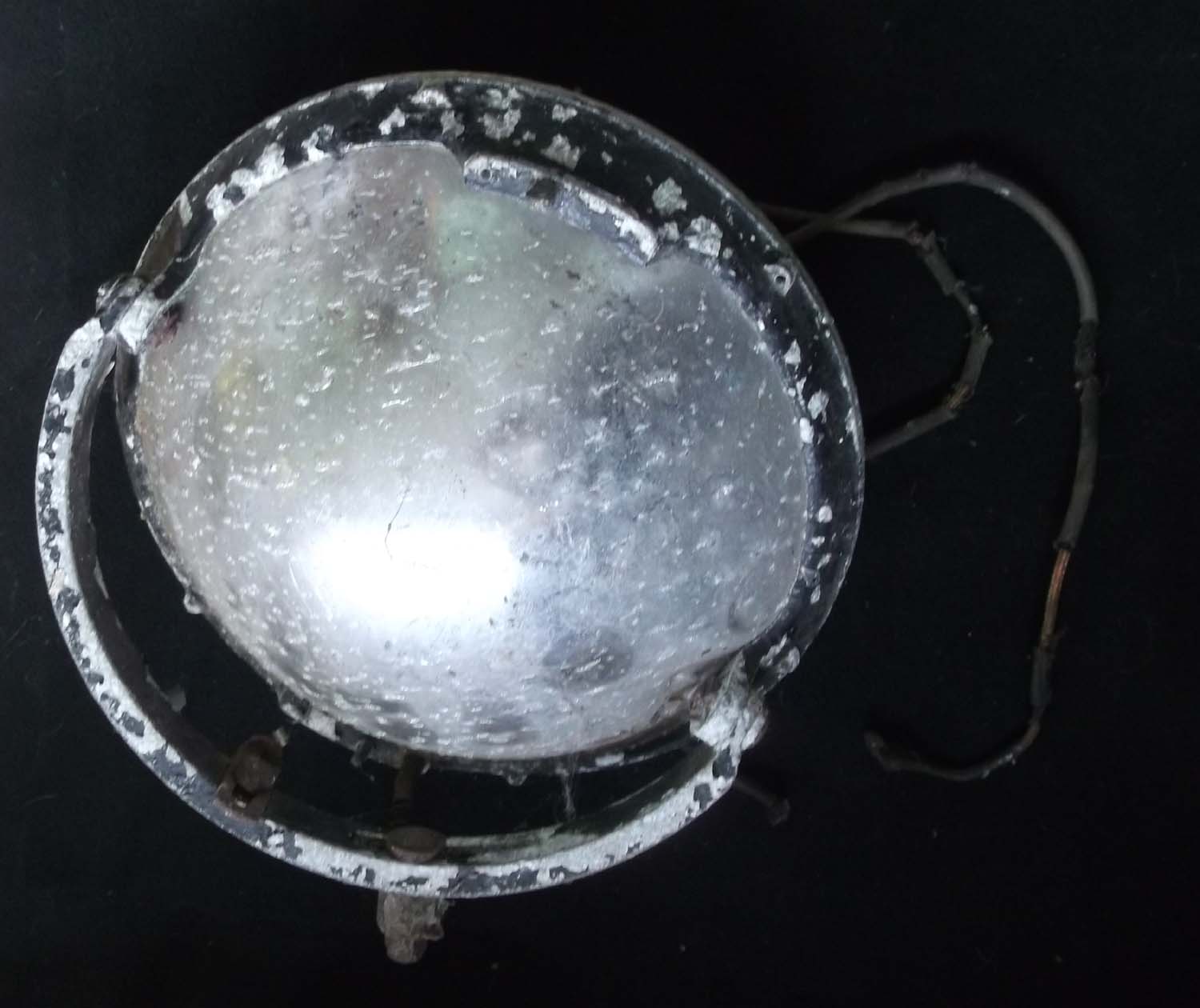

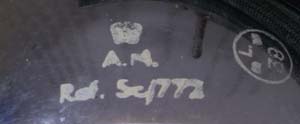

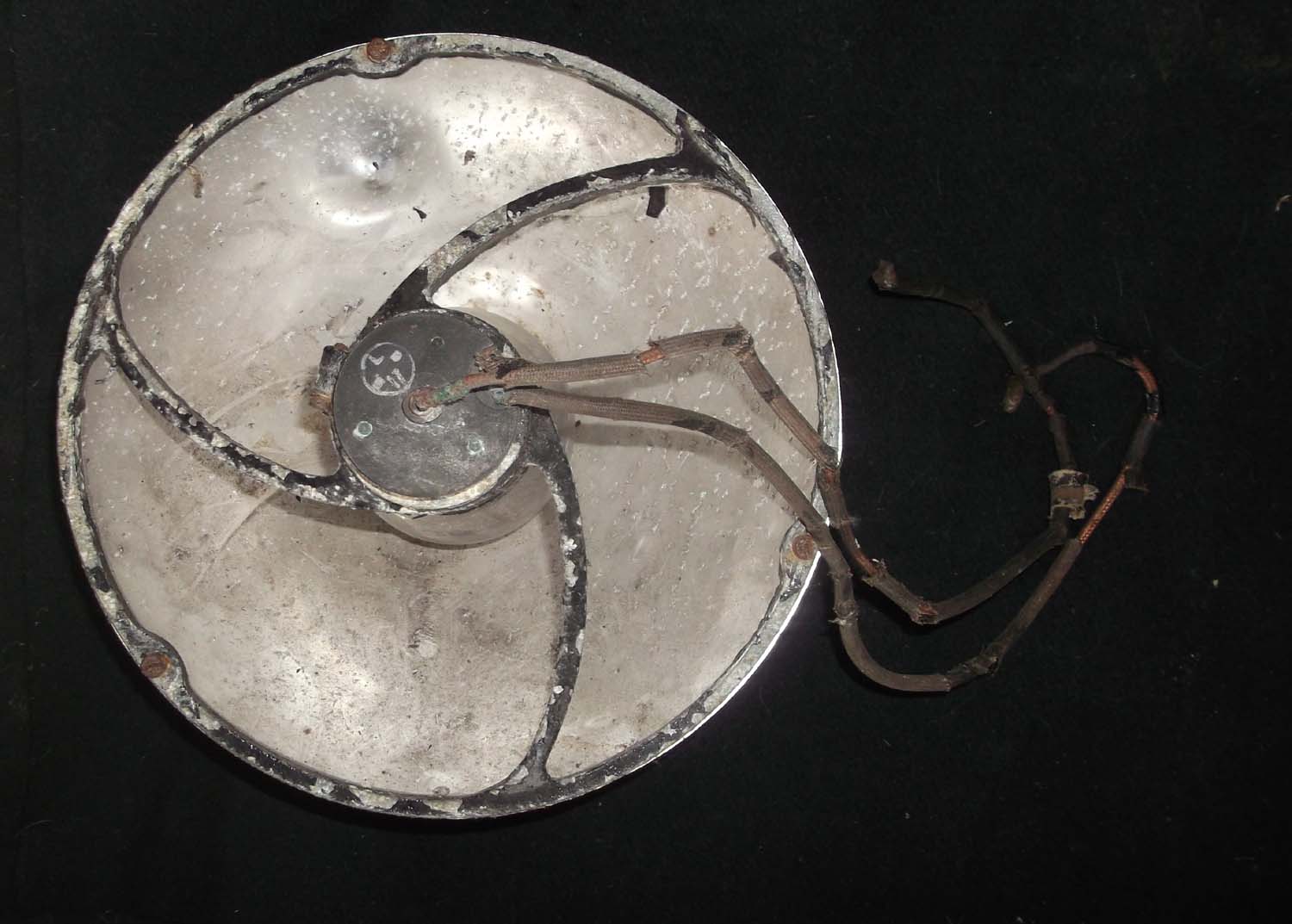

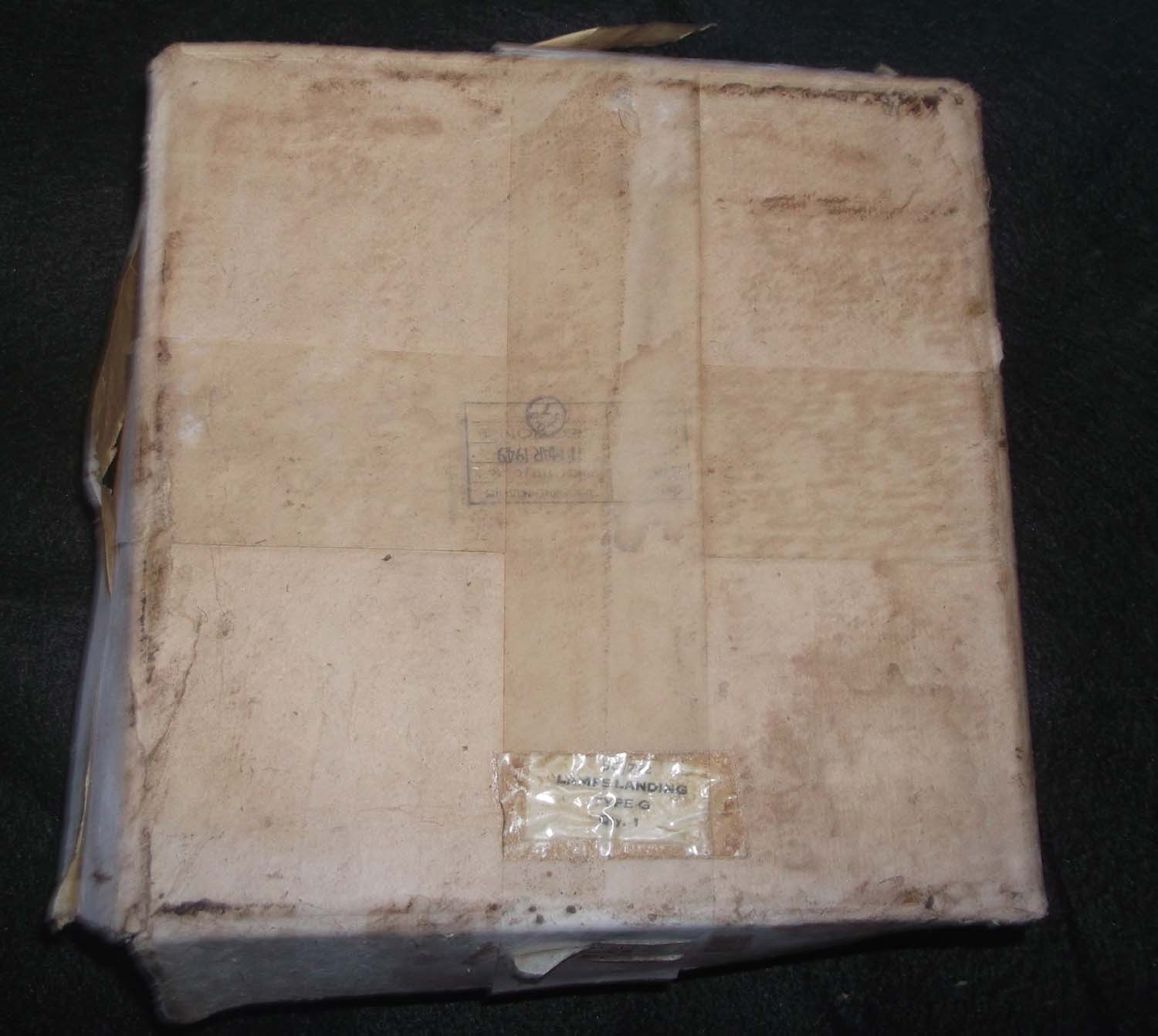

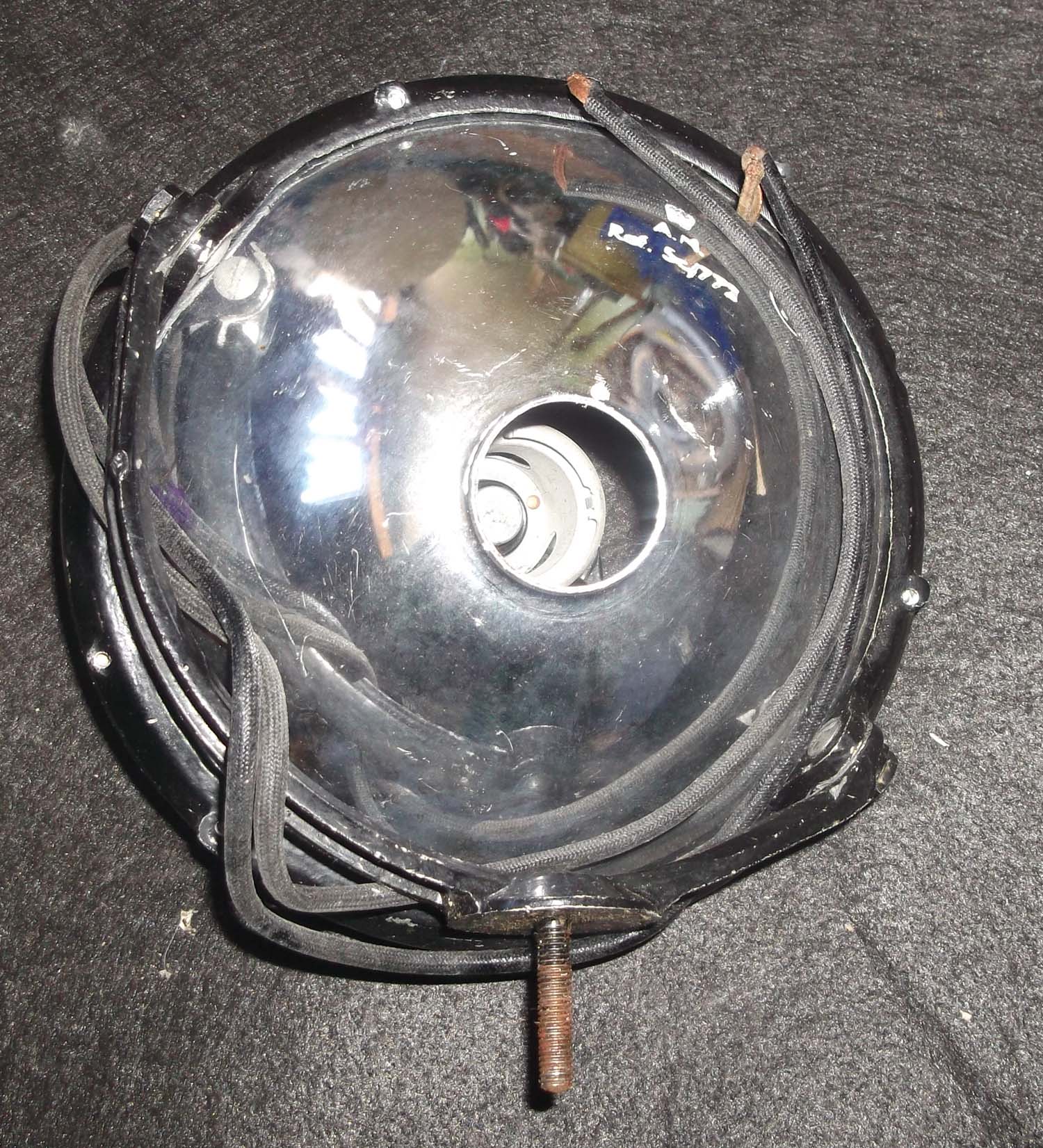

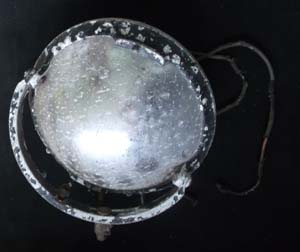

RAF Bomber landing lamp (pg1 lighting)

This is a type H type landing lamp and can be adjusted  between 20-45 degrees. It is fitted in pairs to the Halifax, Stirling, Sunderland and Wellington.

A/M 5C/773

175

399

Hawker Hurricane landing light set (pg1 lighting)

This is a set of near mint unused G Type landing lamps as fitted to the Hawker Hurricane and the Boulton Paul Defiant.

Click on the pictures to enlarge.

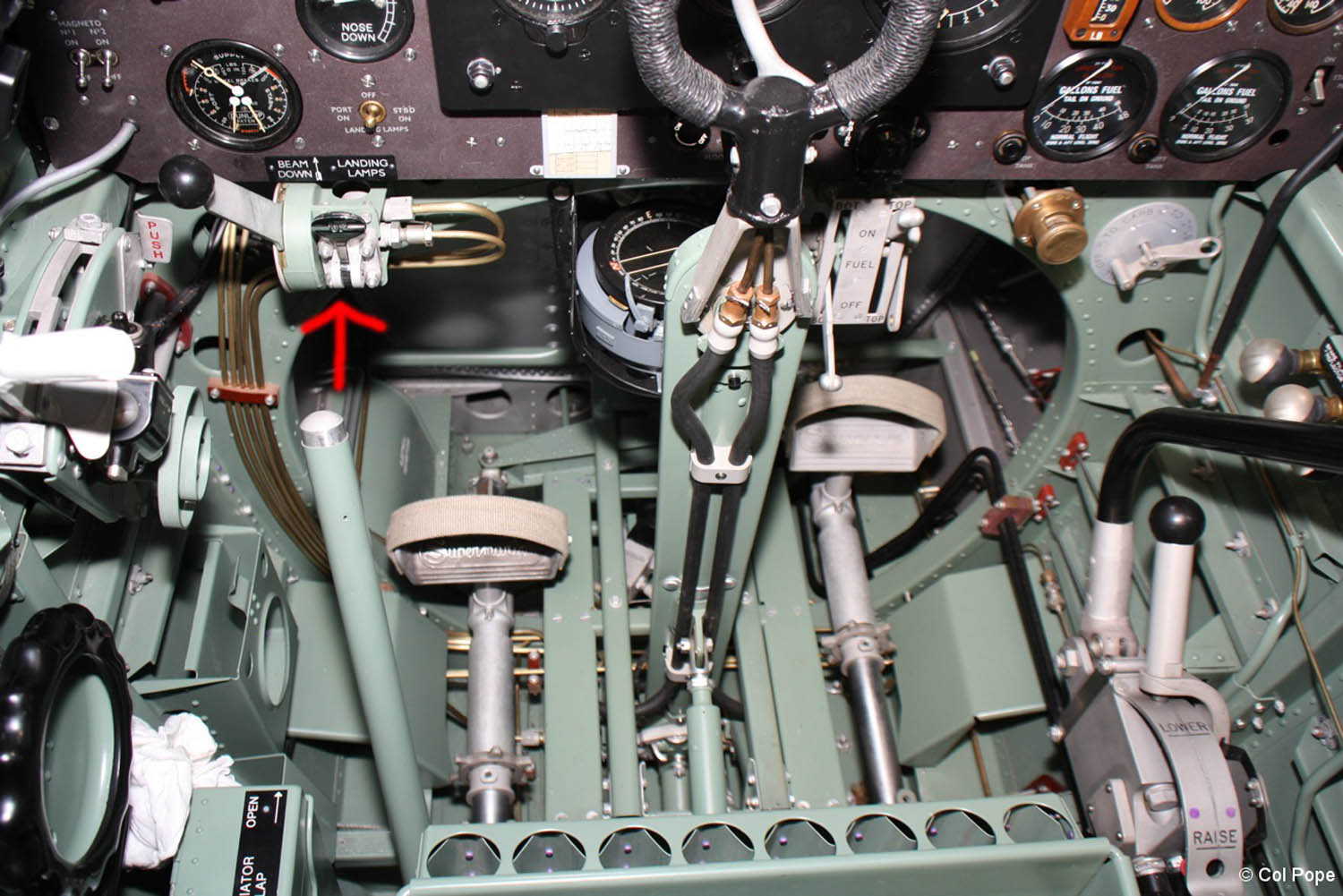

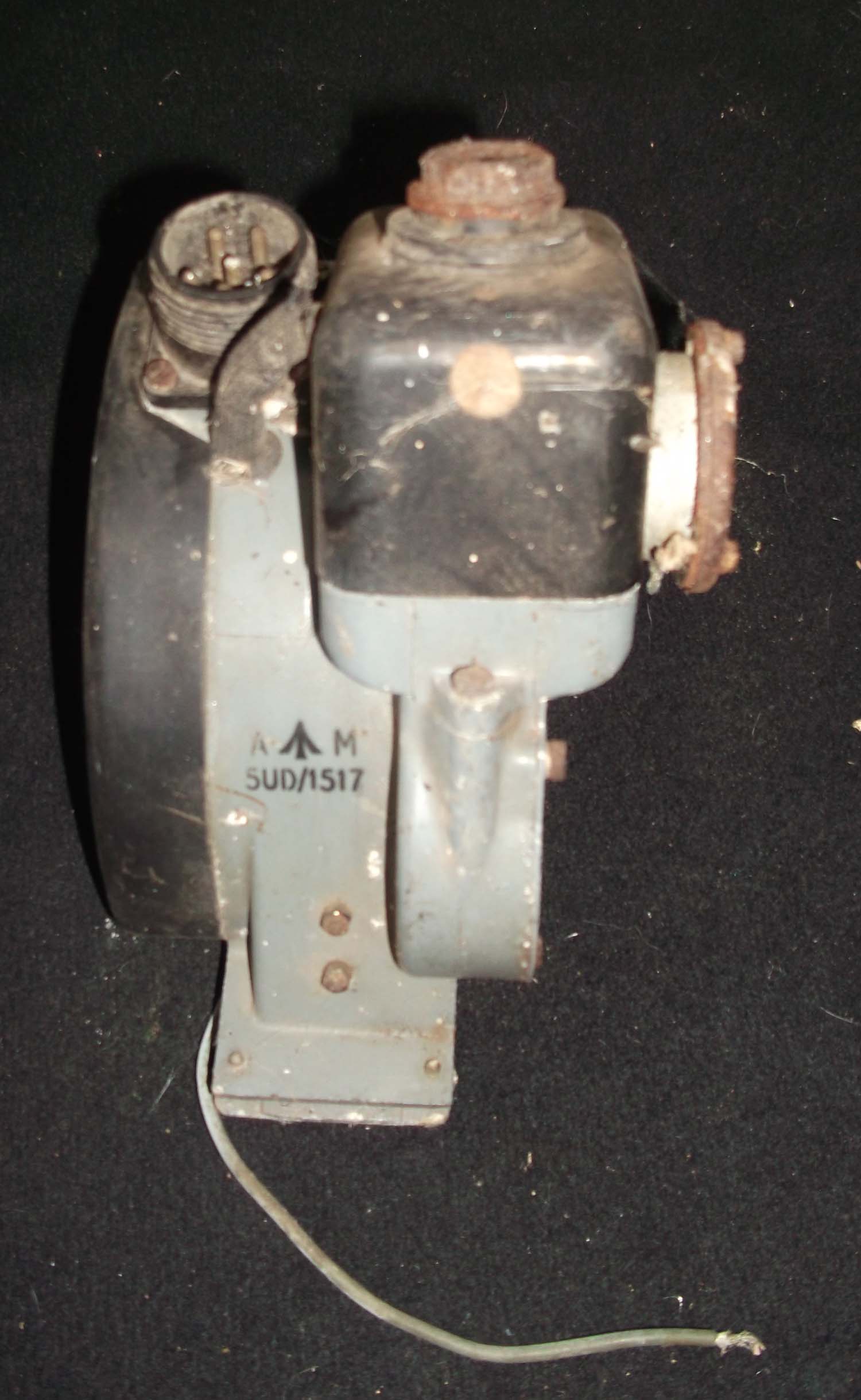

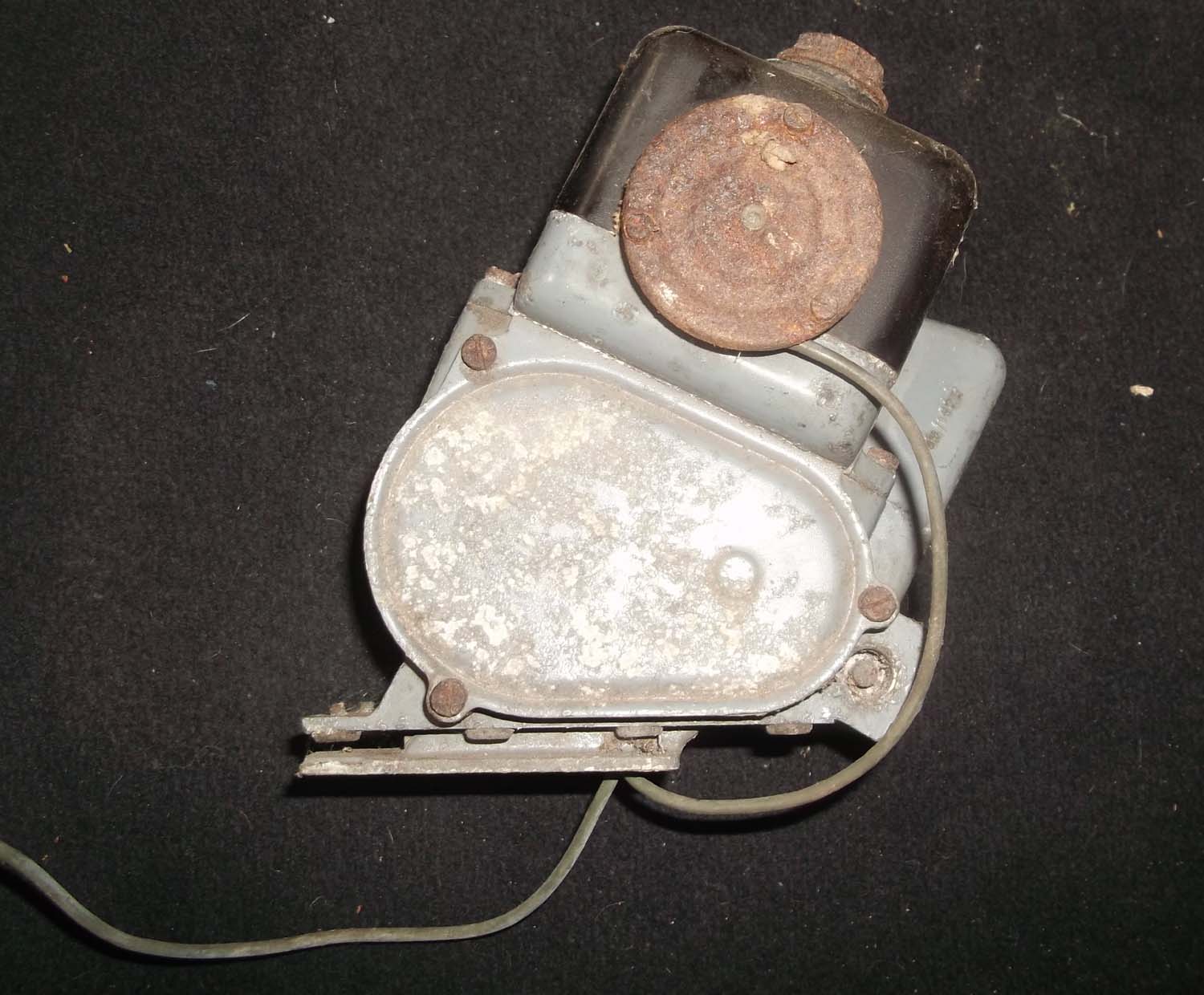

Landing light motor control (pg1 lighting)

Here we have a Motor Used to Tilt the Landing Lights

This Carries the Ref: 5UD/1517

75

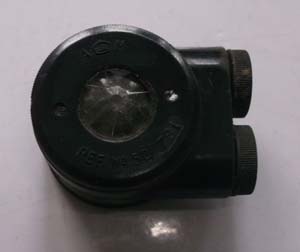

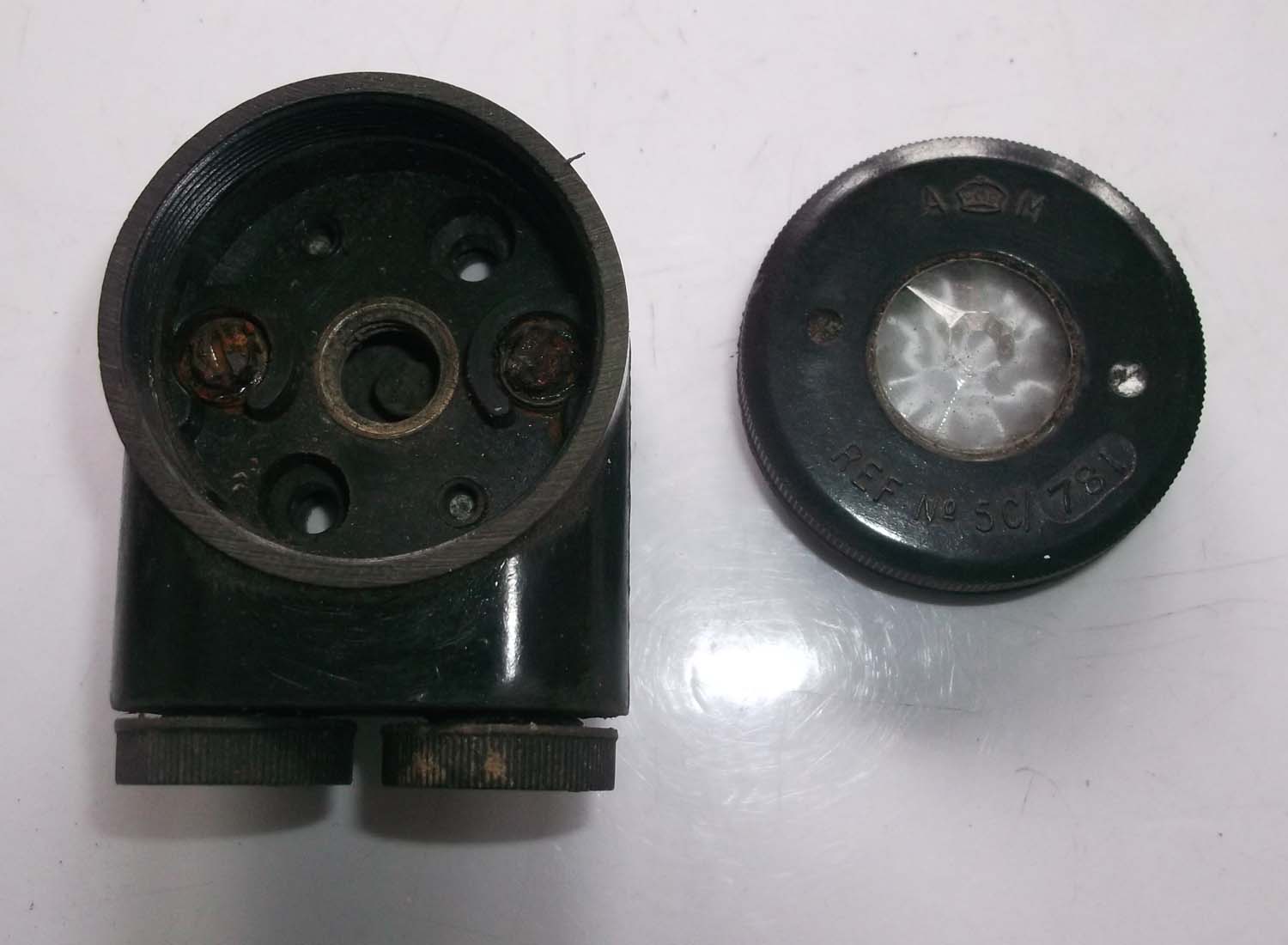

Clear Receiver Box (pg1 lighting)

AM Ref: 5C/781

35



Click on the pictures to enlarge

65

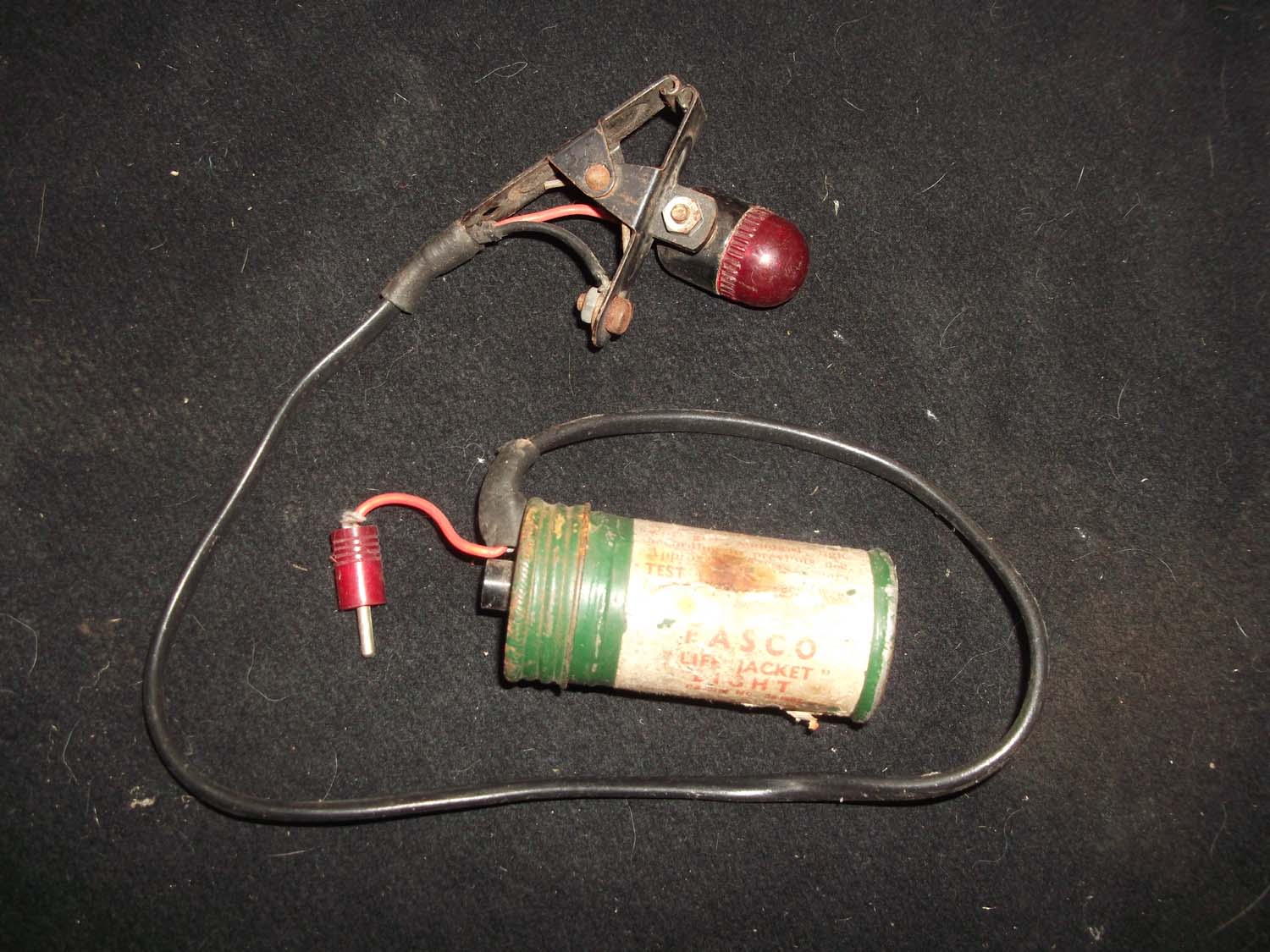

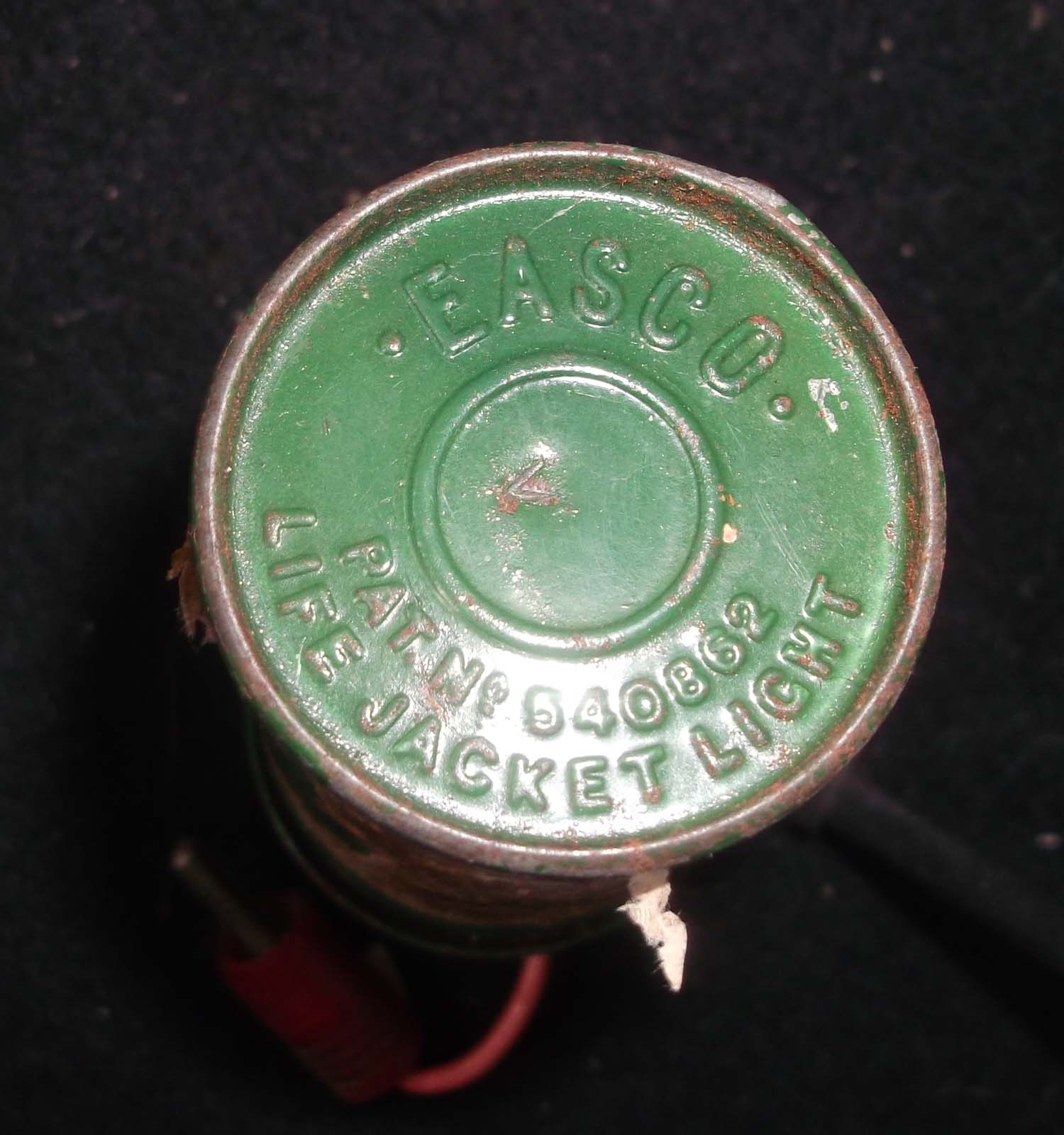

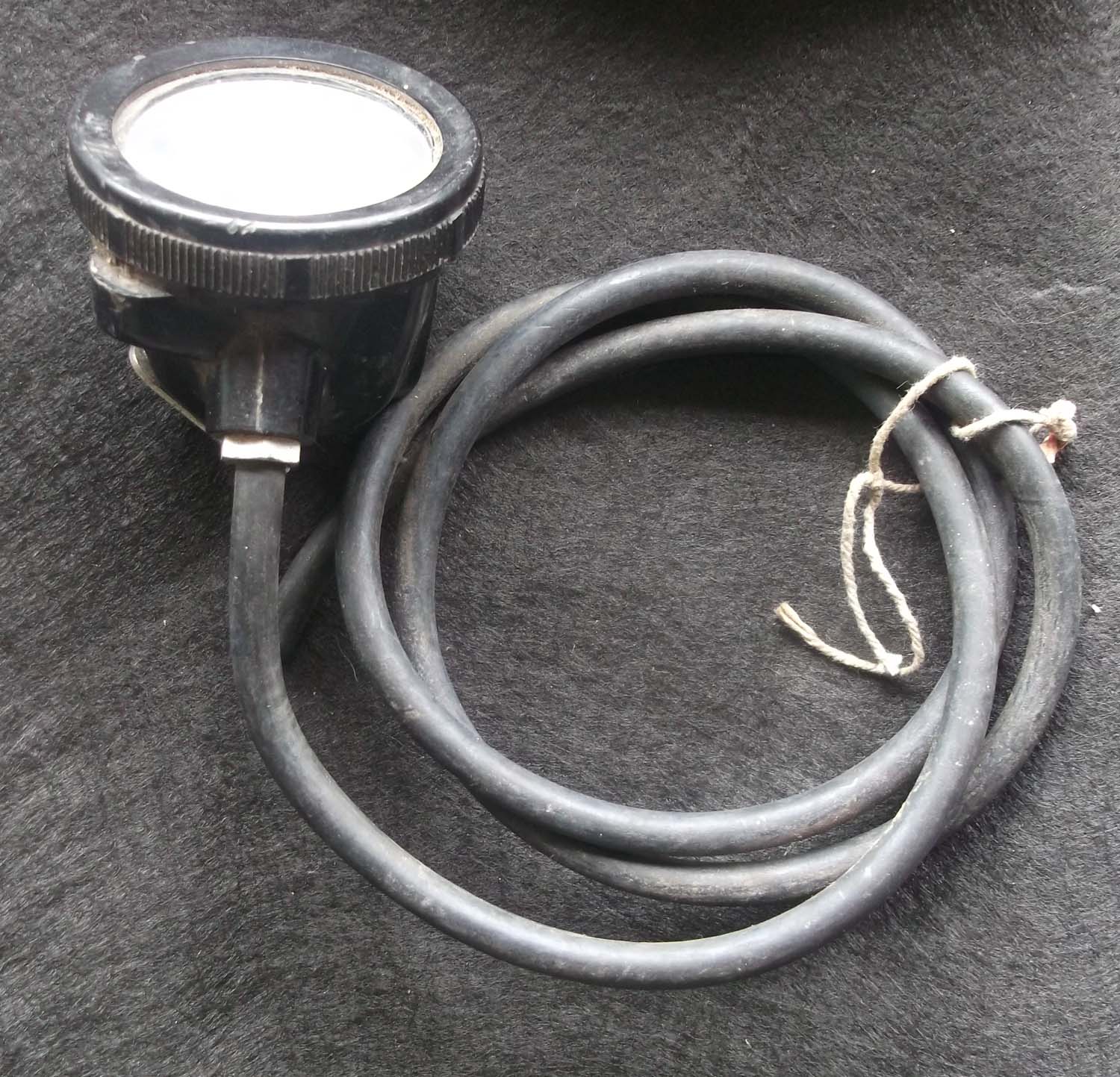

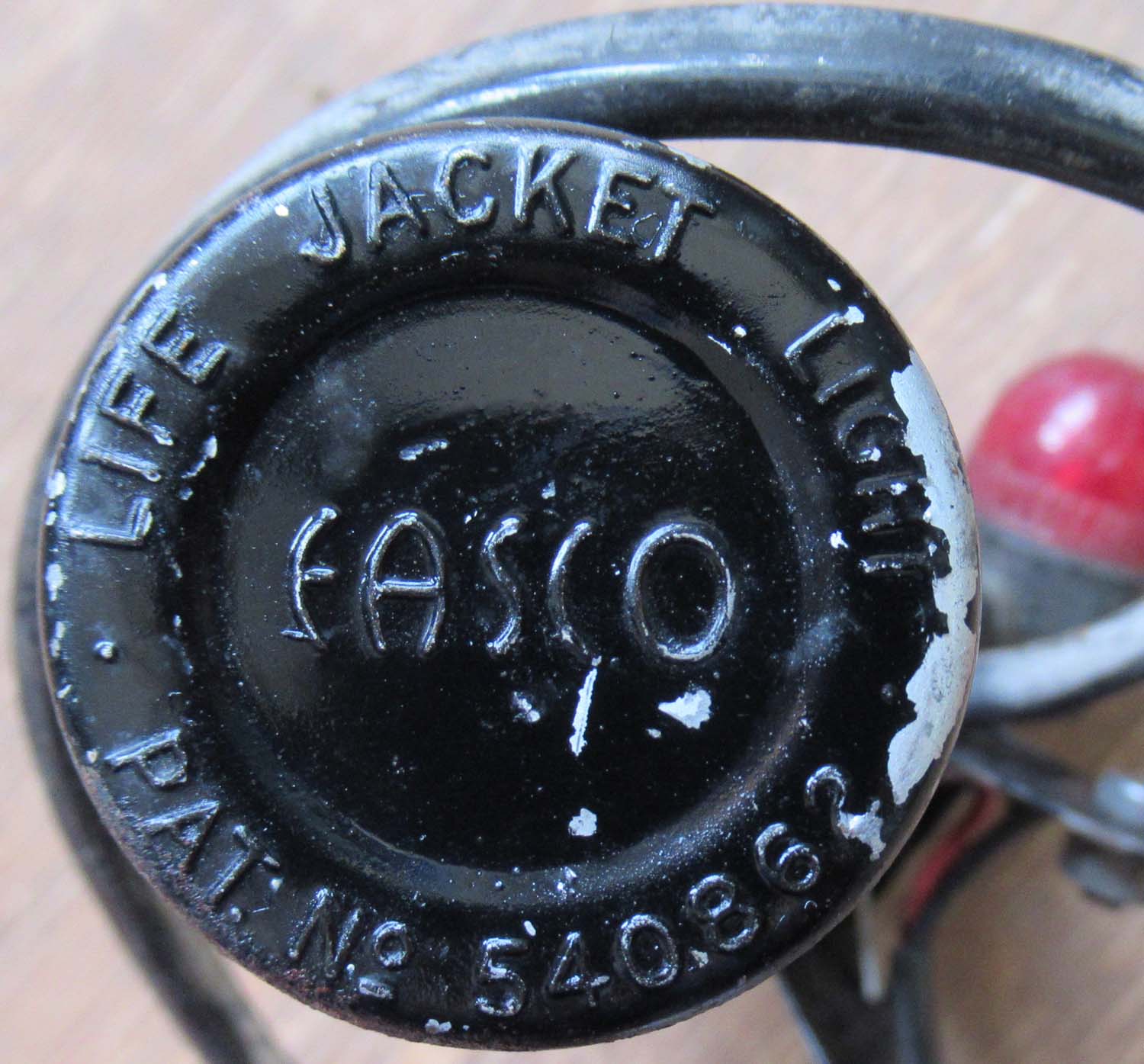

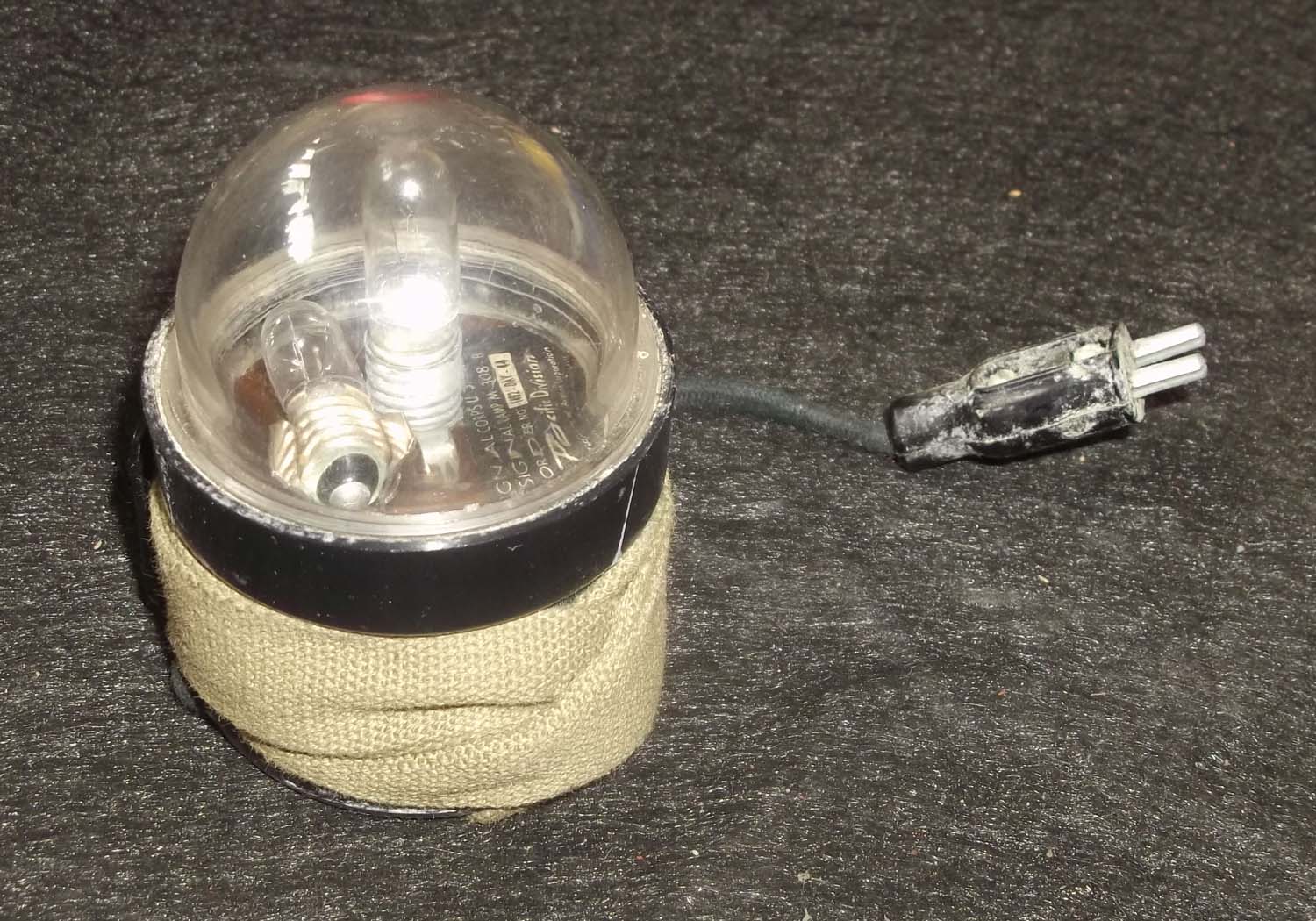

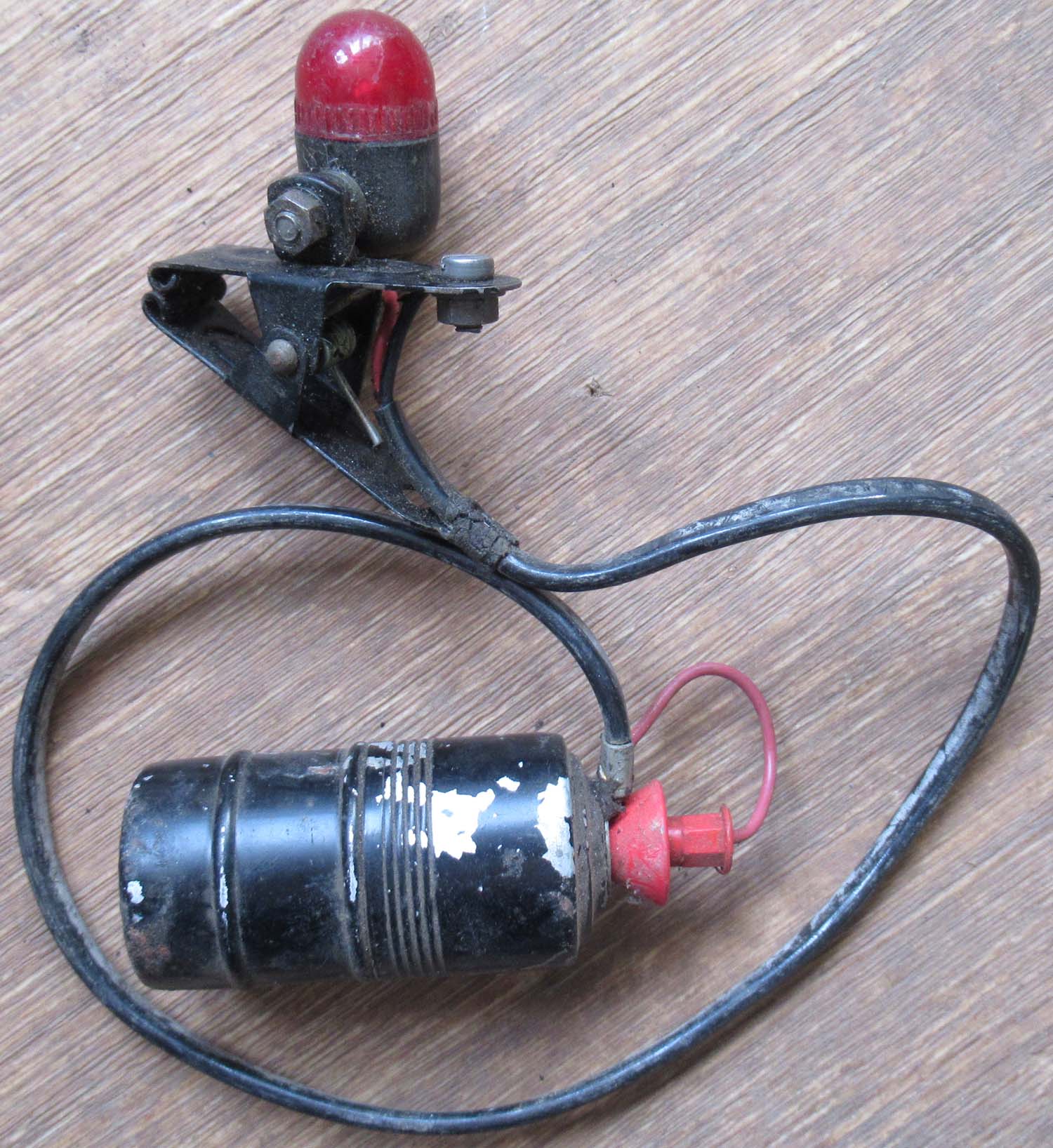

RAF WW2 Life Jacket Lamp (pg1 lighting)

Here we have a Easco Life Jacket Light

This was Used by British Airman and was found attached to the Life Jacket

I have Plugged in the Battery and it Still Turns on the Light

Click on the pictures to enlarge

25

Light Bulb Adaptor (pg1 lighting)

Here we have a Light Bulb Adaptor

It adapts Screw Cap Lights to take Bayonet Bulbs

Click on the pictures to enlarge

Dinghy Signal Light (pg1 lighting)

Here we a Light that Attached to the Dinghy of Ditched Airman to Help Locate them

It is in Good Condition and in the Original Box

This was used by both the RAF and the USAAF

This Carries the Reference Number 5CX/5410

60

Click on the pictures to enlarge

65

WW2 Life Jacket Lamp(pg1 lighting)

Here we a Life Jacket Lamp as used by the RAF

This was used by both the RAF

This Carries the Air Ministry Reference Number 5A/2728

Click on the pictures to enlarge

30



Green Lens for Signal Lamp(pg1 lighting)

Here we a Lens as Used on RAF Signal Lamp

This is for a Green Lens

This Carries the Reference Number 5A/2336

The Lens is in a Good Condition with some surface Rust

Click on the pictures to enlarge

30



Red Lens for Signal Lamp(pg1 lighting)

Here we a Lens as Used on RAF Signal Lamp

This is for a Red Lens

The Lens is in a Good Condition with some surface Rust

Click on the pictures to enlarge

Click on the pictures to enlarge

Click on the pictures to enlarge



Circuit Tester Bulbs(pg1 lighting)

Here we a  Case of Circuit Tester Bulbs

The Box Carries the Refrence 5G/310

The Lamps Carry the Part Number 5G/308

80



Click on the pictures to enlarge

OSRAM Gunsight Bulb (pg1 gun)

Here we have gunsight bulbs marked

22V 12W M.C.C

GUNSIGHT X951260

These are unopened and in their original packet

10 each

If You Purchase Multiples we Will Combine the Shipping Costs

Click on the pictures to enlarge



12V Reflector Gunsight Bulbs (pg1 light)

Here we have a Genuine 12volt wartime bulb for the standard MKII reflector Gunsight fitted to Spitfire's , Hurricanes and pretty much every wartime RAF fighter.

  In working order as new, bring that Gunsight back to life.

Out of Stock More Wanted Contact Us

We Only Have One of these Available

Click on the pictures to enlarge



24V Reflector Gunsight Bulbs (pg1 light)

Here we have a Genuine 24volt wartime bulb for the standard MKII reflector Gunsight

  In working order as new, bring that Gunsight back to life.

15



Click on the pictures to enlarge



24V White Reflector Gunsight Bulbs (pg1 light)

Genuine 12volt wartime bulbs for the standard MKII reflector Gunsight

 . Used in other versions of the wartime reflector and projector sights.

 In good working order as new, bring that Gunsight back to life.

15

Click on the pictures to enlarge

Aldis Lamp Bulb (pg1 light)

Genuine Bulb for the Aldis Signal Lamp

Ref: X954402

24v 30w

10

Click on the pictures to enlarge

WW2 Aerial Flash Bulb (pg1 light)

Here We have a Flash Bulb as Used on RAF Bombers

It was Used for Training and Experimental Purposes

25

Click on the pictures to enlarge

Blue Lens Cover (pg1 light)

Here We have Large Blue Lens Cover

 Part Number 5A/3554

It has a 17.5 cm Diameter

25

Click on the pictures to enlarge

Grimes Anti Collision Light (pg1 light)

Here we have a Red Anti Collision Light

28V

Manufactured by Grimes

Part Number: G9950-1

Used on Aircraft Such as the Avro Vulcan, BAe Sea Harrier and Panavia Tornado as well as other RAF and Civilian Planes

Click on the pictures to enlarge

150

Click on the pictures to enlarge

Grimes Amber Downward ID Light (pg1 light)

Here we have a Amber Downward ID Light

26V

Manufactured by Grimes

Part Number: B-2389

The Lens is in Good Condition however the edge is Slightly bent but looks like it could be Straightened

Click on the pictures to enlarge

45

Click on the pictures to enlarge

Bomb Release Jewel Top Warning Light (pg1 light)

Here we have a Amber Jewel Topped Warning Light

This Particular Light has a Bomb Release Label

I believe it was used in USAAF Aircraft

Click on the pictures to enlarge

25

Click on the pictures to enlarge

Click on the pictures to enlarge

Grimes Type A-8 Fluorescent Light (pg1 light)

Here we have a Florescent Light as used by the United States Army Air Corp

It Carries the Grimes Part Number B-1856

Type A-8

Used in Aircraft of the  USAAC

Click on the pictures to enlarge

55

35

Anglepoise Light Part 1(pg1 light)

Here we have a Spare Part For an Anglepoise Lamp

Click on the pictures to enlarge

Click on the pictures to enlarge

Harrier Light Cover (pg1 light)

Here we have Light Cover as Used on the Harrier Jump Jet

This Carries the Part Number A246476

125



Click on the pictures to enlarge

KC MFP Clip on Light (pg1 light)

Here we have an interesting Clip on Light

It has Two Bulbs and is Controlled by what appears to be a Dimmer Switch on the side of the Case

It is Marked with a Kings Crown with MFP Stamped Inside

It has no other Markings or Numbers to identify it

125



Click on the pictures to enlarge



RAF Test Lamp 5G/2217 (pg1 light)

Here we have an Test Lamp as Used by the RAF

Ref: 5G/2217

25



Click on the pictures to enlarge

20

Small Blue Tail Light Lens (pg1 light)

Here we have a Lens Similar to the Navigation Light Lens Above

It is a Lot Smaller Measuring 1 1/2 Inches and is Blue

I am unsure as to the Aircraft this would have been used on

Click on the pictures to enlarge

Lighting Control Panel (pg 2cont)

Here we have a Lighting Control Panel

This is Complete with its original canvas cover.

It has Switches for all the different types of Lights used on Aircraft

Formation, Resin, Up Ident. , Navigation and Recognition

It is 24 Volts and Carries the Reference Number 5C/3023

125







1  2






 © Copyright 2003.  SpitfireSpares.com.  All Rights Reserved.
