Welcome to the gunsights section, Please be sure to check this section on a regular basis as new products are added weekly.



Reproduction Oval Gun sight top (pg2 Gun)

Reproduction cast in alloy, complete with glass attached, holes for mounting bolts on the under side drilled and tapped. Simply attach to  Gun sight base. Nice alternative to the very rare and expensive original as fitted to RAF Battle of Britain fighters and discontinued in favour of the square glass type soon after.

Out of Stock More Wanted Contact Us

Spare Glass for Oval Gunsight (pg2 Gun)

New cut glass for the Oval Gunsight top seen above only one left in stock.

£75

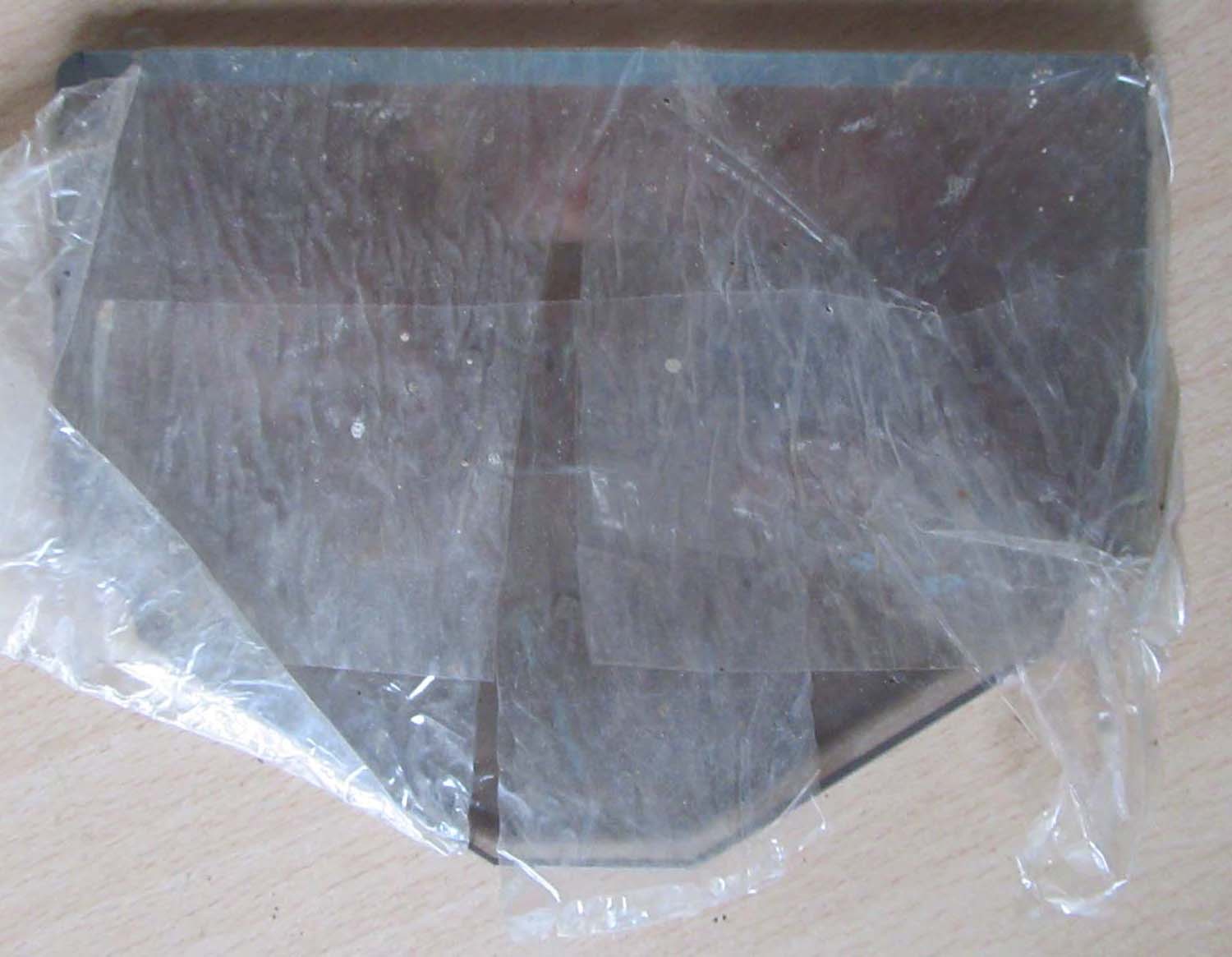

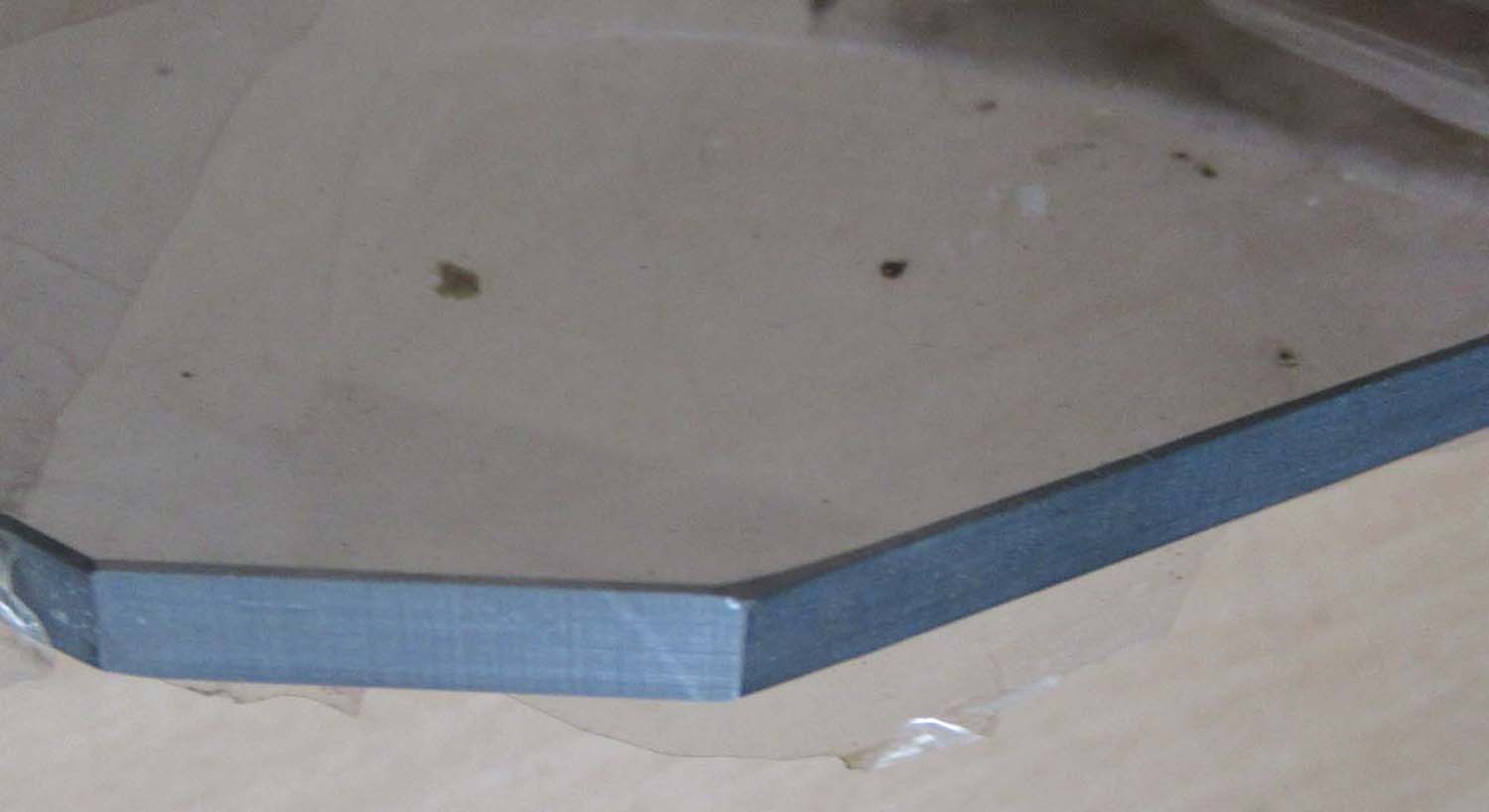

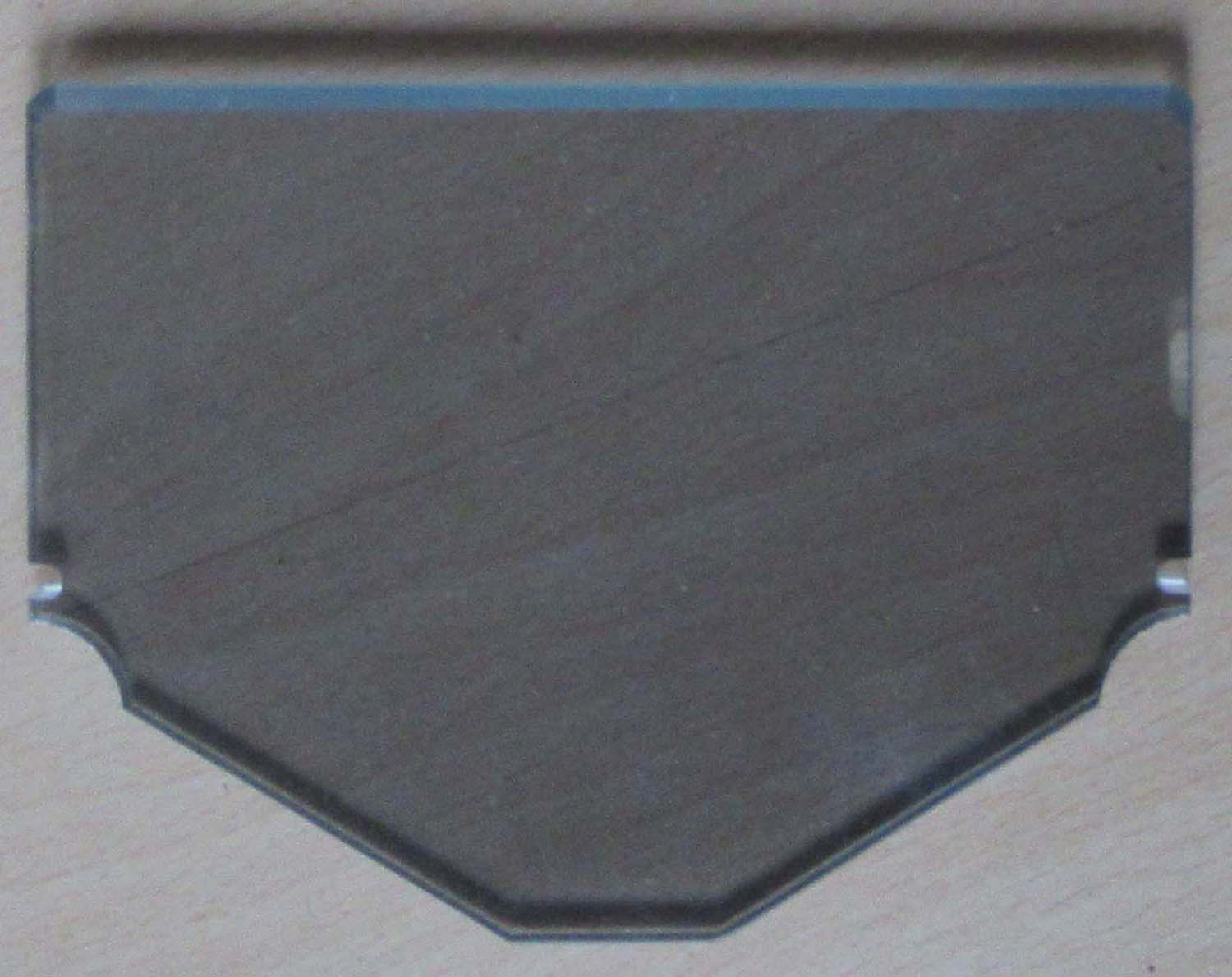

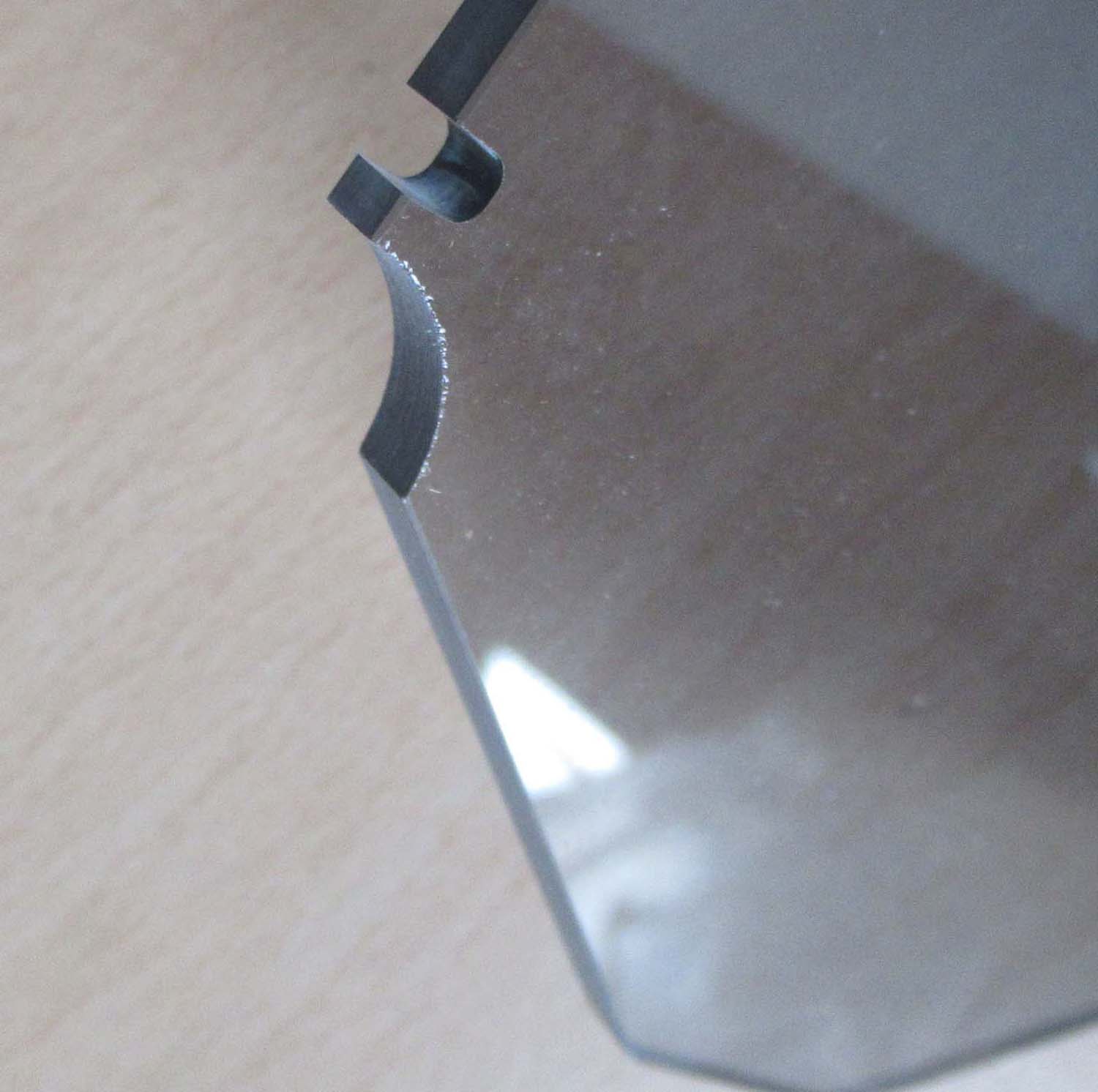

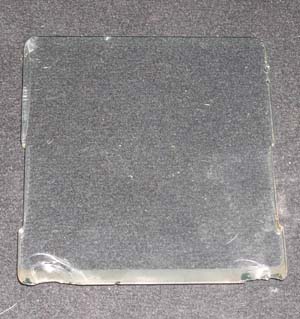

Spare Square Glass for MK II  Gunsight (pg2 Gun)

Finally after many years I have managed to have these new Gunsight glass made from the Square type MK and projector Gunsight's made. Although you would think these were easier to produce than the oval types they are not. The only way to produce these in modern times is with a CNC machine. For most machine's they are much to small to be produced and finally I have now found a specialist to make them. This is the prototype sent to me for approval. The corners on the production models will be slightly rounder as per original. The only thing we cannot produce so far are the bevelled edges on the top and bottom but this is hard to spot. I have test fitted this to a Gunsight and they fit and work perfectly. Finally all those  Gunsight's with cracked glass can now be made repaired.

£75

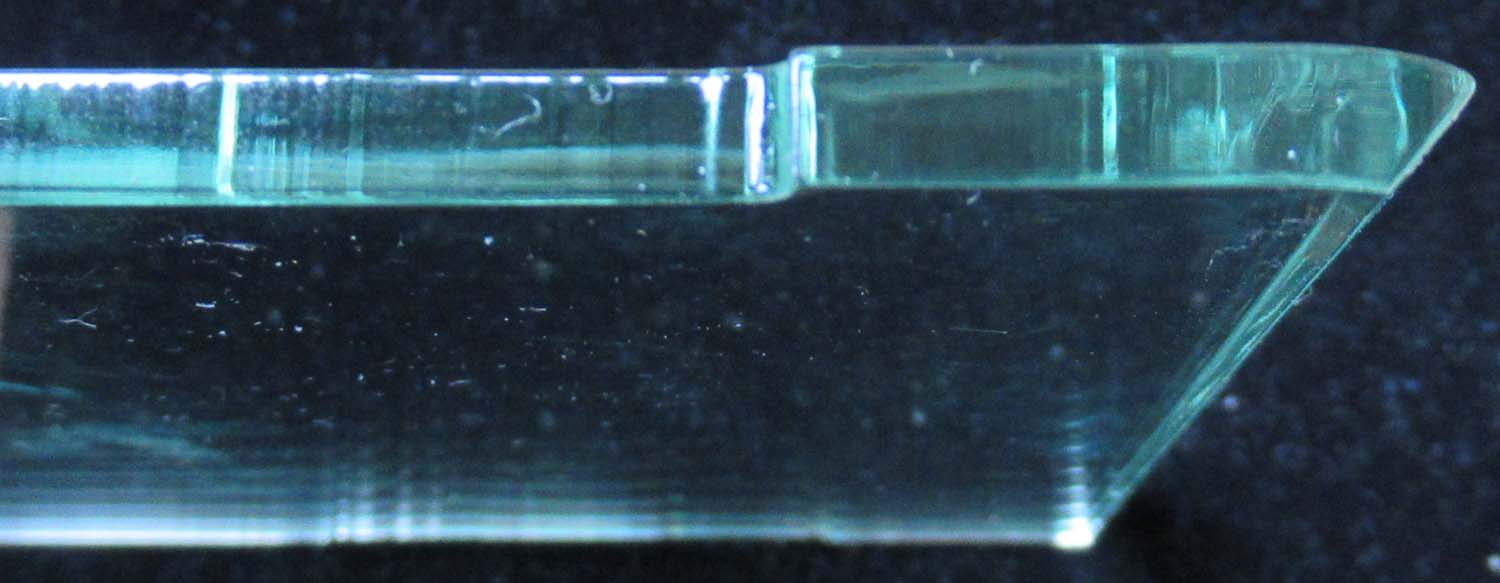

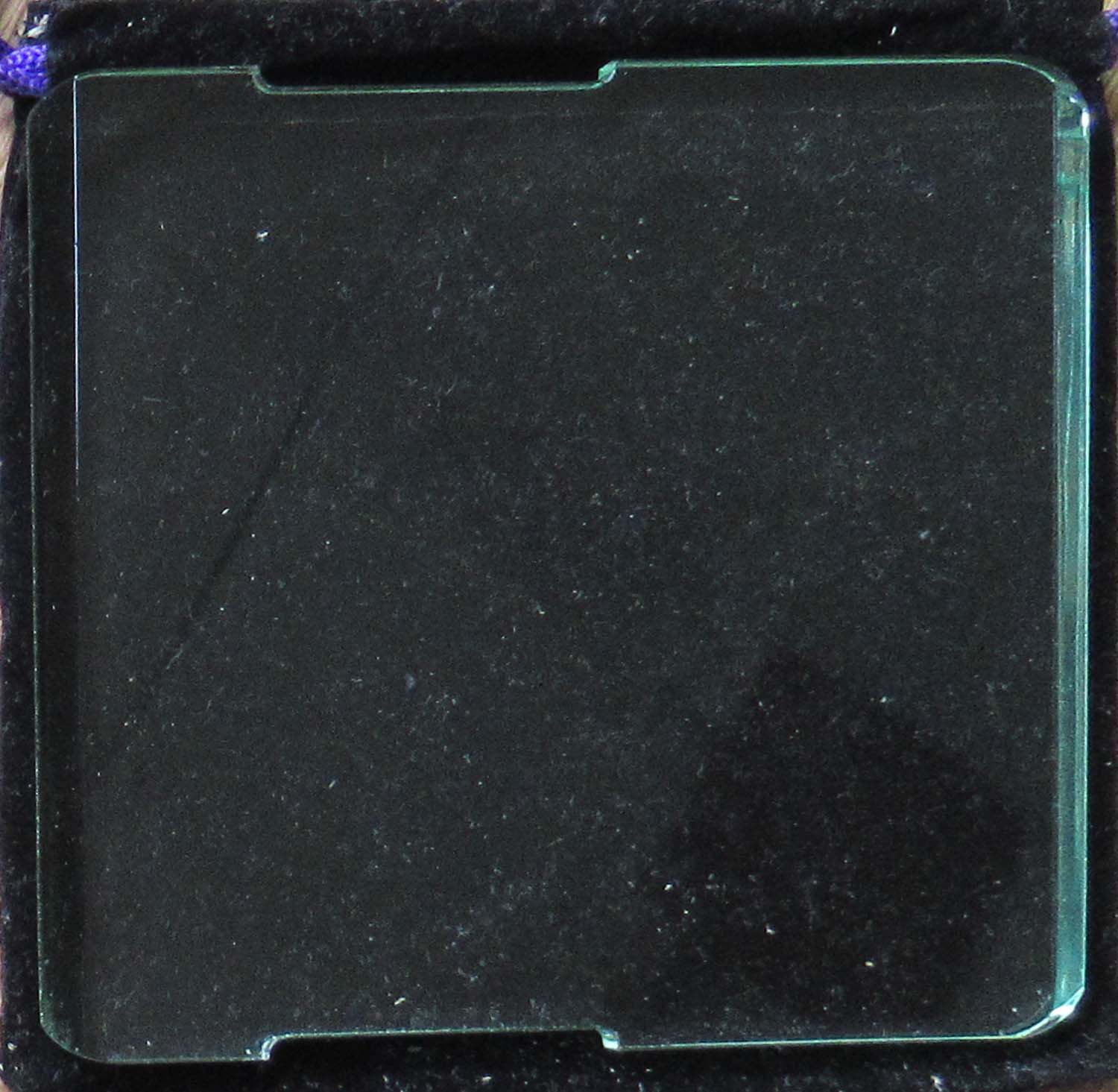

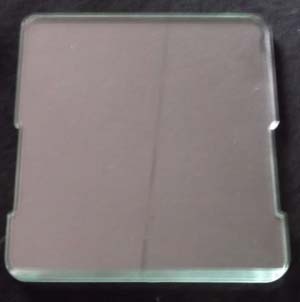

Perspex Square Glass for MK II  Gunsight (pg2 Gun)

Here are some new reproduction persprex  Gunsight glass made for the Square type MK and projector Gunsight's.

£59 each

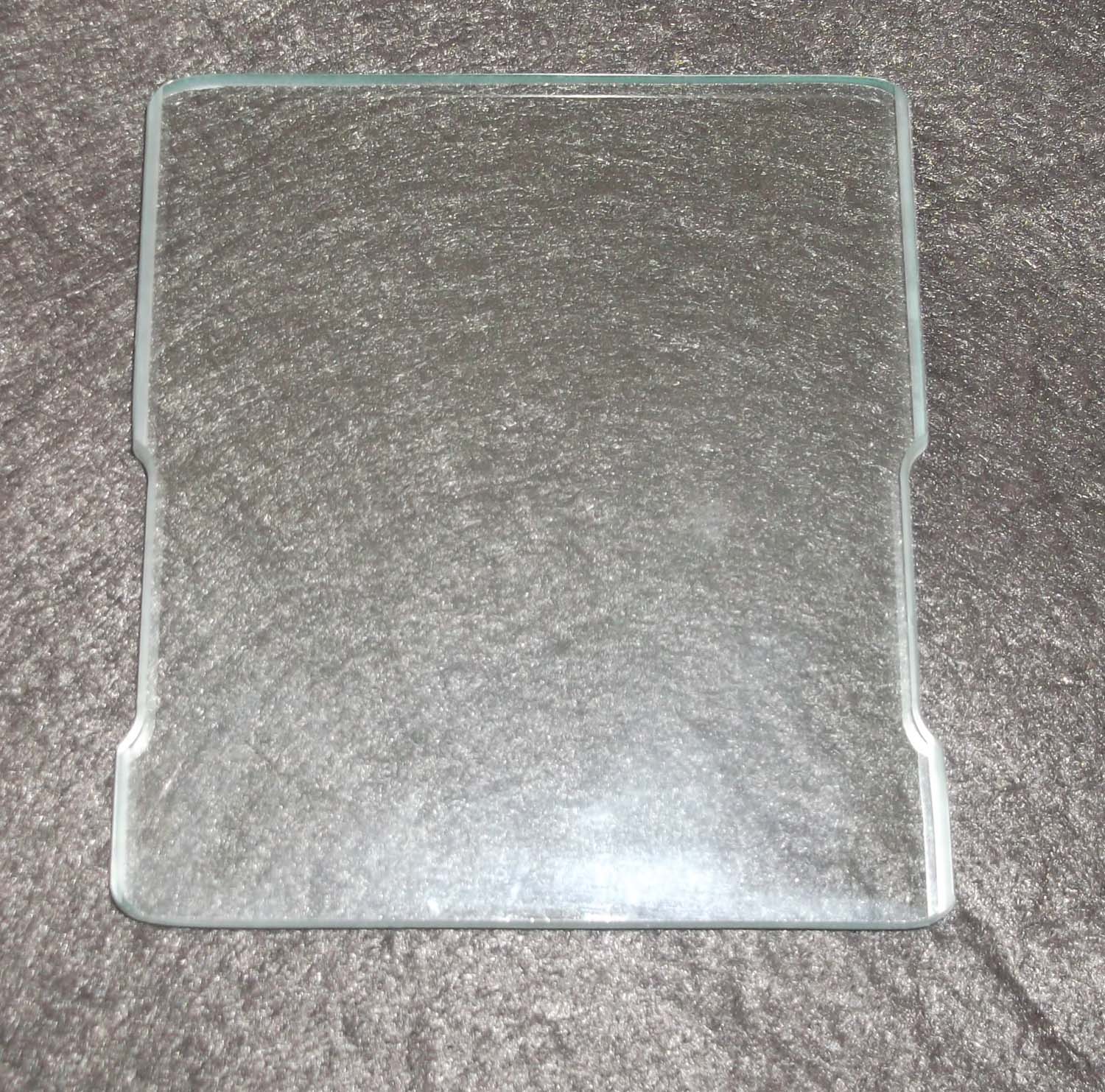

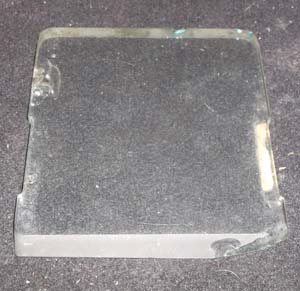

Original Square Glass for MK II  Gunsight 1 (pg2 Gun)

Here we have a Original Square Gunsight Glasses.

This has some damage round the edges

£70

Original Square Glass for MK II  Gunsight 2 (pg2 Gun)

Here we have a Original Square Gunsight Glasses.

This has some damage to the corner and a few chips on the edges

£70

Original Square Glass for MK II  Gunsight 3 (pg2 Gun)

Here we have a Original Square Gunsight Glasses.

This has some damage to the corner and on the edge. There are also a few chips

£70

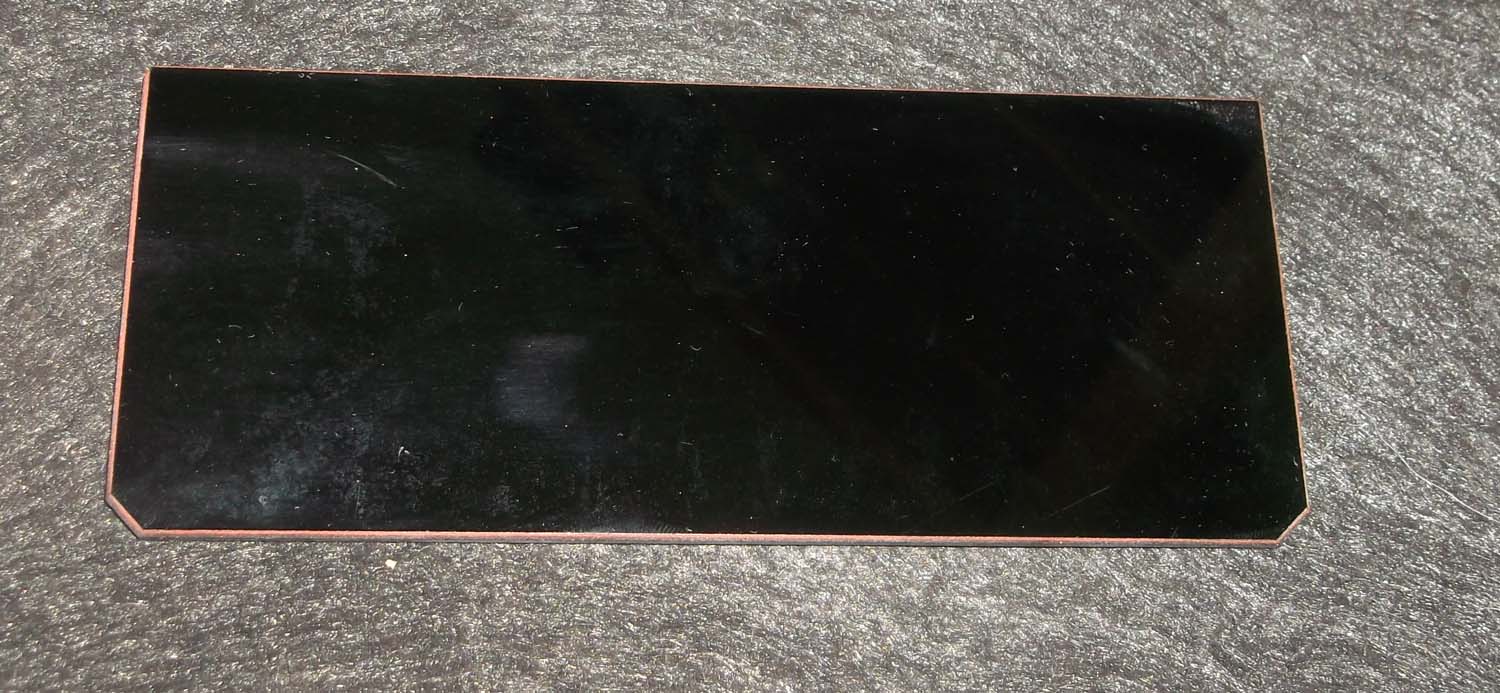

Gyro Gunsight Sunshade Reflector Glass (pg2 Gun)

Here we have a Original Sunshade Glass for use with the GGS

£50

Click on picture's to enlarge

Click on picture's to enlarge

Click on picture's to enlarge

Click on picture's to enlarge

Click on picture's to enlarge

Giro MK 10 Gunsight (pg2 Gun)

Here we have a Mk.10 Giro Gunsight in Near Excellent Condition in its Original Box

It is a Radar Ranged Sight and was Used in the Hawker Hunter Jet

Unfortunately the glass is broken however there is an undamaged spare included in the box

This Carries the Reference Number 8B/5014

The Hawker Hunter is a transonic British jet aircraft developed in the late 1940s and early 1950s.

 The single-seat Hunter entered service as a manoeuvrable fighter aircraft, and later operated in fighter-bomber and reconnaissance roles in numerous conflicts. Two-seat variants remained in use for training and secondary roles with the Royal Air Force (RAF) and Royal Navy until the early 1990s.

The Hunter was also widely exported, serving with 21 other air forces. Sixty years after its original introduction it was still in active service

£500

Click on picture's to enlarge

B25 Gunsight (pg2 Gun)

Here we have a Type N-6A Gunsight as used in the B25 Bomber

Early N-6s were fitted with a 29.7 mil ring reticule later replaced by a more standard 70 mil ring reticule.

The N-6 was most widely used in Martin and Bendix upper turrets, B-24 turrets (nose and tail), B-17 chin turrets and on the remote control sighting station of the P-61 night fighter. Adapter rings were also available for fitment of either A-1 or A-2 tilting heads for use as a fixed gunnery gunsight on attack and light bomber planes, but if these combinations were ever used operationally is unclear.

N-6 was also field modified to be used as a fixed gunsight on B-25 in the PTO. One of the most famous being “PAPPY’S FOLLY”, the very own B-25 of Col. Paul “Pappy” Gunn

£85

Click to see throttle box for B25

Click on picture's to enlarge

Click on picture's to enlarge

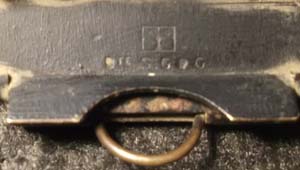

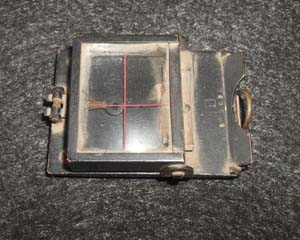

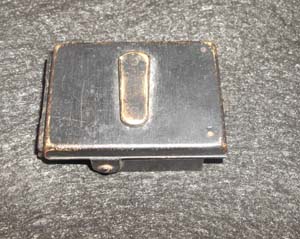

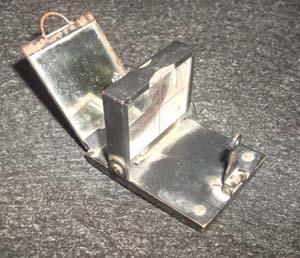

French WW1 Gun sight  (pg2 Gun)

I think I have seen it all then a piece like this comes along, could this be the first attempt to make a reflector gun sight?. The info I got from the seller is under. If anyone can identify the aircraft this was used in a 10% discount on any part on the site will be their's.

This is a small original reflector gun sight. It is made from blackened brass and has a bowed glass with Red Cross hairs. It folds flat and when the glass is lifted a spring-loaded sight flips up. Likewise it has a spring-loaded tray with a mirror. The base has a slot for affixing. The only marking are BTF. S.GDG. AG. It is a heavy quality piece and came from an RAFA Club that closed down. All pieces were donated by members. I believe it is a WW1 Aviation piece

Following Further Research BTF S.SGDC is a French term. Brevete Sans Guarantee Du Gouvernement. This Literally translates as Patented without Guarantee by the Government

Click on picture's to enlarge

£450

Click on picture's to enlarge

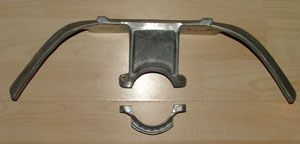

Spitfire Gunsight bracket(pg2 Gun)

Reproduction Spitfire Gunsight bracket. A quality piece, reproduced in alloy. Fits all Mk's of Fighter type reflector and projector Gunsight's.

Click on picture's to enlarge

£245

Click on picture's to enlarge

£275

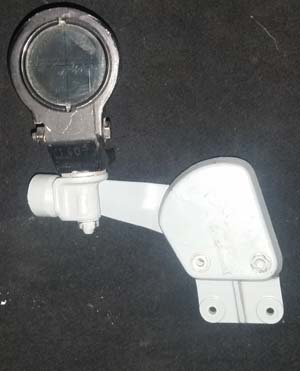

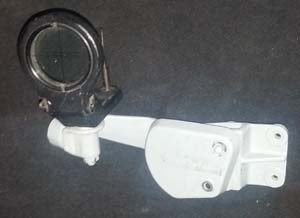

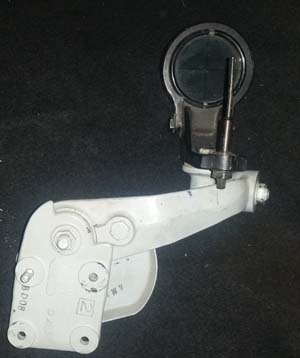

American Lockheed Gunsight (pg2 Gun)

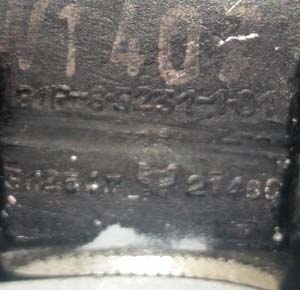

Here we have a Lockheed Gunsight. It has Part Numbers 91R-8-5231-1-01 and 3.1254.7

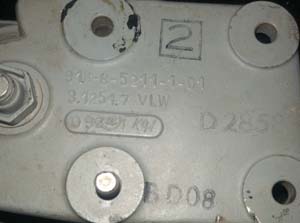

The Attached Bracket has part number 91R-8-5211-1-01 and 3.1254.7

The Bracket swivels to allow the Gunsight to be raised and lowered into position

It is a Secondary Gunsight used in Lockheed Planes in case the Electrical Gunsight fails

Click on picture's to enlarge

Click on picture's to enlarge

Click on picture's to enlarge

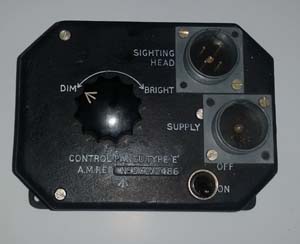

Gunsight Control Panel (pg2 Gun)

Here we have a Gunsight Control Panel Type E

This is used with the Mk.2 Gyro Gunsight

 This has Air Ministry Ref: 5CZ/2486

There is a Socket for the Sighting Head and Power Supply

£80





Click on the pictures to enlarge.

Ace maker Giro Gunsight recorder  (pg2 gun)

Here we have a Giro Gunsight Reorder Mk.II

This fits to the top of the hood on the Bomber variant of the Mk.II Ace maker giro Gunsight The film loads into this cartridge and it records the pictures from the gun camera.

This has the Air Ministry Ref: 14A/3629

This is the 24V Version

£125

Click on the picture's to enlarge

£200

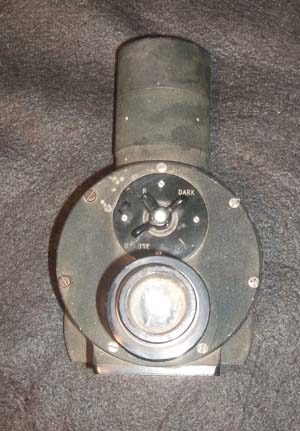

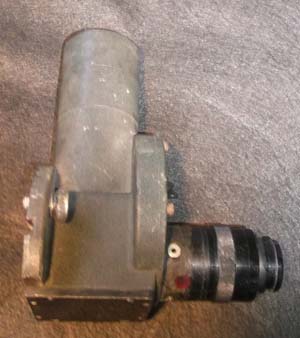

USN ORD MK.74 ELBOW TELESCOPE (pg2 gun)

Here we have a ORD Mk.74 Elbow Telescope Binocular

This was used by the United States Navy

 It has Four different Lens Filters with 20x25 Magnification

The Optics are a bit Cloudy

Click on the picture's to enlarge



Click the picture's to enlarge

Click the picture's to enlarge

RAF Mustang Gun sight (pg2  Gun)

This gun sight was used in the P51 Mustang. What makes this particular gun sight rare is the fact it was produced for use in the Mustangs supplied to the RAF. We can tell this by the Air ministry label with the Kings crown.

The round glass at the top is broken and the Internals

The RAF loved the early Mustangs and it was very much missed when the production line closed in favour of the Merlin engined B’s and C’s. As a low level fighter the P51A had few equals in speed and range, even if its agility was exceeded by the low altitude cropped wing Spitfire Mk V’s. Mustangs saw action all over Western Europe including Dieppe flying in ones and twos at ranges Spitfire’s could only dream about in their armed versions. Mustangs had the standard day scheme of green/brown uppers and sky undersides later replaced by the green/Ocean Grey/Medium Sea Grey scheme. Markings were a standard mix of B roundels on the upper wings and C and C1’s on the under sides of the wings and fuselage sides (A’s on the green/Dark Earth versions). The RAF also had some of the 20mm cannon armed aircraft designated 1a’s. The last Mustang 1/ll squadron kept their aircraft until 1945. All others having been replaced by other types or Merlin Mustang versions

£175

Click on the picture's to enlarge

Click on the picture's to enlarge

Click on the picture's to enlarge

Projector Type 2 Mk.1 Gunsight (pg2 gun)

Here we have a Projector, Type 2 Mk.1 Gunsight

This carries the Air Ministry Reference Number 8B/2525

It is Dated 1944

This has had a new Glass Fitted as the Original was Broken

Although the Plate States this is a Mk.I Variant,  it looks Similar to the Mk. III*N

It was used in daylight Operations as a Pilots Sight for Fixed Guns in Multi Engine Aircraft Such as the DeHavilland Mosquito

DeHavilland Mosquito

Out of Stock More Wanted Contact Me
