 Page 3 Electrical Connectors

Electrical Home page

Page 1    Electrical Miscellaneous

Page 2    Electrical Switches

Page 3    Electrical Connectors

Page 4    Electrical Fuses & Fuse Boxes

Click on pictures to enlarge

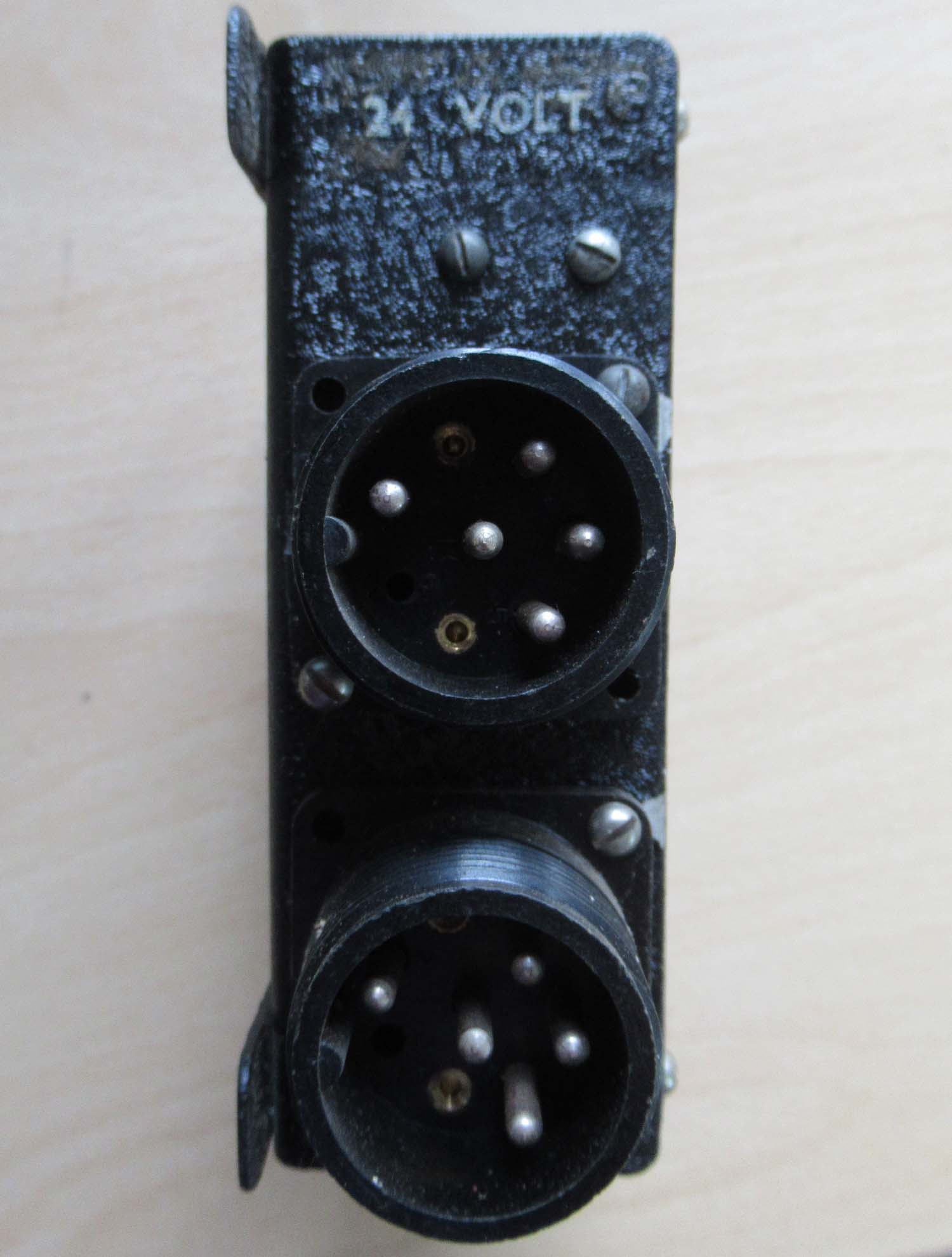

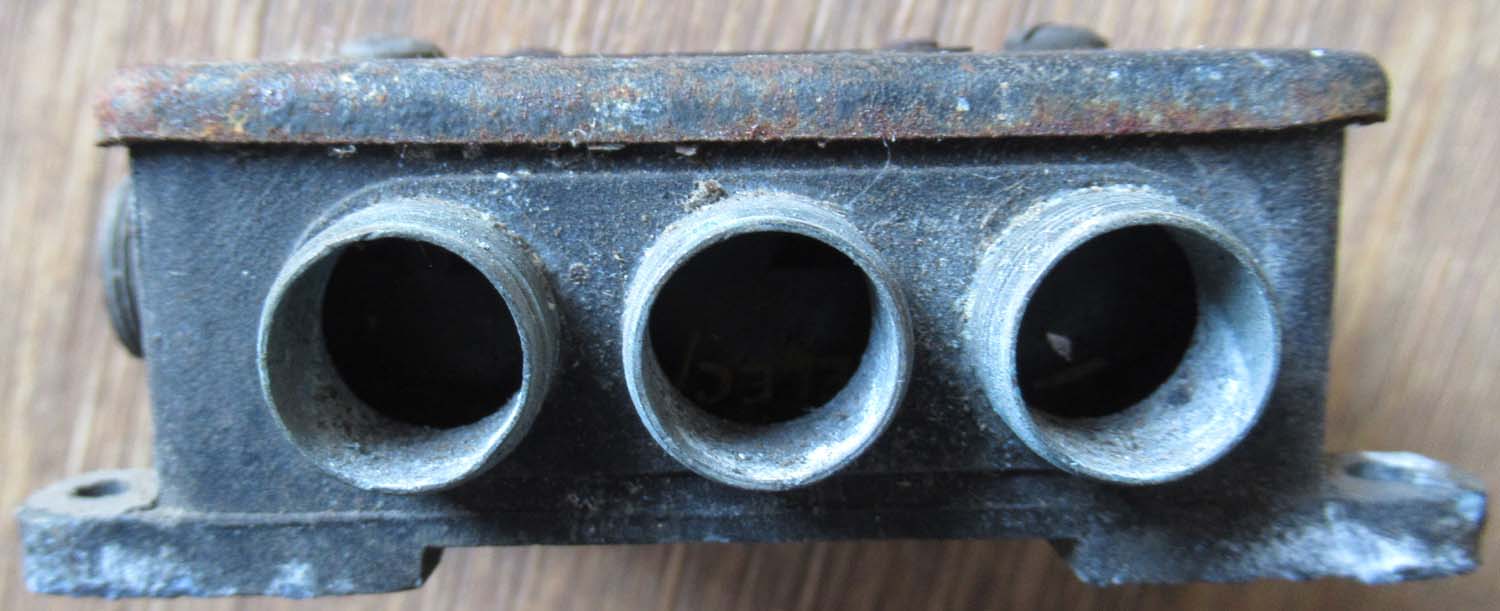

24 Volt Junction Box 5D/1165 (No 62 pg 3 Elec Conn)

24 Volt junction box.

5D/1165

Click on pictures to enlarge

35



Click on the pictures to enlarge

 35

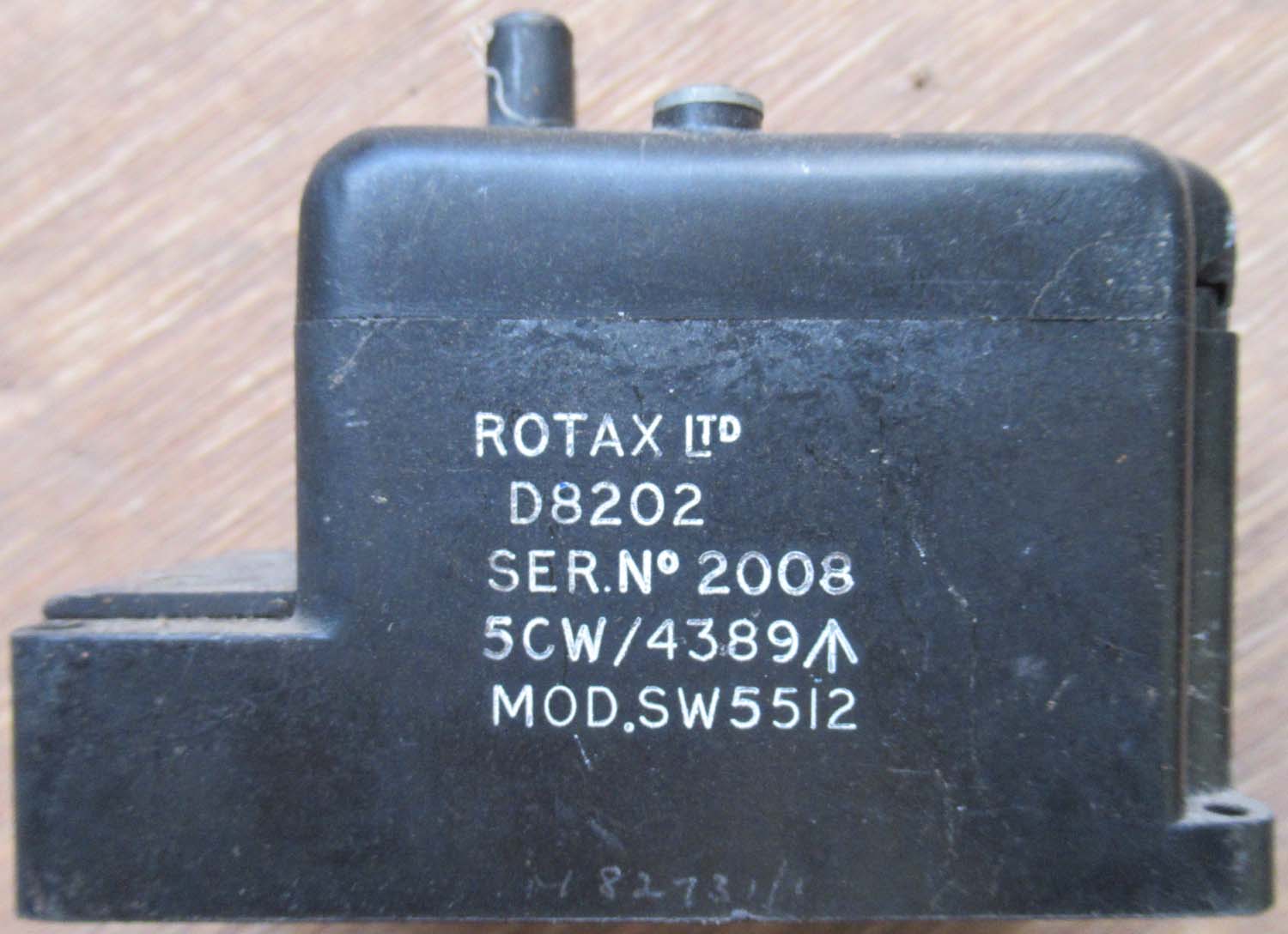

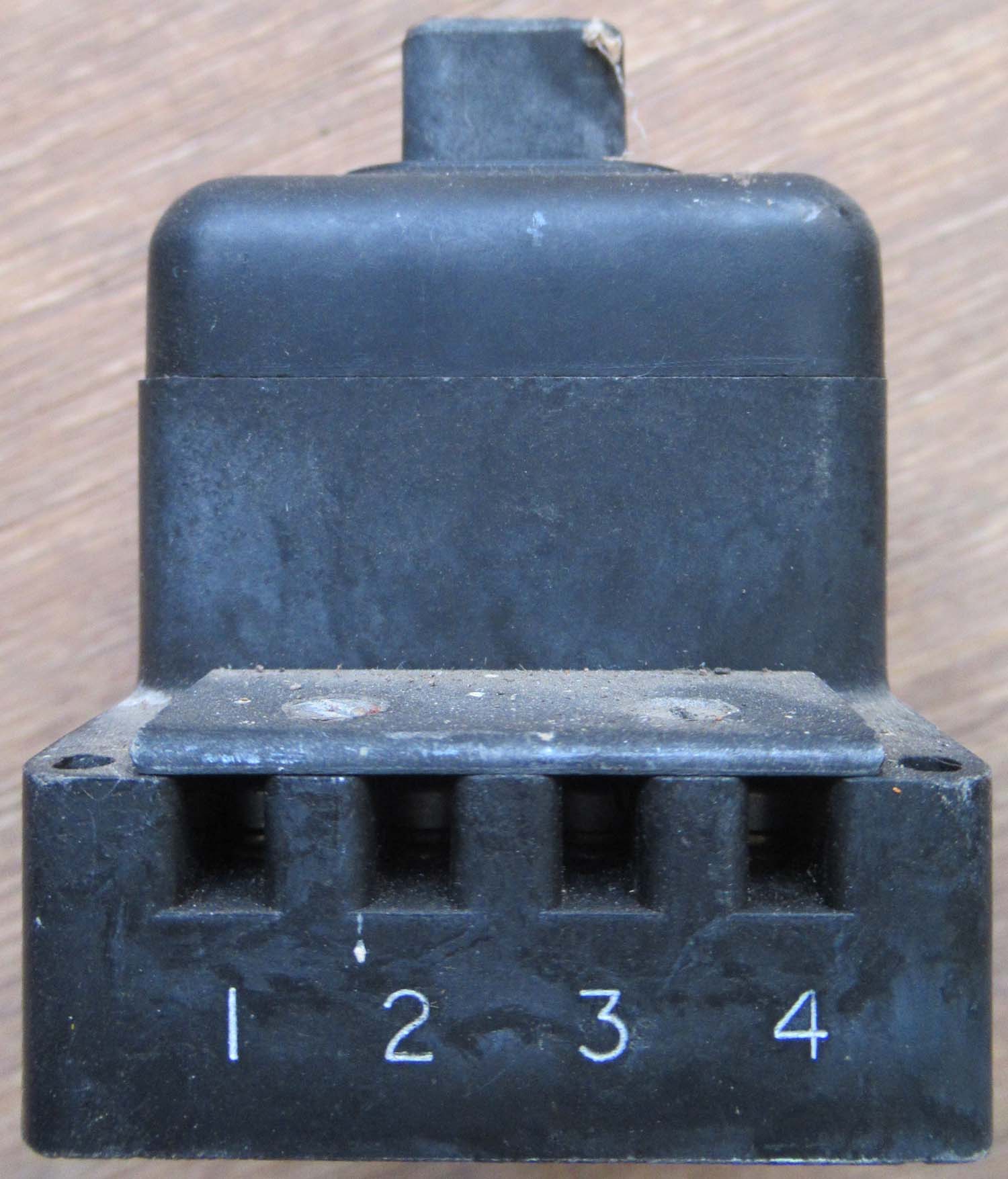

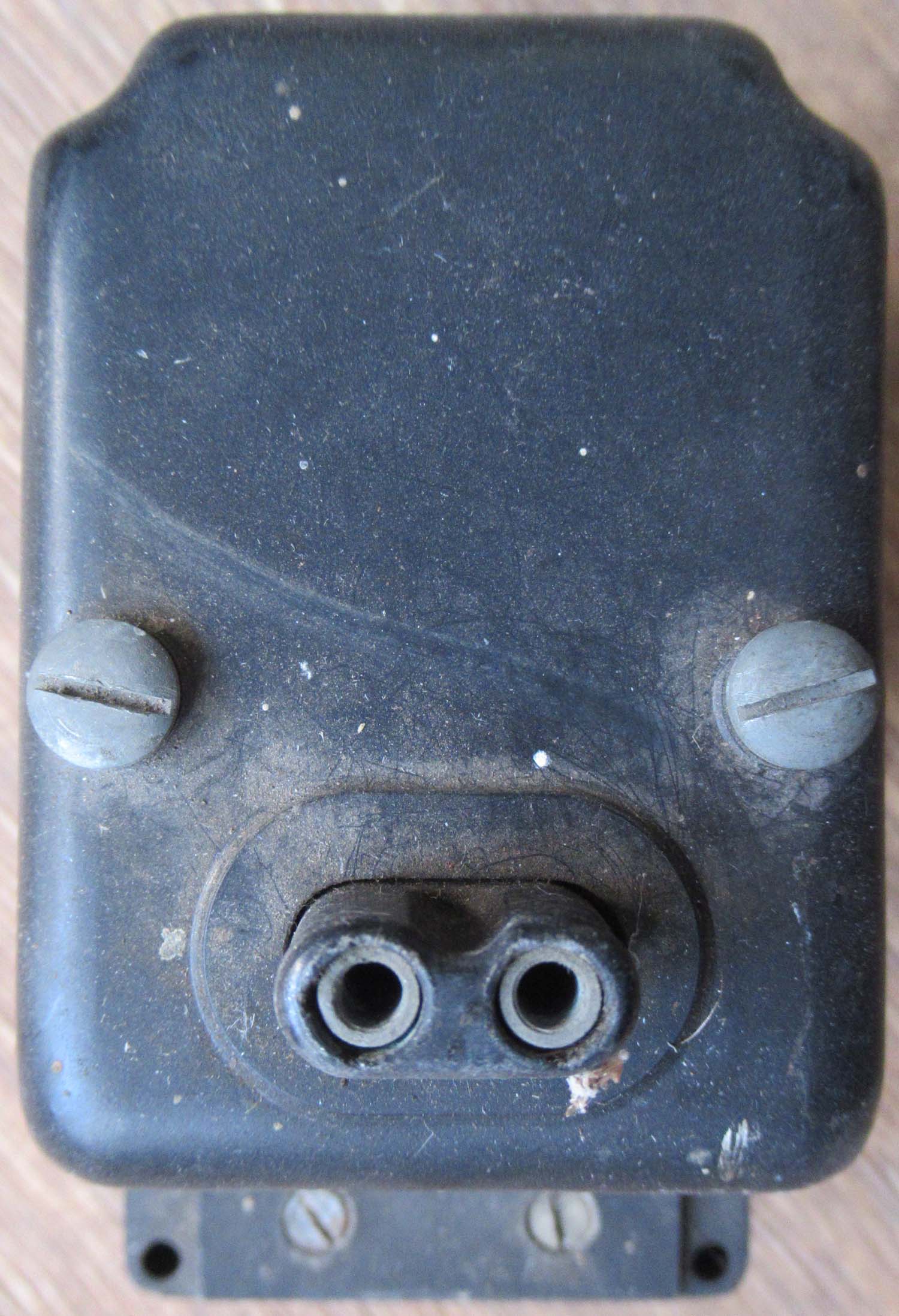

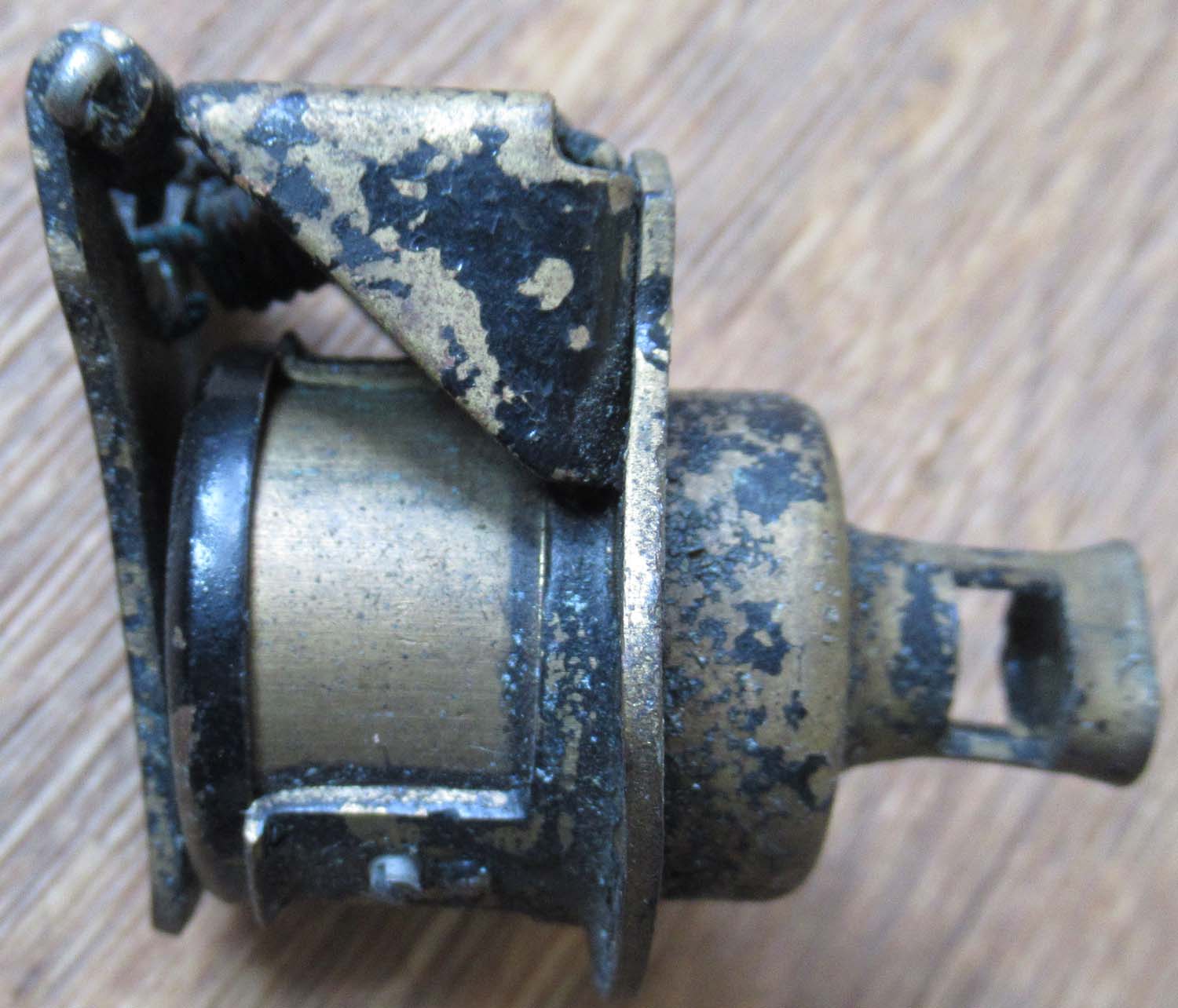

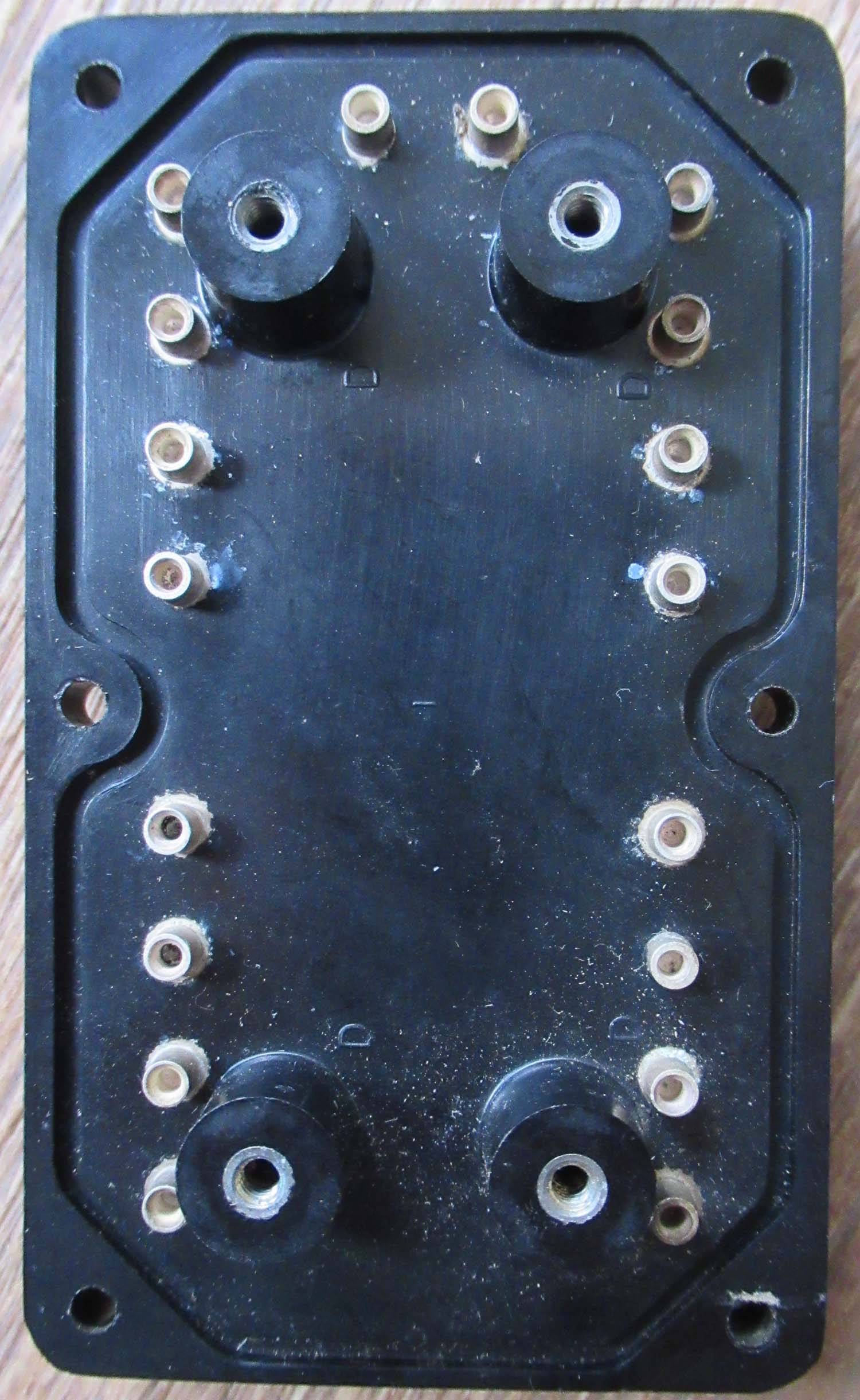

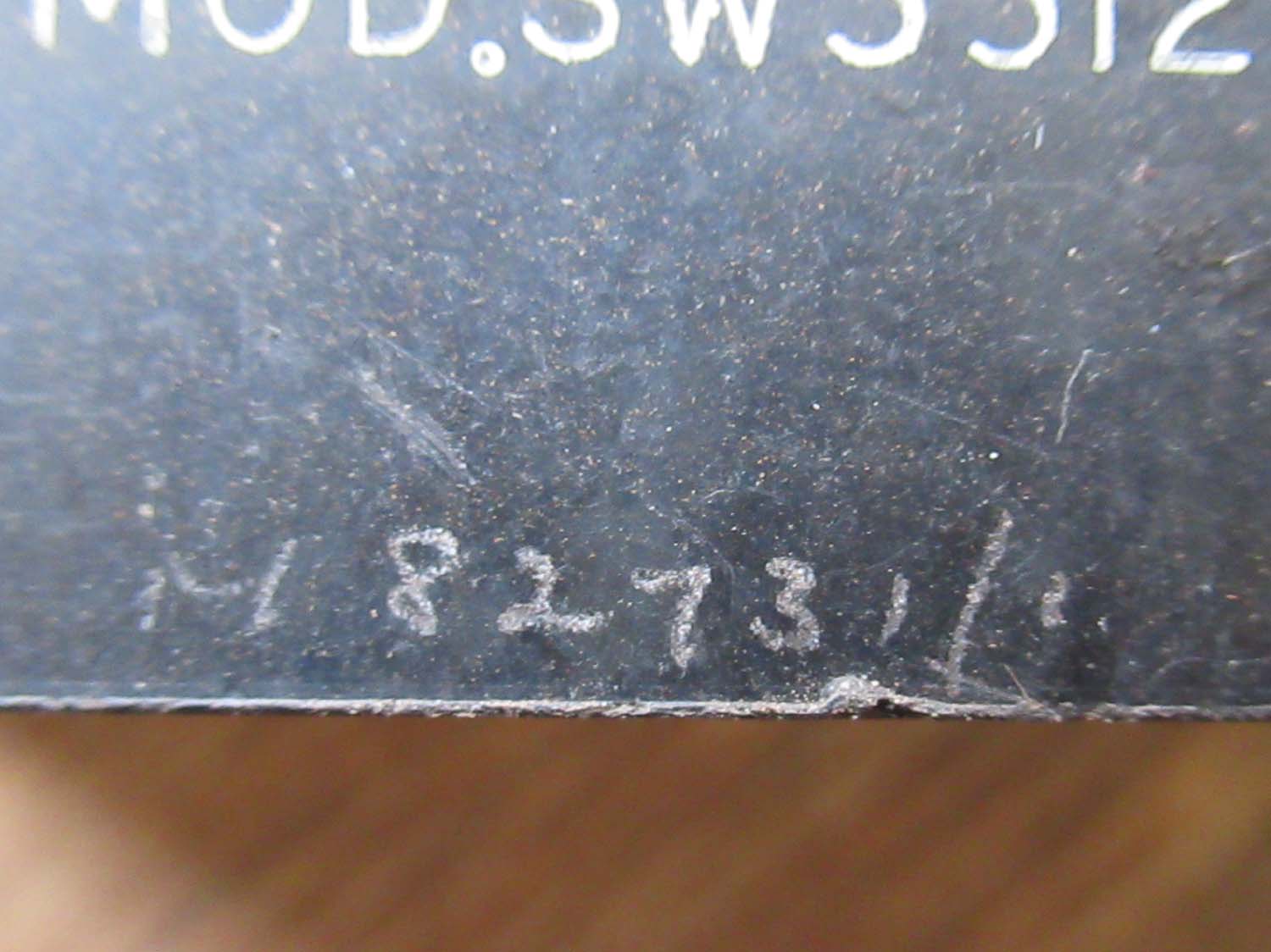

Rotax Ltd Connector 5CW/4389 (No 61 pg 3 Elec Conn)

5CW/4389

Serial No 2008

MOD.SW5512

M82731/1

Click on the pictures to enlarge

Click on the pictures to enlarge

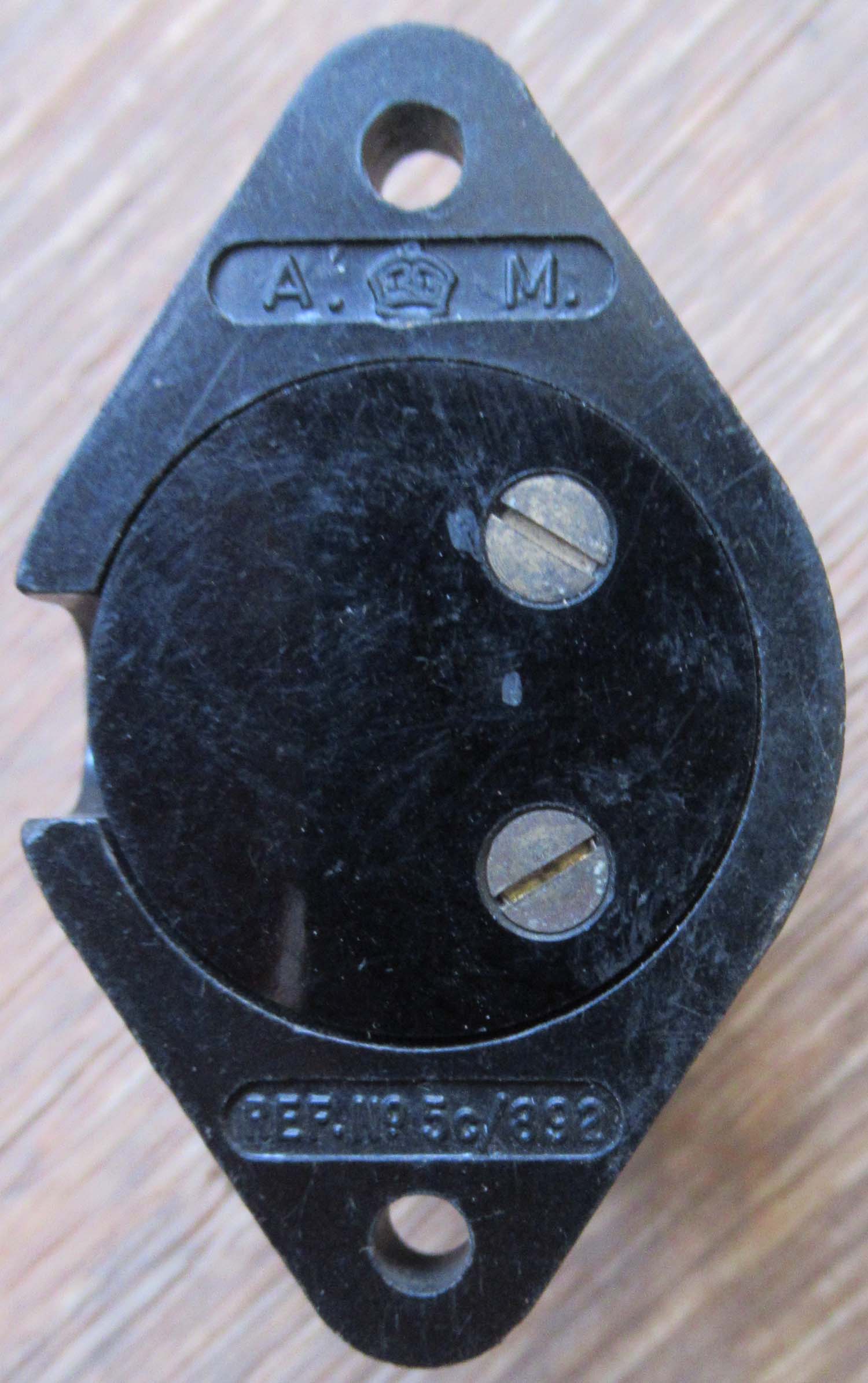

3 Pin Plug 5C/892 MK II Gunsight connector (No 60 pg 3 Elec Conn)

Air Ministry marked 3 pin plug, these are used to connect the MK II Relector Gunsight to the instrument panel

5C/892

Click on the pictures to enlarge

Out of stock more wanted please contact me

Click on the pictures to enlarge

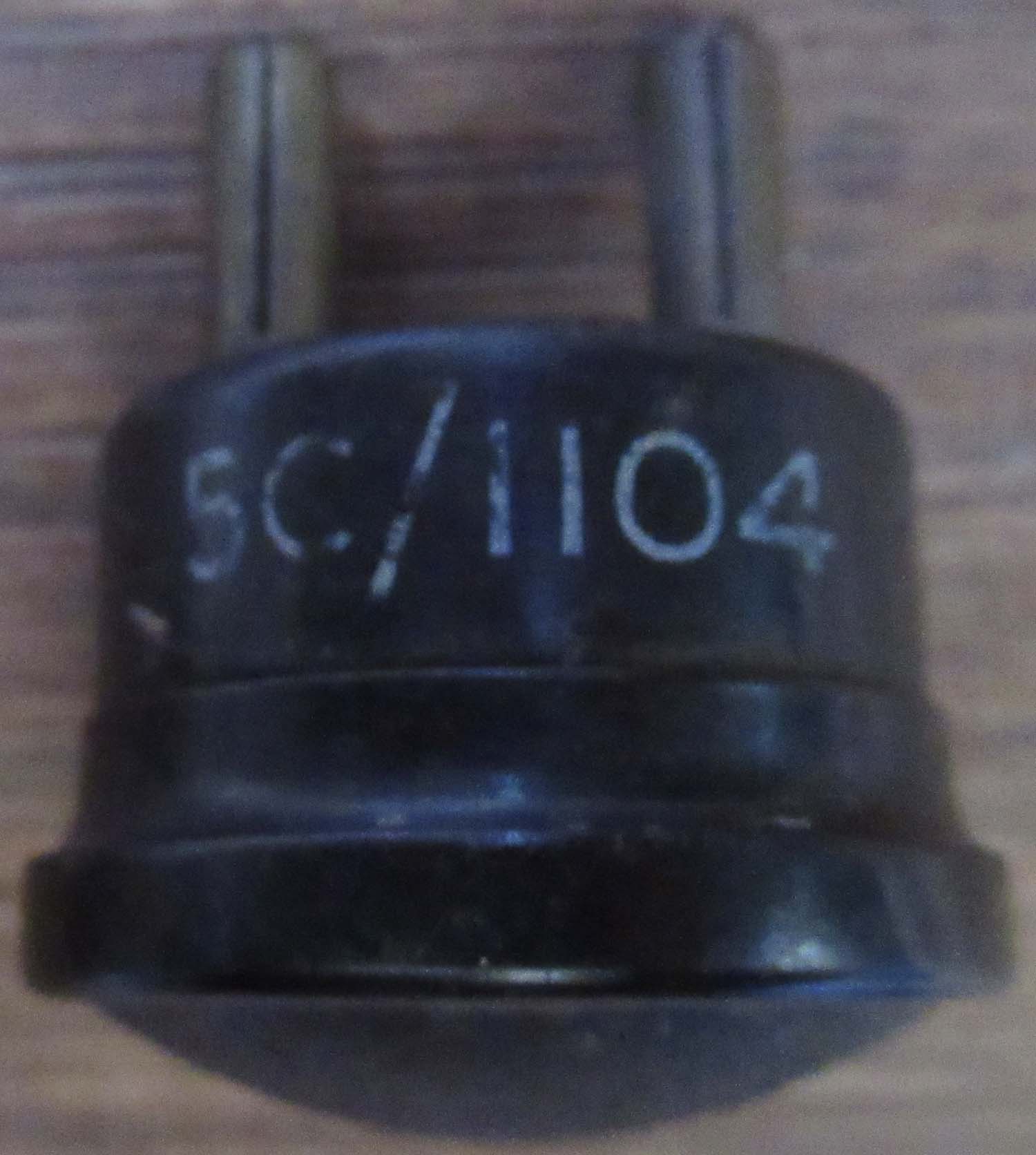

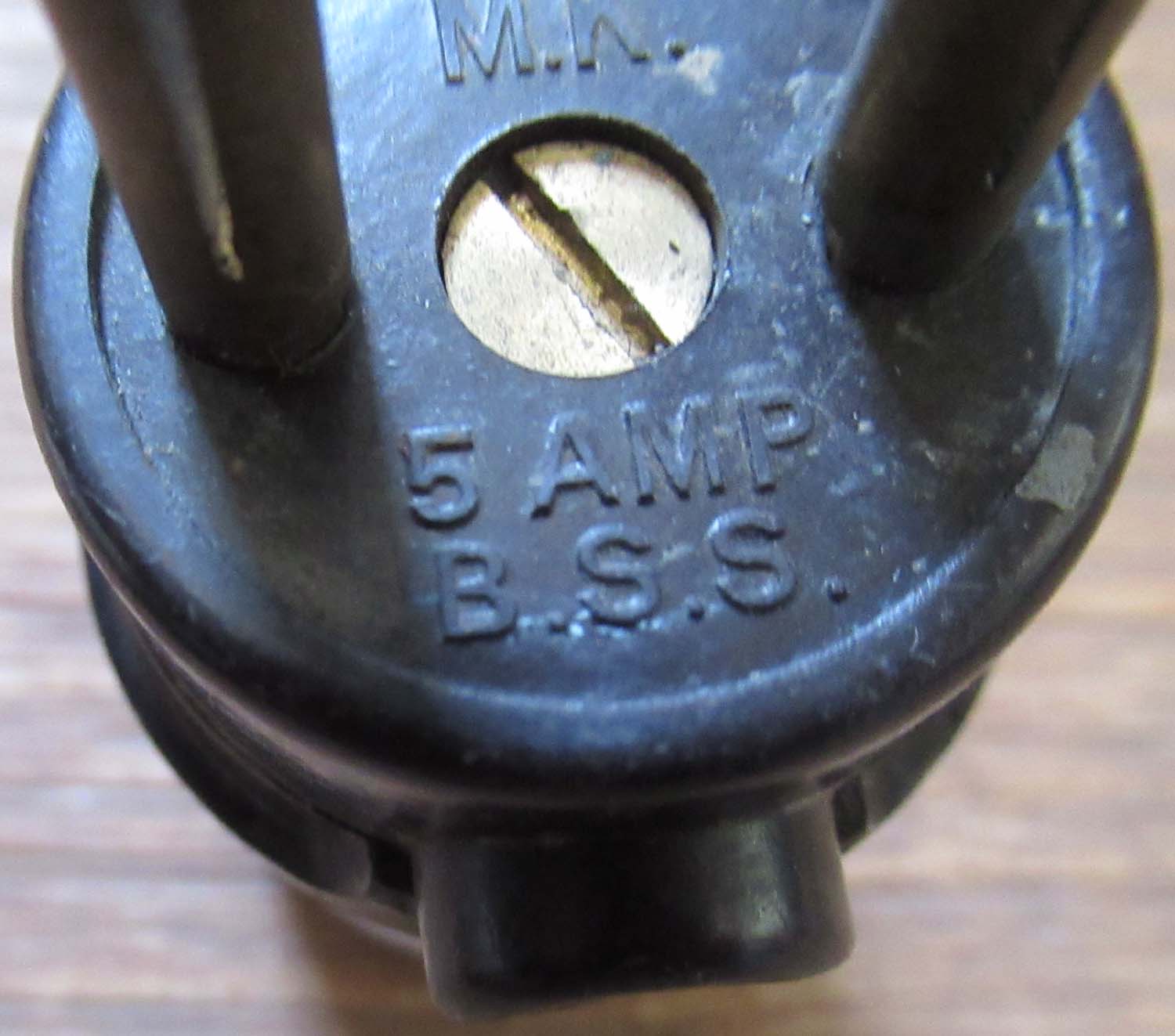

2 Pin Plug 5C/1104 (No 59 pg 3 Elec Conn)

5 AMP

5C/1104

Click on the pictures to enlarge



 25

Click on the pictures to enlarge

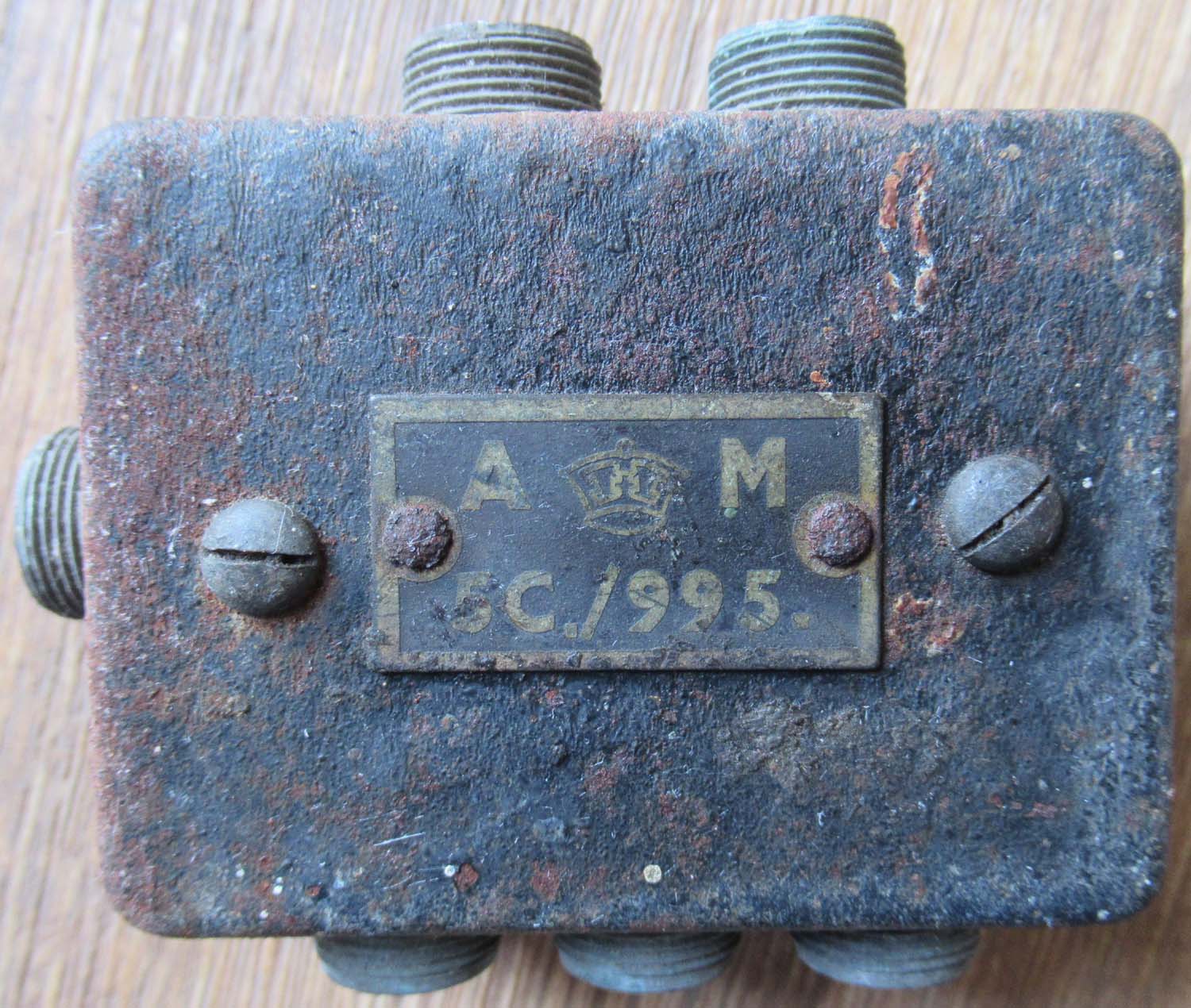

Connector 5C/995 (No 58 pg 3 Elec Conn)

5C/995

Click on the pictures to enlarge



 35

Click on the pictures to enlarge

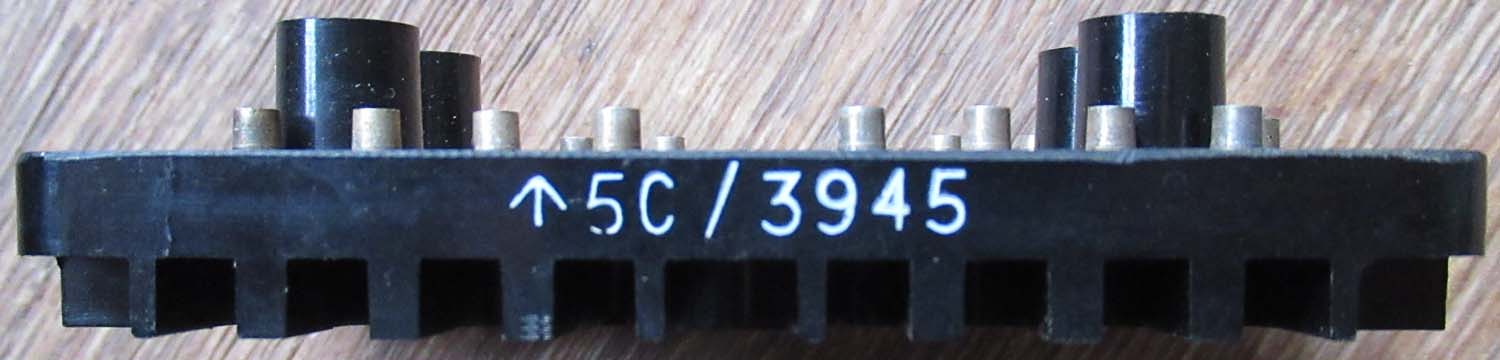

Connector 5C/3945 (No 57 pg 3 Elec Conn)

5C/3945

Click on the pictures to enlarge



25

Click on the pictures to enlarge

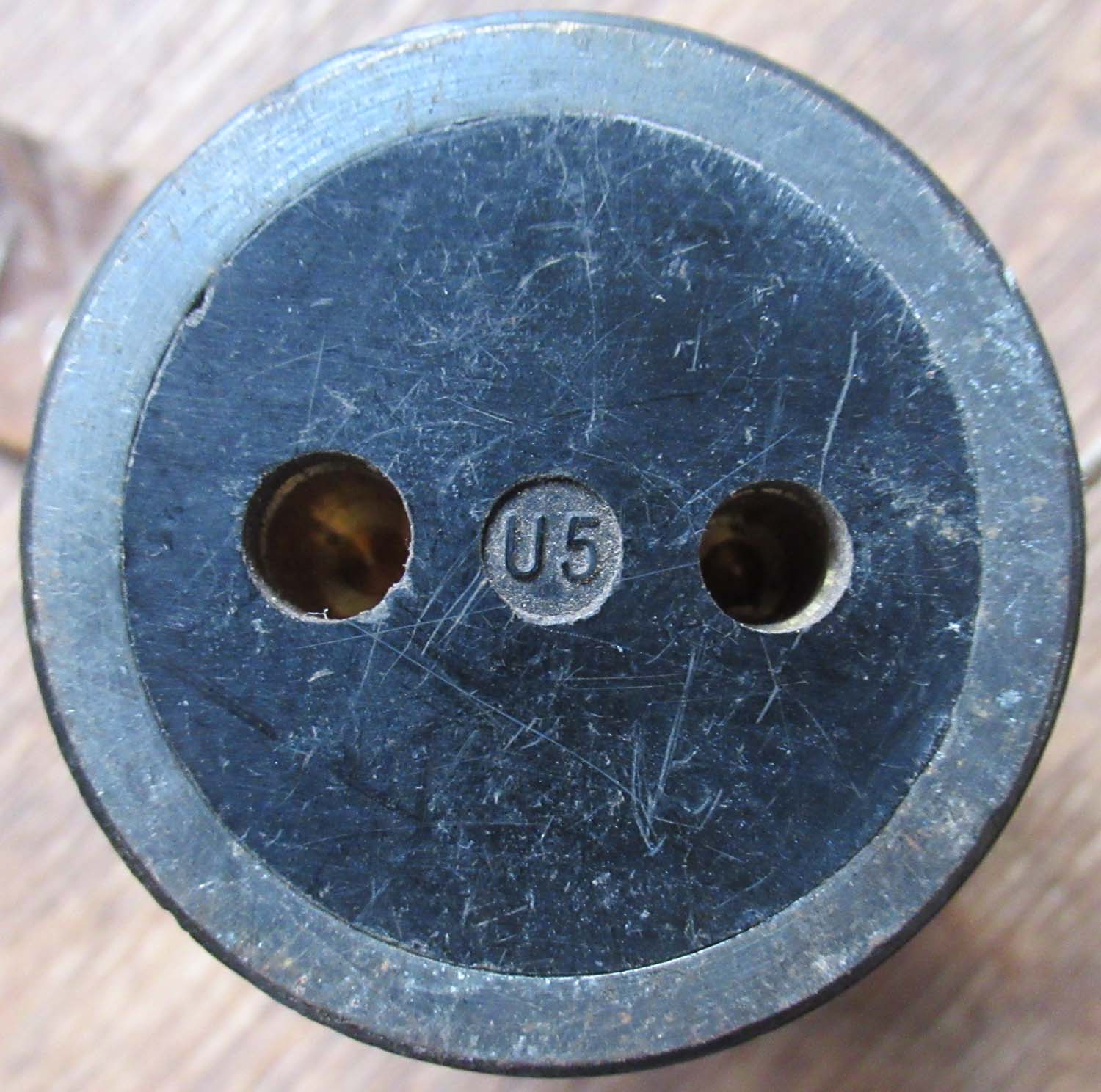

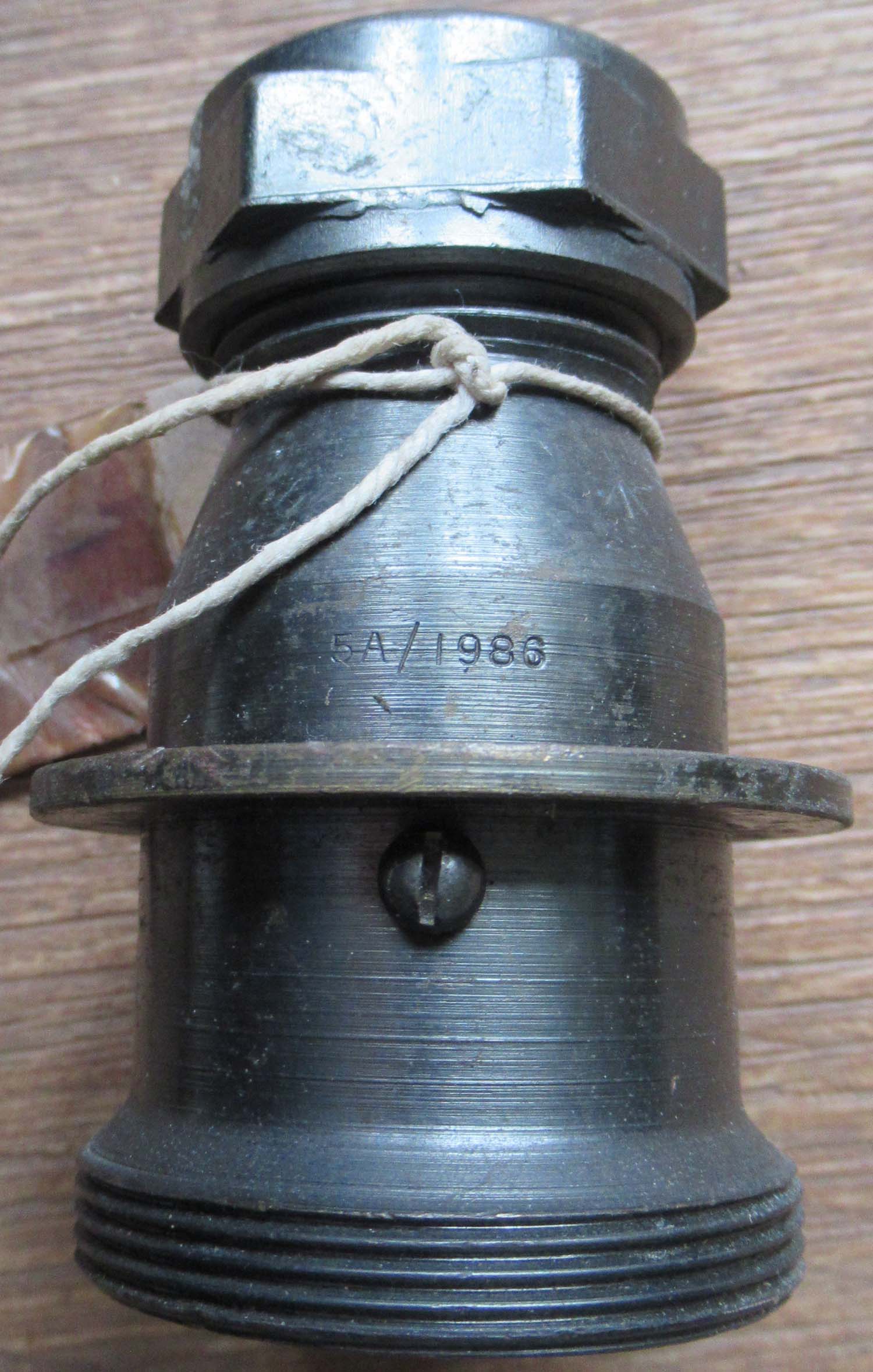

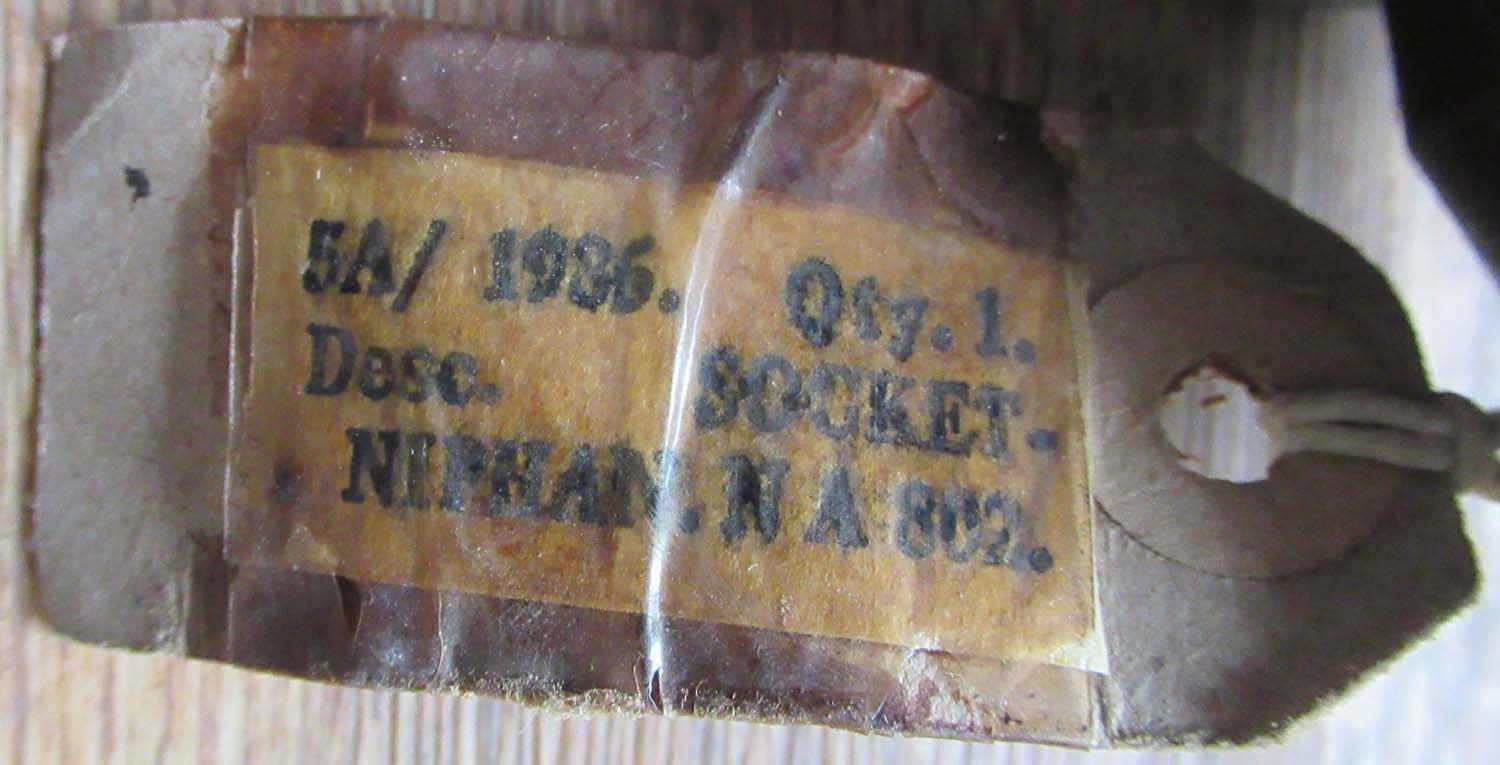

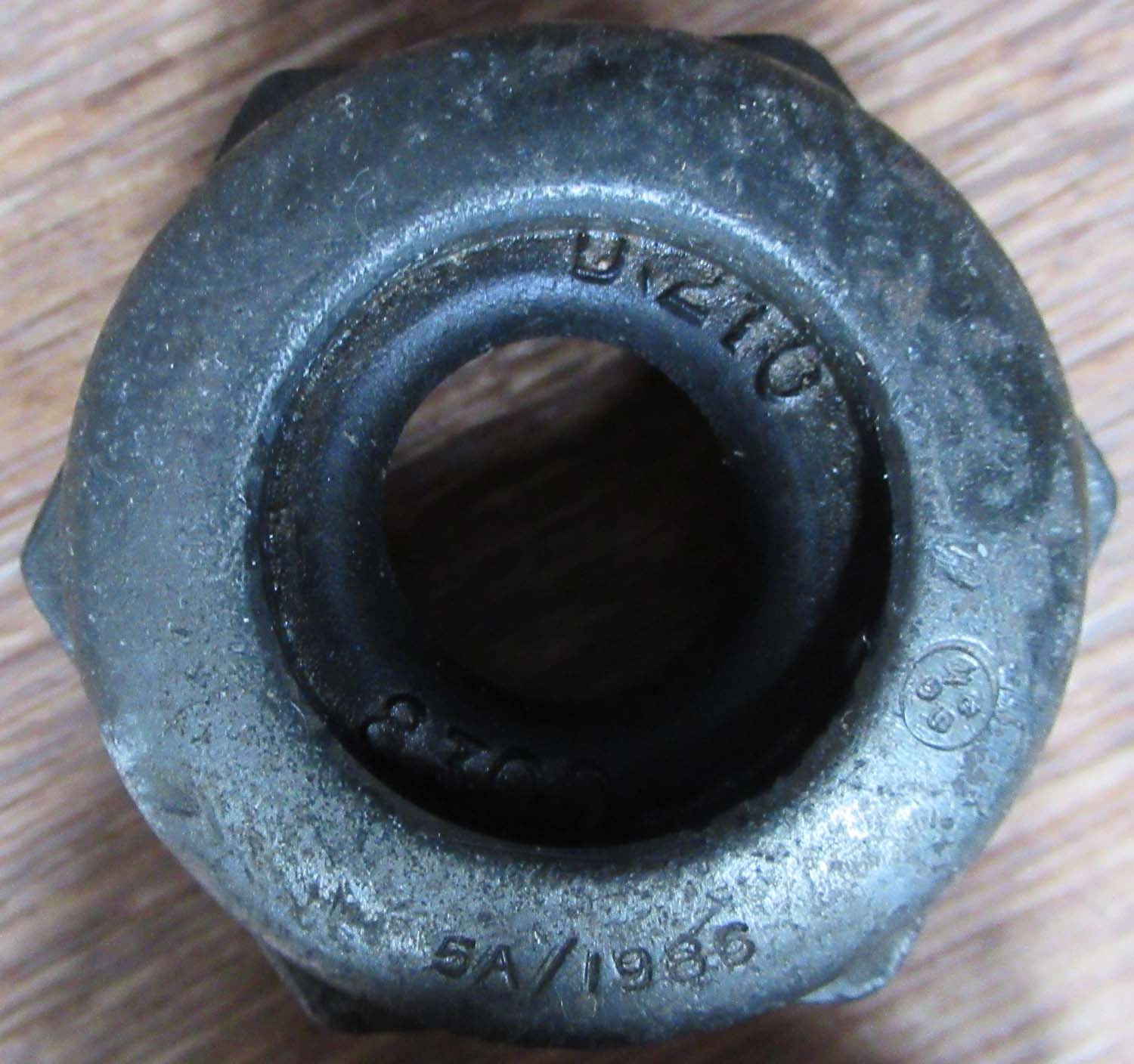

Socket 5A/1986 (No 56 pg 3 Elec Conn)

5A/1986

8300

D210

Click on the pictures to enlarge



 65

Click on the pictures to enlarge

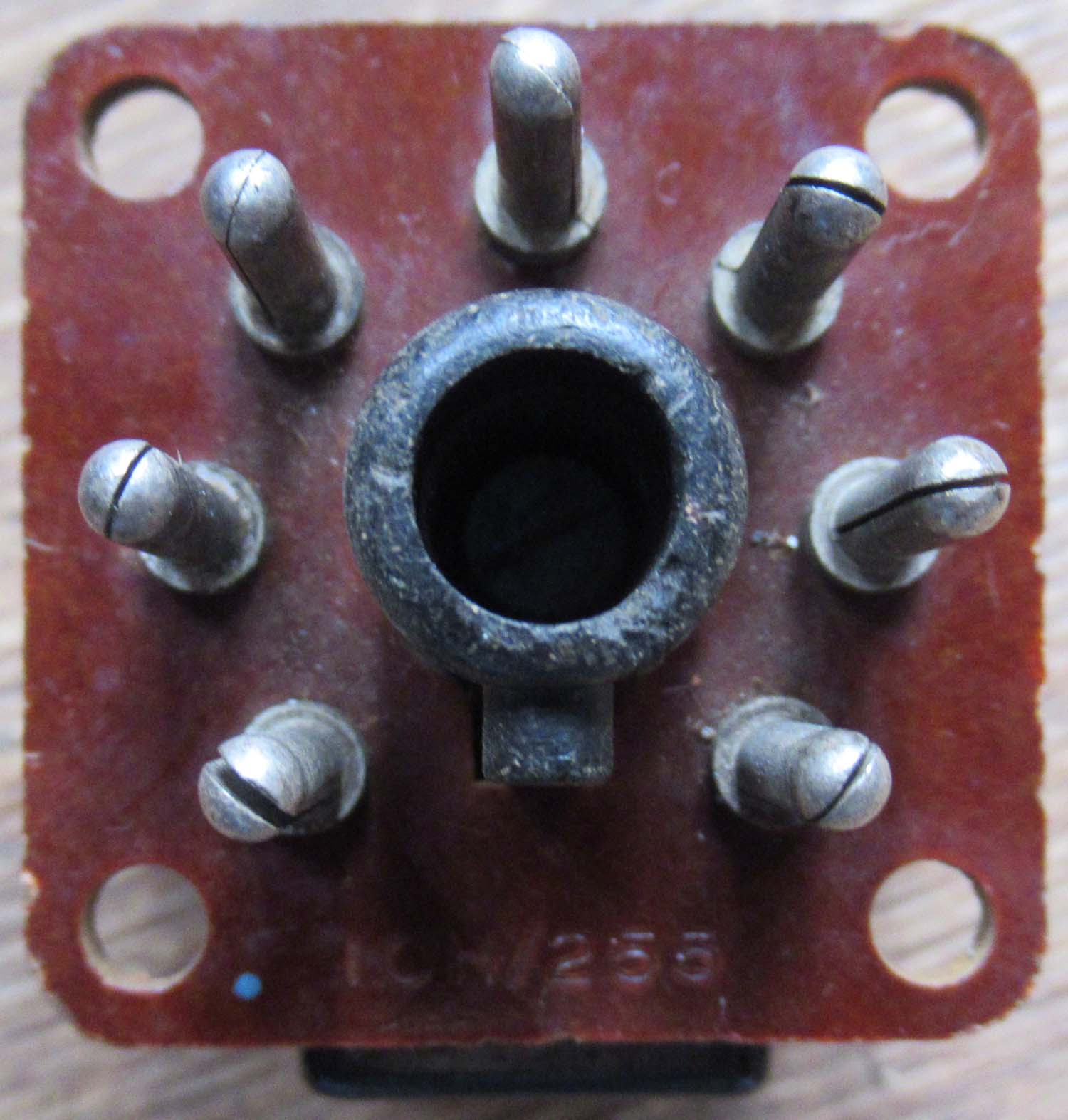

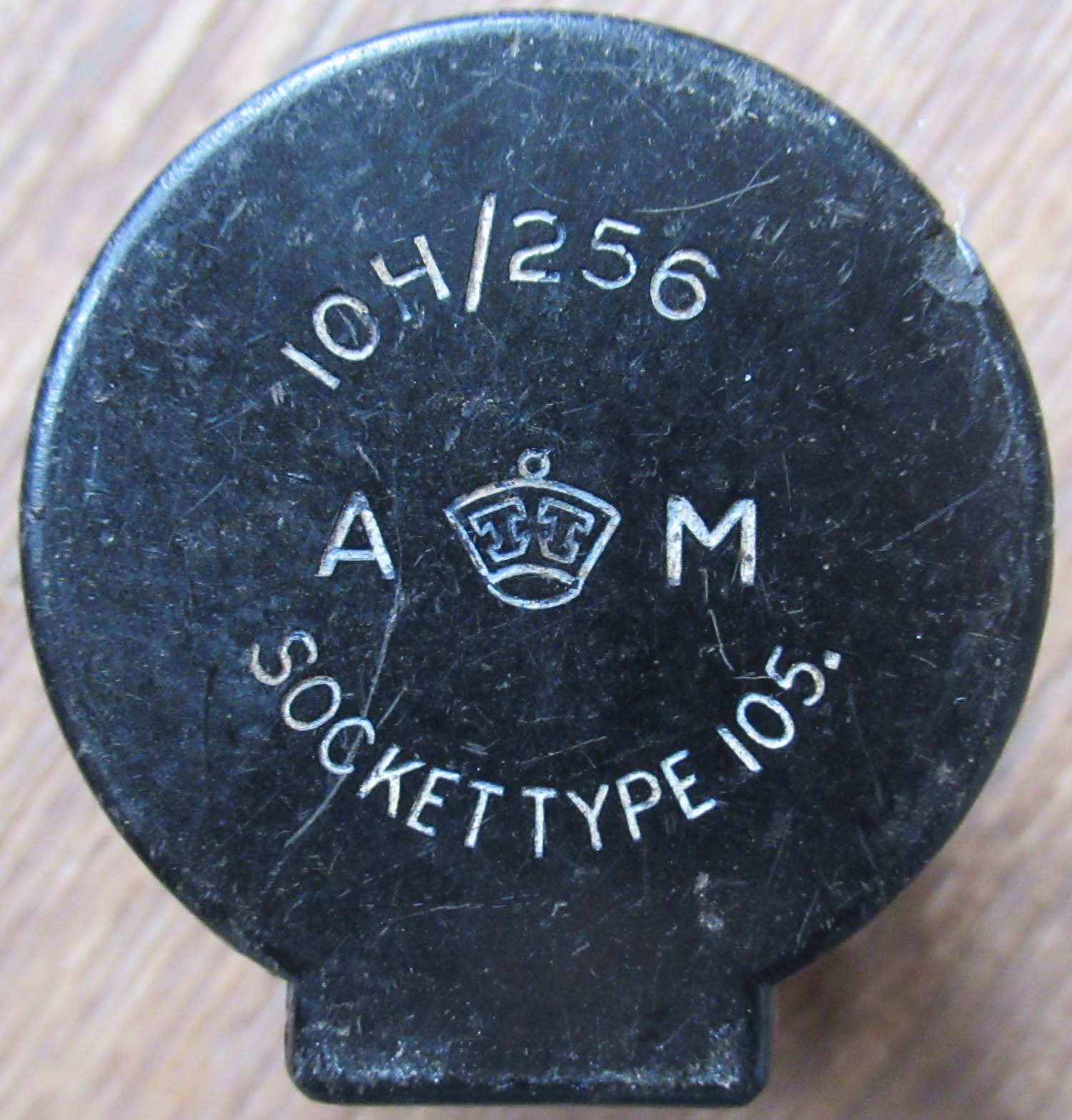

Socket Type 105 (No 55 pg 3 Elec Conn)

10H/256   &   10H/255

Click on the pictures to enlarge



 25

Click on the pictures to enlarge

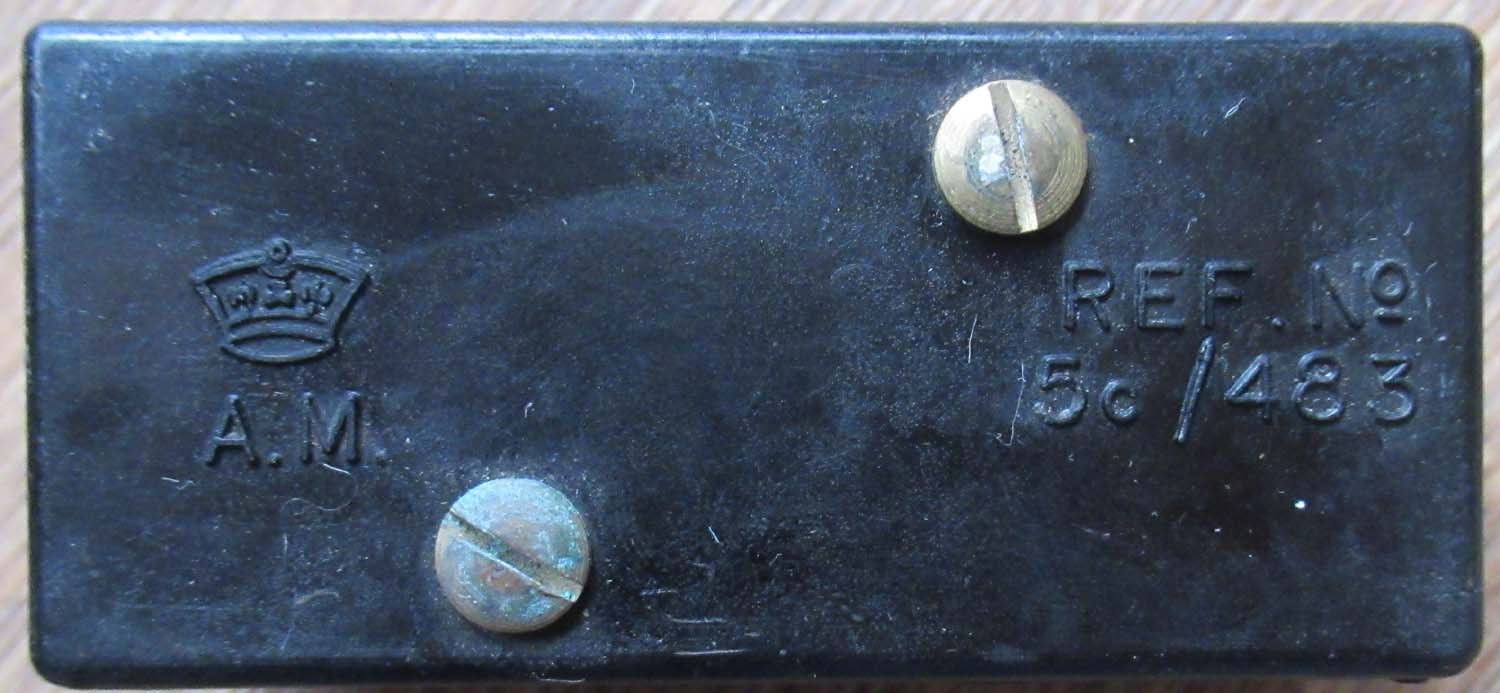

Connector 5C/483 (No 54 pg 3 Elec Conn)

5C/483

 35

Click on the pictures to enlarge

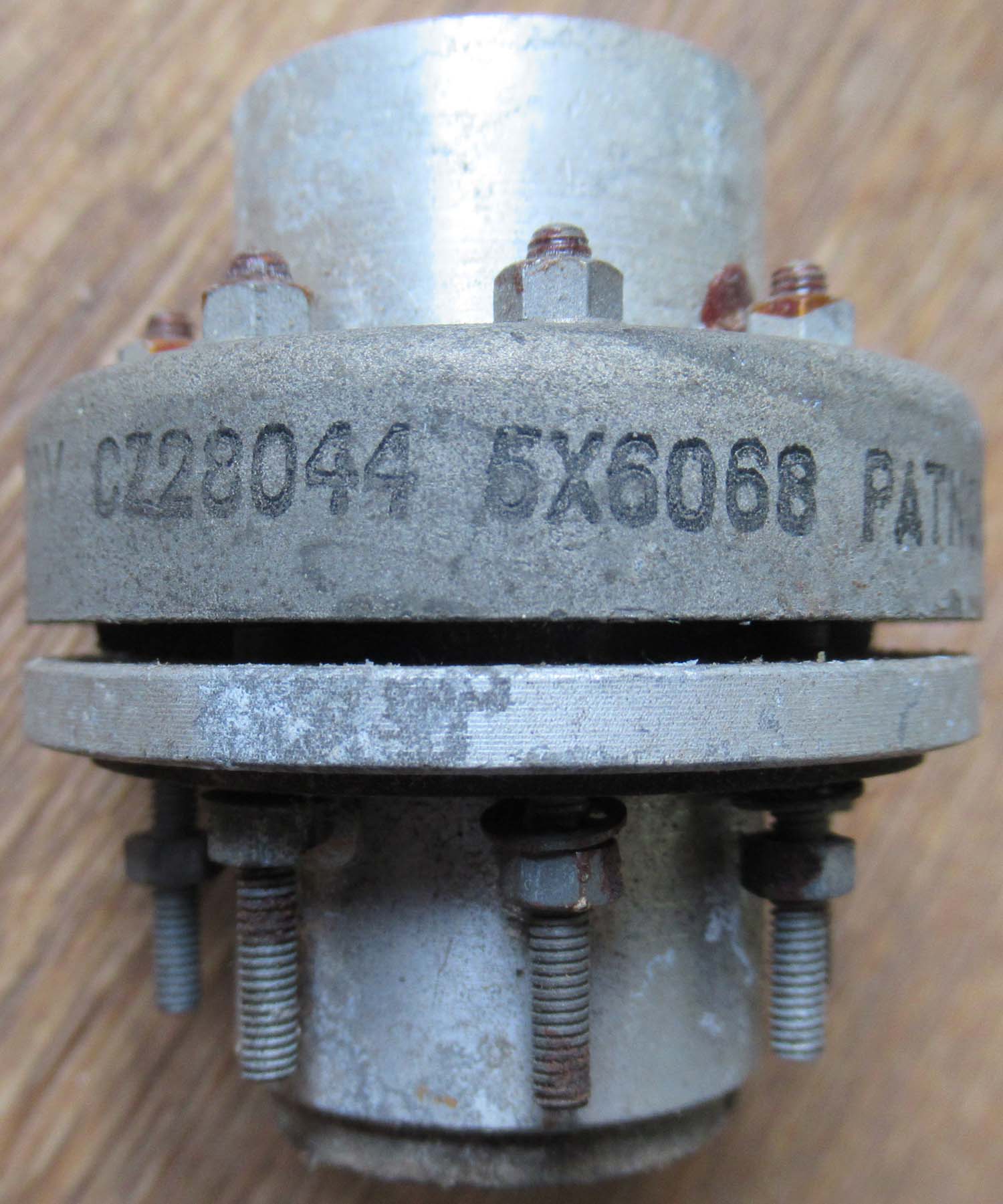

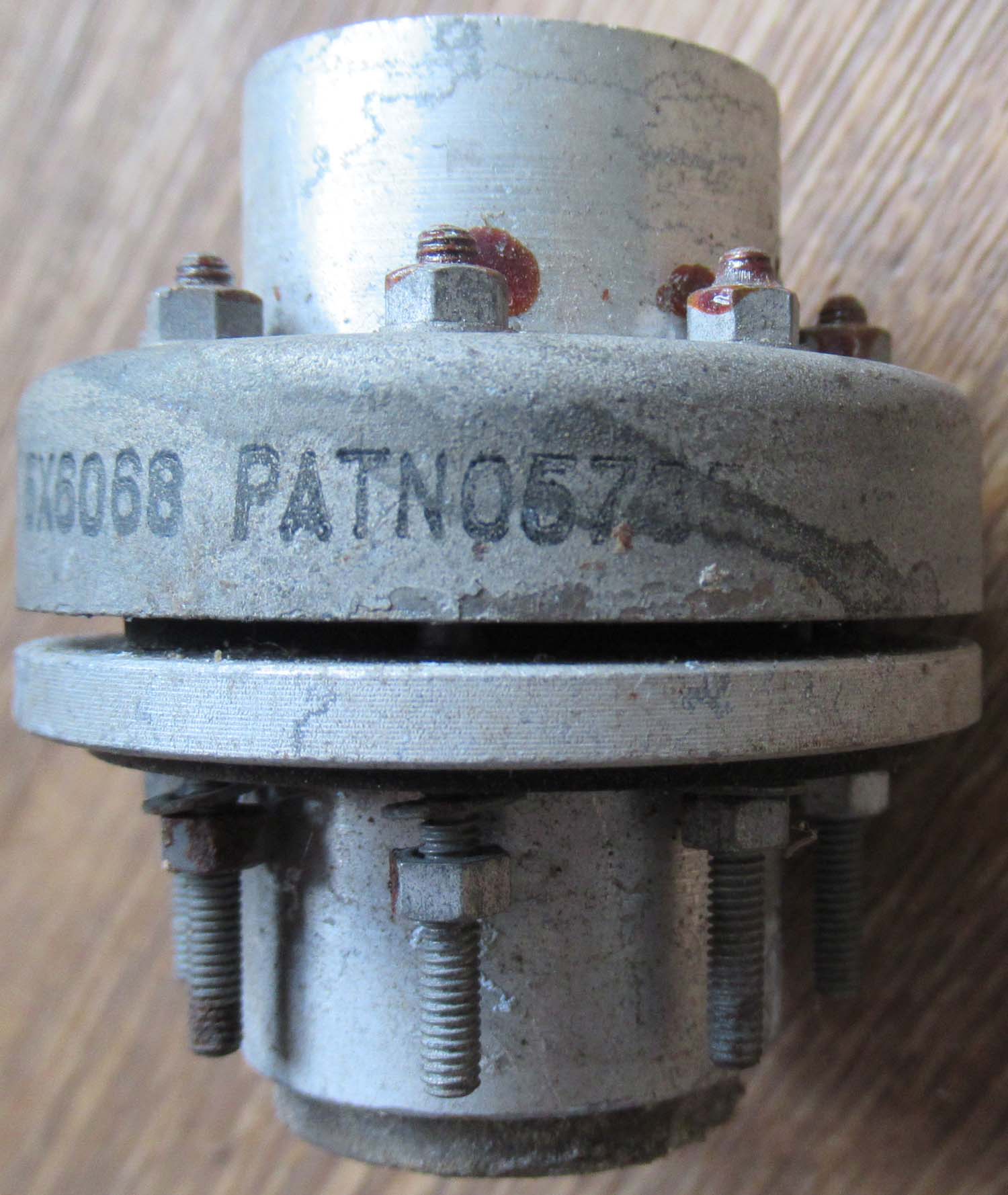

Connector 5X6068 (No 53 pg 3 Elec Conn)

5X6068

CZ28044

PAT NO:5735

Click on the pictures to enlarge



 25

Click on the pictures to enlarge

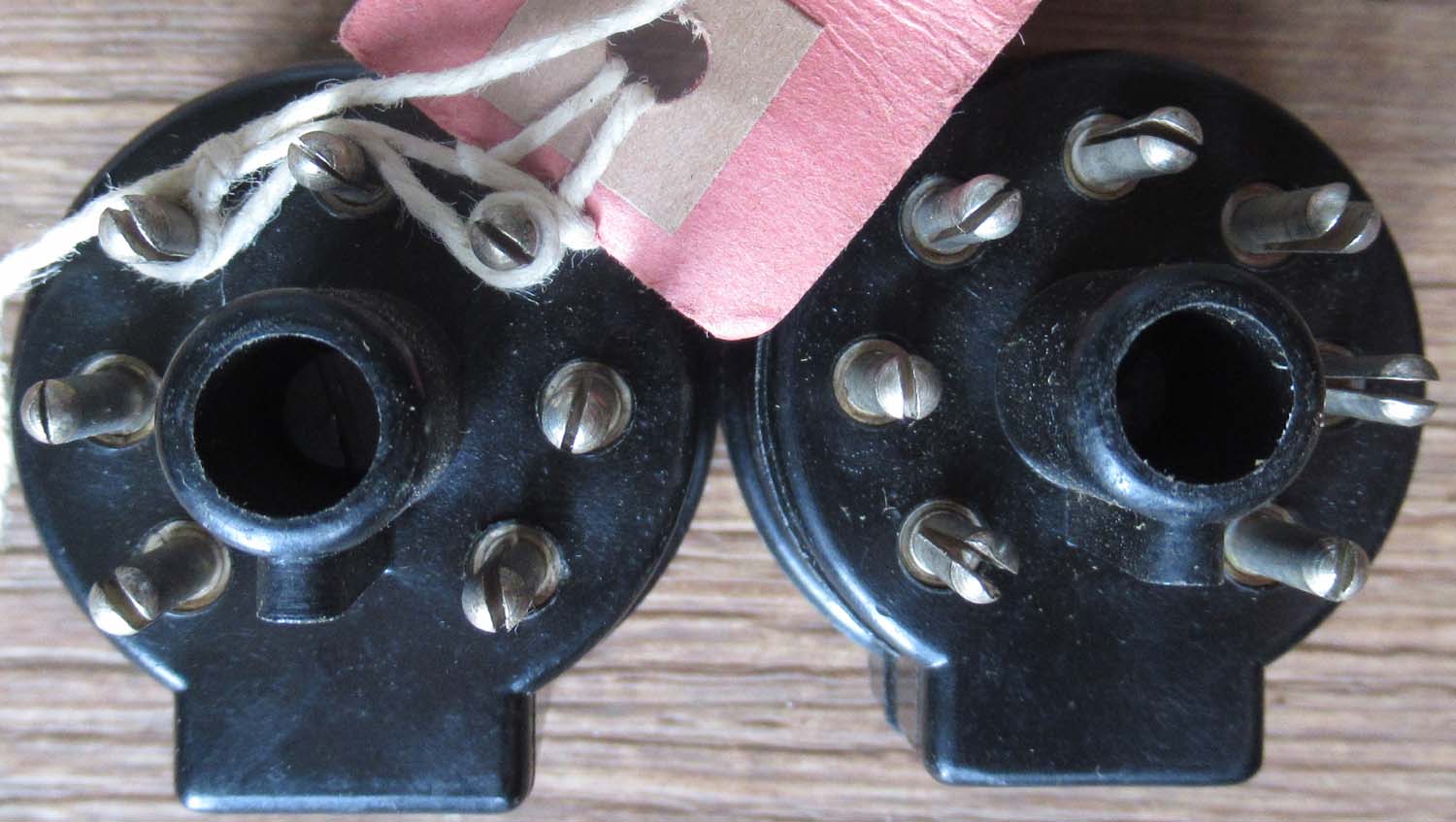

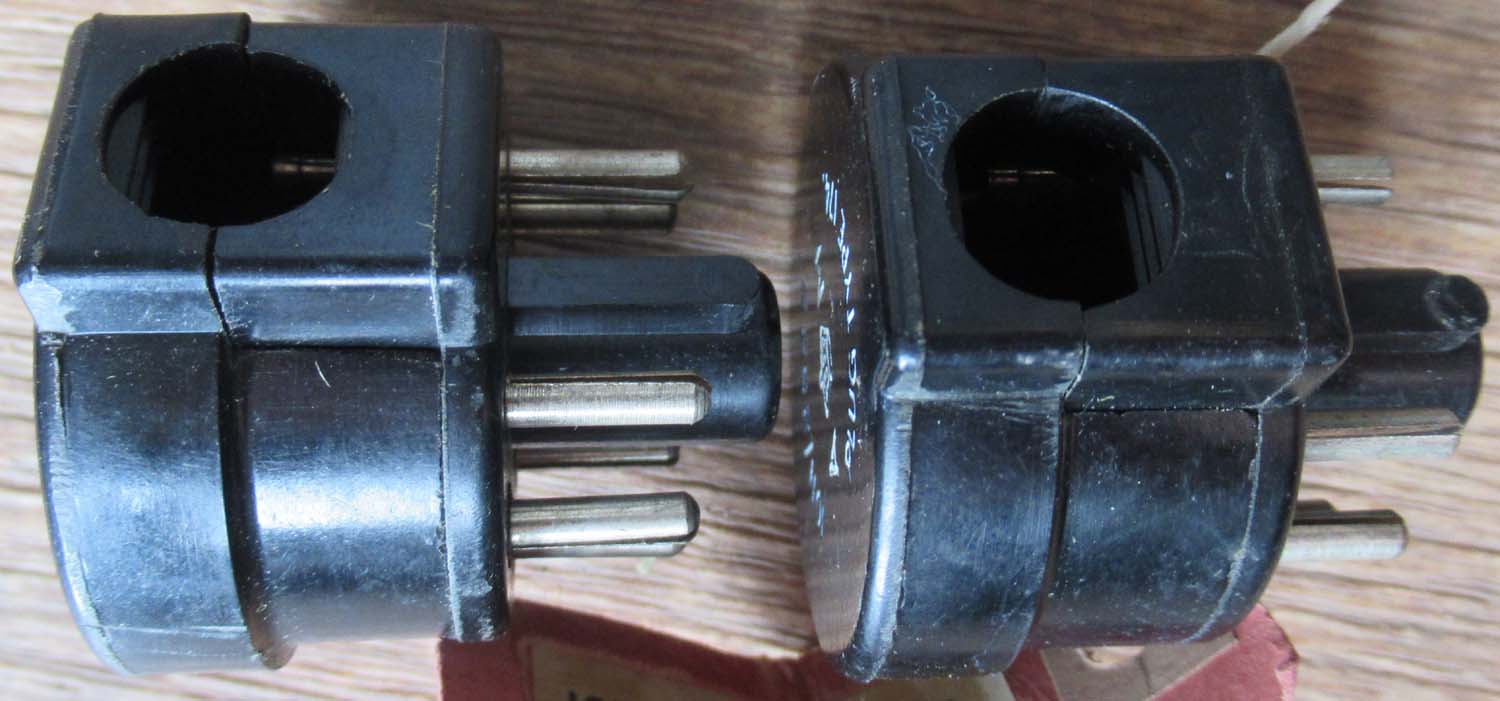

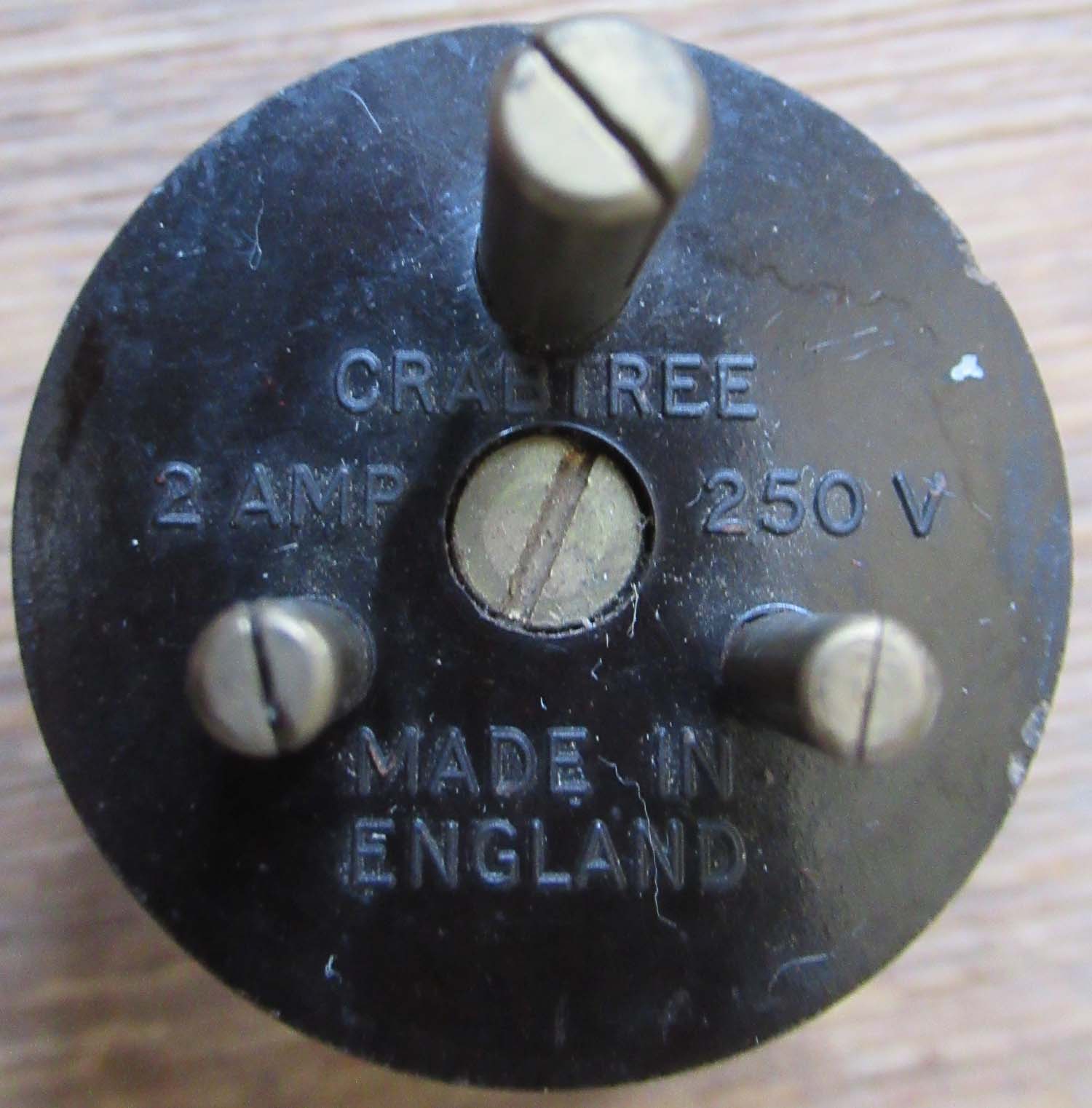

3 Pin Plug (No 52 pg 3 Elec Conn)

Goes with 3 Pin Socket (No 45 pg 3 Elec Conn) further down this page.

2 AMP    250 Volt

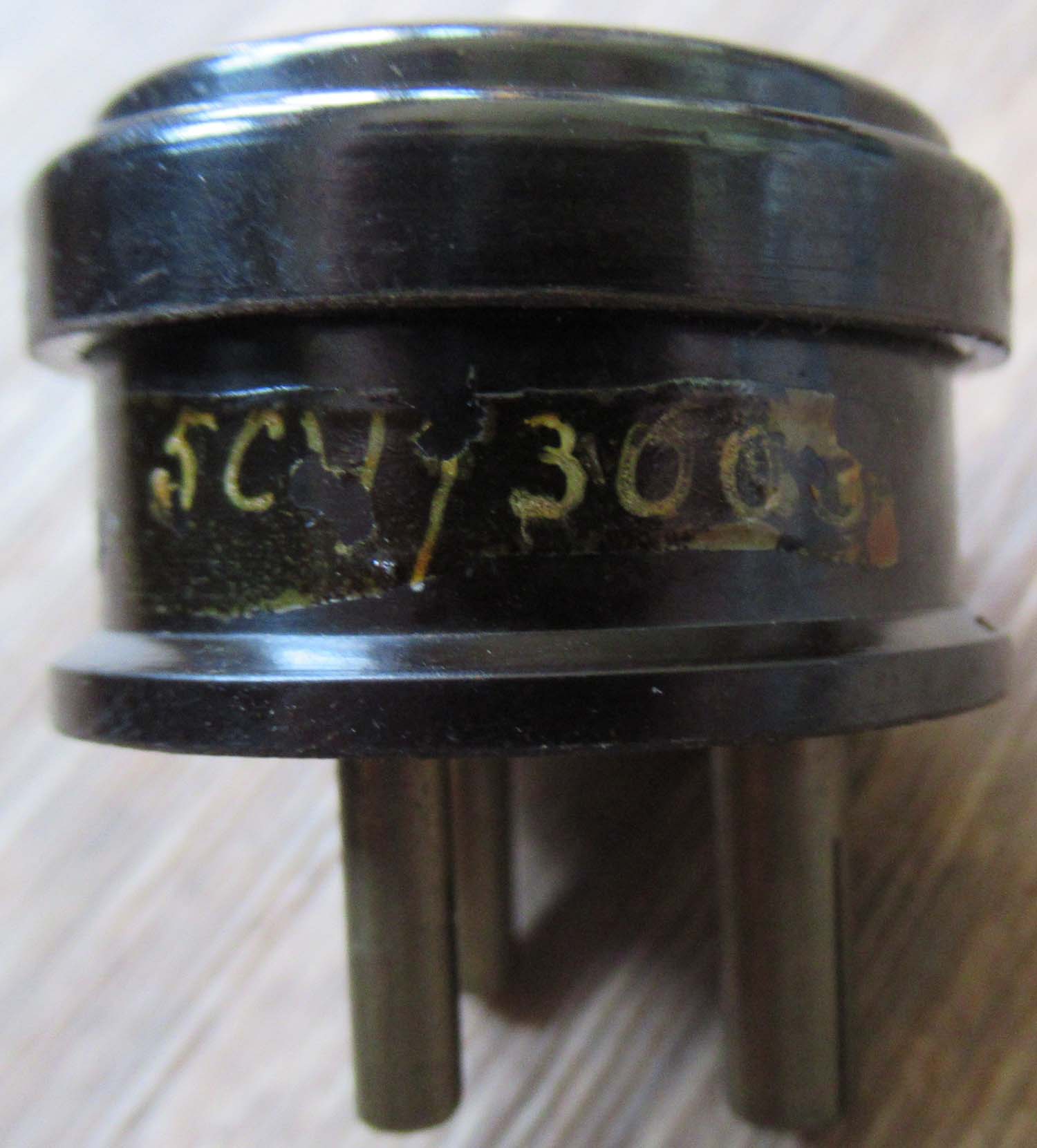

5CY/3003

Click on the pictures to enlarge

 25

Click on the pictures to enlarge

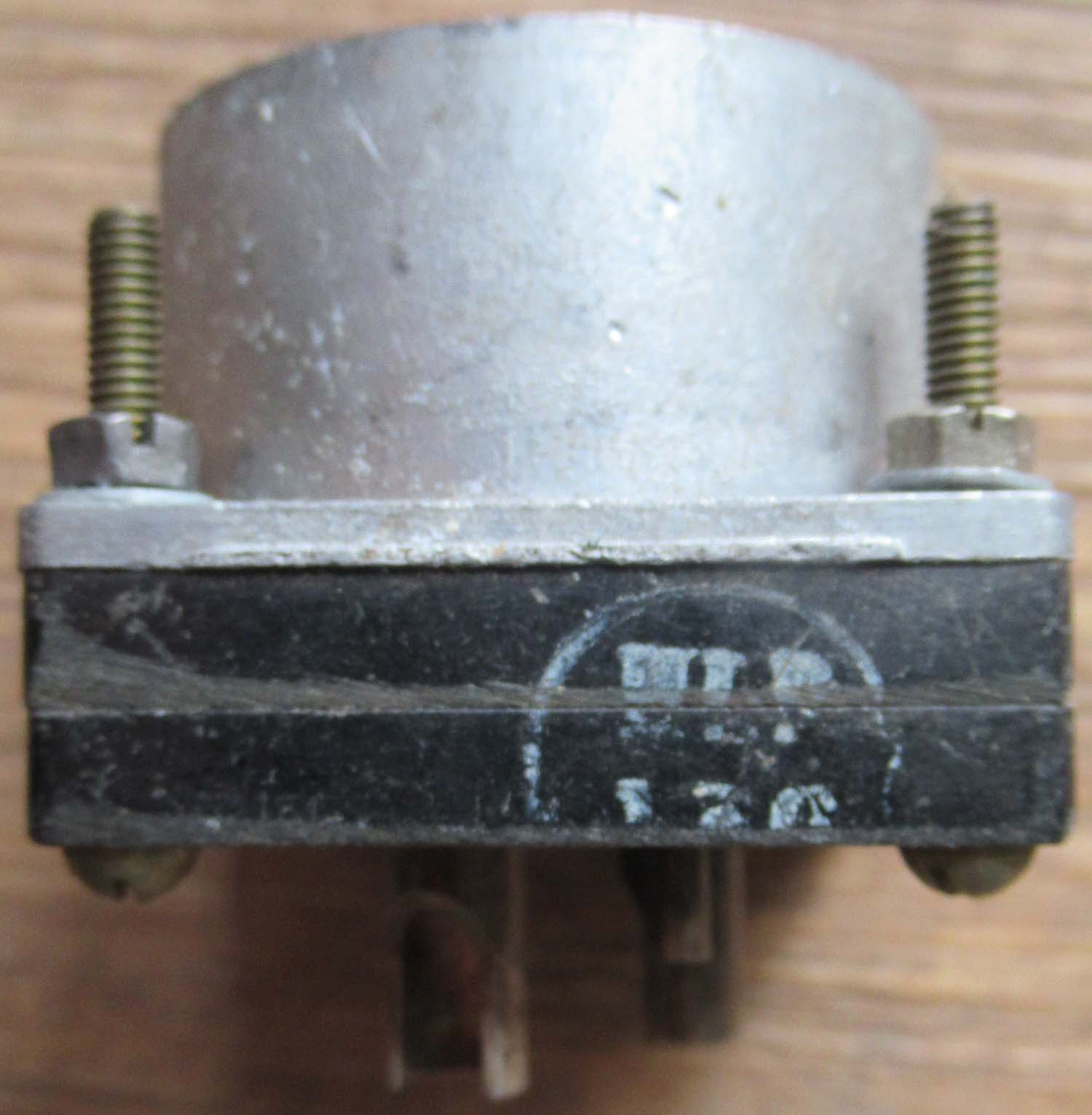

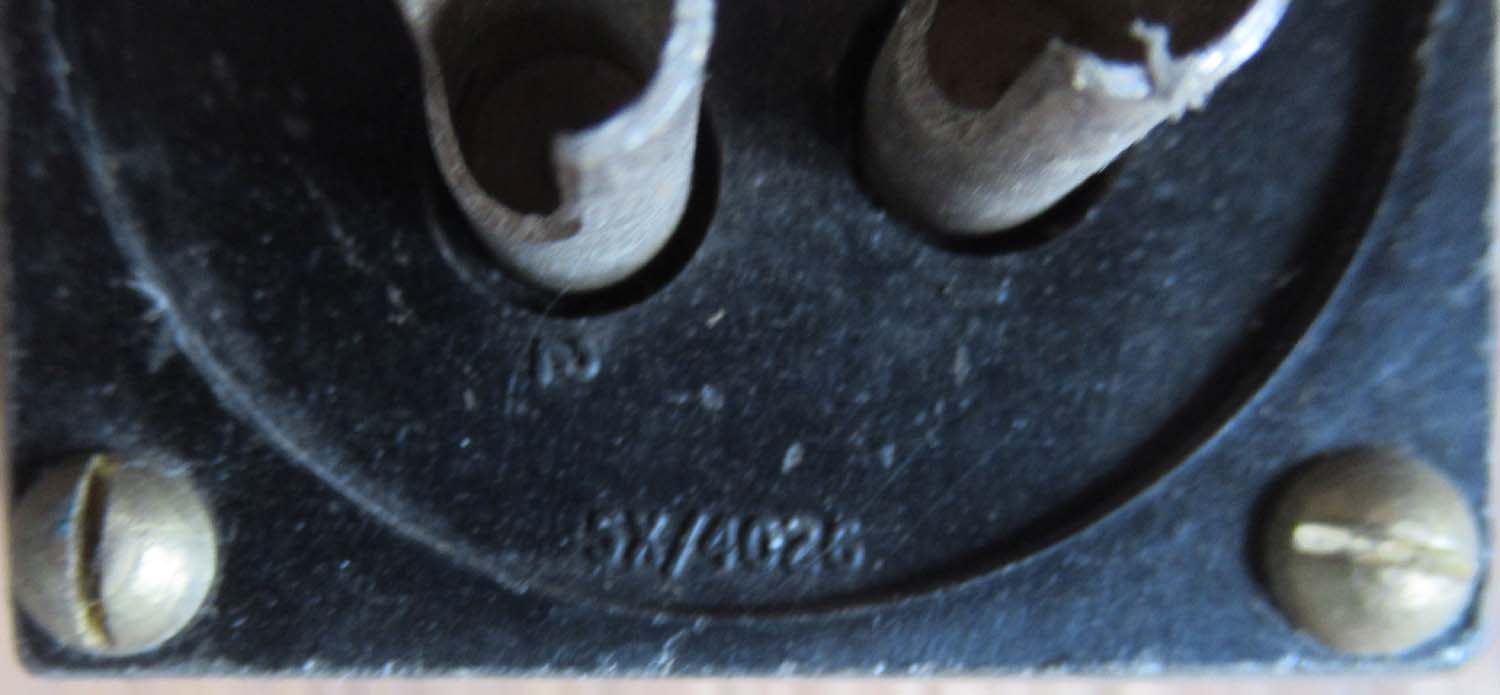

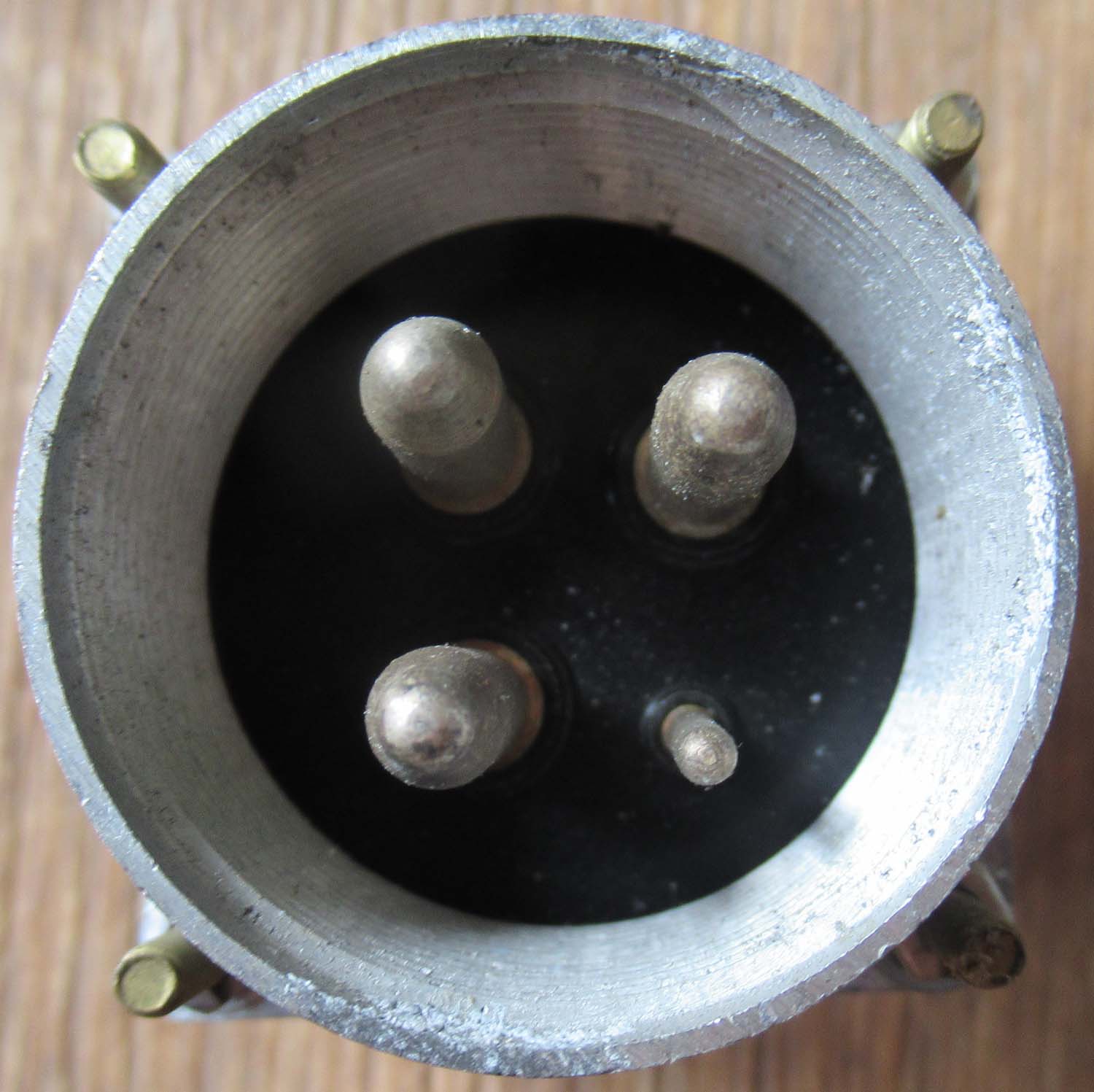

4 Pin Plug Type (No 51 pg 3 Elec Conn)

Several available.

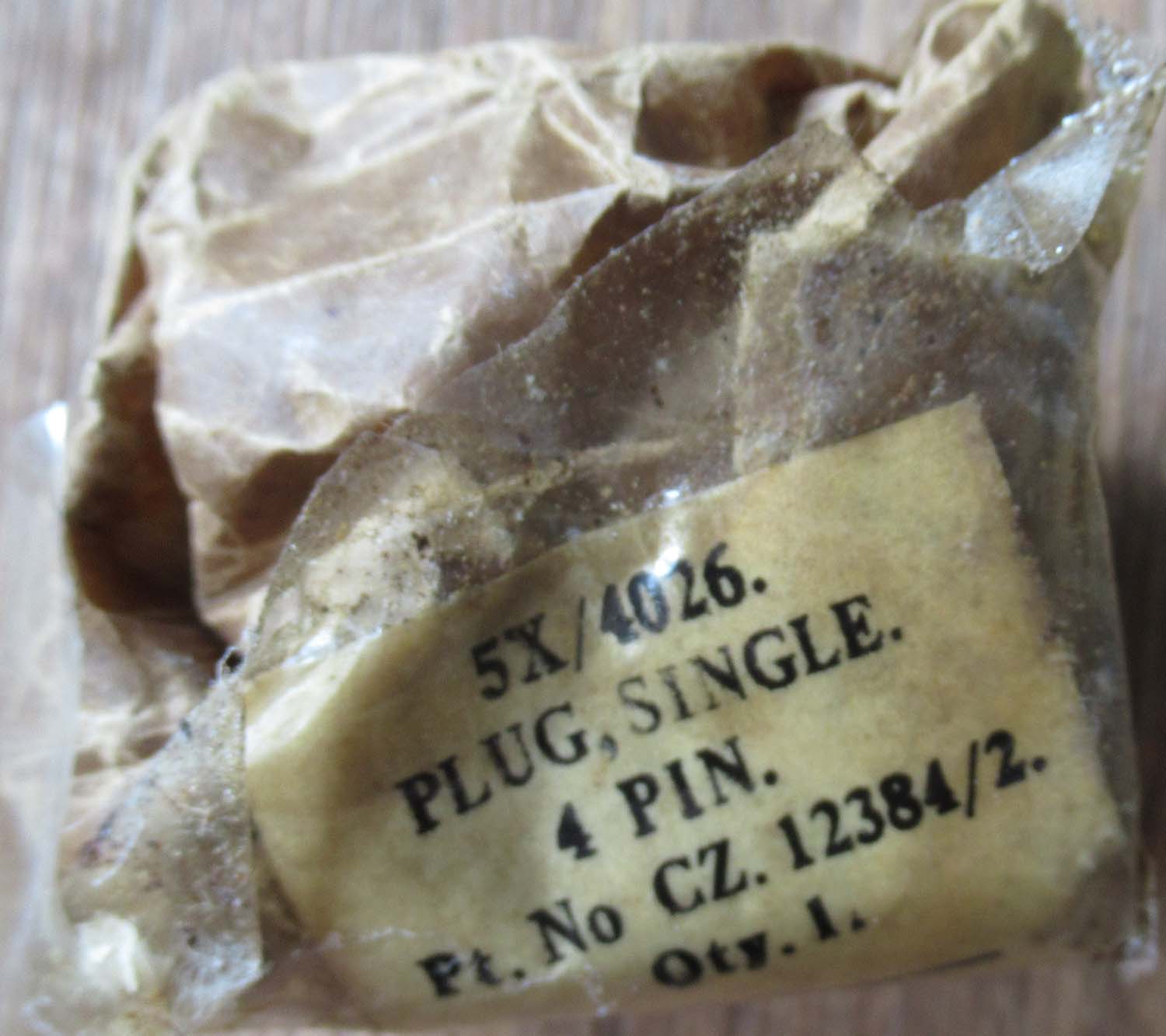

5X/4026

Pt. No CZ 12384/2

Click on the pictures to enlarge

 25

Click on the pictures to enlarge

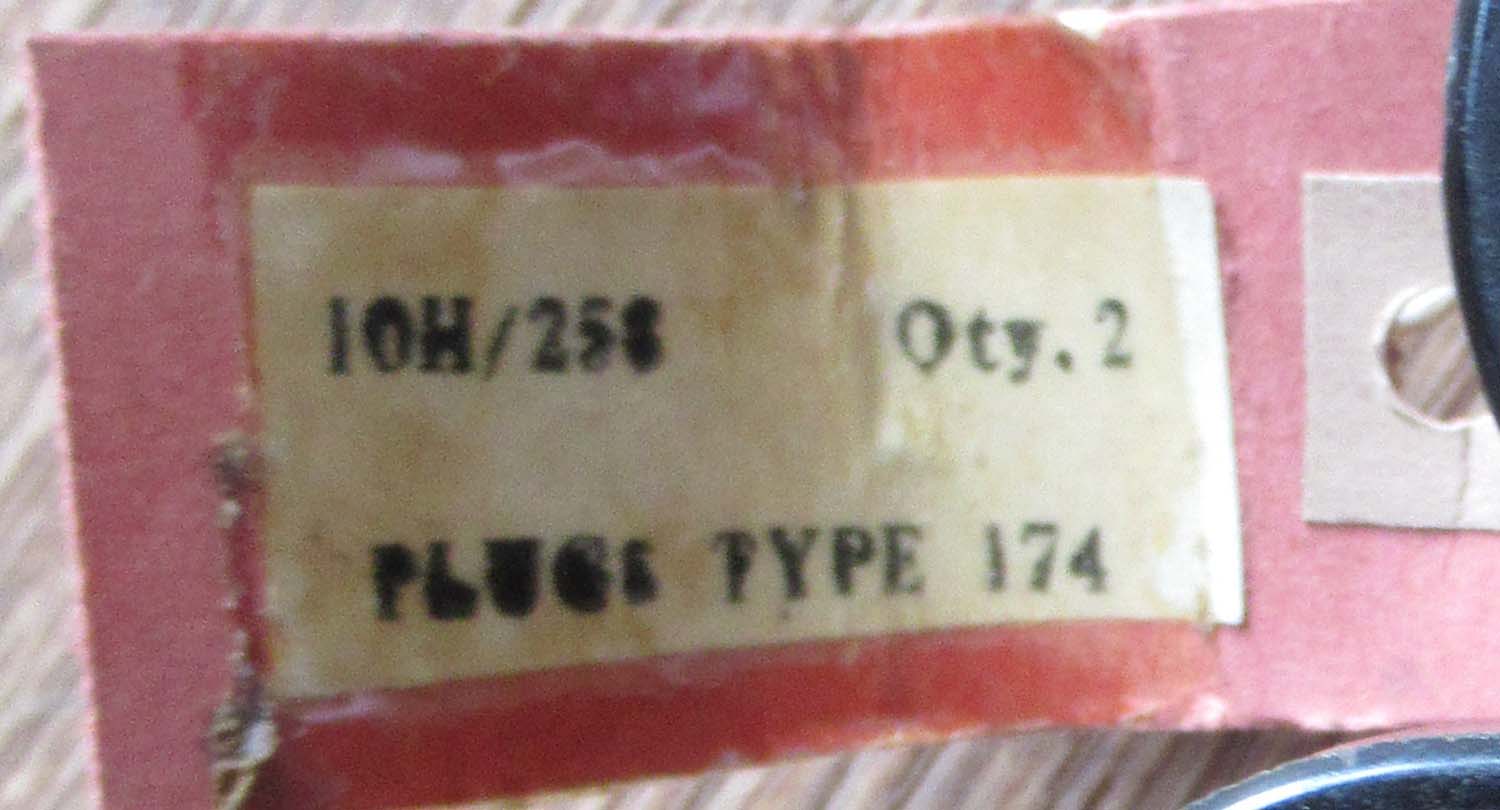

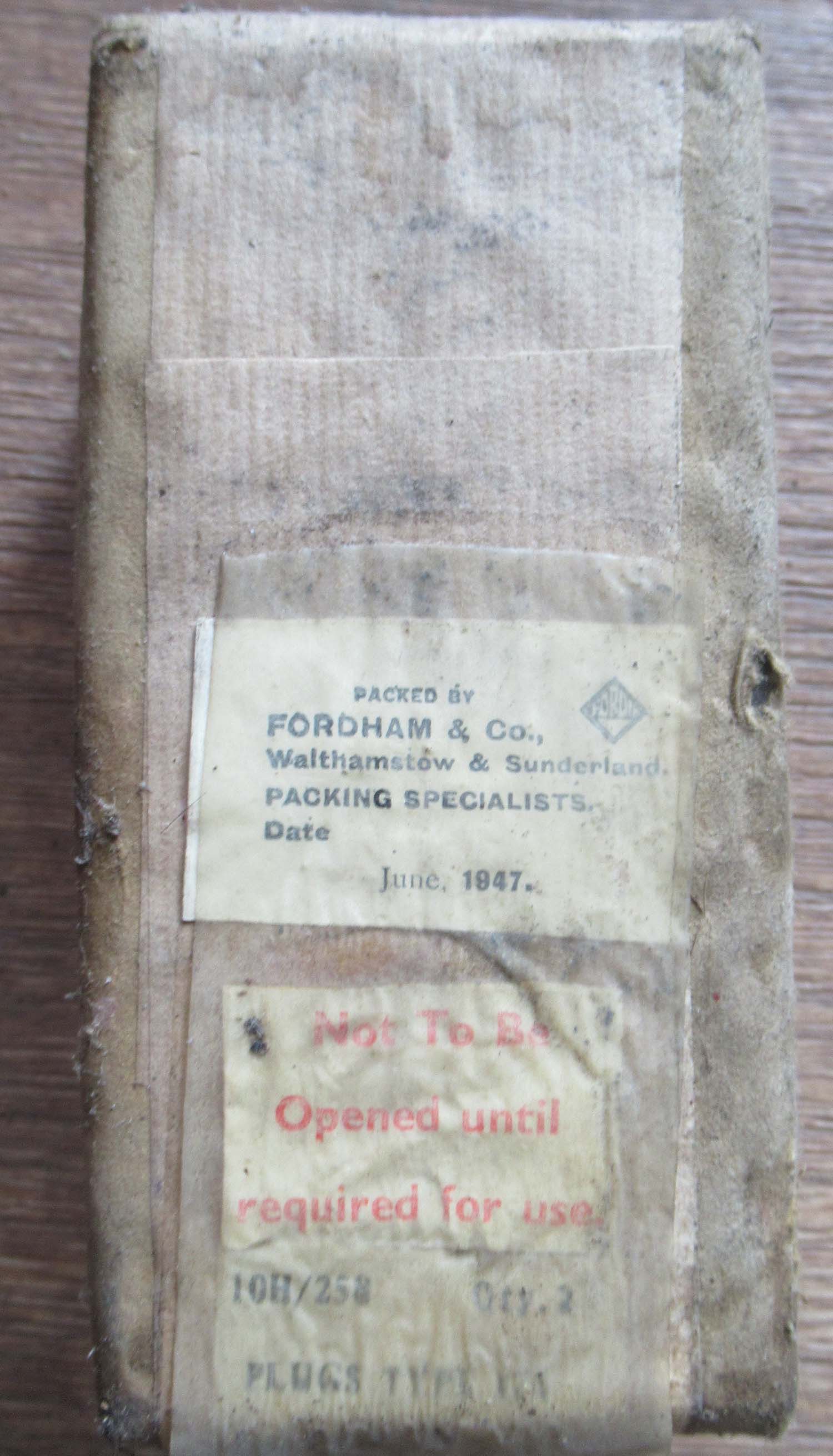

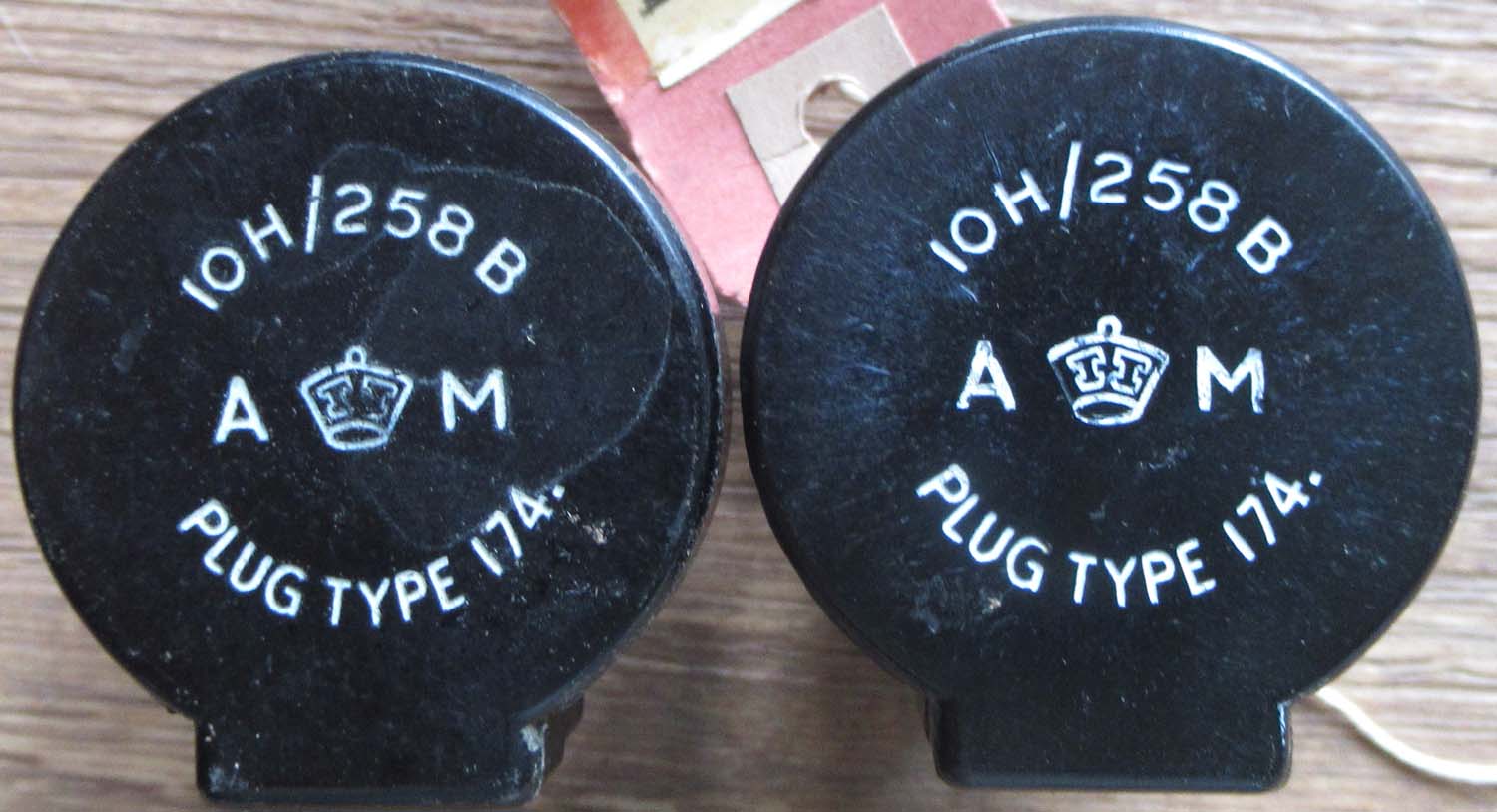

Plug Type 174 (No 50 pg 3 Elec Conn)

Plugs in original box. Dated 1947. By Fordham & Co.

Sold in packs of 2. New old stock

Multiples available.

10H/258B

Click on the pictures to enlarge

 45 per set of two

Click on the pictures to enlarge

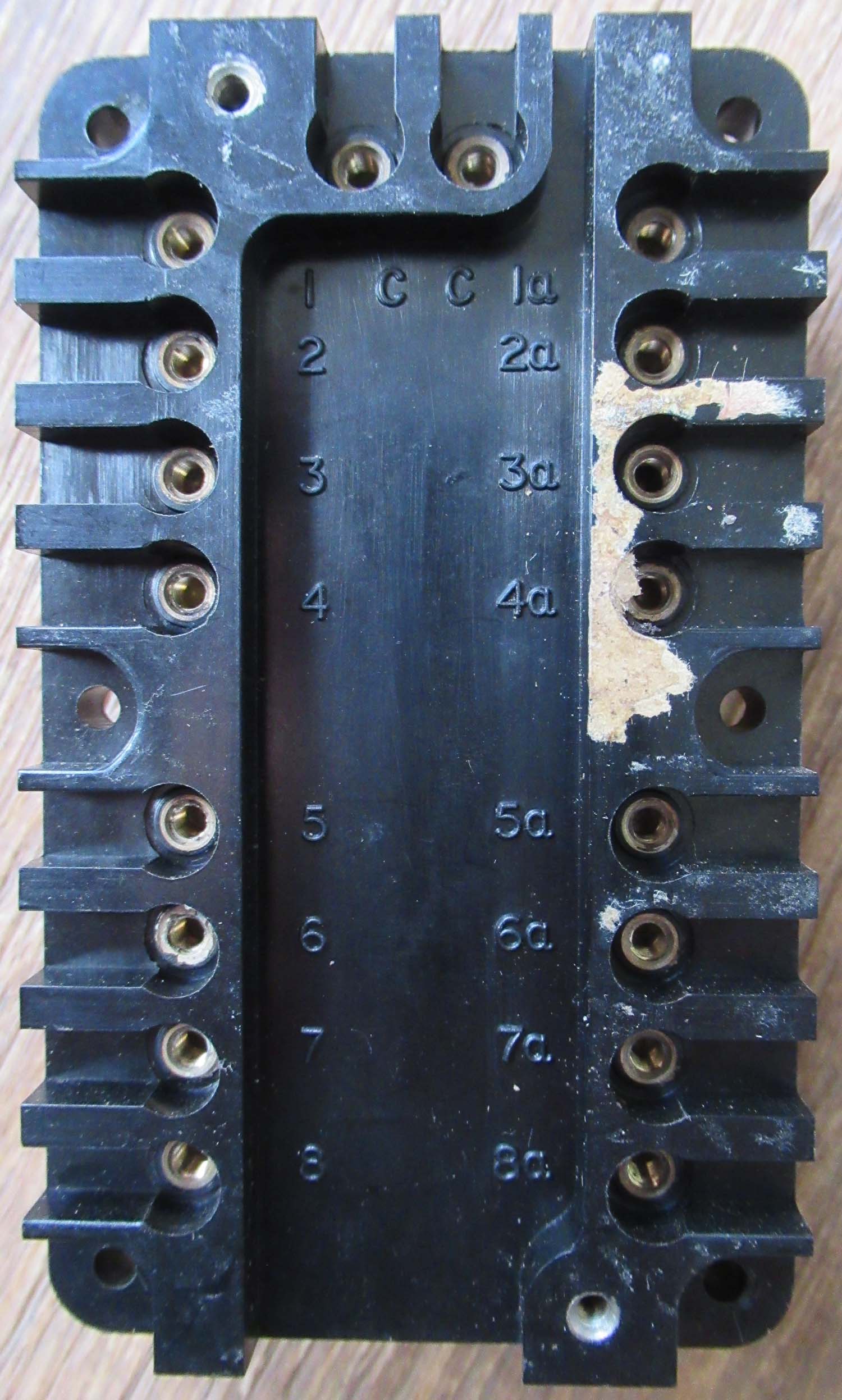

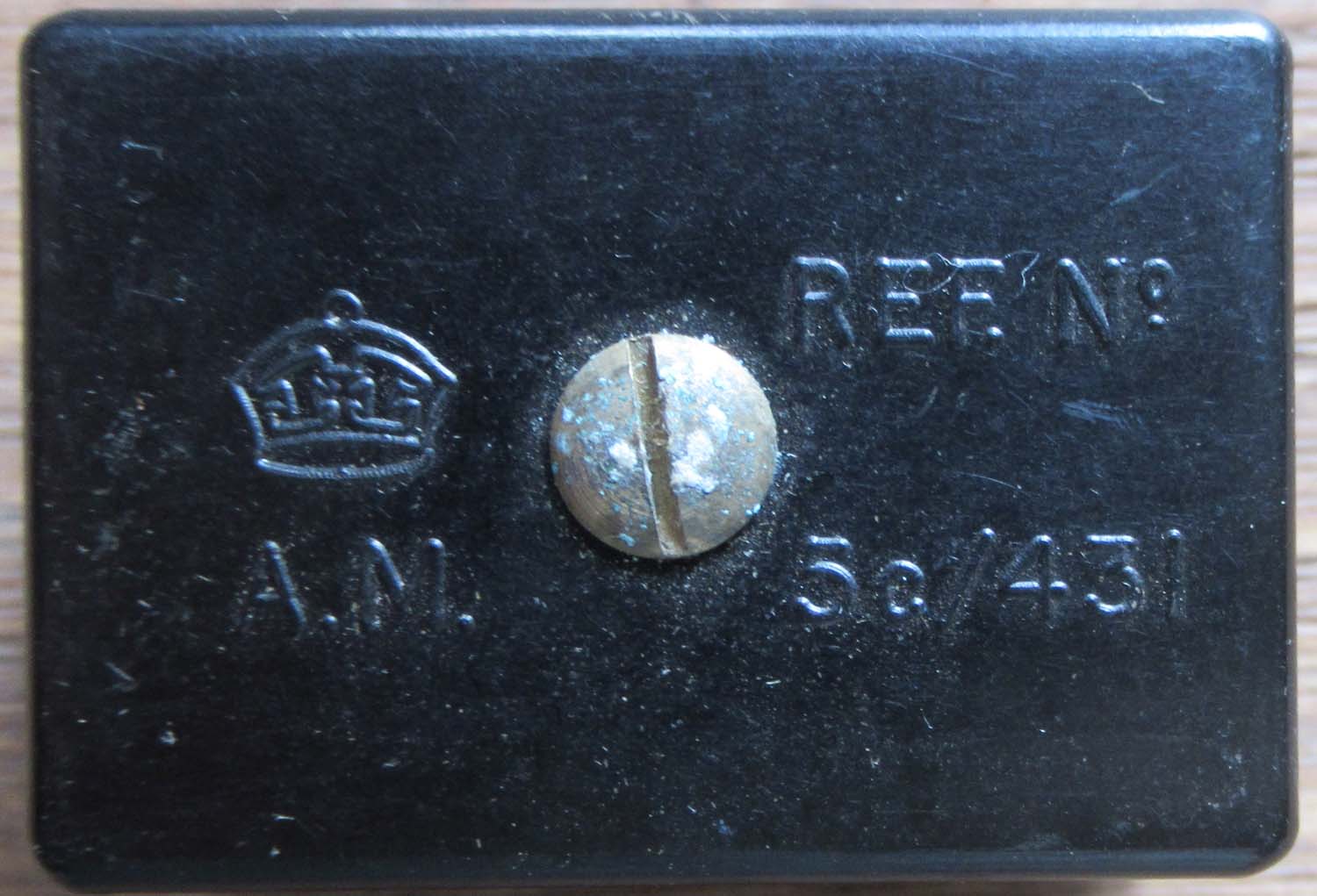

Connector block 5C/431  (No 49 pg 3 Elec Conn)

5C/431



 25



Click on the pictures to enlarge





Radio plug  (No 48 pg 3 Elec Conn)

No A/M numbers but 100% aircraft I think most likely they are radio connectors.

Click on the pictures to enlarge

 25

multiples available

Click on the pictures to enlarge

Plug and Socket 5X (No 47 pg 3 Elec Conn)

Plug AM Ref:5X 766

Socket AM Ref 5X 732

Click on the pictures to enlarge

 25

Per set multiples available

Click on the pictures to enlarge

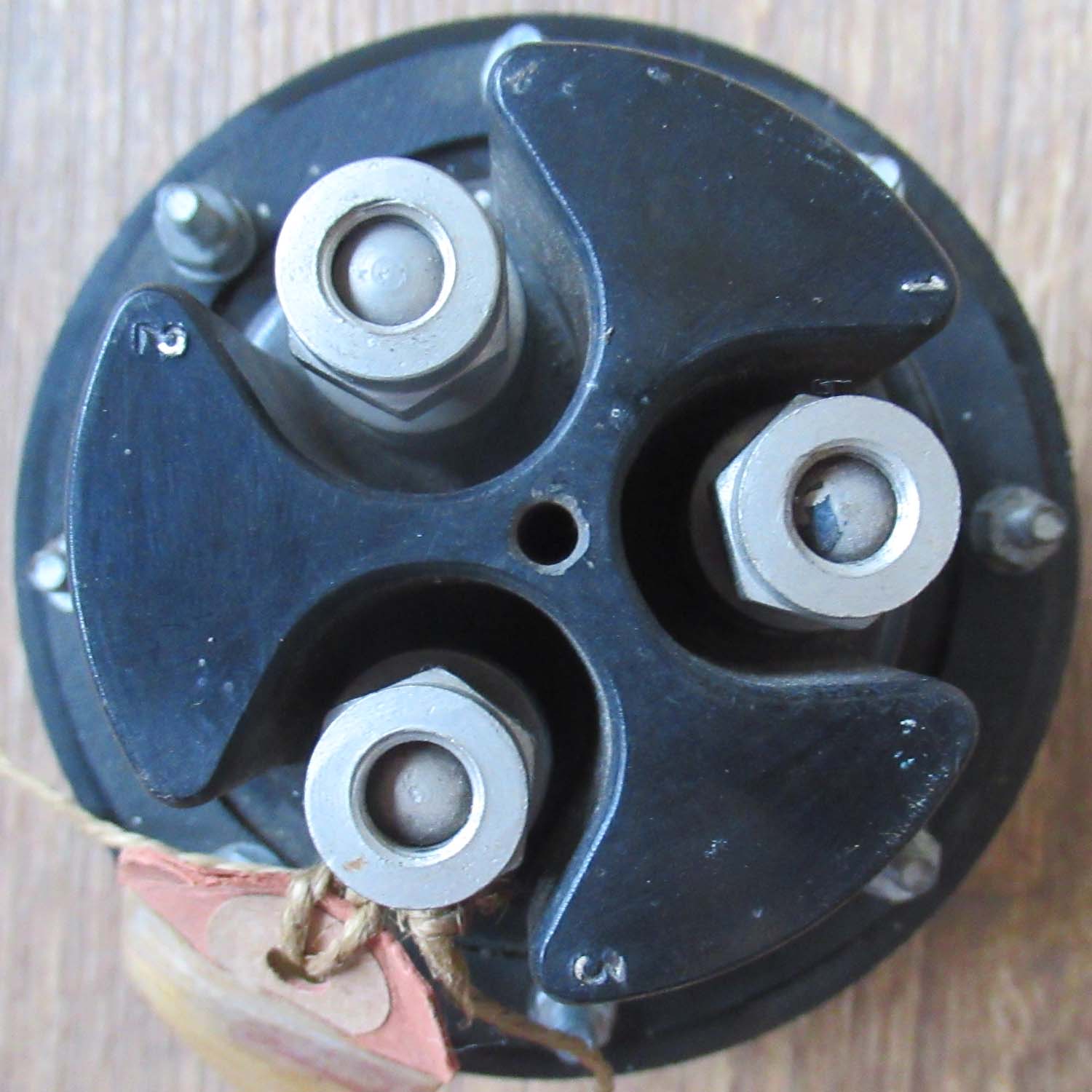

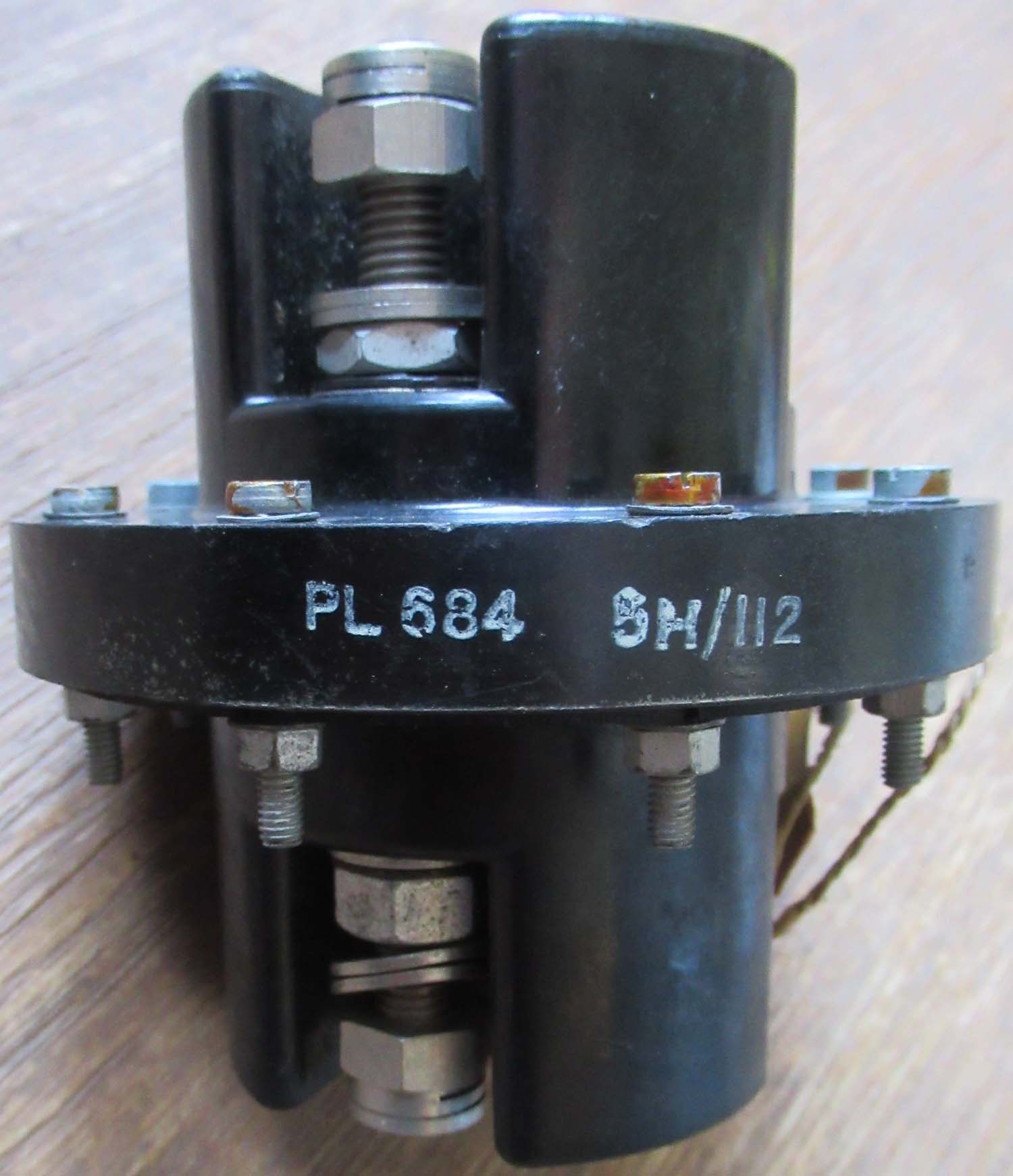

Heavy Duty Block Connector (No 46 pg 3 Elec Conn)

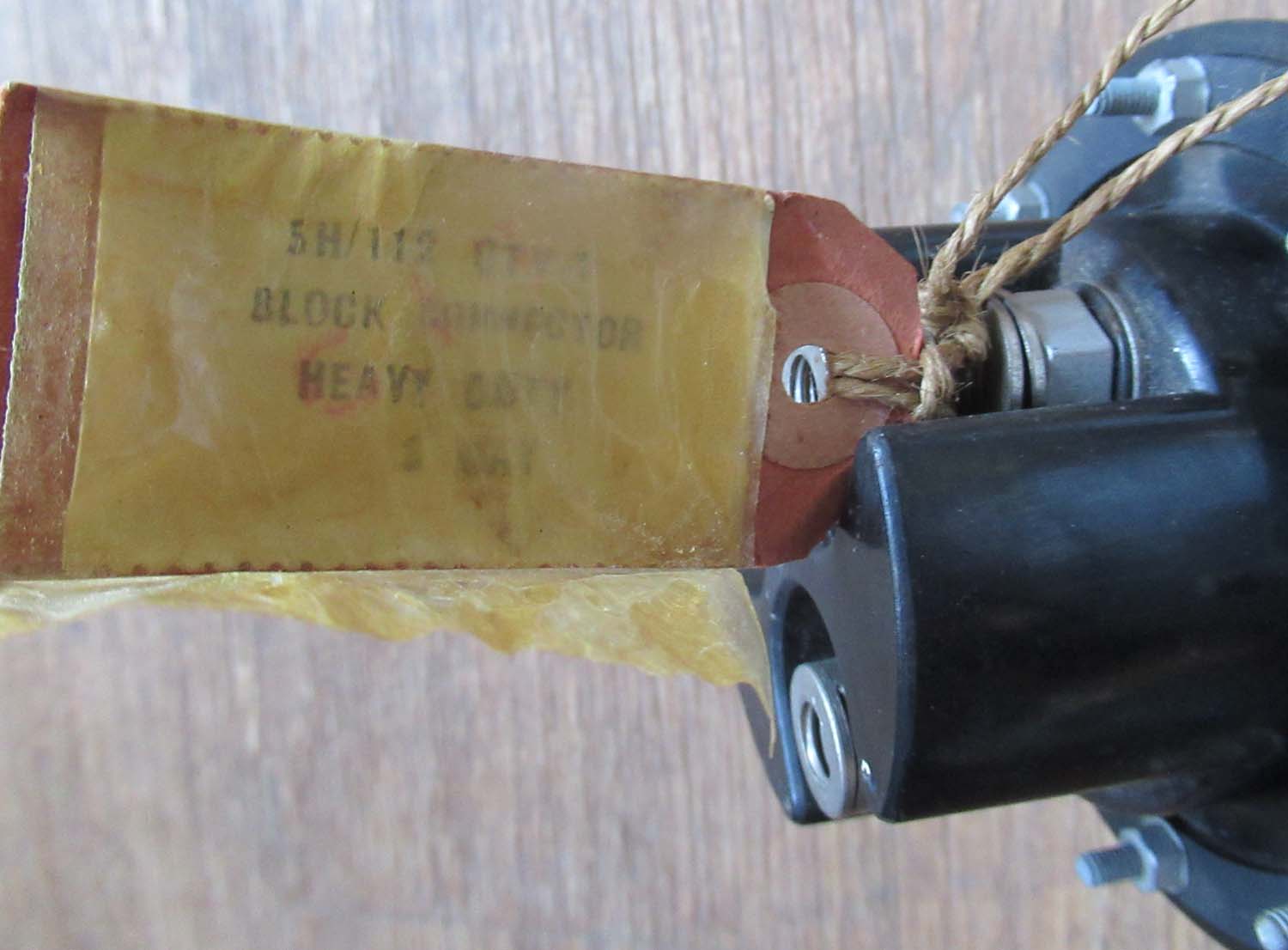

AM Ref: 5H/112

Click on the pictures to enlarge

75

Click on the pictures to enlarge

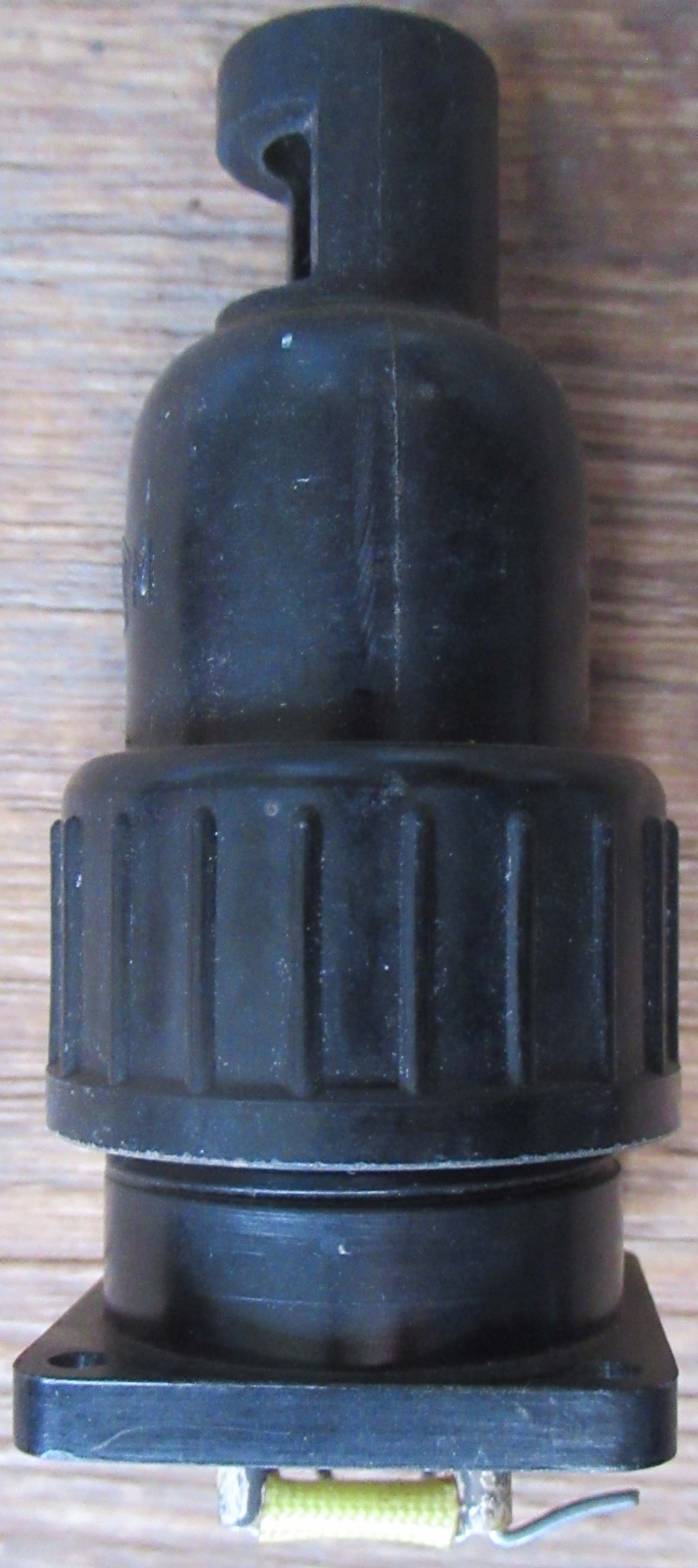

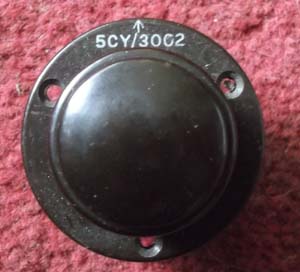

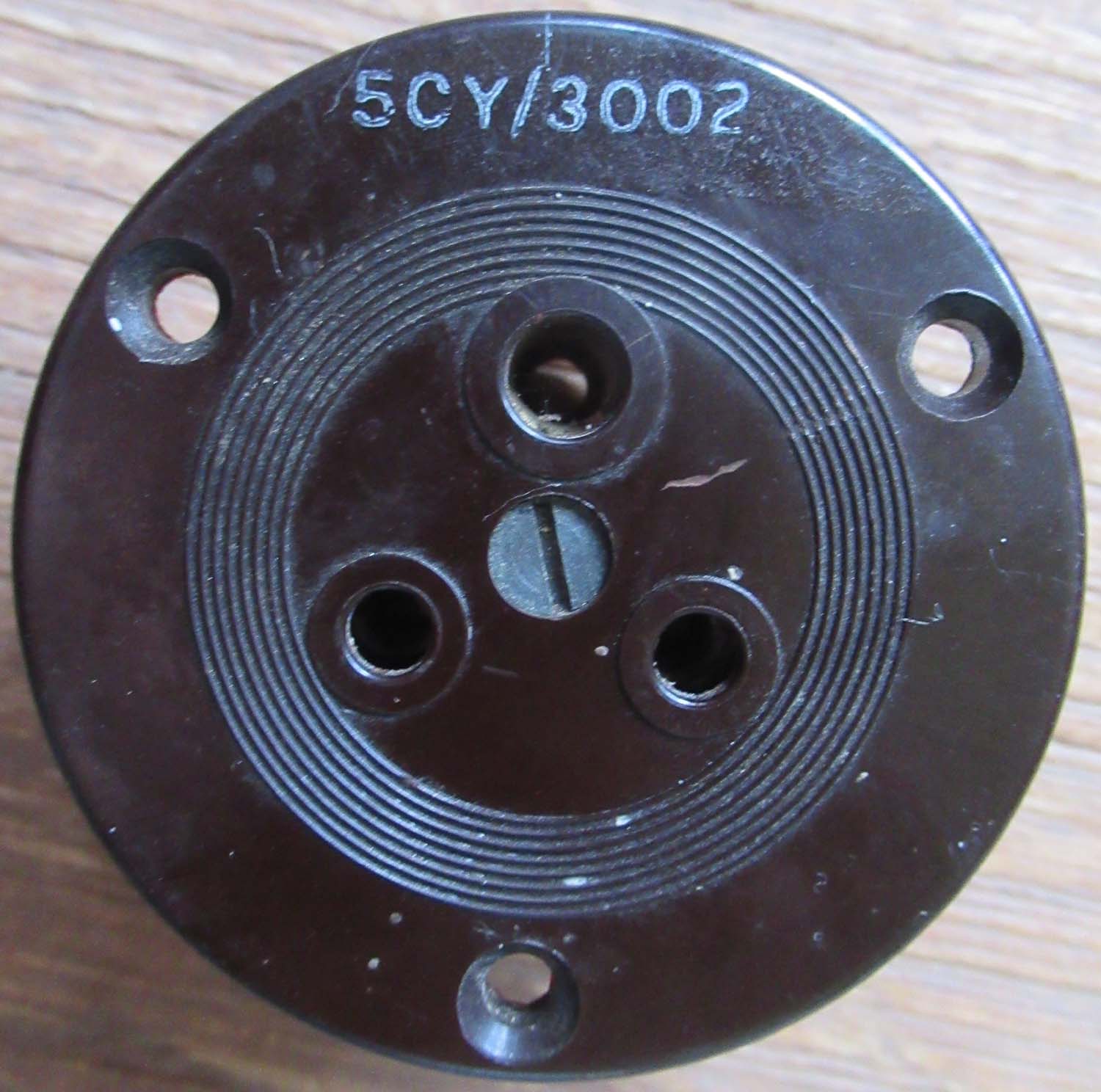

3 Pin Socket (No 45 pg 3 Elec Conn)

AM Ref: 5CY/3002

45 each

Click on the pictures to enlarge

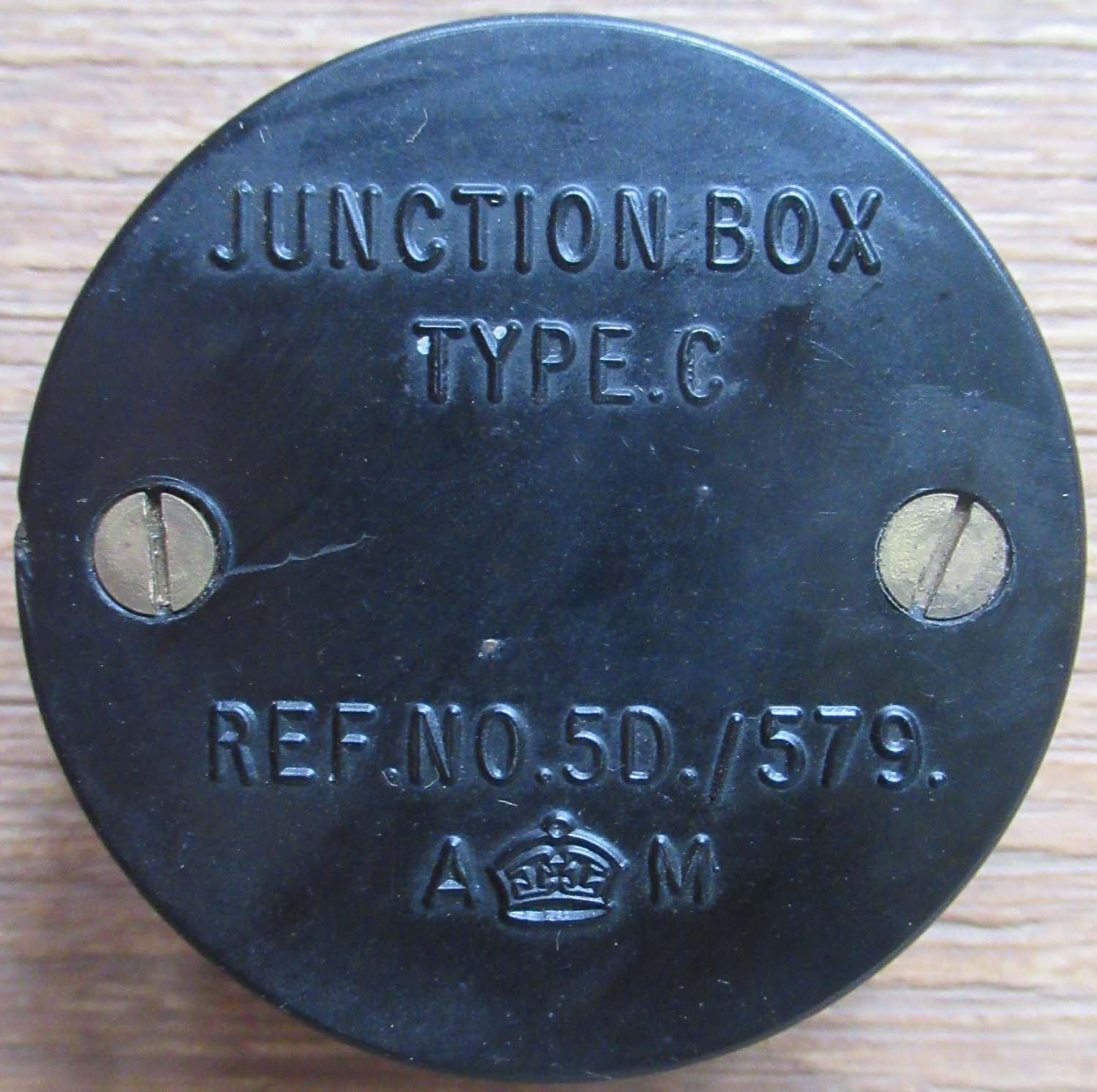

Junction box type C (No 44 pg 3 Elec Conn)

AM Ref: 5C/579

20 each



Click on the pictures to enlarge them.

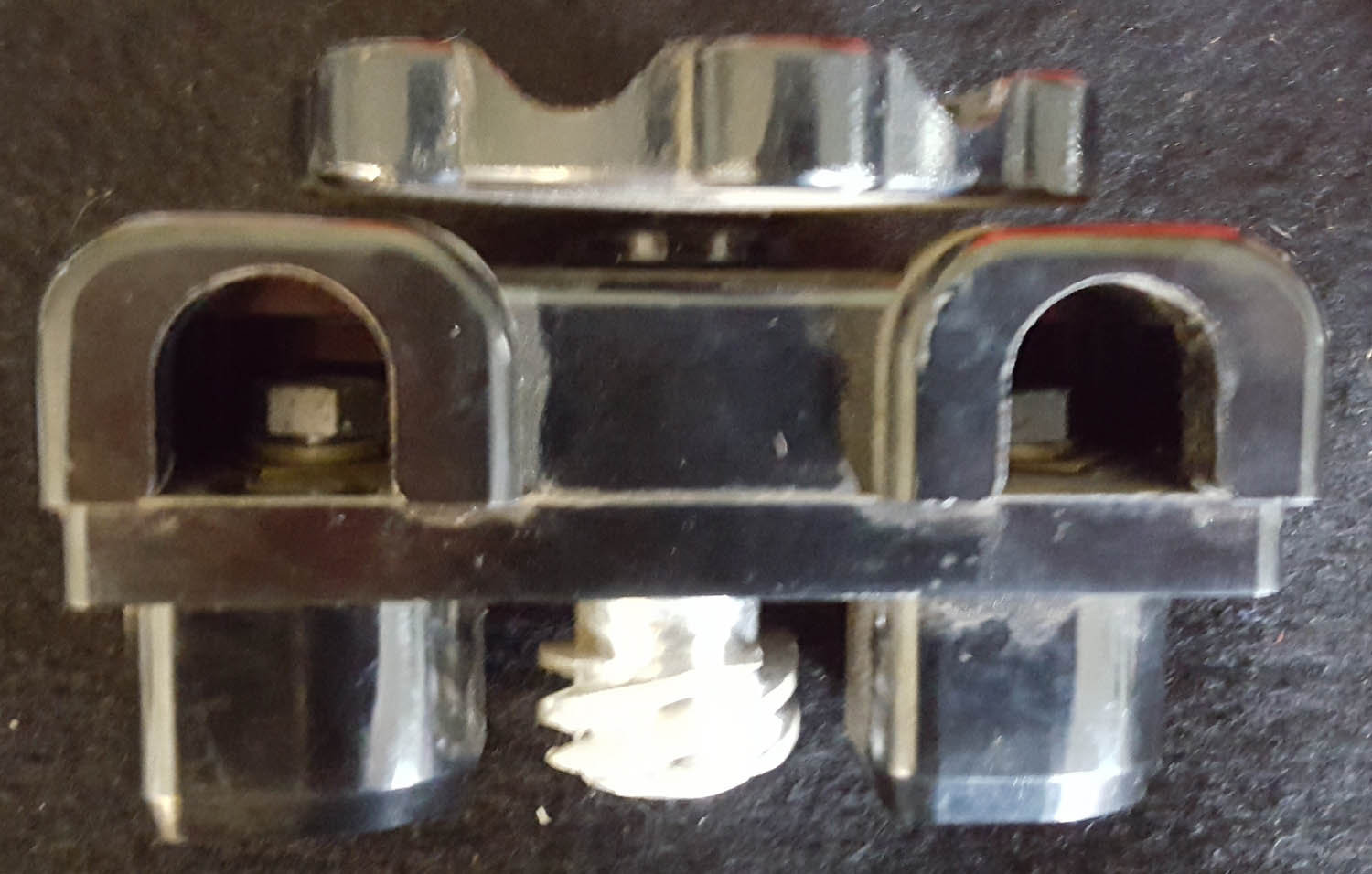

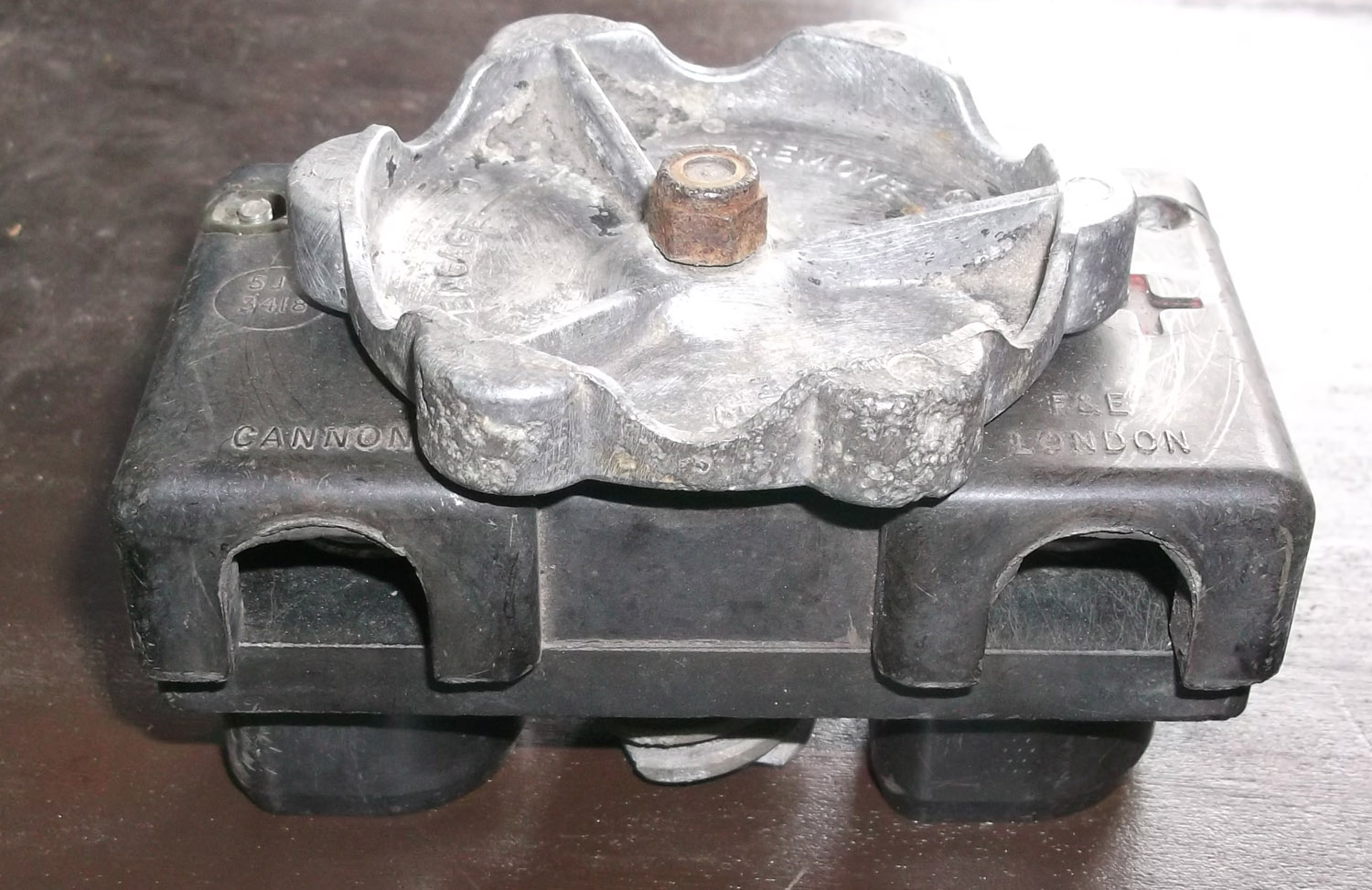

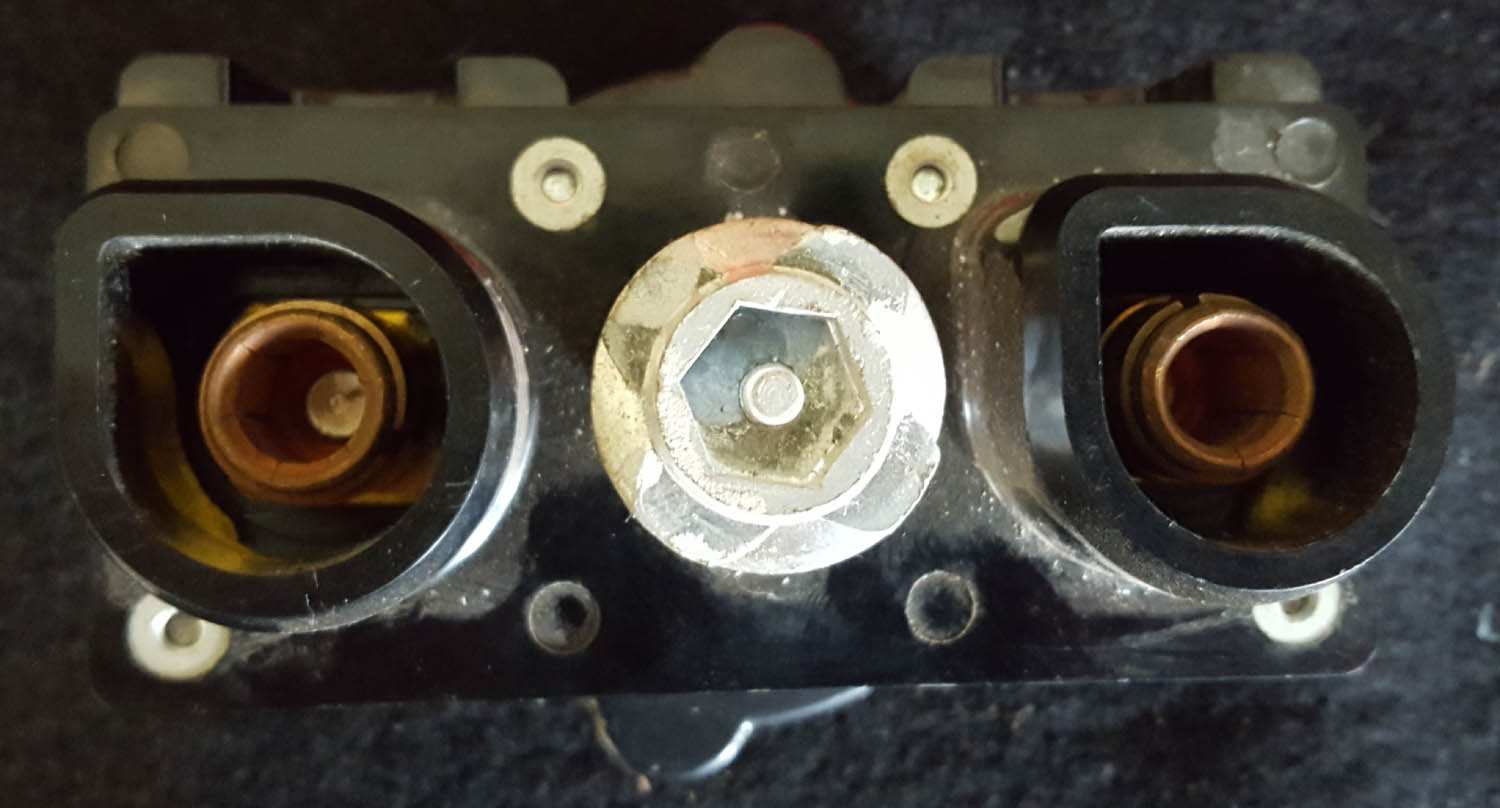

Heavy duty aircraft battery connector (No 43 pg 3 Elec Conn)

This is an old new stock. Heavy duty battery connector in good condition.

Cannon 11751-1

85

Click on the pictures to enlarge

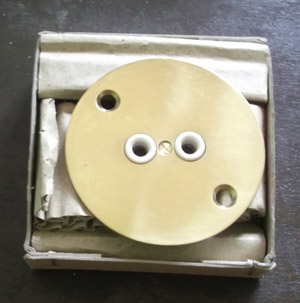

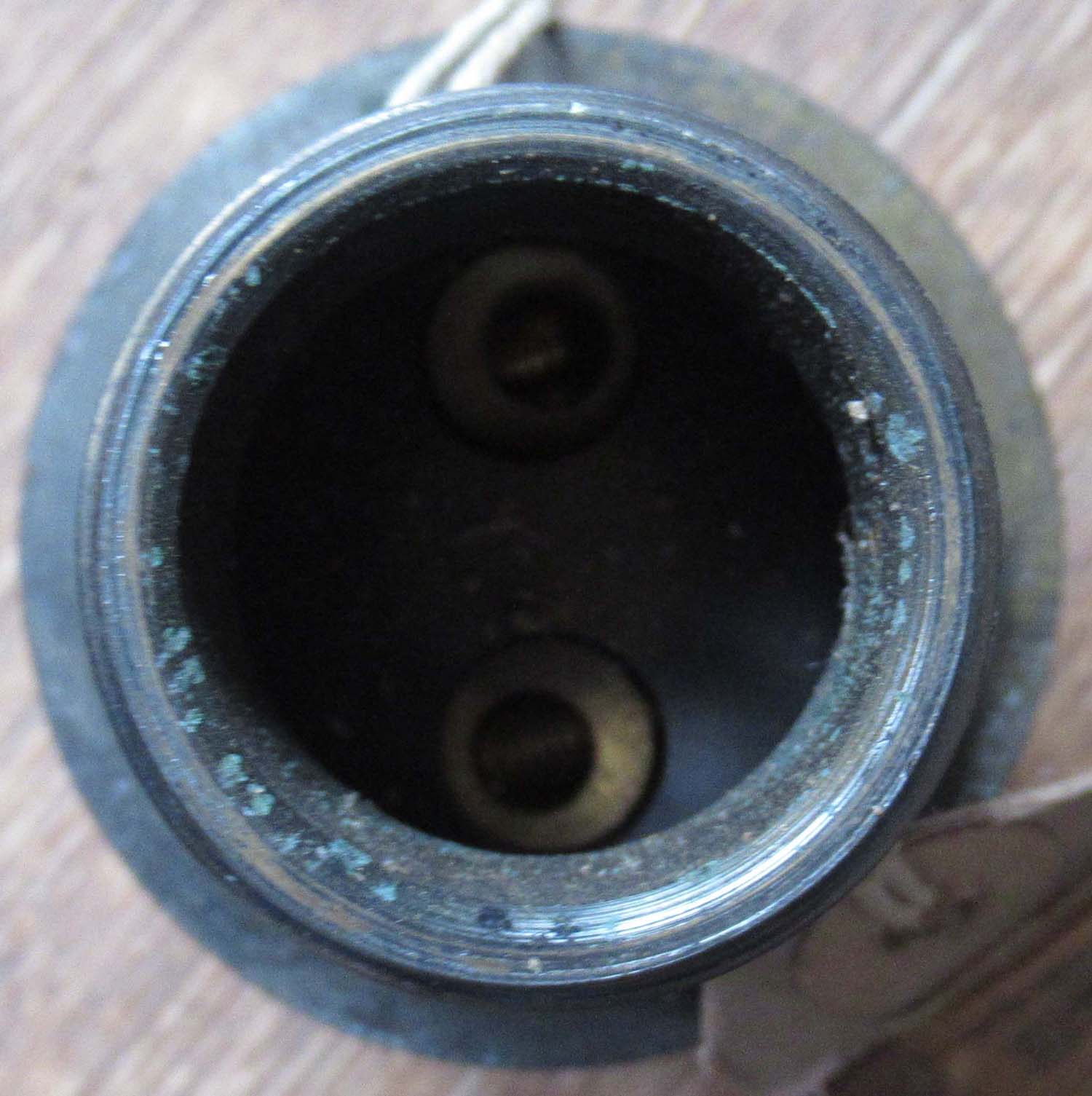

Brass Two Pin Socket (No 37 pg 3 Elec Conn)

Ref: 10H/20396

Dated 1940

Comes in Original Box

75

Click on the pictures to enlarge

Battery Terminal Connector (No 36 pg 3 Elec Conn)

Ref: 5J/3481

F & E London

75 each

Click on the pictures to enlarge

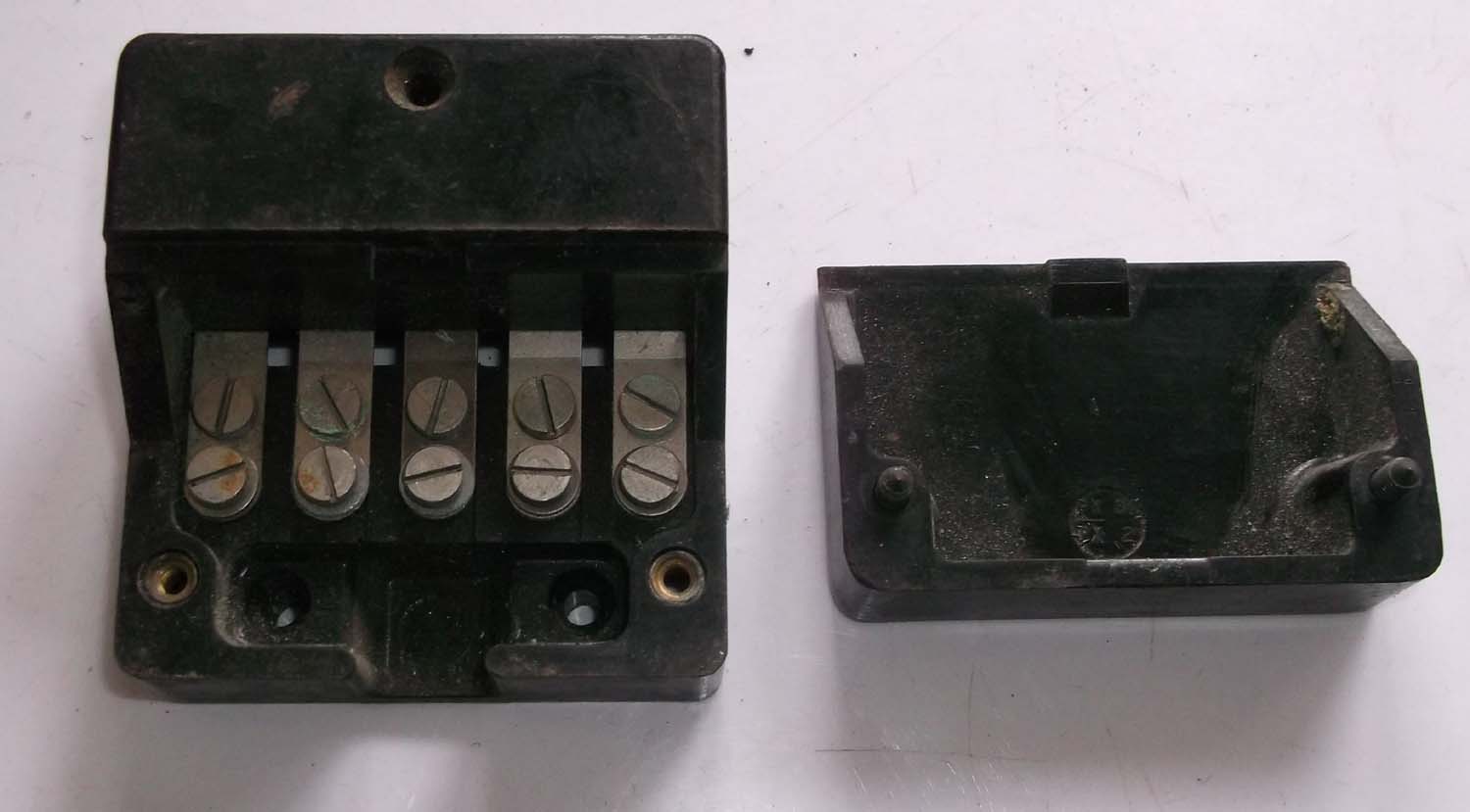

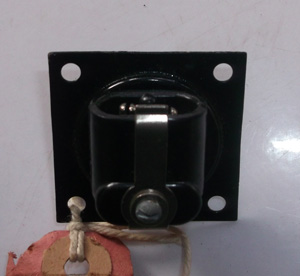

Radio Connector Box (No 35 pg 3 Elec Conn)

Ref: 10H/4439

25 each

Click on the pictures to enlarge

 2 Pin Plug and Socket 5C/598 5C/599 (No 34 pg 3 Elec Conn)

Can be used as a substitute to connect the MK II reflector Gunsight to the Spitfire/Hurricane main instrument panel as a cheaper alternative to the rarer 3 pin plugs.

Plug Ref: 5C/598

Socket Ref: 5C/599

85 per set



Click on the pictures to enlarge

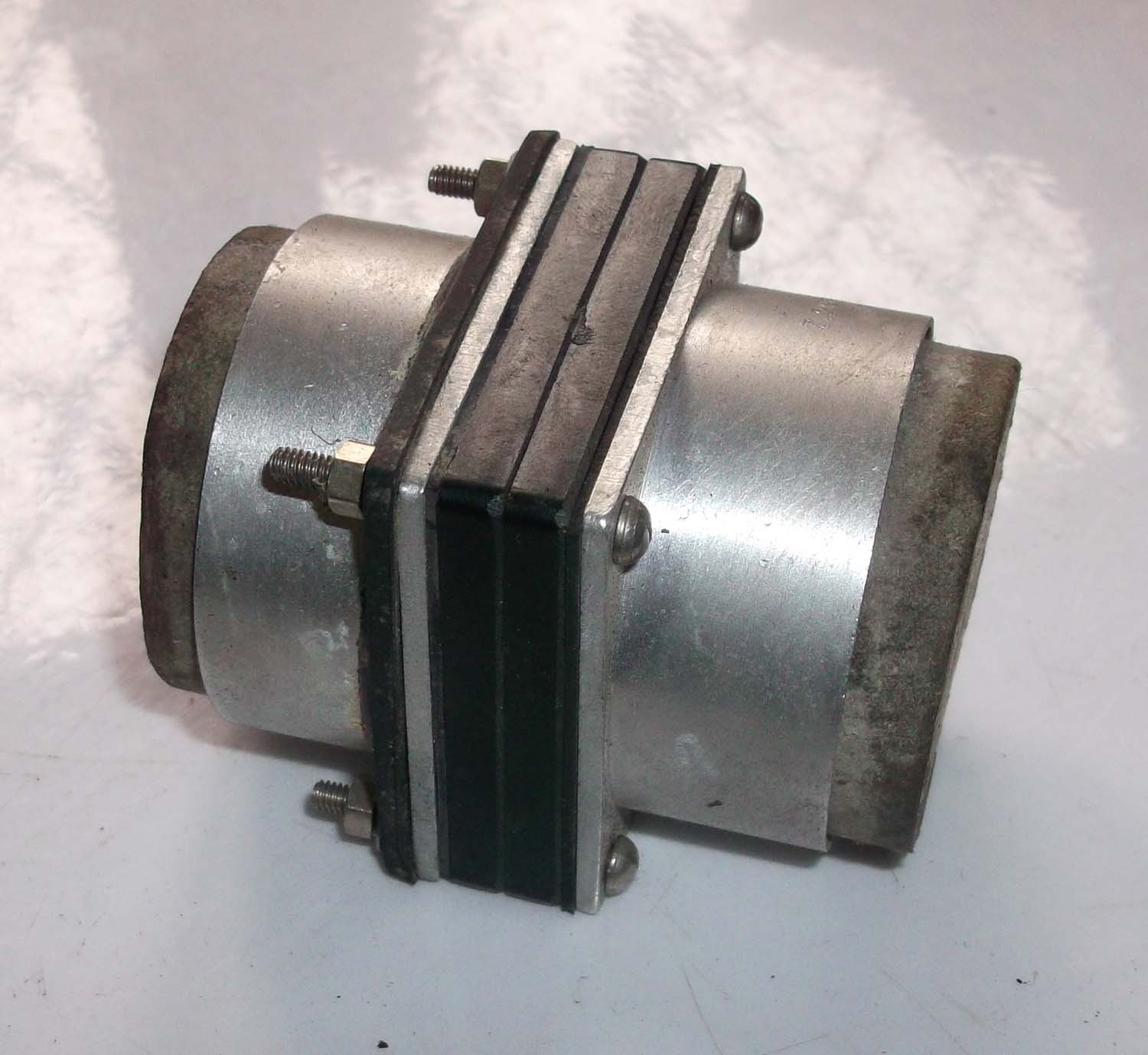

Breeze Bulkhead Plug (No 32 pg 3 Elec Conn)

Ref: 5X/6341

25

Click on the pictures to enlarge

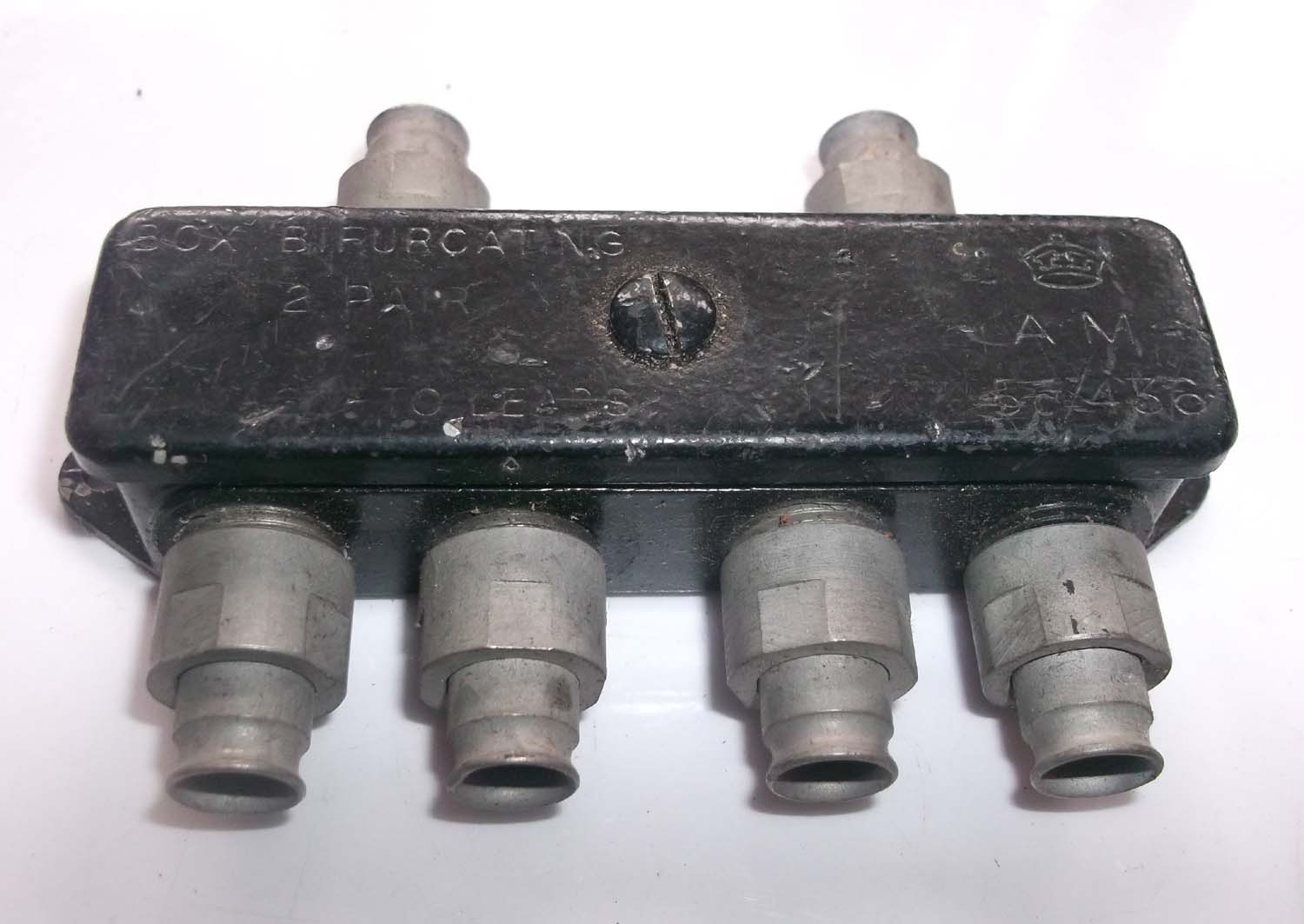

Magneto Junction Box (No 30 pg 3 Elec Conn)

AM Ref: 5C/436

25

Click on the pictures to enlarge

Junction Box  (No 29 pg 3 Elec Conn)

AM Ref: 5X/1932

Type 8

25


Junction Box (No 28 pg 3 Elec Conn)

AM Ref: 5C/714

20 each

Click on the pictures to enlarge

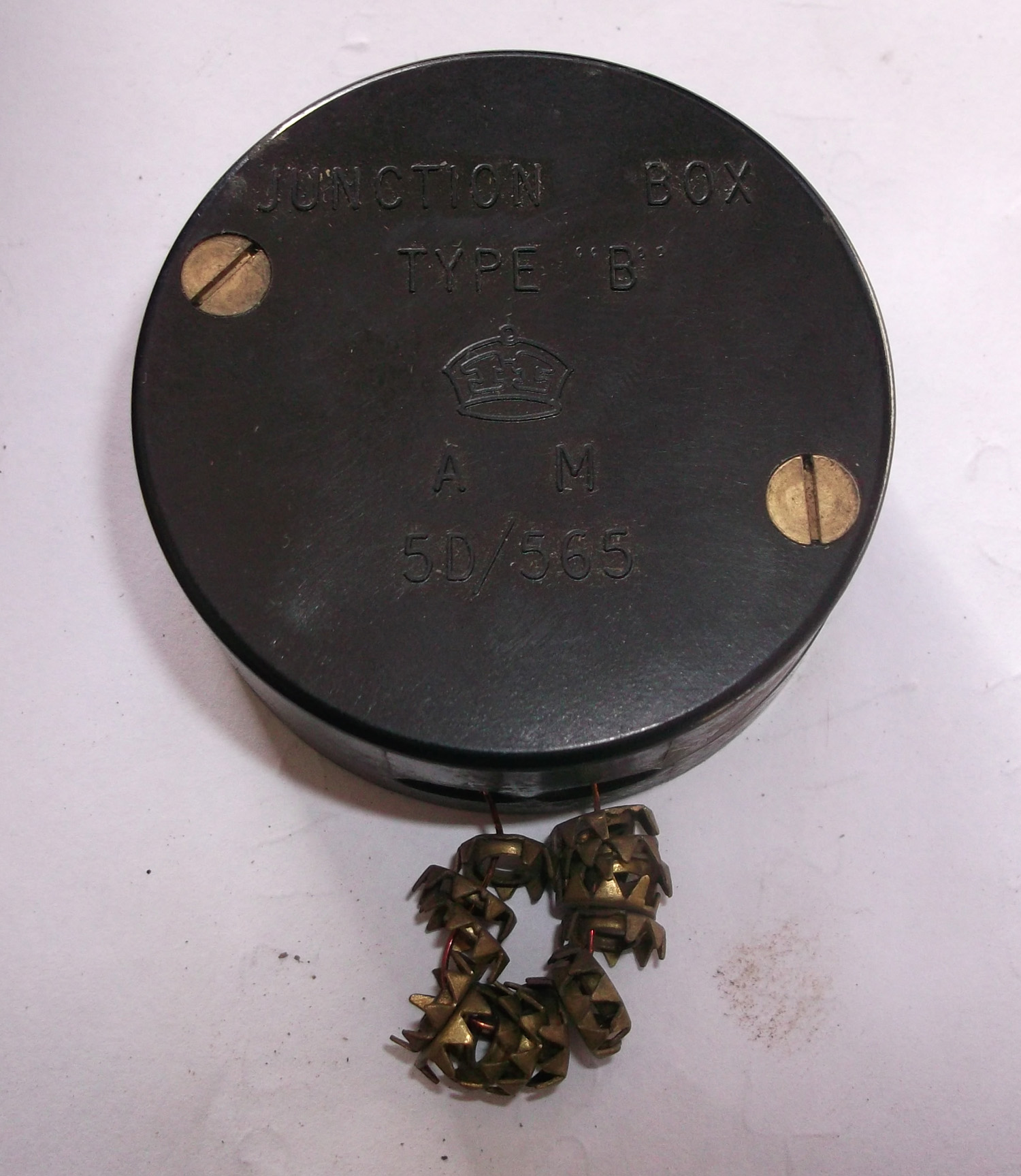

Round Armament Junction Box (No 27 pg 3 Elec Conn)

AM Ref: 5D/565

20 each

Click on the pictures to enlarge

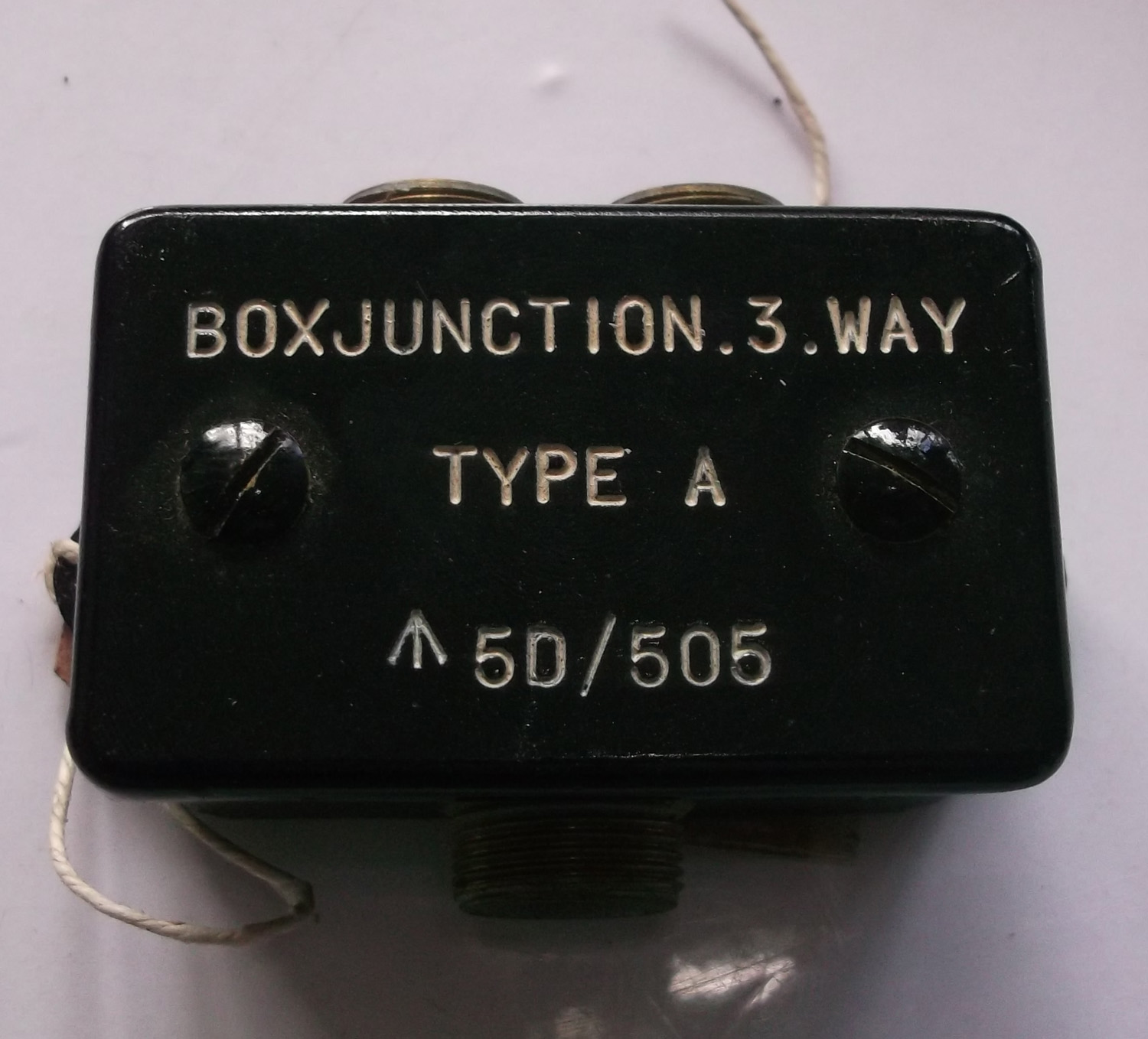

Armament Junction box (No 26 pg 3 Elec Conn)

Ref: 5D/505

3 Way

Type A

20 each

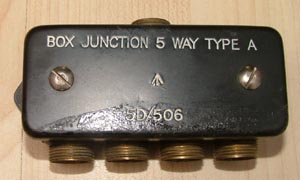

Armament Junction box (No 25 pg 3 Elec Conn)

Ref: 5D/506

5 Way

Type A

20 each



Click on the pictures to enlarge

20 each

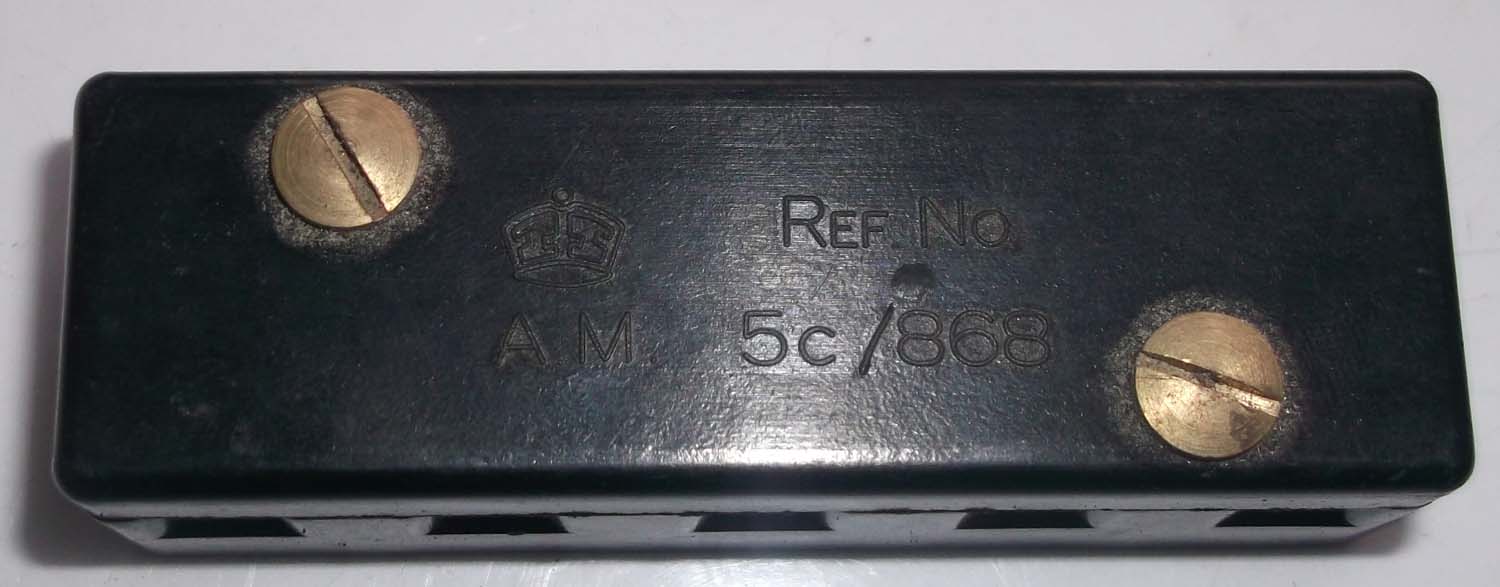

Junction Box (No 24 pg 3 Elec Conn)

AM Ref: 5C/868

Early mint condition

 Supplied in their original grease proof paper.

Bakelite connector box,

 Box Junction Compass Type B (No 23 pg 3 Elec Conn)

 AM Ref: 5C/1034

As new with Air ministry Kings crown.

 35 each



Click on picture to enlarge

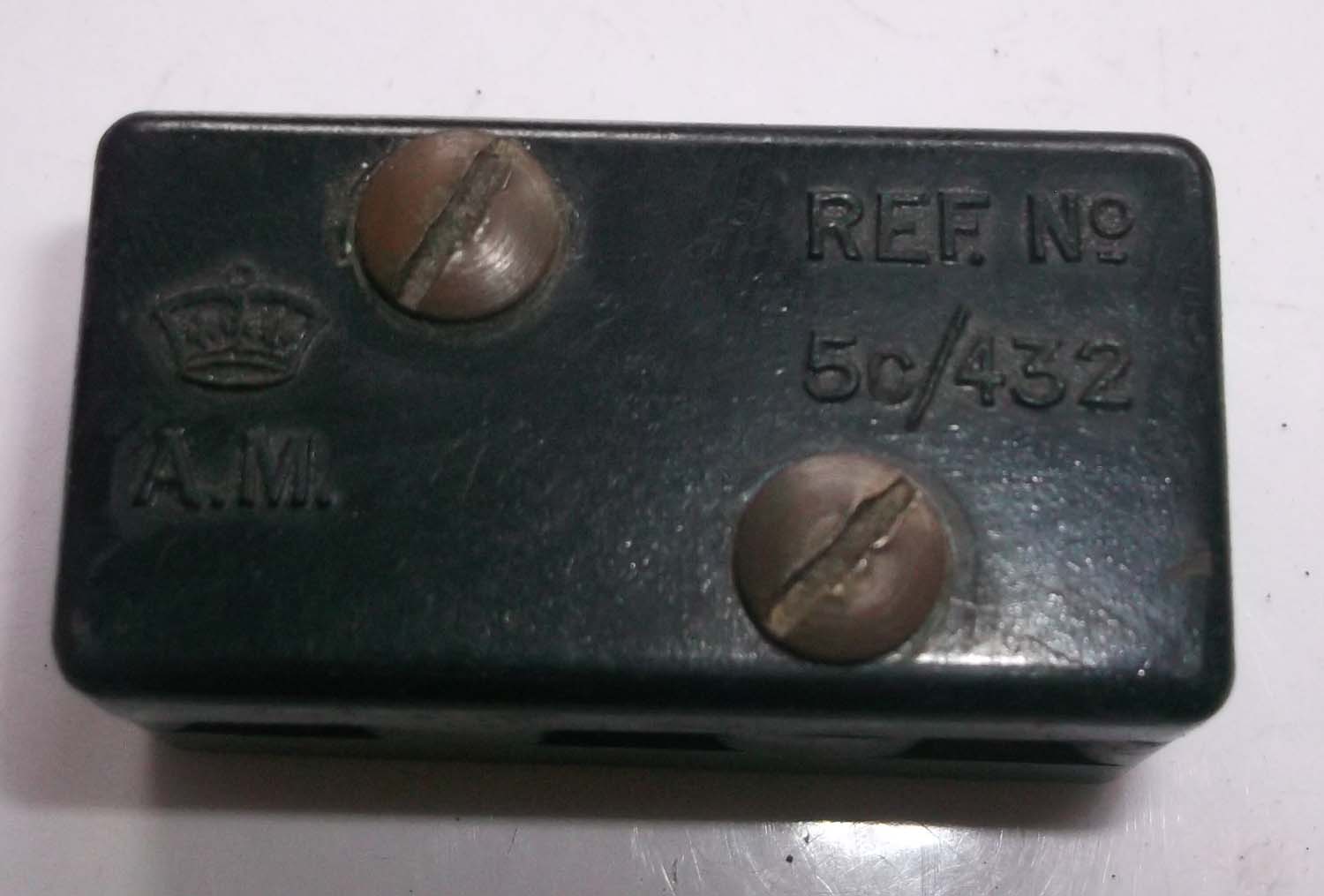

Junction box (No 22 pg 3 Elec Conn)

A tiny little junction box with an Air ministry crown.

AM Ref: 5C/432

20 each

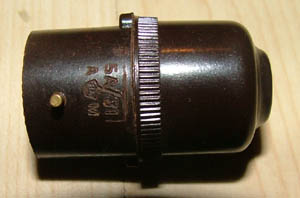

Connector (No 20 pg 3 Elec Conn)

A small electrical connector with a bayonet fitting.

AM Ref: 5A/31

20 each

Click on the pictures to enlarge

Socket 2 Pin (No 17 pg 3 Elec Conn)

AM Ref: 5C/489

20 each

 Click on the pictures to enlarge

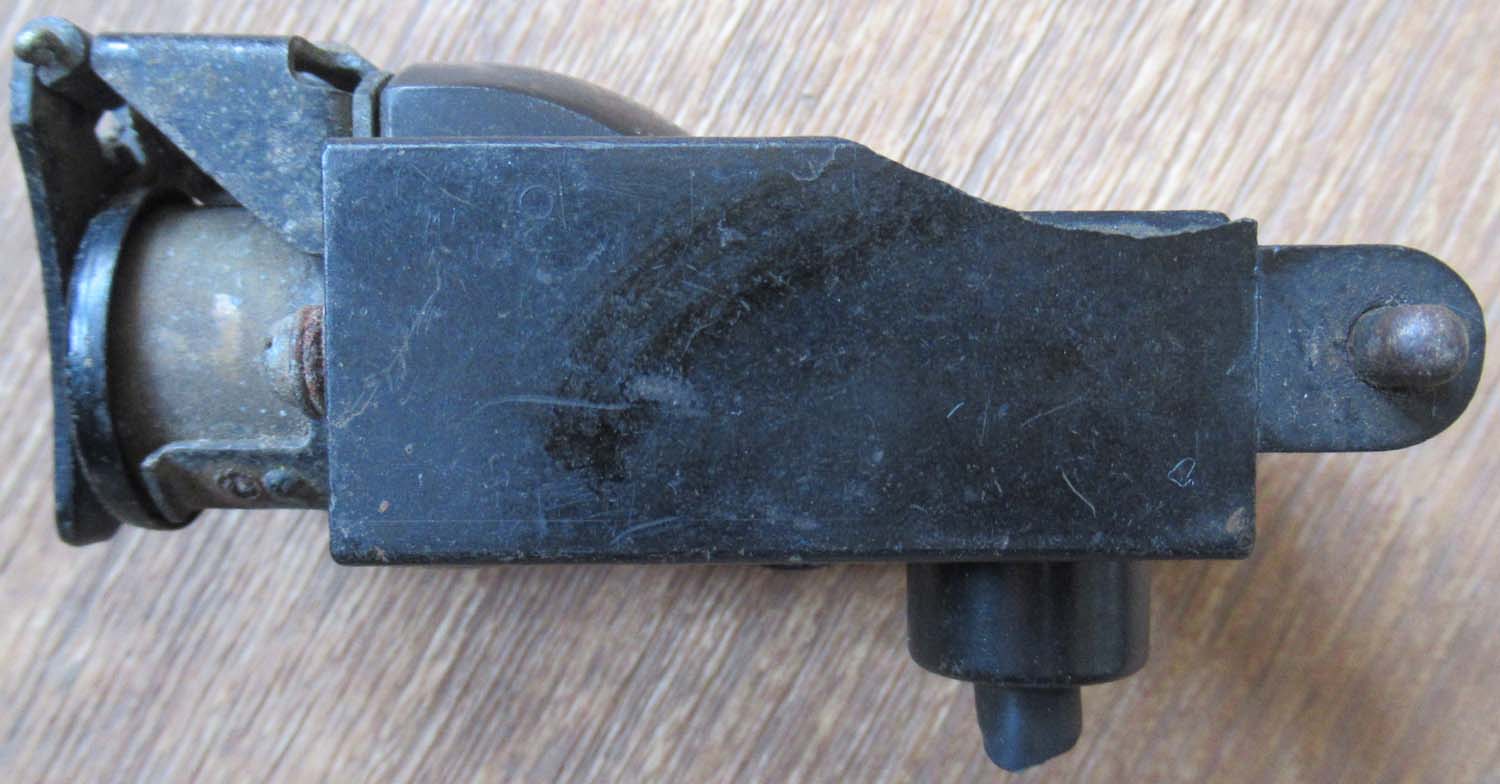

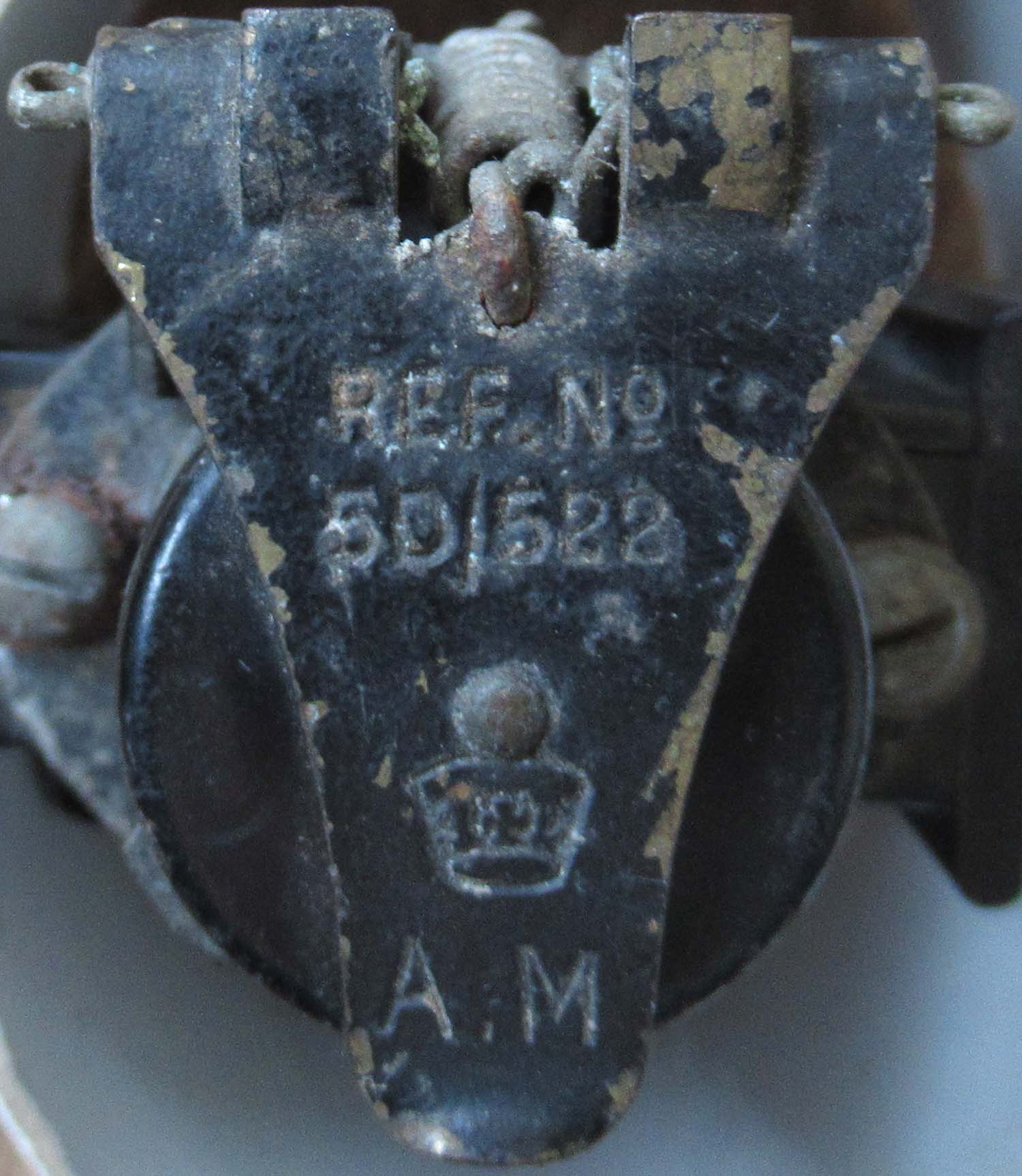

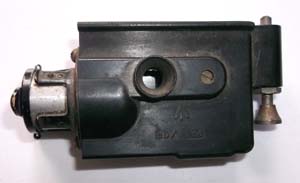

Armaments Adaptor Box (No 15 pg 3 Elec Conn)

These are used to Hook Armaments Up to the Aircraft Electrical System Such as the Bomb Rack or Rockets

5D/522

5D/611

35 each

 Click on the pictures to enlarge

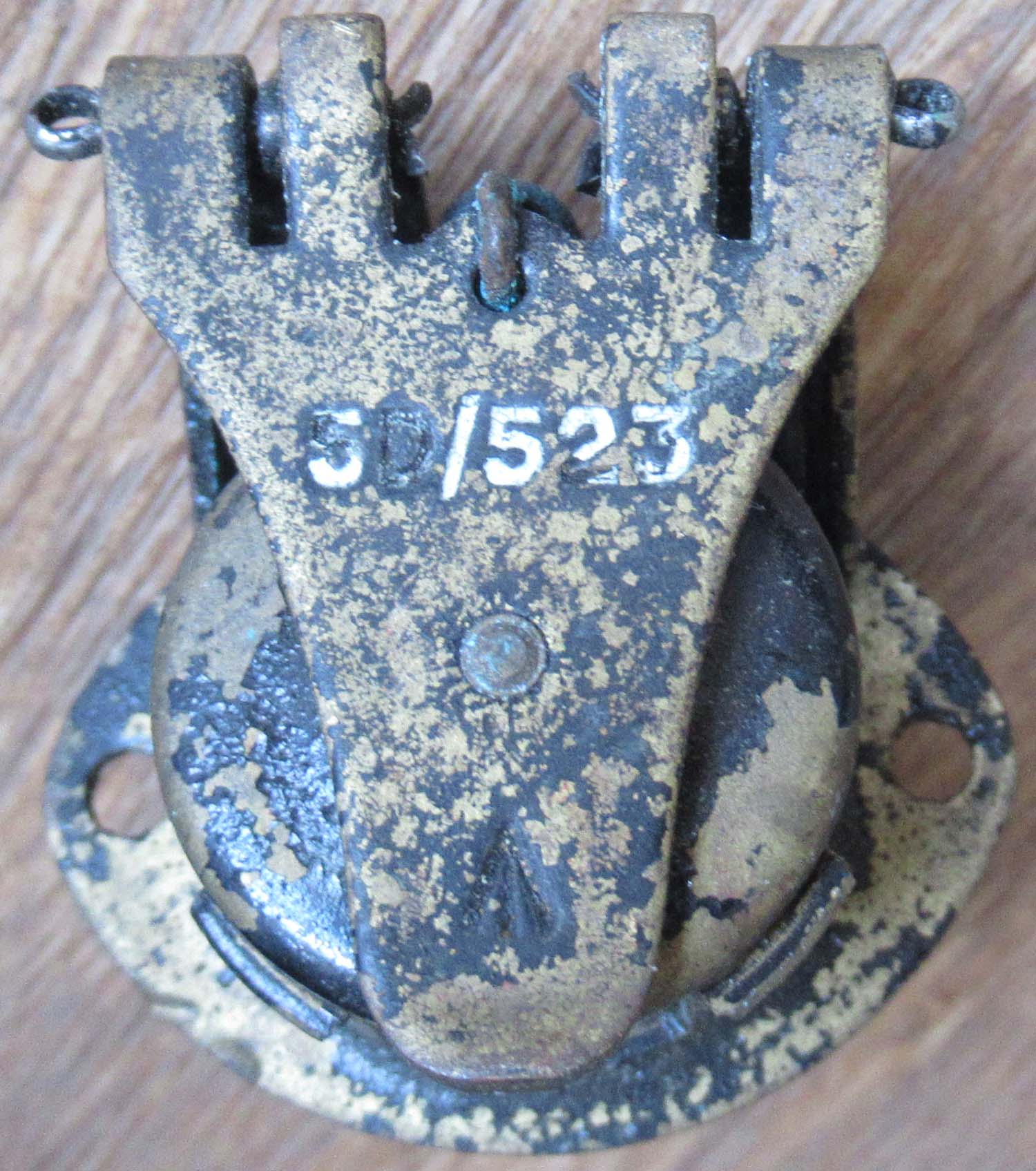

Armaments Socket (No 13 pg 3 Elec Conn)

These are used to Hook Armaments Up to the Aircraft Electrical System Such as the Bomb Rack or Rockets

 Ref: 5D/523

Click on the pictures to enlarge

20 each

Click on picture to enlarge

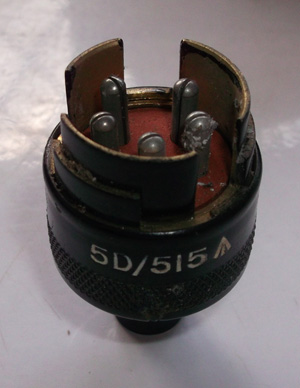

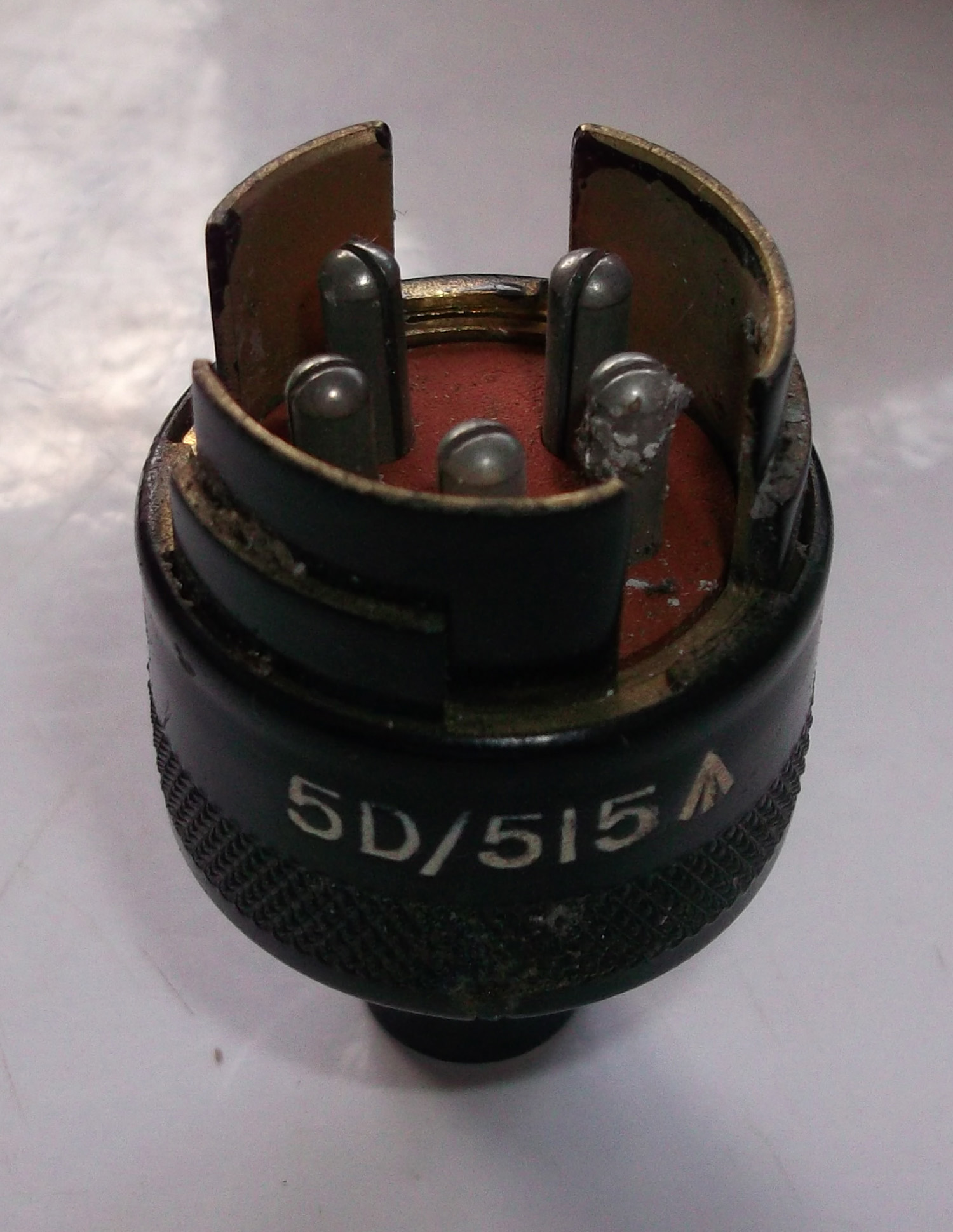

Armament Plug (No 11 pg 3 Elec Conn)

Ref: 5D/ 515

These are used to Hook Armaments Up to the Aircraft Electrical System Such as the Bomb Rack or Rockets

20 each

Click on picture to enlarge

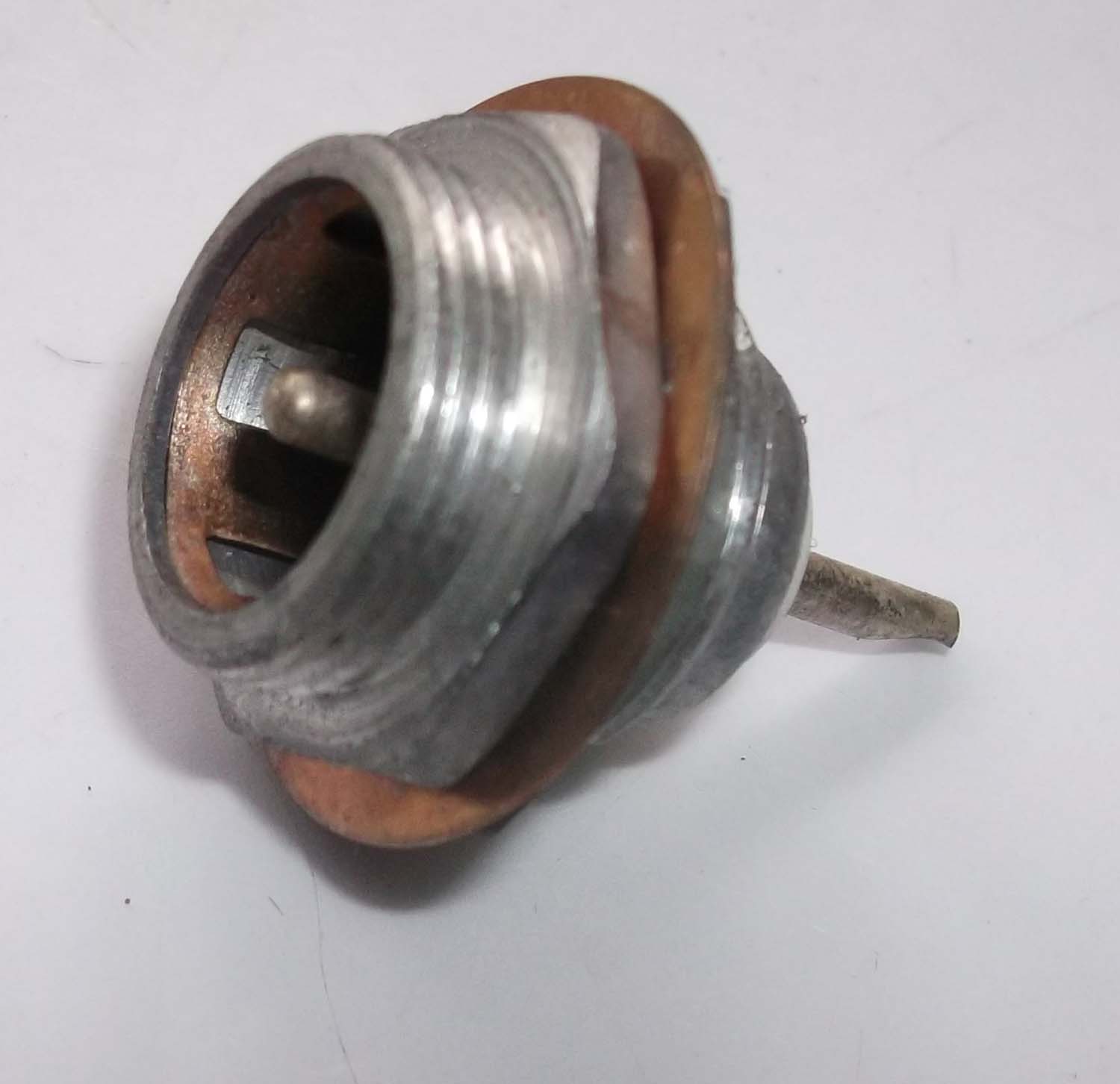

Radio Plug (No 8 pg 3 Elec Conn)

Ref: 10H/540101

Plug Type 756

20


Click on the pictures to enlarge

Radio Plug (No 7 pg 3 Elec Conn)

AM Ref: 10H/258

20 each

Click on the pictures to enlarge

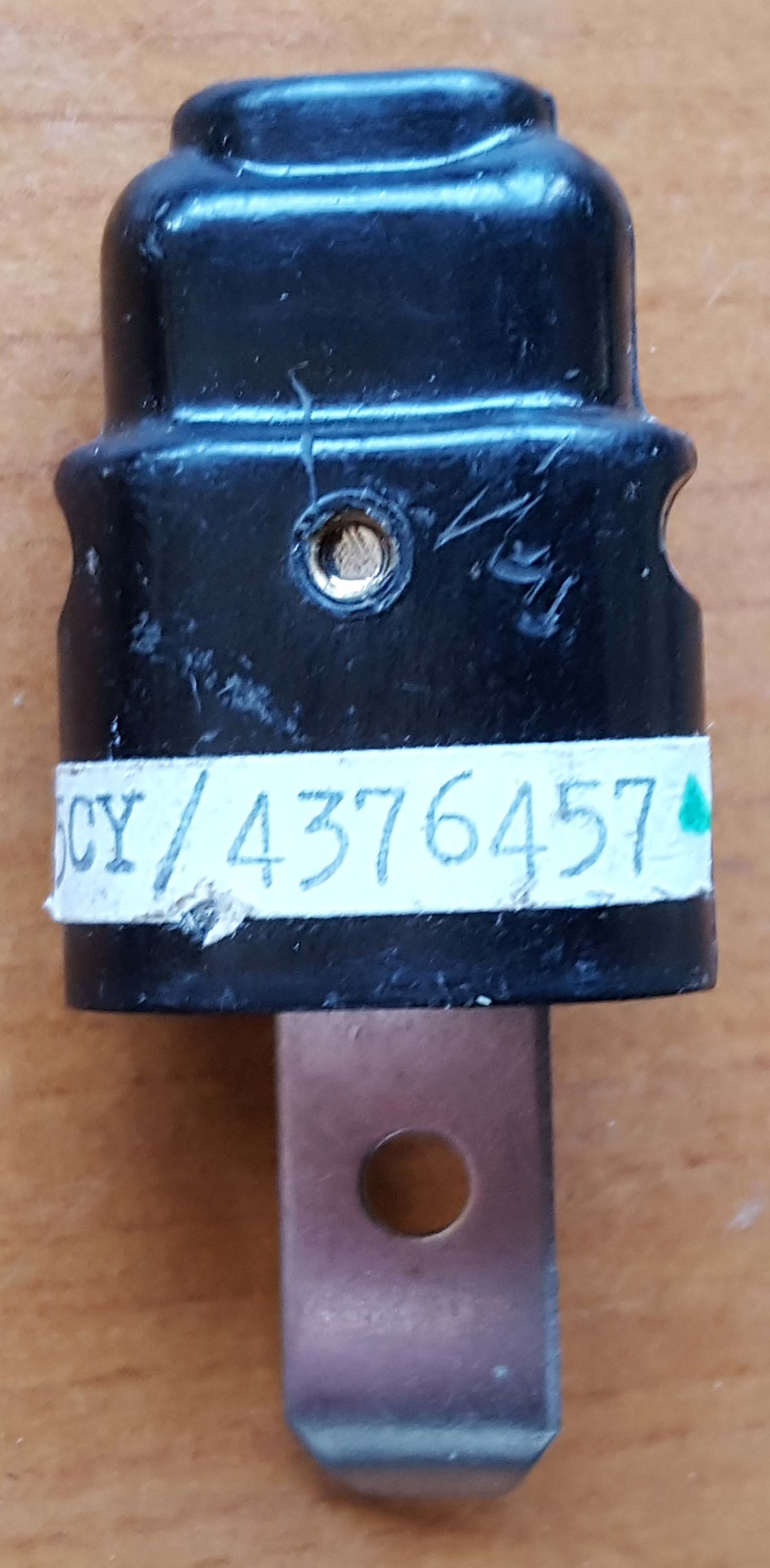

Radio Plug  5CY/4376457 (No 6A pg 3 Elec Conn)

5CY/4376457

20 each

Click on the pictures to enlarge

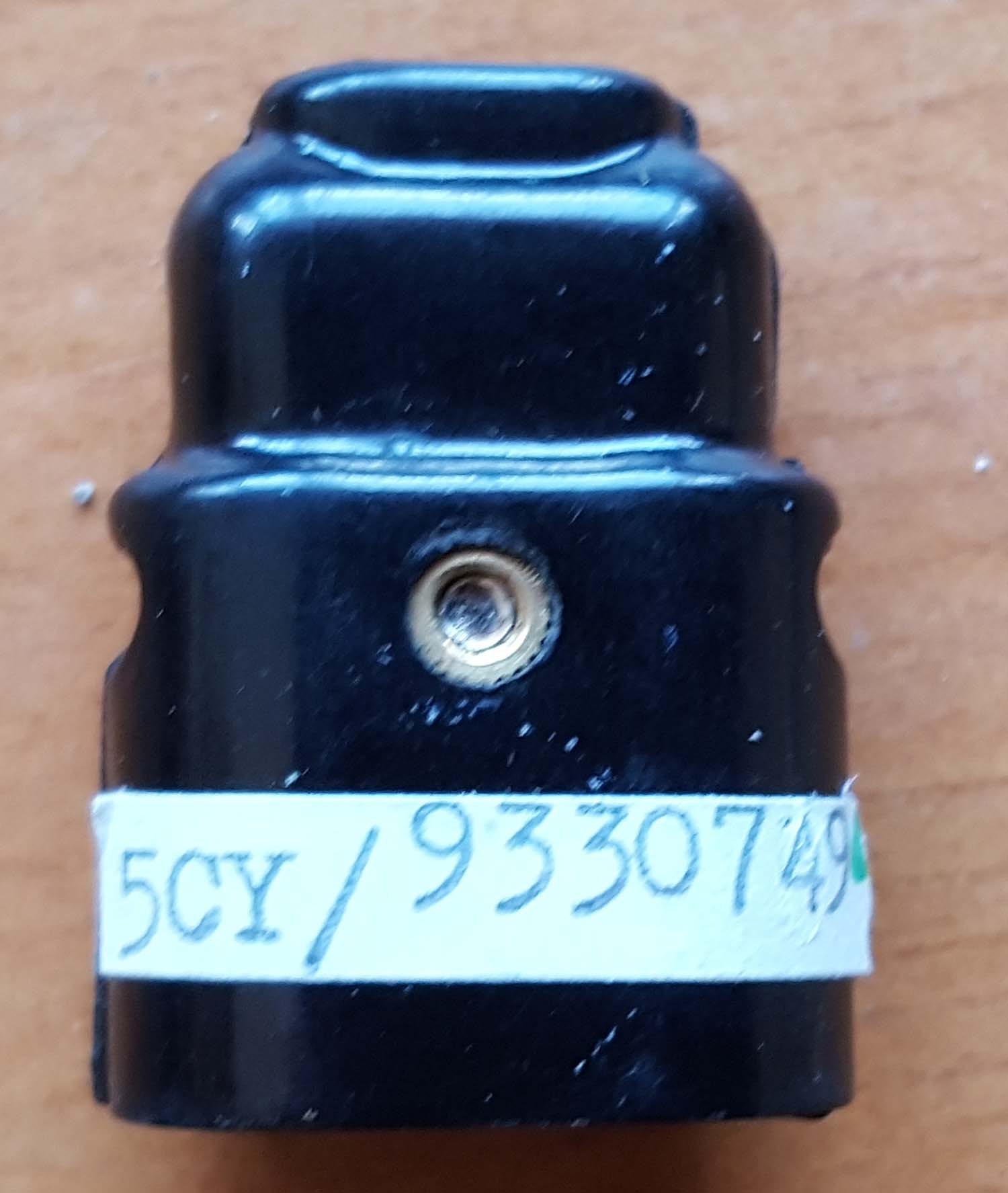

Radio Plug  5CY/93307457 (No 6 pg 3 Elec Conn)

5CY/93307457

20 each

Click on the pictures to enlarge

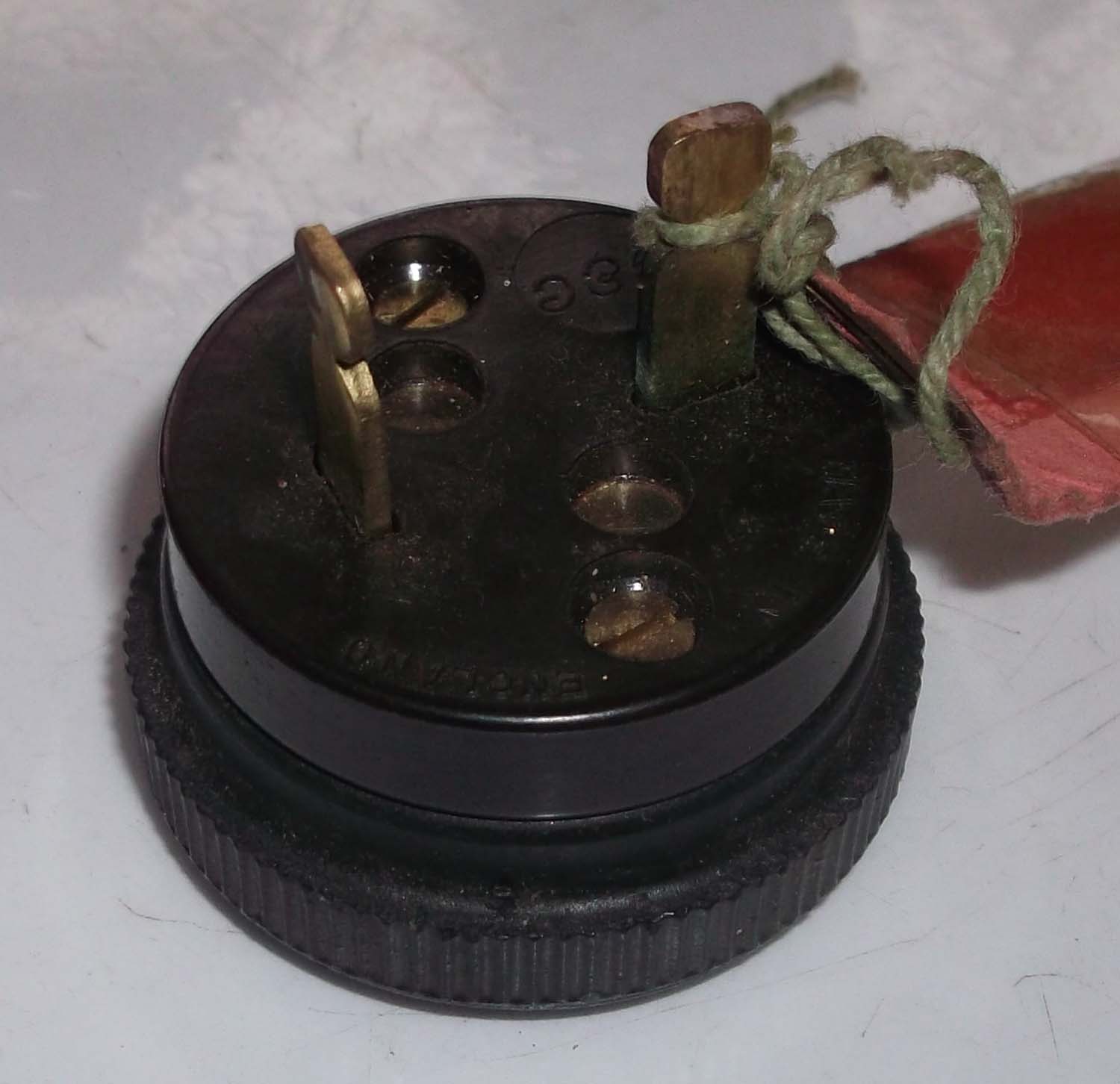

2 Pole Plug (No 4 pg 3 Elec Conn)

Ref: 5A/3878

10amp

250V

Manufactured by G.E.C

20 each

Click on the pictures to enlarge

2 Pin Plug (No 3 pg 3 Elec Conn)

AM Ref: 5C/2168

N.660

20 each


Click on the pictures to enlarge

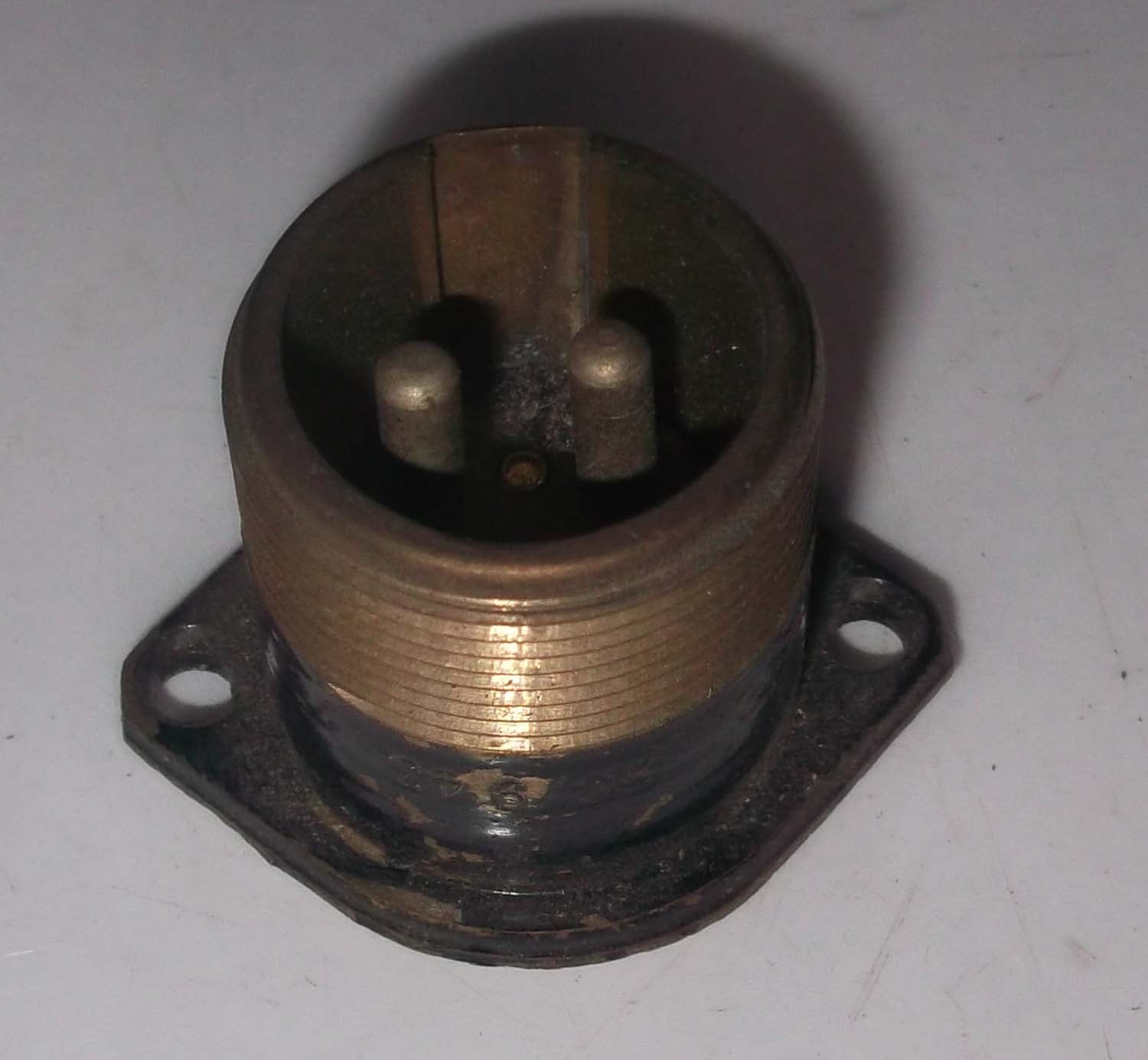

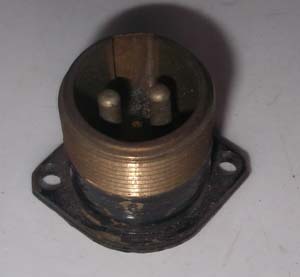

Plug (No 2 pg 3 Elec Conn)

AM Ref: 5C/943

20 each

Click on the pictures to enlarge

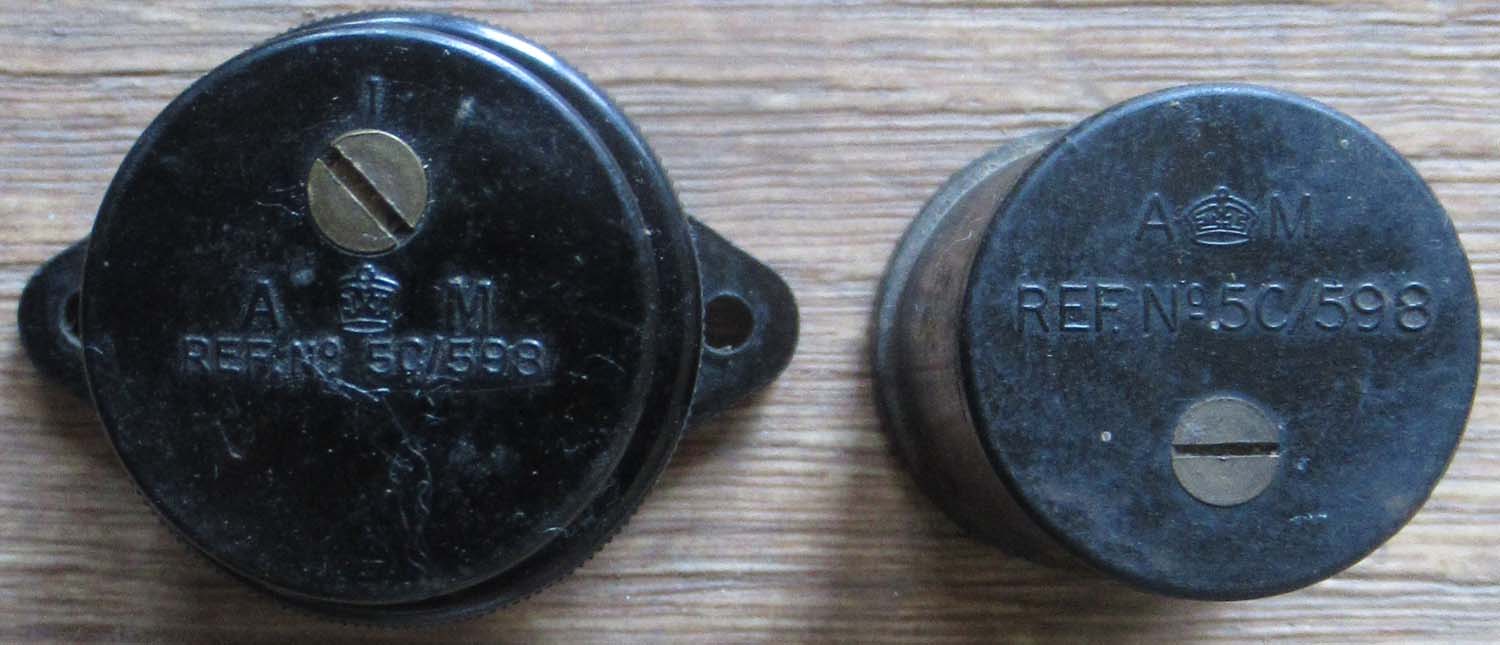

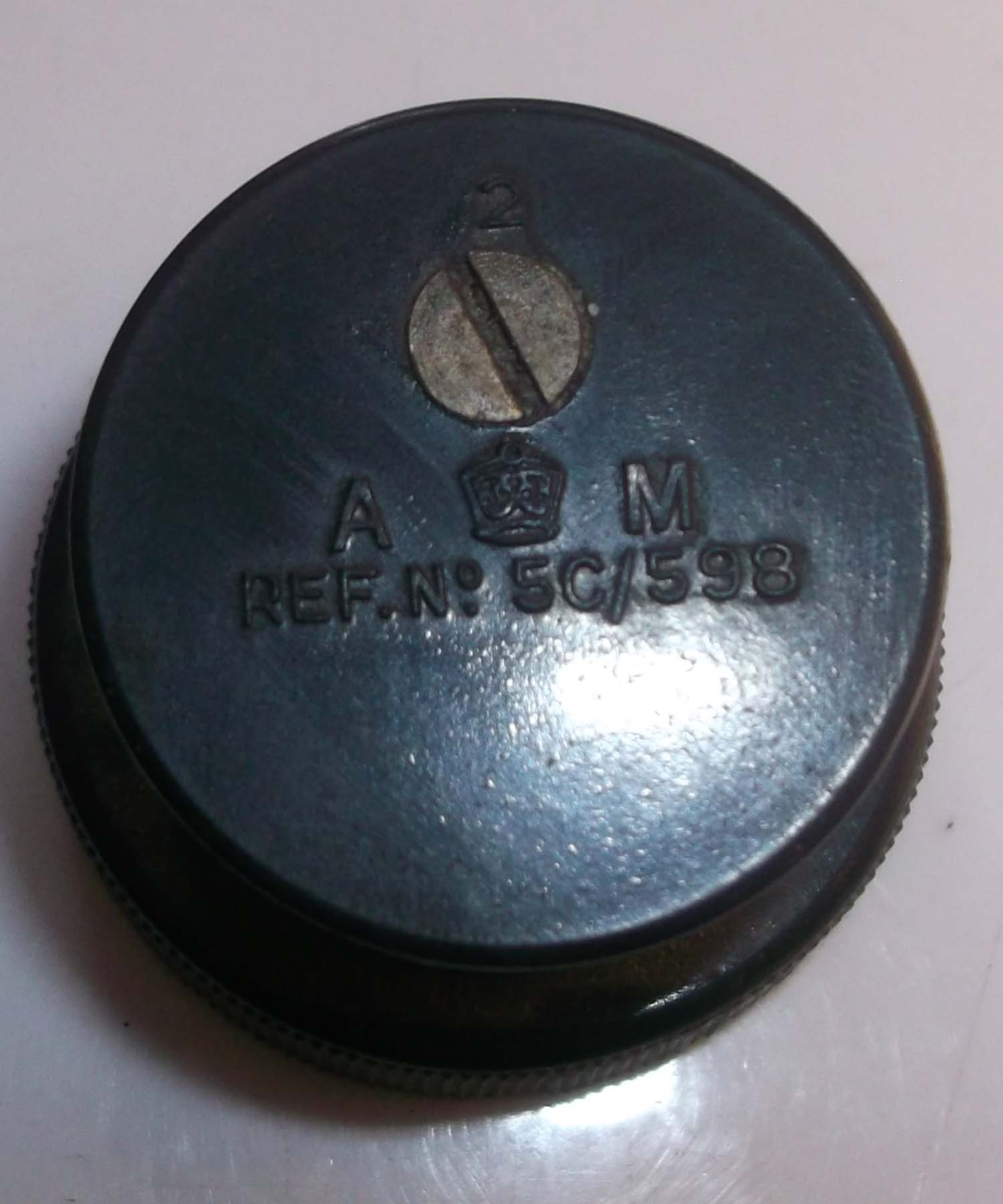

2 Pin Plug (No 1 pg 3 Elec Conn)

AM Ref: 5C/598

20 each



Click on the pictures to enlarge

Out of stock more wanted please contact me

Spitfire MK II Gunsight plug and socket ( nos 2 page 34A  ele connectors )

Plug and socket used to connect the MK II reflector Gunsight to the Spitfire/Hurricane main instrument panel, used on all RAF wartime aircraft fitted with the MK II reflector Gunsight.

5C/890 and 5C/892

Seen in situ above
