Page 1 Electrical Miscellaneous

Click on the picture to enlarge

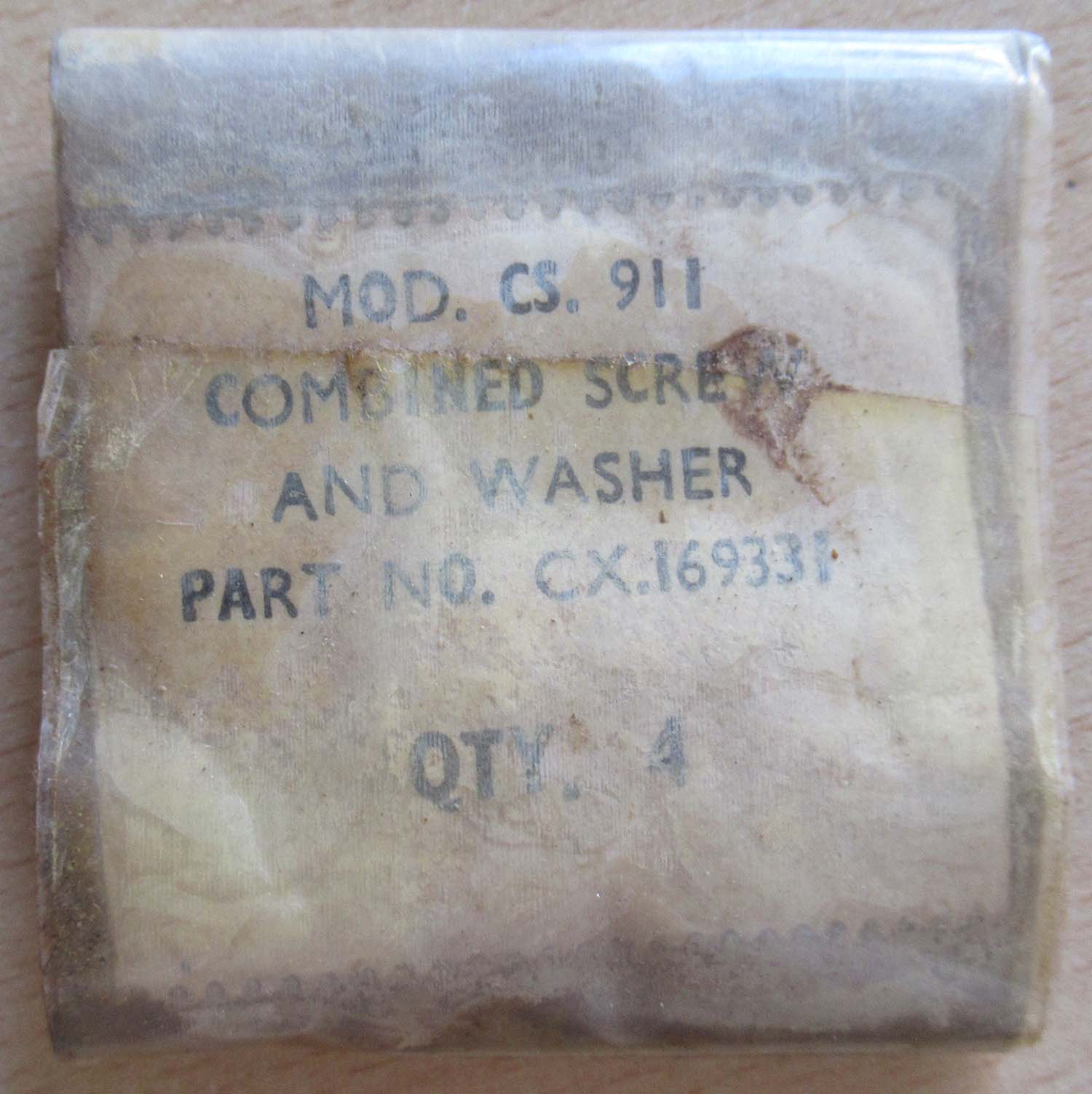

Combined Screw & Washer  Pack of 4 (No 65A pg 1 Elec Misc)

CX.169331



10



Click on the picture to enlarge

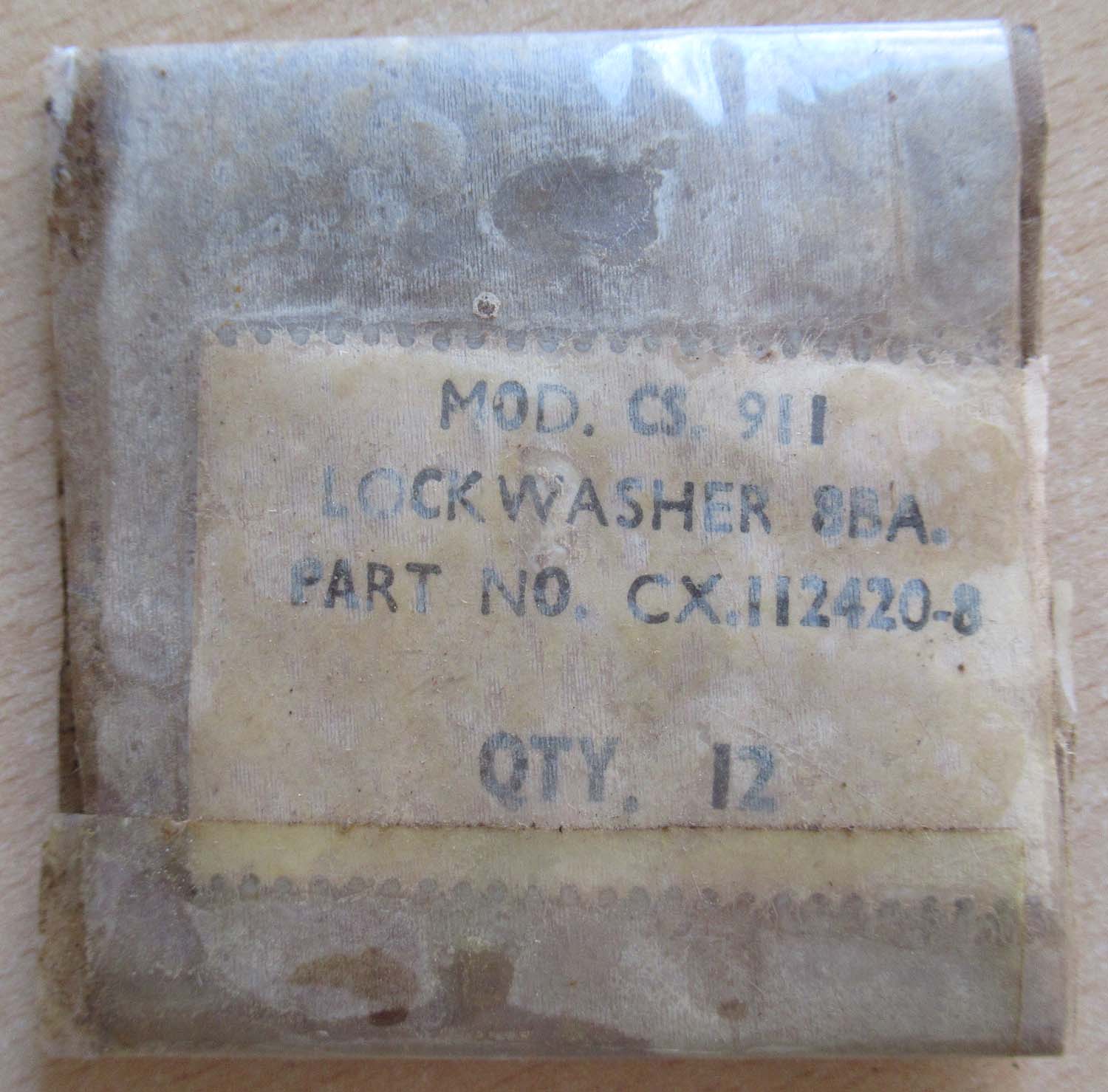

Lock Washer  Pack of 12 (No 65B pg 1 Elec Misc)

CX.112420-8



10



Click on the picture to enlarge

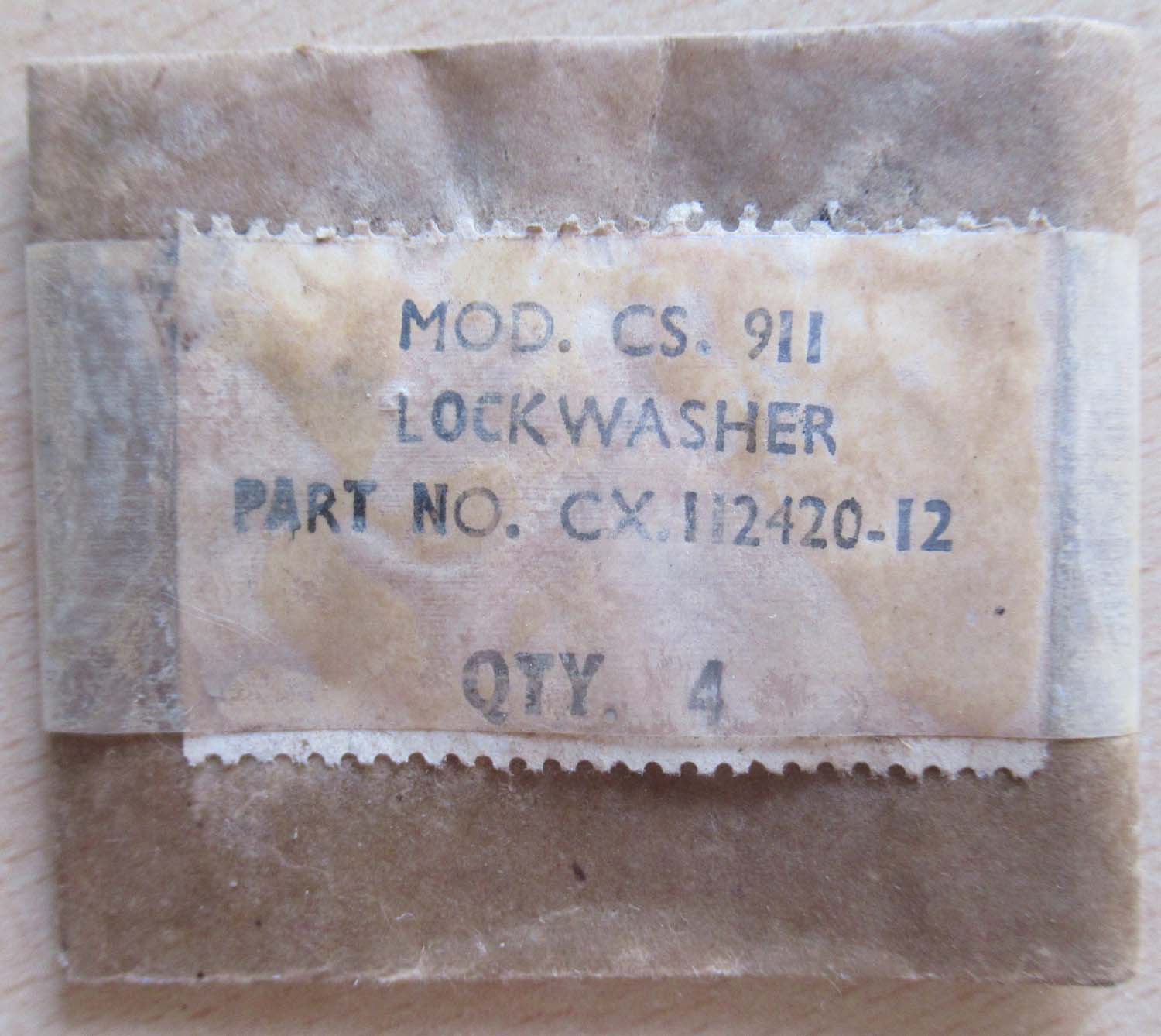

Lock Washer  Pack of 4 (No 65C pg 1 Elec Misc)

CX.112420-12



10



Click on the picture to enlarge

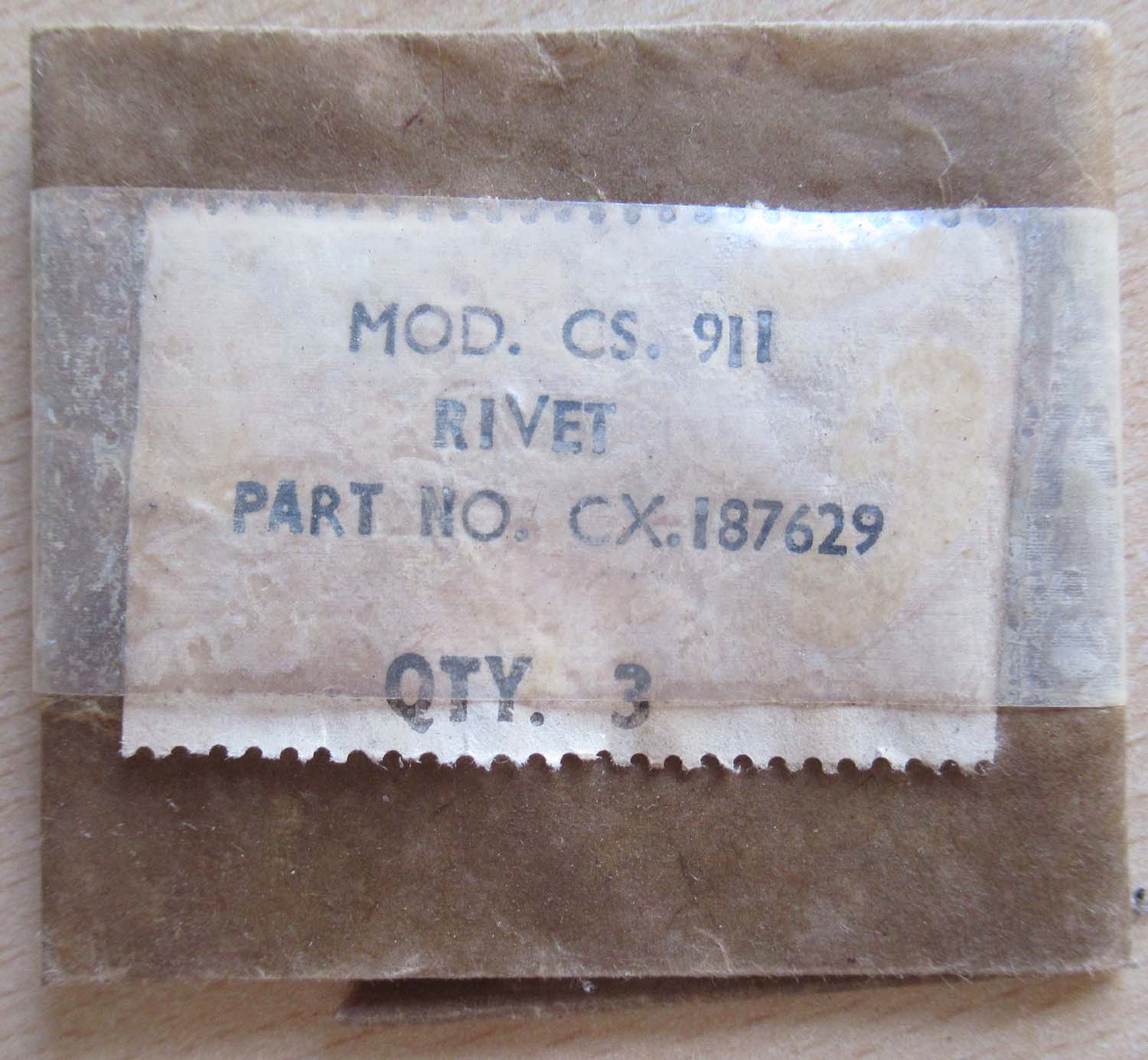

Rivet Pack of 3 (No 65D pg 1 Elec Misc)

CX.187629



10



Click on the pictures to enlarge

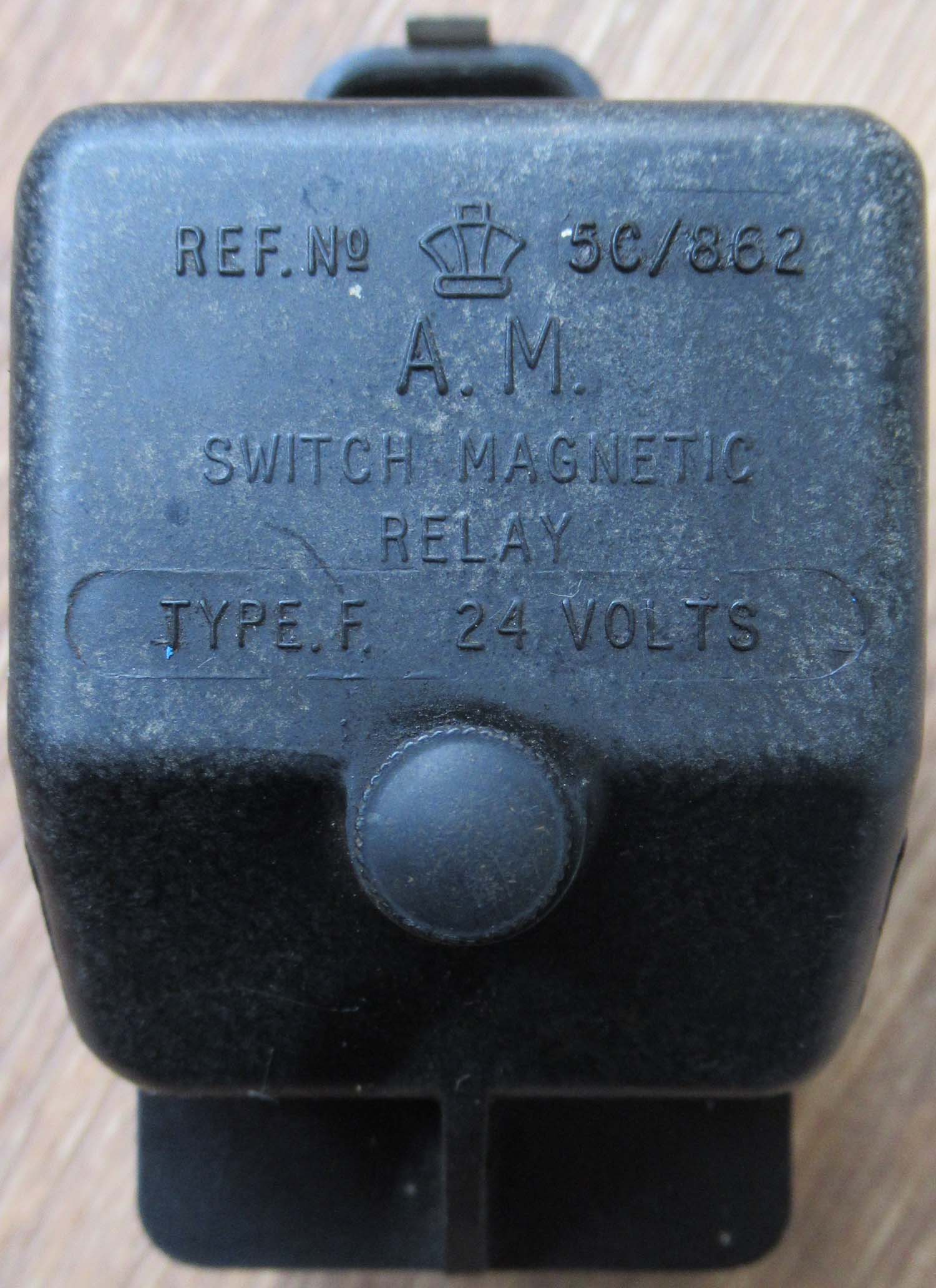

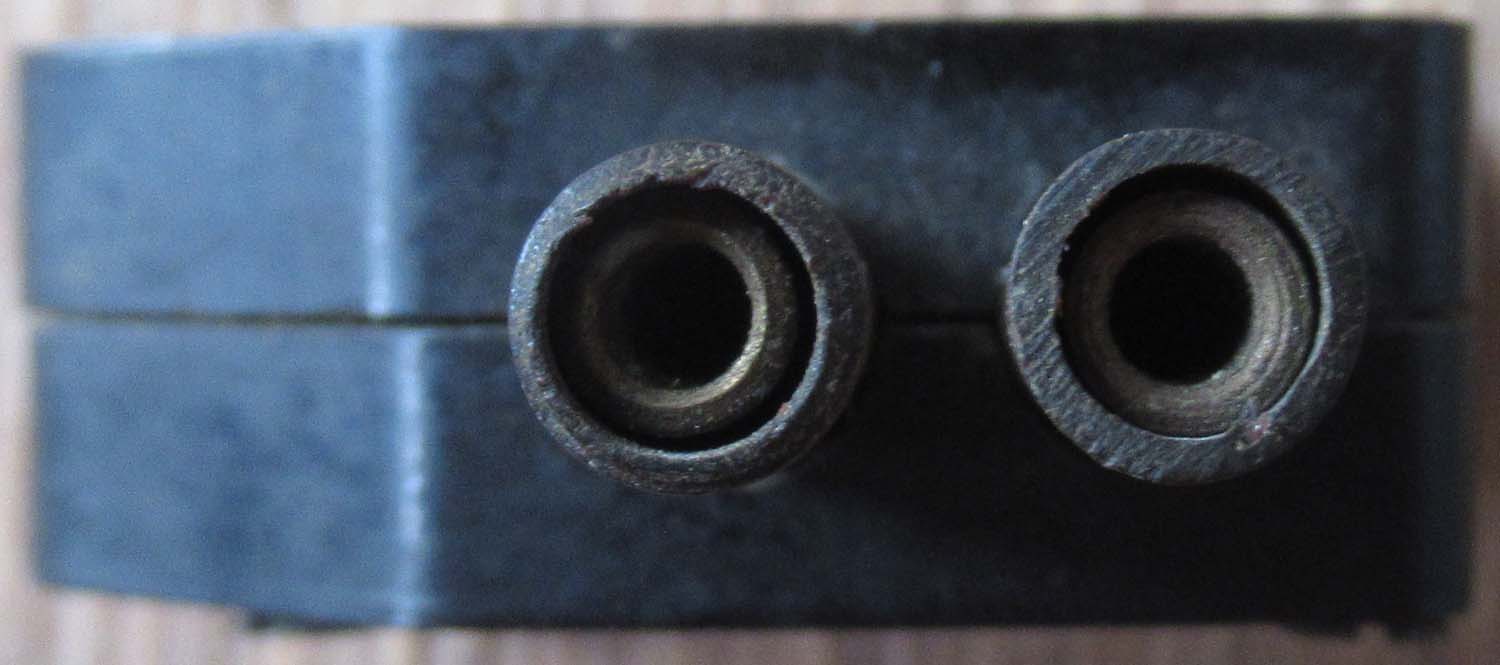

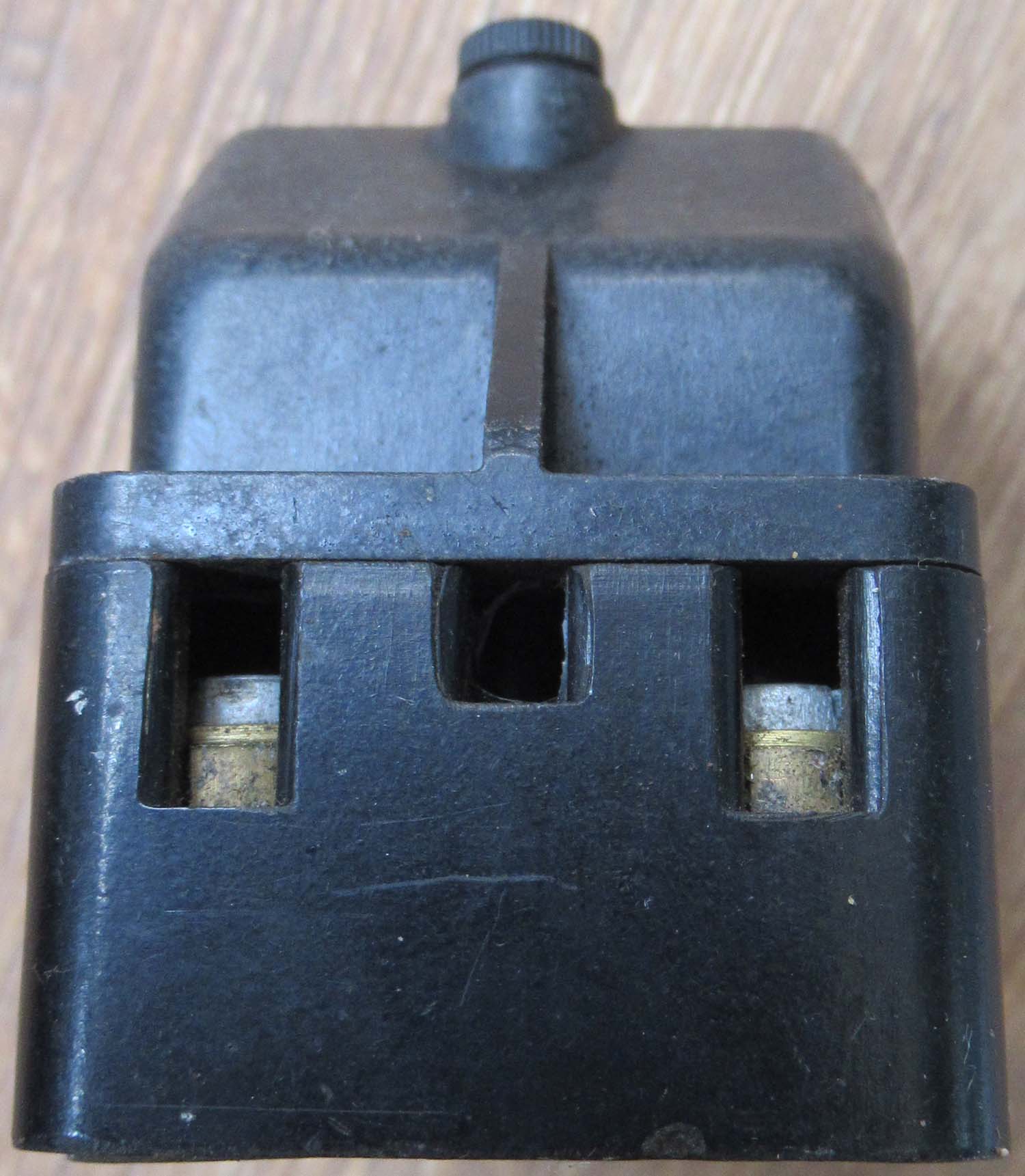

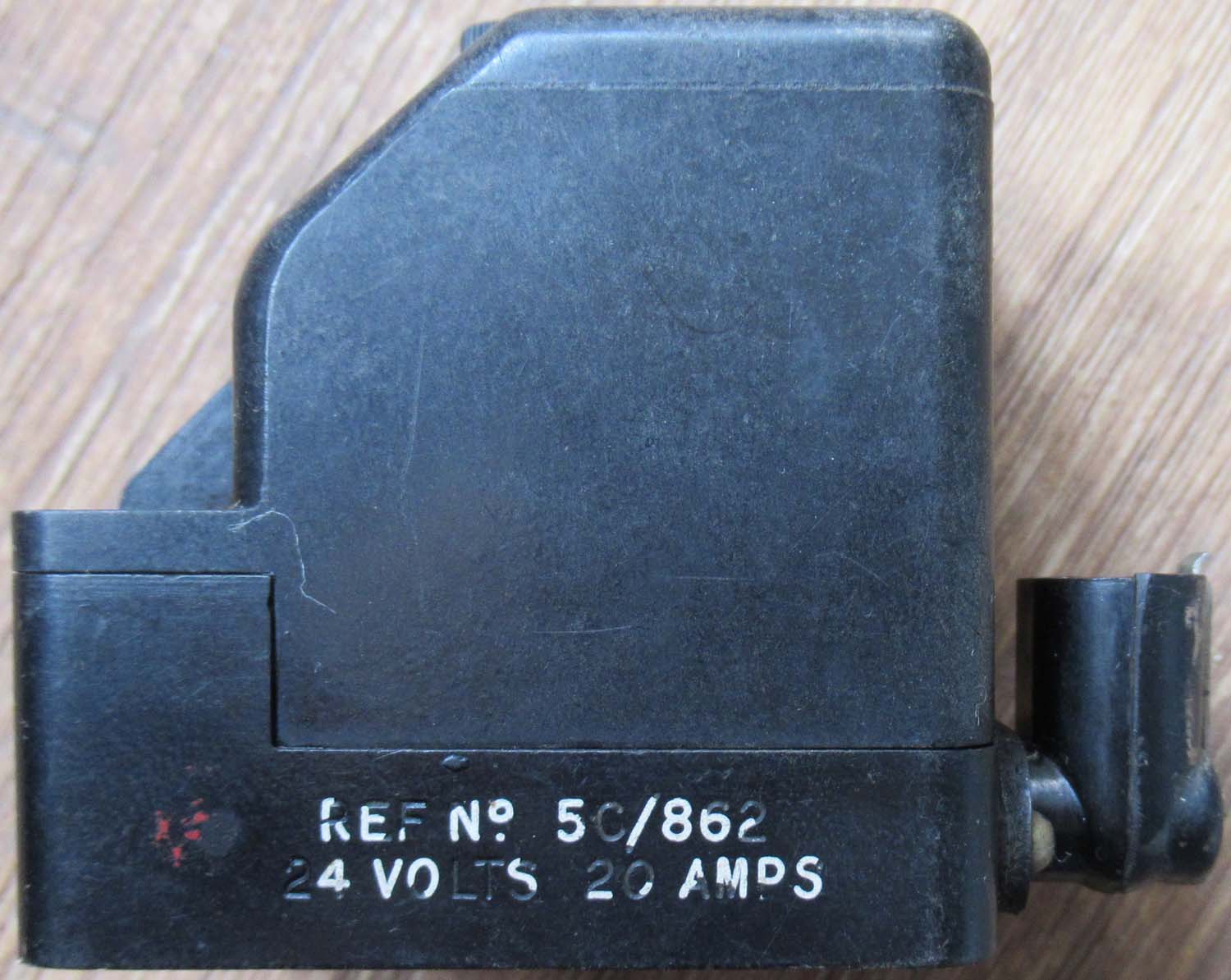

Electrical Switch Magnetic Relay Type F (No 64 pg 1 Elec Misc)

Here we have an Air Ministry marked, switch magnetic relay. It is a 24 volt 20 amp version.

5C/862

Click on the pictures to enlarge



45

Click on the pictures to enlarge

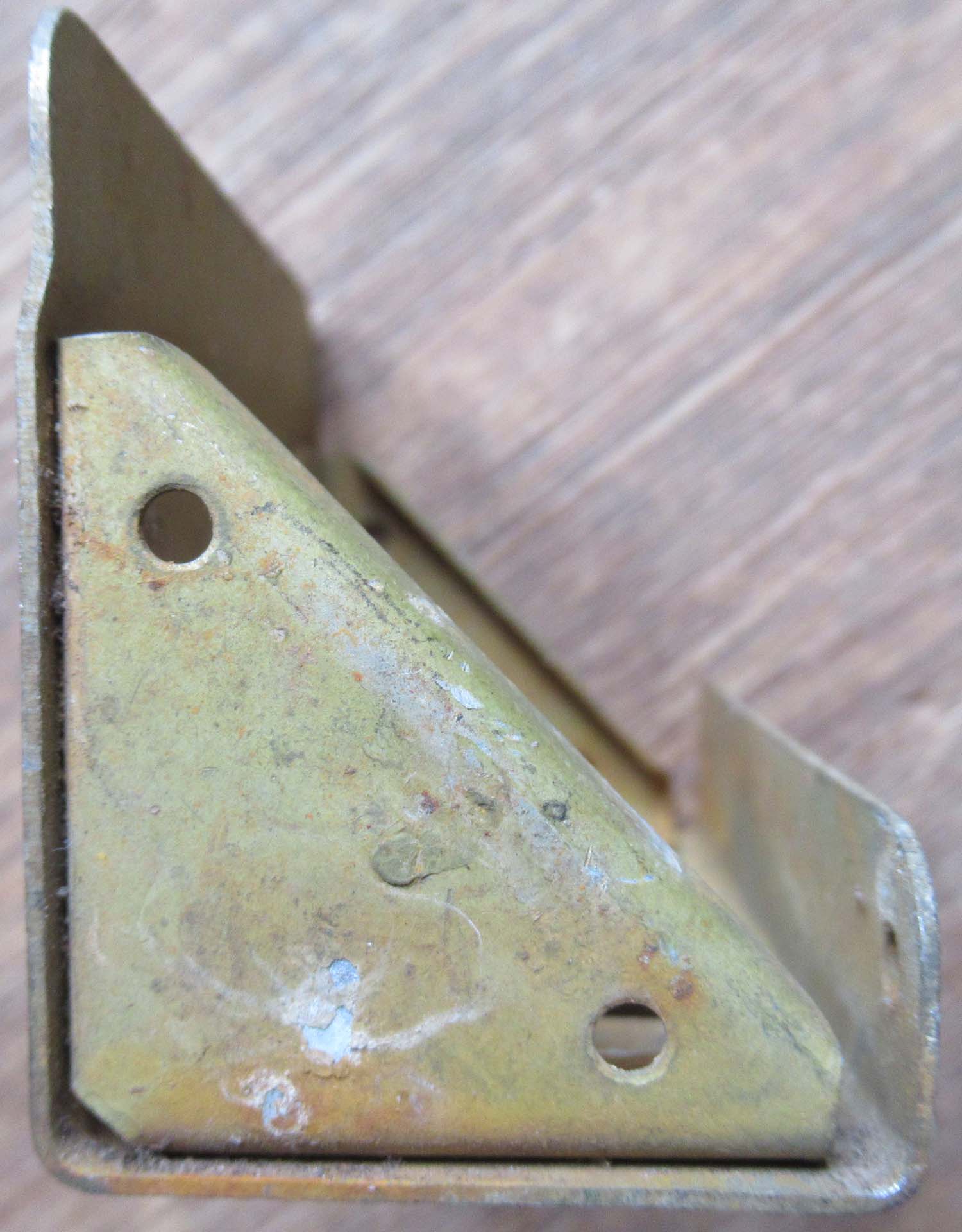

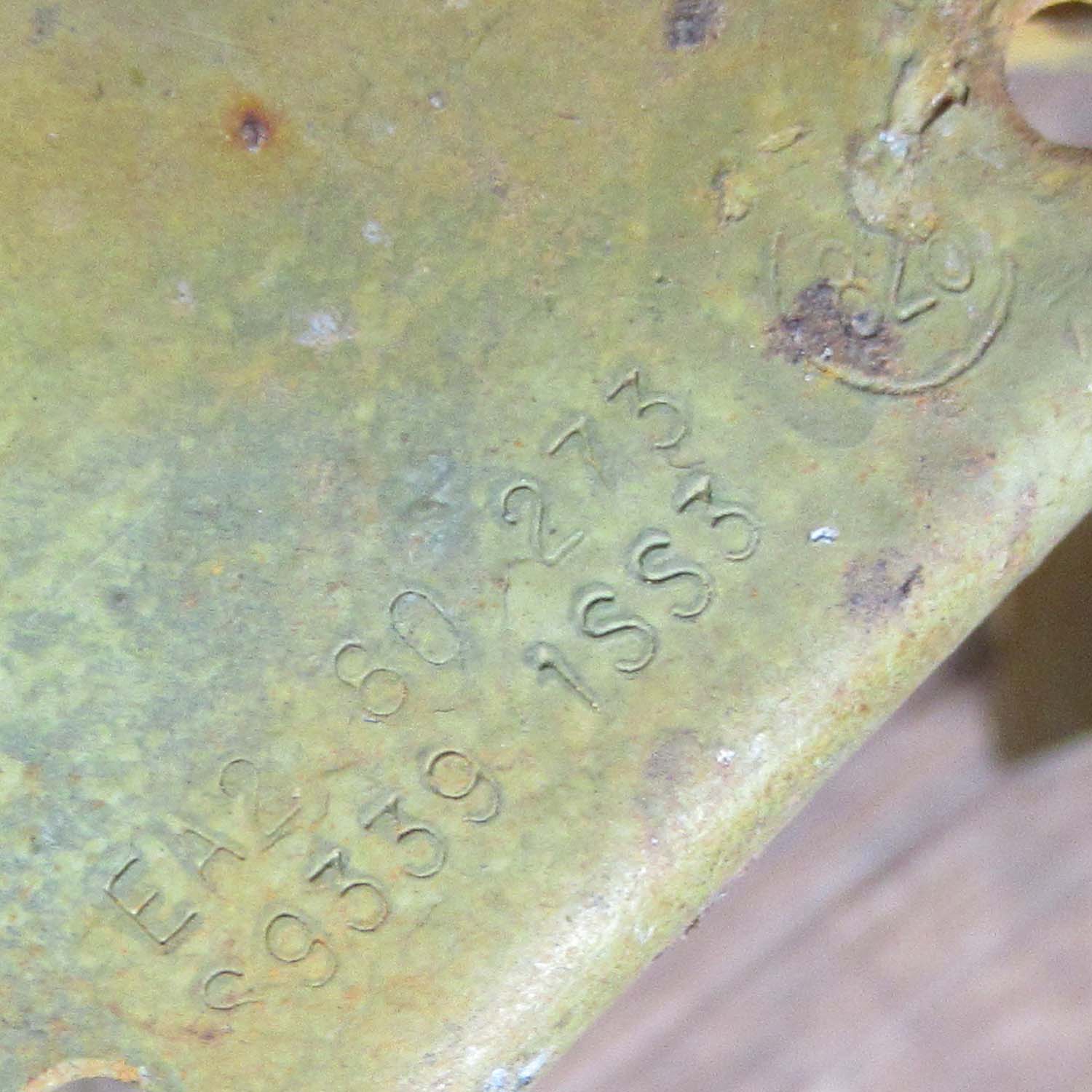

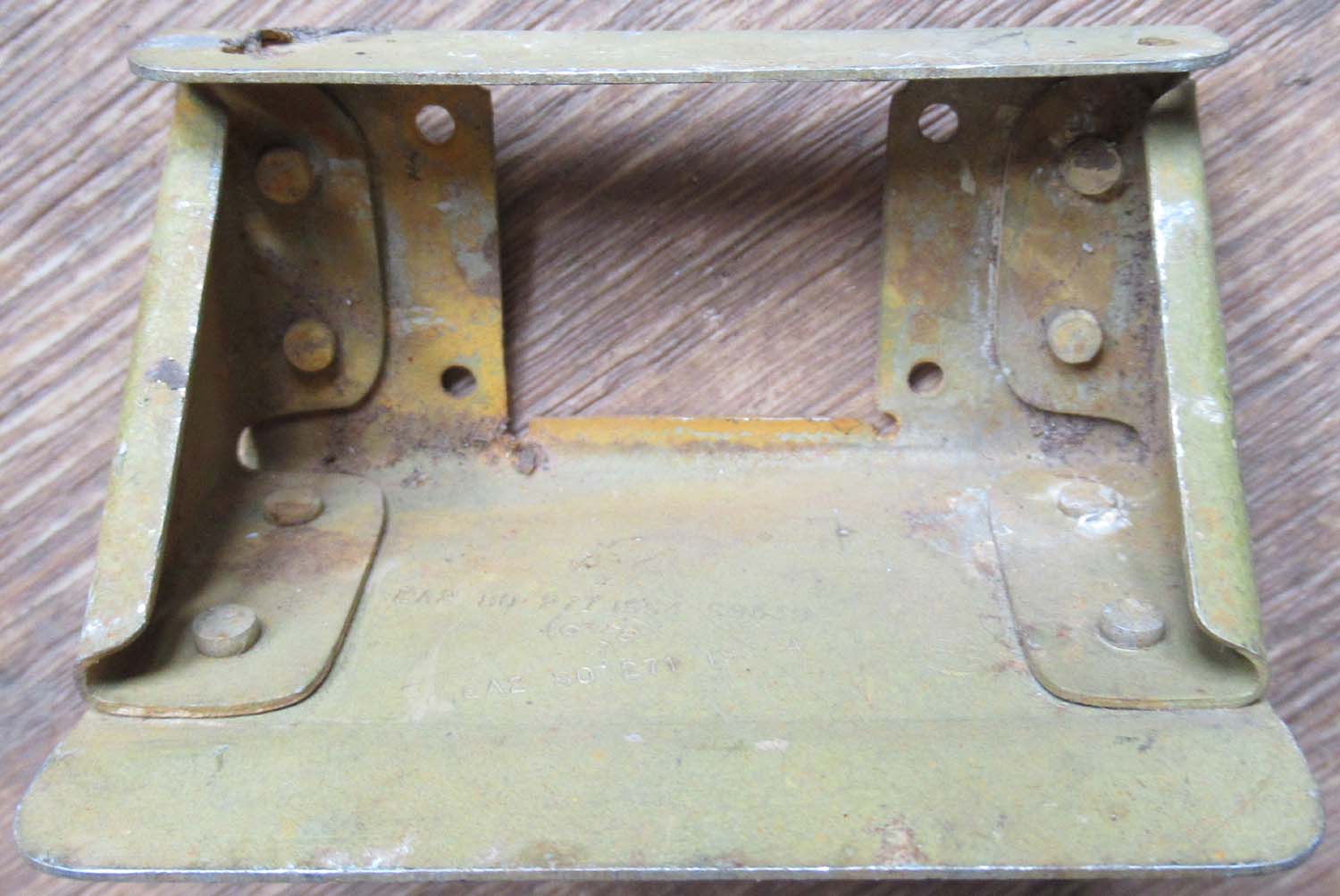

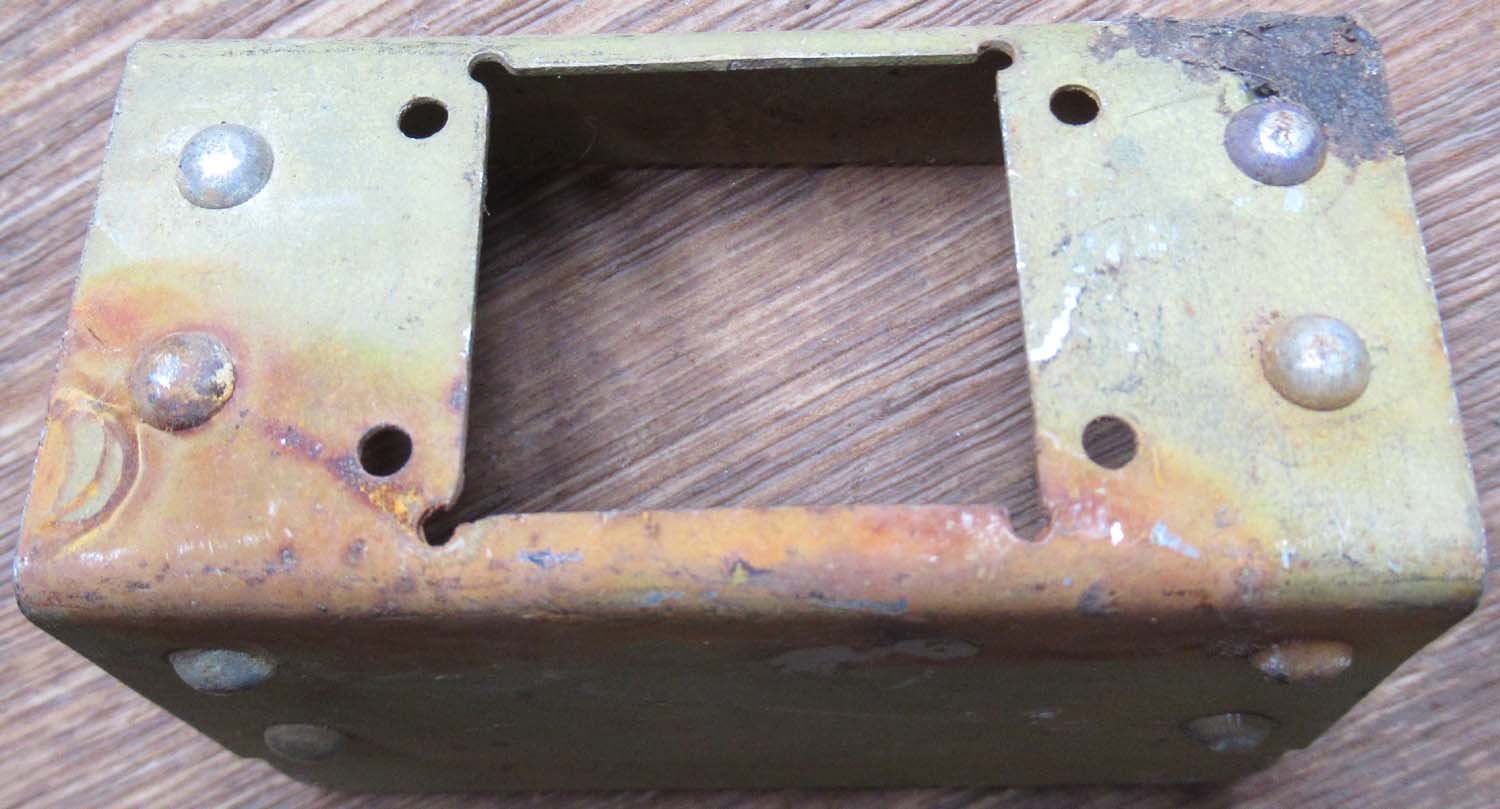

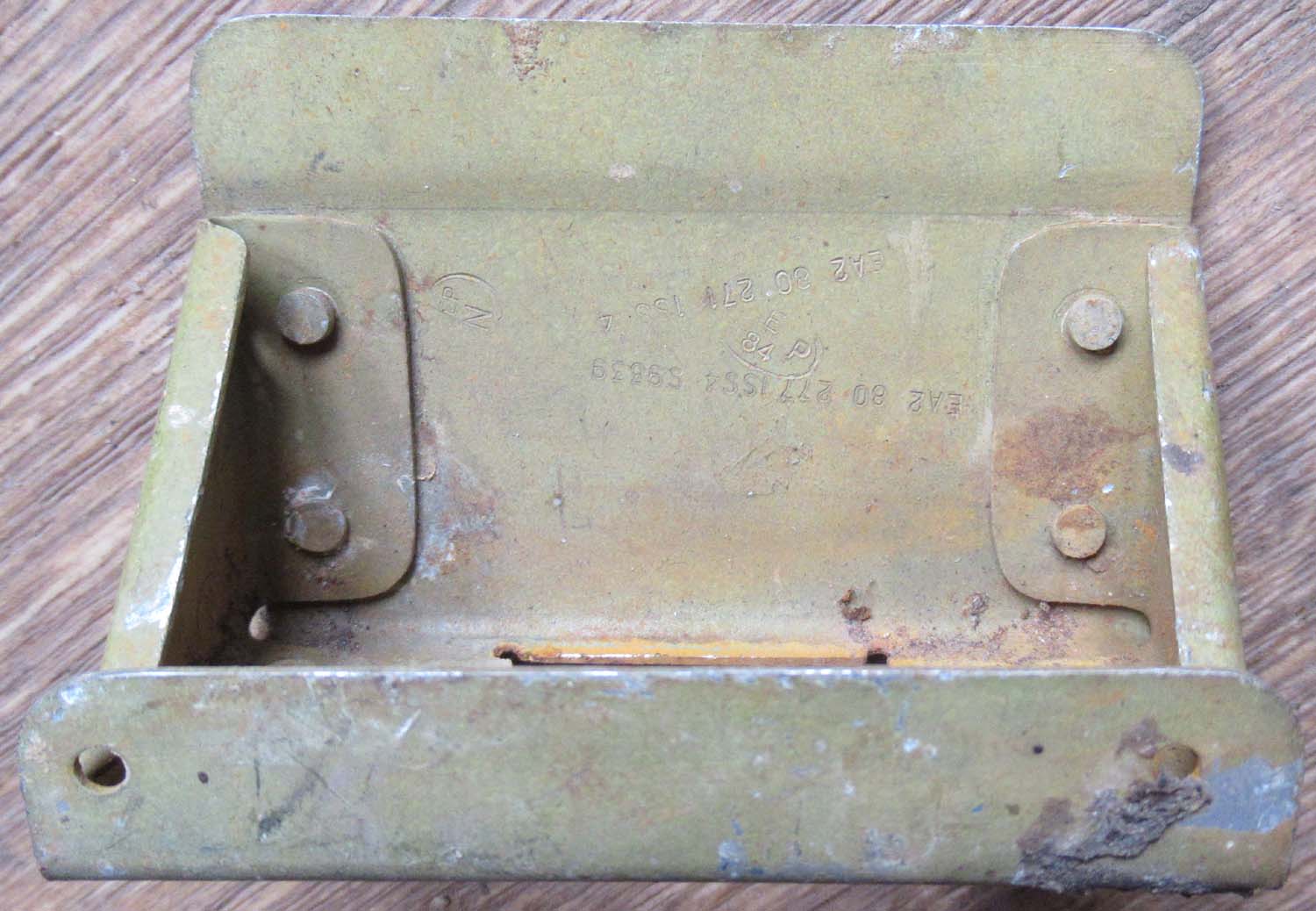

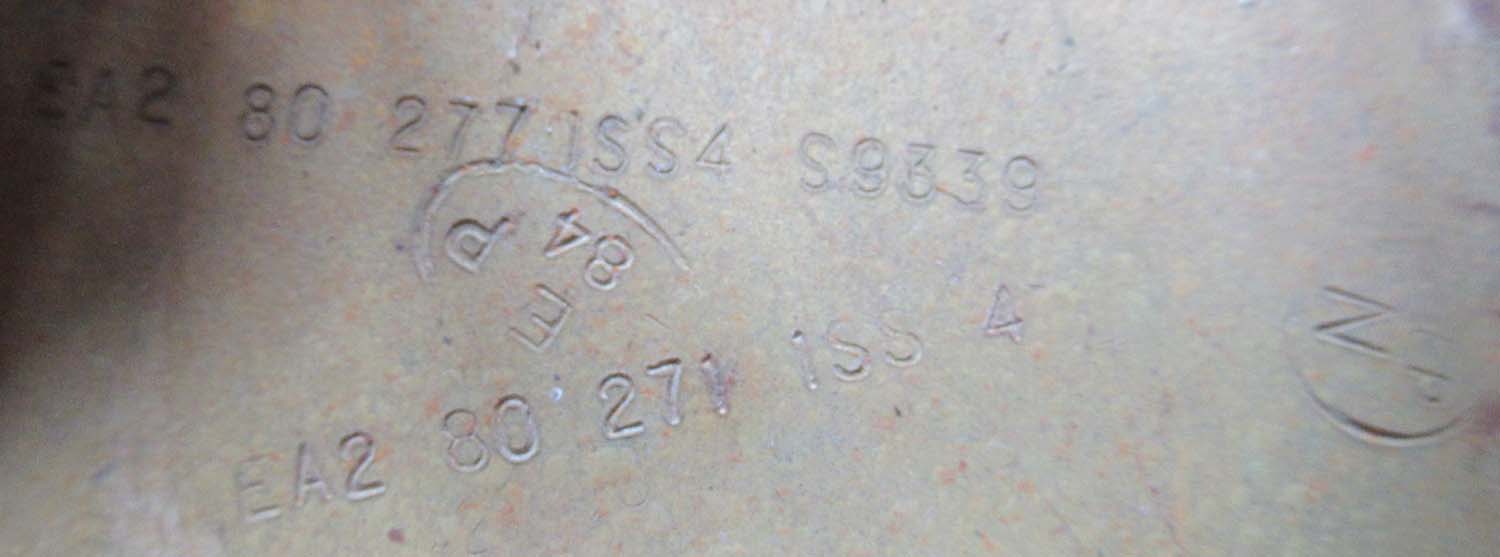

Electrical Switch Bracket (No 63 pg 1 Elec Misc)

EA2 80 277 1SS4 S9339

A2 80 271 1SS 4

EA2 80273 S9339 1SS3

This original bracket fits the standard on/off switch 5C/543 and the 3 way switch of the same pattern 5C/930

The EA code is the part number for the Lancaster, Lincoln 2 and York C1 as it has 2 after the EA I think its most likely from a Lincoln.

Click on the pictures to enlarge



55

Click on the pictures to enlarge

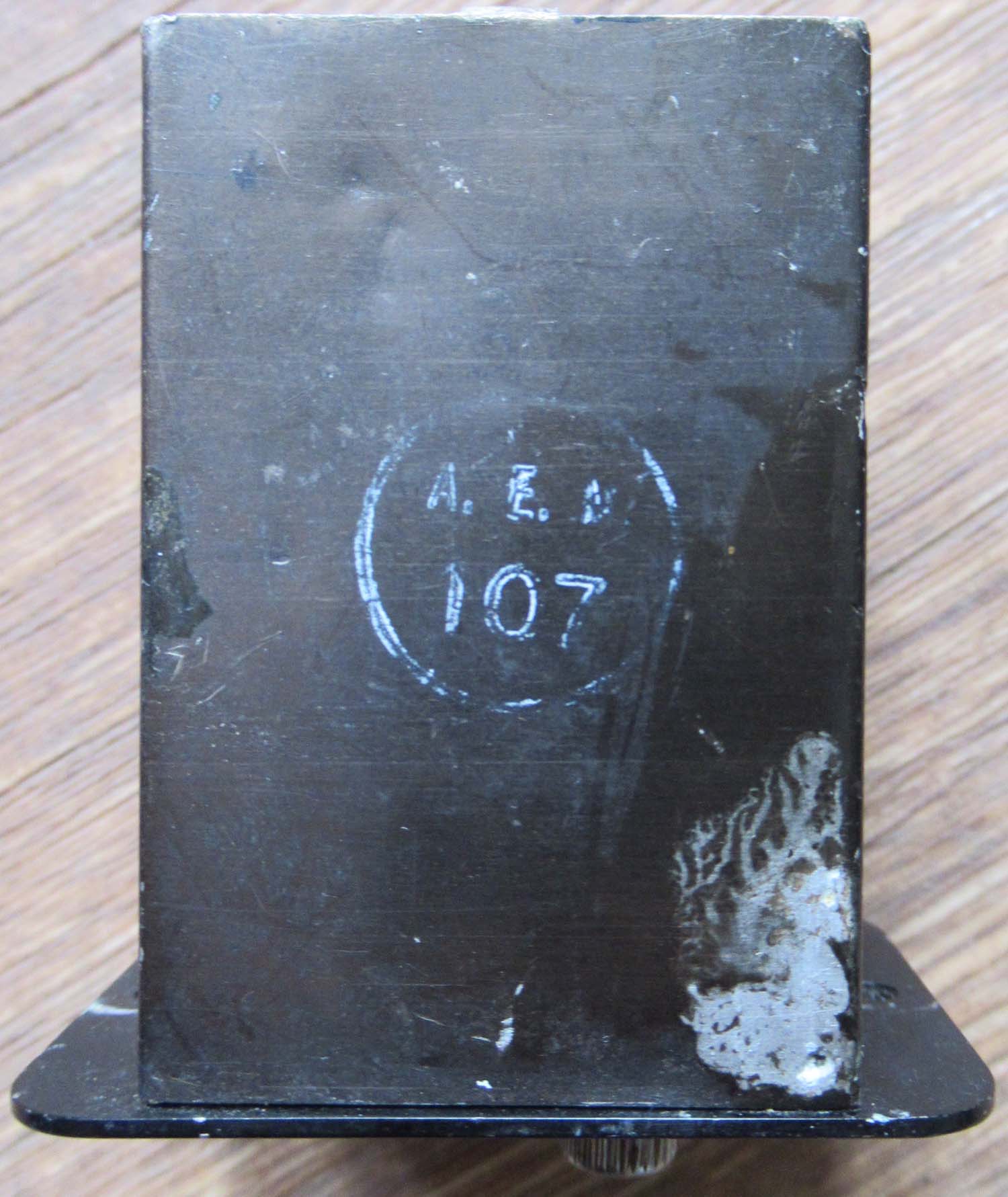

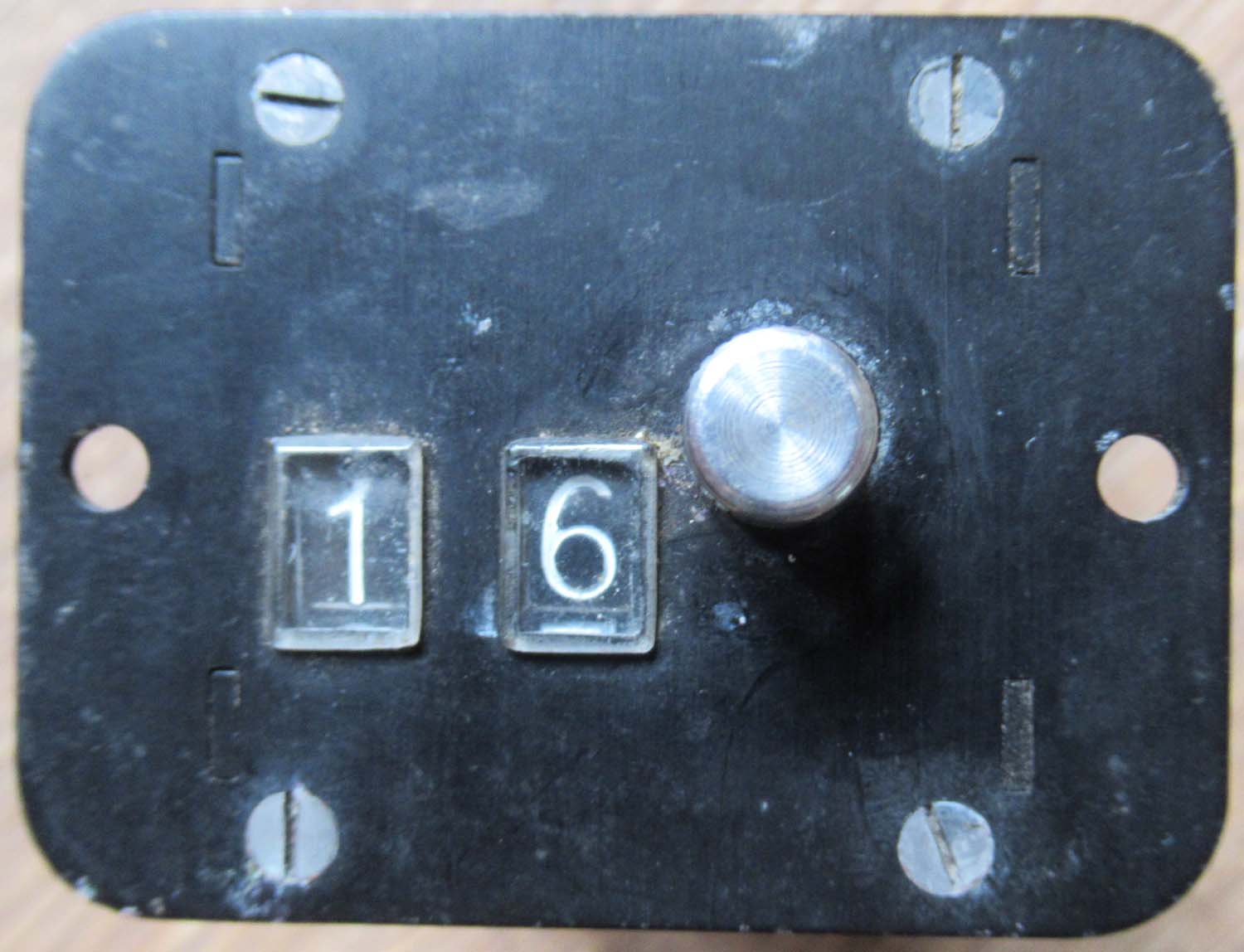

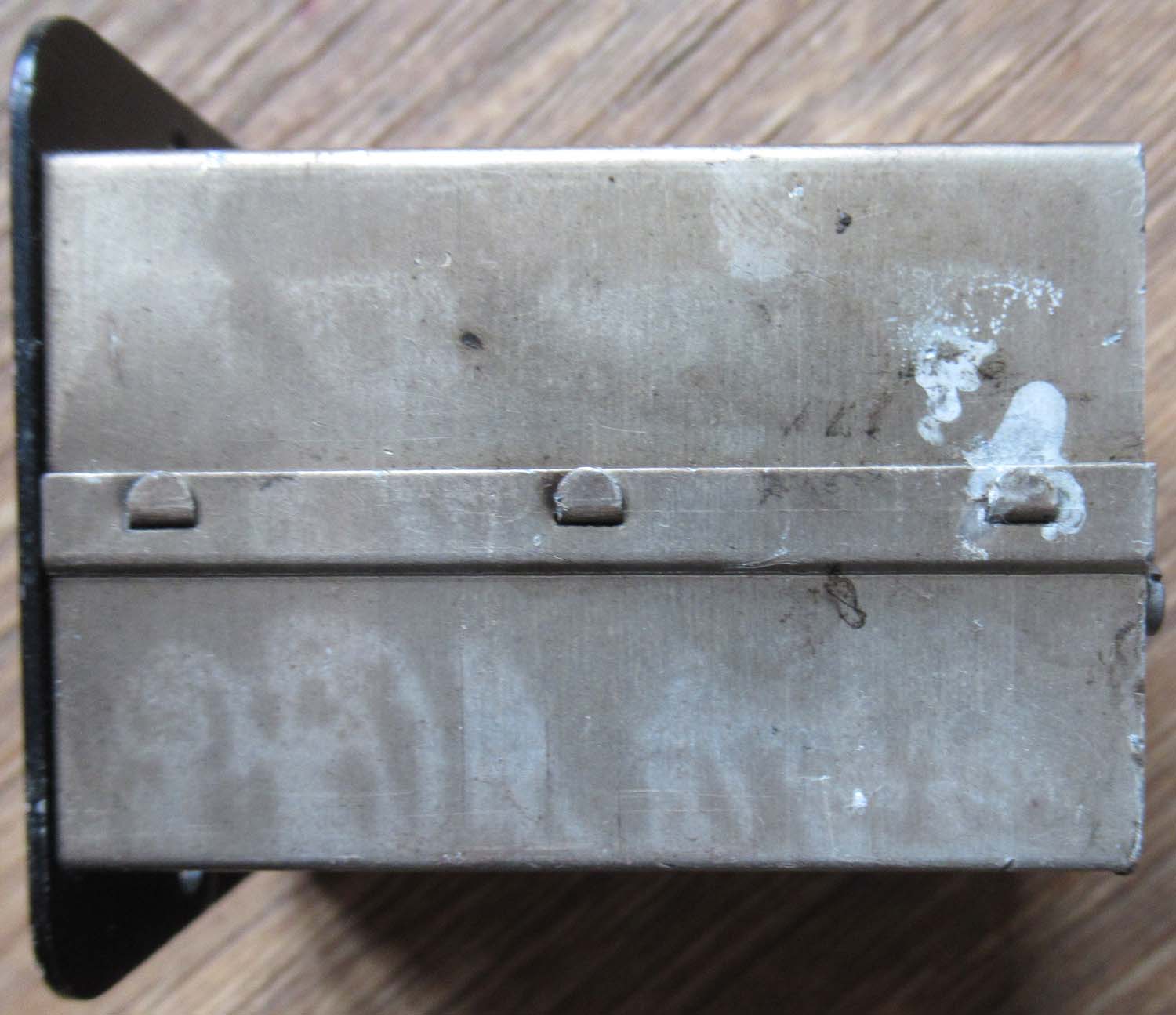

Two digit counter (No 62 pg 1 Elec Misc)

Sorry I have absolutely no idea what these are for obviously not engine hours if you can tell me please contact me.

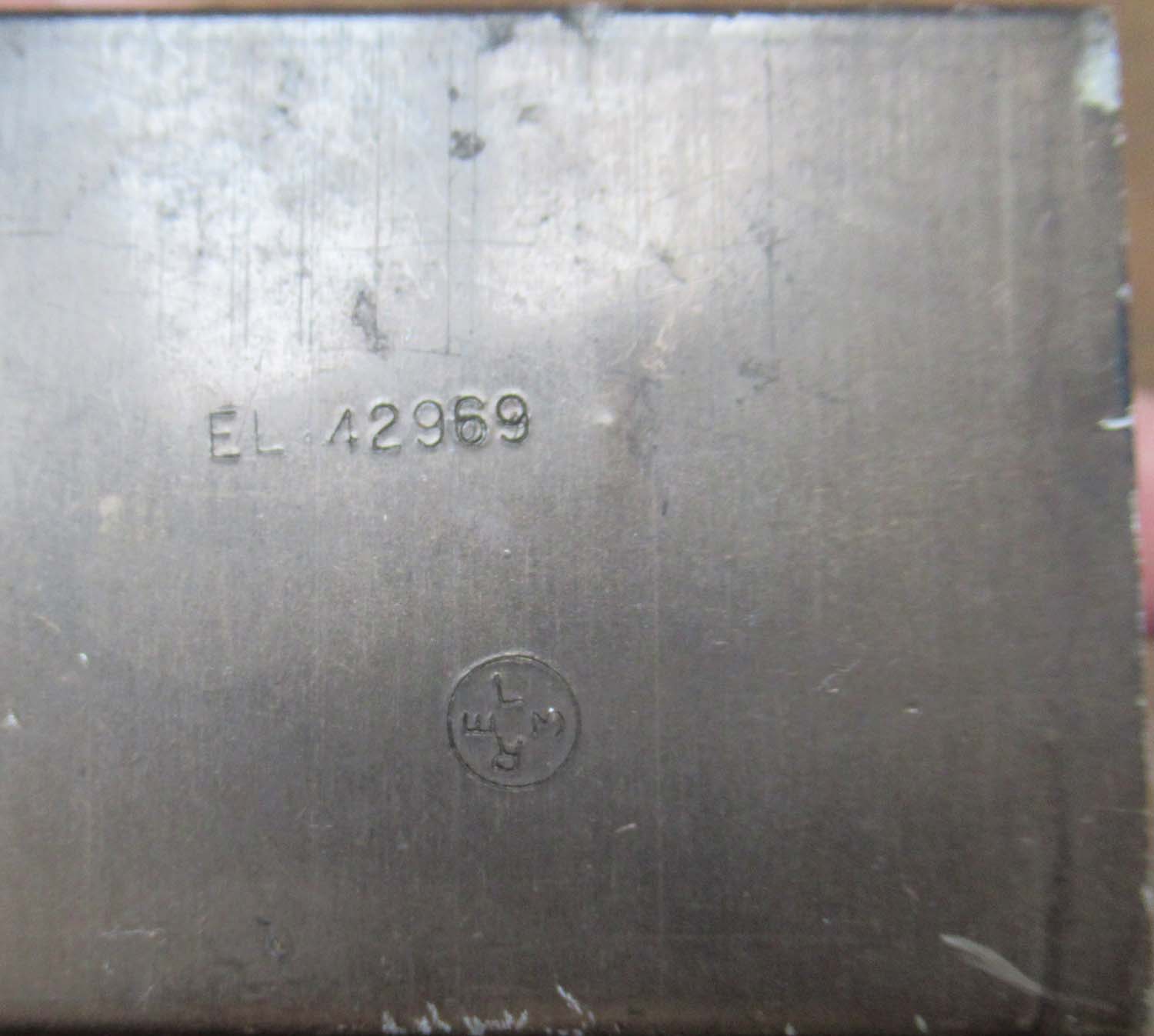

The inspection stamp is RFL3 and it has EL 42969



Click on the pictures to enlarge



35 each two avialable

Click on the pictures to enlarge

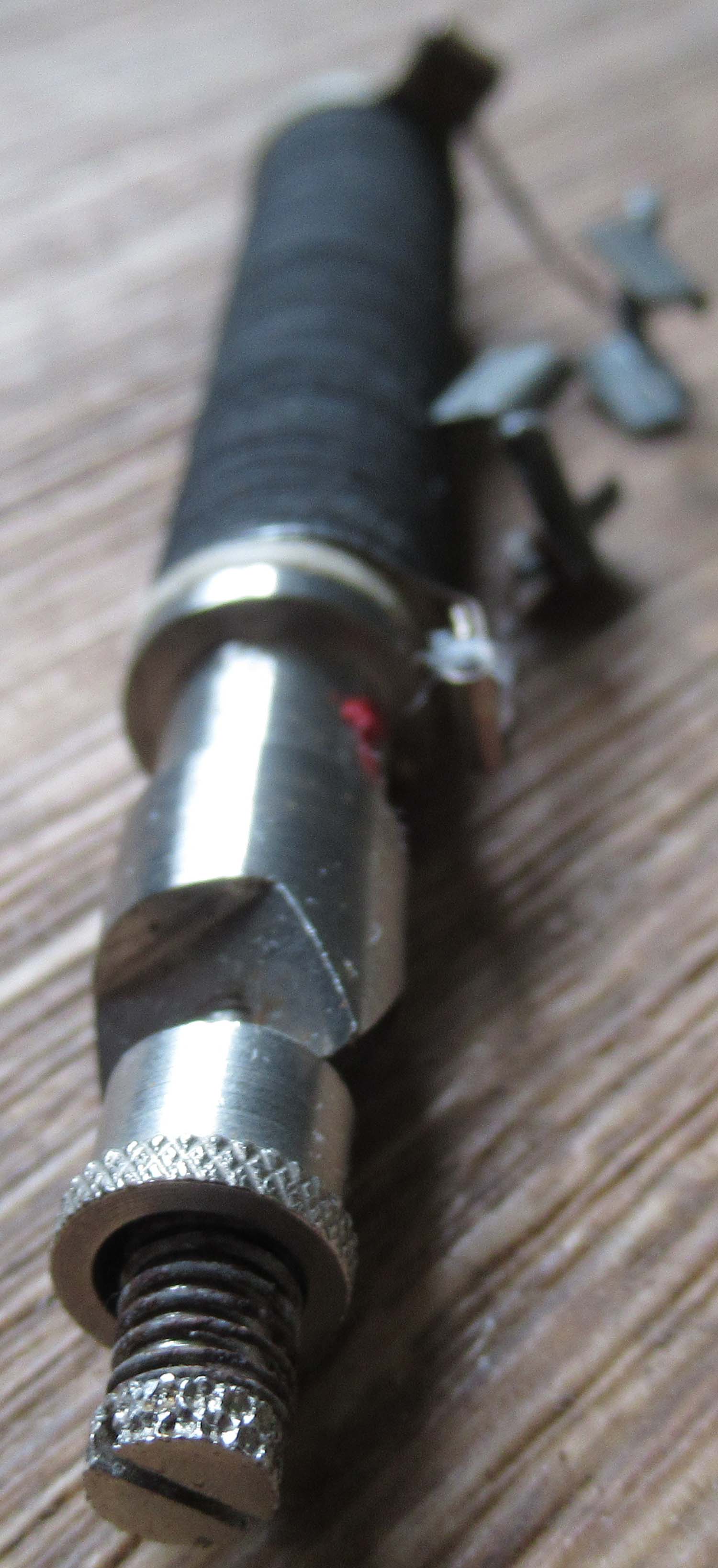

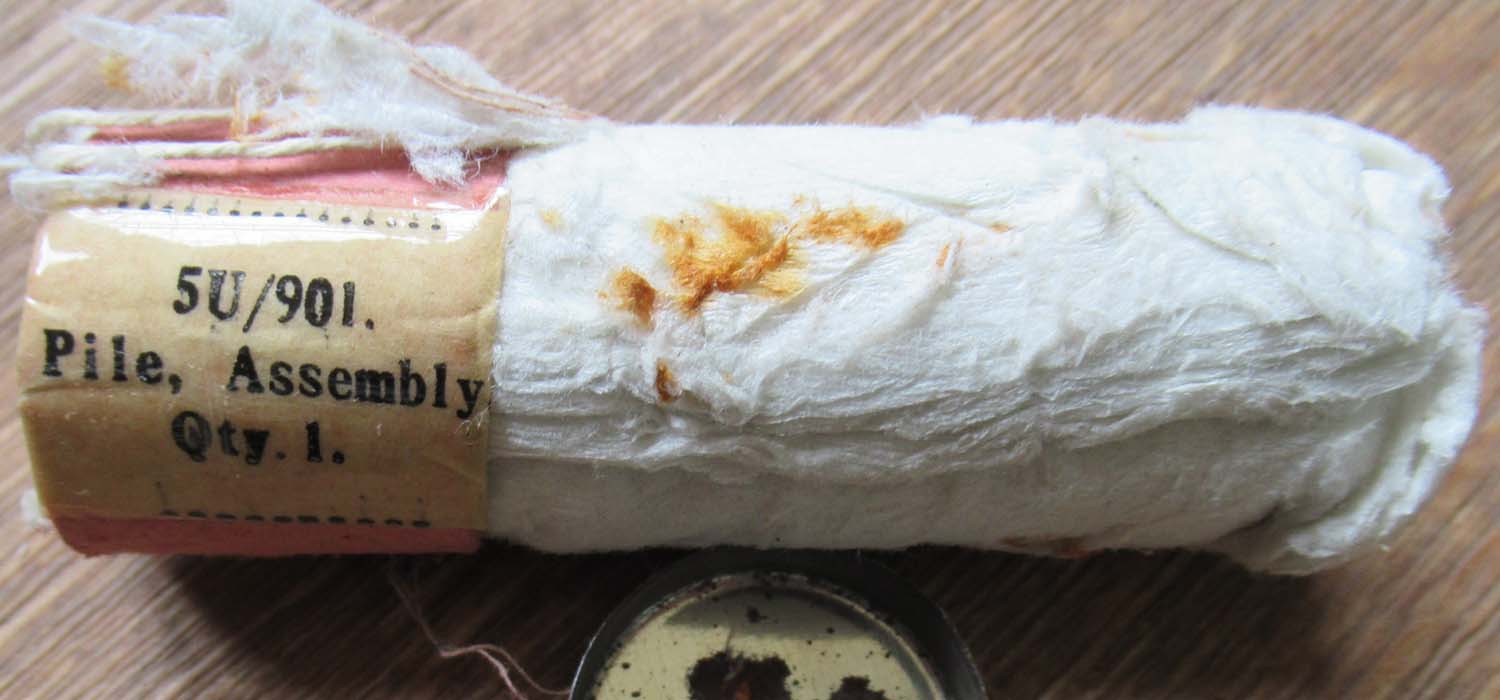

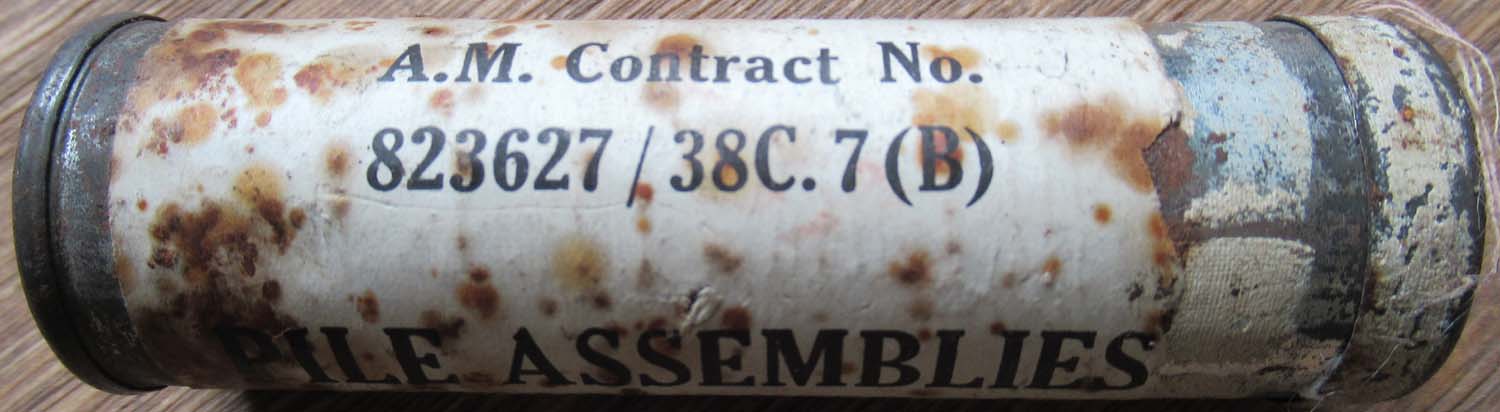

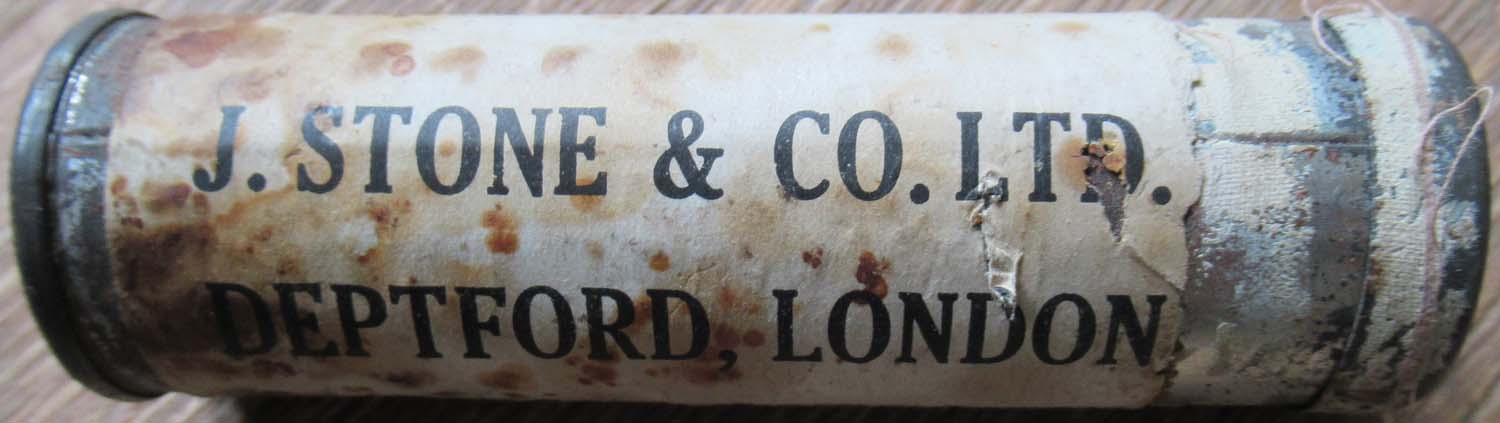

J Stone and Co Pile assembly (No 61 pg 1 Elec Misc)

Stone Foundries still operates at Charlton in a plant established in 1939 to produce aluminium and magnesium light alloy castings mainly for the aircraft industry,having produced specialised alloy parts and aircraft propellers for the Vickers Viscount and de Havilland Comet.

Pile assembly AM contract no 823627/38C.7 (B) A/M 5U/901

Click on the pictures to enlarge



35

Click on the pictures to enlarge

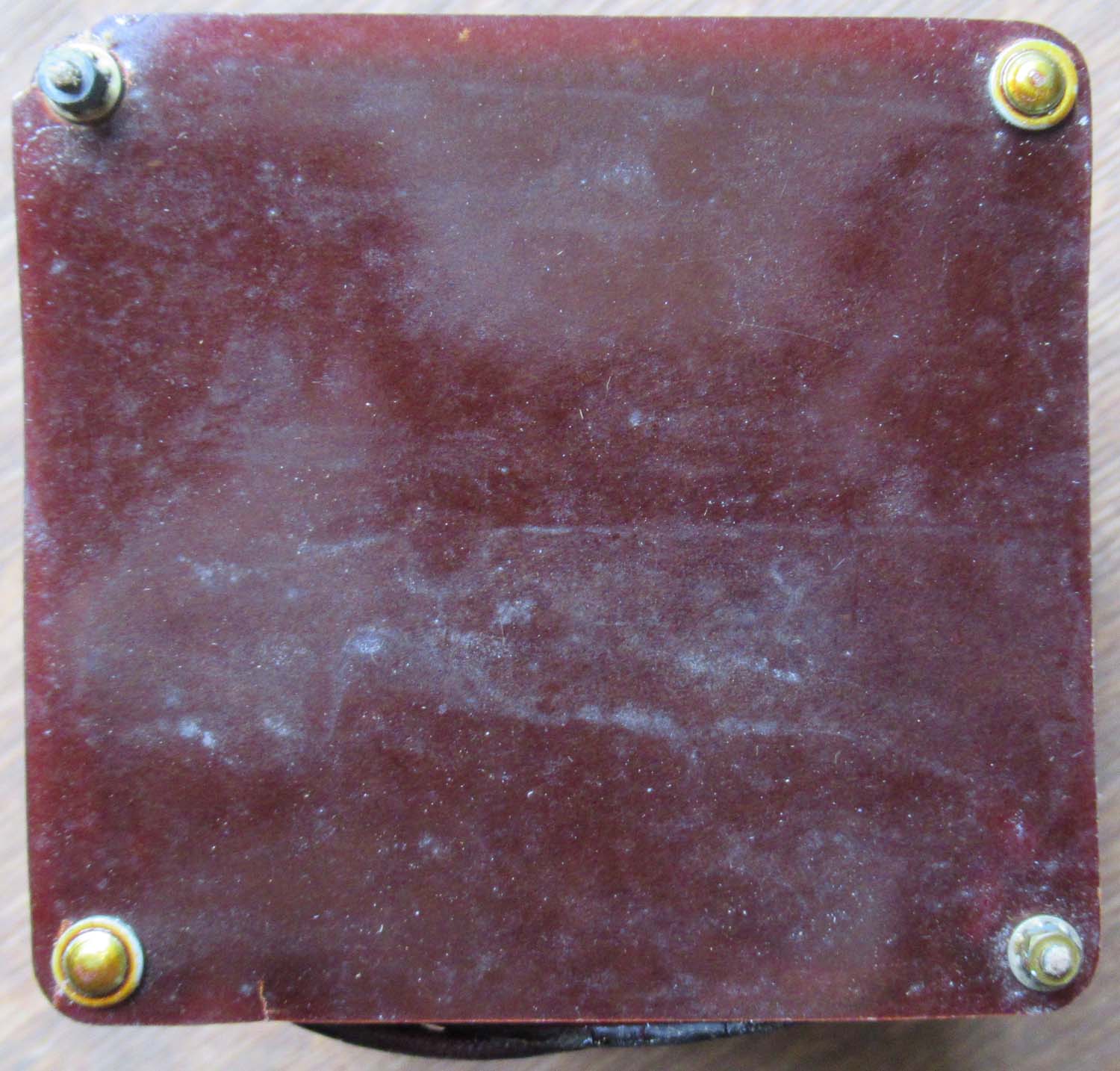

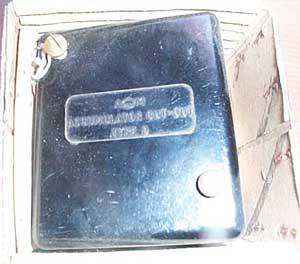

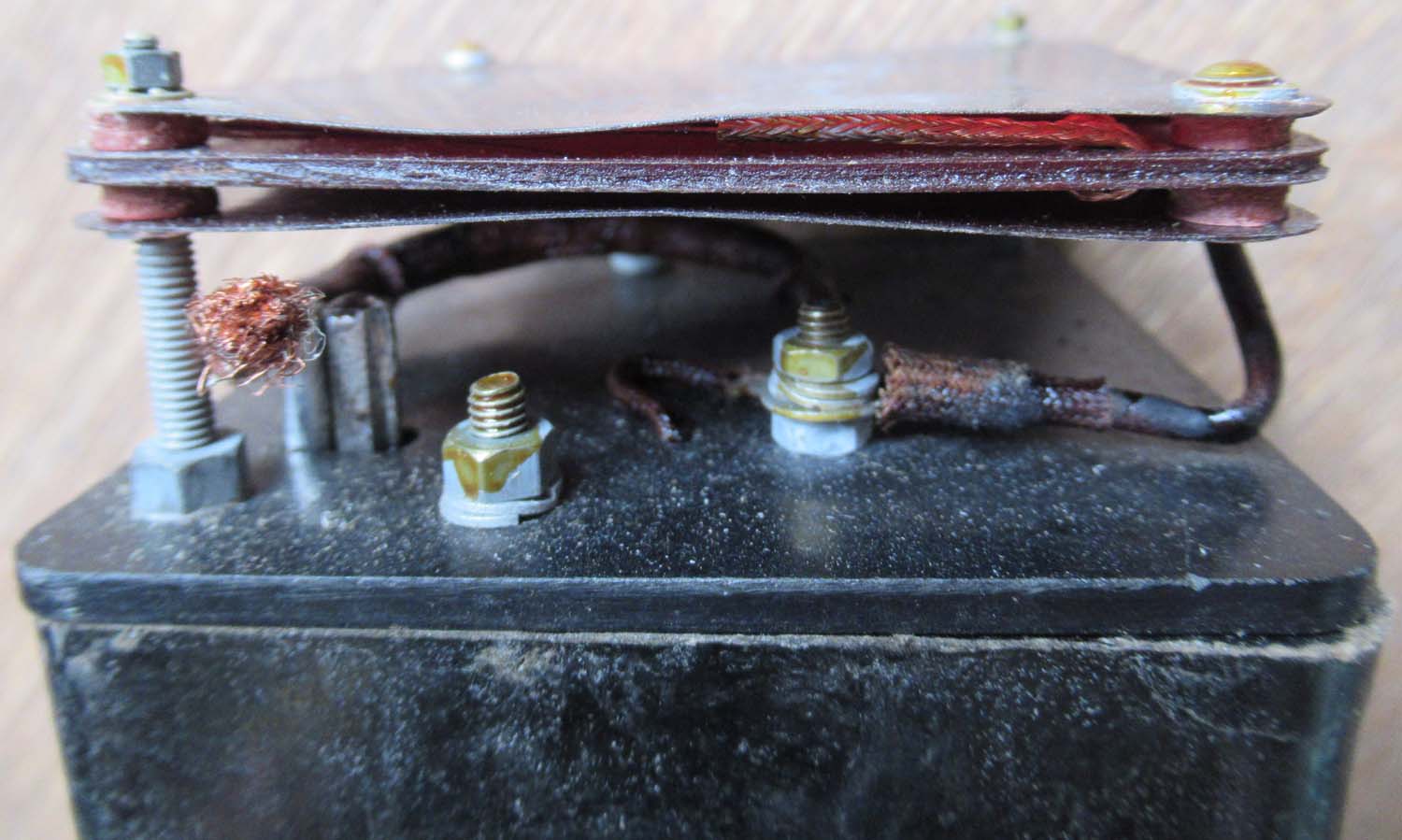

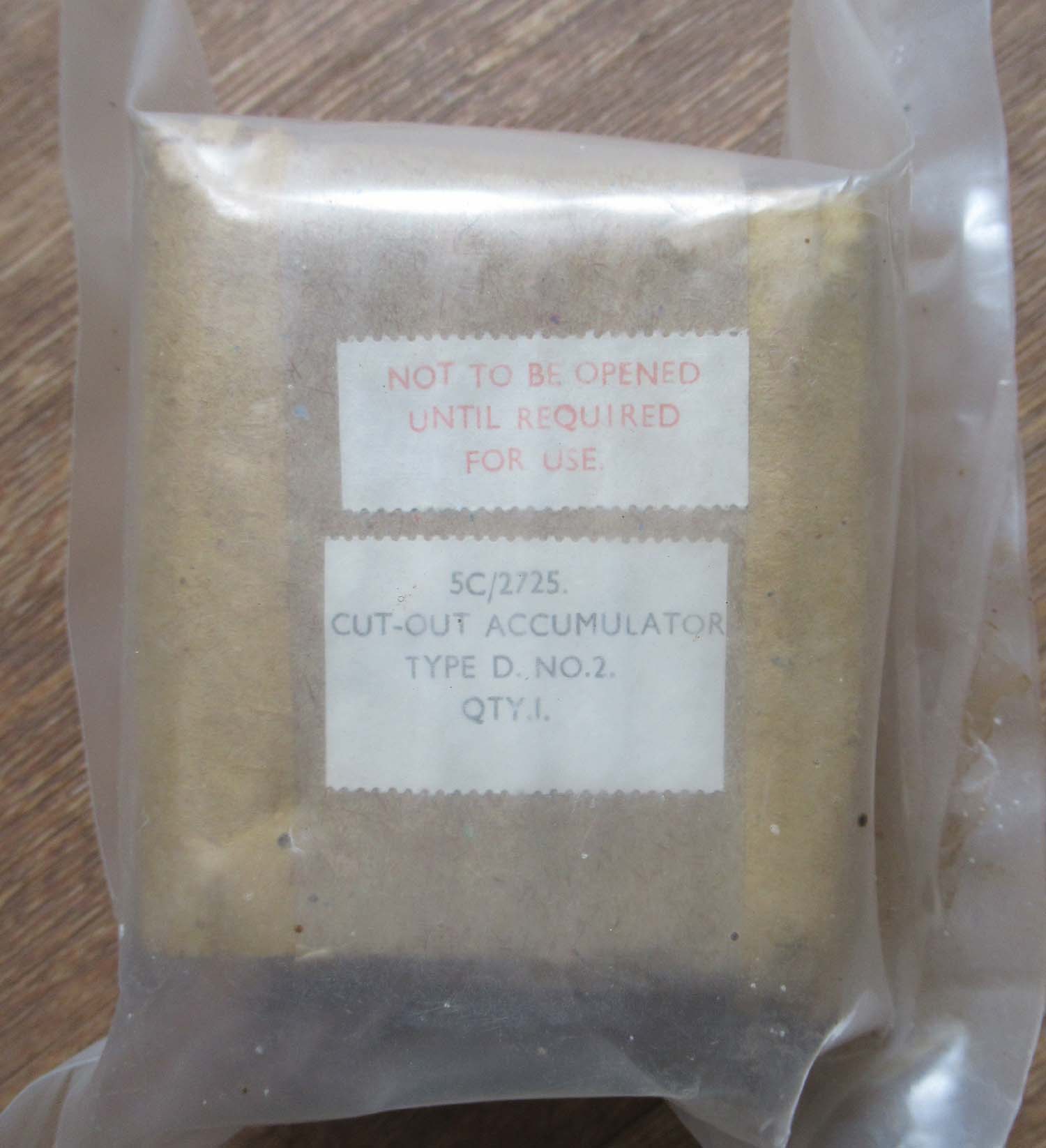

Accumulator cut out Type D  (No 60 pg 1 Elec Misc)

Old/new stock  in original packaging. We have an unboxed one used to take pictures the ones supplied should be in much better condition but we will open before shipping if requested.

5C/2725

Type DS No 2

Click on the pictures to enlarge



 65 each six available

Click on the pictures to enlarge

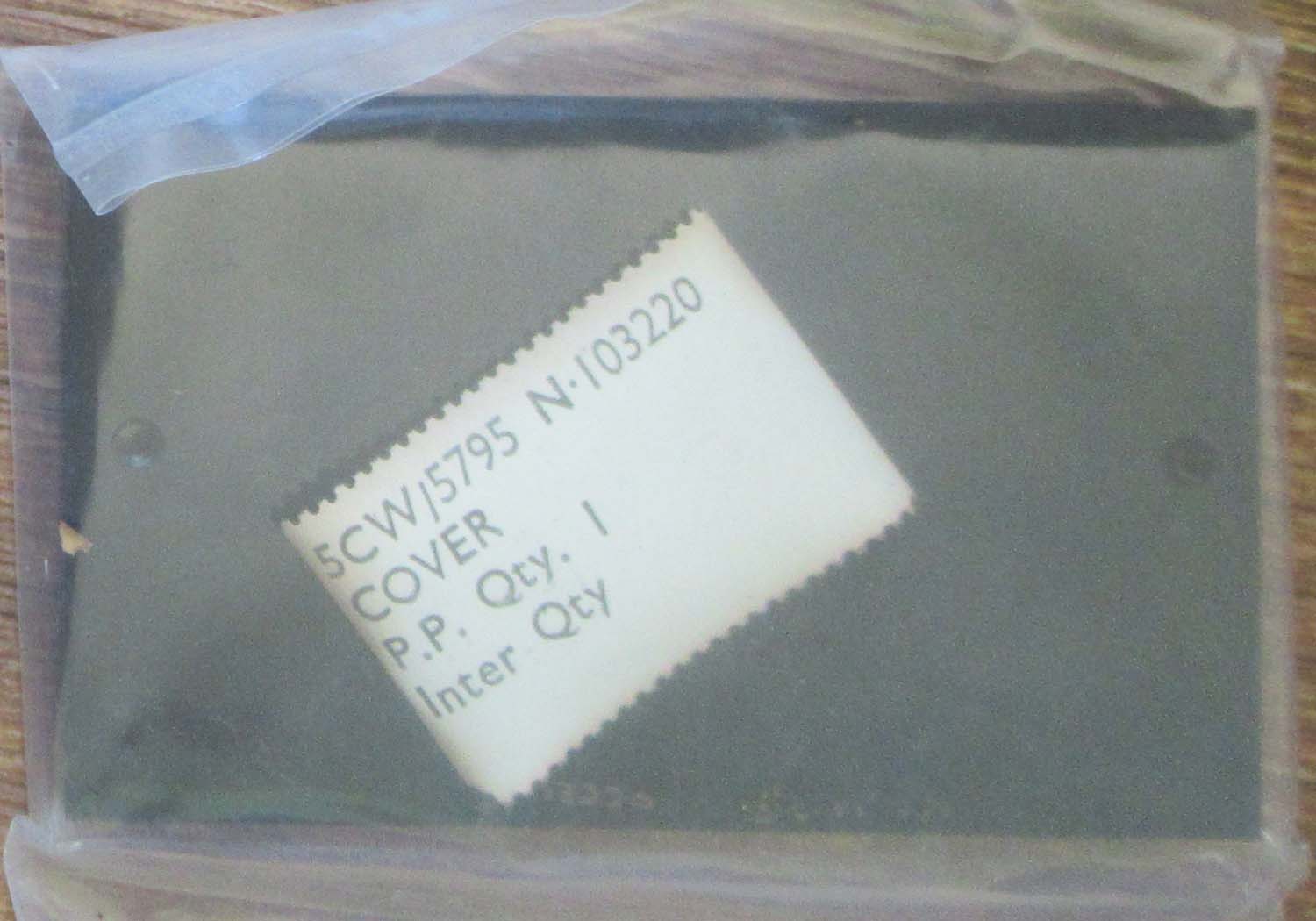

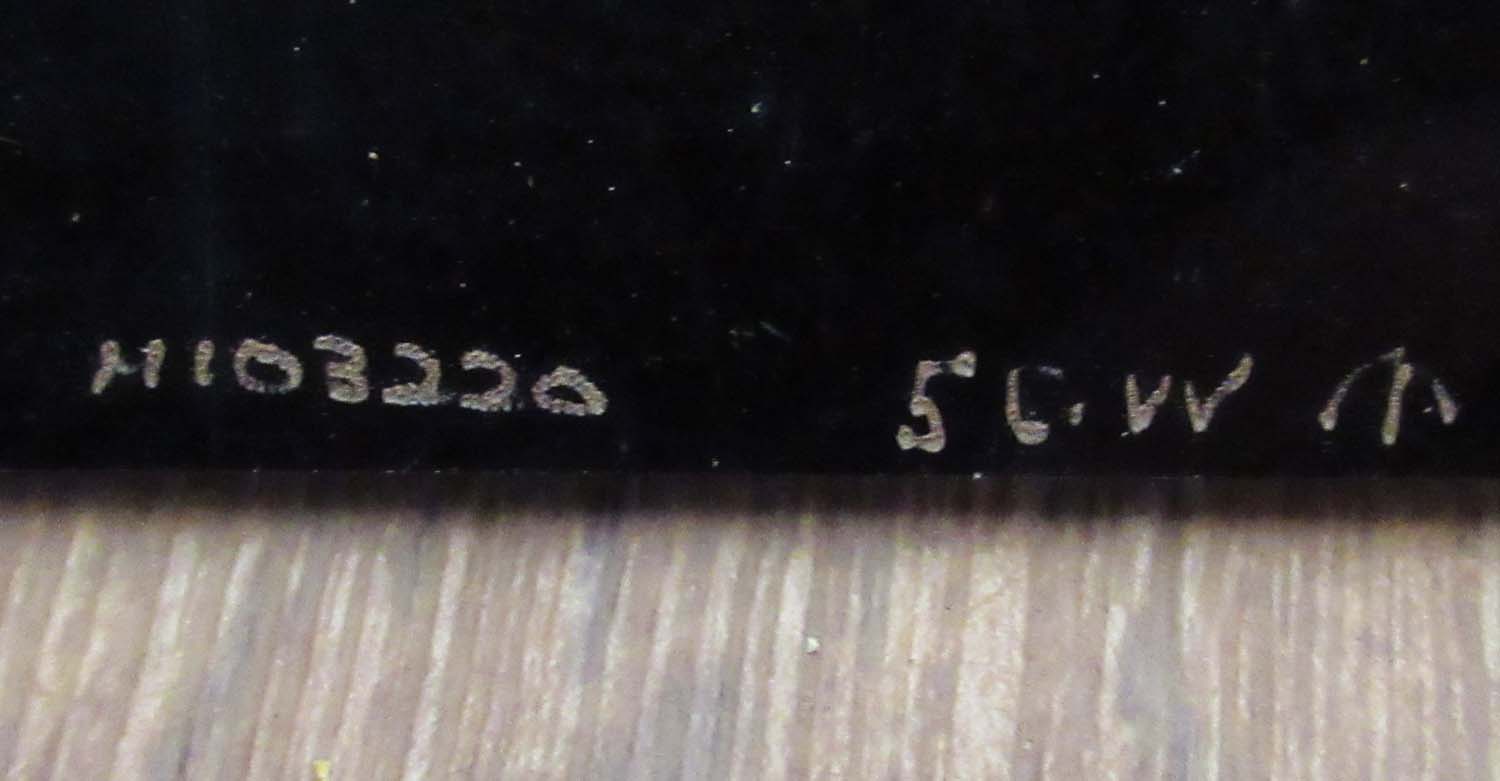

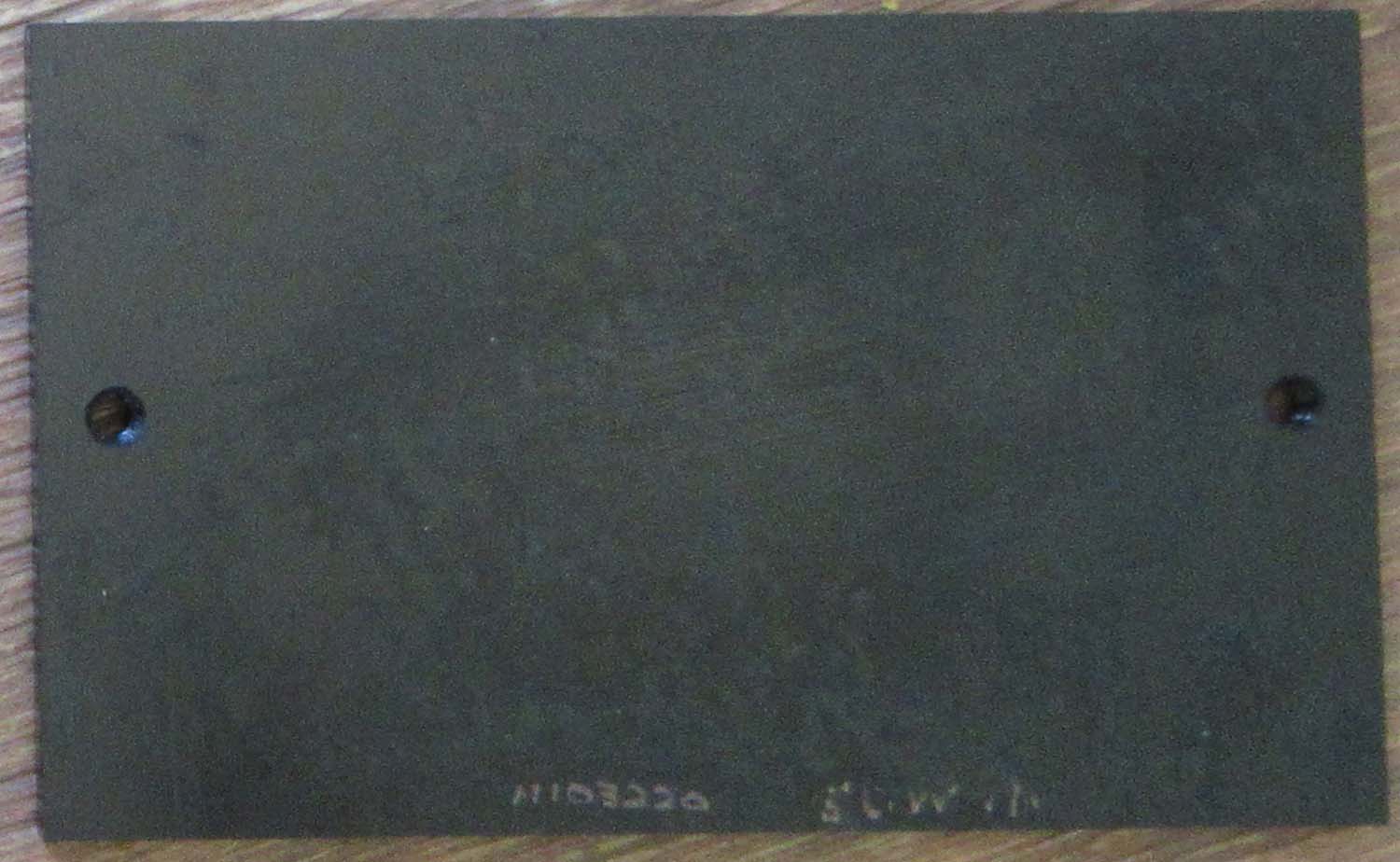

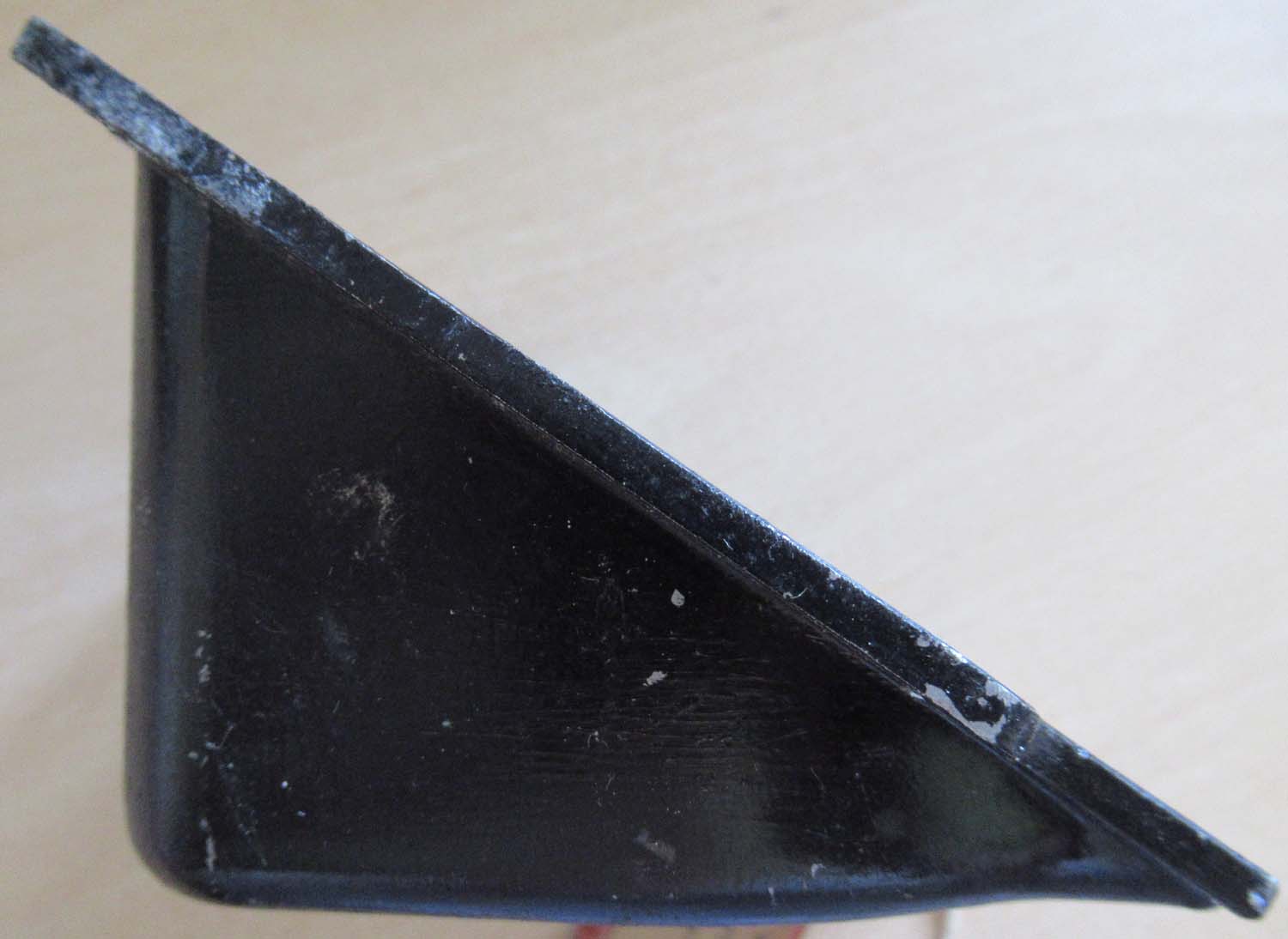

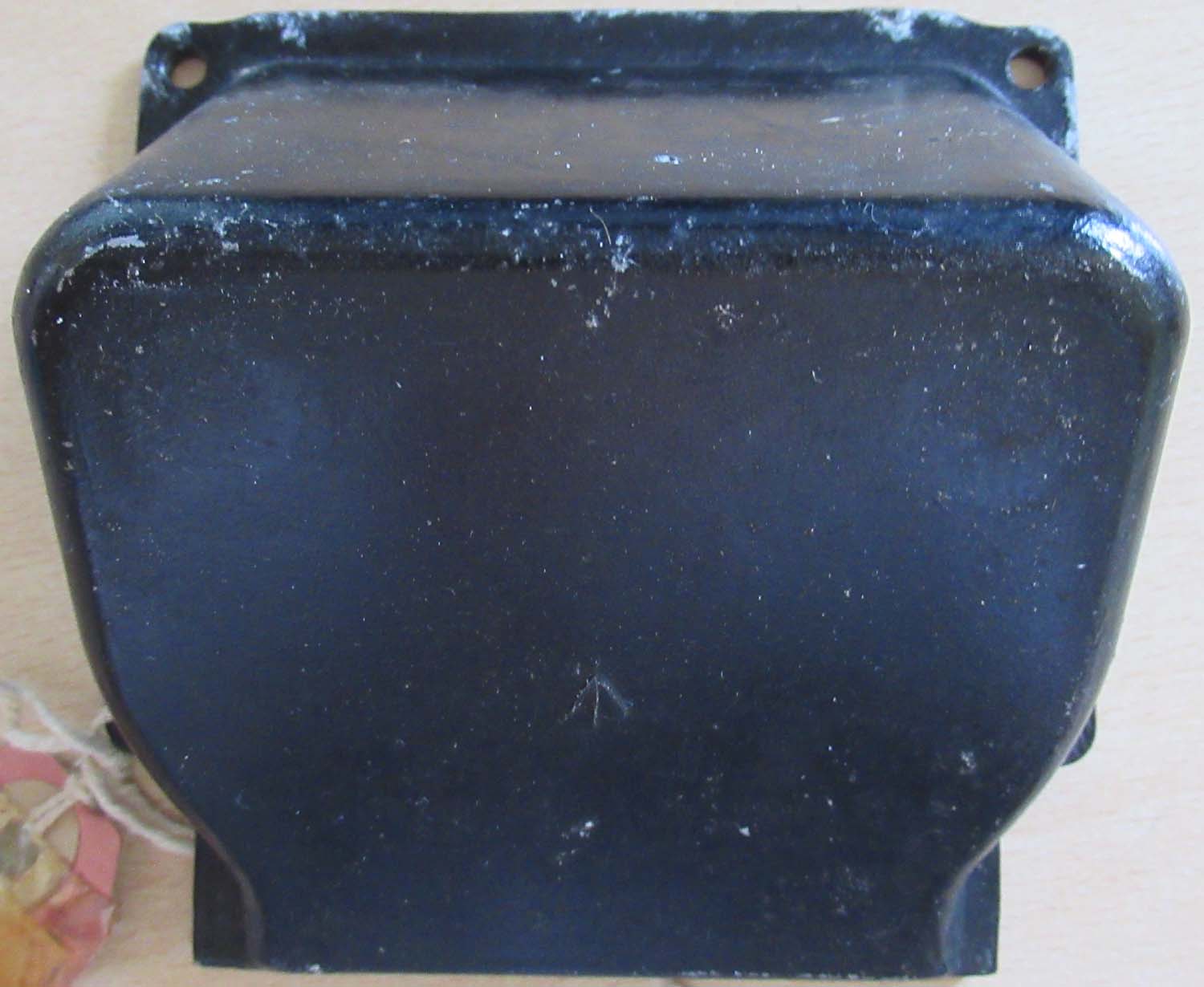

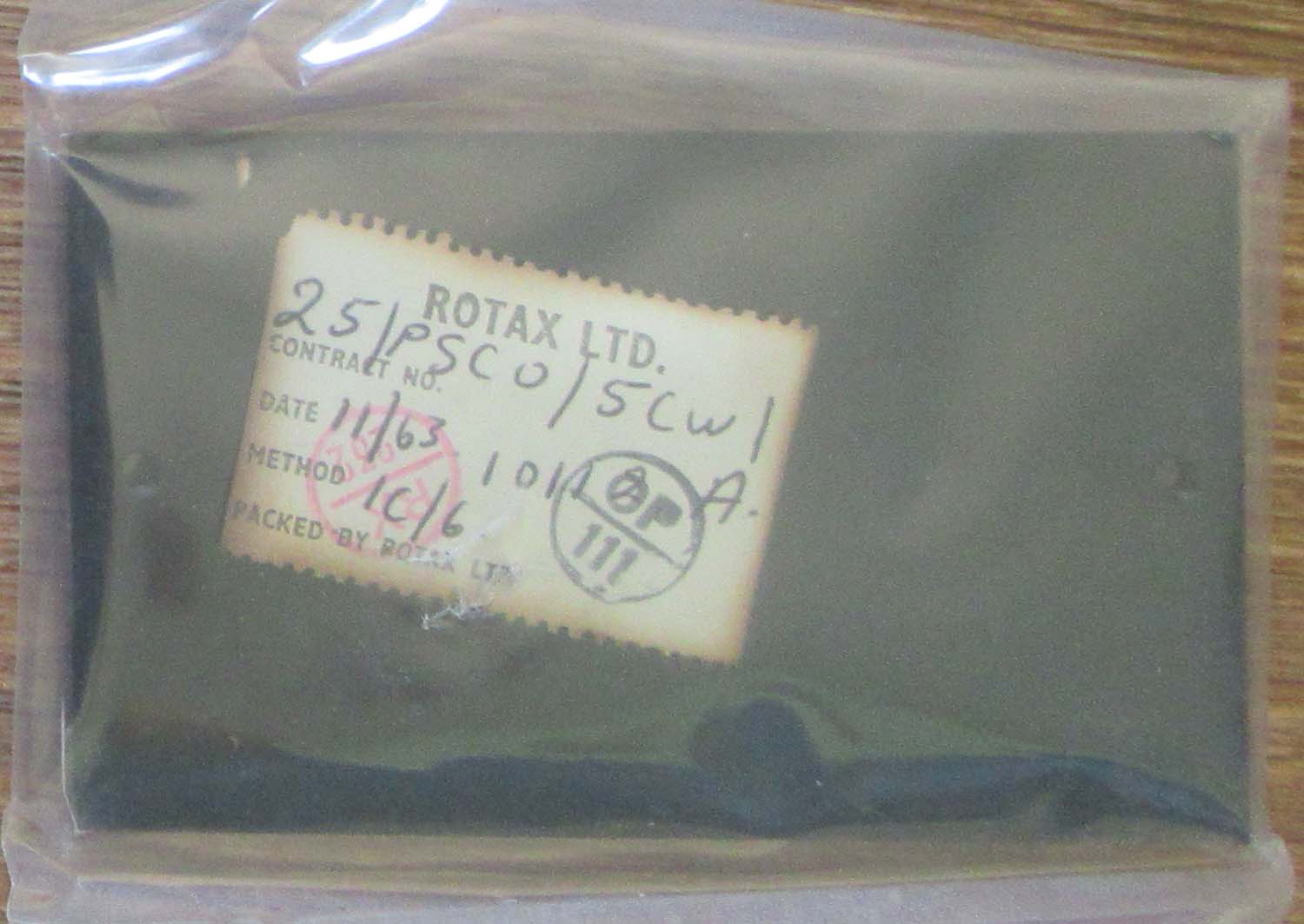

 Cover 5CW/5795 (No 59 pg 1 Elec Misc)

New and in original packaging.

5CW/5795

Click on the pictures to enlarge



 10

Click on the pictures to enlarge

35

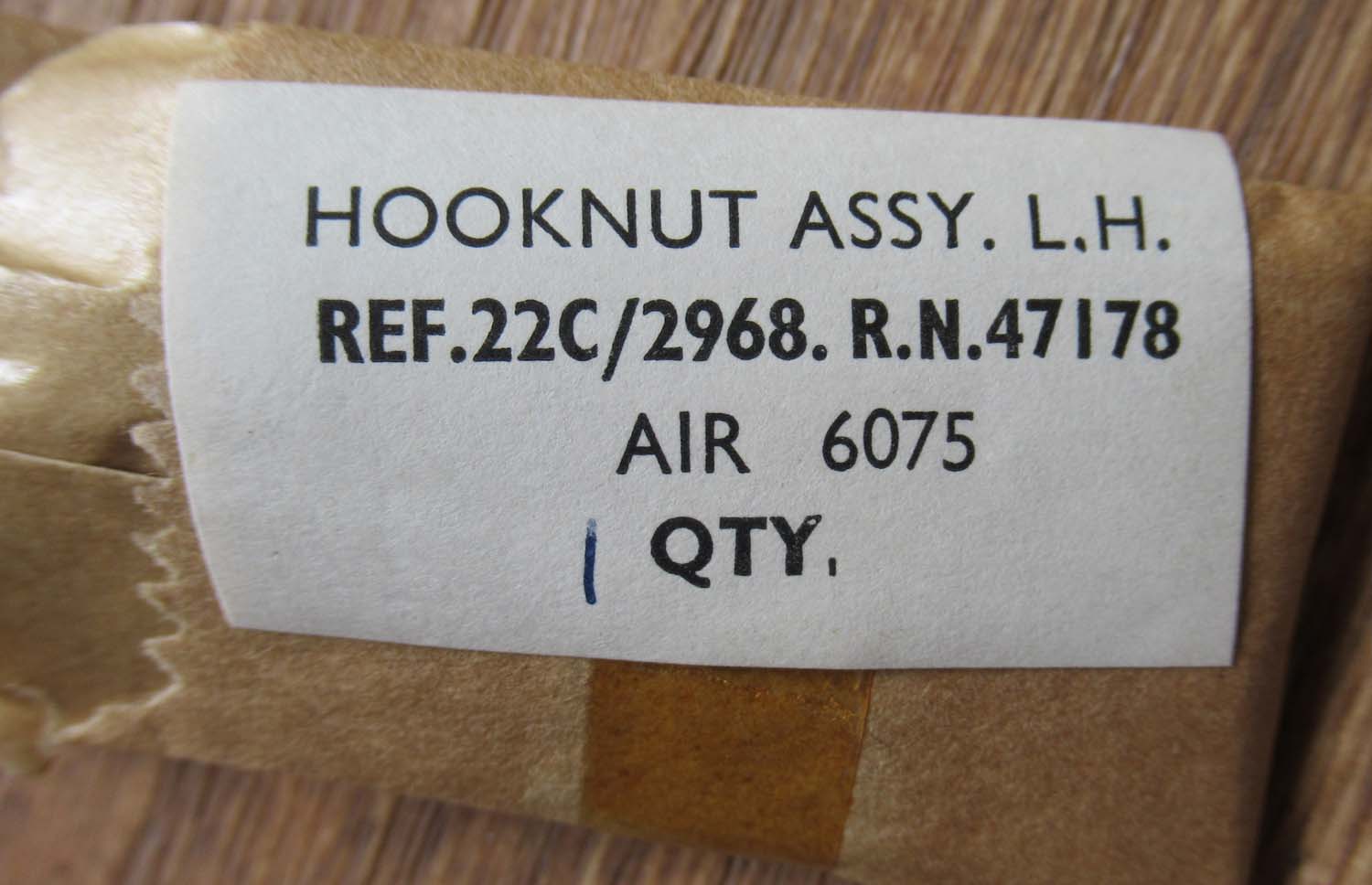

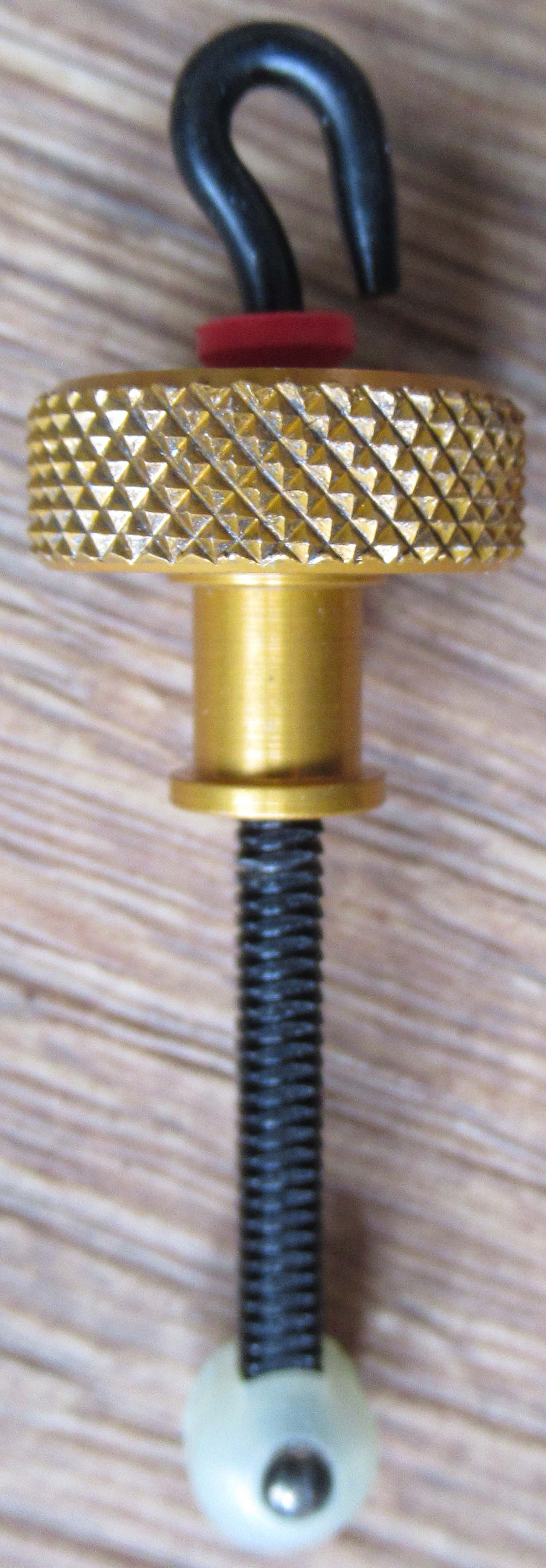

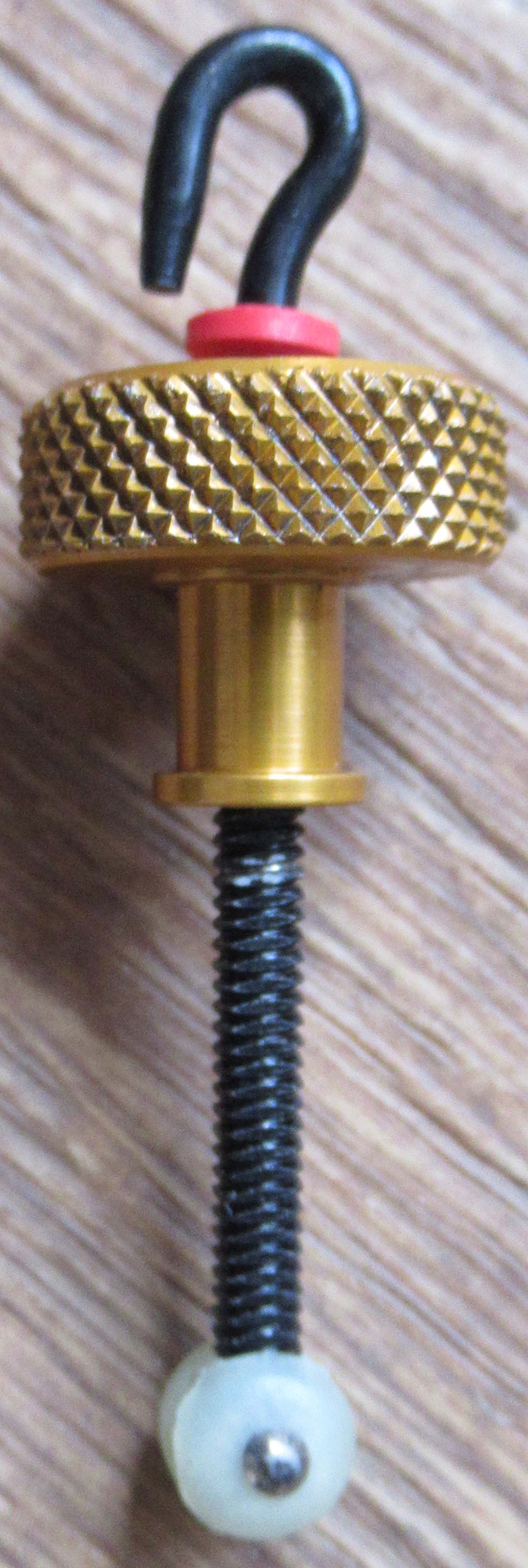

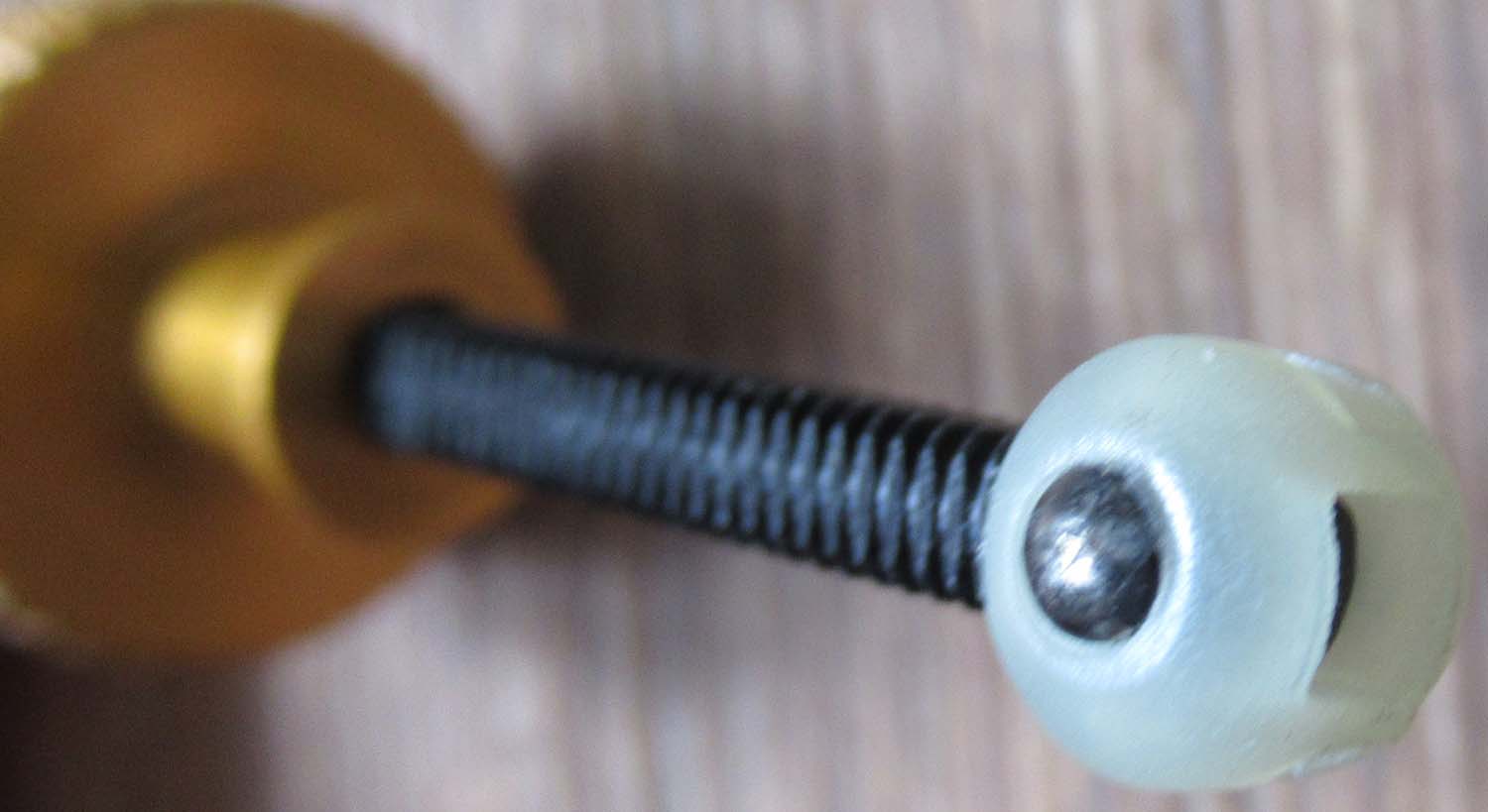

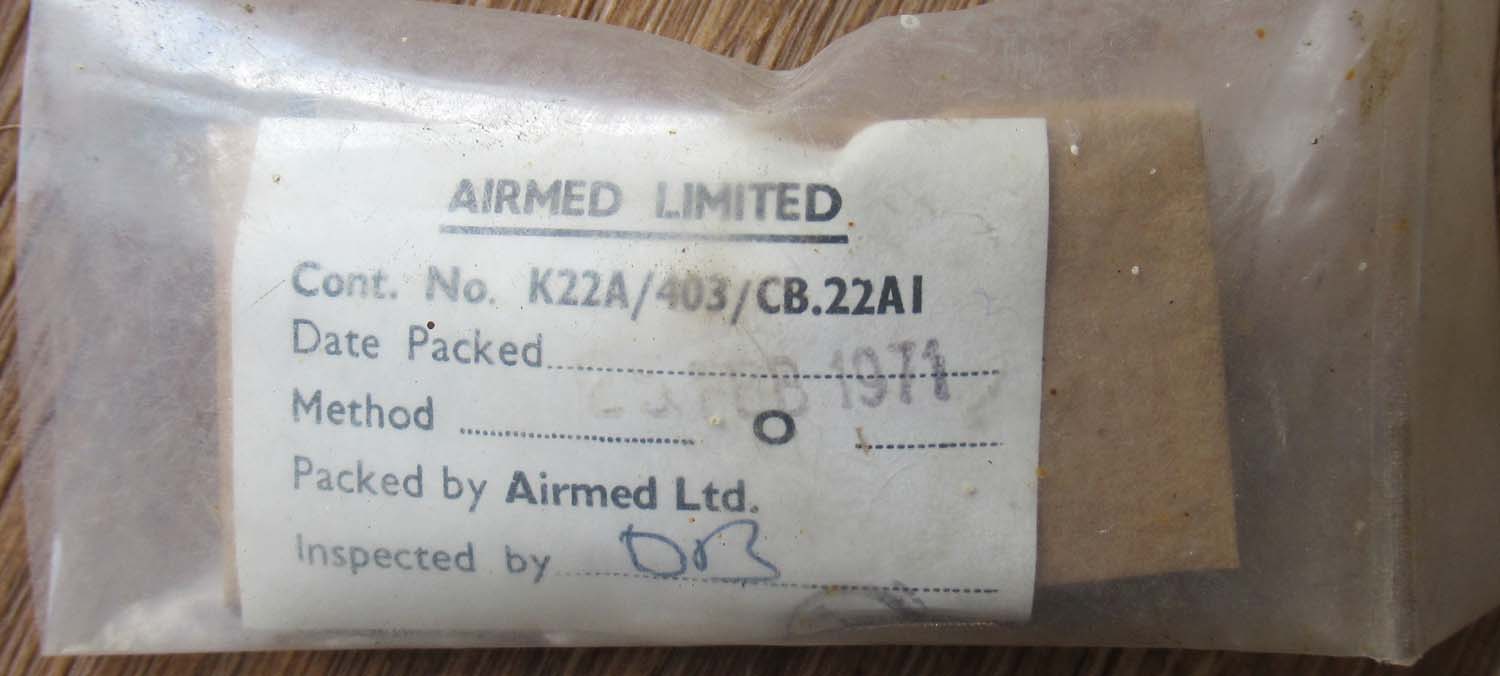

 Hook Nut 22C/2968 (No 58 pg 1 Elec Misc)

By Airmed Ltd. New and in original packaging.

REF: 22C/2968.R.N47178

AIR 6075

Click on the pictures to enlarge





Click on the pictures to enlarge

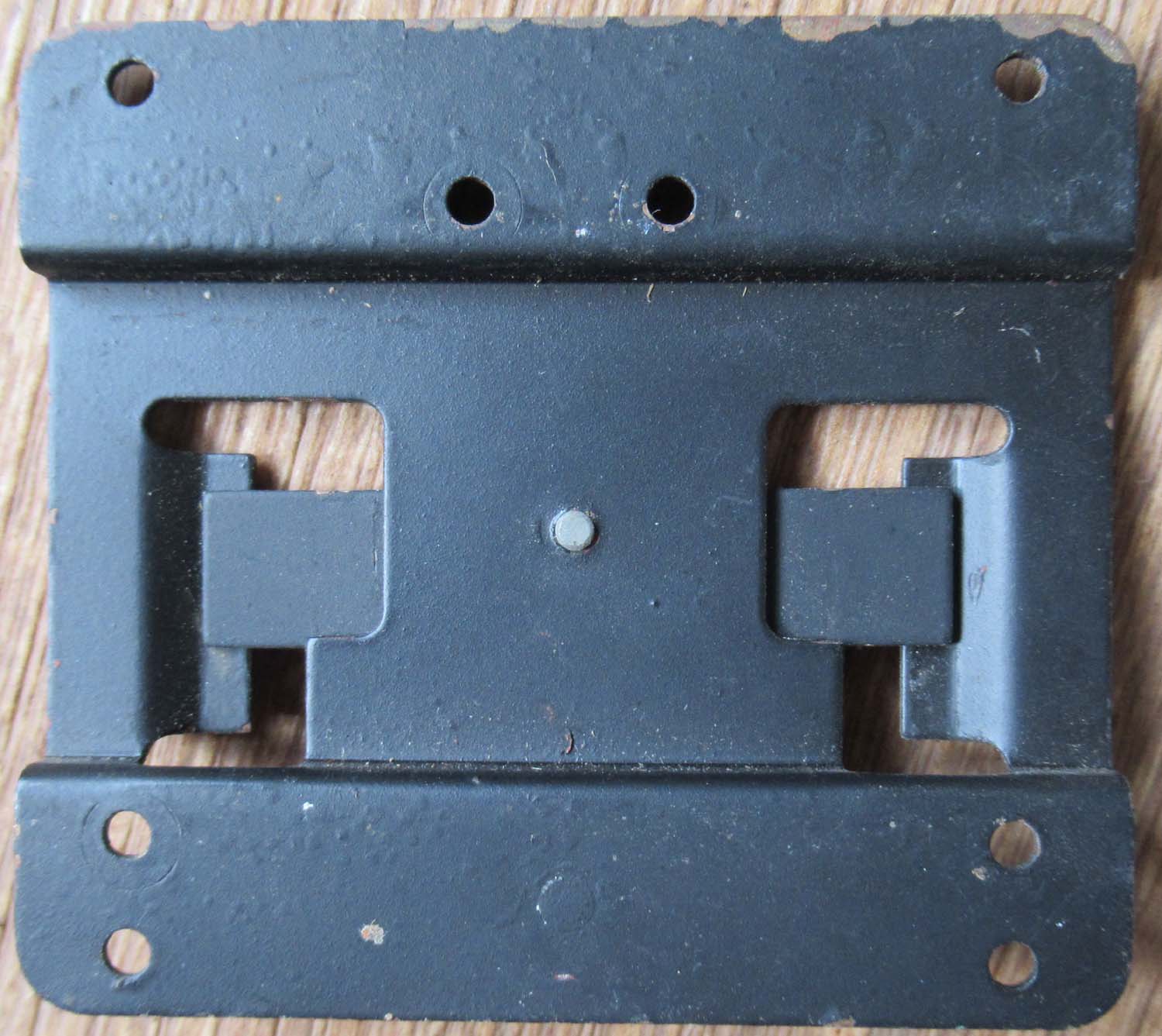

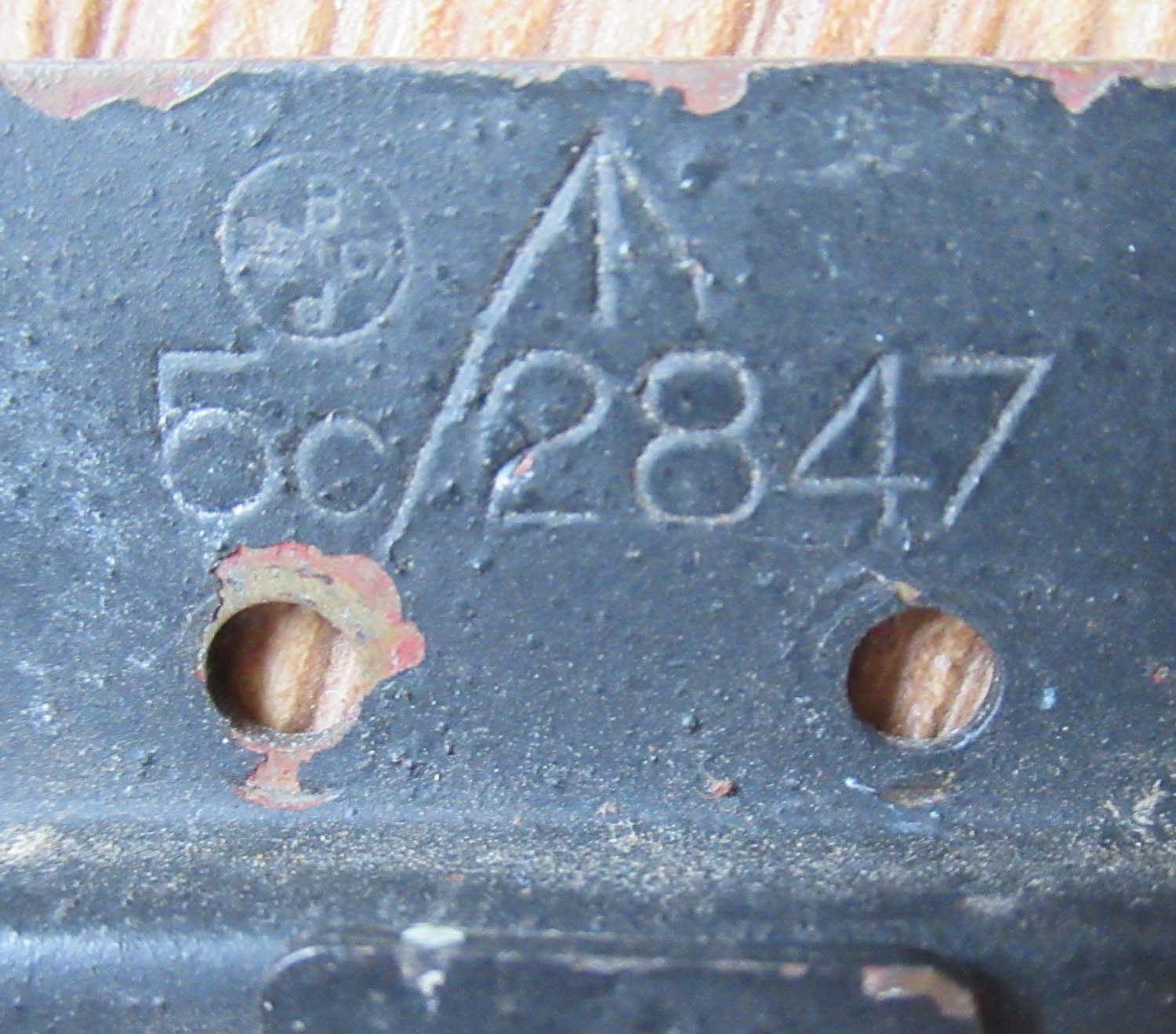

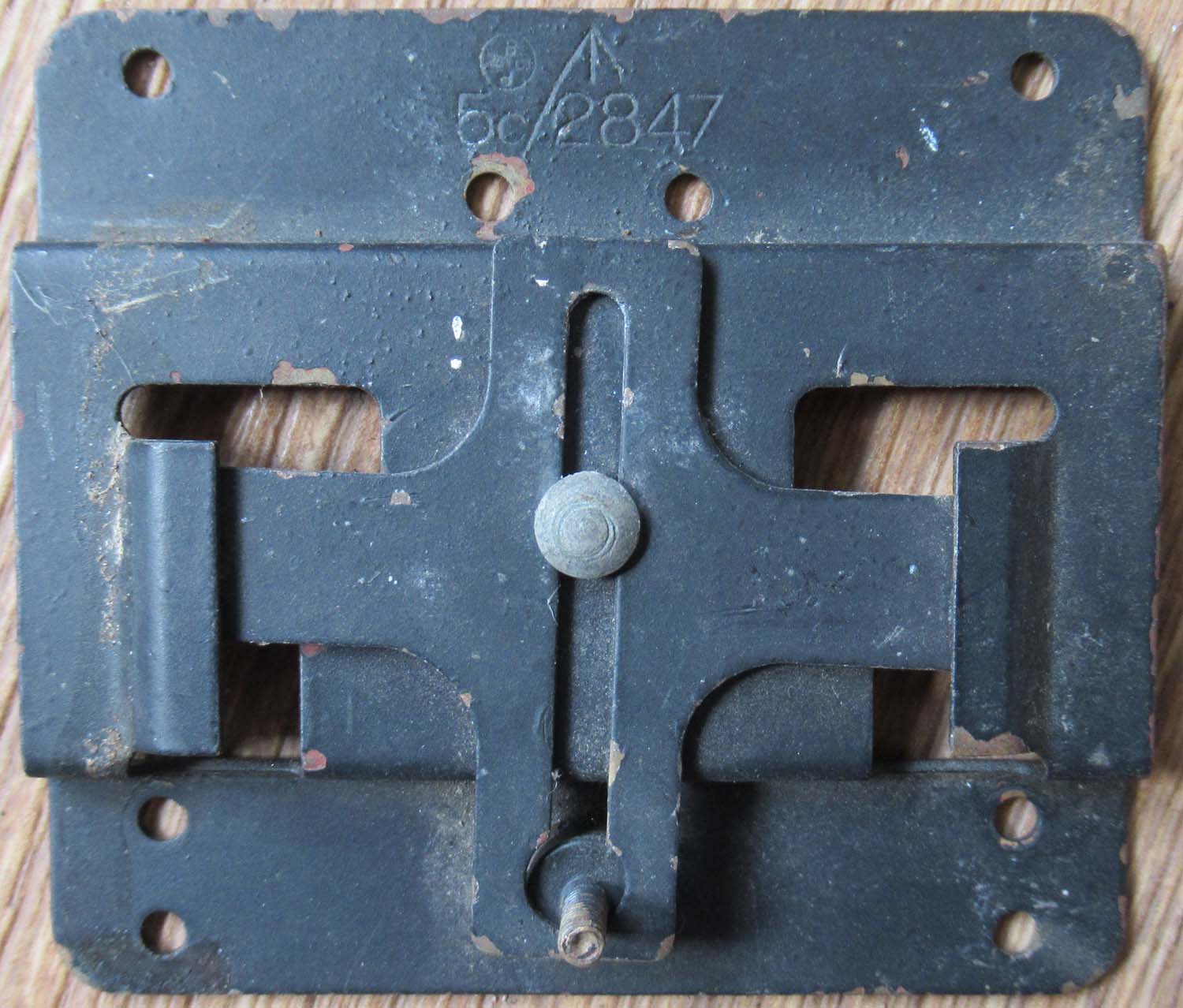

 Plate 5C/2847 (No 57 pg 1 Elec Misc)

5C/2847

Click on the pictures to enlarge



25



Click on the pictures to enlarge

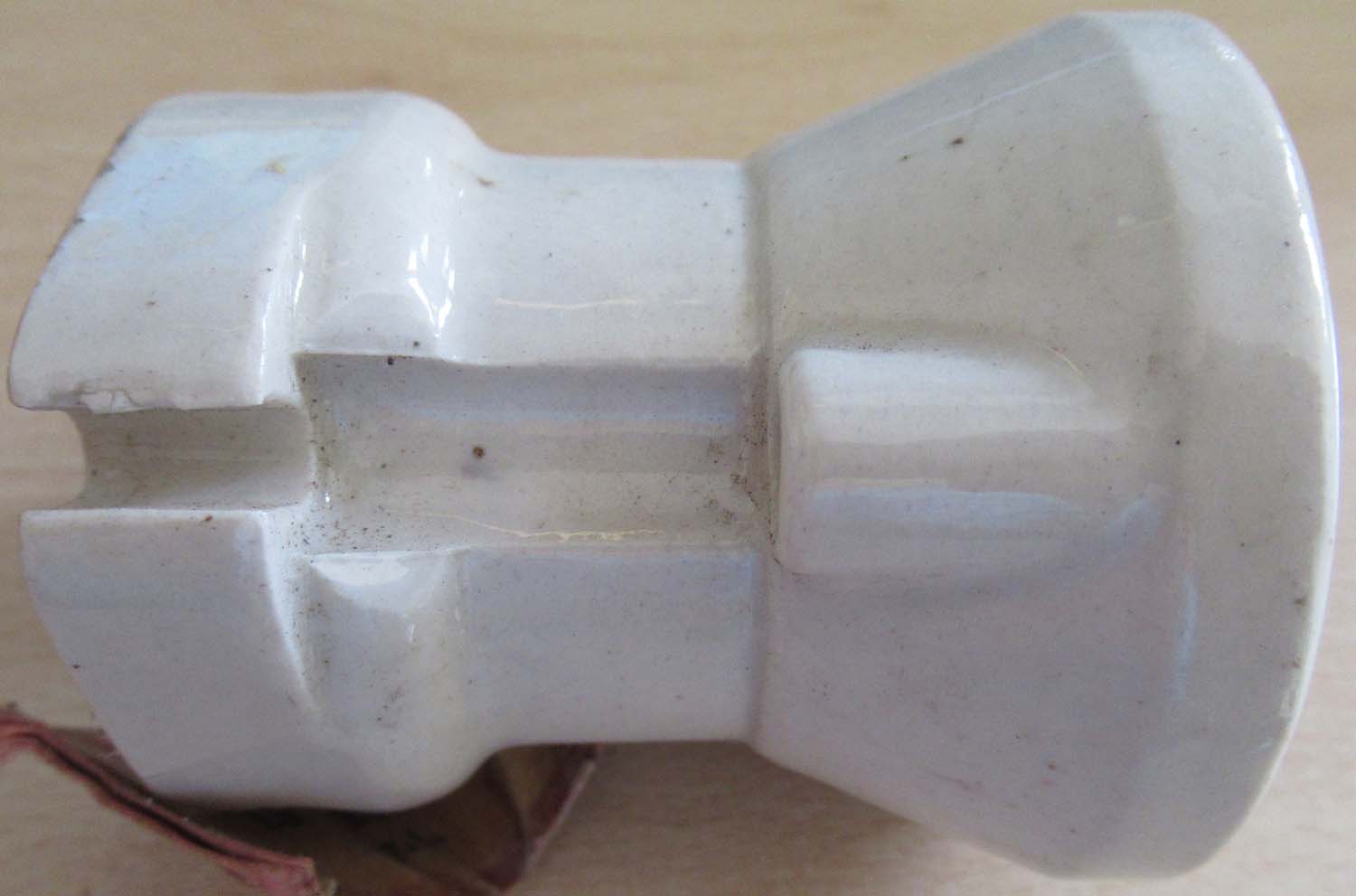

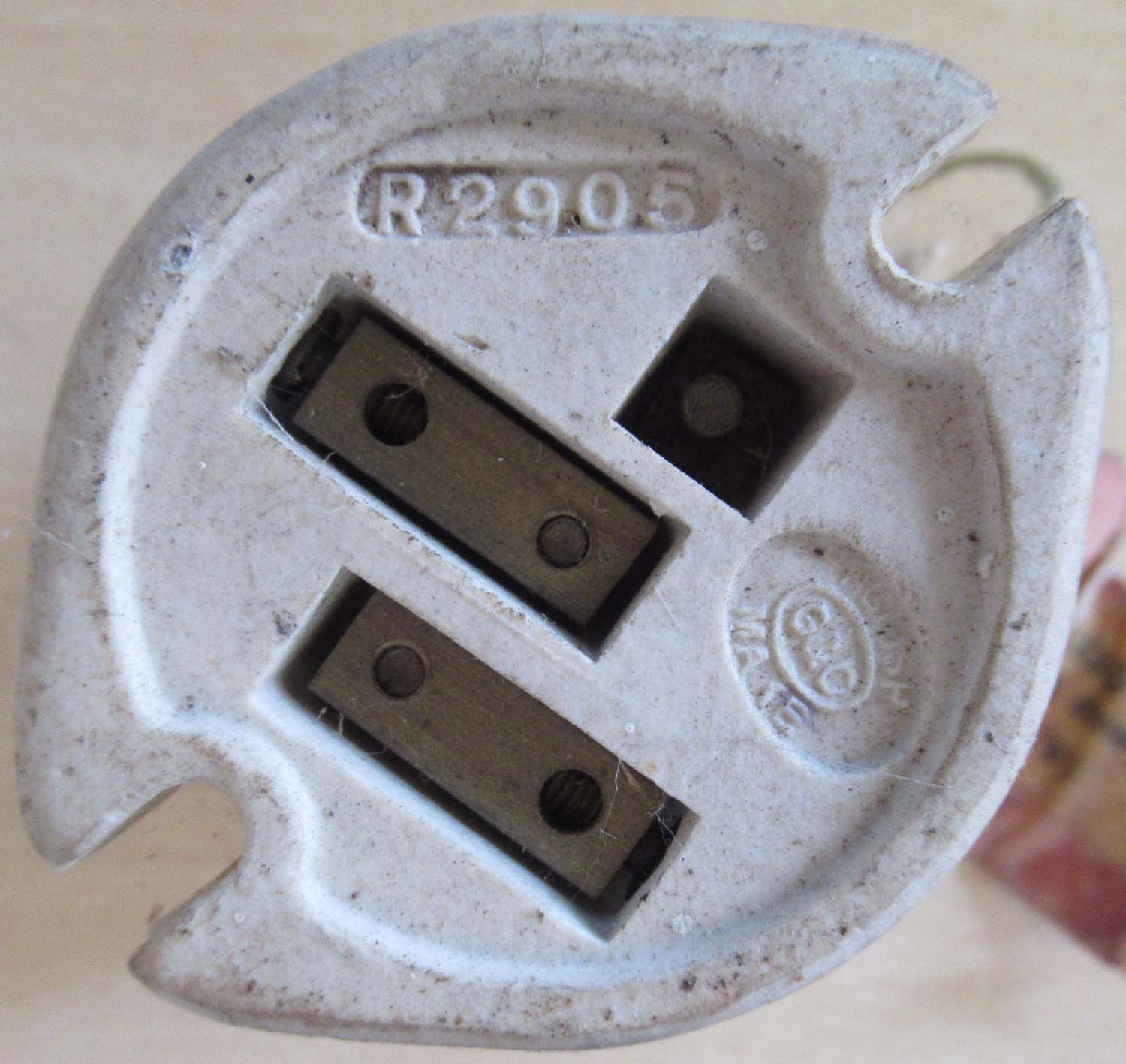

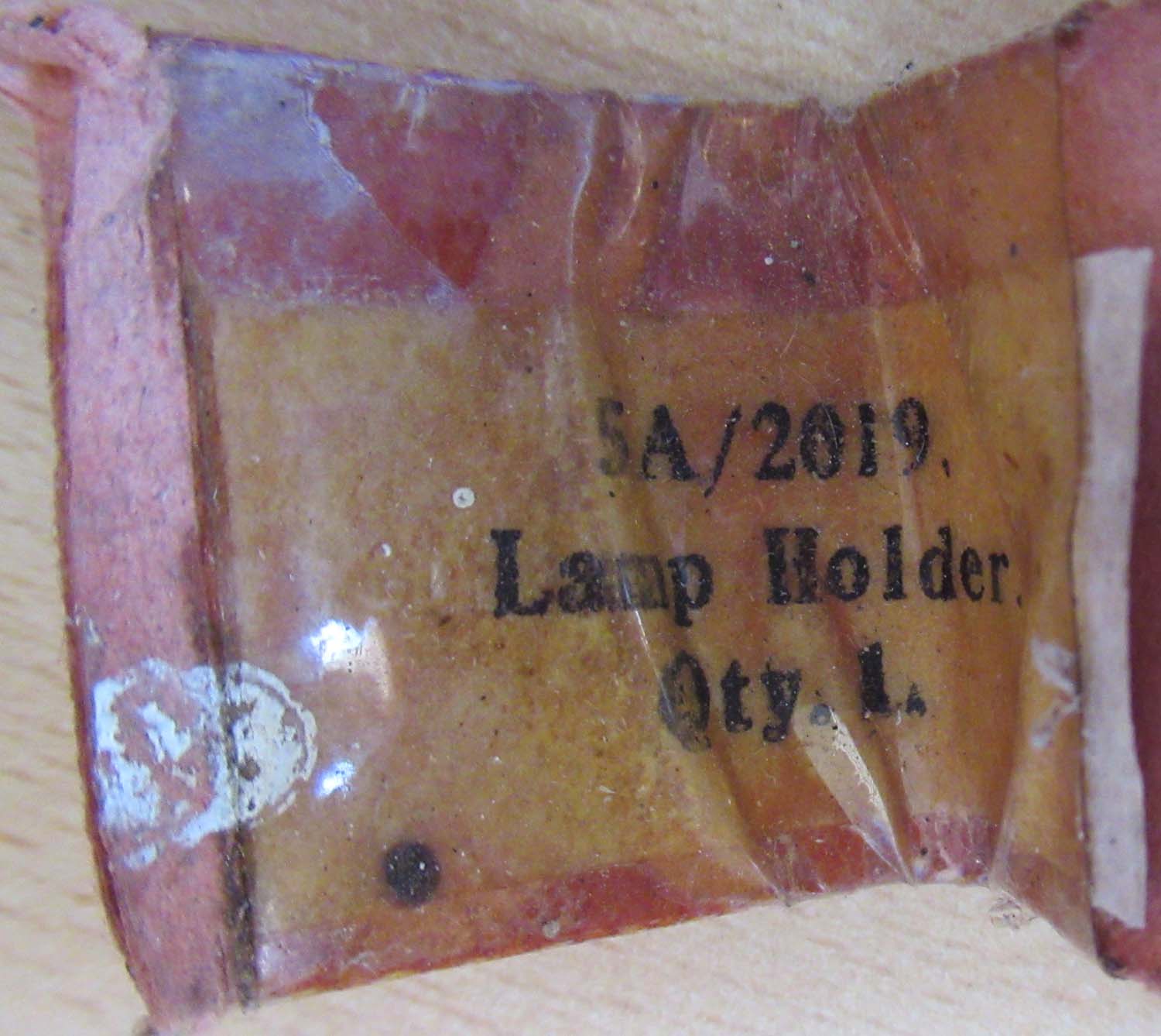

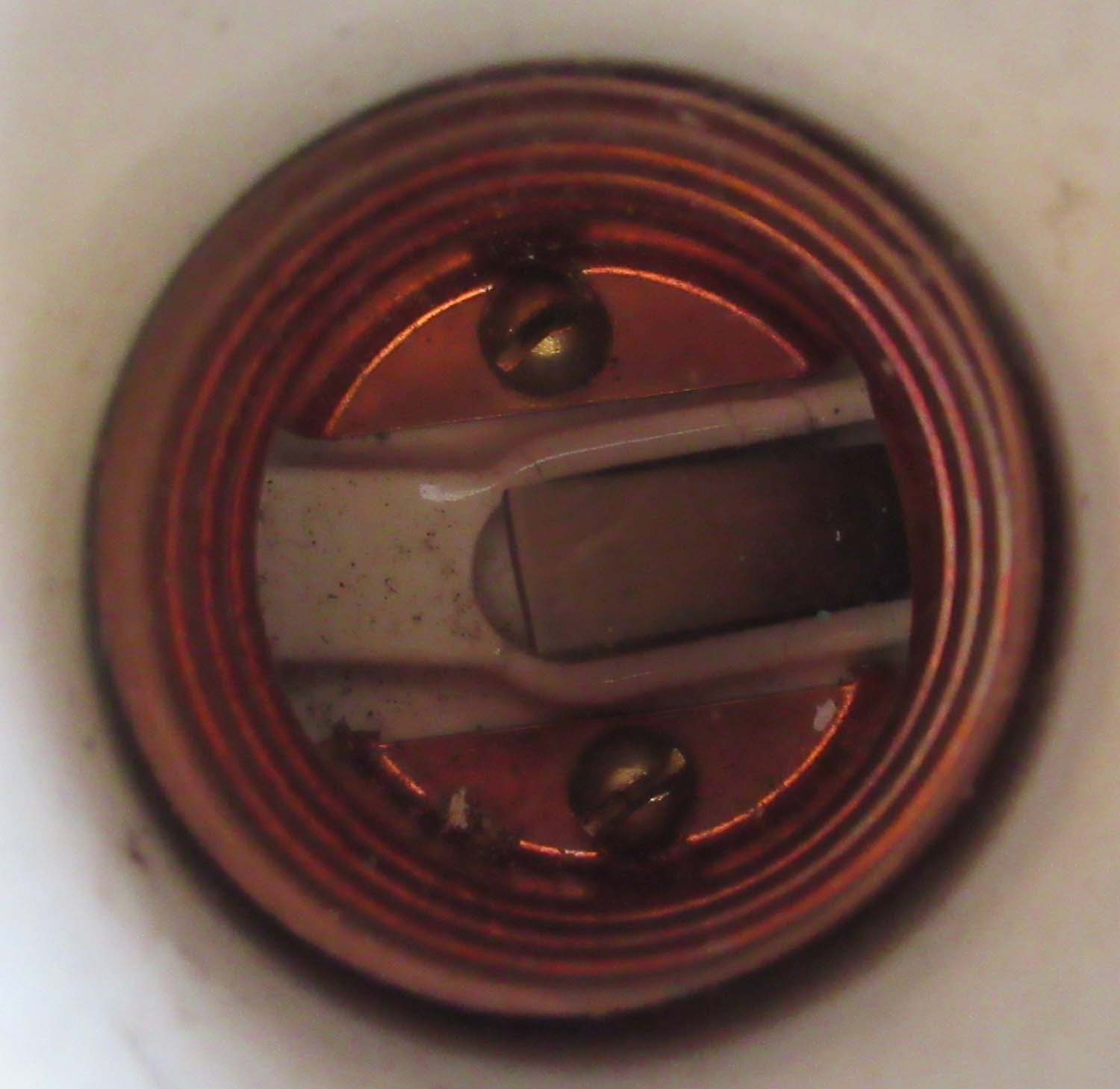

 Lamp Holder 5A/2019 (No 56 pg 1 Elec Misc)

Nice condition lamp holder.

5A/2019

R2905

Click on the pict8res to enlarge 25



                             20

Click on the pictures to enlarge

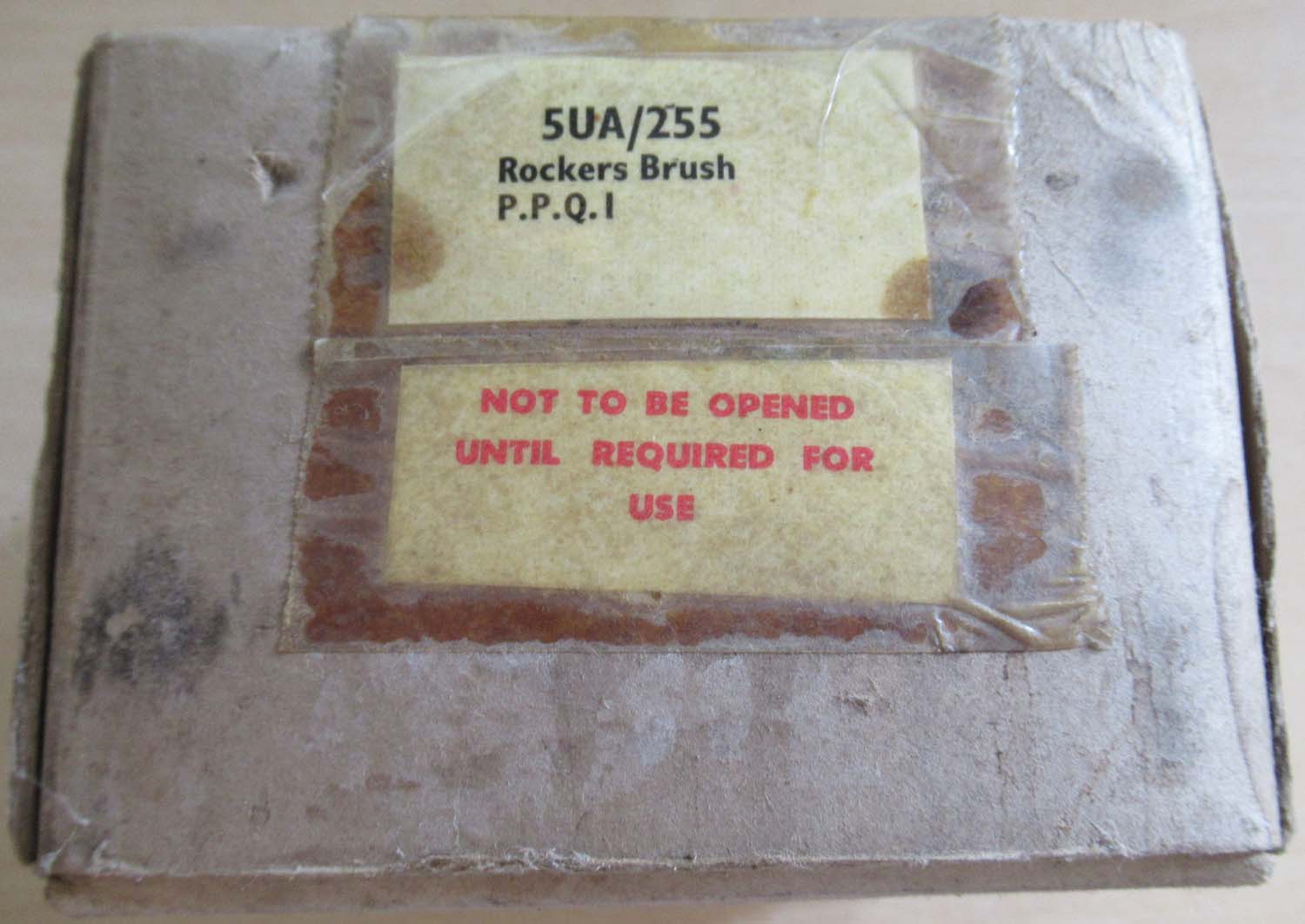

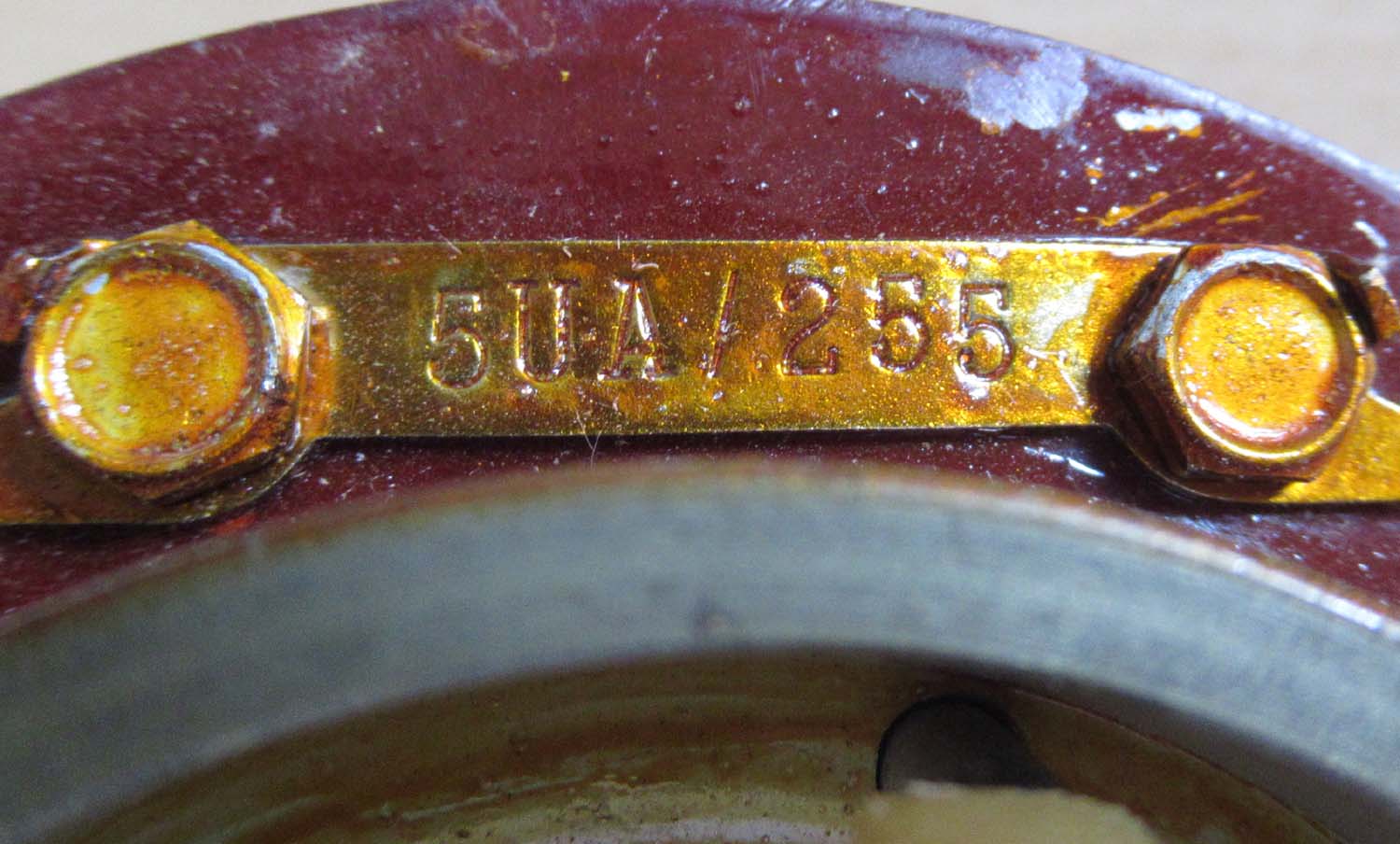

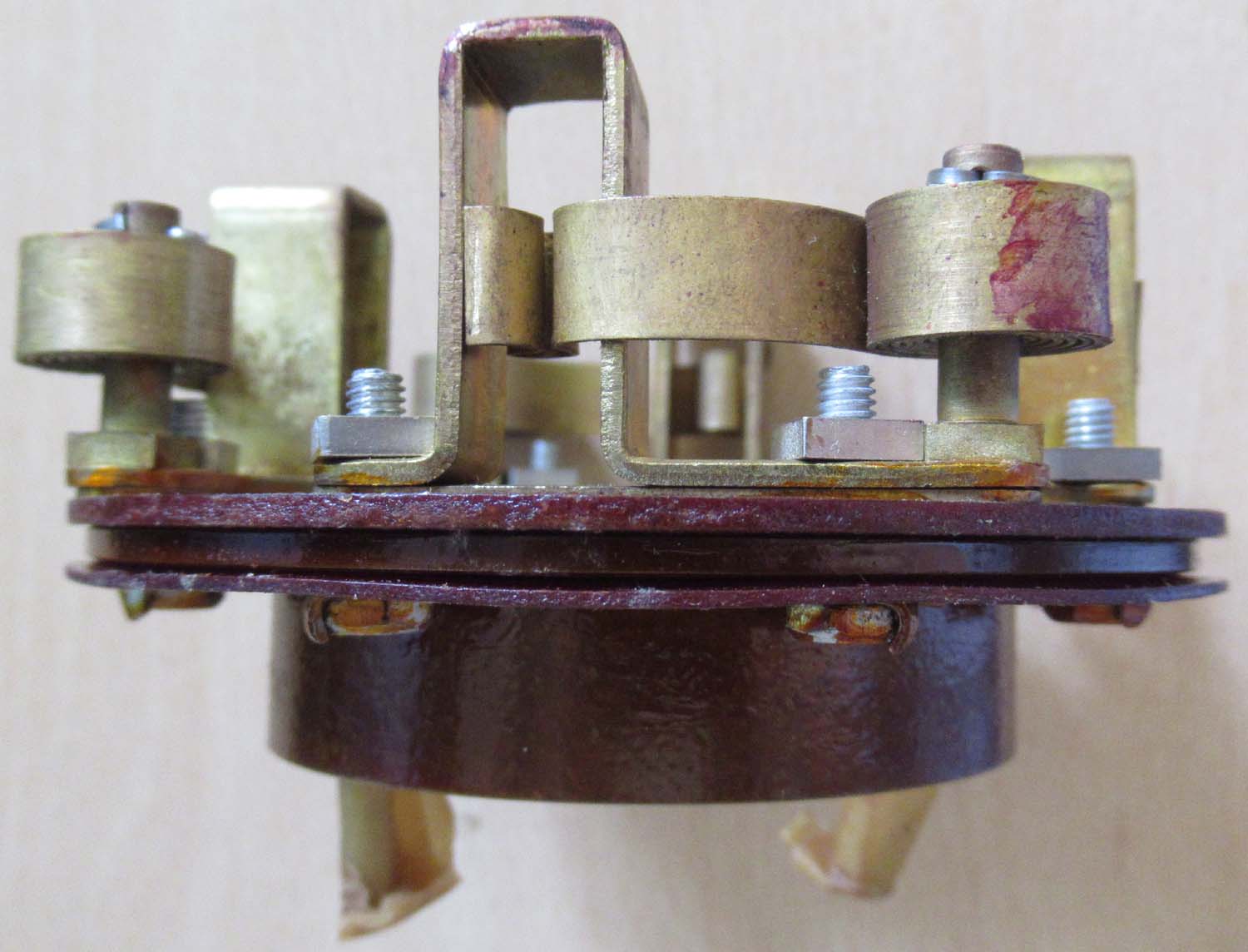

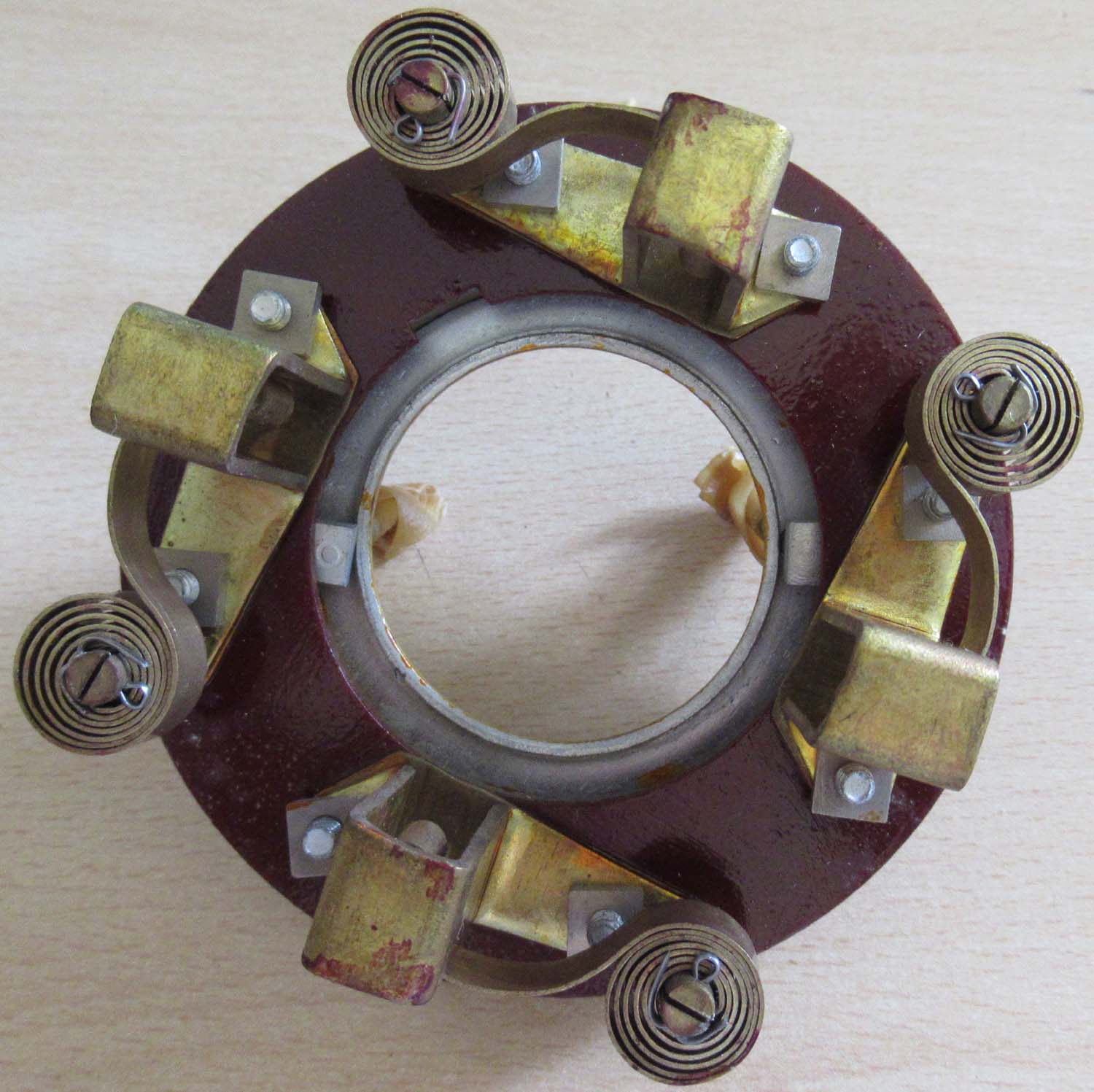

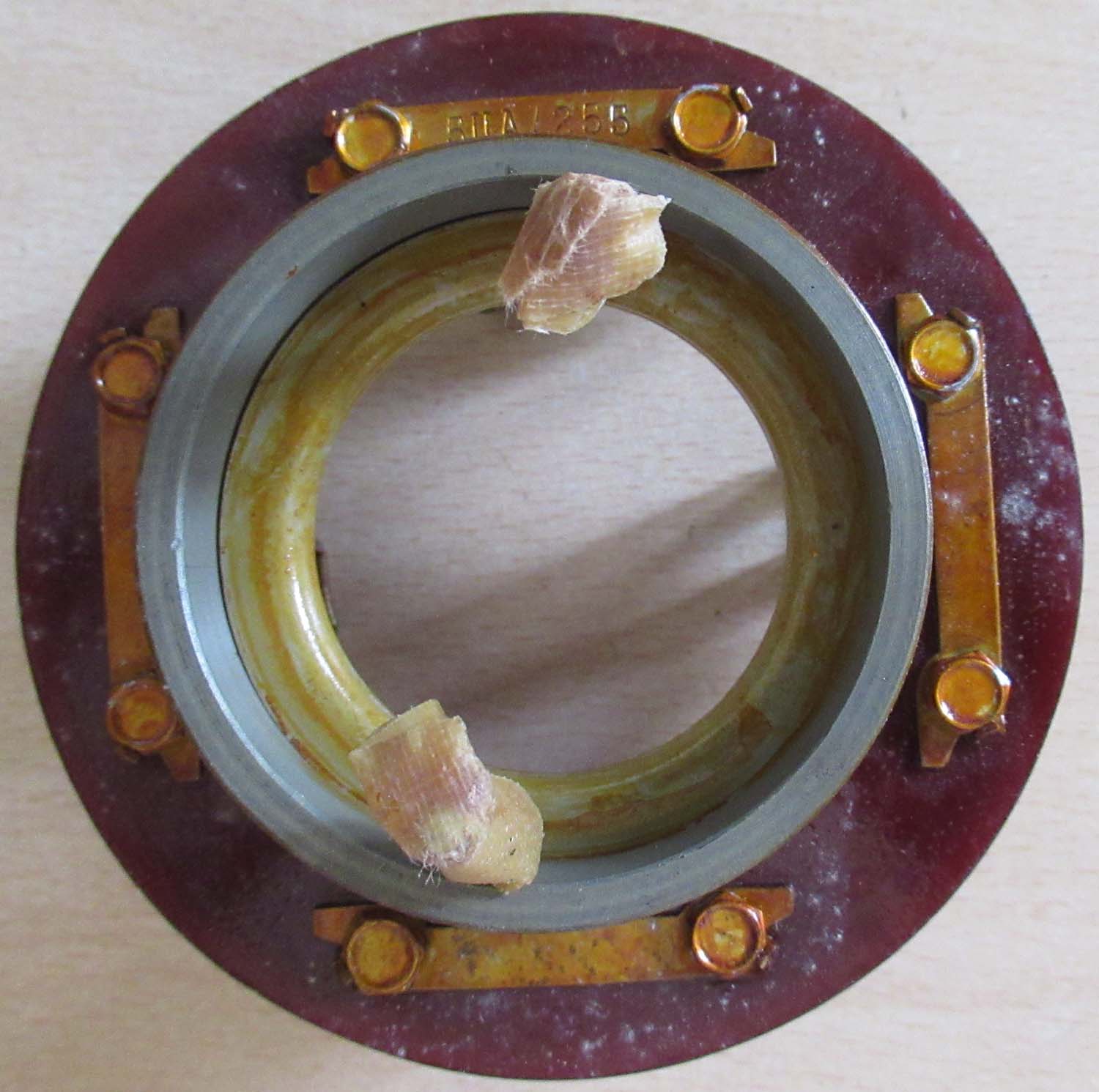

Rockers Brush (No 55 pg 1 Elec Misc)

New and in original packaging.

5UA/255

Click on the pictures to enlarge



                             45

Click on the pictures to enlarge

      20

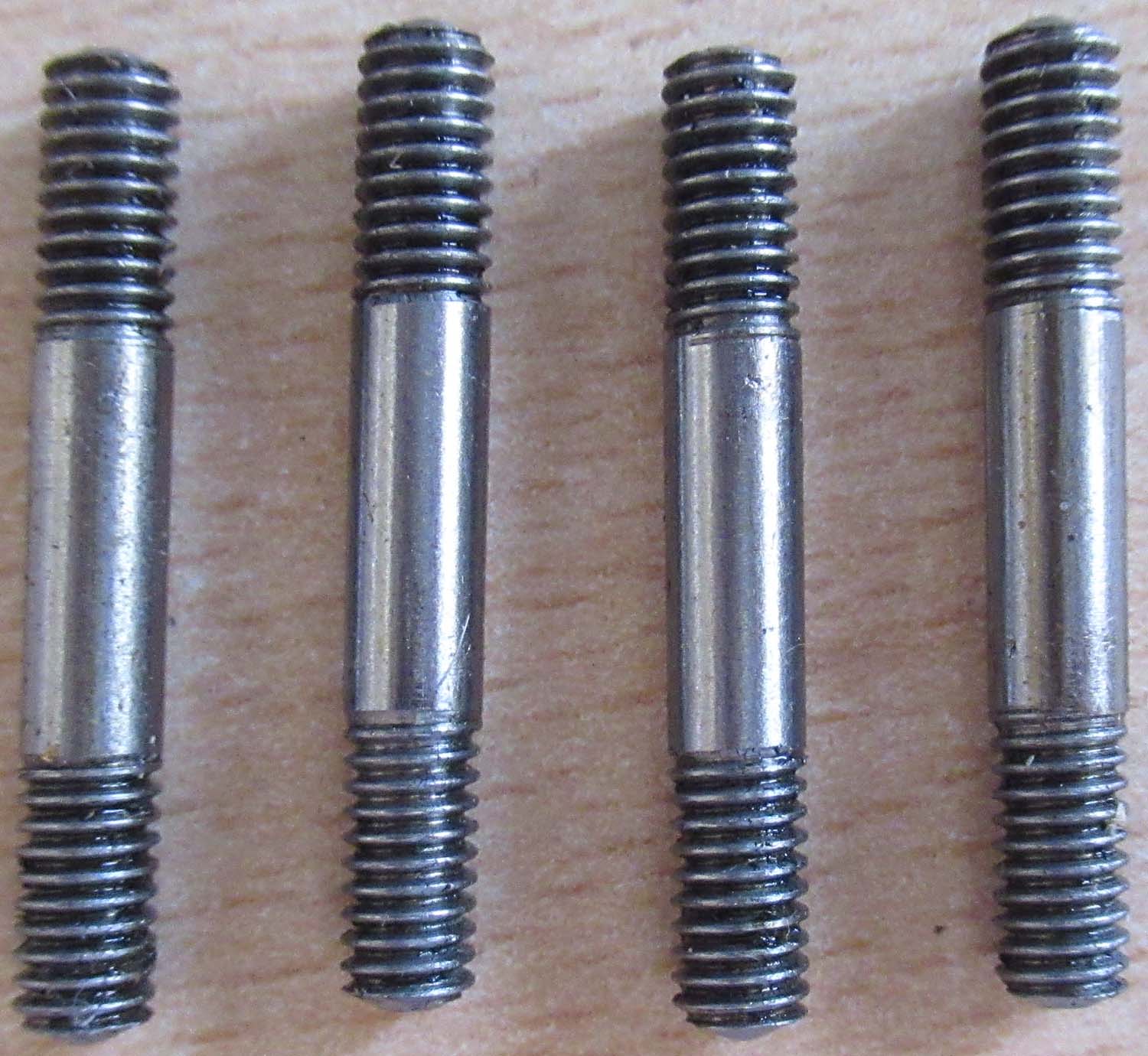

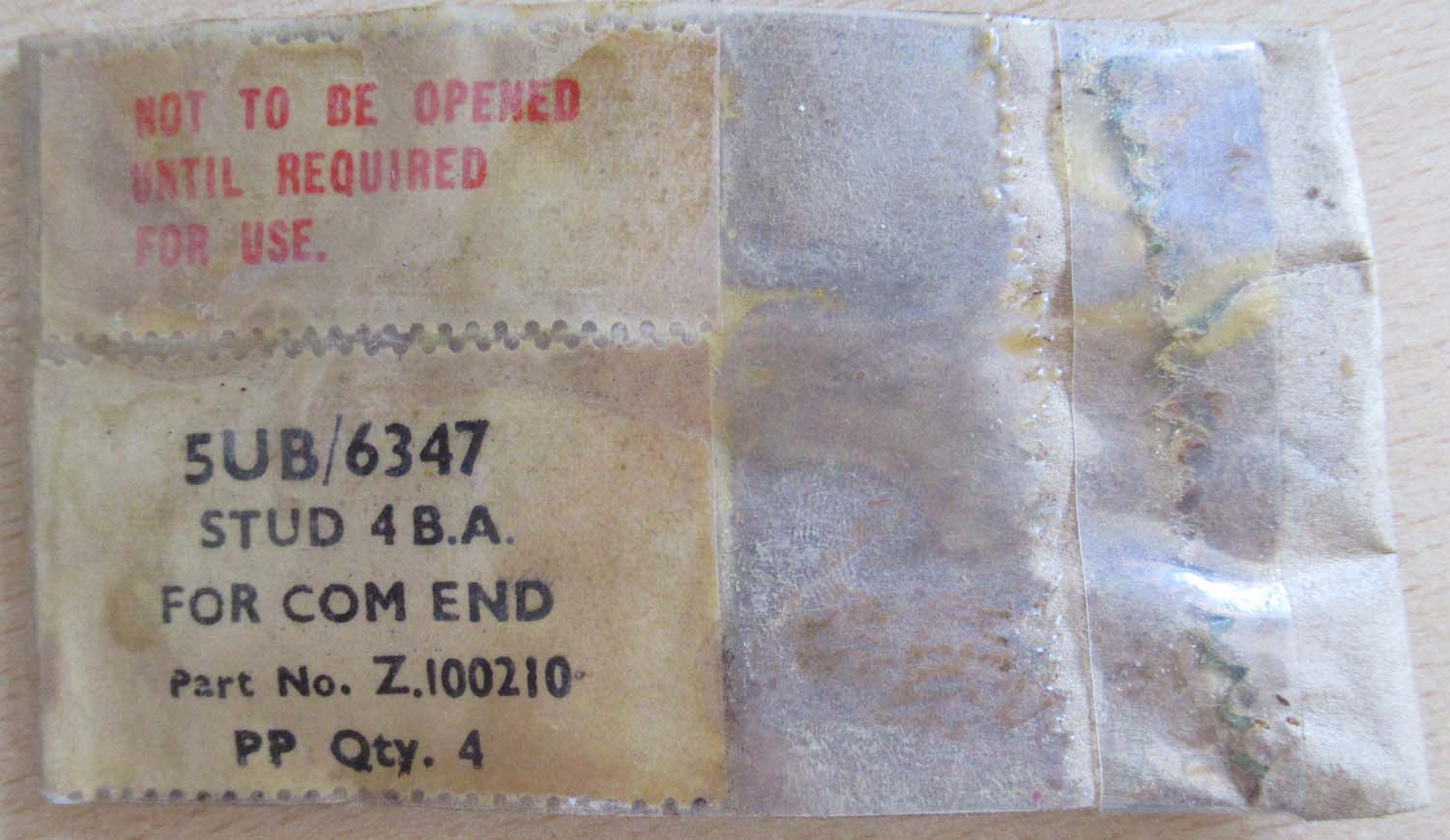

Set of 4 studs (No 54 pg 1 Elec Misc)

Set of 4 studs for com end. New and in original packaging.

5UB/6347

Part No: Z.100210

Click on the pictures to enlarge





Click on the pictures to enlarge

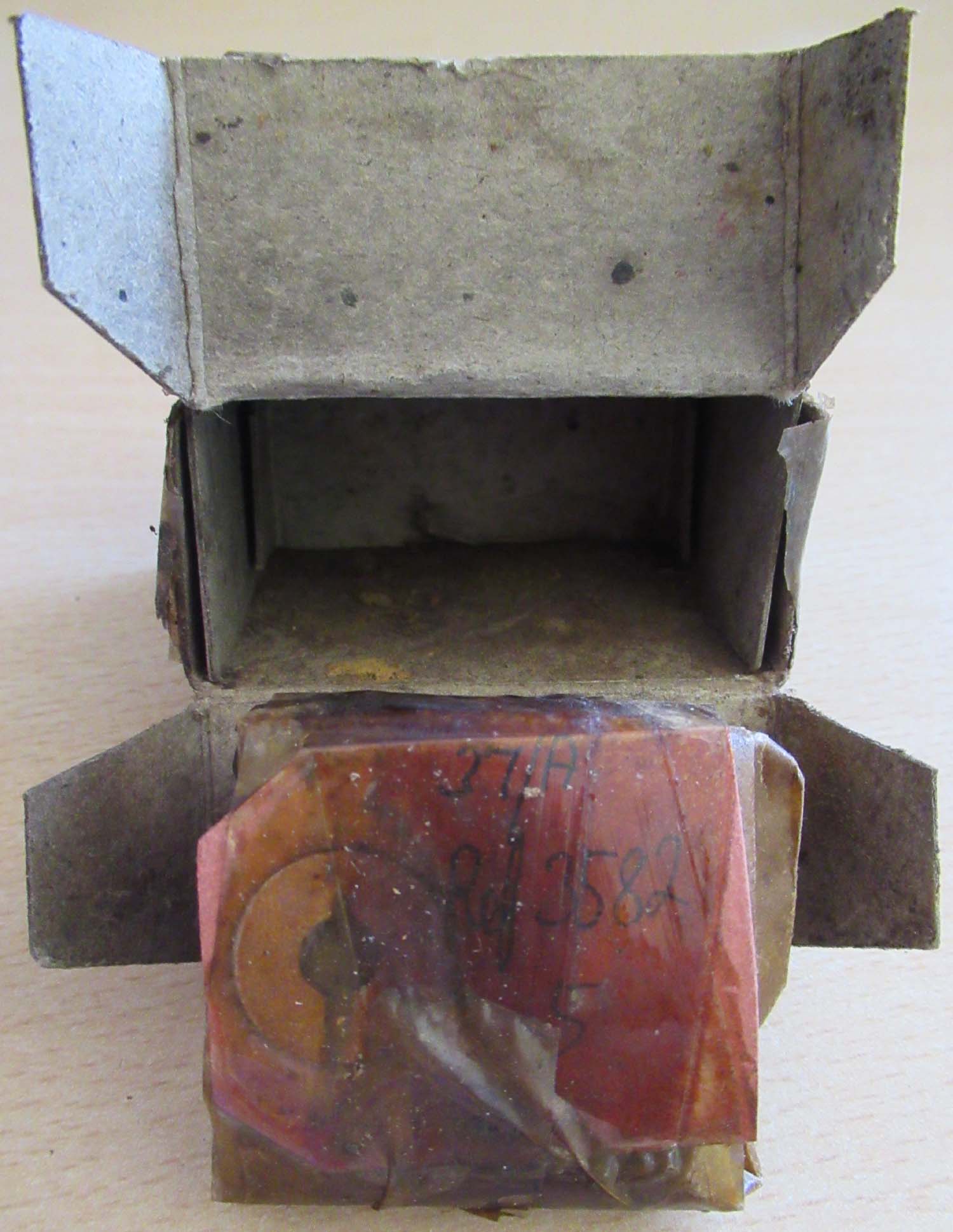

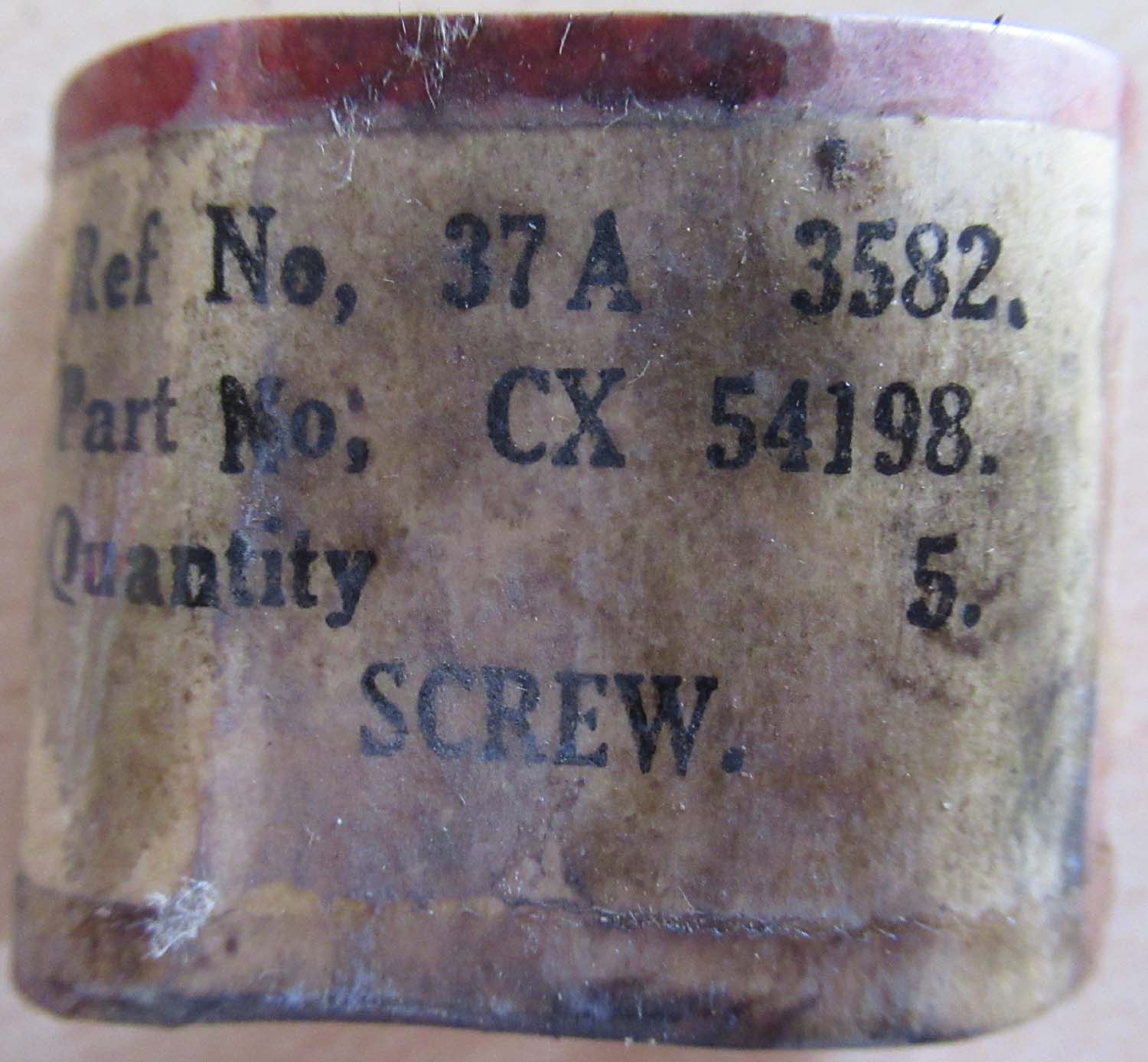

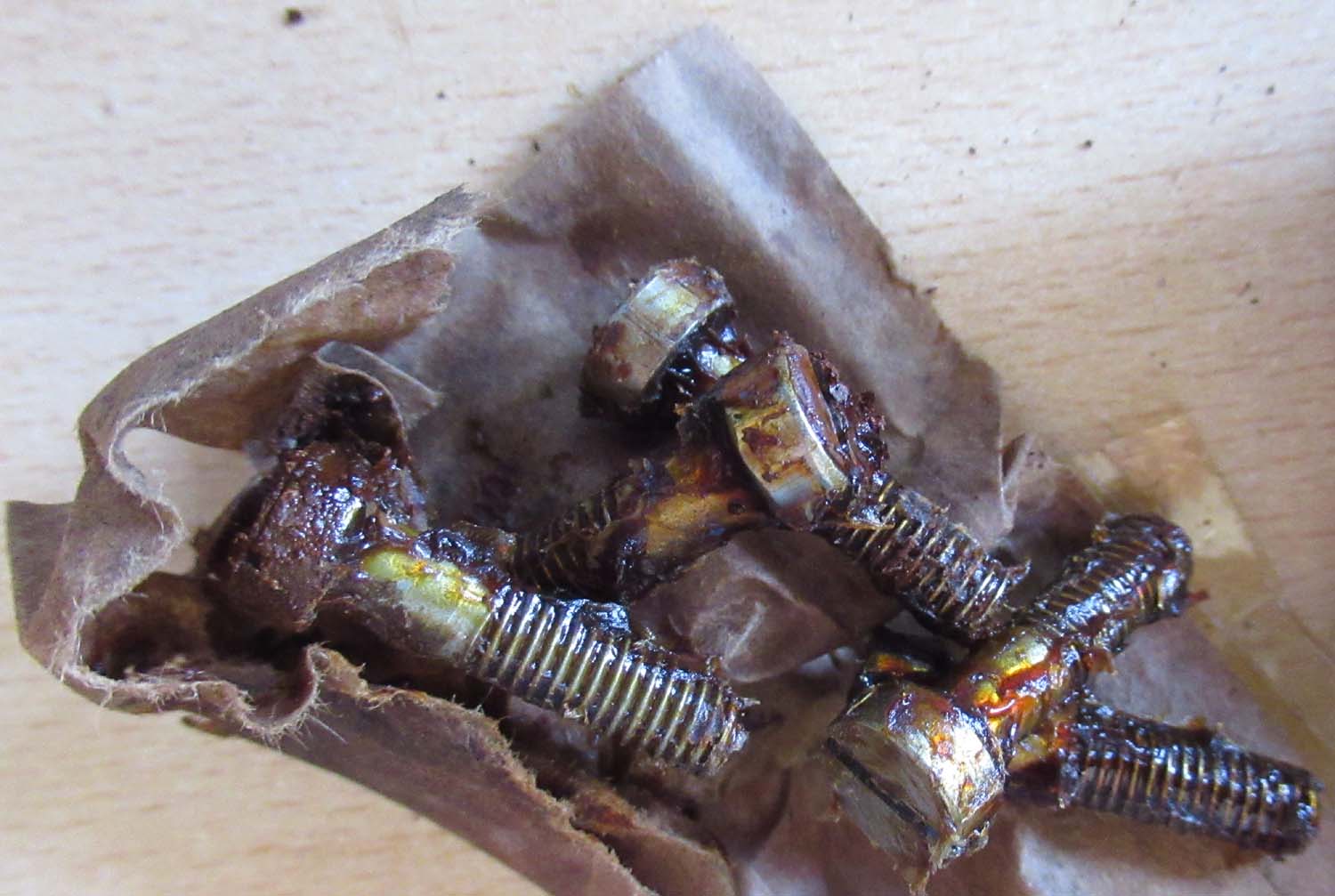

37A 3582 Set of 5 Screws (No 53 pg 1 Elec Misc)

Set of 5 screws. New and in original packaging.

Ref No: 37A 3582

Part No: CX 54198

Click on the pictures to enlarge



                             20

Click on the pictures to enlarge

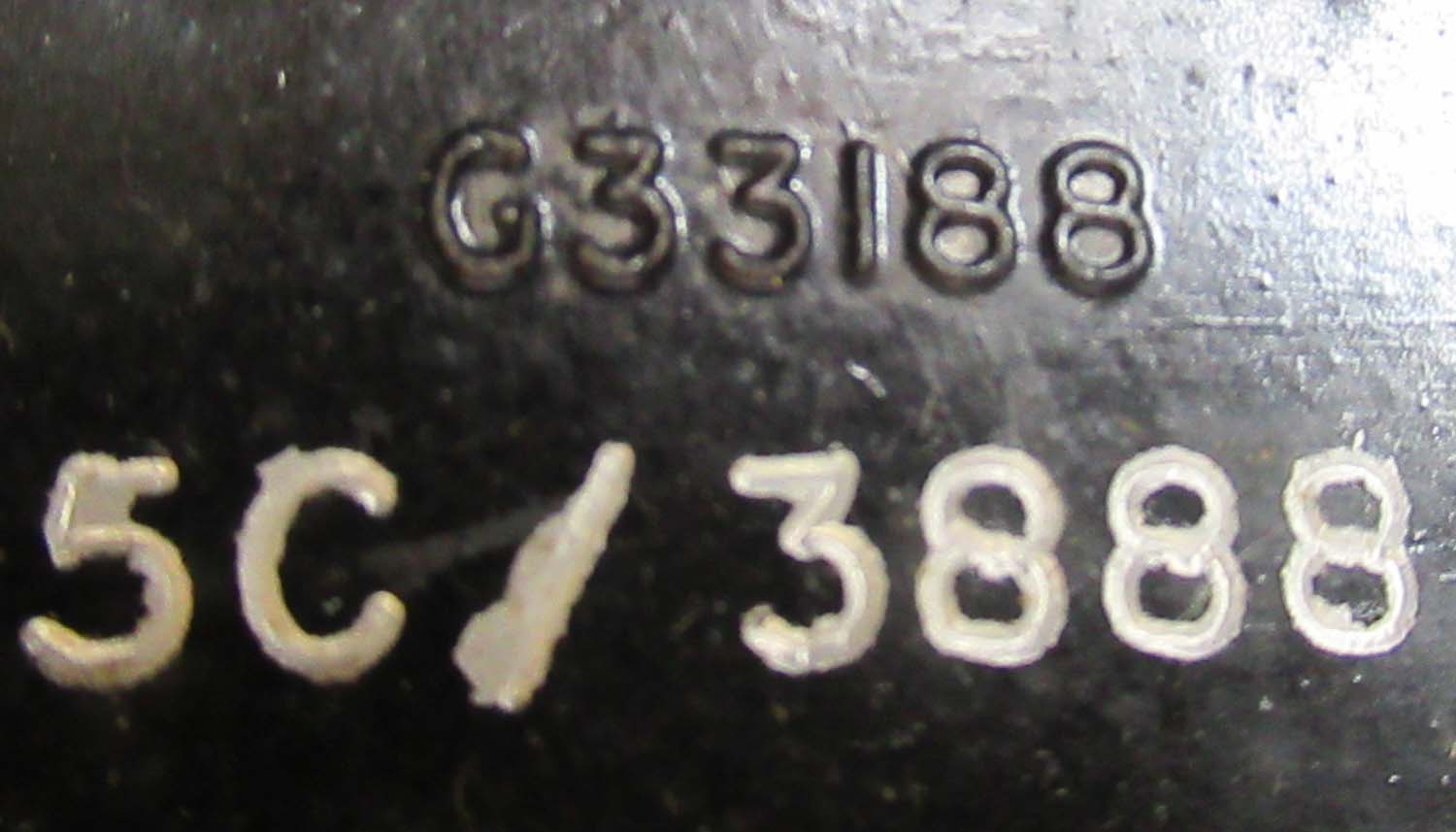

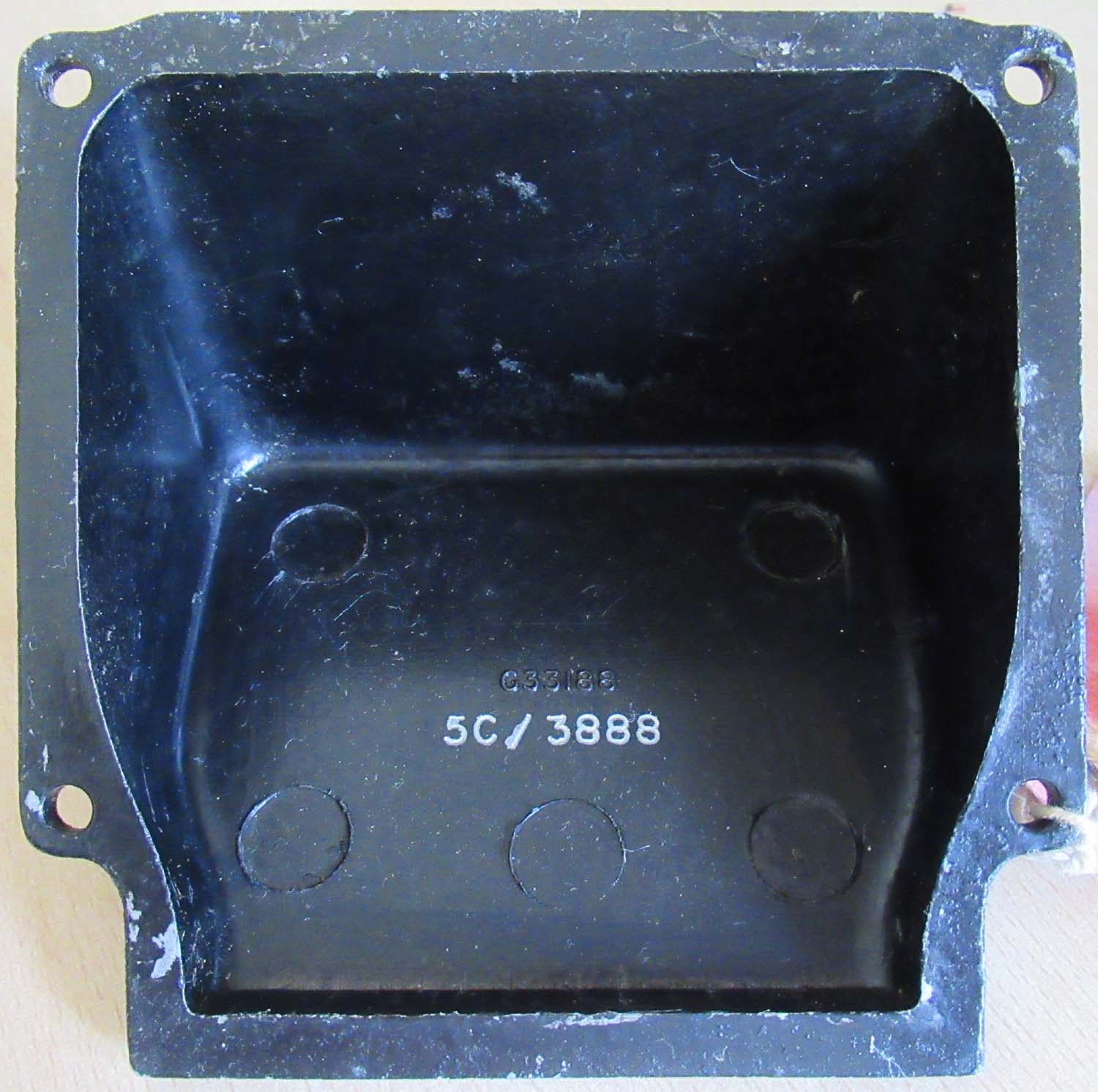

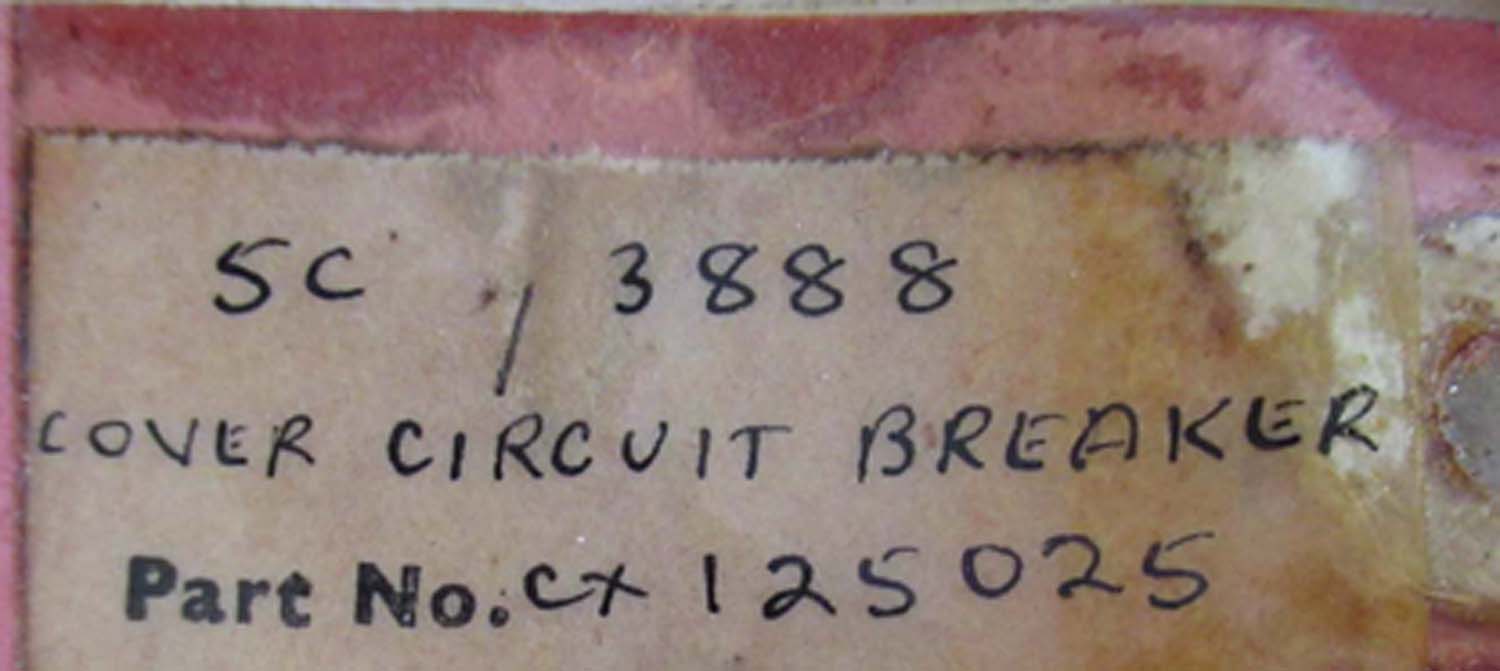

Circuit Breaker Cover 5C/3888 (No 52 pg 1 Elec Misc)

New and in original packaging.

Part no: CX125025

5U/3888

Click on the pictures to enlarge

                             20

Click on the pictures to enlarge

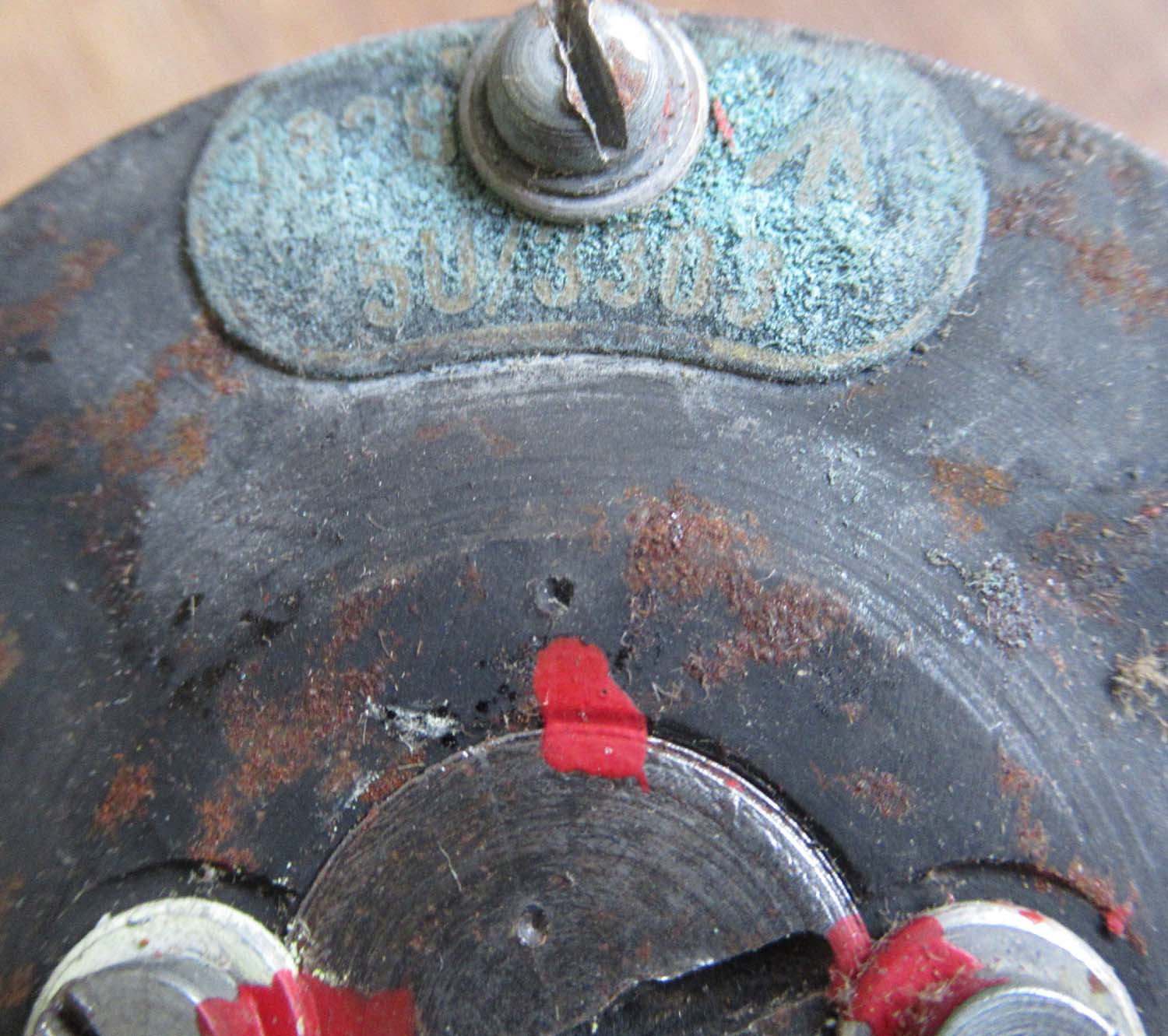

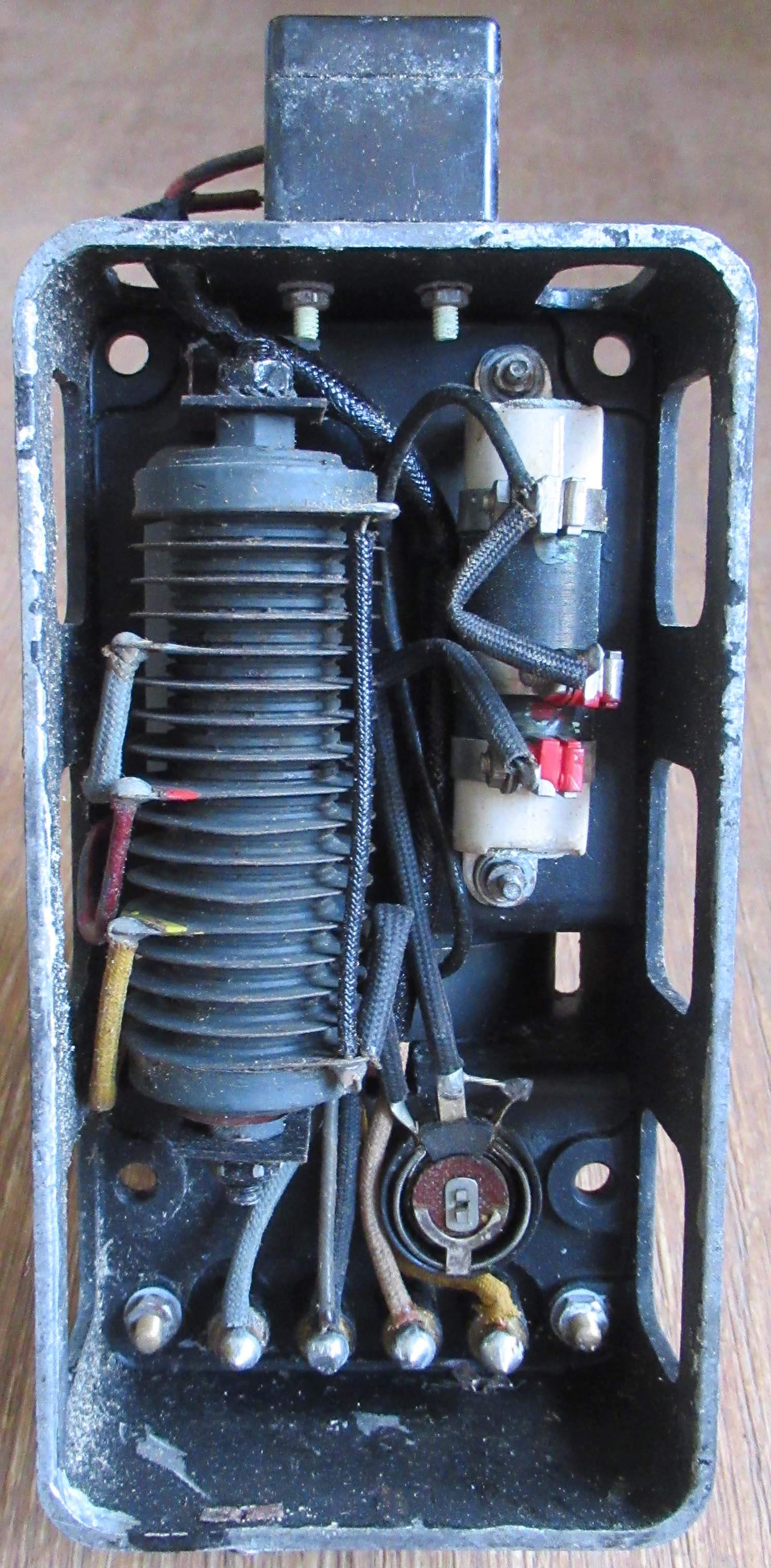

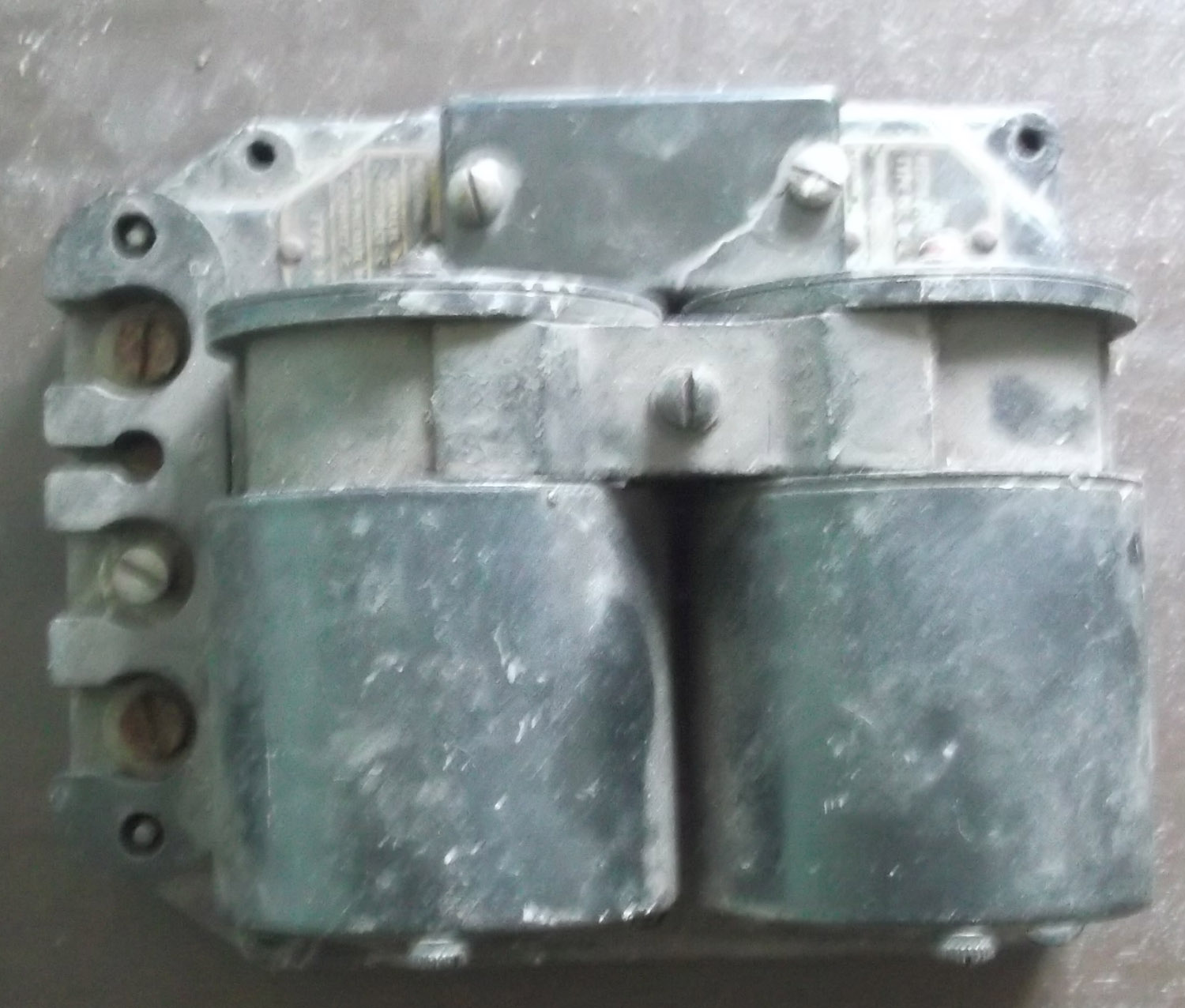

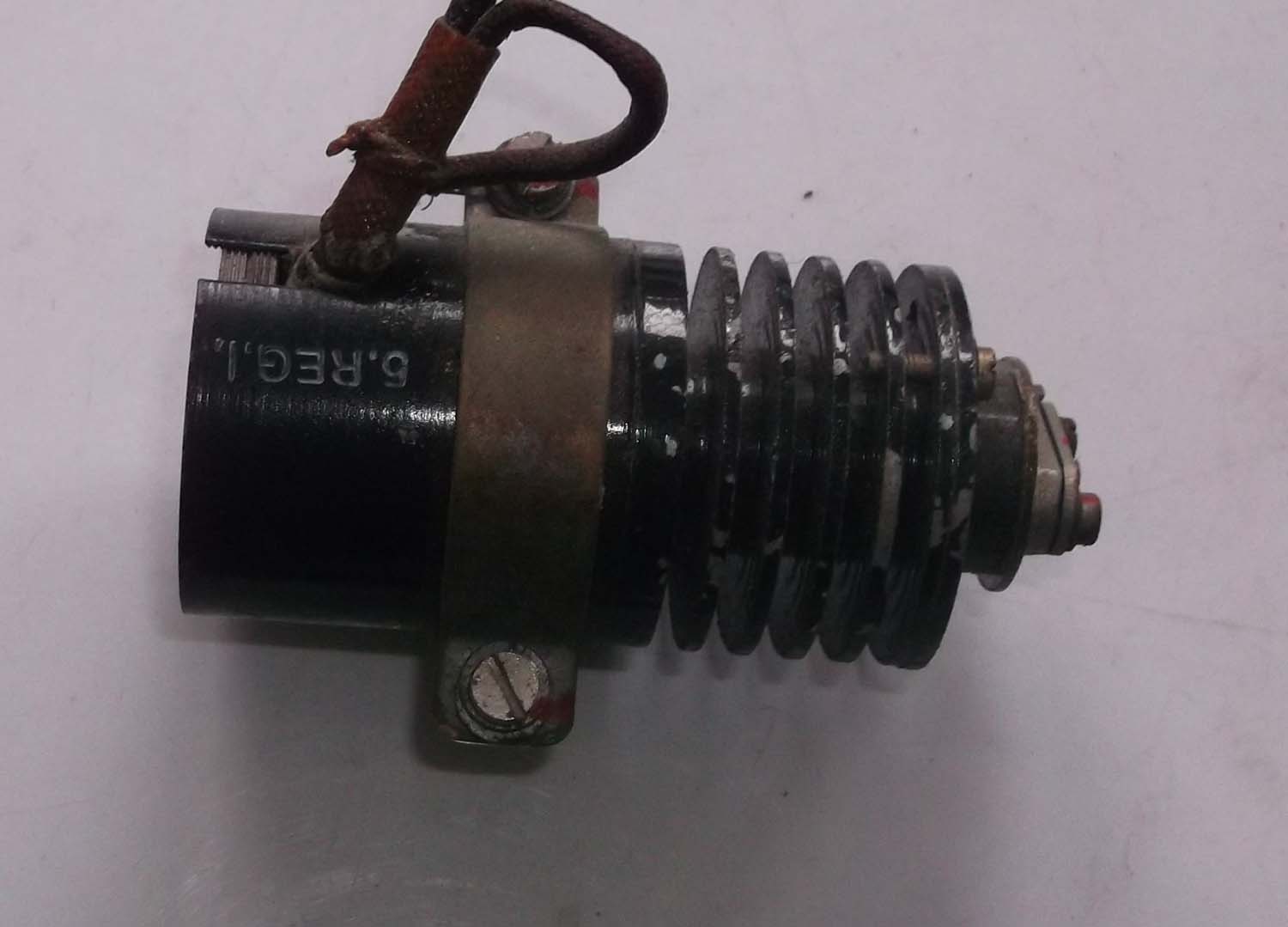

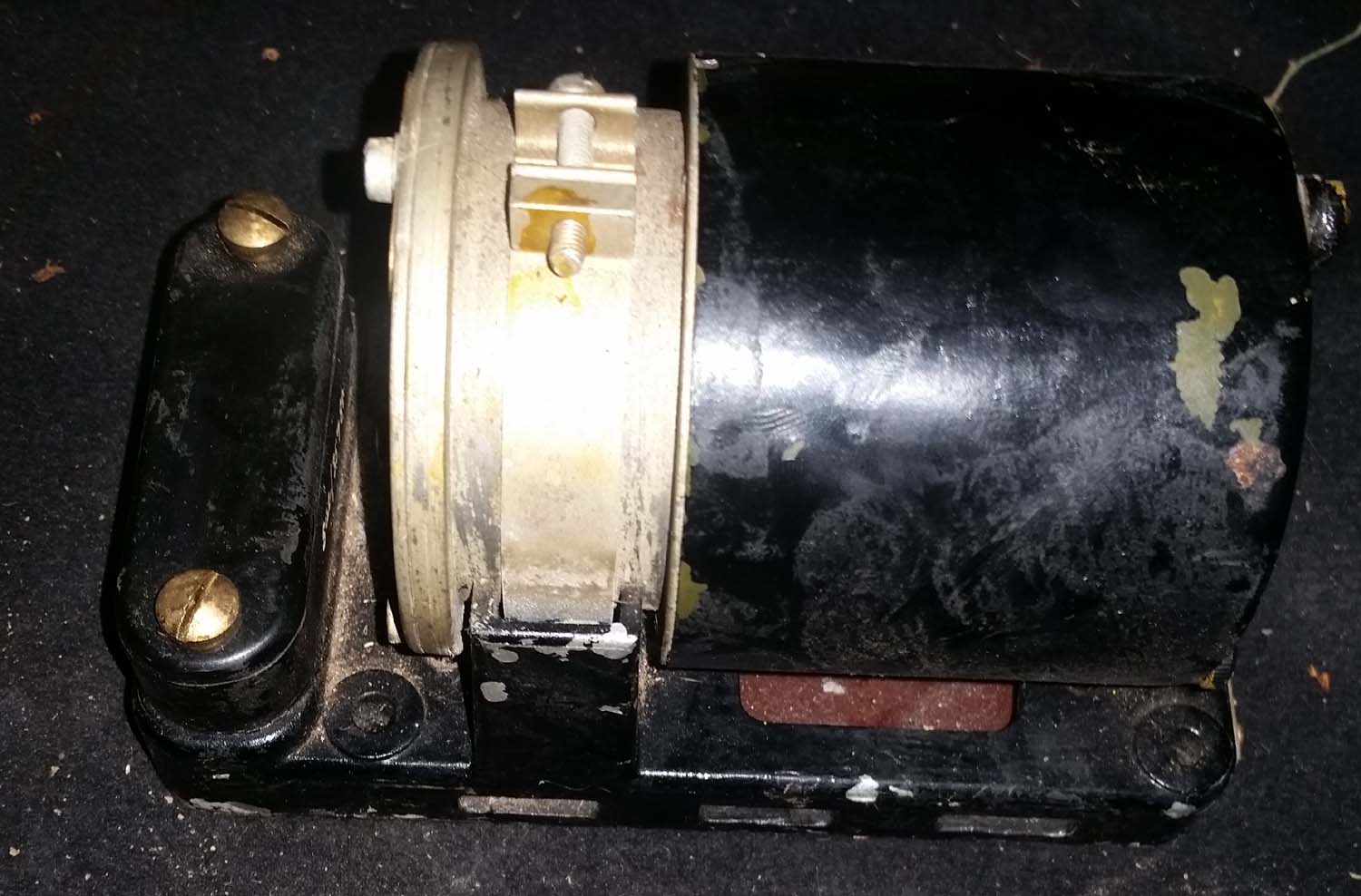

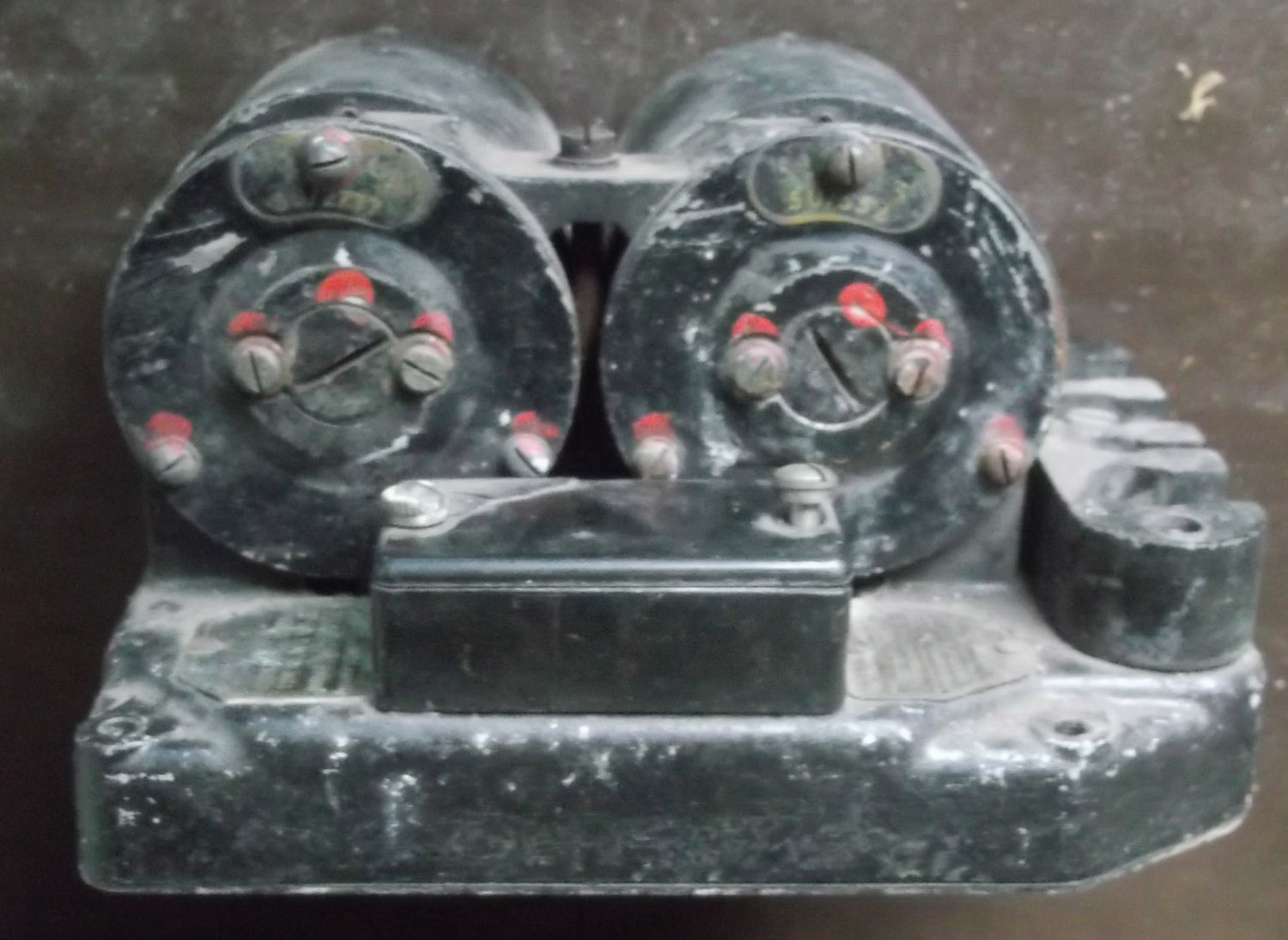

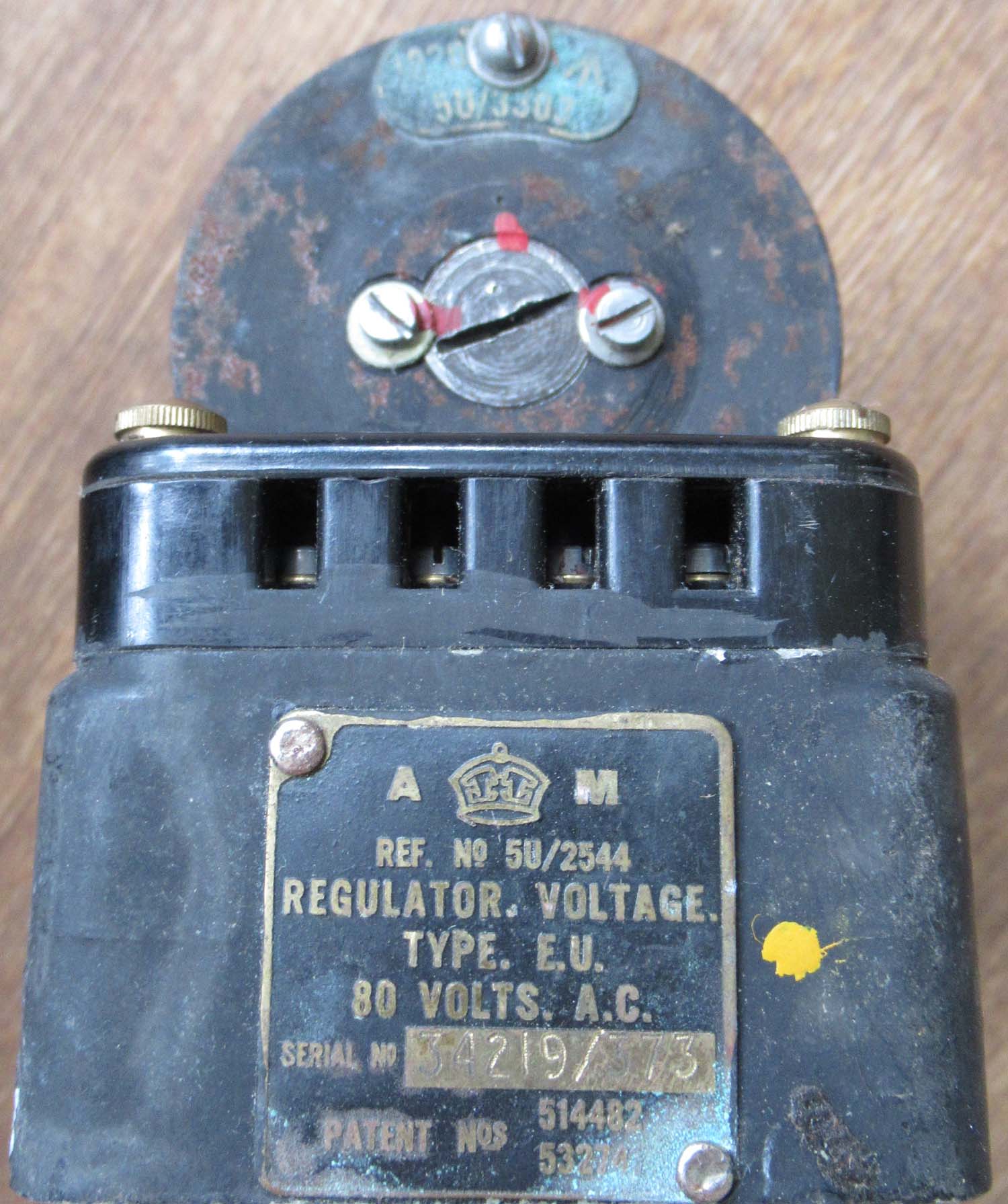

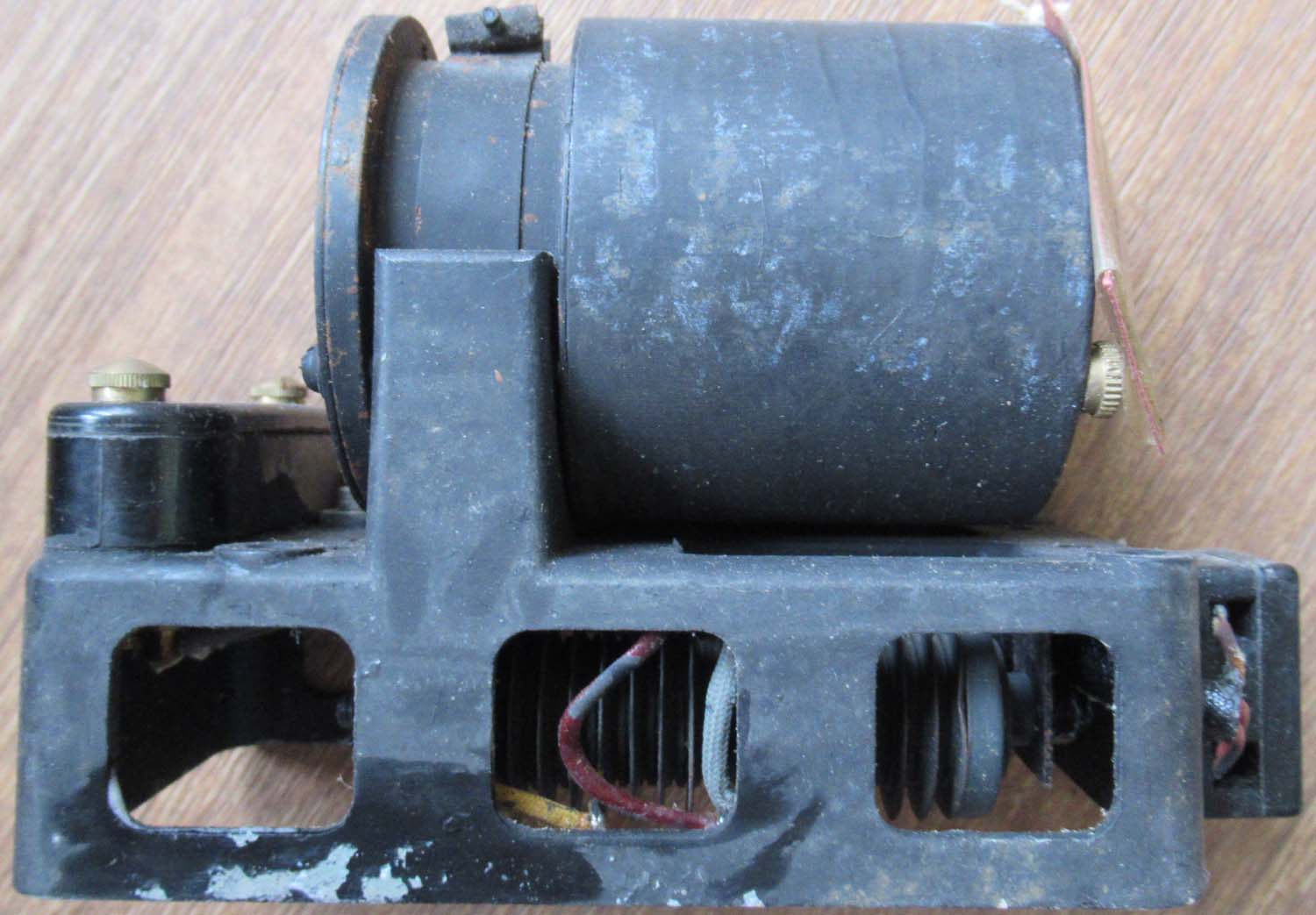

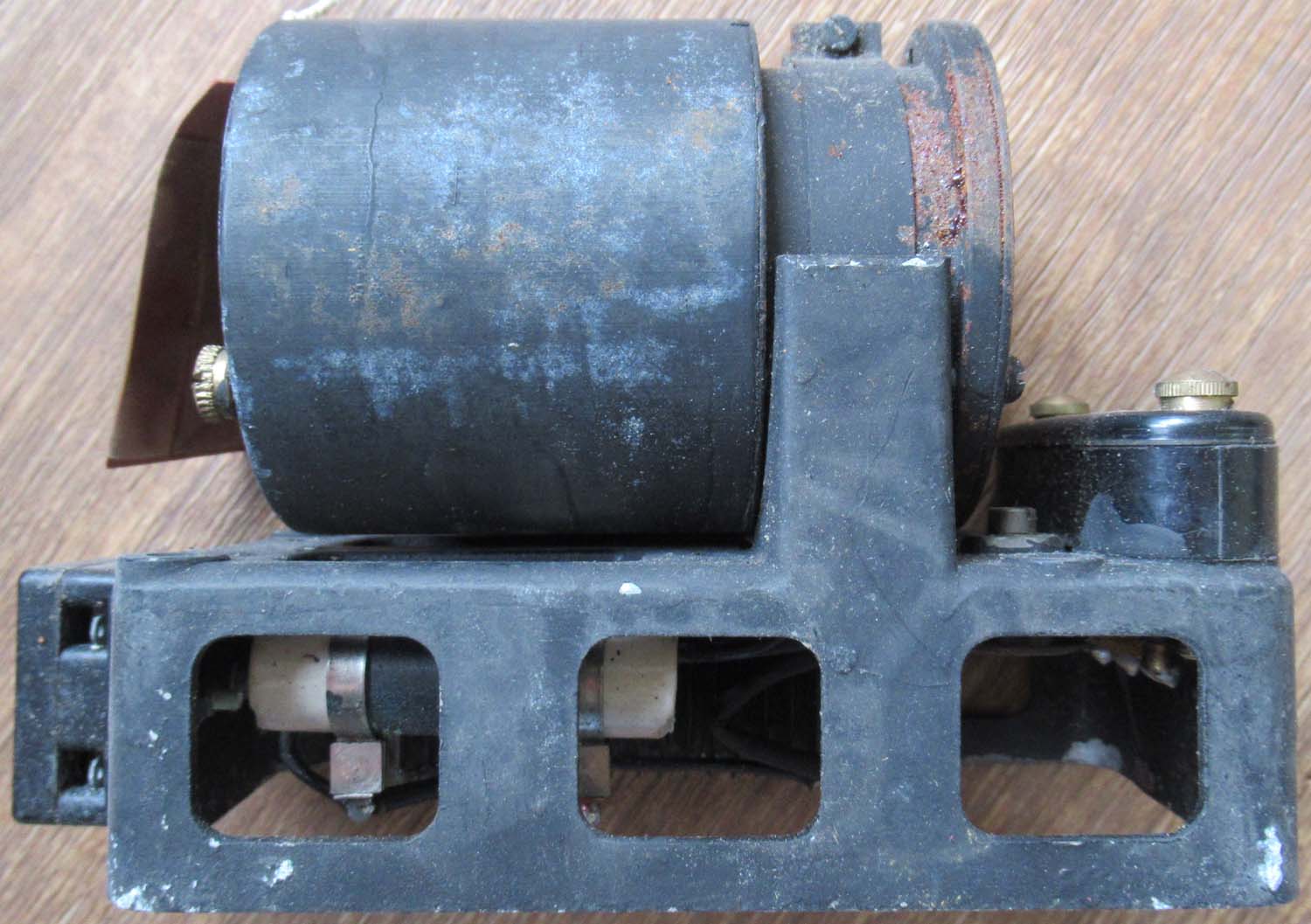

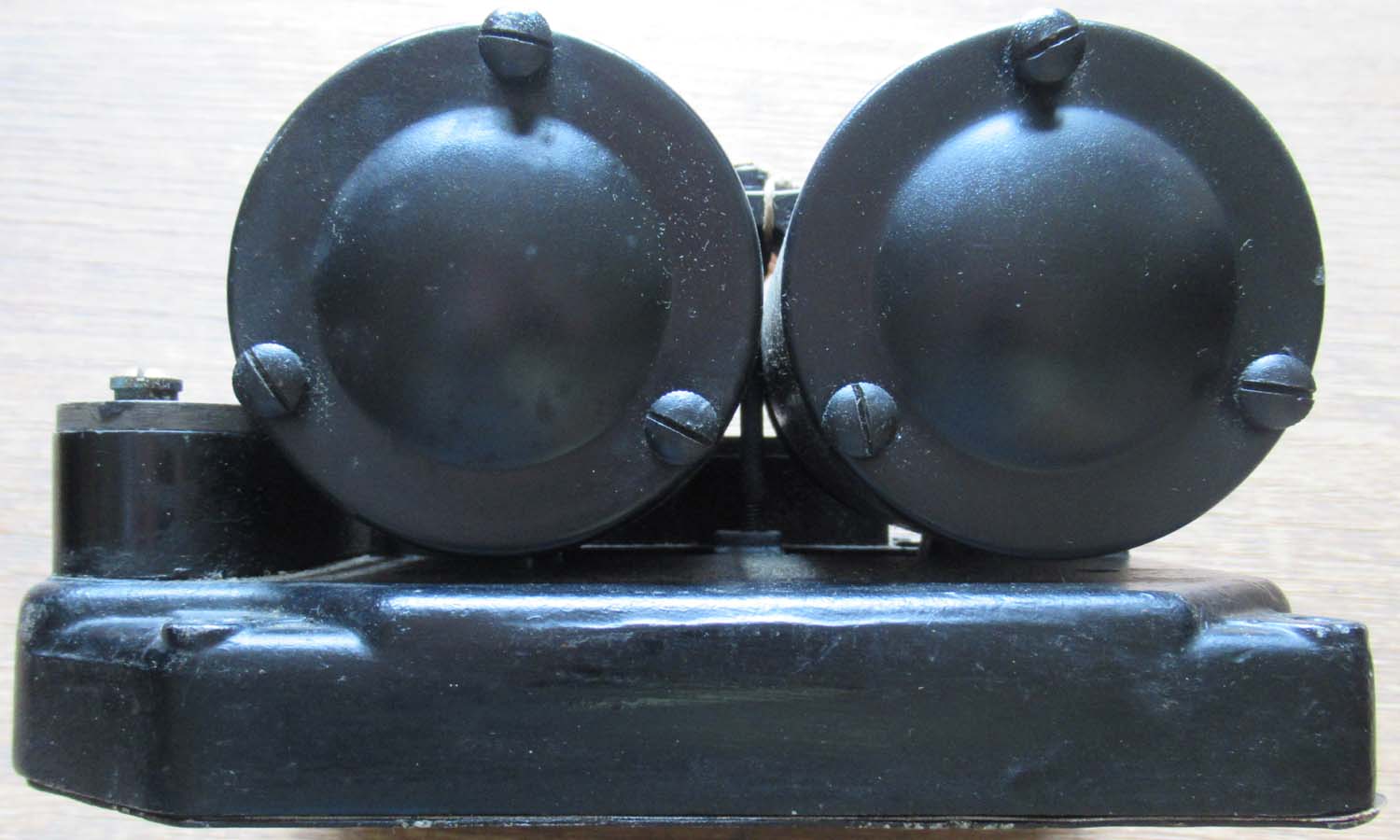

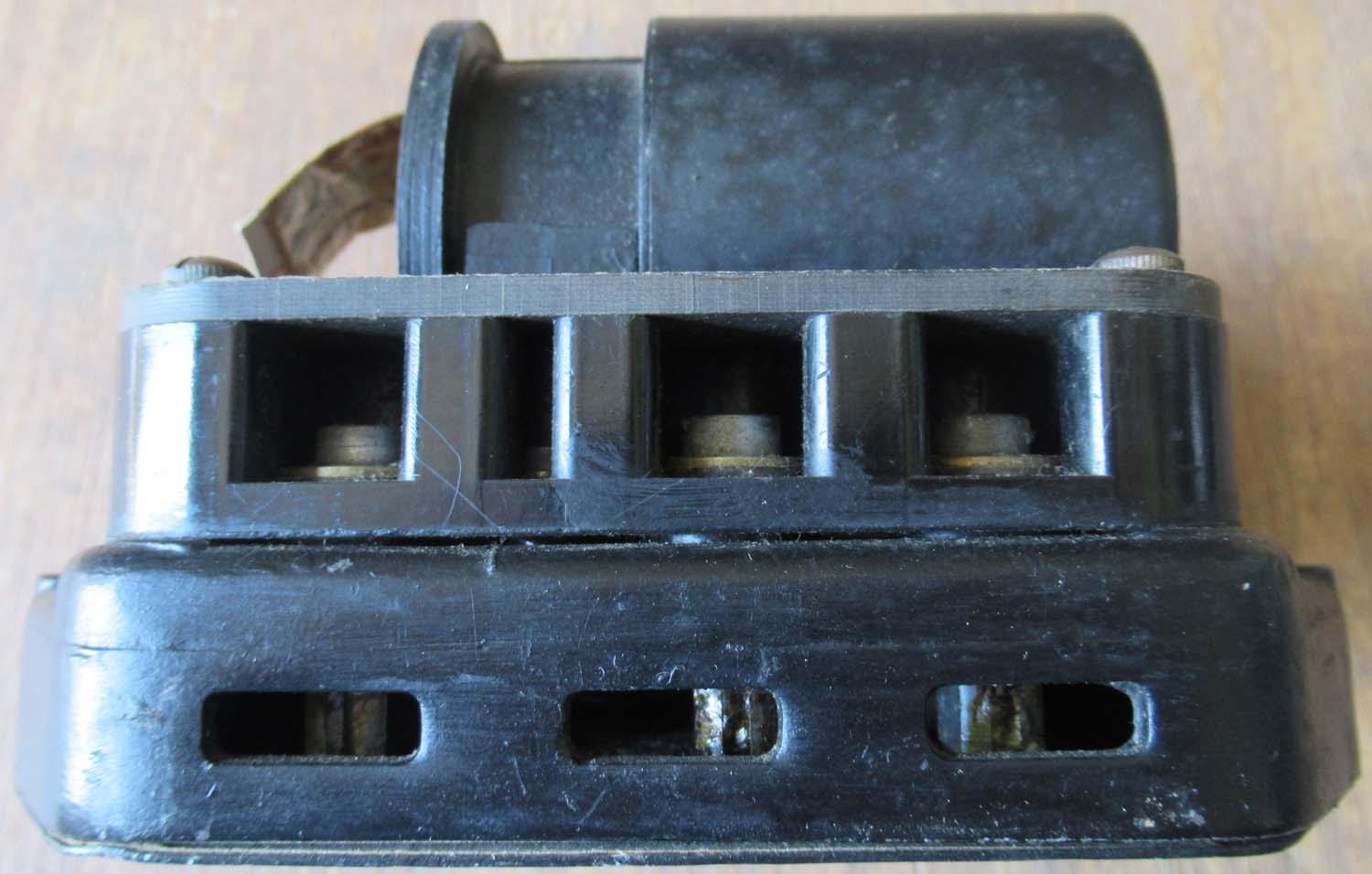

Voltage Regulator (No 51 pg 1 Elec Misc)

Single coil voltage regulator

80 Volts

Serial no: 34219/343

Ref no: 5U/2544

5U/3303

Click on the pictures to enlarge

                             195

Click on the pictures to enlarge

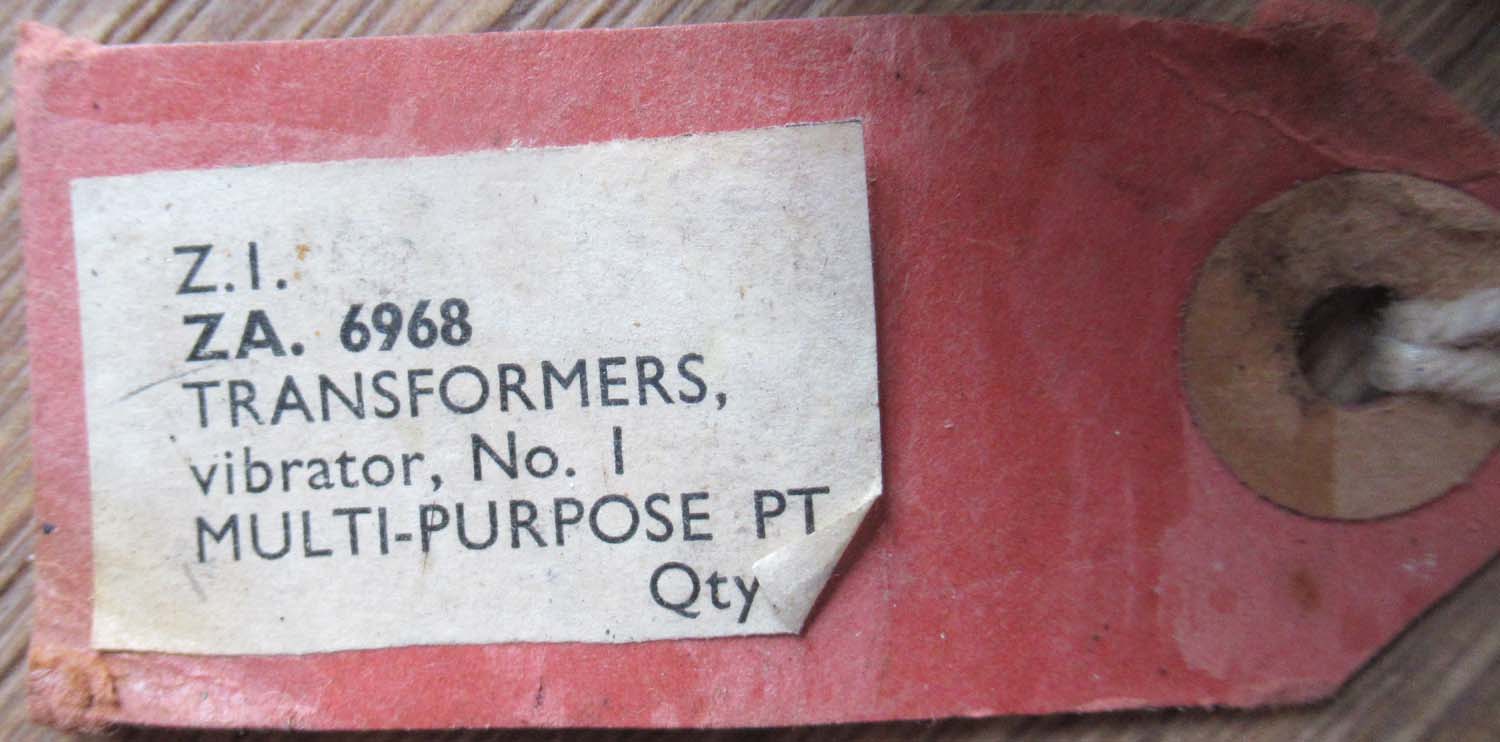

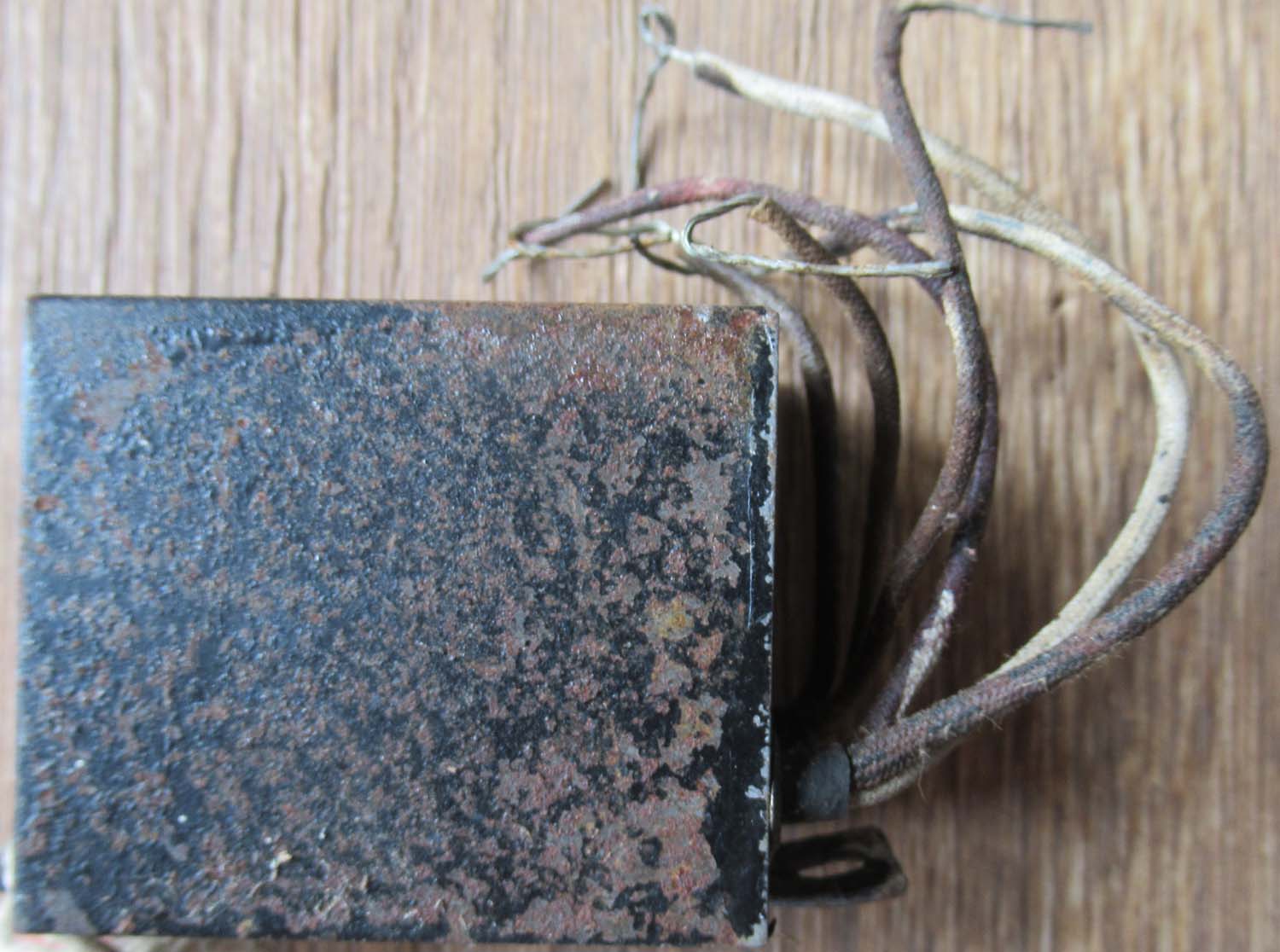

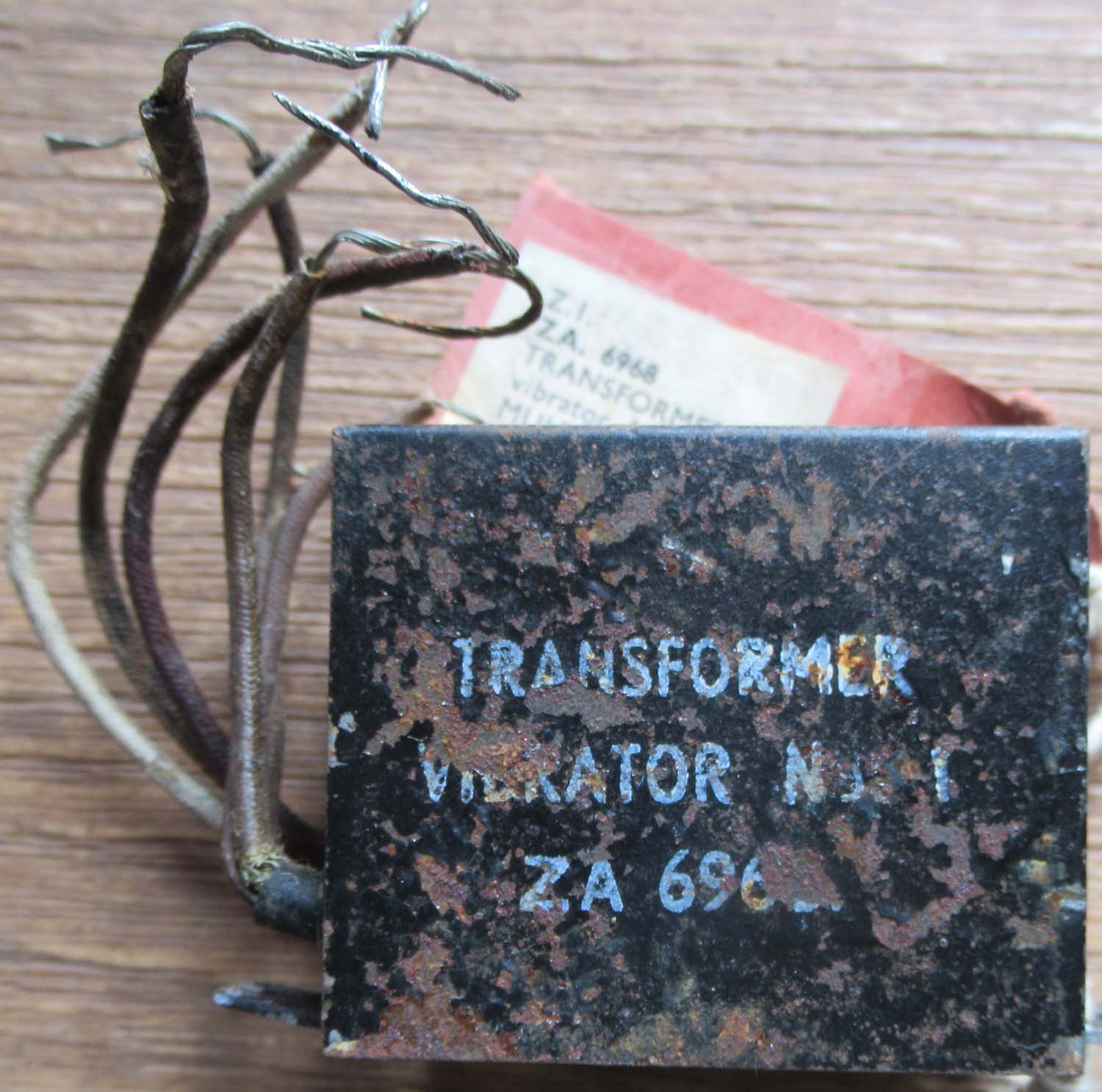

Transformer ZA.6968 (No 50 pg 1 Elec Misc)

Transformer vibrator no.1 Multi-purpose

Click on the pictures to enlarge

                             25

Click on the pictures to enlarge

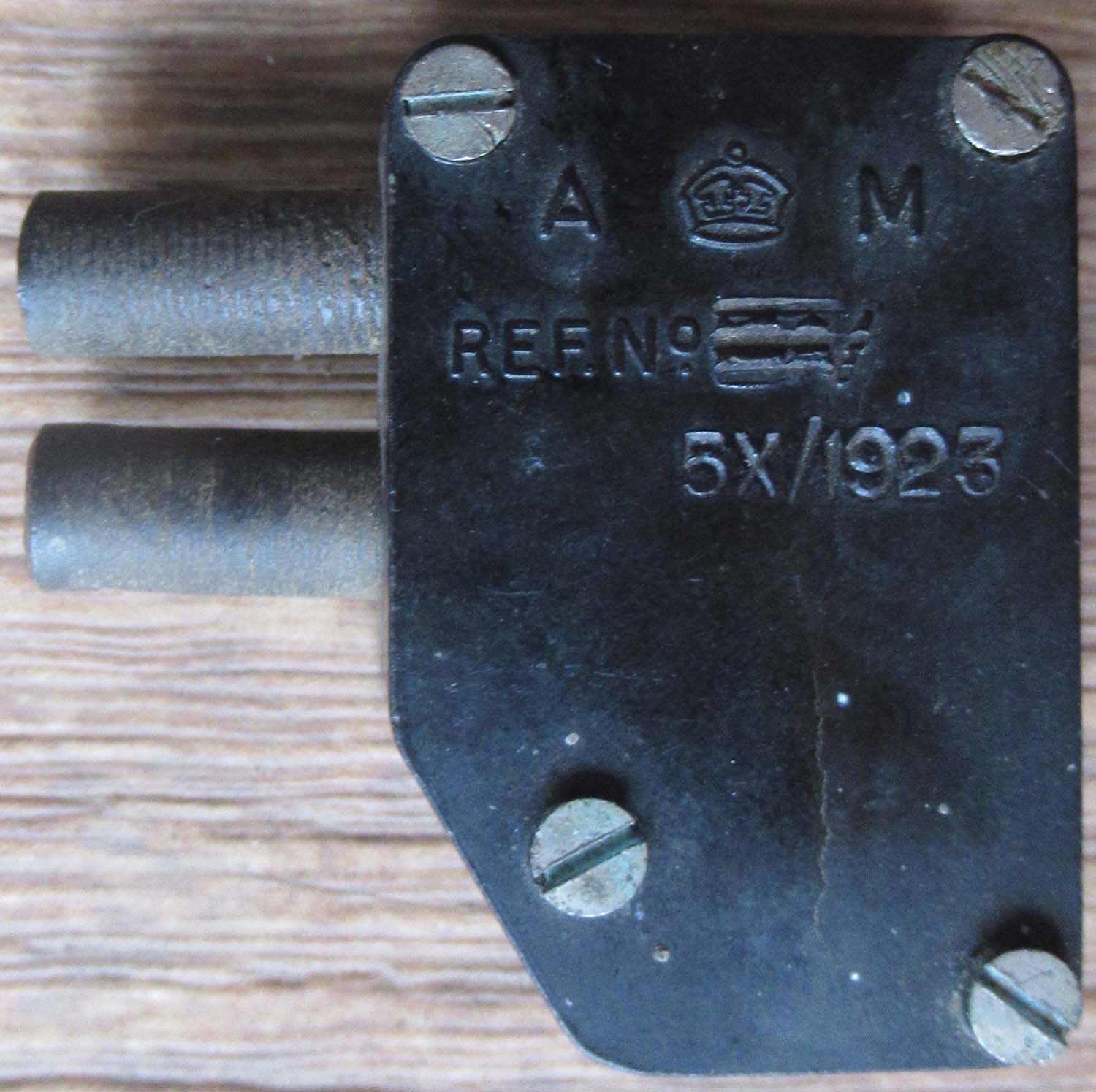

5X/1923  (No 49 pg 1 Elec Misc)

                             25

Click on the pictures to enlarge

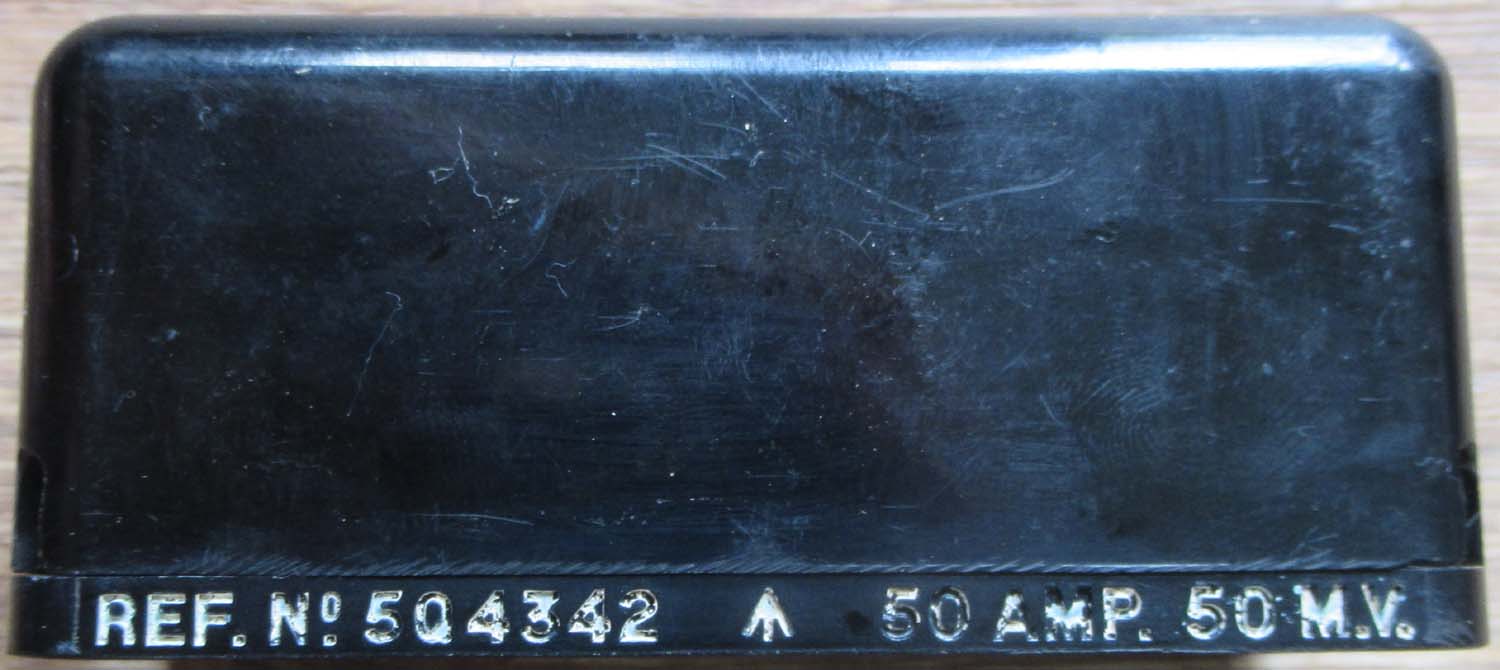

 50amp shunt 5Q/4342 (No 48 pg 1 Elec Misc)

New old stock appear to be unused but sold as seen.

2 Available

                             45

Click on the pictures to enlarge

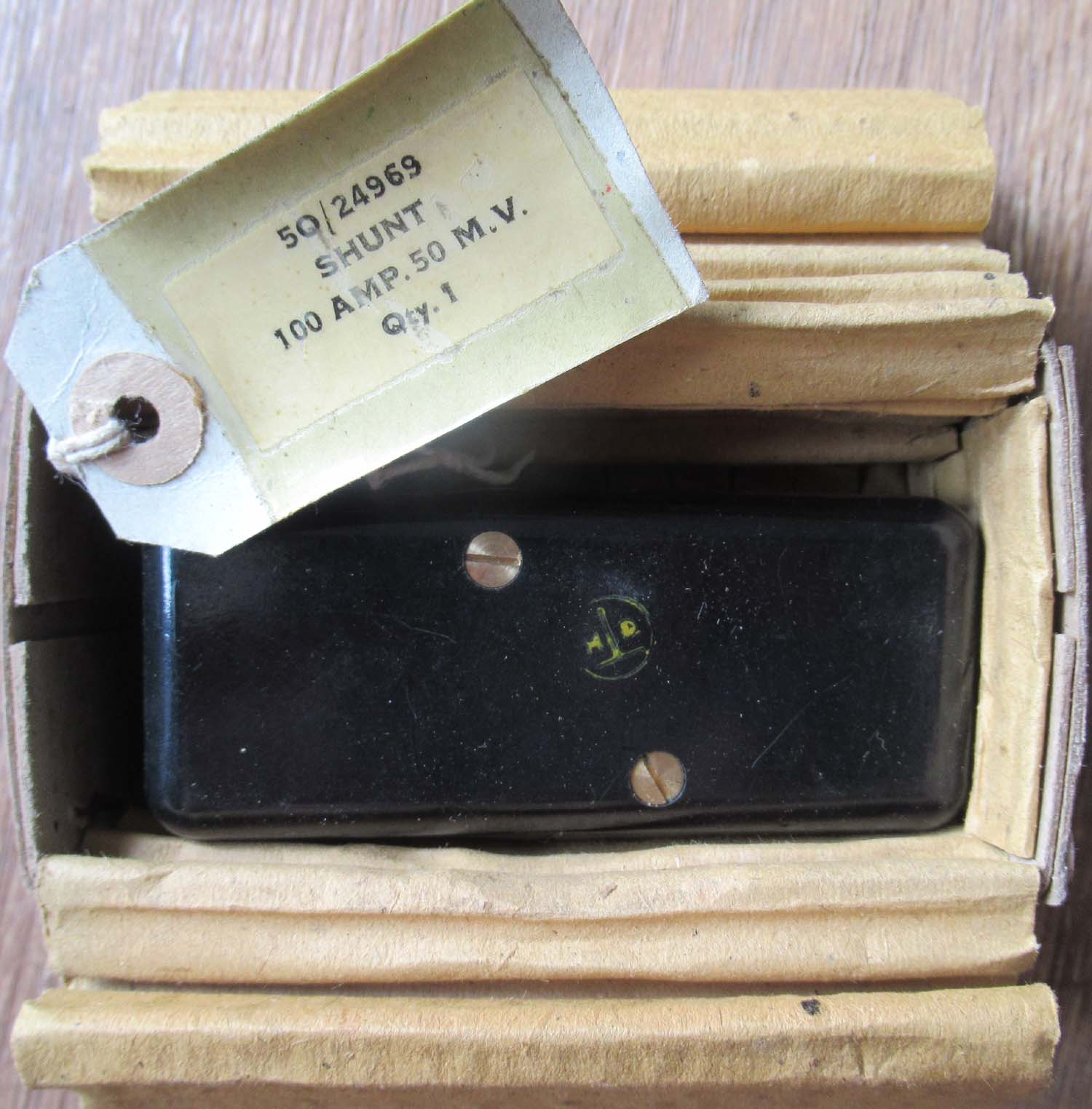

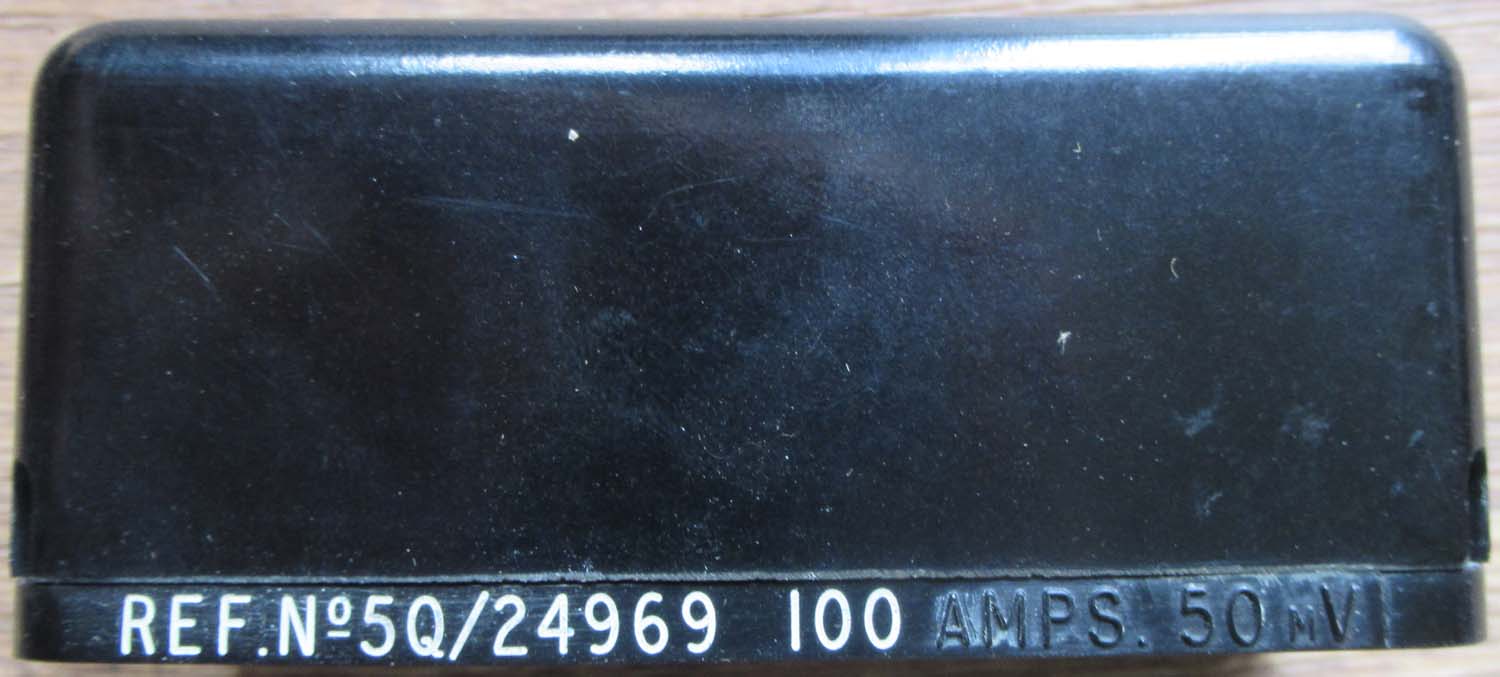

 100amp shunt 5Q/24969No (47 pg 1 Elec Misc)

New old stock unused in original box.





                             50

Click on the pictures to enlarge

 Spitfire Fuel pump suppressor (No 46 pg 1 Elec Misc)

Suppressor Box Type B No. 5 5C/4317.  Used as a fuel pump suppressor for the Spitfire and other aircraft appears to be as new inside.

Ref:5C/4317/T

                             95

Click on the pictures to enlarge

Out of stock more wanted please contact me

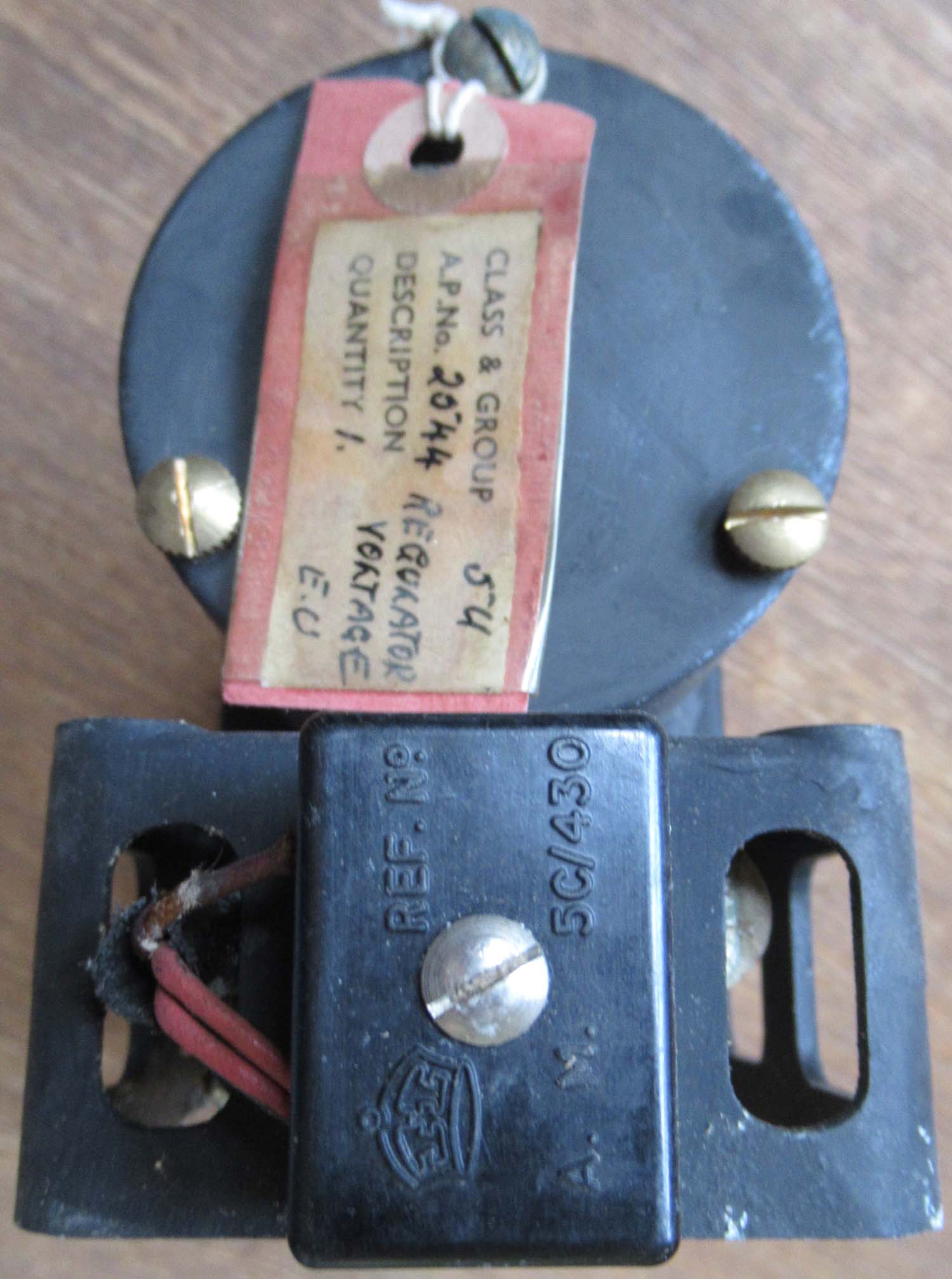

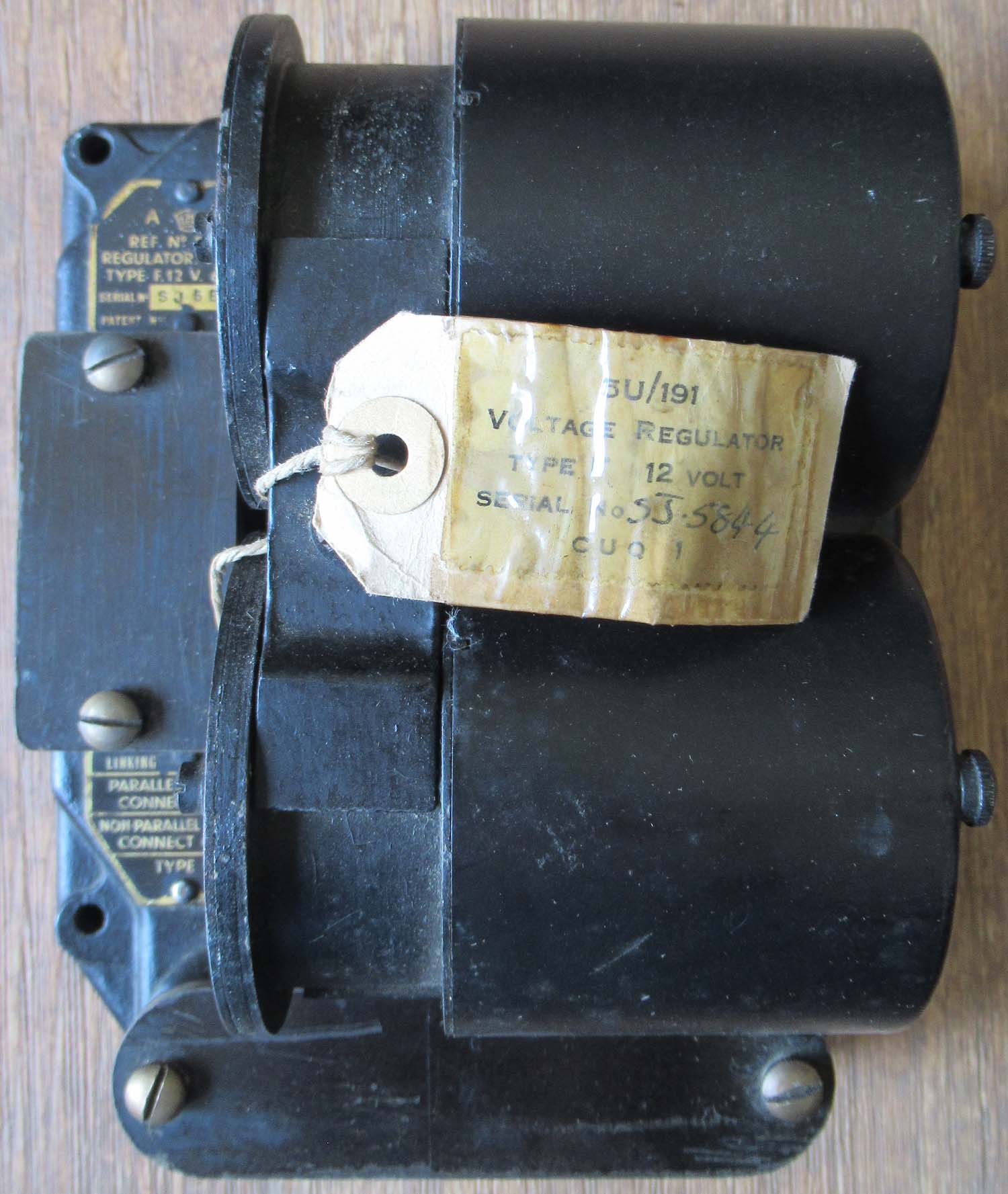

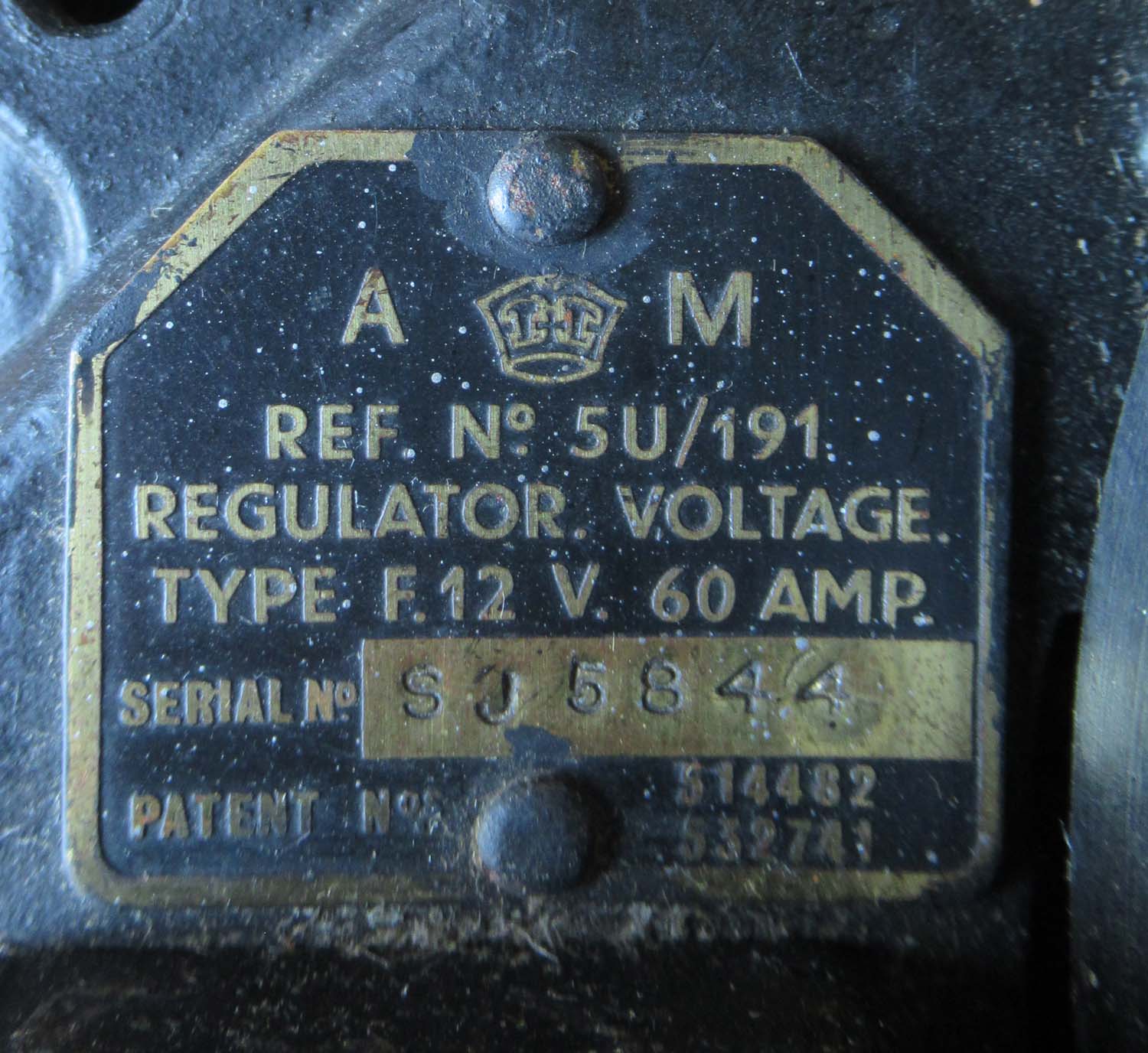

Spitfire 12 Volt Voltage regulator Type F (No 45 pg 1 Elec Misc)

Here is what is becoming a quite rare peace a voltage regulator fitted to the Spitfire behind the Pilots head and other RAF Wartime aircraft but being 12 volt almost exclusively fighters.

In its original box and in very good original condition.

5U/1891

Type F

12 Volt

Click on the pictures to enlarge

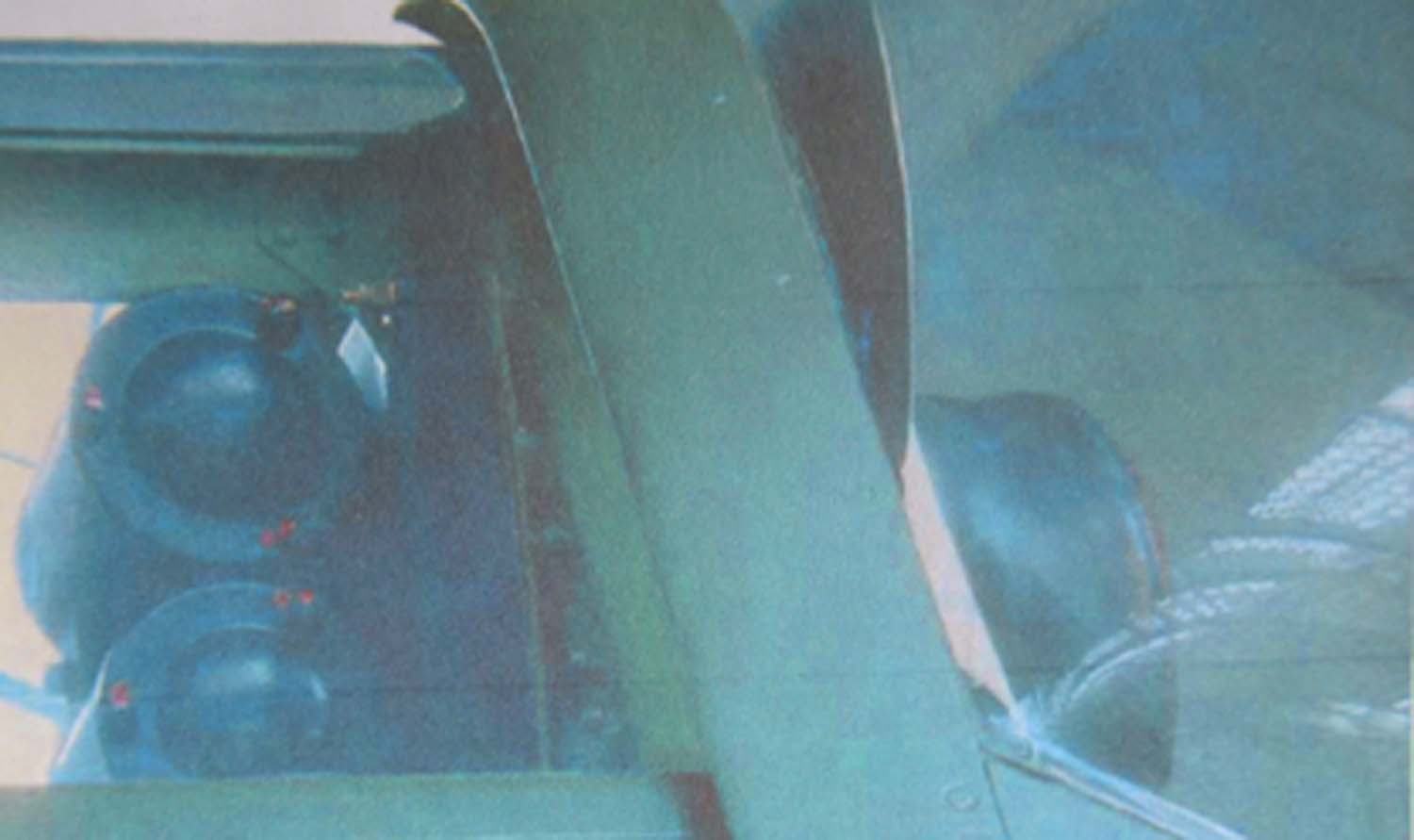

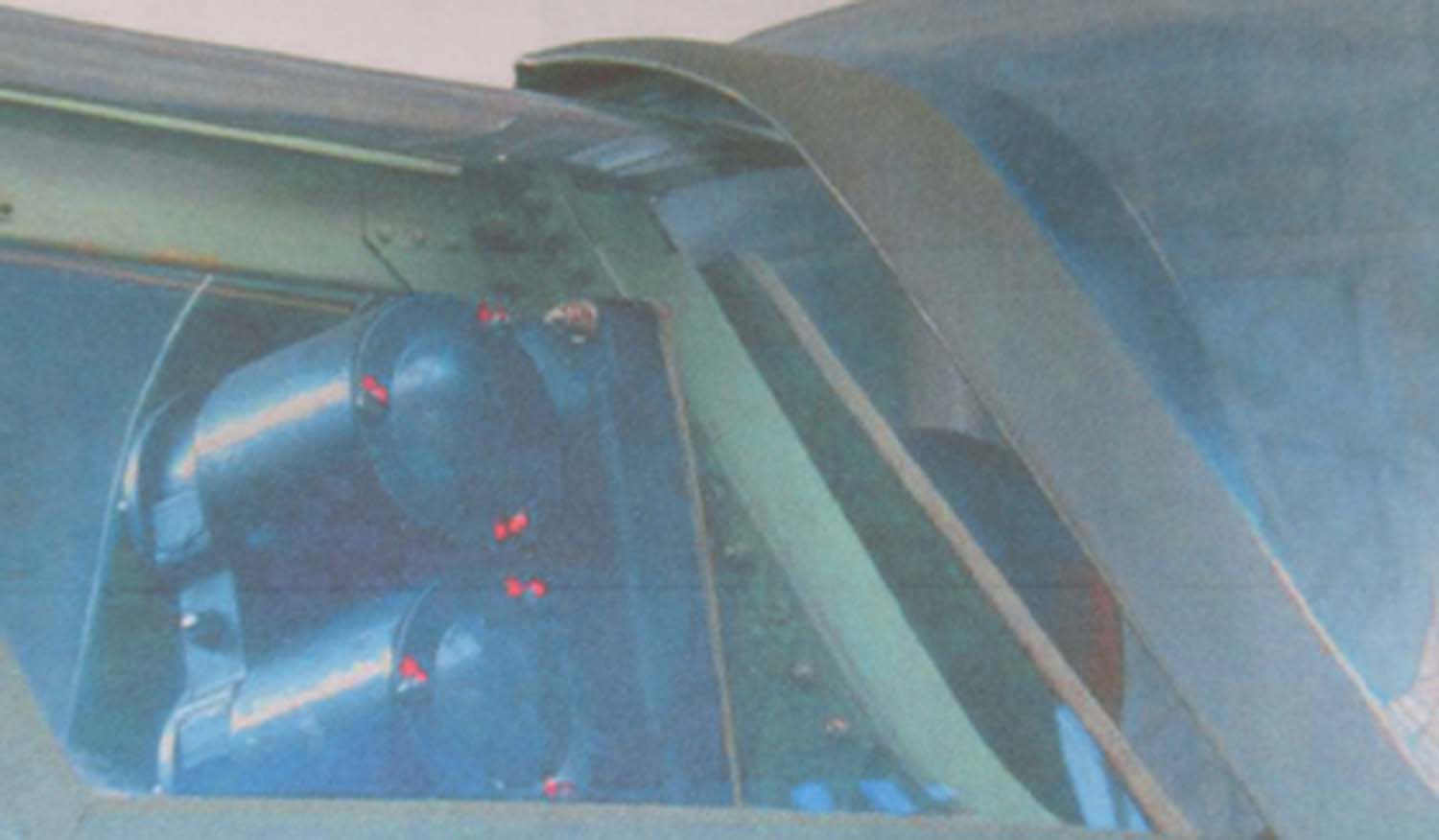

Seen in situ below in a Spitfire. Click on the pictures to enlarge

Click on the pictures to enlarge

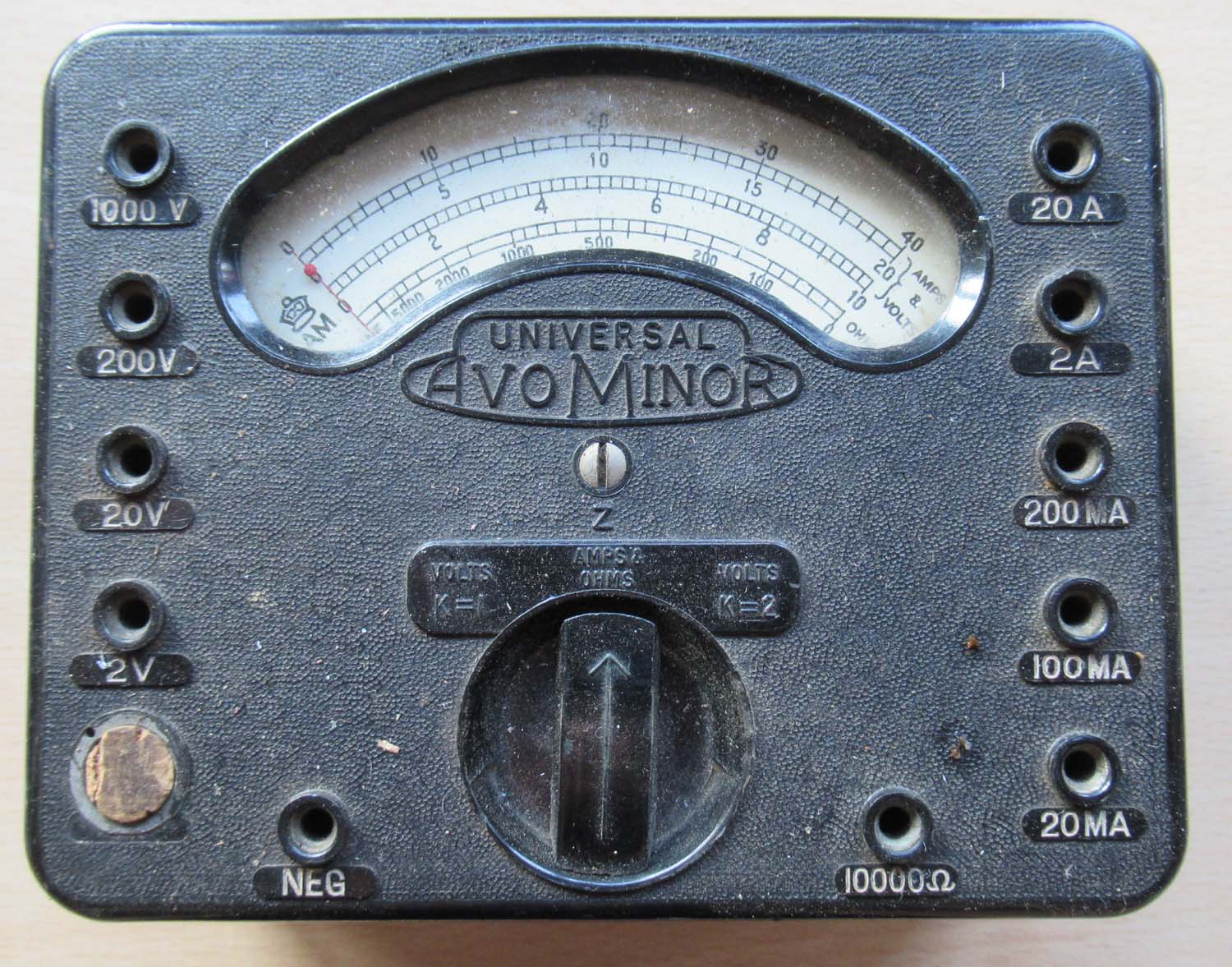

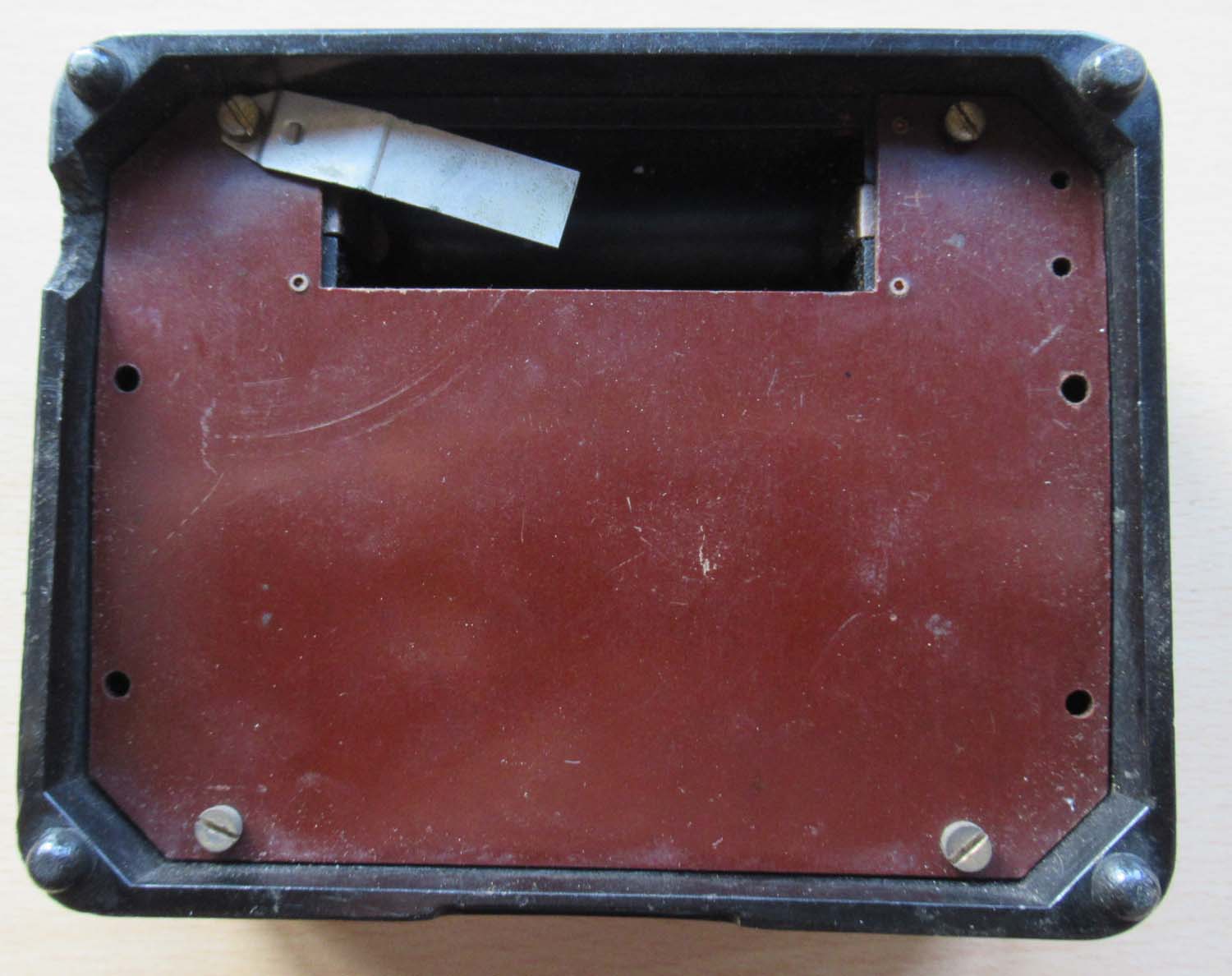

Universal AVO Minor circuit tester (No 44 pg 1 Elec Misc)

A nice interesting peace of aviation history it has space for a battery and my best guess is that this is an early electrical circuit tester. It appears to be in good condition.

45

Click on the pictures to enlarge

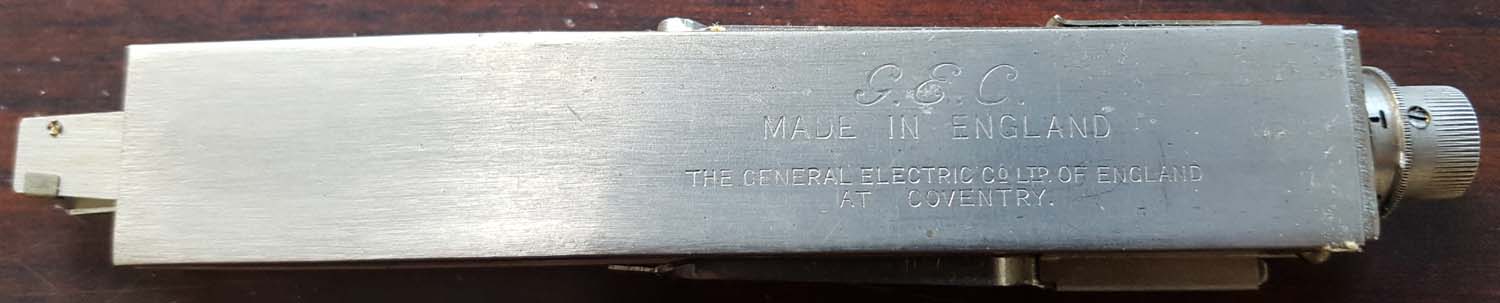

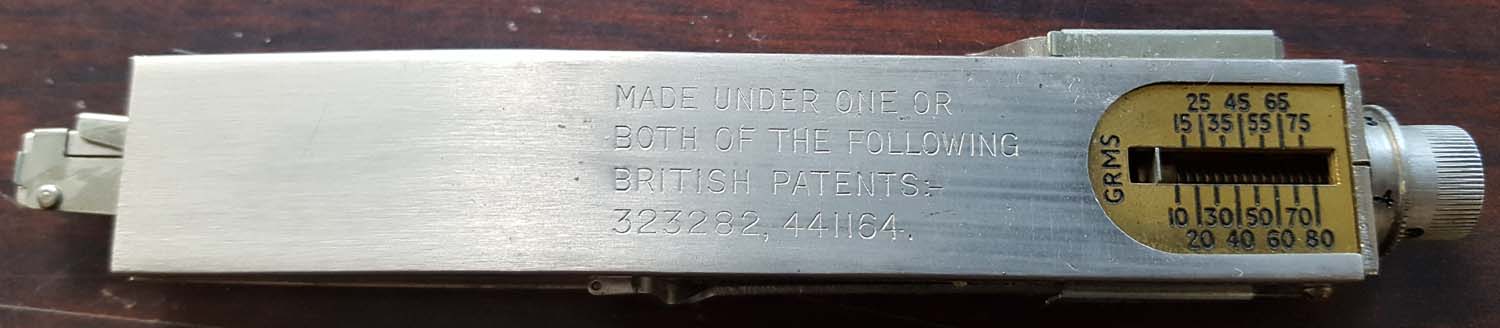

Wartime electrical contact testing precision tool (No 43 pg 1 Elec Misc)

A Pocket sized Wartime tool/tester with two British patents #323282 and 441164. According to the patent info. available on-line, the tool was designed by Jens Erickson, to measure spring pressures exerted on electrical contact.

Its a stunningly made piece please enlarge the pictures to take a detailed look as new unused I removed it from its original sealed box for the photo.

80

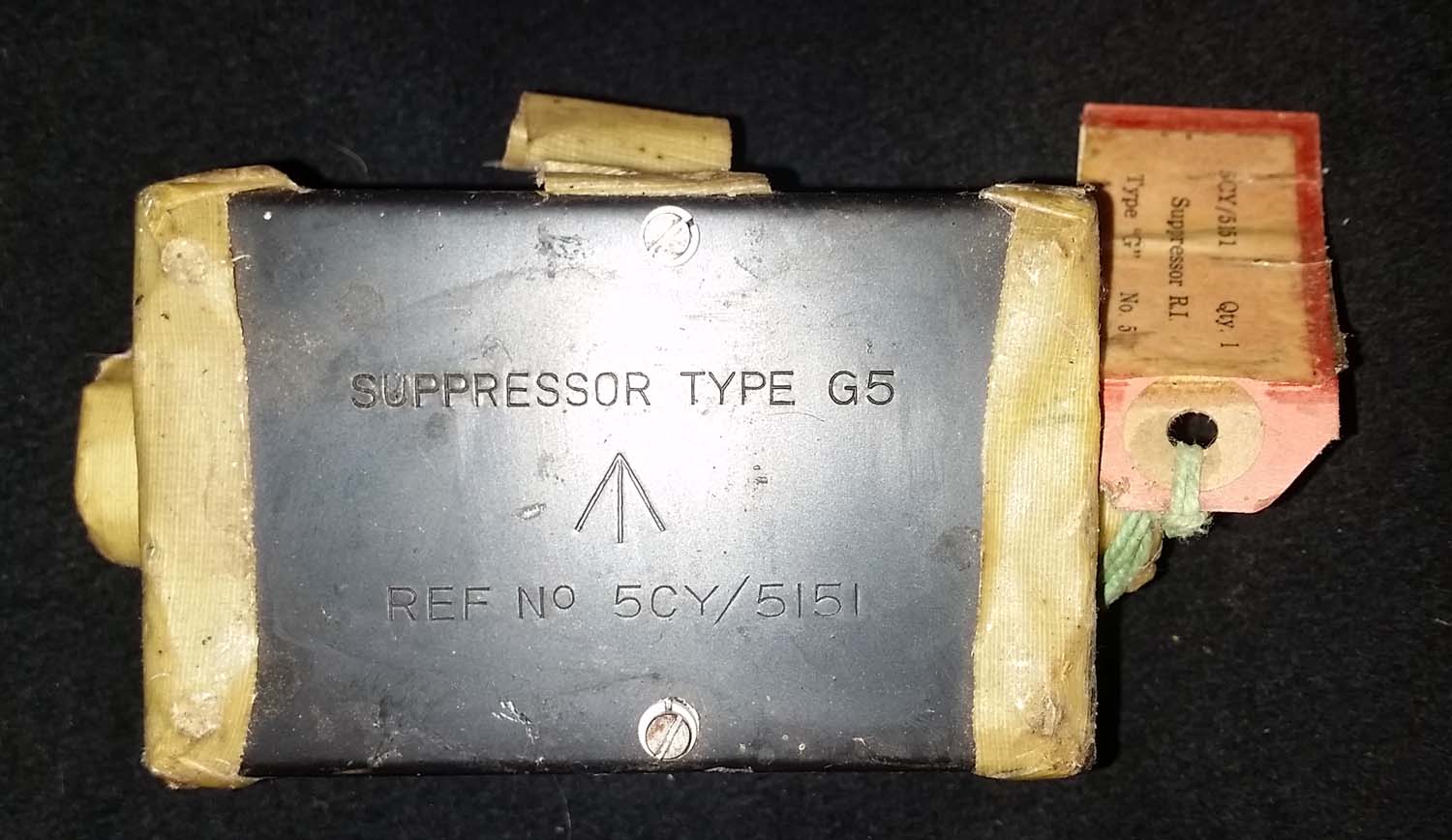

` Aircraft Suppressor Type G5 (No 42 pg 1 Elec Misc)

Ref:5CY/5151

45

Aircraft Suppressor Type Y (No 41 pg 1 Elec Misc)

Ref:5C/2605

65



Click on the picture to enlarge

40

We have 4 of these Available

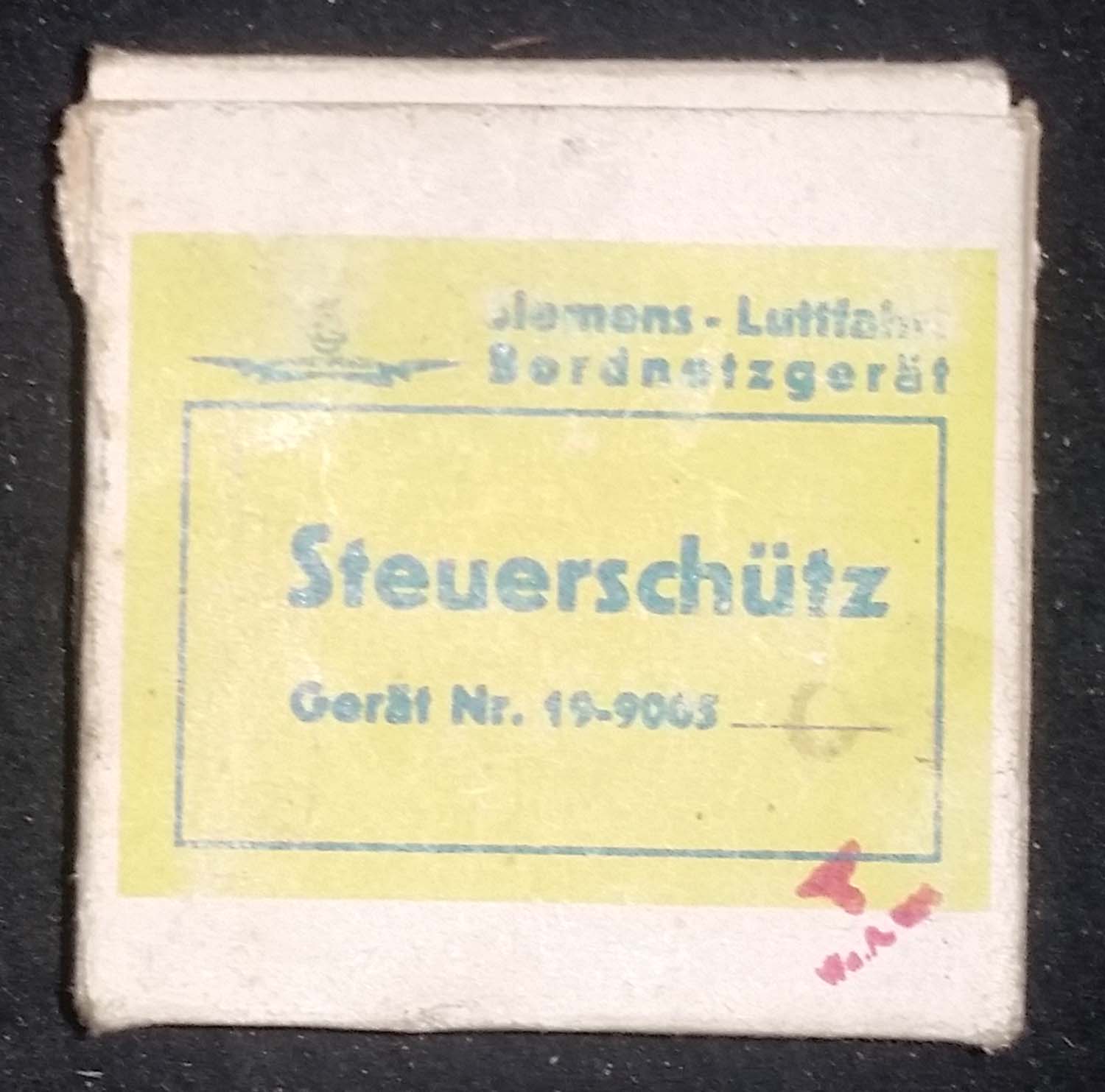

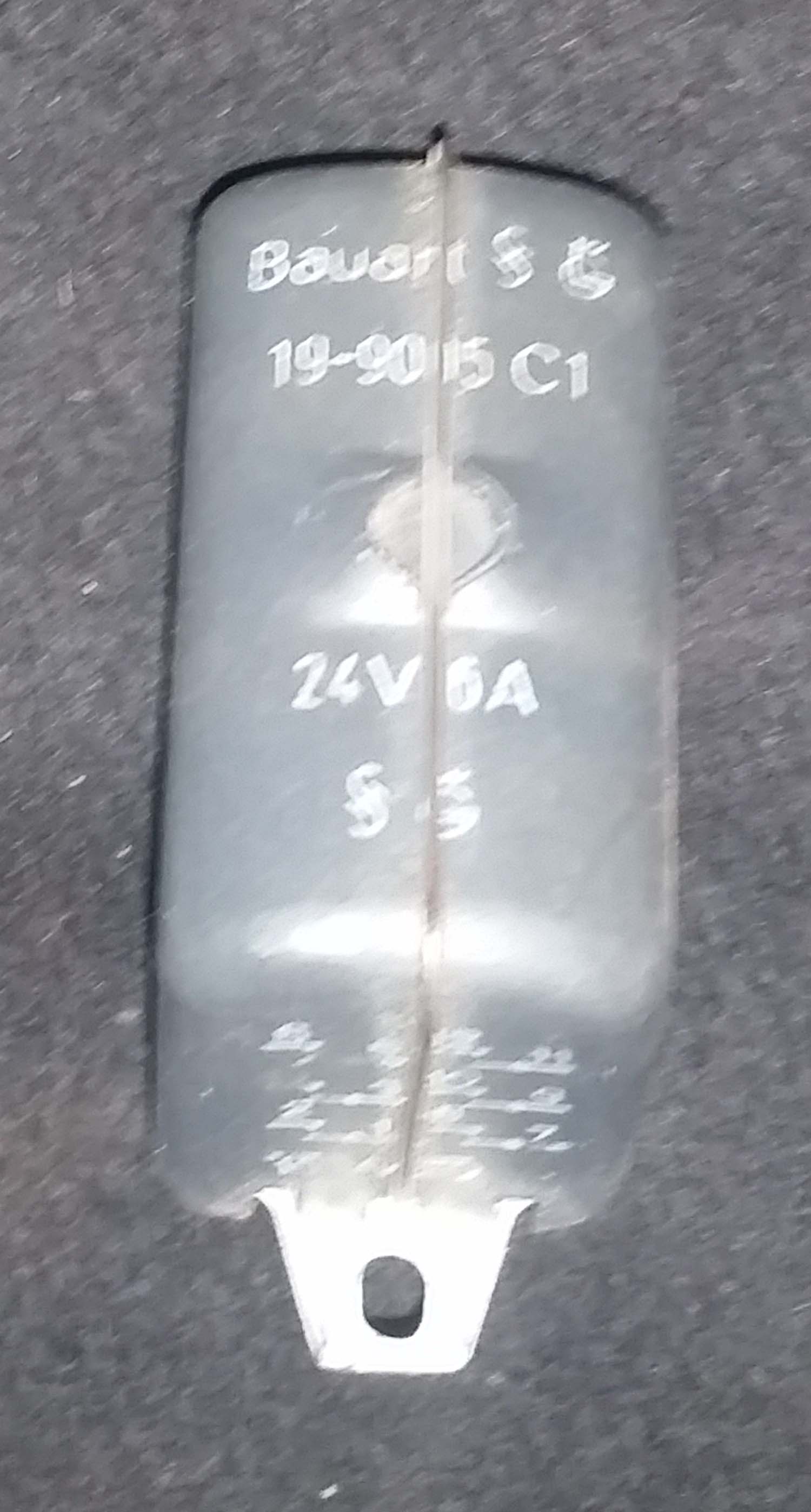

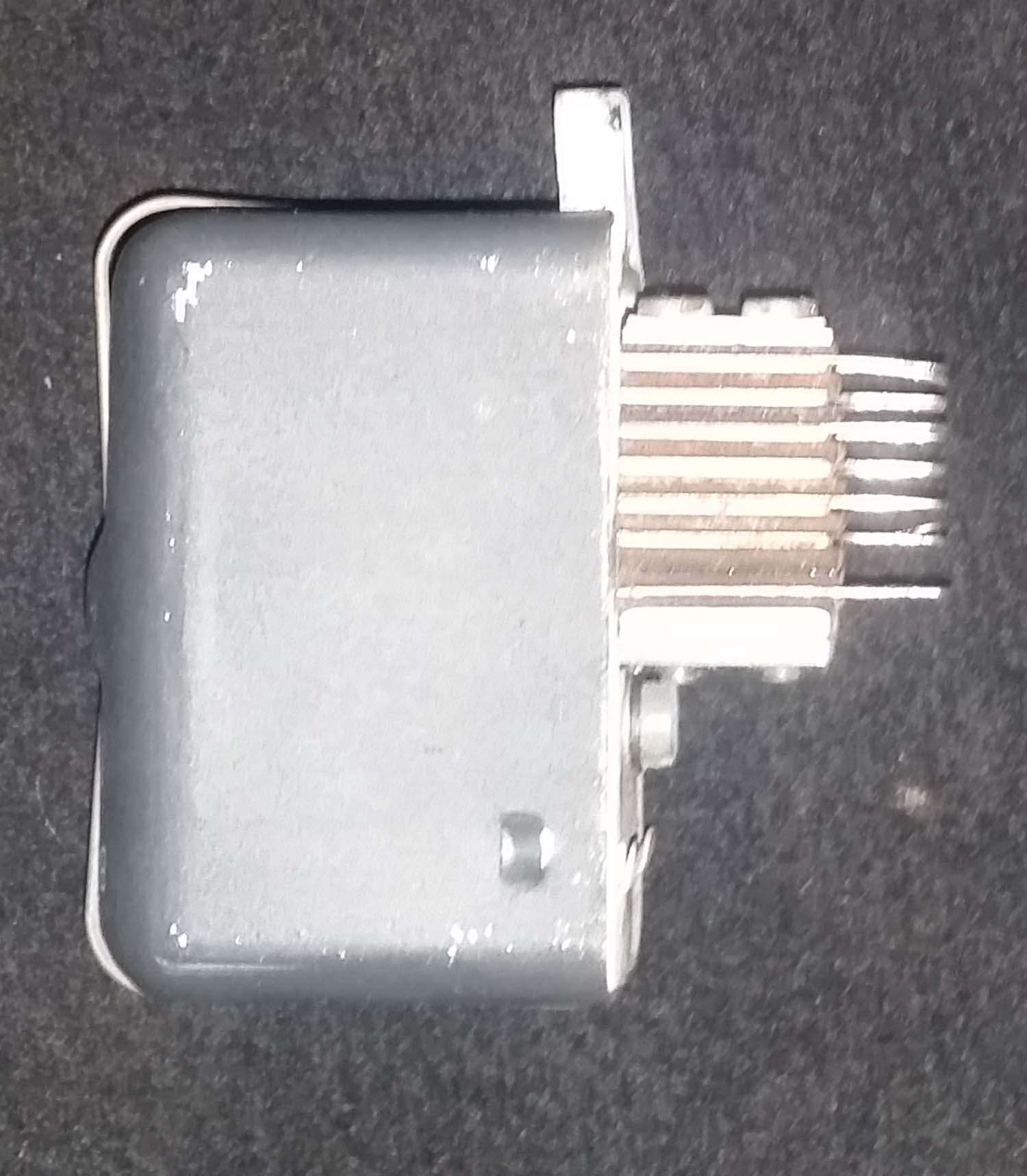

Luftwaffe V2 Control Contactor (No 40 pg 1 Elec Misc)

Here we have a Control Contactor as Used in Luftwaffe Aircraft as well as V2 Rockets

 This is in Good Condition and it is still in the original box

This has Gerat Nr. 19-9005 C-1

Click on the picture to enlarge

Luftwaffe Aircraft Resistor (No 39 pg 1 Elec Misc)

Here we a Round Resistor as used by the Luftwaffe

Resistance is set to 70 Ohms

25

Click on the picture to enlarge

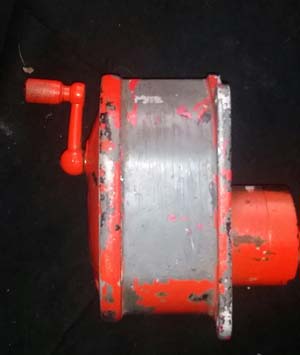

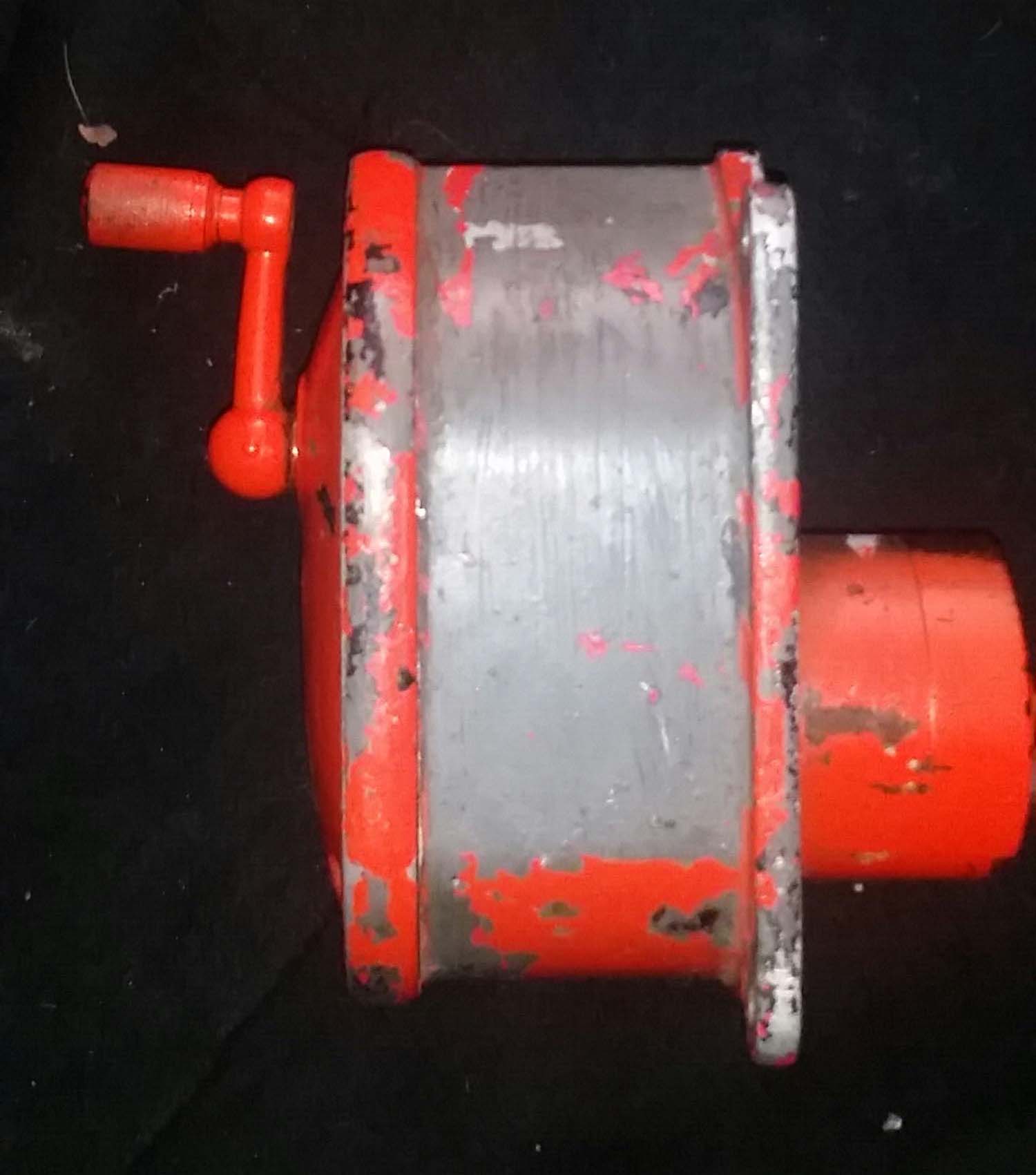

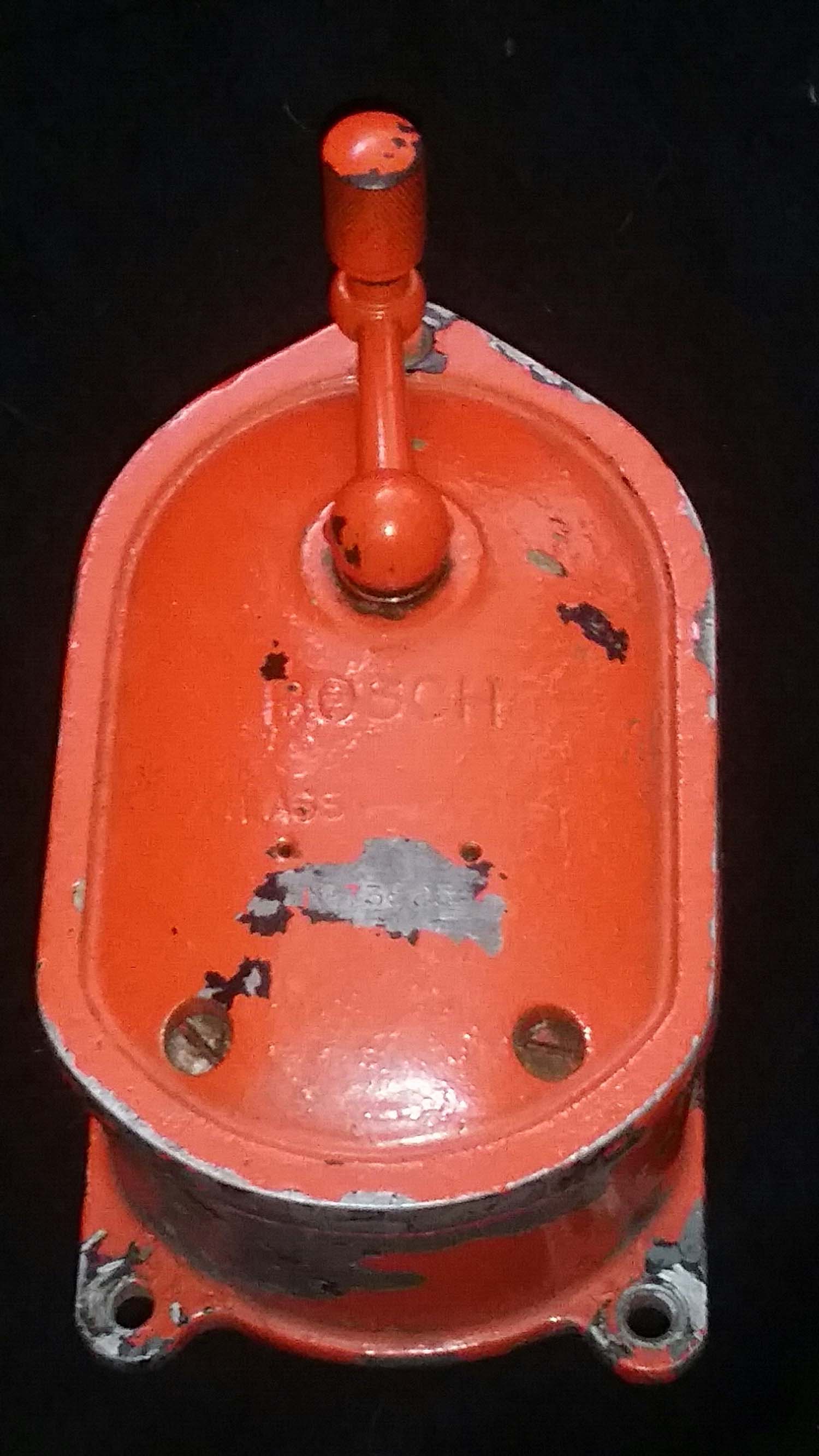

Bosch Anlass WW1 Starting Magneto (No 38 pg 1 Elec Misc)

Here we have a very Rare Bosch Starting Magneto. I have researched the serial number and i have found that this example is a very early one dating from 1904.

Bosch Anlass-Magnet

Serial Number 73085

These were fitted to the LHS of the Cockpit and attached to a magneto starter switch. as used in almost all German and Austrian-Hungarian WWI aircraft cockpits. Turning the crank handle would generate a strong electrical spark to the ignition wires to "boost" the engine start-up.

The handle turns but we have not been able to test it. We will test it upon request

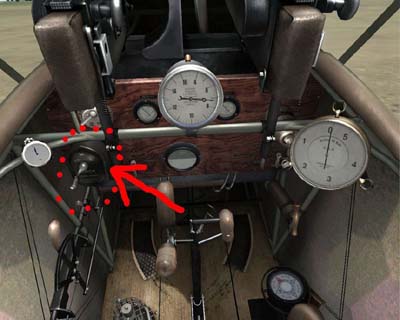

Seen in Situ Below in a Fokker Albatros

1750

Click on the picture to enlarge

Shunt (No 37 pg 1 Elec Misc)

Here we have a 100 amp 50mV Shunt

Comes in it original box and Packaging

Ref: 5Q/249869

30



Click on the pictures to enlarge

125

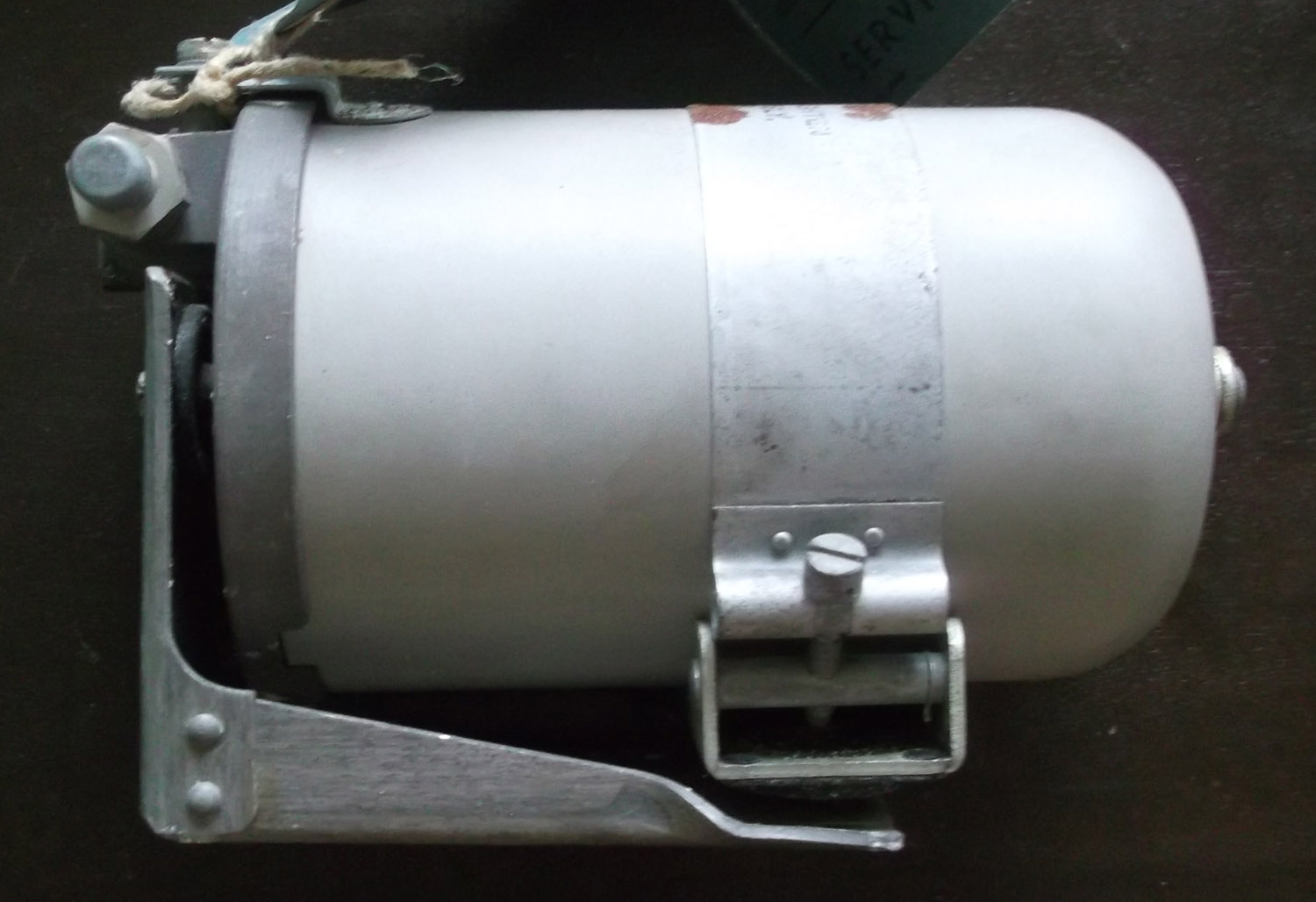

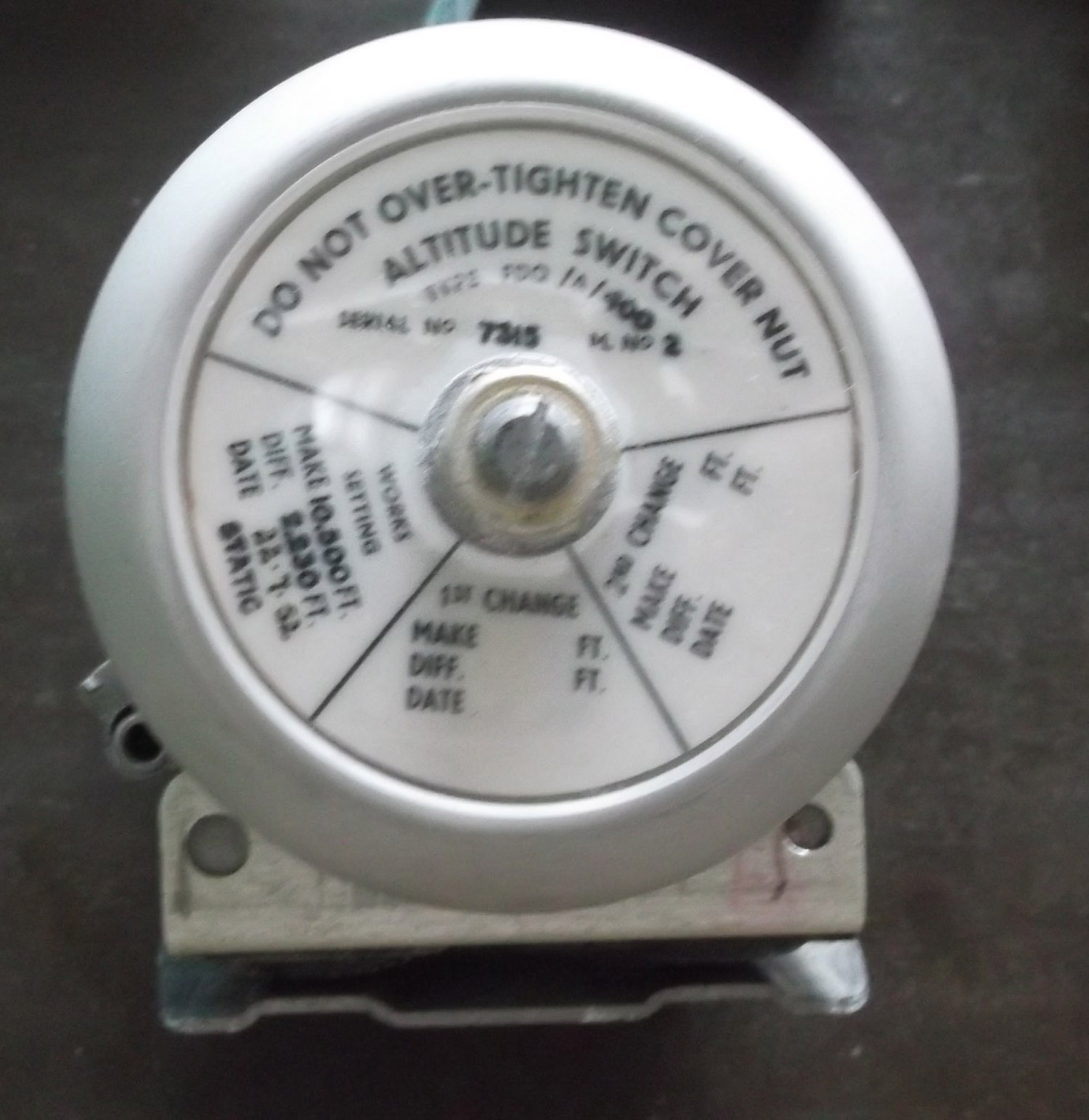

Altitude Switch (No 36 pg 1 Elec Misc)

Here we have a Altitude Switch FDQ/A/400

Ref: 5C/4066

Come with Serviceability Ticket

Comes with Original Re-Packaging

Click on the pictures to enlarge

Click on the picture to enlarge

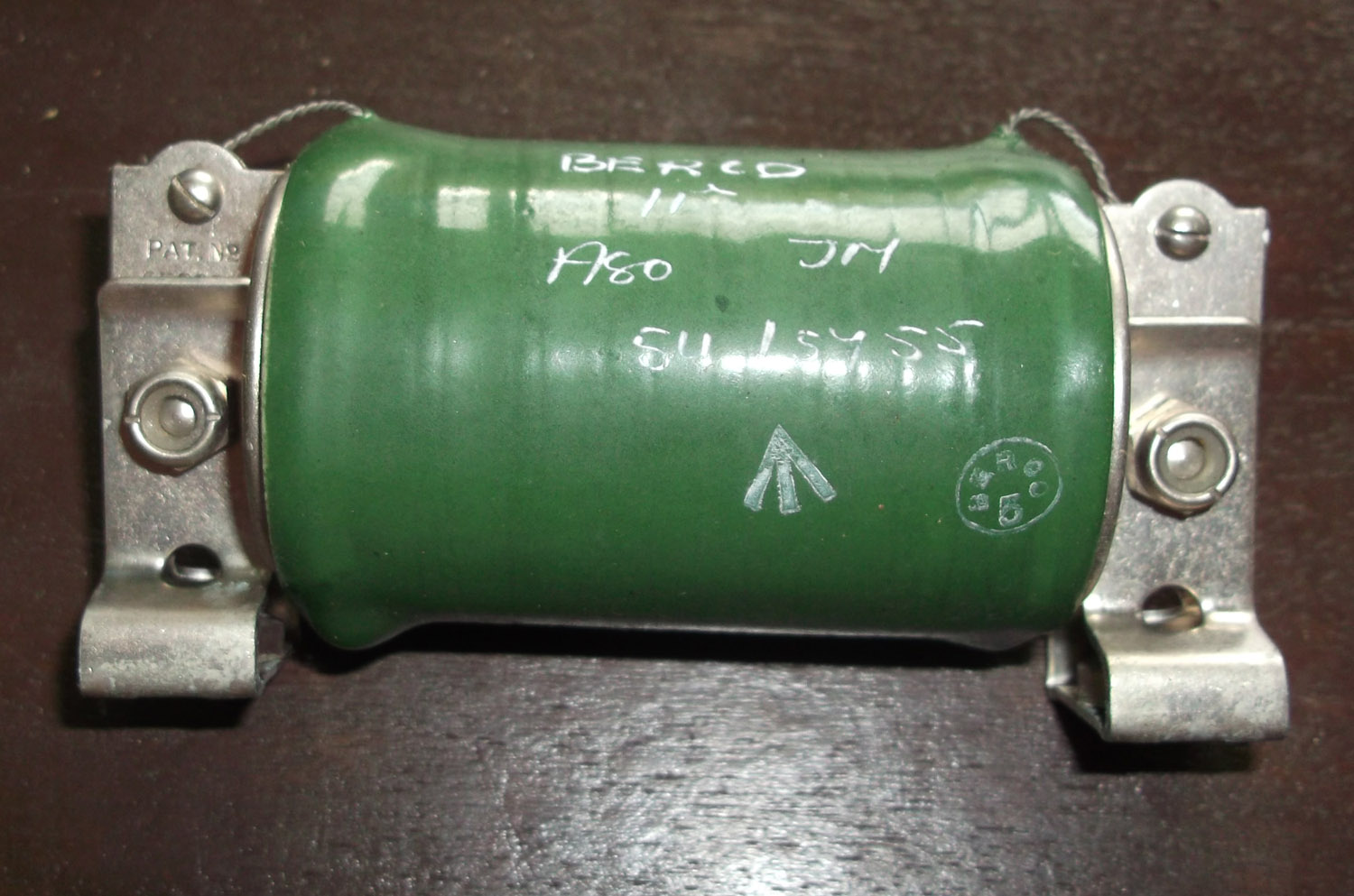

Resistance Berco (No 35 pg 1 Elec Misc)

Here we have a Resistance Berco A.80 Complete with Clips

Ref: 5U/5755

25

Click on the picture to enlarge

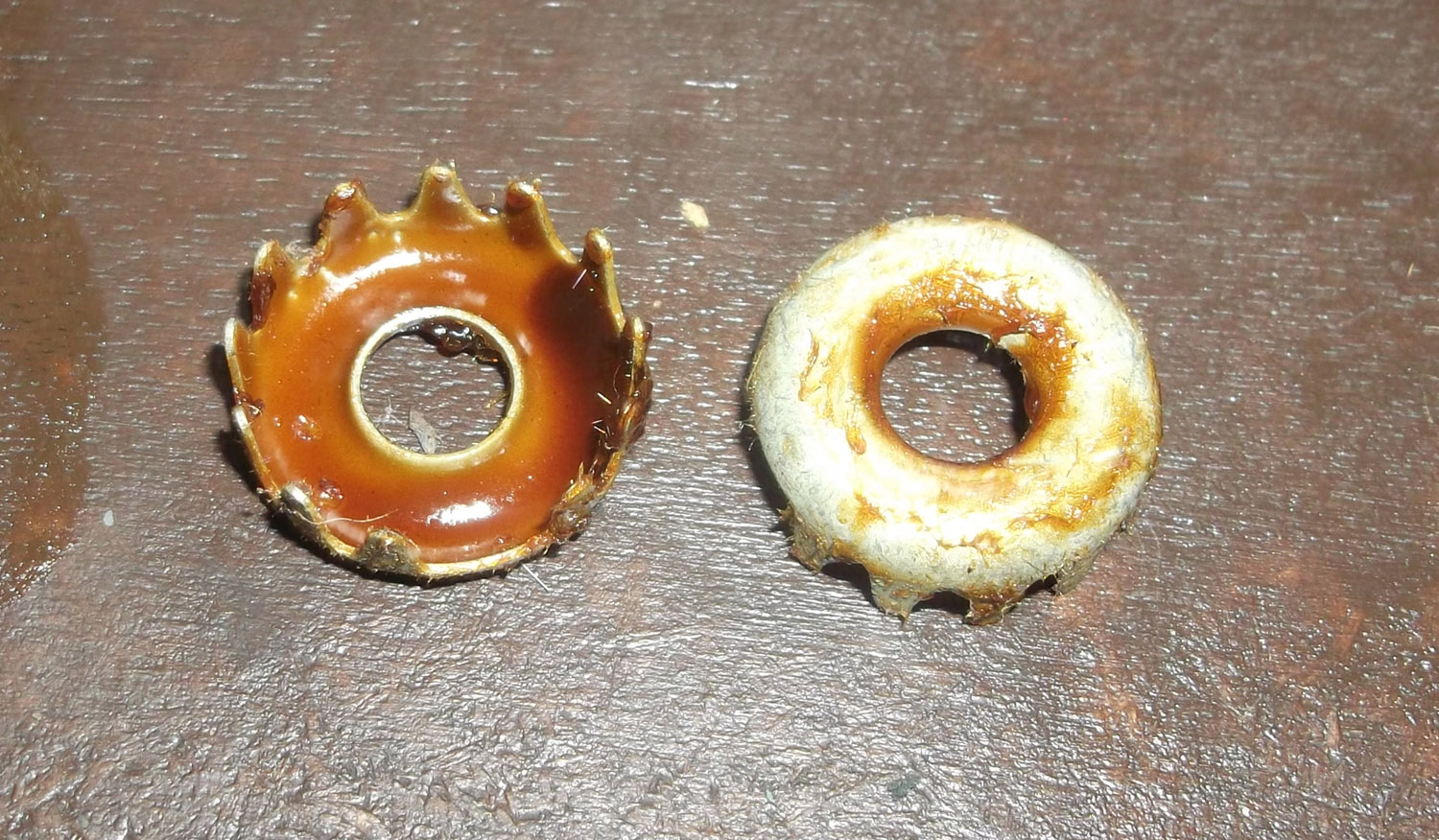

Cable Ends (No 34 pg 1 Elec Misc)

Here We Have a Set of 50 Crown Type Cable Ends

Ref: 5K/2595

AGS.1691.F

25

Click on picture to enlarge

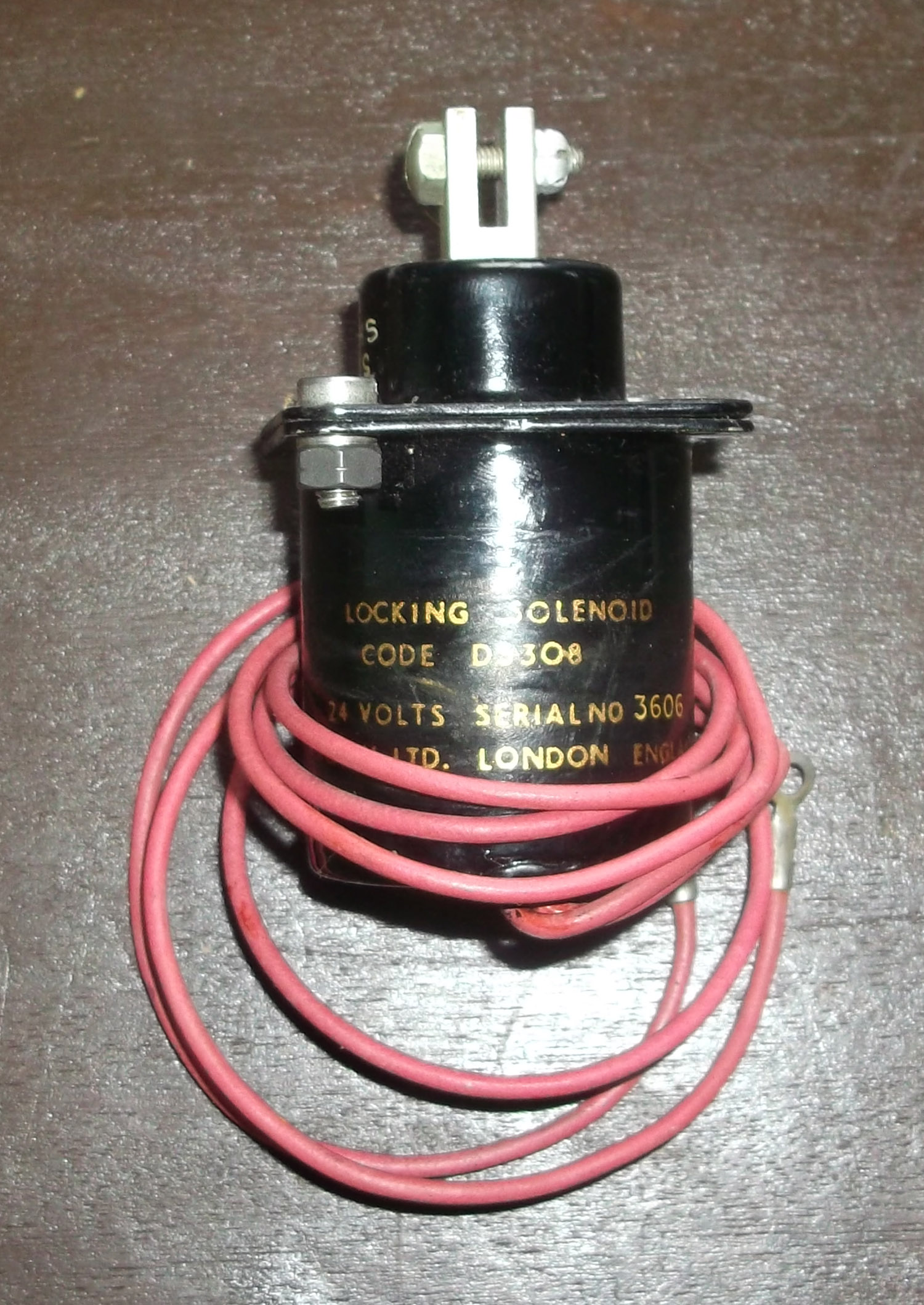

Locking Solenoid (No 33 pg 1 Elec Misc)

Here we have a 24V Locking Solenoid in good condition

Code: D5308

Serial no: 3606

25



Click on the picture to enlarge

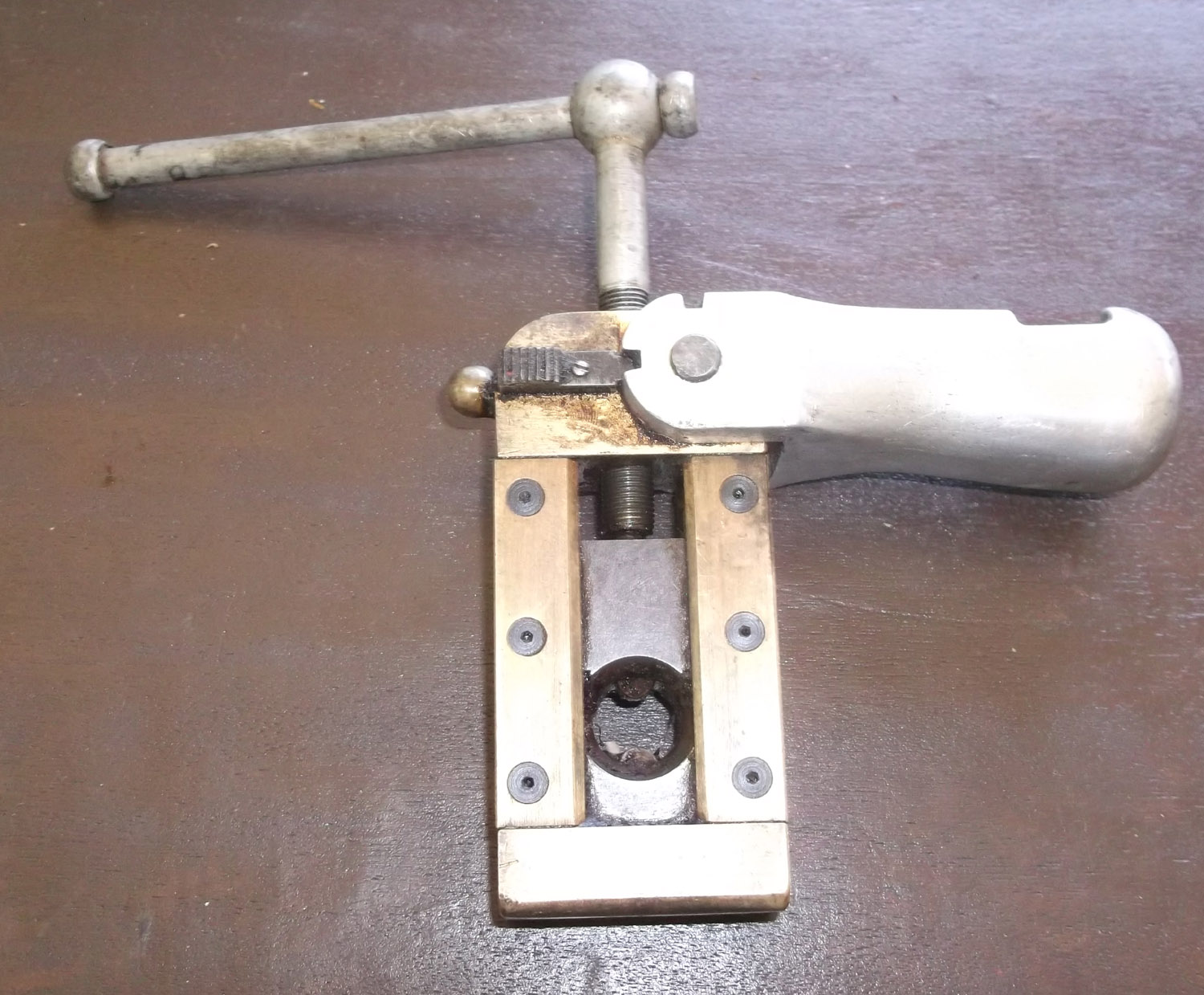

Unknown Electrical Tool (No 32 pg 1 Elec Misc)

We are Unsure as to the actual purpose of this tool However the reference number tells us that it is to do with electrical.

It May be a Tool for Crimping Wires

It is a Very Nice Piece of Equipment with the body being made out of brass and aluminium

 Ref No: 5H/106

138 Amp

75

Click on the picture to enlarge

Fuse Resistance and Transformer Box (No 31 pg 1 Elec Misc)

 Ref No: 5A/3732

24V and 230V  Connectors

95

Click on the picture to enlarge

Dual Voltage Regulator Block (No 30 pg 1 Elec Misc)

 Ref No: 5U/215

Type P.H.

24V - 100A

Out of stock more wanted contact me

Click on the picture to enlarge

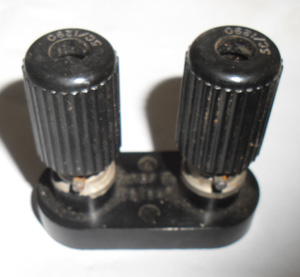

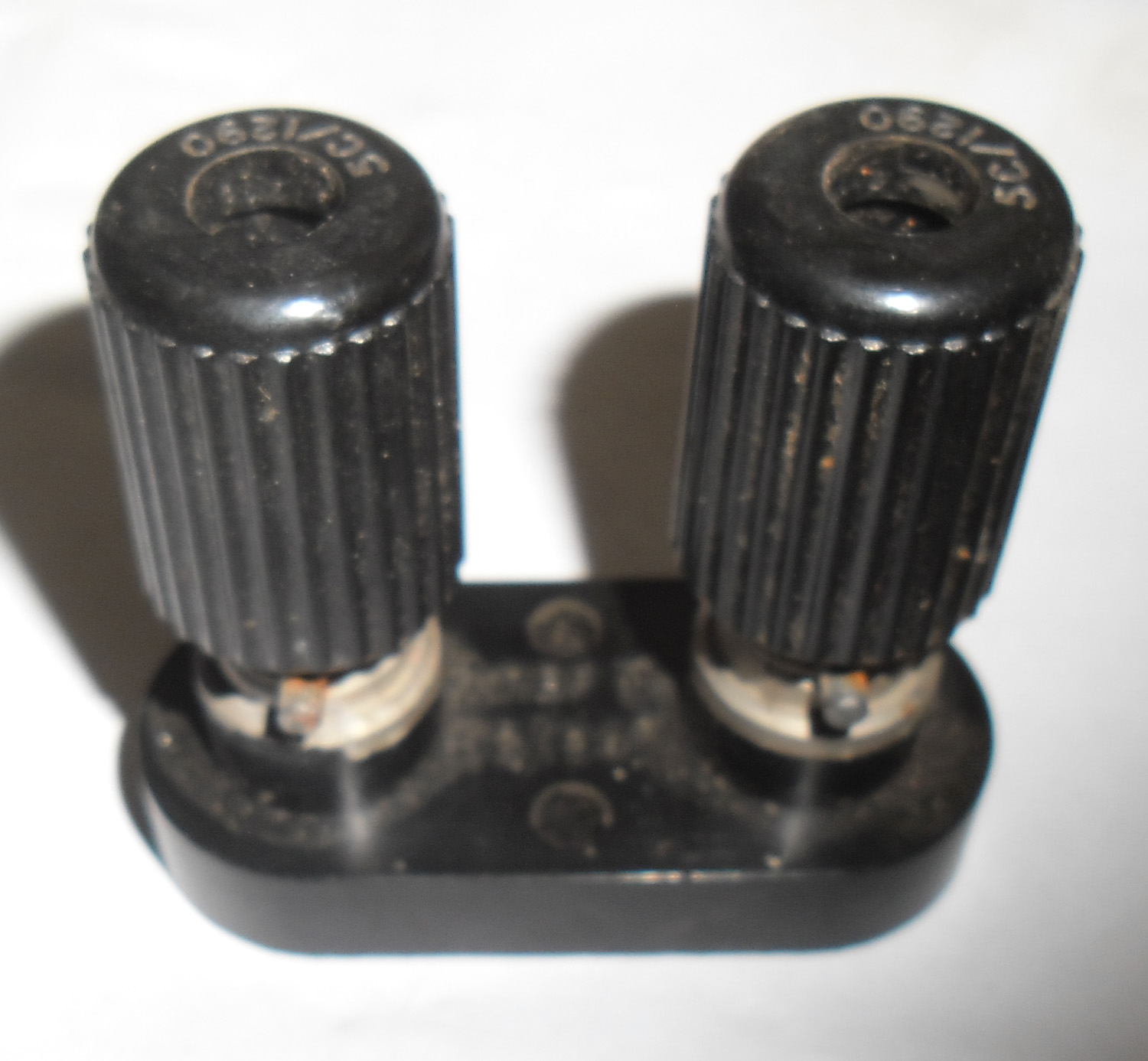

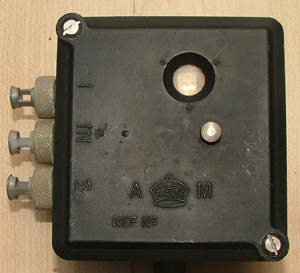

Dummy Terminal Block (No 29 pg 1 Elec Misc)

 Ref No: 5C/1947

35



Click on the pictures to enlarge them.

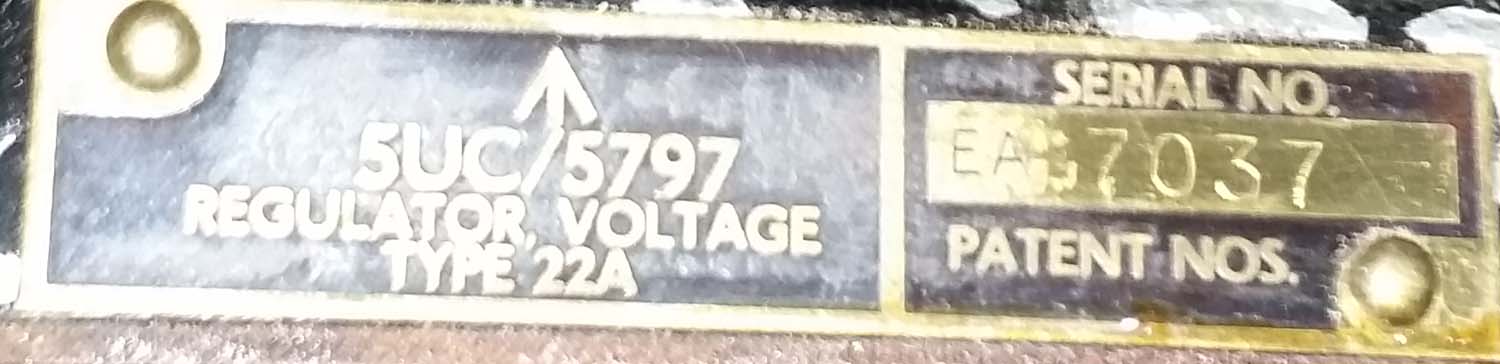

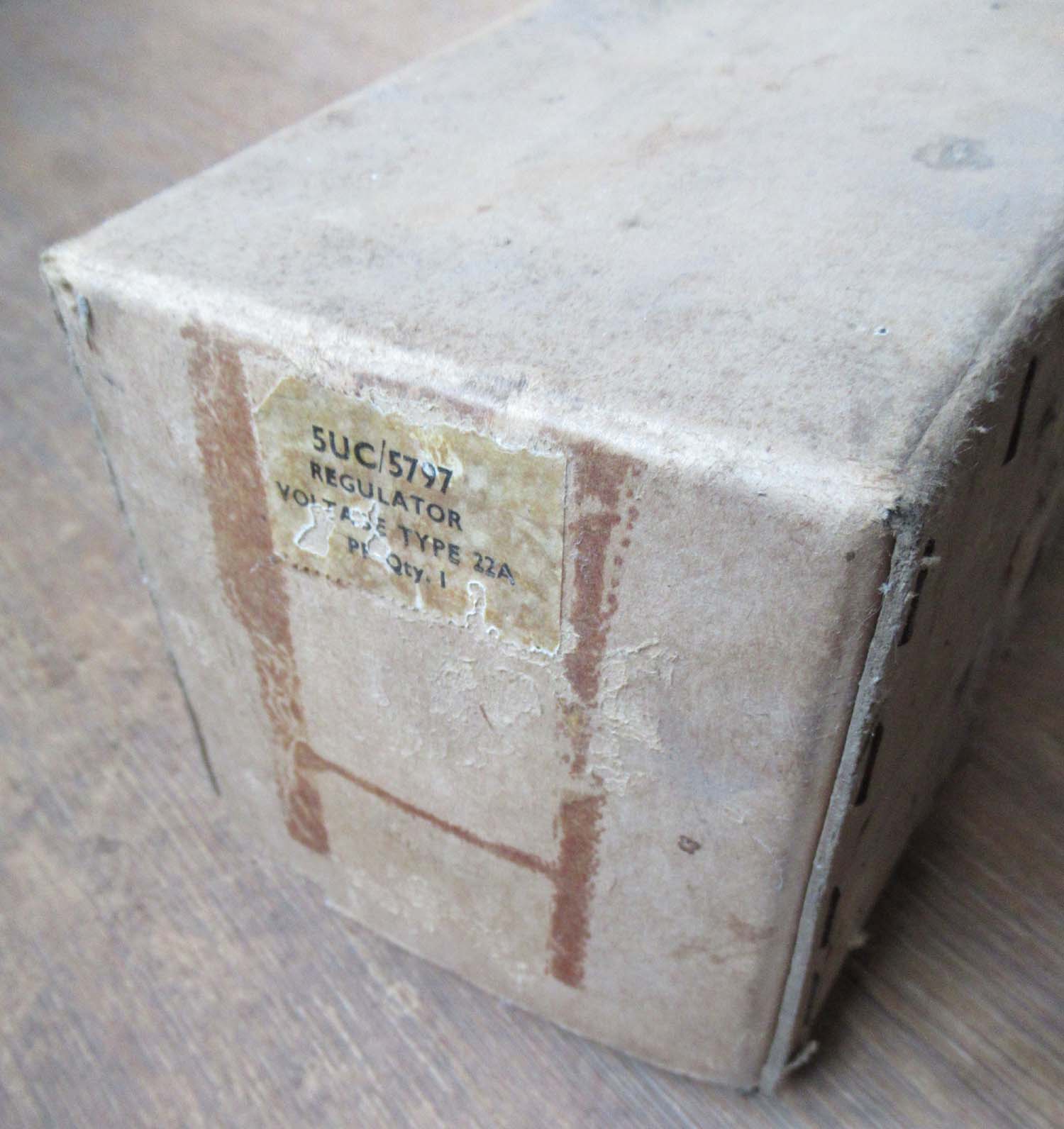

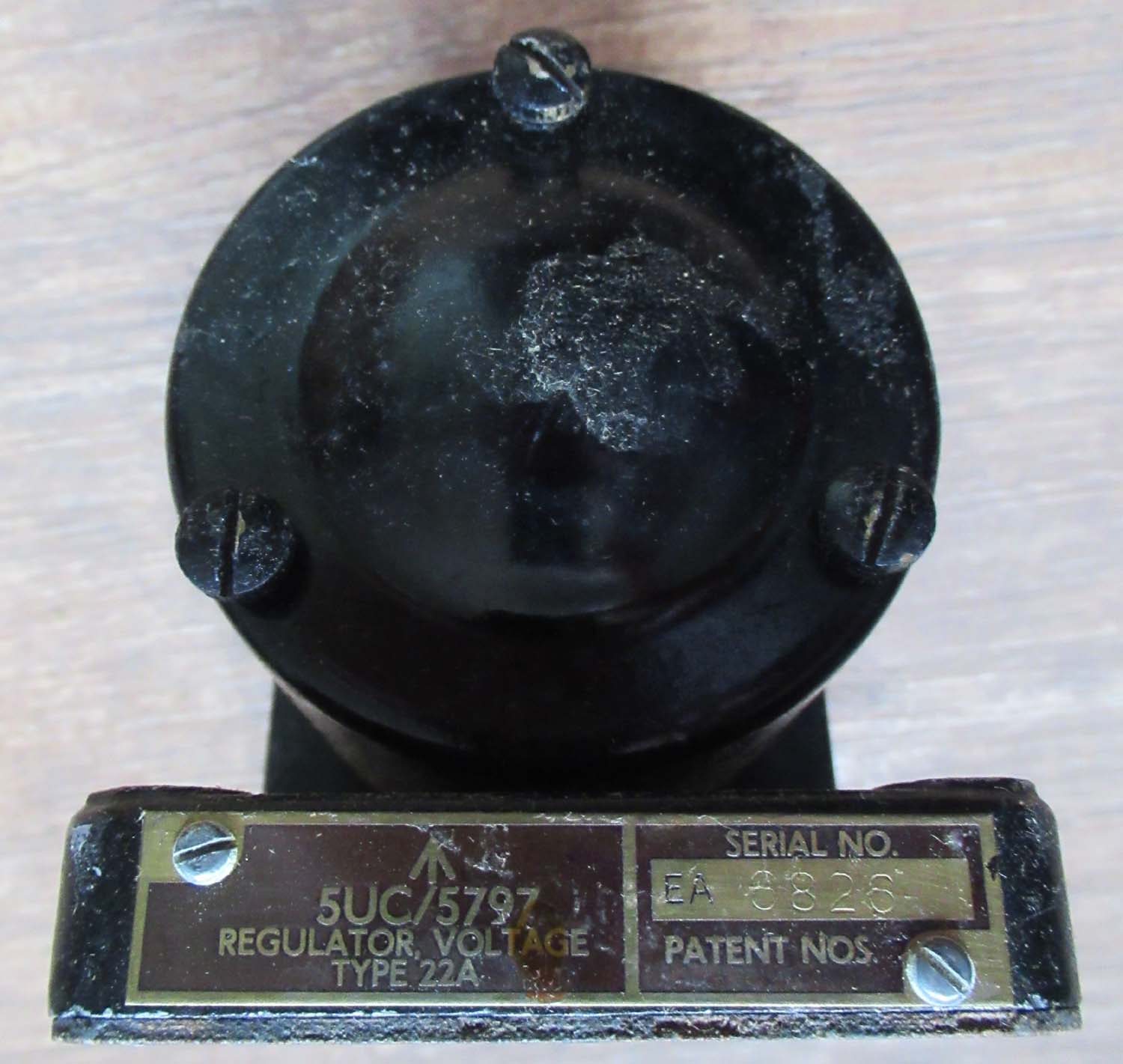

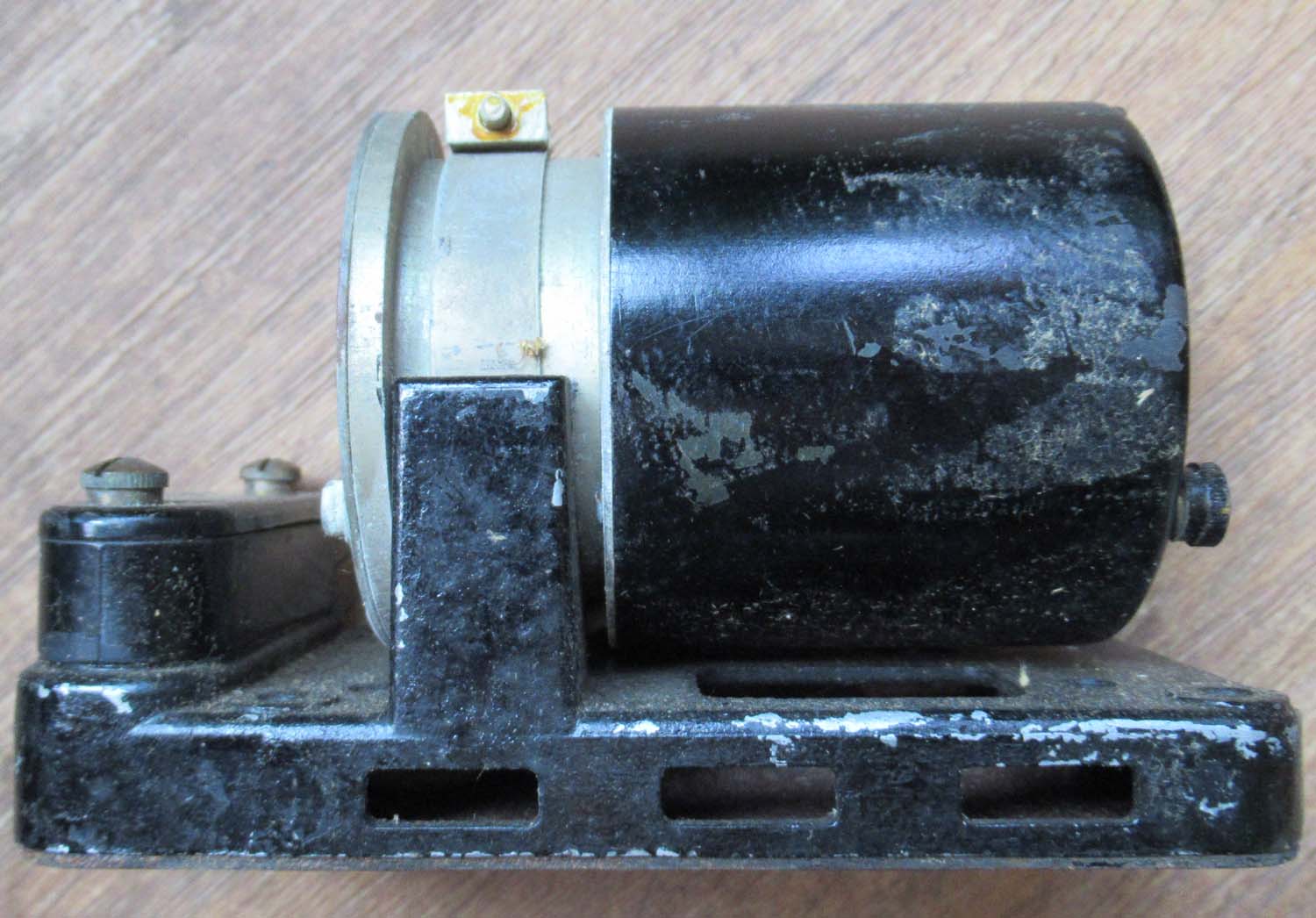

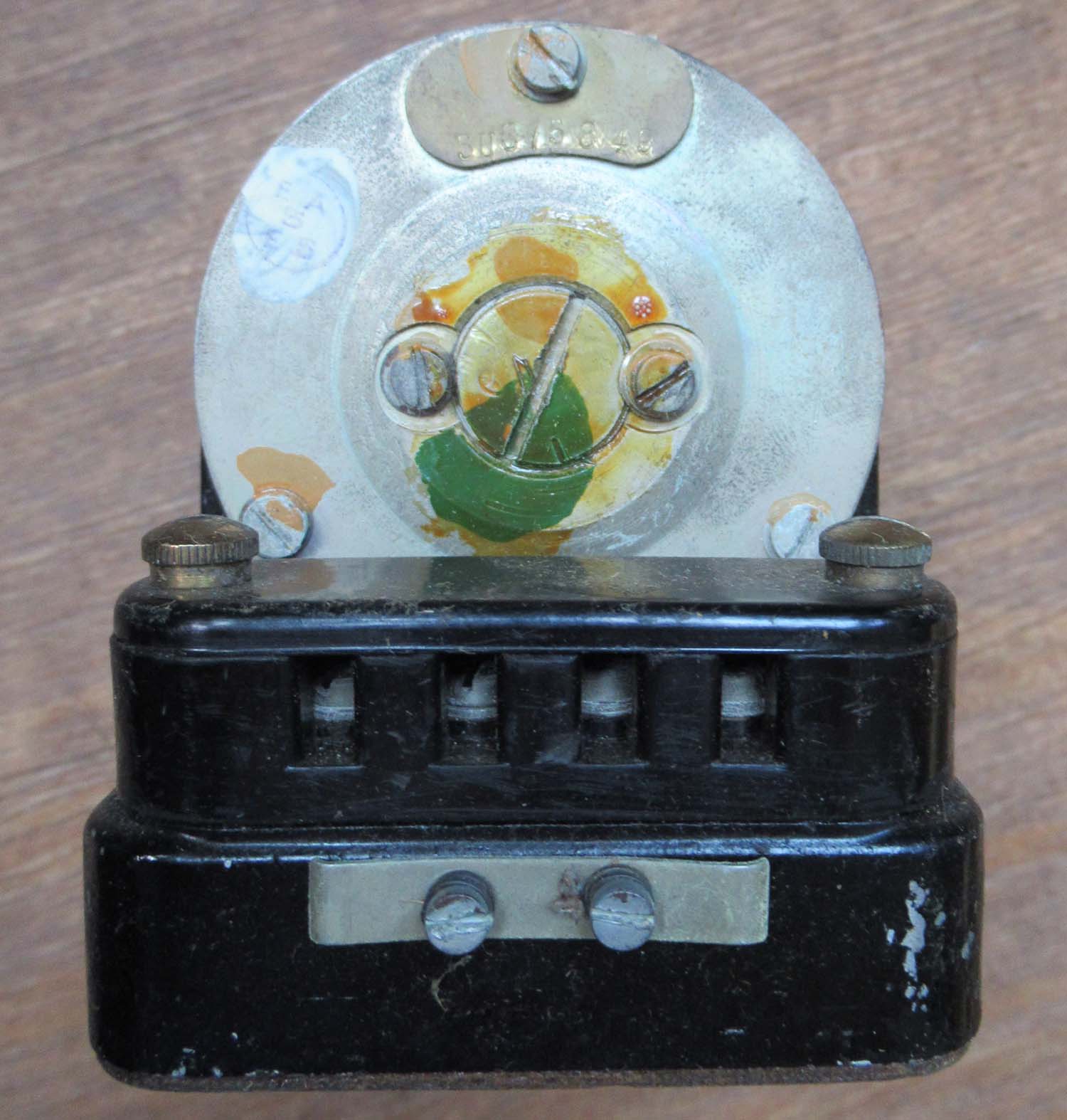

Voltage Regulator Type 22A (No 28 pg 1 Elec Misc)

Here we Have a voltage Regulator Type 22A

Ref No: 5UC/5797

75



Click on the picture to enlarge

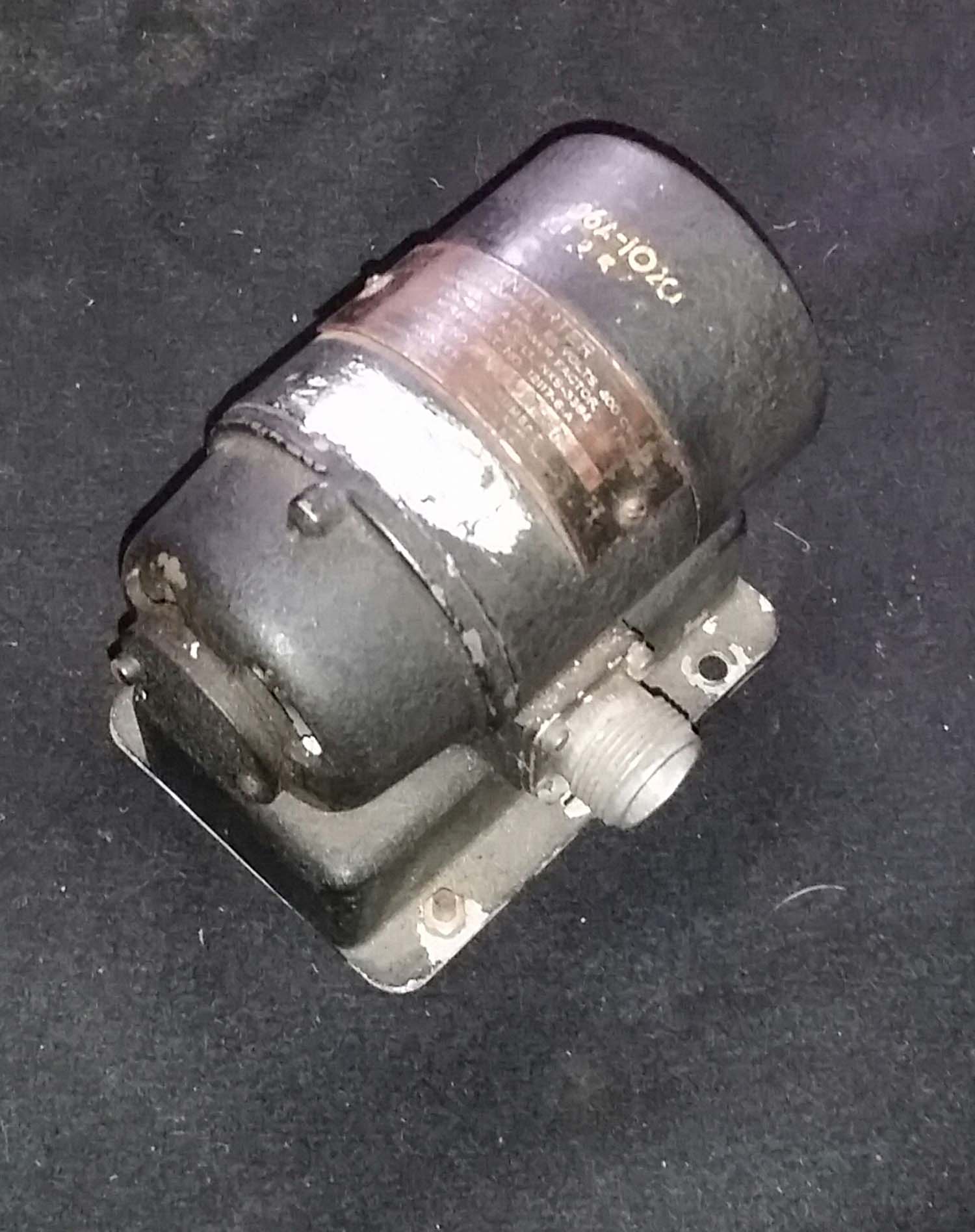

Inverter for Aircraft Magnetic Compass System (No 27 pg 1 Elec Misc)

Here we have Inverter made by Bendix Aviation Company

Manufacturers Part Number 12117-6-A

This is used in the Magnetic Compass System

75

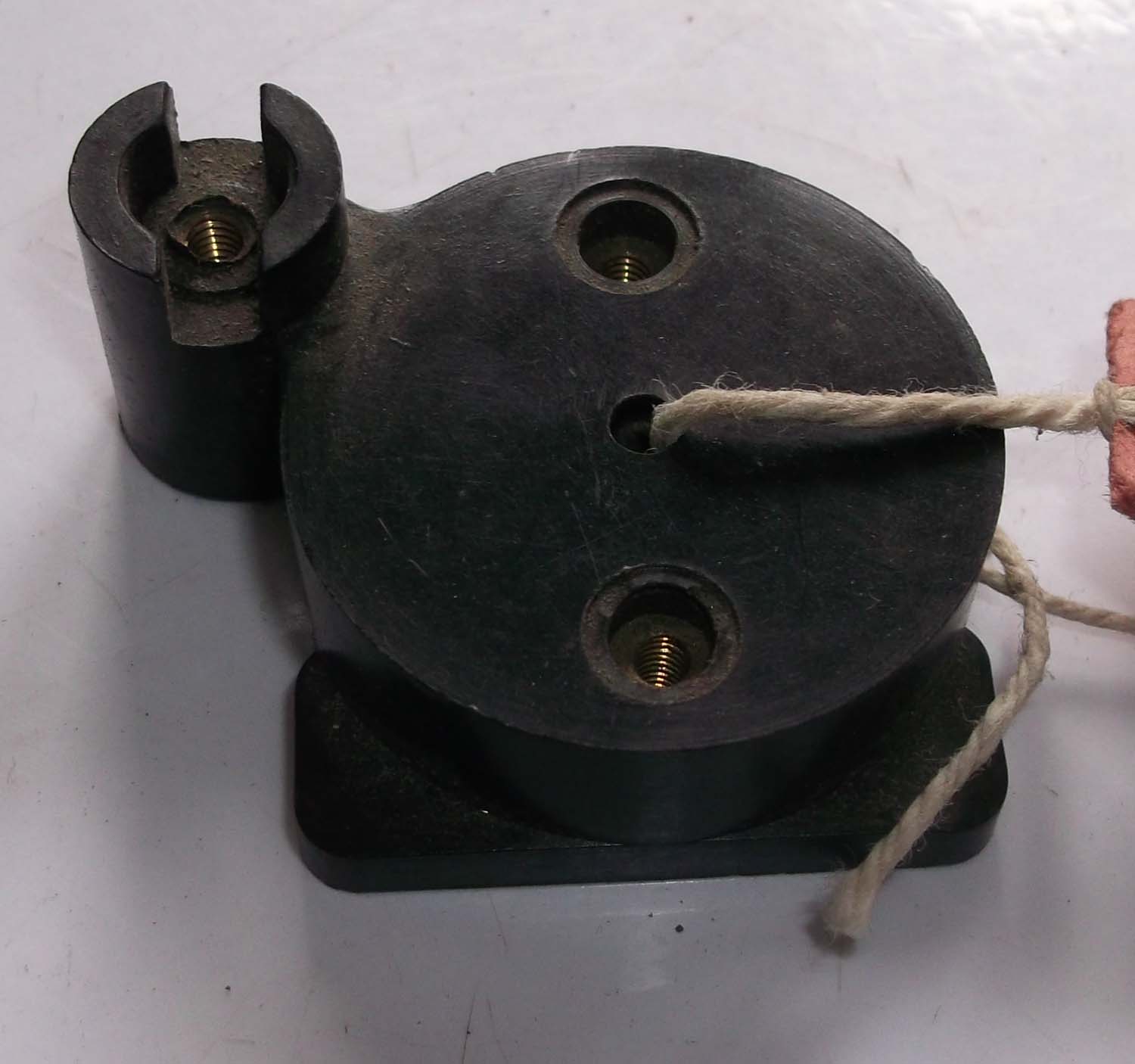

Mounting Block (No 26 pg 1 Elec Misc)

Ref: 5C/2813

25



Voltage Regulator (No 25 pg 1 Elec Misc)

Ref: 5U/378

Type 40

19V D.C

25

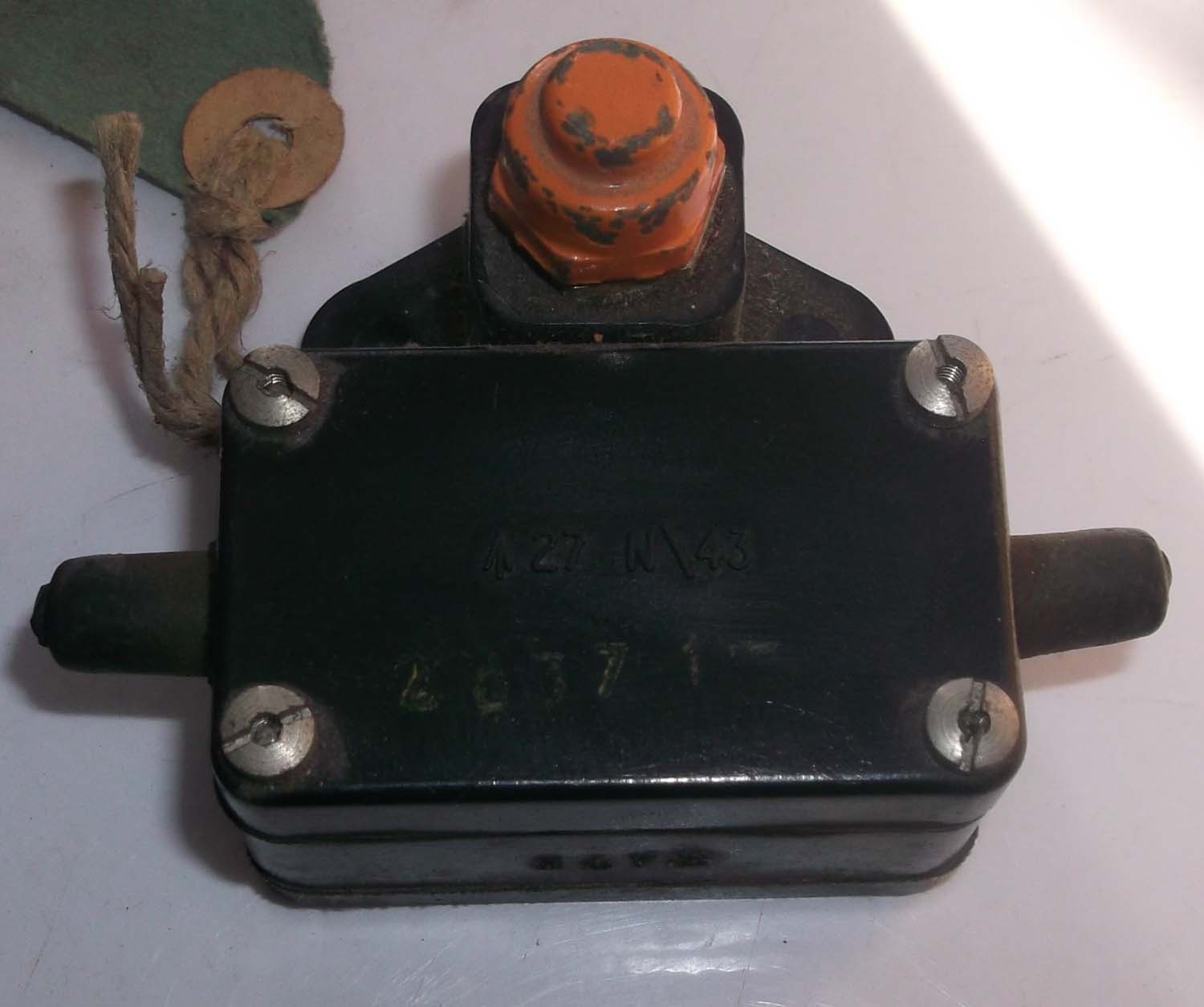

Fire Detection Unit (No 24 pg 1 Elec Misc)

Ref: 27N/43

35

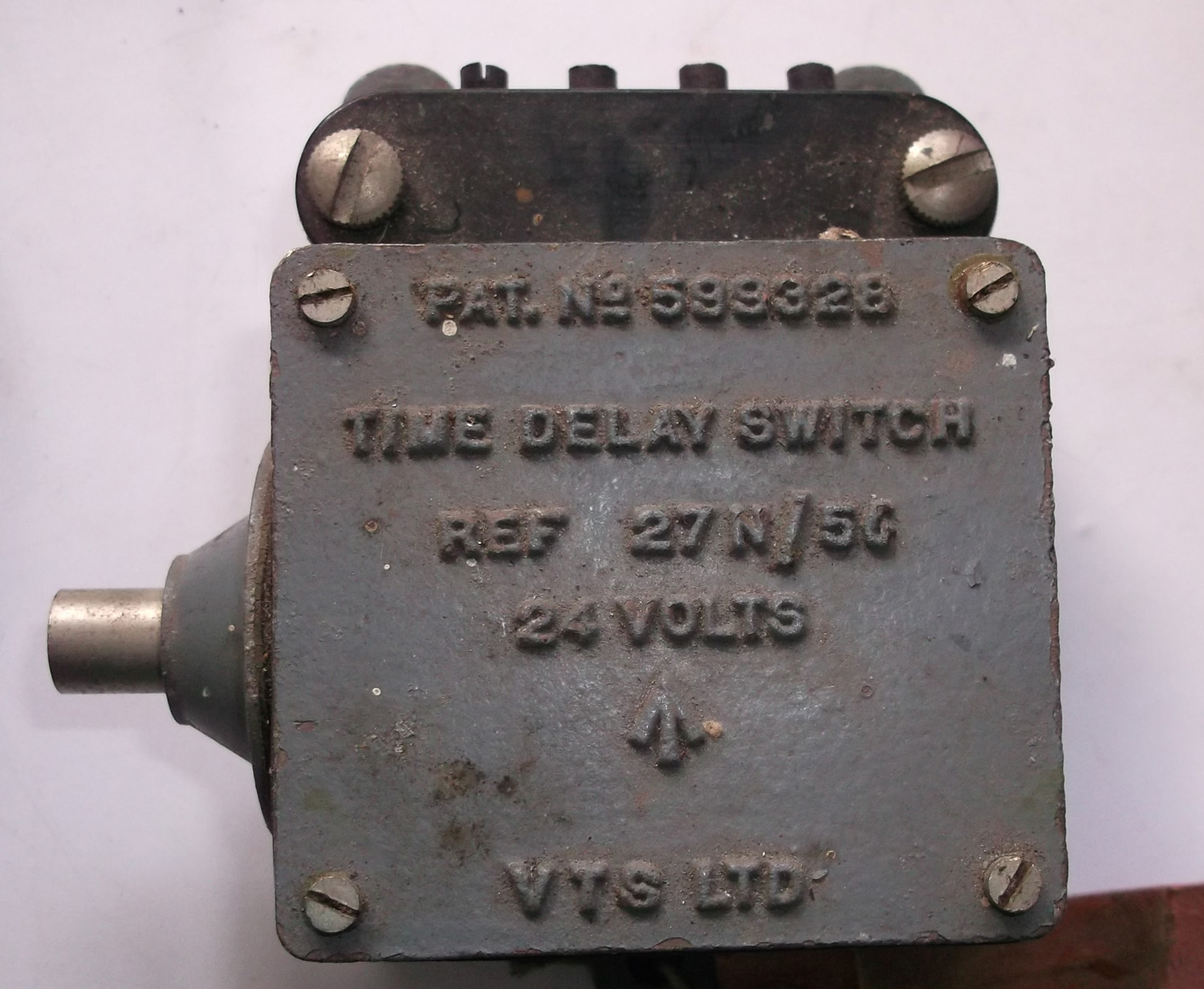

Fire Suppression Time Delay Switch (No 23 pg 1 Elec Misc)

 Through the feathering button, a circuit from the positive and earth terminals is supplied to the main coil of the relay. This opens the main extinguisher-bottle contacts and closes a circuit to energize a holding-in coil for a period of eight seconds; simultaneously, the relay starts running

Ref: 27N/56

24 Volts

VTS Ltd

35

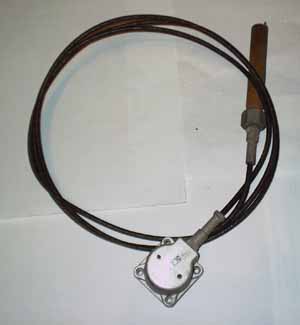

Sender unit (No 22 pg 1 Elec Misc)



5CX instrument sender

25

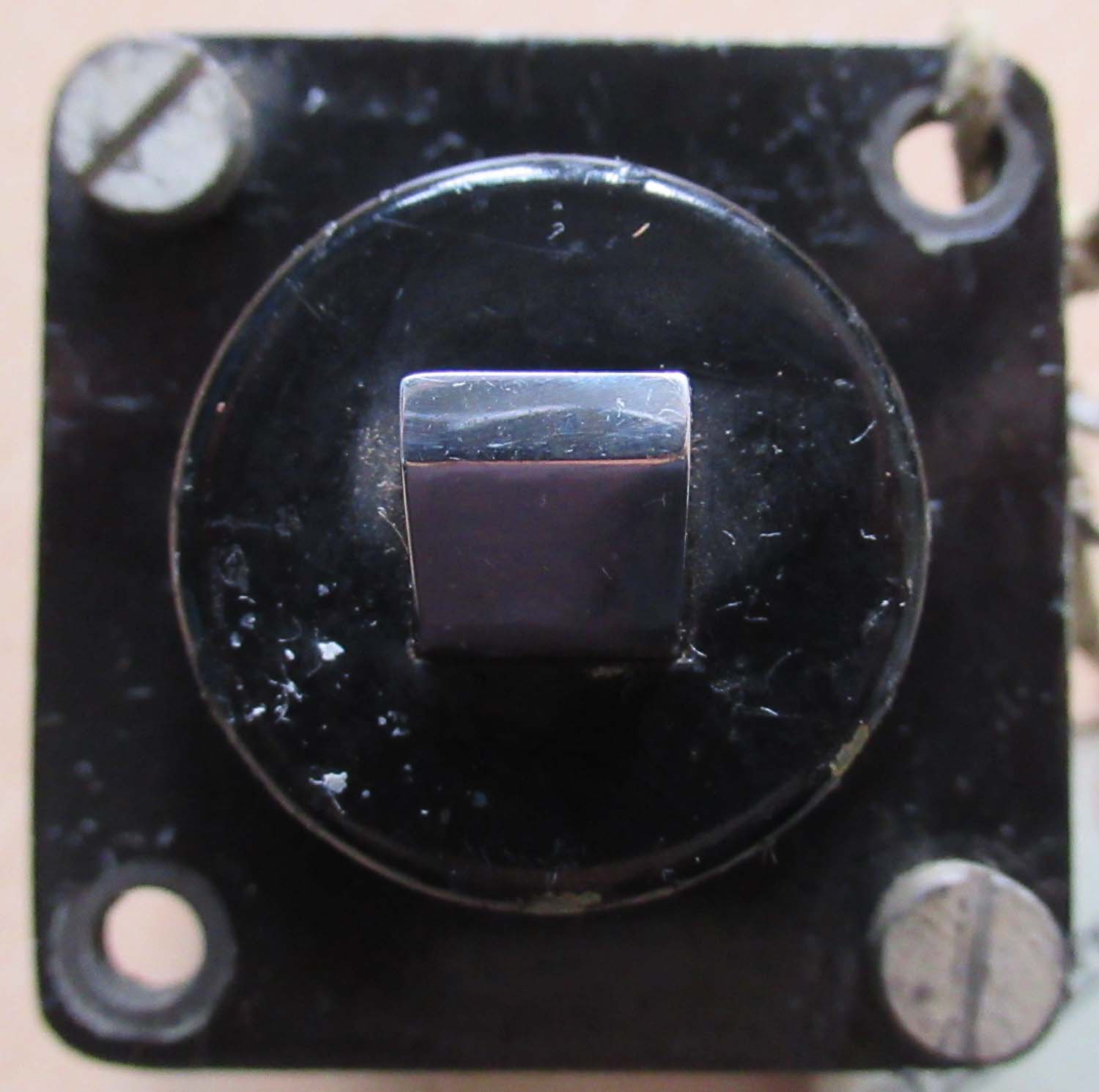

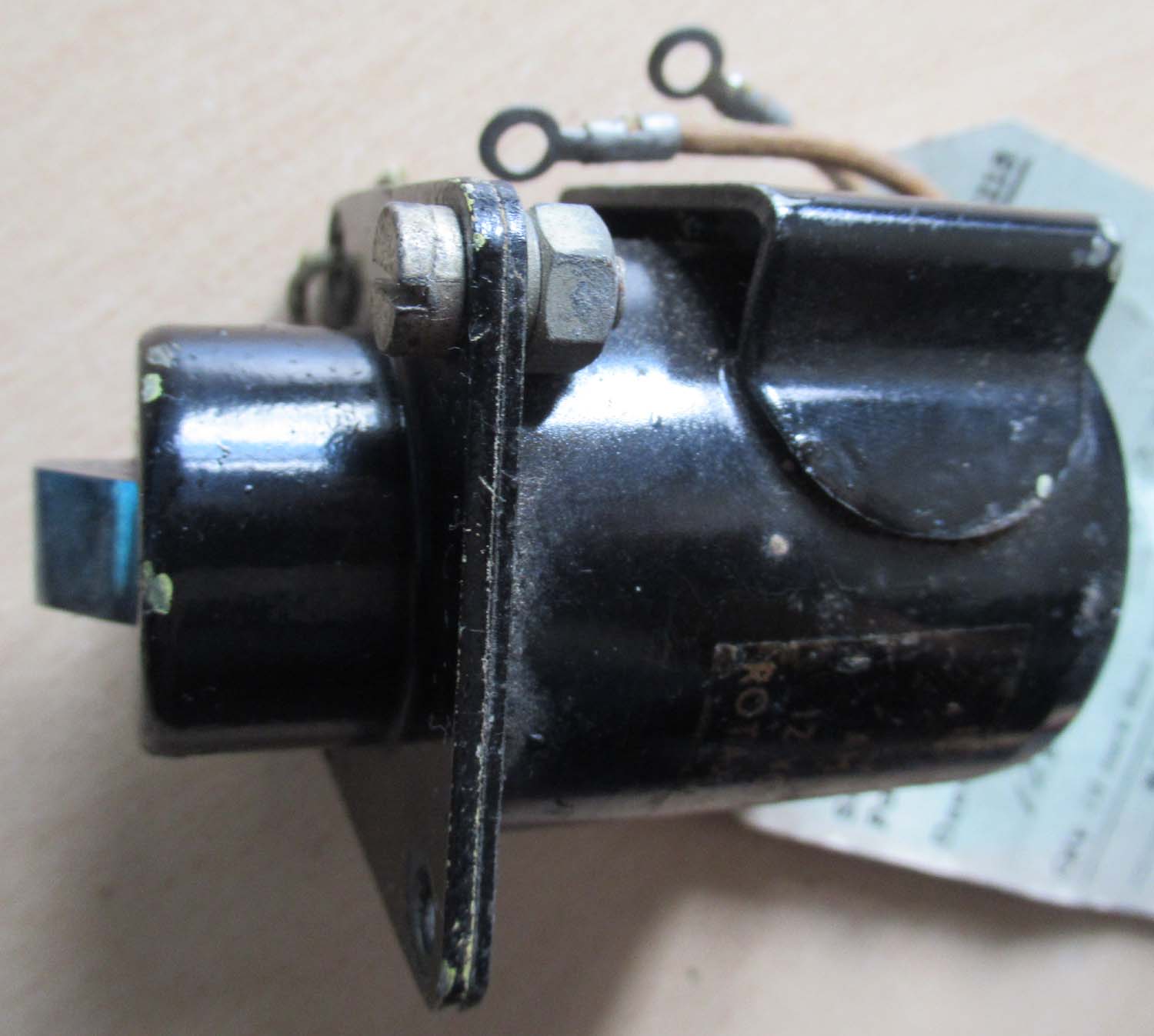

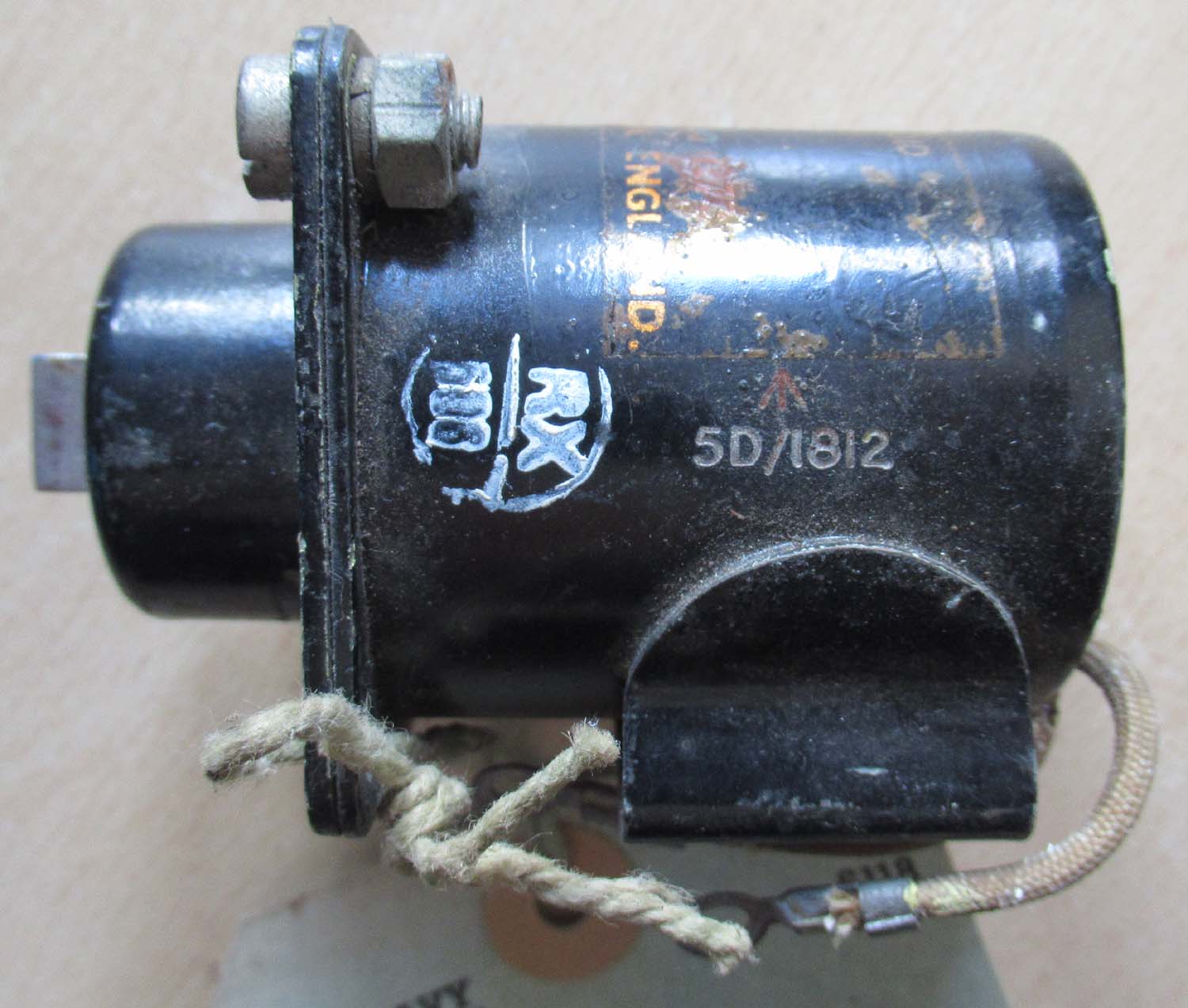

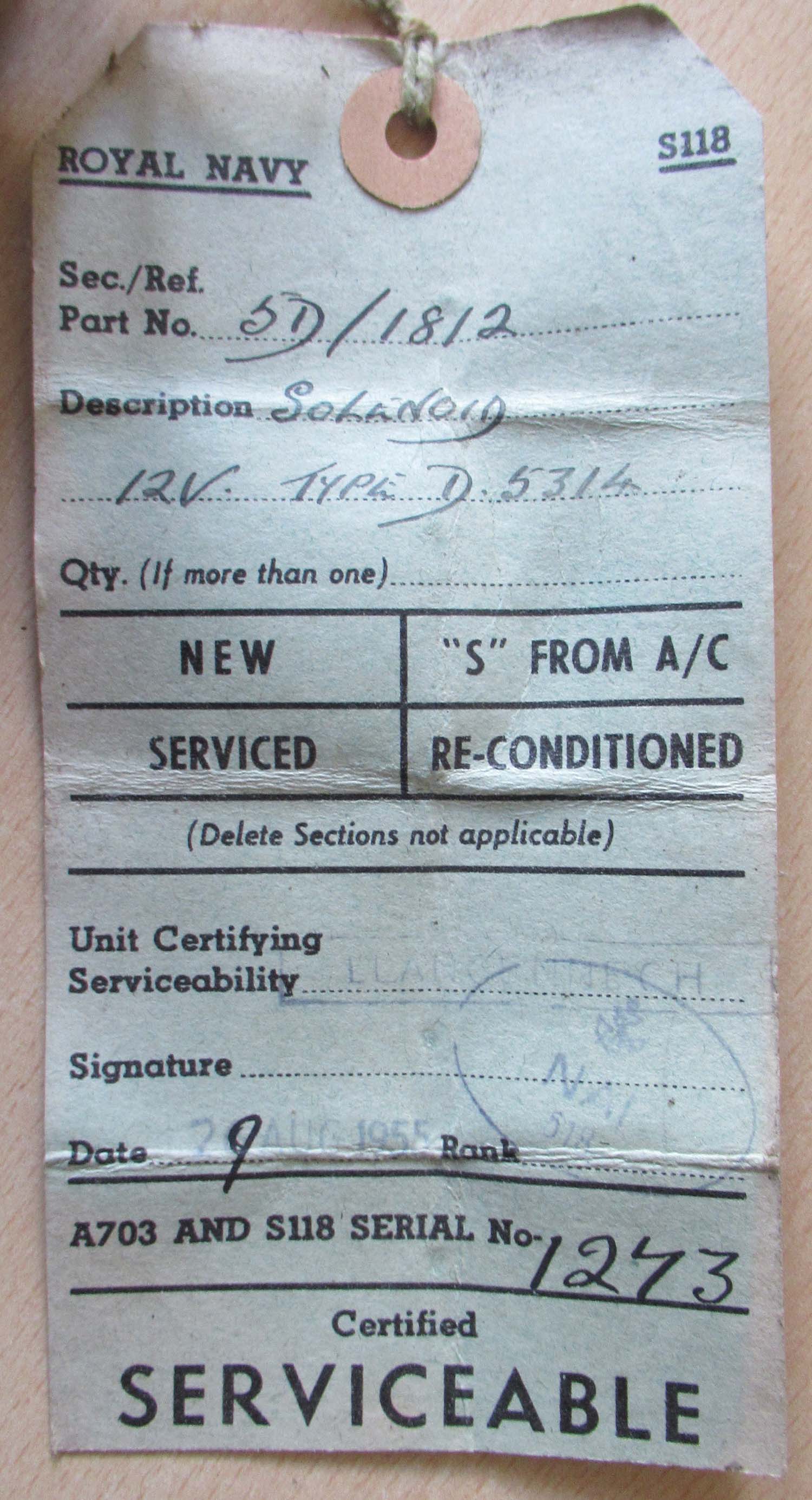

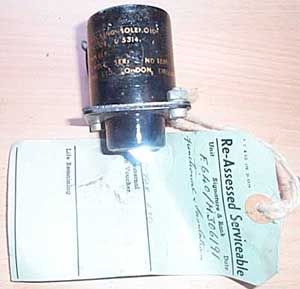

Locking solenoid (No 21 pg 1 Elec Misc)

 TYPE D

Ref: 5D/1812

12volt

25

Air Ministry Cover (No 19 pg 1 Elec Misc)

AM Ref: 5C/1004

UK postage free

5

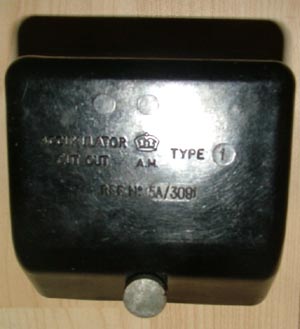

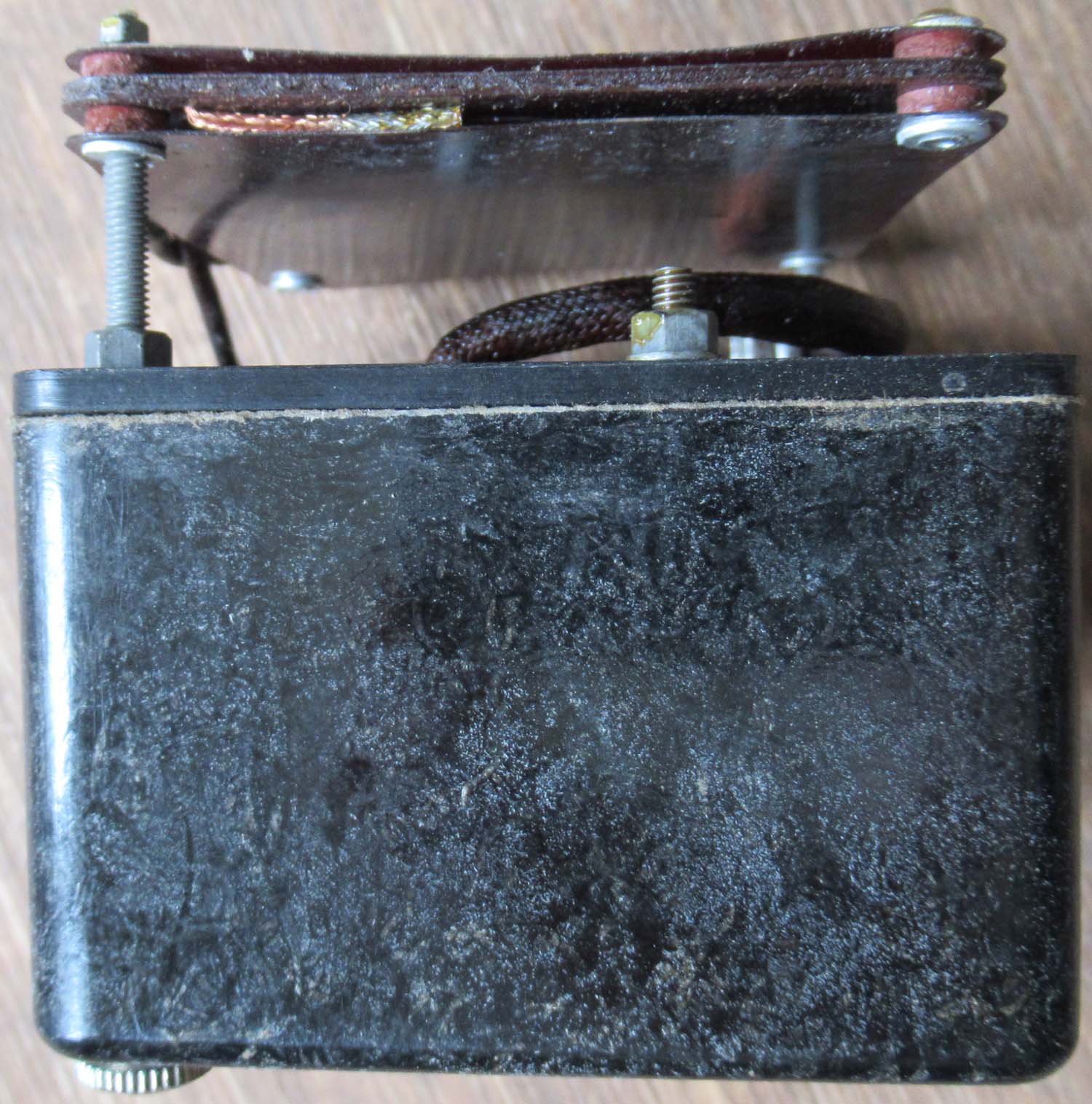

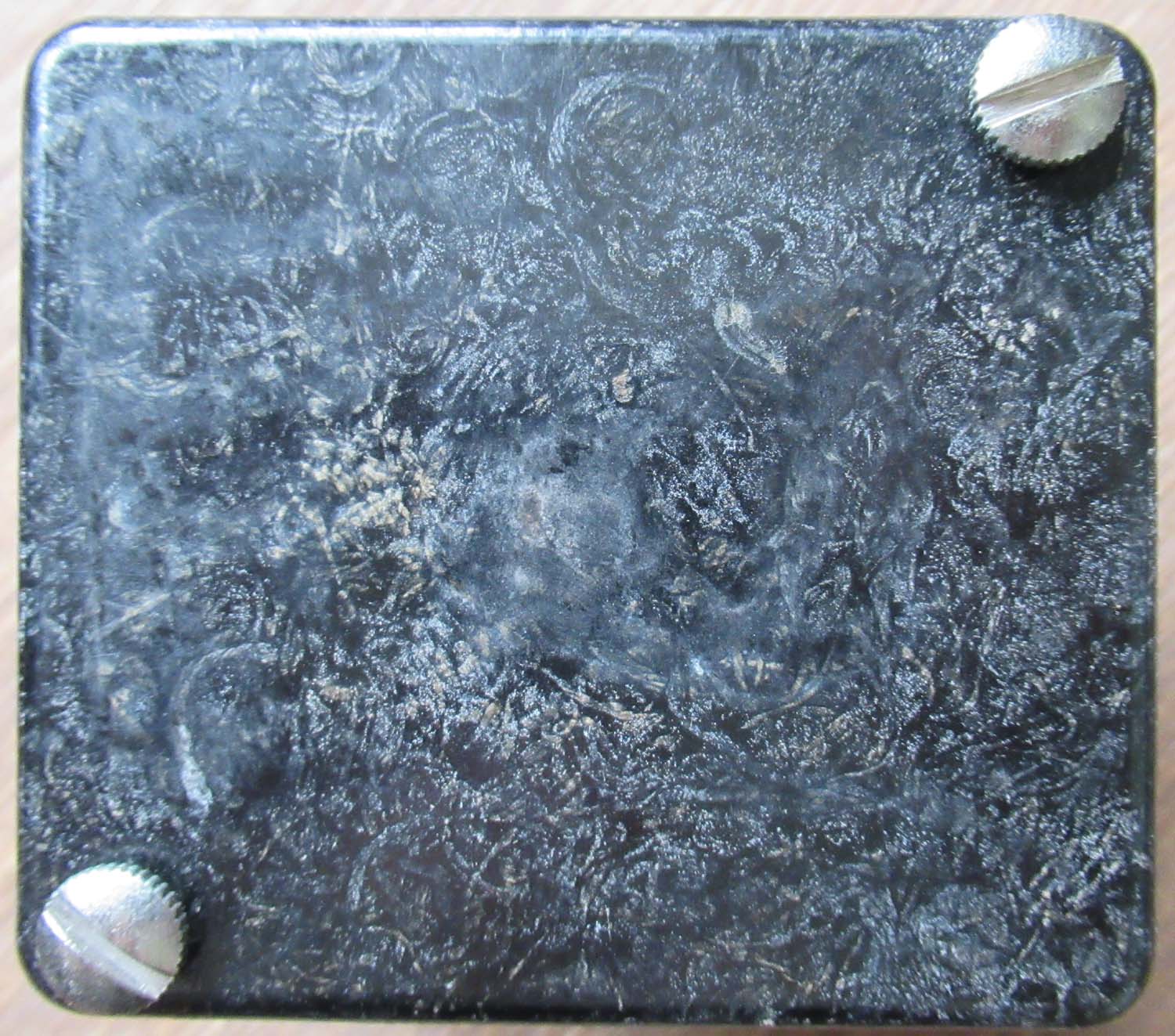

Accumulator cut out (No 18 pg 1 Elec Misc)

AM Ref: 5A/3091

Type 1


35

Spitfire Cut-out accumulator (No 17 pg 1 Elec Misc)

A/M 1615

These were fitted to Spitfires and probably other RAF wartime aircraft. Mint as new condition.

55

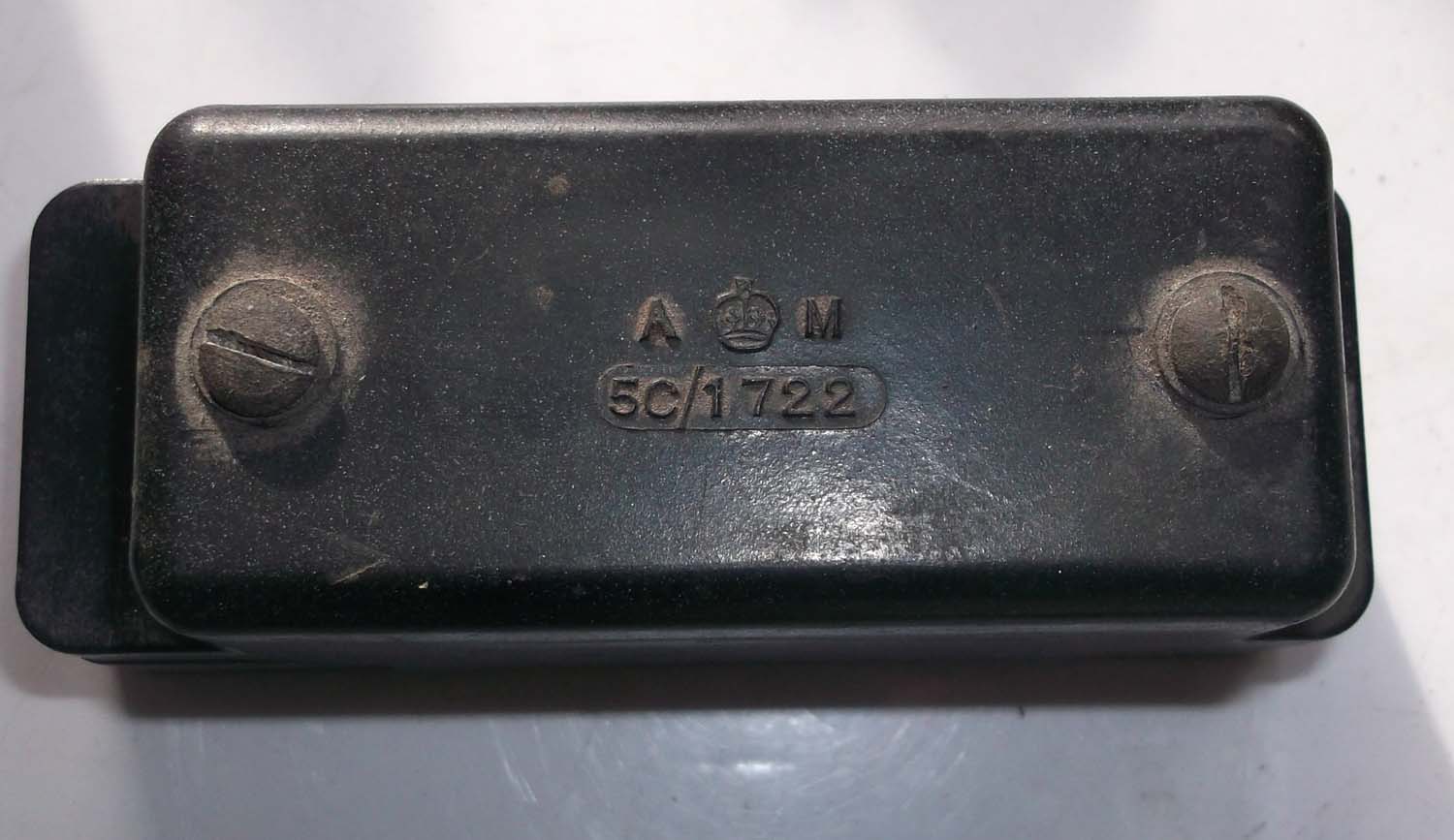

Relay Type P (No 16 pg 1 Elec Misc)

AM Ref: 5C/1722

24 volt.

 20

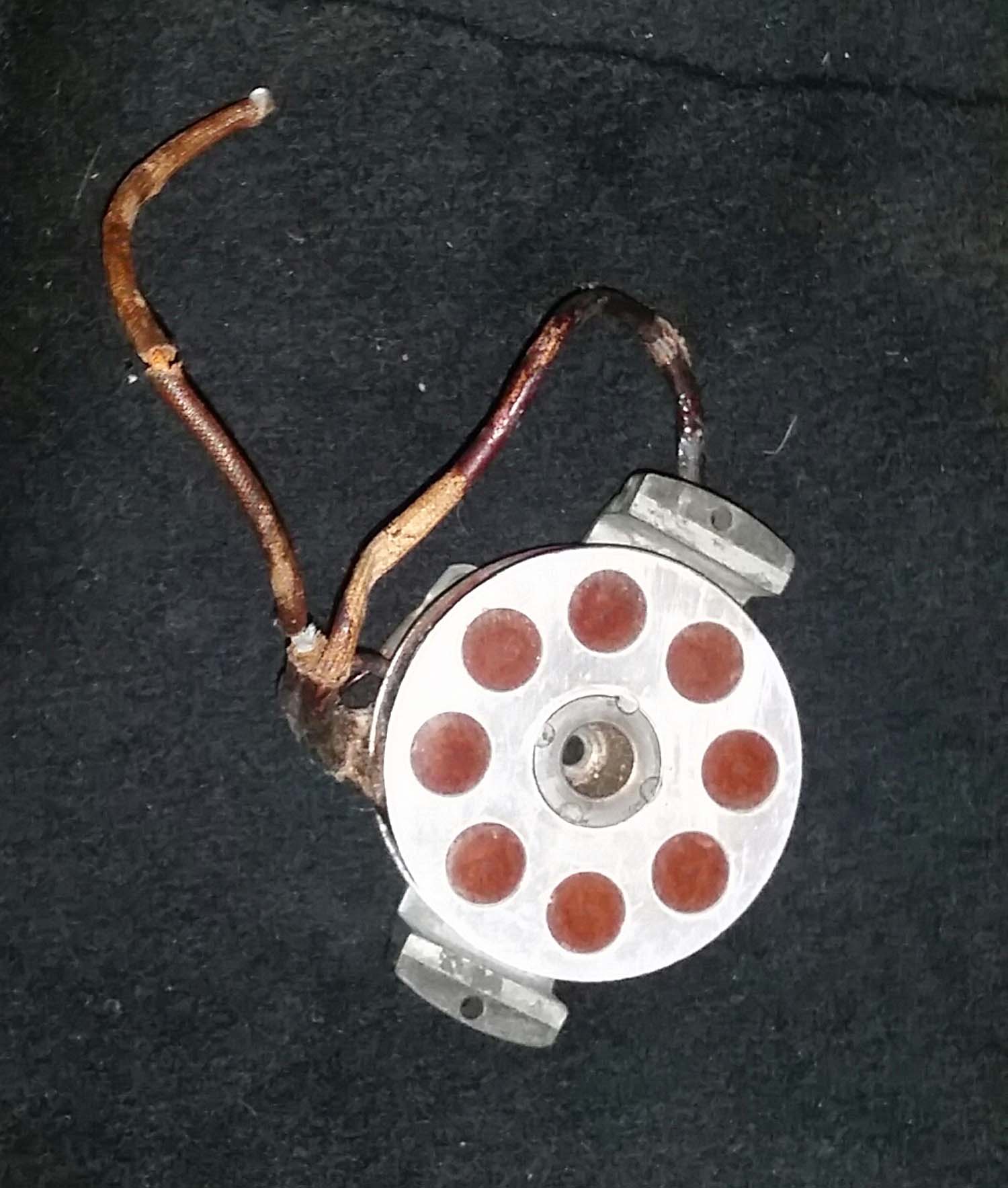

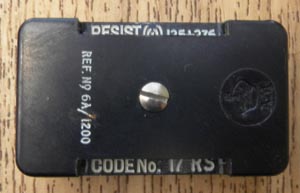

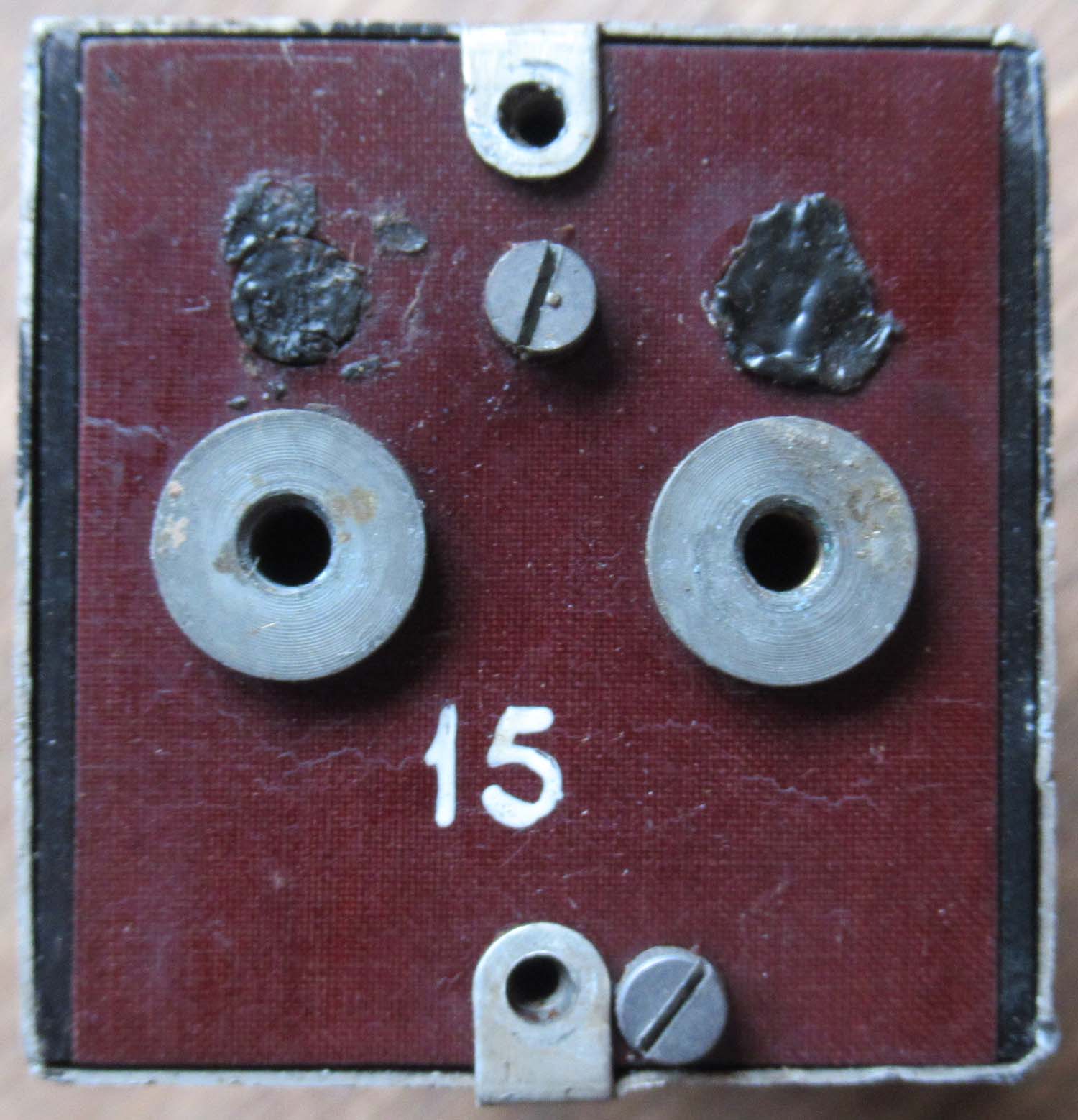

Resistor 12 and 24 volts (No 15 pg 1 Elec Misc)

AM Ref: 6A/1200

12 and 24 volt.

Wartime Air Ministry Kings crown.

20

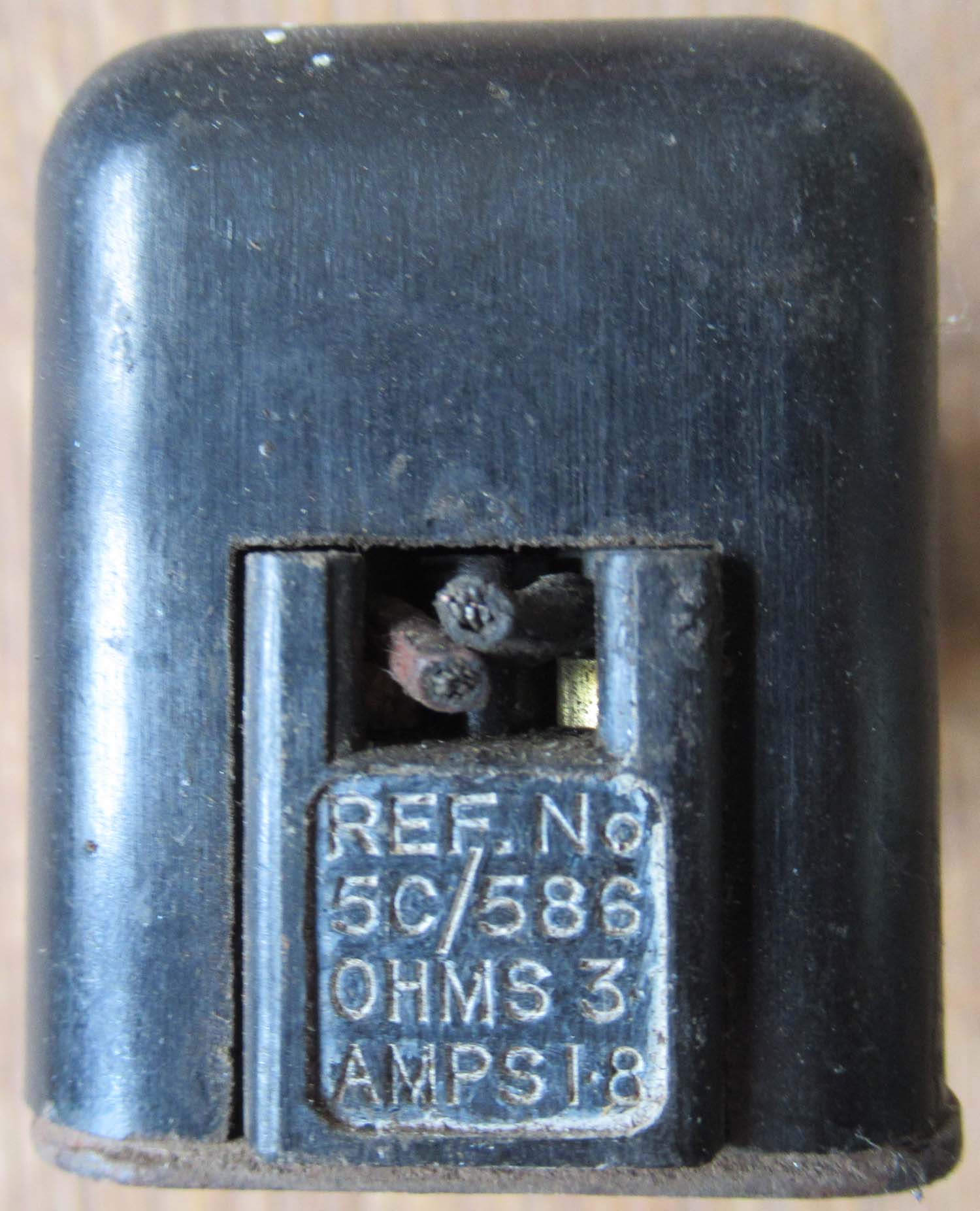

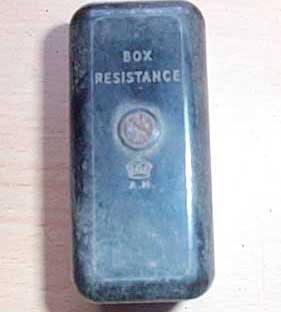

Box resistor (No 14 pg 1 Elec Misc)

AM Ref: 5C/586      3 Ohms      1.8 amps

20

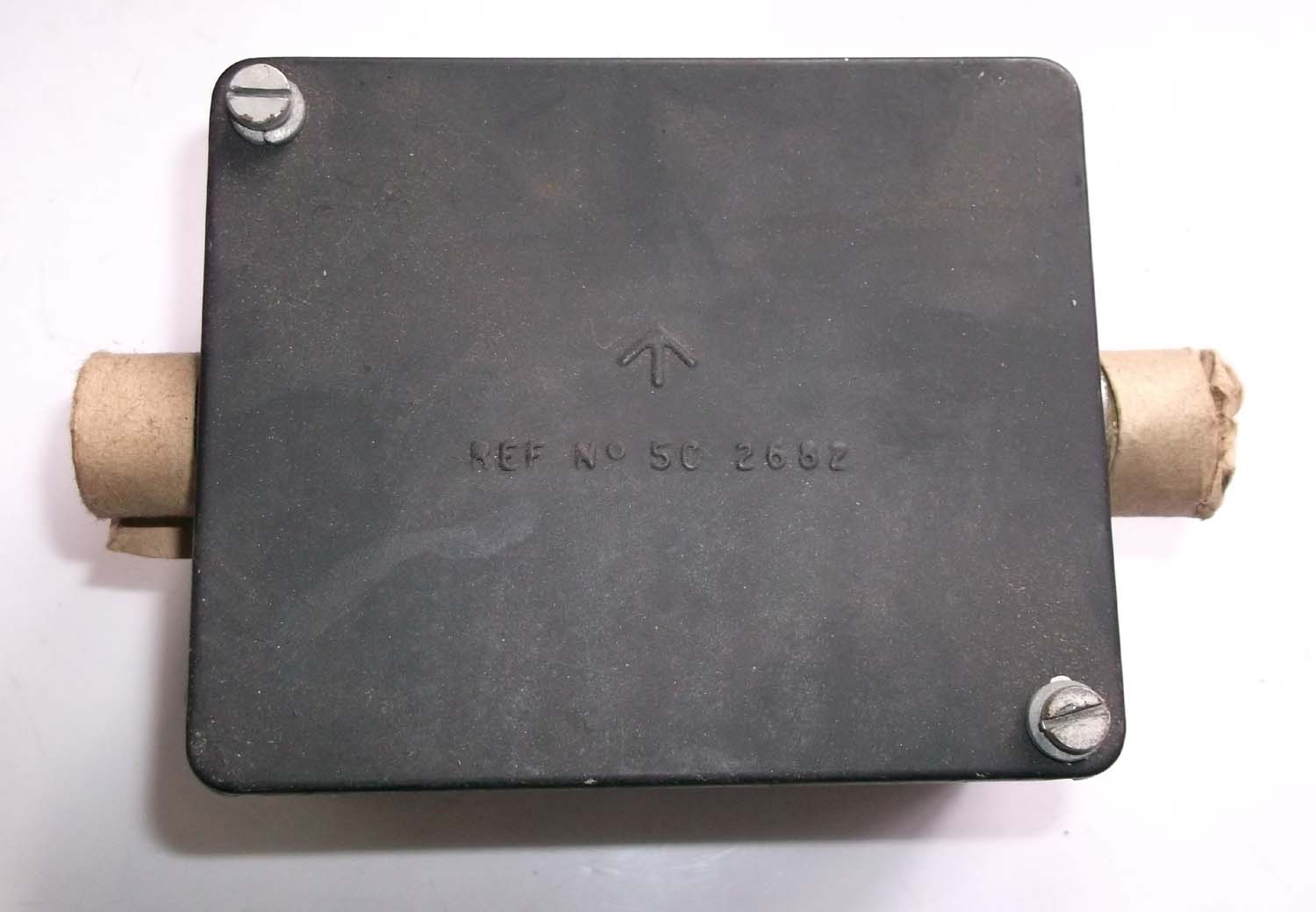

Lancaster Aircraft Suppressor (No 13 pg 1 Elec Misc)

Ref:5C/2682

As Used in the Lancaster, Halifax and Stirling

55

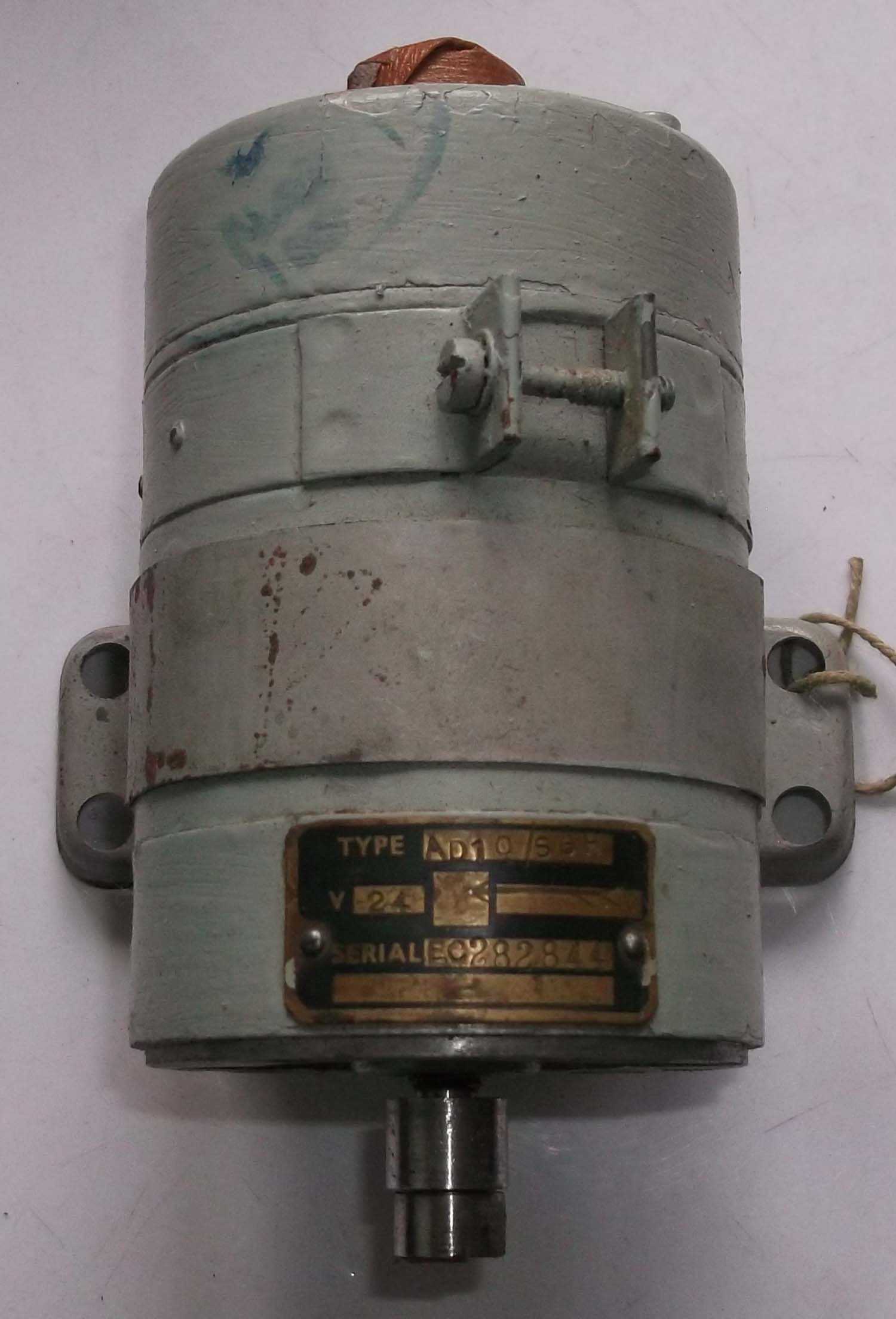

De-icing Pump Motor (No 12 pg 1 Elec Misc)

Ref:5UE/411

Type: AD10/S6H

 125

24 volt AC Rev counter Generator (No 10 pg 1 Elec Misc)

Wartime Air ministry crown marked

AM Ref: 5U/101

N3EZ

No 886

RX 11701

Appears in serviceable condition and spins freely.

 175

Dummy Terminal Block (No 9 pg 1 Elec Misc)

AM Ref: 5C/1923

Wartime Air Ministry Crown

20

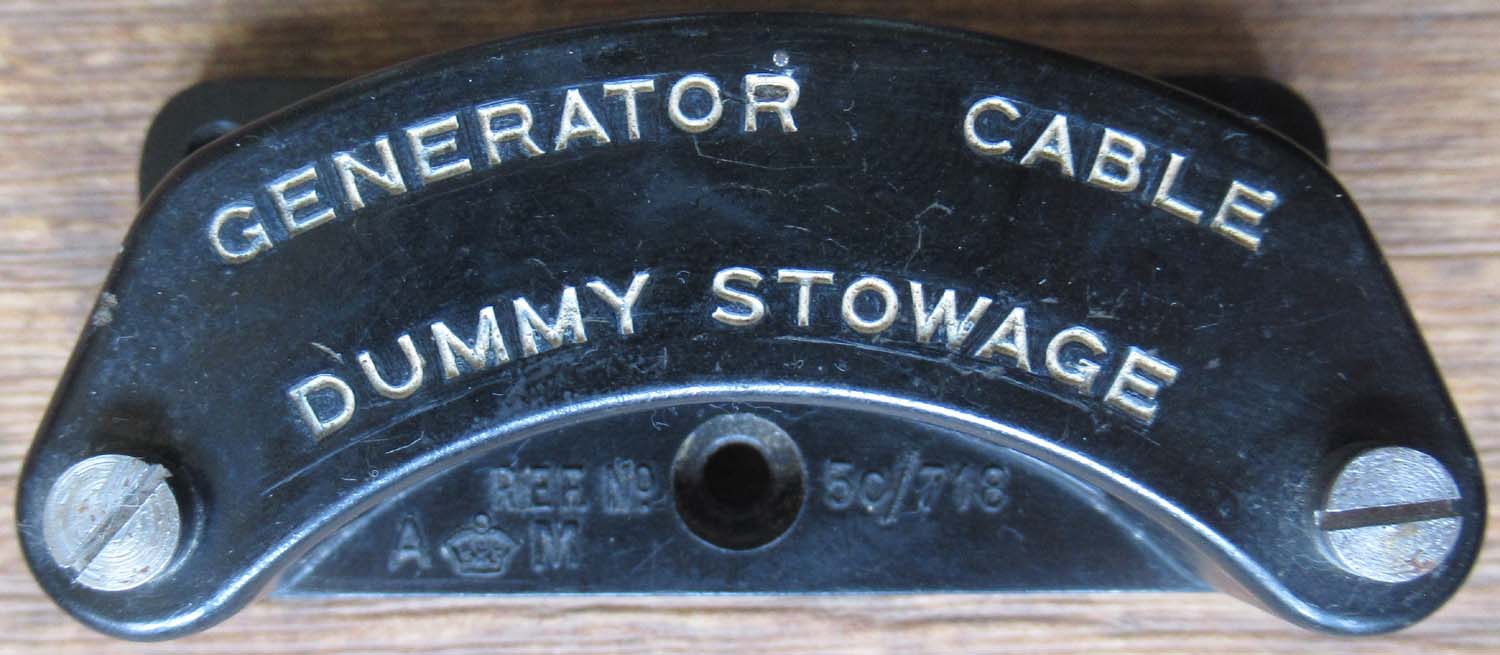

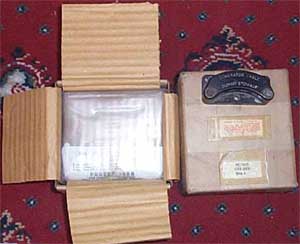

Spitfire Dummy Stowage No 8 pg 1 Elec Misc()

Fitted to the Spitfire firewall

AM Ref: 5C/718

20

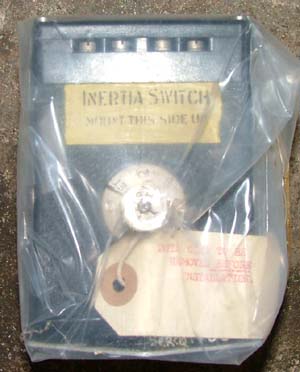

Spitfire inertia Cut-out (No 6 pg 1 Elec Misc)

85

Used in Spitfires to cut the electrics on impact.

Mint in original wrapper .



Armaments Auto Selection Control Box (No 6 pg 1 Elec Misc)

AM Ref: 5D/1270

Wartime Air Ministry Crown

55

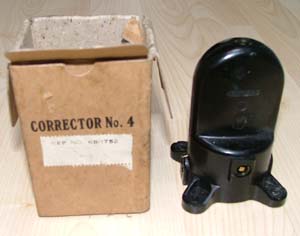

Compass Corrector ( Nos 5 Electrical Misc pg 1)

Compass corrector as fitted to all allied aircraft.

This fits to the underside of the compass tray in everything from Spitfires to Lancaster's. MINT still sealed in their boxes.

Ref:6A/1752

Find this is the instruments clocks and compasses page link here




Generator For Electrical RPM  ( Nos 11 Electrical Misc pg 1)

AM Ref: 6A/1560

Mk. 7A

Code: 59 RV

As used in the Lancaster and Other RAF Aircraft

Find this in the Instruments rev counter section link here

Glass insulator  ( Nos 20 Electrical Misc pg 1)

Pictured here are two glass insulators used in wartime aircraft to insulate aerials. They are stored like this and the price is for each individual glass.

Find these in the radio section link here

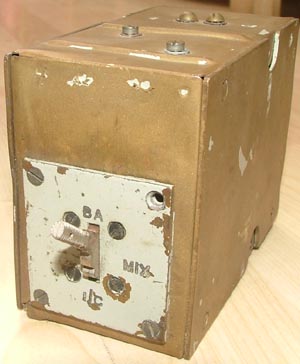

Lancaster Beam approach Switch ( Nos 1 Electrical Misc pg 1)

An early brass beam approach control switch as fitted in Lancaster's and other heavy RAF Bombers.

Beam Approach Beacon System (or BABS) is an automatic RADAR landing system developed in the early 1940s.

It is a responder (or transponder) mounted in a Hillman and placed at the end of the runway. It was interrogated by Rebecca mounted in an aircraft. It responded by transmitting dots on one side of the runway and dashes on the other. The strength of the reception in the aircraft's depended on the aircraft's position relative to the centre line of the runway. The aircraft's equipment could then determine its position relative to these dots and dashes.


Click here for Link to Radio Section



Compass corrector ( Nos 4 Electrical Misc pg 1)

 Compass corrector, bolted to the underside of the compass tray in all War Birds that used a compass.

AM Ref: 6A/1032

Out of stock

Bomb Fusing Unit ( Nos 2 Electrical Misc pg 1)

Inside is an electro mechanical solenoid which when energized, holds onto a fusing wire (fitted to the bomb), which in turn has a shear wire built into it and this removes the safety pin from the arming vane of the bomb, allowing the vane to rotate and arm the fuse when clear of the aircraft
  If the fusing unit isn't energized, the wire pulls out of the unit and the fuse will not arm the bomb. This would be the case if the pilot decided to jettison the bombs safe.

AM Ref: 5D/927

Type C

Used in Heavy Bombers Such as the Lancaster, Halifax and Stirling

Out of stock more wanted please contact me



Electrical Home page

Page 1 Electrical Miscellaneous

Page 2 Electrical switches

Page 3 Electrical connectors

Page 4 Electrical Fuses and fuse boxes











 © Copyright 2003.  SpitfireSpares.com.  All Rights Reserved.
