  1  2  3  4  5

Click on the pictures to enlarge them

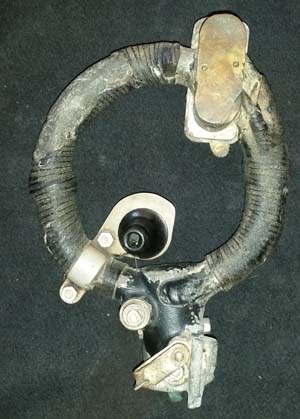

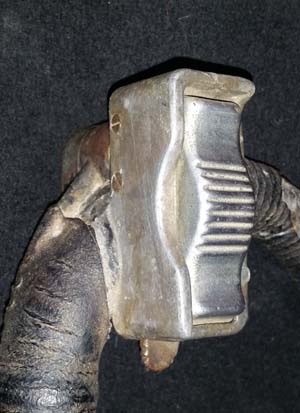

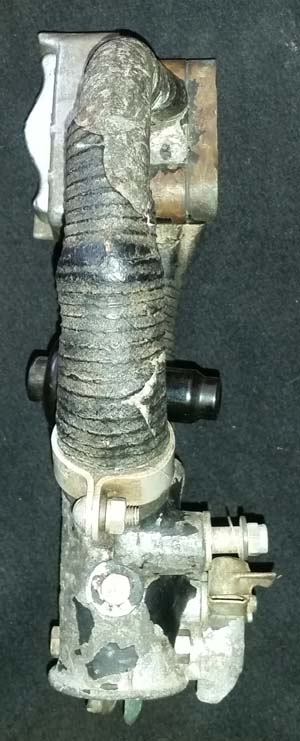

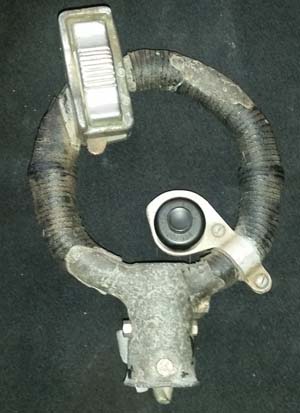

Spitfire Spade grip with camera button (pg2 cont)

Here we have a Spitfire Spade grip with a Twin Rocker Firing Button and a Camera button. Unfortunately the Part Number has worn off.

 This is in its original condition and we have not had any restoration work undertaken on it. There is some pitting on the grip at the base and on the back where the covering has come away.

The Twin Cannon and Machine Gun Firing Buttons Depress and return without sticking and the safety switch locks.

This also has an electrical button which is held in a bracket. This Bracket has number 1861 2AXG and says Camera Only.

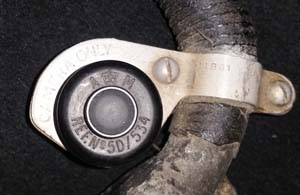

The Button has Reference 5D/534 and it depresses and returns. This tells me it could have been used on a Photo Reconnaissance Spitfire

This Grip would have been used on a Cannon armed Spitfire so anything from the Mk.V Onwards

Supermarine Spitfire

1800

Click on the pictures to enlarge them

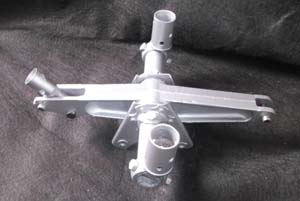

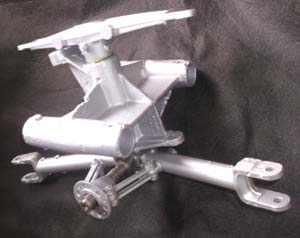

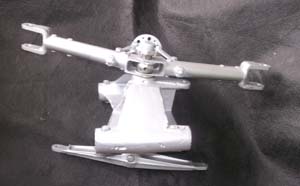

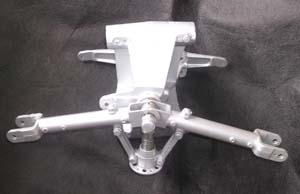

Hawker Typhoon rudder bar control assembly (pg2 cont)

This stunning 100% original piece has been restored all moving parts are free and move as they should do. Perfect for a cockpit reconstruction.

The rudder is fully adjustable and huge amount of work has gone into its restoration.

C. 94149.    Pedestal Group Complete.

D. 96568.  Bar, Rudder and Mounting. (Less pedals and adjusting wheel.)

B.101251.   Lever, Rudder Group Complete.

These three items are assembled as one group.




Out of stock more required please contact me

Click on the pictures to enlarge them

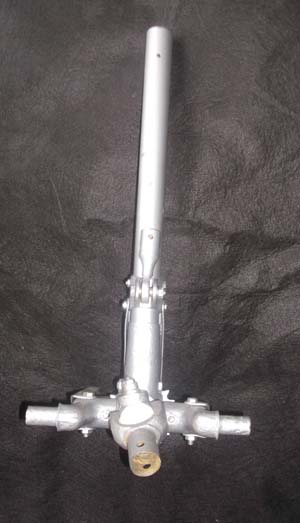

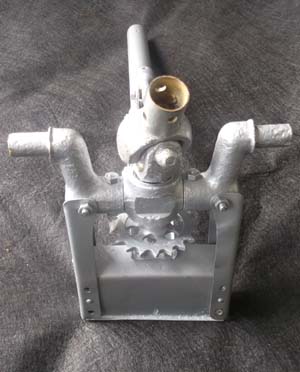

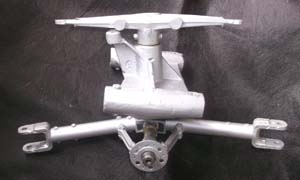

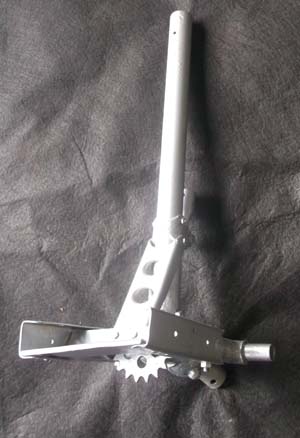

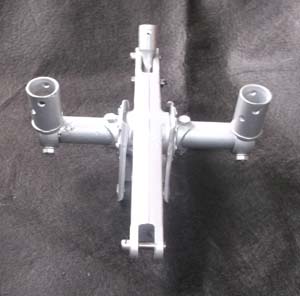

Hawker Typhoon lower control column (pg2 cont)

This stunning 100% original piece has been restored all moving parts are free and move as they should do. Perfect for a cockpit reconstruction.

Part nos B.101034.

 Control Column Lower Group. (c/w elevator connecting rod plug-end and torque tube universal joint.)





Out of stock more required please contact me

Click on the pictures to enlarge them

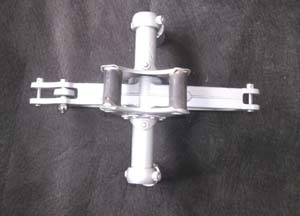

Hawker Typhoon Aileron Control cable drum assembly (pg2 cont)

Part Number B.101252.

This is a Aileron Control Cable Drum Assy in good restored condition complete with guard plate, support bracket and torque tube plug-end.

349

Click on the pictures to enlarge them

P51 D Mustang Elevator trim  (pg2 cont)

Here is a trim unit for a P51 D Mustang in good original condition.

Click on the pictures to enlarge them





1800

Click on the pictures to enlarge them

Plate number 349-69

349=Spitfire MK VC

69=Folding flap bottom

Sorry out of stock more always wanted please contact me.

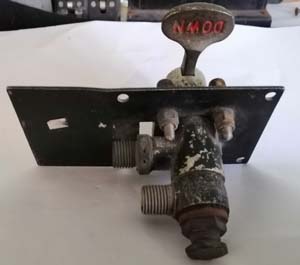

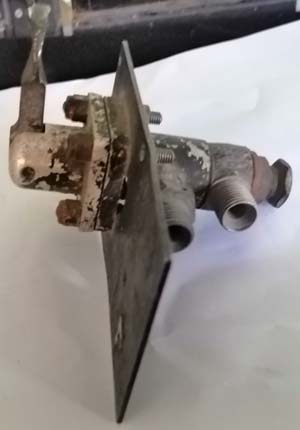

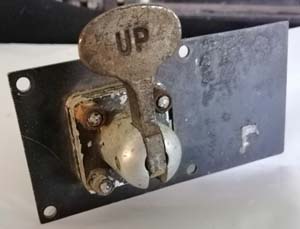

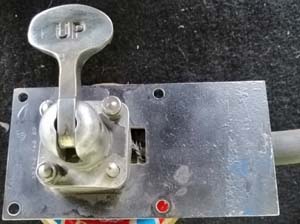

Original Spitfire flap lever (pg2 cont)

This is pretty much the hardest to find and rarest of all the parts in the Spitfire instrument panel. Used throughout all Mk's of the Spitfire its raises and lowers the flaps . It comes fitted in its original mounting plate and hose from the  MK VC Spitfire although it can be fitted to all MK's of Spitfire.

Click on the pictures to enlarge them



Shown under the MK VC Spitfire fitted with a tropical air filter.

In October 1941 the Mk Vc appeared. This used the universal c wing developed for the Mk III, which could carry either eight machine guns, four 20mm cannon or two cannon and four machine guns. The two cannon/ four machine gun combination was most common, as the four cannon version was significantly heavier, reducing performance.

Click on the pictures to enlarge them

Out of stock

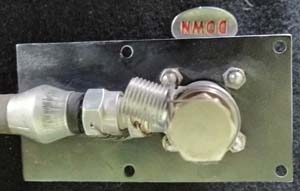

 Repro flap valve for Spitfire panel A (pg2 cont)

This is repro flap lever made of resin I bought this with some other parts and is a one off. It may suit someone waiting to find an original. If you want a top quality reproduction see the next listing.




Click on the pictures to enlarge them

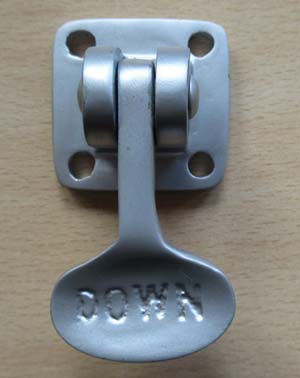

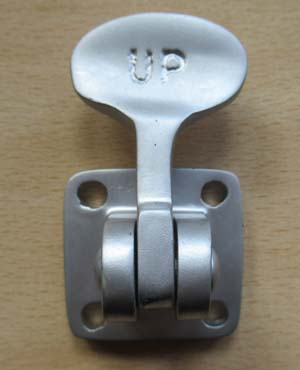

 Repro flap valve for Spitfire panel (pg2 cont)

These reproduction flap levers have been a long time coming. They are a vast improvement over the cast alloy ones we had previously.

They are perfect copies of the visible section of the flap valve and are completely machined from steel by hand.

They contain a piston and a spring so that they snap crisply up and down as in the original. I am confident there is not another reproduction of this quality currently being produced.

They have a nice heavy feel to them and will complete your Spitfire panel to the highest standard.

Click on the pictures to enlarge them

The piece shown above was used in the MK V onwards

On demand we can also supply the type used in the early Spitfires which had a more angular bracket see below.

295

If you require the early version please contact me to order.

Click on the pictures to enlarge them

Click on the pictures to enlarge them

Harness release(pg2 cont)

This is a nice little harness release and cable from a so far unidentified aircraft. It came with a collection of Beaufighter  instruments so it may be Beaufighter but not sure. contact me if you have any further  information.

 The Spitfire had a very similar lever for releasing the pilots harness in an emergency bail out situation.

A literal "jack of all trades", the Beaufighter served as a ground attack fighter, a night fighter, a torpedo bomber and an anti-shipping strike aircraft. It served in Europe, the Middle East and the Far East Theatres. It's heavy armament (the MK.VI carried six wing-mounted .303 calibre machine guns and four  fuselage mounted 20mm cannons as well as eight 90lb. rockets under the wing) and long range made it a devastating weapon wherever and however it was deployed. The Italians called it "il flagello di Dio", which meant the "Scourge of God" and the Japanese referred to it as the "Whispering Death". It obviously had a profound impact on it's opponents

Part numbers C or possibly G 59010dX2
125

Click on the pictures to enlarge them

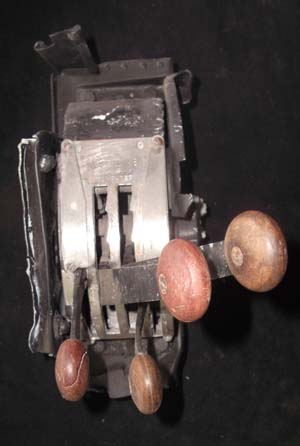

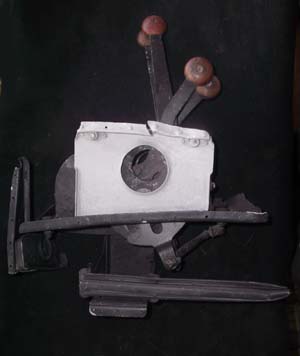

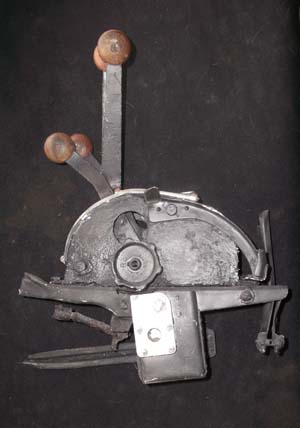

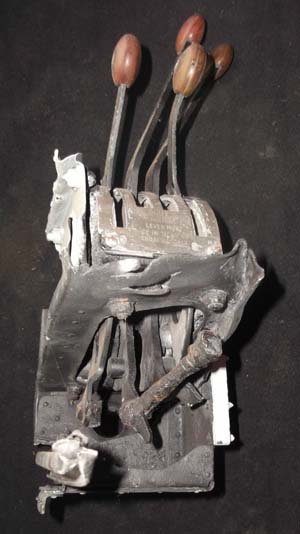

Bristol Blenheim Throttle (pg2 cont)

Here we have a  throttle from a Bristol Blenheim. Please note this is from the English Blenheim and not the Canadian Boly.

Clearly it is not in A1 condition as can be seen in the pictures but is a very rare item, all the levers move and as far as I can tell the throttle is complete is complete.





Click on the pictures to enlarge them

Out of stock more wanted contact me



Click on the pictures to enlarge them

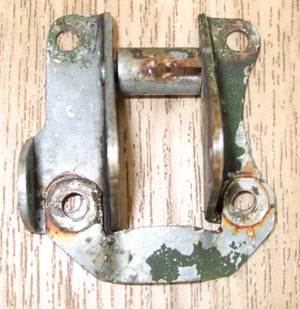

Brake lever bracket included

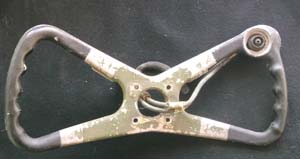

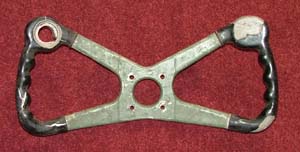

Bristol Blenheim/Bolingbroke Yoke (pg2 cont)

In superb original condition this is an extremely rare grip. This yoke is for the Canadian Built Bolingbroke which is the Canadian version of the Bristol Blenheim.

It differs in that the firing button is on the right as apposed to the left as in the British version.

British version seen under for comparison only the grip on the left is the one for sale.

As early as 1937, a prototype variant of the Blenheim, known as the Bolingbroke was flown. It had been requested by the Canadian government as a  potential replacement for the  AVRO ANSON in transport and training. This machine was taken on strength by the RCAF. A long nosed version was developed (to allow the pilot to see over the bombardier's prone position)

  Out of stock more wanted contact me

Click on the pictures to enlarge them

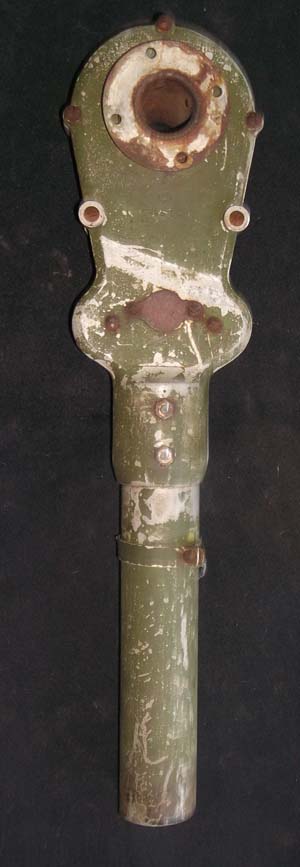

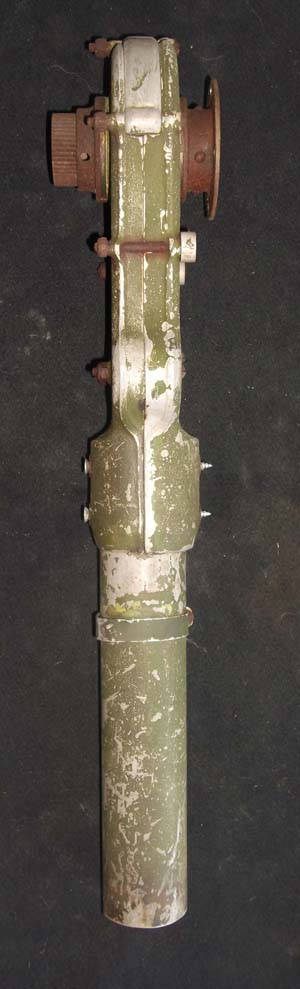

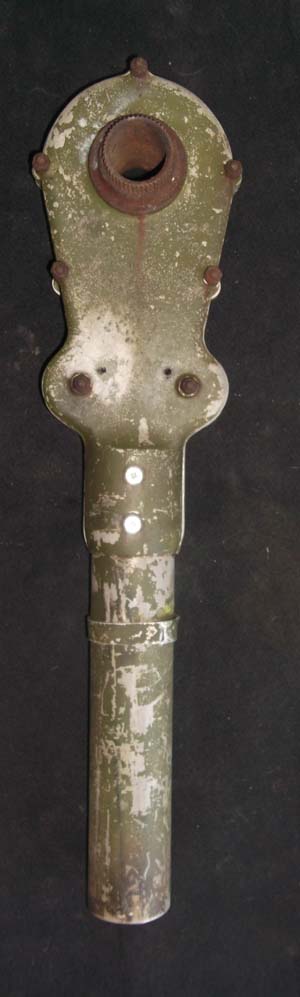

Bristol Blenheim/Bolingbroke Control Column (pg2 cont)

Again in superb original condition the control column for the Bristol Blenheim, identical to the version also fitted to the Bolingbroke. Almost a unique item there are very few surviving examples of this piece.



Out of stock more wanted contact me

Click on the pictures to enlarge them

Click on the pictures to enlarge them

Click on the pictures to enlarge them

399

Halifax Aileron parking brake (pg2 controls)

This is a really nice piece of kit complete with its original stowage bag. It is for locking the control column to the pilots seat when the aircraft is on the ground to prevent damage to the ailerons. It would have been stored on board when not in use hence the brackets on the bag.

 This has now been indentified as Halifax. The quality stamp is EEP. this is the code letter for English Electric Preston.

The 57 Part Number Denotes Halifax Mk.1

Click on the picture's under to enlarge part number

Click on the pictures under to enlarge part number

In 1938 English Electric became a 'shadow' aircraft manufacturer, able to build other companies designs for the war effort. Preston was chosen as the aircraft factory and an airfield at Samlesbury was built. 80 aircraft a month were built at the peak during 1944.

During the war production was spread across other sites in Preston to protect it in case of attack. It appears the Germans weren't aware of what the factory built.

A successful run of 5000 Hampden, Halifax and Vampires led to the design of the Canberra and Lightning

Click on the pictures to enlarge



Boeing B17 Flying Fortress rudder pedals  (pg2 controls)

This is a really nice set of B17 Rudder pedals complete and moving freely. In very nice original condition.

950





Click on the pictures to enlarge



1930s Hawker Throttle Quadrant pg2 controls)

Here is what I believe from my research to be a throttle quadrant from a 1930s Hawker Bi Plane. The closest match for it that I can see is a Hawker Nimrod although its similar in design to all the throttles used by Hawker in the 1930s. Clearly it is only the throttle control and the complete throttle would have another lever controlling the mixture.

The throttle has the following numbers stamped on it. 50967 :967:10967:209: The inspectors stamp are all 87.

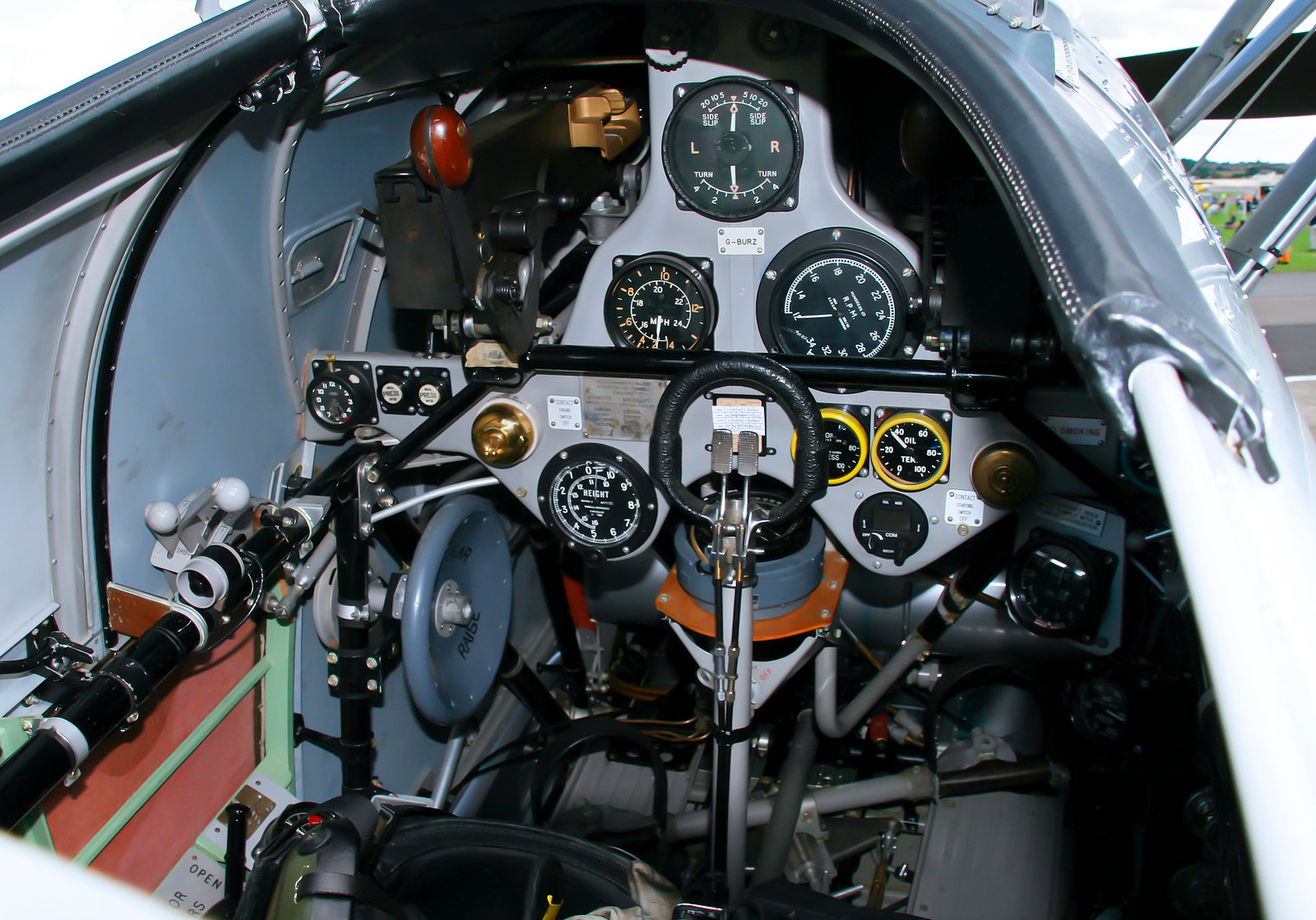

Below the Hawker Nimrod                    Click on the pictures to enlarge

495

Click on the pictures to enlarge them

The Halifax below attacked the Tirpitz

Wheel in position in a Hallifax

A Halifax returns to base after a long and dangerous mission. Can there have been a more intense feeling of relief for the crew as at this moment  they come safely into land over their own base

Handley page Halifax D.F Loop Aerial Wheel(Page2 cont)

A really nice and extremely rare wheel for a remote D.F. loop drive (aerial). Would be located in the Wireless Ops position, of the Halifax. A/M crown so manufactured before 1944.

This has the Air Ministry Ref: 10J/10595

The second of Britain's four-engine bombers to enter frontline service, Handley Page's Halifax has forever lived in the shadow of Avro's superb Lancaster. However, it was a Halifax which became the first RAF 'heavy' to drop bombs on Germany when No.35 Squadron raided Hamburg on the night of 12th/13th March 1941. Between 1941-45, the Halifax completed some 75,532 sorties (compared with the Lancaster's 156,000) with Bomber Command alone, not to mention its sterling work as both a glider tug and paratroop carrier with the Airborne Forces, maritime patrol mount with Coastal Command and covert intruder with the SOE. The Halifax was also the only RAF four-engine bomber to see action in the Middle East. Built in six major variants (and numerous sub-series within these variants) which differed primarily in the type of engine employed, no fewer than 6176 Halifax's were completed for the RAF between October 1939 and November 1946

Click on the pictures to enlarge them

299

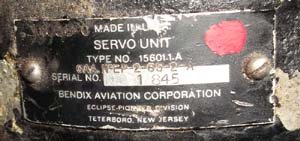

B17 servo unit type 15601-1-A (pg2 cont)



This is a servo unit used with the Bendix auto pilot system in a b17 I have been told this is the tail servo.

It has a

Its possible it was used in other US aircraft during the war, if you can tell me more about this piece please email me.



Click on the pictures to enlarge them.



The master compass which controls the auto pilot system is listed in instruments compass page link here

275





Click on the picture's to enlarge

Pedal modification for Stirling Rudder Pedals (pg2 cont)

He we have a very rare set of top rudder pedals for the Stirling. These were introduced as a modification in a similar way to the improvements in the Spitfire rudder pedals although for a different purpose. They simply clamp on to the existing pedals to help out the more vertically challenged pilots.

The Short Stirling was the RAF's first four engine bomber of the second World War. It took a major part in the strategic offensive until 1943, then it was switched to transport duties.

210

Click on the Pictures to Enlarge

Out of stock more wanted please contact me

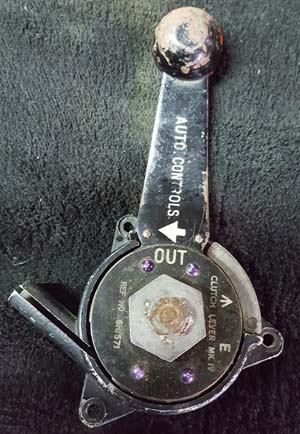

MK IV Auto control lever Avro Lincoln (pg2 cont)

This is the autopilot control from an Avro Lincoln.

A/M 6H/571

The Avro Type 694 Lincoln was a four-engine bomber and was a direct a development of the Lancaster.  It was originally known as the Lancaster Mark IV and V but later renamed Lincoln I and II.



The first of three prototypes (PW925) flew for the first time at Manchester's Ringway Airport on 9th June 1944. The type was primarily intended for use in the Far East theatre during the Second World War, but only entered RAF service in August 1945 and therefore was not deployed overseas prior to the end of the War.



The Lincoln reached operational status in August 1945 and remained in RAF service until March 1963.

It was used operationally in Kenya during the Mau Mau Uprising during the 1950s and (by the RAAF) in the Malayan emergency.  The aircraft also served within the Argentinean Air Force.



Click on the Pictures to Enlarge

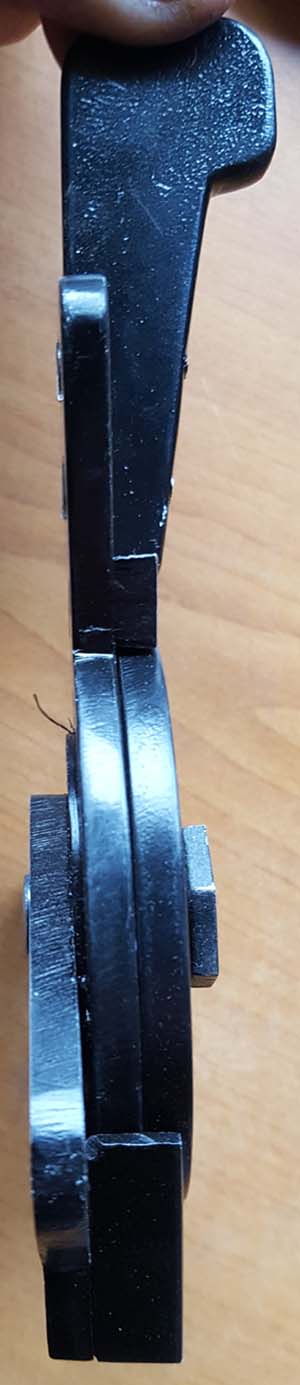

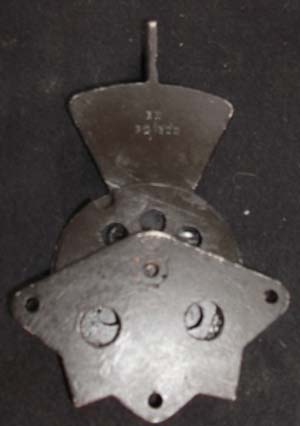

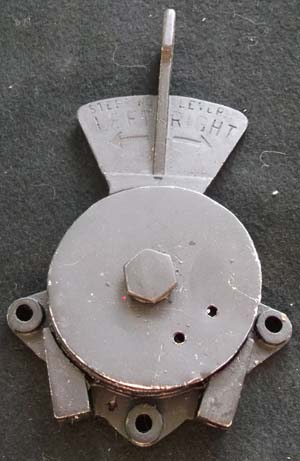

Lancaster auto pilot control (pg2 cont)

The is an steel machined and cut reproduction of the extremely rare Lancaster auto pilot, situated ion the lower LHS of the main instrument panel.

The legend is engraved this is a quality piece.

Click on the Pictures to Enlarge





295

Click on the Pictures to Enlarge

Lancaster radiator shutter control panel (pg2 cont)

This is a quality reproduction panel for the Lancaster shutter controls , it is made of alloy plate approximately 2mm thick.

125

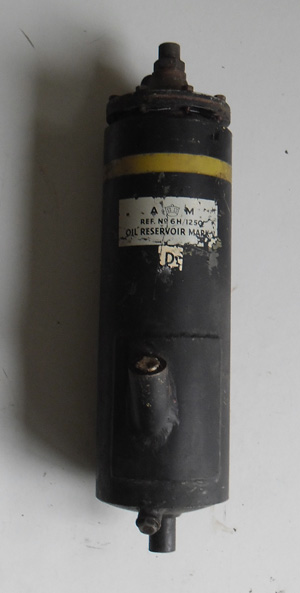

 Auto Pilot Oil reservoir A/M 6H/1250  (pg2 cont)

Here we have an Oil reservoir which forms part of the autopilot control on Wartime RAF Bombers appears to be serviceable.

Click on the picture to enlarge it.

6H/1250

Mk V

275

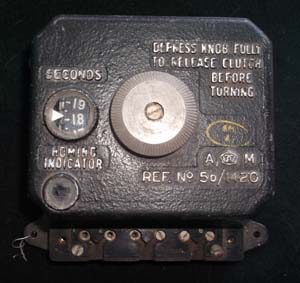

Homing Indicator (pg2 cont)

Here is a Homing Indicator as used in RAF Aircraft

Air Ministry Marked 5D/1420

49

Click on the pictures to enlarge them

Original Hurricane/Whirlwind Spade Grip

799

Original Hurricane/Whirlwind Spade Grip (pg2 cont)

A superb original spade grip as used in Hurricanes. It is stamped with the Dunlop serial AH 2040.

   This spade grip was also fitted to the following aircraft.

  Hurricane, Fairey  Battle, Fulmar, Westland Lysander I and II, Skua, Swordfish and Whirlwind.

Unfortunately someone at some stage has cut the bottom off but still a great item .



Westland Whirlwind



Click on the pictures to enlarge

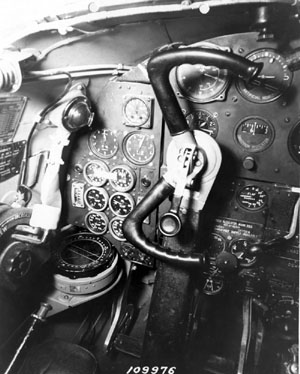

Mosquito Cockpit shown below.

Out of stock more wanted contact me

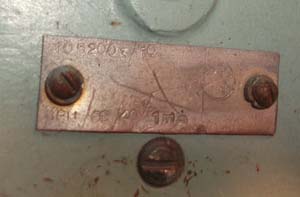

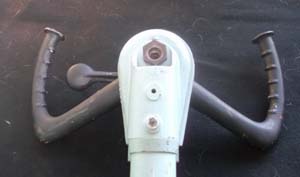

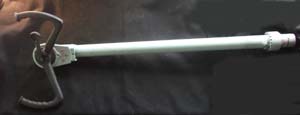

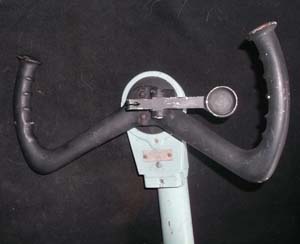

Airspeed Oxford/Mosquito Control Column and yoke(pg2 cont)

This is a control column and yoke from an Airspeed Oxford, the yoke appears identical to the one used in the Mosquito. The yoke and column are in excellent condition.

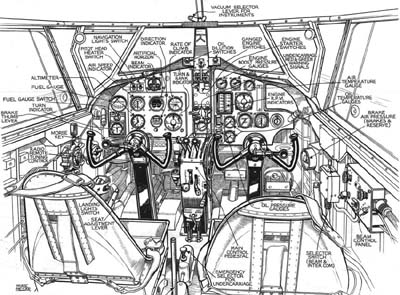

Airspeed Oxford cockpit shown below.

The Airspeed Oxford was an important British and Commonwealth aerial trainer that served through World War Two. The system appeared in two notable forms as the Oxford I and the Oxford II with a few sub variants sprinkled in between. Charged with the training of bombing and gunners for the Oxford I model and training of radio and navigation personnel in the Oxford II, the Oxford series as a whole was an indispensable addition to the United Kingdom - serving to train numerous aircrews



Click on the pictures to enlarge

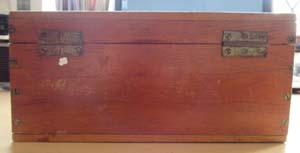

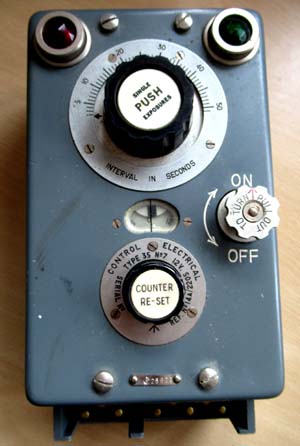

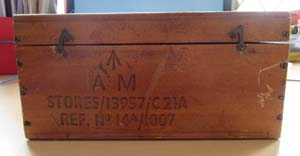

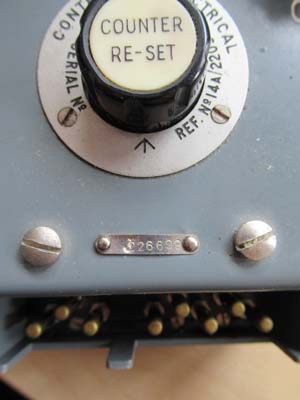

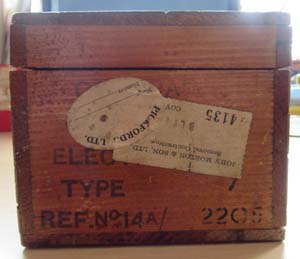

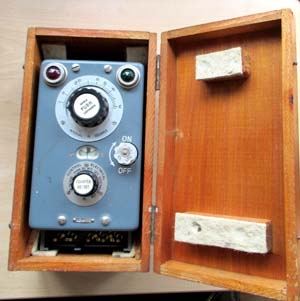

Heavy Bomber camera control (pg2 cont)

This is a good condition Control for the camera on heavy bombers to capture the fall of the bombs. It controls the flash release and is marked in thousands of feet.

Would have been fitted to many types of Heavy Bomber including the Lancaster. I am not sure if it was fitted to smaller bombers or recognisance aircraft but this is a possibility.

Air Ministry Marked

Ref: 14A/1007

275



Click on the pictures to enlarge



PRU Spitfire camera control (pg2 cont)

This is a good condition Control for the camera on PRU Spitfires and other aircraft used for recognisance. This Spitfires used for this purpose were unarmed to save weight could fly at very high altitudes and they were fast. They used their speed and height to avoid being engaged in combat and could outrun any  armed fighter.

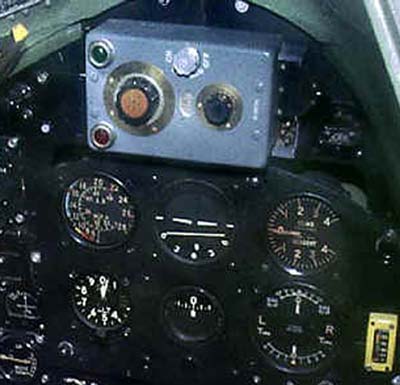

This control was mounted on the main Spitfire instrument panel. This one comes in its original box.

Ref: 14A/1007

Above a PRU Spitfire note the camera aperture top right of the real roundel.

Click on the pictures to enlarge

Seen above mounted in a PRU Spitfire

295

Click on the pictures to enlarge them.

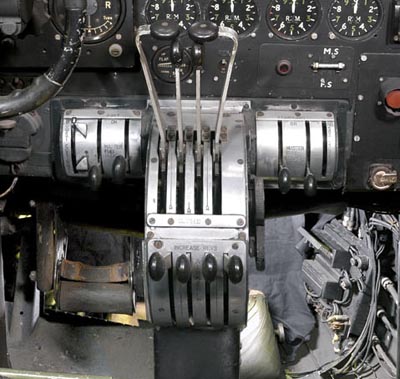

Lancaster Throttle part (pg2 cont)

This is part of the Lancaster throttle. This is an extremely well made reproduction. You can see it in situ in the picture below.



275
