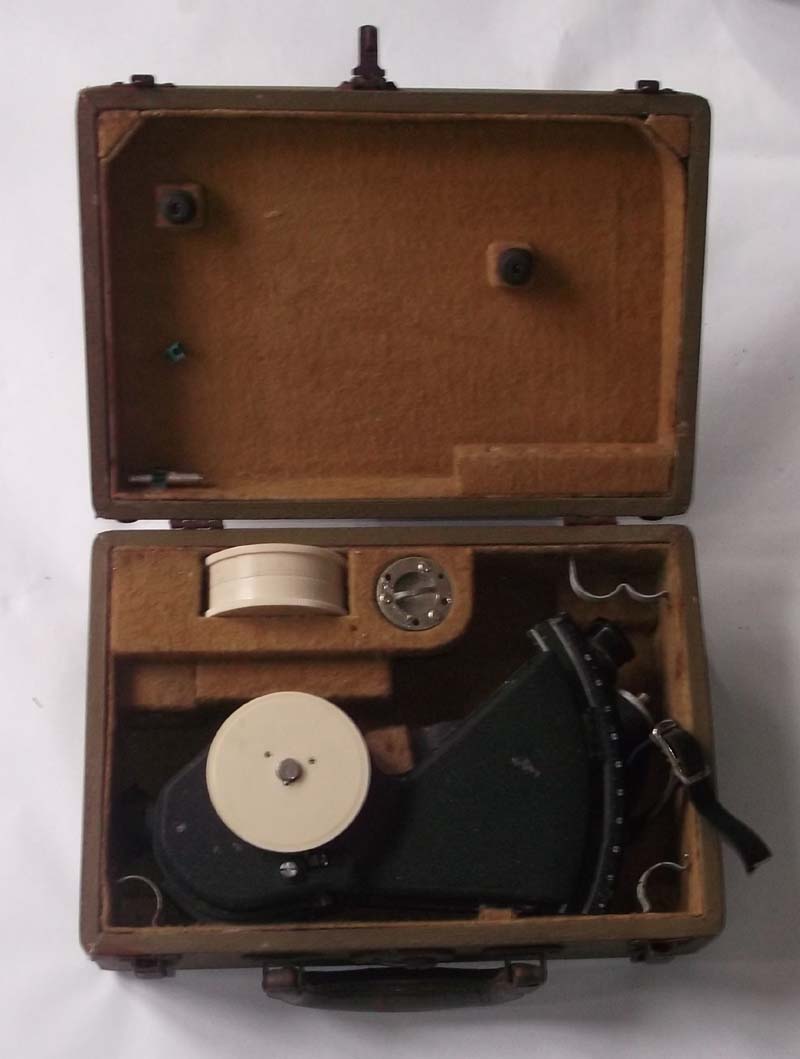

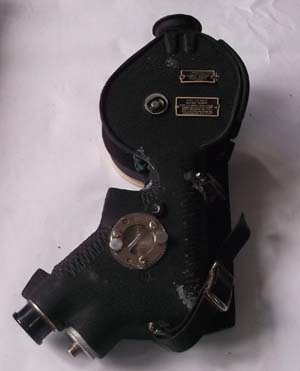

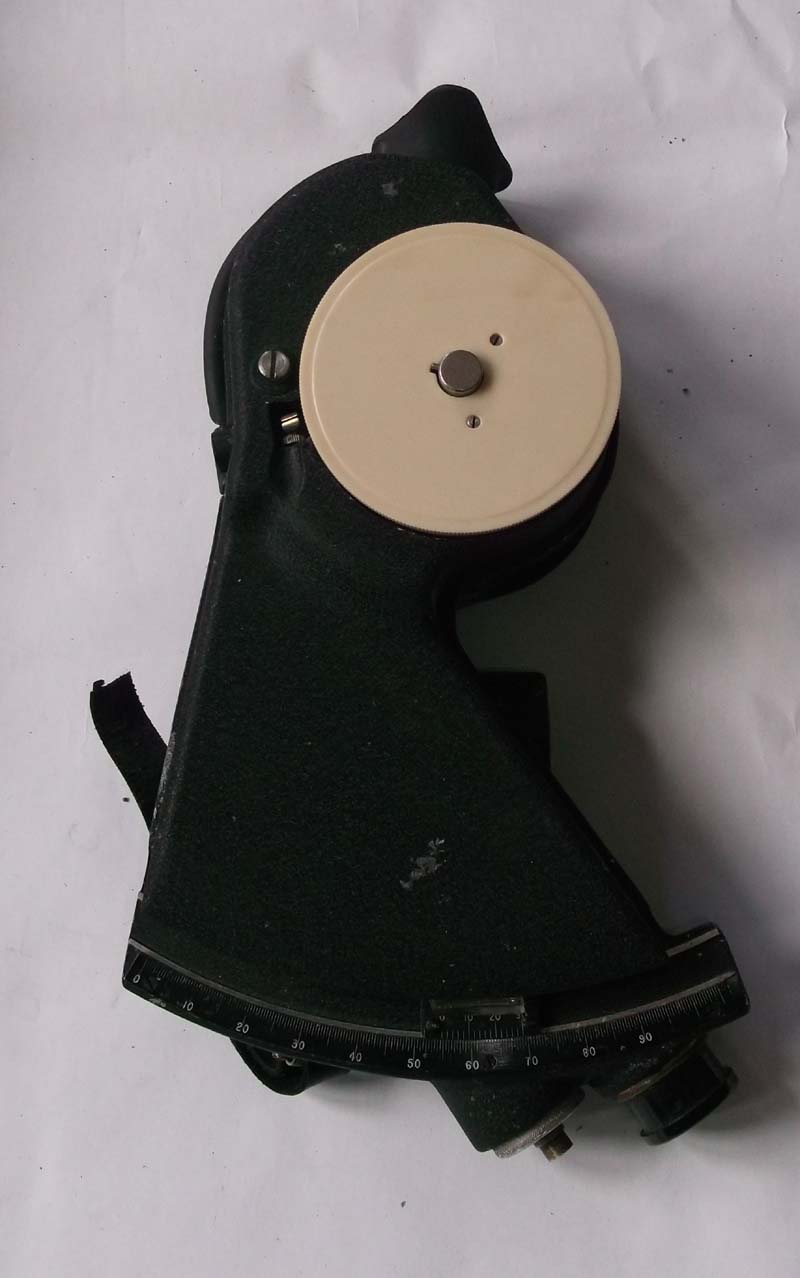

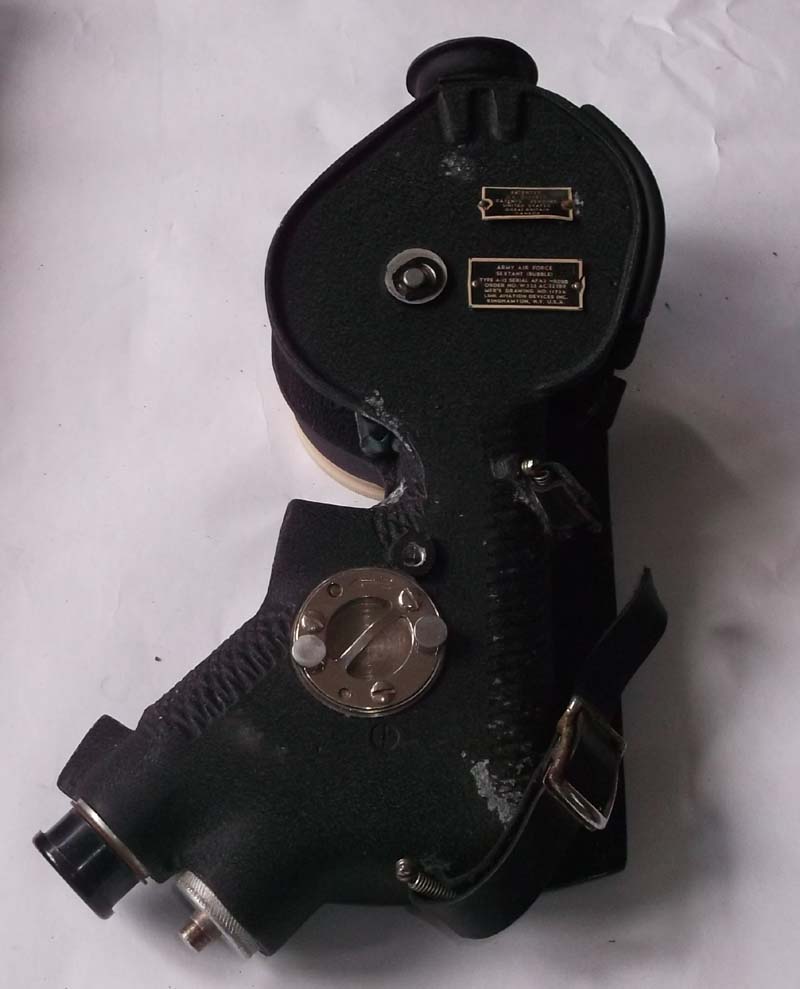

Pre WWII Sextant for open cockpit aircraft (pg16 ins)

This is a stunning and rare piece dating from before the WWII. Manufactured by the link aviation company. It was used by the military and airlines until sometime in the 1940's. It was last of a line of aircraft sextants whose design was influenced by use in open cockpit aircraft. Celestial altitudes are measured by reference to an artificial bubble horizon. The bubble is electrically lighted by standard C size batteries. The sextant is unique in that it has two different optical paths  that can be used. in one the observer looks down into the sextant and sees the reflected image of the star over head. This is the mode used for open cockpits. In the other mode the observer holds the sextant at arms length and sees the bubble reflected on a glass surface as an illuminated ring against the night sky Readings are taken from a vernier scale.

299

A contacting altimeter gives a warning or signal at a pre determined height. The Mk 111A  shown here was standard equipment in a number of Fleet air arm dive bombers.

6A/1843

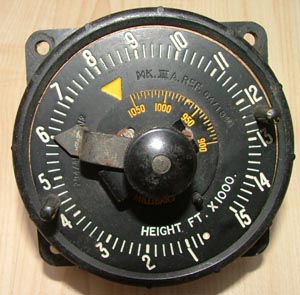

Mk 111 A Altimeter pg 16 ins

65

Click on the picture's to enlarge them.

75

Grumman Avenger altitude switch (pg16 ins)

Here we have a mint condition altitude limit switch. This aircraft used as a torpedo by both the RAF and USAF famously during the intense carrier battles of the Pacific war. This instrument  assisted in attaining the correct height for torpedo drops.

The Avenger entered U.S. service in 1942, and first saw action during the Battle of Midway. Despite losing five of the six Avengers on its combat debut, it survived in service to become one of the outstanding torpedo bombers of WWII .

Grumman Avenger in US Service



Grumman Avenger in RAF Service

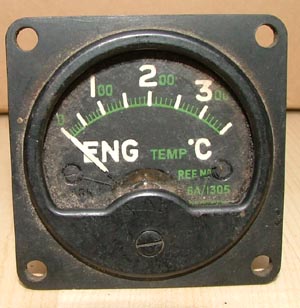

Lancaster Eng Temp

Wartime MkX Lancaster pilot aux panel

engine temperature gauge .Needs a clean

ingood condition.

6A/1305

30

180 Gallon Fuel Gauge (pg16 ins)

180 Gallon fuel gauge by Smiths.

55

Milliampmeter (pg16ins)

Good Condition

25



Click on the picture to enlarge

Av Gas Fuel gauge (pg16ins)

Nice condition Av Gas 212 gallon fuel gauge.

6A/3128

 55

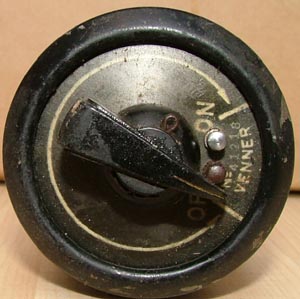

Time delay (pg16ins)

A nice little time delay switch, clockwork  motor works perfectly.

A/M 5CW/5501

 35



Click on the picture to enlarge

Oil Pressure gauge USAF (pg16ins)

A USAF pressure gauge

AN5771-2

D-103

Northern Engineering and MFG co

 55



Click on the picture to enlarge

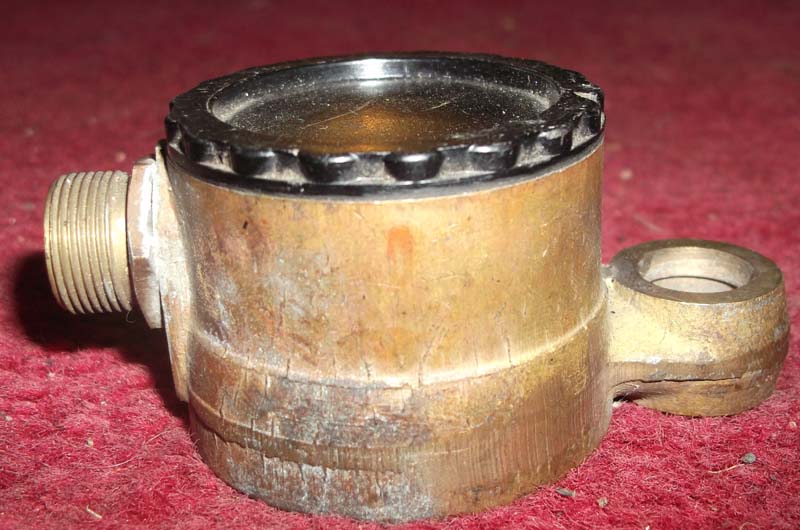

Oil Pressure Sender unit (pg16ins)

Oil pressure sender unit

Dated 1944

A/M 6A/1961

 55



Click on the picture to enlarge

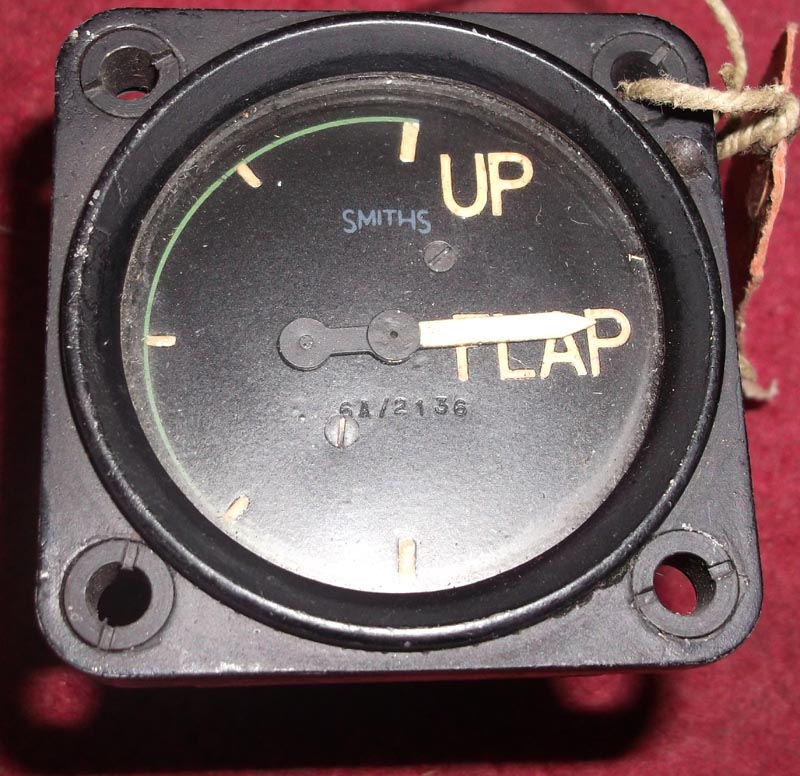

Flap position indicator (pg16ins)

Mint condition Flap position indicator type A. Used by Mosquitoes.

6A/2136

 24 volt 144/FL

 55



Click on the picture to enlarge

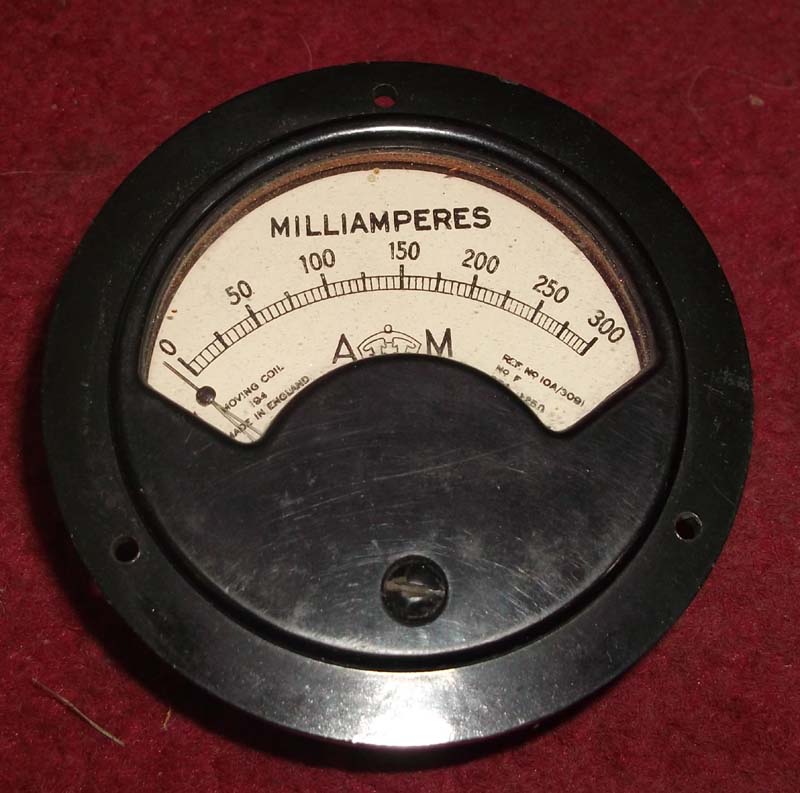

Milliamperes 10A/3091 (pg16ins)

Good condition appears servicable.

10A/3091

 55



Click on the picture to enlarge

Smiths 70 gallon fuel gauge (pg16ins)

1414 FG

6A/3722

24 Volt

 55



Click on the picture to enlarge

Smiths 20 gallon fuel gauge (pg16ins)

1091 FG

24 Volt

 55



Click on the picture to enlarge

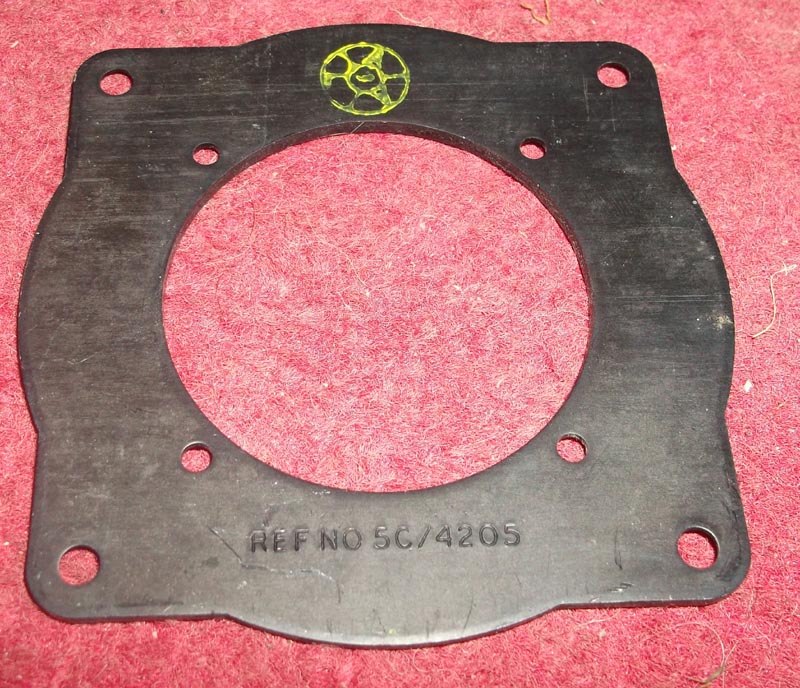

Plate adapter 5C/4205 (pg16ins)

Plate adapter used to convert instrument panels to use different instruments. The Mk I Spitfire had a plate like this to convert from the large early boost gauges to the standard wartime 2 inch versions.

5C/ 4205

 55
